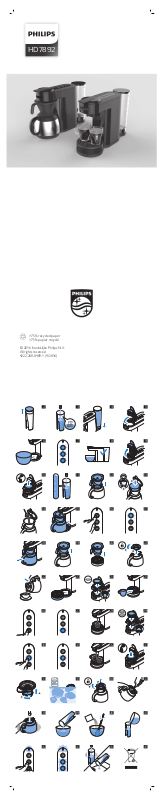

Philips HD7892 User Manual

HD7892

234

678

101112

102

141516

222324

262728

303132

383940

424344

>75% recycled paper >75% papier recyclé

4222.200.0409.1 (4/2016)

English

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Clean cold water

Use clean cold water every day. If you have not used the coffee machine for one day, you have to flush it with clean cold water before you use it again. To flush the machine, fill the water reservoir with clean cold water, place a bowl (with a capacity of at least 1500 ml) or 2 cups under the coffee spout and press the 2-cup button a few times to brew hot water until the water reservoir is empty.

Fresh filter coffee

To brew a jug of delicious coffee use good-quality pre-ground coffee . Always use a paper filter size 102. You can brew up to 7 cups of coffee in the jug.

Fresh coffee pods

Use good-quality fresh coffee pods in this machine for a full, round taste. To keep the pods fresh longer, store them in a storage container.

Important

Read this user manual carefully before you use the machine and save it for future reference.

Danger

- Never immerse the machine in water or any other liquid.

Warning

- Connect the machine to an earthed wall socket.

- Check if the voltage indicated on the bottom of the machine corresponds to the local mains voltage before you connect the machine.

- This machine can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards involved. Children shall not play with the machine. Cleaning and user maintenance shall not be made by children unless they are 8 years and above and supervised.

- Keep the machine and its cord out of the reach of children aged less than 8 years.

- Do not use the machine if the plug, the mains cord or the machine itself is damaged.

- If the mains cord is damaged, you must have it replaced by Philips, a service center authorized by Philips or similarly qualified persons in order to avoid a hazard.

Caution

- Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid.

- After unpacking the machine, never put the machine on its side. Always keep it in upright position, also during transport.

- Never put normal ground coffee or use torn pods in the pod holders of this machine, as this causes the pod holders to become blocked.

- Do not use the machine in combination with a transformer, as this could cause hazardous situations.

- Always put the machine on a flat and stable surface.

- Do not place the machine on a hotplate, directly next to a hot oven, heater or similar source of heat.

- Descale the machine at least every 3 months. Not doing so may cause the machine to stop working properly. In this case, repair is not covered under your guarantee.

- Do not use the machine at altitudes higher than 2200 metres above sea level.

- Do not use the machine at a temperature below 0°C. Water left in the machine may freeze and cause damage.

- Never pour any other liquid than clean cold water into the water reservoir.

- Never flush the machine or let it brew coffee when the spout is not in place.

- Flush the coffee machine with fresh water before you use it for the first time (see chapter ‘First use’). This causes the system to fill with water, which is essential for the machine to work properly.

- Never interrupt the descaling process.

- Never use a descaling agent based on mineral acids such as sulphuric acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar). These descaling agents may damage the machine.

- The machine is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfast and other residential environments.

- Do not disassemble the insulated jug.

- Never immerse the insulated jug in water or any other liquid, as this could cause water to enter between the walls of the jug.

- The insulated jug is not dishwasher-proof.

- When the jug is filled with coffee, keep it in upright position to prevent leakage.

- During brewing and until the light stops blinking, the filter holder is filled with hot coffee.

General description

1 1-cup pod holder 2 2-cup pod holder 3 Distribution disk 4 Collector ring 5 Drip tray 6 CALC light 7 Jug button 8 2-cup button 9 1-cup button 10 Water reservoir lid 11 Water reservoir 12 Filter holder lid 13 Filter holder 14 Insulated jug lid 15 Insulated jug 16 Measuring spoon

Electromagnetic fields

This Philips machine complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

First use

The machine starts an automatic flushing cycle when you switch it on for the first time, no matter which button you press. 1 Put the plug in an earthed wall socket. 2 Remove the water reservoir from the machine and remove the lid from

the water reservoir (Fig. 2).

3 Clean the water reservoir thoroughly in hot water, if necessary with some

washing-up liquid.

4 Fill the water reservoir with clean cold water up to the MAX indication

(Fig. 3).

5 Put the lid back onto the water reservoir and put the water reservoir back

onto the machine (Fig. 4).

6 Place the 1-cup pod holder in the coffee machine. Close the lid and

make sure it is properly locked (Fig. 5).

7 Remove the drip tray from the platform and put a bowl (with a capacity

of at least 1 liter) or the jug under the coffee outflow (Fig. 6).

8 Press one of the buttons on the control panel. All three lights start

flashing (Fig. 7).

9 The flushing cycle starts. During the flushing cycle the system fills itself

with water from the water reservoir. The machine produces more noise than during a regular brewing cycle.

10 The machine switches off when the water tank is empty (Fig. 8). 11 After the first flushing cycle, clean the collector ring and the pod holder

with hot water and some washing-up liquid or in the dishwasher. Rinse the insulated jug under the tap.

Brewing a jug of drip-filter coffee

1 Open the lid of the machine (Fig. 9). 2 Remove the pod holder, if present (Fig. 10). 3 Remove the drip tray, if present. 4 Fill the water reservoir with clean cold water up to the level required for

the number of cups of coffee you wish to brew and put the water reservoir back onto the machine (Fig. 11).

5 Rinse the insulated jug with hot tap water to preheat it .

Tip: To obtain the tastiest and hottest coffee, brew at least half a jug of coffee.

6 Place the filter holder on top of the insulated jug (Fig. 12). 7 Open the lid of the filter holder. 8 Put a paper filter size 102 in the filter holder. Make sure that you fold the

sealed edges to ensure that the paper filter stays upright during brewing (Fig. 13).

9 Use the measuring spoon to put the required amount of pre-ground

coffee in the filter (Fig. 14). Tip: Use one measuring spoon of pre-ground coffee for each cup. Use a

heaped measuring spoon for strong coffee and a level measuring spoon for mild coffee.

10 Close the lid of the filter holder. 11 Slide the insulated jug on the platform of the machine (Fig. 15). 12 Press the jug button to start the brewing process (Fig. 16).

The light in the jug button starts flashing and the brewing process

starts. (Fig. 17) When all the water from the water reservoir has passed through the

filter, the light in the jug button goes out and the machine switches

off automatically. 13 You can now remove the insulated jug from the machine (Fig. 18). 14 Remove the filter holder from the insulated jug (Fig. 19).

Tip: You can place the filter holder on the drip tray to prevent coffee from leaking onto your worktop while you pour out coffee from the jug (Fig. 20).

15 Place the jug lid on the insulated jug and turn it to the keep-warm

position (closed lock symbol) (Fig. 21).

16 Push the lever of the jug lid to pour coffee into one or more cups, (Fig.

22)

Brewing pod coffee

Brewing one cup of pod coffee

1 Fill the water reservoir with clean cold water up to the MAX indication

and put it back onto the machine (Fig. 3). Note: The MIN indication on the water reservoir indicates the minimum

amount of water required for brewing pod coffee. Always fill the water reservoir beyond the MIN level.

2 Put the plug in an earthed wall socket. 3 Open the lid of the machine by moving the lever upwards (Fig. 9). 4 Place the drip tray on the platform of the machine (Fig. 23). 5 Place one pod in the 1-cup pod holder with the convex side pointing

downwards (Fig. 24). Note: Make sure that the pod holder is clean and the sieve in the center

is not clogged, e.g. with loose coffee grounds.

Note: Make sure that the coffee in the pod is distributed evenly and press the pod lightly into the pod holder.

6 Place the 1-cup pod holder in the machine and close the lid (Fig. 5). 7 Place a cup on the drip tray (Fig. 25). 8 Press the 1-cup button to brew coffee. (Fig. 26)

The button starts flashing and the machine starts heating up (Fig. 27).

When the heating-up process is finished, the machine starts brewing

coffee (Fig. 28). After brewing, the machine switches off

automatically. 9 Remove the coffee pod after use by lifting the pod holder out of the

machine and emptying it (Fig. 10).

Caution: Be careful when you do this, for there may still be some hot water/coffee on the coffee pod(s).

Caution: Never put normal ground coffee or use torn pods in the machine, as this causes it to become blocked.

Brewing two cups of pod coffee

1 To brew two cups of pod coffee,place the deeper 2-cup pod holder in

the machine. Place two pods in the 2-cup pod holder (Fig. 29).

2 Press the 2-cup button to brew coffee (Fig. 30).

The button starts flashing and the machine starts heating up (Fig. 31).

When the heating-up process is finished, the machine starts brewing

coffee (Fig. 32). After brewing, the machine switches off

automatically. 3 Remove the coffee pods after use by lifting the pod holder out of the

machine and emptying it (Fig. 33).

Note: Instead of two pods, you can also place a cappuccino pod, a hot chocolate pod or a special pod for a mug of strong coffee in the 2-cup pod holder and place a mug under the coffee spout. In this case, press the 1-cup button instead of the 2-cup button to brew your beverage.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Cleaning the machine

Never immerse the machine in water or any other liquid.

Never clean the machine by flushing it with the lid open.

Cleaning the coffee machine

Warning: Always unplug the machine before you clean it.

1 Clean the outside of the machine with a moist cloth. 2 To prevent clogging, clean the pod holders regularly with hot water,

some washing-up liquid and a washing-up brush. If you have used the 2-cup pod holder to brew cappuccino or hot chocolate, make sure to clean it thoroughly immediately after use to remove any milk residues.

Note: You can disassemble the pod holders for more thorough cleaning (Fig. 34).

3 Clean the collector ring, the pod holders, the drip tray, the water

reservoir and the water reservoir lid in hot water, if necessary with some washing-up liquid. All detachable parts except the water reservoir can also be cleaned in the dishwasher (Fig. 35).

4 Clean the water distribution disk with a moist cloth. Be careful when you

do this. Make sure that the rubber sealing ring does not get stuck under the edge of the water distribution disk. If it does, the coffee machine starts to leak.

Cleaning the insulated jug

Warning: Do not immerse the insulated jug in water or any other liquid and do not clean it in the dishwasher as this will cause damage to the jug.

1 To remove the jug lid, turn the lid anticlockwise to 'open' position and

remove it (Fig. 36).

2 Clean the inside of the insulated jug with a soft brush, hot water and

some washing-up liquid (Fig. 37). Tip: To remove stubborn brown deposits, fill the jug with hot water and

add a spoonful of baking soda. Let the baking soda do its work for some time.

3 After cleaning, rinse the insulated jug with fresh, hot water (Fig. 38).

Flushing the coffee machine

If you have not used the coffee machine for one day, flush it with clean cold water before you use it again. Flush the machine in the following way: 1 Fill the water reservoir with clean cold water up to the MAX indication

and put it back onto the machine.

2 Put the 1-cup pod holder or the 2-cup pod holder in the machine

without pod(s).

3 Put a bowl (with a capacity of at least 1000ml) or the jug under the

coffee spout to collect the water.

4 Press the 2-cup button, wait until the machine has heated up and

brewed an amount of hot water. Then press the 2-cup button several times until the water reservoir is empty.

Descaling the machine

When to descale

Scale builds up inside the machine during use. It is essential to descale the machine when the CALC light goes on.

Why to descale

Your reasons to descale:

- It prolongs the life of your coffee machine

- It ensures maximum cup volume

- It ensures maximum coffee temperature

- The machine produces less sound during brewing

- It prevents malfunctioning If the descaling procedure is not performed correctly, scale residue remains behind in the machine. This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine.

Use the correct descaler

Only citric acid-based descalers are suitable for descaling the machine. This type of descaler descales the machine without damaging it. For the correct amount, see under ‘Descaling procedure’ below. Each descaling mixture can be used only once. Use a new descaling mixture each time. We advise you to use the special SENSEO® Descaler (HD7012/HD7011/HD7006). Read the instruction leaflet in the package. For more information on why it is important to descale, how to descale or which descaler to use, visit our website at www.philips.com/descale-senseo.

Warning: Never use a descaler based on mineral acids such as sulphuric acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar). These descalers may damage your coffee machine.

Descaling procedure

The descaling procedure consists of a descaling cycle and two flushing cycles. Do not interrupt the descaling cycle and do not switch off the machine before you have performed the two flushing cycles. 1 Fill the water reservoir with clean cold water up to the MAX indication

and pour the water into a bowl (Fig. 39).

2 Mix 50 grams of citric acid with the water in the bowl. Stir until the

powder has dissolved (Fig. 40).

3 Fill the water reservoir with the descaling mixture and place it back on

the machine (Fig. 41).

4 Remove the drip tray. Put a bowl with a capacity of at least 1.5 liters

under the spout to collect the descaling mixture (Fig. 6).

5 Place the 1-cup pod holder with a used coffee pod in it in the coffee

machine. Close the lid and make sure it is properly locked. Note: Always put a used coffee pod in the pod holder when you descale

the machine. This pod serves as a ‘filter’ to prevent the sieve or hole in the pod holder from getting clogged with scale residue.

Warning: Make sure that the lid is closed properly and the lid lever is locked before you start descaling the machine.

6 Press the 1-cup button and the 2-cup button simultaneously. 7 The CALC light, the 1-cup button and the 2-cup button start flashing (Fig.

43) slowly. During the descaling cycle, the water comes out of the machine in

intervals.When the descaling mixture in the water reservoir has been used up, the 1-cup button and the 2-cup button start flashing quickly while the CALC light continues to flash slowly.

8 Empty the bowl and place it back. 9 To clean the water reservoir, rinse it thoroughly with cold clean tap water

a few times (Fig. 44).

10 Fill the water reservoir with clean cold water up to the MAX indication

and put it back onto the machine.

The 1-cup button and the 2-cup button light up continuously. The

CALC light continues to flash slowly.

11 Press the 1-cup button and the 2-cup button simultaneously. The 1-cup

button and the 2-cup button start flashing slowly. The CALC light continues to flash slowly.

During the flushing cycle, the water comes out of the machine in

intervals.When the water reservoir is empty, the 1-cup button and the 2-cup button start flashing quickly while the CALC light continues to flash slowly.

12 When all the water in the water reservoir has been used up, the 1-cup

button and the 2-cup button start flashing quickly while the CALC light continues to flash slowly.

13 Repeat steps 8 to 12.

When all the water in the water reservoir has been used up, the

machine switches off and all the lights go out to indicate that the descaling procedure has ended.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My coffee cup overflows with cold coffee

The light in the button you pressed flashes slowly.

The light in the button you pressed flashes quickly.

The CALC light is on continuously.

I cannot close the lid properly.

You did not flush the machine before first use.

The machine is heating up.

When you are brewing drip filter coffee, the light flashes slowly during brewing.

There is not enough water in the water reservoir.

The float in the water reservoir is stuck.

You need to descale the machine.

Perhaps a used coffee pod is sticking to the water distribution disk.

Flush the machine before first use.When the machine has emptied a complete water reservoir, you can start to make a new coffee.

If heating up takes longer than two minutes, contact the Philips Consumer Care Center in your country.

The brewing cycle last approximately 90 seconds, wait until the brewing cycle has finished.

Fill the water reservoir.

Empty the water reservoir and shake it a few times to release the float. Clean the water reservoir with hot water and some washing-up liquid or in the dishwasher. If this does not help, descale the machine (see chapter ‘Descaling’).

Perform the descaling procedure as described in chapter ‘Descaling’.

If this is the case, remove the used pod.

Problem Possible cause Solution

The coffee machine produces less pod coffee than before.

The temperature of the coffee decreases quickly.

The filter coffee is not hot enough.

Coffee grounds end up in the insulated jug.

The coffee is weaker than expected.

Water leaks from the coffee machine.

I cannot open the lid.

It takes longer than before to brew filter coffee.

There is still water left in the water tank, after brewing filter coffee.

Perhaps the sieve in the center of the pod holder is clogged.

You use the wrong type of cups.

The cups are cold. Rinse the cups with hot

You have added cold milk to the coffee.

You have not brewed a full jug.

You have not removed the pod holder.

You have not preheated the insulated jug.

You have added cold milk to the coffee.

Your paper filter may have collapsed during brewing.

There may have been some water in the insulated jug when you started brewing filter coffee.

You have not used enough pre-ground coffee.

You overfilled the water reservoir.

The sieve in the center of the pod holder may be clogged.

The sealing ring may be stuck under the edge of the distribution disk.

You forgot to place the collector ring.

A vacuum has formed under the lid.

You have to descale the machine.

You left a pod holder in the machine.

This is normal. The filter coffee brewing

If the sieve is clogged, use a washingup brush to unclog the sieve. If you cannot unclog it properly with the washing-up brush, put the pod holder in the machine and descale the machine. Descale the machine (see chapter ‘Descaling’).

Use thin-walled cups. Thinwalled cups absorb less heat from the coffee than thickwalled cups.

water. You can preheat the coffee machine and cup by brewing a cup of hot water first without placing a coffee pod in the pod holder.

Do not use cold milk straight from the refrigerator.

Coffee stays hot longer if you brew a full jug of coffee to ensure that that the coffee has the right temperature.

If you do not remove te pod holder, this can lead to a longer brewing time.

Rinse the insulated jug with hot tap water to preheat it .

Do not use cold milk straight from the refrigerator.

To prevent the paper filter from collapsing, fold the sealed edges.

Always make sure that there is no water in the jug before you start brewing coffee.

Use one heaped measuring spoon of pre-ground coffee per cup for stronger coffee.

Do not fill the water reservoir beyond MAX level.

Check the pod holder. If the sieve is clogged, use a washing-up brush to unclog the sieve. If you cannot clean it properly with the washing-up brush, put the pod holder in the machine and descale the machine (see chapter 'Descaling').

Check if the sealing ring is stuck under the edge of the distribution disk. If it is, pull it out from under the distribution disk carefully.

If you forget to place the collector ring, water comes out of the lid of the machine instead of passing through the pod.

Switch of the coffee machine. Pull up the lever and wait 24 hours before you open the lid. You may need to use some force.

Always make sure the pod holders are clean and the center of the sieve is not clogged to prevent a vacuum.

To descale the machine, follow the instructions in chapter ' Descaling'.

Remove the pod holder.

process does not use up all the water in the water tank. This is normal.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU) (Fig. 45).

- Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Deutsch

Einführung

Herzlichen Glückwunsch zu Ihrem Kauf und willkommen bei Philips! Um die Unterstützung von Philips optimal nutzen zu können, sollten Sie Ihr Produkt unter www.philips.com/welcome registrieren.

Sauberes kaltes Wasser

Verwenden Sie täglich sauberes kaltes Wasser. War die Kaffeemaschine einen Tag lang nicht in Gebrauch, lassen Sie vor dem nächsten Aufbrühen sauberes kaltes Wasser durchlaufen. Um die Maschine durchzuspülen, füllen Sie den Wassertank mit sauberem kaltem Wasser, stellen Sie eine Schüssel (mit einem Volumen von mindestens 1500 ml) oder zwei Tassen unter den Kaffeeauslauf, und drücken Sie mehrmals die 2-Tassen-Taste, damit heißes Wasser durchläuft, bis der Wassertank leer ist.

Frischer Filterkaffee

Um eine Tasse bekömmlichen Kaffee zu brühen, verwenden Sie gemahlenen Kaffee in guter Qualität. Verwenden Sie immer Papierfiltertüten der Größe 102. Sie können in der Kanne bis zu 7 Tassen Kaffee brühen.

Frische Kaffeepads

Verwenden Sie frische, hochwertige Kaffeepads in dieser Maschine, um einen vollen, abgerundeten Geschmack zu erhalten. Damit die Pads länger frisch bleiben, sollten Sie sie in einem entsprechenden Behälter aufbewahren.

Wichtig

Lesen Sie diese Bedienungsanleitung vor dem Gebrauch der Maschine aufmerksam durch, und bewahren Sie sie für eine spätere Verwendung auf.

Gefahr

- Tauchen Sie die Maschine niemals in Wasser oder andere Flüssigkeiten.

Warnhinweis

- Die Netzsteckdose muss schutzgeerdet sein.

- Prüfen sie, bevor Sie das Gerät anschließen, ob die Spannungsangabe am Boden des Geräts mit der örtlichen Netzspannung übereinstimmt.

- Diese Maschine kann von Kindern ab 8 Jahren und Personen mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten oder ohne Erfahrung und besondere Kenntnisse verwendet werden, wenn sie beim Gebrauch des Geräts beaufsichtigt werden oder in den sicheren Gebrauch des Geräts unterwiesen wurden und die verbundenen Gefahren verstanden haben. Kinder dürfen nicht mit der Maschine spielen. Reinigung und Pflege dürfen nicht von Kindern durchgeführt werden, sofern sie nicht älter als 8 Jahre sind und beaufsichtigt werden.

+ 11 hidden pages
