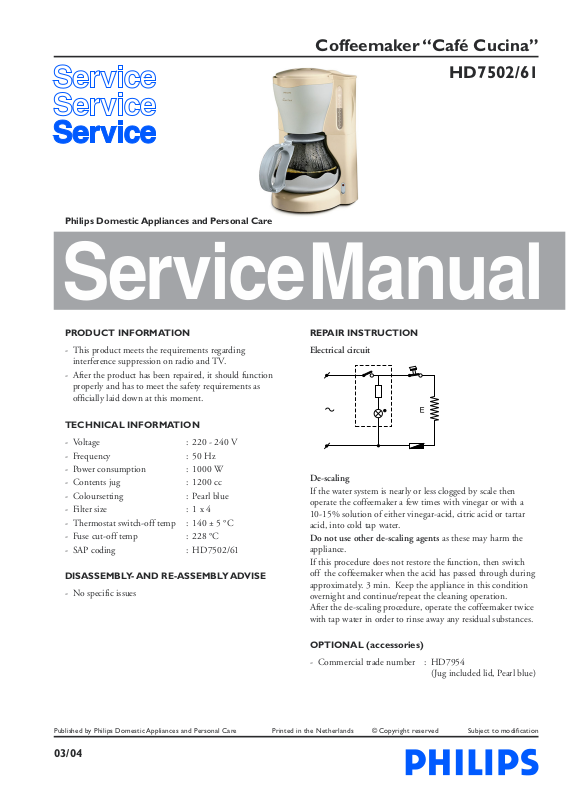

Philips HD7502-61 Service Manual

Coffeemaker “Café Cucina”

HD7502/61

Philips Domestic Appliances and Personal Care

Service Manual

PRODUCT INFORMATION

- This product meets the requirements regarding
interference suppression on radio and TV.

- After the product has been repaired, it should function
properly and has to meet the safety requirements as
offi cially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 220 - 240 V

- Frequency : 50 Hz

- Power consumption : 1000 W

- Contents jug : 1200 cc

- Coloursetting : Pearl blue

- Filter size : 1 x 4

- Thermostat switch-off temp : 140 ± 5 °C

- Fuse cut-off temp : 228 °C

- SAP coding : HD7502/61

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- No specific issues

REPAIR INSTRUCTION

Electrical circuit

De-scaling

If the water system is nearly or less clogged by scale then
operate the coffeemaker a few times with vinegar or with a
10-15% solution of either vinegar-acid, citric acid or tartar
acid, into cold tap water.

Do not use other de-scaling agents as these may harm the
appliance.

If this procedure does not restore the function, then switch
off the coffeemaker when the acid has passed through during
approximately. 3 min. Keep the appliance in this condition
overnight and continue/repeat the cleaning operation.
After the de-scaling procedure, operate the coffeemaker twice
with tap water in order to rinse away any residual substances.

OPTIONAL (accessories)

- Commercial trade number : HD7954
(Jug included lid, Pearl blue)

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

03/04

EXPLODED VIEW & PARTS LIST

1

HD7502/61

6

2

4

7

8

9

5

10

Two small
detent pieces A

3

Pos Service code Description

1

4222 247 57440

2

4222 247 56460

3

4213 247 05250

4

4222 240 06070

5

4222 246 25510

6

4222 259 04040

7

4222 259 32690

8

4222 247 58690

9

4822 418 10428

10

4222 259 17510

11

4222 247 06440

12

4222 259 20460

13

4222 247 58680

14

4222 259 33970

15

4222 259 34210

16

4222 259 19960

Tanklid Ivory
Spout
Foot
Filter locking spring

Switch Pearl blue
Filter assy blue
Dripstop assy
Juglid Pearl blue

Jug + Juglid Pearl blue
Buffer + spring Pearl blue
Hose piece
Hose piece + valve

Connecting piece
Basic pump III 230 V
Fuse assy
Thermostat

11

12

13

14

15

16
