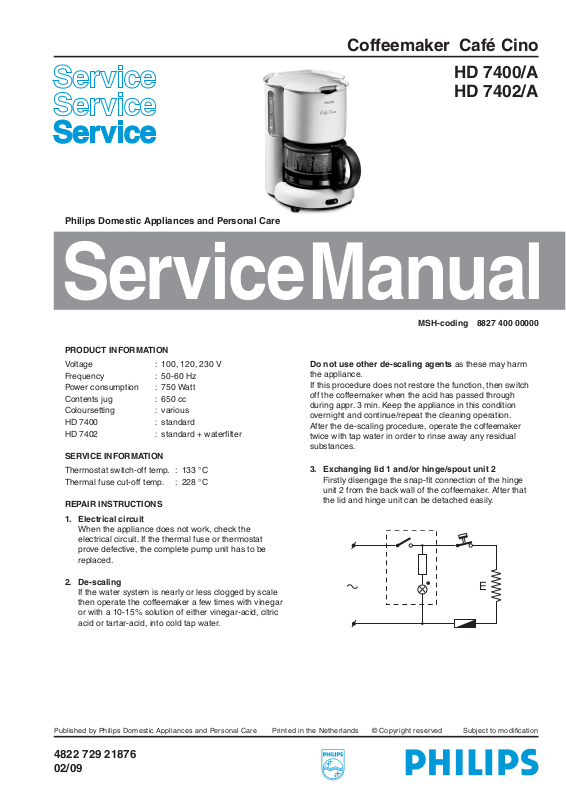

Philips HD7400A Service Manual

Coffeemaker Café Cino

HD 7400/A
HD 7402/A

Philips Domestic Appliances and Personal Care

Service Manual

MSH-coding 8827 400 00000

PRODUCT INFORMATION

Voltage : 100, 120, 230 V
Frequency : 50-60 Hz
Power consumption : 750 Watt
Contents jug : 650 cc
Coloursetting : various
HD 7400 : standard
HD 7402 : standard + waterfi lter

SERVICE INFORMATION

Thermostat switch-off temp. : 133 °C
Thermal fuse cut-off temp. : 228 °C

REPAIR INSTRUCTIONS

1. Electrical circuit

When the appliance does not work, check the
electrical circuit. If the thermal fuse or thermostat
prove defective, the complete pump unit has to be
replaced.

2. De-scaling

If the water system is nearly or less clogged by scale
then operate the coffeemaker a few times with vinegar
or with a 10-15% solution of either vinegar-acid, citric
acid or tartar-acid, into cold tap water.

Do not use other de-scaling agents as these may harm
the appliance.
If this procedure does not restore the function, then switch
off the coffeemaker when the acid has passed through
during appr. 3 min. Keep the appliance in this condition
overnight and continue/repeat the cleaning operation.
After the de-scaling procedure, operate the coffeemaker
twice with tap water in order to rinse away any residual
substances.

3. Exchanging lid 1 and/or hinge/spout unit 2

Firstly disengage the snap-fi t connection of the hinge
unit 2 from the back wall of the coffeemaker. After that
the lid and hinge unit can be detached easily.

E

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

4822 729 21876
02/09

HD 7400/A
HD 7402/A

1

2

3

8

9

10

11

12

4

5

1 4822 442 01311 Lid aubergine
4822 442 01312 Lid red
4822 442 01309 Lid white
2 4822 529 10403 Hinge/spout unit
3 4822 530 10489 Indicator set
5 4822 462 10767 Foot

6 4822 276 13953 Switch 230 V aubergine
4822 276 10453 Switch 100 V aubergine
7 4822 530 10488 Hose
8 4822 480 10213 Filter aubergine 1)
9 4822 360 10387 Dripstop set aubergine

13

7

14

6

10 4822 442 01313 Jug lid aubergine
11 4822 418 10333 Jug 650 cc aubergine 2)
12 4822 466 11868 Hotplate unit
13 4822 360 10388 Hose-valve unit
14 4822 259 10294 Pump unit 230 V
4822 259 10312 Pump unit 100 V

Notes:

1) Optional part for use as an insert in item 8:
4822 480 50501 Permanent fi lter nylon
4822 480 10104 Permanent fi lter stainless steel

2) Commercial trade number HD 7943
