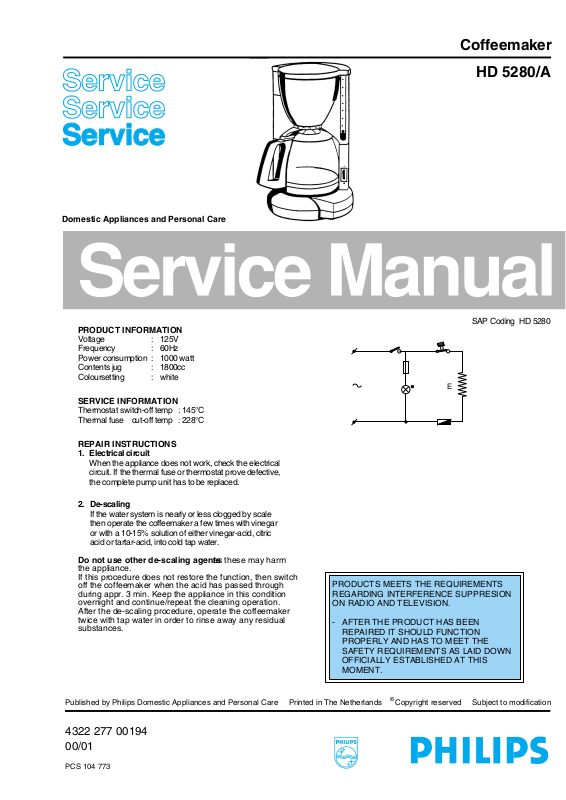

Philips HD5280A Service Manual
Coffeemaker
Service
Service
Service
HD 5280/A
Domestic Appliances and Personal Care
PRODUCT INFORMATION
Voltage |
: |
125V |
Frequency |
: |
60Hz |
Power consumption : |
1000 watt |
|
Contents jug |
: |
1800cc |
Coloursetting |
: |
white |
SERVICE INFORMATION |
|
Thermostat switch-off temp |
: 145°C |
Thermal fuse cut-off temp |
: 228°C |
REPAIR INSTRUCTIONS
1.Electrical circuit
When the appliance does not work, check the electrical circuit. If the thermal fuse or thermostat prove defective, the complete pump unit has to be replaced.
2.De-scaling
If the water system is nearly or less clogged by scale then operate the coffeemaker a few times with vinegar or with a 10-15% solution of either vinegar-acid, citric acid or tartar-acid, into cold tap water.
Do not use other de-scaling agentsas these may harm the appliance.
If this procedure does not restore the function, then switch off the coffeemaker when the acid has passed through during appr. 3 min. Keep the appliance in this condition overnight and continue/repeat the cleaning operation. After the de-scaling procedure, operate the coffeemaker twice with tap water in order to rinse away any residual substances.
SAP Coding HD 5280
E
PRODUCTS MEETS THE REQUIREMENTS REGARDING INTERFERENCE SUPPRESION ON RADIO AND TELEVISION.
-AFTER THE PRODUCT HAS BEEN REPAIRED IT SHOULD FUNCTION PROPERLY AND HAS TO MEET THE SAFETY REQUIREMENTS AS LAID DOWN OFFICIALLY ESTABLISHED AT THIS MOMENT.
Published by Philips Domestic Appliances and Personal Care Printed in The Netherlands © Copyright reserved Subject to modification
4322 277 00194 00/01
PCS 104 773
HD 5280/A
1
2
3
16
14
15
5
23
8
12
13
9
10
4
11
7
22
6
17
19
18 |
20 |
21 |
1 |
9965 000 02865 |
Reservoir cover |
|
2 |
9965 000 02910 |
Top cover |
|
3 |
9965 000 02913 |
Outlet tube |
|
4 |
9965 000 02914 |
Switch |
12A - 125Volt |
5 |
9965 000 02915 |
Bottom cover |
|
6 |
9965 000 02916 |
Hose & clamp |
|
7 |
9965 000 02917 |
Hose & check valve |
|
8 |
9965 000 02918 |
Filter |
|
9 |
9965 000 02919 |
Basket (holder) |
|
10 |
9965 000 02920 |
Carafe lid |
|
11 |
9965 000 02921 |
Carafe assembly |
|
12 |
9965 000 02922 |
Drip stop |
|
13 |
9965 000 02923 |
Water level |
|
14 |
9965 000 02924 |
Set rings |
|
15 |
9965 000 02925 |
Silicon ring |
|
|
|
|
|
169965 000 02926 Warming plate
179965 000 02927 Heating element
189965 000 02928 Thermostat clamp
199965 000 02929 Fuse clamp
209965 000 02930 Thermostat
219965 000 02934 Heating clamp
229965 000 02935 Fuse & leads
239965 000 02936 Rubber feet
24 4222 001 91540 DFU |
GBR/FRA/ESP |
|
|
|
|
