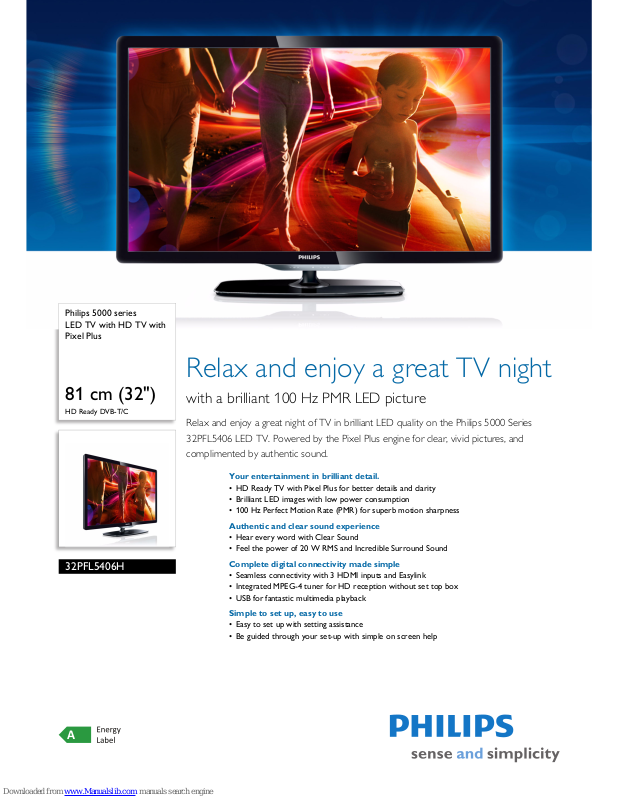

Page 1
A
Philips 5000 series
LED TV with HD TV with
Pixel Plus
81 cm (32")
HD Ready DVB-T/C
32PFL5406H
Relax and enjoy a great TV night
with a brilliant 100 Hz PMR LED picture
Relax and enjoy a great night of TV in brilliant LED quality on the Philips 5000 Series
32PFL5406 LED TV. Powered by the Pixel Plus engine for clear, vivid pictures, and
complimented by authentic sound.
Your entertainment in brilliant detail.
• HD Ready TV with Pixel Plus for better details and clarity
• Brilliant LED images with low power consumption
• 100 Hz Perfect Motion Rate (PMR) for superb motion sharpness
Authentic and clear sound experience
• Hear every word with Clear Sound
• Feel the power of 20 W RMS and Incredible Surround Sound
Complete digital connectivity made simple
• Seamless connectivity with 3 HDMI inputs and Easylink
• Integrated MPEG-4 tuner for HD reception without set top box
• USB for fantastic multimedia playback
Simple to set up, easy to use
• Easy to set up with setting assistance
• Be guided through your set-up with simple on screen help
Page 2
32PFL5406H/12
Highlights
LED TV with HD TV with Pixel Plus
81 cm (32") HD Ready DVB-T/C
HD TV with Pixel Plus
Pixel Plus is a digital picture processing
te
chnology that increases the number of lines
and the number of pixels. The result is razor
sharp pictures with incredible detail and depth,
every time and from any source.
LED
LED lighting technology is the most advanced
available. In this TV it combines an eye-catching
minimalistic design with stunning image quality,
as well as having the lowest power
consumption in its category. Another
environmental benefit is that LED lighting
technology does not contain hazardous
materials. With an LED backlight you can enjoy
low power consumption, high brightness,
incredible contrast and sharpness and vibrant
colours.
100 Hz Perfect Motion Rate
Combining the refresh rate of the panel and
un
ique image processing, Perfect Motion Rate
(PMR) creates extreme motion sharpness for
clear and vibrant images even with fast onscreen motion.
Clear Sound
Critical moments in a movie or your favourite
show are too often missed. Clear Sound is an
innovative audio technology that significantly
increases the intelligibility of vocalisations,
whether spoken or sang. It ensures you hear
every word, so you can enjoy what you're
watching to the fullest.
20 W RMS Incredible Surround Sound
Feel the power of the music beat and the
at
mosphere of the movies. The powerful 20 W
RMS (2 x 10 W RMS) amplifiers create a lifelike
soundstage. The Incredible Surround Sound
allows you to experience total surround with
greater depth and width of sound. It gives a
clear and spacious sound stage complementary
to the rich viewing experience.
3 HDMI inputs with Easylink
HDMI is a single cable to carry both picture
and audio signals from your devices to your
TV, saving you from cable clutter. It carries
uncompressed signals, ensuring that you have
the highest quality from source to screen.
Together with Philips Easylink, you need only
one remote control to perform most
operations on your TV, DVD, Blu-ray, set top
box or home theatre system. Enjoy high quality
picture and sound without clutter or fuss.
USB (multimedia)
The USB connector allows access to jpeg
photos, MP3 music and video files on most
USB sticks (USB memory-class device). Plug
the USB into the slot on the side of the TV and
access the multimedia content using the easy
on-screen content browser. You can now view
and share your videos, photos and music.
Integrated DVB tuner MPEG-4
The integrated digital tuner lets you receive
digit
al cable and terrestrial TV without an
additional set top box. Enjoy quality TV clutter
free.
Easy to set up
The TV is easy to set up with the step-by-step
setting up assistant. The assistant shows a few
screens with easy to choose options, from
where you can select your essential settings.
The TV performance is set to your personal
preference without difficult terms or
settings—all quickly and easily.
A
Energy Class A
EU Energy Label
For many years Philips has pro-actively
been workin
g on the reduction of both
on-mode and standby power
consumption of its televisions and as a
result most Philips televisions has achieve
green EU energy labels in 2010. The
greener the label, the lower the on-mode
power consumption and the lower your
energy bill and friendlier to the
environment.
Perfect Motion Rate
x3
Page 3
Issue date 2011-07-15
Version: 9.7.5
12 NC: 8670 000 75191
EAN: 87 12581 59843 3
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
32PFL5406H/12
Specifications
LED TV with HD TV with Pixel Plus
81 cm (32") HD Ready DVB-T/C
Picture/Display
• Display: edge LED backlight
• Diagonal screen size: 32 inch / 81 cm
• Panel resolution: 1366 x 768p
• Aspect ratio: 16:9
• Brightness: 400 cd/m²
• Peak Luminance ratio: 65 %
• Dynamic screen contrast: 500,000:1
• Response time (typical): 5 ms
• Picture enhancement: Pixel Plus,
Acti
ve Control +
Light sensor, 100 Hz Perfect Motion Rate
Sound
• Output power (RMS): 20 W (2 x 10 W)
• Sound Enhancement: Auto Vo
lume Leveller, Clear
Sound, Incredible Surround, Treble and Bass
Control
Connectivity
• Number of HDMI connections: 3
•HDMI features: Audio Re
turn Channel
• EasyLink (HDMI-CEC): Remote control passthrou
gh, System audio control, System standby,
Pixel Plus link (Philips), One touch play, System info
(menu language)
• Number of components in (YPbPr): 1
•Number of scarts (RGB/CVBS): 1
• Number of USBs: 1
• Other connections: Antenna IEC75, Common
I
n
terface Plus (CI+), Digital audio out (coaxial), PC-
in VGA + Audio L/R in, Headphone out
Multimedia Applications
• Multimedia connections: USB
• Video Playback Formats: H264/MPEG-4 AVC,
MPEG-1
, MPEG-2, MPEG-4
• Music Playback Formats: MP3
• Picture Playback Formats: JPEG
Supported Display Resolution
• Computer inputs: up to 1920 x 1080 @ 60 Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x
1080p
Convenience
• Electronic Programme Guide: 8-day Electronic
Programme Guide
• Ease of Installation: Channel installation wizard,
Device
connection wizard, Settings assistant
wizard
• Ease of Use: One-stop Ho
me bu
tton, On-screen
User manual, Touch control buttons
• Screen Format Adjustments: 4:3, Autofill,
Auto
zoom, Movie expand 14:9, Movie expand
16:9, Subtitle Zoom, Super Zoom, Unscaled,
Widescreen
• Teletext: 1000-page Smart Text
• Firmware upgradeable: Firmware auto upgrade
wizar
d
, Firmware upgradeable via USB
Tuner/Reception/Transmission
• Digital TV: DVB-C MPEG2*, DVB-C MPEG4*,
DVB-T MPEG2*, DVB-T MPEG4*
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: AC 220-240 V; 50-60 Hz
• Ambient temperature: 5°C to 35°C
• Energy Label Class: A
• EU Energy Label power: 42 W
• Annual energy consumption: 61 kW·h
• Standby power consumption: < 0.15 W
• Off mode power consumption: 0.01 W
• Power Saving Features: 0 Watt Power-off switch,
Ec
o m
ode, Eco settings menu, Light sensor, Picture
mute (for radio)
• Presence of lead: Yes*
Dimensions
•Box dimensions (W x H x D):
965 x 590 x 159 mm
•Set dimensions (W x H x D):
761 x
473 x 39.9 mm
• Set dimensions with stand (W x H x D):
761 x
525 x
221 mm
• Product weight: 6.1 kg
• Product weight (+stand): 9 kg
• Compatible wall mount: 200 x 200 mm
Accessories
• Included accessories: Power cord, Remote
Control, 2 x AAA Batteries, Tabletop stand, User
Manual, Quick start guide, Legal and safety
brochure, Warranty Leaflet, Software declaration
•
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscription are required.
Contact your operator for more information.
* 8 days EPG, service not available in all countries
* Annual energy consumption is calculated using the typical power
consumption of 4 hours per day, 365 days per year.
* This television contains lead only in certain parts or components
where no technology alternatives exist in accordance with existing
exemption clauses under the RoHS Directive.
SIDE CONNECTORS
BOTTOM REAR CONNECTORS
REAR CONNECTORS
