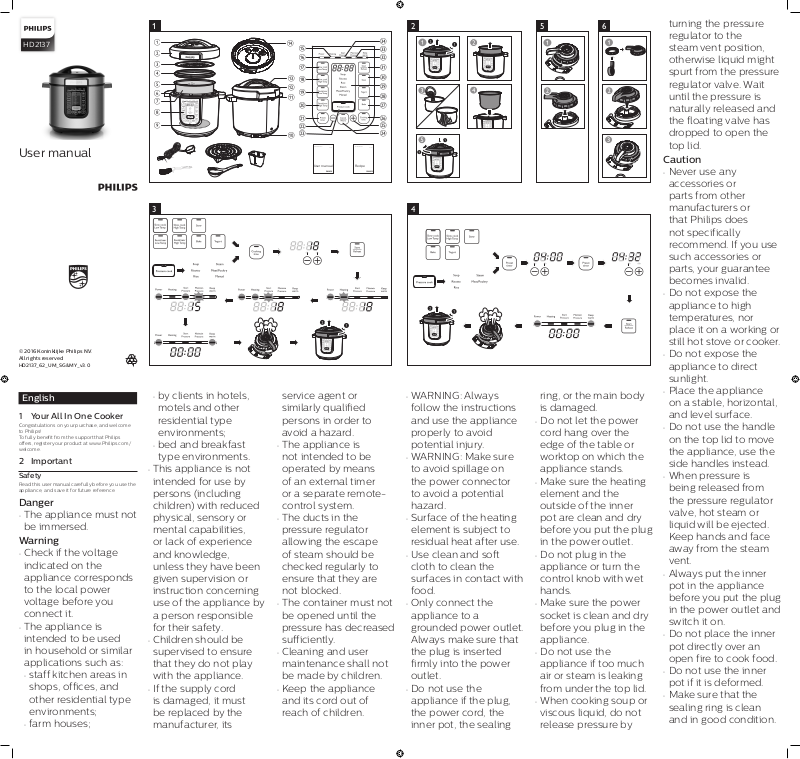

Philips HD2137 User Manual

HD2137

User manual

1 2

c d

e f

m l

o p

u v w

www.philips.com/welcome

User manual

HD2137

www.philips.com/welcome

Recipe

‚



€



~ }

| {

z y x

HD2137

5 6

turning the pressure regulator to the steam vent position, otherwise liquid might spurt from the pressure regulator valve. Wait until the pressure is naturally released and the floating valve has dropped to open the top lid.

Caution

• Never use any

accessories or parts from other

HD2137_62_UM_SG&MY_v3.0

3 4

manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

• Do not expose the

appliance to high temperatures, nor place it on a working or still hot stove or cooker.

• Do not expose the

appliance to direct sunlight.

English

1 Your All In One Cooker

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.Philips.com/ welcome.

2 Important

Safety

Read this user manual carefully before you use the appliance, and save it for future reference.

Danger

• The appliance must not

be immersed.

Warning

• Check if the voltage

indicated on the appliance corresponds to the local power voltage before you connect it.

• The appliance is

intended to be used in household or similar applications such as:

• staff kitchen areas in

shops, offices, and other residential type environments;

• farm houses;

• by clients in hotels,

motels and other residential type environments;

• bed and breakfast

type environments.

• This appliance is not

intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be

supervised to ensure that they do not play with the appliance.

• If the supply cord

is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

• The appliance is

not intended to be operated by means of an external timer or a separate remotecontrol system.

• The ducts in the

pressure regulator allowing the escape of steam should be checked regularly to ensure that they are not blocked.

• The container must not

be opened until the pressure has decreased sufficiently.

• Cleaning and user

maintenance shall not be made by children.

• Keep the appliance

and its cord out of reach of children.

• WARNING: Always

follow the instructions and use the appliance properly to avoid potential injury.

• WARNING: Make sure

to avoid spillage on the power connector to avoid a potential hazard.

• Surface of the heating

element is subject to residual heat after use.

• Use clean and soft

cloth to clean the surfaces in contact with food.

• Only connect the

appliance to a grounded power outlet. Always make sure that the plug is inserted firmly into the power outlet.

• Do not use the

appliance if the plug, the power cord, the inner pot, the sealing

ring, or the main body

• Place the appliance

on a stable, horizontal,

is damaged.

and level surface.

• Do not let the power

• Do not use the handle

cord hang over the

on the top lid to move

edge of the table or

the appliance, use the

worktop on which the

side handles instead.

appliance stands.

• When pressure is

• Make sure the heating

being released from

element and the

the pressure regulator

outside of the inner

valve, hot steam or

pot are clean and dry

liquid will be ejected.

before you put the plug

Keep hands and face

in the power outlet.

away from the steam

• Do not plug in the

vent.

appliance or turn the

• Always put the inner

control knob with wet

pot in the appliance

hands.

before you put the plug

• Make sure the power

in the power outlet and

socket is clean and dry

switch it on.

before you plug in the

• Do not place the inner

appliance.

pot directly over an

• Do not use the

open fire to cook food.

appliance if too much

• Do not use the inner

air or steam is leaking

pot if it is deformed.

from under the top lid.

• Make sure that the

• When cooking soup or

sealing ring is clean

viscous liquid, do not

and in good condition.

release pressure by

• The accessible surfaces

may become hot when the appliance is operating. Take extra caution when touching the surfaces.

• Beware of hot steam

coming out of the floating valve and pressure regulator valve during cooking or when you open the lid. Keep hands and face away from the appliance to avoid the steam.

• Do not lift and move

the appliance while it is operating.

• Do not exceed the

maximum water level indicated in the inner pot to prevent overflow.

• Do not place the

cooking utensils inside the pot while cooking.

• Only use the cooking

utensils provided. Avoid using sharp utensils.

• To avoid scratches, it

is not recommended to cook ingredients with crustaceans and shellfish. Remove the hard shells before cooking.

• Do not place a

magnetic substance on the lid. Do not use the appliance near a magnetic substance.

• Always let the

appliance cool down to room temperature before you clean or move it.

• Always clean the

appliance after use. Do not clean the appliance in dishwasher.

• Always unplug the

appliance if not used for a longer period.

• If the appliance is

used improperly or for professional or semi-professional purposes, or if it is

to the instructions in this safety leaflet, the guarantee becomes invalid and Philips refuses liability for any damage caused.

• Visit www.philips.com/

support to download the user manual.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

2 What’s in the box (fig. 1)

Main unit Power cord Rice spoon Soup ladle Measuring cup Steaming plate User manual Recipe booklet

3 Overview (fig. 1)

Product overview

Lid handle

Top lid

Detachable inner lidjPower socket

Sealing ring

Water level indications

Side handle

Inner pot

Controls overview

Heating indicator

Power indicator

Slow cook button (low temperature)

Slow cook button (high temperature)

Sauté/sear button (low temperature)

Sauté/sear button (high temperature)

Preset timer button

Decrease button

Cancel/Warm button

Increase button

Functions overview

Pressure cooking functions

Cooking function

Soup 20 20-59

Risotto 14 Not adjustable

Rice 14

Steam 10 5-59

Meat/Poultry 15 12-59

Manual

Cooking function

Slow cook (low temperature)

Slow cook (high temperature)

Sauté/sear (low temperature)

Sauté/sear (high temperature)

Stew 1 hour 20 minutes - 10 hours

Yogurt 8 hours 6 - 12 hours

Bake 45 minutes 10 - 59 minutes

Reheat 25 minutes 8 - 25 minutes

Default pressure keeping time (minute)

Normal cooking functions

Default cooking time

4 Using the All In One

Cooker

Before first use

1 Remove all packaging materials from the

appliance.

2 Take out all the accessories from the inner pot. 3 Clean the parts of the All In One Cooker

thoroughly before using it for the first time (see chapter ‘Cleaning and Maintenance’).

Control Panel

Heating element

Locking pin

Floating value

Pressure regulator valve

Safety valve

Cooking time button

Bake button

{

Yogurt button

Stew button

}

Start/Reheat button

Pressure cook button



Display screen

€

Keep warm indicator



Maintain pressure indicator

‚

Start pressure indicator

Pressure keeping time regulating range (minute)

Not adjustable

2 2-59

Cooking time regulating range

6 hours 2 - 12 hours

2 minutes 2 minutes - 2 hours

Note

• Make sure all parts are completely dry before

you start using the All In One Cooker.

Preparations before cooking (fig. 2)

Before using the All In One Cooker to cook food, follow below preparation steps:

1 Hold the lid handle and turn it anti-clockwise

until the top lid cannot move any more, then lift up the top lid.

2 Take out the inner pot from the All In One Cooker

and put the pre-washed food in the inner pot.

3 Wipe the outside of the inner pot dry, then put it

back into the All In One Cooker.

4 Place the top lid onto the All In One Cooker and

turn it clockwise. You will hear a “click” sound when the top lid is properly locked.

Note

• Make sure the sealing ring is properly

assembled around the edge of the detachable inner lid.

• Make sure the pressure regulator valve and

floating valve are clean and not blocked.

• Make sure the outside of the inner pot is dry

and clean, and that there is no foreign residue on the heating element.

• Make sure the inner pot is in proper contact

with the heating element.

Cooking food (fig. 3)

Note

• Do not fill the inner pot with less than 1/3 or

more than 2/3 full of food and liquid.

• For food that expands during cooking, do not

fill the inner pot with more than 1/2 full of food and liquid.

• For rice cooking, follow the water level

indications on the inside of the inner pot. You can adjust the water level for different types of rice and according to your own preference. Do not exceed the maximum quantities indicated on the inside of the inner pot.

• Make sure the floating valve on the top lid

drops down before cooking.

• After the cooking process is started, you can

press Cancel/Warm to deactivate the current work, and the appliance goes to standby mode.

Pressure cooking

1 Follow the steps in “Preparations before

cooking”.

2 Turn the pressure regulator to seal. 3 Put the plug in the power socket.

»The power indicator starts flashing.

4 Press Pressure cook to choose one of the

pressure cooking functions - Soup, Risotto, Rice, Steam, Meat/Poultry or Manual.

»The default pressure keeping time is displayed

on the screen.

Note

• The pressure keeping time is not adjustable for

Risotto and Rice.

5 To set a different pressure keeping time, press

Cooking time.

6 Press or to set the pressure keeping time. 7 Press Start/Reheat to start the cooking process. 8 When the All In One Cooker reaches the working

pressure:

»Maintain Pressure lights up;

9 When the pressure keeping time has elapsed,

the All In One Cooker automatically switches to keep warm mode.

»The keep warm indicator (Keep warm) lights

up.

10 Turn the pressure regulator to vent.

»The All In One Cooker starts releasing pressure. »The floating valve drops down when the

pressure is released sufficiently.

11 Hold the top lid handle and turn the lid anti-

clockwise until it cannot move any more, then lift it up.

Note

• When cooking soup or viscous liquid, do

not release pressure by turning the pressure regulator to vent, otherwise liquid might spurt from the pressure regulator valve. Wait until the pressure is naturally released and the floating valve has dropped down to open the top lid.

• The pressure keeping timer will start counting

down when the working pressure is reached.

• After the cooking is finished and the pressure

is released, you can press the cancel button (Warm/Cancel) and unplug the All In One Cooker to turn off the keep warm function or when not in use.

Normal cooking

Note

• For normal cooking, you can cook food

without adding water in the inner pot. In this case, make sure to turn the pressure regulator to bake.

• Make sure to keep the top lid open for the

entire time when you cook food in the Sauté/ sear mode.

• To choose the Reheat function, press Start/

Reheat when the appliance is in standby mode.

To cook food with normal pressure, press the cooking buttons and choose Slow cook, Sauté/

sear, Stew, Yogurt or Bake.

1 Follow the steps in “Preparations before

cooking”.

2 Turn the pressure regulator to bake or seal.

• For Slow cook, Stew and Yogurt, turn the

pressure regulator to seal.

• For Bake, turn the perssure regulator to bake.

3 Put the plug in the power socket.

»The power indicator (Power) starts flashing.

4 Press the desired cooking function button to

choose a cooking mode.

5 To set a different cooking time, press Cooking

time.

»The cooking time flashes on the screen.

6 Press or to set the cooking time. 7 Press Start/Reheat to start the cooking process. 8 When the cooking time has elapsed, the All

In One Cooker automatically switches to keep warm or standby mode.

9 Turn the pressure regulator to vent. 10 Hold the top lid handle and turn the lid anti-

clockwise until it cannot move any more, then lift it up.

Baking recipe

Apple cake with hazelnuts

Ingredients:

• 190g margarine

• 190g flour

• 200g sugar

• 3/4 tsp.baking powder

• Cinnamon

• 100g almond meal

• 2 medium eggs

• 80ml of mayple syrup

• 2 medium apples, peeled, cored and cut into

eights.

1 Mix the margarine with sugar, add the eggs and

mix thoroughly. Add the flour, baking powder and almond meal, mix until the mixture is creamy. Fold with maple syrups.

2 Grease the base and slides of the inner pot,

add the mixture and smooth the top of mixture to create level finish. Place the apples on top, pushing them slightly into the mixture. Sprinkle with cinnamon.

3 Press Bake, set cooking time for 50 minutes and

press Start/Reheat. Close the lid.

Preset time for delayed cooking (fig.4)

You can preset the delayed cooking time for different cooking functions. The preset timer is available up to 24 hours.

1 After the cooking function is selected, press

Preset timer.

»The hour unit starts flashing on the display.

2 Press or to set the hour unit. 3 After the hour unit is set, press Preset timer

again.

»The minute unit starts flashing on the display.

4 Press or to set the minute button. 5 Press Preset timer to confirm the preset time. 6 Press Start/Reheat to start the cooking process. 7 When the preset time has elapsed, the All In One

Cooker starts working automatically.

Note

• The preset function is not available in the

following modes: Sauté/Sear (both low and high temperatures), Reheat, Manual and

Warm.

Assembling and disassembling the pressure regulator

Warning

• Do not disassemble the pressure regulator

during cooking. Always unplug the All In One Cooker and wait until the pressure has been released sufficiently to do so.

• To disassemble the pressure regulator:

1 Turn the lower screw anticlockwise until it

becomes loose.

2 Pull it up and take out the pressure regulator.

• To assemble the pressure regulator:

1 Assemble the lower screw back to the regulator. 2 Make sure the regulator points at the sealed

position ( ) and put it back to the steam valve.

3 Turn the screw clockwise until it is fastened.

5 Cleaning and

Maintenance

Note

• Unplug the All In One Cooker before starting

to clean it.

• Wait until the All In One Cooker has cooled

down sufficiently before cleaning it.

Interior

Inside of the top lid and the main body:

• Wipe with wrung out and damp cloth.

• Make sure to remove all the food residues

stuck to the All In One Cooker.

Heating element:

• Wipe with wrung out and damp cloth.

• Remove food residues with wrung out and

damp cloth.

Sealing ring:

Note

• Always unplug the appliance if not used for a

longer period.

7 Environment

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

8 Guarantee and service

If you need service or information, or if you have a problem, visit the Philips website at www.philips.com or contact the Philips Customer Care Center in your country. You can find its phone number in the worldwide guarantee leaflet. If there is no Customer Care Center in your country, go to your local Philips dealer.

• Soak in warm water and clean with sponge.

Inner lid:

• Remove the detachable inner lid. Soak it in

warm water and clean with sponge.

Exterior

Surface of the top lid and outside of the main body:

• Wipe with a cloth damped with soap water.

• Only use soft and dry cloth to wipe the control

panel.

• Make sure to remove all the food residues

around the pressure regulator valve and floating valve.

Pressure regulator valve and floating valve:

• Disassemble the pressure regulator, soak it in

warm water, and clean with sponge.

• Remove food residues in the pressure

regulator valve and floating valve.

Accessories

Measuring cup, rice spoon, soup ladle, and inner pot:

• Soak in hot water and clean with sponge.

6 Specifications

Model Number HD2137

Rated power output 1000W

Rated capacity 6.0L

Warm keeping temperature 60-80°C

9 Troubleshooting

If your All In One Cooker does not function properly or if the cooking quality is insufficient, consult the table below. If you are unable to solve the problem, contact a Philips service center or the Consumer Care Center in your country.

Problem Cause Solution

I have difficulties opening the lid after cooking.

I have difficulties closing the top lid.

Leaking from under lid.

Leaking from floating valve

Floating valve does not rise up after the appliance starts pressurizing.

E3 displays on the screen.

E1, E2, or E4 displays on the screen.

Pressure regulator valve

Need to release the pressure.

Set the pressure regulator valve to 'Vent'. And wait until the floating valve has dropped.

Floating valve stuck in up position.

The sealing ring is not well assembled.

The floating valve stuck in up position.

Sealing ring missing.

Food or debris under sealing ring. Lid not correctly closed.

The pressure level inside of the appliance is abnormal.

Sealing ring broken. Replace the sealing ring.

Food or debris under sealing ring.

Food&water are below minimum level.

Leaking from lid or pressure regulator valve.

The temperature inside the inner pot is too high.

The All In One Cooker has malfunction.

Set the pressure regulator valve to 'Vent'. And wait until the floating valve has dropped.

Make sure the sealing ring is well assembled around the inside of the top lid.

The floating valve blocks the locking pin. Push down the floating valve so that it does not block the locking pin.

Sealing ring

Inner lid

Put sealing ring in place correctly on inner lid.

Remove the sealing ring, clean and replace. Open and reclose the lid, checking for correct closing.

In this case the safety valve will be releasing steam. Take the appliance to your Philips dealer or a service center authorized by Philips.

Remove the sealing ring, clean and replace.

Add food/water. Make sure there is enough food and water in the inner pot.

Take the appliance to a Philips service dealer.

Wait until it falls down to room temperature.

Take the appliance to a Philips service center.

Floating valve

Sealing ring

Inner lid

not used according
