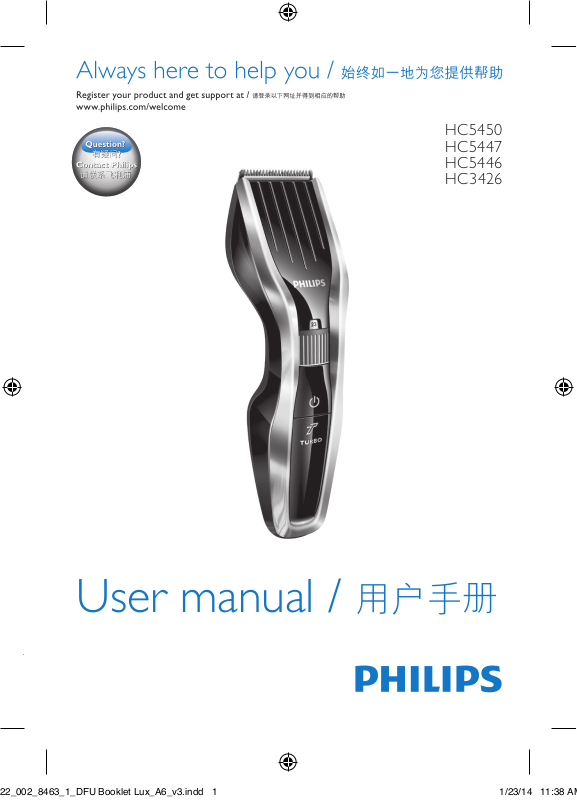

Philips HC5450-83 Instruction manual
HC5450
HC5447
HC5446
HC3426
User manual / 用户手册
1
ENGLISH 6
简体中文 18
HC5450, HC5447, HC5446, HC3426
6
ENGLISH
Introduction
Congratulations on your purchase and welcome
to Philips! To fully benet from the support that
Philips offers, register your product at
www.philips.com/welcome.
General description (Fig. 1)
1 Cutting unit
2 Length setting adjuster
3 On/off button
4 Charging light
5 Trimming comb
6 Kids comb
7 Adapter
8 Socket for small plug
9 Brush
Important
Read this user manual carefully before you use the
appliance and save it for future reference.
Danger
- Keep the adapter dry.
Warning
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug, as
this causes a hazardous situation.
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.
ENGLISH 7
Caution
- Never immerse the appliance in water or rinse it
under the tap. Only the cutting unit can be rinsed
under the tap.
- Use, charge and store the appliance at a
temperature between 5°C and 35°C.
- Only use the adapter supplied.
- If the adapter is damaged, always have it replaced
with one of the original type in order to avoid
a hazard.
- Do not use the appliance if the cutting unit or the
trimming comb is damaged or broken, as this may
cause injury.
Electromagnetic elds
This Philips appliance complies with all standards and
regulations regarding exposure to electromagnetic
elds (EMF).
General
- The appliance is equipped with an automatic
voltage selector and is suitable for mains
voltages from 100 to 240 volts.
- The adapter transforms 100-240 volts to a safe
low voltage of less than 24 volts.
Charging
Charge the appliance fully before you use it for the
rst time or after a long period of disuse.
HC5450: It takes approximately 1 hour to fully
charge the appliance.
When it is fully charged, the appliance has a cordless
operating time of up to 90 minutes.
HC5447, HC5446, HC3426: It takes approximately
8 hours to fully charge the appliance.
ENGLISH8
When it is fully charged, the appliance has a cordless
operating time of up to 60 (HC3426) or 75 minutes
(HC5446, HC5447).
Note: After charging the appliance once fully for the
rst time, you can also use the appliance directly from
the mains. Simply connect the appliance to the mains.
Charging indications (HC5450 only)
Battery low indication
- When the battery is almost empty, the charging
light starts to ash orange.
Charging
- When the appliance is charging, the charging light
ashes green.
Battery fully charged
- When the battery is fully charged, the charging
light lights up green continuously.
Note: After 30 minutes, the charging light automatically
switches off.
ENGLISH 9
Charging indications (HC5447, HC5446
and HC3426 only)
Charging
- When the appliance is charging, the charging light
lights up green continuously.
Charging the appliance
1 Make sure the appliance is switched off.
2 Insert the appliance plug into the appliance.
3 Put the adapter in the wall socket.
4 After charging, remove the adapter from the
wall socket and pull the appliance plug out of
the appliance.
Optimising the lifetime of the rechargeable
battery
When you have charged the appliance for the rst
time, we advise you to use it until the battery is
completely empty. Continue to use the appliance
until the motor almost stops operating during
a session. Then recharge the batter y. Follow this
procedure at least twice a year.
ENGLISH10
Using the appliance
The hair length settings are indicated in millimeters,
the comb cuts the hair to a length of 1mm to 23mm.
The settings correspond to the remaining hair length
after cutting.
When you trim for the rst time, be careful.
Do not move the trimmer too fast. Make smooth
and gentle movements.
Tip: Start trimming at a high length setting and reduce
the length setting gradually until you have reached the
desired hair length.
Trimming with comb
Note: The blue comb is especially for kids.
1 Attach the comb onto the appliance.
2 Turn the length setting adjuster to the
desired length setting.
Note: When you trim for the rst time, start at the
highest length setting to familiarise yourself with the
appliance.
3 Switch on the appliance.
ENGLISH 11
4 To trim most effectively, move the trimmer
against the hair growth direction. Make sure
the surface of the comb always stays in contact
with the skin.
Trimming without comb
Use the trimmer without the trimming comb to clip
hair close to the skin (0.5mm) or to contour the
neckline and sideburns.
Be careful when you trim without comb because
the cutting element removes every hair it touches.
1 Push the comb off the appliance.
2 Switch on the appliance.
3 Make well-controlled movements. Touch the
hair lightly with the trimmer.
