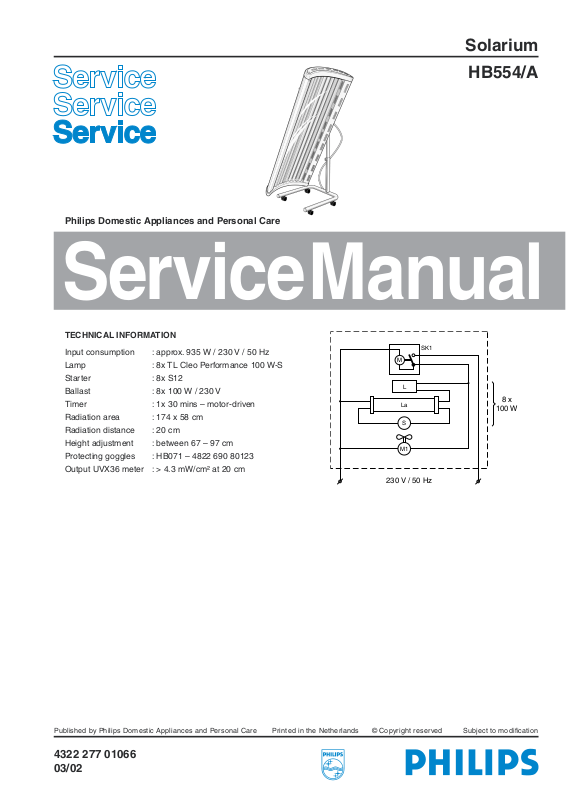

Philips HB554-A Service Manual

Solarium

HB554/A

Philips Domestic Appliances and Personal Care

Service Manual

TECHNICAL INFORMATION

Input consumption : approx. 935 W / 230 V / 50 Hz

Lamp : 8x TL Cleo Performance 100 W-S

Starter : 8x S12

Ballast : 8x 100 W / 230 V

Timer : 1x 30 mins – motor-driven

Radiation area : 174 x 58 cm

Radiation distance : 20 cm

Height adjustment : between 67 – 97 cm

Protecting goggles : HB071 – 4822 690 80123

Output UVX36 meter : > 4.3 mW/cm² at 20 cm

SK1

M

L

La

S

M1

230 V / 50 Hz

8 x

100 W

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

4322 277 01066
03/02

HB554/A

HINTS FOR REPAIRS

- Interchange starters, lamps or ballasts to establish
whether they are defective.

- If they are not defective, check the internal wiring,
especially that connected to the lamp holders.

- The snap-on connections of the wiring can be detached
by means of a paperclip.

- Premature blackening of a tube end points to a defective
starter or a wiring fault.

Replacement of lamps/starters (items 22,10)

Loosen the screws (item 11) and remove the end covers
(items 7, 21).

Pull the acrylic sheet (item 23) out of the appliance.
Now the lamps/starters can be replaced.

Disassembly of gas spring (item 5)

Put the canopy in its highest position.
Fasten ornamental screw (item 4).
Remove the 2 screws (A).
Lift the canopy off the foot together with a second person.
Place the canopy on a soft surface.
The gas spring can now be taken out.

Disassembly of fan (item 16)

Unlock the clamps of the fan cover (item 15).
Loosen the connecting wires and pull out the fan unit

(item 16).

Disassembly of timer (item 18)

Remove the end cover on the side where the timer is
located.

Pull the top cover on this side out of the groove of the side
panel (item 19).

Pull the side panel off the metal frame to create enough
room to remove the timer.

Disassembly of hinge (items 12, 13 and 14)

Unlock the clamps of the hinge cover with a screwdriver.
Loosen the screw (B).
Ask a second person to depress the locks of the bearing

bush (item 14) with two small screwdrivers.
Position yourself on the other side of the appliance and

press the stand with your foot while pulling the canopy
slightly (approx. 5 mm) towards you to deactivate the lock.

Now you and the other person should position yourselves
at opposite ends of the appliance. Lift the canopy from the
stand by pulling at it.

Place the canopy on a soft surface.
Remove the lock spring (item 13)
Tap the bearing bush off the shaft with a plastic hammer.
