Overview of functions 4.........................
The remote control 5.........................................................................................
Colour buttons 7.................................................................................................
Additional TV functions 7..................................................................................
Front of the device 8..........................................................................................
Back of the device 9............................................................................................
Output sockets (AUDIO/VIDEO OUT) 9.....................................................
Discs you can use 10...........................................................................................
Recording and playback 10................................................................................
Playback only 10...................................................................................................
Regional code 10..................................................................................................
Technical data 10.................................................................................................
Accessories 10......................................................................................................
Important 11.........................................................................................................
Important instructions for the HDD 12.........................................................
Symbols used in these operating instructions 12..........................................
Cleaning the discs 12...........................................................................................
Special functions of your DVD recorder 13..................................................
Connecting the DVD recorder 15.........
Preparing the remote control for operation 15...........................................
Using your DVD-Recorder remote control with your TV set 15............
Connecting to the aerial 16...............................................................................
Connecting to the TV 16...................................................................................
Connection with an S-Video(Y/C)cable 16....................................................
Connection with video (CVBS) cable 17........................................................
Connection with the aerial cable only 17.......................................................
Connecting to the mains 17..............................................................................
Connecting additional devices 18..........
Connecting a video recorder, DVD player. 18.............................................
Connecting an external receiver 18................................................................
Connecting additional devices only via aerial cable 18................................
Connecting a camcorder to the front sockets 19........................................
Connecting audio devices to the analogue audio sockets 19....................
Connecting audio devices to the digital audio sockets 19..........................
Installation 20..........................................
Initial installation 20.............................................................................................
Additional installation features 22........
Manual TV channel search 22............................................................................
Automatic TV channel search 23.....................................................................
Sorting and deleting TV channels manually 23..............................................
Setting the language 24.......................................................................................
Setting the time and date 24..............................................................................
Connection using a component video (Y Pb Pr/YUV) cable (no
progressive scan) 25............................................................................................
Recording on the HDD 27.....................
General 27.............................................................................................................
The Time shift Buffer 27.....................................................................................
Symbols in the 'Time Shift Buffer' 28...............................................................
Navigation in the time shift buffer 28..............................................................
Mark TV shows for recording 29.....................................................................
Manual recordings 30..........................................................................................
Starting a recording 30.......................................................................................
Starting a recording from the current position (from here onward) 30.
Ending a recording 30.........................................................................................
Recording from a video recorder/DVD player 31.......................................
Recording from a camera connected to the front sockets 32..................
Programming a recording (TIMER) 33.
General 33.............................................................................................................
Programming recordings with the G-Code
®
System 33..............................
Programming recordings without the G-Code
®
System 34.......................
How to change or delete a programmed recording (TIMER) 35.............
Cancel a programmed recording in progress 36..........................................
Playback from the HDD 37....................
General 37.............................................................................................................
Additional playback features 37........................................................................
Search by time 37.................................................................................................
Repeat 37...............................................................................................................
Zoom feature 38..................................................................................................
The media browser 38.......................................................................................
Symbols in the 'Media Browser' 38..................................................................
Change order for the media browser 39.......................................................
Change title settings 39......................................................................................
Edit title 40............................................................................................................
'Video edit' 40.......................................................................................................
Editing recorded titles (name) 41.....................................................................
Divide title 41.......................................................................................................
Delete titles/recordings from the HDD 42...................................................
Insert/remove chapter markers 42..................................................................
Hide chapters (sections) 43...............................................................................
Recording on a DVD+RW/+R 44...........
Archiving (storing) titles on a DVD+RW/+R 44..........................................
Protect disc against accidental recordings 45................................................
Playback from a disc 46..........................
General notes on playback 46...........................................................................
Switch over to the actual TV channel during playback 46..........................
Inserting a disc 46................................................................................................
Playing a DVD video disc 47..............................................................................
Playing a DVD+RW/ +R disc 47.......................................................................
Playing an audio CD 47.......................................................................................
Playing an MP3 CD 48.........................................................................................
Playing a (Super) Video CD 48.........................................................................
Additonal playback features 49.............
General 49.............................................................................................................
Searching a disc 49...............................................................................................
Still picture 49.......................................................................................................
Slow motion 49....................................................................................................
Search by time 50.................................................................................................
Repeat/Shuffle play 50.........................................................................................
Repeating a passage (A-B) 50............................................................................
Scan feature 50.....................................................................................................
Camera angle 50...................................................................................................
Zoom feature 51..................................................................................................
Select the audio language 51..............................................................................
Subtitles 51............................................................................................................

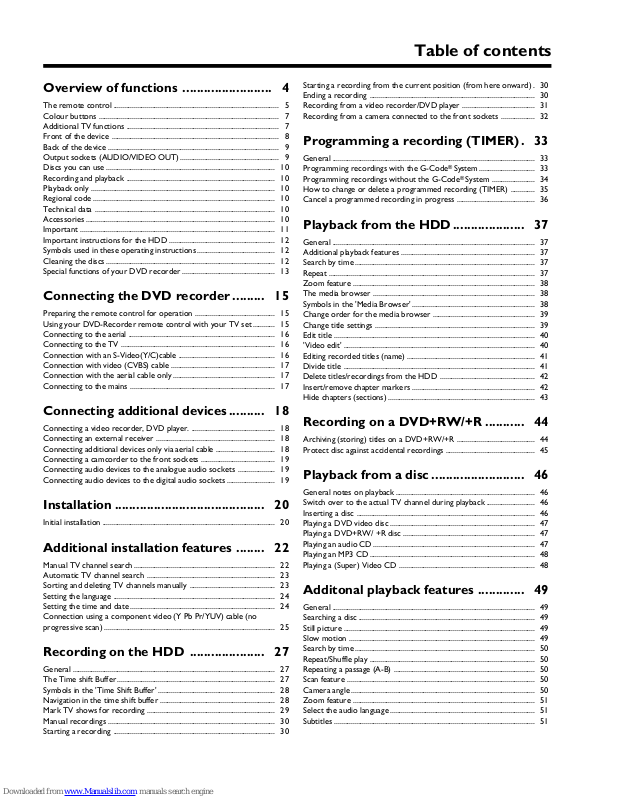

Table of contents
Managing the disc contents 52..............
General 52.............................................................................................................
Favorite Scene Selection 52...............................................................................
Insert chapter markers 52.................................................................................
Hiding chapters 53...............................................................................................
Deleting chapter markers 53.............................................................................
Changing the index picture 54..........................................................................
Dividing titles 54...................................................................................................
Editing recording titles (name) 55....................................................................
Playing the entire title 55...................................................................................
Erasing recordings/titles 56................................................................................
Disc settings 56....................................................................................................
Changing the disc name 57................................................................................
Finishing editing 57...............................................................................................
Finalising DVD+R discs 57.................................................................................
Erasing DVD+RW Disc's 57..............................................................................
Disc Manager (DM) 58............................
General information 58......................................................................................
Adding a disc to the Disc Manager 58.............................................................
Removing discs from the Disc Manager 58....................................................
Searching for a title in the Disc Manager 59..................................................
Searching discs 59................................................................................................
User preferences for the HDD 60.........
General 60.............................................................................................................
Toolbar 60.............................................................................................................
Options 60.............................................................................................................
'Audio' 60...............................................................................................................
'Zoom' 60...............................................................................................................
'Time search' 60...................................................................................................
'Subpictures' 61.....................................................................................................
Preferences 61......................................................................................................
Recording 61.........................................................................................................
'Record mode' 61.................................................................................................
'Camera mode' 61................................................................................................
'Chapters' 61.........................................................................................................
'HDD buffer' 62....................................................................................................
'Language' 62.........................................................................................................
'Sat record' 62.......................................................................................................
'Direct rec.' 62......................................................................................................
'Filter' 62................................................................................................................
'Safety Slot' 62.......................................................................................................
'Set up' 62..............................................................................................................
'System' 62.............................................................................................................
'Auto delete' 62....................................................................................................
'Jump forward' 62.................................................................................................
'Jump back' 62.......................................................................................................
'Installation' 63......................................................................................................
'Flush Buffer' 63....................................................................................................
Additional user preferences 64.............
General 64.............................................................................................................
Picture settings 64................................................................................................
Sound settings 65.................................................................................................
Language settings 66............................................................................................
Additional settings 66..........................................................................................
Disk feature menu 67..........................................................................................
Access control (Child Lock) 68.............
Child lock (DVD and VCD) 68.........................................................................
Activating/deactivating child lock 68................................................................
Authorising a disc 68...........................................................................................
Locking unlocked discs 68..................................................................................
Parental level control (DVD video only) 69..................................................
Activating/deactivating parental level control 69..........................................
Changing the country 69....................................................................................
Changing the PIN code 70.................................................................................
Information on the screen of your TV71
Symbols in the menu bar 71..............................................................................
Menu bar 1 71.......................................................................................................
Menu bar 2 71.......................................................................................................
Field for temporary messages 71.....................................................................
Status field 71........................................................................................................
Disc type symbols 71..........................................................................................
Operating mode symbols 71.............................................................................
The symbols on your DVD recorder display 72..........................................
Messages in the DVD recorder display 72.....................................................
Before you call an engineer 74..............
Code numbers of the remote control 80
Overview of functions
1
Welcome to the growing family of owners of PHILIPS equipment.
Thank you for buying a HDRW 720/69. The following pages contain
explanations of the main features that will help you better understand
how the HDRW 720/69 works.
You will find step-by-step descriptions of each function in the respective
chapter of the User manual.
Features
The 'HDRW 720/69' is a DVD recorder that can store TV-shows on a built-in hard disk (HDD).
Moreover, it is a DVD player that can play back DVDs, audio and (s-)video CDs, and MP3 CDs. You can play back and edit the stored TV shows
(or camcorder recordings), and save (archive) these on DVD+RW/+R media for later viewing.
But your 'HDRW 720/69' is more than just an ordinary DVD recorder with a built-in hard disk.
From now on, it's better to use your TV set just as a monitor and tune to the various TV channels from your DVD recorder, taking advantage of
features like FlexTime, Instant Replay, or the abitity to pause live TV.
•
FlexTime:
With FlexTime, you can watch or rewind a TV show while it is being recorded.
You don't have to wait until the end of the recording before starting playback.
•
Instant Replay:
You can repeat a scene of a live TV show at the touch of a button ( JUMP BACK ), as often as you like.
•
Pause Live TV
You can pause a live TV show by pressing PAUSE 9 to, say, answer a phone call, while the recording continues. By pressing PLAY G , you
can resume playback of the show at the scene it was interrupted.
Time Shift Buffer
The above features are available because the 'HDRW 720/69' uses a so-called Time Shift Buffer.
As soon as you turn on your DVD recorder, it starts recording from the current TV channel into the
Time Shift Buffer. The DVD recorder stores all the TV shows you watched since you turned on the
recorder. If you watched a TV show for more than 60 seconds, the recorder will insert a marker.
If the Time Shift Buffer is full (the default setting is 3 hours) the recorder will delete the oldest
recording to make room for new recordings. You can mark TV shows or parts of these to be recorded
permanently on the HDD while the other contents of the Time Shift Buffer will be deleted.
The Time Shift Buffer can be best compared to a conveyor belt running from right to left. A TV show
resembles a package on this conveyor belt. If you change the programme number, a new package will be
placed on the conveyor belt. You can adjust the time a package will remain on the conveyor belt from 1 to 6 hours (the default setting is 3 hours).
As long as the packages are still on the conveyor belt, you can mark them red ( REC/OTR n ) or remove the marker ( RED function button).
You can only mark the package that's directly in front of you.
At the end of the conveyor belt (the preset time has expired), the recorder will decide whether a package will be stored (marked red) or
destroyed (unmarked). Only the packages that are marked red will be stored.
If you delete the Time Shift Buffer, the recorder will immediately remove all packages from the belt, storing only those you marked red.
ENGLISH
Overview of functions
2
Simultaneous recording and playback
Thanks to the built-in HDD and the high data rates it can achieve, you can record and play back at the same time.
This enables you to:
•
watch, pause, or rewind a TV show while it is being recorded (FlexTime, Pause live TV)
•
watch a TV show stored on the HDD while another recording is being made
•
playback a DVD while the HDD records a TV show.
•
store (archive) a TV show from the HDD to a DVD+RW/+R while another show is being recorded on the HDD.
Media Browser
The Media Browser provides an overview of all the recordings on the HDD. You can display a list of all
recordings according to certain criteria ('Recording Date', 'Protected'...). You can select recordings
in the Media Browser for playback, editing, or storage on a DVD+RW/+R (archiving). Moreover, you
can lock recordings that you can only play back after entering a valid PIN code. If you haven't entered a
PIN code yourself, then the PIN code is '0000'.
Changing the PIN code
1 Press DISC MENU and then SYSTEM MENU ,
2 Select 'A' with D , then select the '(Disc features)' symbol with B , and confirm with C .
3 Confirm 'Access control' with C and enter the 4-digit code. Re-enter the code for confirmation and press SYSTEM MENU to end.
For more information, read chapter 'Access control (child lock)' in the user manual.
Archiving titles on a DVD+RW/+R
You can copy (archive) recordings from the HDD to a DVD+RW/+R.
To do so, select the desired recording in the Media Browser and press the 'ARCHIVE' colour function button. That's all!
Since the archiving process will take some time, you can switch to a different TV programme in the meantime by pressing CHANNEL q ,
CHANNEL r . Please note that you cannot use the FlexTime, Instant Replay, and Pause LiveTV features of the Time Shift Buffer or play back a
recording from the HDD during the archiving process, since the HDD is already playing back a recording (copying from the HDD to the
DVD+RW/+R). Nevertheless, it is possible to make recordings into the Time Shift Buffer (the Time Shift Buffer is filled). If you turn off the DVD
recorder using STANDBY m , the archiving process will continue until it is completed, and then the DVD-Recorder will switch off automatically.
Time Shift Buffer (continued)
The Time Shift Buffer is the heart of your 'HDRW 720/69'. All recordings, except those via the front sockets, will be made into the Time Shift
Buffer first.
You can mark a recording to be stored permanently on the HDD.
Recordings are copied on the HDD when:
•
the preset Time Shift Buffer period expires (the default setting is 3 hours)
•
the Time Shift Buffer is deleted ('Flush Buffer'function( SYSTEM MENU button, 'Set up'menu ))
•
you turn off the DVD recorder with STANDBY m
•
you switch to camera mode using CAM (switch back with the same button).
•
date/time or channel settings have changed (menu is called up).
You can either set markers yourself or the DVD recorder can set such markers automatically, e.g. : timer recordings. The Time Shift Buffer keeps
record of which TV shows you watched during the last hours. This is shown using the so-called time bar with a series of recorded programmes on
the screen.
On the right-hand side, you can see a moving IIIIIIIIII symbol indicating that the Time Shift Buffer is being filled.
On the left-hand side, you can also see a moving IIIIIIIIII symbol indicating that the Time Shift Buffer is being emptied, i.e. recordings are being
Overview of functions
3
discarded. The programmes in the Time Shift Buffer are separated by a vertical line. The name of the TV show is displayed above the line. The
time information on both sides of the time bar indicate the start and end time of the Time Shift Buffer. The current recording time is on the
right-hand end, and the oldest recording on the left-hand end.
Navigation in the Time Shift Buffer
You can move to any position within the Time Shift Buffer and watch the recording that was stored at that time.The indicator (yellow rectangle on
the time bar) shows the playback position in the Time Shift Buffer. You can move this indicator using the C , D buttons. If the playback position
is as far on the right-hand side as it can get, you are watching the current (live) picture of the TV channel you are tuned in. In the header of the
Time Shift Buffer, you will see an aerial symbol (contrary to the HDD symbol that appears when playing back from the HDD).
The following is a short overview of the basic buttons for navigation in the Time Shift Buffer:
N , JUMP BACK , D
When you reach the left end of the time bar, the recorder will switch to normal playback speed.
O , JUMP FWD , C
When you reach the right end of the time bar, you are watching the current TV programme. It is not possible to move further to the right. In
order to do so, the recorder would have to anticipate the future programme. You can use O to 'catch up' with the current TV programme.
PAUSE 9 If you stopped playback, the indicator will remain at that position until the preset time of the Time Shift Buffer has reached that
position (the indicator reaches the left end of the time bar). When it reaches the end, the DVD recorder will automatically switch to playback.
PLAY G Playback at normal speed. The limits of the Time Shift Buffer cannot be exceeded.
Recordings using the Time Shift Buffer
Recordings are always stored in the Time Shift Buffer first.
The following recording options are available:
•
Programmed recordings (TIMER) that will be carried out automatically at a predefined date/time
•
Direct recording of the current, live TV programme.
•
Marking of TV shows that have already been stored in the Time Shift Buffer.
You can mark recordings in the Time Shift Buffer to store them on the HDD instead of having them discarded when the Time shift Buffer period
expires. When a TV show is marked, a red marker appears on the time bar of the Time Shift Buffer. This marker indicates the recording. You
don't need to do anything else.
The DVD recorder automatically transfers a show to the HDD when:
•
the preset Time Shift Buffer period expires (the default setting is 3 hours).
•
the Time Shift Buffer is deleted ('Flush Buffer'function( SYSTEM MENU button, 'Set up'menu )).
•
you turn off the DVD recorder with STANDBY m .
•
you switch to camera mode using CAM (switch back with the same button).
•
date/time or channel settings have changed (menu is called up).
In the case of programmed recordings, the marker is set automatically. After that, the recording is also automatically stored on the HDD. When a
red marker has been set, you do not need to do anything else. Even if you turn off the recorder with STANDBY m , the recording will be stored
first before the DVD recorder automatically switches off.
ENGLISH
Overview of functions
4
Programming a recording
You have the following options for programming a recording:
The G<Code
®
system:
By entering the G-Code programming number, you automatically set start/stop time, date, and programme number
Manual programming.
Manually started recordings
To record the current TV show, press REC/OTR n .
If you want to stop the recording, press the STOP h button. Select 'Yes' using D and confirm with OK .
If you want to mark a TV programme in the Time Shift Buffer, move the button on the time bar using C , D within the desired programme and
press REC/OTR n . To remove the marker, press the RED function button. The time bar must be visible. ( INFO button)
Recording mode
Recordings on the HDD will be carried out in an adjustable recording quality, the so-called recording mode. The higher the quality, the greater the
HDD space required. The recording quality is indicated as M1, M2, M2x, M3, M4, M6, and M8. The number indicates the number of hours that will
fit on a single-layer, 4.7GB DVD+RW or DVD+R. This means that you can store only 1 hour of 'M1' recordings on a DVD+RW/+R, while 8 hours
of 'M8' recordings will fit on the same disc.
This is particularly important when you want to copy recordings from the HDD onto a DVD+RW/+R. The quality of recordings on the HDD
cannot be changed at a later stage.
For example:
A 3-hour movie that was stored on the HDD in recording quality 'M1' will not fit on a DVD+RW/+R (M1=1 hour on a DVD+RW/+R). Only 1
hour of this movie can be copied onto a DVD+RW/+R. If you recorded the same movie in recording mode M3, the entire movie would fit on a
DVD+RW/+R. (M3=3 hours on a DVD+RW/+R).
A few closing instructions
If you have any problems operating the device:
1) Read the items in the section 'Before you call an engineer'
2) Visit the Internet site http://www.philips.com/support to get some online help,
3) Call the customer support service. You will find the telephone numbers at the back of the User manual.
Overview of functions
5
The remote control
REC/OTR n Record the current TV show on the HDD, mark recordings in the time
shift buffer to be stored on HDD.
Hold button down to start the recording from now. (Mark the
recording from the beginning of the actual position in the Time Shift
Buffer).
STANDBY m To switch set on or off, interrupt menu function.
A programmed recording (TIMER) or an archiving process will be
continued until the end, and the device will then be switched off.
CAM Switch to 'Camera mode' (recording directly on the HDD and not
through time shift buffer).
TV/HDD No function
RETURN Return to previous menu on a video CD (VCD). This also works with
some DVD discs.
Moreover, you can jump back to the previous scene of the time shift
buffer or to playback from the HDD. You can switch to the picture of
the actual running TV show with the TUNER button.
EDIT Call up/Cancel the edit menu.
Call up/Cancel the menu for editing titles during playback.
TIMER s To make a TIMER programming with/without G-Code
®
system or to
alter/clear programmed recordings.
SELECT Select function/value.
You can mark several titles in the media browser.
Switch on repeat play during playback from a disc.
TUNER This button lets you switch to the picture of the internal tuner (TV
channel).
During play back from the Time Shift Buffer, you can jump to the actual
TV show (live) of the selected TV channel.
SYSTEM MENU Call up/Cancel the system menu.
Depending on the operating mode from which you press this button:
•) DVD system menu: Press DISC MENU first.
•) HDD system menu: Press TUNER first.
DISC MENU For displaying the DVD menu or the index screen overview.
INFO For displaying additional information on the screen or the time shift
buffer during playback/recording on the HDD .
BROWSER HDD Call up/cancel the overview of HDD recordings (media browser).
GUIDE/TV No function
AB Cursor buttons up, down in the menus.
Previous or next position in the time shift buffer during playback from
HDD.
DC Cursor buttons left, right in the menus.
Previous or next position during playback of a title from the HDD
(media browser or time shift buffer). If you hold down this button you
can faster browse trough the recordings. The speed will increase
automatically.
OK Confirming of functions
Starting the playback from the begining in the 'Media Browser'.
ENGLISH
Overview of functions
6
STOP h Stop playback / Recording (only Camera mode)
Hold down the button to open and close the disc tray.
PAUSE 9 If this button is pressed during playback, the DVD recorder switches to
pause. You will see a still picture. If this button is pressed during
recording in the 'Camera mode', the DVD recorder switches to pause
and inserts a chapter marker.
PLAY G Play back a recorded disc.
CHANNEL q Next programme number
CHANNEL r Previous programme number
JUMP BACK To jump back a certain time period that can be changed in the settings
of the HDD.
N Briefly press the button during playback: Previous chapter or previous
title
Hold down the button: Search backwards
Hold down the button during the still picture: slow motion backwards
O Briefly press the button during playback: Next chapter or next title
Hold down the button: Search forwards
Hold down the button during the still picture: slow motion forward
JUMP FWD To jump forward by a certain time period that can be changed in the
settings of the HDD.
0..9 For entering numbers or characters at the corresponding entry fields.
T/C Switching between title and chapter for selection using N , O .
If 'INFO' appears in the display, the index menu from a recorded disc
will be shown or an introductory film will be played. In this case, this
function is not available.
DISC MANAGER Call up/Cancel the disc manager (DM).
Overview of functions
7
Colour buttons
You can call up different functions in the menus using the following colour buttons. The functions
will be shown in a bar at the bottom of the screen. If this bar is not visible, you can display it using
the INFO button.
Most of the colour buttons work only if this bar is visible.
RED Red function button, in some screens the function of a 'clear' button.
(e.g. Disc Manager, 'Sort TV channels' menu, edit the title name,...).
GREEN Green function button
YELLOW Yellow function button
BLUE Blue function button
Additional TV functions
With the enclosed multicode remote control you can control the main functions of your TV set.
To do this, you must first enter a code number that corresponds to the make of your TV set.
You will find a summary of all available remote control commands on the last page of this manual.
How to enter this code number you will read in the chapter ' Using your DVD-Recorder remote
control with your TV set'.
TV VOLUME q Increase TV volume
TV VOLUME r Reduce TV volume
For the following functions you need to hold down the •TVbutton (on the left side) and then
select the function you need with the appropriate button.
STANDBY m Switch on/off TV set
0..9 Number buttons 0 - 9
CHANNEL q To select a higher programme number
CHANNEL r To select a lower programme number
Additional TV functions for Philips TV-sets if supported from the TV. You need to hold down the •
TV button (on the left side).
T/C switch Teletext (TXT) on/off
TIMER s Clock display on the screen on/off
RETURN To return to the previous selected TV program/ previous menu step
SYSTEM MENU Call up the System Menu from the TV
B , A In the TV menus cursor up/down
D , C In the TV menus cursor left/right
OK Confirm functions or settings
RED , GREEN ,
YELLOW, BLUE
Colour buttons for special functions
TUNER Switching the TV from the external sockets to the internal tuner.
Overview of functions
8
Front of the device
STANDBY-ON m : To switch device off / on, interrupt a function.
TRAY LED : Red light around the disc tray indicates recording on a
DVD+RW/+R.
OPEN/CLOSE J : Open/close disc tray.
GUIDE : No function
OK : To confirm the entry/function.
HDD : Call up the media browser (overview of recordings on the
HDD).
During a recording on the HDD this button lights up blue.
UP DOWN : Cursor buttons up, down in the menus.
Previous or next title in the time shift buffer during playback from
HDD.
LEFT RIGHT : Cursor buttons left, right in the menus.
Previous or next position during playback of a title from the HDD
(media browser or time shift buffer).
n : Record button
Stores the current TV show on the HDD, mark recordings in the
time shift buffer to be stored on HDD.
Red light around the n button indicates:
•) a recording on a DVD+RW/+R (archiving of titles)
•) storing of a recording(s) on the HDD.
G : Playback button
Play back a recorded disc or a title on the HDD
N : select previous title/search backwards
O : select next title/search forwards
h : Stop button
Interrupt playback/recording (Cameramode)
Behind the flap at the right<hand corner on the front
S-VIDEO (CAM1) : Connection of SVHS/Hi8 camcorders or
SVHS/Hi8 video recorders (programme number 'CAM1')
Yellow socket
VIDEO (CAM1) : Video input socket: Connection of
camcorders or video recorders (programme number 'CAM1')
White/red socket
L AUDIO R (CAM1) : Audio input socket left/right :
Connection of camcorders or video recorders (programme
number 'CAM1')
DV IN (CAM2) : digital video input (DV format only), IEEE 1394,
FireWire to connecting a digital camcorder or other suitable
device (programme number 'CAM2').
Switching between the sockets VIDEO (CAM1) , S-VIDEO (CAM1) is
done automatically. If a signal is available at both sockets at the same time,
the signal at the S-VIDEO (CAM1) socket has priority.
If you change the socket (unplug), you must re-select the socket. (Button
CHANNEL r and then CHANNEL q )
Overview of functions
9
Back of the device
4MAINS Connection to the mains supply (220V-240V 50/60Hz)
ANTENNA IN Connection of the aerial
TV OUT Connection of the aerial cable to the TV set
EXT2 AUX-I/O Connection of an additional device (satellite receiver,
set-top box, video recorder, camcorder, ...). Input for S-video
signals, input/output for CVBS (video) signals
EXT1 TO TV-I/O Connection of a TV set. Output for S-video signals,
input/output for CVBS (video) signals
Output sockets (AUDIO/VIDEO OUT)
S-VIDEO OUT (Y/C) Connection of an S-Video compatible TV set
VIDEO OUT (CVBS) Yellow cinch socket for the connection of a
TV set with video input (CVBS, Composite Video).
AUDIO OUT L/R White/red cinch socket for the connection of a TV
set with audio input sockets or an additional device.
COMPONENT VIDEO OUT
Red/blue/green cinch sockets for the connection of an additional
device with Component Video input (interlaced, no progressive
scan).
Output sockets (DIGITAL AUDIO OUT)
COAX OUT
For the connection of a digital audio device using a coaxial
cable(cinch cable).
OPTICAL OUT
For the connection of a digital audio device using an optical cable
(Toslink).
G-LINK No function
Please do not connect anything to these input socket
ENGLISH
Overview of functions
10
Discs you can use
The following discs can be used in your DVD recorder for playback
and recording:
Recording and playback
DVD+RW (Digital Versatile Disc + rewriteable)
uses phase change media, the same technology on which
rewritable CDs are based. A high-performance laser is
used to change the reflective properties of the recording
layer; this process can be repeated more than a thousand
times.
DVD+R (Digital Versatile Disc + recordable)
Unlike a DVD+RW disc, this disc can only be written to
once. If it is not finalised after a recording, further
recordings can be added to it. Old recordings can be later
deleted but they can no longer be overwritten. The
deleted recordings (titles) are marked 'Deleted title'.
Before this disc can be played in a DVD player, it must be
finalised in the DVD recorder. Once this process is
complete, no further recordings can be added.
Playback only
DVD Video (Digital Versatile Disc)
is a storage medium that combines the convenience of
the compact disc with the latest digital video technology.
DVD video uses modern MPEG2 data compression
technology that enables an entire feature film to be
stored on a single five-inch disc.
DVD-R(DVD-Recordable)
These discs can only be played back if the recording was
made in video mode and the recording was finalised.
DVD-RW (DVD-Rewritable)
These discs can only be played back if the recording was
made in video mode and the recording was finalised.
Audio CD (Compact Disc Digital Audio)
Super Audio CD
(plays only the CD layer of a hybrid SACD disc)
Video CD (Format 1.0, 1.1, 2.0)
Super Video CD
CD-R (CD-Recordable) with Audio/MP3 content
CD-RW (CD-Rewritable) with Audio/MP3 content
Regional code
DVDs must be marked 'ALL' for all regions or '3' for
region 3 to work in this machine. If the DVD is marked
with a different region, it cannot be played in this DVD
recorder.
The number within the globe represents the region.
Region 3 covers:
Brunei Darussalam, Cambodia, Indonesia, Korea, Laos,
Malaysia, Myanmar, The Philippines, Singapore, Thailand,
Vietnam, East Timor, Hong Kong, Macao, Taiwan.
Technical data
You will find more technical data on the last cover page.
Voltage: 220-240V 50/60Hz
Power consumption: 38W
Power consumption (standby): less than 3W (clock display off)
Measurements in cm (W/H/D): 43.5/7.6/33.5 (Disc tray closed),
47.2 cm (disc tray open)
Weight without packagingapprox.: 5.35 kg
Power outage/no power: Channel and timer information remain
saved for approx. 1 year, the time is saved for approx. 12 hours.
If there is power outage during a recording on the HDD (time shift
buffer) at most the last 5 minutes before the power outage will be
lost.
Operating position: maximum 10 degree inclination in all directions
Ambient temperature: 15 °C - 35 °C
Humidity: 25% - 75%
Accessories
Operating instructions
Guarantee booklet
Remote control and batteries
Aerial cable
Mains cable
Audio/Video (AV) cable (yellow, red, white connectors)
Overview of functions
11
Important
ACaution! Visible and invisible laser radiation. If the cover is
open, do not look at the beam.
Because of the risk of eye injuries, only qualified service
engineers should open the device and carry out
maintenance or repair work.
ALASER
Typ: Semiconductor lasers InGaAlP (DVD), AlGaAs(CD)
Wavelength: 660nm (DVD), 780nm (CD)
Output power (outside the lens): 20mW (DVD+RW write),
0.8mW (DVD read), 0.3mW (CD read).
Beam divergence: 82 degrees (DVD), 54 degrees (CD)
ADanger. High voltage! Do not open.
Do not insert objects into the ventilation slots and fan
openings!
You run the risk of getting an electric shock.
AThe device does not contain any user-serviceable parts. Please
leave all maintenance work to qualified personnel.
AThere are some components in the DVD recorder that keep
running as long as the recorder is connected to the power supply.
To switch off the DVD recorder completely, you must unplug it
from the power supply.
AIf you disconnect the DVD recorder from the mains, make sure to
take the plug out of the wall socket and not just remove the
connector from the 4MAINS socket at the back of the unit.
Children playing near the device could suffer injuries at the free
end of the cable.
AMake sure that air can circulate freely through the ventilation slots
on the side and the fan opening at the back of the device to avoid
overheating. The device should be placed on a firm surface.
ADo not insert any objects into the openings or ventilation slots of
the device.
C These operating instructions have been printed on non-polluting
paper.
C Please dispose of old batteries safely.
C Please take the packaging to your local recycling centre.
C This electronic equipment contains several materials that can be
recycled. If you are disposing of an old device, please take it to a
recycling centre.
BDo not switch on the device immediately after transport from
a cold to a warm room or vice versa, or under conditions of
extreme humidity.
Wait at least three hours after transporting the device. The DVD
recorder needs this time to acclimate to its new environment
(temperature, relative humidity, etc.).
BWhen installing the recorder in a cupboard, ensure there is a gap
of approximately 5 cm (2 inch) around the recorder to enable air
to circulate freely and prevent overheating.
BMake sure that no objects or liquids enter into the DVD recorder.
Do not place vases or the like on the DVD recorder. If you spill
liquid into the recorder, immediately disconnect it from the power
supply and call after-sales service for advice.
BKeep the DVD recorder away from radiators and other heat
sources and protect it from direct sunlight.
BDo not place any combustible objects on the device (candles, etc.).
ENGLISH
Overview of functions
12
Important instructions for the HDD
The built-in HDD of this DVD recorder is sensitive to shocks,
temperature fluctuations, and vibrations.
Please observe the following precautions:
•
Avoid shocks or vibrations
•
Do not cover the ventilation openings of the cooling fan
•
Do not operate the device under high temperatures, and do not
expose it to temperature fluctuations
•
Do not pull the mains plug from the wall outlet before the device
is switched off using STANDBY m .
•
Before bringing the device to a workshop for repair, store all
important data of the HDD on a DVD+RW/+R. See 'The archive
function'.
The workshop will not assume any liability for the loss of the
stored data.
•
Philips will not assume any liability for damage or loss of
stored data.
Symbols used in these operating
instructions
The following symbols will facilitate the use of these operating
instructions.
1 Step(s) for carrying out an operation.
O Another possible operating step that is not absolutely
necessary.
P Reaction of the device
•
When only one operation step is necessary
You will find additional information in this section.
Cleaning the discs
Some malfunctions (frozen or distorted picture and broken sound for
example) may be due to dirt on the disc. To avoid such problems, you
should clean your discs regularly.
•
Dirty discs should be cleaned with a soft cloth. Always wipe from
the middle to the edge.
•
Do not use any solvents such as benzine, thinners, commercially
available cleaning agents, or antistatic sprays designed for vinyl
records.
Can I use a CD lens cleaner in the DVD recorder?
Since the optical unit (laser) of the DVD recorder operates at a higher
power level than the ones in normal DVD and CD players, such CD lens
cleaner discs may actually damage the optical unit (laser).
Therefore, refrain from using a CD lens cleaner disc!
Overview of functions
13
Special functions of your DVD recorder
Your PHILIPSDVD recorder has a number of special functions to make it easier to use and to
enhance your enjoyment.
You can operate the main functions on your television using your DVD-Recorder recorder remote
control, even if your television is not a Philips.
You can upgrade the software of your DVD-Recorder with a CD-ROM.
On the web site http://www.p4c.philips.com under the model number 'HDRW 720/69' you will find
the data and the upgrade information.
This connector is also known as a 'FireWire' or 'IEEE 1394'. This connector is used to transmit
wide digital broadband signals that are used for digital video camcorders. Audio and video signals
are transmitted using a cable. In addition to DV and Hi8 camcorders, PCs with digital video output
can also be connected to the digital input.
This screen tells you what's on the disc. Each index screen represents a recording. On the right
hand side of the screen you can also see a disc indicator that shows the position and length of the
current recording on the disc in a graphic format.
This function enables you to simply delete unwanted scenes. The relevant scenes are marked and
skipped as required. If you store (archive) such titles on a DVD+RW/+R you can decide if you want
to store the original title (with the hidden scenes) or the edited title (without the hidden scenes).
MP3 CDs can be played on this machine.
MP3 files are highly compressed music files. The data is compressed to 1/10 of the volume of the
original audio material using a special process. This means that 10 hours of music can be stored on
a single CD.
The Philips DVD recorder can play back pre-recorded DVDs and CDs. DVDs recorded using this
DVD recorder can be played back on current and future DVD players.
Dolby Digital is a standard developed by Dolby Laboratories for transmitting from 1 to 5 full-range
channels as well as a low frequency (.1) channel for a total of 5.1 discrete channels. The
loudspeakers are arranged front left, front middle, front right, rear left and rear right. This system is
currently the most common system and is used in cinemas.
With this DVD recorder each soundtrack in 2-channel Dolby Digital is recorded onto a
DVD+RW/+R.
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D
symbol are trademarks of Dolby Laboratories.
This product incorporates copyright protection technology that is protected by U.S. patents and
other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Simple programming system for DVD recorders. Simply enter the programming number associated
with your television programme. You will find this number in your favourite listings magazine.
G-
CODE is a registered trademark of Gemstar Development Corporation. The G-CODE system is
manufactured under license from Gemstar Development Corporation.
ENGLISH
Overview of functions
14
Enter the serial number here. You will need it for service queries or if your machine is stolen. The
serial number (PROD. NO.) is printed on the type plate at the back or bottom.
Made in Hungary
220-240V 50/60Hz 38W
MODEL NO. HDRW 720/69
PROD. NO. _______________________
Overview of functions
15
Preparing the remote control for
operation
The remote control and its batteries are packed separately in the
original DVD recorder packaging. You must install the batteries in the
remote control before use - described in the following section.
1 Take the remote control and the enclosed batteries (2 batteries).
2 Open the battery compartment, insert the batteries as shown and
then close the battery compartment. Match the polarities (+ and -)
on the batteries with the diagram on the remote.
The remote control is now ready to use.
Its range is approximately 5 to 10 meters.
'Aim' correctly
Aim the remote control at the DVD recorder and not at the TV set.
Using your DVD<Recorder remote control
with your TV set
With the enclosed multicode remote control you can control the main
functions of your TV set. To do this, you must first enter a code
number that corresponds to the make of your TV set.
You will find a summary of all available remote control codes on the
last page of this manual.
1 Hold down the STANDBY m button.
2 Using the number buttons 0..9 , enter the code number that
corresponds to the make (manufacturer) of your TV set.
3 When you have entered the code number check that, the TV set
will responds to the TV VOLUME r or TV
VOLUME q buttons.
a My TV set will not react
b Also try to enter the other code numbers or that of other
manufacturers.
b In some cases, it is possible that your TV set will not react to the
selected code numbers. If this is the case, you unfortunately cannot
use this function.
a How can I reset the code?
b Enter the number 000.
If you remove the batteries, the selected code will be stored for about 5
minutes before resetted to 000.
4 You can select one of the following functions:
TV VOLUME q increase the TV volume
TV VOLUME r decrease the TV volume
For the following functions you need to hold down the •
TV button (on the left side) and then select the function you need
with the appropriate button.
STANDBY m switch off the TV set
CHANNEL q next programme number
CHANNEL r previous programme number
Additionally on Philips TV-sets:
T/C switch Teletext (TXT) on/off
TIMER s Clock display on the screen on/off
RETURN To return to the previous menu step
SYSTEM MENU Call up the System Menu from the TV
B , A In the menus cursor up/down
D , C In the menus cursor left/right
OK Confirm functions or settings
Colour buttons Buttons for special functions
TUNER Switchng the TV from the external sockets to
the internal tuner (TV channels).
ENGLISH
Connecting the DVD recorder
16
Connecting to the aerial
To receive TV programmes you have to connect the DVD-recorder to
the aerial or the cable network.
1 Switch off your TV set.
2 Remove the aerial cable plug from your TV set. Insert it into the
ANTENNA IN socket at the back of the DVD recorder.
3 Insert one end of the supplied aerial cable into the TV
OUT socket at the back of the DVD recorder and the other end
into the aerial input socket at the back of the TV set.
The aerial input socket of the TV set may be labeled ANT IN, RF
IN, 75 ohm, etc. Check your TV instructions for details.
Connecting to the TV
Choose from the following connections:
Connection with S<video cable
Connection with Video (CVBS) cable
Connection with the aerial cable only
Connection with an S<Video(Y/C)cable
This connecting cable, also known as the SVHS cable, is used to
transmit the brightness signal (Y signal) and colour signal (C signal)
separately. This mini DIN socket/plug is also called a Hosiden
socket/plug.
1 Insert one end of an S-Video(SVHS) cable into the S-VIDEO
OUT (Y/C) socket at the back of the DVD recorder and the other
end into the S-Video (SVHS) input socket on the TV set (usually
labelled 'S-Video in' or 'SVHS in'. See TV operating instructions).
2 Insert one end of an audio (Cinch) cable into the red/white Cinch
socket AUDIO OUT L/R at the back of the DVD recorder and
the other end into the audio input socket (usually red/white) on
the TV set (usually labelled 'Audio in' or 'AV in'. See TV operating
instructions).
O Read the next chapter 'Connecting additional devices' on how
to connect additional devices (satellite receivers,
videorecorders,...) to the input-/output sockets.
Then, read the chapter on 'Connecting to the mains'.
Connecting the DVD recorder
17
Connection with video (CVBS) cable
This cable, usually with yellow Cinch connectors, is used for
transmitting the Composite Video signal (FBAS, CVBS). In this method
of transmission the colour signal and the brightness signal are
transmitted on the same cable. In certain circumstances, this can lead
to slight problems with the picture, such as 'Moiré' patterns.
1 Insert one end of a video (CVBS) cable into the yellow Cinch
socket VIDEO OUT (CVBS) at the back of the DVD recorder
and the other end into the video input socket (usually yellow) on
the TV set (usually labelled 'Video in' or 'AV in'. See TV operating
instructions).
2 Insert one end of an audio (Cinch) cable into the red/white Cinch
socket AUDIO OUT L/R at the back of the DVD recorder and
the other end into the audio input socket (usually red/white) on
the TV set (usually labelled 'Audio in' or 'AV in'. See TV operating
instructions).
O Read the next chapter 'Connecting additional devices' on how
to connect additional devices (satellite receivers,
videorecorders,...) to the input-/output sockets.
Then, read the chapter on 'Connecting to the mains'.
Connection with the aerial cable only
To connect this DVD-Recorder to a TV set without external
Audio/Video input sockets, you need a modulator. With the modulator
the audio/video signal is converted in an UHF-channel. This signal can
be received and stored on the TV as a TV-station.
Connecting to the mains
Always check if the local mains voltage matches the voltage range
printed on the type plate at the back or bottom of the DVD-recorder.
If not consult your dealer or the customer support from your country.
1 Switch on the TV set.
2 Insert one end of the supplied mains cable into the mains socket
4MAINS at the back of the DVD recorder and the other end
into the wall socket.
P The most important features of the DVD recorder will appear
in scrolling text on the display.
After the first installation is completed this function will be
switched off.
Then, read the paragraph on 'Initial installation' in 'Installing your DVD
recorder'.
ENGLISH
Connecting the DVD recorder
18
Connecting a video recorder, DVD player.
You can connect a video recorder or a DVD player to the EXT2
AUX-I/O input socket.
The DVD recorder must be connected directly to the TV set ( EXT1
TO TV-I/O socket directly to the TV set). If there is a video recorder
in between the picture quality may be poor because of the copy
protection system built into the DVD recorder.
O If you already have an external receiver (satellite receiver,
set-top box, cable TV box) connected to this socket, you can
connect the video recorder to the 'VCR', 'TO VCR', ...socket
of the external receiver.
O You can also use the front sockets S-VIDEO (CAM1) ,
VIDEO (CAM1) and the L AUDIO R (CAM1) audio
sockets.
For more information read the chapter 'Recording on the
HDD'.
Connecting an external receiver
1 Connect the output sockets of the receiver (satellite receiver,
set-top box, cable TV box,...) provided for the TV set (usually
labelled 'TV', 'TO TV',...) with the EXT2 AUX-I/O socket of the
DVD recorder.
Connecting additional receivers
For additional receivers, you can also use the EXT1 TO
TV-I/O socket (if the TV set is connected only with the aerial cable or
with the COMPONENT VIDEO OUT sockets).
Connecting additional devices only via
aerial cable
If you want to connect additional devices (e.g. satellite receiver...) only
via aerial cable, please observe the following:
The DVD-Recorder must be connected directly to the TV set. If there
is a video recorder or an additional device in between, the picture
quality may be poor because of the copy protection system built into
the DVD-Recorder.
The additional device (satellite receiver) must be connected before the
DVD recorder (additional device - DVD recorder - TV set). Only the
TV set must be connected to the TV OUT socket.
If there is interference in the picture when the additional device is
switched on, a TV broadcaster may be transmitting on the same
channel or a channel very close to that of the additional device. (e.g.:
TV broadcaster on channel 45, additional device (satellite receiver)
also on channel 45). In this case, change the channel of the additional
device (satellite receiver). Consult the instruction manual of the
additional device.
You must also store this channel on the DVD recorder to be able to
record TV programmes from the additional device (satellite receiver).
Switch on the additional device during the installation of the DVD recorder.
During the automatic channel search, the channel on which the additional
device is transmitting will be stored as a TV channel.
Connecting additional devices
19
Connecting a camcorder to the front
sockets
To copy camcorder recordings, you can use the front sockets. These
sockets are located behind the flap on the right hand side.
Recordings from the front sockets were stored on the HDD to make
editing easy. Then you can transfer (archive) them on a DVD+RW/+R.
Digital (DV) input socket
If you have a DV or Digital 8 camcorder, connect the DV IN
(CAM2) input of the DVD recorder to the appropriate DV output on
the camcorder.
Choose 'CAM2' as a programme number for this input.
During recording on the HDD or a DVD+RW/+R the original recording date
and time are stored as DVD subtitles.
On playback, this data can be displayed on the TV screen by using the
'Subpictures' (Play back from HDD) or the'
E
' (DVD Play back)
function.
S<video input socket
If you have a Hi8 or S-VHS(C) camcorder, connect the S-VIDEO
(CAM1) input of the DVD recorder to the appropriate S-VHS output
on the camcorder.
You must also connect the audio input L AUDIO R (CAM1) on the
DVD recorder to the audio output on the camcorder.
Choose 'CAM1' as a programme number for this input.
Video (CVBS) input socket
If you have a camcorder that only has a single video output (Composite
Video, CVBS), connect the VIDEO (CAM1) input on the DVD
recorder to the appropriate output on the camcorder.
You must also connect the audio input L AUDIO R (CAM1) on the
DVD recorder to the audio output on the camcorder.
Choose 'CAM1' as a programme number for this input.
Connecting audio devices to the
analogue audio sockets
Two analogue audio sockets AUDIO OUT L/R (audio signal output
left/right) are located at the back of the DVD recorder.
These can be used to connect the following:
•) a receiver with Dolby Surround Pro Logic
•) a receiver with two<channel analogue stereo
Can I use the 'Phono' input on my amplifier?
This socket (input) on the amplifier is designed only for a record player
without preamplifiers. Do not use this input for connecting the DVD
recorder.
The DVD recorder or the amplifier may be damaged as a result.
Connecting audio devices to the digital
audio sockets
At the back of the DVD recorder there are two digital audio output
sockets OPTICAL OUT for an optical cable and COAX OUT for a
coaxial cable (Cinch cable).
These can be used to connect the following:
•) an A/V receiver or an A/V amplifier with a digital
multi<channel sound decoder
•) a receiver with two<channel digital stereo (PCM)
Digital multi-channel sound
Digital multi-channel sound offers the best possible sound quality. You
will need a multi-channel A/V receiver or amplifier that supports at least
one of the audio formats of the DVD recorder (MPEG2 and Dolby
Digital).
Consult the operating instructions for your receiver to find out which
audio formats it supports.
a All I can hear from my loudspeakers is a loud distorted
noise
b The receiver is not compatible with the digital audio format of the
DVD recorder. The audio format of the DVD disc is displayed in the
status window when you switch to another language. Playback in
six-channel digital surround sound is only possible if the receiver has
a digital multi-channel sound decoder.
ENGLISH
Connecting additional devices
20
Initial installation
After successfully connecting your DVD recorder to the TV set and
other additional devices as described in the previous chapters, this
chapter will show you how to start the initial installation. The DVD
recorder automatically seeks and stores all available TV channels.
Switching on additional devices
If you have connected additional devices such as a satellite receiver to the
aerial cable, switch them on. The automatic channel search will recognise it
and save it. Please observe that you must switch on a "test signal" for some
additional devices.
No aerial connected
Even if you only want to use the DVD recorder to play back or have only
connected a satellite receiver, you must still complete the initial installation.
This is necessary so that the basic settings are stored correctly. Once initial
installation is complete you can use the DVD recorder as normal.
1 Press STANDBY-ON m on the front of the DVD-recorder
P 'PHILIPS' and then 'IS TV ON?' will appear on the display.
P If the connection was properly made and your TV was
automatically switched to the programme number for the
input socket, e.g. 'EXT', '0', 'AV', you will see the following
picture:
Virgin mode
Menu Language
English
Español
Français
Italiano
Deutsch
Press OK to continue
a My screen is empty.
b Depending on the initialisation procedure it can take some time
before the picture appears. Please press no button in the
meantime.
b If the TV set does not automatically switch to the programme
number of the input socket, select the corresponding programme
number on your TV set manually (see your TV's operating
instructions).
b Check that the scart cable is connected from the TV set to the
EXT1 TO TV-I/O socket on the DVD recorder. The EXT2
AUX-I/O socket is intended only for additional devices.
2 Select the desired language for the on-screen menu by pressing
B or A .
Virgin mode
Menu Language
English
Español
Français
Italiano
Deutsch
Press OK to continue
What is an on-screen menu?
All settings and/or functions are displayed on your TV screen in the
relevant language.
3 Confirm with OK .
4 Select the desired audio language using B or A .
Virgin mode
Audio Language
English
Español
Français
English
Italiano
Press OK to continue
What is an audio language?
The DVD will play the sound in the language you select, provided this
language is available on the disc. If it is not available on the disc the first
language on the DVD will be used instead. The DVD Video Disc menu,
if available, will also be displayed in the language you select.
5 Confirm with OK .
6 Select the desired language for the subtitles by pressing B or
A .
Virgin mode
Subtitle Language
English
Español
Français
English
Italiano
Press OK to continue
Installation
21
What is the subtitle language?
The subtitles will be displayed in the language you select, provided this
language is available on the disc. If it is not available on the disc the fist
language on the DVD will be used instead.
7 Confirm with OK .
8 Select the desired screen format position using B or A .
Virgin mode
TV Shape
4:3 letterbox
4:3 panscan
16:9
Press OK to continue
O '4:3 letterbox'
for a 'wide-screen' (cinema format) picture with black bars at
the top and bottom.
O '4:3 panscan'
for a full-height picture with the sides trimmed.
O '16:9'
for a wide-screen TV set (screen edge ratio 16:9)
9 Confirm with OK .
P Select with A , B one of the countries displayed.
0 Confirm with OK .
P A screen appers with a message about the connection of the
aerial.
It can take some time before this screen appears. Please press
no button in the meantime.
A After you connect the aerial (or cable TV, satellite receiver, etc.)
to the DVD recorder, press OK .
P The automatic TV channel search starts.
Installation
Autom. search
Searching for TV channels
00 Channels found
h______________
Please wait
P 'WAIT' will appear on the display.
Wait until all available TV channels have been found. This can
take several minutes.
a No TV-Stations found yet?
b Select channel 1 on the TV set. Can you see the stored TV channel
on the TV set?
If not, check the cable connection from the aerial (aerial socket) to
the DVD recorder and to the TV set.
b Please have patience.
The DVD recorder searches the entire frequency range in order to
find and save the largest possible number of TV channels.
b If you have not connected an aerial, go through all the basic settings
right to the end and then, if you wish, start the automatic search (see
'Automatic TV channel search').
P When the automatic TV channel search is complete, 'Autom.
search complete' will appear on the TV screen along with
the number of TV channels found.
P 'Time', 'Year', 'Month', 'Date' will then appear on the TV
screen. It can take some time before this screen appears.
Please press no button in the meantime.
Autom. search
Autom. search complete
00 Channels found
Time 20:01
Year 2004
Month 01
Date 01
To continue
Press OK
B Check the displayed settings for 'Time', 'Year', 'Month' and
'Date'.
O If required select the line using A , B .
If required, change the data with the number buttons 0..9 on
your remote control.
O Select the line with A or B .
C If all informations are correct, save by pressing OK .
The initial installation is now complete.
How to modify the channel settings or the time/date settings you will
red on the following chapter.
a Sound may be distorted on some TV channels.
b If the sound is distorted on any of the stored TV channels or if there is no
sound at all, the wrong TV system may have been stored for the TV
channel. Read 'Manual TV channel search' for information on how to
change the TV system.
ENGLISH
Installation
22
Manual TV channel search
In some cases, not all of the available TV channels may have been found
and stored during initial installation. In this case, you will need to search
for and store the missing or coded TV channels manually.
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press the DISC MENU button and then the SYSTEM
MENU button on the remote control.
P The 'SYSTEM MENU' appears.
2 Select 'Set up' using B .
3 Press C to select 'System'.
4 Select the line 'Installation' using B and confirm with C .
P A message appears on the screen that the change of this
setting will flush the 'Time Shift Buffer'.
O If the 'Time Shift Buffer ' contains important recordings, save
them with the REC/OTR n button first. Read additional
information to the 'Time Shift Buffer' in the chapter 'The Time
Shift Buffer'.
5 Select 'Yes' with D and confirm with OK .
O If the message window was closed, confirm the line with
C again.
6 Select 'Manual search' using B or A and confirm with C .
Installation
Manual search
Channel/freq. CH
Entry/search 01
Programme number 01
TV channel name BBC1
Decoder Off
TV system PAL-BG
NICAM On
Fine tuning 0
To store
Press OK
7 In 'Channel/freq.', select the desired display using C .
'Freq.'(Frequency), 'CH'(Channel), 'S-CH'(Special/hyperband
channel)
8 In 'Entry/search', enter the frequency or channel of the TV
station using the number buttons 0..9 .
O Press C in the line 'Entry/search' to start the automatic
search.
P A changing channel number/frequency number will appear on
the TV screen.
Continue the automatic search until you have found the TV
channel you are looking for.
9 Using D or C in 'Programme number', select the programme
number you want to use for the TV channel, e.g. '01'.
0 Press OK to store the TV channel.
A To search for other TV channels, begin again at
8 .
O Change the name of a TV channel:
-In'TV channel name', press C .
- Select the desired character position using D or C .
- hange the character at the desired position with B or A .
- Select the next character position in the same way.
- Confirm with OK .
O 'Decoder'
No function. This setting should remain 'Off'. Otherwise it is
not possible to receive TV channels.
O Change the TV system of the TV channel:
-In'TV system', use D or C to select the TV system that
produces the least distortion of picture and sound.
O NICAM
- If reception is poor and the sound distorted you can turn off
NICAM.
In 'NICAM', select 'Off' using C .
O Fine tuning
- You can try fine tune the TV channel manually with D ,
C in the line 'Fine tuning'.
B To end, press SYSTEM MENU .
Additional installation features
23
Automatic TV channel search
If the channel assignments of your cable or satellite TV provider change
or if you are reinstalling the DVD recorder, e.g. after moving house,
you can start this procedure again. This will replace the stored TV
channels with the new ones.
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press the BROWSER HDD button and then the SYSTEM
MENU button on the remote control.
P The 'SYSTEM MENU' appears.
2 Select 'Set up' using B .
3 Press C to select 'System'.
4 Select the line 'Installation' using B and confirm with C .
P A message appears on the screen that the change of this
setting will flush the 'Time Shift Buffer'.
O If the 'Time Shift Buffer ' contains important recordings, save
them with the REC/OTR n button first. Read additional
information to the 'Time Shift Buffer' in the chapter 'The Time
Shift Buffer'.
5 Select 'Yes' with D and confirm with OK .
O If the message window was closed, confirm the line with
C again.
6 Select 'Autom. search' using B or A .
7 Press C .
P The automatic TV channel search starts. This allows the DVD
recorder to save all available TV channels. This procedure may
take several minutes.
Installation
Autom. search
Searching for TV channels
00 Channels found
h______________
Please wait
P When all the TV channels have been found, 'Autom. search
complete' will appear on the TV screen.
8 To end, press SYSTEM MENU .
You can read about how to search for a TV channel manually in
'Manual TV channel search'.
Sorting and deleting TV channels
manually
With this function you can rearrange the TV channels already stored or
to delete TV channels you don't want or those with poor reception.
Preparation:
•) The TV set is switched on, and if necessary, the programme number for the
DVD recorder has been selected.
•) the DVD recorder is switched on.
1 Press the BROWSER HDD button and then the SYSTEM
MENU button on the remote control.
P The 'SYSTEM MENU' appears.
2 Select 'Set up' using B .
3 Press C to select 'System'.
4 Select the line 'Installation' using B and confirm with C .
P A message appears on the screen that the change of this
setting will flush the 'Time Shift Buffer'.
O If the 'Time Shift Buffer ' contains important recordings, save
them with the REC/OTR n button first. Read additional
information to the 'Time Shift Buffer' in the chapter 'The Time
Shift Buffer'.
5 Select 'Yes' with D and confirm with OK .
O If the message window was closed, confirm the line with
C again.
6 Select 'Sort TV channels' using B or A and confirm with C .
Installation
Sort TV channels
...
• P01 BBC1
P02 BBC2
P03 ITV
P04
P05
P06
...
To sort
Press ?
To exit press
SYSTEM MENU
7 Using B or A select the TV channel that you want to delete or
whose order you want to change.
8 Confirm with C .
O Deleting TV channels
Unwanted channels or those with poor reception can be
deleted using the red function button.
9 Using B or A , shift the TV channel to the desired position and
press the D button.
P The DVD recorder will insert the TV channel.
0 Repeat steps
7 to 9 until you have resorted/deleted all the TV
channels you want.
A To store, press OK .
ENGLISH
Additional installation features
24
B To end, press SYSTEM MENU .
Setting the language
For the basic setting of DVD playback, you can select the language for
the subtitles and the audio language.
Please note that with some DVDs the audio language and/or subtitle
language can be changed only via the DVD menu.
For bilingual shows, you can also select the sound channel of the TV
station via the internal tuner ( TUNER button) for recording or
playback.
Preparation:
•) The TV set is switched on, and if necessary, the programme number for the
DVD recorder has been selected.
•) the DVD recorder is switched on.
1 Press the BROWSER HDD button and then the SYSTEM
MENU button on the remote control.
P The menu bar appears.
2 Select '
A
' symbol with D or C .
3 Select '
' with B or A and confirm with the C button.
Language
Audio Language English
Subtitle English
Menu English
4 Select the appropriate line and confirm with C .
O Audio Language
The DVD will play back in the language you have chosen.
O 'Subtitle'
Subtitle language
O 'Menu'
You have the option of setting one of the displayed languages
for the on-screen menu (OSD). However, the DVD recorder
display will only display English text regardless of this setting.
5 Select the appropriate setting using B or A and confirm with
OK .
6 To end, press SYSTEM MENU .
Setting the time and date
If the display shows an incorrect time or '--:--', the time and date must
be reset manually.
SMART CLOCK
'SMART CLOCK' automatically sets the time and date using the information
transmitted by the TV channel. Normally the TV channel stored at
programme number 'P01' is used. In the 'Clock preset' line you can
select the programme number (channel name) whose TV channel transmits
this information.
If the time/date is not displayed correctly you need to choose the 'Off'
setting in the 'Clock preset' line and set the date and time manually.
1 Press the BROWSER HDD button and then the SYSTEM
MENU button on the remote control.
P The 'SYSTEM MENU' appears.
2 Select 'Set up' using B .
3 Press C to select 'System'.
4 Select the line 'Installation' using B and confirm with C .
P A message appears on the screen that the change of this
setting will flush the 'Time Shift Buffer'.
O If the 'Time Shift Buffer ' contains important recordings, save
them with the REC/OTR n button first. Read additional
information to the 'Time Shift Buffer' in the chapter 'The Time
Shift Buffer'.
5 Select 'Yes' with D and confirm with OK .
O If the message window was closed, confirm the line with
C again.
6 Select 'Time/Date' using B or A and confirm with C .
Installation
Time/Date
Time 20:00
Year 2004
Month 01
Date 01
Clock preset 01
To exit press
SYSTEM MENU
7 Change the time in 'Time' using the number buttons 0..9 on your
remote control.
8 Check 'Year', 'Month' and 'Date' in the same way. Select the
entry field with the B or A button.
Additional installation features
25
a Time/date is displayed incorrectly despite manual setting
b With 'SMART CLOCK', time/date is transferred from the TV channel
saved on 'P01' and automatically corrected.
You can either enter another TV channel for transferring the data or
disable the function.
In the line 'Clock preset' select the relevant TV channel with
D or C . To disable, select 'Off'.
9 Check the displayed settings and confirm with OK .
P 'Stored' will appear briefly on the screen.
0 To end, press SYSTEM MENU .
Connection using a component video
(Y Pb Pr/YUV) cable (no progressive
scan)
Component video (Y Pb Pr) is the highest quality picture transmission
option. This is achieved by dividing the video signal into a luminance
signal (Y) and two colour difference signals - red minus luminance (V)
and blue minus luminance (U). As a rule, "Cr, Pr" or "R-Y" is used to
describe the red difference signal and "Cb, Pb" or "B-Y" the blue
difference signal.
These signals are transmitted through separate lines. The connectors of
this cable and the corresponding sockets are usually green (luminance,
Y), blue (U, Pb, Cb, B-Y), and red (V, Pr, Cr, R-Y).
Attention!
If you choose this type of connection, the DVD recorder must already
be connected and completely installed (initial installation complete).
Switching of the signal to the COMPONENT VIDEO OUT sockets is
carried out in a menu that is not yet available during the initial
installation.
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press the DISC MENU and then the SYSTEM MENU button
on the remote control.
P The menu bar appears.
2 Select '
A
' symbol with D or C .
3 Select the '
' symbol using B or A and confirm with C .
TV shape 16:9
Black level shift Off
Video shift ï
video output RGB
4 Select the line 'video output' using A or B and confirm with
C .
5 Select your setting with B or A . If the YPbPr output (YUV
signal) is switched on, S-video (Y/C) and video (FBAS/CVBS) signals
will not be transmitted simultaneously.
O 'S-video + YPbPr'
Component Video (YUV) and S-Video(Y/C).
Timer menus only available on YUV ouput sockets.
O 'CVBS + YPbPr'
Component Video (YUV) and Video (FBAS/CVBS).
Timer menus only available on YUV ouput sockets.
ENGLISH
Additional installation features
26
With all other settings, the signal is switched off at the
COMPONENT VIDEO OUT sockets. This will also be displayed
as information on the screen.
For more information on the other settings, read section 'Picture
settings' ('video output') in chapter 'User preferences'.
6 Confirm with OK .
7 Use a component video (Y Pb Pr) cable, connect the three cinch
sockets (red, blue, green) COMPONENT VIDEO OUT at the
back of the DVD recorder with the corresponding three
component video (interlaced) input sockets of your TV set, usually
labelled 'Component Video Input', 'YUV Input', 'YPbPr', 'YCbCr' or
simply 'YUV'.
Warning!
Do not confuse these sockets with the five-component RGB
sockets (if available) or the yellow video (CVBS/FBAS) socket and
the two audio sockets (red/white). The five-component RGB
sockets are only provided for the R-G-B-H-V signals (red, green,
blue with horizontal and vertical synchronisation impulse).
Please observe the colour sequence
The colours of the sockets at the DVD recorder and the connectors
must match those of the socket colours at the TV set
(red-red/blue-blue/green-green). If they don't, the colours of the picture
may get mixed up or the picture may not be visible.
8 Use an audio (cinch) cable, connect the red/white cinch socket
AUDIO OUT L/R at the back of the DVD recorder with the
most coloured red/white audio input socket of your TV set
(usually labelled 'Audio in' or 'AV in'. See the instruction manual of
your TV set.)
9 If necessary, switch your TV set to the component video
(Interlaced) input sockets. If there is a switch or selection on your
TV-set between 'Interlaced' and 'Progressive scan' select
'Interlaced'. 'Progressive scan' will be not supported from this
DVD-Recorder.
Also consult the instruction manual of your TV set.
P The menu of the DVD recorder should now appear on the TV
screen. If not, check the cable connections and the settings on
your TV set.
O If necessary store this setting on your TV set.
0 End with SYSTEM MENU .
Additional installation features
27
General
As soon as you turn on the DVD recorder, the currently selected TV
channel on the DVD-Recorder is recorded in a temporary storage
(Time shift Buffer).
Recordings in the time shift buffer will be automatically deleted e.g.
after 3 hours if the period of the time shift buffer is set to 3 hours
(factory setting). Only recordings marked in the Time shift Buffer will
be stored on the the built-in HDD. For more information, read the
next section 'The Time Shift Buffer'.
The following additional information is stored with each recording:
•) name of the recording
If no name is recognised, only the programme number (programme
name) and the time will be stored as the name.
•) length of the recording
•) recording mode (quality)
•) date of the recording
•) index picture of the recording
To facilitate the search of a specific position, a chapter marker is
recorded every 5 minutes. How you switch off this function you will
read in chapter 'User preferences for the HDD' in the section
'Preferences/Chapters'. After the recording is completed, you can
select these markers with N , O . Please make sure that the
chapter selection is activated (the 'CHAPTER' symbol lights up in the
info bar at the top of the screen). If necessary, you can activate it using
T/C .
The Time shift Buffer
As a result of the high data transfer speed of the HDD, it is possible to
play back recordings from the time shift buffer while the recording is
still in process.
Therefore, you can jump back to the currently selected TV programme
using JUMP BACK and watch a scene again.
Moreover, you can use all playback features such as still picture, slow
motion, search by time, search with N , O even with recordings
that are still in the time shift buffer.
In the meantime, the recording continues.
If you switch to another TV channel on the DVD-Recorder
( CHANNEL q , CHANNEL r ) a new title is created with the new
TV channel in the time shift buffer. If you watch a TV show only for a
short time (less than 60 seconds) before you change to a different TV
channel, no new title is created.
For easier navigation, you can change the time period of the time shift
buffer from 1 to 6 hours. 1 hour means that a recording is available
only for one hour before it is automatically deleted to make room for
the current recording.
What is the advantage from 1 hour and 6 hours?
The complete time periode of the time will be displayed on the whole screen
of your TV.
With 1 hour you will get the highest comfort for searching a specific scene.
With 6 hours you will get the highest possible recording time.
Please observe that the Time shift Buffer needs also storage capacity on the
HDD. Depending of the selected record mode (picture quality):
6 hours in 'M1' = approx. 28GB
6 hours in 'M8' = approx. 3,4GB
How you enter the time periode, read in the chapter 'User preferences for
the HDD' in the section 'Preferences'/'Recording'/ 'HDD buffer'.
ENGLISH
Recording on the HDD
28
Symbols in the 'Time Shift Buffer'
Following symbols can appear in the info bar at the top of the screen in
the 'Time Shift Buffer'. With the INFO button on the remote control
you can also call up this infobar.
Left area
Information about the input signal were displayed here:
'C' Actual TV show (live picture) from the selected TV channel
'P01' Programme/Channel number of the selected TV channel
'
D' Playback from the HDD
Right area
Information about the current operating status were displayed here:
'B 16:03:02' Actual (live) picture of the selected TV-channel
( TUNER button)
'J PLAY' Playback from the HDD
'M PAUSE' Still picture
'H 1/2X' Slow motion forwards
'G -1/2X' Slow motion backwards
'L 4X' Fast motion forwards
'K -4X' Fast motion backwards
Navigation in the time shift buffer
Preparation:
•) The TV set is switched on, and, if necessary, the programme number for the
DVD recorder has been selected.
•) the DVD recorder is switched to tuner mode (button TUNER ).
1 Press INFO to display the bar of the time shift buffer on the
screen.
2 The following buttons are available:
O N , O , PLAY G , PAUSE 9 , D , C , JUMP
FWD , JUMP BACK for navigation in the time bar.
O T/C
Switching between title/chapter for selection using N ,
O . The top screen line displays either 'TITLE' for selecting
titles or 'CHAPTER' for selecting chapters
O REC/OTR n :
- To start a recording that will be stored on the HDD. The
recording will stop automatically after 30 minutes (OTR
function). To make longer recordings, you have to press
REC/OTR n several times. You will see this also on an
information on the screen.
- To mark a title that will be stored on the HDD.
- Hold button down to start the recording from the actual
position.
O Button STOP h :
- To stop a recording.
O Red function button:
- To cancel the marked recording that was set with the
REC/OTR n button.
- Hold button down to stop the recording at the actual
position.
O Yellow function button: ('OVERVIEW')
To display an overview of all content of the time shift buffer.
O Blue function button:('MORE INFO'):
To display any additional information for the actual TV show
transmitted.
Recording on the HDD
29
Mark TV shows for recording
As a rule, recordings in the time shift butter are automatically deleted
after a certain time (1 to 6 hours). In order to store recordings on the
HDD permanently, you can mark sections of the time shift buffer that
will not be deleted and will be available as titles for later playback.
Mark an entire title
A title marker is set if you are watching a TV show longer than 60
seconds (No change of programme number within 60 seconds).
If you want to mark an entire title (title marker at the beginning and at
the end), proceed as follows:
1 Press INFO to display the bar of the time shift buffer on the
screen.
O You can also press the yellow colour button to get a better
overview of the recordings.
2 Select the title you want to store with B , A .
3 Press REC/OTR n to mark the title.
P The colour within the bar changes to red. If you press the
yellow button, you will see programmes marked for recording
with a red dot.
O To remove the marker, press the red function button. The
red title marker disappears.
4 If you want to mark other titles, repeat steps
2 and 3 , until
you have selected all the titles you want.
O If you want to mark several titles in a sequence, go to the
oldest title and press REC/OTR n several times.
O You can extend the end by +30, +60, +90 ,... minutes using
REC/OTR n .
Mark part of a title
You can also mark only parts of a title.
If you mark several parts of a title, each part will be stored as a
separate title on the HDD.
1 Press INFO to display the bar of the time shift buffer on the
screen.
O You can also press the yellow colour button to get a better
overview of the recordings.
2 Select the title you want to store with B , A .
3 The following options are available:
O Freely selectable end:
- Press REC/OTR n to select the entire title. The colour
changes to red.
- Search for the desired end using D , C .
- Hold down the red button:
Red marked recording changes to its original colour from
the current position to the end of the title.
If you want to set more markers in one title, start marking at
the begin of the title.
O Freely selectable beginning:
- Search for the desired beginning using D , C .
- Hold down the REC/OTR n button.
The marker changes to red from the current position to the
end of the title.
O Freely selectable beginning and end:
First, you must define the beginning and then cut off the end.
- Search for the desired beginning using D , C .
- Hold down the REC/OTR n button.
The marker changes to red from the current position to the
end of the title.
- Search for the desired end using D , C .
- Hold down the red button:
Red marker changes to its original colour from the current
position to the end of the title.
How can I delete the changes?
Press REC/OTR n to mark the entire title.
To remove the marker, press the red function button.
'Auto delete'
If there is no space for new recordings on the HDD, recordings will be
automatically deleted in the following order:
1) Titles that have already been viewed. Symbol '
E'.
2) Titles that were not protected. No symbol '
F' available.
More information you will find in the chapter 'User preferences for the
HDD'.
ENGLISH
Recording on the HDD
30
Manual recordings
When you switch on the DVD recorder, the currently selected TV
programme will be recorded in the Time Shift Buffer.
In order to store a recording on the HDD, you must mark it red in the
Time Shift Buffer (time bar) before the Time Shift Buffer is deleted.
How can I delete the Time Shift Buffer?
- Switch off the recorder using STANDBY m
- Select the 'Flush Buffer' feature ( SYSTEM MENU button, 'Set
up' menu)
- The preset time of the Time Shift Buffer (1-6 hours) has expired
Starting a recording:
1 In case the time bar of the Time Shift Buffer is not visible on the
screen, press INFO on the remote control.
2 Press REC/OTR n .
P The red light around the record button n on the front will
switch on.
P '1 Programm +30' will appear on the screen on the right end
of the time bar. This indicates that the recording will
automatically end after 30 minutes. Press
REC/OTR n several times to prolong the switch-off time.
Recording the previous TV show
If the DVD recorded has been on for some time, the Time Shift Buffer
already contains recordings. You can select those recordings (TV shows)
that you want to store on the HDD.
- Select the beginning of the oldest recording with D or C and hold
down REC/OTR n to mark the recording from the beginning.
- Select the end of the most recent recording using C or D and hold
down the RED function button to cut off the end.
You can remove the marker using the RED function button.
Starting a recording from the current position
(from here onward)
You can also start a recording immediately, regardless of the
recordings in the Time Shift Buffer.
1 Hold down REC/OTR n until the red light on the record button
n at the front switches on.
Ending a recording
1 If necessary, switch the TV set to the programme number (input
socket) of the DVD recorder.
2 Press STOP h
P A message appears on the screen, asking whether you really
want to end the recording.
O If you want to end the recording, select 'Yes' with D and
confirm with OK .
O If you do not want to end the recording, confirm 'No' using
OK .
STOP h will always end only the current recording (current time).
If you want to end a recording earlier than scheduled (jump back in
the Time Shift Buffer using D ), proceed as follows:
- Press INFO to display the time bar.
- Hold down the red function button.
3 To permanently store the recording on the hard disk, you have to
erase the Time Shift Buffer. The following options are available:
O the preset Time Shift Buffer period expires (the default setting
is 3 hours)
O the Time Shift Buffer is manually erased ('Flush
Buffer'function( SYSTEM MENU button, 'Set up'menu ))
O you turn off the DVD recorder with STANDBY m
O you switch to camera mode using CAM (switch back with the
same function button).
Recording on the HDD
31
Recording from a video recorder/DVD
player
Please observe:
Most pre-recorded video cassettes or DVDs are copy-protected. If you
try to copy these, the message 'COPYPROTECT' will appear in the
display of the DVD recorder.
Preparation:
•
Switch on the TV set and, if necessary, select the programme
number for the DVD recorder.
•
Switch on the DVD recorder.
•
Select recording mode (button TUNER , button SYSTEM
MENU ,'Preferences', button C 'Record mode').
1 Connect the video recorder/DVD Player as described in the
chapter 'Connecting additional devices'.
2 Press TUNER to display the picture of the Video recorder/DVD
player on the screen.
3 Use CHANNEL r , CHANNEL q to select the programme
number of the input socket to which the Video recorder/DVD
player is connected. ('EXT1' for EXT1 TO TV-I/O ,'EXT2' for
EXT2 AUX-I/O )
Please observe that for recordings via the front sockets S-VIDEO
(CAM1) / VIDEO (CAM1) /'CAM1'or DV IN (CAM2) /'CAM2'
the recording mode must be selected under 'Camera mode'in
'Preferences' of the system menu.
4 Switch on the video recorder/DVD player.
O In case playback has started automatically, interrupt it with the
button STOP or PAUSE on the video recorder/DVD player.
5 Start recording by pressing REC/OTR n on the DVD recorder
and playback by pressing PLAY G on the video recorder/DVD
player.
6 Choose the switch-off time in 30-minute steps using
REC/OTR n .
Please observe:
If you do not choose a switch-off time, the DVD recorder
automatically switches off after 30 minutes.
a When copying video cassettes, 'NO SIGNAL' appears in the
display of the DVD recorder
b Check whether the cable connectors are properly inserted.
b If the recording is made from a video recorder, change the 'tracking'
setting on the video recorder.
b In case of bad or non-standard video input signals, the DVD recorder
may be unable to detect the signal.
a When copying DVD video discs or pre-recorded video
cassettes, the picture is fuzzy and brightness varies
b This happens when you try to copy DVDs or video cassettes that are
copy-protected. Although the complete cassette/disc is recorded, only
parts without copy protected signal can be played back. This
interference is unavoidable with copy-protected DVDs or video
cassettes.
7 To stop the recording press and hold the red function button on
the remote control until the red light around the n button is
switched off.
ENGLISH
Recording on the HDD
32
Recording from a camera connected to
the front sockets
Using this function, you can store recordings via the front sockets
directly on the HDD. These titles will be automatically protected to
prevent them from being automatically deleted in case the HDD is full.
The symbol '
F' indicates such a protection.
You can edit these recordings on the HDD and transfer (archive) them
later on a DVD+RW/+R disc. How you archive recordings on a
DVD+RW/+R you will read in the chapter 'Recording on a
DVD+RW/+R' in the section 'Archiving (storing) titles on a
DVD+RW/+R'.
Please observe the following:
•)
Any programmed recordings (TIMER) will not be carried out during
this operating mode.
•)
If there are any recordings in the time shift buffer, they will be
deleted. Therefore, store important recordings on the HDD
( REC/OTR n ). For more information on the time shift buffer,
read the chapter 'The Time Shift Buffer'.
Preparation:
•
Select the recording mode (button TUNER , button SYSTEM
MENU ,'Preferences', button C 'Camera mode') .
1 Connect the camera as described in the chapter ' Connecting
additonal devices/Connect camcorder to the front sockets'
2 Press CAM on the remote control.
P The DVD recorder will switch to camera mode.
3 Select the socket to which the camera is connected using
CHANNEL q , CHANNEL r .
O 'CAM1'
For recordings from the VIDEO (CAM1) , S-VIDEO
(CAM1) sockets.
Switching between the two sockets is done automatically. If a
signal is available at both sockets at the same time, the signal at
the S-VIDEO (CAM1) socket has priority. If you change
socket (unplug), you must re-select the socket using
CHANNEL q (press twice).
O 'CAM2'
For recordings from the DV IN (CAM2) socket.
4 Press REC/OTR n to start the recording.
P If no signal is available, no recording will be made or the
recording in progress will be stopped.
P During the playback of a recorded 'copy protected' signal you
will see only that parts of the recording where no copy
protection can be recognised.
5 You can stop the recording using the following buttons:
O PAUSE 9
The recording will be paused. If you press the button again,
the recording will resume.
A chapter marker is inserted.
O STOP h
The recording will be interrupted. You can start a new
recording by pressing REC/OTR n .
A new title is created.
6 Press CAM to terminate the camera operating mode.
P The recording will be stored on the HDD as a new title.
Recording on the HDD
33
General
Use 'Programming a recording (TIMER)', to automatically start and stop
a recording at a later date.
The DVD recorder will switch to the right programme number and
begin recording at the correct time.
On this DVD recorder you can pre-programme up to 12 recordings
within a period of one month.
To make a programmed recording, your DVD recorder needs to
know:
* the date you want to make the recording
* the programme number of the TV channel
* the start and stop time of the recording
This information is saved in a 'TIMER block'.
Before you begin, make sure the clock is set. If the clock is not set, the
'Time/Date' menu will appear when you press the TIMER s button.
Programming recordings with the
G<Code
®
System
Thanks to this programming system, you no longer need to tediously
enter the date, programme number, start and finish times. All the
information needed by the DVD recorder for programming is
contained in the G-Code
®
programming number. This 9-digit G-Code
®
number is found in most TV listings magazine.
1 Switch on the TV set. If required, select the programme number
for the DVD recorder.
2 Press TIMER s on the remote control.
P The 'Schedule' screen will appear
3 Press the red function button ('G-Code').
G-Code Manual Home
Please enter the G-Code programming number and
press OK to confirm.
=========
Grid Search Schedule Info
No programmes
Once 0
4 Enter the entire G-Code number. This number is up to 9 digits
long and can be found next to the start time of the TV programme
in your TV listings magazine.
e.g.: 5-312-4 or 5,312 4
Enter 53124 for the G-Code-number.
Use therefore the number buttons 0..9 on the remote control.
If you make a mistake you can press D or the green action button
to go back a position.
5 Confirm with OK .
ENGLISH
Programming a recording (TIMER)
34
a 'Please enter programme number' appears on the
screen
b This message appears when the TV channel has not been assigned
yet.
Enter the program number and confirm with OK .
a The following message appears on the screen: 'G-Code
number wrong'
b The entered G-Code number is incorrect. Repeat the entry or end
with TIMER s .
b Check time/date (see chapter 'Installing your DVD recorder', section
'Setting the time & date').
G-Code Manual Home
Please enter the G-Code programming number and
press OK to confirm.
12345====
Grid Search Schedule Info
/Record Freq. Timing
21-Oct 20:00 21:30 BBC1 Once 0
P The decoded data appears after confirmation.
You can use the colour buttons to make the following settings.
First, the right tile must be highlighted ( C button). Check the
functions (descriptions) in the corresponding colour field
before pressing a button.
Deactivate 'VPS/PDC'!
If 'VPS/PDC' appears instead of the time, press the yellow function
button until the 'V/P' sign disappears.
Setting up repeat recordings
You can choose from the following settings with the green action button:
'Frequency': 'Once': single recordings
'M-F': Repeated daily recordings (Monday to Friday).
'Mon': Repeated weekly recordings (every week on the
same day e.g. Monday).
6 If all information is correct, press the OK button. The data is
stored.
7 To end, press TIMER s .
If one or more recordings have been programmed 'TIMER' will light up
on the display.
Programming recordings without the
G<Code
®
System
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press TIMER s on the remote control.
G-Code Manual Home
Schedule displays programmes forWatch or Record.
Press Bto use. Pressthe Red button for G-Code
recording. Press the Greenbutton for Manual
recording. Press Dfor Search.Press Cfor Info.
Grid Search Schedule Info
No programmes
2 Press the green button.
P The current date will be displayed.
3 Enter the date using the number buttons 0..9
4 Confirm with OK .
How can I correct wrong entries?
If you have already confirmed the entry with OK , you can select one
of the following functions:
Repeat entry: Green colour button
Cancel: Red colour button
5 Enter the start time for the show using the number buttons 0..9 .
Confirm with OK .
6 Enter the finish time for the TV show using the number buttons
0..9 Confirm with OK .
7 Check the data you entered.
O If necessary, go back a position to change entered data using
the green function button.
Programming a recording (TIMER)
35
8 Enter the programme number of the TV channel using the number
buttons 0..9
Frequency VPS/PDC Home
,
Grid Search Schedule Info
/Record Freq. Timing
21-Oct 20:00 21:30 BBC1 Once +0
Programme numbers of the scart sockets 'EXT1' and 'EXT2'
You can also program recordings from external sources.
- Select the corresponding input socket using B or A .'EXT1'
( EXT1 TO TV-I/O ), 'EXT2'(EXT2 AUX-I/O ).
9 Confirm with OK .
Changes using the colour buttons
You can use the colour function buttons to make the following settings.
Make sure that the right tile is selected.
'Frequency': Green function button
'Once': single recordings
'M-F': Repeated daily recordings (Monday to Friday).
'Mon': Repeated weekly recordings (every week on the
same day, e.g. Monday).
Deactivate 'VPS/PDC'!
If 'VPS/PDC' appears instead of the time, press the yellow function
button until the 'V/P' sign disappears.
0 To end, press TIMER s .
A To find out how you can go back and change the data, read the
section on 'How to change or delete a programmed recording
(TIMER)'
If any of the TIMER blocks are in use, 'TIMER' will light up on the
recorder display.
How to change or delete a
programmed recording (TIMER)
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press TIMER s on the remote control while the DVD recorder
is switched on.
P The 'Schedule' screen will appear.
Frequency VPS/PDC Home
, Single recording
Grid Search Schedule Info
/Record Freq. Timing
21-Oct 20:00 21:30 BBC1 Once +0
21-Oct Matrix Once 0
2 Use B or A to select the programmed recording you want to
change or delete.
Depending on the programming method (with/without G-Code
®
system), it is not possible to carry out certain changes using the
function buttons. Therefore, always check the function of the
corresponding button (description in the colour field) before
pressing the button.
Delete programmed recording
Press the red action button in the left tile.
Changing the TV channel
- Select the centre tile with C .
- Press the yellow function button.
- Select the TV channel you want using B , A , D , C . Sender.
- Confirm with OK .
Setting up repeat recordings
You can choose from the following settings in the right tile using the
green function button:
'Frequency' :'Once': Once recordings
'M-F': Repeated daily recordings (Monday to Friday).
'Mon': Repeated weekly recordings (every week on the
same day, e.g. Monday).
3 To end, press TIMER s .
A message appears few minutes before the recording is about to start if
the DVD-recorder is tuned to a different TV channel as programmed. If
you confirm this message the TV channel will be changed and the
recording started.
ENGLISH
Programming a recording (TIMER)
36
Cancel a programmed recording in
progress
A programmed recording will run as long as the end of the TV show is
reached (end time of the schedule).
If you switch off the DVD-Recorder with STANDBY m the
DVD-Recorder will be switched off after the recording is completed.
If you want to cancel the programmed recording proceed as follows:
1 If necessary, switch the TV set to the programme number (input
socket) of the DVD recorder.
2 Press STOP h
P A message appears on the screen, asking whether you really
want to end the recording.
O If you want to end the recording, select 'Yes' with D and
confirm with OK .
O If you do not want to end the recording, confirm 'No' using
OK .
O The programmed recording can also be canceled as described
in the previous section 'How to change or delete a
programmed recording (Timer)'.
Programming a recording (TIMER)
37
General
Each recording stored on the HDD is displayed in the media browser
with a corresponding index picture.
1 Press BROWSER HDD on the remote control or HDD on the
DVD recorder.
P The Media Browser appears.
2 Select the title you want using B , A on the remote control or
DOWN , UP on the device.
You can switch a page forward or back using CHANNEL q ,
CHANNEL r .
3 You can choose one of the following options to start playback:
O OK
Playback always starts at the beginning of the selected title.
O PLAY G
Playback will start at the position where it was interrupted in
the selected title( STOP h ). This also works if other titles or
DVDs have been played in the meantime.
4 You can use the following buttons during playback:
O N , O
Briefly press: If chapter markers are available, start of
current chapter, previous chapter (press twice), next chapter
Hold down: during pause: Slow motion
during playback: Quick motion.
O JUMP FWD , JUMP BACK
Jump back or forward by a fixed time period.
Read section 'Set up/Jump forward, Jump back'in
chapter 'User preferences for the HDD' on how to set up this
time period.
O INFO
Display/Hide navigation bar with additional information.
O PAUSE 9
Still picture. Go forwards or backwards one frame at a time
using C , D .
5 Press STOP h to end playback.
P You will return to the media browser.
The position where playback was interrupted will be automatically
stored. By pressing PLAY G , playback resumes at this position.
Additional playback features
Search by time
During playback of a title from the HDD or recordings in the time shift
buffer, you can search for positions by directly entering the time:
1 Press SYSTEM MENU during playback of a title.
P The system menu appears.
2 Press C in line 'Toolbar' to select 'Options'.
3 Press B to select 'Time search' and confirm with C .
a It is not possible to select 'Time search'.
b A title of the time shift buffer is played back that has no end yet (no
programme change, or TV show is not over yet).
P The time of the current playback position is displayed.
4 Use the number buttons 0..9 of the remote control to enter the
time where you want playback to start.
5 Confirm with OK .
P Playback starts at the desired position.
Repeat
You can choose the entire title for repeated playback.
1 Press BROWSER HDD and choose the desired title with B ,
A .
2 Press OK to start playback.
3 Press the green function button.
P A symbol appears on the screen to display the repeated
playback.
O To switch of repeat play press the green button again.
The symbol disappears.
ENGLISH
Playback from the HDD
38
Zoom feature
The Zoom feature allows you to enlarge the video image and pan
through the enlarged image during play back from the HDD or from
the time shift buffer.
1 During playback, press PAUSE 9 at the position where you
want to enlarge the picture.
P You will see a still picture.
2 Press SYSTEM MENU .
P The 'System Menu' appears.
3 Press C in line 'Toolbar' to select 'Options'.
4 Press B to select 'Zoom' and confirm with C .
P On the screen arrows appears to indicate the directions. If
neccessary switch on the info bar with INFO .
5 Select with D , C , A , B the area you want to enlarge.
O zoom in
blue function button
O zoom out
yellow function button
O You can also pan in the enlarged picture using B , A , D ,
C .
6 End with the red function button.
P Play back starts automatically
The media browser
Each recording stored on the HDD is displayed in the media browser
with an index picture. An actual recording of a TV show in the time
shift buffer is also displayed here.
Please observe that title/chapter editing is only possible to a certain
degree with such recordings.
Title editing includes:
- change
- delete
- archive
- lock (child lock)
- protect (against automatic deletion)
Titles in the Time shift Buffer marked for storage on the HDD, can
only be locked or deleted.
Symbols in the 'Media Browser'
If you call up the Media Browser with the BROWSER HDD button,
following symbols can appear in the infobar at the top of the screen:
'
P' This title was marked in the Time Shift Buffer for the storage on
the HDD. This title can only be deleted or locked (child lock)
'
E' This title has been played once (has been 'watched'). If there is no
storage capacity free on the HDD such 'watched' titles will be
deleted automatically. You can change these setting in the title edit
menu ( EDIT button, blue button, EDIT button )
Titles that were not played back, will have no symbol.
'
F' The title is protected against editing and deleting. If the title is not
protected, no symbol will be shown.
'
' Child lock is activated. The index picture is switched off. Playback
starts only if the right PIN code was entered. If no PIN code has
been entered or the PIN code was deleted, the PIN code is '0000'.
'
Q' The marked titles will be stored (archived) on a DVD+RW/+R.
Playback from the HDD
39
Change order for the media browser
Your may choose only titles that meet certain criteria for the overview.
This order will remain until you exit the media browser.
1 Press BROWSER HDD on the remote control.
P The Media Browser appears.
2 Press D .
P The 'Order Menu' appears.
3 Select one of the following options using B or A and confirm
with OK .
O 'Alphabetical':
Alphabetic order
O 'Recording Date':
Sorting according to the date of the recording
O 'Delete Order':
Sorting according to the order of the automatic deletion. If
there is too less space for new recordings on the HDD , this
order shows which recordings will be automatically deleted
first.
O 'Protected':
Order according to the recordings protected against deletion.
O 'Last Played':
Sorting according to the titles last viewed.
Depending on the selected order, it may not be possible to select some
titles.
Change title settings
Use this function to change the title settings.
1 Press BROWSER HDD on the remote control.
P The Media Browser appears.
2 Select the title you want to change with B , A .
3 Choose one of the following functions with the colour buttons of
your remote control:
O Delete title:
red function button
The tiltle (recordings) will be erased from the HDD.
O Archive title:
green function button
The title will be transferred to DVD+RW/+R. If it is not
possible to record on a DVD+RW/+R, an error message
appears (disc not inserted,...).
If you want to archive several titles, mark the desired titles
with SELECT . You can unmark the title using the same
button.
O Lock title (child lock):
yellow function button Playback starts only if the right PIN
code was entered. If no PIN code has been entered or the
PIN code was deleted, the PIN code is '0000'. In the section
'Changing the PIN code' in chapter 'Access control (Child
Lock)' you will find how you can change this code.
O Protect title against editing, automatic deletion:
blue function button
An error message will appear if you try to edit this title.
Automatically deletion will take place, if your HDD will run full
with recordings. Stored recordings will be deleted in a certain
order. See details in the section 'Symbols in the media
browser'
ENGLISH
Playback from the HDD
40
Edit title
Use this function to adapt the title (recording) to your personal
preferences.
1 Press BROWSER HDD on the remote control.
P The Media Browser appears.
2 Select the title whose settings you want to change with B , A .
Press EDIT .
3 Select one of the displayed functions with B , A and confirm
with C to proceed with the changes.
Depending on the selected function, you can choose different functions
using the colour buttons on the remote control. The function of the
button may vary. Therefore, read the function in the help line before
pressing the button.
O 'Title name'
Change the name of the title.
O 'Clear chapters'
All chapter markers within the selected title will be deleted.
O 'Video edit'
Please read in the next chapter which modifications were
possible.
'Video edit'
Here you can insert/clear chapter markers, hide chapters, merge
chapters, or divide the title.
1 Press BROWSER HDD on the remote control.
P The Media Browser appears.
2 Select the title whose settings you want to change with B , A .
Press EDIT .
3 Select 'Video edit' and confirm with C .
P Playback starts automatically.
4 Search the position where you want to make changes with D ,
C , N , O .
To enlarge the actual position of the timebar in several steps you can
use A . You can switch back using B .
5 Press PAUSE 9 :
O You can insert or remove chapter markers to find a scene
easily with the OK button.
6 Choose one of the following functions with the colour buttons of
your remote control:
O 'DIVIDE'(red function button):
You can divide a title in as many parts as you like.
O 'MERGE'(green function button):
You can merge the current chapter with the previous chapter.
(The previous chapter marker will be deleted). Please observe
that you cannot use this function with titles.
O 'KEYFRAME'(yellow function button):
To select an index picture that designates this title in the
media browser.
You can select this function only during still (button
PAUSE 9 ).
O 'HIDE'(blue function button):
You can hide or unhide certain chapters during playback (e.g.
unwanted scenes).
Playback from the HDD
41
Editing recorded titles (name)
If the title (name) of a TV show is available, it will be taken
automatically (e.g. 'ROCKY'). Otherwise, only the programme number
(programme name) and the time will be stored as the name of the
recording. The name of the recording can only be changed after the
recording has finished.
1 If necessary, press STOP h to stop playback.
2 Press BROWSER HDD on the remote control.
P The Media Browser appears.
3 Use A or B to select the title whose title you want to edit.
4 Press EDIT .
P The title edit menu appears on the screen.
5 Select the line 'Title name' and confirm using C .
P The field for editing the title appears.
6 Use C or D to select the position where the letter/number/icon
is to be changed or re-entered.
7 Change the icon using A or B .
O You can switch between upper and lowercase using
SELECT .
O You can clear all characters using the red function button
('CLEAR').
O You can stop editing without storing the change by pressing
the green function button('CANCEL').
Enter characters using 0..9
Keep pressing the number button until the desired character or number
is displayed. You can select language-dependent special characters at
the corresponding letter using N or O e.g.: ä, press 2 for a and
keep pressing O until ä appears.
For special characters, press 1 several times.
The position for the following character is selected automatically.
Press 1 to insert an empty space.
Press the red function button to delete.
8 Repeat
6 and 7 until you have made the changes you want.
9 Save the new name with OK .
0 To end, press EDIT .
Divide title
You can divide a title in several parts (titles) as large as you like. Each of
these parts (titles) is designated by a separate index picture.
You can also use this function to separate and delete an undesired end
of the recording (commercial).
Warning! You cannot undo this division!
1 Press BROWSER HDD on the remote control.
P The Media Browser appears.
2 Select the title you want to divide using A or B
3 Press EDIT on the remote control.
P The title edit menu appears on the screen.
4 Select the line 'Video edit' and confirm with C .
P Play back starts automatically
5 Search the position you want to divide the title using N , O .
Press PAUSE 9 on the remote control.
P You will see a still picture.
To find the right position you can step a frame forward or backward
using the D , C button.
6 Press the red function button
P A message appears on the screen saying that the title is being
divided.
P The divided title will appear in the media browser with a new
index picture. The last position in the name will increase by
one.
This completes the division of the title.
ENGLISH
Playback from the HDD
42
Delete titles/recordings from the HDD
You can remove titles/recordings from the HDD to use the capacity
from the HDD for new recordings.
1 Press BROWSER HDD on the remote control.
P The Media Browser appears.
2 Select the title/recording you want to delete using A or B
3 Press the red function button ('DELETE')
P A note appears if you really want to delete this title.
If the red function button has no function ('DELETE' appears grey)
check if the title is protected. You will see this on the symbol '
F' on the
screen.
Unprotect the title using the blue function button.
4 Select 'Yes' using D and confirm with OK .
P The title is being deleted from the HDD.
O If the message window was closed, confirm the line with
C again.
Insert/remove chapter markers
To find you special scenes in one title faster, you can insert chapter
markers. These markers can also be deleted.
1 Press BROWSER HDD on the remote control.
P The 'Media Browser' appears on the screen.
2 Select the title you want to modify using B , A .
3 Press EDIT on the remote control
P The title editing menu appears on the screen.
O If you want to remove all automatically created chapter
markers confirm select the line 'Clear chapters' and confirm
with C .
4 Select the line 'Video edit' and confirm with C .
P Play back starts automatically.
O Insert chapter markers
- Search the position where you want to insert a marker with
D , C , N , O .
- Press PAUSE 9 .
- Press OK . The marker will be inserted.
O Remove chapter marker
- Press PAUSE 9 .
- Search the chapter marker you want to remove with N ,
O
- Press OK . The marker will be deleted.
5 End with EDIT .
P You will go back to the Media Browser.
Playback from the HDD
43
Hide chapters (sections)
By default, all chapters are visible. You can hide or unhide certain
chapters during playback (e.g. unwanted scenes).
In the editing mode, you will recognise a hidden chapter by a grey
background and the description of the blue function button:
O 'HIDE':
Chapter is visible and can be hidden with the blue button.
O 'SHOW':
Chapter is hidden and can be made visible with the blue
button.
To hide a certain scene, proceed as follows:
1 Press BROWSER HDD on the remote control.
P The 'Media Browser' appears on the screen.
2 Select the title you want to edit using B , A .
3 Press EDIT on the remote control.
P The title edit menu appears on the screen.
4 Select 'Video edit' with B and confirm with C .
P Play back starts automatically
5 Search the beginning of the scene (section) you want to hide using
O , N , D , C . Press PAUSE 9 .
6 Set the start marker with the blue function button.
P The description of the function key changes from 'HIDE'to
'STOP HIDE'.
7 Search for the end of the scene (section).
O Use O , N , D , C to search for the end of the scene.
P The area is being marked.
- To enlarge the actual position of the timebar in several steps you
can use A . You can switch back using B .
- To find the right position you can step a frame forward or
backward using the D , C button.
- To select the end of the title use O
8 Press PAUSE 9 at the corresponding position.
9 Set the end marker with the blue function button.
P The 'hidden' area is greyed out.
P The description of the blue function key changes to 'HIDE'.
End with EDIT .
P Additionally to the original title the edited title appears in the
'Media Browser' with a marker (Symbol 'A').
You can delete the edited title without deleting the original
one.
If the original title is being deleted, the edited tiltle
will be also deleted.
How can I change (delete) the markers?
Similar to chapter markets, you can insert or delete markers using
OK .
- Press PAUSE 9 first.
- Press N , O to select the marker.
- Delete the marker using OK or set it again using the blue function
button.
During playback, the 'hidden' scene is skipped. If you want to archive
the title you can decide to archive the original title or the edited one.
O Archiving of the 'edited' title
The 'hidden' szenes were not copied on the DVD+RW/+R.
O Archiving of the 'original' title
The 'hidden' szenes were copied as 'hidden' on the
DVD+RW/+R. How you can make them visible again you can
read in the chapter ' Managing the disc content'.
ENGLISH
Playback from the HDD
44
Archiving (storing) titles on a
DVD+RW/+R
You can choose the title of the HDD that you want to transfer on a
DVD+RW/+R. The copying process is done at a higher speed than the
recording. Therefore, you can transfer an 8-hour recording in 'M8'
recording mode on a DVD+RW/+R in just 30 minutes. This time
depends on the recording mode used.
Please observe the following information:
•)
You cannot change the recording quality. You can only use the same
recording quality that was used for recording on the HDD.
•)
New recordings will always be added at the end of existing ones.
Ensure that the 'Empty title' after the last recording is large
enough.
•)
The index picture from the title will be copied from the HDD and
stored on the disc.
•)
Should you reach the maximum number of chapters per disc (255),
the archiving will be stopped.
•)
The following information will also be stored on the disc in the
process:
Chapter, recording mode, programme name (if available) title of the
recording (name), date and time of the recording, index picture.
•)
If you archive the edited title (Symbol 'A'), the 'hidden' chapters will
be skipped and not copied to the DVD+RW/+R.
1 Change the titles in the media browser to meet your preferences.
(divide titles, change title name, hide chapter, ...)
2 Insert a DVD+RW/+R on which you want to store the selected
titles.
Please ensure that:
•)
the DVD+RW was not protected against accidental recordings.
For more information, read the next section 'Preventing
accidental erasing of discs'.
•)
there is enough space for all selected titles at the end of the
DVD+RW/+R.
Please observe the recording mode of the title. (in e.g. M1 only
1 hour can be stored on a DVD+RW/+R, M2 only 2 hours, M2x
only 2,5 hours,... M8 only 8 hours)
3 Press BROWSER HDD .
P The media browser appears with an overview of all recordings
on the HDD.
4 Select the title you want to copy on the DVD+RW/+R using B ,
A .
O Archiving of the 'edited' title ('A')
The 'hidden' szenes were not copied on the DVD+RW/+R.
O Archiving of the 'original' title
The 'hidden' szenes were copied as 'hidden' on the
DVD+RW/+R. How you can make them visible again you can
read in the chapter ' Managing the disc content'.
O If you want to archive several titles at a time, mark the desired
titles with SELECT .
What is the order of archiving?
The titles will be transferred to the DVD+RW/+R in the same order as
they where selected using the SELECT button.
5 Start the archiving process by pressing the green function button.
If this button is not visible on the screen, check if this title is available in
the 'Time shift Buffer'. If necessary switch of the set using
STANDBY m or use the 'Flush Buffer' function (button
SYSTEM MENU , menu 'Set up')
P A message indicating the process appears both on the screen
and in the display.
P During and after the archiving process, you see the TV show
of the currently selected TV channel. The buttons D , C ,
JUMP BACK , JUMP FWD , PLAY G , PAUSE 9 are
without function during archiving. Timer recordings will take
place.
Interrupt the process
Press the yellow function button. If necessary call up the informatoon on
the screen using the INFO button.
Finalising a DVD+R
If recordings were stored (archived) on a DVD+R you have to finalise it
to make play back in a DVD-Player possible.
- Press DISC MENU and then STOP h to mark the first title.
- Press A to go to the 'disc info screen'
- Press C and select then the line 'Finalise disc' using B .
- Confirn with OK .
Recording on a DVD+RW/+R
45
Protect disc against accidental
recordings
To prevent an accidental erasing of important recordings, you can
protect the entire disc. It is only possible to protect the entire disc.
Protecting specific recordings on a disc is not possible.
What happens with DVD+R discs?
As long as these discs are not finalised, you can protect them against
accidental recording.
1 Insert the disc to be protected.
2 Press STOP h on the remote control while the index screen is
displayed.
P The first title is highlighted.
3 Press A .
P This takes you to the disc info screen.
4 Press C .
Select 'Protection'.
Confirm with C .
5 Select 'Protected' using B and confirm with OK .
6 Press D and then DISC MENU to terminate.
P The entire disc is now protected.
If you attempt to record on a protected disc, 'DISC LOCKED'
will appear on the display and 'Disc locked' on the screen.
If you decide later to record on this disc again, repeat the above steps
but select 'Unprotected' at step
5 .
ENGLISH
Recording on a DVD+RW/+R
46
General notes on playback
With this DVD recorder you can play back the following systems:
•) DVD Video
•) (Super)Video CD Disc
•) DVD+RW Disc
•) DVD+R Disc
•) DVD-RW (video mode, finalised)
•) DVD-R
•) CD-R
•) CD-RW
•) Audio CD
•) MP3-CD
You can operate the video recorder using the remote control or the
buttons on the front of the DVD recorder.
a The display will read 'PIN'
b The child lock has been activated for the inserted disc. Read the sections
on 'Child lock' and 'Releasing a disc' in the chapter on 'Access control
(child lock).
a The menu on the screen is showing an 'X'
b Some DVD discs can be manufactured so that certain steps are required
before the disc can be played, or so that only limited operation is possible
during playback. When an 'X' appears on the screen the selected feature
is not possible.
a The screen is showing regional code information
b Since DVD films are not normally released in all parts of the world at the
same time, all DVD players have a specific regional code. Discs can be
given a regional code. If the regional codes differ between the player and
the disc, playback is not possible.
b The regional code is shown on the label on the back of the machine.
b The regional code does not apply to recordable DVDs.
a I can see the message 'EMPTYDISC'
b The disc does not contain any recordings.
a 'DISC ERROR' will appear on the display
b Recording could not be completed correctly because of a disc error. Check
the disc and clean it if necessary.
a A dialog box appears asking you whether you want to delete
the contents or eject the disc
b The disc inserted is a DVD+RW but its contents are not DVD
video-compatible (e.g. a data disc). Recordings on this disc can only be
made if the entire disc is first deleted with the REC/OTR n button.
Switch over to the actual TV channel during
playback
As soon as you turn on the DVD recorder, the currently selected TV
channel on the DVD-Recorder is recorded in a temporary storage
(Time shift Buffer).
Recordings in the time shift buffer will be automatically deleted e.g.
after 3 hours if the period of the time shift buffer is set to 3 hours
(factory setting).
You can play back a disc, while the current TV show is still being
recorded.
1 To interrupt playback from a disc, press TUNER
P You will see the TV-show from the selected TV channel on
the DVD-recorder
O To continue playback, from the disc press DISC MENU .
Inserting a disc
1 Press the OPEN/CLOSE J button on the front.
OPENING P01
P The disc tray will open. While the disc tray is opening, the
display shows 'OPENING' and then 'TRAY OPEN' when the tray
is fully open.
2 Carefully place the disc in the tray with the label facing up and
press PLAY G or OPEN/CLOSE J .
P 'CLOSING' and then 'READING' will appear in the display. The
information on the disc will be read.
How do I insert a double-sided DVD?
Double-sided discs do not have labelling over the whole surface. The
labelling for each side is in the centre of the disc. To play a side its label
must be facing up.
Opening/closing the tray using the remote control
You can open and close the disc tray using the remote control.
Press and hold the STOP h button on the remote control until the
dialog box shows 'OPENING'or'CLOSING'.
Playback from a disc
47
Playing a DVD video disc
A menu may appear when a DVD is played back. If the titles and
chapters are numbered, press a number button on the remote control.
O You can also use the D , C , A , B buttons or number
buttons 0..9 to select a menu item and confirm with OK .
O You can also access the menu using DISC MENU on the
remote control.
1 If playback does not start automatically, press PLAY G .
P title/chapter number, elapsed time will appear on the display.
C01 2:04
2 To stop playback, press STOP h on the remote control or
h on the DVD recorder.
3 To remove the disc, press OPEN/CLOSE J on the front of the
DVD recorder.
Playing a DVD+RW/ +R disc
1 If the disc is write-protected or a finalised DVD+R disc, playback
starts automatically.
C01 ANNA P01
2 If playback does not start automatically, use the B or A button
to select the title you want to play on the index screen.
With N , O you can jump to the begin or the end of the index
screen.
3 Press the PLAY G button.
P title/chapter number, elapsed time will appear on the display.
a I can see the message 'EMPTYDISC'
b The disc does not contain any recordings.
4 To stop playback, press STOP h on the remote control or
h on the DVD recorder.
5 To remove the disc, press OPEN/CLOSE J on the front of the
DVD recorder.
Playing an audio CD
You can also use the DVD recorder to play audio CDs
If the TV is on, the audio CD screen appears automatically.
During playback, the current track number and its elapsed playing time
will show on the TV screen and on the recorder display.
1 Insert an audio CD.
P Playback starts automatically.
2 Stop playback using STOP h .
P The number of tracks and the total time are displayed.
ENGLISH
Playback from a disc
48
Playing an MP3 CD
MP3 (MPEG1 Audio Layer-3) files are highly compressed music files.
Using this technology the data volume can be compressed by a factor
of 10. This means it is possible to record 10 hours of music in CD
quality on a single CD-ROM.
When creating MP3 CDs please note the following:
File system: ISO9660
Directory structure: maximum of 8 levels
Formats: *.mp3
Filenames: maximum of 12 characters (8+3)
Maximum of 32 albums, 999 titles
Supported sampling frequencies: 32, 44.1, 48 (kHz). Music with
sampling frequencies other than these will be skipped.
Supported bit rates: 32, 64, 96, 128, 192, 256 (kbit/s)
ID3 Tag: Version 1, 1.1. In later versions the directory name is
displayed as the album and the filename as the title.
Important notes for playback:
Only the first session of a multi-session CD will play back.
1 Insert an MP3 CD.
P Playback starts automatically.
MP3 CD display
If the TV is on, the MP3 CD screen appears automatically.
During playback, the current track number and its elapsed playing time
will be shown on the TV screen and on the recorder display.
During stopped playback ( STOP h button) the numbers of the
albums will be shown on the TV screen and on the display.
Further information on the album, track and artist will also be displayed
if included in the ID tag.
2 Stop playback using STOP h .
P The number of albums is displayed in the display.
O Using N or O select the next or previous title.
O You can also use the T/C button to select titles and albums.
- Press the T/C button and use the C or D button to select
the 'T' symbol for title or 'C' for chapter.
- Use the B or A buttons or the number buttons 0..9 on
the remote control to select the number of the title/chapter.
O You can also use the repeat functions ( SELECT button).
Playing a (Super) Video CD
(Super) Video CDs may be equipped with PBC (Play Back Control).
This means that special playback functions (menus) can be directly
selected. The video CD must be PBC compatible (see CD case).
'PBC' is active in the default settings.
1 Insert a (Super) Video CD.
P If the 'h' symbol appears in the display, start playback by
pressing PLAY G .
O If a menu appears on the screen, use the remote control
buttons indicated on the screen to select the menu option you
want (PREV= N , NEXT= O ) or with the number
buttons 0..9 .
O If a PBC menu consists of a list of titles, you can select a title
directly.
O Use RETURN to go back to the previous menu
2 Stop playback using STOP h .
Playback from a disc
49
General
DVD's are divided in titles and chapters.
O During playback, press O to go to the next title. If there
are several chapters within a title, the next chapter.
O Press N to return to the start of the current title/chapter.
O Press N twice to return to the start of the previous
title/chapter.
Use the T/C (title/chapter) button
- Press T/C (title/chapter) and then use A or B to select the
appropriate title.
Make sure the symbol 'T' (title) is selected in the menu bar.
- Use T/C to select chapters within a title. Press T/C and use C to
select the 'C' symbol (chapter).
Now select the appropriate chapter with A or B .
Searching a disc
You can search the disc for a recording at 4x, 8x or 32x playback
speed. Other speeds can only be selected via the menu bar ('
K
').
1 During playback, press and hold N (reverse) or O (forwards)
to switch to the search feature.
O You can switch between the playback speeds using
N / O .
2 To continue playback, press PLAY G at your chosen location.
a No sound
b The sound is switched off in search mode. This is not a fault in your
machine.
Search feature via menu bar
- During playback press SYSTEM MENU on the remote control.
The menu bar will appear at the top of the screen.
- Select the '
K
' symbol using C or D and confirm with B .
- You can now use the D or C button to select different forward and
backward search speeds.
- If necessary, switch the menu bar off with the SYSTEM
MENU button.
- To continue playback, press PLAY G .
Still picture
1 During playback, press PAUSE 9 to stop playback and display a
still picture.
C01 2:04
Frame advance via menu bar
- During a still picture press SYSTEM MENU on the remote control.
The menu bar will appear at the top of the screen.
- Select the '
I
' symbol using C or D and confirm with B .
- You can now use the D or C button to go forwards or backwards
one frame at a time.
- If necessary, switch the menu bar off with the SYSTEM
MENU button.
2 To continue playback, press PLAY G .
Slow motion
1 During playback press PAUSE 9 on the remote control. Now
hold down N or O to switch to slow motion.
O You can switch between different speeds using N or O .
Slow motion via menu bar
- During playback press PAUSE 9 and then SYSTEM MENU on
the remote control. The menu bar will appear at the top of the screen.
- Select the '
J
' symbol using C or D and confirm with B .
- You can now use the D or C button to select different forward and
backward slow motion speeds.
- If necessary, switch the menu bar off with the SYSTEM
MENU button.
2 To continue playback, press PLAY G twice.
ENGLISH
Additonal playback features
50
Search by time
Using this feature you can select where playback should start (select
elapsed time).
1 During playback press SYSTEM MENU on the remote control.
P The menu bar will appear at the top of the screen.
2 Select the '
L
' symbol using C or D and confirm with B .
P Playback is stopped and a box appears on the screen showing
the elapsed time.
3 Enter the start time with the digit keys 0..9 from where playback
should start.
4 Confirm with OK .
a The time entered will flash on the screen
b The selected title is shorter than the time entered. Enter a new time
or cancel the function by pressing SYSTEM MENU .
5 Playback starts at the time you entered.
Repeat/Shuffle play
You can mark entire sections or the whole disc for endless playback.
Depending on the type of disc (DVD video, DVD+RW, video CD) you
can select a chapter, title or the entire disc.
1 Select the desired chapter, title or the entire disc and start
playback.
2 During playback, press SELECT . By pressing SELECT again
you can chose from the following options:
•) '
': repeat chapter (DVD only)
•) '
': repeat track/title
•) '
': repeat entire disc (Video CD, Audio CD only)
•) '
': Shuffle
•) Display disappears: no repeat
3 To end the repeat, press the STOP h button.
O You can also keep pressing the SELECT button until the
displays disappear.
Repeating a passage (A<B)
You can repeat a particular passage within a title/chapter. You need to
indicate the start and end of the passage.
1 During playback press PAUSE 9 at the start point.
P You will see a still picture.
2 Keep pressing SELECT until '
' appears on the screen.
P The start point is now saved.
3
Press PLAY G to start playback.
4 When the end point is reached press OK .
P '
' appears on the TV screen.
Playback now takes place within these points.
5 To end the repeat, press the STOP h button.
O You can also keep pressing the SELECT button until the
displays disappear.
Scan feature
This feature plays back the first 10 seconds of each chapter (DVD) or
track (CD).
1 During playback, press SELECT . Select '
' using
SELECT .
P After 10 seconds the DVD recorder switches to the next
chapter/index.
O To start playback at the relevant chapter/index press
STOP h and then PLAY G .
Camera angle
If a DVD contains scenes that have been shot from different camera
angles you can select these camera angles for playback.
1 During playback, press PAUSE 9 .
P You will see a still picture.
2 Press SYSTEM MENU and select the '
F
' icon using C .
a The '
F
' symbol will be hidden
b The selected scene has been shot from only one camera angle. This
feature is therefore not available. For more information please read
the cover of your DVD disc.
3 Select the required camera angle with B or A .
O You can also directly enter the number with the number
buttons 0..9 .
P After a short time, playback will resume from the new camera
angle.
The '
F
' symbol will remain visible until a scene starts for
which there is only one camera angle.
Additonal playback features
51
Zoom feature
The Zoom feature allows you to enlarge the video image and pan
through the enlarged image.
1 During playback, press PAUSE 9 .
P The DVD recorder switches to 'PAUSE'. You will see a still
picture.
2 Press SYSTEM MENU and select the '
G
' icon using C .
3 Select the required zoom factor using B or A .
P When 'press OK to pan' appears on the screen, the zoom
process is complete.
4 Press OK . Using A , B , C , D select the part of the image
you wish to view.
5 Confirm with OK .
6 To stop the feature, press PLAY G and then SYSTEM MENU .
Select the audio language
Many pre-recorded DVD discs have more than one audio language.
The language initially selected for playback will be the one you selected
when you first set up the DVD recorder. However you can change the
audio language of the inserted disc at any time.
You can change the audio language either using the menu of the
inserted disc ( DISC MENU button) or the DVD recorder's menu bar
( SYSTEM MENU button). The audio languages for DVD playback in
the two menus may be different. Please note that with some DVDs the
audio language and/or subtitle language can be changed only via the
DVD menu.
1 During playback press SYSTEM MENU and select the '
D
' icon
using C .
2 Select the required audio language using B or A .
O You can also enter the number directly using the number
buttons 0..9 .
P Play continues in the new audio language.
Subtitles
Many pre-recorded DVD discs have more than one subtitle language.
The language initially selected for playback will be the one you selected
when you first set up the DVD recorder. However you can change the
subtitle language of the inserted disc at any time.
You can change the subtitle language either using the menu of the
inserted disc ( DISC MENU button) or the menu bar ( SYSTEM
MENU button). The subtitle languages in the menus may differ.
1 During playback press SYSTEM MENU and select the '
E
' icon
using C .
2 Select the required subtitle language using B or A .
O You can also enter the number directly using the number
buttons 0..9 .
O You can switch off subtitles again with 0 or by pressing 'off'.
P Playback continues in the new subtitle language.
ENGLISH
Additonal playback features
52
General
Charly 1
00:29:59 • M1
Fri15/02/2004
Empty title
01:30:01
When a recording is made to disc, the following additional information
is also stored at the beginning of the recording:
•) Name of the recording
If a name has not been assigned to the TV channel, only the programme
number and time are stored as the name
•) Length of the recording
•) Record type (Quality)
•) Date of the recording
•) Index picture of the recording
A marker will be set every 5-6 minutes if the 'Auto chapters' function
is activated in the 'Record settings' menu. This marker is known as a
'chapter'.
These markers can be changed when the recording has finished.
Can markers be set on a DVD+R disc?
Markers can be set on these discs if they have not been finalised.
It is also possible to add 'chapters' later. This means that scenes you do
not want to see during playback can be hidden or skipped. During
playback you can watch your recording as a continuous sequence
without the hidden chapters.
Favorite Scene Selection
In this menu you can adapt a title to suit your particular needs.
You can insert/delete chapter markers, hide chapters, select a new
index, or split up a title.
In this menu you can adapt a title on a DVD+RW/+R to suit your
particular needs.
You can insert/delete chapter markers, delete all chapter markers, or
split up the title. Press EDIT on the remote control during recording
to open this menu.
Insert chapter markers
During recording, you can set or delete chapter markers within a title.
The maximum number of chapters within a title is 99, on a disc 255.
(spreaded over the whole disc). If one of these limits is reached the
following message will appear on the screen: 'Chapter limit'. You
need to delete some markers before you can insert new ones or make
recordings.
1 During playback, press EDIT on the remote control at the
appropriate point.
P The 'Favorite Scene Selection' menu appears on the TV
screen.
Favorite Scene Selection
Insert marker Press OK
Current chapter visible
Delete marker
Delete all markers
New index picture
Divide title
Press EDIT to exit
2 Confirm 'Insert marker' by pressing OK .
P 'Inserting marker' appears on the TV screen.
'X' will appear on the screen:
This DVD is write-protected or the disc is a finalised DVD-R. Subsequent
changes cannot be made.
3 To stop this function, press EDIT .
Managing the disc contents
53
Hiding chapters
Initially, all the chapters are visible. You can hide chapters for playback
(e.g. unwanted scenes) or make them visible again. In editing mode,
hidden chapters are shown darker.
A chapter always consists of a start marker and an end marker.
To hide a certain scene, proceed as follows:
1 Search the beginning of the scene you want to hide. Press
PAUSE 9 .
Favorite Scene Selection
Insert marker Press OK
Current chapter visible
Delete marker
Delete all markers
New index picture
Divide title
Press EDIT to exit
2 Press EDIT on the remote control to call the 'Favorite Scene
Selection' editing menu.
3 Set the start marker using OK .
P The number of chapters ('C') in the menu line will increase by
one.
4 Search for the end of the scene.
O You can also use O or N to search faster for the end of
the scene.
Make sure that you do not jump into the next title (title
number 'T' must not change).
O Only chapters within a title can be hidden.
5 Press PAUSE 9 at the corresponding position.
6 Set the end marker with OK . This will also be the start marker of
the next chapter.
P The number of chapters ('C') in the menu line increases by
one.
a The number of chapters ('C') has increased by two or more
numbers
b This is the case when you want to hide a chapter that, due to
automatic chapter numbering (if switched on), stretches over two or
more chapters. In this case, you must delete the start of the
automatically generated chapter:
- Press T/C twice while the editing menu is displayed to change the
chapter number.
- Select the chapter between the new markers using B or A . Press
PAUSE 9 .
- Select 'Delete marker' with B to delete the current chapter
marker. Confirm with OK . The current chapter number decreases by
one.
7 Press T/C twice to change the chapter number 'C'.
8 Select the previous chapter with B , since you are already in the
next chapter (end of the chapter is also the beginning of the next
chapter).
9 Wait until the chapter has been played and press PAUSE 9 to
stop playback.
0 Select 'Current chapter' using B or A .
A Using C select 'hidden'.
P The picture is shown darker.
Switching quickly
You can switch between show chapters ('visible') and hide chapters
('hidden') quickly and easily using SELECT .
This function is independent from the selected line.
B To end, press EDIT .
During playback this chapter will be skipped.
If the chapter is not visible, select 'visible' in step
A with C .
Deleting chapter markers
Within a title you can delete either all markers or individual markers.
Favorite Scene Selection
Insert marker Press OK
Current chapter visible
Delete marker
Delete all markers
New index picture
Divide title
Press EDIT to exit
1 While the relevant chapter is playing, press EDIT on the remote
control.
P The 'Favorite Scene Selection' menu appears on the TV
screen.
How can I select different chapters?
- Press the T/C button on the remote control. Titles and chapters are
displayed at the top of the screen.
- Select title (T) or chapter (C) with C or D .
- Use A or B to select the title/chapter channel you want to edit.
2 Use B to select:
O line Delete marker' for this chapter
O line 'Delete all markers' for all chapters within the selected
title.
ENGLISH
Managing the disc contents
54
3 Confirm with OK .
O You will be prompted to press OK again to make sure you
really want to delete all markers.
O If you do not want to, press the D button.
4 To end the menu , press EDIT .
Changing the index picture
Normally the picture from the beginning of a recording is used as the
index picture. You can however choose any picture from the recording
as the index picture.
1 During playback, search for location of the new index picture.
Press the PAUSE 9 button.
2 Press the EDIT button.
P The 'Favorite Scene Selection' menu appears on the TV
screen.
Favorite Scene Selection
Insert marker Press OK
Current chapter visible
Delete marker
Delete all markers
New index picture
Divide title
Press EDIT to exit
3 Select line 'New index picture' and confirm with OK .
4 Start the change with OK .
P 'Updating menu' appears on the TV screen.
Once the revision has been completed successfully the DVD recorder
reverts to the index overview.
Dividing titles
You can divide a title into several sections (titles) of any size. Each of
these sections (titles) is identified by its own index.
Note: This division cannot be undone.
Can I divide titles on DVD+R discs?
As recordings on DVD+R discs cannot be overwritten, it is not possible
to divide titles on DVD+R discs.
1 While the relevant title is playing, press EDIT on the remote
control.
P The 'Favorite Scene Selection' menu appears on the TV
screen.
Favorite Scene Selection
Insert marker Press OK
Current chapter visible
Delete marker
Delete all markers
New index picture
Divide title
Press EDIT to exit
2 Select 'Divide title' and confirm with the OK button.
3 If you are sure, press OK to start the process.
P 'Dividing title' appears on the TV screen.
4 Wait until the new title is displayed with an index picture in the
index picture overview.
The process of splitting the title is now complete.
Managing the disc contents
55
Editing recording titles (name)
1 If required, press the STOP h button to interrupt playback.
2 Using A or B select the title whose name you want to edit and
confirm with C .
P The menu for editing names appears.
Settings for title Charly 1
Name Charly 1
Play full title
Erase this title
3 Select 'Name' using A or B and confirm with C .
4 Using C or D select the position where the letter/number/icon
is to be changed/re-entered.
5 Change the icon using A or B .
O You can switch between upper and lowercase using
SELECT .
O You can delete the character using the red function button.
How can I enter the characters with the buttons 0..9 ?
Press a number button as often as the required character or the
number appears. You can enter language dependent characters with
the buttons N or O on the corresponding character e.g.: ä,
button 2 for 'a' and then with O as often as 'ä' appears.
For special characters press the button 1 repeatedly.
The position for the following character will be selected automatically.
To enter a space press the button 1 .
To erase a character press the red function button.
6 Repeat
4 and 5 until you have made the changes you want.
7 Save the new name with OK .
P 'Storing name' appears on the TV screen for confirmation.
8 To end, press D .
Playing the entire title
If you have hidden certain sections (chapters) of a title, this setting lets
you watch the entire title including the hidden sections. To do this,
proceed as follows:
1 Press the STOP h button or during playback press DISC
MENU .
Settings for title Charly 1
Name Charly 1
Play full title Press OK
Erase this title
2 Using A or B select the title you want to play all of and confirm
with C .
P The title editing menu will appear.
3 Select 'Play full title' using A or B and confirm with OK .
P Playback starts automatically. The title is played in its entirety -
including the hidden chapters.
ENGLISH
Managing the disc contents
56
Erasing recordings/titles
You can erase specific recordings from a disc.
Please note: If there is an 'Empty title' between titles, this space can
not be used from this DVD-Recorder.
Each recording from the HDD to a DVD+RW/+R (archiving) will be
added at the end of existing recordings
1 Press the STOP h button or during playback press DISC
MENU .
2 Using A or B select the title you want to delete and confirm
with C .
P The title editing menu will appear.
Settings for title Charly 1
Name Charly 1
Play full title
Erase this title Press OK
3 Select 'Erase this title' using A or B and confirm with OK .
P 'This will completely erase this title'. 'Press OK to
confirm' appears on the TV screen.
O If you want to delete this title, press OK to confirm.
O Otherwise press D .
4 'Erasing title' appears on the TV screen.
5 At this point 'Empty title' appears in the 'index picture display'.
If the deleted title was very short (less than 1 minute) 'Empty
title' will not appear at this point.
Can titles be deleted from a DVD+R disc?
Titles on DVD+R discs are only marked as deleted. 'Deleted title' will
appear in the display instead of 'Empty title'. During playback the
'deleted' title is skipped. The space used for this title cannot be used
again as the title has not been physically deleted. Once the disc has
been finalised no further changes can be made.
Disc settings
Philips1
00:35:59 used
Fri15/02/2004
PAL
DVD playback
This screen appears before the first title and contains general
information about the current disc.
You can:
•) change the name of the disc
•) activate or deactivate write protection on the disc
•) Finish editing (make the disc DVD compatible)
•) finalise a DVD+R
•) delete a DVD+RW
To get to this display, proceed as follows:
1 Press the STOP h button or during playback press DISC
MENU .
2 Select the first title with A or press STOP h . STOP h .
3 Press A .
P The disc info display will appear.
Managing the disc contents
57
Changing the disc name
1 In the 'Disc info display' press C .
P The 'Settings for' menu appears on the TV screen.
Settings for Philips1
Disc name Philips1
Protection Unprotected
Erase disc
2 Select 'Disc name' using A or B and confirm with C .
3 Using C or D select the position where the letter/number/icon
is to be changed/re-entered.
4 Change the icon using A or B .
O You can switch between upper and lowercase using
SELECT .
O You can delete the character using the red function button.
5 Repeat
3 and 4 until you have made the changes you want.
6 Save the new title with OK .
P 'Storing name' appears on the TV screen for confirmation.
7 To end, press D .
Finishing editing
If one or more titles have been edited a DVD player may still display
the original titles. You can prepare your DVD+RW disc in such a way
that a DVD player will be able to play the edited version.
1 In the 'Disc info display' press C .
P The 'Settings for' menu appears on the TV screen.
2 Select 'Make edits compatible' using A or B and confirm
with OK .
a 'Make edits compatible' does not appear
b Your disc is already compatible. There is no need for conversion.
To end, press SYSTEM MENU .
3 The screen displays 'This will take' to show how long the
process will last.
4 To confirm press OK .
P 'Working...' appears on the TV screen.
P bar will move from left to right indicating progress.
Finalising DVD+R discs
This feature is required to play back a DVD+R disc in a DVD player.
Once the disc has been finalised no further recordings or changes can
be made.
1 In the 'Disc info display' press C .
P The 'Settings for' menu appears on the TV screen.
2 Select 'Finalise disc' using A or B and confirm with OK .
a 'Finalise disc' does not appear
b Either there is no DVD+R disc inserted or the disc is already finalised.
To end, press SYSTEM MENU .
a The 'Settings for' menu does not appear
b The menu may not appear if the disc has been recorded on another
DVD recorder. In this case, use the 'Finalise disc' feature in the
'
A
' menu, under 'Features'.
3 The screen displays 'This will take...' to show how long the
process will take.
4 To confirm press OK .
P 'Working...' appears on the TV screen.
P A bar will move from left to right indicating progress.
Erasing DVD+RW Disc's
1 In the 'Disc info display' press C .
P The 'Settings for' menu appears on the TV screen.
Settings for Philips1
Disc name Philips1
Protection Unprotected
Erase disc Press OK
2 Select 'Erase disc' using A or B and confirm with OK .
P 'This will erase all titles Press OK to confirm' appears
on the TV screen..
3 If you want to delete all the titles, press OK to confirm.
Otherwise press D .
P 'Erasing disc' appears on the TV screen.
After deletion, the index picture display shows the free space
on the disc.
If the disc is empty already, you cannot select 'Erase disc'.
ENGLISH
Managing the disc contents
58
General information
The 'Disc Manager' is an integrated database in the DVD recorder that
remembers all recordings on DVD+RW/+R discs made by this DVD
recorder. This gives you a complete overview of your entire video
collection at the touch of a button. The Disc Manager gives you quick
and easy access to every recording made on with this DVD
recorder. The Disc Manager also tells you which film was recorded on
which disc and how many unrecorded minutes remain on the discs.
And: You can go automatically to the beginning of the selected
recording and start playback.
How many discs can I save in the Disc Manager?
You can store up to 999 discs on this DVD recorder. The maximum number
of titles is more than 9,000. The maximum number of titles per disc is 49.
Caution when recording with other DVD recorders
Don't use a disc stored in the Disc Manager for recording on other DVD
recorders. If you use a disc to record on another DVD recorder, then this
disc will no longer be recognised by the Disc Manager. In this case, delete
the disc from the Disc Manager's memory and then add it after it has been
recorded.
Adding 'child-proof discs'
If you want to add child-proof discs you need to enter the PIN code.
Adding a disc to the Disc Manager
You can only add DVD+RW or DVD+R discs to the Disc Manager
since other discs do not hold any information on the titles or lengths of
the recordings. These discs have to be at least once recorded in the
DVD-Recorder. A table of content have to be available.
DVD+R discs can also be finalised. Other discs cannot be added to the
Disc Manager.
Recordings are saved automatically
On a disc that has been added to the Disc Manager, you can make new
recordings as often as you like using this DVD recorder. The titles of these
recordings will be stored in the Disc Manager automatically.
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Insert the DVD+RW/+R disc that you want to add in the DVD
recorder.
Disc Manager
Find title C04
Browse discs Disc number001
Remove a disc Disc number001
Add current disc Next free disc number= 001
To exit press DM
a When I insert a disc I see a number on the screen in the
index picture screen in the top left-hand corner
b You have inserted a disc that has already been registered by the Disc
Manager.
2 Press the DISC MANAGER button on the remote control.
3 Select 'Add current disc' using A or B and confirm with C .
4 Confirm with OK .
P The disc number will be added to the Disc Manager.
P The disc number is then displayed and the disc tray opens
automatically.
The disc is now stored in the Disc Manager under the
displayed disc number.
Please write this number on the disc and on the cover.
Why do I need to label the discs?
When searching for unrecorded free space or available recordings, you
will asked to insert the appropriate discs (disc numbers).
5 To end, press DISC MANAGER .
The DVD recorder will immediately recognise that this disc is saved in
the Disc Manager. When this disc is inserted the disc number will
appear in the title overview in the top left-hand corner.
Removing discs from the Disc Manager
Every DVD+RW/+R is stored with a number in the Disc Manager
(DM). You can remove this disc number from the Disc Manager to use
the Disc Manager's memory for new discs or to remove damaged discs
from memory.
1 Press DISC MANAGER on the remote control.
2 Select 'Remove a disc' using A or B and confirm with C .
Disc Manager
Find title C04
Browse discs Disc number001
Remove a disc Disc number001
Add current disc Next free disc number= 001
To exit press DM
3 Select the disc number with A or B and confirm with OK .
Disc contents are not deleted.
The disc is only removed from the Disc Manager's memory. Its contents
remain unchanged.
4 To end, press DISC MANAGER .
Disc Manager (DM)
59
Searching for a title in the Disc
Manager
This function can be used to quickly and easily find and play back a
recording saved in the Disc Manager.
1 Press DISC MANAGER on the remote control.
2 Select 'Find title' using B or A and confirm with C .
P A list of the titles of all recordings stored in the Disc Manager
(DM) will appear on the TV screen.
Disc Manager
Find title Title Date Duration
Charly 1 01.01.2004 00:28
Page1/1
To select title press OK
What do the displays on the screen mean?
'Title' = Title or name of the recording
'Date' = Date of the recording
'Duration' = Length of the recording
3 Select the title that you want to play back with B or A .
4 Confirm with OK .
P The DVD recorder will jump to the start of the selected
recording.
a I see the message 'Insert disc number' on my screen
b The selected recording is located on the Disc Manager disc with the
displayed disc number. Please insert the appropriate disc. After a
brief check, the DVD recorder will jump to the start of the selected
recording.
Searching discs
You can easily search for the title of a recording stored in the Disc
Manager. To do this, the appropriate disc does not have to be in the
DVD recorder.
1 Press DISC MANAGER on the remote control.
2 Select 'Browse discs' using B or A .
3 Confirm with C .
P The screen will show the contents of the last Disc Manager
disc used.
Disc Manager
Disc number 001
Browse discs
Title Date Duration
Charly 1 01.01.2004 00:28
Page1/1
To select title press OK
4 Use A or B to select a different disc number if necessary and
confirm with C .
What do the displays on the screen mean?
'Title' = Title
'Date' = Date of the recording
'Duration' = Length of the recording
5 Press A or B to select the desired title.
6 Confirm with OK .
P The DVD recorder searches for the start of the appropriate
recording.
a I see the message 'Insert disc number' on my screen
b The selected recording is located on the Disc Manager disc with the
displayed disc number. Please insert the appropriate disc.
ENGLISH
Disc Manager (DM)
60
General
This section describes how you can adjust the functions of the HDD to
your personal preferences.
When you press SYSTEM MENU , a so-called puck '
Z' appears on a
line.
If there are further selection options within a line, an arrow e.g.: '
S'. will
appear in the respective segments e.g.: '
W'. Using the corresponding
buttons on the remote control (e.g. C ) you can call up further
features or selection options.
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press TUNER on the remote control to switch to HDD mode.
You can also switch to HDD mode by pressing BROWSER
HDD but you will not see the picture of the currently selected TV
channel as a background picture.
2 Press SYSTEM MENU on the remote control
P The system menu for the HDD appears.
SYSTEMMENU
Options
Toolbar
Preferences
Set up
3 Select the corresponding line using B or A .
O If the arrow C in the puck 'Z' is visible in one of the lines,
you can select additional functions with C on the remote
control.
O To return to the previous menu, keep pressing A until the
top menu item is selected.
Press D to return to the previous menu item.
SYSTEMMENU
Options
Toolbar
Preferences
Set up
4 Select the corresponding function using B or A , or the setting
with D or C . Select the functions you want to change as
described in the following pages.
5 Confirm the new setting with OK .
6 Close the menu item with D .
Toolbar
SYSTEMMENU
Options
Toolbar
Audio
Zoom
Time search
Subpictures
Options
In this menu, you can choose functions for the playback of recordings
(titles) on the HDD:
'Audio'
Selection of the language for the TV show currently selected on the
DVD recorder.
'Lang I' or 'Lang II' in the display also indicates whether a TV show is
broadcast in two languages. This setting only affects playback through
the internal tuner of the DVD recorder. The setting for the
programmed recording (Timer) will not be affected.
If you also want to use/change the language for the programmed
recording, you must change the language in the 'Preferences' menu
(setting 'Language').
O 'Off'or'Lang. I'
Playback is carried out in the original or main language.
'Lang I' also appears in the display.
O 'Lang.II'
Playback is carried out in the dubbed language available.
'Lang II' appears in the display.
'Zoom'
Using this function, you can enlarge (blue function button) or reduce
the size (yellow function button) of the still picture or pan through the
enlarged picture using B , A , D , C during playback from the
HDD (time shift buffer or media browser).
Press the red function button to stop this function.
'Time search'
Using this feature, you can search a position by time. You can use this
feature both for titles in the media browser and for playback from the
time shift buffer.
User preferences for the HDD
61
'Subpictures'
This function is only required if recordings were made through a video
camera connected to the DV IN (CAM2) socket. In this case, you can
display/hide information on the date and time of the recording.
Preferences
SYSTEMMENU
Recording
Preferences
Record mode
Camera mode
Chapters
HDD buffer
Language
Sat record
Direct rec.
Filter
Safety Slot
Recording
In this menu, you can select one of the following functions for
recording:
I can not select some functions
During a recording the selection of some functions are not possible. e.g.
'HDD buffer'.
'Record mode'
Select from the settings displayed the record mode (picture quality of
the recording). M1, M2x, M3,... M8.
For recordings on a DVD+RW/+R (archiving function) always the
recording mode used for the recording on the HDD will be taken.
Observe the maximum possible recording time on a DVD+RW/+R.
The maximum possible recording time on the HDD depends from the
recording mode and the average length of the recordings (titles).
The recording mode matches the storage space available on a
DVD+RW/+R. This means that only 1 hour of recording on the hard
disk in recording mode M1 will fit on a DVD+RW/+R (M2...2 hours,
M2x...2.5 hours, ...M8...8 hours). If the recording on the hard disk is
longer, you must use the function 'Dividing Titles' and store the
recording on two DVD+RW/+R's.
O 'M1'
High Quality (high recording quality)
offers the best picture quality and a recording time of:
DVD+RW/+R: 1 hour.
HDD: approx. 16 hours
O 'M2'
Standard Play (pre-recorded DVD quality)
offers standard picture quality and a recording time of:
DVD+RW/+R: 2 hours.
HDD: approx. 32 hours
O 'M2x'
Standard Play plus (better than S-VHS quality)
offers standard picture quality and a recording time of:
DVD+RW/+R: 2,5 hours.
HDD: approx. 40 hours
O 'M3'
Long Play (S-VHS picture quality).
Recording time of:
DVD+RW/+R: 3 hours.
HDD: approx. 48 hours
O 'M4'
Extended Play (better than VHS picture quality).
Recording time of:
DVD+RW/+R: 4 hours.
HDD: approx. 64 hours
O 'M6'
Super Long Play (VHS-picture quality).
Recording time of:
DVD+RW/+R: 6 hours.
HDD: approx. 96 hours if the average recording time for a
title is at least 20 minutes.
O 'M8'
Super Extendend Play (VHS-LP-picture quality).
Recording time of:
DVD+RW/+R: 8 hours.
HDD: approx. 130 hours if the average recording time for a
title is at least 20 minutes.
'Camera mode'
Select the recording mode (picture quality for recording) from one of
the displayed settings for the recording from external sockets. M1,
M2x, M3,... M8. Read the previous section (Record Mode) on the
picture quality that corresponds to each setting.
'Chapters'
O 'Off'
No auto chapters
O 'On'
Automatic chapter marking after 5 minutes.
In the case of camcorder recordings via the front socket DV IN
(CAM2) , the chapter marker will be transferred from the camcorder.
ENGLISH
User preferences for the HDD
62
'HDD buffer'
Choose one the displayed settings to define how long a recording will
be kept stored.
O '1h'
The recording will be kept stored for 1 hour
O '6h'
The recording will be kept stored for 6 hours
'Language'
Here you can set the default language to be used for the programmed
recording of bilingual TV shows. You can no longer change the language
once playback has started.
O 'Off'or'Lang. I'
Recording is carried out in the standard language.
O 'Lang.II'
Recording is carried out in the dubbed language available.
'Sat record'
No function, but leave it 'Off'.
'Direct rec.'
No function, but leave it 'Off'.
'Filter'
Here you can choose between:
I can not select this function
Check the actual record mode selected. This function is available in the
record modes 'M4'to'M8' only.
O 'Sport':
Picture quality is optimised for rapid movements in the
recording modes (picture qualities) M4 to M8.
Please observe that this setting will reduce the overall
impression of the picture quality.
O 'Normal':
Better overall picture quality.
Please observe that this setting may cause picture artefacts
(MPEG artefacts) to appear in rapid movements.
'Safety Slot'
Here you can enter a time (one to five minutes) when a programmed
recording (Timer) should start earlier and end later. This could be
necessary if the start and stop time always differ from the actual start
and stop time (e.g. always 2 minutes).
Please observe:
The DVD recorder switches on e.g. 5 minutes before the start time
recording in the Time Shift Buffer). As soon as it reaches the start time,
the recording (red marker on the time bar) advances forward 5
minutes. As a result, the 'lead time' will not become effective until the
start time is reached.
'Set up'
SYSTEMMENU
System
Set up
Auto delete
Jump forward
Jump back
Installation
Flush Buffer
'System'
In this menu, you can select one of the following features:
'Auto delete'
If there is no space for new recordings on the HDD, you can
determine here whether recordings will be automatically deleted or
not. You can see the titles and the sequence according to which they
will be deleted in the 'Delete Order' setting in the media browser. For
more information, read the chapter 'The Media Browser'.
O 'On':
Recordings will be automatically deleted in the following
order:
1) Titles that have already been viewed. Symbol '
E'.
2) Titles that were not protected. No symbol '
F' available.
O 'Off':
No recordings will be automatically deleted.
'Jump forward'
Set the time you want to jump forward when you press JUMP
FWD in the time shift buffer. Confirm the new time using OK .
'Jump back'
Set the time you want to jump backward when you press JUMP
BACK in the time shift buffer. Confirm the new time using OK .
Use the setting 5 minutes for Jump forwardand 1 minute for
'Jump back', to make it easy to skip unwanted scenes.
User preferences for the HDD
63
'Installation'
Please observe that for selection of function in this menu the Time shift
Buffer will be flushed. If the 'Time Shift Buffer ' contains important
recordings, save them with the REC/OTR n button first. Read
additional information about the 'Time Shift Buffer' in the chapter 'The
Time Shift Buffer'.
O 'Autom. search':
Automatic channel search
O 'Follow TV':
No function. If this item is confirmed, exit with SYSTEM
MENU .
O 'Manual search':
Manual TV channel search
O 'Sort TV channels':
Sorting TV channels manually
O 'Time/Date':
Setting/Correcting the time and date
For more information, please read chapter 'Additional installation
features'.
'Flush Buffer'
Using this function, you can store recordings on the HDD that were
marked for recording in the time shift buffer. Recordings that were not
marked will be deleted.
O 'Yes':
Recordings will be stored
O 'No':
This interrupts the process
ENGLISH
User preferences for the HDD
64
General
This section describes how you can make additional personal settings.
The symbols have the following meaning:
Picture settings
Sound settings
Language settings
Additional settings
Disc settings
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for
the DVD recorder.
•) Switch on the DVD recorder.
1 Press the DISC MENU button and then the SYSTEM
MENU button on the remote control.
P The menubar appears.
If this menubar is not complete visible on your wide screen TV-set,
change the picture settings on your TV.
2 Select '
A
' using D oder C and confirm with
3 Select the corresponding function using B or A and confirm
with C .
4 Select the corresponding line using B or A and confirm with
C . For more information on each function, read the following
pages.
5 Select the corresponding function using B or A , or the setting
with D or C . Select the functions you want to change as
described in the following pages.
6 Confirm the new setting with OK .
7 Close the menu item with D .
Picture settings
You can select the following functions in this menu:
TV shape 16:9
Black level shift Off
Video shift ï
video output RGB
'TV shape'
The picture signal from your DVD recorder can be set to match your
TV set:
O '4:3 letterbox'
for a widescreen picture with black bars at the top and
bottom
O '4:3 panscan'
for a full-height picture with the sides trimmed.
O '16:9'
for a widescreen TV set (16:9 screen ratio)
'Black level shift'
Adapts the colour dynamics for NTSC playback when switched to 'On'
'Video shift'
Use this feature to adjust the position of the picture on your TV left or
right using D , C to suit the screen of your TV set.
Additional user preferences
65
'video output'
Since RGB and S-VIDEO signals sometimes use the same connections
on a scart cable, the two signals cannot be transmitted simultaneously.
With these settings, you can decide whether RGB or S-VIDEO signals
are to be transmitted. This setting affects only the scart sockets of the
DVD recorder ( EXT1 TO TV-I/O output socket and EXT2
AUX-I/O input socket).
Please also observe which signals are available at which scart socket of
the TV set or how the scart sockets need to be switched.
If necessary, consult the instruction manual of your TV set.
O 'RGB'
Depending on the TV set you are using, switching between the
'RGB' and the 'Video(CVBS/FBAS)' signal is done automatically.
If the picture scrolls to the side or colour quality problems
appear on some TV sets when the setting is 'RGB', you must
select 'CVBS only'.
O 'S-Video'
Only the S-Video signal will be processed at both scart sockets
( EXT1 TO TV-I/O output socket and EXT2 AUX-I/O input
socket).
In case the scart socket of the TV set is not suitable for
S-VIDEO (Y/C) signals, you will only see a black&white
picture, although the recording will be made in colour.
Moreover, only the video (CVBS, FBAS) signal will be used for
recordings via the EXT1 TO TV-I/O scart socket.
Please observe that when making recordings from a video
recorder that transmits only video (CVBS/FBAS) signals
through the scart cable, recordings via scart socket EXT2
AUX-I/O may be made in black and white.
Therefore, use this setting with caution.
O 'CVBS only'
Only the video (CVBS/FBAS) signal is transmitted, regardless
of the video signals (RGB, Y/C) at the scart sockets. This
setting is selected automatically when no 'RGB' or 'S-VIDEO'
signal is detected at the scart socket.
When selecting the settings 'S-Video'or'CVBS only', the RGB signal
is switched off.
The 'RGB' signal is switched off.
O 'S-video + YPbPr'
Component Video (YUV) and S-Video(Y/C).
'TIMER' input screen only available on YUV ouput sockets.
O 'CVBS + YPbPr'
Component Video (YUV) and Video (FBAS/CVBS).
'TIMER' input screen only available on YUV ouput sockets.
With all other settings, the signal is switched off at the COMPONENT
VIDEO OUT sockets. This will also be displayed as information on the
screen.
Sound settings
You can select the settings in this menu depending on which audio
outputs are used.
If you only use the analogue audio output (red and white socket
AUDIO OUT L/R ), select the setting 'Off' in the 'Digital output'
menu.
Sound
Digital output All
Analogue output Stereo
Night mode Off
'Digital output'
You can select one of the following settings for devices that are
connected to the COAX OUT or OPTICAL OUT sockets:
O 'All'
Dolby Digital and DTS signals are fed unaltered to the digital
output. MPEG-2 multi-channel signals are converted to PCM
(Pulse Code Modulation).
For receivers/amplifiers with digital multi<channel
decoders.
O 'PCM only'
Digital and MPEG-2 multi-channel signals are converted to
PCM (Pulse Code Modulation). For receivers/amplifiers
without digital multi<channel decoders.
O 'Off'
Digital output switched off.
For devices with analogue audio input.
'Analogue output'
You can select one of the following settings for devices that are
connected to the analogue audio output ( AUDIO OUT L/R ):
O 'Stereo'
For devices without DolbySurround or TruSurround. Use this
setting if the DVD recorder is only connected to a stereo TV
set.
O 'Surround'
Dolby Digital and MPEG-2 multi-channel are mixed down to a
Dolby Surround-compatible two-channel output signal.
For devices with Dolby Surround / Pro Logic Decoder .
'Night mode'
Night mode optimises the sound for playback at low volume. You are
therefore less likely to disturb your neighbours. This only works with
Dolby Digital audio on DVD video discs.
ENGLISH
Additional user preferences
66
Language settings
You can select the following settings in this menu:
Language
Audio Language English
Subtitle English
Menu English
'Audio Language'
Playback audio language.
'Subtitle'
Subtitle language
'Menu'
Screen menu language
Additional settings
You can select the following functions in this menu:
Features
Status box On
Standby Normal
Display Bright
'Status box'
During play back from a disc, information of the current operating
status (counter, playback) will be shown on the TV screen.
You can switch off the information about the operating status so that
the on-screen display is not recorded when making recordings on
additional devices.
O 'On'
The OSD information appears for a few seconds in each
selected mode and then disappears.
O 'Off'
The OSD information is switched off. It is no longer
displayed on the screen.
'Standby'
You can switch off the clock display on your DVD recorder to save
energy. Programmed recordings will be carried out despite of this.
In addition, you can choose, that an introduction movie will be played
every time the DVD-recorder is connected to the mains.
O 'Low power':
When the DVD recorder was switched off using
STANDBY m , the clock display is also switched off.
O 'Normal':
When the DVD recorder was switched off using
STANDBY m , the clock display remains visible.
O 'Demo mode':
When the DVD recorder is switched off using
STANDBY m , a demonstration movie in the selected OSD
menu language (e.g. menu language 'English', movie 'Demo
English') starts automatically. It is not possible to switch the
DVD recorder off.
This film is stored in the 'Media Browser' on the HDD for each language. If
you want additional storage capacity on the HDD you can delete this movie
as you delete a normal title (recording). Read therefor the chapter 'Delete
titles/recordings from the HDD' in the section 'Playback from the HDD'.
Additional user preferences
67
'Display'
You can change the brightness of the display on the DVD recorder.
This setting only affects the DVD recorder when it is switched on.
O 'Bright':
The display appears with normal brightness. The disc tray light
is switched on.
O 'Dimmed':
The display appears less bright. The disc tray light is switched
off.
O 'Off':
The display and the disc tray light are switched off.
Disk feature menu
In this menu, you can make changes that relate to the disc:
Disc features
Access control Enter code
Auto resume On
'Access control'
Please read the next chapter 'Access control (child lock)'.
Auto resume
If playback of a pre-recorded DVD video disc or video CD is
interrupted (using STOP h or OPEN/CLOSE J ), playback will
resume where it stopped after you reinsert the disc. This applies not
only to the current disc but also to the last 20 discs you played.
You can switch off this feature if you do not want it.
'PBC'
This line appears only if you insert a VCD.
Using this function, you can activate or deactivate the PBC menu
(Playback Control) of a Video CD. For more information, read section
'Playing a (Super) Video CD' in chapter 'Playback'.
'Finalise disc'
This function allows you to finalise DVD+R discs. If the disc has already
been finalised, this line will appear darker.
'Adapt disc format'
If a DVD+RW has been recorded in a PC drive or a different DVD
recorder, the index screen may not be displayed properly.
This feature allows you to adjust the format of the disc.
Therefore, this feature is only visible if the disc format is different.
ENGLISH
Additional user preferences
68
Child lock (DVD and VCD)
This feature enables discs to be locked for children.
When Child Lock is on, a 4-digit code (PIN) needs to be entered
before a disc can be played.
You can also decide whether the inserted disc should always be played
or should be played only once, despite the child lock
•)'Play always':
This disc is stored in a memory with space for 50 child-safe discs. If
more than 50 discs are stored, the last disc in the list is removed and
the new disc is added. The screen shows 'Child safe' at the start of
playback.
•)'Play once':
This disc is only authorised for single playback. If the recorder is
switched off, the PIN code must be re-entered.
Activating/deactivating child lock
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press DISC MENU and then SYSTEM MENU on the remote
control. If playback from a disc starts automatically, remove the
disc (button OPEN/CLOSE J ).
P The menubar appears on the screen.
2 Select the '
A
' icon using D or C .
P The 'SYSTEM MENU' appears.
3 Select '
(Disc features)' using B or A and confirm with C .
Disc features
Access control Enter code
Auto resume On
4 Confirm 'Access control' using C .
5 Enter a 4-digit code of your choice.
This code will also be used for locking titles on the HDD (Media
Browser).
P If the code is new, you may have to enter the code a second
time as confirmation.
6 Select 'Child lock' using A or B and confirm with C .
7 Select the '
' icon using B or A .
8 Confirm with OK .
9 Quit the feature using D and SYSTEM MENU .
Unauthorised discs can only be played by entering the four-digit PIN
code.
To deactivate the child lock, select the '
' icon in 7 .
Authorising a disc
1 Insert a disc. The access control box will appear after a short
delay.
2 Using A or B select 'Play once'or'Play always'.
3 Enter your PIN code using the number buttons 0..9 .
Double-sided DVDs may have a different ID for each side. For these
discs, each side must be authorised. Video CDs may have a different ID
for each disc. For these CDs, each disc must be authorised.
Locking unlocked discs
To lock a disc that was formerly authorised follow the instructions
below
1 Insert a disc. Playback starts automatically. If the playback does not
start automatically, press PLAY G .
2 Press the STOP h button while the '
' icon is visible. The
icon changes to '
'. The disc is now locked.
Access control (Child Lock)
69
Parental level control (DVD video
only)
Films on pre-recorded DVD discs may contain scenes not suitable for
children. Therefore, some discs may contain 'Parental Control' rating
information that applies to the entire disc or to certain scenes on the
disc.
The appropriate scenes have filter values that reach from 1-8. If such a
scene is detected during playback, the filter value set on the DVD
recorder is compared to the scene. If the filter value is higher than the
setting, an alternative scene will be played (if available).
Most DVDs apply the rating to an entire DVD. Therefore, if certain
scenes exceed the rating you select, the entire disc will be blocked
from viewing.
Activating/deactivating parental level control
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press DISC MENU and then SYSTEM MENU on the remote
control.
P The menubar appears.
2 Select the '
A
' icon using D or C .
3 Press the SYSTEM MENU button on the remote control.
4 Select the '
A
' icon using D or C .
5 Select '
(Disc features)' using B or A and confirm with C .
Disc features
Access control Enter code
Auto resume On
6 Confirm 'Access control' using C .
7 Enter a 4-digit code of your choice. If the code is new, you may
have to enter the code a second time as confirmation.
8 Select the 'Parental level' using A or B and confirm with C .
A bar appears to select the parental level.
9 Select the appropriate rating using B , A or the number buttons
0..9 .
What do the ratings mean?
Rating 0 (displayed as '--') parental control not active.
Rating 1 (suitable for children)
Rating 8 (only suitable for adults)
What happens if a DVD scene contains a higher level than
the rating set?
If the recorder does not find a suitable alternative, playback will stop
and you must enter the four-digit code.
0 Confirm with OK . Quit using D and SYSTEM MENU .
Changing the country
The set filter values depend on the respective country. It is therefore
necessary to enter the country to which these filter values apply.
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press the DISC MENU and then the SYSTEM MENU button
on the remote control.
P The menubar appears on the screen.
2 Select the '
A
' icon using D or C .
3 Select line '
(Disc features)' using B or A and confirm with
C .
Disc features
Access control Enter code
Auto resume On
4 Confirm the line 'Access control' using C .
5 Enter your four-digit code. If the code is new, you may have to
enter the code a second time as confirmation.
6 Select 'Change country' using B or A and confirm with C .
7 Select the corresponding country using A or B and confirm
with OK .
8 To end, press D and then SYSTEM MENU .
ENGLISH
Access control (Child Lock)
70
Changing the PIN code
Preparation:
•) Switch on the TV set, and if necessary, select the programme number for the
DVD recorder.
•) Switch on the DVD recorder.
1 Press the TUNER and then the SYSTEM MENU button on the
remote control.
P The menubar appears.
2 Select the '
A
' icon using D or C .
3 Select '
(Disc features)' using B or A and confirm with C .
Disc features
Access control Enter code
Auto resume On
4 Confirm 'Access control' using C .
5 Enter your four-digit PIN code. If the code is new, you may have to
enter the code a second time as confirmation.
6 Select 'Change code' using A or B and confirm with C .
7 Enter the new code using the number buttons 0..9 . Enter the
same code again as confirmation.
8 Quit using D and SYSTEM MENU .
I have forgotten my code
Press STOP h four times (step
5 ), then press OK . Access
control is now switched off. You can now enter a new code as described
above.
Access control (Child Lock)
71
You can check or change many of the functions and settings of your
DVD recorder via the system menu bar.
Symbols in the menu bar
Press DISC MENU and then SYSTEM MENU to open the menu
bar. If a disc is played back, you can open the menubar with SYSTEM
MENU .
Use D and C to select the relevant function.
Use B to confirm the function and go either to another menu or
execute the function directly.
Some functions may not be available, depending on the disc inserted.
Menu bar 1
A
User preferences
B
Title/track
C
Chapter/index
D
Audio language
E
Subtitle language
F
Camera angle
G
Zoom
Menu bar 2
While menu bar 1 is being displayed you can go to menu bar 2 by
pressing C again.
H
Sound
I
Frame advance
J
Slow motion
K
Fast motion
L
Search by time
Field for temporary messages
The top left corner of the menu line contains a field for temporary
messages relating to the various operating modes. This information
appears briefly on the screen when certain disc functions have been
activated:
Shuffle
Scan
Repeat entire disc
Repeat title
Repeat track
Repeat chapter
Repeat from A to the end
Repeat from A to B
Camera angle
Child lock enabled
Resume playback
Illegal action
Status field
During playback of a disc, the status field shows the current operating
mode (status) of the DVD recorder and the type of disc inserted. This
display can be switched off.
Disc type symbols
M
DVD+RW
W
DVD+R
N
DVD<Video
O
Video<CD
P
No disc
Q
Error
Operating mode symbols
R
Recording
S
Stop
T
Playback
U
Playback<Pause
V
Record<Pause
X
Search forwards (8x speed)
Y
Search backwards (8x speed)
Z
Slow motion
ENGLISH
Information on the screen of your TV
72
The symbols on your DVD recorder
display
These symbols can light up on your DVD recorder display:
Multi-function display/text line
•) Clock
•) Disc/title playing time
•) Title name
•) Display of the programme number of the TV channel/playing
time/channel name/function.
•) Display of information and alerts
•) Display of the title from the actual recording.
IIIIIIIIIIIIIII Position/Diskbar: Displays the current position on the
HDD/disc.
Time Shift Buffer Displays the elapsed time. If all segments lits, the
oldest recording will be deleted from the Time Shift Buffer.
Play/Record: No segment will lit at the current position.
Pause: Flashing segment at the current position.
Stop: Nothing appears.
TIMER A recording (timer) has been programmed
o((( A remote control signal has been received
LANG II During playback a 2-channel tone was detected or a
2-channel tone was received. 'I' or 'II' lights up depending on which
sound channel has been selected
Messages in the DVD recorder display
READING
The following messages may appear in your DVD recorder display
IS TV ON? The DVD recorder is in initial installation mode. Switch
the TV on, then read the paragraph on 'Initial installation' in
'Installing your DVD recorder'.
NO SIGNAL No input signal available (signal inadequate or unstable)
MENU The menu on the screen is active
OPENING Disc tray opening
TRAY OPEN Disc tray open
CLOSING Disc tray closing
READING Disc being read
MENU UPDATE Once recording has been successfully completed the
table of contents is created.
CREATE MENU The menu structure is created after the first recording
has been made on a new disc
COPYPROTECT You received a copy-protected signal. This may come
from a copy-protected DVD/videotape of a DVD/video player or
from a TV channel.
During the display COPYPROTECTno recording will be made. A
running recording will be interrupted.
WAIT Please wait until this message disappears. The DVD recorder is
busy performing a task.
NO DISC A disc has not been inserted for recording. If a disc has been
inserted, it cannot be read.
INFO Information about the inserted DVD is displayed on the screen
BUSY The DVD recorder is processing the changes to make the disc
DVD compatible
ERASING The entire DVD+RW is being erased
EMPTYDISC The DVD+RW/+R inserted is either new or has been
completely erased (no recordings).
PROTECTED The DVD+RW/+R inserted is protected against recording.
How to remove this protection you will read in the section
'Protect disc against accidental recordings' in the chapter
'Recording on a DVD+RW/+R' .
MAX TITLE The maximum number of titles per disc/HDD has been
reached. The maximum number of titles on a disc is 48 and on the
HDD 499.
Information on the screen of your TV
73
MAX CHAP The maximum number of chapters within a title/or the disc
has been reached. The maximum number of chapters is;
DVD+RW/+R: within a title 99, on the disc 255 (spreaded over
the whole disc)
HDD: within a title 500, on the HDD 1000 (spreaded over the
whole HDD)
DISC FULL The disc/HDD is full. There is no space for new recordings
PAL DISC A disc with PAL recordings has been inserted. The machine
is trying to record an NTSC signal. Insert a new disc or one that
contains NTSC recordings.
NTSC DISC A disc with NTSC recordings has been inserted. The
machine is trying to record a PAL signal. Insert a new disc or one
that contains PAL recordings.
RECORDING An illegal action (e.g. OPEN/CLOSE J button) was
attempted during recording on a DVD+RW/+R (archiving).
FREETITLE An empty title on a DVD+RW/+R is selected.
DISC LOCKED An attempt has been made to record during playback of
a protected disc. This message appears if an attempt is made to
insert a chapter marker on this inserted DVD+RW/+R.
DISC ERROR An error occurred when reading the title from a
DVD+RW/+R. If this error keeps occurring, please clean the disc
or use a new one. For instructions on how to clean a disc see the
section on 'Cleaning the discs' in the next chapter.
DISC WARN An error occurred when writing the title on a
DVD+RW/+R. Recording was continued; the error was skipped
SETUP After the automatic search the menu for setting the date/time
will appear on the screen.
WAIT 01 During the automatic channel search the TV channels found
will be counted.
BLOCKED The disc tray cannot be closed/opened.
SAFE REC During the archiving procedure, the new recording will be
added at the end of all the other recordings (SAFE RECORD).
POST-FORMAT After the creation of the menu structure the
DVD+RW/+R is prepared. As long as 'POST-FORMAT' is visible on
the display you can not operate the DVD-Recorder.
PHILIPS The DVD-Recorder has been switched on
STANDBY The DVD-Recorder has been switched off
ENGLISH
Information on the screen of your TV
74
If you have any problems using this DVD recorder, the reason may be one of the following. You can
also call the customer service centre in your country.
The telephone numbers can be found on the back of this instruction manual.
You can also visit our web page 'http://www.p4c.philips.com' .
Have the model number (MODEL NO) and the production number (PROD.NO) of your recorder
ready.
The production number (PROD. NO.) is printed on the type plate at the back or on the bottom
PROBLEM SOLUTION
Your recorder does
not respond to any
button being pressed
and the display shows
'PHILIPS', 'IS TV ON?':
bRecorder in initial installation mode: Switch on the TV, switch over to the DVD recorder socket.
Now the menu for language selection should appear. Please read paragraph 'Initial Installation' in the chapter
'Installing your DVD Recorder'.
The device does not
react when you press a
button, although the
remote control works:
b'Key lock' is switched on: All buttons on the front of the set are locked.
Switch off the function:
1 Pull out the mains plug from the wall outlet.
2 Press and hold down h and OPEN/CLOSE J and put back the mains plug into the wall
outlet.
3 As soon as the time or '--:--' appears in the display (ca. 6 - 10 seconds), release h and
OPEN/CLOSE J .
Your DVD recorder
does not respond to
any button being
pressed:
bThere is no power supply: check the power supply
bThere is a technical problem: disconnect from the mains power supply for 30 seconds, then connect again.
If this doesn't help, you can reset your DVD recorder to the default factory settings.
Resetting the machine
to the default factory
settings
bImportant:
All the information stored (TV channels, time and date, TIMER) will be lost.
1 Disconnect from the mains power supply.
2 Press and hold down the STANDBY-ON m button on the device and reconnect to the
mains power supply.
3 Release the STANDBY-ON m button when the features appears on the display. All the
information stored (TV channels, time and date, TIMER) will be lost.
Please read paragraph 'Initial Installation' in the chapter 'Installing your DVD Recorder'.
Remote control does
not work:
bRemote control not pointed toward the DVD recorder: Point the remote control at the machine. See if the
'o(((' appears on the display briefly each time you press a remote control button. If it does, the Recorder is
receiving information from the remote correctly.
bThere is a technical problem: Take out the batteries, wait for 10 seconds and put them in again.
bBatteries are flat: Change the batteries.
I can not switch off the
DVD<Recorder:
bA recording is in progress (red light around the REC/OTR n button is switched on). After the recording is
finished, the DVD-recorder will switch off automatically.
bIf a movie is played automatically, the demo feature is switched on. To switch off the demo, proceed as
follows:
1 Press DISC MENU and then SYSTEM MENU (call up system menu of the disk).
2 Select the '
A
' symbol with D and then '' using B .
3 Confirm with C .
4 Select 'Standby' with B and confirm with C
5 Select 'Low power'or'Normal' using A , B .
6 Press OK to confirm and SYSTEM MENU to end.
Before you call an engineer
75
PROBLEM SOLUTION
Fans run with switched
off DVD recorder:
bFor the execution of certain procedures the DVD recorder can switch itself on automatically, although no
information is visible on the display. To prevent overheating, the fans at the back will be switched on and off
automatically
This is no fault of your set.
No playback on DVD
recorder:
bThere is no recording on the HDD/disc: Check the titles from the HDD in the media browser (button
BROWSER HDD ), change disc.
bYou inserted the wrong disc type: Your recorder can play back the following disc types: DVD Video,
(Super)Video CD, DVD+R(W), Audio CD, , MP3-CD's
bYou inserted the disc the wrong way: Insert the disc with the label facing upwards
bDisc is dirty: Clean the disc
bWrong region code: The region code of the DVD and the DVD recorder must match.
bParental control is on: Read chapter 'Access control (child lock)'
bParental control is on fro titles from the HDD: Read chapter 'Access control (child lock)'
bYou have selected the wrong programme number for the DVD recorder on the TV: on the TV, select the
correct programme number for the DVD recorder.
bThe cable connecting the TV set and the DVD recorder has come loose: check the cable.
I cannot playback
(Super) Video CDs
bIt is possible that this (Super) Video CD contains a menu and the 'PBC' is switched off. You can see this in
status field 'PBC OFF'. To activate this function, proceed as follows:
1 Press SYSTEM MENU while the (Super) Video-CD is inserted .
2 Select '
A
' using D or C .
3 Select line 'Features' using B or A and confirm with C .
4 Select 'On' in line 'PBC' using B or A .
5 Confirm with OK and end with SYSTEM MENU .
bCheck the format of self recorded (s)VCD's (1.0, 1.1, 2.0). Play back of (S)VCD's in a different format can be
distorted.
Poor playback on DVD
recorder: (distorted
picture/distorted
sound)
bYour TV set is not properly adjusted.
bDisc is dirty: Clean the disc
bSometimes the picture may be temporarily distorted. This is not a defect of your DVD recorder.
Digital distortions
bThe low quality of some digital picture material may be the cause of digital image distortion. In this case
change the setting of the sharpness or the picture settings.
If your TV is equipped with a 'Smart picture' function, select the 'Soft' setting, without changing the picture
settings manually.
No recording on the
HDD possible:
bThe TV channel you want to record is not stored or you selected the wrong programme number: Check TV
channels stored.
No recording on the a
DVD+RW/+R possible:
bDisc write-protected (recording protected): Remove write-protection or change the disc. For more information,
please see 'Preventing accidental erasing of discs' in chapter 'Manual Recording'.
bAn already finalised DVD+R has been inserted: Change disc.
Programmed
recording does not
work:
bYou have programmed the wrong time or date: Check time/date.
bIf the time and date are wrong despite setting them by hand, you can switch 'SMART CLOCK' (Clock
preset) off. See 'Setting the time/date' in 'Installing your DVD recorder'.
bYou have not set the TIMER properly: Check the programmed recordings (TIMER block).
The wrong TV channel
was decoded
(recorded) after you
programmed a
recording using
G<Code System.
1 Enter the G-Code programming number of the TV channel you want.
2 Confirm with OK .
3 Check the programme number in the 'Prog.' input field.
4 If this does not correspond to the desired TV channel, select the input field and change the
programme number/channel name.
ENGLISH
Before you call an engineer
76
PROBLEM SOLUTION
There is picture or
sound interference on
TV reception:
bBefore recording, select the recording mode as described in chapter 'Manual Recording', section 'Selecting the
recording mode (quality)'.
bHave your aerial checked.
bYou will find information on how to change the TV system in 'Manual TV channel search' in 'Installing your
DVD recorder'.
Distorted sound
coming from a
connected hi<fi
amplifier
bThe DVD recorder is connected to the 'Phono-input' of your amplifier: This socket is provided only for a record
players without a preamplifier. Select a different audio input.
The picture is
distorted or
black<and<white during
playback
bThe TV system of the disc does not match that of your TV set (PAL/NTSC).
bThe recording can be made in colour only when the TV channels or the connected additional device send a
colour signal. Black-and-white signals containing no color information (colour subcarriers) cannot be recorded.
No sound signal at the
digital output
bCheck whether the sound settings match the selected inputs and connected additional devices. For more
information, see section 'Sound setting' in chapter 'User preferences'.
There could be
difference in the
search speed of a DVD
and DVD+RW
bDepending on the different structure of a DVD and a DVD+RW/+R this can lead to the different search
speeds. This is not a fault in your machine.
A DVD+RW disc
cannot be played on
certain DVD players
bIf a recording is too short, it is possible that a DVD player cannot detect it: Please observe the following
'Minimum recording times':
Recording mode 'M1': 5 minutes, 'M2': 10 minutes, 'M2x': 13 minutes, 'M3': 15 minutes, 'M4': 20 minutes,
'M6': 30 minutes, 'M8': 30minutes,
bSome DVD players cannot play back DVD+RW recordings. You can solve this problem by using a special
function:
1 Open the disc tray with OPEN/CLOSE J . Insert the disc but do not close the tray.
2 Hold down the number button 2 on the remote control until the tray closes. The disc is
modified.
3 You can restore the disc to its original condition by pressing 1 .
Warning!
There is a risk that you can no longer play the disc on other DVD players after this procedure.
Therefore, apply this function with particular care.
Before you call an engineer
77
PROBLEM SOLUTION
Other disc errors
(DVD+RW)
bIf it is impossible to play back a disc, you can try and repair it for new recordings using the following function.
This will only prepare the disc for erasing. It will not be erased, however, until the recording has been
completed.
1 Clean the disc
2 Open the disc tray with OPEN/CLOSE J . Insert the disc but do not close the tray.
3 Hold down the red function button on the remote control until the tray closes. The disc is
prepared for erasing.
4 Start recording as with an empty disc.
Other disc errors
(DVD+R), 'Disc
contains unknown
data' interruption of a
recording (power
outage)
bThis message may appear if you instert a DVD+R that was not finalised or an error occurs during the
recording. DVD+R's that have not been finalised are very sensitive to fingerprints, dust, or dirt. This may
cause problems during recording.
To use the disc again, follow the next steps
1 Make sure that the surface of the disc is clean.
2 Open the disc tray with OPEN/CLOSE J . Insert the defect DVD+R but do not close
the tray.
3 Hold down 5 on the remote control until the tray closes. The disc will be read ('READING'
appears on the display) and the DVD recorder will start the repair process. This may take up
to four times as much time as the recording, in which the error occurred.
4 If the disc is recovered, the index screen will appear.
Please observe the following:
The recovering procedure is successfully only if there was a previous recording on the disc.
Error during recording: The title may be missing.
Error while changing the title/index picture: The original title/index picture may be visible.
Error while finalising: The disc appears not to have been finalised.
The index screen
flickers when a DVD+R
is inserted
bYou can finalise the disc using the following function:
1 Open the disc tray with OPEN/CLOSE J . Insert the defect DVD+R but do not close
the tray.
2 Hold down 4 on the remote control until the tray closes.
'FINALIZING' appears in the display. Finalising begins. This may take up to three minutes.
3 If finalising has been successful, the index screen will appear.
I have forgotten the
PIN<Code
bTo erase the PIN code (reset to 0000), proceede as follows:
1 First press DISC MENU then SYSTEM MENU .
2 Select the symbol '
A
' using D , select '(Disc features)' using B and confirm with C .
3 Confirm the line 'Access control' using C and pree 4 times STOP h on the remote
control. The PIN code is reset to '0000'.
4 End with SYSTEM MENU
ENGLISH
Before you call an engineer
78
Chapters
Also known as 'scenes', a DVD movie can be broken up into sections
much like the chapters of a book, that can be accessed quickly and
easily via the DVD menu or remote control.
Component Video (Y Pb Pr)
This method of transmitting pictures produces the highest quality as
the video signal is split into its Y (brightness), U and V (blue minus
brightness, red minus brightness) components. The signals are
transmitted via separate cables. The plugs on these cables and the
associated sockets are mostly coloured red, green and blue.
NICAM
NICAM is a digital sound transmission system. Using NICAM, you can
transmit either 1 stereo channel or 2 separate mono channels.
However, if reception is poor and the sound distorted you can turn off
NICAM.
NTSC
National Television Systems Committee. The colour TV broadcast
system used in the US, Canada and Japan. An NTSC picture is made up
of 525 horizontal lines and has inferior picture quality in comparison to
the PAL system. All Australian-sold DVD players are NTSC compatible,
however DVD's that are played on a television that is not compatible
will appear in black and white.
PAL
Phase Alternating Line. The colour TV broadcast system used in
Australia, UK & Europe. A PAL picture delivers a better quality picture
than NTSC due to its 625 horizontal lines (sharper picture and better
colours).
Region code
Since DVD films are not normally released in all parts of the world at
the same time, all DVD players have a specific regional code. Discs can
be given a regional code. If the regional codes differ between the player
and the disc, playback is not possible.
The regional code of the DVD recorder is shown on the type plate at
the back or bottom.
2<channel sound
Some TV programmes transmit an extra audio signal in stereo in
addition to the normal audio signal (2-channel sound). In most cases
this means that an additional language is available. If a TV programme is
available in, say, English and German, German may be available as the
second language.
To record TV programmes in 2-channel sound, you can select the
language you want as the default setting. This setting does not become
active until the sound of a TV programme is transmitted in 2-channel
sound.
When you play back the recording you can play back the sound only in
the language you used for the recording.
Macrovision
Macrovision is a copy-protection technique intended to keep you from
making copies of DVDs with your VCR. It works by continuously
adjusting the video signal level that results in a recording where the
brightness of the picture continuously fluctuates between light and
dark, and the color levels fluctuate between oversaturated and washed
out. Macrovision "encoded" DVDs contain a bit of data that tells the
DVD player to activate its internal macrovision circuitry in order to
prevent copying.
Glossar y
79
ENGLISH
80
A Mark 146........................................
Action 116...........................................
Admiral 093, 134, 209, 262, 306,....
332
Aiko 013, 246, 248, 250, 255, 266..
Akai 002, 113, 114, 140, 216, 246,..
248, 250, 255, 266, 285, 292,
305, 324, 332
Akura 217, 222, 246, 250, 266.........
Alba 201, 217, 219, 232, 246, 249,.
250, 266, 272, 281
Amstrad 201, 228, 232, 234, 246,...
250, 261, 266, 280, 332
Amtron 28...........................................
Anam 115.............................................
Anam National 003, 028, 118..........
Anglo 246.............................................
Anitech 201, 246, 250, 256, 332.....
Ansonic 246, 247, 250, 257, 272,....
275, 283
AOC 004, 005, 006, 007, 113, 120,
131, 146, 154
Arc en Ciel 319...................................
Aristona 247, 250...............................
ASA 209, 211, 254, 258, 279, 306...
Asberg 250, 256..................................
Astra 332..............................................
Atlantic 250, 312................................
Atori 246..............................................
Audiosonic 250, 266, 332.................
AudioTon 332.....................................
Audiovox 028, 116, 154, 157...........
Ausind 256...........................................
Autovox 209, 256, 272......................
Awa 305, 332......................................
Baird 255, 263, 298, 305.................
Bang & Olufsen 209...........................
Barco 310.............................................
Baur 202, 237, 240, 242, 250, 264..
Beko 231, 250, 338............................
Bell & Howell 134, 262.....................
Beon 250..............................................
Blaupunkt 214, 215, 221, 240, 242,
264, 303, 316, 324
BPL 250.................................................
Brandt 226, 278..................................
Brionvega 209, 250, 303, 306, 312..
Broksonic 113, 115, 134...................
Bruns 209, 306....................................
BSR 224, 276, 330..............................
BTC 217, 266......................................
Bush 201, 217, 219, 224, 229, 232,.
233, 246, 249, 250, 266, 276,
281, 288
Carrefour 249, 254..........................
Cascade 201, 246, 250......................
Cathay 250...........................................
CCE 134...............................................
Celebrity 2............................................
Centurion 250.....................................
Century 209, 272, 306......................
CGE 256, 272, 332, 338....................
Cimline 201, 219, 246, 266...............
Citizen 004, 006, 008, 013, 028,......
058, 091
Classic 113, 140..................................
Clatronic 231, 246, 250, 256, 257,.
266, 272
Colortyme 004, 006, 114, 130, 134,
141, 144, 151
Condor 231, 246, 250, 257, 272,....
283, 332
Contec 201, 246, 249, 260, 330,.....
332
Contec Cony 115, 116......................
Contec/Cony 009, 010, 011, 028....
Continental Edison 319, 343............
Cosmel 246, 332.................................
Craig 028, 115, 116, 128, 137, 141.
Crosley 134, 209, 256, 272, 306.....
Crown 028, 037, 137, 146, 201,......
231, 246, 250, 256, 266,
289, 332
CS Electronics 266, 272....................
CTC 272...............................................
Curtis 113, 144, 152..........................
Curtis Mathes 001, 004, 006, 012,..
058, 091, 111, 114,
120, 131, 134, 141,
146, 147
Daewoo 004, 005, 006, 013, 014,.
069, 091, 113, 118, 120,
131, 144, 146, 147, 152,
154, 155, 157, 201, 233,
246, 250, 266, 332, 337
Dainichi 217, 266................................
Dansai 248, 250..................................
Daytron 004, 006, 091, 128, 131,...
146, 152, 154, 201, 246
Decca 220, 250, 255, 305, 309, 339
Denon 158...........................................
Desmet 250.........................................
Diamond 332.......................................
Dimensia 001, 111..............................
Dixi 201, 246, 250..............................
Dual 250, 288, 332.............................
Dumont 004, 082, 208, 209, 211,...
254, 257, 306
Dynatron 250......................................
Elbe 250, 266, 275, 283, 312, 322.
Elcit 257, 272.......................................
Electroband 2.......................................
Electrohome 003, 004, 006, 015,....
113, 114, 131, 146
Elin 211, 246, 250, 258, 312, 332....
Elite 217, 250, 266..............................
Elman 257.............................................
Elta 201, 246, 332...............................
Emerson 004, 006, 009, 016, 017,..
018, 019, 020, 021, 022,
023, 024, 025, 026, 027,
028, 029, 030, 031, 032,
068, 091, 094, 095, 100,
110, 112, 113, 114, 115,
116, 128, 131, 136, 137,
141, 146, 151, 157, 209,
250, 254, 261, 262, 272,
306
Envision 004, 006, 114, 120..............
Erres 203, 247, 250............................
Europhon 250, 257, 272....................
Expert 312...........................................
Fenner 246, 332................................
Ferguson 213, 226, 263, 278, 291,..
303, 341
Fidelity 250...........................................
Finlandia 216, 279...............................
Finlux 208, 209, 211, 212, 250, 254,
255, 256, 257, 258, 262, 279,
283
Firstline 201, 219, 224, 225, 246,....
250, 255, 257, 272, 276,
277, 283
Fisher 033, 044, 096, 129, 140, 149,
211, 216, 231, 249, 253, 255,
260, 306
Formenti 209, 256, 312.....................
Frontech 222, 246, 272, 332............
Fujitsu 032, 255, 257, 266.................
Funai 028, 032, 115, 116, 136, 222,
224, 262, 276, 330, 332
Galaxi 250, 257, 338........................
Galaxis 250, 257.................................
GBC 246, 266, 305, 332....................
GE 001, 003, 004, 006, 034, 049,....
097, 111, 113, 115, 118, 122,
123, 124, 130, 131, 141, 142,
143, 146, 153, 157
GEC 205, 250, 251, 255, 305, 333..
Geloso 201, 246, 266, 272, 332......
Genexxa 217, 250, 266.....................
GoldHand 332.....................................
Goldline 250........................................
GoldStar 004, 005, 006, 009, 015,..
091, 092, 113, 114, 117,
120, 121, 131, 146, 147,
148, 223, 246, 250, 272,
282, 295, 297, 307, 323,
332
Goodmans 219, 232, 233, 246, 248,
249, 250, 255, 262, 285,
332
Gorenje 231........................................
GPM 217, 266, 332.............................
Gradiente 006, 114, 139, 140..........
Granada 006, 071, 146, 216, 227,...
247, 249, 250, 253, 255,
256, 268, 278, 320
Grandin 301, 337................................
Grundig 135, 142, 146, 208, 214,....
215, 240, 242, 250, 254,
256, 264, 266, 301, 311,
313, 316, 320, 324, 325,
330, 335, 343
Hallmark 004, 006, 113..................
Hanseatic 243, 246, 250, 275, 276,.
288, 313
Hantarex 246, 250, 332.....................
Harman Kardon 113..........................
Harwood 246, 250.............................
HCM 201, 234, 246, 250, 266, 332.
Hinari 201, 217, 219, 246, 249, 250,
262, 266, 281, 309, 332, 333,
334, 339
Hisawa 266...........................................
Hitachi 004, 006, 009, 010, 011,......
035, 036, 071, 072, 073,
074, 075, 076, 077, 078,
079, 080, 081, 095, 101,
109, 112, 126, 127, 131,
142, 146, 154, 158, 205,
206, 212, 218, 235, 244,
249, 250, 251, 252, 255,
258, 259, 262, 267, 269,
286, 297, 299, 307, 327,
333, 334, 336
Hornyphone 250................................
Hoshai 266...........................................
Huanyu 233..........................................
Hyper 246, 266, 272, 332.................
ICE 222, 232, 246, 250, 266............
Imperial 231, 250, 256, 272, 338.....
Infinity 006, 037..................................
Ingersol 246.........................................
Inno Hit 239, 246, 250, 255, 256,...
266, 272, 305, 322, 323,
332
Interbuy 246, 272...............................
Interfunk 247, 250, 274, 306, 319,..
320
Intervision 222, 250, 257, 266, 272,
282, 288
Irradio 246, 250, 256, 266, 272,......
323, 332
ITS 232, 250, 266................................
ITT 262, 279, 285...............................
ITV 250, 272........................................
JBL 006, 037.......................................
JC Penney 001, 004, 005, 006, 008,
034, 044, 049, 058, 091,
092, 097, 111, 113, 120,
122, 124, 141, 142, 146,
148, 149
Jensen 004, 006, 114..........................
JVC 009, 010, 011, 034, 036, 038,...
039, 040, 085, 086, 110, 132,
139, 141, 142, 207, 213, 232,
249, 263, 266, 290, 296, 344
Kaisui201, 217, 246, 250, 266, 332
Kapsch 211, 312..................................
Karcher 250, 257, 332.......................
Kathrein 243........................................
Kawasho 002, 004, 006, 120, 140,..
145
Kendo 219, 250, 257, 272, 283, 332
Kennedy 312........................................
Kenwood 004, 006, 015, 113, 114,.
120, 130, 151
Kloss Novabeam028, 041, 042, 118
Kneissel 250, 275, 283.......................
Kolster 250..........................................
Konka 266............................................
Korting 209..........................................
Kosmos 250.........................................
KTV 028, 091, 094, 115, 116, 120,.
131, 146
Lenco 211, 246..................................
Lenoir 246, 332...................................
LG 246, 250, 272, 282.......................
Liesenkotter 250................................
Lloyds 151, 246...................................
Loewe 037, 209, 250, 275................
Loewe Opta 306.................................
Logik 339..............................................
Luma 246, 250, 283, 312...................
Lumatron 250......................................
Luxman 004, 006................................
Luxor 285, 287, 298, 306, 307, 320,
323
Code numbers of the remote control
81
LXI 001, 006, 033, 037, 043, 044,...
097, 111, 113, 134, 148
M Electronic 201, 211, 212, 233,.
236, 246, 250, 258,
272, 279, 283, 285,
287
Magnadyne 209, 257, 272, 306, 332
Magnafon 256, 257.............................
Magnasonic 113, 114, 136, 154, 262
Magnavox 004, 006, 008, 015, 037,
041, 042, 045, 046, 070,
113, 114, 120, 128, 131,
133, 134, 136, 137, 142,
144, 262
Marantz 004, 006, 035, 037, 114,....
120, 130, 131, 134, 148,
243, 250
Matsui201, 204, 216, 219, 224, 228,
229, 232, 246, 248, 249, 250,
253, 255, 261, 264, 276, 278,
280, 281, 289, 309, 332, 339,
344
Medion 250..........................................
Megatron 006, 035, 071....................
Memorex 006, 113, 148, 201, 246..
Metz 209, 230, 240, 264, 270, 274,.
306, 308, 311, 313, 324, 325
MGA 004, 005, 006, 015, 047, 114,
266
Minerva 208, 240, 242, 254, 256,....
264, 311, 324, 325
Minoka 234, 250.................................
Mission 304..........................................
Mitsubishi 004, 005, 006, 015, 047,
113, 114, 120, 131, 146,
150, 209, 228, 240, 249,
250, 280, 306, 309, 324,
332
Mivar 223, 239, 256, 275, 322.........
Motorola 003, 093.............................
MTC 004, 005, 006, 058, 113, 120,
134, 141, 154
Multitech 028, 201, 246, 250, 257,.
266, 272, 332
Murphy 211, 255.................................
NAD 006, 043, 044, 109..................
National 265........................................
NEC 003, 004, 005, 006, 114, 120,.
130, 131, 151, 249, 309, 332
Neckermann 209, 214, 237, 242,....
243, 250, 272, 283,
306, 313, 338
NEI 250.................................................
Nesco 262, 272...................................
Neufunk 246, 250...............................
Nikkai204, 217, 222, 246, 248, 249,
250, 255, 266, 307
Nikko 006, 013, 154..........................
NOBLEX 332......................................
Nokia 236, 279, 285, 287, 292, 294,
295
Nordmende 264, 303, 310, 319,.....
341
Novatronic 250, 258..........................
Oceanic 276, 298.............................
Okano 250, 255, 338.........................
Onwa 028, 115, 266..........................
Optimus 109........................................
Optonica 051, 093.............................
Orbit 250.............................................
Orion 025, 100, 219, 224, 225, 229,
246, 250, 257, 261, 276, 277,
281, 300, 309, 313, 317, 326,
330, 339
Osaki 217, 222, 234, 250, 255, 266,
330
Oso 217, 266.......................................
Osume 249, 255, 260, 266...............
Otto Versand 202, 214, 219, 237,..
240, 242, 243, 249,
250, 264, 268, 272,
276, 302, 303, 313,
324, 330, 332
Palladium 231, 250, 272, 283, 338
Panasonic 003, 034, 037, 090, 106,.
116, 118, 122, 124, 125,
135, 142, 143, 154, 156,
221, 230, 245, 250, 265,
268, 273, 293, 313, 315,
320, 331
Panavision 250, 283............................
Pathe Cinema 275, 338.....................
Pathe Marconi 319.............................
Perdio 250, 255...................................
Philco 003, 004, 005, 006, 008, 009,
015, 037, 041, 042, 046, 071,
113, 114, 120, 128, 131, 134,
136, 137, 144, 154, 158, 209,
250, 256, 262, 272, 306, 338
Philips 000, 003, 004, 006, 008, 009,
015, 037, 041, 042, 048, 049,
050, 121, 134, 203, 205, 209,
233, 242, 243, 247, 250, 251,
301, 306, 312, 320
Phoenix 209, 250, 255.......................
Phonola 203, 209, 247, 250, 306,....
320
Pioneer 004, 006, 095, 109, 112,.....
118, 119, 130, 131, 250
Portland 004, 006, 013, 091, 113,...
120, 131, 146, 147, 152
Prandoni-Prince 256, 272.................
Price Club 58......................................
Prima 147, 246, 332...........................
Prinz 255..............................................
Prism 34...............................................
Profex 201, 246, 332..........................
Profi-Tronic 250, 257........................
Proline225, 247, 250, 255, 277, 291
Proscan 001, 097, 111.......................
Protech 201, 222................................
Proton 004, 006, 009, 113, 114,......
127, 131, 137, 146, 148
Provision 250.......................................
Pye 203, 247, 250...............................
Quasar 003, 034, 118, 124, 125,...
128, 135, 142, 143
Quelle 202, 208, 211, 237, 240,......
242, 249, 250, 254, 258,
260, 264, 272, 306, 309,
322, 324, 330, 332
Radio Shack 111, 115, 116, 118,..
134, 146
Radio Shack/Realistic 001, 004, 006,
009, 028, 033,
051, 091, 092
Radiola 203, 247, 250, 320...............
Radiomarelli 209, 250, 272...............
RadioShack 250...................................
Radiotone 246, 250, 289...................
RCA 001, 003, 004, 005, 006, 007,.
015, 052, 053, 054, 055, 056,
095, 097, 098, 099, 102, 111,
112, 115, 118, 119, 122, 123,
124, 130, 131, 141, 143, 146,
153
Realistic 111.........................................
Recor 250.............................................
Revox 250............................................
Rex 222, 272, 283, 312......................
RFT 209, 255, 275..............................
Roadstar 201, 217, 222, 246, 266,..
332
Robotron 306......................................
Runco 82..............................................
Saba 209, 226, 278, 291, 303, 306,
310, 319
Saisho 201, 219, 222, 228, 246, 261,
266, 280, 309, 339
Salora 298, 306, 307..........................
Sambers 239, 256, 257, 322.............
Sampo 004, 006, 091, 092, 118,......
120, 131
Samsung 004, 005, 006, 009, 012,...
015, 057, 058, 059, 091,
092, 103, 113, 120, 131,
134, 141, 146, 151, 159,
201, 222, 223, 231, 239,
243, 246, 250, 255, 262,
305, 322, 323, 332, 338
Sansui 100, 250...................................
Sanyo 004, 033, 047, 060, 089, 096,
129, 149, 211, 216, 227, 246,
249, 253, 255, 260, 275, 298,
305, 306, 309, 332
SBR 203, 205, 247, 250.....................
Schneider 217, 232, 247, 250, 266,.
272, 288, 332
Scott 004, 006, 009, 016, 025, 028,
032, 115, 116, 131, 136, 146
Sears 001, 004, 006, 010, 011, 015,
032, 033, 039, 040, 043, 044,
061, 071, 096, 097, 111, 113,
115, 129, 134, 146, 149
SEG 222, 246, 249, 250, 272............
SEI 202, 209, 224, 250, 257, 276.....
SEI-Sinudyne 306, 330.......................
Seleco 283, 303, 312, 319.................
Sentra 204, 246, 248, 266.................
Sharp 004, 006, 009, 017, 020, 051,
062, 063, 064, 067, 091, 093,
127, 144, 146, 151, 210, 249,
260, 262, 276, 302, 321, 328,
329, 340
Shorai 224, 262, 276, 330.................
Siarem 209, 250, 257, 260, 264, 306
Siemens 214, 215, 240, 242, 311,....
313, 324, 325
Sierra 247, 250....................................
Signature 2000 129............................
Singer 209, 257, 272, 306, 332........
Sinudyne 202, 209, 219, 250, 257,..
261, 266, 276, 306, 330
Solavox 255, 307................................
Sonitron 216........................................
Sonoko 201, 246, 250, 266, 332......
Sonolor 216.........................................
Sontec 250, 276, 338.........................
Sony 002, 104, 107, 108, 138, 140,.
145, 146, 202, 237, 249, 257,
296, 304, 309, 339, 342
Soundesign 004, 006, 008, 028, 032,
113, 115, 131, 137
Star Lite 246, 250...............................
Starlite 028, 332..................................
Stern 312..............................................
Sunkai219, 224, 225, 229, 266, 276,
277, 281, 330
Sunstar 246, 250.................................
SuperTech 246, 250, 332..................
Supra 246, 332....................................
Susumu 217, 278.................................
Sylvania 004, 006, 008, 015, 037,.....
040, 041, 042, 045, 046,
088, 113, 114, 120, 128,
131, 134, 136, 137, 144,
154
Symphonic 023, 028, 116, 136.........
Tandberg 283, 330..........................
Tandy 093, 134, 217, 255, 266, 272
Tashiko 205, 249, 251, 333..............
Tatung 003, 118, 220, 250, 255,......
305, 309, 339
Teac 250...............................................
Tec 246, 272, 278, 284, 332.............
Technics 034, 135, 142, 143, 221,...
245
Techwood 004, 006, 034, 114, 134
Teknika 004, 005, 006, 008, 009,....
010, 011, 013, 028, 032,
045, 058, 090, 091, 115,
116, 120, 130, 131, 137,
146, 154
Teleavia 319.........................................
Telecaption 65....................................
Telecor 250, 266................................
Telefunken 151, 226, 250, 278, 284,
291, 303, 319
Telegazi 250, 266................................
Telemeister 250..................................
Telesonic 250......................................
Telestar 250.........................................
Teletech 201, 246, 250, 272.............
Teleton 249, 274................................
Tensai211, 217, 224, 246, 250, 258,
266, 272, 276, 282, 332
Texet 217, 246....................................
Thomson 250, 278, 284, 291, 303,.
310, 319, 341
Thorn 204, 211, 213, 237, 240, 241,
250, 263, 278, 298, 303, 305,
313, 324
Toshiba 033, 043, 044, 058, 061,....
065, 066, 087, 088, 129,
141, 148, 149, 150, 204,
208, 238, 241, 248, 249,
254, 257, 271, 314, 318
Totevision 91......................................
Towada 257.........................................
Tristar 266...........................................
Triumph 250, 261, 271, 279.............
Uher 250, 256, 306, 312..................
Ultra 154..............................................
Ultravox 250, 257, 272, 306............
Uniden 138..........................................
Universal 49.........................................
Universum 211, 212, 222, 231, 240,
249, 250, 254, 256, 258,
260, 261, 264, 272, 276,
ENGLISH
82
279, 283, 285, 287, 292,
309, 313, 324, 330, 332
Univox 250..........................................
Vestel 250..........................................
Video Concepts 115..........................
VideoSystem 250................................
Vidikron 134........................................
Vision 250............................................
Vortec 250...........................................
Voxson 209, 250, 256, 306...............
Waltham 250....................................
Wards 001, 004, 005, 006, 015,......
016, 023, 032, 037, 041,
042, 045, 049, 051, 111,
113, 120, 122, 123, 131,
134, 136, 137, 141, 144,
148, 262
Watson 250, 266, 288, 289..............
Watt Radio 257..................................
Wega 209, 249, 250...........................
Weltblick 250......................................
White Westinghouse113, 120, 144,
146, 147, 154,
157, 250
Yamaha 004, 005, 006, 015, 120,.
137, 151, 154
Yoko 222, 246, 250, 266, 332..........
Yorx 266, 332.....................................
Zenith 004, 082, 083, 084, 105,.....
117, 138, 154
ENGLISH
3103 605 21421
4363/000
(WwnnNNNwwnnwWNnwNwnNwnNnWNwnnW) HDRW 720/69
Technical data
Storage media
Hard Disc recording: 80 Gb HDD
TV systems
Playback: PAL/NTSC
Recording: PAL/NTSC
Internal tuner: PAL/SECAM
Optical disc
Playback Recording
DVD+RW • •
DVD+R • •
DVD-R/-RW, video mode • DVD-Video • Video CD, Super VCD • Audio CD • MP3 CD • CD-R/RW • -
Video Format
Digital compression DVD, SVCD: MPEG2
VCD: MPEG1
Record modes
Max HDD recording time: 250h
Max DVD recording time: 8h
Bit rate
Mode Rec.time Resolutio-nVideo
(Mbit/s)
Audio
(kbit/s)
M1 60' D1 9.72M 384k
M2 120' D1 5.07M 256k
M2x 150' D1 4.06M 256k
M3 180' 1/2 D1 3.38M 256k
M4 240' 1/2 D1 2.54M 256k
M6 360' 1/2 D1 1.70M 256k
M8 480' SIF 1.27M 192k
Resolution H x V
(pixels)
50Hz
Full D1 (DVD-Video) 720 x 576
Half D1 360 x 576
SIF (VCD) 352 x 288
TV Standard NTSC PAL/
SECAM
Scan frequency 60Hz 50Hz
Number of lines 525 625
Playback • •
Recording • •
Internal tuner - •
Video Performance
DA Converter: 10 bit
AD Converter: 9 bit
Signal handling: Components
Video (CVBS) out: 1 Vpp into 75 ohm
S-video (Y/C) out: Y: 1 Vpp into 75 ohm
C: 0.286 1Vpp into 75 ohm
Component video out
(YPBPR):
Y: 1 Vpp into 75 ohm
PB: 0.7 Vpp into 75 ohm
PR: 0.7 Vpp into 75 ohm
Audio Format
Compressed digital Playback Recording
Dolby Digital (AC3) 5.1-
channel*
2-channel
16-bit, 48
kHz
DTS, MPEG2 5.1-
channel*
-
MPEG1, MP3 2- channel PCM 2-channel
16/20/24 bit
48/96 kHz
-
*6.1-channel compatible
Audio Performance
DA Converter: 24 bit
AD Converter: 16 bit
DVD fs 96kHz 4Hz-44kHz
fs 48kHz 4Hz-22kHz
Video CD fs 44.1kHz 4Hz-20kHz
Audio CD fs 44.1kHz 4Hz-20kHz
Signal/Noise (1kHz): 105 dB
Dynamic range (1kHz): 90 dB
Crosstalk (1kHz): 105 dB
Distortion/Noise (1kHz): 90 dB
Front Connections
i.LINK DV in: IEEE 1394 4-pin
S-video in: Hosiden 4-pin
Video in: Cinch (yellow)
Audio Left/Right in: Cinch (white/red)
Rear Connections
SCART1: CVBS, S-video, RGB out
SCART2: CVBS, S-video, RGB in
Video out: Cinch (yellow)
Audio L/R out (2x): Cinch (white/red)
S-video out: Hosiden 4-pin
Digital audio out: Coaxial, Optical
RF antenna in: Coaxial 75 ohms (F type)
RF TV out: Coaxial 75 ohms (F type)
Mains: Standard (IEC type)
Component video out: Cinch (green/blue/red)
Timer Recording
Number of events: 12; 1 month; daily/weekly
Timer programming: Manual, G-Code
General Functionality
Automatic Screen Saver
Backup presets & timer: 1 year
Backup clock & calendar: 5 hours
Audio recording level: Automatic
DVD/CD playback
• Fast Forward/Backward )
• Step Forward/Backward
• Slow
• Direct Title/Track access
• Next/Previous Title/Track/Chapter
• Repeat (Chapter/Title/All) or (Track/All)
• A-B Repeat
• Shuffle
• Intro Scan
• Time Search
• Zoom (1.33x, 2x, 4x) with picture enhancement
• Auto Resume (20 discs)
MP3 CD playback
• Time display (Track)
• MP3 text (ID3 tags) display
• Album and track selection
• Repeat (disc/album/ track)
• Variable Bit Rate of 32-256 kbit/s
• 32, 44.1, 48 kHz sampling rates
• ISO9660 file system
• Single session
• Nested directories supported to 8 levels
• Up to 32 album numbers
• Up to 999 tracks
Power Supply
Power supply: 200-240 V, 50/60 Hz
Power consumption Operation 38 W
Low-power standby 8 W
Cabinet
Dimensions (W x H x D): 435 x 76 x 335 mm
Net Weight: 4.0kg
Remote Control
• Multi brand remote control
Package Contents
• DVD Video Recorder/Harddisc
• Remote Control + batteries
• User Manual
• AC power cable
• Coax RF antenna cable
• Audio/Video (A/V) cable
Philips Consumer Electronics
Data subject to change without notice
(WwnnNNNwwnnwWNnwNwnNwnNnWNwnnW)
3103 605 21421
4363/000
HDRW 720/69
www.philips.com
PHILIPS NORGE AS PHILIPS PHILIPS PORTUGUESA, S.A.
Sandstuveien 70, Philips Austria GmbH Consumer Information Centre
PO Box 1, Manglerud Triesterstrasse 64 Rua Dr. António Loureiro Borge, nr. 5
N-0612 Oslo 1101 Wien Arquiparque, Miraflores
NORWAY AUSTRIA P-2795 L-A-VEHLA
Phone: 2274 8250 Tel: 0810 00 12 03 PORTUGAL
Phone: 2 1416 3033
OY PHILIPS AB PHILIPS INFO CENTER PHILIPS CE, The Philips Centre,
Sinikalliontie 3, Alexanderstrasse 1 420 - 430 London Road,
02630 Espo 20099 Hamburg Croydon, Surrey
Helsinki GERMANY CR9 3QR
FINLAND Tel: 0180-535 6767 UNITED KINGDOM
puh. (09) 6158 0250 Phone: 0870-900-9070
PHILIPS KUNDTJÄNST SERVICE CONSOMMATEURS PHILIPS PHILIPS KUNDECENTER
Kollbygatan 7, BP 0101 Frederikskaj 6,
Akalla, 75622 Paris Cédex 13 DK-1780 København V
16485 Stockholm FRANCE DENMARK
SWEDEN Phone: 0825-889 789 Tlf: 808 82814
Phone: 08-5985 2250
PHILIPS POLSKA PHILIPS ELECTRONICS IRELAND LIMITED PHILIPS REPRESENTATION OFFICE
AL. Jerozolimskie 195B Consumer Information Centre Ul. Usacheva 35a
02-222 Warszawa Newstead, Clonskeagh 119048 MOSCOW
POLSKA DUBLIN 14 RUSSIA
Tel.: (022)-571-0-571 Phone: 01-7640292 Phone: 095-937 9300
PHILIPS SERVICE PHILIPS CONSUMER ELETRONICS PHILIPS INFO CENTER
V Mezihori 2 Servizio Consumatori Fegistrasse 5
180 00 Prage Via Casati 26 8957 Spreitenbach
CZECH REPUBLIC 20052 Monza - Milano SUISSE
Phone: (02)-3309 9240 ITALY Tel.: 0844-800 544
Phone: 199 11 88 99
PHILIPS Iberia, S.A. PHILIPS MÁRKASZERVIZ PHILIPS CUSTOMER CARE CENTER
C/Martinez Villergas, 49 Kinizsi U 30-36 Twee Stationsstraat 80/
28027 MADRID Budapest 1119 80 Rue des Deux Gares
SPAIN HUNGARY 1070 BRUSSEL/BRUXELLES
Phone: 902-113 384 Phone: (01)-382 1700 BELGIUM (for BENELUX)
Tel: 070-222 303
ΦΙΛΙΠΣ ΕΛΛAΣ AΕΒΕ PHILIPS CONSUMENTENLIJN
25ΗΣ MAΡΤΙΟΥ 15 t.a.v. betreffende afdeling
177 78 ΤAΥΡΟΣ Postbus 102 5600 AC Eindhoven
AΘΗΝA NETHERLANDS
Τηλ. 0 0800 3122 1280 Phone: 0900-8406
Dear customer
Please observe:
In the TIMER input screens shown below, a programme number can be entered only using the 0..9 buttons on the remote control. It is not
possible to enter the programme number using the up A and down B buttons. If 'EXT1'or'EXT2' is visible in the entry field, press up A or
down B buttons first (to show a programme number as the selection), then enter the programme number over the top using the 0..9 buttons
on the remote control.
If you want to set a timer recording from a device connected to the scart sockets EXT1 TO TV-I/O or EXT2 AUX-I/O , then use the up A or
down B buttons on the remote control while in the programme selection field to select the external input.
Cancel Back Home
Enter the programme number you wish to record
from and press OK.
A
01
B
Grid Search Schedule Info
No programmes
21-Oct 20:00 21:30 Once
G-Code Manual Home
Enter the programme number you wish to record
from and press OK.
A
01
B
Grid Search Schedule Info
No programmes
21-Oct 20:00 21:30 BBC1 Once 0
On page 22: Manual TV channel search. Step 1 should read 'press TUNER and then BROWSER HDD ' not 'press DISC MENU '.
On page 24: Setting the language. Step 1 should read 'press DISC MENU ' not 'press BROWSER HDD '.
On page 70: Changing the PIN code. Step 1 should read 'press DISC MENU ' not 'press TUNER '.
(WwnnNNNwwnnwWNnwNwnNNwnNwNwwnN)
HDRW 720/69
3103 605 22861
4431/000
ENGLISH
ADDENDUM SHEET
Dear customer
Please observe:
In the TIMER input screens shown below, a programme number can be entered only using the 0..9 buttons on the remote control. It is not
possible to enter the programme number using the up A and down B buttons. If 'EXT1'or'EXT2' is visible in the entry field, press up A or
down B buttons first (to show a programme number as the selection), then enter the programme number over the top using the 0..9 buttons
on the remote control.
If you want to set a timer recording from a device connected to the scart sockets EXT1 TO TV-I/O or EXT2 AUX-I/O , then use the up A or
down B buttons on the remote control while in the programme selection field to select the external input.
Cancel Back Home
Enter the programme number you wish to record
from and press OK.
A
01
B
Grid Search Schedule Info
No programmes
21-Oct 20:00 21:30 Once
G-Code Manual Home
Enter the programme number you wish to record
from and press OK.
A
01
B
Grid Search Schedule Info
No programmes
21-Oct 20:00 21:30 BBC1 Once 0
On page 22: Manual TV channel search. Step 1 should read 'press TUNER and then BROWSER HDD ' not 'press DISC MENU '.
On page 24: Setting the language. Step 1 should read 'press DISC MENU ' not 'press BROWSER HDD '.
On page 70: Changing the PIN code. Step 1 should read 'press DISC MENU ' not 'press TUNER '.
(WwnnNNNwwnnwWNnwNwnNNwnNwNwwnN)
HDRW 720/69
3103 605 22861
4431/000
ENGLISH
ADDENDUM SHEET
Loading...
