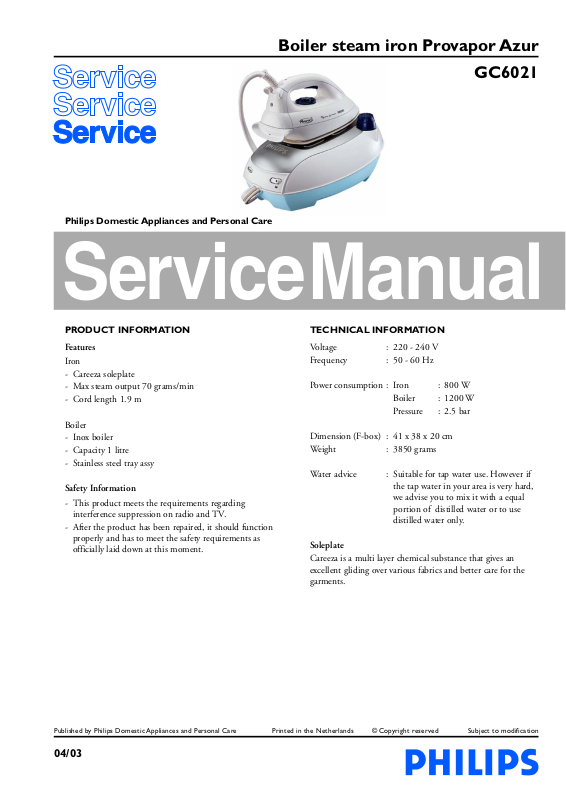

Page 1
Boiler steam iron Provapor Azur
GC6021
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Features
Iron
- Careeza soleplate
- Max steam output 70 grams/min
- Cord length 1.9 m
Boiler
- Inox boiler
- Capacity 1 litre
- Stainless steel tray assy
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
Voltage : 220 - 240 V
Frequency : 50 - 60 Hz
Power consumption : Iron : 800 W
Boiler : 1200 W
Pressure : 2.5 bar
Dimension (F-box) : 41 x 38 x 20 cm
Weight : 3850 grams
Water advice : Suitable for tap water use. However if
the tap water in your area is very hard,
we advise you to mix it with a equal
portion of distilled water or to use
distilled water only.
Soleplate
Careeza is a multi layer chemical substance that gives an
excellent gliding over various fabrics and better care for the
garments.
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
04/03
Page 2
DISASSEMBLY ADVICE - IRON
GC6021
REPLACE DIAL 1
REPLACE BACKPLATE 2
disassemble DIAL 1
remove screw A
remove connection
remove hose
REPLACE INLAY 3
IRON LAMP 4
MICRO SWITCH 5
REPLACE IRON HANDLE 6
disassemble DIAL 1
remove screw A
remove connection
remove hose
disassemble BACKPLATE 2
disassemble INLAY 3
IRON LAMP 4
MICRO SWITCH 5
remove screw B (3x)
REPLACE
INTERMEDIATE CABLE 7
SWIVEL 8
THERMOSTAT BUSH 9
disassemble DIAL 1
remove screw A
remove connection
remove hose
disassemble BACKPLATE 2
disassemble INLAY 3
IRON LAMP 4
MICRO SWITCH 5
remove screw B (3x)
disassemble IRON HANDLE 6
REPLACE IRON SKIRT 10
SOLEPLATE UNIT 11
disassemble DIAL 1
remove screw A
remove connection
remove hose
disassemble BACKPLATE 2
disassemble INLAY 3
IRON LAMP 4
MICRO SWITCH 5
remove screw B (3x)
disassemble IRON HANDLE 6
disassemble INTERMEDIATE
CABLE 7
SWIVEL 8
THERMOSTAT
BUSH 9
remove screw C (3x)
REPAIR INSTRUCTIONS - IRON
- For disassembly, you will need a Torx screwdriver: 362 TR T20 x 100
STAND IRON
Main
switch
F
N
Boiler
thermostat
Boiler
heating
element
Cut
out
Electro-
valve
Steamswitch
p
Thermostat
2-5
Page 3

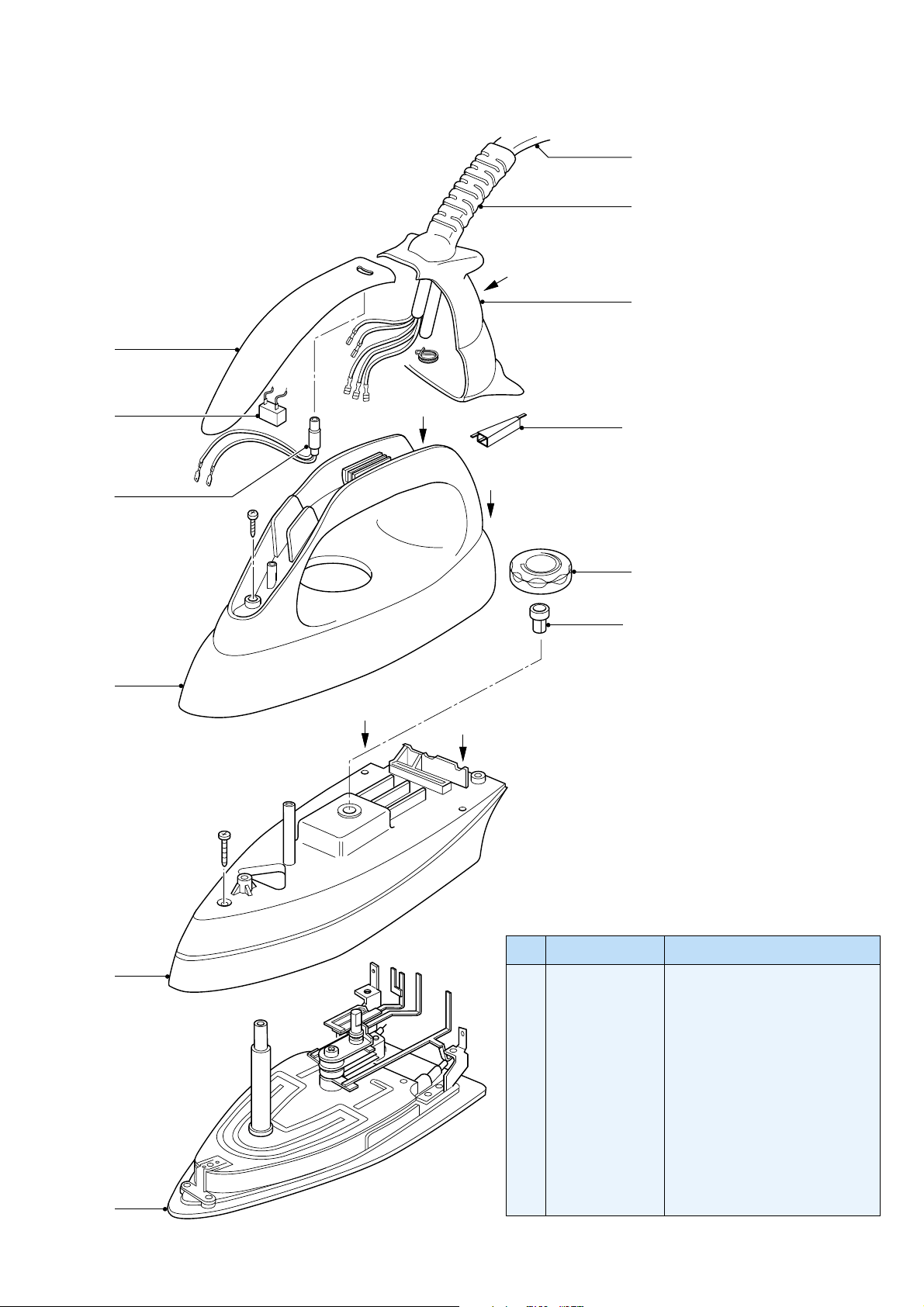

PARTS LIST & EXPLODED VIEW - IRON
3
GC6021
7
8
A
2
5
B1
12
B2
4
B3
1
9
6
C1
C2
C3
10
11
Pos Service code Description
1
4239 021 19670
2
4239 026 15690
3
4239 026 15970
4
4239 021 19630
5
4239 017 08950
6
4239 021 19660
7
4239 000 09140
8
4239 026 15580
9
4239 015 98410
10
4239 026 15930
11
4239 021 19770
12
4239 026 15650
Dial
Backplate
Inlay
Iron Lamp
Micro switch
Iron Handle
Intermediate cord
Swivel
Thermostat bush
Iron skirt
Soleplate unit
Electrovalve trigger
3-5
Page 4

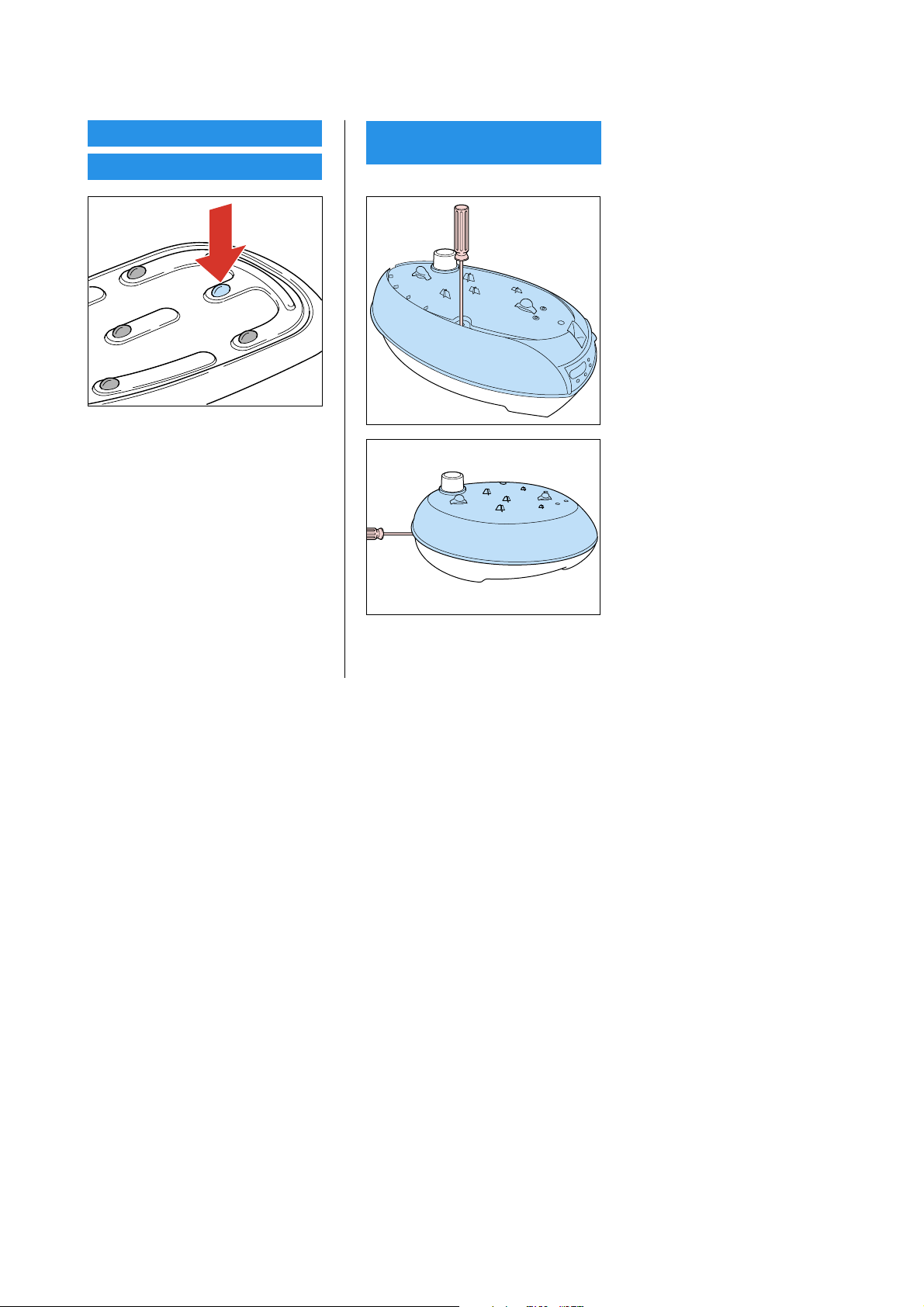

DISASSEMBLY & REASSEMBLY ADVICE - STAND
GC6021
SAFETY CAP 21
COMPLETE TRAY 22
Note : pressure fi xation rubber
through the tray.
SUPERIOR STAND
PRINTED 29
Remove screws A (4x)
A 4x
Remove the SUPERIOR STAND and
you will see the respective parts of the
Boiler.
REPAIR INSTRUCTIONS - STAND
- For disassembly, you will need a Torx screwdriver 362 TR T20 x 100
- Be careful of the sharp edges of the stainless steel tray assy. Use a thick glove when
removing the tray assy.
- To avoid damage to the sealings and components of the boiler, NEVER clean the
boiler with vinegar, descaling agent or other chemicals.
- The boiler is required to be rinsed after every 10 times usage.
- ALWAYS replaced boiler assy (Pos 26) when
mechanical safety valve at the cap has been activated
•
thermal fuse/thermostat at boiler bottom is open
•
4-5
Page 5

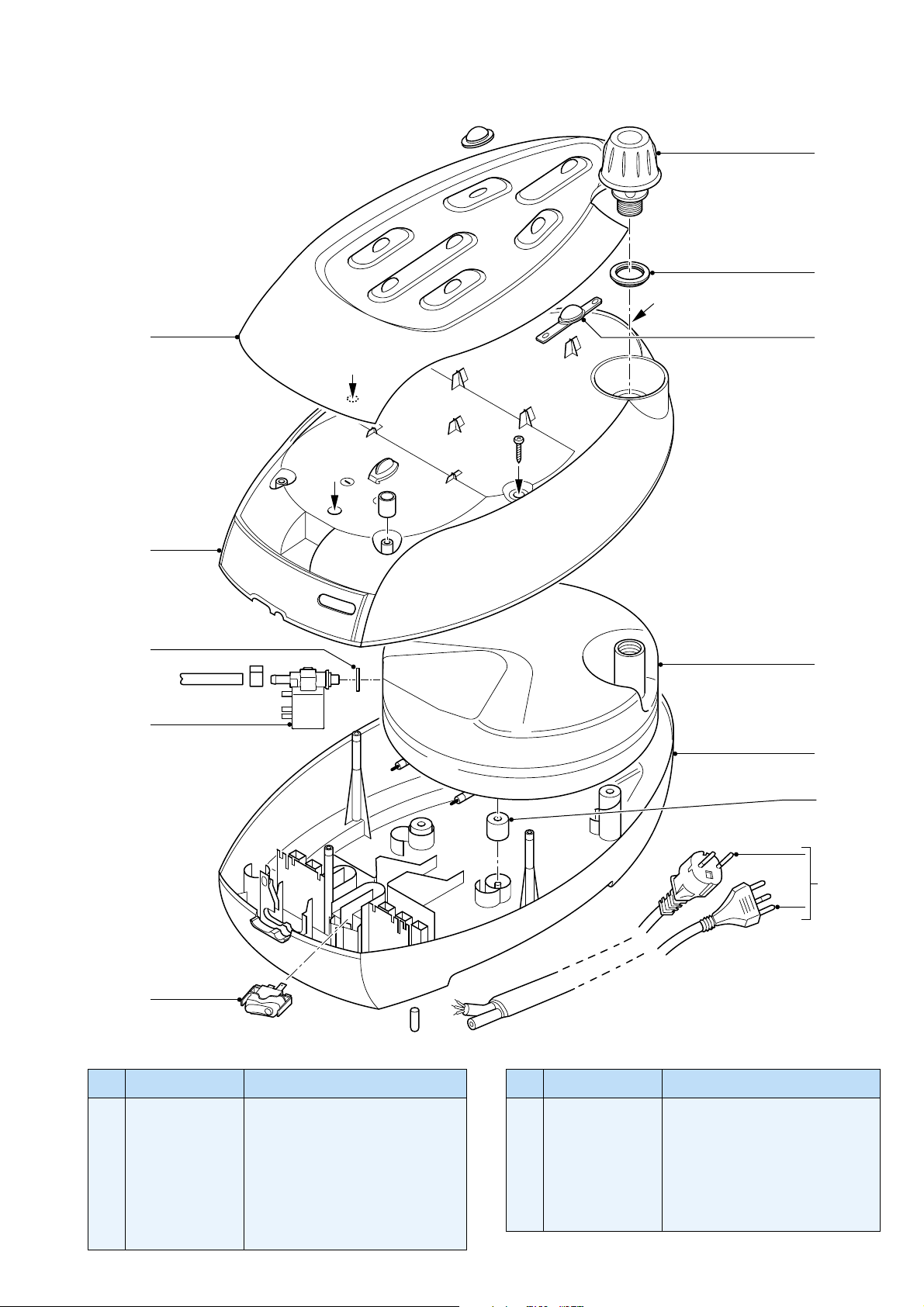

PARTS LIST & EXPLODED VIEW - STAND
GC6021
21
31
A
22
29
32
27
23
A
A
A
26
30
28
Pos Service code Description
21
4239 021 20000
22
4239 021 20270
23
4239 015 55310
24
4239 015 55280
25
4239 000 09150
4239 000 09260
26
4239 021 20040
Safety cap assy
Complete tray
Tray rubber foot
Boiler rubber foot
Intermediate supply cable (Europe)
Intermediate supply cable (Italy)
Boiler assy welded
Pos Service code Description
27
4239 010 08870
28
4239 017 08810
29
4239 021 26000
30
4239 026 18220
31
4239 015 55300
32
4239 017 09151
Electrovalve
Main switch
Superior stand
Inferior stand
Filling hole gasket
Te fl on ring
24
25
5-5
