Page 1
Steam Iron Mistral
GC2125
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Features
- Color : Aqua Purple
- Ceralon Soleplate
- Steam output (28 grams/min)
- Shot of Steam (60 grams/min)
- Vertical Shot of Steam
- 3 steam level
- Spray feature
- Tank capacity (250 ml)
- Cord length (1.8 m)
- 360 degrees swivel
- Integrated calc-clean feature
- Integrated cord winder feature
- Filling door
- Drip Stop feature
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements and
legal regulations as officially laid down at this moment.
TECHNICAL INFORMATION
Voltage : 100 V, 110 - 127 V, 220 - 240 V
Frequency : 50 - 60 Hz
Power : 1200 W, 1050 - 1400 W, 1500 - 1800 W
Dimension (F-box) : 306 (L) x 128 (W) x 157 (H) mm
Product weight : 1.2 kg
Water Advice
Suitable for tap water use. Advice to mix with equal portion of
distilled water or use only distilled water if the tap water is very
hard.
Ceralon Soleplate
This Ceralon soleplates glides smoothly, is non-stick and very
easy to clean. Ceralon has a high scratch resistance and its
durability is competitive in the market.
Shot of Steam
The shot of steam features a steam boost (60 grams/min) that
helps to remove stubborn wrinkles easily.
Vertical Shot of Steam
This features a steam boost in vertical position to remove
wrinkles in hanging garments.
Integrated Calc-clean
This ensures a longer life time of the iron and to allow the use
of normal tap water.
Drip Stop
Water is only released into steam chamber via the tank
valve when the soleplate temperature is high enough. If the
temperature is too low, the tank valve is closed by means of a
bi-metal disc. This prevents water from dripping onto garment.
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
04/01
Page 2
DISASSEMBLY ADVICE
GC2125
BACKPLATE 1
BALL SWIVEL 2
SWIVEL PLATFORM 20
CORDSET 3
Remove Screw A 1x
Remove Backplate 1
Remove Screw B 2x (cord clamp)
OPERATION KNOB 4
DOSING UNIT 5
INLAY 6
FILLING DOOR 19
PUMP 8
NOZZLE 9
Remove Screw A 1x
Remove Backplate 1
Remove Screw B 2x (cord clamp)
Remove Cord set 3
Remove Dosing unit 5
Remove Screw D 1x
Remove Inlay 6
Remove Operation knob 4
DIAL 10
RATTLE SPRING 11
TANK SET 12
TANK SEAL 106
LAMP ASSEMBLY 13
LAMP HOLDER 18
Remove Screw A 1x
Remove Backplate 1
Remove Screw B 2x (cord clamp)
Remove Cord set 3
Remove Dosing unit 5
Remove Screw D 1x
Remove Inlay 6
Remove Operation knob 4
Remove Screw C 3x
COVER 14
THERMOSTAT BUSH 15
SOLEPLATE 16
SEAL 102, 103
Remove Screw A 1x
Remove Backplate 1
Remove Screw B 2x (cord clamp)
Remove Cord set 3
Remove Dosing unit 5
Remove Screw D 1x
Remove Inlay 6
Remove Operation knob 4
Remove Screw C 3x
Remove Tank set 12
Remove Screw E 3x
Remove Cover 14
REPAIR INSTRUCTIONS
- Due to the high voltage of the iron, ONLY the specified cordsets must be used.
- Thermostat that is fitted to the soleplate (Pos 16) was pre-adjusted by the suppliers and secured by glue.
To avoid mal-function of the iron, NEVER re-adjust the thermostat.
- No information about the type number and voltage is stamped onto the typeplate. When replacing the cover (typeplate is at the
bottom), engrave at least the type number & voltage on the typeplate with a sharp object.
- Part number 107, 108 cannot be ordered separately.
OPTIONAL (accessories)
- No specific issues
2-4
Page 3

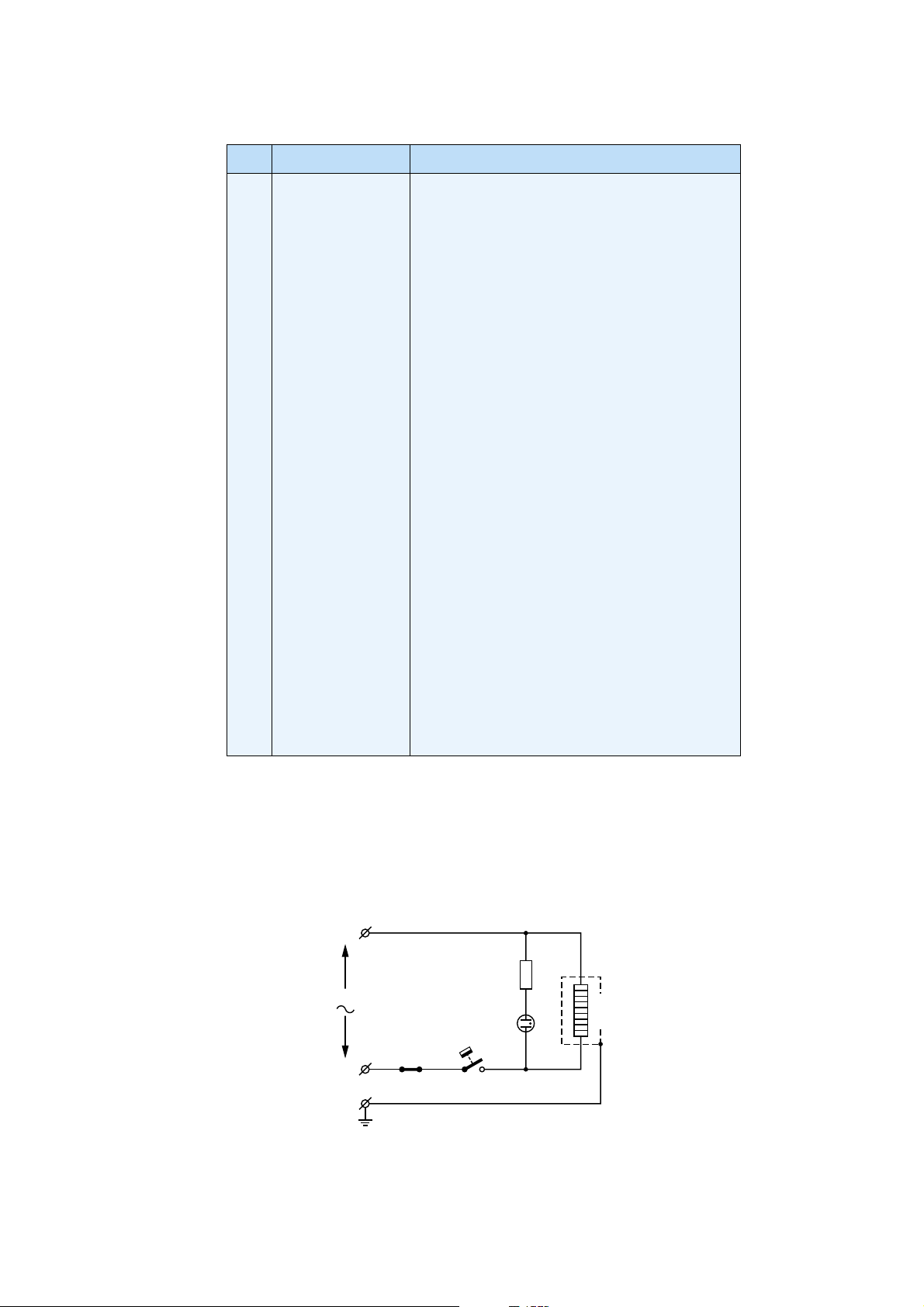

PARTS LIST
Pos Service code Description Consist of
1
10
11
12
13
14
15
16
17
18
19
20
4239 026 17950
2
4239 025 92070
3
4239 000 08070
4239 000 07150
4239 000 08090
4
4239 026 12990
4239 026 13000
5
4239 021 17020
4239 021 24590
6
4239 026 17970
7
4239 015 54210
4239 015 55070
4239 015 51450
4239 015 54400
8
4239 020 90560
9
4239 025 99230
4239 021 24460
4239 021 20910
4239 026 12460
4239 021 24380
4239 021 03140
4239 026 12390
4239 026 13220
4239 021 24600
4239 021 24370
4239 026 05570
4239 026 01220
4239 021 23720
4239 025 92220
Backplate
Ball swivel
Cordset - EU, Korea, Thailand
Cordset - Taiwan
Cordset - Hong Kong
Operation knob - Spray 104
Operation knob - SOS 105
Dosing unit
Dosing unit - Taiwan
Inlay
Sealing - Tank top seal 101
Sealing - Cover seal 102
Sealing - SOS seal 103
Sealing - Tank seal 106
Pump assembly
Nozzle
Dial - English/Korean
Dial - English
Plastic rattle spring
Tank set 107
Lamp assembly
Cover
Thermostat bush
Soleplate assembly - LV 108
Soleplate assembly - HV 108
Lamp cover
Lamp holder
Filling door assembly
Swivel platform
GC2125
N
INPUT
L
E
FUSE
RESISTOR
LAMP
THERMOSTAT
HEATING
UNIT
3-4
Page 4
EXPLODED VIEW
GC2125
17
13
19
10
105
104
101
106
3
5
6
8
D
B
B
C
C
C
A
2
20
1
18
11
107
102
108
103
9
12
E
E
14
E
15
16
4-4
