Mini Hi-Fi System
Register your product and get support at
www.philips.com/welcome
FWM396
Page 2
México
Es necesario que lea cuidadosamente su instructivo de
manejo.
PRECAUCIÓN - ADVERTENCIA
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
Descripción: Minisistema de Audio
Modelo : FWM396/55
Alimentación: 110–127 / 220–240V; ~50/60 Hz
Consumo: 110W
Importador : Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6
Localidad y Tel: Edo. de México C.P. 52784
Exportador: Philips Electronics HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________
ATENCIÓN
Col. San Fernando La Herradura
Huixquilucan
Tel.52 69 90 00
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V.no se hace
responsable por daños o desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de
insectos o roedores (cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado
de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.
– Por fenómenos naturales tales como:
temblores, in
eléctricas, rayos etc. o delitos causados por
terceros (choques asaltos, riñas
2
undaciones, incendios,descargas
, etc.).
CAUTION
Use of controls or
adjustments or performance
of procedures other than
herein may result in
hazardous radiation
exposure or other unsafe
operation.
Page 3
1
1
2
3
2
3
4
5
6
7
8
9
0
!
@
*
&
^
%
$
#
*
3
4
5
6
7
8
9
0
&
^
%
$
#
@
MP3 LINK
!
3
Page 4
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
ATENCIÓN
El uso de mando o ajustes o la
ejecucción de métodos que no sean
los aquí descritos puede ocasionar
peligro de exposición a radiación.
CUIDADO
A utilização de comandos ou ajustes
ou a execução de procedimentos
diferentes dos descritos neste manual
podem provocar uma exposição a
radiações perigosas ou outras
operações inseguras.
(for tuner installation)
4
Page 5
Index
English ------------------------------------------------ 6
Español --------------------------------------------- 24
Português ------------------------------------------ 52
English
Español
Por tuguês
5
Page 6
Contents
English
General Information
Supplied accessories ............................................ 7
Environmental information ................................ 7
Safety information ................................................ 7
Preparations
Rear connections ............................................. 8–9
Optional connection ........................................... 9
Inserting batteries into the remote
control .................................................................... 9
Controls
Controls on the system .................................... 10
Controls on remote control ........................... 11
Power
Antenna connection
Speakers connection
Radio Reception
Tuning to radio stations .................................... 17
Programming radio stations ............................. 17
Automatic programming
Manual programming
Tuning to preset radio stations ....................... 17
External Sources
Listening to external sources .......................... 18
Clock/Timer
Clock setting ....................................................... 19
Timer setting ................................................ 19–20
To deactivate the TIMER
To activate the TIMER
Sleep timer setting ............................................. 20
Basic Functions
Plug and Play ........................................................ 12
Switching the system on ................................... 12
Switching the system to standby mode ........ 13
Power-saving automatic standby ..................... 13
Volume control ................................................... 13
Sound control ..................................................... 13
MAC sound
DSC (Digital Sound Control)
DBB (Dynamic Bass Boost)
Karaoke ................................................................ 13
CD/MP3-CD/WMA Operations
Discs for playback .............................................. 14
About MP3 disc .................................................. 14
Loading discs ................................................ 14–15
Playing discs ......................................................... 15
Replacing discs during playback ...................... 15
Selecting a desired track/passage.................... 15
Selecting a desired Album/Title (MP3/WMA
disc only) .............................................................. 15
Different play modes: SHUFFLE and REPEAT ...
................................................................................ 16
Programming the disc tracks ........................... 16
Erasing the programme ..................................... 16
Specifications ........................................... 21
Maintenance.............................................. 21
Tr oubleshooting ............................. 22–23
6
Page 7
General Information
Congratulations on your purchase and welcome
to Philips!
To fully benefit from the support that Philips
offers, register your product at www.philips.com/
welcome.
IMPORTANT!
PLEASE NOTE THAT THE VOLTAGE
SELECTOR LOCATED AT THE REAR OF
THIS SYSTEM IS PRESET AT 220V FROM
THE FACTORY. FOR COUNTRIES THAT
OPERATE AT 110V-127V, PLEASE ADJUST
TO 110V-127V BEFORE YOU SWITCH ON
THE SYSTEM.
Supplied accessories
–AC power cord
–2 speaker boxes
– remote control
– MW loop antenna
– MP3 link cable
Environmental information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Safety information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Where the MAINS plug or an appliance coupler
is used as the disconnet device, the disconnet
device shall remain readily operable.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, cur tains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● Don’t expose the system to dripping or
splashing.
● Install this unit near the AC outlet and where the
AC power plug can be reached easily.
● The lens may cloud over when the system is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the system in the warm environment until
the moisture evaporates.
● The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
● Batteries (batter y pack or batteries installed)
shall not be exposed to excessive heat such as
sunshine, fire or the like.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
English
7
Page 8
Preparations
Fix the claw
to the slot
1
2
3
AM ANTENNA
English
AM antenna
Speaker
(right)
A
AC power cord
Rear connections
The type plate is located at the rear of the
system.
A Pow er
Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
If your system is equipped with a Voltage
Selector, set the VOLTAGE SELECTOR to the
local power line voltage.
WARNING!
–For optimal performance, use only the
original power cable.
–Never make or change any connections
with the power switched on.
– High voltage! Do not open.You run the
risk of getting an electric shock.
– The machine does not contain any userserviceable parts.
– Modification of the product could result
in hazardous radiation of EMC or other
unsafe operation.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
8
AM ANTENNA
FM ANTENNA
AUX/CDR IN
R L
LOW CH
-
SPEAKERS 6Ω
+
B
L
R
L
R
C
FM antenna
Speaker
(left)
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
B Antennas Connection
Connect the supplied AM loop antenna to the
AM ANTENNA terminal. Adjust the position of
the antenna for optimal reception.
AM Antenna
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
Page 9
Preparations
FM Antenna
It is unnecessary to connect the FM pigital
antenna since it is fixed to the main unit..
● Adjust the FM antenna for optimal FM stereo
reception.
C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "R" and left speaker to
"L", coloured (marked) wire to "+" and black
(unmarked) wire to "-".

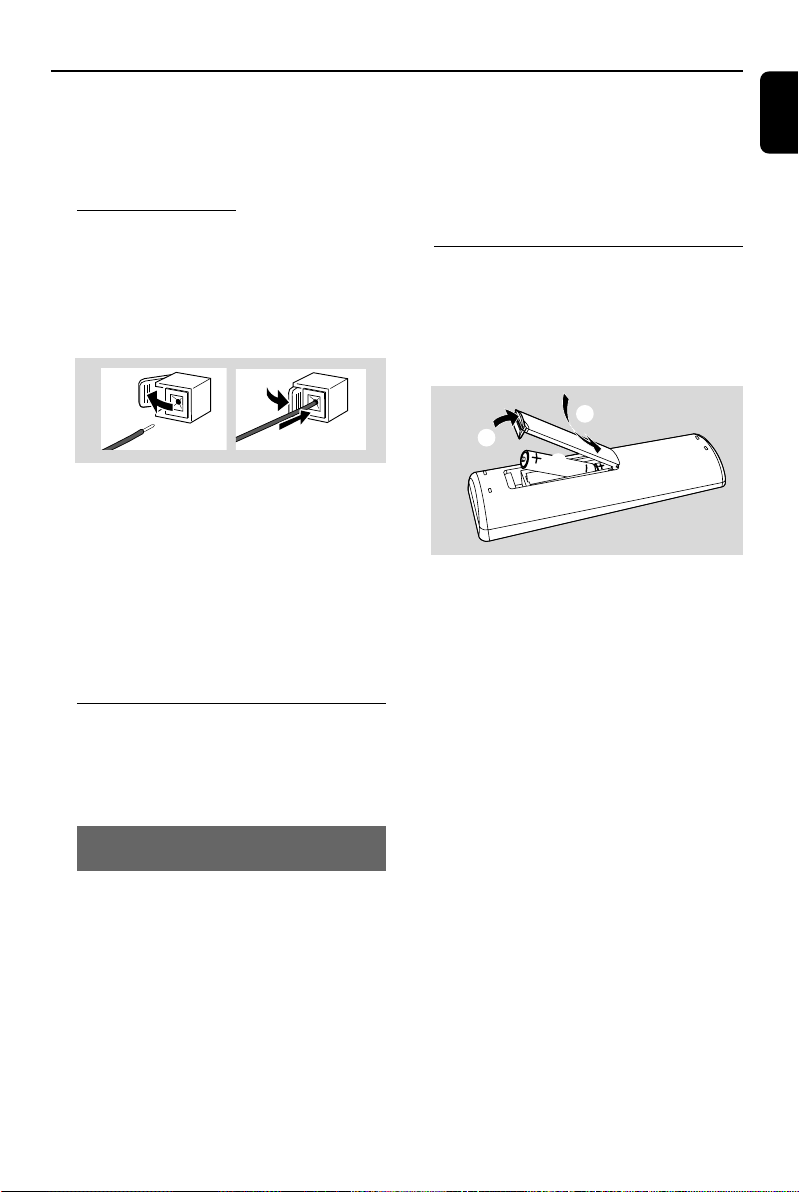

1
● Fully inser t the stripped por tion of the speaker
wire into the terminal as shown.
Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
2
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.
Using MP3 LINK (3.5 mm jack )
● Use a MP3 link cable (supplied) to connect
MP3 LINK jack of the main unit (3.5 mm,
located on the front panel) to an AUDIO OUT
or headphone jack on an external equipment
(such as CD player, or VCR).
Inserting batteries into the
remote control
Insert two batteries (Type R03 or AAA, not
supplied) into the remote control with the
correct polarity as indicated by the "+" and
"-" symbols inside the battery compar tment.
3
1
2
CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances, so
they should be disposed of properly.
English
Connecting other equipment to your
system
Using AUX IN (white/red jacks)
● Use the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks of the main unit
(located on the back panel ) to the
corresponding AUDIO OUT jacks on an
external device (such as TV or VCR).
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX left terminal. Alternatively, you can use a
“single to double” cinch cable (the output sound
still remain mono).
9
Page 10
Controls (illustrations on page 3)
English
Controls on the system

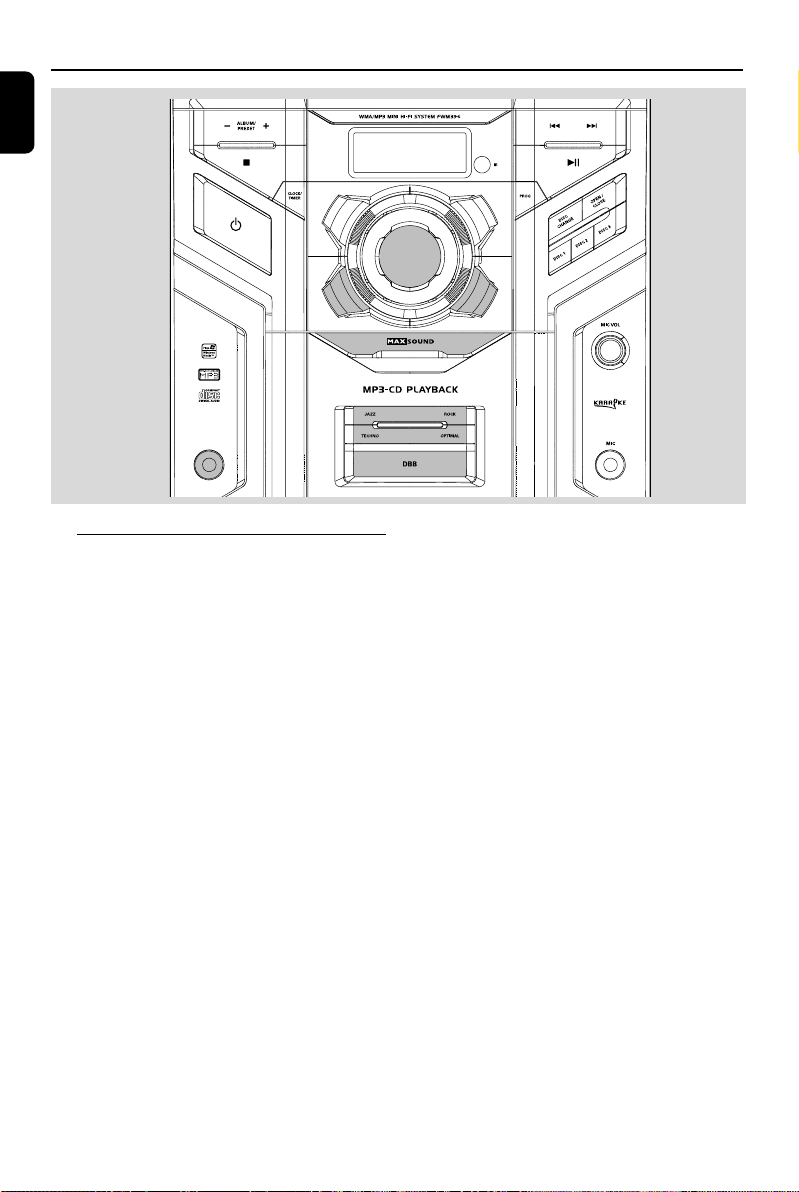

1 Disc tray
2 Display screen
– to view the current status of the system.
3 Mode Selection
ALBUM/PRESET -/+
for MP3-CD .............to select previous/next
album.
for Tuner ..................... to select a preset r adio
station
for Clock/Timer ..... to set the minute.
Ç
for CD/ MP3-CD .. to stop playback or to clear a
programme.
for Clock .................... to exit clock setting.
ÉÅ
for CD/ MP3-CD .. to star t or interrupt playback.
S T
for MP3-CD ............ to select previous/next title.
for CD ........................to skip to the beginning of
the current, previous, or next
track.
for CD/ MP3-CD .. (press and hold) to search
backward/forward.
for Tuner ..................... to tune to a lower or higher
radio frequency.
for Clock/Timer .... to set the hour.
4 CLOCK/TIMER
– to set the clock/timer.
5 B
– switches the system on or to standby mode.
6 Source selection – to select the following:
DISC
– to select disc tray 1, 2 or 3.
TUNER
– to select waveband: FM or MW.
MP3 LINK
– to select the input for an additional appliance:
MP3 LINK.
AUX
– to select the input for an additional appliance:
AUX.
7 MAX SOUND
– to activate or deactivate the optimal mix of
various sound features.
8 DSC (Digital Sound Control)
– Selects different types of preset sound equaliser
settings (OPTIMAL, TECHNO, ROCK or JAZZ).
9 MP3 LINK jack
– Connects an external device.
0 DBB
– to select the desired bass boost level. (DBB 1,
DBB 2, DBB 3 or DBB OFF).
! MIC
– to connect microphone
@ MIC VOL
– to adjust the mixing level for Karaoke
# VOLUME
– to increase or decrease the volume.
$ PROG
for CD/ MP3-CD .. to programme disc tracks.
for Tuner .............to programme preset radio
stations.
% DISC 1/2/3
– to select a disc tray for playback.
^ OPEN•CLOSE
– to open or close the disc tray.
& DISC CHANGE
– to change disc(s).
* iR
– infrared sensor for remote control.
10
Page 11
Controls
Controls on remote control
1 POWER
– switches the system on or to standby mode.
2 Source selection – to select the following:
DISC 1/2/3
– to select disc tray 1, 2 or 3.
TUN
– to select waveband: FM or MW.
Line-in (MP3 LINK)
– to select the input for an additional appliance:
MP3 LINK.
AUX
– to select the input for an additional appliance:
AUX.
3 MODE
– selects different play modes: e.g. REPEAT or
SHUFFLE (random order).
4 TIMER ON/OFF
– to turn on or off the timer
5 MAX
– to activate or deactivate the optimal mix of
various sound features.
6 Mode Selection
ÉÅ
for CD/ MP3-CD .. to star t or interrupt playback.
à á
for CD/ MP3-CD .. to search backward/forward.
for Tuner ..................... to tune to a lower or higher
radio frequency.
for Clock/Timer .... to set the hour.
í/ ë
for MP3-CD ............ to select previous/next title.
for CD ........................to skip to the beginning of
the current, previous, or next
track.
7 DSC
– Selects different types of preset sound equaliser
settings (OPTIMAL, TECHNO, ROCK or JAZZ).
8 Ç
for CD/ MP3-CD .. to stop playback or to clear a
programme.
for Clock .................... to exit clock setting.
9 ALB/PRESET -/+
for MP3-CD ............. to select previous/next
album.
for Tuner .....................to select a preset radio
station
for Clock/Timer ..... to set the minute.
0 MUTE
– to mute or restore the volume.
! Numeric Keypad (0-9)
– to input a track number of the disc.
@ PROG
for CD/ MP3-CD .. to programme disc tracks.
for Tuner .............to programme preset radio
stations.
# CLOCK
–to set the clock.
$ VOL +/-
– to increase or decrease the volume.
% DBB
– to select the desired bass boost level. (DBB 1,
DBB 2, DBB 3 or DBB OFF).
^ DISPLAY
for CD/ MP3-CD
................................. displays the current track
for Clock ............ to view the clock.
remaining time and total
remaining time (or current album
and track name and ID3 for MP3
disc) during playback.
& TIMER
– activates/deactivates the timer function.
* SLEEP
– to activate/deactivate or set the sleep timer.
Notes for remote control:
– First, select the source you wish to control
by pressing one of the source select keys on
the remote control (DISC or TUN, for
example).
– Then select the desired function (ÉÅ,
í
,
ë
, for example).
English
11
Page 12
Basic Functions
English
MP3 LINK
IMPORTANT!
Before you operate the system, complete
the preparation procedures.
Plug and Play (for tuner installlation)
Plug and Play allows you to store all available
radio stations automatically.
First time setup/power up
1 When you turn on the main supply, "AUTO
INSTALL - PRESS PLAY" is displayed.
2 PressÉÅ to star t installation.
➜ "PLUG AND PLAY" .... "INSTALL" is
displayed, followed by "AUTO".
➜ All available radio stations with sufficient signal
strength will be stored automatically, starting
from FM and followed by AM band.
➜ When all the available radio stations are
stored or the memory for 40 presets are used,
the first preset radio station will be played.
To reinstall Plug and Play
1 In standby mode, press and holdÉÅ until
"AUTO INSTALL - PRESS PLAY" is displayed.
2 PressÉÅ again to star t installation.
➜ All previously stored radio stations will be
replaced.
To exit without storing the Plug and Play
● Press Ç.
➜ If you do not complete the Plug and Play
installation, the function will be restarted when
you next turn on the main supply again.
Notes:
– When the power is turned on, the disc tray may
open and close to initialise the system.
– If no stereo frequency is detected during Plug
and Play, "CHECK ANTENNA" will be displayed.
– During Plug and Play, if no button is pressed
within 15 seconds, the system will exit Plug and
Play mode.
Switching the system on
● Press 2 (or POWER on the remote control).
➜ The system will switch to the last selected
source.
● Press DISC, TUNER, MP3 LINK or AUX
(DISC1/2/3, TUN, Line-in (MP3 LINK) or
AUX on the remote control).
➜ The system will switch to the selected source.
● Press OPEN•CLOSE or DISC CHANGE.
➜ The system will switch to the disc source and
the disc tray will open.
12
Page 13
Basic Functions
Switching the system to standby
mode
In any other source mode
● Press 2 (or POWER on the remote control).
➜ The clock will appear on the display when the
system is in standby mode.
Power-saving automatic standby
As a power-saving feature, the system will
automatically switch to Standby mode if you do
not press any buttons within 15 minutes after a
disc or tape has stopped playing.
Volume control
Adjust VOLUME to increase (turn knob
clockwise or press VOL + on the remote
control) or decrease (turn knob anti-clockwise
or press VOL - on the remote control) the
sound level.
To switch off the volume temporarily
● Press MUTE on the remote control.
➜ Playback will continue without sound and the
mute icon is displayed.
● To restore the volume, press MUTE again or
increase/decrease the volume level.
Sound control
MAX Sound
MAX sound provides the best mixture of various
sound features (DSC, DBB, for example).
● Press MAX SOUND (or MAX on the remote
control) repeatedly.
➜ If activated, MAX is shown.
➜ If deactivated, MAX disappears.
DSC (Digital Sound Control)
The DSC feature enables you to enjoy special
sound effects that have preset equaliser settings,
providing the best music reproduction.
1 Press DSC to select : OPTIMAL, TECHNO,
ROCK or JAZZ.
➜ The selected DSC is shown.
DBB (Dynamic Bass Boost)
There are three DBB settings to enhance the
bass response.
1 Press DBB on the remote control to select :
DBB 1, DBB 2, DBB 3 or DBB OFF.
➜ The selected DBB is shown, except for DBB
OFF mode.
Note:
– Some discs or tapes might be recorded in high
modulation, which causes a distortion at high
volume. If this occurs, switch off DBB or reduce the
volume.

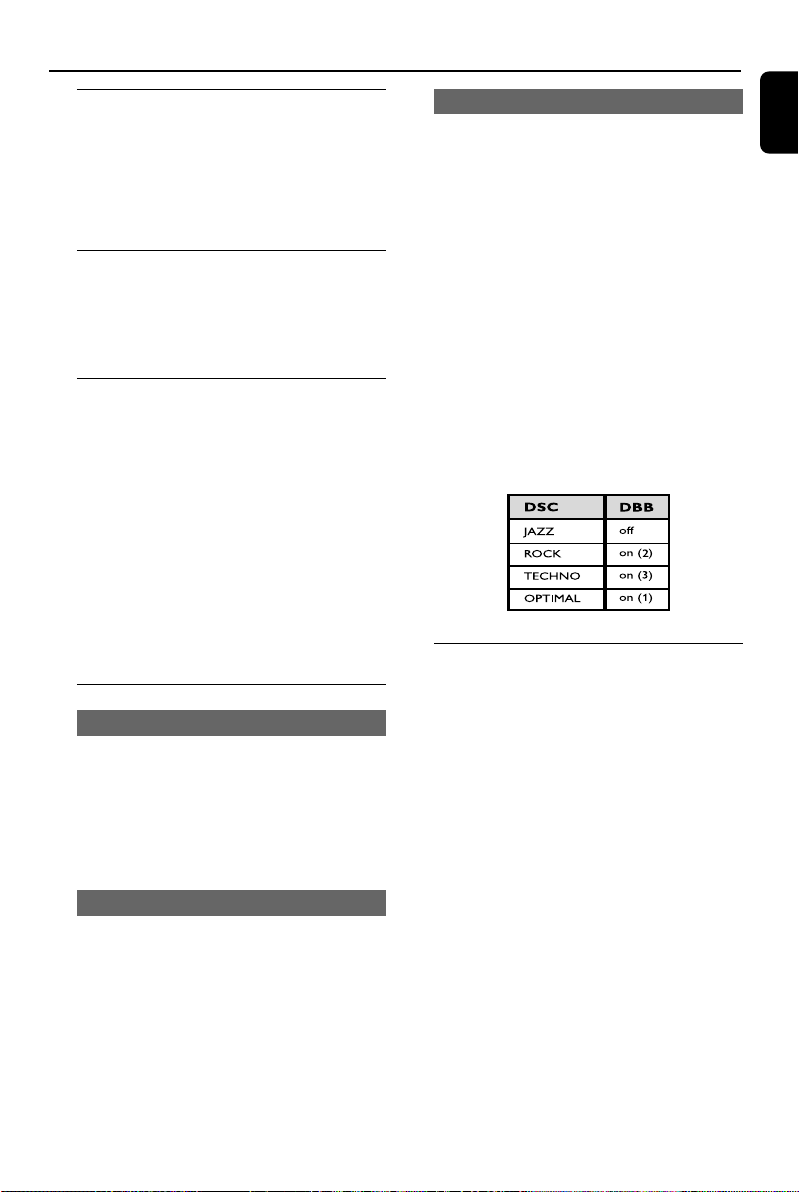

Automatic DSC-DBB selection
The best DBB setting is generated automatically
for each DSC selection. You can manually select
the DBB setting that best suits your listening
environment.
Karaoke
Connect a microphone (not supplied) to the
system allowing you to sing along with the music
source.
1 Connect a microphone to the MIC jack.
● Before connecting the microphone, set the
microphone MIC VOL to the minimum level to
prevent howling sound.
2 Press DISC, TUNER, MP3 LINK or AUX
(DISC1/2/3, TUN, Line-in (MP3 LINK) or
AUX on the remote control) to select the
source to be mixed and start playback.
3 Adjust the volume level of the source with
VOLUME control.
4 Adjust the microphone volume with the
microphone MIC VOL control.
Note:
–Keep the microphone away from the speakers to
prevent howling.
English
13
Page 14
CD/MP3-CD/WMA Operations
2
2
1
1
English
MP3 LINK
IMPORTANT!
– This system is designed for regular discs.
Therefore, do not use any accessories such
as disc stabiliser rings or disc treatment
sheets, etc., as offered on the market,
because they may jam the changer
mechanism.
– Do not load more than one disc into each
tray.
Discs for playback
This system can playback all digital audio CD,
finalised digital audio CD-Recordable (CDR) discs
and finalised digital audio CD-Rewritable
(CDRW)discs.
MP3-CDs/WMA (CD-ROMs with MP3/WMA
tracks)
* DRM-protected WMA is not supported.
About MP3 disc
Supported formats
– ISO9660, Joliet, Multisession
– Max. track number plus album is 512
– The max. MP3 program track number is 40
– Suppor ted VBR bit-rate
– Supported sampling frequencies for MP3 disc
are: 32 kHz, 44.1 kHz, 48 kHz
– Supported Bit-rates of MP3 disc are: 32, 64,
96, 128, 192, 256 (kbps)
Loading discs
1 Press OPEN•CLOSE to open the disc tray.
2 Load up to two discs on the individual disc trays.
To load the third disc, press DISC CHANGE.
➜ The disc tray will rotate until the empty tray
is ready for loading.
14
Page 15
CD/MP3-CD/WMA Operations
3 Press OPEN•CLOSE to close the disc tray.
➜ READING is displayed as the CD player scans
the contents of a disc, and then the total number
of tracks and playing time (or the total number
of albums and tracks for MP3/WMA disc) are
shown.
Notes:
– Load the discs with the label side facing up.
–To ensure good system performance, wait until
the disc tray completely reads the disc(s) before
proceeding.
–For MP3/WMA disc, the disc reading time may
exceed 10 seconds due to the large number of
songs compiled into one disc.
Playing discs
To play current disc on the disc tray
● Press ÉÅ.
➜ All loaded discs will play once, then stop.
➜ During playback, the selected disc tray, track
number and elapsed playing time of the current
track are displayed.
➜ For mixed mode discs, only one mode will be
selected for playback depending on the
recording format.
Note:
– When playing a mixed mode disc, you may find a
very short mute track inserted into the total
number of tracks available in your disc.
To play the selected disc only
● In CD mode, press DISC (or DISC 1/2/3 on
the remote control).
➜The current disc will play once, then stop.
To interrupt playback
● Press ÉÅ.
➜ The display freezes and the elapsed playing
time flashes when playback is interrupted.
● To resume playback, press ÉÅ again.
Replacing discs during playback
1 Press DISC CHANGE.
➜ The disc tray will open without interrupting
current playback.
2 To change the inner disc, press DISC
CHANGE again.
➜ "CHANGE" and "OPEN" are displayed and the
disc will stop playing.
➜ The disc tray will close to retrieve the inner
disc, then reopen with the inner disc accessible.
Selecting a desired track/passage
To search for a particular passage during
playback
● Press and hold S / T (or à / á on the
remote control) and release it when the desired
passage is located.
➜ During searching, the volume will be muted.
To select a desired track
● Press S / T (or í / ë on the remote
control) repeatedly until the desired track is
displayed.
● If playback is stopped, press ÉÅ to start
playback.
Selecting a desired Album/Title
(MP3/WMA disc only)
To select a desired album
● Press ALBUM/PRESET +/- (or ALB/
PRESET +/- on the remote control )
repeatedly.
To select a desired title
● Press S / T (or í / ë on the remote
control) repeatedly.
English
To stop playback
● Press Ç.
15
Page 16
CD/MP3-CD/WMA Operations
English
Different play modes: SHUFFLE
and REPEAT
You can select and change the various play
modes before or during playback. The play
modes can also be combined with PROGRAM.
..................plays the current track
continuously
ALB ......... plays the current album
continuously
ALL ........repeats the entire disc/
programme
................... tracks of the entire disc are
played in random order
Notes:
– It is not possible to create a programme with
MP3 tracks from multiple CDs, or combined with
normal audio tracks.
– If you attempt to programme more than 40
tracks, "PROGRAM FULL" is displayed.
– During programming, if no button is pressed
within 90 seconds, the system will exit the
programme mode automatically.
To review the programme
● Stop playback and press S / T (or í /
ë on the remote control) repeatedly.
● To exit review mode, press 9.
1 To select your play mode, press the MODE
button before or during playback until the display
shows the desired function.
2 Press 2; to start playback if in the STOP
position.
3 To return to normal playback, press the MODE
button until or is no longer displayed.
● You can also press 9 to cancel your play mode.
Programming the disc tracks
Programming tracks is possible when playback is
stopped. Up to 40 tracks can be stored in the
memory in any order.
1 Load the desired discs on the disc tray (refer to
“Loading discs”).
2 Press DISC (or DISC 1/2/3 on the remote
control) to select a disc.
3 In stop mode, press PROG to start
programming.
➜ PROG star ts flashing.
4 Press S / T (or í / ë on the remote
control) repeatedly to select the desired track.
● For MP3/WMA disc, press ALBUM/PRESTE -
/+ and S / T (or í / ë on the remote
control) to select the desired album and title for
programming.
5 Press PROG to store the track.
6 To end programming, press 9 once.
➜ PROG stays and the programme mode
remains active.
7 To start programme play, press 2;.
Erasing the programme
● Press 9 once when playback is stopped or
twice during playback.
➜ PROG disappears and "PROG CLEAR" is
displayed.
Note:
– The programme will be erased when the system
is disconnected from the power supply or when the
disc tray is opened.
16
Page 17
MP3 LINK
Radio Reception
English
Tuning to radio stations
1
Press TUNER (or TUN on the remote control).
2 Hold S / T (or à / á on the remote
control) and then release the button.
➜ The system will star t searching for a radio
station with sufficient signal strength.
3 Repeat step 2 if necessary until you find the
desired station.
● To tune to a weak station, press S / T (or
à / á on the remote control) briefly and
repeatedly until you have found optimal
reception.
Programming radio stations
You can store up to a total of 40 radio stations
in the memory.
Automatic programming
1 Press TUNER (or TUN on the remote
control) to select TUNER mode.
2 Press and hold PROG until "AUTO" is displayed.
➜ PROG star ts flashing.
➜ AUTO is displayed and available stations are
programmed in order of waveband reception
strength.
➜ When all the available radio stations are
stored or the memory for 40 presets are used,
the first preset radio station will be played.
To stop storing the automatic preset
● Press Ç.
Manual programming
1 Tune to your desired station (refer to “Tuning to
radio stations”).
2 Press PROG to activate programming.
➜ PROG flashes in the display.
3 Press ALBUM/PRESET +/- on the system (or
ALB/PRESET +/- on the remote control) to
allocate a number from 1 to 40 to this station.
4 Press PROG again to confirm the setting.
➜ The preset number and the frequency of the
preset station are shown.
5 Repeat the above four steps to store other
stations.
● You can override a preset station by storing
another frequency in its place.
Tuning to preset radio stations
● Press ALBUM/PRESET +/- (or ALB/
PRESET +/- on the remote control) until the
desired preset station is displayed.
17
Page 18
External Sources
English
MP3 LINK
Listening to external sources
Using AUX IN (white/red jacks)
1 Use the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks of the main unit
(located on the back panel ) to the
corresponding AUDIO OUT jacks on an
external device (such as TV or VCR).
2 Press AUX to select AUX..
Using MP3 LINK (3.5 mm jack )
1 Use a MP3 link cable (supplied) to connect
MP3 LINK jack of the main unit (3.5 mm,
located on the front panel) to an AUDIO OUT
or headphone jack on an external equipment
(such as CD player, or VCR).
2 Press MP3 LINK (or Line-in (MP3 LINK) on
the remote control) to select MP3 LINK.
Note:
– All the sound control features (DSC or DBB, for
example) are available for selection.
– Refer to the operating instructions for the
connected equipment for details.
18
Page 19
MP3 LINK
Clock/Timer
English
Clock setting
The clock can be set in either 12-hour or
24-hour mode ("AM 12:00" or "00:00" for
example).
1 In standby or view clock mode, press CLOCK/
TIMER (or CLOCK on the remote control )
on the remote control.
2 Press PROG to select clock mode.
3 Press CLOCK/TIMER (or CLOCK on the
remote control ) to activate to adjust clock time.
4 Press S / T (or à / á on the remote
control) repeatedly to set the hour.
5 Press ALBUM/PRESET +/- (or ALB/
PRESET +/- on the remote control )
repeatedly to set the minute.
6 Press CLOCK/TIMER (or CLOCK on the
remote control ) again to store the setting.
➜ The clock star ts working.
To exit without storing the setting
● Press Ç.
Notes:
– The clock setting will be cancelled when the
power cord is disconnected or if a power failure
occurs.
– During clock setting, if no button is pressed
within 90 seconds, the system will exit clock setting
mode automatically.
Timer setting
The system can switch on to CD or TUNER
mode automatically at a preset time, serving as
an alarm to wake you up.
IMPORTANT!
– Before setting the timer, ensure that the
clock is set correctly.
1 In standby mode, press and hold CLOCK/
TIMER (or TIMER on the remote control ) on
the remote control for more than two seconds
to select timer mode.
➜ The last timer setting star ts flashing.
➜ The selected source will be lighted.
2 Press DISC 1/2/3 or TUNER to select the
desired source.
● Before setting timer, make sure the music source
has been prepared.
CD – Load the disc(s).
TUNER – tune to the desired radio station.
3 Press CLOCK/TIMER (or TIMER on the
remote control ) to activate to adjust time.
4 Press S / T (or à / á on the remote
control) repeatedly to set the hour for the timer
to start.
19
Page 20
Clock/Timer
English
5 Press ALBUM/PRESET +/- (or ALB/
PRESET +/- on the remote control )
repeatedly to set the minute for the timer to
start.
6 Press CLOCK/TIMER (or TIMER on the
remote control ) to store the start time.
● At the preset time, the selected source will play.
To exit without storing the setting
● Press Ç on the system.
Notes:
– When the preset time is reached and the
selected disc tray is empty, the next available disc
will be selected. If all the disc trays are not
available, Tuner will be selected automatically.
– During timer setting, if no button is pressed
within 90 seconds, the system will exit timer setting
mode automatically.
To deactivate the TIMER
● Press TIMER ON/OFF on the remote control.
➜ disappears from the display.
To activate the TIMER
● Press TIMER ON/OFF on the remote control.
➜ appears on the display.
Sleep timer setting
The sleep timer enables the system to switch to
standby mode automatically at a preset time.
1 In active mode, press SLEEP on the remote
control repeatedly to select a preset time.
➜ The selections are as follows (time in
minutes):
15 ™ 30 ™ 45 ™ 60 ™ 90 ™ 120 ™ OFF ™
15 …
2 When you reach the desired length of time, stop
pressing the SLEEP button.
➜ is shown, except for "OFF" mode.
➜ The sleep timer is now set.
To check the remaining length of time
after sleep timer is activated
● Press SLEEP once.
To change the preset sleep timer
● Press SLEEP again while the remaining sleep
timer is shown.
➜ The display will show the next sleep timer
options.
To deactivate the sleep timer
● Press SLEEP repeatedly until "OFF" is displayed,
or press B (or POWER on the remote
control ).
20
Note:
– will start flashing when the remaining
length of time after activation of the sleep timer is
less than 1 minute.
Page 21
Specifications
AMPLIFIER
1 kHz
(low channel - both channels driven)
................................................... 50 W per channel (6 Ω)
10 kHz
(high channel - both channels driven)
................................................... 50 W per channel (6 Ω)
Total output power ............................................. 200 W
Signal-to-noise ratio .......................... ≥ 60 dBA (IEC)
Frequency response .......................... 50 – 16000 Hz
Input sensitivity
AUX/Line In .................................................................. 2 V
Microphone .......................................................... 1.5 mV
Output
Speakers ....................................................................≥ 6 Ω
(1) (6 Ω, 1 kHz, 10% THD)
CD/MP3-CD PLAYER
Number of programmable tracks ......................... 40
Frequency response ............. 50 – 16000 Hz -3dB
Signal-to-noise ratio ....................................... ≥ 60 dBA
Channel separation ..........................≥ 50 dB (1 kHz)
Total harmonic distortion ................................. < 0.6%
MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO
MP3-CD bit rate ....................................... 32-256 kbps
(128 kbps advised)
Sampling frequencies ....................... 32, 44.1, 48 kHz
TUNER
FM wave range ................................... 87.5 – 108 MHz
AM wave range (9 kHz) ............... 531 – 1602 kHz
SPEAKERS
System 1-way; 1 port bass reflex
Impedance ........................................................................ 6 Ω
Woofer ..........................................................................1 x 5"
Tw eeter...................................................................... 1 x 1.5"
Dimensions (w x h x d) . 207 x 309 x 214 (mm)
Weight................................................................ 2.8 kg each
GENERAL
Material/finish ................................... Polystyrene/Metal
AC Power ............................ 110 – 127 / 220 – 240 V;
....................................................... 50/60 Hz Switchable
Power Consumption
Active ...................................................................... 110 W
Dimensions (w x h x d) .. 265 x 310 x 403 (mm)
Weight (without speakers) ................................. 5.9 kg
Specifications and external appearance are
subject to change without notice.
English
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic
spray intended for analogue
records.
Maintenance
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
21
Page 22
Tr oubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Problem
“NO DISC” is displayed.
“DISC NOT FINALIZED” is displayed.
Radio reception is poor.
The system does not react when buttons
are pressed.
Sound cannot be heard or is of poor
quality.
Solution
✔ Insert a disc.
✔ Check if the disc is inserted upside down.
✔ Wait until the moisture condensation at the lens
has cleared.
✔ Replace or clean the disc, see “Maintenance”.
✔ Use a finalized CD-RW or a correct MP3-CD
format disc.
✔ Use a finalised CD-RW or CD-R.
✔ If the signal is too weak, adjust the antenna or
connect an external antenna for better
reception.
✔ Increase the distance between the Mini HiFi
System and your TV or VCR.
✔ Remove and reconnect the AC power plug and
switch on the system again.
✔ Adjust the volume.
✔ Check that the speakers are connec ted
correctly.
✔ Check if the stripped speaker wire is clamped.
✔ Make sure the MP3-CD was recorded within
32-256 kbps bit rate with sampling frequencies
at 48 kHz, 44.1 kHz or 32 kHz.
The left and right sound outputs are
reversed.
22
✔ Check the speaker connections and location.
Page 23
Tr oubleshooting
The remote control does not function
properly.
The time is not working.
The Clock/Timer setting is erased.
✔ Select the source (DISC or TUN, for example)
before pressing the function button
(ÉÅ,í,ë).
✔ Reduce the distance between the remote
control and the system.
✔ Insert the batteries with their polarities
(+/– signs) aligned as indicated.
✔ Replace the batteries.
✔ Point the remote control directly towards the IR
sensor.
✔ Set the clock correctly.
✔ Press TIMER ON/OFF to switch on the timer.
✔ Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
English
23
Page 24
Português
Visite a Philips na Internet
http://www.philips.com
FWM396
CLASS 1
LASER PRODUCT
PDCC-ZYL-0815
Loading...
