Page 1

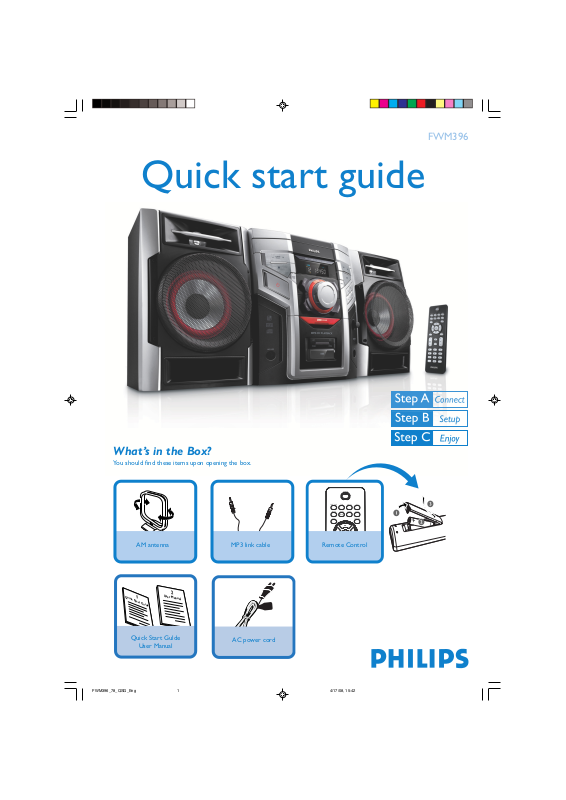

Quick start guide
1
Quick Start Guide
2
User Manual
FWM396
What’s in the Box?
You should find these items upon opening the box.
AM antenna Remote Control
Quick Start Gulde
User Manual
3
1
2
MP3 link cable
AC power cord
Page 2
AM ANTENNA
FM ANTENNA
SPEAKERS 6Ω
+
-
AUX/CDR IN
R L
L
R
L
R
LOW CH
2
3
1
SetupSetup
1
CLOCK
PROG
Connect the speaker cables.
2
Connect the AM antenna.
3
Connect the power cable of the system.
Tip
See the User Manual on how to
connect other equipment to this
system.
AM antenna
FM antenna
Speaker
(right)
AC power cord
Setting the clock
1
In standby or view clock mode, press CLOCK/TIMER (or CLOCK on the
remote control) once.
Speaker
(left)
2
Press PROG to select clock mode. The clock can be set in either 12-hour
or 24-hour mode.
3
Press CLOCK/TIMER (or CLOCK on the remote control) again to
activate and adjust clock time.
4
Press à or á repeatedly to set the hour.
5
Press ALBUM/PRESET +/- (or ALB/PRESET +/- on the remote control)
repeatedly to set the minute.
6
Press CLOCK/TIMER (or CLOCK on the remote control) again to store
the setting.
Page 3
Enjoy
C
Playing a disc
2
2
1
1
1
Press OPEN•CLOSE to open the disc tray and load up to two
discs on the individual disc trays. To load the third disc, press DISC
CHANGE.
➜ Make sure the label side of each loaded disc is facing up.
2
Press OPEN•CLOSE again to close the disc tray.
3
Use DISC 1/2/3 to select a disc for playback.
4
To stop playback, press 9 .
Programming and tuning to radio
stations
1
Press TUNER repeatedly (or TUN on the remote control) to
select the tuner source.
2
Press PROG for more than two seconds to program all available
stations in order of waveband.
3
Press ALBUM/PRESET +/- (or ALB/PRESET +/- on the remote
control) until the desired preset station is displayed.
Tip
Detailed playback features and additional functions are described in the
accompany owner's manual.
PDCC-ZYL-0814
GB
