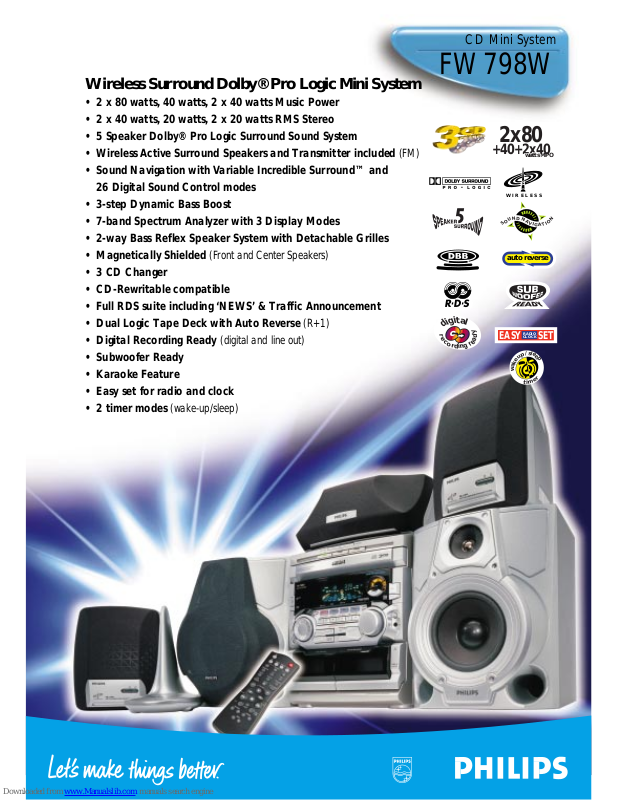

Wireless Surround Dolby® Pro Logic Mini System
• 2 x 80 watts, 40 watts, 2 x 40 watts Music Power
• 2 x 40 watts, 20 watts, 2 x 20 watts RMS Stereo
• 5 Speaker Dolby® Pro Logic Surround Sound System
• Wireless Active Surround Speakers and Transmitter included (FM)
• Sound Navigation with Variable Incredible Surround™ and
26 Digital Sound Control modes
• 3-step Dynamic Bass Boost
• 7-band Spectrum Analyzer with 3 Display Modes
• 2-way Bass Reflex Speaker System with Detachable Grilles
• Magnetically Shielded (Front and Center Speakers)
• 3 CD Changer
• CD-Rewritable compatible
• Full RDS suite including ‘NEWS’ & Traffic Announcement
• Dual Logic Tape Deck with Auto Reverse (R+1)
• Digital Recording Ready (digital and line out)
• Subwoofer Ready
• Karaoke Feature
• Easy set for radio and clock
• 2 timer modes (wake-up/sleep)
CD Mini System
FW798W
2x80
+40+2x40
t
i
a
g
l
i
d
r
e
c
y
d
a
o
e
r
r
d
g
i
n
wattswatts
WIRELESS
D
N
N
U
A
O
V
S
auto reverse
RADIO
CLOCK
s
l
/
p
u
e
k
a
w
t
m
i
MPO
O
I
I
G
T
A
SETEASY
e
e
p
r
e
N
Page 2
Wireless Surround Dolby® Pro Logic Mini System
standard product information
CD Mini System
FW798W
amplifier
• 2 x 80 watts, 40 watts, 2 x 40 watts Music Power
• 2 x 40 watts, 20 watts, 2 x 20 watts RMS,
± 10% THD, 6 Ohm, 1 kHz
• Wireless 5 Speaker Dolby® Pro Logic Surround
Sound System
• Sound Navigation:
- jog shuttle
- Variable Incredible Surround™
- 26 mode Digital Sound Control
• 3-step Dynamic Bass Boost
(Beat, Punch, Blast)
• Bass Optimization
compact disc player
• motorized front loading 3 CD changer
• CD-Rewritable compatible
• digital servo technology
• bit-check D/A converter
• 40-track CD Random Program
• play modes (repeat/shuffle/program)
• change 2 discs while playing 1
tuner
• RDS: station name, program type, RDS text,
clock set
• RDS: ‘NEWS’ & Traffic Announcement
• FM/MW/LW Digital Tuner with 40 presets
• easy set/auto store for radio and clock
tape deck
• Dual Logic Tape Deck
• Auto Reverse (R+1)
• high and normal speed dubbing
• CD synchro recording
• automatic recording level control
• automatic tape type selection
• electronic speed control and full auto stop
Wireless 5 speaker surround sound system
Philips 5 speaker DPL surround sound system treats
homeviewers to cinema sound quality that has until
now, remained in the realm of cinemas.
With normal DPL system, we get messy cables
connecting the rear speaker.
The Philips wireless DPL system offers cinema
quality experience to the home without messy
cables running through your living room.
loudspeaker boxes
• 2-way Bass Reflex
• 5.25" woofer
• 2.5" Ferro Fluid Tweeter
• magnetically shielded
• detachable grilles
wireless FM transmitter
• RF-signal transmitter (CD quality)
• 7 channels selector
• input sensitivity selector
wireless active surround speakers
• 2 x 1-way speakers (active)
• 6 Ohm
center speaker
• 1-way speaker (4" full range)
• 12 Ohm
• magnetically shielded
connections
• stereo headphones: 3.5mm stereo jack
• video/aux: cinch type sockets
• subwoofer out: cinch type socket
• Digital Recording Ready:
- digital out: cinch type socket
- line out: cinch type socket
• color coded cables:
- front: red/black
- center: blue/black
• Karaoke mic: 3.5mm jack
general
• 3 display modes incl. NITE mode
• multicolor FTD display
• 7-band Spectrum Analyzer
• demo mode
• clock/timer
• 2 timer modes (wake-up/sleep)
• wake-up with CD, tuner or tape
• 35-key AV Remote Control
• automatic clock set via RDS
• Karaoke Feature
CD
SIDE
à
DPL
BALANCE
LR
CD DIRECT
VOLUME
í
-+
TAPE 1/2 AUXTUNERTV
21
PAUSE
Å
É
Ç
MUTE
-+
REAR
2
PROGRAMREPEAT SHUFFLE
SLEEP TIMER
ë
á
CENTER
/21M /21 /22 /30 /34
Asia Pacific
Australia/NZ
Middle East/S Africa
Latam
Europe
E Europe
Mexico
tuner
FM65.81-74MHz
FM87.5-108MHz
MW522-1602kHz •
LW153-279kHz •
FM75 Ohm clickfit •
mains supply
120/230V 50~60Hz
230V/50Hz
general
made in sticker
EAN: 87 10101 35792 8 (set)
EAN: 87 10101 36130 7 (wireless package)
Product Dimensions:
265mmW x 310mmH x 363mmD (center unit)
240mmW x 310mmH x 310mmD (speakers)
174mmW x 219mmH x 220mmD (surround)
3
DBBSURROUND DSC
TEST
TONE
260mmW x 140mmH x 240mmD (center)
Package Dimensions:
544mmW x 720mmH x 398mmD (set)
558mm W x 433mm H x 292mm D (wireless package)
Set weight: 22 kg
Wireless package weight: 7.6 kg
Carton contains: CD Mini System and Remote Control, Batteries
(2 x AA), Operating instructions, Warranty information, FM antenna,
AM antenna
Wireless package contains: Surround Sound Speakers, Center
Speaker and Transmitter
Printed in Singapore
Date printed : Sept 1998
Specifications subject to change without notice.
© 1998 Koninklijke Philips Electronics N.V.
All rights reserved.
Incredible Surround™ is a Trademark of Philips Consumer Electronics
Company
Dolby® Pro Logic is a trademark of Dolby Laboratories
