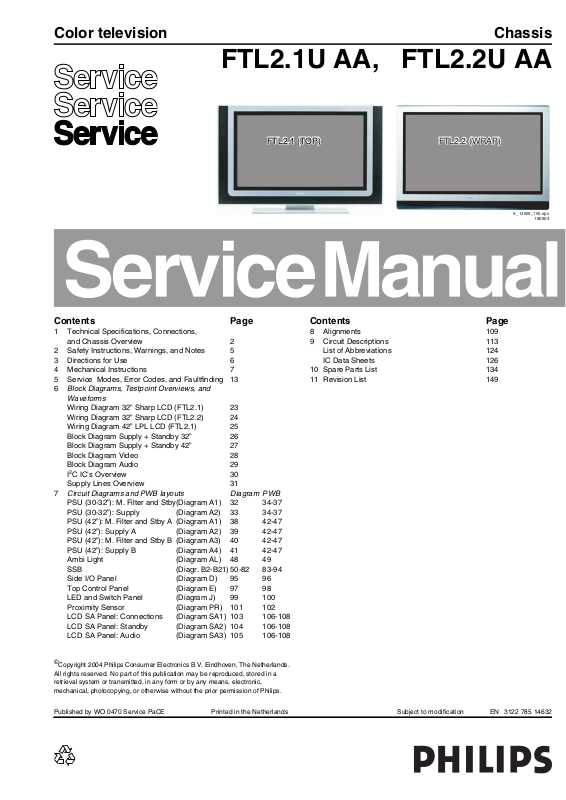

Philips _ftl2.1uaa, _ftl2.1uaa (1) Datasheet

Color television Chassis

FTL2.2 (WRAP)

FTL2.1 (TOP)

FTL2.1U AA, FTL2.2U AA

FTL2.1 (TOP)

FTL2.2 (WRAP)

FTL2.2 (WRAP)

Contents Page Contents Page

1 Technical Specifications, Connections,

and Chassis Overview 2
2 Safety Instructions, Warnings, and Notes 5
3 Directions for Use 6
4 Mechanical Instructions 7
5 Service Modes, Error Codes, and Faultfinding 13
6 Block Diagrams, Testpoint Overviews, and

Waveforms

Wiring Diagram 32” Sharp LCD (FTL2.1) 23

Wiring Diagram 32” Sharp LCD (FTL2.2) 24

Wiring Diagram 42” LPL LCD (FTL2.1) 25

Block Diagram Supply + Standby 32” 26

Block Diagram Supply + Standby 42” 27

Block Diagram Video 28

Block Diagram Audio 29

2

I

C IC’s Overview 30

Supply Lines Overview 31
7 Circuit Diagrams and PWB layouts Diagram PWB

PSU (30-32”): M. Filter and Stby(Diagram A1) 32 34-37

PSU (30-32”): Supply (Diagram A2) 33 34-37

PSU (42”): M. Filter and Stby A (Diagram A1) 38 42-47

PSU (42”): Supply A (Diagram A2) 39 42-47

PSU (42”): M. Filter and Stby B (Diagram A3) 40 42-47

PSU (42”): Supply B (Diagram A4) 41 42-47

Ambi Light (Diagram AL) 48 49

SSB (Diagr. B2-B21) 50-82 83-94

Side I/O Panel (Diagram D) 95 96

Top Control Panel (Diagram E) 97 98

LED and Switch Panel (Diagram J) 99 100

Proximity Sensor (Diagram PR) 101 102

LCD SA Panel: Connections (Diagram SA1) 103 106-108

LCD SA Panel: Standby (Diagram SA2) 104 106-108

LCD SA Panel: Audio (Diagram SA3) 105 106-108

8 Alignments 109
9 Circuit Descriptions 113

List of Abbreviations 124

IC Data Sheets 126
10 Spare Parts List 134
11 Revision List 149

E_14620_155.eps

180804

©

Copyright 2004 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by WO 0470 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 14632

EN 2 FTL2.1U, FTL2.2U1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1. Technical Specifications

2. Connections

3. Chassis Overview

Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.

1.1 Technical Specifications

1.1.1 Vision

Display type : LCD-VA
Screen size : 32” (82 cm), 16:9

: 42” (106 cm), 16:9
Resolution (HxV pixels) : 1366x768
Contrast ratio : 32” - 800:1

: 42” - 500:1
Light output : 32” - 450 cd/m

: 42” - 400 cd/m
LCD response time : 12 ms
Viewing angle (HxV degrees) : 32” - 170

: 42” - 176
Tuning system : PLL
Color systems : NTSC
Video playback : NTSC
Supported formats : 640x480p (2fH)

: 640x480i (1fH)

: 720x576i (1fH)

: 720x576p (2fH)

: 1280x720p (3fH)

: 1920x1080i (2fH)
Channel selections : 125 presets

: UVSH
Aerial input : 75 ohm, F-type

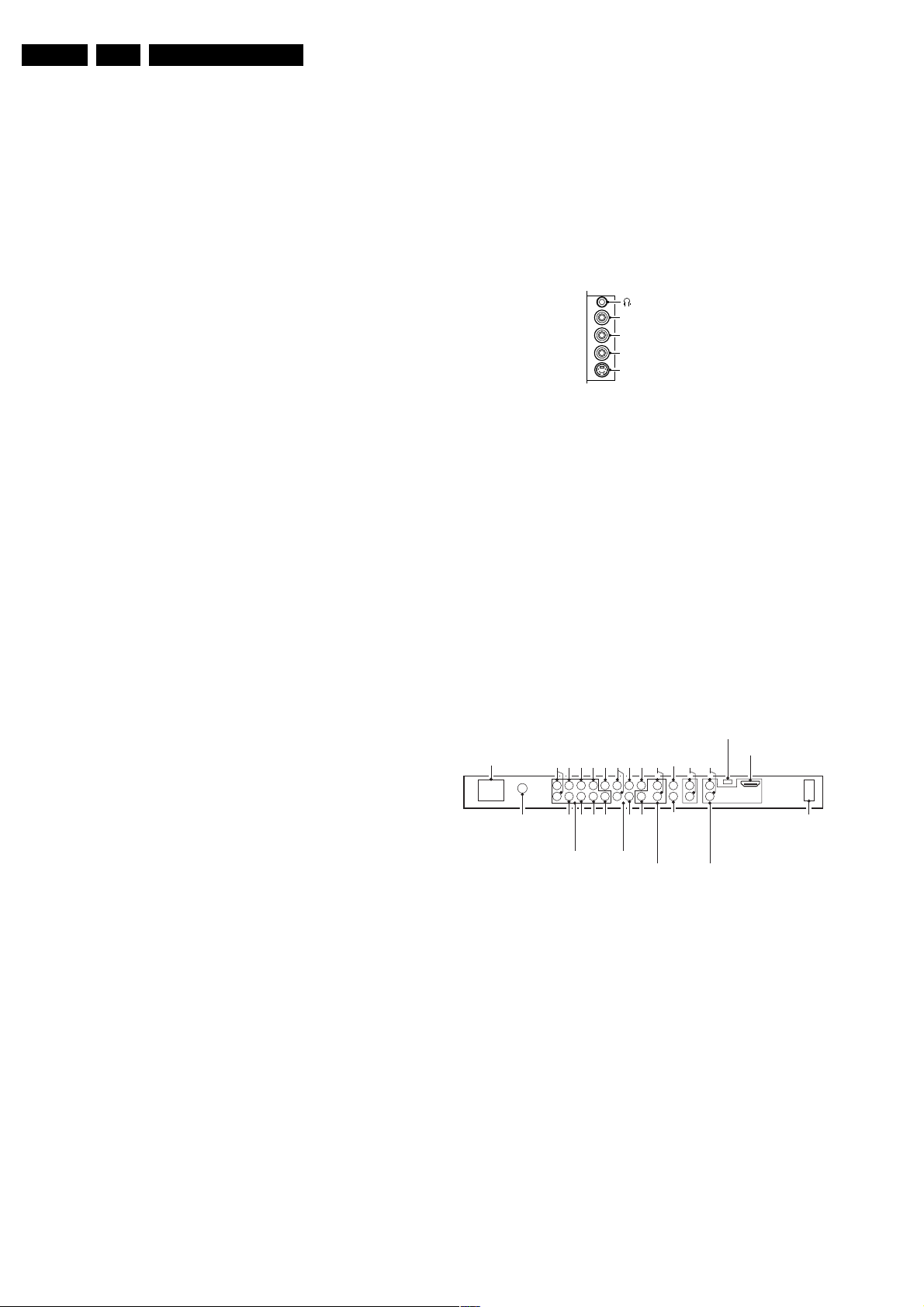

1.2 Connections

Note: The following connector color abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1.2.1 Side I/O

SIDE I/O

R
AUDIO
L

CVBS

SVHS

E_14620_022.eps

050404

2

2

Headphone (Output)

Bk - Headphone 32 - 600 ohm / 10 mW ot

Cinch (Input)

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

Hosiden: SVHS (Input)

1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 Vpp/75 ohm j
4 - Video C 0.3 Vpp/75 ohm j

1.2.2 Rear Connections

Figure 1-1 Side I/O connections

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

1.1.2 Sound

Sound systems : AV stereo

: BTSC
Maximum power : 2 x 15 W

: 3 x 15 W

1.1.3 Miscellaneous

Power supply:

- Mains voltage : 108 - 132 V

- Mains frequency : 60 Hz.

Ambient conditions:

- Temperature range : +5 to +40 °C

- Maximum humidity : 90 % R.H.

Power consumption

- Normal operation : 32” - 185 W

: 42” - 240 W

- Standby : < 2 W

Dimensions (WxHxD) : 32” (W) - 88x61x9.6

: 32” (T) - 100x61x9.6

: 42” (T) - 124x76x9.6

: (W) = Wrap, (T) = Top

Weight : 32” - 22 kg

: 42” - 39 kg

RMS

RMS

(int.)
(int.)

AC

SERVICE

MAINS

(PLASMA SETS)

AERIAL IN

AUDI O

R

L

AV2 IN

Pr/RPb/B

Y/GVS-VIDEO

AUDI OPrY

R

L

H

CVBS

Pb

S-VIDEO
AV1 IN

AUDI O

R

L

VIDEO

MONITOR

OUT

AUDIO OUT

CENTRE IN

R

L

SUBW OUT

AUDI O

R

L

HDMI IN

HDMI

Figure 1-2 Rear connections

Aerial - In

- - F-type Coax, 75 ohm D

AV2 Cinch: Video CVBS/YPbPr/RGB - In, Audio - In

Wh - Audio L 0.5 V
Rd - Audio R 0.5 V
Bu - Video Pb/B 0.7 V
Rd - Video Pr/R 0.7 V
Ye - Video CVBS 1 V
Ge - Video Y/G 0.7 V
Bk - Sync H 0 - 5 V jq

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

Bk - Sync V 0 - 5 V jq

AV2 S-Video: Y/C - In

1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
4 - Video C 0.3 V

/ 75 ohm j

PP

/ 75 ohm j

PP

19

1

18 2

MAINS

(LCD SETS)

E_14620_144.eps

140704

Technical Specifications, Connections, and Chassis Overview

EN 3FTL2.1U, FTL2.2U 1.

AV1 S-Video: Y/C - In

1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
4 - Video C 0.3 V

/ 75 ohm j

PP

/ 75 ohm j

PP

AV1 Cinch: Video CVBS/YPbPr - In, Audio - In

Wh - Audio L 0.5 V
Rd - Audio R 0.5 V
Bu - Video Pb 0.7 V
Rd - Video Pr 0.7 V
Ge - Video Y 0.7 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

Monitor out

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm kq

PP

/ 10 kohm kq

RMS

/ 10 kohm kq

RMS

Cinch: Subwoofer - Out, Centre - In

Bu - Audio Center 0.5 V
Bk - Audio Subw. 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm kq

RMS

Cinch: Audio - Out

Rd - Audio R 0.5 V
Wh - Audio L 0.5 V

/ 10 kohm kq

RMS

/ 10 kohm kq

RMS

Cinch: HDMI Audio - In

Rd - Audio R 0.5 V
Wh - Audio L 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

Service connector (ComPair)

1 - SDA-S I
2 - SCL-S I

2

C Data (0 - 5 V) jk

2

C Clock (0 - 5 V) j

3 - Ground Gnd H

HDMI: Digital Video, Digital Audio - In

19

18 2

1

E_06532_017.eps

050404

Figure 1-3 HDMI (type A) connector

1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD
20 - Ground Gnd H

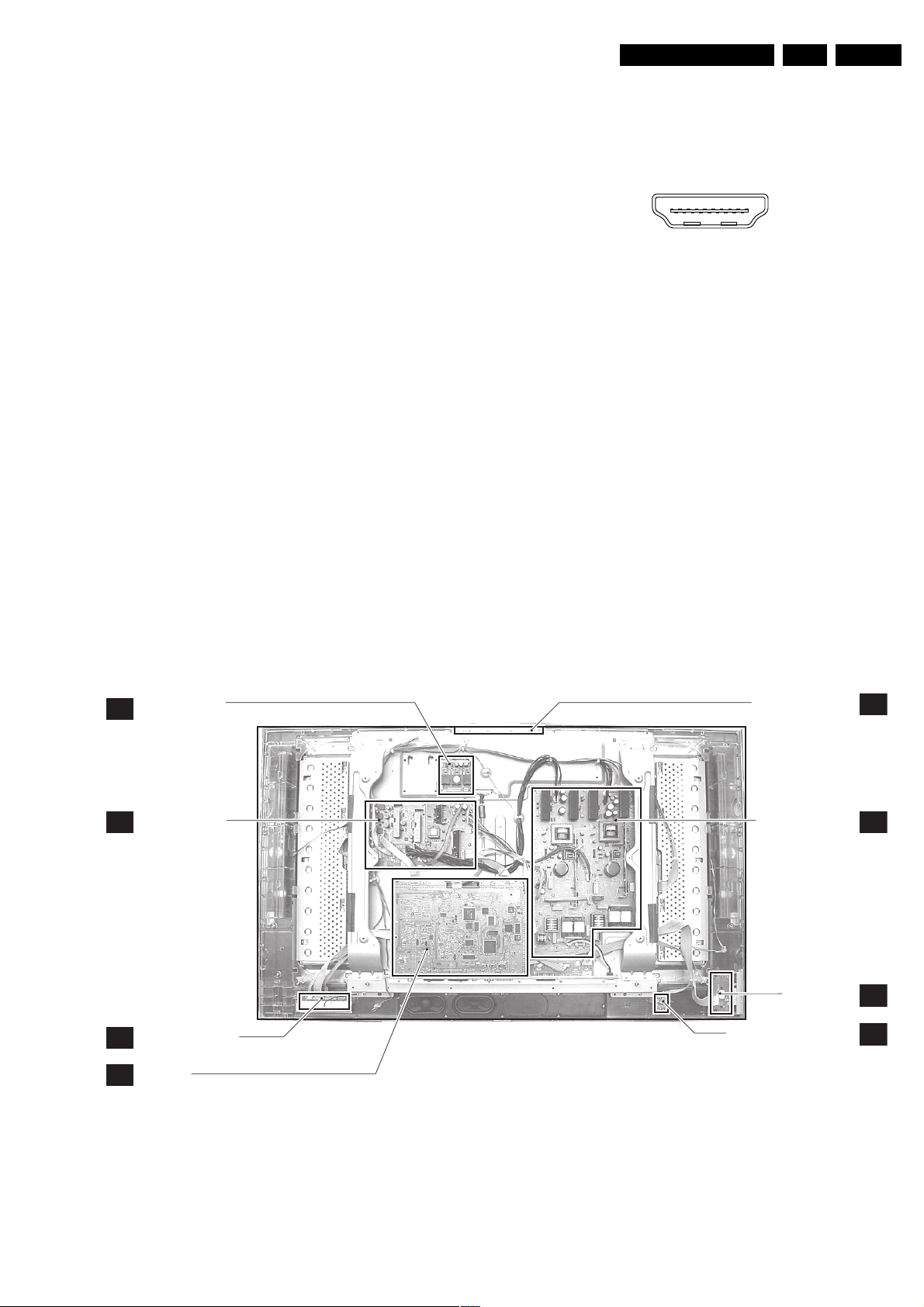

1.3 Chassis Overview

AMBI LIGHT PANEL

AL

(OPTIONAL)

STANDBY SUPPLY/

SA

AUDIO PANEL

LED + SWITCH PANEL

J

SSB PANEL

B

TOP CONTROL PANEL

MAIN SUPPLY PANEL

SIDE IO PANEL

PROXIMITY SENSOR PANEL

E_14620_143.eps

E

A

D

PR

131004

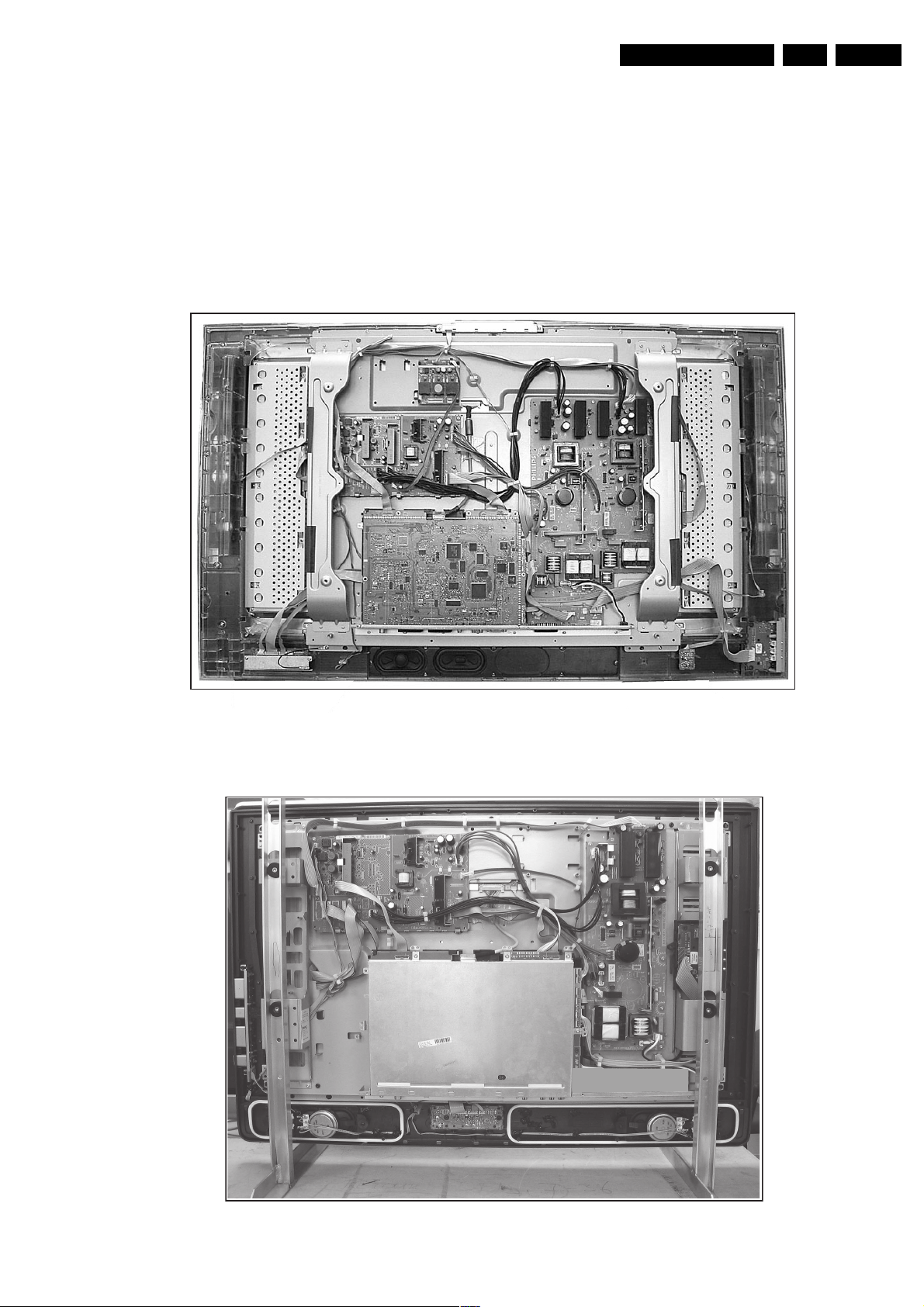

Figure 1-4 PWB locations (FTL2.1 “Top” model)

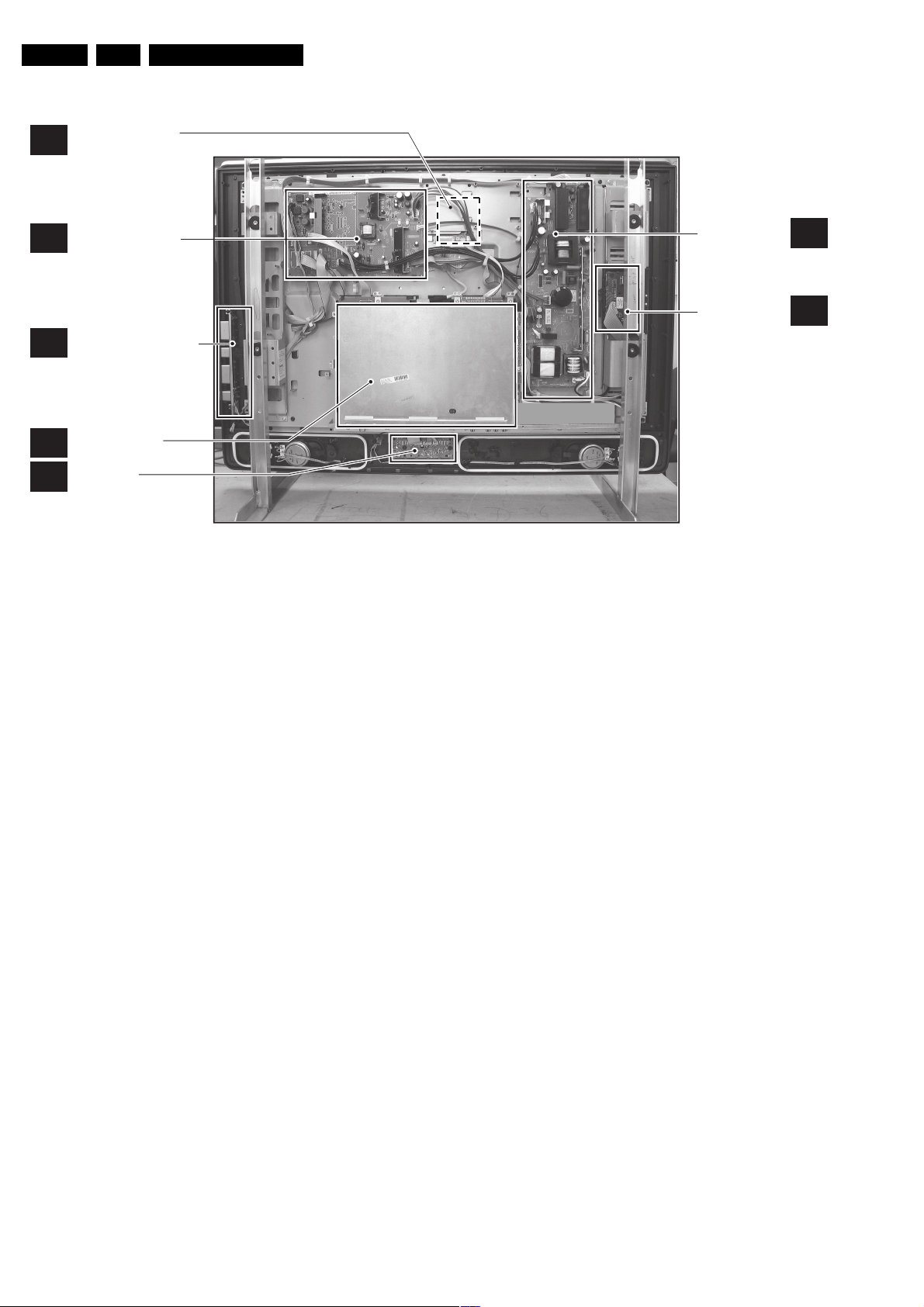

EN 4 FTL2.1U, FTL2.2U1.

AMBI LIGHT PANEL

AL

(OPTIONAL)

Technical Specifications, Connections, and Chassis Overview

STANDBY SUPPLY/

SA

AUDIO PANEL

SIDE CONTROL PANEL

E

SMALL SIGNAL

B

PA NE L

LED PANEL

J

Figure 1-5 PWB locations (FTL2.2 “Wrap” model)

MAIN SUPPLY

PA NE L

SIDE I/O PANEL

E_14620_153.eps

A

D

141004

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

EN 5FTL2.1U, FTL2.2U 2.

2.1 Safety Instructions

Safety regulations require that during a repair:

• Connect the set to the AC Power via an isolation
transformer
(> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the AC Power lead for external
damage.

• Check the strain relief of the AC Power cord for proper
function.

• Check the electrical DC resistance between the AC Power
plug and the secondary side (only for sets which have a AC
Power isolated power supply):

1. Unplug the AC Power cord and connect a wire

between the two pins of the AC Power plug.

2. Set the AC Power switch to the "on" position (keep the

AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

AC Power plug and the metal shielding of the tuner or
the aerial connection on the set. The reading should be
between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the

two pins of the AC Power plug.

• Check the cabinet for defects, to avoid touching of any
inner parts by the customer.

2.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.
Available ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822
310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage

section.

• Never replace modules or other components while the unit
is switched "on".

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

2.3 Notes

2.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a color bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in standby (F). These values are
indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.

• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.

E_06532_006.eps

240604

Figure 2-1 Dolby PL Symbol

2.3.2 Schematic Notes

• All resistor values are in ohms and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are given in micro-farads (µ= x10
nano-farads (n= x10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Electrical
Replacement Parts List. Therefore, always check this list
when there is any doubt.

2.3.3 Rework on BGA (Ball Grid Array) ICs

General

Although (LF)BGA assembly yields are very high, there may
still be a requirement for component rework. By rework, we
mean the process of removing the component from the PWB
and replacing it with a new component. If an (LF)BGA is
removed from a PWB, the solder balls of the component are
deformed drastically so the removed (LF)BGA has to be
discarded.

Device Removal

As is the case with any component that, it is essential when
removing an (LF)BGA, the board, tracks, solder lands, or
surrounding components are not damaged. To remove an
(LF)BGA, the board must be uniformly heated to a temperature
close to the reflow soldering temperature. A uniform
temperature reduces the chance of warping the PWB.
To do this, we recommend that the board is heated until it is
certain that all the joints are molten. Then carefully pull the
component off the board with a vacuum nozzle. For the
appropriate temperature profiles, see the IC data sheet.

Area Preparation

When the component has been removed, the vacant IC area
must be cleaned before replacing the (LF)BGA.
Removing an IC often leaves varying amounts of solder on the
mounting lands. This excessive solder can be removed with
either a solder sucker or solder wick. The remaining flux can be
removed with a brush and cleaning agent.
After the board is properly cleaned and inspected, apply flux on
the solder lands and on the connection balls of the (LF)BGA.

-9

), or pico-farads (p= x10

-12

-6

),

).

EN 6 FTL2.1U, FTL2.2U3.

Directions for Use

Note: Do not apply solder paste, as this has shown to result in
problems during re-soldering.

Device Replacement

The last step in the repair process is to solder the new
component on the board. Ideally, the (LF)BGA should be
aligned under a microscope or magnifying glass. If this is not
possible, try to align the (LF)BGA with any board markers.
To reflow the solder, apply a temperature profile according to
the IC data sheet. So as not to damage neighbouring
components, it may be necessary to reduce some
temperatures and times.

More Information

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice.ce.philips.com
subscription). After login, select “Magazine”, then go to
“Workshop Information”. Here you will find Information on how
to deal with BGA-ICs.

2.3.4 Lead Free Solder

Some PWBs in this chassis are “lead-free prepared”. This is
indicated on the PWB by the PHILIPS lead-free logo (either by

3. Directions for Use

(needs

a service-printing or by a sticker). It does not mean that lead­free solder is actually used!

P

b

Figure 2-2 Lead-free logo

2.3.5 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions - reactions that are best avoided. Before reaching
into a powered TV set, it is best to test the high voltage
insulation. It is easy to do, and is a good service precaution.

You can download this information from the following website:

http://www.philips.com/support

4. Mechanical Instructions

Mechanical Instructions

EN 7FTL2.1U, FTL2.2U 4.

Index of this chapter:

1. Cable Dressing

2. Service Positions

3. Assy/PWB Removal (for FTL2.1 “Top” Sets)

4. Assy/PWB Removal (for FTL2.2 “Wrap” Sets)

5. Re-assembly

4.1 Cable Dressing

Notes:

• Before reading the disassembly instructions, determine
which set you have: “Top” or “Wrap” (see figures on front
page). Then go to the related disassemble instructions.

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

• Follow the disassemble instructions in described order.

Figure 4-1 Cable dressing (“Top” model 42-inch)

E_14620_026.eps

090704

Figure 4-2 Cable dressing (“Wrap” model 32-inch)

E_14620_152.eps

280704

EN 8 FTL2.1U, FTL2.2U4.

Mechanical Instructions

4.2 Service Position

E_06532_018.eps

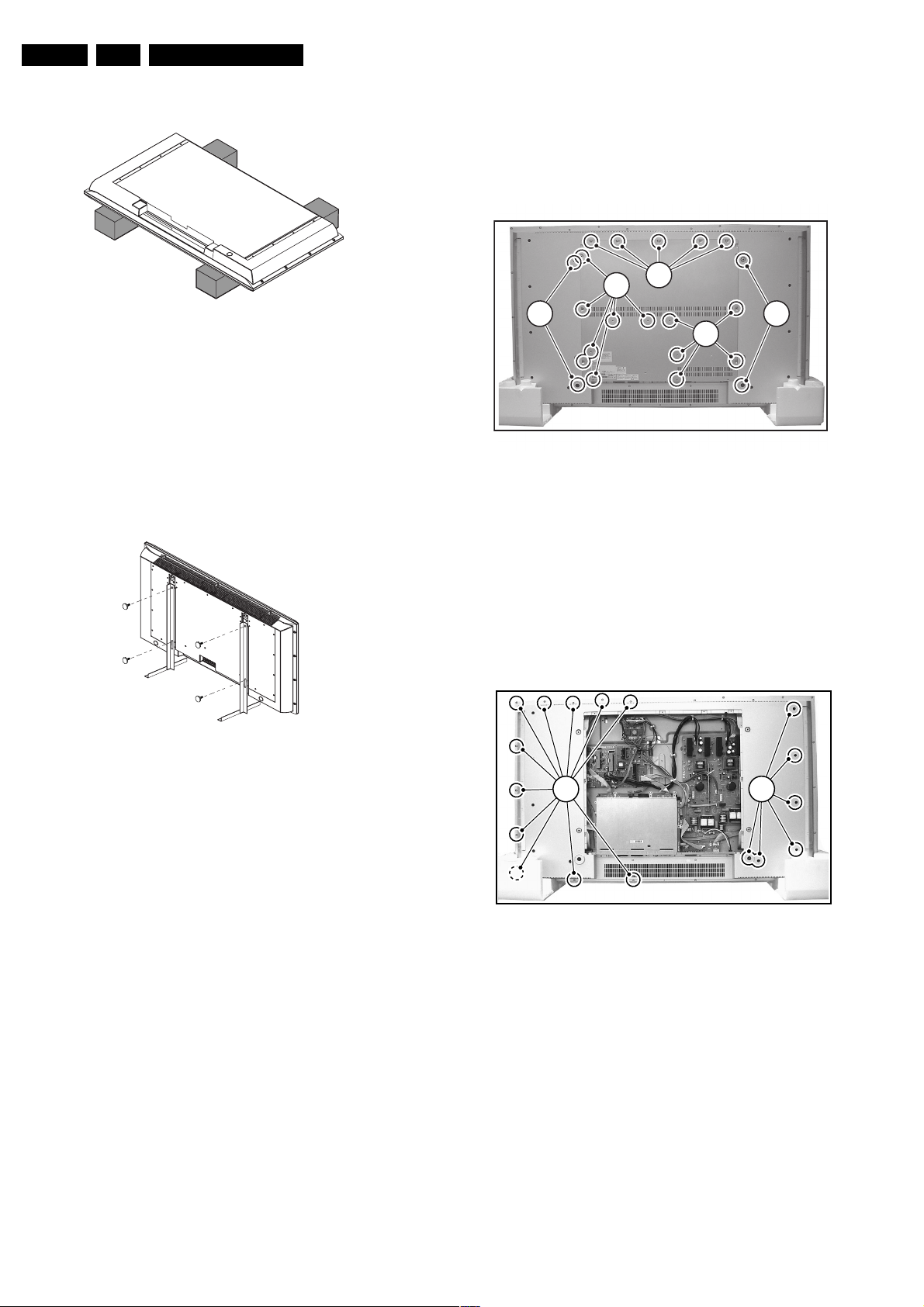

Figure 4-3 Foam bars

To put the TV set in its service position place it upside down on
a tabletop. Use foam bars or a protection sheet.
The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. By laying the TV flat
on the (ESD protective) foam bars, a stable situation is created
to perform measurements and alignments.
By placing a mirror flat on the table under the TV, you can
easily see if something is happening on the screen.

4.2.1 Aluminium Stands

170504

4.3 Assy/PWB Removal (for FTL2.1 “Top” Sets)

4.3.1 Metal Back Plate

Caution: Disconnect the AC Power cord before you remove
the metal back plate.

1

1

2 2

1

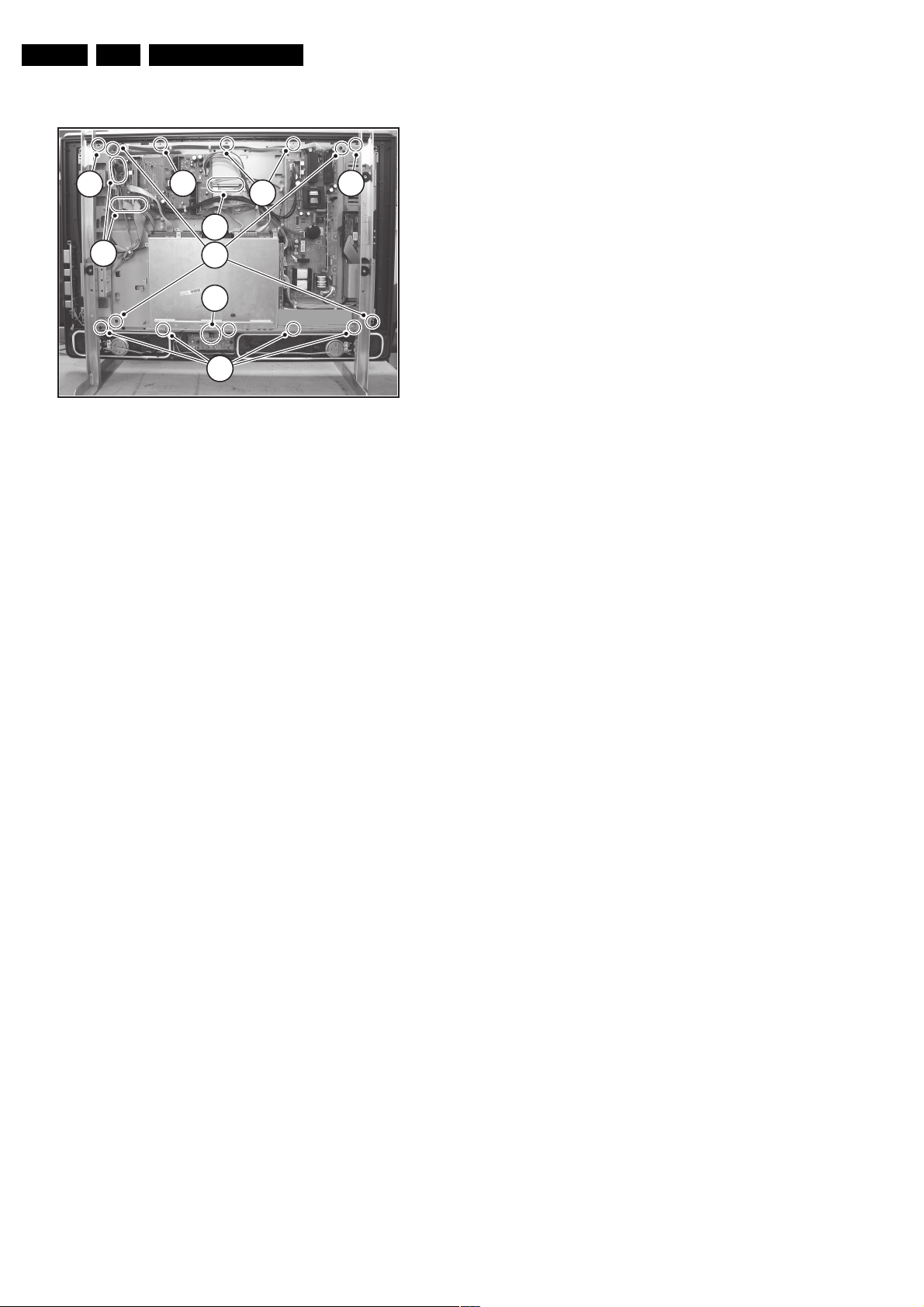

E_14620_028.eps

280704

Figure 4-5 Metal back plate (photo: “Top” model 42-inch)

1. Place the TV set upside down on a table top, using the
foam bars (see part "Foam Bars").
Caution: do not put pressure on the display, but let the
monitor lean on the speakers or the Front cover.

2. Remove all T10 screws from the metal back plate.

3. Remove the four "mushrooms" (2) from the back plate.

4. Lift the back plate from the set. Make sure that wires and

flat foils are not damaged during the back plate removal.

E_06532_019.eps

170504

Figure 4-4 Aluminium stands (MkI)

The new MkII aluminium stands (not on drawing) with order
code 3122 785 90690, can also be used to do measurements,
alignments, and duration tests. The stands can be
(dis)mounted quick and easy by means of sliding them in/out
the "mushrooms". The new stands are backwards compatible
with the earlier models.
Important: For (older) FTV sets without these "mushrooms", it
is obligatory to use the provided screws, otherwise it is possible
to damage the monitor inside!.

4.3.2 Rear Cover

4 5

Figure 4-6 Rear cover (photo: “Top” model 42-inch)

1. Disconnect all connectors (3) from the Ambient Light
inverter panel.

2. Remove all tapping screws (4) around the edges of the rear
cover (some of them are indicated on the figure above).

3. Remove all parker screws (5) from the rear cover (some of
them are indicated on the figure above).

4. Lift the rear cover from the set (it hinges at the bottom side).

E_14620_027.eps

130504

4.3.3 Ambient Light Panel

1. Remove all mounting screws from the Ambient Light panel.

2. Disconnect all cables from the Ambient Light panel.

3. Take out the Ambient Light panel.

Mechanical Instructions

EN 9FTL2.1U, FTL2.2U 4.

4.3.4 Main Supply Panel

1. Remove all mounting screws from the Main Supply panel.

2. Disconnect all cables from the Main Supply panel.

3. Take out the Main Supply panel (it hinges at the right

(speaker) side).

4.3.5 Standby Supply/Audio Panel

1. Disconnect all cables from the Standby Supply/Audio
panel.

2. Remove all mounting screws from the Standby Supply/
Audio panel.

3. Take out the Standby Supply/Audio panel (it hinges at the
bottom side).

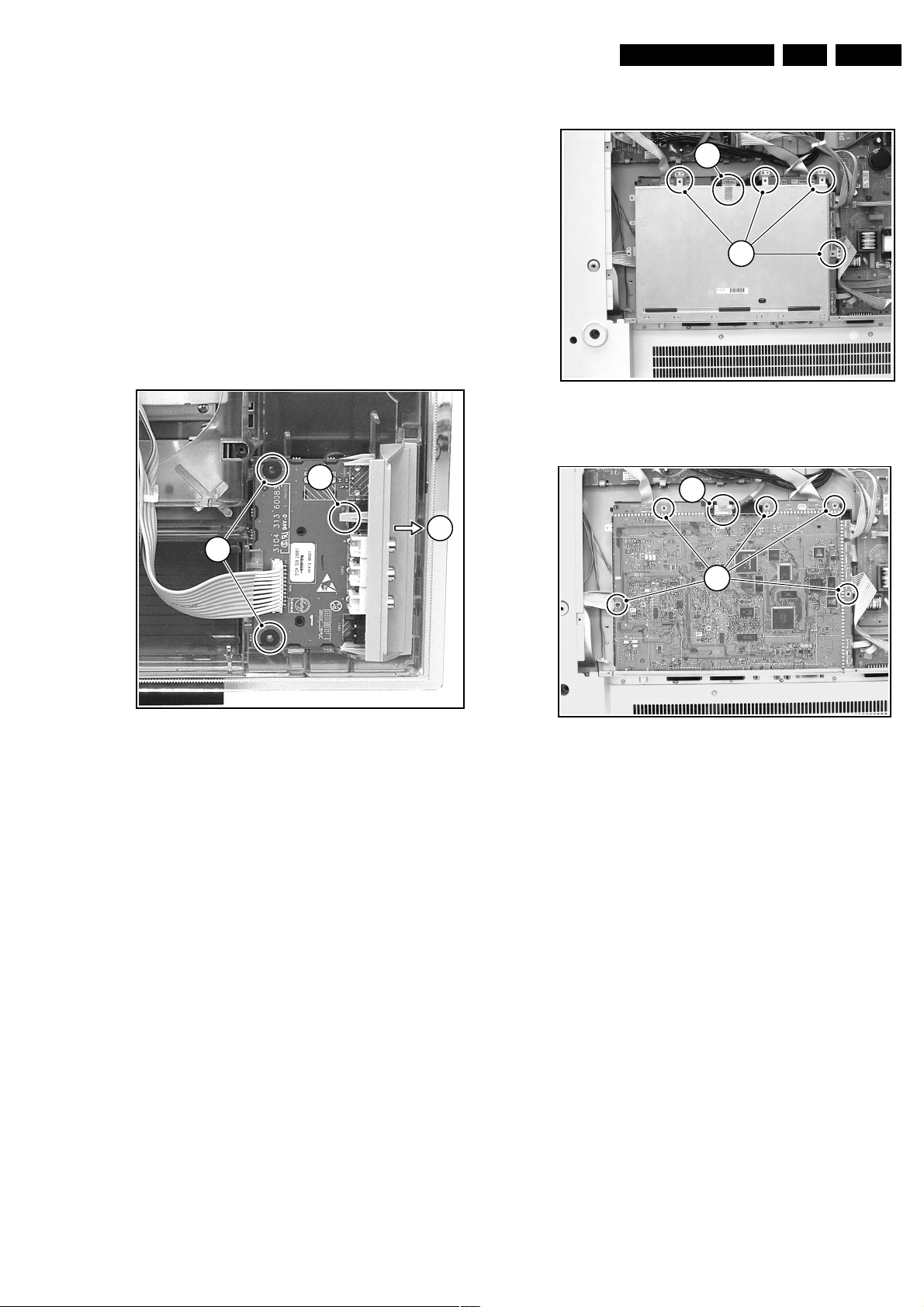

4.3.6 Side I/O Panel

3

1

4.3.10 SSB

1

2

E_14620_030.eps

130504

Figure 4-8 SSB top shielding

6

2

Figure 4-7 Side I/O Panel (photo “Top” model 42-inch)

1. Disconnect the cable from the Side I/O panel.

2. Remove the mounting screws (1) if present.

3. Slide the Side I/O bracket to the right (2).

4. Release the clamp (3) and take out the Side I'O panel from

its bracket.

4.3.7 Top Control

1. Remove the mounting screws from the Top Control panel
bracket.

2. Disconnect the cable.

3. Release the clamps and take out the Top Control panel.

4.3.8 Proximity Panel

1. Remove the mounting screws.

2. Take out the Proximity panel and disconnect the cable.

4.3.9 LED / Switch Panel

E_14620_029.eps

130504

5

Figure 4-9 SSB

1. Remove the LVDS fixing tape (1).

2. Remove all fixing screws (2).

3. Lift the shielding at the top and shift it upwards. The

shielding clamps at the connector side.
Caution: Be careful not to damage the EMC shielding
foam while you remove the shielding.

4. Remove all connector fixation screws from the connector
plate.

5. Remove the mounting screws from the SSB (5).

6. Disconnect the LVDS cable (6).

7. Lift the SSB, disconnect all cables, and take out the SSB.

4.3.11 Woofer

1. Remove all mounting screws.

2. Take out the woofer unit together with its cable.

Caution: the woofer unit must remain airtight.

E_14620_032.eps

130504

1. Disconnect all cables from the LED / Switch panel.

2. Remove the mounting screws from the panel shielding and

remove it.

3. Remove the mounting screws from the LED/Switch panel.

4. Take out the LED/Switch panel.

EN 10 FTL2.1U, FTL2.2U4.

4.3.12 Speakers

1

E_14620_033.eps

130504

Figure 4-10 Speaker mounting screws at the rear side

2 2

Mechanical Instructions

4

E_14620_036.eps

130504

Figure 4-13 Speaker removal

1. Remove all speakers mounting screws (1) at the rear side
of the set (one screw is located under the Side I/O).

2. Flip the set over (be aware that the front cover is loose
now), and remover the front cover (2).

3. Remove all speakers mounting screws (3) at the LCD side.

4. Take out the speaker unit (4).

E_14620_034.eps

130504

Figure 4-11 Front cover removal (“Top” model)

3

E_14620_035.eps

090704

Figure 4-12 Speaker mounting screws at the front side

4.3.13 LCD Panel

3

2

3

3

1

2

3

Figure 4-14 LCD panel (photo: “Top” model 42-inch)

Caution: Before you start, be sure that the foam bars support

the LCD panel border, to prevent the display from falling when
its mounting screws are released.

1. Remove the screws from the wall mounting brackets and
remove the brackets.

2. Unplug the LVDS connector (1) at the LCD panel.

3. Unplug the backlight connectors (2).

4. Remove all mounting LCD panel screws (3).

5. Lift the plastic frame together with metal frame and PWBs

from the LCD panel.

E_14620_037.eps

090704

Mechanical Instructions

EN 11FTL2.1U, FTL2.2U 4.

4.3.14 Ambient Lights

3

2

1

Figure 4-15 Ambient light

Ambient lights are located in the rear cover of the set.

1. Remove all mounting Ambient lights screws (1) (some of
them are shown on the figure above).

2. Remove the screw from the cable clamp (2).

3. Unplug the cables (3).

4. Shift the Ambient light unit to the side (4) and take out the

unit.

4

4

E_14620_052.eps

130504

4.4.3 Main Supply Panel

1. Disconnect all cables from the Main Supply panel.

2. Remove all T10 mounting screws from the Main Supply

panel.

3. Take out the Main Supply panel.

4.4.4 Ambient Light Panel

1. Remove all mounting screws from the Ambient Light panel.

2. Disconnect all cables from the Ambient Light panel.

3. Take out the Ambient Light panel.

4.4.5 Standby Supply/Audio Panel

1. Disconnect all cables from the Standby Supply/Audio
panel.

2. Remove all T10 mounting screws from the Standby
Supply/Audio panel.

3. Take out the Standby Supply/Audio panel (it hinges at the
bottom side).

4.4.6 Side I/O Panel

1. Disconnect the cable(s) from the panel.

2. Remove the T10 mounting screws that hold the assy.

3. Release the clamps and take out the panel from its bracket.

4.4.7 Top/Side Control

1. Disconnect the cable(s) from the panel.

2. Remove the T10 mounting screws that hold the assy.

3. Release the clamps and take out the panel from its bracket.

4.4.8 LED Panel

1. Disconnect the cable(s) from the panel.

2. Remove the T10 mounting screws that hold the panel.

3. Take out the panel.

4.4 Assy/PWB Removal (for FTL2.2 “Wrap” Sets)

Note: Use figures from “Assy/PWB Removal (For FTL2.1 “Top”

Sets)“. Mind you that the different models can deviate slightly
from each other w.r.t. the mechanical construction. Where
necessary, you will find separate figures for clarification.

4.4.1 Metal Back Plate

Caution: Disconnect the AC Power (mains) cord before you

remove the metal back plate.

1. Place the TV set upside down on a table top, using the
foam bars (see part "Foam Bars").
Caution: do not put pressure on the display, but let the
monitor lean on the speakers or the Front cover.

2. Remove all T10 screws from the metal back plate.

3. Remove the four "mushrooms" (2) from the back plate.

4. Lift the back plate from the set. Make sure that wires and

flat foils are not damaged during the back plate removal.

4.4.2 Rear Cover

1. Remove all T10 parker screws (2) around the edges of the
rear cover.

2. Lift the rear cover from the set.

4.4.9 Speakers

1. After removal of the rear cover , you can access the
speakers.
Note: In the rear cover itself, two additional “passive”
speakers are mounted.

2. Be sure that the foam that makes the unit airtight is not
damaged. Otherwise, replace it.

4.4.10 SSB

1. Remove the LVDS fixing tape (1).

2. Remove all fixing screws (2).

3. Lift the shielding at the top and shift it upwards. The

shielding clamps at the connector side.
Caution: Be careful not to damage the EMC shielding
foam while you remove the shielding.

4. Remove all connector fixation screws from the connector
plate.

5. Remove the mounting screws from the SSB (5).

6. Disconnect the LVDS cable (6).

7. Lift the SSB, disconnect all cables, and take out the SSB.

EN 12 FTL2.1U, FTL2.2U4.

4.4.11 LCD Panel

Mechanical Instructions

1

4

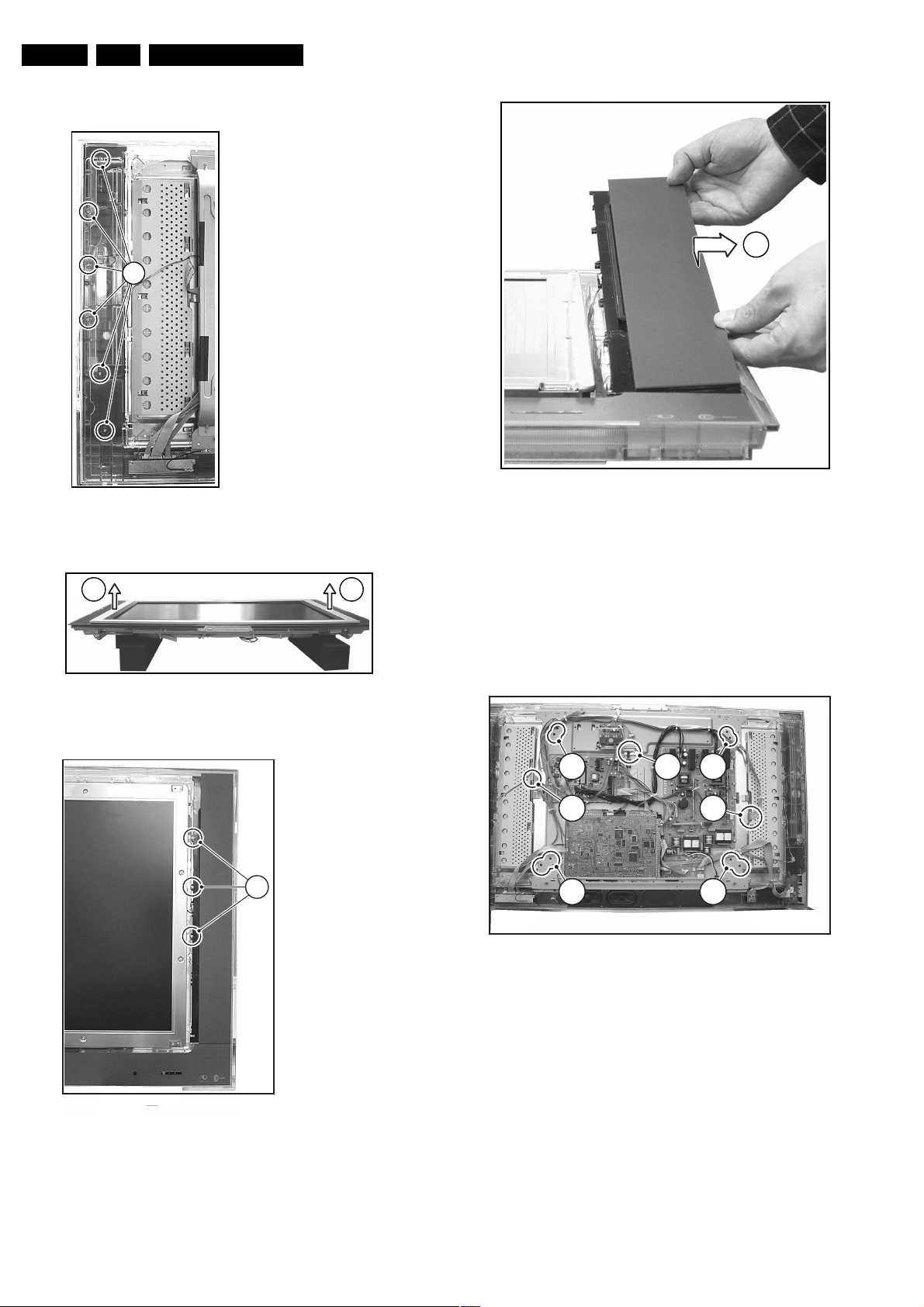

Figure 4-16 LCD panel (photo: “Wrap” model)

Caution: Before you start, be sure that the foam bars support

the LCD panel border, to prevent the display from falling when
its mounting screws are released.

1. Remove the T10 screws (1) from the mounting frame.

2. Remove all mounting LCD panel screws (2).

3. Important: Unplug the LVDS connector (3) at the LCD

panel. Be careful, as this is a very fragile connector!

4. Unplug the backlight and loudspeaker connectors (4).

5. Lift the metal frame (together with all CBAs) from the LCD

panel. During lift, free the backlight and speaker cables.

6. After removal of the frame, you can lift the LCD display
from the set.

1

3

2

5

1

1

1

E_14620_154.eps

300904

4.5 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Note: While re-assembling, make sure, that all cables are
placed and connected in their original position

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

1. Test Conditions

2. Service Modes

3. Problems and Solving Tips (related to CSM)

4. ComPair

5. Error Codes

6. The Blinking LED Procedure

7. Protections

8. Repair tips

9. Software Downloading

EN 13FTL2.1U, FTL2.2U 5.

SDM

5.1 Test Conditions

The chassis is equipped with test points printed on the circuit
board assemblies.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: color bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

Service Default Mode (SDM) and Service Alignment Mode
(SAM) offer several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between a Philips Customer Care Centre (P3C) and a
customer.

There is also the option of using ComPair, a hardware interface
between a computer (see requirements below) and the TV
chassis. It offers the ability of structured troubleshooting, test
pattern generation, error code reading, software version
readout, and software upgrading.
Minimum requirements: a Pentium processor, Windows 95/
98, and a CD-ROM drive (see also paragraph “ComPair”).

5.2.1 Service Default Mode (SDM)

Purpose

• To create a pre-defined setting, to get the same
measurement results as given in this manual.

• To override SW protections.

• To start the blinking LED procedure.

Specifications

• Tuning frequency: 61.25 MHz (channel 3) for NTSC.

• Color system: NTSC M/N.

• All picture settings at 50 % (brightness, color, contrast).

• All sound settings at 50 %, except volume at 25 %.

• All service-unfriendly modes (if present) are disabled, like:
– (Sleep) timer.
– Child/parental lock.
– Blue mute.
– Automatic volume limiter (AVL).
– Auto switch-off (when no video signal was received for

10 minutes).

– Skip/blank of non-favourite pre-sets.
– Smart modes.
– Auto store of personal presets.
– Auto user menu time-out.

How to activate SDM

Use one of the following methods:

• Use the standard RC-transmitter and key in the code

“062596”, directly followed by the “MENU” button.
Note: It is possible that, together with the SDM, the main

menu will appear. To switch it off, push the “MENU” button
again.

SW UPGRADE

MODE

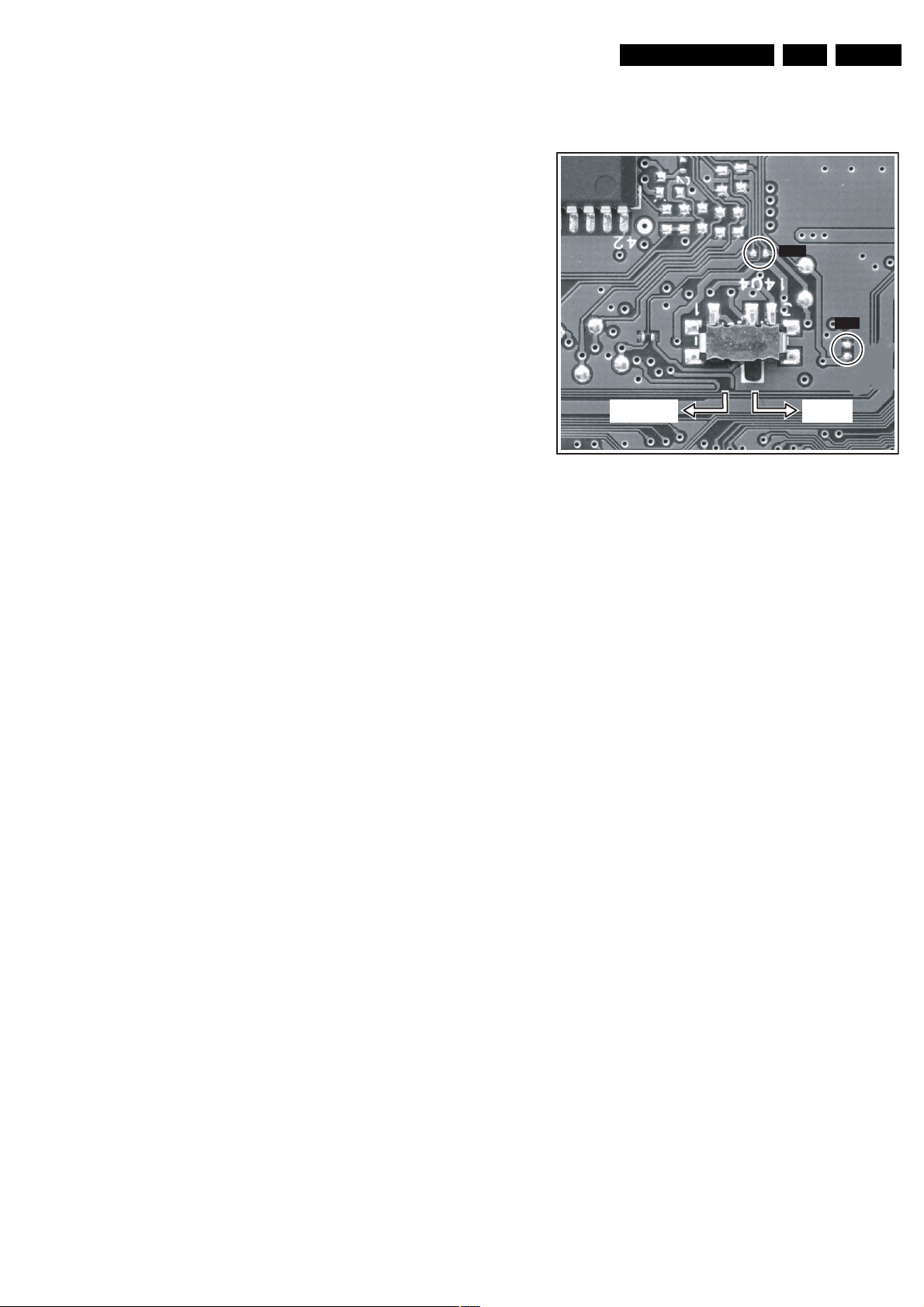

Figure 5-1 Service pads

• Short for a moment the two solder pads on the SSB, with
the indication “SDM”. Activation can be performed in all
modes, except when the set has a problem with the main
microprocessor.
Caution: If the SDM is activated via the pins, all the
software-controlled protections are de-activated.

• Use the DST-emulation feature of ComPair.

• Use the “DEFAULT” button on the Dealer Service Tool

(RC7150).

After activating this mode, “SDM” will appear in the upper right
corner of the screen.

How to navigate

When you press the “MENU” button on the RC transmitter, the
set will toggle between the SDM and the normal user menu
(with the SDM mode still active in the background).

How to exit SDM

Use one of the following methods:

• Switch the set to STANDBY via the RC-transmitter.

• Press the “EXIT” button on the DST.

• Via a standard customer RC-transmitter: key in “00”-

sequence.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To perform (software) alignments.

• To change option settings.

• To easily identify the used software version.

• To view operation hours.

• To display (or clear) the error code buffer.

Specifications

• Operation hours counter.

• Software version.

• Option settings.

• Error buffer reading and erasing.

• Software alignments.

How to activate SAM

Use one of the following methods:

• Via a standard RC transmitter: key in the code “062596”
directly followed by the “OSD [i+]” button. After activating

SAM

NORMAL
TV MODE

E_14620_151.eps

290704

EN 14 FTL2.1U, FTL2.2U5.

Service Modes, Error Codes, and Fault Finding

SAM with this method a service warning will appear on the
screen, you can continue by pressing any digit key on the
RC.

• Short for a moment the two solder pads on the SSB with
the indication "SAM". (see figure 5-1: Service pads)
Depending on the software version, it is possible that a
service warning will appear. You can continue by pressing
any digit key on the RC.

• Use the DST-emulation feature of ComPair.

• Press the ALIGN button on the DST while the set is in the

normal operation

After activating this mode, “SAM” will appear in the upper right
corner of the screen.

Contents of SAM:

• OPERATION HOURS. Displays the accumulated total of
operation hours (not the standby hours).

• SW VERSION INFO.
– ROM VERSION. Displays the date of the software and

the software version of the ROM
(ex. TX21US_1.0_01234 = AAAABB_X.Y_NNNNN).

• AAAA= the chassis name.

• BB= the region: EU= Europe, AP= Asia Pacific

PAL/Multi, AN= Asia Pacific NTSC, US= USA, LT=
LATAM.

• X.Y= the software version, where X is the main
version number (different numbers are not
compatible with one another) and Y is the sub
version number (a higher number is always
compatible with a lower number).

• NNNNN= last five digits of 12nc code software.

– FBX Version. Displays the software version of the

FBX

– SW VERSION EPLD. Displays the software version of

the EPLD.

• ERRORS. (followed by maximal 10 errors). The most
recent error is displayed at the upper left (for an error
explanation see paragraph “Error Codes”).

• DEFECTIVE MODULE. Here the module that generates
the error is displayed. If there are multiple errors in the
buffer, which are not all generated by a single module,
there is probably another defect. It will then display the
message “UNKNOWN” here.

• RESET ERROR BUFFER. When you press the “OK”
button, the error buffer is reset.

• ALIGNMENTS. This will activate the “ALIGNMENTS” sub-
menu.

• DEALER OPTIONS. Extra features for the dealers.

• SERVICE OPTIONS. Extra features for Service.

• INITIALISE NVM. When an NVM was corrupted (or

replaced) in the former EM3 chassis, the microprocessor
replaces the content with default data (to assure that the
set can operate). However, all pre-sets and alignment
values are gone now, and option numbers are not correct.
Therefore, this was a very drastic way. In this chassis, the
procedure is implemented in another way: The moment the
processor recognises a corrupted NVM, the “initialise
NVM” line will be highlighted. Now, you can do two things
(dependent of the service instructions at that moment):
– Save the content of the NVM via ComPair for

development analysis, before initialising. This will give
the Philips Service department an extra possibility for
diagnosis (e.g. when Development asks for this).

– Initialise the NVM (same as in the past, however now it

happens conscious).

• STORE. All options and alignments are stored when
pressing the “OK”-button

• FUNCTIONAL TEST. All devices are tested via the “OK”
button. Eventual errors are displayed in the error buffer.
The error buffer is not erased, the content returns when this
test is terminated.

• DAILY MENUS. With the “OK” button, you can go to the
normal user menu. SAM is still active in the background.
With the “MENU” button, you return from the user menu to

SAM menu. This feature can be helpful to quickly change
some settings in the user menu.

• SW MAINTENANCE.

• UPGRADE. More info see paragraph Software

downloading.

How to navigate

• In SAM, you can select the menu items with the “CURSOR
UP/DOWN” key on the RC-transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, move the “CURSOR UP/DOWN” key to display the
next/previous menu items.

• With the “CURSOR LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.

How to exit SAM

Use one of the following methods:

• Press the “MENU” button on the RC-transmitter, or

• Switch the set to STANDBY via the RC-transmitter, or

• Press the “EXIT” button on the DST.

5.2.3 Customer Service Mode (CSM)

Purpose

When a customer is having problems with his TV-set, he can
call his dealer. The service technician can than ask the
customer to activate the CSM, in order to identify the status of
the set. Now, the service technician can judge the severity of
the complaint. In many cases, he can advise the customer how
to solve the problem, or he can decide if it is necessary to visit
the customer.
The CSM is a read only mode; therefore, modifications in this
mode are not possible.

How to activate CSM

Use one of the following methods:

• Press the “MUTE” button on the RC-transmitter
simultaneously with the “MENU” button on the TV (top
control) for at least 4 seconds.

• Key in the code “123654” via the standard RC transmitter.

Note: Activation of the CSM is only possible if there is no (user)

menu on the screen!

How to navigate

By means of the “CURSOR-DOWN/UP” knob on the RC­transmitter, you can navigate through the menus.

Contents of CSM

CUSTOMER SERVICE MENU 1

• SW VERSION (example: TX21US_1.0_01234). Displays
the built-in software version. In case of field problems
related to software, software can be upgraded (for more
details, see paragraph Software downloading). You will
find details of the software versions in the chapter
“Software Survey” of the “Product Survey - Color
Television” publication. This publication is generated four
times a year.

• FEATURE BOX. The 12NC-number of the built-in Feature
Box software.

• SET TYPE. This information is very helpful for a helpdesk/
workshop as reference for further diagnosis. In this way, it
is not necessary for the customer to look at the rear of the
TV-set.

• CODE 1. Gives the latest five errors of the error buffer. As
soon as the built-in diagnose software has detected an
error the buffer is adapted. The last occurred error is
displayed on the leftmost position. Each error code is
displayed as a 3-digit number. When less than 10 errors

Service Modes, Error Codes, and Fault Finding

EN 15FTL2.1U, FTL2.2U 5.

occur, the rest of the buffer is empty (000). See also
paragraph Error Codes for a description.

• CODE 2. Gives the first five errors of the error buffer. See
also paragraph Error Codes for a description.

• VOLUME. Gives the last status of the volume as set by the
customer. The value can vary from 0 (volume is minimum)
to 100 (volume is maximum). Volume values can be
changed via the volume key on the RC-transmitter.

• BRIGHTNESS. Gives the last status of the brightness as
set by the customer. The value can vary from 0 (brightness
is minimum) to 100 (brightness is maximum). Brightness
values can be changed via the “CURSOR LEFT” and
“CURSOR RIGHT” keys on the RC-transmitter after
pressing the “MENU” button and selecting “PICTURE” and
“BRIGHTNESS”.

• CONTRAST. Gives the last status of the contrast as set by
the customer. The value can vary from 0 (contrast is
minimum) to 100 (contrast is maximum). Contrast values
can be changed via “CURSOR LEFT” and “CURSOR
RIGHT” keys on the RC-transmitter after pressing the
“MENU” button and selecting “PICTURE” and
“CONTRAST”.

• COLOUR. Gives the last status of the color saturation, as
set by the customer. The value can vary from 0 (color is
minimum) to 100 (color is maximum). Color values can be
changed via “CURSOR LEFT” and “CURSOR RIGHT”
keys on the RC-transmitter after pressing the “MENU”
button and selecting “PICTURE” and “COLOUR”.

• HUE. Only relevant for NTSC-signals (e.g. some NTSC-
DVD-discs).

CUSTOMER SERVICE MENU 2

• SHARPNESS. Gives the sharpness value. The value can
vary from 0 (sharpness is minimum) to 7 (sharpness is
maximum). In case of bad antenna signals, a too high
value of the sharpness can result in a noisy picture.
Sharpness values can be changed via the “CURSOR
LEFT” and “CURSOR RIGHT” keys on the RC-transmitter
after pressing the “MENU” button and selecting “PICTURE”
and “SHARPNESS”.

• HEADPHONE VOLUME. Gives the last status of the
headphone volume, as set by the customer. The value can
vary from 0 (volume is minimum) to 100 (volume is
maximum). Headphone volume values can be changed via
the “CURSOR LEFT” and “CURSOR RIGHT” keys on the
RC-transmitter after pressing the “MENU” button and
selecting “SOUND” and “HEADPHONE VOLUME”.

• DOLBY. Indicates whether the received transmitter
transmits Dolby sound (“ON”) or not (“OFF”). Attention: The
presence of Dolby can only be tested by the software on
the Dolby Signalling bit. If a Dolby transmission is received
without a Dolby Signalling bit, this indicator will show “OFF”
even though a Dolby transmission is received.

• SURROUND MODE. Indicates the by the customer
selected surround mode (or automatically chosen mode).
Possible values are “OFF”, “INCREDIBLE SURROUND”
OR “DOLBY VIRTUAL”. These settings can be influenced
after pressing the “MENU” button and selecting “SOUND”
and SURROUND MODE”. It can also have been selected
automatically by signalling bits (internal software).

• TUNER FREQUENCY. Indicates the frequency the
selected transmitter is tuned to. The tuner frequency can
be changed via the “CURSOR LEFT” and “CURSOR
RIGHT” keys for fine tune after opening the installation
menu and selecting “INSTALL” and “MANUAL INSTALL”.

• DIGITAL OPTION. Gives the selected digital mode,
“PROGRESSIVE SCAN”, “MOVIE PLUS” or “PIXEL
PLUS”. Change via “MENU”, “PICTURE”, “DIGITAL
OPTIONS”.

• CENTRE TRIM. Not applicable for this set.

• TV SYSTEM. Gives information about the video system of

the selected transmitter.

– BG: PAL BG signal received.
– DK: PAL DK signal received.
– I: PAL I signal received.

– L/La: SECAM L/La signals received.
– M: NTSC M signal received with video carrier on 38.9

MHz.

CUSTOMER SERVICE MENU 3

• BALANCE. Indicates the balance settings, between “-50”
and “+50”. Change via “MENU”, “SOUND”, and
“BALANCE”. Not applicable for Dolby Pro Logic sets.

• CENTRE MODE. Indicates if centre mode is set “ON” or
“OFF”. When centre mode is on, all TV speakers are used
as one centre speaker. Change Centre mode via “MENU”,
“SETUP”, “SPEAKERS”, and “CENTRE MODE”.

• DNR. Gives the selected DNR setting (Dynamic Noise
Reduction), “OFF”, “MINIMUM”, “MEDIUM”, or
“MAXIMUM”. Change via “MENU”, “PICTURE”, “DNR”

• NOISE FIGURE. Gives the noise ratio for the selected
transmitter. This value can vary from 0 (good signal) to 127
(average signal) and to 255 (bad signal). For some
software versions, the noise figure will only be valid when
“Active Control” is set to “medium” or “maximum”.

• SOURCE. Indicates which source is used and the video/
audio signal quality of the selected source. (Example:
Tuner, Video/NICAM) Source: “TUNER”, “EXT1”, “EXT2”,
“EXT3”, “EXT4”, “SIDE”, “AV1”, “AV2”, “AV3” or “AV4”.
Video signal quality: “VIDEO”, “S-VIDEO”, “RGB 1FH”,
“YPBPR 1FH 480P”, “YPBPR 1FH 576P”, “YPBPR 1FH
1080I”, “YPBPR 2FH 480P”, “YPBPR 2FH 576P”, “YPBPR
2FH 1080I”, “RGB 2FH 480P”, “RGB 2FH 576P” or “RGB
2FH 1080I”. Audio signal quality: “STEREO”, “SPDIF 1”,
“SPDIF 2”, or “SPDIF”.

• AUDIO SYSTEM. Gives information about the audio
system of the selected transmitter: “ANALOGUE MONO”,
“ANALOGUE STEREO”, “PCM 2/0”, “DD 1/0”, “DD 2/0
LtRt”, “DD 2/0 L0R0”, “DD 2/1”, “DD 2/2”, “DD 3/0”, “DD 3/
1”, “DD 3/2”, “DD 1+1”, “MPEG 1/0”, “MPEG 2/0”, “MPEG
2/0 LtRt”, “MPEG 2/1”, “MPEG 2/2”, “MPEG 3/0”, “MPEG
3/1”, “MPEG 3/2”, “MPEG 1+1” or “MPEG 2+2”.

• TUNED BIT. Gives information about the tuning method of
the stored pre-set. If a channel is found via “automatic
installation”, you will see the value “YES”. When you
change this (automatically found) frequency via “fine tune”
adjustment (installation menu - manual installation), the
displayed value will change to “NO”. Therefore, when you
see the value “NO” in this line, it is an indication that the
received channel is a non-standard signal (e.g. of a VCR).

• SURROUND SPEAKERS. Not applicable in this set.

• ON TIMER. Indicates if the “On Timer” is set “ON” or “OFF”

and if the timer is “ON” also displays start time, start day
and program number. Change via “MENU”, “TV”,
“FEATURES”, and “ON TIMER”.

• PRESET LOCK. Indicates if the selected preset has a child
lock: “LOCKED” or “UNLOCKED”. Change via “MENU”,
“TV”, “FEATURES”, “CHILD LOCK”, and “CUSTOM
LOCK”.

CUSTOMER SERVICE MENU 4

• CHILD LOCK. Indicates the last status of the general child
lock: “UNLOCK”, “LOCK”, or “CUSTOM LOCK”. Change
via “MENU”, “TV”, “FEATURES”, “CHILD LOCK”, and
“LOCK”.

• AGE LOCK. Indicates the last status of the EPG rating for
child lock: “OFF”, “4 YEARS”, “6 YEARS”, “8 YEARS”, “10
YEARS”, “12 YEARS”, “14 YEARS” or “16 YEARS”. This is
only displayed if child lock is set to “CUSTOM LOCK”

• LOCK AFTER. Indicates at what time the child lock is set:
“OFF” or e.g. “18:45” (lock time). This is only displayed if
child lock is set to “CUSTOM LOCK”

• CATEGORY LOCK. Indicates the last status of the EPG
theme childlock: “MOVIES”, “NEWS”, “SHOWS”,
“SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or
“SERIES”. This is only displayed if child lock is set to
“CUSTOM LOCK”. It is possible that more than one value
is shown.

EN 16 FTL2.1U, FTL2.2U5.

Service Modes, Error Codes, and Fault Finding

• PROGRAM CATEGORY. Indicates the theme of the
selected transmitter: “MOVIES”, “NEWS”, “SHOWS”,
“SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or
“SERIES”.

• TV RATINGS LOCK. Only applicable for US. Gives the
setting of V-chip as selected by the customer (for more
details see user manual).

• MOVIE RATINGS LOCK. Only applicable for US. Gives
the ability to select access to individual movies based on
their MPAA ratings (for more details see user manual).

• V-CHIP TV STATUS. Only applicable for US. Gives the
setting of the V-chip as applied by the selected TV­channel. Same values can be shown as for “TV Ratings
Lock”.

CUSTOMER SERVICE MENU 5

• V-CHIP MOVIE STATUS. Only applicable for US. Gives
the status of the V-chip from the selected TV-channel for
individual movies based on their MPAA rating. Same
values can be shown as “Movie Ratings Lock”.

• OPTIONS 1. Gives the option codes of option group 1 as
set in SAM (Service Alignment Mode).

• OPTIONS 2. Gives the option codes of option group 2 as
set in SAM (Service Alignment Mode).

• AVL. Indicates the last status of AVL (Automatic Volume
Level): “ON” or “OFF”. Change via “MENU”, “TV”,
“SOUND”, “AVL”

• DELTA VOLUME. Indicates the last status of the delta
volume for the selected preset as set by the customer: from
“-12” to “+12”. Change via “MENU”, “TV”, “SOUND”,
“DELTA VOLUME”.

• FRONT SPKR DIST. Not applicable for this set.

• FRONT SPKR DIST. Not applicable for this set.

“Contrast” value. The new value(s) are automatically
stored (in “personal” pre-set) for all TV channels.

2. Check in CSM lines BRIGHTNESS and CONTRAST. If the
value of these line is high (> “50”), decrease the
“Brightness” value or increase the “Contrast” value via the
user menu.

White line around picture elements and text

1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the
picture improves, decrease the “Sharpness” value. The
new value is automatically stored (in “personal” pre-set) for
all TV channels.

2. Check in CSM line “Sharpness”. If the value is high,
decrease it. The new value is automatically stored for all
TV channels.

No picture

Check in CSM line TUNED BIT. In case the value is “No”, install
the required program again. Open the installation menu and
perform manual installation.

No picture

No proper signal is received. Check the aerial cable/aerial
system.

No picture or unstable picture

A scrambled or decoded signal is received.

Black and white picture

Check in CSM line COLOUR. In case the value is low (< "10"),
increase the “Colour” value via the user menu. The new value
is automatically stored for all TV channels.

How to exit CSM

Use one of the following methods:

• After you press a key on the RC-transmitter (with exception
of the “CHANNEL”, “VOLUME” and digit (0-9) keys), or

• After you switch the TV-set “OFF” with the mains switch.

5.3 Problems and Solving Tips (related to CSM)

Note: Below described problems are all related to the TV

settings (visible in the CSM menu). The procedures to change
the value (or status) of the different settings are described
above. New value(s) are automatically stored.

5.3.1 Picture Problems

Snowy/noisy picture

1. Check in CSM line NOISE FIGURE. In case the value is
"127" or higher, and the value is also high on other
programs, check the aerial cable/aerial system. For some
software versions, the noise figure will only be valid when
“Active Control” is set to “medium” or “maximum”.

2. Check in CSM lines SHARPNESS and NOISE FIGURE. In
case the value of line SHARPNESS is "3" or "4" and the
value of line NOISE FIGURE is high ("127" or higher),
decrease the "Sharpness” value.

Picture too dark

1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the
picture improves, increase the “Brightness” or the
“Contrast” value. The new value(s) are automatically
stored (in “personal” pre-set) for all TV channels.

2. Check in CSM line BRIGHTNESS and CONTRAST. If the
value of these lines is low (< "10"), increase the
“Brightness” or the “Contrast” value via the user menu.

Picture too bright

1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the
picture improves, decrease the “Brightness” or the

No colors/color lines around picture elements or colors not correct or unstable picture

1. Check in CSM line TV SYSTEM. If a “strange” system pops
up, something has gone wrong during installation. Re­install the channel.

Menu text not sharp enough

1. Press “MENU”, “TV”, “PICTURE”, “SMART PICTURE”. In
case picture improves, decrease the contrast value. The
new value(s) are automatically stored for all TV channels.

2. Check line “Contrast”. If the value is high, decrease the
contrast value.

5.3.2 Sound Problems

No sound from left and right speaker

Check line 6 “Volume”. The value is low. Increase the value of
“Volume”. The new value(s) are automatically stored (in
“personal” pre-set) for all TV channels.

5.4 ComPair

5.4.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:

• ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I
is therefore capable of accurately indicating problem areas.
You do not have to know anything about I
yourself because ComPair takes care of this.

• ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is

2

C level) and

2

C commands

Service Modes, Error Codes, and Fault Finding

directly available. When ComPair is installed together with
the SearchMan electronic manual of the defective chassis,
schematics and PWBs are only a mouse click away.

5.4.2 Specifications

ComPair consists of a Windows based faultfinding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
or RS232 cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector.

The ComPair faultfinding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:

• Automatic (by communication with the television): ComPair
can automatically read out the contents of the entire error
buffer. Diagnosis is done on I

2

the I

C bus of the television. ComPair can send and

receive I

2

C commands to the micro controller of the
television. In this way, it is possible for ComPair to
communicate (read and write) to devices on the I
of the TV-set.

• Manually (by asking questions to you): Automatic
diagnosis is only possible if the micro controller of the
television is working correctly and only to a certain extends.
When this is not the case, ComPair will guide you through
the faultfinding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next
step in the faultfinding process.

By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.

Beside fault finding, ComPair provides some additional
features like:

• Up- or downloading of pre-sets.

• Managing of pre-set lists.

• Emulation of the Dealer Service Tool (DST).

• If both ComPair and SearchMan (Electronic Service

Manual) are installed, all the schematics and the PWBs of
the set are available by clicking on the appropriate
hyperlink.

Example: Measure the DC-voltage on capacitor C2568
(Schematic/Panel) at the Mono-carrier.

– Click on the “Panel” hyperlink to automatically show

the PWB with a highlighted capacitor C2568.

– Click on the “Schematic” hyperlink to automatically

show the position of the highlighted capacitor.

5.4.3 Stepwise Start-up

Under normal circumstances, a fault in the power supply, or an
error during start-up, will switch the television to protection
mode. ComPair can take over the initialisation of the television.
In this way, it is possible to distinguish which part of the start­up routine (hence which circuitry) is causing the problem.
Take notice that the transition between two steps can take
some time, so give the set some time to reach a stable state.
During the transition time, the LED can blink strangely.

Stepwise start- up explanation

This is realised via ComPair and is very helpful when a
protection is activated (see also chapter “Protections”). The
following diagram shows the start-up procedure of the set.
Every step of the stepwise start-up (also called trapped start­up) in the diagram corresponds with the number of times the
led blinks.

2

C level. ComPair can access

2

C busses

OUT

OTC gets supply voltage

OTC resets, Initialise IO pins

Reset Audio=high

Read NVM identification

enable watchdog

OFF

Stand-by bit = OFF

Initialize PDP SDI

opt 0,1,7

400msec>t>200msec

start time extraction
start P50 recording

start EPG loading

Standby bit = off

Ambient light ON

Trapped Startup 1

Trapped Startup 2

Start up LCD

opt 3,4,5,6

Mains cord IN

Stand-by

Put Stand-by line LOW

CPU GO becomes HIGH

Set STBYEN,VCCON,PFCON = 1

Only FHP (opt 2, 8)

Keep sound amplifiers muted with

sound enable = high

+5V and +8V is switched on

+8V and +5V get their nominal level,

detected by the OTC

activate protection algorithms for +8V and +5V and
I²C (start I²C protection the moment the component

Initialize HIP: IF, source selection, 2fh input, video

Switch on the syncoutput: set_syncout_tristate= off

is initialised).

Read rest of NVM information

processing

Initialize tuner

Initialize 3D Combfilter
or Initialize Columbus

Initialize PICNIC + screen info

Initialize rest of PIP/DW module

Start TXT acquisition

and time extraction

Reset Audio = low
and Initialize MSP

Initialize EBILD

Screen type

Initialize PDP FHP

opt 2,8

Figure 5-2 Stepwise startup part 1

Start up LCD

Trapped Startup 3

Start

Stand-by bit set ?

yes

Semi stand by

no

Ebild Power ON

Output Blanking OFF

LAMP ON

ON

Figure 5-3 Stepwise startup part 2

Note (*):

• When the set is in stepwise mode and, due to stepping-up,
a protection is activated, the set will really go into protection
(blinking LED). The set will not leave the stepwise-mode
however. If state X is the state where the set went to
protection, stepwise start-up will return to state X-1. At
state (X-1) diagnostic measurements can be performed.
Also, in the short time the set is in state X but not yet in
protection, you can also do some measurements.

EN 17FTL2.1U, FTL2.2U 5.

Tact switch

E_14620_048.eps

LCD ON

Trapped Startup 4

E_14620_049.eps

170504

170504

EN 18 FTL2.1U, FTL2.2U5.

Service Modes, Error Codes, and Fault Finding

5.4.4 How To Connect

This is described in the chassis fault finding database in
ComPair .

TO

UART SERVICE

CONNECTOR

PC VCR I2CPower

9V DC

E_06532_021.eps

Figure 5-4 ComPair interface connection

5.4.5 How To Order

This is described in the chassis fault finding database in
ComPair.

Note: If you encounter any problems, contact your local
support desk.

5.5 Error Codes

5.5.1 Introduction

TO
I2C SERVICE
CONNECTOR

180804

5.5.4 Error Codes

In case of non-intermittent faults, clear the error buffer before
you begin the repair. This to ensure that old error codes are no
longer present. Before clearing the buffer, write down the
content, as this history can give you significant information.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
code and not the actual cause (e.g., a fault in the protection
detection circuitry can also lead to a protection).
There are various errors:

2

• I

C device errors.

2

C bus errors.

• I

• Protection errors.

• Errors not related to an I

2

C device, but of importance:

– FEM (Falconic with Embedded Memory)(Error 26):

at start-up, after initialisation of the PICNIC, the
presence of the FEM can be checked.

– Eagle (Error 27): at start-up, after initialisation of the

PICNIC, the presence of the Eagle can be checked.

The error code buffer contains all detected errors since the last
time the buffer was erased. The buffer is written from left to
right, new errors are logged at the left side, and all other errors
shift one position to the right.
When an error has occurred, the error is added to the list of
errors, provided the list is not full or the error is a protection
error.
When an error occurs and the error buffer is full, then the new
error is not added, and the error buffer stays intact (history is
maintained), except when the error is a protection error.
To prevent that an occasional error stays in the list forever, the
error is removed from the list after 50+ operation hours.
When multiple errors occur (errors occurred within a short time
span), there is a high probability that there is some relation
between them.

5.5.2 How to read the Error Buffer

Use one of the following methods:

• On screen via the SAM (only if you have a picture).
Examples:

– 0 0 0 0 0: No errors detected
– 6 0 0 0 0: Error code 6 is the last and only detected

error

– 9 6 0 0 0: Error code 6 was first detected and error code

9 is the last detected error

• Via the blinking LED procedure (when you have no
picture). See next paragraph.

• Via ComPair.

5.5.3 How to clear the Error Buffer

Use one of the following methods:

• By activation of the “RESET ERROR BUFFER” command
in the SAM menu.

• With a normal RC, key in sequence “MUTE” followed by
“062599” and “OK”.

• When you transmit the commands “DIAGNOSE” - “99” ­“OK” with ComPair (or with a DST).

• If the content of the error buffer has not changed for 50+
hours, it resets automatically.

Service Modes, Error Codes, and Fault Finding

Table 5-1 Error Table

Error Device Description Def. item Def. Module indication Diagr.

1 M24C32 NVM, spontaneous blinking error 1 7011 Control B5a
3 SAA4978 PICNIC 7713 Feature Box B3a
4 Supply 5 V 5V protection / +5V Supply B5a
5 Supply 8 V 8V protection / +8V Supply B5a
6Slow I
8 TDA932x HIP High-end Input Processor 7323 Chroma IF IO B2
13 UV1318/... Tuner protection 1T01 Tuner B13a
14 MSPxxxx ITT sound processor 7A02 Audio module B6a
18 Fast I
21 M62320P I/O Expander 7P56 Video Dual Screen B15b
23 UV1318/... Sub tuner 1T02 Video Dual Screen B13b

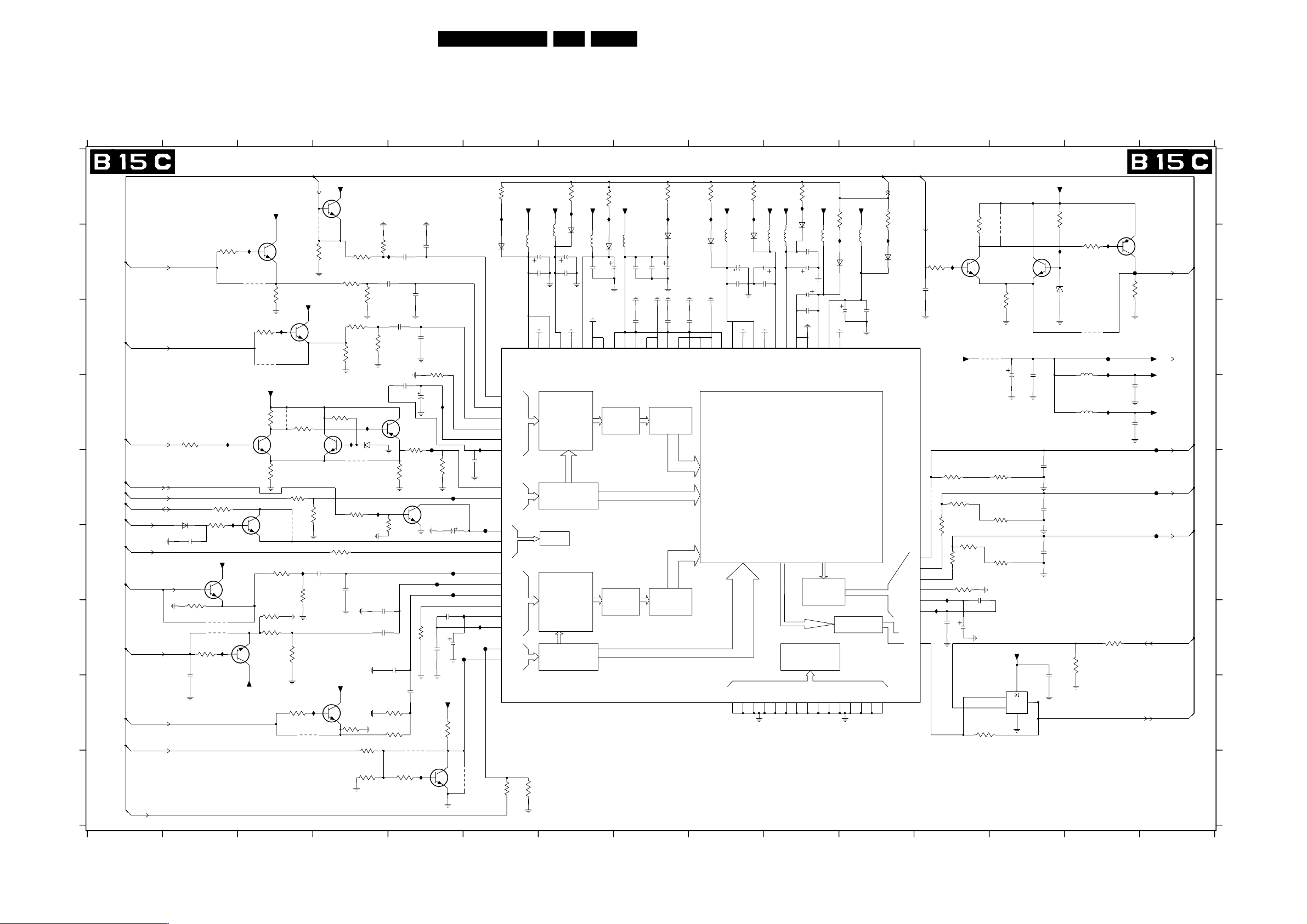

24 SAB9083H PIP Muppet 7PA6 Video Dual Screen B15c
25 Z86130 V-CHIP (US only) 7P51 Video Dual Screen B15b
26 SAA4998 FEM (Falconic with Embedded Memory) 7760 +3V (FBX) Supply B3b
27 T6TX5ES Eagle 1C 7720 +3V (FBX) Supply B3c
32 M29W400BT Flash Ram (EPG) 7012 EPG Memory B5a
34 TDA932x Second HIP 7P09 Video Dual Screen B15a
35 T6TU5ES Columbus 7752 +3V (FBX) Supply B3d
53 AD9883A AD converter 7E23 HD B19c
55 DC/DC converter One of the voltages is not ok + protection error / Supply /
56 EPLD EPLD error 7V01 Video control B19d
76 Audio supply Audio supply protection / / /
82 TDA7309 Headphone processor 7A06 Video Dual Screen B6a

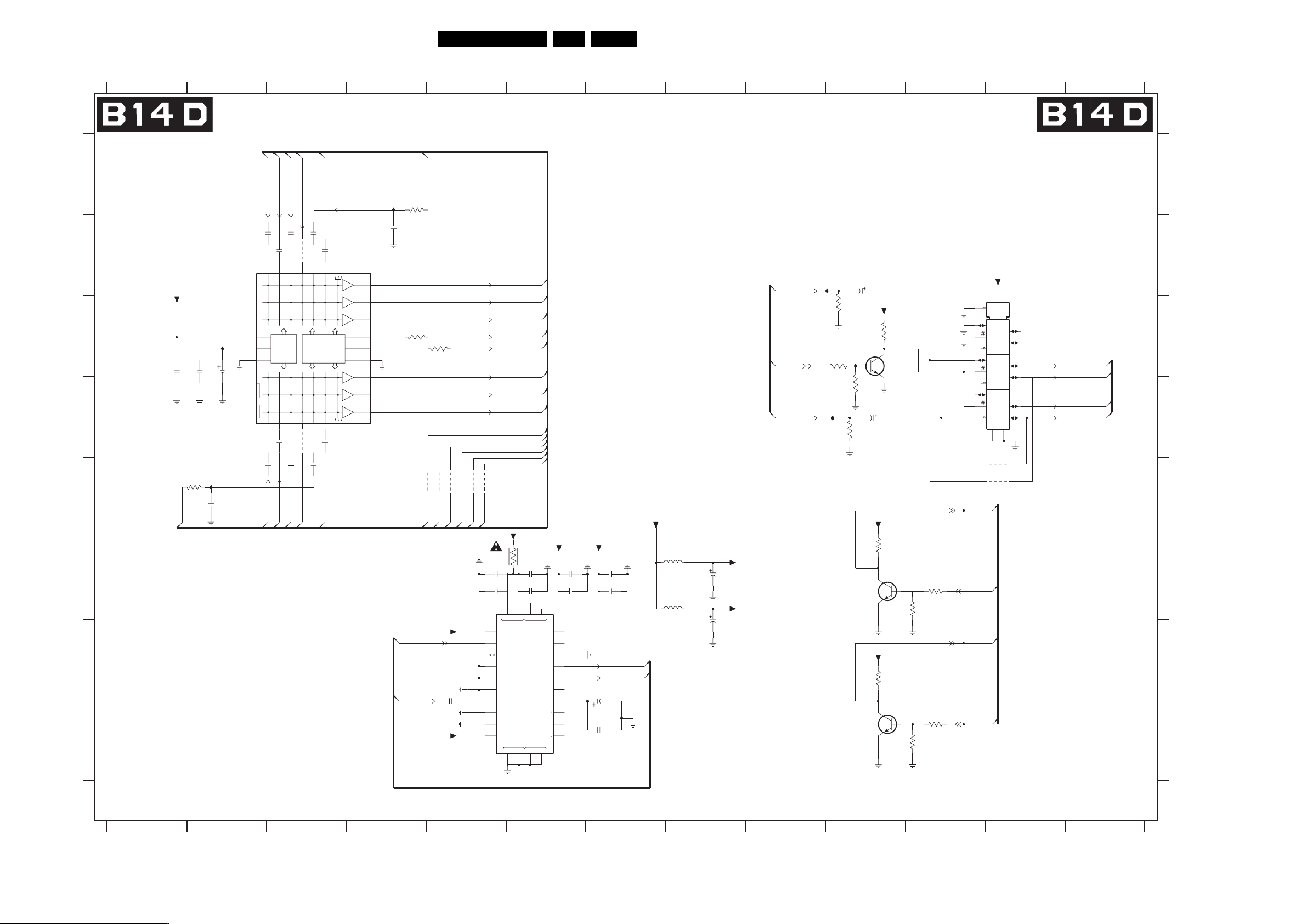

83 TEA6422 Source select matrix audio 7I17 Audio Source Select B14d

2

C bus blocked Spontaneous blinking error 6 / Slow I2C Blocked /

2

C bus blocked Spontaneous blinking error 18 / Fast I2C Blocked /

EN 19FTL2.1U, FTL2.2U 5.

Note:

• Error codes 1, 6, or 18 are protection codes and in this
case, supplies of some circuits will be switched “OFF”.
Also, in protection, the LED will blink the number of times
equivalent to the most recent error code.

5.6 The Blinking LED Procedure

5.6.1 Introduction

Via this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful for fault
finding, when there is no picture.

When the SDM is activated, the front LED will show (blink) the
contents of the error-buffer. Error-codes > 10 are shown as
follows:
– A long blink of 750 ms (which is an indication of the decimal

digit),

– A pause of 1.5 s,
– “n” short blinks (where “n” = 1 - 9),
– When all the error-codes are displayed, the sequence

finishes with a LED blink of 3 s,

– The sequence starts again.

Example: Error 12 9 6 0 0.
After activation of the SDM, the front LED will show:
– 1 long blink of 750 ms (which is an indication of the decimal

digit) followed by a pause of 1.5 s,

– 2 short blinks followed by a pause of 3 s,
– 9 short blinks followed by a pause of 3 s,
– 6 short blinks followed by a pause of 3 s,
– 1 long blink of 3 s to finish the sequence,
– The sequence starts again.

Note: If errors 1, 6, or 18 occur, the LED always gives the last
occurred error even if the set is NOT in service mode.

5.6.2 How to Activate

Use one of the following methods:

• Activate the SDM (only via soldering pads marked “SDM”
on SSB). The blinking front LED will show the entire
contents of the error buffer (this works in “normal
operation” mode and in “protection” mode).

• Transmit the commands “MUTE” - “062500” - “OK” with a
normal RC. The complete error buffer is shown. Take
notice that it takes some seconds before the blinking LED
starts.

• Transmit the commands “MUTE” - “06250x” - “OK” with a
normal RC (where “x” is a number between 1 and 5). When
x= 1 the last detected error is shown, x= 2 the second last

error, etc.... Take notice that it takes some seconds before

the blinking LED starts.

• “DIAGNOSE X” with the DST (where “x” is a number
between 1 and 5). When x= 1 the last detected error is

shown, x= 2 the second last error, etc.... When x = 0 all

errors are shown.

5.7 Protections

5.7.1 Introduction

This chassis has only one microprocessor (OTC), which
remains active during Standby. This because power of the
microprocessor and the attached memory chip set is coming
from the 3V3 supply, which is derived from the 5V Standby­circuitry. Therefore, in both Power-on as in Standby mode, the
microprocessor is connected to this power supply.

If a fault situation is detected, an error code will be generated
and if necessary, the set is put in protection mode. The
protection mode is indicated by the blinking of the front LED at
a frequency of 3 Hz (or by a coded blinking in special cases).

The content of the error buffer can be read via the service menu
(SAM), the blinking LED procedure or via DST/ComPair.

EN 20 FTL2.1U, FTL2.2U5.

Service Modes, Error Codes, and Fault Finding

To get a quick diagnosis, this chassis has three service-modes
implemented:

• The Customer Service Mode (CSM).

• The Service Default Mode (SDM). Start-up of the set in a

predefined way.

• The Service Alignment Mode (SAM). In this mode, items
of the set can be adjusted via a menu.

You can activate both SDM and SAM modes via the “service
pads” on the SSB, via an RC-transmitter (DST or standard RC),
or via ComPair. It is not possible to activate the SAM in
“standby”; the TV has to be in “normal operation” mode.

The “Protection Diagram” shows the structure of the protection
system. See diagram below.

TUNER

FAST I2C BUS BLOCKED

SLOW I2C BUS BLOCKED

EPLD

+

FBX

+

3D COMB

DC_PROT (from audio)

+8V_CON

+5V_CON

DC/DC

PROTECTION

IRQ-DIGITAL (98)

+8V SENSE (105)

+5V SENSE (106)

I2C

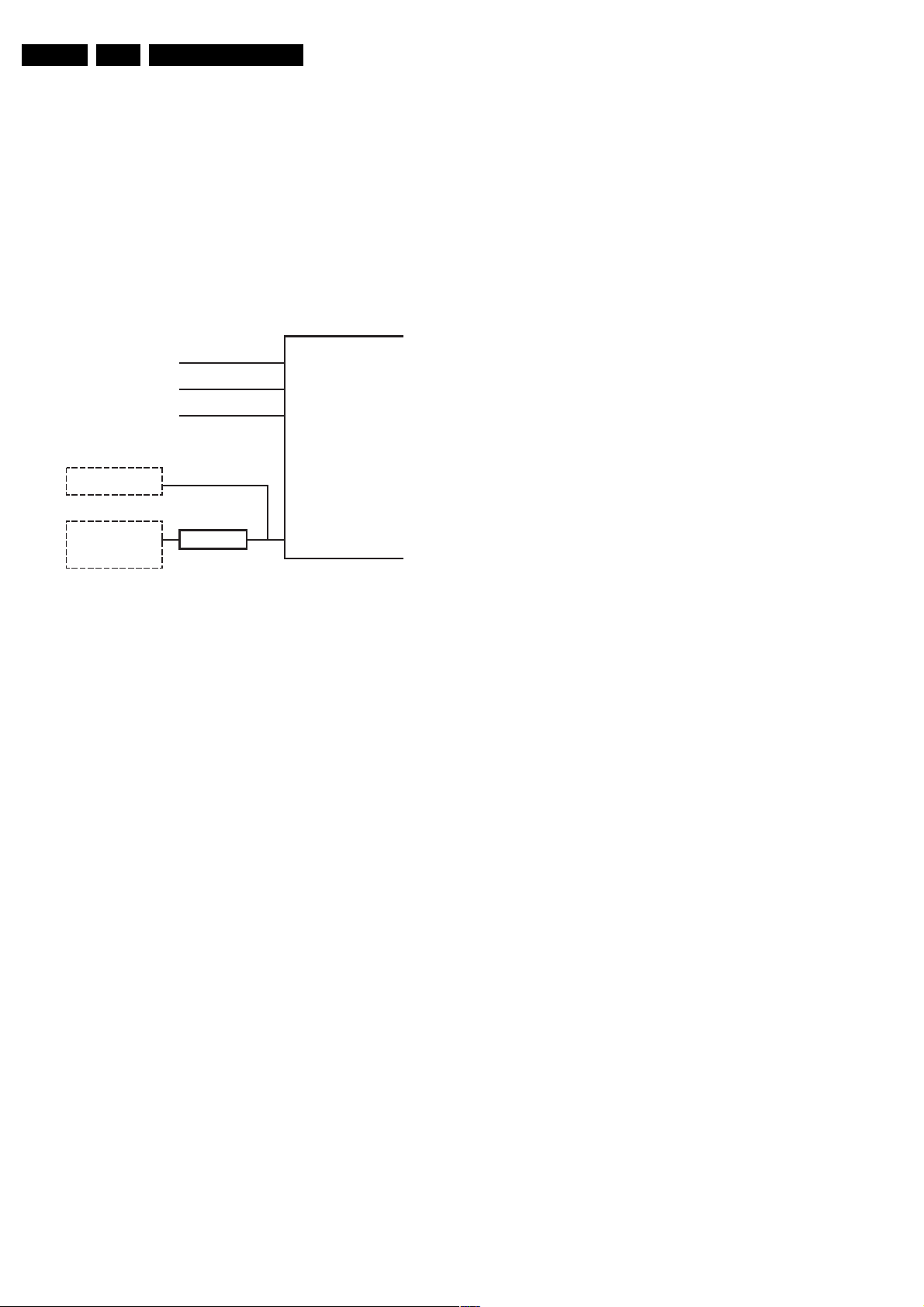

Figure 5-5 Protection diagram

There are several types of protections:

2

• I

C related protections.

• OTC related protections (via polling on I/O pins or via
algorithms).

• Hardware protection

All protections are explained below.

5.7.2 I

2

C Related Protections

In normal operation, some registers of the I
are refreshed every 200 ms. During this sequence, the I
busses and the I

2

An I

C protection will take place if the SDA and SCL lines are

2

C ICs are checked.

2

short-circuited to ground, or to each other. An I
occur, if the power supply of the IC is missing.

DC/DC protection: When a 3V3 supply is short-circuited the
DC/DC converter switches off and goes in protection. The FBX,
EPLD IC, and 3D comb IC (US only) have no supply voltage
and give no acknowledge. In this case, the set should go into
protection. An error code is written in the NVM: DC/DC error.

FBX protection: the FBX protection is not available any more.
It is replaced by the DC/DC protection.

5.7.3 OTC Related Protections

If a protection is detected at an OTC input, the OTC will start to
scan all protection inputs every 200 ms for 5 times. If the
protection on one of the inputs is still active after 1 s, the
microprocessor will put the set in the protection mode. Before
the scanning is started, a so-called “ESD refresh” is carried out.
This is done, because the interrupt on one of the inputs is
possibly caused either by a flash or by ESD. As a flash or ESD
can influence IC settings, the HIP, MSP, 3D Comb (US only)
and wireless module (not used in this set) are initialised again,
to ensure the normal picture and sound conditions of the set.

OTC

E_14620_051.eps

150704

C controlled ICs

2

C error will also

2

C

8 V and 5 V protections: The microprocessor senses the
presence of the 8 V and 5 V (via the “+5V_CON” and
“+8V_CON” lines). If one (or both) of these voltages is (are) not
present, an error code is stored in the error buffer of the NVM,
and the set is put in the protection mode.

Audio DC protection: The OTC senses if the audio module is
in protection via IRQ-DIGITAL (pin 98 of OTC). If this is the
case, the OTC puts the set in protection.

5.7.4 Hardware Protection

Short-circuiting the 3V3 supply from the DC/DC converter will
shut down the DC/DC converter. The absence of the 3V3
supply line is also sensed via I

2

C (see description DC/DC
protection above), this is useful if there is something wrong in
the detection circuit of the DC/DC converter. There are no
hardware protections in this chassis, which switch off the main
supply.

5.8 Repair tips

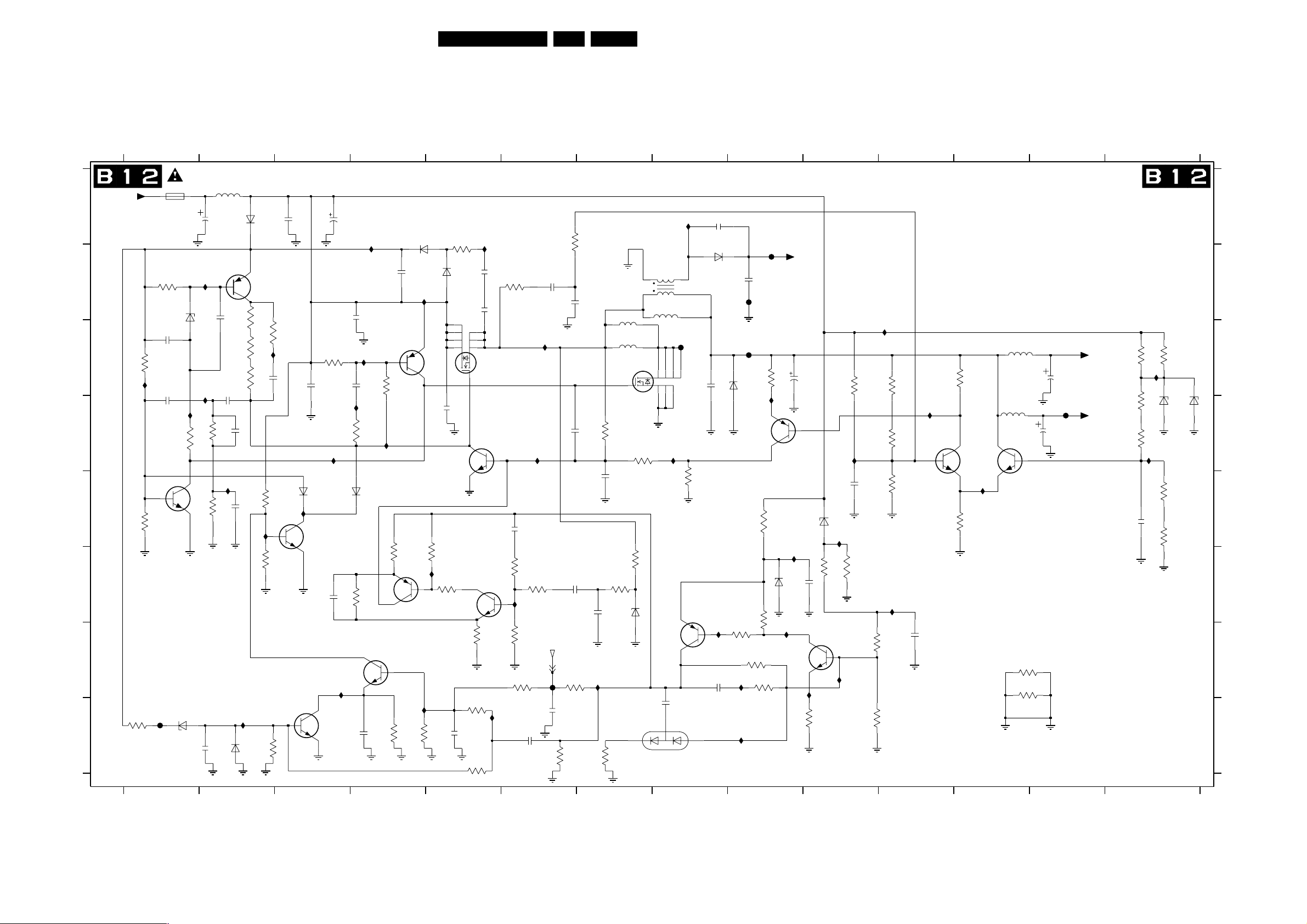

5.8.1 3V3 Supply (DC/DC converter)

As mentioned above, the DC/DC converter is switched “off”
when something goes wrong (detection of a missing 3V3
supply at one of the devices supplied by the 3V3). Because of
this, the set goes to protection (I
is logged.
For further diagnoses, you need to overrule the I
put the set in Service Default Mode by means of the solder
pads on the SSB.
The DC/DC converter is still not working because it is switched
“off” by the 3V3_FAULT line (schematic B12). Now you have
some possibilities:

1. First, measure the impedance over diode 6U06. In normal

conditions, you should measure approximately 120 ohm (if
possible, verify this with another set). If the impedance is
much too low, do not try to start up the converter as
mentioned below. Remind that if FET 7U03 is short­circuited, this will also influence your measurement.

2. Desolder coils 5U05 and 5U06, connect an external 3V3

supply at capacitor 2U23 (current limitation to 500 mA) and
a second external 3V3 supply at capacitor 2U31 (current
limitation to 800 mA). The normal working current of the
3V3_SIM line is approximately 400 mA and the normal
working current for the 3V3_DCDCFBX line is
approximately 700 mA. Therefore, if one of the currents
exceeds their nominal value you can determine in which
circuit the overload is situated. If the set would start up and
you have normal picture, there is probably no overload but
a problem in the detection circuits.

3. If you do not have two external power supplies, you can do

the following: Desolder coils 5U02, 5U03, and 5U04 (you
must desolder all three, otherwise the circuit could be
damaged), connect an external power supply of 3V3 at the
cathode of diode 6U06. Make sure to limit the current of this
external supply to approximately 1200 mA. If the supplied
current exceeds 1100 mA (approximately normal working
current) you can conclude that one of the devices supplied
by 3V3 is short-circuited.

4. Another possibility is to force the converter to start up by

short-circuiting (and keep short-circuited) resistor 3U25
(B12).
Caution: Be aware that this can damage the set. Even if
you measure approximately 120 ohm over diode 6U06,
there can still be something wrong in the converter itself.
By short-circuiting resistor 3U25, the internal protection of
the converter is disabled.

2

C protection). Error code “55”

2

C protection:

Service Modes, Error Codes, and Fault Finding

EN 21FTL2.1U, FTL2.2U 5.

5.8.2 ComPair

A “Service” (ComPair) connector is implemented at the rear
side of the set, which is directly accessible. In addition to this,
there is also a blinking LED procedure to show the contents of
the error buffer.
When you use ComPair, you have the possibility to activate a
“stepwise start-up” mode. With this mode, you can initiate the
start-up sequence step by step. This also means that in certain
steps, some protections are not activated. This is sometimes
very convenient during repair.

5.8.4 Repair tip table

Table 5-2 Repair tips

Phenomenon Possible Cause Repair tip

““F” in right corner of the screen and set is not
reacting on remote control. The local keyboard is
functioning.

No picture, LED blinking at 3 Hz. Set is in protection due to various causes.

No picture, LED blinking with code 6-6-6 or
18-18-18.

No picture, LED blinking with code 1-1-1. No communication on NVM-I2C bus to the uP. As the uP cannot communicate with the NVM I2C bus, it spontaneously starts blinking

No RC-reception. Blue LED does not echo RC­commands.

Picture is not synchronised. The sync is derived in the HIP. Check crystals in the HIP circuit on bad contacts.

Picture is distorted. Check video-path in Service Default Mode. Investigate whether there is an error code present in the error buffer. In case there is

Picture with horizontal stripes. Pixel Plus processing is malfunctioning Check functionality on circuitry (B3a, B3b, B3c and B3d) of PICNIC, FEM, EAGLE,

Various symptoms, due to missing local supply
voltage.

No sound at the speakers but sound at monitor
out.

No sound at the speakers but sound at monitor
out.

No sound at the speakers not at monitor out, but
sound at Monitor1 output.

No sound from any output (except headphone) Reset audio is high or MSP is not properly reset Check pin 16 of MSP (diagram B6a) and circuitry around MSP.

No sound from the tuner but sound from any other
input.

32" Sharp display (LCD) remains black at 1/3 of
the bottom

42" LPL display (LCD) has no backlight. 24V adjustment not correct. Adjust 24V with pot meter 3U26 on diagram A4 or check circuitry around it.

TV is in factory mode. Press menu button on local keyboard for at least 3 seconds. Set will leave factory

For error codes see error-code list.

No communication on slow I2C- or fast I2C-bus. As processor cannot communicate with one of the 2 busses it the standby-led

uP circuitry or RC-receiver is defective. In case the set does react on a local keyboard operation, you must check the RC-

An interrupted fuse, NFR-resistor or connection. When no symptom or error code leads you to a specific circuitry, use the supply lines

Possible problem with the class D amplifier Check circuitry around IC7700 on diagram SA3 (LCD) or C (PDP).

Sound enable from OTC is HIGH, speakers are
muted

POR line is low, anti plop circuit mutes the sound Check pin 8 on connector 1739 on audio panel.

Problem with the delay line (PDP sets only) Check circuitry on diagram B6d.

Display is defect. Replace display.

5.8.3 Protections

Activating SDM via the “service pads” will overrule the
processor-controlled protections, but not the hardware
protections. This means, that the A/D-input protections (5 and
8 V) and the I

2

C “not-acknowledging” info of FBX + EPLD + 3D
Comb (US) and of the tuner are overruled.
Caution: When doing this, the service technician must know
what he is doing, as it could lead to damaging the set.

mode and function normally again.

You have no picture, so:

- Read the error buffer via ComPair (error buffer is accessible when set is in
protection, ComPair-file will guide you to this)

- Read the blinking LED information via standard remote command
<mute>06250x<ok>.

- Or you read the error code sequence via standard remote command
<mute>062500<ok>.

When you have found the error, check the circuitry related to the supply voltage and
I2C-communication or the circuitry that triggers the protection.

spontaneously starts blinking 6-6-6-etc or 18-18-18-etc...
If in the error buffer somewhere is an error 6 or 18, these will have the highest priority
starting the mentioned blinking.
Measure dependent of the error on the I2C-bus which device is loading the bus. (Use
I2C-overview)

1-1-1. Note: when there is no access to the NVM, a lot of picture setting can go wrong.

receiver circuitry (diagram J).

one, check the I2C-bus and/or supply lines (see overview supply lines).
Measure and check signal path Tuner-HIP-FBX-EPLD.

COLUMBUS and/or field memories.
Tip: the whole Pixel Plus chipset (4 ICs + Field Memories) can be diagnosed via
ComPair.

overview (see supply lines overview), for a quick scan of all supply lines.

Check pin 95 of OTC on diagram B5a.

Diagram C for PDP sets and diagram SA3 for LCD sets

5.9 Software Downloading

In this chassis, you can upgrade the Main software via
ComPair without removing the back cover of the set (it is
possible that early production sets don’t have a hole in the back
plate, in this case you have to remove the back plate). The
switch, which is needed for the software downloading
procedure, can be reached through a gap in the back cover or
the SSB shielding. The switch can be operated with a toothpick
or something like that. Make sure that you do not damage the
PWB with sharp objects. You can find more information on how
this procedure works in the ComPair file. It is possible that not
all sets are equipped with the hardware, needed to make
software upgrading possible. To speed up the programming
process the firmware of the ComPair interface can be

upgraded. See paragraph “How To Order” for the order
number.

EN 22 FTL2.1U, FTL2.2U5.

Personal Notes:

Service Modes, Error Codes, and Fault Finding

E_06532_012.eps

131004

Block Diagrams, Testpoint Overviews, and Waveforms

6. Block Diagrams, Testpoint Overviews, and Waveforms

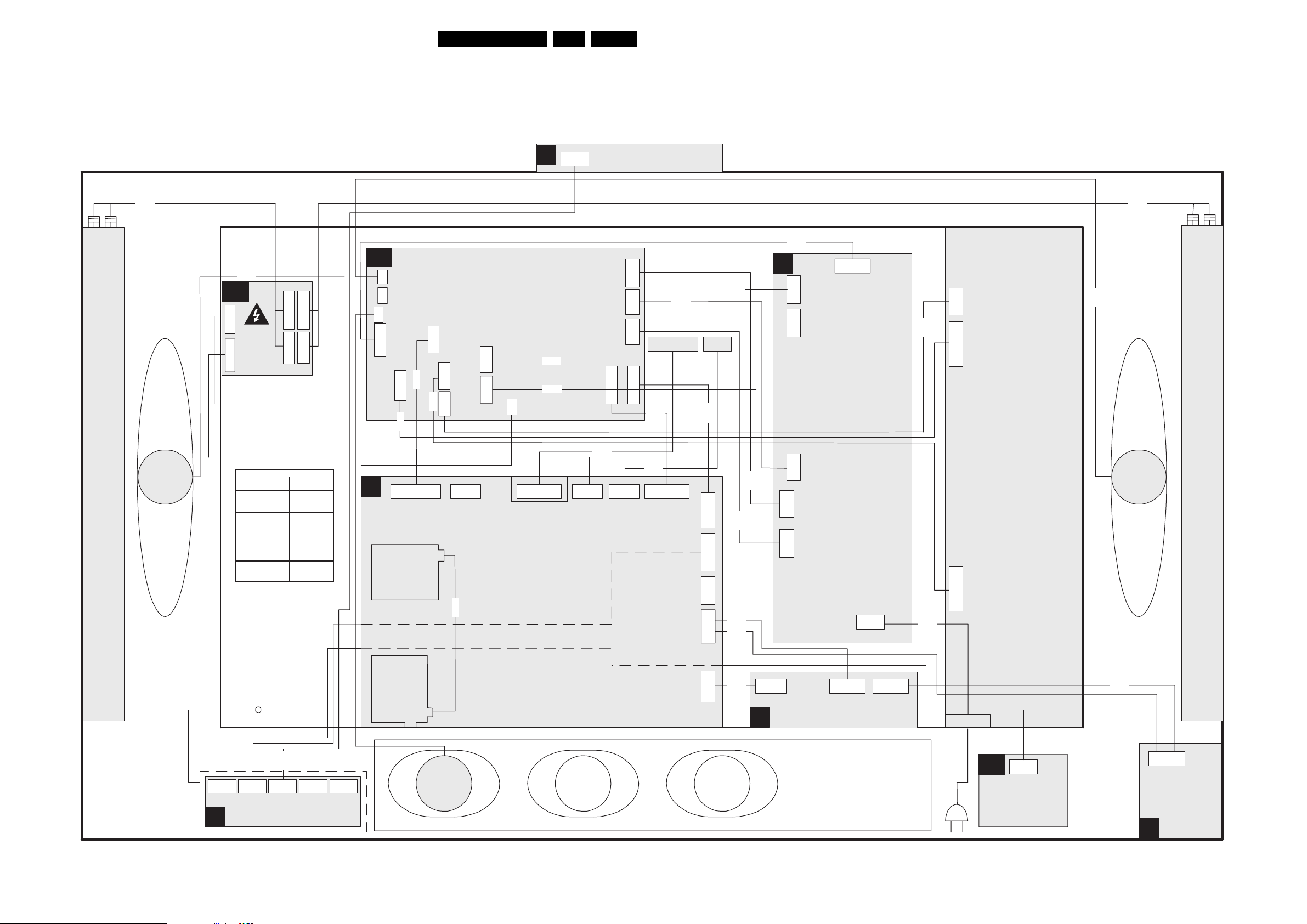

Wiring Diagram 32” Inch Sharp LCD (FTL2.1)

WIRING 32” SHARP

E

0345

EN 23FTL2.1U, FTL2.2U 6.

6P

Top Control

Ambient light lamps right

8313

LS

right

8735

AL

1M10

Ambient

Light

1M48

8310

8349

Connectors of Ambi-light inverter

Applied

Philips

Concepts

1008

1M14

1009

1M12

1006

1M13

1007

1M11

1001

1M08

1002

1M10

1003

1M48

1M14

1M12

1M11

1M13

Functions

1. GND (light)

2. GND (light)

3. GND (light)

1. Green light

6. Blue light

11. Red light

1. +12V_A

2. +12V_A

3. GND

4. GND

1. SCL-S

2. GND

3. SDA-S

SA

1736

1735

1738

7P 9P

1M02

10P

1314

8314

B

1M52 1M48

2nd Tuner

1T02

Audio + Stand-by

1739

4P

1304

10P

1315

8352

9P N.C.

8315

6P

1318

8192

3P

1309

1M10

4P

8304

8309

1G50

31P

SSB

2P3

1306

4P

1307

3P

1305

1M46

1M03

11P 10P

8250

1M49

1M17

3P 7P 11P

8346

8317

1M46

8307

CN1 CN2

8303

10P

1M03

12P

1M20

N.C.

1M01

11P

1M36

3th Scart

8337
8336

8305

8306

8302

A

1304

1309

4P

3P

1M02

MF Supply

4P

1307

2P3

1306

3P

1305

7P

1308

2P3

8318

8308

6P

CN3

10P

CN4

Inverters

10P

CN5

8311

8736

LS

left

Ambient light lamps left

8350

8220

8345

1M20 1M01

0350

5P 12P 6P N.C.

J

LED panel

0345 0244

N.C.

Tuner

splitter

1T01

LS

center

5P

1M07

3th Scart

8307

1M07

5P 11P 11P

H

3th Scart

1M37

1M36

AC inlet

PR

5P

0350

Proximity

panel

3th Scart

8336

1M36

11P

Side I/O

D

E_14620_038.eps

250804

Block Diagrams, Testpoint Overviews, and Waveforms

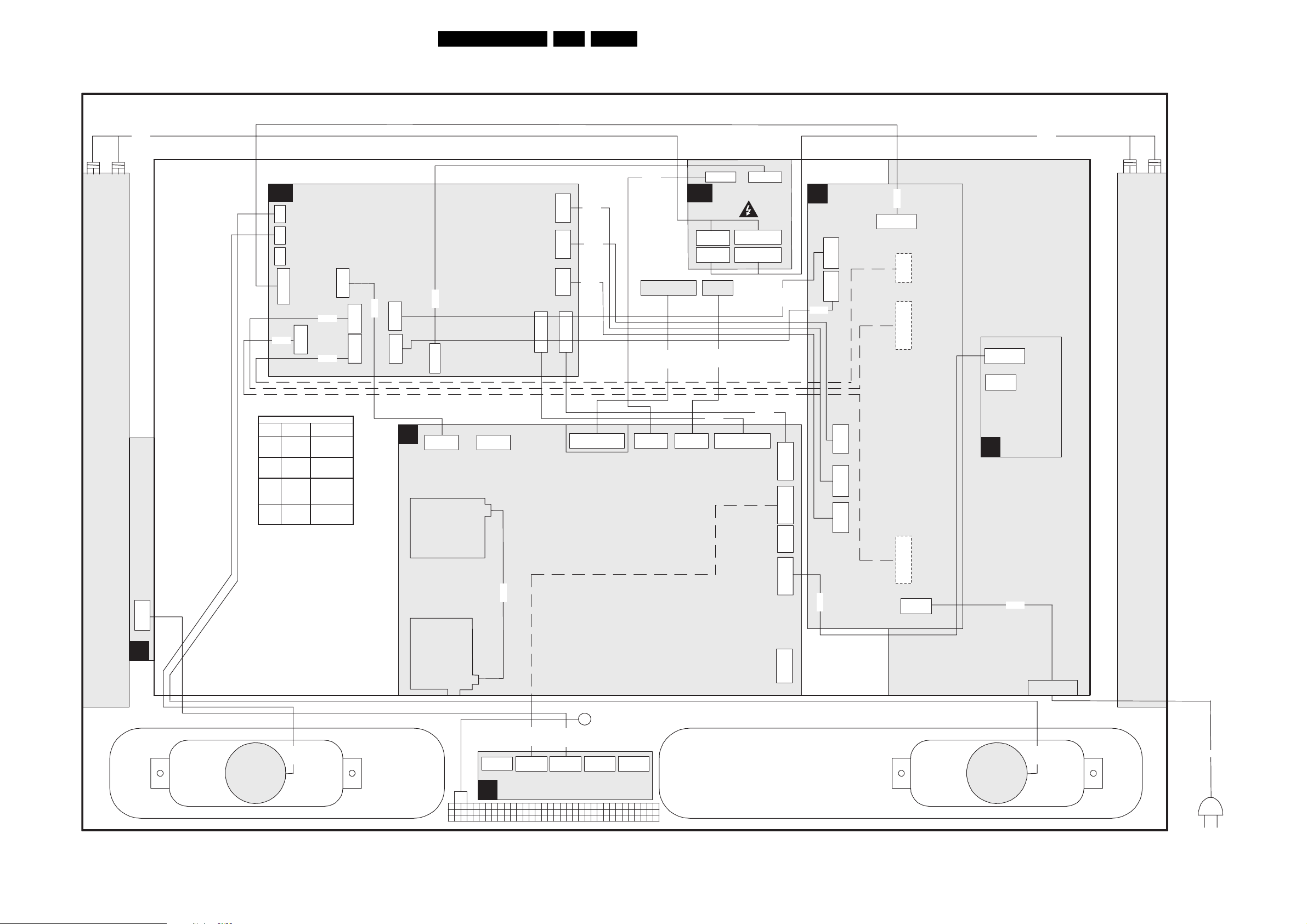

Wiring Diagram 32 Inch Sharp LCD (FTL2.2)

Wiring 32" Sharp STEP US/AP

EN 24FTL2.1U, FTL2.2U 6.

8313

Ambient light lamps right

Top Control

0345

SA

1736

1735

1738

7P

1M02

8315

8314

Connectors of Ambi-light inverter

Philips

1008
1009

1006
1007

1001
1002

1003

Applied
Concepts

1M14
1M12

1M13
1M11

1M08
1M10

1M48

10P

1314

8318

Functions

1. GND (light)

2. GND (light)

3. GND (light)

1. Green light

6. Blue light

11. Red light

1. +12V_A

2. +12V_A

3. GND

4. GND

1. SCL-S

2. GND

3. SDA-S

9P

1739

10P

6P

1315

1318

8352

4P

3P

1304

1309

B

1M52 1M48

nd

Tuner

2

1T02

Tu ne r

Audio

Stand-by

8310

4P

1M10

9P

N.C.

8192

11P

2P3

4P

3P

1M46

10P

1306

1307

1305

1M03

8306

8307

8305

1G50

31P

SSB

8349

1M49

3P

CN1

8350

AL

1M17

7P

1M11

1M13

CN2

8346

Ambient
Light

1M12

1M14

8317

1M46

11P

1M101M48

8303

10P

12P

N.C.

11P

8304

1M03

1M20

1M01

1M36

A

4P

3P

8309

2P3

3P

8436

4P

1304

1309

1307

1306

1305

8302

7P

1M02

6P

CN3

10P

CN4

MF

Supply

10P

CN5

1308

2P3

8311

Inverters

11P

1M36

N.C.

0244

Side I/O

t lamps left

D

igh
t l

Ambien

8308

E

LS

right

8735

splitter

1T01

1M20

0350

N.C.

J

12P

LED panel

8220

8345

0345 0244

1M01

6P

N.C.

N.C.

N.C.

1M07

LS

left

AC inlet

8736

E_14620_156.eps

190804

8195

Block Diagrams, Testpoint Overviews, and Waveforms

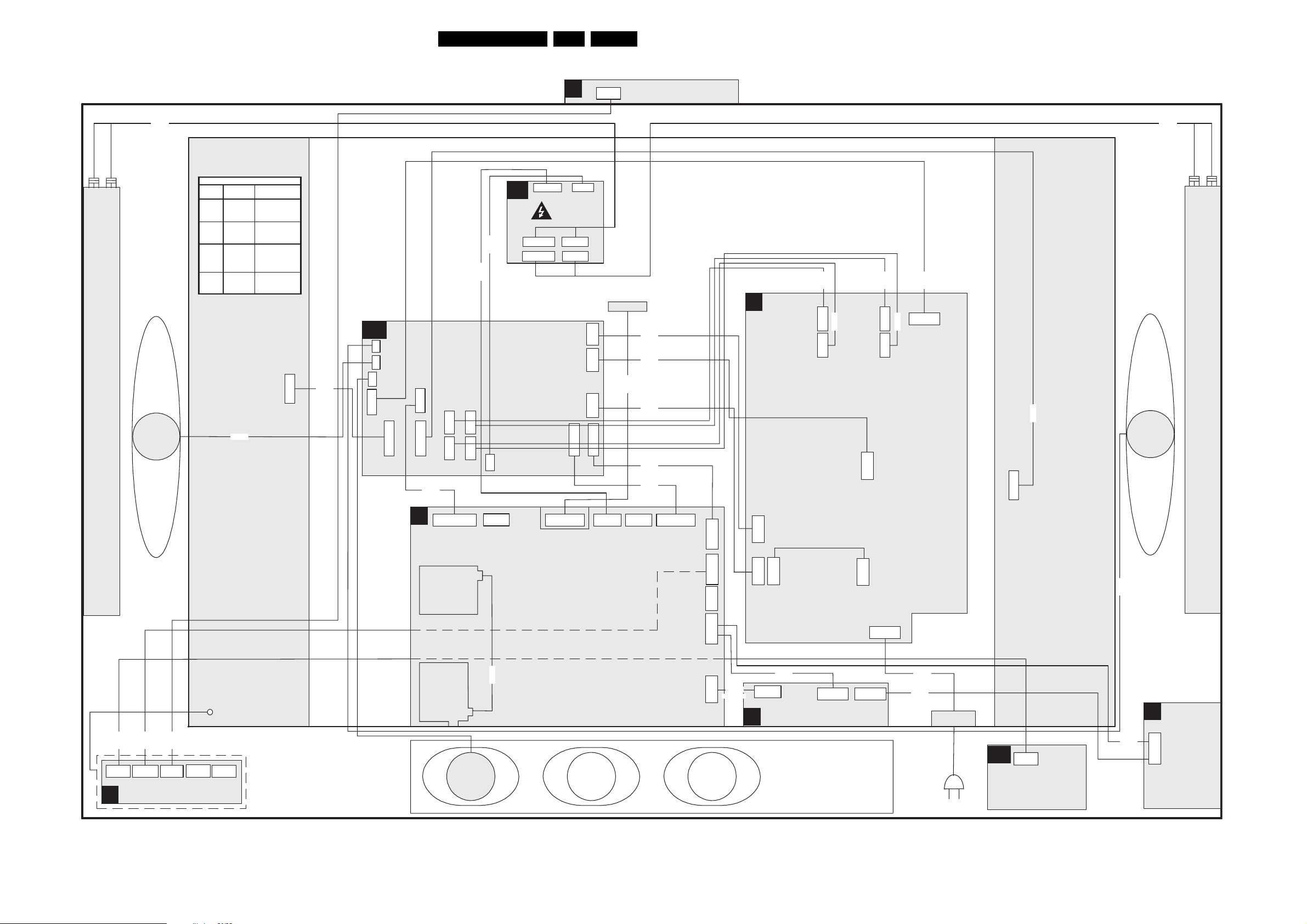

Wiring Diagram 42 Inch LPL LCD (FTL2.1)

WIRING 42” LPL

E

EN 25FTL2.1U, FTL2.2U 6.

0345

6P

Top Control

Ambient light lamps right

8313

LS

right

Connectors of Ambi-light inverter

Applied
Concepts

1M14
1M12

1M13
1M11

1M08
1M10

1M48

8735

Functions

1. GND (light)

2. GND (light)

3. GND (light)

1. Green light

6. Blue light

11. Red light

1. +12V_A

2. +12V_A

3. GND

4. GND

1. SCL-S

2. GND

3. SDA-S

Philips

1008
1009

1006
1007

1001
1002

1003

Inverter 1

12P

8311

AL

1M48

1M10

Ambient

Light

8310

8349

1M11

1M13

SA

1736

1735

8316

Inv1

1738

1M02

7P

9P

1316

12P 12P

B

1739

1317

8352

4P 4P

1303

1320

3P 3P

1M52

1304

1309

Audio

Stand-by

1M10

4P

1M48

3P9P

1M12

1M14

31P

CN1

2P

1306

4P

1307

3P

1305

1M03

1M46

10P11P

1G50 1M46

31P

1M49

8306

8307

8250

8305

8303

8346

1M17

11PN.C.3P

10P

1M03

A

2P3

1306

4P

3P

8303

1303

8320

1320

5P

Supply

4P

3P

1307

8304

1304

1309

8309

1M02

7P

8302

8317

Inv2

12P

Inverter 2

LS

left

Ambient light lamps left

8350

8220

1M20 1M010345 0244

0350

5P 12P 6P

LED panel

J

8345

N.C.

N.C.

2nd Tuner

1T02

Tuner

splitter

1T01

center

LS

8192

SSB

12P

N.C.

11P

5P

1M20

1M01

1M36

3th Scart

1M07

1305

1B06

3P 3P 3P

8337

3th Scart

8307

1M07

5P

H

3th Scart

1M37

11P 11P

1C05

1M36

2P3

1308

8199

8336

3th Scart

AC inlet

PR

0350

Proximity

panel

5P

8736

8336

3th Scart

D

11P

1M36

Side I/O

E_14620_040.eps

250804

Block Diagrams, Testpoint Overviews, and Waveforms

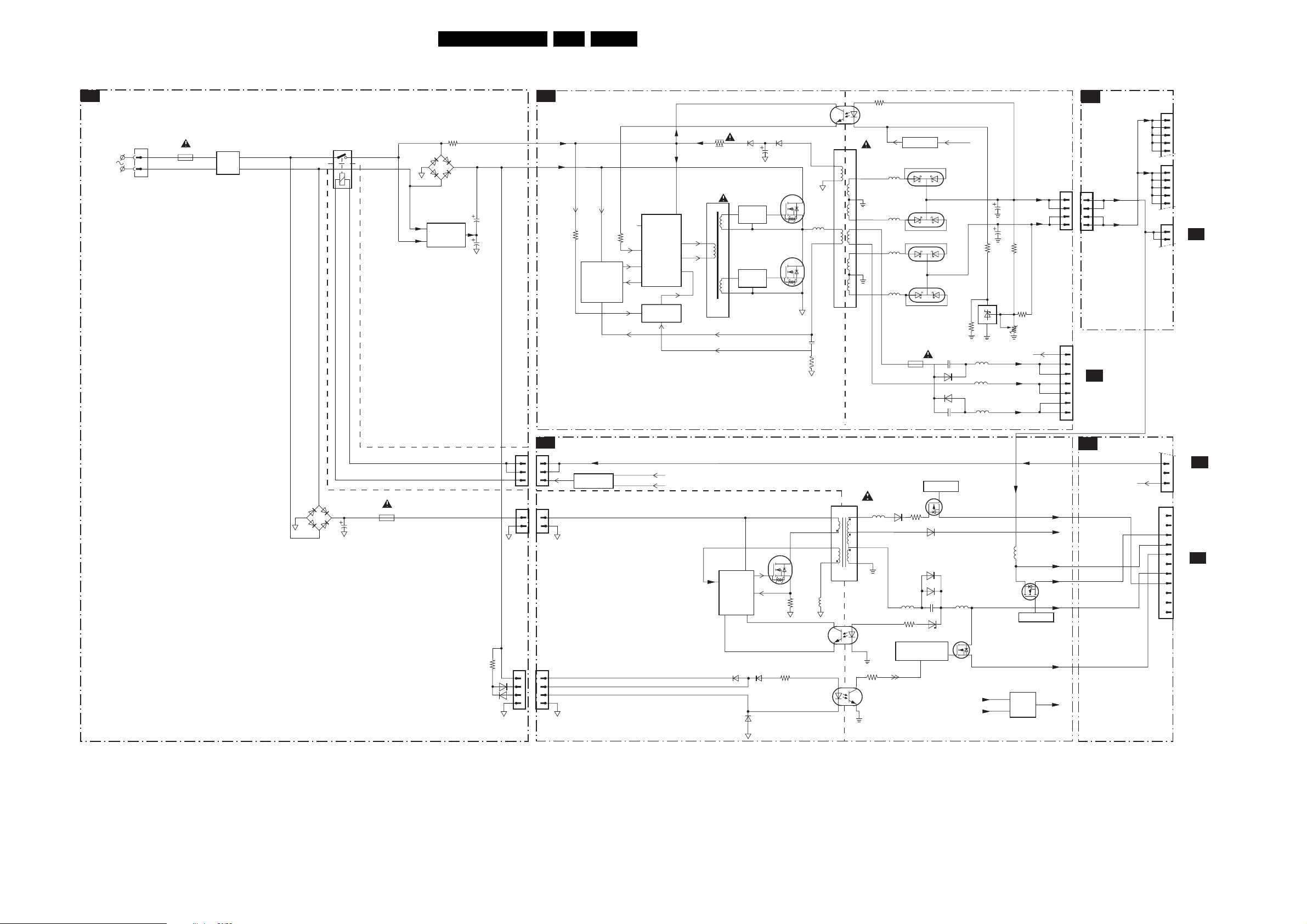

Block Diagram Supply + Standby 32 Inch

SUPPLY + STANDBY 32"

MAINS FILTER + STANDBY

A1

5401

1308

MAINS IN

EUR: 198 - 264V~
CHINA: 160 - 270V~
US: 108 - 132V~
APmulti: 90 - 175V~

2

1

1400

T3.15AH

EUR, CHINA 1X MAINS FILTER + HORMONIC COIL
US, AP 2X MAINS FILTER + IR INRUSH CURRENT

5402
5403

MAINS
FILTER

EN 26FTL2.1U, FTL2.2U 6.

5040

2011

PRINTED
COMPONENT

HOT COLD

1

4

3

2

5002

8

7

9

10

11

12

3

5

13

14

15

16

HOT COLD

3057

7002
TCET1102

5027

5028

5025

5026

DC_PROT

3

2

2

3

3

2

2

3

1007

T5A

DC_PROT

6044
STPS20L45CT

1

6045
STPS20L45CT

1

6021
STPS20H100CT

1

6025
STPS20H100CT

1

2291

6291

6293

2293

3030

5239

5291

5292

2038

2021

3022

7010
TL431ACD

VSND_POS

GND_SND

VSND_NEG

3052

3024

3026

VS Voltage
Adj.

DC_PROT

+12V

+24V

1304

1M02

CONNECTIONS

SA1

1316

1

2

TO

3

DISPLAY

4

5

1317

1

2

TO

1304

4

3

2

1

TO 1M02

SA3

AUDI O

+12V_A

+12V_+24V

4

3

2

1

7

6

5

4

3

2

1

3

DISPLAY

4

5

1M10

1

2

AMBI LIGHT

SEE ALSO
BLOCK DIAGRAM
SUPPLY LINE

TO

AL

SUPPLY

A2

3000

5001

7007

6

7

14

4

2

12

10

7008

9

10

HIGH
SIDE

DRIVE

LOW
SIDE

DRIVE

60786079

2003

7005

STU16NB501

7006

STU16NB501

OVER

VOLTAGE

VCC

BIAS SUPPLY

15

OA

OB

FI

1450

2

3

4

1

6807
GBJ6J

-

7805
7806

VOLTAGE
DOUBLER

(for 110V only)

US DOUBLER
AP AUTO DOUBLER
WITH TRIAC

3810

+

2815

2816

25V_HOT

400V_HOT

3001

7017
7018

SOFT

START

CURRENT

PROTECTION

7001
MC34067P

1

OSCC

3007

CONTROL

7

ERROR

11

SOST

5

+

VREF

7004
7009

PROTECTION

6506
DF06M

HOT

COLD

+

-

2503

1401

T1AE

3101

6155

6154

1305

1306

1307

1

2

3

1

2

1

2

3

4

SA2

1305

1306

1307

STANDBY

THYRISTOR
7505/7509/7560

400V_HOT

+5V2-RELAY-IO2

OVERVOLTAGE PROTECTION

STANDBY

7100
7101
7105

CONTROL

6150

6151

6153

7102

3155

3V MAX
1V MAX STBY

3108

COLD

HOT

5

3

2

1

5105

7507
7506
7512

STANDBY

5500

6504

5110

6

3509

7

7511

6140

8

10

6505

6107

2513

5103

4

1

7501
TCET1102

3

2

3158

1

4

7150

2

TCET1102

3

3128

OVERVO LTAGE
PROTECTION

PROT-OVV

5506

6122

7531

+5V2

+5V2-RELAY-IO2

1

2

3

1

2

1

2

3

4

+5V2-RELAY-IO2

+12V_A

5507

STANDBY

STANDBY: LOW = ON
HIGH = STBY

7508

OR

9110

VTUN

+11V

+12V

+8V6

7131

+5V2

+5V_SW

POR

SA1

CONNECTIONS

STANDBY

E_14620_041.eps

1M03

1M46

10

11

300604

9

8

CONNECTIONS

7

1

2

3

4

5

6

CONNECTIONS

7

8

9

TO 1M03

B21

TO 1M46

B21

Block Diagrams, Testpoint Overviews, and Waveforms

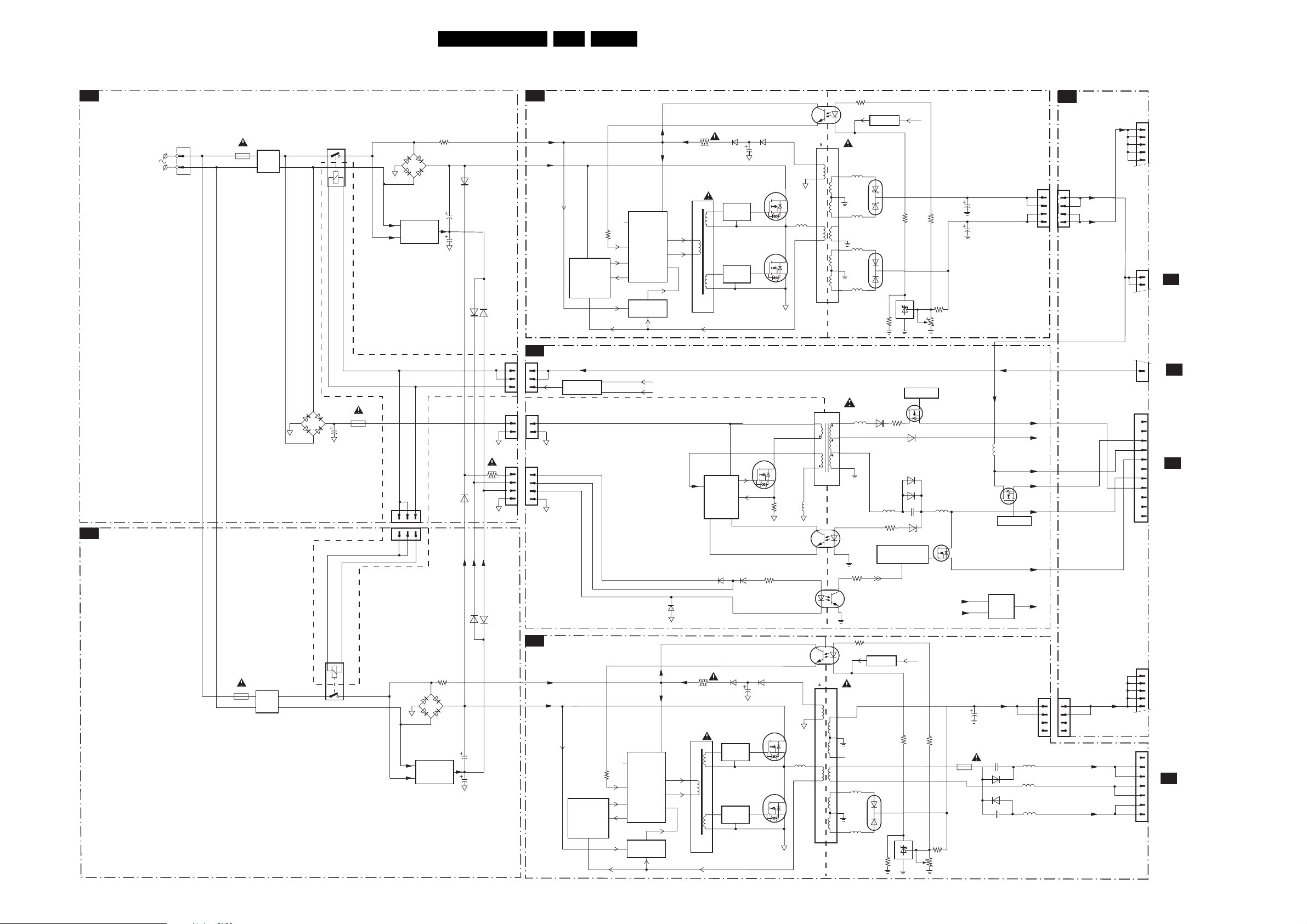

Block Diagram Supply + Standby 42 Inch

SUPPLY + STANDBY 42"

MAINS FILTER + STANDBY PART A

A1

EUR, CHINA 1X MAINS FILTER + HORMONIC COIL

MAINS FILTER + STANDBY PART B

A3

MAINS IN

EUR: 198 - 264V~
CHINA: 160 - 270V~
US: 108 - 132V~
APmulti: 90 - 175V~

0308

US, AP 2X MAINS FILTER + IR INRUSH CURRENT

2

1

1400

T3.15AH

5400
5401
5402
5403

MAINS
FILTER

6506
DF06M

-

+

HOT

COLD

EN 27FTL2.1U, FTL2.2U 6.

5040

COLD

HOT

5105

HOT COLD

1

4

2

3

5002

8

7

3

5

HOT COLD

5500

5

3

2

1

4

3

1

2

7002
TCET1102

9

10

11

12

13

14

15

16

6

7

8

10

1

7501
TCET1102

2

4

7150
TCET1102

3

3057

5027

5028

5025

5026

5110

3158

DC_PROT

6044
STPS20L45CT

3

2

1

6021
STTH2003CFP

1

2

3

3030

7507
7506
7512

6504

3509

5103

3128

OVERVOLTAGE
PROTECTION

PROT-OVV

DC_PROT

3022

7010
TL431ACD

STANDBY

6140

6505

6107

2513

6122

3052

3024

7511

VS Voltage
Adj.

3026

5506

7531

+5V2

+5V2-RELAY-IO2

2020

2022

5507

STANDBY: LOW = ON
HIGH = STBY

+5V2-RELAY-IO2

+12V_A

STANDBY

7508

OR

9110

VTUN

+11V

+12V

+8V6

7131

+5V2

+5V_SW

POR

1304

CONNECTIONS

SA1

1316

1
2

TO

3

DISPLAY

4

5

1304

4

3

2

1

+12V_A

4

3

2

+12V_+24V

1

1M10

TO

1

AL

2

AMBI LIGHT

1M03

TO 1M03

9

B21

CONNECTIONS

1M46

1

2

3

4

TO 1M46

5

B21

6

CONNECTIONS

7

8

9

10

11

SUPPLY PART A

A2

14

12

10

6153

5001

4

2

3000

6

7

10

9

7100
7101
7105

CONTROL

6150

7007

7008

HIGH
SIDE

DRIVE

LOW
SIDE

DRIVE

6151

60786079

2003

7005

STU16NB501

7006

STU16NB501

7102

3155

3V MAX
1V MAX STBY

3108

VCC

CONTROL

OVER

VOLTAGE

BIAS SUPPLY

15

OA

OB

FI

+

VOLTAGE
DOUBLER

3

3810

2815

2816

6157

400V_HOT_B

6156

HOT_P+

6155

6A55

6154

3406

HOT_P-

6A54

1450

2

3

6807
GBJ6J

-

4

1

7805
7806

(for 110V only)

US DOUBLER
AP AUTO DOUBLER
WITH TRIAC

HOT

COLD

1401

T1AE

2503

1B06

2

1

213

1C05

1305

1306

1307

25V_HOT_A

400V_HOT_A

7001
MC34067P

11

OSCC

3007

7
7017
7018

SOFT

START

+

CURRENT

PROTECTION

STANDBY

SA2

1305

1

1

2

2

3

3

1306

1

1

2

2

1307

1

1

2

2

3

3

4

4

+5V2-RELAY-IO2

THYRISTOR
7505/7509/7560

ERROR

11

SOST

5

VREF

7003
7004

PROTECTION

OVERVOLTAGE PROTECTION

STANDBY

1D00

T3.15AH

9U01
9U06
5D02
5D03

MAINS
FILTER

14

2

1D50

3

6H07
GBJ6J

-

7H05
7H06

VOLTAGE
DOUBLER

(for 110V only)

US DOUBLER
AP AUTO DOUBLER
WITH TRIAC

3H10

+

2H15

2H16

SUPPLY PART B

A4

25V_HOT_B

400V_HOT_B

7U17
7U18

SOFT

START

CURRENT

PROTECTION

1

2

5U02

7U02
TCET1102

9

10

11

12

13

14

15

16

5U25

5U26

3U57

DC_PROT

6U21
STTH2003CFP

1

2

3

3U30

DC_PROT

3U22

7U10
TL431ACD

3U52

3U24

3U26

VS Voltage
Adj.

1U07

T5A

2U20

2B91

6B91

6B93

2B93

+24V

5B93

5B91

5B92

1303

1317

1
2

TO

3

DISPLAY

1M02

080704

4

5

7

6

TO 1M02

5

SA3

4

AUDI O

3

2

1

1303

1

1

2

2

3

3

4

4

+24V_2

VSND_POS

VSND_NEG

E_14620_043.eps

HOT COLD

4

5U40

3

8

7

3

5

HOT COLD

3U00

BIAS SUPPLY

5U01

7U01
MC34067P

11

OSCC

3U07

7

ERROR

11

SOST

5

+

VREF

7U03
7U04

VCC

CONTROL

OVER

VOLTAGE

PROTECTION

15

14

4

OA

2

12

OB

10

FI

7U07

6

7

7U08

10

9

HIGH
SIDE

DRIVE

LOW
SIDE

DRIVE

6U786U79

2003

7U05

STP15NK50ZFP

7U06

STP15NK50ZFP

Block Diagrams, Testpoint Overviews, and Waveforms

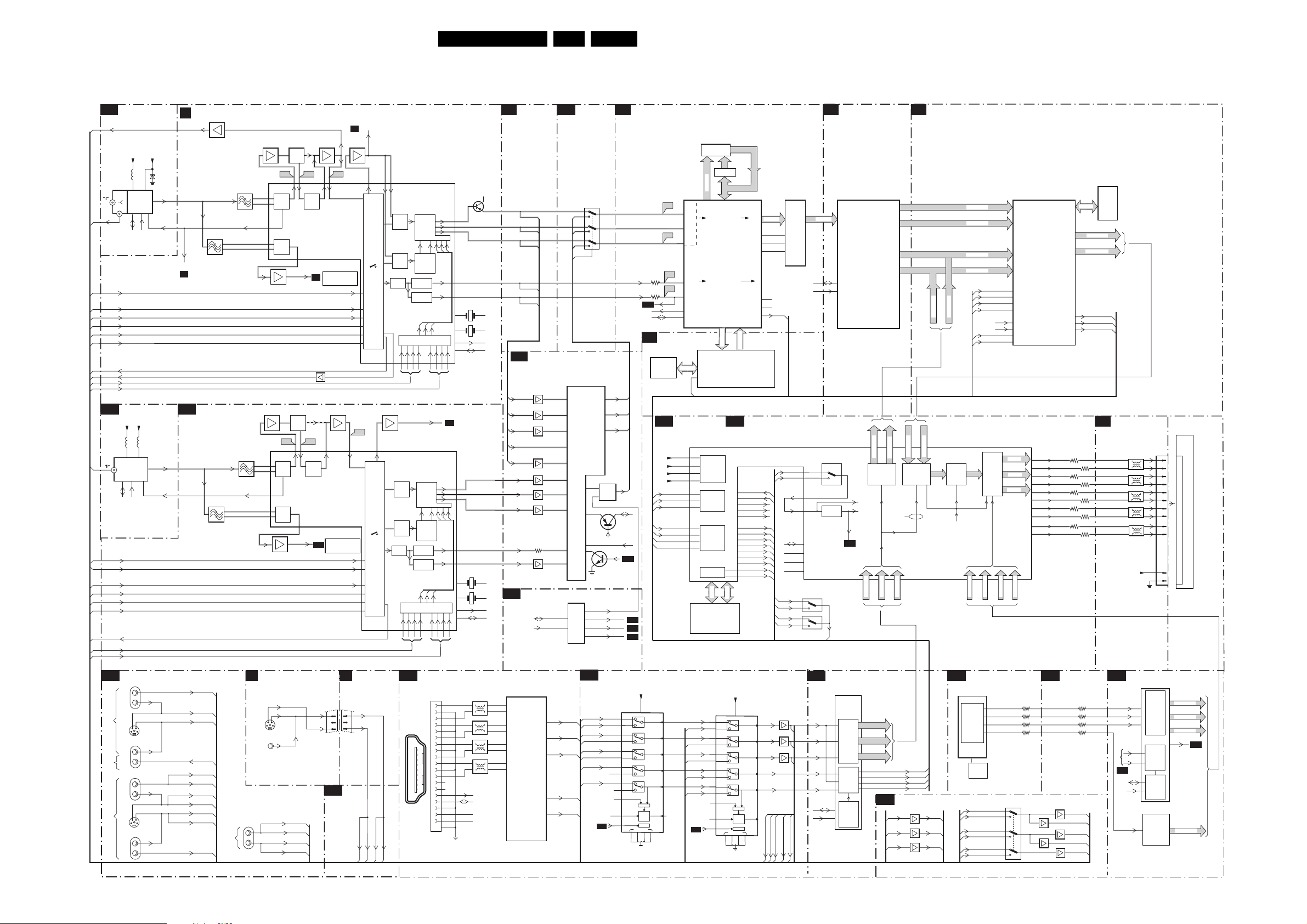

Block Diagram Video

EN 28FTL2.1U, FTL2.2U 6.

VIDEO

MAIN TUNER

B13A

B13B

UV1318ST

B14B

AV1

MON.

OUT

AV2

CVBS-TER-OUT

1TO2

UV1318ST

1TO1

CVBS

Pb/B

CVBS

SUB TUNER

+5V

SUB TUNER

Pb

Y/C

Pr/R

Y/C

Y/G

+5V

+33V

5T25

9

7,3

MAIN TUNER

5

4

S-SDA-PIP

S-SCL-PIP

CVBS-SC1_AV1-IN

CVBS-AV3-IN

Y-CVBS-SC2_AV2-IN

C-SC2_SVHS-IN

Y-CVBS-FRONT-IN

C-FRONT-IN

PIP-OUT

CVBS-SC2-MON-OUT

R/G/B-SC1-Y/U/V-IN

SC2-FBL-IN
SC2-R_C-IN_AV2
SC2-G-IN
SC2-B-IN_C-OUT

+33V

5T02

5T04

7,3

9

11

4

15

S-SDA

S-SCL

IN-CVBS-SC1_AV1-SUB

AV3-CVBS-IN

IN-Y-CVBS-SC2_AV2

SC2-R_C-IN

Y-CVBS-PIPDW-OUT

C-PIPDW-OUT

PIP-OUT1

SUB-Y/U/V

SC2-FBL-IN
SC2-R_C-IN_AV2
SC2-G-IN
SC2-B-IN_C-OUT

1I01-2

Pr

34

1I10-A

21

1I01-3

Y

1I04-2

910

1I10-B

87

1I04-3

6TO8

11

1

N.C.

B13b

B14b

B15a

B14b

B14b

B14a

B14a

N.C.

B14b

B14c

B14g

B13a

N.C.

B2

B14b

B14b

B14a

B14a

N.C.

B14c

B14g

AGC

AGC2

B2

AGC

MONITOR

B5A

B15A

CVBS-SC2_MON-OUT

AV4-Y-G_AV2-Y-CVBS

CVBS-SC1_AV1-IN

IF, I/O VIDEOPROCESSING

7402

IF-TER

SAW FILTER

AUDIO

(FOR AP)

1409-A

PIP HIP

IF-TER2

SAW FILTER

AUDIO

1P04-A

AV5-PB

B14c,g

AV5-PR_AV7-C

B14c,g

AV5-Y_AV7-Y

B14c,g

B2

AV6-B

B14g

AV4-PB-B

B14c

AV6-R

AV6-G

B14g

B14c

B14c

B14g

B2

AV4-PR-R_AV2-C

(FOR AP)

SAW FILTER

SAW FILTER

(FOR AP)

AV1

VIDEO

1410

TUNER AGC

VIDEO

1P05-A

TUNER AGC

1I02

H

V

VIF1

VIF2

SIF2
SIF1

VIF1

VIF2

SIF2
SIF1

D

SVHS

CVBS

7411

EF

7323
TDA9321H

2
3

62

64
63

SOUND-OUTPUT

7P05

EF

7P09
TDA9321H

2
3

62

64
63

MONO-HIP-OUT

SIDE I/O

251

1002

7410

7P07-2

34

PLL

DEM

QSS

MIXER

DEMO

MIXER

DEMO

1001

AM

PLL

DEM

QSS

AM

AV6-H

AV4-H

AV4-V

AV6-V

1406

7322

EF

(US)

SOUND
FILTER

I6

V1

10 12 13 14

(AP)

GROUP
DELAY

COR.

HIP

QSS-AM

5

QSS-AM

1P08

I6

10 12 13 14

SOUND
FILTER

(AP)

V1

GROUP

DELAY

COR.

B6A

(US)

SEE
BLOCK DIAGRAM
AUDIO

7415

HIP

QSS-AM

5

PIP-AM

C

Y

B14A

C

B14g

B14g

B14g

B14g

SEE
BLOCK DIAGRAM
AUDIO

1M36

24Y

3

B14A

CVBS-TXT

B5A

OTC

7320

EF

12

V2

7P06

EF

B21

1M36

I/O 1

16

18

20

21

23

24

V2

16

18

20

21

23

24

CONNECT

FRONT-Y-CVBS-IN

2

3

FRONT-C-IN

4

C-PIPDW-OUT

B15a

26 29

VIDEO

SWITCH

+

CONTROL

26

VIDEO

SWITCH

CONTROL

C-FRONT-IN

Y-CVBS-PIPDW-OUT

B2

CY

32

32 34

+

Y-CVBS-FRONT-IN

B15a

7P08

32

B2

28

Y

C

SYNC

SEPAR.

EF

Y

C

SEPAR.

PROC.

PROC.

PROC.

PROC.

SYNC

Y

C

G B

R

SCART1

36 37 38 39

Y

C

G B

R

SCART1

36 37 38 39

B14F

HDMI

CONNECTOR

Y

Y/U/V

U

SWITCH

V

UU

VY V

DECODER

PAL

NTSC

SECAM

H-SYNC
PROC.

V-SYNC
PROC.

V

UY

RGB/YUV

MATRIX

R G B

41 42 43 40

PIP-CVBS-MON

Y

Y/U/V

U

SWITCH

V

UU

VY V

DECODER

PAL

NTSC

SECAM

H-SYNC

PROC.

V-SYNC

PROC.

V

UY

RGB/YUV

MATRIX

R G B

41 42 43 40

1D01

1

2

3

4

5

6

7

1

8

9

10

11

12

13

14

18 2

15

19

16

17

18

19

20

7414

49
50
51

60

61

1305

PAL

54

4.43MHz

1308

NTSC M

57

3.57MHz

SCL-F

46

SDA-F

47

SCART2

B15B

Y-HIP-OUT

49

U-HIP-OUT

50
51

V-HIP-OUT

VS-HIP-OUT

61

HS-HIP-OUT

60

1P00

PAL

54

4.43MHz

1P03

NTSC M

57

3.57MHz

SCL-S

46

SDA-S

47

SCART2

(NO PIP FOR STEP B SETS)

1I59

1I56

1I57

1I53

RX-DDC-SCL

RX-DDC-SDA

IN-5V

RX-HOTPLUG

Y50

U50

V50

HA50

VA50

AUDI O

B6A

DEMODULATOR

B15C

IN-Y50

IN-U50

IN-V50

VA50-PIP

HA50

B15B

7I18
SII9993CT

97

RX2+

RX2-

96

RX1+

92

RX1-

91

RX0+

87

86

RX0-

RXC+

84

RXC-

83

PANNELLINK

RECEIVER

PIP MUPPET

7PA7

7PA8

7PA9

7PB2

7PB6

7PA0

7PA1

3PB8

7PA2

PIP SWITCH

SPDIF

HDMI

HA

SDA-S

SCL-S

7

IOR

12

IOG

15

IOB

34

33

PIP SWITCH

B15B

7P54

BA7609F
8

9

1

16

14

11

MUPPET-BLK

7PA6
SAB9081H

98 8

2

MUPPET

DOUBLE

100

WINDOW

PROC.

70

94

83

79

81

72

87

7P56
M62320

I/O

3

EXP

2

B14G

R-DV1

B14F

G-DVI

B14F

B-DVI

B14F

V-DVI

B14G

H-DVI

B14G

6

3

5

7PB1

168

2

74

73

75

7PB5

9

SWITCH-MAIN

10

PIP_RESET

11

SWITCH-SUB

12

AV6-R

AV5-PR_AV7-C

AV6-G

AV5-Y_AV7-Y

AV6-B

AV5-PB

AV6-V

AV6-H

SWITCH-MAIN

B15B

GATE

7PA5

FBLK

12

10

OR

HA

B3A

HA50

VA50

DY

DU

DV

4

MUPPET_BLK

SDA-S

SCL-S

PIP-RESET

B15B

B14C

B15C

B14C

7I71
BA7657F

R1-IN

1

R2-IN

7

G1-IN

3

G2-IN

9

B1-IN

5

B2-IN

11

VD1-IN

12

VD2-IN

13

24

HD1-IN

HD2-IN

23

HD-S-SIG-DET

2

C-V-IN

18

CTL

16

PICNIC

Y-PIP+MAIN-OUT

U-PIP+MAIN-OUT

V-PIP+MAIN-OUT

B19d

B3D

B15b

B15b

B15b

B15b

B19a

B19a

B19a

B3a

B3a

B3a

B3a

+5VIO

20

VCC

1

2

1

2

1

2

1

2

1

2

DET

SYNC
SEPA

LOGIC

GROUND

468

F162

F164

F165

3727

F166

3728

VA

SCL-F

SDA-F

COLUMBUS

7753
MSN56V16160F-7TS

SDRAM

B19B

+2V5-IO

+3V3-IO

+1V5-INT

+1V5-PLL

H-2FH-AD-OUT

V-2FH-AD-OUT

SYNCDET

VA

Href-EXT

HD-E

VD-E

R-OUT

21

G-OUT

19

B-OUT

15

VD-OUT

14

HD-OUT

22

C-S-OUT

17

10

7711

M27C512

7713
SAA4978H

23

3x

SIGNAL PROCESSING

ADC

25

26

28

29

4

5

7752-1
T6TU5XB

COL_SD

Href-EXT

B3a

EPLD CONTROL

7V01
EP1C12Q240C0

SUPPLY

STANDARD

DEFLECTION

CONTROL

CONTROL

7V03
MSM56V16160F

512KX16X2

R-DV1

B14F

G-DVI

B14F

B-DVI

B14F

V-DVI

B14F

HDVI

B14F

SEL_IN_1_B

B14D

64K

PROM

LATCH

AD(0-7)

DIGITAL

PICNIC

SYNC PROCESSING

BUS A

UVA / YA

COLUMBUS

B19D

SYNC

INPUT

SD-A

SD-DQ

DRAM

7I55
BA7657F

R1-IN

1

R2-IN

7

G1-IN

3

G2-IN

9

B1-IN

5

B2-IN

11

VD1-IN

12

VD2-IN

13

HD1-IN

24

HD2-IN

23

HD-S-SIG-DET

2

C-V-IN

18

CTL

16

GROUND

468

74HC573

BUS B

I/O

+5VIO

20

VCC

1

2

1

2

1

2

1

2

1

2

SYNC
SEPA

LOGIC

7712

DET

BUS C

UVB / YB

EPLD I/O

VD-OTC

HD3-OTC

PWR-OK-PDP

LCD-PWR-ON

LAMP-ON

CLK32E

Vref

Href

RSTR

REF

FALREF

REFIN

SWITCH-1FH

SWITCH-2FH

R-OUT

G-OUT

B-OUT

VD-OUT

HD-OUT

C-S-OUT

10

DA (0-15)

CLI6

WEC

RSTW

1

2

30

B19a

B3c

B19b

B19d

B19d

B19d

R-VGA

21

G-VGA

19

B-VGA

15

VS-2FH

14

HS-2FH

22

abcab

17

SC2-R_C-IN_AV2

B2,B15a

SN-DA

SN-CL

Href-EXT

B3a

B3a

B19d

B3c

B3c

B3c

B3c

B3c

B19b

B19b

CLK32P_EPLD

SWITCH-2FH

CLK32E

SWITCH-2FH

7I56

7I57

7I58

SC2-G-IN

SC2-B-IN_C-OUT

C-SC2_SVHS-IN

B2

B2,B15a

B2,B15a

7714
MS81V04160A

FIELD

MEMORY

FM1

B3c,d,B19d

CLK-2FH

CLK-64

CLK-VID

SDA-F3

SCL-F3

SN-CL

SN-DA

a

b

c

Y-CVBS-SC2_AV2-IN

B2

SNDA

SNCL

7E03

7E04

MF (1-17)

B19A

V-2F H

Y-2 F H

U-2FH

V-2F H

H-2FH

SDA-F3

SCL-F3

B3B

CLK32I

B3c

1:2

HDI A/D CONVERTEROTCI/O 7I/O 6: DIGITAL INPUT

48

54

43

31

49

30

FALCONIC

7760
SAA4998H

FALCONIC

EMBEDDED

MEMORY

CLKP

CLK-OSD

B19C

U-AD (0-7)

7L01
AD9883AKST

2-9

70-77

A/D

COVERTER

12-19

66

SYNC

64

PROC.

+

65

CLOCK

67

GENERATOR

SERIAL

B15a

REGISTER

+

POWER

MAN.

UVF (0-7)

UV

CONVERTION

UV-AD (0-7)

H-2FH-AD-OUT

V-2FH-AD-OUT

SYNCDET

CLK-2FH

B14C

B14g

B14g

B14g

YF (0-7)

Y-OUT (0-9)

UV DEMUX

CONTRAST
SATURATION
BRIGHTNESS

PATH

FOR
3FH

ONLY

EPLD

Y-AD (0-7)

I/O 3: SWITCH

7I29

Y-2 F H

7I31

U-2FH

7I27

V-2F H

B3C

EAGLE

U-VOUT (0-9)

B19d
B19d

B19d
B19b

G-SC1_Y-IN

B-SC1_U-IN

R-SC1_V-IN

UVF (0-7)

B2

B2

B2

YF (0-7)

YUV

RGB

CLKP

B5A

B14b

B14b

B14b

B14b

B14b
B14b

to

YG (0-7)

UVG (0-7)

YF (0-7)

UVF (0-7)

CLK32I

FALREF

B19b

REFIN

B19d

Vref

B19d

B19d

SNDA

SNCL

Href

CLK32E

B19d

B19d

OSD

INSERTION

B-OSD (0-5)

R-OSD (0-5)

G-OSD (0-5)

OTC

7001
SAA5801H

OTC

77 R-TXT 2FHR-GFX

78 G-TXT 2FHG-GFX

DIPLAY

INTERFACE

79 B-TXT 2FHB-GFX

80 FB-TXT 2FHFB-GFX

SEE ALSO
BLOCK
DIAGRAM
CONTROL

7I33

AV4-PR-R_AV2-C

AV5-PR_AV7-C

AV4-Y-G_AV2-Y-CVBS

AV5-Y_AV7-Y

AV4-PB-B

AV5-P B

3

5

1

2

13

12

74HC4053

7720
T6TX5AF

EAGLE

R (0-7)

G (0-7)

B (0-7)

R7

R5

G6

G7

G5

B0

B5

PARITY

B1

CLK-OUT

BL-OSD (0-4)

B3A

3064-1 3858

3064-2 3859

3064-3 3860

3064-4 3861

4

7I48-1

15

7I48-2

14

3V25

3V27

4V29

3V31

3V33

7I26

SUB-V

SC2-R_C-IN

7I28

SUB-Y

IN-Y-CVBS-SC2_AV2

7I30

SUB-U

7719
MSM56V16160F

DRAM

512KX16X2

EAG_SD

Y-OUT (0-9)

U-VOUT (0-9)

CLK64

HD-E

VD-E

B20

3V26

3V28

3V30

3V32

3V24

11,14,17,20,23,26,27,28,29,32,33

B15a

B15a

B15a

B15a

B15a

B19b

B3a

B3a

SCREEN
INTERFACE

TXLCD0-

TXLCD0+

TXLCD1-

TXLCD1+

TXLCD2-

TXLCD2+

TXLCD3-

TXLCD3+

TXCLKLCD-

TXCLKLCD+

B19C

B3A

5Z01

5Z02

5Z03

5Z05

5Z04

VDISP

EPLD OSDPICNICCONNECTIONS

R-OSD

G-OSD

B-OSD

HD3-OTC

VD-OTC

SDA-F3

SCL-F3

BL-OSD

1,2,3,4

7E23
AD9883AKST

A/D

COVERTER

SYNC

PROC.

+

CLOCK

GENERATOR

SERIAL

REGISTER

POWER

MAN.

7E24
AD9283BRS-80

8-BIT
ADC

+

DISPLAY

1G50
18

17

16

15

14

13

10

9

12

11

R-OSD (0-5)

G-OSD (0-5)

B-OSD (0-5)

CLK-OSD

BL-OSD (0-5)

E_14620_137.eps

B19D

131004

Block Diagrams, Testpoint Overviews, and Waveforms

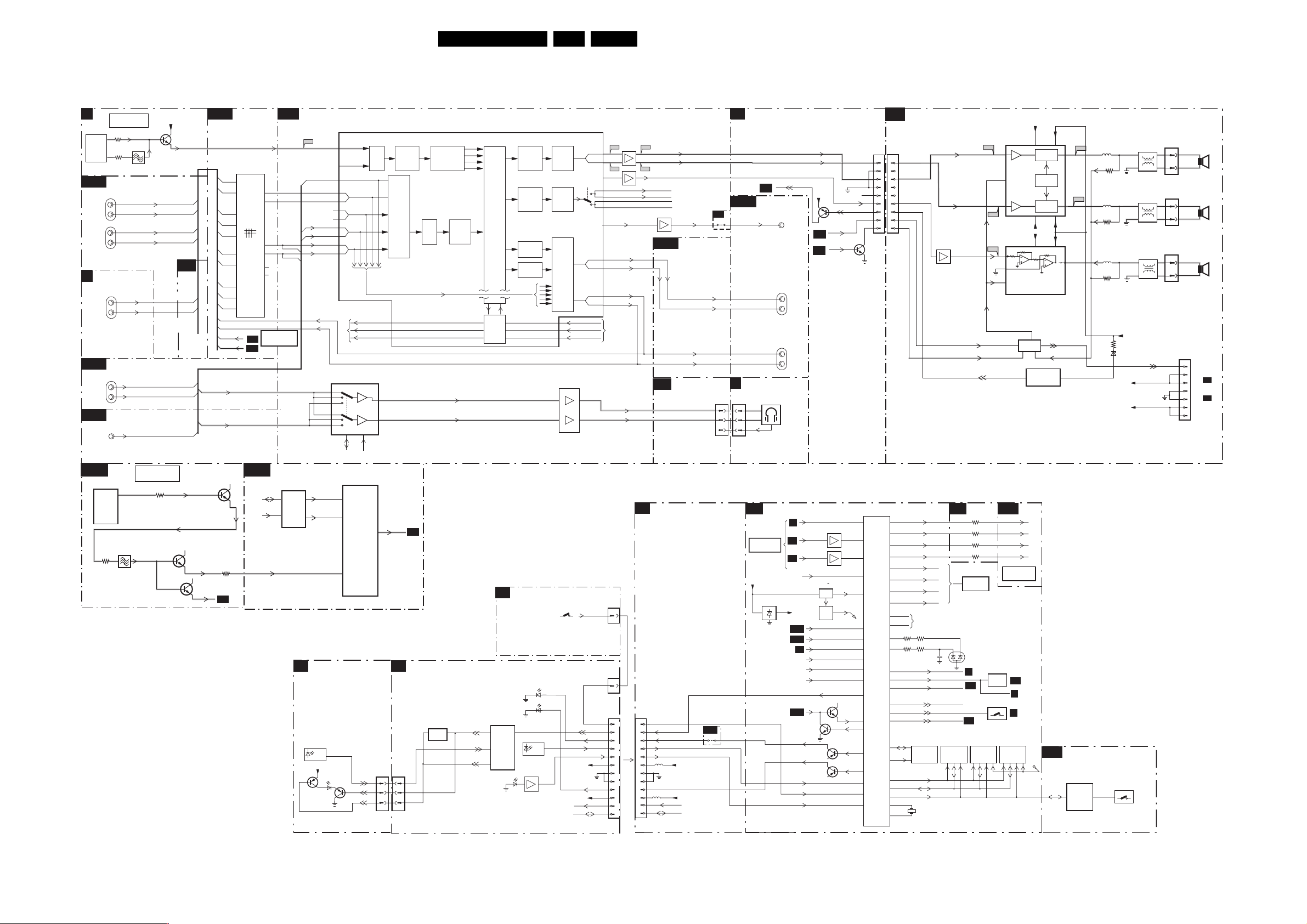

Block Diagram Audio

AUDIO

IF

B2

SEE ALSO

7323
TDA9321H

HIP

MAIN

B14B

AV2

AUDIO I N

L+R

AV1

AUDIO I N

L+R

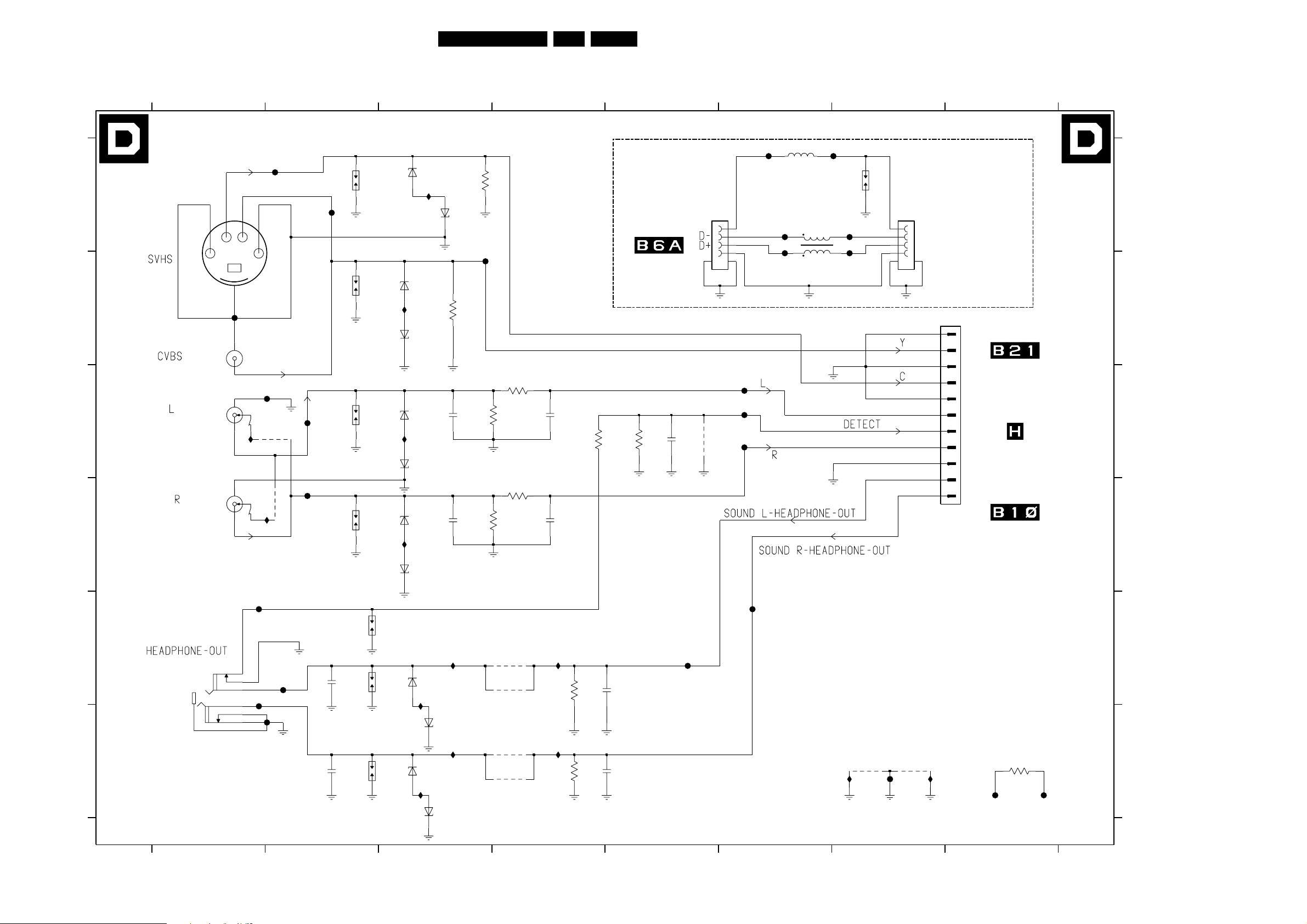

SIDE I/O

D

FRONT

AUDIO I N

L+R

B14C

HDMI

AUDIO I N

L+R

B14B

CENTRE

IN

B15A

7P09
TDA9321H

QSS_AM

PIP

VIFOUT

3P38

1I01

1I04

BLOCK DIAGRAM
VIDEO

3380

5

3437

10

I/O

AL-SC1-IN

AR-SC1-IN

AL-SC2-IN

AR-SC2-IN

1002

1I07

1I06

PIP IF

10

1P07

SOUND-OUTPUT

(FOR AP)

1411

FRONT-L

FRONT-R

SNR-DVI-IN

SND-DVI-IN

SND-CENTER-IN

(FOR US)

SEE ALSO
BLOCK DIAGRAM
VIDEO

3P26

+8VP

7410

7P07-1

B21

7P07-2

QSS_AM

B6a

B6a

3

4

5

6

10

9

B6a

B6a

B6a

SIF-OUT

PIP-AM

B14D

4

6

10

2

11

3

5

9

1

12

11

12

2

1

SNDL-SEC-IN

SNDR-SEC-IN

7P05

3P93

B14D

AUDIO I/O

7I17
TEA6422D

25

R1

24

R2

R3

20

R4

19

R5

18

R6

4

L1

5

L2

L3

9

L4

10

L5

11

L6

PIP-AM

PIP-FM

MATRIX
SWITCH

B15A

B15B

B15B

SDA-S

SCL-S

13

R1

12

L1

15

R2

14

L2

17

R3

16

L3

SEE ALSO
BLOCK DIAGRAM
VIDEO

PIP I/O

3

2

7P55-M

B6A

7P56
M62320

B14b

B14c

B14c

I/O

EXP

AUDIO I/O

B65

SND-CENTRE-IN

SNDR-MAIN-IN

SNDL-MAIN-IN

SNDR-DVI-IN

SNDL-DVI-IN

SNDR-SEC-IN

SNDL-SEC-IN

B6a

B6a

SNDR-SC2-OUT

SNDL-SC2-OUT

17
18
20

14
13
11

SEL-PIP-SOUND1

4

SEL-PIP-SOUND2

6

PROXIMITY SENSOR

PR

1040

IR

SENSOR

+5V2-STBY

7020

(OPTIONAL)

1

50

47

45

44

42

41

39

38

36

35

7A06
TDA7309

6020

7A02
MSP34x1G

IF1

IF2

SC4

N.C.

SDA-F-AUD

7P55
TDA9820T

INTERCARRIER

SOUND

DEMODULATOR

(MONO)

3

7021

PWM-OUT

PULSE-OUT

SC1

SC3

I2S-MSP-OUT

I2S-MSP-WS

I2S-MSP-CLK

SCL-F-AUD

FM

RC2

ADC

MONO-IN

0350

2

9

8

1

3

11

5

7

5

4

3

PIP-FM

SCART

INPUT

SELECT

0350

MODULATOR

DSP

J

J

DE-

B14D

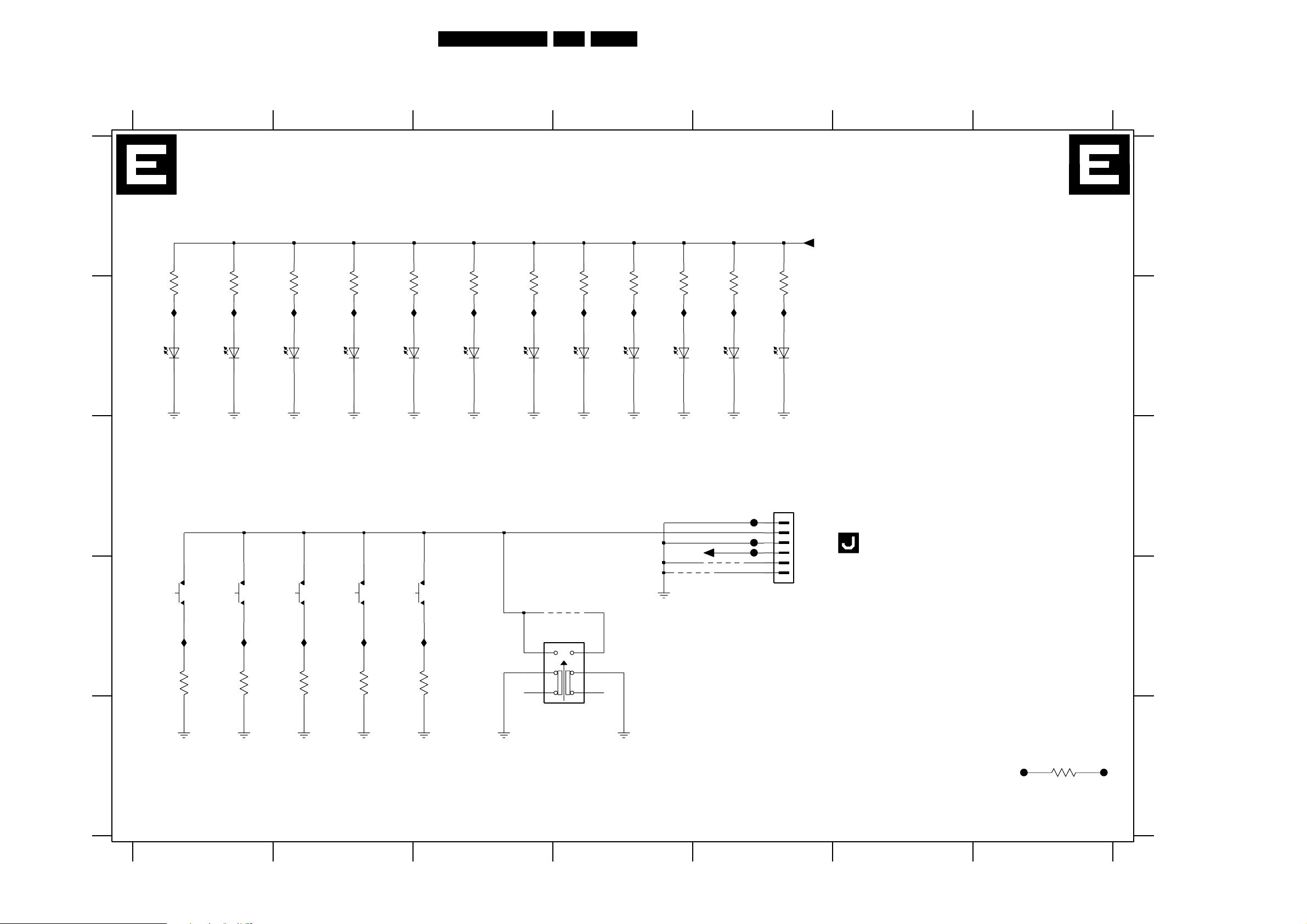

LED + SWITCH

1

3

5

PRESCALE

PRE-PROCESSING

ADC

7020
7021

CONTROL

PRESCALE

INTERFACE

HPN-L

HPN-R

CONTROLS

PWM-OUT

RC2

PULSE-OUT

SOURCE
SELECT

I2S

E

7075
P87LPC760BDH

8

MICRO

CONTROLLER

9

7

LOUD-

SPEAKER

SOUND

PROCESSING

HEADPHONE/

SURROUND

SOUND

PROCESSING

DAC

DAC

TOP CONTROL

6060

BLUE

6051

RED

13

1040

IR

SENSOR

7070
LM358P

72

6070

LIGHT SENSOR

DAC

DAC

SCART

OUTPUT

SELECT

7A07
MC33178D

3

5

ON / OFF
CHANNEL+

CHANNEL-

VOLUME+
VOLUME-

MENU

12

15

14

6x

LOUD

FRONT-DECT

SC

I2S-DPL-OUT

I2S-DPL-CLK

I2S-DPL-WS

1

7

COM-SND

LED1

LIGHT-SENSOR

+8V

+5V2-STBY

SCL-S

SDA-S

DACM-SUB

KEYBOARD

KEYBOARD

RC-IN

LED2

EN 29FTL2.1U, FTL2.2U 6.

B66

20

5

21

3

B67

23

3

17

HPN-R

18

HPN-L

18

MSP-CENTER

18

MSP-SURR

DACM-SUB

23

SNDR-SC1-OUT-DC

28

SNDL-SC1-OUT-DC

29

SNDR-MON-OUT

25

SNDL-MON-OUT

26

N.C.

HEADPHONE-L

HEADPHONE-R

0345

2

0345

2

1M20

1

2

3

4

5

6

7

8

9

10

11

12

7A03

LM833D

7A00-A

B68

7

1

B69

AUDIO-SW

1

CONNECTIONS

B21

1M20

1

2

3

4

5

6

7

8

9

10

11

12

AUDIO- R

AUDIO- L

7A00
LM833D

5

B14D

SNDR-MON-OUT

SNDL-MON-OUT

B21

KEYBOARD

CON-SND

LED1

RC

LIGHT_SENSOR

5Y11

LED2

9Y06

SCL-SF

SDA-SF

N.C.

N.C.
N.C.

N.C.

AUDIO_SW

7

CONNECTIONS

+8V

+5V2-STBY

B6C

9ID0

SNDR-SC2-OUT

SNDL-SC2-OUT

1M36

B14E

9ID0

CONNECTIONS

B21

AUDIO-R

AUDIO-L

IRQ-AUDIOSUPPLY

B5A

I/O

B14B

1I06

1I09

1I05

DETECT

OTC FLASH

7005
LF33AB

OUT

1

SUB

WOOFER

AUDIO OUT

L+R

AUDIO OUT

L+R

B2

B3A

B3A

N.C.

+3V3
INTOTC

B14B

CVBS-TXT

HD3-EPLD

VD-EPLD

SUBW

SIDE I/O

D

HEADPHONE-OUT

1M36

10

10

L

11

11

R

7

7

B5A B3A

SEE ALSO
BLOCK DIAGRAM
VIDEO

+5V2-CON

IN

B14B

B4

N.C.

N.C.

N.C.

B14B

7008

ON-OFFOLED

LED2

RC

LIGHTSENSOR

+5V2-STBY

7010

SOUND-ENABLE

B5A

B5A

SA

7015

7016

CVBS-Y-RECORD-IN

7002 :
7004

RESET

7013, 7014

RESET
FLASH

RAM

STATUS_SC3

STATUS_SC4

CON-SND

P50

+3V3

+3V3

GND-AUD

N.C.

AUDIO-SW

7Y01

POR

7001
SAA5801H

83

OTC

84

7

114

74

RESET

RP

109

108

99POR-FLASH

98IRQ-DIGITAL

93HD@HOME

96IRQ-FTV

118

7009

97

120

7022

115

7022

115

100

107KEYBOARD

110

AUDIO

SA3

1739

1M52

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

775

78

79

80

88 SDA-F

87 SCL-F

86 SDA-S

85 SCL-S

90 TXD

89

RXD

3099-3 3081

119

3074-4 3097

96

104 STANDBY

95 SOUND-ENABLE

94 RESET AUDIO

117

116

103

SDA

5

91

6

92

SCL

ADDRESS

DATA

CONTROL

16

17

N.C.

7011
MC24C32

EEPROM

1001
6Mhz

R-TXT

G-TXT

B-TXT

FBL-TXT

NVM.
4kByte

AUDIO- R

AUDIO- L

7715

7

3

SAM

SDM

2016

SEL_IN_2

SEL_IN_1

PWW-BLACKLIGHT

7007
MSM51V18165F

DRAM
(TXT)

16Mbit

I722

I711

I747

SOUND-ENABLE

POR-CLASSD

PROT-AUDIO-SUPPLY

3858

3859

3860

3861

SEE ALSO
IIC DIAGRAM

6005

SA

A-PLOP

B6A

7516

N.C.

74HC4053

B5B

7006
LH28F320BJE

PROGRAM

FLASH-RAM

SET SW

32Mbit

7700
TDA7490

18

6

STBY-MUTE

10

7702
TDA7481

IN

9

FEEDCAP

10

STBY/MUTE

(OPTIONAL)

7701 : 7707

B19C

SEE ALSO
BLOCK DIAGRAM
VIDEO

B14B

SA

H

7012
M29W400BT

EPG-

FLASH-RAM

4Mbit

SOUND
ENABLE

R-OSD

G-OSD

B-OSD

BL-OSD

-16V-19V

-16V-19V

PRE

AUDIO
SUPPLY
PROT, CIRCUIT

24 22

PWM

OSC

PWM

24

14,15 11,13

PWM

DCPROT

B5C

RP

+16 +19V

I778

23

I776

3

+16V+19V

1

OUT

PROT1

OTC-FLASH

(OCTAL BUS TRANSCEIVER)

7018

74LVC245APW

7019

74LVC245APW

AUXILIARY

FLASH

PROGRAM

CIRCUIT

FOR

FLASH RAM

3718

5720

3728

5702

3717

5701

+16V+19V

3745

6745

-16V-19V

1404
SSSS811

SWITCH FOR
SOFTWARE
DOWNLOAD

+16V+19V

5730

5731

5733

DCPROT

E_14620_138.eps

1735

R

1

3

1736

1

3

1738

4

3

15W/
8Ω

L

15W/
8Ω

SUBWOOFER

15W/
8Ω

(OPTIONAL)

1M02

7

6

TO 1M02

5

A4

LCD 42"

4

TO 1M02

3

A2

2

LCD 30"/37"

1

250804

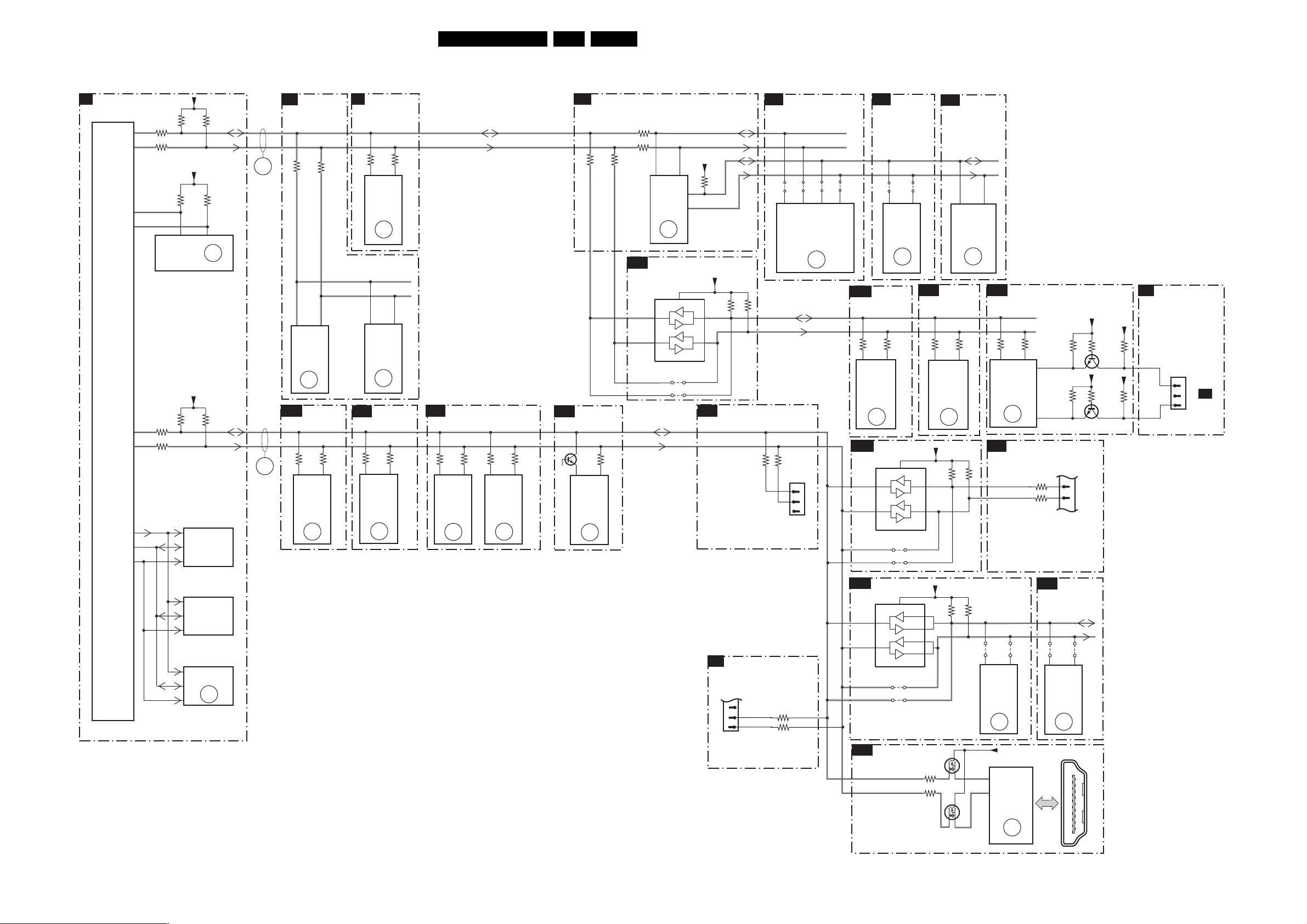

I2C IC’s Overview

IIC

OTC

B5

88

87

7001

SAA5801H

SET

PROCESSOR

CONTROL

91

92

86

85

ADDRESS

DATA

Block Diagrams, Testpoint Overviews, and Waveforms

3064-4

3064-3

SDA

SCL

M24C32

EEPROM

3064-2

3064-1

(NVM)

3069

+3V3-INTOTC

3001 3002

56

7011

3088

LH28F320BJE

PROGRAM

FLASH-RAM

+5V2_CON

3079

ERR

1

+5V2_CON

3092

7006

SDA-F

SCL-F

SDA-S

SCL-S

ERR

18

ERR

AUDI O

B6A

DEMODULATOR

3A17

3A19

SDA-F-AUD

21

7A02

MSP3421

AUDI O

DEMODUL

ERR

14

I/O4 AUDIO

B14D

3IJ0

6

28 27

7I17

TEA6422D

BUS

DECODER

ERR

21

3IJ1

B2

SCL-F-AUD

B15A

I/O, VIDEO
PROCESSING

3377 3376

47 46

7323

TDA9320H

HIP

ERR

8

4

7A06

TDA7309

AUDIO

DECODER

ERR

82

PIP HIP

3P23

47 46

7P09

TDA9321H

HIP

ERR

34

3P22

EN 30FTL2.1U, FTL2.2U 6.

PICNIC

B3A

6

7

3758

3E69

SDA-D

SCL-D

SN-DA

SN-CL

3E70

3827

SCL-EPLD

B19B

3710

3709

7E10
PCA9515DP

SAA4978H

EPLD
CONTROL

3

2

+5V2Pr

54

7713

1

2

PICNIC

ERR

3

8

VCC

+3V3-EPLD

SDA-F

SCL-F

3826

SDA-EPLD

5

I2C BUFFER

9E57

RES

9E58

RES

PIP SWITCH

B15B

3P66

32

7P56

M62320

I/O

EXPANDER

ERR

PIP MUPPET

B15C

SDA-S

SCL-S

3P81

14 15

7P51

Z86130

V-CHIP

(US ONLY)

ERR

25

3P79

HA

7PA5

74 73

7PA6

SAB9081H

MUPPET

ERR

24

3PC1

3P65

21

B14E

I/O5

B3D

3IS9

3IS8

SDA-SF

SCL-SF

COMPAIR
SERVICE
CONNECTOR

COLUMBUS

9817 9818

A15 B15

7752-2

T6TU5XB

COLUMBUS

CTRL

SDA-F3

SCL-F3

1M15

1

2

3

ERR

35

9815 9816

C14 D14

B19A

3L06 3L03

57 56

7L01

AD9883AKST

COVERTER

B14E

7I10
PCA9515DP

EAGLE

B3C

9757 9755

33 24

7720

T6TX5ES

EAGLE1C

ERR

HDI A/D
CONVERTER

A/D

ERR

53

I/05

VCC

3

2

9I06

9I05

FALCONIC

B3B

SN-DA

SN-CL

34 41

7760

SAA4998H/V1

FEM

ERR

EPLD OSD

3E18 3E19

7E23

A/D

ERR

53

3IB3

3IB1

RES

26

EPLD I/0

B19D

3V38 3V37

2

7V01-4

EP1C12F256C8

BANK3

ERR

56

SCREEN

B20

INTERFACE

SDA-DISP

SCL-DISP

1

AL-CL-IN

AL-DA-IN

3Z51

3Z50

1G50

3V50

3V55

31

30

+3V3-IO

3V51

+3V3-IO

3V54

TO
DISPLAY

RES

7V04-1

7V04-2

+5V

3V52

+5V

3V53

B21

AL-CL

AL-DA

CONNECTIONS

1M49

1

TO CON2

2

3

AMBI LIGHT

AL

27

B19C

57 56

AD9883AKST

COVERTER

+3V3_SIM

8

6

7

7007

MSM51V18165F

DRAM

(TXT)

7012

M29W400BT

ERR

32

B21

1M20

11

12

LED SWITCH
PAN E L
(ITV)

CONNECTIONS

SDA-SF

SCL-SF

3Y09

3Y40

SDA-S

SCL-S

B13A

B14F

7T50
P82B96TD

1

7

MAIN TUNER

8

VCC

RES

9T50

9T12

I/O6 DIGITAL INPUT

9I55

9I56

3

2

5

6

+5V

7I72

D

D

3T05

G

7I59

SUB TUNER

B13B

3T06

9T07

9T08

54

1T01

UV1318ST

MAIN

TUNER

ERR

13

0VCC

7I18

75

S

G

S

SII9993CT100

74

PANNELLINK

RECEIVER

HDMI

ERR

43

S-SDA-PIP

S-SCL-PIP

9T10

9T09

54

1T02

UV1318S

SUB

TUNER

ERR

23

1

18 2

19

E_14620_139.eps

200804

Block Diagrams, Testpoint Overviews, and Waveforms

Supply Lines Overview

SUPPLY LINES

SUPPLY

A

TO 1303

42" SUPPLY

PAR T B

TO 1304

SUPPLY

(PART A 42")

SEE ALSO

BLOCK DIAGRAM

SUPPLY

TO 1306

A1

MAINS FILTER

(PART A 42")

TO 1305

MAINS FILTER

(PART A 42")

TO 1M02

A2

SUPPLY 30"/37"

OR

TO 1M02

A4

SUPPLY 42"

1303

1

A4

2

1304

1

2

A2

3

4

1306

1

2

1305

1

A1

2

3

1M02

6

1

SA2

SA2

SA2

SA2

SA2

SA2

SA2

SA2

SA2

5500

1306

1305

SA3

1M02

5

1

2

1

2

3

6

1

SA1

1303

1

2

+8V6

+12V

+5V_SW

+5V2

VTUN

+12V

1304

1

2

3

4

+5V2-RELAY-IO2

H

J

STANDBY

5110

6

7

8

10

5103

AUDIO

+16V+19V

-16V-19V

CONNECTIONS

DISPLAY

DISPLAY

AMBI LIGHT

SCART 3

+11V_SF

+11V_SFS

LED SWITCH PANEL

+8V

+5V2-STBY

7511

6504

3509

6140

CONTROL

2513

6107

6505

CONTROL

+5V2-RELAY-IO2

5723

5707

5711

7712

6719

6719

6719

6719

7713

+24V_2

+12V_+24V

7131

5506

7531

6719

6719

Connector

1317

LCD 42”

Connector

1316,1317

LCD 32”

+12V_A

3511-3516

CONTROL

5507

+16V+19V

-16V-19V

-Vf21

-Vf11

-Vf1

Vp

Vm

AL

Connector

VTUN

+11V

+12V_A

+12V

+8V6

+5V2

+5V_SW

1M01

1M46

1M03

1M07

1M20

SA1

SA1

SA1

SA1

SA1

SA1

SA1

EN 31FTL2.1U, FTL2.2U 6.

CONNECTIONS

B21

1M46

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

5Y06

5Y15

5Y07

5Y02

5Y03

+8V

+5V

+5V2-STBY

+33V

+11V

B2,B6a,

B14a,c,d,e,g,B15a

B6a,b,B13a,b,B14b,

c,d,e,B15a,b,19a,d

B5a,B14b,e,

B13a,B13b

B14b,e,B20

1M03

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

10

3

4

5

6

7

8

9

10

1M07

1M20

5Y09

9

10

3

4

5

5Y11

6

7

8

9

5Y12

10

B2

+5V_VDP

B14e

+8V

B21

+5VS

B14e

+8V_VDP

B4

B3A

+3V3_DCDCFBXA

B3e

+1V8FA

B3e

+1V5_FBXA

B3e

+3V3_FBXB

B3e

+2V5_FBXA

B3e

+5V2Pr

B3e

+3V3PA

B3e

+8VPA

B3e

+3V3PB

B3e

+3V3Pr

B3e

+3V3PC

B3e

+3V3GA

B3e

+5V

+5V2-STBY

9Y01

+11V_SF

+8V

+5V2-STBY

9Y06

IF,I/O VIDEOPROCESSING

3402

5416

3400

PICNIC

B21

B21

B14e

B21

B21

+5V_VDP

+5VCOM

+8V

+8V_CON

+5VS

+8V_VDP

+8VP

+3V3_DCDCFBXA

+1V8FA

+1V5_FBXA

+3V3_FBXA

+2V5_FBXA

+5V2Pr

+3V3PA

+8VPA

+3V3PB

+3V3Pr

+3V3PC

+3V3GA

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B3e

B12

B3e,B5a,B5b

B6a

B2

FALCONIC EMBEDDED MEMORY

B3B

+3V3FA

+3V3FB

+1V8FA

EAGLE

B3C

+2V5EC

+2V5ED

+1V5EA

+1V5EB

+2V5EA

+2V5EB

+3V3EA

+3V3EB

+3V3EC

+5V2Pr

+3V3ED

COLUMBUS

B3D

+3V3CB

+3V3CA

+1V5CA

+5V2Pr

FBX SUPPLY

B3E

+3V3_DCDCFBX

5767

5779

5768

5769

5770

5771

5773

RES

7773

5772

5709

6719

5760

7774

5775

5777

7774

IN OUT

5764

5721

+5VF

5722

+8V_CON

5702

5719

5720

7701

7770

5775

5763

RES

+3V3FA

+3V3FB

+1V8FA

+2V5EC

+2V5ED

+1V5EA

+1V5EB

+2V5EA

+2V5EB

+3V3EA

+3V3EB

+3V3EC

+5V2Pr

+3V3ED

+3V3CB

+3V3CA

+1V5CA

+5V2Pr

+3V3_DCDCFBXA

+3V3PA

+3V3GA

+3V3PB

+3V3PC

+3V3FA

+3V3FB

+3V3Pr

+1V8FA

5758

+1V5EB

+1V5CA

5759

+1V5_FBXB

5761

+1V5_FBXA

5753

+1V5EA

+2V5_FBXA

5752

+2V5ED

5764

+2V5EC

5713

+2V5EA

5762

+2V5EB

+3V3_FBXB

5750

+3V3EA

5751

+3V3EB

5780

+3V3ED

5801

+3V3EC

5756

+3V3CA

5753

+3V3CB

+5V_FBXA

+5V2Pr

+8VPA

B3a,B3b

B3a,B3c,B3d

HOP

B4

+5V_VDP +5VS

B14e

+8V_VDP +8VS

B14e

B5A

3304

3329

OTC FLASH

5000

B21

B21

B2

B14e

5001

1000

+5V2-STBY

B21

VPP-SW

B5c

+8V_CON

B2

EAn

B5c

BACKLIGHT CONTROL

B5B

+5V_CON

B14e

+8V_CON

B2

BACKLIGHT CONTROL

B5C

+3V3_INTOTC

B5a

B3a

B21

B3a

B3a

B3a

B3a

B21

B3b

B3b

B14b

B3a

B21

B3c

B3d

B6a

B6a

B3a

B6a

B3c

B6a

B3a

B3c

B3c

B6b

B3c

B3c

B3a

B3c

B3c

B21

B3c

B3c

B3d

B3d

B3a

AUDIO DEMODULATOR

B6A

+5V

5A02

+8V

+11V_S

DOLBY DIGITAL DECODER

B6B

+5V

DOLBY PROLOGIC PROCESSOR

B6C

+5DB

+8VC

+11V_AUD

+5DA

AUDIO DELAY

B6D

+5M

MAIN TUNER

B12

1U01

+11V

T1500mA

7U04

7U03

CONTROL

F500mA

5U02

3C01

3A03

5A07

5A06

5A00

5A03

5A01

5A38

7005

5003

RES

5U01

+3V3_INTOTC

+3V3_INTOTC

6U02

5U05

5U06

+5V2_CON

VPP_SW

+8V_CON

EAn

+5V_CON

+8V_CON

EAn

+5V

+5VF

+5DA

+5DB

+8VC

+11V_AUD

+5M

+5DB

+8VC

+11V_AUD

+5DA

+5D

+3V3-LINK

+3V3_SIM

+3V3_
DCDCFBX

B3c

B5a

B3e

B6c

B6c

B6c

B6c

B6b

N.C.

B14d,B15c,
B19b,B20

B3a,B3c

B21

B21

B21

B21

B21

B21

B14a

B21

B21

B12

B21

B14b

B21

B21

B21

B19a

MAIN TUNER

B13A

B13B

+5V

+33V

DC-DC CONVERTER

B13C

+11V_DC

5T10

5T14

7TO4

DC-DC

7T01-1

5T11

5T15

I/O1 MMC

B14A

+8V

3IK7

I/O2 CONNECTIONS

B14B

+5V2-STBY

7I05-1

3I37

+11V

3IC1

7I07

6I11

3ID0

+5V

+8VA

I/O3 SWITCH

B14C

+5V +5VIO

3

1

7I09

2

3IN4

+8V

I/O4 AUDIO

B14D

+8V

+5V

+3V3_SIM

5I54

5I55

I/O5

B14E

+11V

+11V_S

+8V

1I79

T300mA

5IEE

5I47

+5V

5I46

5I45

+5V2_STBY

I/O6 DIGITAL INPUTS

B14F

5I35

+3V3-AD

5I34

5I35

5I32

5I40

SUB TUNER

+5V

+33V

+11V_DC

VDISP

+8V

(MMC)

+8VA

+5V2-SW

+11V_S

+8VA

+8V

+8V

+5V

VDDD

VDDA

+11V_DC

+11V_SF

+8V_VDP

+5V

+5V_CON

+5V_VDP

+5V2_STBY

+3V3-Si

OVCC

AVCC

PVCC2-Si

DACVCC

B6a,B14e

B2,B4

B5a,B5b

B20

B14b

B14g

B13c

B21

B2,B4

B21

B14c

B21

B19a

B21

B21

B15a

B21

B15b

B12

B21

B12

B19a

B19b

B19b

B19b

B12

B13c

B21

I/O7

B14G

3I40

+8V

+5VIO

+3V3-AD

PIP HIP

B15A

+5V

+8V

PIP SWITCH

B15B

+8VPIP

+5V

PIP MUPPET

B15C

+5VPIP

+3V3_SIM

HDI A/D CONVERTER

B19A

+5V

EPLD CONTROL

B19B

+3V3-SIM

EPLD OSD

B19C

+3V3-AD

B14eB14e

EPLD I/O

B19D

+3V3-IO

+3V3-SD

+5V

+3V3_EPLD

SCREEN INTERFACE

B20

+3V3-IO

VDISP

+11V

5P03

3

5P01

5P51

9PB2

7L02

IN OUT

5E53

1

7E05

5I13

5I12

5P00

+8V-VIDEO

+5VIO

+3V3-AD

3P00

+5VHIP

3P01

+8VHIP

3P02

+8VPIP

B15b

+8VPIP

+5VD

3P74

+5VPIP

B15c

+5VPIP

+3.3V

5PA9

5PB0

2

2

5L16

5L17

5L13

+3V

+3VD

+3V3-AD

VD

VDD

B14f,g,B19c

5L14

5L18

PVD

5L15

+3V3-EPLD

5E54

+3V3-SD

5E51

+3V3-IO

7E01

+2V5-IO

1

3

5E52

5E50

+1V5

+1V5-PLL

+1V5-INT

VBL

VDO

VDDO

PVDO

3

5E00

5E01

5E02

5E03

B19d

B19d

B19d

+3V3-IO

+3V3-SD

+5V

+3V3_EPLD

+3V3_SIM

VDISP

+11V

E_14620_140.eps

240804

Circuit Diagrams and PWB Layouts

7. Circuit Diagrams and PWB Layouts

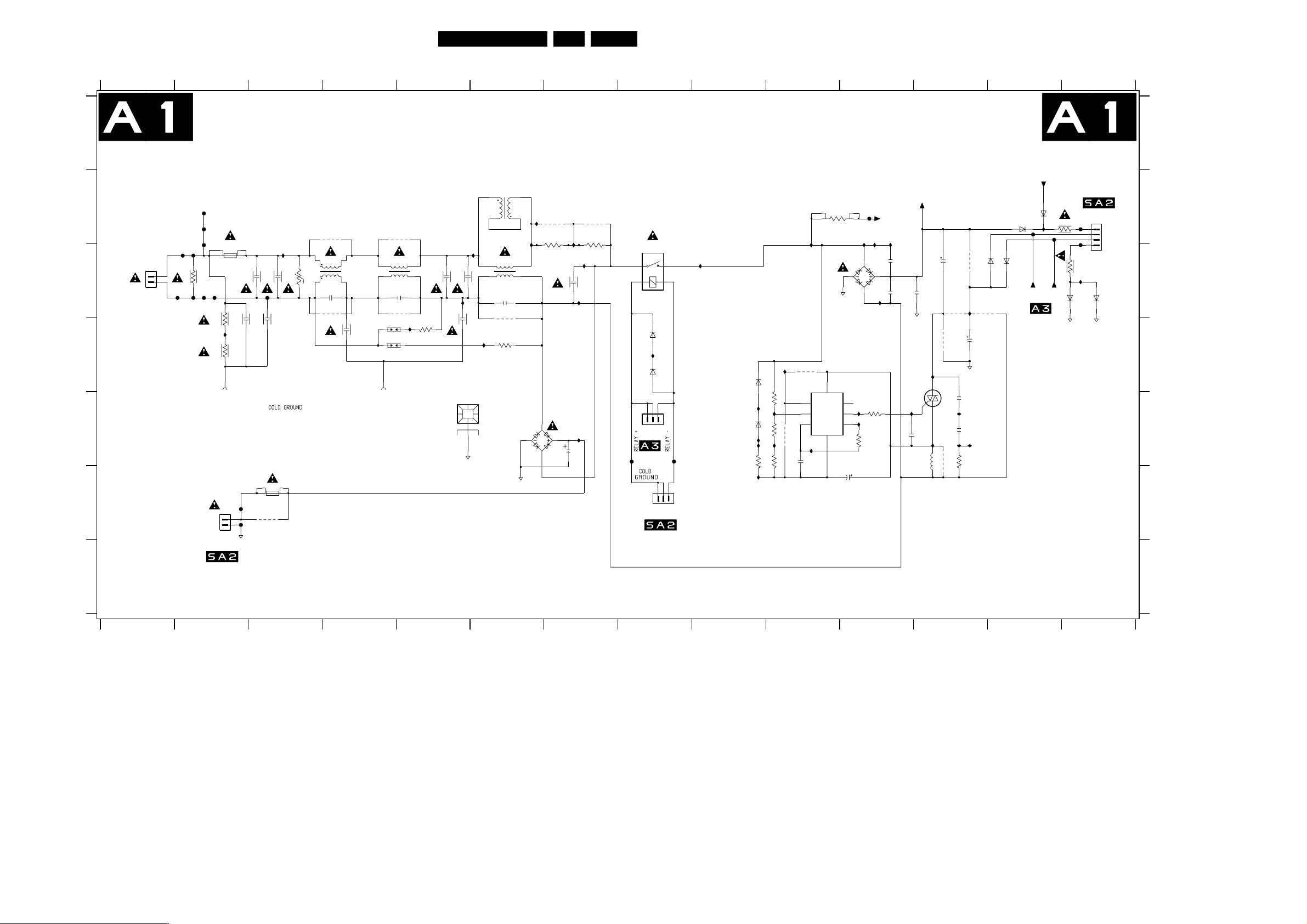

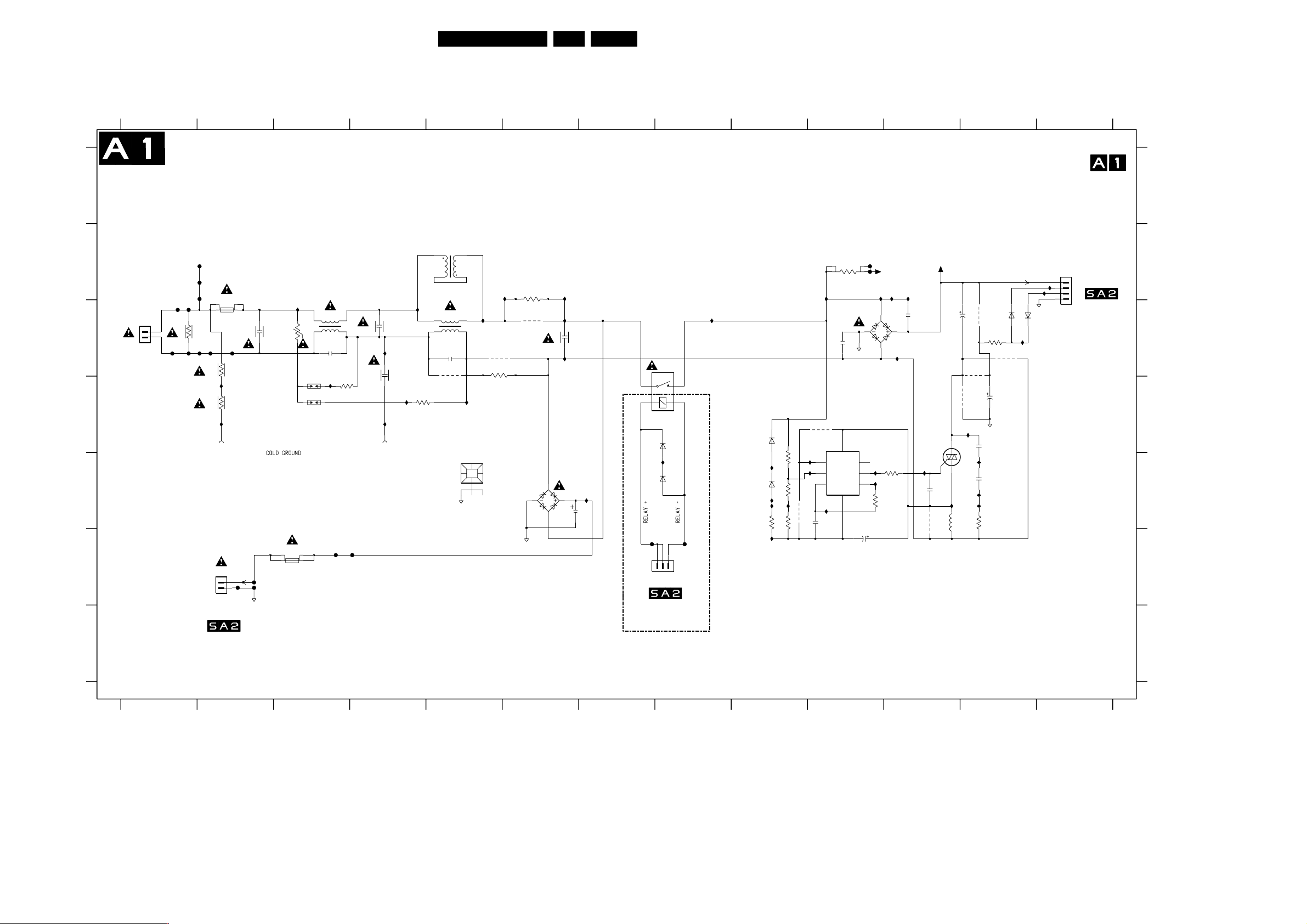

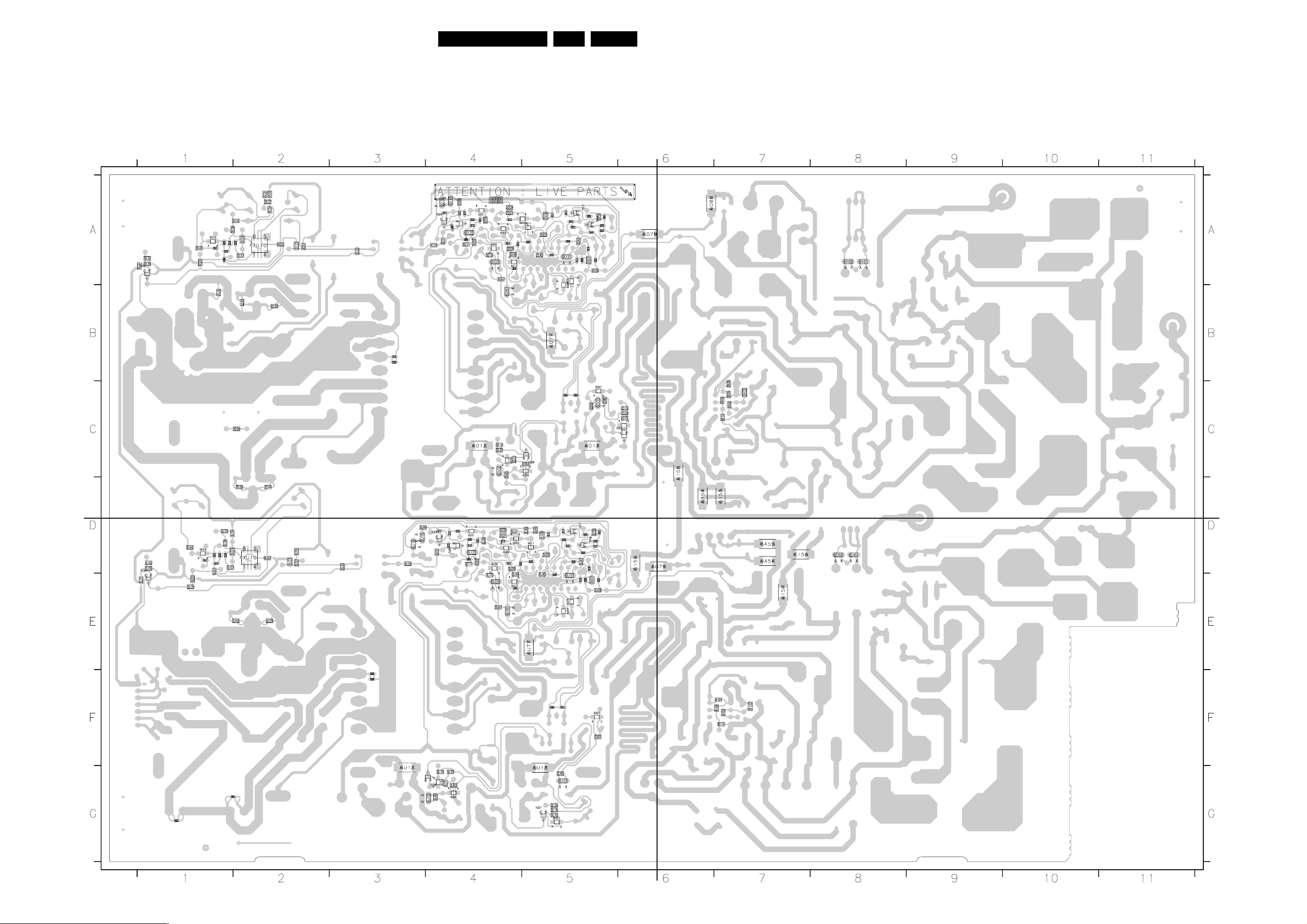

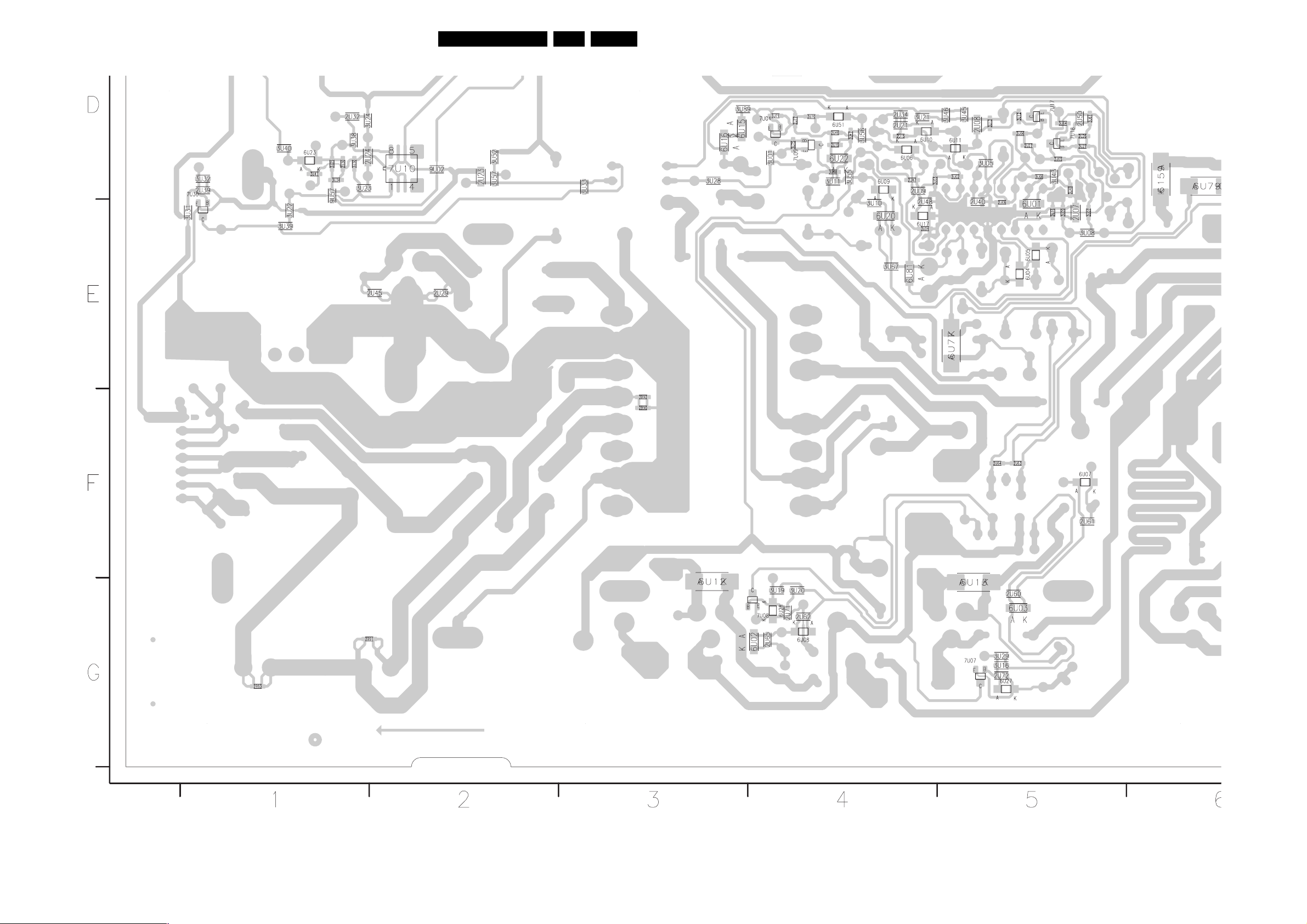

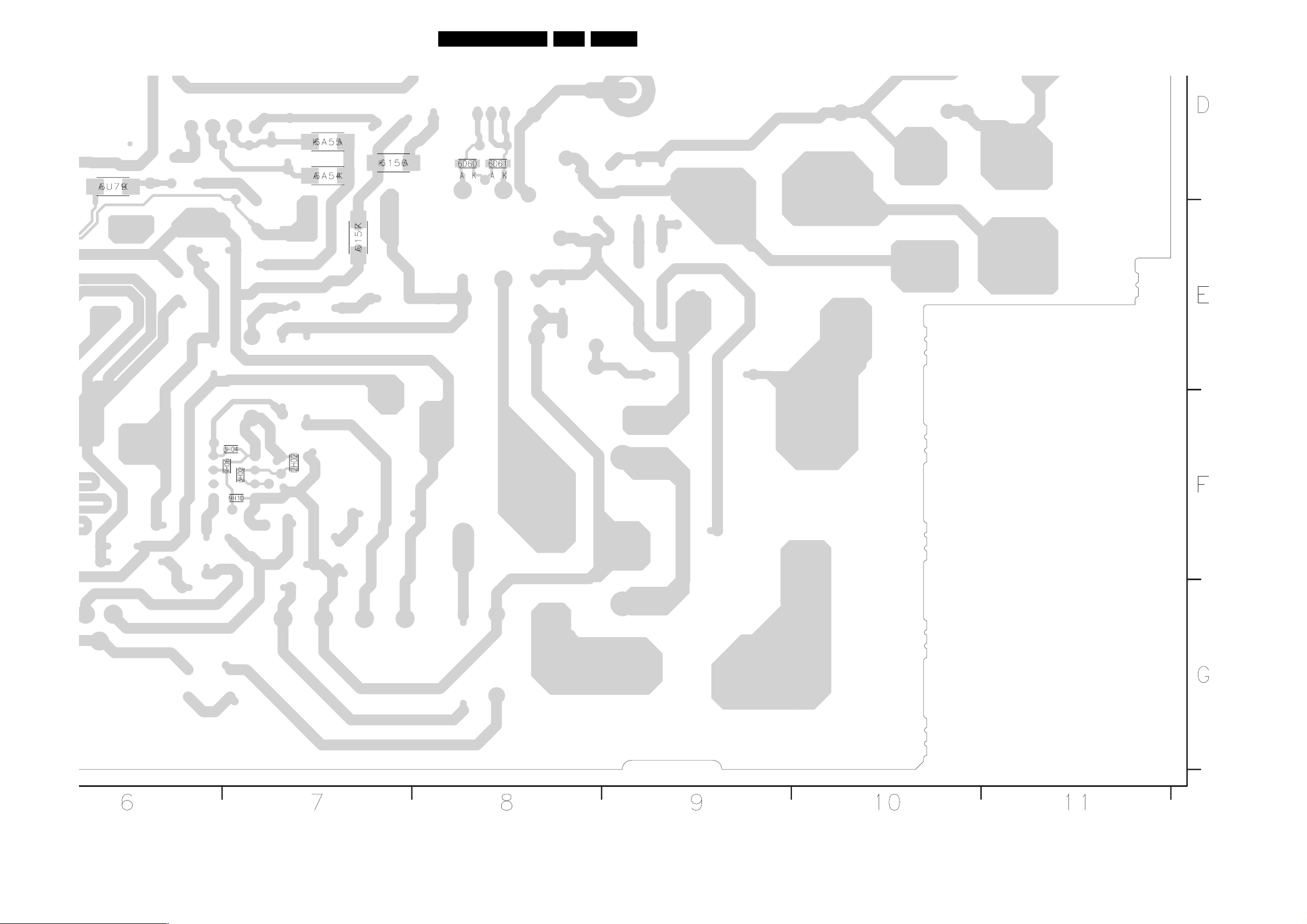

Power Supply Unit (30-32 Inch): Mains Filter and Standby

1234567

MAINS FILTER + STANDBY

A

MAINS FILTER

B

MAINS INPUT

95-264Vac

2

C

1

D

E

F

G

3104 313 6009.5

1308

12345678

F410

F412

F413

3401

F415 F416

F418

F411

F414

T3.15AH 250V(EUR)
T5AH 250V(AP)
T5AH 250V(US)

4M7

F419

3402

3403

GND screw

1306

1
2

TO 1306

AUDIO-STANDBY

1400

PTF/65

I429

1

I410

5401

23

14

F417

2400

470n

3400

V

DMF3547HB60

2404

47p

4M7

I419

4M7

1000

F424
F425

F426

GNDHOT

T1AE 250V

1401

PTF/65

1403

500V
1402

500V

I431

3405

220R

F427

F428

2401

2407

GND screw

290V (303V)

1

470n

I416

220p

I430

1001

I411

I455

3404

220R

5403

1

4

2

3

5402

23

14

DMF3547HB60

I412

2406

47p

9003

I432

1011

HEATSINK

9001

I442

3451

1R

9005

DF06M

GNDHOT

3450

6506

EN 32FTL2.1U, FTL2.2U 7.

8

2408

I415

I445

I444

2503

100n

I413

HOT

1450

COLD

G5PA-1-5VDC

6461

BAS316

I424

6460

I456

BAS316

4V8 (0V)

10u

F420

AUDIO-STANDBY

1305

TO 1305

123

F421

B3B-EH-A

1R

9 10111213

I812

2803

56n

I421

400V_HOT

47n

2808

9812

7806

I422

5804

2815

33u

330u

9813

9811

I420

100n

AVS10CB

100n

I414

I417

BYG10

1307

B4P-VH

1
2
3
4

AUDIO-STANDBY

TO 1307

9814

2816

288V (0)

3101

1K0

9808

330u

6155

BYG10

I418

6154

2810

I825

2809

I824

I826

4R7

3805

3810

F422

25V_HOT

F423

12K

I810

I811

I813

6807

GBJ6J

56n

2804

I817

9810

6809

1N5062

AVS1ACP08

I426

1M0

3800

I814

6808

I816

I815

3807

I820

1N5062

I828

22K

3806

3804

I427

470R

9806

20K

4

7805

VDD

76

MODE

NC

I423

3803

OSOUT

VSS

1

VG

2806

47u 50V

58

390R

I425

91K

3802

VM

23

OSIN

I428

2802

100p

COLD

E_14620_055.eps

190504

1000 D2
1001 D4
1011 E5
1305 F7
1306 F2
1307 B13
1308 C1
1400 C2
1401 F3
1402 D3
1403 D3

A

1450 C8
2400 C2
2401 C4
2404 C3
2406 C5
2407 C4
2408 C6
2503 E6
2802 E10
2803 C11
2804 C10
2806 F10

B

2808 E11
2809 E12
2810 D12
2815 C11
2816 D12
3101 C12
3400 C3
3401 C1
3402 C2
3403 D2
3404 D4

C

3405 D3
3450 B6
3451 C6
3800 E9
3802 E10
3803 E11
3804 E9
3805 E12
3806 E9
3807 E9
3810 B10
5401 C3

D

5402 C5
5403 B5
5804 E11
6154 C12
6155 C12
6460 E8
6461 D8
6506 E6
6807 C10
6808 E9
6809 D9
7805 D10

E

7806 E11
9001 C5
9003 C5
9005 C6
9806 E9
9808 C12
9810 D10
9811 D12
9812 E11
9813 C12
9814 C12

F

F410 B2
F411 B2
F412 C1
F413 C1
F414 C2
F415 C1
F416 C2
F417 C2
F418 C1
F419 C2
F420 F7
F421 F8

G

F422 B10
F423 B10
F424 F2
F425 F2
F426 F2
F427 F3
F428 F4
I410 C3

I411 C4
I412 C5
I413 C8
I414 B13
I415 C6
I416 C4
I417 B13
I418 C12
I419 D2
I420 D12
I421 E11
I422 E11
I423 E10
I424 E7
I425 E10
I426 E10
I427 E10
I428 E10
I429 D2
I430 D4
I431 D3
I432 D5
I442 B6
I444 B6
I445 C6
I455 D4
I456 E7
I810 B10
I811 B11
I812 B11
I813 C10
I814 E9
I815 E9
I816 E9
I817 C11
I820 F9
I824 E12
I825 E12
I826 E12
I828 E9

9 10111213

Circuit Diagrams and PWB Layouts

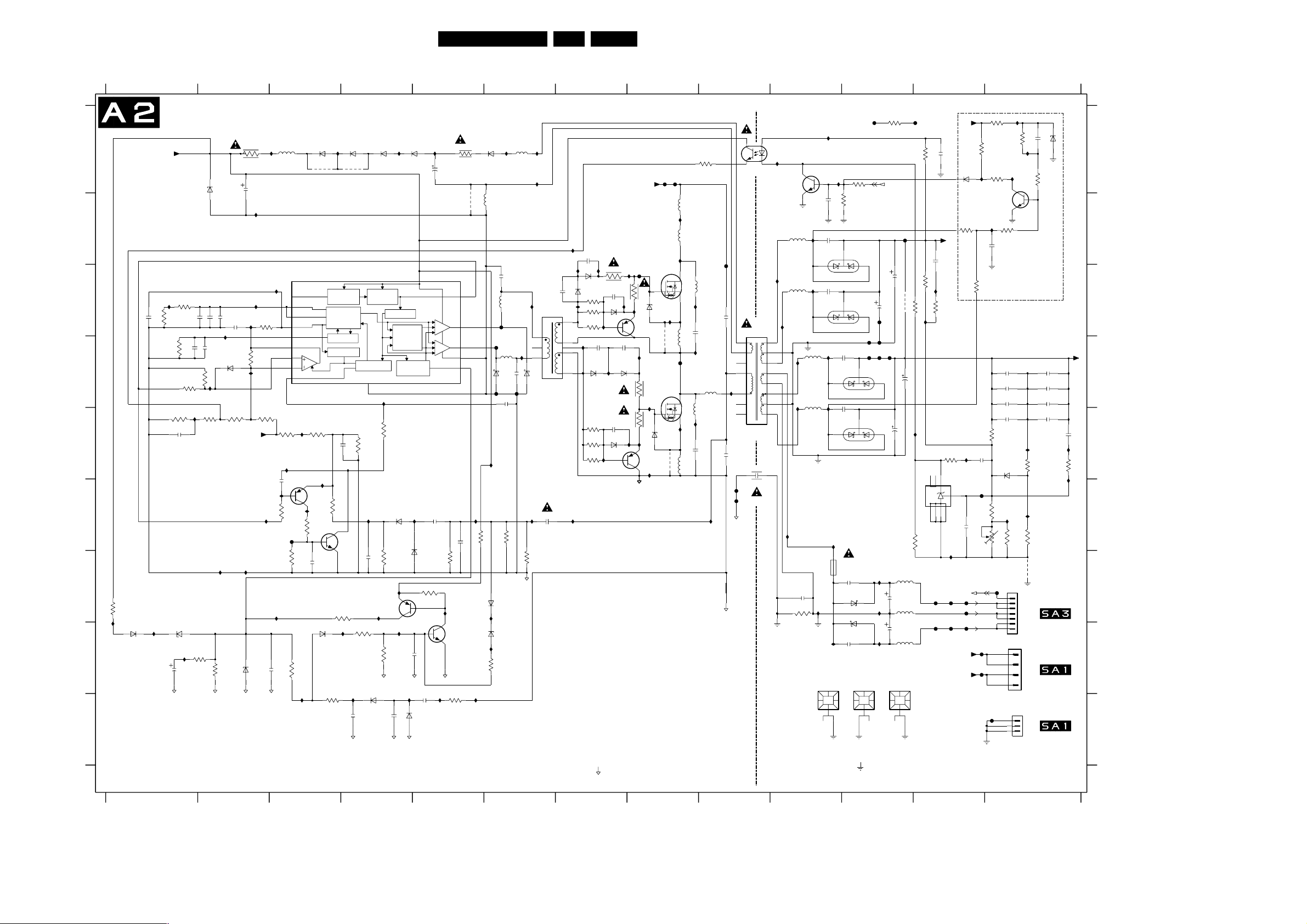

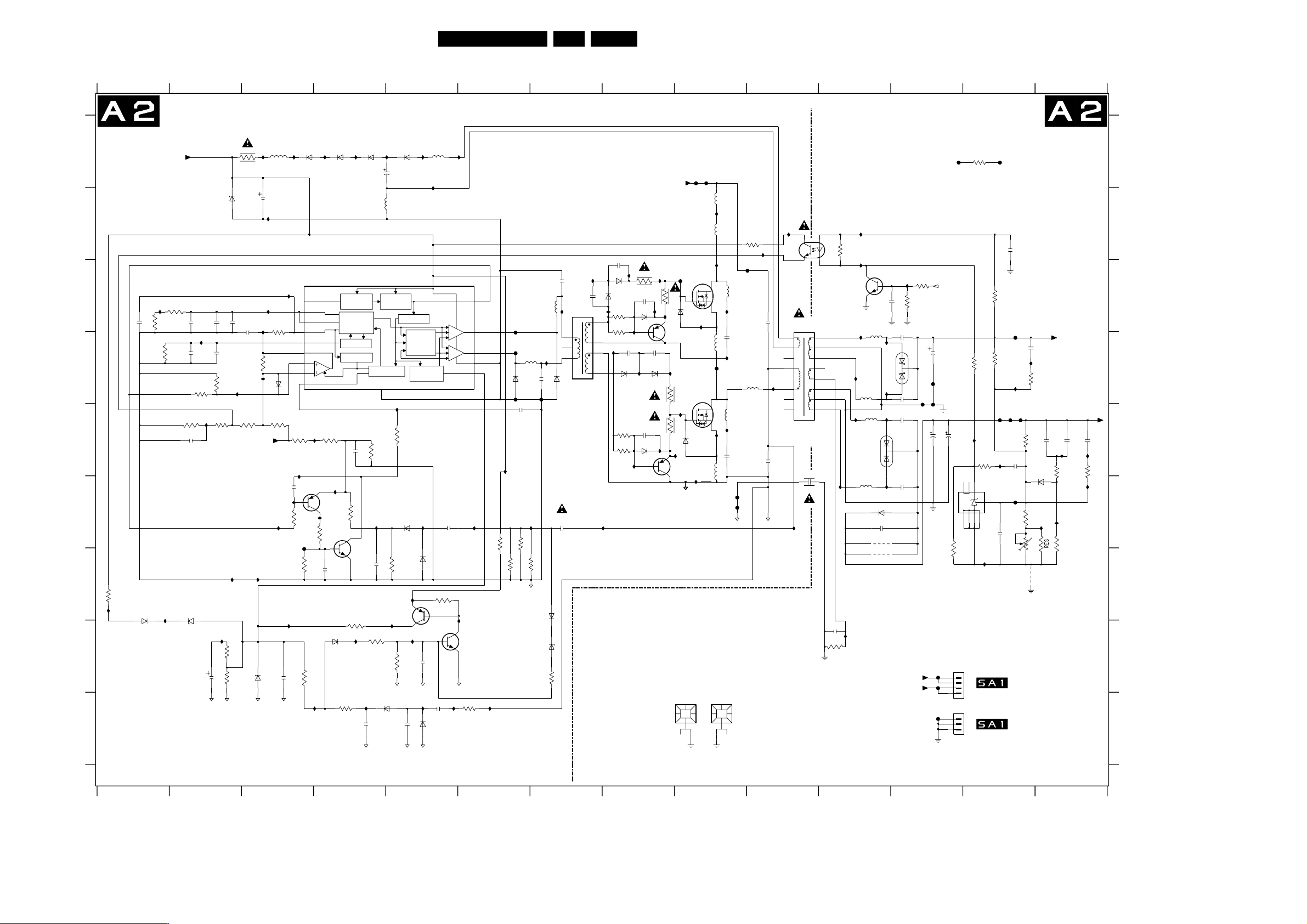

Power Supply Unit (30-32 Inch): Supply

1 23456789101112 13

SUPPLY

A

B

C

D

E

F

G

3067

100R

I143

BAS316

6020

H

I

3104 313 6009.5

25V_HOT

20V4 (0V)

6081

VS-CONTROLLER

I103

3002

2040

39K

560p

3003

100K

3004

3009

3K3

2007

470n

16

6009

I142

PDZ-18B

I141

2010

100u

3043

100p

100p

2035

2034

100p

27K

100p

2009

2005

2K7

3048

I104

10R

3008

I021

330R

470R

3010

3011

123

BZX384-C22

200p

2004

I009

630

RES

6001

BAS316

I028

470R

2006

3007

630

1n

10K

3000

4R7

2002

470u

I006

I007

I008

25

3006

I010

400V_HOT

I029

6022

BZX384-C4V7

I096

I027

3005

33K

10K

3058

5M6

RES

I022

I025

I135

2019

5017

6

7

11

288V(0V)

3050

820K

SOFTSTART

CONTROL

I018

15n

2027

10K

3066

F007

3027

10n

3047

7001
MC34067P

EN|UA9

OSCC1

OSCR2

OSCCC3

OS16

EAO

ERROR

I+8

I-

SOST

I105

50

I023

100K

47R

I134

BC857BW

7017

3064

2026

BAS316

3053

680K

10K

BAS316

6082

9009

6051

RES

I020

VCC UVLO/

VARIABLE

FREQUENCY

OSCILLATOR

ONE-SHOT

2.5V CLAMP

3012

50

2n2

3056

220R

I097

6080

BYG22D

RES

9008

CONTROL

ENABLE

SOFT-START

1n0

3061

2050

15K

7018

BC847BW

3068

2K2

I136

I133

2046

EN 33FTL2.1U, FTL2.2U 7.

BIAS SUPPLY

I095

6079

BYG22D

5.0 V

REFERENCE

VREF UVLO

STEERING

FLIP-FLOP

FAULT DET/

GND

4

I012

3065

100K

68K

CURRENT

PROTECTION

I024

6011

BAS316

16

10K

470n

2008

3013

I139

BC857BW

7009

I137

6006

BAS316

3071

10K

2048

I138

1n0

3070

1K

47n

6077

BYG22D

LATCH

I033

6010

2077

I132

BAS316

6017

15

VCC

BAS316

2n2

2047

10n

22V(0V)

2003

2015

10n

3075

1K

I098

I011

1m0

50

7004

BC847BW

VREF

OA 14

OB 12

PGND 13

FI 10

RES

2018

22R

3045

I140

3055

220R

3033

3

5002

1600

F023

F300

BS51312-01

2000

470p

COLD

11V3 (0V)

7002

14

I063

2

10V2 (0V)

7030

BC847BW

5027

I116

5028

I117

10

11

12

13

14

15

16

I123

COLD

I073

I076

2290

10n 50

3292

560R

I070

I072

5025

5026

I124

GND_SND

I062

0V (0V)

2039

2028

50V

1n0

3

2044

1n0

I074

I077

I080

1007

I292

1009

HEATSINK

I005

470n

3032

2

6044

STPS20L45CT

50V

2

6045

STPS20L45CT

2029

50V

1n0

6021

3

STPS20H100CT

2045

1n0

6025

3

STPS20H100CT

250V

T5A

19372

2291

470p

6291

STPS8H100FP

STPS8H100FP

2293

470p

F021

F027

2

2

50

50

1010

HEATSINK

F012

DC_PROT

A2

1

2m2 25

2020

13

F028

F017

F025

F024

1

2022

1

I290

2292

I291

2294

I293

HEATSINK

10K 3031

47K

50V

6293

COLD GROUND

3999

1K0

2021

1012

470n

2023

220R

+12V

10n

RES

2031

33K

I119

RES

15K

3037

3023

15K

5

K1

NC

I094

F297

F293

GND_SND

F294

F298

BAS316

13V4

7010

TL431ACD

R

8

DC_PROT

+24V

+12V

F292

F295

6030

3051

I089

2030

F290

+12V

4K7

A2

3049

I016

3054

2024

220n

F014

16

100n

Vs

Voltage

Adj.

F001

F010

F006

16

F022

3057

F016

2m2

3052

9010

3022

680R

I120

2038

4m7 16V

4m716V

I085

4

2A367

18K

3030

5293

33u

2m2

5291

VSND_POS

33u

2m2

VSND_NEG

5292

33u

HOT

I100

I099

6078

5010

F008

F004

I106

2063

5015

F003

5016

6005

BAT54 COL

16 100n

2016

470p

2064

470p

1m

HIGH SIDE

3014

I038

100R

2072

1n0

I046

2065

2n2

6002

BAS316

2071

1n0

I051

400V_HOT

DRIVE

F002

47R

3015

6013

I037

BC857BW
7007

I004

LOW SIDE

100R

3017

47R

3018

I059

BC857BW

7008

I055

F018

7005

STP15NK50ZFP

SML4744

I294

9024

DRIVE

7006

STP15NK50ZFP

I057

6012

SML4744

c002

I101

I064

2061

I042

2n2

I003

6007

BAS316

2n2

6003

2060

3035

BAS316

3K3

5001

S13932-04

I045

6

7

9

10

6027

3016

BAS316

3K3

3029

I109

3K3

I039

2062

2n2

6008

I052

BAS316

3028

3K3

6028

3020

3K3

BAS316

3019

I145

3K3

I107

4

3

I108

2

BAT54 COL

6004

F009

1R0

BYG22D

9004

5009

5

GND3

100n

I036

3001

100R

6015

I296

6014

I295

3089

I131

3046

BAS316

BZX384-C22

10K

I034

22R

22R

3021

2014

I081

2n2

2000V

HOT GROUND

9025

F299

I001

I002

I112

5007

5008

5004

F005

5041

3100

10R

5005

I111

2000V

2013

1n5

I110

FLM 1/6W

5013

I113

2000V

1n5

2012

HOT

TCET1102

F029

1600

10n

2017

89

7

6

5

5040

3

I114

2

1

10n

2011

I084

c001

4K7

3059

2K2

33K

3044

470R

BC847BW

I017

2037

3024

3025

F296

7031

3042

12K

470n

24V4 (0V)

2051

220n
2052

220n
2053

220n

2033

220n

33K

MRS25 1%

6023

BAS316

1%

1K8

I093

470R

3034

3026

B7B-EH-A

1

2

3

4

I013

3036

100K

I014

I015

ONLY FOR

32" SHARP

I088

3040

I092

RES

3041

1%

9002

7
6
5
4
3
2

AUDIO - STBY

1

1M02

1304

VH

AUDIO - STBY

1309

1
2
3

B3P-VH

AUDIO - STBY

470n

2036

6054

BZX384-C10

1K0

3039

2041

220n
2042

220n
2043

220n
2025

220n

2032

I121

8K2

3038

33K

TO 1M02

TO 1304

TO 1309

E_14620_056.eps

190504

456789101112 13

+24V

I122

3043 D1
3044 A13
3045 G5
3046 F6
3047 H3
3048 D2
3049 A12
3050 E3
3051 B12
3052 C12
3053 E3
3054 C12
3055 I5
3056 I3
3057 A12
3058 E2
3059 A13
3061 E4
3064 F3
3065 E4
3066 F3
3067 G1
3068 G4
3070 H4
3071 H4
3075 G5
3089 H6
3100 A9
3292 G10
3999 A11
5001 C6
5002 D9
5004 D8
5005 C9
5007 B8
5008 B8
5009 B5
5010 A6
5013 E8
5015 C6
5016 D6
5017 A3
5025 D10
5026 D10
5027 B10
5028 C10
5040 D9
5041 E8
5291 G11
5292 H11
5293 G11
6001 D2
6002 D7
6003 C7
6004 D6
6005 D6
6006 I4
6007 C7
6008 D7
6009 H1
6010 G4
6011 F4
6012 E8
6013 C8
6014 H6
6015 G6
6017 I5
6020 H1
6021 D11
6022 H2
6023 E13
6025 E11
6027 C7
6028 E7
6030 A12
6044 B10
6045 C10
6051 H3
6054 A13
6077 A5
6078 A6
6079 A4
6080 A4
6081 A2
6082 A3
6291 G11
6293 G11
7001 C3
7002 A9
7004 H5
7005 C8
7006 D8
7007 C8
7008 E8
7009 G4
7010 F12
7017 F3
7018 F3
7030 A10
7031 B13
9002 G13
9004 B5
9008 A4
9009 A3
9010 C11
9024 D8
9025 E8
F001 H12
F002 C8
F003 C6
F004 D6
F005 D8
F006 I12
F007 F3
F008 D6
F009 D6

F010 H12
F012 D11
F014 F12
F016 B11
F017 D11
F018 A8
F021 A11
F022 A12
F023 F9
F024 D11
F025 D11
F027 D11
F028 C11
F029 C9
F290 G12
F292 G12
F293 G12
F294 H12
F295 H12
F296 G13
F297 G12
F298 H12
F299 A8
F300 F9
I001 B8
I002 B8
I003 C7
I004 D8
I005 A10
I006 B2
I007 C2
I008 C2
I009 C2
I010 D2
I011 I5
I012 D4
I013 A13
I014 A13
I015 A13
I016 A12
I017 B13
I018 E3
I020 F3
I021 E1
I022 F3
I023 F3
I024 F4
I025 F2
I027 C3
I028 G2
I029 G2
I033 F5
I034 F6
I036 F5
I037 C8
I038 C8
I039 D7
I042 C7
I045 C7
I046 C8
I051 E8
I052 D7
I055 E8
I057 D8
I059 E8
I062 A10
I063 A10
I064 B7
I070 B10
I072 C10
I073 D10
I074 D10
I076 D10
I077 E10
I080 F10
I081 F7
I084 F9
I085 E12
I088 E13
I089 E12
I092 F13
I093 F13
I094 G12
I095 A4
I096 A3
I097 A3
I098 A5
I099 A6
I100 A6
I101 A6
I103 C1
I104 D2
I105 E3
I106 E6
I107 C6
I108 D6
I109 C7
I110 D8
I111 C8
I112 E8
I113 E8
I114 D9
I116 C10
I117 C10
I119 C12
I120 C12
I121 E13
I122 F13
I123 F10
I124 G10
I131 I5
I132 I4
I133 I4
I134 I3
I135 G3
I136 H4

I137 G4
I138 H4
I139 G4
I140 G5
I141 H1
I142 H1
I143 G1
I145 E7
I290 G11
I291 G11
I292 H10
I293 H11
I294 C8
I295 H6
I296 G6
c001 G9
c002 E8

1007 G10
1009 H10
1010 H11
1012 H11
1304 H13
1309 I13
1M02 H13
2000 E9
2002 A2
2003 A5
2004 C2
2005 D2

A

2006 C2
2007 E1
2008 G4
2009 D1
2010 H1
2011 E9
2012 E8
2013 C8
2014 F6
2015 F5
2016 E6
2017 C9
2018 F5

B

2019 H2
2020 C11
2021 C11
2022 E11
2023 A12
2024 E12
2025 E13
2026 G3
2027 F3
2028 B10
2029 D11

C

2030 F12
2031 B12
2032 E13
2033 E13
2034 C1
2035 C2
2036 A13
2037 B13
2038 D11
2039 B10
2040 C1
2041 D13

D

2042 D13
2043 D13
2044 C10
2045 E11
2046 I4
2047 I5
2048 I4
2050 E3
2051 D13
2052 D13

4n7

RES

2053 D13
2060 C7

E

2061 B7
2062 D7

33K

2063 C6

RES

2064 D6
2065 D7
2071 E7
2072 C7
2077 H4
2290 G10
2291 G11
2292 G11

F

2293 H11
2294 H11
3000 A2
3001 F5
3002 C1
3003 C1
3004 D1
3005 C2
3006 D2
3007 E2
3008 E2
3009 E1

G

3010 H2
3011 H2
3012 F3
3013 G4
3014 C7
3015 C8
3016 C7
3017 D8
3018 E8
3019 E7
3020 E7
3021 G6

H

3022 C11
3023 E12
3024 E13
3025 F13
3026 G13
3027 G3
3028 E7
3029 C7
3030 F11
3031 A11
3032 B10

I

3033 A5
3034 F13
3035 C7
3036 A13
3037 C12
3038 E13
3039 A13
3040 E13
3041 F13
3042 B13

Circuit Diagrams and PWB Layouts

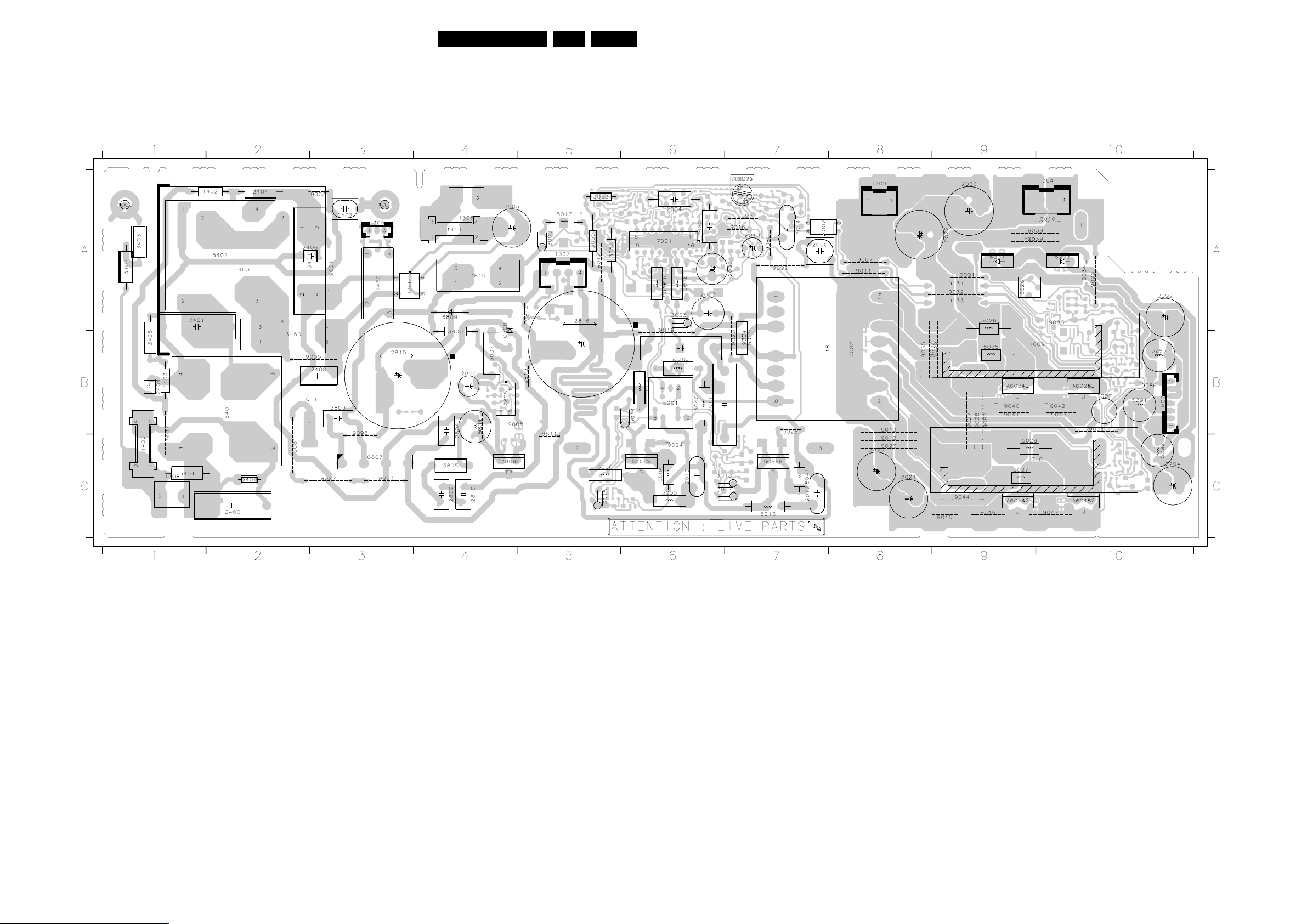

Layout Power Supply Unit (30-32 Inch) (Top Side)

1000 A1
1001 A3
1007 B10
1009 B9
1010 C9
1011 C3
1012 A9

1304 A10
1305 A3
1306 A4
1307 A5
1308 C1
1309 A8
1400 C1

1401 A4
1402 A2
1403 B1
1450 A3
1M02 B10
2000 A7
2002 A7

2003 A6
2004 A6
2005 A6
2010 A7
2011 B7
2012 C7
2013 C6

2014 A7
2017 B6
2020 C8
2021 C8
2022 A8
2038 A9
2292 A10

2294 C10
2400 C2
2401 B1
2404 B1
2406 A3
2407 A3
2408 B3

2503 A4
2803 B3
2804 B4
2806 B4
2809 C4
2810 C4
2815 A3

2816 A5
3000 A5
3014 B6
3015 C5
3017 C7
3018 C7
3026 A9

3033 A6
3050 A5
3053 A5
3058 A5
3400 C2
3401 C2
3402 A1

3403 A1
3404 A2
3405 B1
3450 A2
3451 A3
3800 A4
3805 C4

3807 B4
3810 A4
5001 B6
5002 A7
5004 C6
5005 C6
5007 B6

EN 34FTL2.1U, FTL2.2U 7.

5008 C5
5009 B7
5010 B6
5013 C7
5015 A6
5016 A6
5017 A5

5025 B9
5026 A9
5027 C9
5028 C9
5040 B6
5041 C7
5291 B10

5292 C10
5293 B10
5401 B2
5402 A1
5403 A3
5804 B4
6021 B9

6025 B10
6044 C10
6045 C10
6291 A9
6293 A10
6506 A4
6807 C3

6808 A4
6809 A4
7001 A6
7002 A8
7005 C6
7006 C7
7805 B4

7806 C4
9001 A3
9003 A3
9004 A7
9005 B3
9006 C10
9007 A8

9010 A10
9011 A8
9012 C8
9013 B8
9014 B1
9016 A7
9017 A5

9018 A6
9019 A6
9020 B7
9021 A6
9022 C3
9023 C3
9024 C6

9025 B7
9026 C8
9027 B9
9028 B9
9031 A9
9032 A9
9033 A9

9034 A10
9035 B8
9036 B9
9037 B8
9038 A9
9039 A9
9040 B9

9041 B9
9042 B10
9043 B10
9044 C9
9045 C9
9046 C9
9047 C10

9080 A7
9081 C2
9086 B10
9087 B9
9088 A10
9090 A10
9091 A9

9092 A7
9093 A7
9098 B3
9808 B5
9811 B5
9812 B4
9813 B5

9814 A5

3104 313 6009.5

E_14620_057.eps

190504

Circuit Diagrams and PWB Layouts

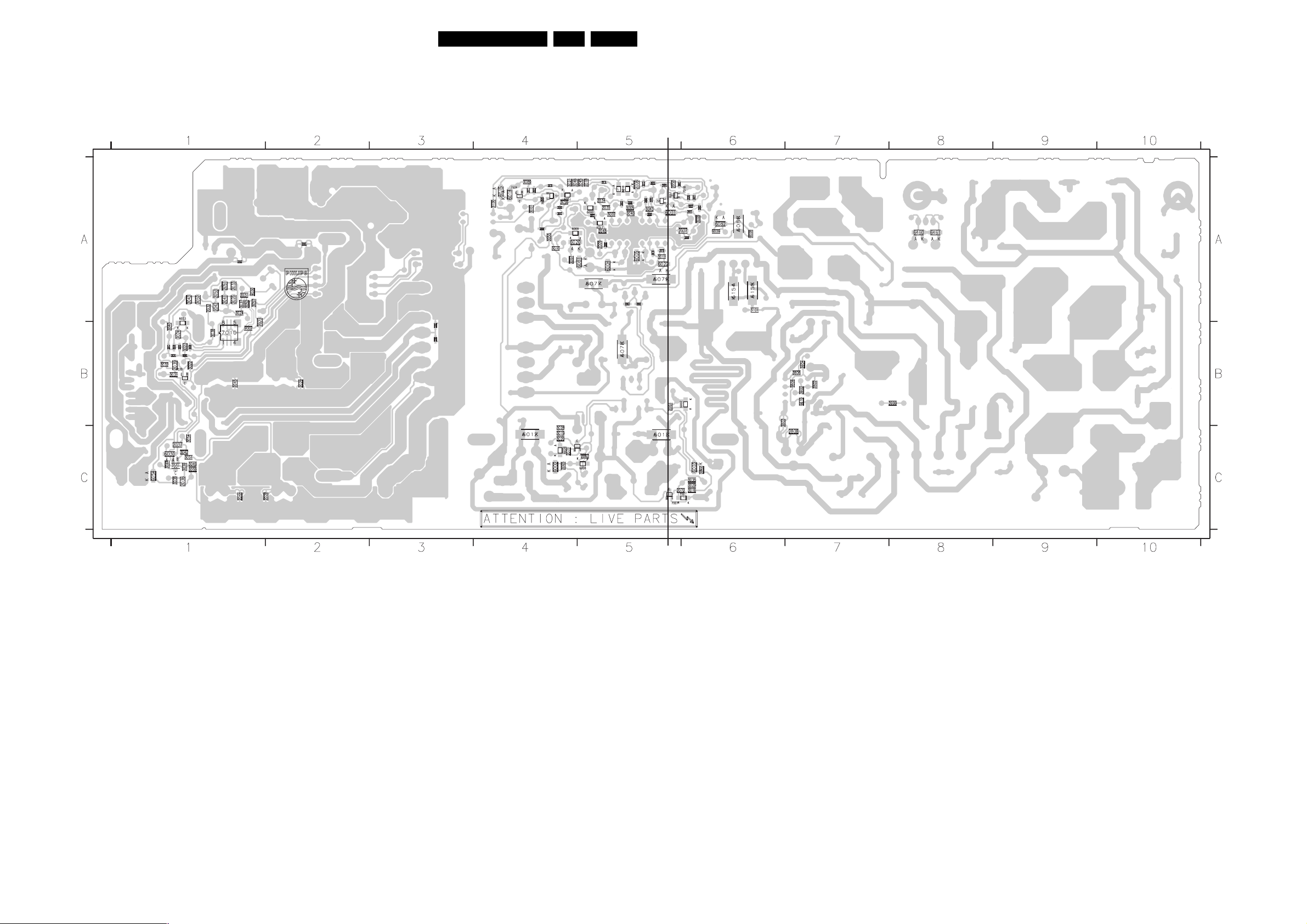

Layout Power Supply Unit (30-32 Inch) (Overview Bottom Side)

2006 A5
2007 A6
2008 A5
2009 A5
2015 A5
2016 A5

E_14620_058a.eps

2018 A5
2019 A5
2023 B1
2024 B1
2025 A1
2026 A6

Part 1

2027 A6
2028 C2
2029 B2
2030 B1
2031 A1
2032 A1

2033 A1
2034 A5
2035 A5
2036 C1
2037 C1
2039 B1

2040 A5
2041 A1
2042 A1
2043 A1
2044 C1
2045 B1

2046 A4
2047 A5
2048 A5
2050 A5
2051 A1
2052 A1

2053 A1
2060 C6
2061 B5
2062 C5
2063 A5
2064 A5

2065 C4
2071 C4
2072 C5
2077 A4
2290 B3
2291 A2

2293 A1
2802 B7
2808 C7
3001 A4
3002 A5
3003 A5

3004 A5
3005 A5
3006 A5
3007 A6
3008 A6
3009 A6

3010 A4
3011 A5
3012 A5
3013 A5
3016 C6
3019 C4

3020 C4
3021 A4
3022 B1
3023 B1
3024 A1
3025 B1

3027 A6
3028 C4
3029 C6
3030 B1
3031 B1
3032 B1

EN 35FTL2.1U, FTL2.2U 7.

3034 B1
3035 C6
3036 C1
3037 A1
3038 B1
3039 C1

3040 B1
3041 B1
3042 C1
3043 A5
3044 C1
3045 A5

3046 A4
3047 A4
3048 A5
3049 C1
3051 C1
3052 A1

3054 C1
3055 A4
3056 A4
3057 A1
3059 C1
3061 A5

3064 A5
3065 A6
3066 A5
3067 A4
3068 A4
3070 A4

3071 A4
3075 A4
3089 A4
3100 A4
3101 A6
3292 B3

3802 B7
3803 B6
3804 B7
3806 B7
3999 B8
6001 A5

6002 C4
6003 C6
6004 A5
6005 A5
6006 A5
6007 B6

6008 C5
6009 A4
6010 A5
6011 A5
6012 B4
6013 C5

6014 A4
6015 A4
6017 A5
6020 A4
6022 A5
6023 A1

6027 C6
6028 C4
6030 C1
6051 A4
6054 C1
6077 A5

6078 B5
6079 A5
6080 A6
6081 A4
6082 A6
6154 A6

6155 A6
6460 A8
6461 A8
7004 A4
7007 C5
7008 C5

7009 A4
7010 A1
7017 A5
7018 A6
7030 B1
7031 C1

9002 B1
9008 A6
9009 A6
9030 A1
9085 B1
9806 B7

9810 B7

3104 313 6009.5

Part 2

E_14620_058b.eps

E_14620_058.eps

190504

Circuit Diagrams and PWB Layouts

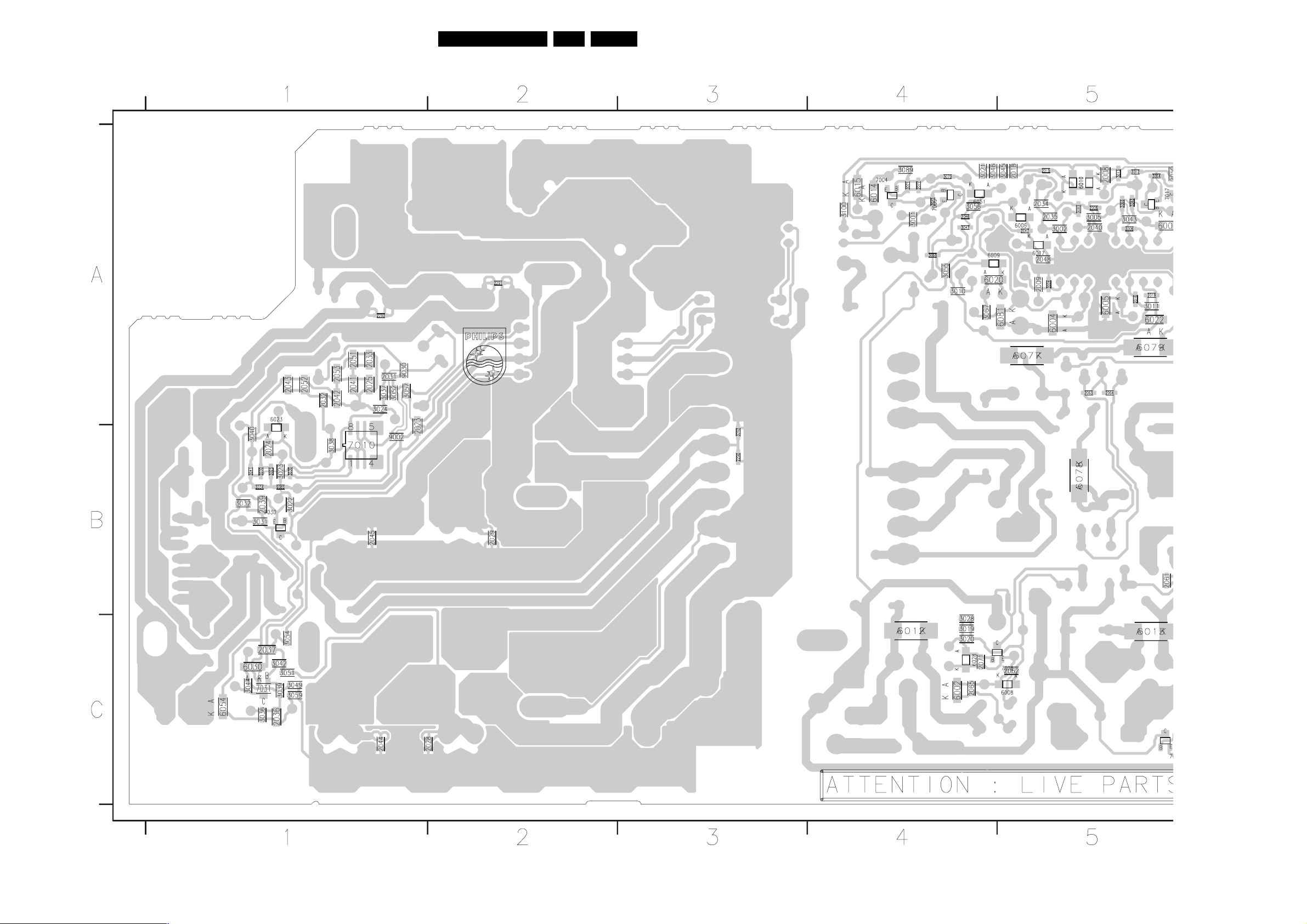

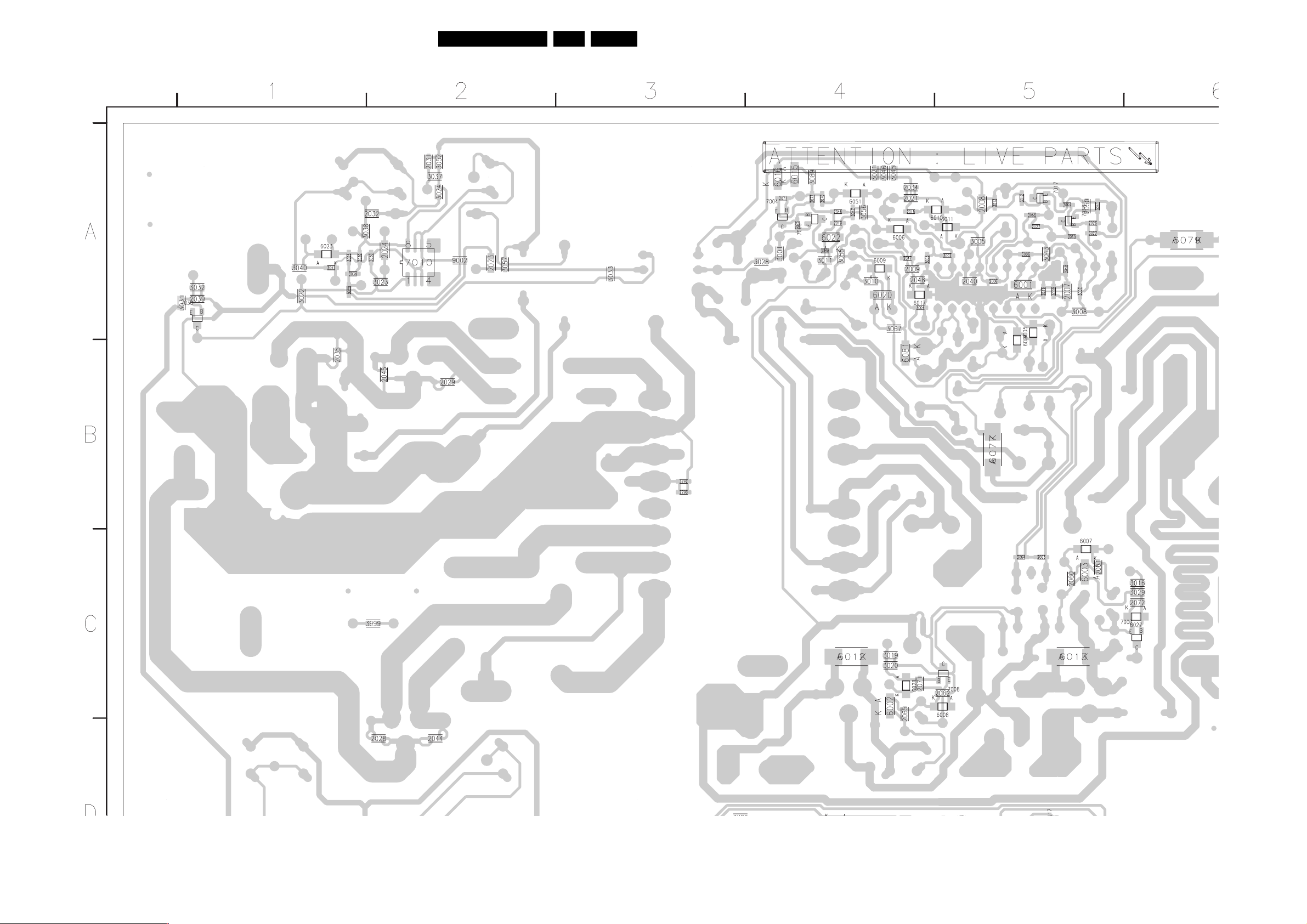

Layout Power Supply Unit (30-32 Inch) (Part 1 Bottom Side)

Part 1

EN 36FTL2.1U, FTL2.2U 7.

E_14620_058a.eps

190504

Circuit Diagrams and PWB Layouts

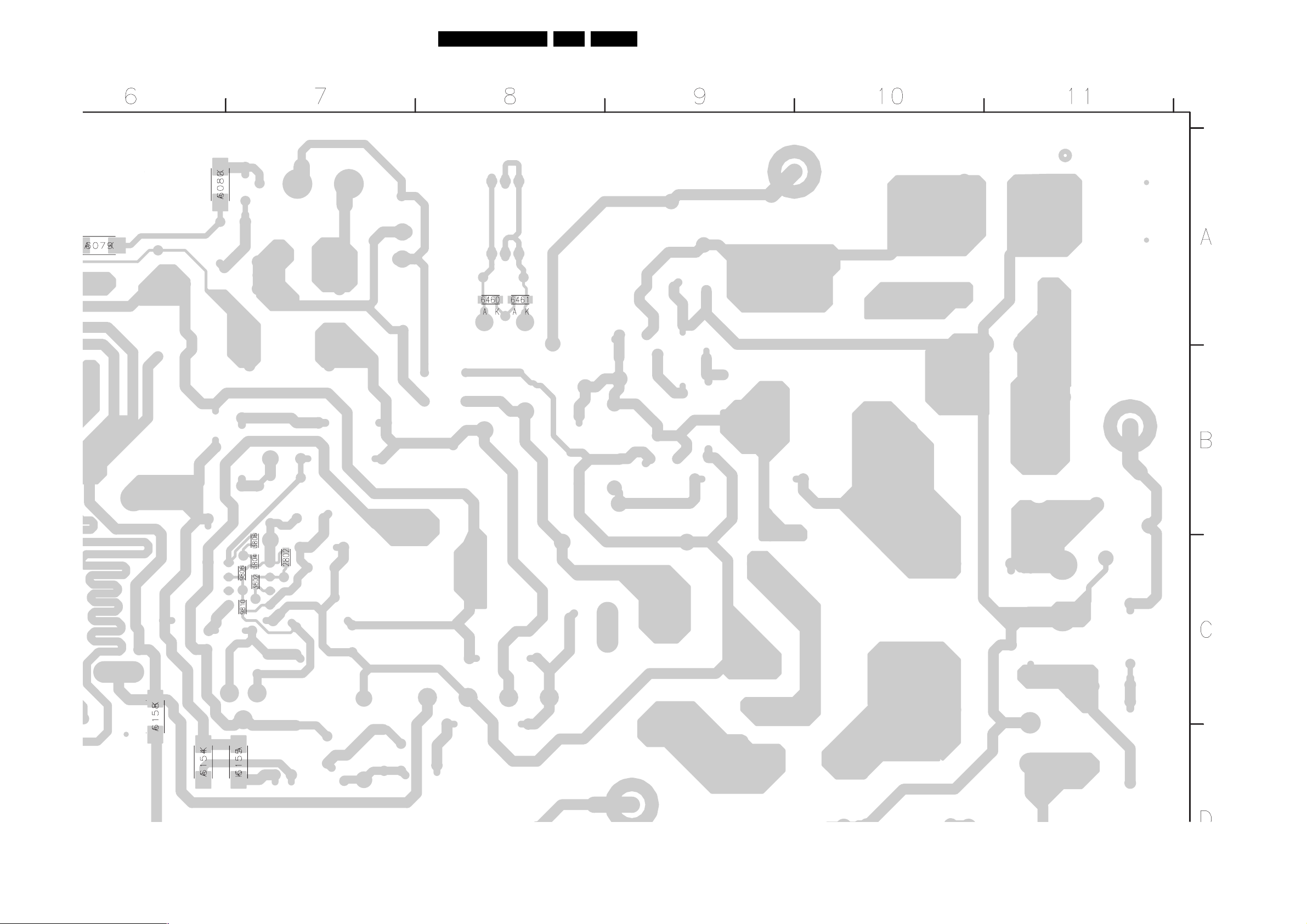

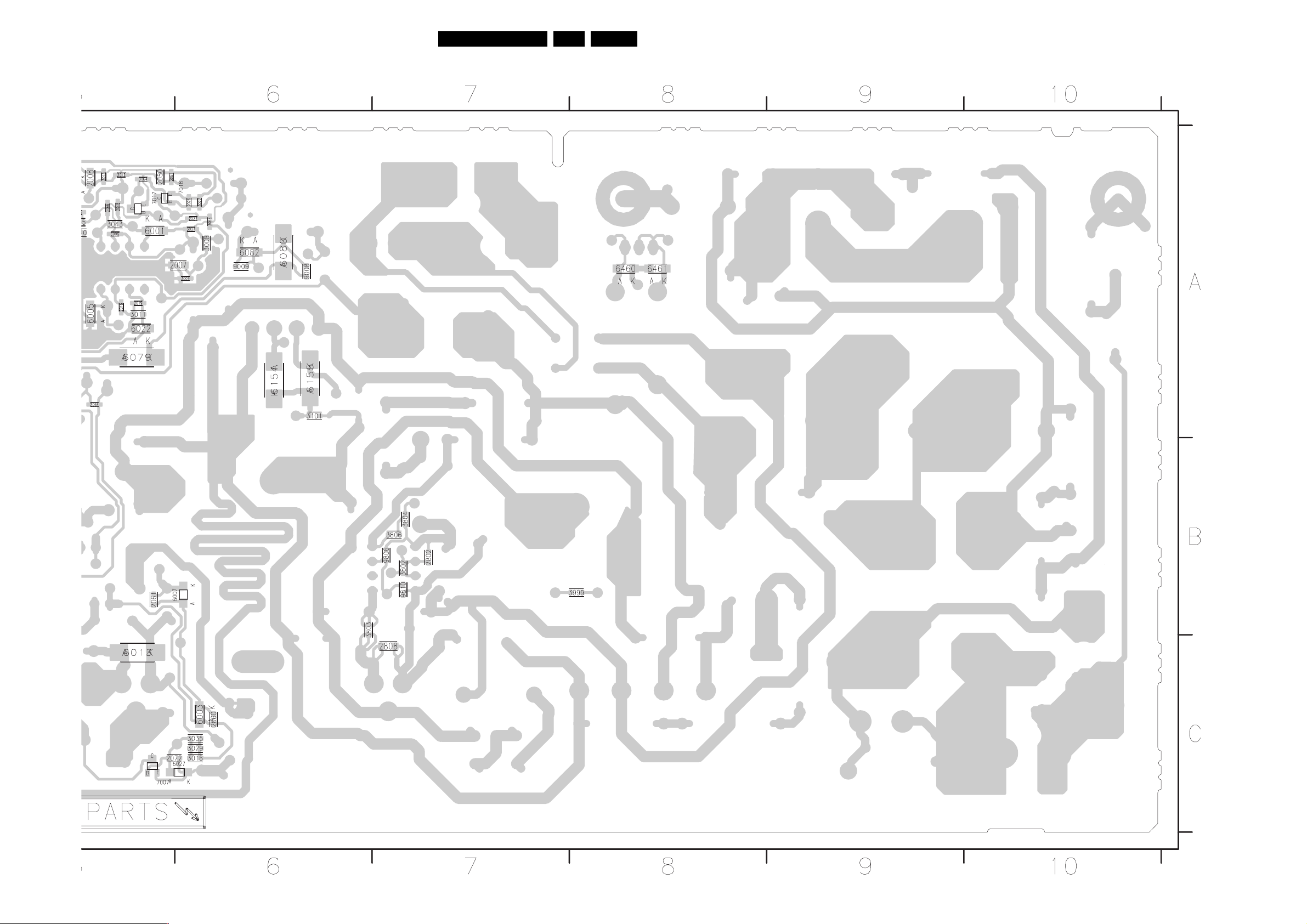

Layout Power Supply Unit (30-32 Inch) (Part 2 Bottom Side)

EN 37FTL2.1U, FTL2.2U 7.

Part 2

E_14620_058b.eps

190504

Circuit Diagrams and PWB Layouts

EN 38FTL2.1U, FTL2.2U 7.

Power Supply Unit (42 Inch): Mains Filter and Standby Part A

123456789

MAINS FILTER + STANDBY PART A

A

F412

3401

F415

F418

F410

F411

F414

1400

F413

PTF/65

T3.15AH 250V

(EUR+AP CHINA)

T4AH 250V(AP+US)

4M7

F416

F419

3402

I419

3403

1000

1

GND screw

1306

1
2

B2P-VA-BF-BK

GNDHOT

TO 1306

AUDIO-STANDBY

9001

I410

5400

3

2

V

470n

3400

1

4

DMF2405H60

2403

47p

2405

220p

470n

2400

2409

F417

4M7

4M7

2412

F427

F428

220p

2411

1401

PTF/65

T1AE 250V

9009

220p

9006

5401

2

14

GND screw

DMF3547HB60

2404

47p

90079008

1403

500V
1402

500V

1001

1

3

I463

3405

220R

B

MAINS INPUT

95-264Vac

C

D

E

F

G

3104 313 6018.4

1234

B2P-VA-BF-BK

2
1

1308

MAINS_L

MAINS_N

MAINS FILTER

5403

DTH40203H65
1

4

3

2401

I411

470n

2410

2407

1011

HEATSINK

HOT_GNDA

2

23

14

470n

DMF3547HB60

I416

1n0

I455

5402

2406

47p
9003

3404

220R

GNDHOT

6506

DF06M

I412

9005

3450

I442

1R

2503

I444

2408

9011

3451

G5PA-1-5VDC

I424

1B06

TO

F425

1450

6461

6460

123

1305

BAS316

BAS316

123

B3B-EH-A

F424

B3B-EH-A

I413

I464

6809

1N5062

AVS1ACP08

1M0

3800

I814

I466

6808

1N5062

3806

I816

470R

9806

I827

I815

22K

20K

3807

3804

I820

1R

I445

470n

I415

I456

10u

TO 1305

AUDIO-STANDBY

56789

10 11 12 13 14

400V_HOT_B

TO 1307

AUDIO-STANDBY

1307

3406

F420

F423

B4P-VH

3407

100R

I472

6159

6158

BYG10

HOT_GNDA HOT_GNDB

F426

3810

12K

I811

I810

I813

9810

7805

7

MODE

VM

23

OSIN

I470

100p

2802

VDD

VSS

4

OSOUT

1

GBJ6J

HOT_GNDA

NC

VG

2806

47u 50V

6807

6

I465

3803

58

390R

I468

91K

3802

25V_HOT_A

I812

2803

2804

I817

400V_HOT_A

56n

56n

2817

HOT_GNDA

I467

2808

6157

F421

HOT_P+

FROM

BYG10

I461

100R

F422

HOT_P-

6156

BYG10

6155

330u

2815

10n

9813

2816

9811

5804

I469

100u

100n

AVS10CB

100n

9812

HOT_GNDA

2810

I825

2809

I826

4R7

3805

I471

7806

47n

6154

9814

BYG10

BYG10

9808

I462

330u

I824

E_14620_059.eps

10 11 12 13 14

1
2
3
4

BYG10

190504

1000 D2

9813 C12

1001 D4

9814 C12

1011 E5

F410 B2

1305 F8

F411 B2

1306 F2

F412 C2

1307 B14

F413 C2

1308 C1

F414 C2

1400 C2

F415 C2
F416 C2

1401 F3
1402 D4
1403 D4
1450 C8
1B06 E8
2400 C3
2401 C5
2403 C4
2404 C5
2405 D4
2406 C6
2407 C5
2408 C7
2409 C3
2410 C5
2411 D3
2412 D2
2503 E7
2802 E10
2803 C11
2804 C11
2806 F11
2808 E11
2809 E12
2810 E12
2815 C12
2816 D12
2817 C11
3400 C3
3401 C2
3402 D2
3403 D2
3404 D6
3405 D5
3406 B14
3407 C14
3450 B7
3451 B7
3800 E10
3802 E11
3803 E11
3804 E10
3805 E12
3806 E10
3807 E9
3810 B10
5400 C4
5401 C5
5402 C6
5403 B6
5804 E12
6154 C13
6155 C12
6156 B13
6157 B13
6158 C14
6159 C14
6460 D8
6461 D8
6506 E6
6807 C11
6808 E9
6809 D9
7805 D10
7806 E12
9001 B4
9003 C6
9005 B7
9006 B5
9007 C5
9008 C4
9009 F3
9011 B7
9806 E10
9808 C12
9810 D10
9811 D12
9812 E12

F417 C3
F418 C2
F419 C2
F420 B14
F421 B13
F422 C13
F423 C14
F424 E8
F425 E8
F426 B11
F427 F3
F428 F3
I410 C3
I411 C5
I412 B6
I413 C9
I415 C7
I416 C6
I419 D2
I424 D8
I442 C6
I444 C7
I445 C7
I455 D6
I456 E7
I461 B13
I462 C12
I463 D5
I464 D10
I465 E11
I466 E10
I467 E11
I468 E11
I469 E12
I470 E10
I471 D12
I472 C14
I810 B11
I811 B11
I812 B11
I813 C10
I814 E9
I815 E9
I816 E9
I817 C11
I820 F9
I824 E12
I825 E12
I826 E12
I827 E10

A

B

C

D

E

F

G

Circuit Diagrams and PWB Layouts

Power Supply Unit (42 Inch): Supply Part A

1 2 3 4 5 6 7 8 9 10 11 12 13 14

SUPPLY PART A

A

B

C

2040

D

E

F

G

3067

100R

I143

H

I

3104 313 6018.4

1 2 3 4 5 6 7 8 9 10 11 12 13 14

BAS316

6020

560p

3003

I103

100K

3004

I142

25V_HOT_A

3002

10K

2004

27K

2005

3009

3K3

2007

470n

16

6009

PDZ-18B

VS-CONTROLLER

630

200p

I009

630

100p

3043

1R0

I021

2010

HOT_GNDA

100p

2021

2009

100p

2K7

3048

3008

330R

I141

3010

3011

100u

HOT_GNDA

6081

2034

I104

I028

470R

470R

3000

I096

4R7

2002

BZX384-C22

100p

I008

2006

25

1n

3006

I010

3007

10K

400V_HOT_A

I029

BZX384-C4V7

HOT_GNDA

5017

470u

I006

I007

3005

10K

3058

6022

HOT_GNDA

I097

I027

33K

2V

(0V7)

4V9

(1V2)

4V9

(0V7)
4V9

(0V)

6001

BAS316

5M6

3050

820K

SOFTSTART

CONTROL

I018

2027

I022

3066

I025

I135

10n

2019

6080

BYG22D

7001
MC34067P

EN|UA9

OSCC1

OSCR2

OSCCC3

OS16

EAO6

I+8

I-

7

SOST

11

15n

10K

F007

3027

3047

I105

50

100K

47R

I134

I078

ERROR

BC857BW

7017

I023

3064

2026

3053

680K

10K

BAS316

6051

6079

BYG22D

VCC UVLO/

FREQUENCY

OSCILLATOR

ONE-SHOT

2.5V CLAMP

I020

50

2n2

3056

220R

I144

BYG22D

CONTROL

ENABLE

VARIABLE

1n0

2050

15K

3012

7018

BC847BW

3068

2K2

I136

I133

2046

HOT_GNDA

BIAS SUPPLY

I098

BYV27-200

1m0

2003

5009

5.0 V

REFERENCE

VREF UVLO

GND

4

I012

3065

68K

CURRENT

I024

BAS316

16

10K

470n

2008

3013

BC857BW

I137

3070

1K

3071

HOT_GNDA

6006

BAS316

47n

HOT_GNDA

6078

STEERING

FLIP-FLOP

6K8

6011

I139

7009

I138

10K

2048

HOT_GNDA

6077

SOFT-START

3061

PROTECTION

HOT GROUND

I099

I101

17V

(7V6)

FAULT DET/

LATCH

I033

6010

2077

I132

1n0

6017

BAS316

HOT_GNDA

5010

1m

15

VCC

BAS316

2n2

2047

10n

3075

1K

2015

50

10n

HOT_GNDA

I151

I100

7004

BC847BW

VREF

OA 14

OB 12

PGND 13

FI 10

I036

I140

3055

220R

5V1

(0V5)

5

7V3

(0V3)

7V3

(0V3)

0V01
(0V)

0V6
(5V)

I131

3001

F008

I106

100R

3045

F003

F004

BAS3166005

16 100n

2016

3046

22R

5016

I034

22R

3021

HOT_GNDA

I108

2064

22R

HOT

F009

470p

6016

6015

3089

2063

5015

4

2

6004 BAS316

2014

2n2

BAS316

BZX384-C22

10K

I107

3

470p

2000V

5001
S13932-04

EN 39FTL2.1U, FTL2.2U 7.

I148

2n2

2060

I045

10

I081

COLD

1009 I9
1010 I9
1304 H12
1309 I12
2000 F10

HOT

400V_HOT_A

2061

2n2

6007

BAS316

6003

BAS316

3016

6

2K2

3029

2K2

7

I039

9

6008

BAS316

3020

2K2

3019

2K2

2062

2n2

I042

6027

BAS316

I109

I052

6028

BAS316

I145

3014

100R

2072

2071

1n0

2065

2n2

6002

BAS316

1n0

HIGH SIDE

DRIVE

I038

3015

I046

I037

BC857BW
7007

3017

3018

I051

F018

F002

STP15NK50ZFP

47R

6013

SML4744

I150

LOW SIDE

DRIVE

100R

STP15NK50ZFP

I057

47R

6012

SML4744

I059

BC857BW

7008

I055

GND3

7006

7005

I294

F299

c002

5007

I146

5008

3028

1K0

I147

F029

I080

7002

TCET1102

I064

399V

5005

2000V

1n5

2000V

1n5

5040

1600

10n

5002
BS51312-01

2017

89

7

6

5

3

I114

2

1

10n

2011

1600

c001

HOT_GNDA

I111

2013

5004

I110

F005

FLM 1/6W

5013

I113

I112

2012

5041

F023

F300

HOT_GNDA

COLD

F021

3033

I076

I062

1K0

I063

7030

BC847BW

I116

I117

I073

STTH2003CFP

GNDA

5027

5028

5025

6021

5026

BYW29FP-200

50V

6014

2035

9004

9010

I149

DC_PROT

3031

10K

10n

47K

2039

3032

GNDA

GNDA

2028

1n0

50V

I070

3

2

I072

1

2044

1n0

50V

I074

2029

50V

1n0

1

2

3

2045

I077

1n0

50V

1n0

6044

STPS20L45CT

F027

17V3

2020

GNDA

2022

F028

F017

GNDA

25

2m2

2038

1m8 35V

1m8 35V

1

4

236

18K

3030

14

2

3

10

11

12

13

14

15

16

2000

470p

I084

F022

3999

1K0

470n

2023

GNDA

3057

220R

F016

33K

3052

3022

680R

I120

F012

F024

I085

I089

2024

3023

15K

7010
TL431ACD

R

I094

13V4

2030

16

100n

Vs

Voltage

Adj.

220n

F014

5

K

NC

A

7

+12V

10n

2031

I119

15K

3037

F025

1u0

18K

3024

2033

MRS25 1%

I088

3040

6023

16

8

BAS316

1%

1K8

3025

I093

I092

3034

470R

3041

1%

3026

9002

+24Va

50V

4n7

2032

1u0

2025

I121

33K

8K2

3038

I122

33K

GNDA

2290

I124

50

10n

3292

560R

GNDA

HEATSINKHEATSINK

GNDA

1010

1009

COLD GROUND

GNDA

+24Va

+12V

F031

F032

F030

GNDA

1304

TO 1304

1
2
3
4

AUDIO - STBY

B4P-VH

1309

TO 1309

1
2
3

B3P-VH

AUDIO - STBY

E_14620_060.eps

190504

2002 B3
2003 A4
2004 C2
2005 D2
2006 C3
2007 E2
2008 G4

A

2009 D2
2010 H2
2011 E10
2012 E9
2013 D9
2014 F7
2015 F5
2016 E6
2017 C10
2019 H3
2020 D12
2021 C2

B

2022 E12
2023 B13
2024 E13
2025 E14
2026 G4
2027 F3
2028 D12
2029 E12
2030 F13
2031 D13
2032 E14

C

2033 E14
2034 C2
2035 F11
2038 E12
2039 C11
2040 C1
2044 D12
2045 F12
2046 I4
2047 I5
2048 I5
2050 E4

D

2060 C7
2061 C8
2062 D8
2063 C7
2064 D7
2065 D8
2071 E8
2072 C8
2077 H5
2290 H11
3000 A3
3001 F6

E

3002 C2
3003 C1
3004 D1
3005 C3
3006 D3
3007 E3
3008 E2
3009 E2
3010 H2
3011 H2
3012 F4

F

3013 G5
3014 C8
3015 C8
3016 C8
3017 D8
3018 E8
3019 E8
3020 E8
3021 G6
3022 D13
3023 E13
3024 E13

G

3025 F13
3026 G13
3027 G3
3028 B10
3029 C8
3030 G12
3031 C12
3032 C12
3033 B11
3034 F14
3037 D13
3038 E14

H

3040 E14
3041 F14
3043 D2
3045 G6
3046 F6
3047 H3
3048 D2
3050 E3
3052 D13
3053 E4
3055 I6

I

3056 I4
3057 C13
3058 E3
3061 E4
3064 F4
3065 E5
3066 F3
3067 G1
3068 H4

3070 H4
3071 H5
3075 G5
3089 H7
3292 H11
3999 A13
5001 C7
5002 C10
5004 D9
5005 C9
5007 B9
5008 B9
5009 B4
5010 A5
5013 E9
5015 C7
5016 D7
5017 A3
5025 E11
5026 F11
5027 D11
5028 D11
5040 D10
5041 E9
6001 D3
6002 D8
6003 C8
6004 D7
6005 D6
6006 I5
6007 C8
6008 D8
6009 G2
6010 G5
6011 F5
6012 E9
6013 C9
6014 F11
6015 H7
6016 G7
6017 I5
6020 H1
6021 E11
6022 H3
6023 F14
6027 C8
6028 E8
6044 D12
6051 H4
6077 A4
6078 A5
6079 A4
6080 A3
6081 B2
7001 C3
7002 B10
7004 H6
7005 C9
7006 D9
7007 D8
7008 E8
7009 G5
7010 F13
7017 F4
7018 F4
7030 C11
9002 G13
9004 F11
9010 G11
F002 C9
F003 C6
F004 D6
F005 D9
F007 F3
F008 D6
F009 D7
F012 E13
F014 F13
F016 D13
F017 D12
F018 B9
F021 A12
F022 A13
F023 F9
F024 E13
F025 E13
F027 E12
F028 D12
F029 C10
F030 H12
F031 H12
F032 I12
F299 A9
F300 F9
I006 B3
I007 C3
I008 C3
I009 D2
I010 D3
I012 D5
I018 E3
I020 F4
I021 E2
I022 F3
I023 F3
I024 F4
I025 F3
I027 C3
I028 G2
I029 G3
I033 F5
I034 F7
I036 F6
I037 C8

I038 C8
I039 D8
I042 C8
I045 C7
I046 C8
I051 E8
I052 D8
I055 E9
I057 E9
I059 E9
I062 B11
I063 B11
I064 B10
I070 D12
I072 D11
I073 E11
I074 E11
I076 F11
I077 F11
I078 A4
I080 B10
I081 F8
I084 F10
I085 E13
I088 E14
I089 E13
I092 F14
I093 F14
I094 G13
I096 A3
I097 A3
I098 A5
I099 A5
I100 A6
I101 A5
I103 C1
I104 D2
I105 E4
I106 E6
I107 C7
I108 D7
I109 D8
I110 D9
I111 C9
I112 E9
I113 E9
I114 D10
I116 C11
I117 D11
I119 D13
I120 D13
I121 E14
I122 F14
I124 H11
I131 I6
I132 I5
I133 I4
I134 I4
I135 H3
I136 H4
I137 H5
I138 H5
I139 G5
I140 G6
I141 H2
I142 G1
I143 G1
I144 A4
I145 E8
I146 B9
I147 C9
I148 C7
I149 C12
I150 D9
I151 I5
I294 C9
c001 F10
c002 F9

Circuit Diagrams and PWB Layouts

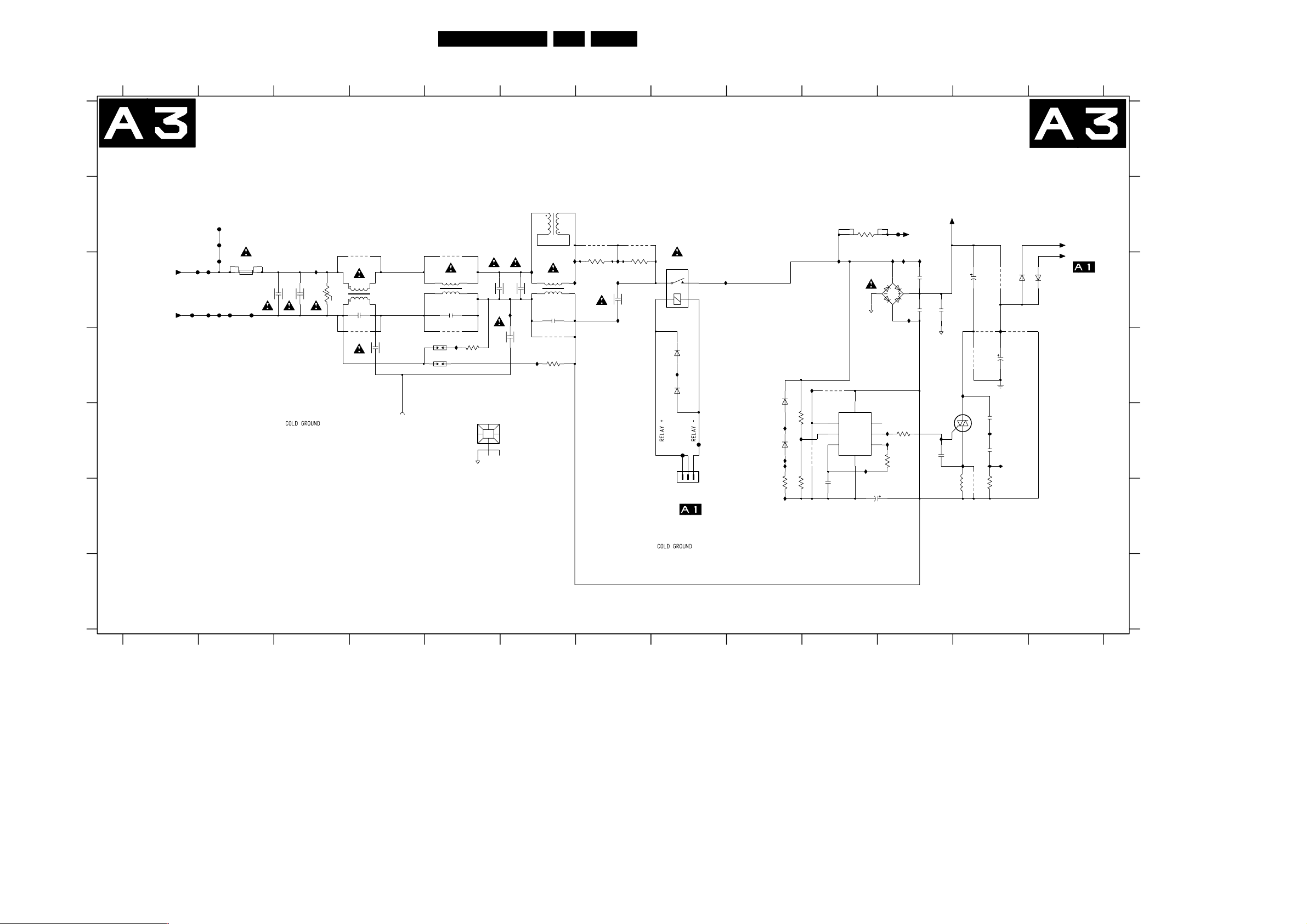

Power Supply Unit (42 Inch): Mains Filter and Standby Part B

12345678

MAINS FILTER + STANDBY PART B

A

B

MAINS INPUT

95-264Vac

MAINS_L

C

MAINS_N

D

E

F

G

3104 313 6018.4

12345678

FD15

FD12

FD18

FD10

FD13

FD16

FD11

FD14

1D00

PTF/65

T3.15AH 250V

(EUR+AP CHINA)

T5AH 250V(AP+US)

FD19

FD17

2D00

470n

2D09

470n

ID10

3D00

5D00

3

2

V

1

4

DMF2405H60

2D03

47p

220p

2D05

1U01

1

GND screw

9U069U01

5D01

23

14

DMF3547HB60

2D04

47p

9U079U08

ID63

1D03

500V
1D02

500V

3D05

220R

HEATSINK

HOT_GNDB

1U11

MAINS FILTER

DTH40203H65

1

2

ID11

23

14

470n

2D07

ID16

2D10

1n0

470n

DMF3547HB60

ID55

2D01

5D03

5D02

2D06

9U03

3D04

220R

EN 40FTL2.1U, FTL2.2U 7.

ID16 C6

9 10111213

25V_HOT_B

IH12IH10 IH11

2H03

2H04

IH17

400V_HOT_B

56n

56n

2H17

HOT_GNDB

ID67

2H08

HOT_P+

HOT_P-

TO

330u

2H15

10n

9H13

ID62

2H16

9H11

HOT_GNDB

ID61

100n

100u

AVS10CB

100n

4R7

9H12

2H10

IH25

2H09

IH26

3H05

7H06

47n

ID69

5H04

9H14

330u

IH24

9H08

6A55

BYG10

6A54

BYG10

E_14620_061.eps

190504

4

3H10

ID70

FD26

12K

GBJ6J

6H07

NC

ID65

3H03

58

VG

2H06

390R

ID68

91K

3H02

50V47u

3

9U05

3D50

ID42

1R

ID12

47p

ID44

2D08

ID45

ID15

470n

9U10

3D51

1D50

1R

G5PA-1-5VDC

6D61

BAS316

ID24

6D60

BAS316

FD25

1C05

123

TO

FD24

B3B-EH-A

ID13

IH14

IH15

IH20

6H09

6H08

3H07

1N5062

1N5062

IH16

22K

IH13

ID64

9H10

7H05

3H00

3H04

AVS1ACP08

1M0

ID66

9H06

18K

VDD

76

MODE

VM

23

OSIN

VSS

100p

2H02

HOT_GNDB

4

OSOUT

1

1C05 E8

ID24 D8

1D00 C2

ID42 C7

1D02 D5

ID44 C7

1D03 D5

ID45 C7

1D50 C8

ID55 D6

1U01 E4

ID61 D12

1U11 E5

ID62 D12

2D00 C3

ID63 D5

2D01 C5

A

B

C

D

E

F

G

2D03 C4
2D04 C5
2D05 D4
2D06 C6
2D07 D6
2D08 C7
2D09 C3
2D10 C6
2H02 F10
2H03 C11
2H04 C11
2H06 F10
2H08 E11
2H09 E12
2H10 E12
2H15 C12
2H16 D12
2H17 C11
3D00 C3
3D04 D6
3D05 D5
3D50 C7
3D51 C7
3H00 E9
3H02 E11
3H03 E11
3H04 F9
3H05 F12
3H07 F9
3H10 B10
5D00 C4
5D01 C5
5D02 C6
5D03 B6
5H04 F12
6A54 C13
6A55 C12
6D60 D8
6D61 D8
6H07 C11
6H08 E9
6H09 D9
7H05 E10
7H06 E12
9H06 E10
9H08 D12
9H10 D10
9H11 D12
9H12 F12
9H13 D12
9H14 C12
9U01 C4
9U03 D6
9U05 B7
9U06 C5
9U07 D5
9U08 D4
9U10 B7
FD10 B2
FD11 B2
FD12 C1
FD13 C2
FD14 C2
FD15 C1
FD16 C2
FD17 C2
FD18 C2
FD19 C2
FD24 E8
FD25 E8
FD26 B11
ID10 C3
ID11 C6
ID12 C7
ID13 C8
ID15 C7

ID64 D10
ID65 E11
ID66 E10
ID67 E11
ID68 E11
ID69 E12
ID70 E10
IH10 C11
IH11 C11
IH12 C11
IH13 C10
IH14 E9
IH15 E9
IH16 E9
IH17 C11
IH20 F9
IH24 E12
IH25 E12
IH26 E12

9 10111213

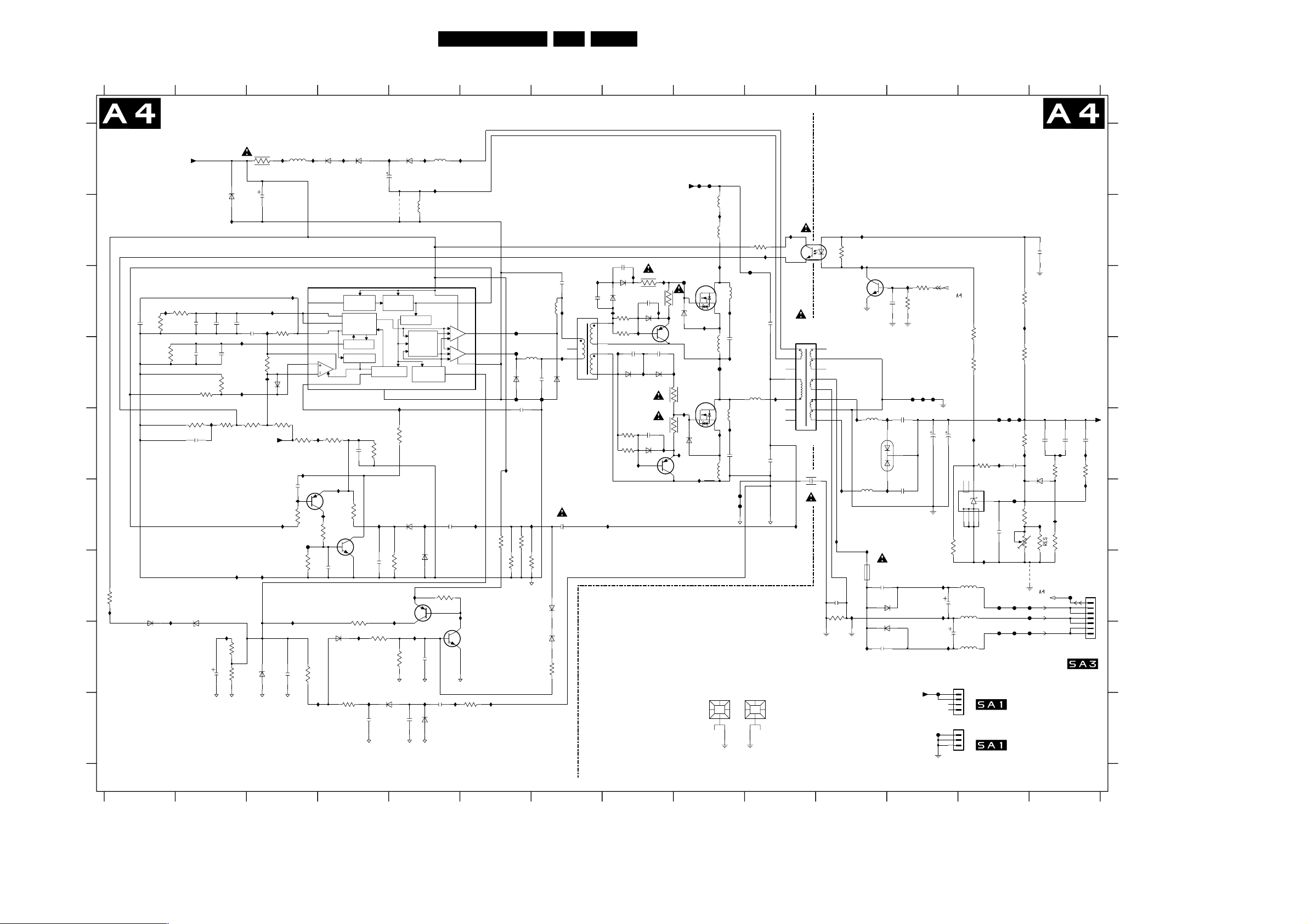

Circuit Diagrams and PWB Layouts

Power Supply Unit (42 Inch): Supply Part B

1

A

B

C

2U40

D

E

F

G

3U67

100R

IA43

H

3104 313 6018.4

1234567891011121314

SUPPLY PART B

25V_HOT_B

IA03

560p

100K

3U03

3U04

BAS316

IA42

6U20

234567891011121314

3U00

IU96

IU97

5U17

4R7

3U02

6U81

IU06

VS-CONTROLLER

10K

630

200p

100p

2U04

27K

2U05

3U09

3K3

2U07

470n

16

6U09

PDZ-18B

HOT_GNDB

3U43

2U34

2U21

630

100p

100p

2U09

2K7

3U48

1R0

3U08

IU21

330R

IU28

IU41

3U10

3U11

100u

2U10

HOT_GNDB

BZX384-C22

100p

2U06

IU09

IA04

3U07

10K

400V_HOT_B

470R

470R

HOT_GNDB

470u

2U02

IU07

IU08

251n

3U06

IU10

IU29

6U22

BZX384-C4V7

3U05

33K

10K

6U01

BAS316

3U58

5M6

IU25

2U19

HOT_GNDB

IU27

IU22

IA35

7U01
MC34067P

9

EN|UA

OSCC1

OSCR2

OSCCC3

OS16

2V

EAO6

(0V7)

4V9

I+8

(1V2)

4V9

I-

(0V7)

7

4V9

SOST

11

(0V)

IA05

3U50

820K

SOFTSTART

CONTROL

IU18

50

15n

2U27

10K

3U66

FU07

100K

3U27

10n

47R

3U47

IA34

6U79

BYG22D

ERROR

BC857BW

7U17

IU23

3U64

2U26

3U53

680K

IU20

10K

50

2n2

BAS316

6U51

6U77

IU05

BYG22D

CONTROL

VCC UVLO/

ENABLE

VARIABLE

FREQUENCY

OSCILLATOR

ONE-SHOT

2.5V CLAMP

SOFT-START

1n0

3U61

2U50

PROTECTION

15K

3U12

IU24

7U18

BC847BW

2U08

3U68

2K2

3U70

IA36

1K

3U56

IA33

220R

47n

2U46

HOT_GNDB

HOT GROUND

BIAS SUPPLY

IU99

6U78

IU98

BYV27-200

1m0

2U03

9U04

5U09

5.0 V

REFERENCE

VREF UVLO

STEERING

FLIP-FLOP

FAULT DET/

GND

68K

LATCH

4

IU12

6K8

3U65

CURRENT

IU33

6U11

BAS316

6U10

10K

470n 16

3U13

IA39

BC857BW

7U09

IA37

IA38

10K

3U71

2U77

HOT_GNDB

HOT_GNDB

6U06

BAS316

HOT_GNDB

2U48

IA32

1n0

BAS316

HOT_GNDB

17V

(7V6)

5U10

IA01

BAS316

2n2

2U47

6U17

15

VCC

10n

1m

2U15

3U75

1K

IA00

50

10n

HOT_GNDB

IA51

VREF

OA 14

OB 12

PGND 13

FI 10

IU36

IA40

7U04

BC847BW

3U55

220R

5V1

(0V5)

5

7V3

(0V3)

7V3

(0V3)

0V01
(0V)

0V6
(5V)

IA31

3U01

FU08

IA06

100R

3U45

FU03

FU04

6U05 BAS316

16 100n

5U16

2U16

IU34

22R

3U46

22R

HOT_GNDB

3U21

HOT

2U64

22R

FU09

470p

6U16

6U15

3U89

5U15

6U04 BAS316

470p

2U63

IA07

4

3

2

IA08

2U14

2n2

2000V

BAS316BZX384-C22

10K

5U01
S13932-04

IA48

2U60

EN 41FTL2.1U, FTL2.2U 7.

2n2

6U03

IU45

6

7

9

10

IU81

COLD

BAS316

IU39

2U61

2n2

6U07

BAS316

3U16

2K2

3U29

2K2

6U08

BAS316

3U20

3U19

3U70 H4

1303 H13
1320 I13
1M02 H14
1U07 G11
1U09 I9

HOT

400V_HOT_B

HIGH SIDE

DRIVE

3U14

IU38

IU42

100R

2U72

3U15

1n0

IU46

6U27

IU37

BAS316

BC857BW

IU52

2U71

1n0

6U28

BAS316

7U07

2U65

2n2

6U02

BAS316

3U17

3U18

IU51

IA09

2U62

2n2

2K2

2K2

IA45

FU18

FU02

STP15NK50ZFP

47R

6U13

SML4744

IA50

LOW SIDE

DRIVE

7U06

100R

STP15NK50ZFP

IU57

47R

6U12

SML4744

IU59

BC857BW

7U08

IU55

7U05

IB94

FU99

IA12

cU02

HEATSINK

5U07

IA46

5U08

IA47

399V

IA11

2U13

5U04

IA10

FU05

FLM 1/6W

5U13

IA13

2U12

5U41

HOT_GNDB

1U09

GNDB

FU23

FC00

5U05

2000V1n5

2000V

1n5

3U28

FU29

5U40

1U10

HEATSINK

GNDB

IU79

IU64

10n 1600

2U17

IA14

2U11

cU01

HOT_GNDB

TCET1102

8

7

6

5

3

2

1

10n

1600

7U02

5U02
BS51312-01

IU84

3

2U00

470p

1K0

COLD GROUND

14

2

10

11

12

13

14

15

16

GNDB

COLD

IU62

1K0

3U33

IU63

IA49

2U39

GNDB

50470p

10n

GNDB

2U29

1n0

2

2U45

1n0 50V

3U32

47K

FU28

50V

+24Vb

3U31

10K

FU27

17V3

GNDB

2U22

FU30

FU32

GNDB

FU17

GNDB

DC_PROT

330R

3U39

330R

3U22

FU12

FU24

2U38

1m8 35V

1

18K

3U30

2m2

2B94

IB93

1303

B4P-VH

1320

B3P-VH

IU85

3U23

15K

13V4

4

5

7U10
TL431ACD

K

NC

R

A

236

7

IU94

5B93

33u

5B91

VSND_POS

33u

2m2

VSND_NEG

5B92

33u

TO 1303

1
2
3
4

AUDIO - STBY

TO 1320

1
2
3

AUDIO - STBY

IU89

2U24

220n

FU14

16

100n

2U30

Vs

Voltage

Adj.

FB93

FB97

GND_SND

FB98

FB94

16

1m8 35V

IB90

2B92

IB91

7U30

BC847BW

GNDB

9

IU74

5U25

IU73

1

STTH2003CFP

6U21

3

5U26

10n

2B90

3B92

560R

IU76

IA23

50

GND_SND

IA24

IU77

IU80

250V

T5A

1U07

19372

2B91

470p 50

6B91

BYW29EX

6B93

BYW29EX

IB92

2B93

FU25

IA20

8

3U57

3U24

3U25

3U52

3U26

GNDB

IA44

1%

9U02

DC_PROT

FB92

FB90
FB95

2U23

GNDB

220R

220R

18K

MRS25 1%

6U23

BAS316

1K8

IU93

470R

470n

1u0

2U25

2U33

IU88

8K2

3U40

IU92

33K

3U34

3U41

1%

FB96

TO 1M02

AUDIO - STBY

E_14620_062.eps

+24Vb

50V1u0

4n7

2U32

IA21

33K

3U38

IA22

B7B-EH-A

7
6
5
4
3
2
1

1M02

190504

1U10 I10
2B90 G11
2B91 G11
2B92 G12
2B93 H11
2B94 H12
2U00 E10
2U02 B3

A

2U03 A4
2U04 C2
2U05 D2
2U06 C3
2U07 E2
2U08 G4
2U09 D2
2U10 H2
2U11 E10
2U12 E9
2U13 D9
2U14 F7

B

2U15 F5
2U16 E6
2U17 C10
2U19 H3
2U21 C2
2U22 E12
2U23 B14
2U24 E13
2U25 E14
2U26 G4
2U27 F3
2U29 E12

C

2U30 F13
2U32 E14
2U33 E14
2U34 C2
2U38 E12
2U39 C12
2U40 C1
2U45 F12
2U46 I4
2U47 I5
2U48 I5

D

2U50 E4
2U60 C7
2U61 B8
2U62 D8
2U63 C7
2U64 D7
2U65 D8
2U71 E8
2U72 C8
2U77 H5
3B92 G11
3U00 A3

E

3U01 F6
3U02 C2
3U03 C1
3U04 D1
3U05 C3
3U06 D3
3U07 E3
3U08 E2
3U09 E2
3U10 H2
3U11 H2
3U12 F4

F

3U13 G5
3U14 C8
3U15 C8
3U16 C8
3U17 D8
3U18 E8
3U19 E8
3U20 E8
3U21 G6
3U22 D13
3U23 E13

G

3U24 E13
3U25 F13
3U26 G13
3U27 G3
3U28 B10
3U29 C8
3U30 F12
3U31 C12
3U32 C12
3U33 B11
3U34 F14
3U38 E14

H

3U39 C13
3U40 E14
3U41 F14
3U43 D2
3U45 G6
3U46 F6
3U47 H3
3U48 D2
3U50 E3
3U52 D13
3U53 E4
3U55 I6

I

3U56 I4
3U57 C13
3U58 E3
3U61 E4
3U64 F4
3U65 E5
3U66 F3
3U67 G1
3U68 G4

3U71 H5
3U75 G5
3U89 H7
5B91 G13
5B92 H13
5B93 G13
5U01 C7
5U02 C10
5U04 D9
5U05 C9
5U07 B9
5U08 B9
5U09 B5
5U10 A5
5U13 E9
5U15 C7
5U16 D7
5U17 A3
5U25 E11
5U26 F11
5U40 D10
5U41 E9
6B91 G12
6B93 H12
6U01 D3
6U02 D8
6U03 C8
6U04 D7
6U05 D6
6U06 I5
6U07 C8
6U08 D8
6U09 G2
6U10 G5
6U11 F5
6U12 E9
6U13 C9
6U15 H7
6U16 G7
6U17 I5
6U20 H1
6U21 E11
6U22 H3
6U23 E14
6U27 C8
6U28 E8
6U51 H4
6U77 A4
6U78 A5
6U79 A4
6U81 B2
7U01 C3
7U02 B10
7U04 H6
7U05 C9
7U06 D9
7U07 C8
7U08 E9
7U09 G5
7U10 F13
7U17 F4
7U18 F4
7U30 C11
9U02 G13
9U04 B5
FB90 H14
FB92 G14
FB93 G13
FB94 H13
FB95 H14
FB96 G14
FB97 G13
FB98 H13
FC00 F9
FU02 C9
FU03 C6
FU04 D6
FU05 D9
FU07 F3
FU08 D6
FU09 D7
FU12 E13
FU14 F13
FU17 D12
FU18 A9
FU23 F9
FU24 E13
FU25 E13
FU27 D12
FU28 D12
FU29 C10
FU30 H12
FU32 I12
FU99 A9
IA00 A6
IA01 A5
IA03 C1
IA04 D2
IA05 E4
IA06 E6
IA07 C7
IA08 D7
IA09 D8
IA10 D9
IA11 C9
IA12 E9
IA13 E9
IA14 D10
IA20 E13
IA21 E14
IA22 F14
IA23 F11
IA24 G11
IA31 I6
IA32 I5

IA33 I4
IA34 I4
IA35 G3
IA36 H4
IA37 G5
IA38 H5
IA39 G5
IA40 G6
IA42 G1
IA43 G1
IA44 C14
IA45 E8
IA46 B9
IA47 B9
IA48 C7
IA49 C12
IA50 D9
IA51 I5
IB90 G12
IB91 G12
IB92 H11
IB93 H12
IB94 C9
IU05 A4
IU06 B2
IU07 C3
IU08 C3
IU09 D2
IU10 D3
IU12 D5
IU18 E3
IU20 F4
IU21 E2
IU22 F3
IU23 F3
IU24 F4
IU25 F3
IU27 C3
IU28 G2
IU29 G3
IU33 F5
IU34 F7
IU36 F6
IU37 C9
IU38 C8
IU39 D8
IU41 H2
IU42 C8
IU45 C8
IU46 C8
IU51 E8
IU52 D8
IU55 E9
IU57 E9
IU59 E9
IU62 B11
IU63 B11
IU64 B10
IU73 E11
IU74 E12
IU76 F11
IU77 F12
IU79 B10
IU80 F11
IU81 F8
IU84 F10
IU85 E13
IU88 E14
IU89 E13
IU92 F14
IU93 F14
IU94 G13
IU96 A3
IU97 A3
IU98 A5
IU99 A5
cU01 F10
cU02 F9

Circuit Diagrams and PWB Layouts

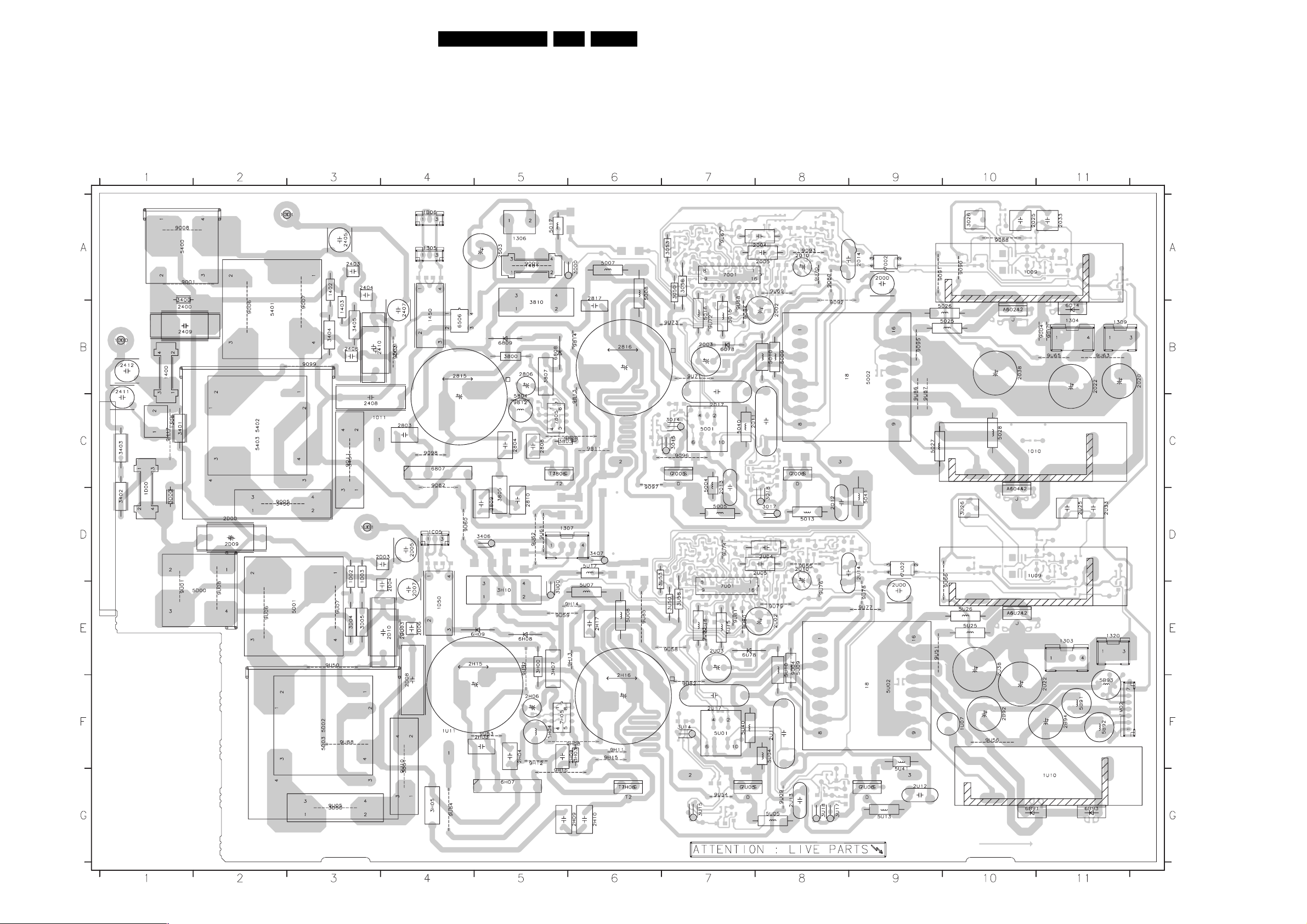

Layout Power Supply Unit (42 Inch) (Top Side)

1000 B1
1001 A2
1009 B10
1010 C10
1011 C4
1303 E11
1304 B11
1305 A4
1306 A5
1307 D5
1308 C1
1309 B11
1320 E11

1400 B1
1401 A5
1402 A3
1403 A3
1450 B4
1B06 A4
1C05 D4
1D00 D1
1D02 E3
1D03 E3
1D50 E4
1M02 F11
1U01 D3

1U07 F10
1U09 E10
1U10 G10
1U11 G4
2000 A9
2002 B8
2003 B7
2004 A8
2005 A8
2010 A8
2011 C7
2012 D9
2013 C7

2014 A9
2017 B7
2020 C11
2022 B11
2025 A10
2033 A11
2038 B10
2400 B1
2401 B4
2403 A3
2404 A3
2405 A3
2406 B3

2407 B4
2408 C3
2409 B1
2410 B4
2411 B1
2412 B1
2503 A5
2803 C4
2804 C5
2806 B5
2808 C5
2809 D4
2810 D5

2815 B4
2816 B6
2817 A6
2B92 F10
2B94 F10
2D00 D2
2D01 E4
2D03 D4
2D04 E4
2D05 D4
2D06 E4
2D07 E4
2D08 E4

2D09 D2
2D10 E4
2H03 F5
2H04 F5
2H06 F5
2H08 F5
2H09 G5
2H10 G6
2H15 E5
2H16 E6
2H17 E6
2U00 E9
2U02 E8

2U03 E7
2U04 D7
2U05 D7
2U10 D8
2U11 F8
2U12 G9
2U13 G8
2U14 D8
2U17 F7
2U22 F11
2U25 D11
2U33 D11
2U38 E10

3000 A6
3014 C7
3015 C6
3017 D8
3018 D8
3026 A10
3050 A7
3053 A7
3058 A7
3400 A1
3401 C1
3402 D1
3403 C1

3404 B3
3405 B3
3406 D5
3407 D6
3450 D2
3451 C3
3800 B5
3803 C5
3805 C5
3807 B5
3810 B5
3D00 D1
3D04 E3

3D05 E3
3D50 G2
3D51 G4
3H00 E5
3H03 F6
3H05 G4
3H07 E5
3H10 E5
3U00 D5
3U14 F7
3U15 G7
3U17 G8
3U18 G8

3U26 D10
3U50 E7
3U53 D6
3U58 E7
5001 C7
5002 B9
5004 C7
5005 D7
5007 A6
5008 A6
5009 B8
5010 B7
5013 D8

EN 42FTL2.1U, FTL2.2U 7.

5015 B7
5016 B7
5017 A5
5025 B10
5026 B10
5027 C9
5028 C10
5040 C7
5041 D9
5400 A2
5401 A2
5402 C3
5403 C3

5804 C5
5B91 F11
5B92 F11
5B93 F11
5D00 E2
5D01 E3
5D02 F3
5D03 F2
5H04 F5
5U01 F7
5U02 F9
5U04 F7
5U05 G8

5U07 E6
5U08 E6
5U09 E8
5U10 E8
5U13 G9
5U15 E7
5U16 E7
5U17 D6
5U25 E10
5U26 E10
5U40 F7
5U41 G9
6014 A11

6021 B10
6044 D10
6078 B7
6506 B4
6807 C4
6808 B5
6809 B5
6B91 G10
6B93 G11
6H07 G5
6H08 E5
6H09 E5
6U21 E10

6U78 E7
7001 A7
7002 A9
7005 D7
7006 C8
7805 B5
7806 D5
7H05 F6
7H06 G6
7U01 D7
7U02 D9
7U05 G7
7U06 G9

9001 A1
9003 B4
9004 B11
9005 D2
9006 B2
9007 B3
9008 A1
9009 A5
9010 B11
9011 C3
9080 A8
9082 C4
9088 A10

9090 A10
9091 A9
9092 B8
9093 A8
9094 B7
9095 B9
9096 C7
9097 D6
9098 C4
9099 B3
9808 C6
9811 C6
9812 C5

9813 C6
9814 B6
9H08 F6
9H11 F6
9H12 F5
9H13 E6
9H14 E6
9H15 F6
9H16 G5
9H17 C1
9U01 E1
9U03 E4
9U04 E8

9U05 G3
9U06 E2
9U07 E3
9U08 E2
9U09 G8
9U10 F4
9U50 E3
9U51 E9
9U52 E5
9U53 F5
9U54 G7
9U55 D8
9U56 F10

9U58 E7
9U59 E5
9U60 D4
9U61 D5
9U62 D5
9U63 B11
9U65 B11
9U66 D10
9U67 A7
9U68 B7
9U69 A8
9U70 A8
9U71 B7

9U72 B7
9U73 B7
9U74 D7
9U76 E8
9U77 E9
9U78 E9
9U79 E8
9U80 E7
9U81 E7
9U82 F7
9U83 E7
9U84 G4
9U85 E6

9U86 B9
9U87 B9
9U88 F3

3104 313 6018.4

E_14620_063.eps

190504

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (42 Inch) (Overview Bottom Side)

2006 A5
2007 A5
2008 A5
2009 A4
2015 A4
2016 A5
2019 A4
2021 A4
2023 A2
2024 A2

2026 A5
2027 A5
2028 D2
2029 B2
2030 A1
2031 A2
2032 A2
2034 A4
2035 B1
2039 A1

2040 A5
2044 D2
2045 B2
2046 A4
2047 A4
2048 A4
2050 A5
2060 C5
2061 C5
2062 C5

2063 C5
2064 C5
2065 C4
2071 C4
2072 C6
2077 A4
2290 B3
2802 C7
2B90 F3
2B91 G1

2B93 G1
2H02 F7
2U06 E5
2U07 E5
2U08 D5
2U09 D4
2U15 D4
2U16 E5
2U19 D4
2U21 D4

2U23 D2
2U24 D1
2U26 D5
2U27 D5
2U29 E2
2U30 D1
2U32 D1
2U34 D4
2U39 D1
2U40 E5

2U45 E2
2U46 D4
2U47 D4
2U48 E4
2U50 D5
2U60 G5
2U61 F5
2U62 G4
2U63 F5
2U64 F5

2U65 G4
2U71 G4
2U72 G5
2U77 D4
3001 A4
3002 A5
3003 A4
3004 A4
3005 A5
3006 A5

3007 A5
3008 A5
3009 A5
3010 A4
3011 A4
3012 A5
3013 A5
3016 C6
3019 C4
3020 C4

3021 A4
3022 A1
3023 A2
3024 A2
3025 A1
3027 A5
3028 A4
3029 C6
3030 A2
3031 A1

3032 A1
3033 A3
3034 A1
3037 A2
3038 A1
3040 A1
3041 A1
3043 A5
3045 A4
3046 A4

3047 A4
3048 A5
3052 A2
3055 A4
3056 A4
3057 A2
3061 A5
3064 A5
3065 A5
3066 A5

3067 A4
3068 A4
3070 A4
3071 A4
3075 A4
3089 A4
3292 B3
3802 C7
3804 C7
3806 C7

EN 43FTL2.1U, FTL2.2U 7.

3999 C2
3B92 F3
3H02 F7
3H04 F7
3U01 D4
3U02 D5
3U03 D4
3U04 E4
3U05 D5
3U06 D5

3U07 E5
3U08 E5
3U09 E5
3U10 E4
3U11 D4
3U12 D5
3U13 D5
3U16 G5
3U19 G4
3U20 G4

3U21 D4
3U22 E1
3U23 D1
3U24 D1
3U25 D1
3U27 D5
3U28 D3
3U29 G5
3U30 D1
3U31 E1

3U32 D1
3U33 D3
3U34 D1
3U38 D1
3U39 E1
3U40 D1
3U41 D1
3U43 D5
3U45 D5
3U46 D5

3U47 D4
3U48 D5
3U52 D2
3U55 D4
3U56 D4
3U57 D2
3U61 D5
3U64 D5
3U65 D5
3U66 D5

3U67 E4
3U68 D4
3U70 D4
3U71 D4
3U75 D4
3U89 D3
6001 A5
6002 C4
6003 C5
6004 B5

6005 A5
6006 A4
6007 C5
6008 C5
6009 A4
6010 A5
6011 A5
6012 C4
6013 C5
6015 A4

6016 A4
6017 A4
6020 A4
6022 A4
6023 A1
6027 C6
6028 C4
6051 A4
6077 B5
6079 A6

6080 A6
6081 B4
6154 D6
6155 D6
6156 D7
6157 E7
6158 C6
6159 D6
6460 A8
6461 A8

6A54 D7
6A55 D7
6D60 D8
6D61 D8
6U01 D5
6U02 G3
6U03 G5
6U04 E5
6U05 E5
6U06 D4

6U07 F5
6U08 G4
6U09 D4
6U10 D4
6U11 D5
6U12 F3
6U13 F5
6U15 D4
6U16 D3
6U17 E4

6U20 E4
6U22 D4
6U23 D1
6U27 G5
6U28 G4
6U51 D4
6U77 E4
6U79 D6
6U81 E4
7004 A4

7007 C6
7008 C5
7009 A4
7010 A2
7017 A5
7018 A5
7030 A1
7U04 D4
7U07 G5
7U08 F4

7U09 D4
7U10 D2
7U17 D5
7U18 D5
7U30 E1
9002 A2
9085 A1
9806 C7
9810 C7
9H06 F7

9H10 F7
9U02 D2
9U57 D1

Part 1

E_14620_064a.eps

Part 2

E_14620_064b.eps

3104 313 6018.4

Part 3

E_14620_064c.eps

Part 4

E_14620_064d.eps

E_14620_064.eps

190504

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (42 Inch) (Part 1 Bottom Side)

EN 44FTL2.1U, FTL2.2U 7.

Part 1

E_14620_064a.eps

190504

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (42 Inch) (Part 2 Bottom Side)

EN 45FTL2.1U, FTL2.2U 7.

Part 2

E_14620_064b.eps

190504

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (42 Inch) (Part 3 Bottom Side)

EN 46FTL2.1U, FTL2.2U 7.

Part 3

E_14620_064c.eps

190504

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (42 Inch) (Part 4 Bottom Side)

EN 47FTL2.1U, FTL2.2U 7.

Part 4

E_14620_064d.eps

070604

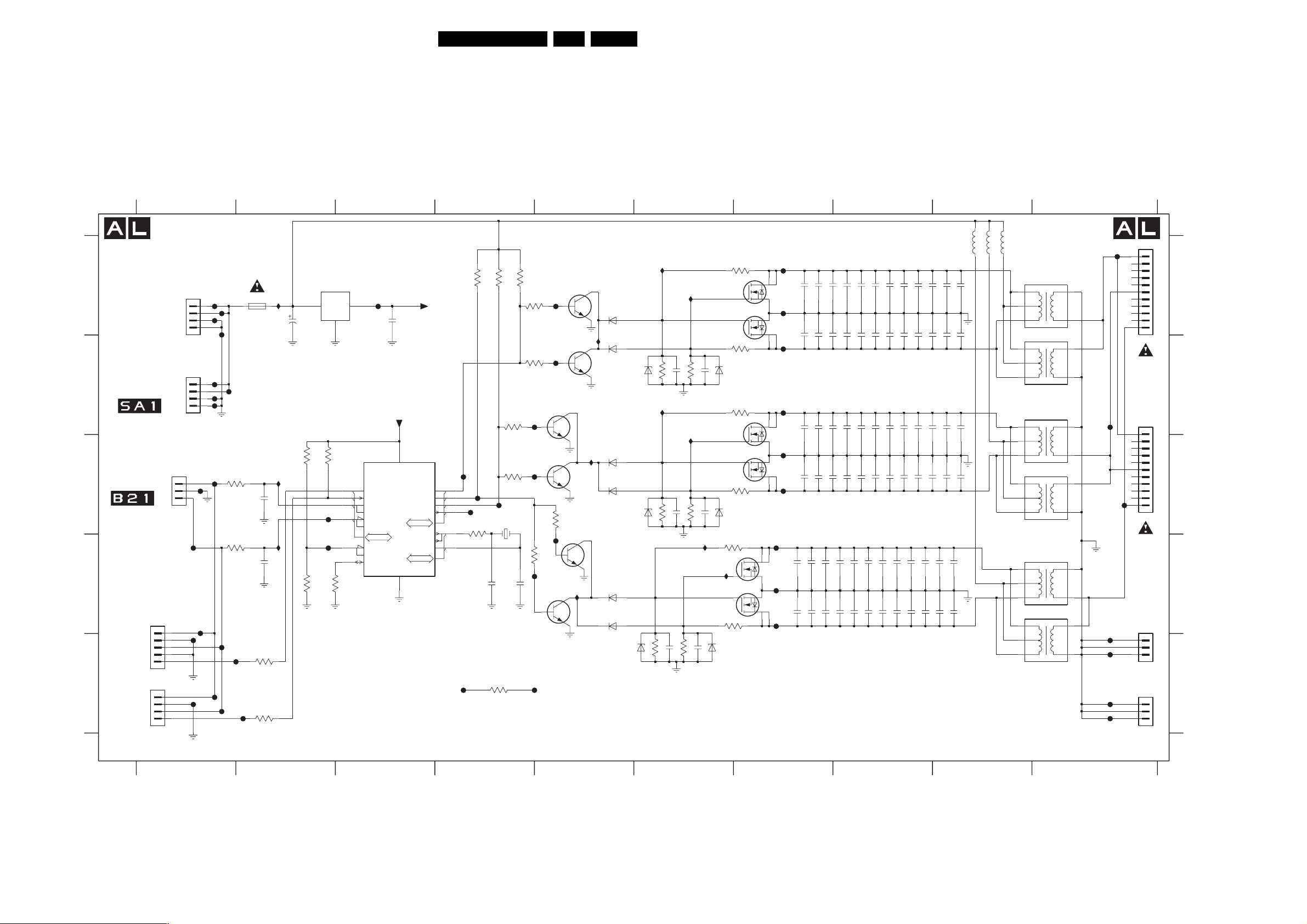

Ambi Light

Circuit Diagrams and PWB Layouts

EN 48FTL2.1U, FTL2.2U 7.

1004 D1
1010 A2
1050 C4
1M08 A1
1M10 B1
1M11 B10
1M12 D10
1M13 C10
1M14 E10
1M48 C1
1M49 E1
2001 A2

2002 A3
2003 C2
2004 D2
2005 D4
2006 D4
2007 E6
2008 E6
2009 C6
2010 C6
2011 B6
2012 B6
2020 A7

A

TO 2nd AMBI

LIGHT PWB

(OPTIONAL)

B

C

TO

1M10

FROM
1M49

D

1004

1
2
3

NC

4
5

B5B-PH-K

E

TO 1M49

(2K5 SETS)

SSB

1M49

1
2
3
4

B4B-PH-K

3104 313 6072.4

2021 A7
2022 A7
2023 A8
2024 A8
2025 A8
2026 A8
2027 A8
2028 A8
2029 A8
2030 B7
2031 B7
2032 B7

2033 B8
2034 B8
2035 B8
2036 A9
2037 A9
2038 B8
2039 B8
2040 C7
2041 C7
2042 C7
2043 C8
2044 C8

2045 C8
2046 B8
2047 B8
2048 B9
2049 B9
2050 C7
2051 C7
2052 C7
2053 C8
2054 C8
2055 C8
2056 C8

2057 C8
2058 C8
2059 C8
2060 D7
2061 D7
2062 D7
2063 D8
2064 D8
2065 D8
2066 C9
2067 C9
2068 C8

123

AMBI LIGHT

7002

LD1117DT

32

OUTIN

COM

1m0 16V

1

4K7

10K

3016

3028

F005

F006

1K0

3027

3026

9
8
7

6

2

1

1K0

F026

2002

MICROCONTROLLER

TXD
RXD
SCL
T0
INT0
SDA

P1<0:3>

RST
P1.5
P1.7

100n

+5V

7001
P87LPC760BDH

113

VDD

Φ

CMPREF

P0<3:6>

CLKOUT

P2<0:1>

VSS

CIN1B
CIN1A

CMP1

1
2
3
4

B4B-PH-K

1
2
3
4

B4B-PH-K

1M48

B3B-PH-K

1
2
3

F015

F013

F009

1M08

1M10

F016

F014

F010

F025

F022

F021

F017

F019

F018

F012

F008

F024

F023

F020

100R

3001

100R

3002

F011

F007

1010

F 3A

2003

2004

3022

100R

3023

100R

I001

2001

I002

1n0

I003

1n0

2069 C8
2070 D7
2071 D7
2072 D7
2073 D8
2074 D8
2075 D8
2076 C8
2077 C8
2078 C9
2079 C9
2080 D8

+5V

X2
X1

F001

14
13
12
10

2081 D8
2082 D8
2083 D8
2084 D9
2085 D9
2086 D8
2087 D8
2088 D8
2089 D8
2090 D9
2091 D9
3001 C1

3002 D1
3003 C4
3004 E6
3005 E6
3006 D6
3007 D6
3008 C6
3009 C6
3010 C7
3011 B7
3012 B6
3013 B6

3014 B7
3015 A7
3016 C2
3017 B4
3018 A4
3019 A4
3020 A4
3022 E2
3023 E2
3024 D4
3025 C4
3026 D2

3027 D2
3028 C2
3029 A4
3030 B4
3031 C5
3999 E4
5002 A9
5004 A10
5005 B10
5006 D10
5007 A9
5008 A9

5014 B10
5015 C10
5016 D10
6000 A5
6001 B5
6002 C5
6003 C5
6004 D5
6005 D5
6006 B6
6007 B6
6008 C6

6009 C6
6010 E5
6011 E6
7001 C3
7002 A2
7009 B5
7010 C5
7011 D5
7015-1 A7
7015-2 A7
7016-1 B7
7016-2 C7

7017-1 D7
7017-2 D7
7018 A5
7019 B5
7020 D5
F001 C4
F002 C4
F003 C4
F004 C4
F005 C2
F006 D2
F007 E2

F008 E1
F009 E1
F010 E1
F011 E1
F012 E1
F013 E1
F014 D1
F015 D1
F016 C1
F017 C1
F018 B1
F019 B1

F020 B2
F021 B1
F022 A1
F023 A2
F024 A2
F025 A1
F026 A3
F027 A10
F028 B10
F029 C10
F030 E10
F031 E10

F032 E10
F033 E10
F034 E7
F035 D7
F036 D7
F037 C7
F038 C7
F040 B7
F041 B7
F042 A7
F043 A7
F045 B5

F046 C5
F047 D5
F048 A5
F050 B4
F060 D5
F098 E4
F099 E5
I001 A2
I002 C2
I003 D2
I004 D5
I005 C5

456789 10

15u

15u

15u

5002

5008

220n2036

2048 220n

2066 220n

220n2078

2085 220n

220n2091

2037 220n

220n2049

220n2067

2079 220n

5007

1

3

5

1

3

5

1

3

5

1

2

3

1

2

3

1

2

3

5004

EFD20-01

5014

J-IT21A

5005

EFD20-01

5015

J-IT21A

5006

EFD20-01

5016

J-IT21A

I007

3012 220R

BZX384-C12

I009

BLUE

220R

3008

BZX384-C12

GREEN

2007 6n8

3004 220R

RED

2011 6n8

6n82009

3005 270R

I008

3013 270R

I010

270R

3009

6n82012

2010 6n8

I011

6n82008

10K

F002

1050

20M

15p

3030

4K7

3025

4K7

3020

2006

10K

3029

4K7

3017

4K7

F050

F046

3024

15p

7011
BC847BW

F099

4K7

F047

F048

F045

4K7

7018
BC847BW

7010
BC847BW

3031

F060

I004

I006

7009
BC847BW

7019
BC847BW

I005

7020
BC847BW

6000

BAS316

6001

BAS316

6002

BAS316

6003

BAS316

6008 6006

6004

BAS316

6005

BAS316

6010

BZX384-C12

10K

3019

3018

F003

F004

DSX840GA

3003

5

220R

4

2005

F098

3999

10K

60076009

6011

3015

1K2

2

4

3014

1K2

3011

1K2

2

4

3010

1K2

BZX384-C12 BZX384-C12

3007

1K2

I012

2

4

3006

1K2

BZX384-C12

7

7017-1

SI4946

1

3

SI4946

7017-2

5

7

7015-1

SI4946

1

3

SI4946

7015-2

5

7

7016-1

SI4946

1

3

SI4946

7016-2

5

F036

8

F035

6

F034

F043

8

F042

6

F041

F040

8

F038

6

F037

2060

220n 220n

2070

220n

2020

220n

2030

220n

220n

2050 2040

220n2061

2071 220n

220n2021

2031 220n

2041 220n

220n2051

2062 220n

220n2072

2022 220n

220n2032

220n2042

2052 220n

220n2063

2073 220n

220n2023

2033 220n

2043 220n

220n2053

2064 220n

220n2074

2024 220n

220n2034

220n2044

2054 220n

220n2065

220n

2075

220n2025

2035 220n

2045 220n

220n2055

220n2080

2086 220n

2038 220n 220n2026

2056 220n220n2068

2081 220n

220n

2087

2027 220n

220n2039

220n2057

220n

2069

220n2082

2088 220n

220n2028

220n

2046

2058 220n

220n2076

2029 220n

220n2047

220n2059

2077 220n

220n2084

2083 220n

220n2089

2090 220n

WARNING HIGH VOLTAGE

I006 B5
I007 A6
I008 A6
I009 B6
I010 B6
I011 D6
I012 D6

4

6

13

9

4

6

13

9

4

6

13

9

F027

F028

F029

F030

F031

F032

F033

E_14620_160.eps

B11B-EH-A

B11B-EH-A

B3B-EH-A

B3B-EH-A

TO

123456789 10

1M11

TO

CCFL

1M13

TO

CCFL

1M12

TO

CCFL

1M14

CCFL

071004

11
10
9
8
7

A

6
5
4
3
2
1

B

11
10
9
8
7
6
5
4

C

3
2
1

D

1
2
3

E

1
2
3

Circuit Diagrams and PWB Layouts

EN 49FTL2.1U, FTL2.2U 7.

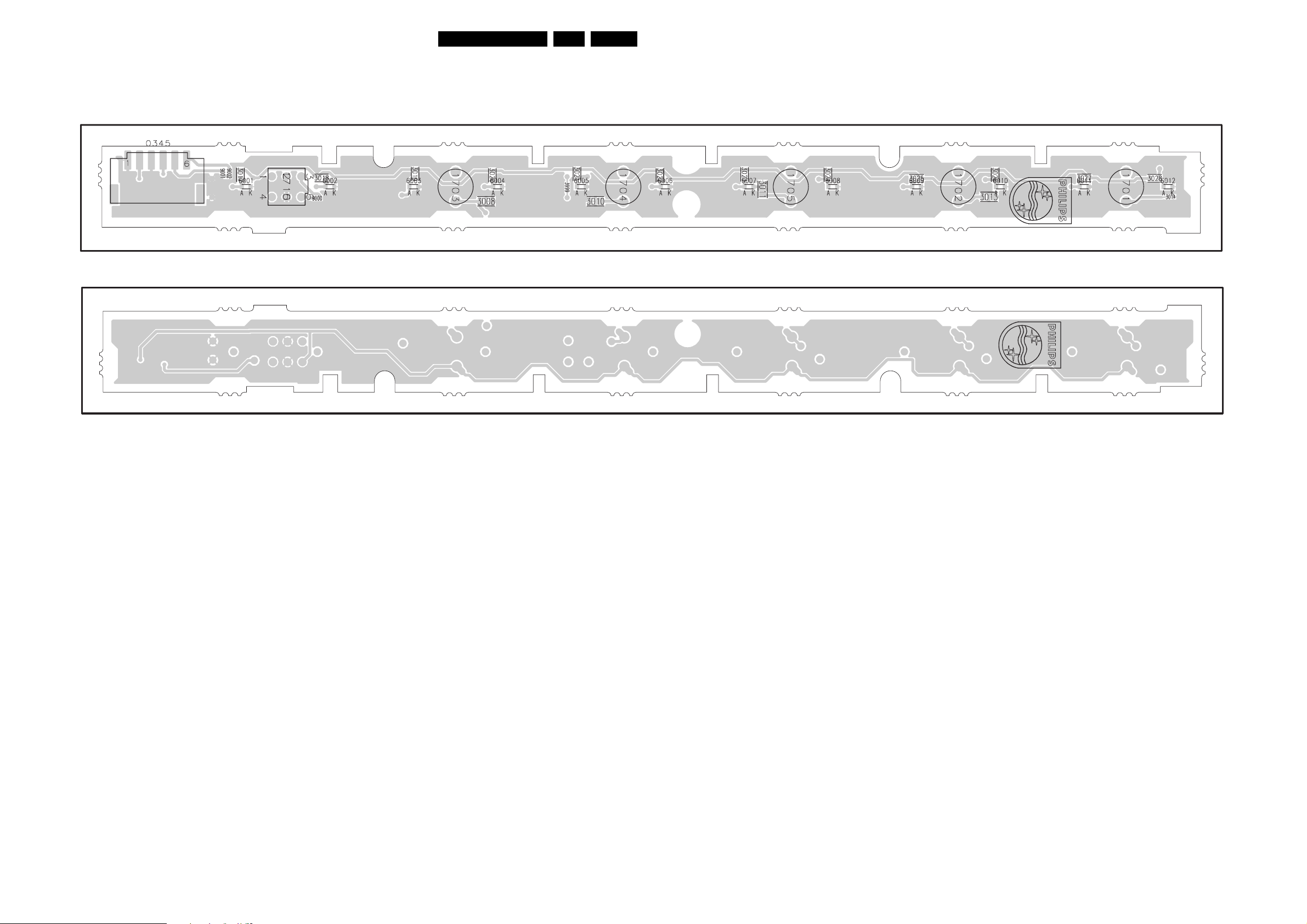

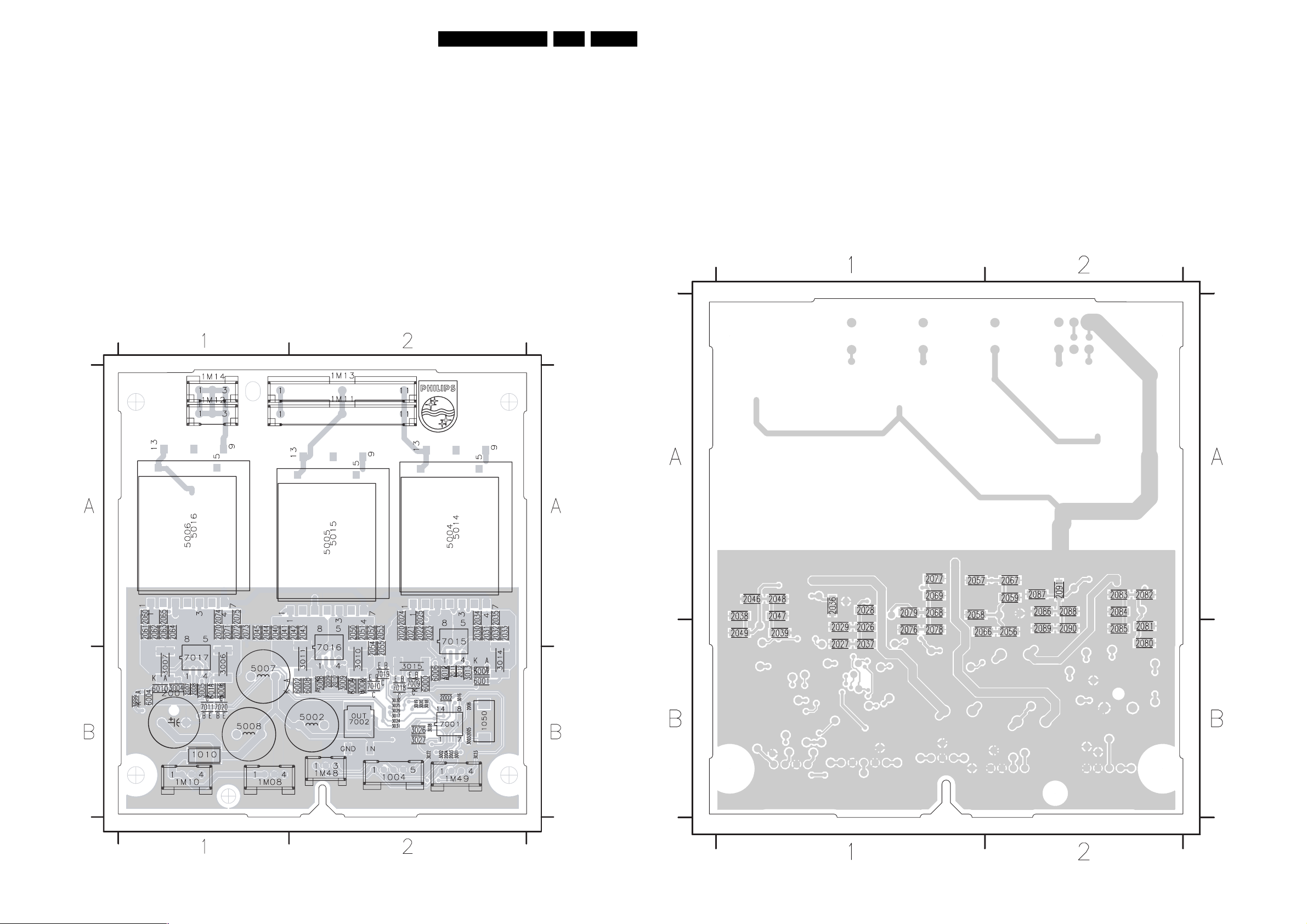

Layout Ambi Light (Top Side)

1004 B2
1010 B1
1050 B2
1M08 B1
1M10 B1
1M11 A2
1M12 A1
1M13 A2
1M14 A1
1M48 B2
1M49 B2
2001 B1
2002 B2
2003 B2
2004 B2
2005 B2
2006 B2
2007 B1
2008 B1
2009 B2
2010 B2

2011 B2
2012 B2
2020 A2
2021 A2
2022 A2
2023 A2
2024 A2
2025 A2
2030 A2
2031 A2
2032 A2
2033 A2
2034 A2
2035 A2
2040 A1
2041 A1
2042 A2
2043 A2
2044 A1
2045 A1
2050 A2

2051 A2
2052 A2
2053 A2
2054 B2
2055 B2
2060 A1
2061 A1
2062 A1
2063 A1
2064 A1
2065 A1
2070 A1
2071 A1
2072 A1
2073 A1
2074 A1
2075 A1
3001 B2
3002 B2
3003 B2
3004 B1

3005 B1
3006 B1
3007 B1
3008 B2
3009 B2
3010 B2
3011 B2
3012 B2
3013 B2
3014 B2
3015 B2
3016 B2
3017 B2
3018 B2
3019 B2
3020 B2
3022 B2
3023 B2
3024 B2
3025 B2
3026 B2

3027 B2
3028 B2
3029 B2
3030 B2
3031 B2
3999 B1
5002 B2
5004 A2
5005 A1
5006 A1
5007 B1
5008 B1
5014 A2
5015 A1
5016 A1
6000 B2
6001 B2
6002 B2
6003 B2
6004 B1
6005 B1

6006 B2
6007 B2
6008 B2
6009 B2
6010 B1
6011 B1
7001 B2
7002 B2
7009 B2
7010 B2
7011 B1
7015 B2
7016 B2
7017 B1
7018 B2
7019 B2
7020 B1

Layout Ambi Light (Bottom Side)

2026 B1
2027 B1
2028 A1
2029 B1
2036 A1

2037 B1
2038 A1
2039 B1
2046 A1
2047 A1

2048 A1
2049 B1
2056 B2
2057 A1
2058 A1

2059 A2
2066 B1
2067 A2
2068 A1
2069 A1

2076 B1
2077 A1
2078 B1
2079 A1
2080 B2

2081 B2
2082 A2
2083 A2
2084 A2
2085 B2

2086 A2
2087 A2
2088 A2
2089 B2
2090 B2

2091 A2

3104 313 6072.4

E_14620_161.eps

081004

3104 313 6072.4

E_14620_162.eps

131004

Circuit Diagrams and PWB Layouts

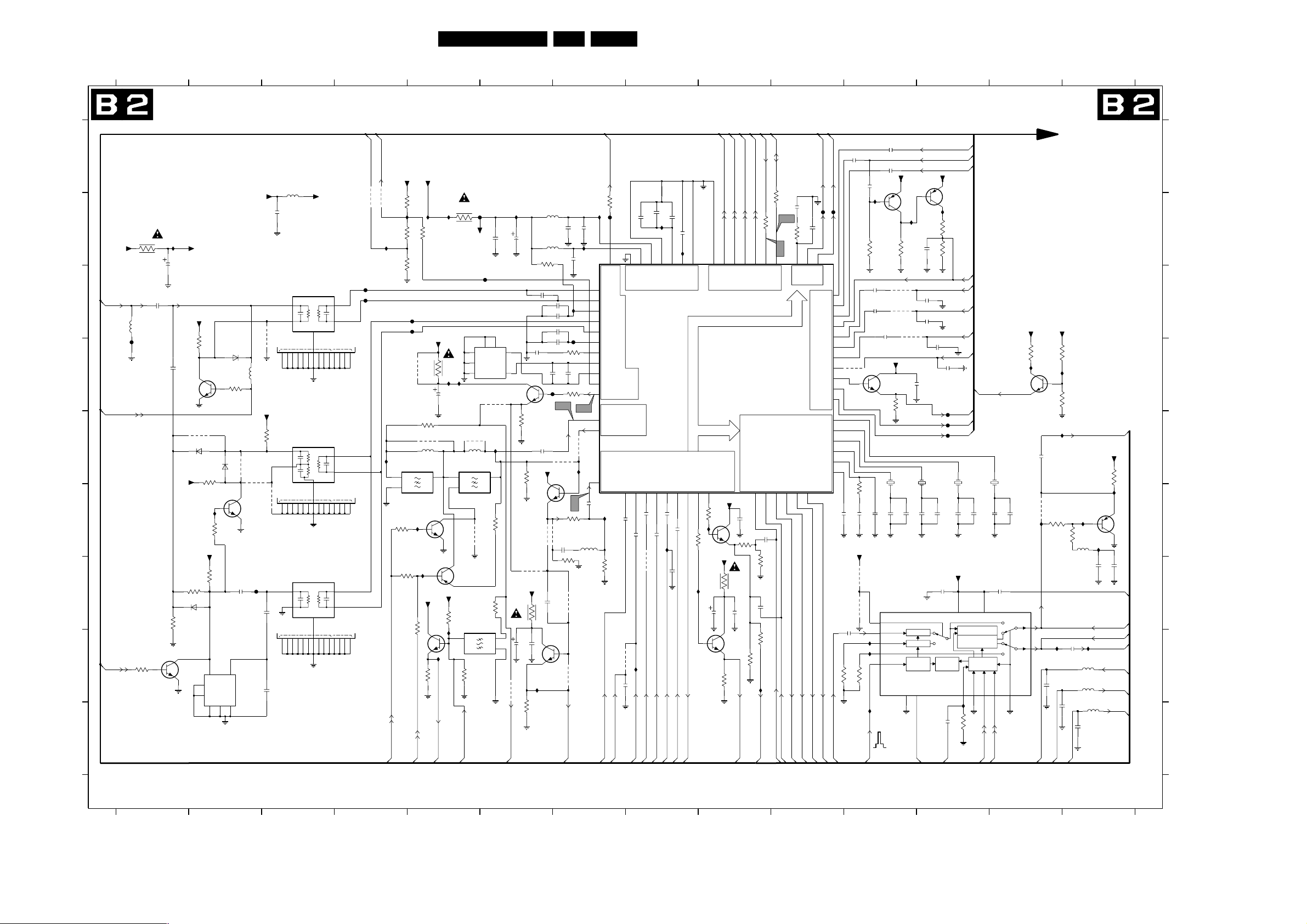

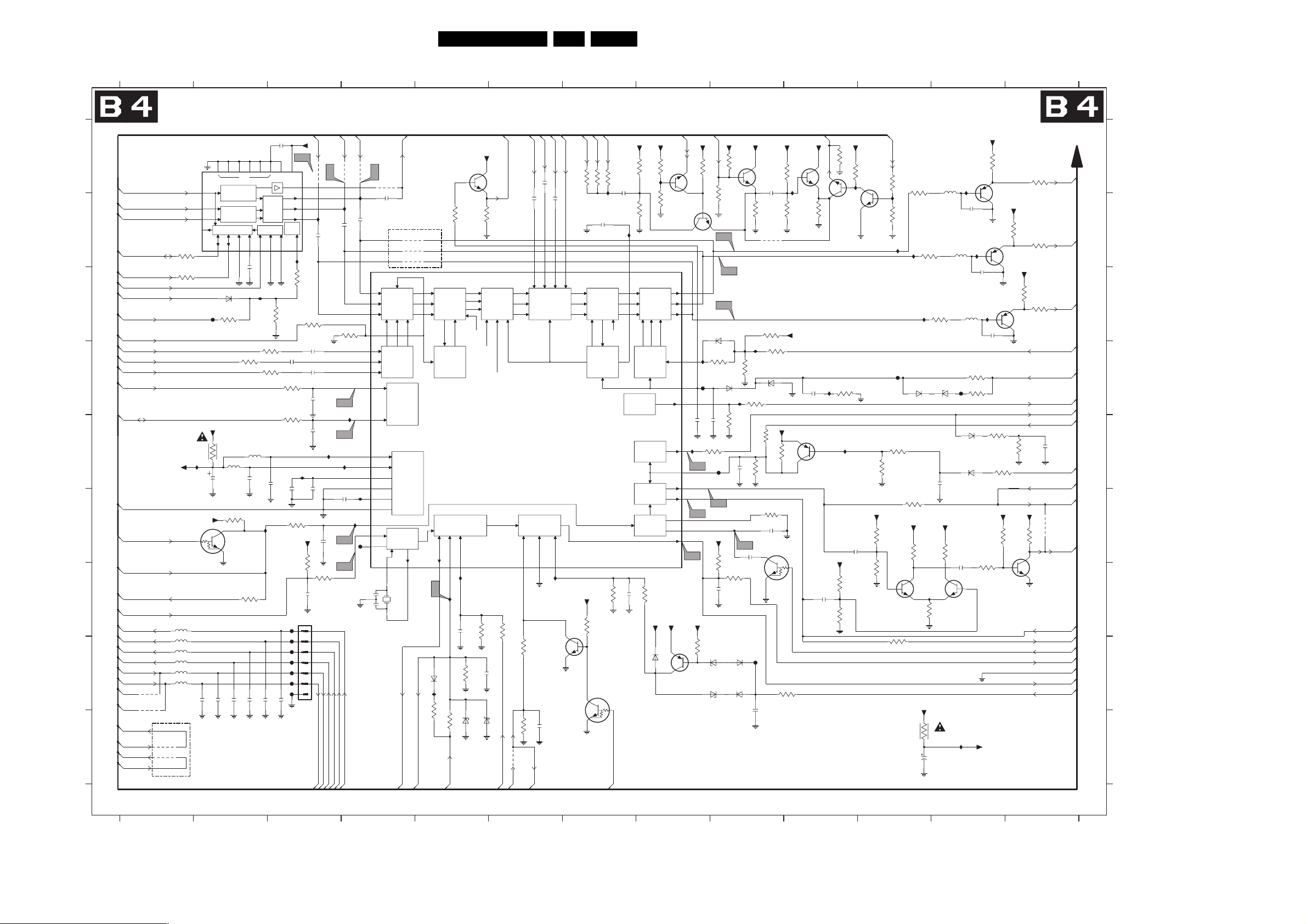

Small Signal Board: IF, I/O Video Processing

1234567891011

IF, I/O VIDEO PROCESSING

A

5416

+8V_CON

30R

1409-A

OFWK3953L

SAW-FILTER AUDIO

2

3

1314 15

1410-A

OFWK9656L

SAW-FILTER-VIDEO

2

3

1013 1415

1408-A

OFWK3953L

SAW-FILTER VIDEO

2

3

4 5 6 9 1013 1415

B

3R9

+5V_VDP

C

IF-TER

B13a

5411

F437

3402

0u33

D

LMN
B2(3x)

B15a(4x)

E

F

G

LMN
B2(3x)

3423

5K6

H

B15a(4x)

I

8204 000 8345.4

+8V

100n

2391

I452

+5VCOM

100u

2425

2412

4n7

2405

4n7

7403

BC847BW

+8VP

3411

9415

2K7

6403

BA792

5401

3414

4K7

1409-B

OFWK3953L

118456910

6u8

0V4

+8VP

+8VP

9403

6402

1SS356

3434

I460

4K7

BC847BW

3407

6405

9405

1SS356

7401

5K6

9402

3410

4K7

9401

1410-B

OFWK9656L

1184569

+8VP

4K7

3409

2406

A400

220p

68p

2407

1408-B
OFWK3953L

118

5

3p3

2408

BC847BW

7405

3433

3406

27R
6404

1SS356

3K9

6

5CCE
5403

78

1234

COIL 40.4 SUPPRESSION

12345678910111213

7

8

NCMT

111216

7

8

NCMT

111216

7

8

NCMT

111216

EN 50FTL2.1U, FTL2.2U 7.

1305 E11

12 13 14

B2

B5a

AGC

B13a

AGC-MONITOR

+5VS

+8V_VDP

9410

9407

A411

A412

17

17

17

2K2

3415

I411

4K7

3463

3441

100R

22K

A409

A410

I440

3408

3400

I444

I445

4R7

+8V_VDP

6R8

9416

3416

I447

I446

47u

2413

3419

390R

9418

5402

I458

3u9

1406

TPWKA

13

I

2

GND

I461

3421

5K6

BC847BW

3417

5K6

3435

13

O

I

2

GND

7406

7407

BC857BW

I462

+8VP

+8VP

4K7

3456

I463

4K7

7410

BC847BW

I451

1K0

3405

3457

F411

COIL

O

2394

78

9417

I448

3445

1u0

2377

5CCB
5408

6

BC847BW

120R

I443

100u

7411

3436

3439

F413

+8VP

1

MODULATOR

2

34

9409

5406

3u3

1407

TPWKA

9420

+8V_VDP

1K0

3420

1411

SFSKA

O

13

I

2

GND

4M5

4K7

2414 100u

9422

3404

3412

9412

2401

270R

2415

2411

100n

1K2

I450

560R

100K

2417

470n

+8VP

4R7

100n

5404

6u8

5405

6u8

3401

10n

2416 1u0

2436 1u0

2404 1u0

2418

F401

7322

9413

9404

2300 47p

330p

2402

7402
BC847BW

2387

1u02409

3418

390R

5p6

12p

3437

V1

9414

BC847BW

3382

560R

3300

1K0

9427

9408

1u0

2376

I402

F403

2419

1K0

9419

V2

RES

2378

100n

4V5

2V8

I6

SOUND-OUTPUT

c002

3380

100R

I441

7V7

F440

100n

7V7

I442

5

QSS_AM

64

SIF2

63

SIF1

1

AGCSIF

2

VIF1

3

VIF2

4

AGCDEC

6

PLLRILT

7

VCO1

8

VCO2

IF DEM

62

TUNERAGC

10

VIFOUT

GROUP

12

DELAY COR.

IN

13

OUT

1u0

2392

22n

2375

9

45

+8_2

GND_2

SUPPLY CTRL

1u0

2374

I421

2373

100n

4V1

5V0

I422

35

33

31

44

11

DEC

+8_1

GND_1

DIGDEC

DIGGND

HIP

TDA9320H

I/O SWITCH

I467

14

2384

5318

CVBSINT

100n

I449

33u

3385

470R

CVBS116CVBS2

2365

9428

2339

Y_CVBS320Y_CVBS4

18

2367

100n

2366

100n

9322

I415

10p

C321C4

100n

2368

2369

100n

I417

PIPOUT

CVBSOUT

23

32

34

24

3370

100n

I464

2370

100n

10R

3474

2420150p

RES

I465

2410

RES

SC1-STATUS

48

ADSEL

7323

COMBOUT

26

100R
7320

BC847BW

+8V_VDP

3475

100u

3476

B2,B15a(2x)

B14b

B14b

BG

SEL-SVHS-RR_STATUS2

5V0

19

17

AV115AV2

SW0

LUMA & CHROMA PROC.

+8VP

2403

100n

3413

270R

10R

100n

2433

7415

BC847BW

3372

560R

B2(3x),B15a(4x)

LMN

SCL-F

SDA-F

3377

3376

100R

0V4

22

46

47

SCL

SDA

SW01

YCOMBIN

SYS125SYS2

CCOMBIN

28

29

0V

2434

100n

1K0

3422

1n0

2435

47R

3371

470R

I401

B3a,B6a

B3a,B6a

7409

BC857BW

I455

10K

2K2

SC2-G-IN

SC2-FBL-IN

B2,B6a

1307

2381

B14c

B14c

B14c

B14c

B14b,g,B15a

B14b,g,B15a

B14c,g,B15a

B14b,B15a

Y50

B2,B6a

Y50

B6a

U50

B6a

V50

PAL M

3G575611

L1101-98007-0E1

15p

2382

1p5

1308

2362

+8VP

I456

7413

BFR93AW

3M58

NTSC M

L1101-96152-0E1

1p2

12p

2361

3460

3393

2357

2388

3444

100K

100n

2305

100n

2316

100n

I453

2358

220n

BC857BW

680K

2322

100n

7414

BC847BW

3n3

2350

100n

2352

100n

1305

2359

7408

3473

3447

9423

9424

+8VP

HC-49/U

15p

I454

39K

9425

1K0

4M433619

2360

VA50

HA50

2351

100n

100R

1u

2372

V9

3378

V10

27

5V

2371

15K

58

61

VA

HPLL

SYNC

SCOUT

SVBCOUT

59

30

F407

4n7

60

HA

R1IN

G1IN

B1IN

FBL1IN

R2IN

G2IN

B2IN

OUTP SWITCH

FBL2IN

YOUT

UOUT

VOUT

X3.579

X3.575

X3.582

X4.43

COL_PLL

SEC_DEC

F408

36

37

38

39

41

42

43

9426

40

49

50

51

57

56

55

54

52

53

2356

100n

2432

1p2

1306

2379

+8VP+8VP

2389

2355

10p

2364

10p

2383 10p

100n

L1101-98006-0E1

15p

R-SC1_V-IN

G-SC1-IN_Y-IN

B-SC1-IN_U-IN

3448

1u0

3449

FBL-SC1-IN

SC2-R_C-IN_AV2

SC2-B-IN_C-OUT

10p 2327

F404

F405

F406

PAL N

3G582056

1p5

2380

+5VCOM

DGND

4

+5VCOM

2354

100n

FILTER

TUNING

2353

6

VCC

2H/4H DELAY

ADAPTIVE

COMB FILTER

FSC8FSCSEL

9

I432

3301

100n

CLOCK

100K

VDD

GEN

5

SYS110SYS2

11

4V2

2385

100n

Y|CVBSO

OUTSEL

15

4V2

3303

2424

100n

100K

3468

93199318

12 Y|CVBS1

I434

I435

100K

I433

7307
TDA9181

2 INPSEL

3 Y|CVBS2

1CIN

7SC

CLAMP

CLAMP

SAND-

CASTLE

AGND

13

B

A

B

C

+8VP

3K3

1K8

3461

I457

1K2

3462

I424

COMB-Y_CVBS-OUT

100n

2422

7412

9406

3451

I428

270R

14

I430

16COUT

10p2426

BC857BW

I426

3452

150R

I427

5312

33u

2423

2302

COMB-C-OUT

I431

100n

5309

100MHZ

5310

100MHZ

10p

5311

100MHZ

2427

10p2428

+5VS

I425

10p

7307-p4

YOUT-3D

COUT-3D

CVBS-TXT

COUT-3D

YOUT-3D

3450

2421

B2

1K

6p8

B2

B2

B2

B2

B2(2x)

B5a

B2

B2

D

E

F

G

H

I

LMN

B2(3x),B15a(4x)

B2,B15a(2x)

QSS_AM

B6a

SOUND-OUTPUT

B2

BG

CVBS-PIP_TUN1-2-CVBS-IN

B15a

CVBS-TER-OUT

B14b

CVBS-SC1_AV1-IN

B14b

CVBS-AV3-IN

AV3-CVBS-IN

B14a,B14g,B15a

nc

C-SC2_SVHS-IN

Y-CVBS-SC2_AV2-IN

B14a,b

B14a,b,c(2x)

B14a

Y-CVBS-FRONT-IN

C-FRONT-IN

B14a

B14a(2x)

PIP-OUT

CVBS-TXT

CVBS-SC2_MON-OUT

B14b

B2(2x),B5a

SYS1

SYS2

COMB-Y_CVBS-OUT

COMB-C-OUT

B2

B2

B2

B2

SC

FSC

CVBS-TXT

B2

B2

B2(2x),B5a

SC

B2

7307-p4

B2

FSC

B2

SYS1

SYS2

B2

B2

CVBS-3D-COMB

COUT-3D-COMB

nc

nc

YOUT-3D-COMB

nc

E_14620_084.eps

070704

14

1306 E11
1307 E12
1308 E12
1406 E4
1407 E5
1408-A G3
1408-B G3
1409-A C3
1409-B D3
1410-A E3
1410-B F3
1411 G6
2300 F7
2302 H14
2305 C11
2316 C11
2322 C11
2327 D12
2339 H7
2350 A11
2351 A11
2352 A11
2353 I12
2354 G12
2355 C12
2356 F10
2357 F11
2358 F11
2359 F11
2360 F11
2361 F13
2362 F13
2364 C12
2365 F7
2366 F8
2367 F8
2368 F8
2369 F8
2370 F8
2371 B10
2372 B10
2373 B8
2374 B8
2375 B8
2376 B7
2377 B6
2378 B7
2379 F12
2380 F12
2381 F12
2382 F12
2383 D12
2384 F7
2385 G13
2387 B7
2388 A11
2389 B12
2391 B3
2392 B8
2394 B6
2401 C6
2402 G6
2403 F9
2404 D6
2405 D1
2406 G2
2407 G3
2408 H3
2409 C6
2410 G9
2411 D6
2412 C1
2413 D5
2414 H6
2415 H6
2416 C6
2417 E6
2418 D6
2419 D7
2420 G8
2421 G14
2422 E13
2423 G14
2424 H11
2425 B1
2426 H13
2427 I14
2428 I14
2432 D11
2433 G9
2434 F9
2435 G9
2436 C6
3300 G7
3301 I12
3303 H10
3370 F9
3371 H9
3372 H9
3376 B9
3377 B10
3378 B10
3380 B7
3382 F7
3385 G7
3393 F11
3400 B5
3401 B6
3402 B1
3404 I6
3405 H5
3406 G2
3407 F2
3408 B5
3409 G2
3410 E3
3411 D2
3412 G6
3413 F9
3414 D2
3415 B4
3416 D5
3417 G5
3418 D7
3419 E5
3420 G6
3421 F4
3422 G9
3423 H1
3433 G1
3434 E2
3435 G5
3436 E6
3437 D7
3439 E6
3441 B4
3444 B11
3445 F6
3447 B11
3448 B12
3449 B12
3450 E14
3451 F13
3452 F14
3456 G5

3457 H5
3460 D13
3461 D13
3462 D13
3463 B4
3468 H11
3473 D11
3474 F8
3475 G9
3476 H9
5309 H14
5310 H14
5311 I14
5312 F14
5318 F7
5401 D2
5402 E5
5403 H2
5404 B6
5405 B6
5406 E5
5408 D6
5411 C1
5416 B3
6402 E2
6403 D2
6404 G2
6405 E2
7307 G11
7320 F9
7322 E7
7323 D9
7401 F2
7402 H7
7403 D2
7405 H1
7406 F5
7407 G5
7408 A11
7409 A12
7410 H5
7411 D6
7412 F14
7413 D13
7414 D11
7415 H9
9318 G11
9319 G11
9322 G8
9401 F3
9402 E2
9403 E2
9404 F6
9405 E2
9406 F13
9407 B4
9408 H7
9409 E5
9410 B4
9412 G6
9413 F6
9414 E7
9415 C3
9416 D5
9417 D6
9418 E5
9419 E7
9420 F5
9422 H6
9423 C11
9424 C11
9425 C11
9426 D11
9427 G7
9428 H7
A400 G2
A409 C5
A410 C5
A411 C4
A412 C4
F401 D7
F403 C7
F404 E12
F405 E12
F406 E12
F407 B10
F408 B10
F411 C6
F413 B6
F437 D1
F440 B7
I401 H9
I402 C7
I411 B4
I415 H8
I417 F8
I421 B8
I422 B8
I424 E13
I425 F14
I426 F14
I427 F14
I428 F13
I430 H13
I431 H14
I432 I12
I433 I11
I434 H11
I435 H11
I440 B4
I441 B7
I442 B7
I443 B6
I444 B5
I445 B5
I446 D5
I447 D5
I448 E6
I449 F7
I450 H6
I451 H5
I452 B1
I453 B11
I454 B11
I455 B12
I456 D13
I457 D14
I458 E4
I460 F2
I461 F5
I462 G5
I463 H5
I464 F9
I465 G9
I467 E7
c002 A8

Small Signal Board: PICNIC

1234567891011

PICNIC

A

B3b

RST-FEM

B3d

RST_COL

B3c

RST_PIC_EAG

B

B19d

RST-FBX

C

D

E

F

G

H

I

J

K

L

M

N

8204 000 8343.4

1234567

B3a(2x),b

B3e,B19d

B3b,c(2x),d
B3b,c(2x),d

B3d

B3d

B3a(2x)

B3c(2x),d

B3e

B6a

B6a

B6a

B3e

B2,B6a

B2,B6a

B3c,d

B19d
B19b

B19b

* SEE MAPPING I1 ON B3c

** SEE MAPPING G1 ON B3c

22p

1K0

2707

3733

MF(17)

HD_E_T0

SN-DA
SN-CL

SCL-D

SDA-D

SCL-F

SDA-F

22p

2713

res

RSTW

RSTR_I

3V3_FAULT_FBX

3713 100R

F108

180R

Y-PIP+MAIN-IN

V-PIP+MAIN-IN

U-PIP+MAIN-IN

F109

F110

180R

3V3_FAULT_FBX

HA50

VA50

VAP

VA
SDA-EPLD

SDA-F

SCL-EPLD

SCL-F

2718

3929

3714

220R

180R

2719

15p

3715

2720

F119

F112

100p

2722

3826

100R

2840

3827

100R

2841

B

+8VPA

560R

Circuit Diagrams and PWB Layouts

5703

3740

I813

3732

47K

+1V8FA

3748

120K

F145

100R

2743

I815

3737

1K0

1K0

3738

F709

I805

10K

3742

3741

RES

+1V5_FBXA

+3V3_FBXB

+3V3_DCDCFBXA

5723

5724

RES

9701

RES

+3V3PA

5714

2749

68p

100n

F162

2800

F163

2742

3706

100R

2881 27p

3723

RES

1M0

1703

12MHz

CSTCV

1702

RES

13

12M

18p

2935

2

RES

1710

1

F122

2

F123

3

F124

4

F125

5

F126

6

F127

7

FMN

4K7

+3V3_DCDCFBXA

7708

BC847BW

100n

2744

22K

3743

10K

4K7

3905

+2V5_FBXA

F128

F129

100R3721

100n

6u85705

2929

RES

F708

3750

I804

18p

100n

2806

100n

I803

7710

BC847BW

B3c

7705
BC847BW

3751

F706

F707

3754

+3V3_DCDCFBXA

3K9

2748

F155

F156

BAS316

3759

220R

2804

100n

F710

9706

TDOC

9809

3747

+3V3_DCDCFBXA

3903

3K9

7707

BC847BW

3755

3719

3K3

3720

10K

5706

6u8

9707

680R

2915

6u8

5708

3933

680R

47p

+5V2Pr

I810

2931

150p

47K

100K

4K7

7715

PMBT2369

9709

HREF_EXT

+3V3_DCDCFBXA

7709

BC847BW

I820

3739

12K

+1V8FA

+3V3Pr

150p

2741

22n

2916

150p

F165

F166

N.C.

3736

3756

2747

2740

22n

22n

F164

9729

I720

I814

1K0

3722

F115

F114

2714

15p

3716

100K

680R

3928

7776

BC857BW

100K

3717

9826

3930

220R

15p

3718

100K

9827

3728

3730

150R

1K2

3726

9720

22p

res

22p

res

3734

100R
7703
BC847BW

3749

9710

3709

100R
3710

100R

22p

res

3922

220R

3927

220R

res

9726

+3V3PA

680R

3923

BC857BW
7775

9825

2900

100p

3926

47p

BC857BW
7777

+5V2Pr

3924

220R

2901

3925

47p

5707

6u8

9708

680R

+8VPA

3932

680R

3931

220R

2902

3727

150R

3K3

3725

+8VPA

2721

B3

B3c,d,B19d

74LVC1G14GW

VCC

1

NC

2A

100n

2917

2918

220n

res

3K3

9700

RES

3752

1R0

3753

1R0

100R

+3V3Pr

3K9

3746

9702

RES

100n

2724

100p

2737

100p

N.C.

9703

I727

RES

6710

F161

2757
22n

BAS316

6703

2920

100n

2807

1K0

3701

TMS

TRST

B3b,c,d

B3b,c,d

+5V2Pr

5727

RES

7712

74HC573

F784

F785

4K7

3758

SN-DA1

SN-CL2

VSSO63

SCL4

SDA5

UP-RST6

WD-RST7

RSTW8

RSTR9

F788

FBL10

11 VDDA1

F157

12 Y-OUT

VSSA113

F158

U-OUT14

V-OUT15

F159

VSSA216

BGEXT17

F160

H-D18

V-D19

AGND20

DIFFIN21

F118

VDDA2

22

Y-IN23

VDDA324

U-IN25

26 VIN

VSSA327

H-A28

V-A29

30 HREF-EXT

VDDA431

VSSA432

VSSX33

100n

OSC-I34

OSC-O35

36 TEST

TRST37

TMS38

TDI39

TDO40

TCK

47K

3712

F152

+3V3PB

TDO

TCK

B3d

B3b,c,d

4Y

GND

2709

3

+5V2Pr

+3V3Pr

RES

5726

5725

32

1n0

2732

100n

2745

M27C512

5728

2754

1n0

2746

100n

Vcc

GND

EN

C1

120

219

11 10

B3a

ALE

B3c

INT1

F786

F787

159T1160

157

158

T0

P0-0

INT0

INT1

ANALOG

PROCESSING

PLL

OSC

BST

VSSO1

UVA0

UVA144UVA245UVA346UVA4

41

43

42

UVA(0)

UVA(1)

BAS316

AD(00)

Q013Q1

VCC

A011A1

1D

AD(00)

AD(00)

156

CLK

TIMING

UVA(2)

F107

5

7706

+3V3_DCDCFBXA

I802

6701

100n

AD(01)

AD(02)

14

15

7711

9

10

318

417

AD(01)

AD(02)

AD(01)

AD(02)

155

P0-1

P0-2

3909

100R

AD(03)

AD(04)

Q2

Q318Q419Q520Q621Q7

A2

A38A4

7

516

615

AD(03)

AD(04)

AD(03)

AD(04)

154

153

152

P0-3

P0-4

P0

3V3_FAULT_FBX

AD(05)

AD(06)

AD(07)

22

PROM

A5

A6

A7

6

5

4

714

813

912

AD(05)

AD(06)

AD(07)

100n

AD(05)

AD(06)

AD(07)

151

150

149

P0-5

P0-6

P0-7

VDDO3

A829A9

148

28

2731

147

P2-0

MICRO-PROCESSOR

PSP

3 X DAC

7713

PICNIC

SAA4978H

3 X ADC

FRONT

END

BUS A

VDDO1

YA154YA255YA356YA457YA558YA659YA760YA8

UVA649UVA750UVA8

UVA(6)

UVA(7)

51

+3V3PB

UVA(8)

YA0

53

52

2735

100n

YA(1)

YA(0)

UVA5

47 48

UVA(3)

UVA(4)

UVA(5)

89

EN 51FTL2.1U, FTL2.2U 7.

UVB(2)

DA(15)

DA(14)

DA(13)

DA(12)

DA(11)

DA(10)

DA(09)

DA(08)

DA(07)

DA(06)

DA(05)

DA(04)

DA(03)

DA(02)

DA(01)

DA(00)

3700

UVB(1)

22R

CLK32G

B3a,d

B3a,b

F148

F149

2733

100n

100n

2734

UVB(0)

DA(00)
DA(01)
DA(02)
DA(03)
DA(04)
DA(05)
DA(06)
DA(07)

DA(15)
DA(14)
DA(13)
DA(12)
DA(11)
DA(10)
DA(09)
DA(08)

14 15

RES

3761

100R

9820

CLK32P_EPLDCLK32G

CL16

CLK32NE

RES

3760

100R

CLK32FM1

B3a

MF(17)

B3a,b
B3a(2x)

RSTW

RSTR_O

B3a,b,c

MF(17)

B3a,b
B3a(2x)
RSTW

RSTR_O

B3a,b,c

+3V3PB

A139

B3a(2x),c

CLK32P

F140

B3a,d

CL16

+3V3PB

CLK-AS

CLK32NE

B3a(2x),c

B3D

100n

B3a

B3a,b

B19b(2x)

100n

2712

MS81V04160A

9728

CLK32P

CLK32G

2717

100n

2725

100n

7714

13

SWCK

63

SRCK

85

MODE1

41

MODE2

32

WE1

45

RE1

31

IE1

46

OE1

30

RSTW1

44

RSTR1

94

WE2

81

RE2

95

IE2

80

OE2

96

RSTW2

82

RSTR2

29
28

11

27

12

24

13

22

14

21

15

20

16

19

17

97

20

98

21

99

22

2

23

4

24

5

25

6

26

7

27

3

9772

16 17

+3V3PC

2716

11

12

14153437435162

VCC

DUAL FIFO

(262,214 x 8) x 2

FM1

VSS

1617233335

39

10

484954

+3V3GA

4K7

3703

7702

CY2302S

9771

+3V3GA

2708

1

2

4

9770

5

100n

9769

6475838992

59677277788791993

+3V3GA

3704

9768

7

VDD

FBIN

FREQ.

MULTI.

IN

& ZDB

0

FS1OUT

1

GND

3

B5a

VD-EPLD

B19d

VD-OTC

B5a

HD3-EPLD

B19c,d

HD3-OTC

B5a

2FHR-GFX

B19c

R-OSD

B5a

2FHG-GFX

B19c

G-OSD

B5a

2FHB-GFX

B19c

B-OSD

B5a

2FHFB-GFX

B19c

BL-OSD

2711

100n

2710

100n

100n

2738

1

8
18
25
26
36
38
40

RES

42

NC

47

9727
50
76
79
84
86
88
90

100

52

1010

53

11

55

12

56

13

57

14

58

15

60

16

61

17

74

20

73

21

71

22

70

23

69

24

68

25

66

26

65

27

100R

+3V3GA

3705

100R

6

8

9767

2

3857

2837

10R

100p

2838

3859

2839

10R

2926

100p

3861

2928

10R

100p

2927

14 15 16 17 18 19

18 19

+3V3PC

MF(16)
MF(15)
MF(14)

B3b

MF(13)
MF(12)
MF(11)
MF(10)

MF(9)

MF(1)
MF(2)
MF(3)
MF(4)

B3b

MF(5)
MF(6)
MF(7)
MF(8)

CLK32FM1

CLK32

B3a

B3b,c

3724

B3

3856

10R

100p

3858

10R

100p

3860

10R

100p

E_14620_085.eps

070704

A

B

C

D

G

H

K

M

N

E

F

I

J

L

1702 K6

1703 K6

1710 L5

2707 C2

2708 I16

2709 A8

2710 C17

2711 C17

2712 C15

2713 G2

2714 G3

2716 C16

2717 C15

2718 H3

2719 J3

2720 J3

2721 K3

2722 K3

2724 F6

2725 C16

2726 F13

2727 E11

2731 F9

2732 C7

2733 I14

2734 K14

2735 L9

2736 M10

2737 G6

2738 C18

2740 I5

2741 I5

2742 I5

2743 C6

2744 C6

2745 C8

2746 D8

2747 H5

2748 F6

2749 H6

2754 D8

2757 I7

2800 I6

2804 J6

2806 H6

2807 K7

2837 J18

2838 K17

2839 K18

2840 L3

2841 M3

2881 J6

2900 I4

2901 I4

2902 J4

2915 I5

2916 J5

2917 A7

2918 A7

2920 J7

2926 L17

2927 M17

2928 L18

2929 L6

2931 I5

2935 L5

3700 K14

3701 L6

3702 E11

3703 H16

3704 G17

3705 H18

3706 I6

3709 F3

3710 F3

3711 E11

3712 L7

3713 H3

3714 I3

3715 J3

3716 H3

3717 J3

3718 J3

3719 G5

3720 H5

3721 H6

3722 C3

3723 K6

3724 H18

3725 K4

3726 K3

3727 K4

3728 K3

3730 K3

3732 A6

3733 C3

3734 C4

3736 C5

3737 C6

3738 D5

3739 D5

3740 A6

3741 D5

3742 D6

3743 D6

3746 D6

3747 C5

3748 B5

3749 D4

3750 D6

3751 B6

3752 B7

3753 C6

3754 C6

3755 D5

3756 D5

3758 F7

3759 I6

3760 D15

3761 B14

3826 L3

3827 L3

3856 J18

3857 J17

3858 K18

3859 K17

3860 L18

3861 L18

3903 C5

3905 E6

3909 A9

3922 H3

3923 H4

3924 H4

3925 I4

3926 I4

3927 I3

3928 I3

3929 I3

3930 J3

3931 J4

3932 J4

3933 J4

5703 A8

5705 J6

5706 H5

5707 I4

5708 J4

5714 H6

5723 E5

5724 F5

5725 C8

5726 C7

5727 D7

5728 D7

6701 A8

6703 J7

6710 H6

7702 H17

7703 C4

7705 A6

7706 A7

7707 D5

7708 B6

7709 C5

7710 D6

7711 C8

7712 E7

7713 I9

7714 D16

7715 G5

7775 H4

7776 I3

7777 J4

9700 B7

9701 F5

9702 E6

9703 H7

9706 L6

9707 I5

9708 I4

9709 J5

9710 F4

9720 L3

9726 G4

9727 E18

9728 D15

9729 A4

9767 I18

9768 H17

9769 I16

9770 H16

9771 H16

9772 H16

9809 B5

9820 B14

9825 I4

9826 J3

9827 J3

A139 K14

F107 A8

F108 H2

F109 I2

F110 J2

F112 K3

F114 F3

F115 F3

F118 I7

F119 K3

F122 L6

F123 L6

F124 L6

F125 L6

F126 M6

F127 M6

F128 F6

F129 G6

F140 K14

F145 C6

F148 G14

F149 G14

F151 F10

F152 L7

F155 G6

F156 G6

F157 H7

F158 H7

F159 H7

F160 I7

F161 I6

F162 I5

F163 I5

F164 J5

F165 J5

F166 J5

F706 C6

F707 C6

F708 C6

F709 D5

F710 K6

F784 E7

F785 F7

F786 E8

F787 F8

F788 H7

I720 B4

I727 H6

I802 A8

I803 I6

I804 H6

I805 D6

I810 H5

I813 A6

I814 C3

I815 C5

I820 D5

12 13

B3e

B3a(2x),c

B3a(2x),c

26

12

1

17

A10

A113A12

A13

30

31

24

27

146

145 144

143

P2-1

P2-2

P2-3

P2-4

P2-5

P2

YA(5)

YA(4)

YA(3)

YA(2)

16

NC

VSS

FBX

A14

A15

E_

G_

SOFTWARE

2

25

23

B3a

10R

ALE

3702

F151

139

141

140

137

138

142

ALE

P2-6

EAN

P2-7

PSEN

VSSD4

CLK

TIMING

MID END

HISTOGRAM

REDUCTION

TIMING

VSSO2

WE-A

VDDD1

VSSD1

61

63

62

64

100n

2736

+3V3PB

YA(8)

YA(7)

YA(6)

WE-A

10 11

+3V3PB

100n

2727

1K0

intern

3711

RES

134

133

136

135

UVC0

VSSD3

VSSO5

VDDD4

BACK END

PEAKING

MUX

NOISE

TBC/SRC

MUX

YB8

WE-B

65

67

66

68

WE-B

YB(8)

YB(7)

YB(6)

+3V3PB

100n2726

122 121

123

125

128 127

YB(2)

UVC5

BUS B

YB(1)

124

126

YC0

YC1

UVC7

UVC8

UVC6

VDDO2

YC2 120

UVB(7)

BUS D

CLK

UVB(6)

UVB(5)

VDDD2 87

CLK-AS 85

UVB480UVB579UVB678UVB777UVB8

UVB(4)

YC3 119

YC4 118

YC5 117

YC6 116

YC7 115

WE-C 113

IE-C 112

RE-D 110

YD7 108

YD6 107

YD5 106

YD4 105

YD3 104

YD2 103

YD0 101

VDDD3 100

UVD8 99

UVD7 98

UVD6 97

UVD5 96

UVD4 95

UVD2 93

UVD1 92

UVD0 91

VSSD2

CLK32 89

CLK16 88

VSSO3 86

UVB0 84

UVB1 83

UVB2 82

UVB3 81

114YC8

111VSSO4

109YD8

102YD1

94UVD3

90

UVB(3)

BUS C

YB075YB174YB273YB372YB471YB570YB669YB7

76

YB(0)

UVB(8)

132

131

130

129

UVC1

UVC2

UVC3

UVC4

YB(5)

YB(3)

YB(4)

12 13

Circuit Diagrams and PWB Layouts

Small Signal Board: (FEM) Falconic Embedded Memory

12345

FEM

FALCONIC EMBEDDED MEMORY

A

B

C

+3V3FA

D

E

2886

+3V3FB

2885

100n

100n

F

B3c,B19d

B3c,B19d

B3a,c,d
B3a,c,d

B3d
B3c

TRST
TMS
TDOA
TDOB

YG(5)
YG(4)

YG(3)
YG(2)
YG(1)
YG(0)
UVG(7)
UVG(6)
UVG(5)
UVG(4)
UVG(3)

UVG(2)
UVG(1)
UVG(0)

3880

3890

47K

3881

1K0

1K0

47K

3885

3888
1K0

9810

3886

3891

3882

47K

1K0

3889

1K0

1K0

3887
1K0

3883

47K

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

YG5|DPIP5
YG4|DPIP4
VDDE1
VSSE1
YG3|DPIP3
YG2|DPIP2
YG1|DPIP1
YG0|DPIP0
UVG7|QPIP7
UVG6|QPIP6
UVG5|QPIP5
UVG4|QPIP4
UVG3|QPIP3
NC|LLC
VSSE2
NC|SWCK2
UVG2|QPIP2
UVG1|QPIP1
UVG0|QPIP0
NC|RSTW2
NC|OIE2
NC|IE2
VDDP
NC|WE2
ACV|RE2
NC|RSTR2
TRSTN
TMS
TDI
TDO

YG(6)

100

TCK

32

31

+1V8FA

100n

2875

B3c,B19d

97

99

98

VSSM4

VDDM4

YG6|DPIP6

RST

SNDA

SNRST

35

34

33

2876

100n

YG(7)

95

94

96

VSSM3

VDDM3

YG7|DPIP7

VDDE2

PIPON

VSSM137VSSM239VDDM2

38

36

EN 52FTL2.1U, FTL2.2U 7.

6

2877

UVF(0)

UVF(1)

+1V8FA

90

91

93

VD

UVF192UVF289UVF3

UVF0

VDDA

FEM

7760

SAA4998H/V1

VDDM1

SNCL

42

41

40

2887

100n

B3c

UVF(3)

UVF(2)

88

VSSA

UVA143UVA244UVA345UVA446UVA5

UVA0

87

VSSD3

+1V8FA+1V8FA

86

2888

100n

85

VSSS2

VDDD3

47

84

VDDS2

VDDD1

48

100n

83

CLK32

VSSD1

49

7891011

B3a,c

B3a

UVF(4)

CLK32

CLK32NE

RES

3876

100R

UVF(5)

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

UVF(6)
UVF(7)

MF(17)
MF(16)
MF(15)
MF(14)
MF(13)
MF(12)
MF(11)
MF(10)

YF(0)
YF(1)
YF(2)
YF(3)
YF(4)
YF(5)

YF(6)
YF(7)

RE_F

MF(9)
MF(8)
MF(7)

B3c

B3c

B3c(2x)

B3a

2878

2879

+3V3FA

100n

+1V8FA

100n

81

82

VSSE4

VDDE3

VSSD2
VDDD2

VDDS1

TWOFMON

50

UVF4

UVF5
UVF6
UVF7

YF0
YF1
YF2
YF3
YF4
YF5

VSSE3

YF6
YF7

REF

REA

YA7
YA6
YA5
YA4
YA3
YA2
YA1

YA0
UVA7
UVA6

VSSS1

9808

IE

A

B

C

D

E

F

2723 G7
2875 B5
2876 B6
2877 B6
2878 D9
2879 E9
2880 G7
2882 H6
2883 H6
2884 H6
2885 E3
2886 D3
2887 B6
2888 B6
3876 C7
3880 F4
3881 F4
3882 F4
3883 F5
3884 G5
3885 E4
3886 E4
3887 E5
3888 E4
3889 E5
3890 E4
3891 E4
7760 E6
9808 C7
9810 F4
9811 G5

G

H

8204 000 8343.4

12

+3V3FA

+3V3FA

+3V3FA +3V3FA

+3V3FA

3884

47K

TCK

9811

RST-FEM

SN-DA

RSTR_O

MF(1)

SN-CL

MF(2)

MF(3)

MF(4)

MF(5)

MF(6)

2723

100n

2880

100n

+1V8FA

G

B3a

B3a,c(2x),d

2882

100n

B3a

+1V8FA

100n

+3V3FA

B3a,c,d

B3a(2x),c

B3a,c(2x),d

2884

100n

2883

H

E_14620_086.eps

070704

3

45678910

11

Small Signal Board: Eagle

123456

EAGLE

A

B

UVF(0)
UVF(1)
UVF(2)
UVF(3)

B3b

UVF(4)

UVF(0:7)

UVF(5)
UVF(6)

B3b

I732

I714

100n

100n

100n

4K7

I733

EAG_SD_DQ(0)
EAG_SD_DQ(1)
EAG_SD_DQ(2)
EAG_SD_DQ(3)
EAG_SD_DQ(4)
EAG_SD_DQ(5)
EAG_SD_DQ(6)
EAG_SD_DQ(7)
EAG_SD_DQ(8)
EAG_SD_DQ(9)

EAG_SD_DQ(0:15)

EAG_SD_DQ(10)
EAG_SD_DQ(11)
EAG_SD_DQ(12)
EAG_SD_DQ(13)
EAG_SD_DQ(14)
EAG_SD_DQ(15)

B3c

4K7

4K7

YF(0:7)

UVG(0:7)

YG(0:7)

9756

9758

9740

9765

9766

9704

UVF(7)
YF(0)

2789

2791

2793

9705

RES

YF(1)
YF(2)
YF(3)
YF(4)
YF(5)
YF(6)
YF(7)

UVG(0)
UVG(1)
UVG(2)
UVG(3)
UVG(4)
UVG(5)
UVG(6)
UVG(7)

YG(0)
YG(1)
YG(2)
YG(3)
YG(4)
YG(5)
YG(6)
YG(7)

I713

100n

100n

100n

C

B3b,B19d

D

B3b,B19d

RES

I731

SN-CL
RSTR_I
SN-DA
RSTR_O

+2V5EA

EAG_DQM
RST_PIC_EAG

9763

3799

RES

3798

9712

9723

RES

4K7

B3a,b,c,d

B3a,b,c,d

B3a(2x),b

E

F

B3a,c,d

B3c
B3a

+3V3EA
+3V3EA

G

+3V3EA

+3V3EA

3819

3820

H

8204 000 8343.4

12345678910111213

RES

Circuit Diagrams and PWB Layouts

2805

2756

2752

2750

2751

1n0

1n0

+2V5EC

+2V5ED

+1V5EA

9755

9757

2788

2790

2824

1n0

7720

EAGLE1C

29

83

9095104

0
1
2
3

UVF

4
5
6
7
0
1
2
3

YF

4
5
6
7
0
1
2
3

UVG

4
5
6
7
0
1
2
3

YG

4
5
6
7
SNCL
SNRST
SNDA
SNRSTO
VREFY
VBSY
VREFU
VBSU
VREFV
VBSV
DQM
RESET
IS0
IS1
BISTEN
PLLND2

0
1
2
3
4
5
6
7

DQ

8
9
10
11
12
13
14
15

1

28

VDD

INPUT BUS G

DATA SDRAM

52

85

INPUT BUS F

98

2
3
4
5
6
7
8
9
12
13
14
15
16
17
18
19
190
191
192
193
194
195
196
197 32
201
202
203
204
205
206
207
208
24
25
33
23
57
58
66
67
73
74
146
48
159
158
49
50

176
175
174
171
170
169
166
165
177
179
180
181
186
187
188
189

53
153
154
164

2759

2808

2755

2753

2809

2769

2771

2768

2770

2794

1n0

1n0

1n0

1n0

1n0

1n0

1n0

1n0

1n0

1n0

1n0

1n0

111

10

21447896113

3087101

112

VDD2 VDDC VDDS

2778

2773

2795

2798

2797

2772

1n0

1n0

1n0

131

143

2780

2777

2796

1n0

1n0

1n0

1n0

1n0

1n0

1n0

151

167

182

199

697660

AVDDV

AVDD U

Φ

VIDEO ENHANCEMENT

PROCESSOR

EAGLE - IC

SNERT

VSS

107

117

124

135

2034437786

11

145

148

160

173

184

VSS2

97

108

114

123

130

144

2781

2799

2782

2784

1n0

1n0

1n0

1n0

2251125

61

152

AVDDY

LUMINANCE

AVDPLL

COLOUR DIFFERENCE

CLOCK

BOUNDARY SCAN

ADDRESS SDRAM

150

156

161

168

2785

1n0

2761

2760

1n0

1n0

139

149

200

178

183

2762

2763

1n0

1n0

162

AVSS U

637054

2764

2821

1n0

1n0

172

185

198

OUTP_VAL

AOUTNY

AOUTPY

FSADJY
AOUTNU
AOUTPU

FSADJU
AOUTNV

AOUTPV

FSADJV

FALREF

CLK32O

CLK64O

CLKSEL

TESTSEL

ADDR

SDCLKIN

SDCLKOUT

AVSS V

AVSS Y

155

2822

UV

HREF

REFIN

TRST

RASN
CASN

AVSPLL

EN 53FTL2.1U, FTL2.2U 7.

7891011121314

F766

3814

150R

150R

150R

7721

HD_E

F714

9731

I719

+3V3EA

75R

1

B3a,19d

res

3815

CLKOUT

REF

GND

9730

75R

+3V3ED

VDD

CLK1

CLK2

CLK3

CLK4

4

HD_E_T0

F715

3817

2787

RES

6

F767

75R

2758

1n0

8

3

2

5

7

9751

7718

PMBT2369

68p

I819

HREF_EXT_E

3818

75R

2815

10p

2816

10p

3783

VAP_E

RE_F

FALREF

CLK32IN

CLK32O

CLK64
TRST

TMS
TDOB
TDOC

9711

2814

15p

3898

100R

3729

100R

+3V3EA

1K0

RES

3765

RES

RES

1K0

B3c
B3c

EAG_SD_CLK

VD_E

B19d

I736

EAG_SD_A(0:11)

+2V5ED+2V5ED

9822

9821

EAG_SD_CLKIN

B3c

+3V3EB

EAG_SD_CLK

9752

EAG_SD_CASN
EAG_SD_WEN

MSM56V16160F-6TS

EAG_SD_A(0)
EAG_SD_A(1)
EAG_SD_A(2)
EAG_SD_A(3)
EAG_SD_A(4)
EAG_SD_A(5)
EAG_SD_A(6)
EAG_SD_A(7)
EAG_SD_A(8)
EAG_SD_A(9)
EAG_SD_A(10)

EAG_SD_A(11)

3778

+3V3EB

RES

3906

1n0

RES

2832

100n

VDDQ

VSSQ

104147

2833

100n

2834

D

DQM

100n

2835

+3V3EC

44

33

NC

37

2

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

U

L

3762

68R

3

3764

5

68R

6
8

3768

9

68R

3770

11

68R

12

3775

39

68R

40

3779

42

68R

43
45

3781

68R

46

3804

48

68R

49

36
14

EAG_SD_DQ(0)

3763

EAG_SD_DQ(1)

68R

EAG_SD_DQ(2)

3767

EAG_SD_DQ(3)

68R

EAG_SD_DQ(4)

3769

EAG_SD_DQ(5)

68R

EAG_SD_DQ(6)

3774

EAG_SD_DQ(7)

68R

EAG_SD_DQ(8)

3777

EAG_SD_DQ(9)

68R

EAG_SD_DQ(10)

3780

EAG_SD_DQ(11)

68R

EAG_SD_DQ(12)

3784

EAG_SD_DQ(13)

68R

EAG_SD_DQ(14)

3803

EAG_SD_DQ(15)EAG_SD_RASN

68R

EAG_DQM

B3c

EAG_SD_DQ(0:15)

B3c

2831

2830

100n

100n

100n

7719

1

25

71338

VDD

21

0

22

1

23

2

24

3

27

4

28

5

29

6

30

7

31

8

32

9

20

10

19

A11

4K7

35

CLK

34

CKE

18

CS

17

RAS

16

CAS

15

WE

75R

2936

512K X 16 X 2

0

A

512K-1

VSS

26

50

Φ

DRAM

4

B3b,c

B19d
B3c
B3c

B19b
B3a,b,d
B3a,b,d
B3b
B3a

B3a,b,d

TCK

F720

+3V3EA

2K2

3793

PMBT2369

1K0

7725

I816

3745

+3V3EA

+5V2Pr

2K2

3744

B19b

B3a(3x)

B3c

INT1

B3a,d

B19d

B3a,d,B19d

B19d

B3b,c

B3a,b,c,d

B3a,b,c,d

B3a,c,d

CLK32I

CLK32G

CLK32O CLK32

B3a

VAP

VREF

HREF_EXT

HREF

RE_F

SN-DA

SN-CL

RSTR_I

3821

33R

3822

RES

27R

3823

68R

3824

RES

10R

9717

I734

3825

RES

9718

9719

9713

9714

9721

10R

HREF_EXT_E

SN-DA_EPLD

SN-CL_EPLD

RSTR_EPLD

CLK32IN

VAP_ E

B3c

B3a,b

B3c

B3c

B19d

REF

B19d

B19d

B19d

E_14620_087.eps

070704

+3V3ED

2765

1n0

2812

3896

82R

1n0

+1V5EB

+2V5EA

+2V5EB

+3V3EA

EAG_SD_CLKOUT

116

0

115

1

110

2

109

3

106

4

Y

105

5

103

6

102

7

100

8

99

9

94

0

93

1

92

2

91

3

89

4

88

5

84

6

82

7

81

8

80

9

79
26

HD

27

VD
VA

35
55
56
59
64
65
68
71
72
75
31

INTR

46
47

163

CLKI

147
118
157

36
37

TMS

38

TDI

39

TDO

40

TCK

41

0

42

1

45

2

136

0

134

1

133

2

132

3

119

4

120

5

121

6

122

7

126

8

127

9

137

10

138

11

140
141
142

WEN

128
129

DVSS

62

3850

U_VOUT(0)
U_VOUT(1)
U_VOUT(2)
U_VOUT(3)
U_VOUT(4)
U_VOUT(5)
U_VOUT(6)
U_VOUT(7)
U_VOUT(8)
U_VOUT(9)

O_VAL

9753

I817

I811

I812

I715

I716

9773
9774
9775

68R

68R

68R

68R

68R

68R

68R

9715

82R

2925

I806

1n0

YOUT(0)
YOUT(1)
YOUT(2)
YOUT(3)
YOUT(4)
YOUT(5)
YOUT(6)
YOUT(7)
YOUT(8)
YOUT(9)

I818

I808

I809

9759
9760

9761

3912-4

3911-3

3911-1

3912-1

3919

3921

3901

B19d

75R

75R

75R

I735

3772

3771

3773

75R

75R

75R

3794

3800

3776

9754

RES

9716

4K7

3796

+3V3EA

RES

9762

3912-3

3918

3911-4

3911-2

9823

3912-2

3900

3902

EAG_SD_CLKOUT

EAG_SD_A(0)
EAG_SD_A(1)
EAG_SD_A(2)
EAG_SD_A(3)
EAG_SD_A(4)
EAG_SD_A(5)
EAG_SD_A(6)
EAG_SD_A(7)
EAG_SD_A(8)

EAG_SD_A(9)
EAG_SD_A(10)
EAG_SD_A(11)

EAG_SD_RASN
EAG_SD_CASN

EAG_SD_WEN

EAG_SD_CLKIN

REFIN

68R

68R

68R

68R

68R

68R

68R

68R

3801

3792

3894

B3c

EAG_SD_A(0:11)

2786

B3c

B19d

68p

RES

150R

150R

150R

RES

9764

3897

3895

9750

F765

3811

9732

res

CY2305SC-1

2K2

2K2

+3V3EA

1K0

3766

7717

PMBT2369

I730

3782

1K0

3802

2825

100n

3757

2827

100n

3795

2823

100n

I717

F718

3797
4K7

75R

75R

3812

14

A

B

C

D

E

F

G

H

2750 A3
2751 A3
2752 A3
2753 A3
2755 A3
2756 A3
2758 A9
2759 A3
2760 A5
2761 A5
2762 A5
2763 A5
2764 A5
2765 A8
2768 A4
2769 A4
2770 A4
2771 A4
2772 A4
2773 A4
2777 A4
2778 A4
2780 A4
2781 A4
2782 A5
2784 A5
2785 A5
2786 D7
2787 D9
2788 E2
2789 E2
2790 E2
2791 E2
2793 E2
2794 A4
2795 A4
2796 A4
2797 A4
2798 A4
2799 A5
2805 A3
2808 A3
2809 A3
2812 A7
2814 A10
2815 A9
2816 A9
2821 A5
2822 A5
2823 E8
2824 E2
2825 D8
2827 E8
2830 B11
2831 B11
2832 B12
2833 B12
2834 B12
2835 B12
2925 H6
2936 E11
3729 B9
3744 F11
3745 G10
3757 E8
3762 C13
3763 C13
3764 C13
3765 C9
3766 C8
3767 C13
3768 C13
3769 C13
3770 C13
3771 C7
3772 C7
3773 C7
3774 C13
3775 C13
3776 D7
3777 D13
3778 D11
3779 D13
3780 D13
3781 D13
3782 D8
3783 D9
3784 D13
3792 E7
3793 F10
3794 D7
3795 E8
3796 E7
3797 F8
3798 F1
3799 F1
3800 D7
3801 D7

3802 D8
3803 D13
3804 D13
3811 H8
3812 H8
3814 H8
3815 H8
3817 H9
3818 H9
3819 H1
3820 H1
3821 E12
3822 F12
3823 F12
3824 F12
3825 F12
3850 H6
3894 E7
3895 A8
3896 A8
3897 A8
3898 A10
3900 G7
3901 G6
3902 G7
3906 D11
3911-1 G6
3911-2 G7
3911-3 F6
3911-4 F7
3912-1 G6
3912-2 G7
3912-3 F7
3912-4 F6
3918 F7
3919 F6
3921 G6
7717 D8
7718 C9
7719 B11
7720 B3
7721 A9
7725 F10
9704 H2
9705 H2
9711 A10
9712 E1
9713 G12
9714 G12
9715 G6
9716 E7
9717 F12
9718 G12
9719 G12
9721 G12
9723 E1
9730 B9
9731 C8
9732 C8
9740 F2
9750 C8
9751 C9
9752 D10
9753 D6
9754 D6
9755 E2
9756 E2
9757 E2
9758 E2
9759 E6
9760 E6
9761 E6
9762 F6
9763 F1
9764 F8
9765 F2
9766 F2
9773 F6
9774 F6
9775 F6
9821 B10
9822 A10
9823 G7
F714 C8
F715 C9
F718 E8
F720 F9
F765 G8
F766 G8
F767 G9
I713 E2
I714 E1
I715 E6
I716 E6
I717 E8
I719 E8
I730 D8
I731 E1

I732 E1
I733 F1
I734 F12
I735 C7
I736 C10
I806 H6
I808 E6
I809 E6
I811 E6
I812 E6
I816 F10
I817 D6
I818 D6
I819 D9

Small Signal Board: Columbus

123456

COLUMBUS

A

B

C

D

E

F

G

H

100n

2850

COL_SD_A0
COL_SD_A1
COL_SD_A2
COL_SD_A3
COL_SD_A4

B3d

COL_SD_A5
COL_SD_A6
COL_SD_A7
COL_SD_A8
COL_SD_A9
COL_SD_A10

COL_SD_A11

COL_SD_CLK

+3V3CB

B3d

COL_SD_RASN
COL_SD_CASN
COL_SD_WEN

I

2851

+3V3CB

100n

100n

2852

4K7

3846

COLUMBUS_CTRL

2853

C4

2856

9803

100n

100n

2854

2857

Circuit Diagrams and PWB Layouts

100n

2855

9802
9801
9800

100n

1

21

0

22

1

23

2

24

3

27

4

28

A

5

29

6

30

7

31

8

32

9

20

10

19

A11

35

CLK

34

CKE

18

CS

17

RAS

16

CAS

15

WE

+3V3CB

25

DRAM

512K X 16 X 2

0

512K-1

7

Φ

VDD

SDRAM

MSM56V16160F-7TS

VSS

26 50

4

13

VDDQ

7753

VSSQ

104147

38

44

33

NC

1
2
3
4
5
6
7

D

8

9
10
11
12
13
14
15
16

36

U

14

DQM

L

(ONLY FOR 3D COMB)

+3V3CA

G13

100n

100n

2862

2819

L13

100n

2863

100n

E13

H13

2836

100n

100n

G3

C7/B8

2865

100n

M3/N3

2858

100n

D3

2866

100n

N8

100n

2859

K3

2867

N11

100n

+1V5CA

N6

100n

2868

2860

100n

100n

N9

2869

C12

2861

100n

C11

2870

37

2
3
5
6
8
9
11
12
39
40
42
43
45
46
48
49

P13/N14

2864

100n

COL_SD_DQ1
COL_SD_DQ2
COL_SD_DQ3
COL_SD_DQ4
COL_SD_DQ5
COL_SD_DQ6
COL_SD_DQ7
COL_SD_DQ8

COL_SD_DQ9
COL_SD_DQ10
COL_SD_DQ11
COL_SD_DQ12
COL_SD_DQ13
COL_SD_DQ14
COL_SD_DQ15
COL_SD_DQ16

COL_DQM

B3a

B3a,b,c

B3a
B3b

B3a,b,c
B3a,b,c

B3d

RST_COL

+3V3CA

TCK
TDO
TDOA
TMS
TRST

B3d

3853

+3V3CA

COL_DQM

B3d

47K

B3d

B3d

+3V3CA

4K7

3847

9806

COL_SD_RASN

COL_SD_CLK
COL_SD_WEN

COL_SD_A0
COL_SD_A1
COL_SD_A2
COL_SD_A3
COL_SD_A4
COL_SD_A5
COL_SD_A6
COL_SD_A7
COL_SD_A8
COL_SD_A9
COL_SD_A10
COL_SD_A11

B3a,c,B19d

9804

4K7

3848

9805

9807

B3a

B3a,c

B3a

+3V3CA

3854

3855

I801

4K7

I807

4K7

9812

CL16
WE-A

YA(0)
YA(1)
YA(2)
YA(3)
YA(4)
YA(5)
YA(6)
YA(7)
YA(8)

VAP
HREF_EXT

UVA(0)
UVA(1)
UVA(2)
UVA(3)
UVA(4)
UVA(5)
UVA(6)
UVA(7)
UVA(8)

EN 54FTL2.1U, FTL2.2U 7.

7752-2

COLUMBUS

G15

H15

H14

G14

A7

D15
F15
E15
E14
F14

A8
F1
H3

B8

RESET

CLKSEL

CLKEXT

A0IIC

656SEL

TCK
TDI

TDO
TMS
TRST

TST1
TST2
TST3

BISTEN

7 8 9 10 11

7752-1

COLUMBUS

E3F3F13C3J3

B14

656

Decod

C8C7D3

MUX

COLUMBUS_IO

Memory

Interface

3D Comb

SWAN 3D

MUX

+1V5CA

K3

N9

N6

E13

C11

H13

VDDC

J13

K13L3N5N7N10

Noise Reduct

MUX

656

Encod

SNRST

R9

R11

WEB / DAVB

UVB0 / Do0
UVB1 / Do1
UVB2 / Do2
UVB3 / Do3
UVB4 / Do4
UVB5 / Do5
UVB6 / Do6
UVB7 / Do7
UVB8 / Do8

AVD

AVS

SNDA

SNCL

SDA

SCL

NC_2
NC_3

DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16

CLKASB

YB0 / Do9

YB1
YB2
YB3
YB4
YB5
YB6
YB7
YB8

P12
R12
P11
P10
R10

P9
P8

R8
R13
R14
R15
P15
N15
M14
M15

L15

3914-1

G2

F2

3915-1
E2
E1

3913-3

D2
D1

3913-1
C2
C1

3914-3

B1

M2
M1

3917-2
L2
L1

3917-4
K2
K1

3916-2
J2
J1

3915-4

H2

+1V5CA

5800
I718

100n

2792

N1

P1

C14

D14

C15

F735

A15

B15

F736

D4
N2

+5V2Pr

3831

3834

3837

3839

3842

3845

3916-4

22R

3915-2

3913-4

22R

22R

3913-2

22R

3914-4

22R

3914-2

22R

22R

22R

22R

3851

3917-1

3917-3

3916-3

3916-1

3915-3

22R

22R

22R

22R

22R

22R

22R

22R

22R

22R

22R

4K7

4K7

3849

+5V2Pr

L14

DQM

K15

RAS_

K14

CAS_

J14

CLK

J15

WE_

P6

A0

R6

A1

P5

A2

R5

A3

R1

A4

R2

A5

R3

A6

P3

A7

R4

A8

P4

A9

R7

A10

P7

A11

H1 G1

CLKASA

B13 A1

WEA / DAVA

B7

YA0 / Di9

B9

YA1

A9

YA2

B10

YA3

A10

YA4

B11

YA5

A11

YA6

B12

YA7

A12

YA8

A13

VA

A14

HREF

A2

UVA0 / Di0

B3

UVA1 / Di1

A3

UVA2 / Di2

B4

UVA3 / Di3

A4

UVA4 / Di4

B5

UVA5 / Di5

A5

UVA6 / Di6

B6

UVA7 / Di7

A6

UVA8 / Di8

+3V3CA

C4

C12

N8

N3

G3

M3

G13

L13

VDDS

P13

N11

N14

COLUMBUS_CTRL

VSS

C5C6C13

D13C9M13

B2

C10N4N12

N13P2P14

68R

68R

68R

68R

68R

68R

CLK-AS

WE-B

YB(0)
YB(1)
YB(2)
YB(3)
YB(4)
YB(5)
YB(6)
YB(7)
YB(8)

UVB(0)
UVB(1)
UVB(2)
UVB(3)
UVB(4)
UVB(5)
UVB(6)
UVB(7)
UVB(8)

9815

9816

9722

9817

9818

3832

3835

68R

3838

3841

3843

B3a

B3a

12

A

3830

68R

3833

68R

3836

68R

3840

68R

3844

68R

68R

68R

68R

68R

COL_SD_DQ1COL_SD_CASN
COL_SD_DQ2
COL_SD_DQ3
COL_SD_DQ4
COL_SD_DQ5
COL_SD_DQ6
COL_SD_DQ7
COL_SD_DQ8

COL_SD_DQ9
COL_SD_DQ10
COL_SD_DQ11
COL_SD_DQ12
COL_SD_DQ13
COL_SD_DQ14
COL_SD_DQ15
COL_SD_DQ16

B

B3d

C

D

E

G

SN-DA

B3a,b,c(2x)

B3a,b,c(2x)

SN-CL

B3a,B3c(2x)

RSTR_I

B3a

SDA-D

B3a

SCL-D

2792 G10
2819 H3
2836 H3
2850 A1
2851 A1
2852 A1
2853 A2
2854 A2
2855 A2
2856 G2
2857 G2
2858 G2
2859 G2
2860 G3
2861 G3
2862 G3
2863 G3
2864 G4
2865 H2
2866 H2
2867 H2
2868 H2
2869 H3
2870 H3
3830 B11
3831 B10
3832 B11
3833 B11
3834 B10
3835 B11
3836 B11
3837 B10
3838 B11
3839 B10
3840 B11
3841 C11
3842 C10
3843 C11
3844 C11
3845 C10
3846 D1
3847 G5
3848 G6
3849 H10
3851 H10
3853 H5
3854 H6
3855 I6
3913-1 D10
3913-2 C10
3913-3 C10
3913-4 C10
3914-1 C10
3914-2 D10
3914-3 D10
3914-4 D10
3915-1 C10
3915-2 C10
3915-3 E10
3915-4 E10
3916-1 E10
3916-2 D10
3916-3 D10
3916-4 C10
3917-1 D10
3917-2 D10
3917-3 D10
3917-4 D10
5800 F10

F

7752-1 A7
7752-2 G6
7753 C3
9722 H11
9800 D2
9801 D2
9802 D2
9803 D2
9804 G6
9805 G6
9806 H5
9807 H5
9812 B6
9815 G11
9816 G11
9817 H11
9818 H11
F735 H10
F736 H10
I718 F10
I801 G6
I807 I6

H

I

8204 000 8343.4

1234567

8 9 10 11 12

E_14620_088.eps

070704

Small Signal Board: FBX Supply

1

FBX SUPPLY

B3e

B3e

B3e

B3e

3V3_FAULT_FBX

3V3_FAULT_FBX

+3V3_DCDCFBXA

2739

100u

3V3_FAULT_FBX

3V3_FAULT_FBX

2939

I744

100u 16V

A

B

C

B3e

3V3_FAULT_FBX

D

B3e

3V3_FAULT_FBX

B3e

3V3_FAULT_FBX

E

B3e

3V3_FAULT_FBX

B3e

3V3_FAULT_FBX

F

8204 000 8343.4

3869

100R

3870

100R

5779

5768

3707

100R

6712

3875

100R

3829

100R

3871

100R

3872

100R

3873

100R

3874

100R

5772

I756

I758

BAS316

F734

F791

I753

I721

I759

I747

5769

I749

5770

I750

5771

I751

5773

6705

BAS316

Circuit Diagrams and PWB Layouts

23456789

100u

+3V3_DCDCFBXA

6719

S1D

6704

res

S1D

100u

2730

5775

GND

5709

res

5763

BAS316

6711

5767

BAS316

6722

BAS316

6702

BAS316

6713

BAS316

6714

I752

10u

2728

F790

F793

BAS316

6715

BAS316

6716

2914

100n

2891

100n

2892

100n

2893

100n

2894

100n

2843

100n

1

IN OUT

2729

+3V3PA

100n

2890

+3V3GA

+3V3_DCDCFBXA

+3V3PB

F792

+3V3PC

+3V3FA

F794

+3V3FB

F748

7773

LF18ABT

3

GND

2

100n

+3V3Pr

F795

2919

2895

2715

res

5760

F796

2817

100n

2802

10u

GND

10u

I748

10u

2898

B3a(3x)B3e(14x)

B12

+1V8FA

100n

7774

KF25BDT

1

IN3OUT

GND

2

GND

7701

LF15AB

1

IN

res

100n

2897

res

7772

LF15AB

1

IN3OUT

2899

100n

3V3_FAULT_FBX

3V3_FAULT

GND

GND

EN 55FTL2.1U, FTL2.2U 7.

5778 E4

2715 C3

5779 B1

2728 F2

5780 C9

2729 F2

5801 D9

2730 F3

6702 C2

2739 B1

6704 D3

2802 B3

6705 F1

2810 B9

6709 C9

2811 A9

6711 A2

2813 D9

6712 B1

2817 F3

6713 D2

2818 C9

6714 D2

2820 B6

A

B

C

D

E

F

2826 E7
2828 B6
2829 B7
2843 F2
2844 E7
2845 E9
2846 F9
2847 C7
2848 C7
2849 D6
2871 D4
2872 E6
2873 F6
2874 F7
2889 B4
2890 B2
2891 C2
2892 D2
2893 D2
2894 E2
2895 B3
2896 C4
2897 C4
2898 D3
2899 D4
2914 C2
2919 F2
2921 E6
2922 E4
2923 E5
2924 B4
2932 A5
2933 A5
2937 B7
2938 A4
2939 B1
3707 F1
3805 D9
3829 C1
3864 F9
3865 E9
3867 B9
3868 A9
3869 A1
3870 A1
3871 C1
3872 D1
3873 E1
3874 E1
3875 B1
3877 C9
5702 A5
5709 B3
5713 E5
5719 B5
5720 C5
5721 C5
5722 C5
5750 A9
5751 B9
5752 D5
5753 F9
5754 B6
5755 C7
5756 E9
5757 D7
5758 E7
5759 F7
5760 C3
5761 C4
5762 F5
5763 F3
5764 D5
5767 B2
5768 C1
5769 D1
5770 D1
5771 E1
5772 F1
5773 E1
5775 A3
5777 B7

6715 E2
6716 E2
6717 A9
6718 B9
6719 C3
6720 E9
6721 F9
6722 B2
6723 D9
7701 B4
7770 B7
7772 C4
7773 F2
7774 A4
F711 E6
F712 D6
F713 C4
F734 B1
F740 A9
F741 B9
F743 F9
F744 E9
F745 D7
F746 E7
F747 F7
F748 E2
F749 C6
F750 C7
F789 D9
F790 B2
F791 C1
F792 D2
F793 D2
F794 E2
F795 F2
F796 F3
F797 F6
F798 D6
F799 B4
I712 C9
I721 B1
I742 A9
I743 A4
I744 B1
I745 B7
I746 B9
I747 C1
I748 C3
I749 D1
I750 E1
I751 E1
I752 F2
I753 F1
I754 E9
I755 F9
I756 A1
I758 A1
I759 C1
I760 D9

100n

2849

2921

2872

2873

+8VPA

F798

100n

F712

100n

F711

100n

F797

100n

+5V_FBXA

2828

+3V3_DCDCFBXA

+5V_FBXA

+5V_FBXA

+2V5ED

+2V5EC

+2V5EA

+2V5EB

5754

10u

2820

F749

+1V5_FBXA

+1V5_FBXB

+1V5_FBXB

7770
LD1117

3

IN2OUT

100n

5755

+3V3_DCDCFBXA

RES

GND

1

F750

2847

5757

2844

5758

2826

5759

2874

10u

F745

F746

F747

2848

5777

I745

2829

100n

100n

100n

100u

100n

+1V5EA

+1V5EB

+1V5CA

+3V3_FBXB

16V100u

2937

B3e

B3e

+5V2Pr

B3e

B3e

B3e

B3e

3V3_FAULT_FBX

3V3_FAULT_FBX

3V3_FAULT_FBX

3V3_FAULT_FBX

+3V3_FBXB

3V3_FAULT_FBX

3V3_FAULT_FBX

3868

100R

+3V3_FBXB

3867

100R

+3V3_FBXB

3877

100R

+3V3_FBXB

3805

100R

3865

100R

+3V3_FBXB

3864

100R

+3V3_FBXB

I742

I746

I712

I760

I754

I755

BAS316

6717

5750

BAS316

6718

5751

BAS316

6709

5780

BAS316

5801

BAS316

5756

BAS316

5753

6723

6720

6721

F740

100n

2811

F741

2810

100n

100n

2818

F789

2813

100n

F744

100n

2845

F743

2846

100n

E_14620_089.eps

+3V3EA

+3V3EB

+3V3ED

+3V3EC

+3V3CA

+3V3CB

070704

+8V_CON

2938

10u 16V

I743

2889

100u

GND

F799

3

OUT

2

2896

F713

2

2871

2922

100u

5761

100u

10n

100n

2924

GND

+1V5_FBXB

+1V5_FBXA

5778

6u8

2932

100n

+2V5_FBXA

2923

5702

+3V3_DCDCFBX

+5VF

+2V5_FBXA

+2V5_FBXA

10n

+2V5_FBXA

2933

5719

5720

5721

5722

5752

5764

5713

GND

+2V5_FBXA

5762

1 23456789

Small Signal Board: HOP

12 345 678 9 10 11 12 13

HOP

A

B4

Y100

B4

U100

B4

V100

B

SDA-F

SCL-F

B5a,B21

LIGHT-SENSOR

B3a,B4(3x)

B5a

B4(2x)

B4(2x)

B4(2x)

B4(2x)

B4

HD100

SANDCASTLE

FBL_2FH

R_2FH

G_2FH

B_2FH

SCL-F

SDA-F

C

D

E

B4

GND-RGB-CRT

F

NC

VD100

B4

NOHOP1A

B4

B4(2x)

B4(2x)

B4(2x)

B4(2x)

B4,B5a

B4,B5a

B4(3x)

B4

B5a

B4

B4

B4

VD

B4(3x),B5a

HD100

R_2FH

G_2FH

B_2FH

FBL_2FH

B3a,B4(3x),B5a

HD100

VD

HFB

VSYNC

NOHOP1B

NOHOP1A

HD100

NOHOP2B

9314

9315

G

H

I

8204 000 8345.4

7302
TDA9178

6 YIN

8 UIN 17UOUT

9 VIN 16VOUT

22 CF

3454

100R

3455

100R

+8V_VDP

3329

I302

+8VS

2314

+5VS

5303 100MHZ

100MHZ

5304

100MHZ

5305

100MHZ

5306

100MHZ

5307

5308

100MHZ

2349

9311

9312

ONLY FOR NO HOP

12

F311

10p

2348

13 12

LUMA

PROCESSING

CHROMA

PROCESSING

CONTROL

SCL14SDA

ADR

11

6308

MCL4148

3453

33K

6R8

5302

6u8

100u

3349

4K7

7304

PDTC144EU

10p

10p

2347

Circuit Diagrams and PWB Layouts

2398

100n

2102324

NC

SPEC­TRAL
PROC

GND

ADC

AD14AD25AD3

DEC

15

7

3

100n

2301

I333

3305

3396

100R

3397

100R

3398

100R

5301

6u8

100n

2332

2315

I321

3387

100R

10p

10p

2346

2345

B4

V100

+8VS

V21

20

18

VCC

21SOUT

19YOUT

WIN­DOW

2321

SC

1

I366

6K8

3339

68K

3395

100R

2395

2396

100n

2397

100n

100n

3320

2344

100n

100R

3321

100R

2317

F348

F349

F350

F351

F352

F353

F362

10p

3363

10p

2309

10p

2310

I312

1u

22n

2318

c200

1K

+5VS

2363

1K

3333

3331

1K

10p

2320

1304

N.C.

1

2

3

4

5

6

7

2FH-VD100

B14b

B14b

345 678

V20

9302

I332

100n

I338

470p

2FH-FBL

2FH-B

2FH-HD100

nc

nc

nc

0V2

2FH-G

B4

2431

V22

V23

I339

2307

100n

F17

nc

9303

L12

U100

3302

I358

2FH-R

B4

Y100

V19

9304

9305

2429

100n

I330

I331

100n

2323

100n

7301
TDA9330

28

YIN

27

UIN

SWITCH

26

VIN

BL133

1K

RI130

RGB-YUV

GI131

MATRIX

BI132

SCL10

SDA11

17

VP1

7V9

VP239

7V9

DECBG18

GND219

I303

DECVD7

GND16

I359

VD23

HD24

HSEL12

F364

XTALI20XTALO

1V3

2

12M CSTCV

B4

Yltp

ONLY FOR NO HOP

9308

9309

9310

Y

U

V

VUY

I2C

SYNC+GEO

RGB

BANDGAP

ANAGND

SUPPLY

DIGSUP

DIGGND

1V1

21

B4,B5a

SC

SCO

V31

6334

I363

3334

HFB

Hsel

13

1PHI-

1301

SANDCASTLE

B4

3388

SATUR’N

CONTROL
COLOUR

DIFF

MATRIX

Y

BLACK

STRETCH

HFB

13

9

0V8

BAS316

1K

3324

HFB_X-RAY-PROT

B4

PHI-2

I305

2325

DPC

4K7

10R

14

RES

3323

6306

R

G

B

SAT

CONTR

I306

RES

100n

3326

100K

BZX384-C5V6

+8VS

7340

BC847BW

10K

3399

CONTRAST

AND

BRIGHTNESS

CONTROL

BRIGHT

HOP

3327

100K

RES

68p

2311

6307

BAT54 COL

nc

nc

BCL

100K

B14b,B21(2x)

DYN-FASE-COR

POR

B5a

B5a

R-TXT

G-TXT

2330

2329

100n

35

36

RI2

GI2

R

G

RGB-INSERTION

B

START/STOP

H-DRIVE

LPSU

FBCSO29FLASH

22

0V2

1K

3336

BC847BW

22K

10n

3472

2324

9316

POR_FLASH

B5a

B5a

100n

2331

BI2

0V

B-TXT

FBL-TXT

100n

37

BL2

5

I307

7362

PDTC144EU

B4,B5a

38

R

G

7361

B4(2x)

B4(2x)

B_2FH

3332 1K

CONTROL

BEAM CURR

LIMITER

+8VS

3361

EN 56FTL2.1U, FTL2.2U 7.

G_2FH

3335 1K

2328

22p

WHITE
POINT

PWL +

47K

B4(2x)

R_2FH

3330 1K

I368

I326

WHITE P.

3311

TILT

B4

2342

100n

100K

PWL

R

G

BB

2304

+8VS

3360

3355

34

+ BUFFER

CONTIN’S

CATHODE

CALIBR’N

6-BITS

DAC

FRAME

RAMP

GENERATOR

10p

3314

+8VS

3471

100K

I369

3470

33K

OUTPUT

AMPL

+ BLUE

STRETCH

EW

10K

+8VS

6312

100K

7375

33K

BC847BW

BC847BW

RO 40

GO 41

BO 42

BLKIN 44

BCL 43

DACOUT 25

EWO 3

EHTIN 4

VDOB 2

VDOA 1

IREF 16

VSC 15

HOUT 8

+8VS

7303

BC857BW

BAS316

B4(2x)

FBL_2FH

I357

1V1

1V5

4V0

2V5

L13

+8VS

3467

7305

I311

I315

2334

F20

F19

3315

B4

10K

3465

6316

BAS316

3345

10K

2u2

2336

3306

220R

F312

F18

+8VS

3318

2308

1K

6303

BZX384-C47

6313

BZX384-C22

Yltp

V28

V30

+8VS

3325

33K

V29

6319

BAS316

2u2

3394

1K

10p

3317

220R

BAS316

BAS316

I316

6304

2303

6314

100K

4K7

3347

V32

1u

2312

33n

BC847BW

7306

3351

I314

22K

BZM55-C6V8

3390

220R

3307

F329

2306

10K

3308

18K

470p

2343

100n

2313

100n

9421

3346

33K

3328

39K

+8VS

3352

I370

3359

3348

2K2

6310

+8VS

470K

3310

7312

PDTC144EU

3316

47K

47K

BC847BW

100K

100K

+8VS

+8VS

7314

2333

2u2

7318

BC857BW

3350

2319

1n

nc

Y-SCAVEM

PMBT2369

1K

I367

3353

7315

+8VS

680K

680K

+8VS+8VS+8VS

1K

3354

3344

2K2

I365

2335

1n

36

3364-C

54

3364-D

2K2

I320

PMBT2369

7313

+8VS

680K

680K

3312

18

3364-A

72

3364-B

220R

B4,B5a

FBL-TXT

3358

3459

I304

F309

3313

100K

100K

2

I319

1K8

2K2

3366

3337

820R

I309

BAS316

6309

3367

220R

+8VS

3K9

6
7310-A

BC847BS
1

+5V_VDP

2340

3304

I313

3362

3369

820R

2K2

3384

820R

BZX384-C22

6311

2326

+8VS

3K9

3

3356

3R9

5V2

10u

5313

5u6

10n

3357

7310-B

BC847BS

7316

BC857BW

I308

2337

6p8

GND-RGB-CRT

I310

5314

5u6

5315

5u6

3343

68K
3322

F347

6301

BAS316

6317

BAS316

2386

1n

5

4

I371

+8VS

3338

680R

BC857BW

7317

2338

6p8

GND-RGB-CRT

BC857BW

7319

I317

2341

6p8

GND-RGB-CRT

1K

3442

22K

3319

100R

+8VS

100K

3391

10K

C001

+5VS

+8VS

3383

1412

3386

220K

680R

+8VS

3389

3443

+8VS

3365

680R

BACKLIGHT-CNTRL

7309

BC847BW

9 101112 13

3340

R-CRT

47R

3341

G-CRT

47R

3342

B-CRT

47R

CUTOFF

EHT-INFO

EW-DRIVE

EHT-INFO

1u

2393

HFB_X-RAY-PROT

ANTI-MOIRE

9313

4K7

RES ONLY PTV

VSYNC

NOHOP1B

FRAMEDRIVE+

HD@HOME

LINEDRIVE1

GND-LINEDRIVE

NOHOP2B

EHT-INFO

E_14620_091.eps

1301 G4

1304 G3

1412 E13

2301 C2

2303 E9

2304 G7

A

B

C

D

E

F

G

H

I

2306 I9

2307 F4

2308 G9

2309 D3

2310 E3

2311 H5

2312 F9

2313 F9

2314 E2

2315 E2

2317 F3

2318 F3

2319 G10

2320 G3

2321 B3

2323 B4

2324 I6

2325 G5

2326 E12

2328 B7

2329 B6

2330 A6

2331 B6

2332 E2

2333 D10

2334 E8

2335 F10

2336 E8

2337 B12

2338 C12

2340 I11

2341 C12

2342 A7

2343 A9

2344 H3

2345 H2

2346 H2

2347 H2

2348 H2

2349 H2

2363 F3

2386 G12

2393 E13

2395 D3

2396 D3

2397 D3

2398 A3

2429 B4

2431 B3

3302 C4

3304 I11

3305 C3

3306 E9

3307 E9

3308 E9

3310 E9

3311 G7

3312 E11

3313 E11

3314 G8

3315 H8

3316 H10

3317 G9

3318 F9

3319 E12

3320 D3

3321 E3

3322 D12

3323 H5

3324 I5

3325 A9

3326 H5

3327 G6

3328 F9

3329 E2

3330 A7

3331 G3

3332 A7

3333 F3

3334 H5

3335 A7

3336 H6

3337 A11

3338 A12

3339 C3

3340 A13

3341 B13

B

nc

nc

nc

nc

B4(2x)

B4

TILT

nc

B4(2x)

B4

B5b

B21

B4,B5a

B4

nc

B5a

nc

nc

B4

B4(2x)

070704

3342 C13

3343 D12

3344 D10

3345 D9

3346 C9

3347 D9

3348 D9

3349 F2

3350 B10

3351 B9

3352 A9

3353 A10

3354 A10

3355 B7

3356 G12

3357 F12

3358 A11

3359 B9

3360 A7

3361 G7

3362 F11

3363 F3

3364-A F11

3364-B G11

3364-C G10

3364-D G10

3365 F13

3366 H11

3367 F11

3369 B11

3383 B13

3384 C12

3386 F13

3387 G2

3388 B5

3389 C13

3390 D9

3391 G12

3394 E9

3395 C3

3396 D3

3397 D2

3398 D3

3399 B5

3442 E12

3443 E13

3453 C2

3454 B1

3455 C1

3459 B11

3465 B9

3467 A8

3470 B8

3471 A8

3472 I6

5301 E2

5302 E2

5303 G1

5304 H1

5305 H1

5306 H1

5307 H1

5308 H1

5313 A12

5314 B12

5315 C12

6301 E12

6303 H9

6304 H9

6306 I5

6307 I5

6308 C2

6309 D11

6310 D9

6311 D12

6312 H8

6313 H9

6314 H9

6316 C9

6317 E12

6319 D9

6334 H5

7301 B4

7302 A1

7303 H8

7304 F2

7305 B8

7306 A9

7309 G13

7310-A G11

7310-B G12

7312 F10

7313 A11

7314 A10

7315 B10

7316 A12

7317 B12

7318 E10

7319 C12

7340 A5

7361 H7

7362 H7

7375 B8

9302 A3

9303 A4

9304 A4

9305 A4

9308 B4

9309 B4

9310 B4

9311 I1

9312 I1

9313 F13

9314 H1

9315 H1

9316 I6

9421 B9

C001 H12

F309 D11

F311 C2

F312 E9

F329 H9

F347 D12

F348 G3

F349 H3

F350 H3

F351 H3

F352 H3

F353 H3

F362 H3

F364 F4

I302 E2

I303 F4

I304 B11

I305 G5

I306 G5

I307 G7

I308 A12

I309 B11

I310 B12

I311 D8

I312 E3

I313 C11

I314 D9

I315 D8

I316 D9

I317 C12

I319 B11

I320 B10

I321 F3

I326 B7

I330 B4

I331 B4

I332 B3

I333 C2

I338 E3

I339 E4

I357 E8

I358 E4

I359 F4

I363 H5

I365 E10

I366 B3

I367 D10

I368 B7

I369 A8

I370 B10

I371 I12

c200 F3

Small Signal Board: OTC-Flash

12345678910

A

B

C

D

E

F

G

H

I

J

B

IRQ-FTV

B5a

SEL_IN_2

LED2

+5V2_CON

B14d

9024

+3V3_INTOTC

B21
B21

FRONT-DETECT

B21

CON-SND

ON-OFF-LED

B14e

SEL_IN_1

B4,B21

LIGHT-SENSOR

B2

AGC-MONITOR

B14e

STATUS-SC3

+5V2_CON

RES

Nc

STATUS-SC4

B21

KEYBOARD

B14e(2x),B21

STANDBY

Nc

STATUS_SC3

B5b

PWM_BACKLIGHT

B21

RC

B4

POR_FLASH

B14b,B21

IRQ-DIGITAL

B14b

P50

BC847BW

3025

220R

SDA-F

SCL-F

SDA-S

SCL-S

B14b,B21

SOUND-ENABLE

B6a,B14b

RESET-AUDIO

B4

HD@HOME

SDA-S

SDA-F

SCL-S

SCL-F

TxD

B5a

RxD

B5a

RESET

B5a

+3V3_INTOTC

B4(2x)

HFB

B3a,B4 (4X)

HD100

B3a

HD3-EPLD

+3V3_INTOTC

B4(2x)

VSYNC

B3a

VD-EPLD

B2(3x)

CVBS-TXT

8204 000 8344.3

1234

OTC-FLASH

3068

9021

180R 3009

BC857BW
7022

3038

10K

2071

100n

2072

100n

9014

3058

RES

+3V3_INTOTC

6K8
3075

3059

IC05

2041

150p
3041

4K7

3C09

10K

3C10

100R

3094

3095

3042

3C11

100R

620R

9015

2020

220p

IC07

IC09

RES

9003

RES

9004

47K

9001

IC45

4K7

3040

47K

9002

4K7

3096

10K

7008

FC69

+3V3_INTOTC

2K7

2070

+3V3_INTOTC

47K

3027

3011

5

47K

2068

10K3080

100n

IC03

2059

100p

2058

470R

100p

3047

470R

+5V2_CON

6001

1PS76SB10

+3V3_INTOTC

4K7

3053

4

VSS

M24C32

SDA

NVM

VCC

8

+3V3_INTOTC

7015

PMBT2369

IC46

PMBT2369

2n2

+8V_CON+5V_CON

10K

3020

10K

3021

+3V3_INTOTC

+5V2_CON

3091

6004

BAT54WS

2022

10K

3074-1

18

470R

FC48

WC_

7011

Circuit Diagrams and PWB Layouts

SDM

10K

3018

4K7

3019

3078-3

36

470R

3039180R

9016

2073

100n

3024

27K

IC48

100n

1K8

+3V3_INTOTC

7

SCL

6

E2

3

E1

2

E0

1

7016

FC57

9006

100p

2061

3078-2

27

470R

9023

3033

100K

BC857BW

+3V3_INTOTC

3077

4K7

3076-2

27

470R

1PS76SB10

+5V2_CON

6003

1K8

1K8

3079

3069

36

FC49

IC21

IC26

2007

CVBS-Y-RECORD-IN

B14a,b,B15b

9018

3097

3074-4

54

2V8

9022

7010

IC41

3076-3

3

7009

BC847BW

IC40

1K8

3088

3074-3

470R

3001

2018

33p

2002

27p

2006

100n

3103

470R

470R

4K7

SAM

470R

PLVA2650A

470R

45

9025

6006

BZG05C3V9

3090-3

3

470R

3090-1

18

470R

2074

100n

6

+3V3_INTOTC

3026

3092

3064-4

45

100R

3064-3

36

100R

3064-2

27

3064-1

100R

18

100R

3074-2

27

470R

4K7

3002

3100

1001

2008

100n

2014

100n

3003

100n

100n

2005

FC60

9005

2060

100p

6005

2V9

3099-4

5

4

470R

3099-2

27

3099-1

470R

18

3073-4

470R

470R

3073-3

3

3073-2

470R

27

3073-1

470R

18

470R

3090-4

45

470R

6

3090-2

7

2

470R

3078-1

18

470R

3076-4

45

470R

0V2

3076-1

18

470R

3V4

4K7

IC37

220R

220R

3101

6M

CX-5F

IC22

24K

2004

220n

2003

3081

36

3099-3

6

0V2

FC61

0V

IC17

1V3

220n

470R

470R

105 P2-2|ADC0

106 P2-3|ADC1

120 P3-7|CBB

119 P3-6|TTC

118 P3-5|TTD

117 P3-4

116 P3-3

115 P3-2

114 P3-1|LED1

113 P3-0|LED0

110 P2-7|ADC5

109 P2-6|ADC4

108 P2-5|ADC3

107 P2-4|ADC2

104 P2-1|PWM1

103 P2-0|PWM0

100 P1-7|RC

99 P1-6|INT3

98 P1-5|INT2

97 P1-4|INT1

96 P1-3|INT0

95 P1-2|T2

92 P0-7

91 P0-6|CORN

90 P0-5|TxDo

89 P0-4|RxDo

88 P0-3|SDA1

87 P0-2|SCL1

86 P0-1|SDA0

85 P0-0|SCL0

93 P1-0|T0

94 P1-1|T1

16 OSCOUT

17 OSCIN

18 OSCGND

74 RESET

83 HSYNC

84 VSYNC

82 FRAME

5 CVBS0

4

7 CVBS1

6 CVBS1_R

1 IREF_DEC

2 IREF

3 REF+

8 STN|BLACK

2023

2024

9017

100n

100n

9

19

VDDA

VDDN1

CVBS0_R

VSSA21VSSD176VSSD2

VSSP150VSSP2

10

39

EN 57FTL2.1U, FTL2.2U 7.

OTC

CLOCK GENERATOR

EPG

TXT

20

VDD1

AND

DISPLAY TIMING

TXT

CAPTION

USA

CLOSE

2025

2026

100n

100n

38

VDDP149VDDP2

EXTERNAL CODE AND DATA INTERFACE

VSSP3

VSSD3

TEST012TEST113TEST214TEST315TEST4

102

112

11

3006

470R

2027

2028

100n

100n

75

101

VDDD2

VDDD3

RAM_CSn

DISPLAY

INTERFACE

3007-2470R

63

72

81

470R 3007-1

470R 3007-3

2029

100n

SAA5801H

111

VDDP3

45A1

47A2

51A3

53A4

55A5

57A6

59A7

61A8

62A9

60A10

58A11

56A12

54A13

52A14

48A15

46A16

44A17

63A18

65A19

64A20

66A21

67A22

68A23

36D0

32D1

28D2

24D3

23D4

27D5

31D6

35D7

34D8

30D9

26D10

22D11

25D12

29D13

33D14

37D15

40ROM_OEn

41RAM_OEn

43ROM_CSn

42

69RASn

72CASLn

71CASHn

70WEn

73EAn

77R

78G

79B

80FADI NG

81DATA

VIDEOn

FC47

3007-4470R

54

+3V3_INTOTC

7001

OTC

AA(0)

AA(1)

AA(2)

AA(3)

AA(4)

AA(5)

AA(6)

AA(7)

AA(8)

AA(9)

AA(10)

AA(11)

AA(12)

AA(13)

AA(14)

AA(15)

AA(16)

AA(17)

AA(18)

AA(19)

AA(20)

DD(0)

DD(1)

DD(2)

DD(3)

DD(4)

DD(5)

DD(6)

DD(7)

DD(8)

DD(9)

DD(10)

DD(11)

DD(12)

DD(13)

DD(14)

DD(15)

3034-1

18

100R

3034-4

45

100R

3035-4

4

100R

3035-2

27

100R

FC66

2067

100n

3008-1

18

C

3034-2

27

100R

3034-3

36

100R

5
IC20

3035-1

18

100R

3035-3

36

100R

3008-2

100R

100R

27

FC02

AA(0)

FC22

AA(2)

FC24

AA(4)

FC26

AA(6)

FC28

AA(7)

FC30

AA(8)

FC03

AA(10)

AA(11)

FC06

FC08

FC10

AA(15)

FC09

AA(16)

AA(17)

AA(18)

FC15

FC51

+3V3_INTOTC

B5c(3x)

B5c(3x)

B5c(3x)

5000

100MHZ

5001

100MHZ

1000

F 500mA

+5V2-STBY

441

B5c(3x)

ROM_OE

RAM_OE

ROM_CS

RAM_CS

RAS

CASL

CASH

WE

EAn

3008-4

3008-3

100R

100R

36

45

68R

3C12

100R

3089

3049-3

63

3049-4

54

3050-1

81

3050-2

72

3050-3

63

3050-4

54

3049-2

72

3048-1

81

3051-1

8

3051-2

7

3051-3

6

3051-4

54

3052-1

81

3052-2

72

3052-3

63

3052-4

54

3049-1

81

3048-4

54

3048-2

72

3048-3

63

3084

10K

SW_CS

SW_WE

SW_OE

F

2075

E

B5a(2x),C(3x)

B5c(3x)

B5c(3x)

B5a(2x)

B5a(2x)

2033

B5a(2x)

B5c(3x)

3012-1

100R

3012-3

100R

+3V3_INTOTC

1

2

3

FC07

FC11

FC12

+3V3_INTOTC

100n

82p

18

36

A(0)

A(1)AA(1)

A(2)

A(3)AA(3)

A(4)

A(5)AA(5)

A(6)

A(7)

A(8)

A(9)AA(9)

A(10)

FC04

A(11)

A(12)AA(12)

A(13)AA(13)

A(14)AA(14)

A(15)

A(16)

A(17)

A(18)

A(19)AA(19)

A(20)AA(20)

IC29

FC16

FC18

FC19

FC50

10K

3010

5003

30R

IC14

IC15

82p

2034

2035

3012-2

100R

3012-4

54

100R

2031

100n

A(0)

A(1)

A(2)

A(3)

A(4)

A(5)

A(6)

A(7)

A(8)

A(9)

A(10)

A(11)

A(12)

A(13)

A(14)

A(15)

A(16)

A(17)

A(18)

A(19)

A(20)

3V4

+5V2_CON

F

IC18

82p

2036

27

IC28

2009

RES

25

24

23

22

21

20

19

18

8

7

6

5

4

3

2

1

48

17

16

9

10

47

26

11

28

12

14

CASL

CASH

RAM_OE

FC45

82p

47p

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

BYTE_

CE_

WE_

OE_

RP_

WP_

RAS

WE

2037

IC27

2010

RES

5678910

FC01

37

VCC VCCW

7006

LH28F320BJE

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15|A_1

PROGRAM

FLASH-RAM

(Set SW)

RY|BY_

GND

27 46

G

MSM51V18165F

A(6)

A(2)

FC33

A(1)

A(7)

A(8)

FC39

A(3)

A(4)

FC35

A(5)

FC37

A(9)

A(0)

B5a(2x)

RAS

B5a(2x)

CASL

B5a(2x)

CASH

B5a(2x),C(3x)

WE

B5a(2x),C(3x)

RAM_OE

82p

FC46

E

IC24

47p

47p

2011

RES

13

VPP-SW

H

7007

D(0)

D(1)

D(2)

D(3)

D(4)

D(5)

D(6)

D(7)

D(8)

D(9)

D(10)

D(11)

D(12)

D(13)

D(14)

D(15)

6

21

VCC3

42

FC13

100n

2019

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15

DQ16

NC

RxD

3055-3

63

3055-1

81

3056-1

18

3056-3

36

3057-1

18

3057-3

36

FC29

3054-4

45

FC34

3054-2

27

FC42

3055-2

72

FC05

3055-4

54

FC41

3056-2

27

FC38

3056-4

45

FC40

3057-2

27

FC44

3057-4

45

3054-3

36

3054-1

18

B5c(3x)

+3V3_INTOTC

FC21

2

FC23

3

FC25

4

FC27

5

FC36

7

FC31

8

9

10

33

FC43

34

35

36

38

39

40

41

16

32

3098

100R

9008

B5a

DD(0)

DD(1)

DD(2)

DD(3)

DD(4)

DD(5)

DD(6)

DD(7)

DD(8)

DD(9)

DD(10)

DD(11)

DD(12)

DD(13)

DD(14)

DD(15)

H

D(2)

D(5)

D(4)

D(3)

D(1)

D(0)

D(6)

D(7)

D(15)

D(14)

D(9)

D(8)

D(13)

D(10)

D(11)

D(12)

FC70

2053

10p

29

D(0)

DQ0

31

D(1)

DQ1

33

D(2)

DQ2

35

D(3)

DQ3

38

D(4)

DQ4

40

D(5)

DQ5

42

D(6)

DQ6

44

D(7)

DQ7

30

D(8)

DQ8

32

D(9)

DQ9

34

D(10)

36

D(11)

39

D(12)

41

D(13)

43

D(14)

45

D(15)

FC17

15

100n

2038

17

A0

VCC11VCC2

18

A1

19

A2

DRAM

20

A3

(TXT)

23

A4

24

A5

25

A6

26

A7

27

A8

28

A9

14

RAS_

31

LCAS_

30

UCAS_

13

WE_

29

OE_

11

12

NC

15

VSS122VSS237VSS3

IC23

47p

2012

RES

11 12 13

A

C

F

AA(1)

AA(2)

AA(3)

AA(4)

AA(5)

AA(6)

AA(7)

AA(8)

AA(9)

AA(10)

AA(11)

AA(12)

AA(13)

AA(14)

AA(15)

AA(16)

AA(17)

TxD

AA(0)

EP_CS

EP_OE

EP_WE

3V4

2013

BC857BW

9010

9011

9012

9013

9009

B5a

+3V3_INTOTC

M29W400BT

3087 100R

3086-3

36

3086-4

45

3029-1

18

3029-2

27

3029-3

36

3029-4

45

3086-2

27

3031-1

18

3085-1

18

3085-2

27

3085-3

36

3085-4

5

4

3061-1

18

3061-2

27

3061-3

36

3061-4

45

3086-1

18

10K

3093

3062

+3V3_INTOTC

+5V2_CON

100u

BAS316

6002

7002

3015

470K

IC13

3067

470K

100R

3046-4

100R

3046-3

3046-227

100R

3046-1

100R

3045

100R

2040

100n

7012

25

A0

24

A1

23

A2

22

A3

FLASH-RAM

21

A4

20

A5

19

A6

18

A7

8

A8

7

A9

6

A10

5

A11

4

A12

3

A13

2

A14

1

A15

48

A16

17

A17

15

RB_

26

E_

28

G_

11

W_

12

RP_

47

BYTE_

10K

9007

3004

RES

IC42

3014

6K8

FC32

2017

100n

FC68

2039

100n

FC52

45

FC53

36

FC54

18

10p

2054

FC55

10p

2052

VCC

EPG-

15K

RES

7003

BC847BW

3016

7013

BC847BW

8

7

6

5

4

3

2

1

37

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15|A-1

VSS2

VSS1

46

27

5V3

3013

10K

IC43

1K5

+3V3_INTOTC

4K7

3065

3066

47K

RES

1401

10

9

N.C.

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9

LF33AB

IN OUT

FC56

IC38

FC58

11 12 13

3072-3

29

36

3072-1

31

18

3082-1

33

81

3082-3

35

63

3083-1

38

81

3083-3

40

63

3102-4

42

54

3102-2

44

72

3072-2

30

27

3072-4

32

45

3082-2

34

72

3082-4

36

54

3083-2

39

72

3083-4

41

54

3102-3

43

63

3102-1

45

81

3031-4

16

5

13

14

NC

3031-2

9

72

3031-3

10

63

10K

3005

+3V3_INTOTC

7005

3V4

GND

IC11

7004

BC847BW

+3V3_INTOTC

IC44

10p

2057

10p

2056

10p

2055

E_14620_092.eps

3017

DD(10)

DD(11)

DD(12)

DD(13)

DD(14)

DD(15)

4

VPP-EPG

2016

4K7

7014
BC857BW

3V4

FC67

2FHFB-GFX

DD(0)

DD(1)

DD(2)

DD(3)

DD(4)

DD(5)

DD(6)

DD(7)

DD(8)

DD(9)

AA(18)

AA(19)

AA(20)

RESET

R-TXT

G-TXT

B-TXT

FBL-TXT

2FHB-GFX

2FHG-GFX

2FHR-GFX

IRQ-FTV

070704

100R

100R

100R

100R

100R

100R

100R

100R

100R

100R

100R

100R

100R

100R

100R

100R

C

A

FC20

+3V3_INTOTC

100u

100R

B5c(3x)

100R

100R

B5a

B4

B4

B4

B4 (2X)

B3a

B3a

B3a

B3a

B5a

A

B

C

D

E

F

G

H

I

J

1000 F7

1001 G3

1401 I12

2002 G3

2003 J4

2004 J4

2005 J3

2006 J3

2007 J3

2008 H4

2009 I8

2010 I9

2011 I9

2012 I9

2013 F11

2014 I4

2016 F13

2017 G12

2018 G3

2019 F10

2020 E1

2022 E2

2023 A4

2024 A5

2025 A5

2026 A6

2027 A6

2028 A6

2029 A6

2031 A8

2033 H8

2034 H8

2035 H8

2036 H8

2037 H8

2038 E9

2039 H12

2040 A12

2041 H1

2052 J12

2053 J11

2054 J12

2055 J12

2056 I13

2057 I12

2058 C2

2059 C2

2060 A4

2061 A3

2067 I7

2068 J2

2070 B2

2071 B1

2072 B1

2073 C3

2074 D4

2075 F8

3001 F3

3002 F3

3003 J4

3004 F12

3005 E13

3006 J5

3007-1 J6

3007-2 J6

3007-3 J6

3007-4 J6

3008-1 J6

3008-2 J7

3008-3 J7

3008-4 J7

3009 A1

3010 E8

3011 E2

3012-1 I8

3012-2 I8

3012-3 I8

3012-4 I8

3013 F12

3014 F12

3015 G11

3016 G12

3017 F13

3018 A2

3019 A2

3020 A2

3021 B2

3024 D3

3025 E1

3026 E4

3027 E2

3029-1 B11

3029-2 B11

3029-3 B11

3029-4 B11

3031-1 B11

3031-2 D13

3031-3 D13

3031-4 D13

3033 C3

3034-1 G7

3034-2 H7

3034-3 H7

3034-4 H7

3035-1 H7

3035-2 H7

3035-3 H7

3035-4 H7

3038 B1

3039 B2

3040 I1

3041 I1

3042 J1

3045 J11

3046-1 J12

3046-2 J12

3046-3 I11

3046-4 I11

3047 C2

3048-1 B8

3048-2 D8

3048-3 D8

3048-4 D8

3049-1 D8

3049-2 B8

3049-3 A8

3049-4 A8

3050-1 B8

3050-2 B8

3050-3 B8

3050-4 B8

3051-1 B8

3051-2 C8

3051-3 C8

3051-4 C8

3052-1 C8

3052-2 C8

3052-3 C8

3052-4 C8

3053 E2

3054-1 D10

3054-2 C10

3054-3 D10

3054-4 B10

3055-1 B10

3055-2 C10

3055-3 B10

3055-4 C10

3056-1 B10

3056-2 C10

3056-3 B10

3056-4 C10

3057-1 B10

3057-2 C10

3057-3 B10

3057-4 C10

3058 C1

3059 C1

3061-1 C11

3061-2 C11

3061-3 C11

3061-4 C11

3062 E11

3064-1 F3

3064-2 F4

3064-3 E3

3064-4 E4

3065 G12

3066 G12

3067 H11

3068 A2

3069 E3

3072-1 A13

3072-2 B13

3072-3 A13

3072-4 B13

3073-1 C4

3073-2 C4

3073-3 C4

3073-4 B4

3074-1 F2

3074-2 F4

3074-3 F3

3074-4 A3

3075 C1

3076-1 D4

3076-2 D3

3076-3 D3

3076-4 D4

3077 D3

3078-1 D4

3078-2 B3

3078-3 B3

3079 E3

3080 A2

3081 A4

3082-1 A13

3082-2 C13

3082-3 B13

3082-4 C13

3083-1 B13

3083-2 C13

3083-3 B13

3083-4 C13

3084 D8

3085-1 B11

3085-2 C11

3085-3 C11

3085-4 C11

3086-1 D11

3086-2 B11

3086-3 A11

3086-4 A11

3087 A11

3088 E3

3089 A8

3090-1 C4

3090-2 C4

3090-3 C4

3090-4 C4

3091 C2

3092 E3

3093 D11

3094 H1

3095 I1

3096 J2

3097 A3

3098 J10

3099-1 B4

3099-2 B4

3099-3 A4

3099-4 B4

3100 F4

3101 F4

3102-1 C13

3102-2 B13

3102-3 C13

3102-4 B13

3103 D3

3C09 I1

3C10 I1

3C11 J1

3C12 J7

5000 F7

5001 F7

5003 F8

6001 E2

6002 F11

6003 E3

6004 D2

6005 A4

6006 C4

7001 A6

7002 F11

7003 G12

7004 G13

7005 E12

7006 A9

7007 F10

7008 E1

7009 D3

7010 C3

7011 G2

7012 A12

7013 H12

7014 G13

7015 I2

7016 J2

7022 B1

9001 H2

9002 I2

9003 F1

9004 G1

9005 A4

9006 A3

9007 F12

9008 J10

9009 J11

9010 I11

9011 I11

9012 I11

9013 J11

9014 C2

9015 D2

9016 C2

9017 A4

9018 A3

9021 A1

9022 B3

9023 B3

9024 A1

9025 C3

FC01 A9

FC02 A7

FC03 C7

FC04 C8

FC05 C10

FC06 C7

FC07 C8

FC08 C7

FC09 C7

FC10 C7

FC11 D8

FC12 D8

FC13 D10

FC15 D7

FC16 D8

FC17 D10

FC18 D8

FC19 E8

FC20 F13

FC21 F10

FC22 A7

FC23 F10

FC24 B7

FC25 F10

FC26 B7

FC27 F10

FC28 B7

FC29 B10

FC30 B7

FC31 G10

FC32 G12

FC33 F9

FC34 C10

FC35 G9

FC36 F10

FC37 G9

FC38 C10

FC39 G9

FC40 C10

FC41 C10

FC42 C10

FC43 G10

FC44 C10

FC45 H8

FC46 H9

FC47 J6

FC48 G2

FC49 G3

FC50 E8

FC51 D7

FC52 I12

FC53 I12

FC54 J12

FC55 J12

FC56 I12

FC57 A3

FC58 J12

FC60 A4

FC61 E4

FC66 I7

FC67 H13

FC68 H12

FC69 J1

FC70 J11

IC03 B2

IC05 D1

IC07 E2

IC09 F1

IC11 G13

IC13 G11

IC14 G8

IC15 H8

IC17 H4

IC18 H8

IC20 H7

IC21 H3

IC22 H4

IC23 I9

IC24 I9

IC26 I3

IC27 I9

IC28 I8

IC29 D8

IC37 F4

IC38 J12

IC40 E3

IC41 C3

IC42 F12

IC43 G12

IC44 G12

IC45 I1

IC46 J2

IC48 E3

Circuit Diagrams and PWB Layouts

EN 58FTL2.1U, FTL2.2U 7.

Small Signal Board: Backlight Control

2063 C3

3022 B1

3023 C1

3028 B2

3030 B2

3032 B2

1234

3036 B4

3037 C4

BACKLIGHT CONTROL

A

+5V_CON

*

1K2

3022

B

B5a

PWM_BACKLIGHT

C

D

8204 000 8344.3

*

123

3023

2K2

3028

4K7

*

IC52

3070 C3

7020 B2

+5V_CON

*

3030

7020
BC847BW

*

4K7

7021-1 B4

7021-2 B4

10K

3032

*

*

2063

100n

IC51

9019 C4

FC72 B4

*

3070

*

+8V_CON

*

RES

27K

IC50 B4

IC51 B3

4K7

3036

IC50

BC847BPN
7021-2

9019

*

*

RES

3037

4

IC52 B2

RES

7021-1
BC847BPN

FC72

ANTI-MOIRE

BACKLIGHT

CONTROL

(

10K

B4

)

E_14620_093.eps

160804

Small Signal Board: OTC-Flash

1402 C1
1404 B1
2C00 A2

2C01 B3
2C02 D3
3C00 A2

3C01 A2
3C03 B2
3C04 D2

3C05 D2
3C06-1 C4
3C06-2 C4

3C06-3 C4
3C06-4 C4
3C07-1 C4

3C07-2 C4
3C07-3 D4
3C07-4 D4

3C08 B2
7017 B2
7018 B3

7019 D3
9C00 A2
9C01 C1

9C02 D1
FC62 F3
FC63 F3

FC64 E3
FC65 C1
FC71 B2

1234

OTC-FLASH

A

A

B

B

SSSS8

1404

C

1402

SSSS8

C

D

SWITCH

FOR SOFTWARE

DOWNLOAD

9C02 9C01

D

E

F

+3V3_INTOTC

b5a(3x),c(2x)

FC65

b5a(3x),c(2x)

b5a(3x),c(2x)

b5a(3x),c(2x)

3C00

2C00

7017

PDTC144EU

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

b5c(2x)

b5c(2x)

b5c(2x)

b5c(2x)

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

2K2

100n

3C03

3C05

470R

3V3

3C01

10R

10K

3C08

10K

ROM_OE

ROM_CS

RAM_OE

RAM_CS

WE

WP

VCCW

VCCW

WP

WE

RAM_CS

RAM_OE

ROM_CS

ROM_OE

3V3

9C00

FC71

0V1

19

1

2

3

4

5

6

7

8

9

10K

3C04

19

1

2

3

4

5

6

7

8

9

EAn

+3V3_INTOTC

7018
74LVC245APW

G3

VCC

3EN1

GND

3EN2

SWITCH

1

2

7019
74LVC245APW

G3

VCC

3EN1

GND

3EN2

SWITCH

1

2

20

10

18

SW_OE

17

SW_CS

16

15

14

EP_WE

13

SW_WE

12

VPP-EPG

11

VPP-SW

20

10

18

17

16

15

14

13

12

11

2C01

b5a,c(2x)

b5a,c(2x)

EP_OE

EP_CS

+3V3_INTOTC

2C02

VPP-EPG

VPP-SW

FC64

EP_WE

SW_WE

SW_CS

SW_OE

FC63

EP_CS

FC62

EP_OE

100n

SW_OE

SW_CS

b5a,c(2x)

EP_OE

b5a,c(2x)

EP_CS

b5a,c(2x)

EP_WE

b5a,c(2x)

SW_WE

b5a,c(2x)

VPP-EPG

b5a,c(2x)

VPP-SW

100n

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

b5a,c(2x)

3C06-1

81

10R

3C06-2

72

3C06-3

10R

63

3C06-4

54

3C07-2

27

3C07-4

45

10R

18

10R

36

10R

10R

3C07-1

10R

3C07-3

10R

B5a,c

ROM_OE

ROM_CS

RAM_OE

RAM_CS

WE

WP

WP

VCCW

b5a,c(2x)

b5a,c(2x)

b5a(3x),c(2x)

b5a,c(2x)

b5a(3x),c(2x)

b5c(2x)

b5c(2x)

b5c(2x)

A

B

C

D

E

F

8204 000 8344.3

1234

E_14620_094.eps

070704

Circuit Diagrams and PWB Layouts

Small Signal Board: Audio Demodulator

123456789

AUDIO DEMODULATOR

A

B

C

D

E

F

G

H

I

+5V

5A02

2A05

SCL-F

B6a,b,c

SCL-F-AUD

SDA-F

B6a,b,c

SDA-F-AUD

B2

QSS_AM

B14b

SND-CENTER-IN

B14d(2x)

SNDR-MAIN-IN

B14d(2x)

SNDL-MAIN-IN

B14d

SNDR-SC2-IN

B14d

SNDL-SC2-IN

B14c

SNDR-DVI-IN

B14c

SNDL-DVI-IN

B6a,B14d(2x)

SNDR-SEC-IN

B6a,B14d(2x)

SNDL-SEC-IN

B2(2x)

Y50

B2

U50

B2

V50 IN-V50

B3a

Y-PIP+MAIN-IN

B3a

U-PIP+MAIN-IN

B3a

V-PIP+MAIN-IN

8204 000 8329.4

+5DA

IA10

5A00

30R

1u

2A01

2A02

1n

2A06

9A05

9A04

2A32

100p

9A10

9A11

9A12

9A13

9A14

9A15

5A03

5A19

IA23

22u

IA24

2A08

3A19

100R

3A17

100R

Y-PIP+MAIN-OUT

U-PIP+MAIN-OUT

V-PIP+MAIN-OUT

100u 16V

9A06

+11V_S

1n0

5A01

+5DB

IA12

1u

1n0

2A07

IA25

2A33

100n

2A39

1u

FA26

2A46

1u

FA27

2A49

1u

IA13

2A53

1u

2A56

IA14

1u

IA15

2A59

1u

2A62

IA16

1u

IA17

9A67

9A71

IA18

B15b,c

IN-Y50

B15b,c
IN-U50

B15b,c

B6a

B14c,B15b

REF-AUD

B14c,B15b

B6A(3X)B6C(3X)

B14c,B15b

12

30R

2A03

2A29

100p

2A37

100p

B6a
DACM-SUB

HPN-L

2A00

1n

2A04

100u

7A02
MSP4450

1

2

ANA-IN2+52

ANA-IN1+50

51

ANA-IN-

MONO-IN47

SC1-IN-R45

SC1-IN-L44

SCART 1

SC2-IN-R42

SC2-IN-L41

SCART 2

SC3-IN-R39

38 SC3-IN-L

SCART 3

SC4-IN-R36

SC4-IN-L35

SCART 4

2AB3

1u

3A45

47K

+11V_AUD

I2C-CL

I2C-DA

MONO

EN 59FTL2.1U, FTL2.2U 7.

10 11 12

B6b,c

SYS-RESET

2A23

100n

1u0

2A31

FA23

100n

2A40

10u

SNDL-SEC-IN

B21

B6a,B14d(2x)

SNDR-SEC-IN

1u0

B6a(3x),C(3x)

REF-AUD

3A13

IA06

3A66

100K

2A41

+11V_AUD

47K

3

2

10u

2A70

1u

2A69

1u

2A72

1u

2A74

1u

2A75

1u

+8VC

2A80

2A36

100p

3A26

2A66

100n

2A11

47K

3A14

2A22

100n

7A03-A

8

LM833D

4

6V5

68K

1u

1u

2A81

1

7A06
TDA7309

IN1L17

IN2L18

IN3L20

IN1R14

IN2R13

IN3R11

2A83

100n

1n

2A26

SUPPLY

VS

16

3A27

4K7

AGND

7

IA05

1u0

FA28

1u

ADR-DA

ADR

DEMODULATOR

5859642213

2AB7

1n

IA00

3

MC33178D

2

56K

3A52

A

2A99

3A46

4K7

*

B6c

7

2A79

100n

SYS-CLK0

2A09

ADR-CL

interface

NC

7A07-A

2A91

100p
3A22

100K

1u0

3A49

47K

10n

9

8

4

ADR-WS

*

8

IDENT

A/D

A/D

2AB6

24

1

IA49

1n

nc

57

AUD-CL-OUT

3A04

100K

7A09

BC857B

IA48

3A55

B14d

SUBW-SPI-SW

D-CTR-IO1

FM1
FM2
NICAM A
NICAM B

IDENT

SCART-L

SCART-R

2AB2

330R

REG-SW

6160

D-CTR-IO0

SCART

1n

IA02

3A48

S1...4

DACM-SUB

ADR-SEL

23

MSP-SURR

MSP-CENTER

HEADPHONE-L

RES

100K

B6c

B6c

B6c

I2S-DPL-WS

I2S-DPL-CLK

15

14

I2S-CL3

I2S-WS3

I2S-DA-IN2

I2SL/R

I2SL/R

LOUDSPEAKER R

LOUDSPEAKER L

DSP

HEADPHONE R

HEADPHONE L

Switching Facilities

TESTEN

ASG0

AVSS

53

48

62

B6c
B6c

B6a

HPN-R

B21

B6a(3x),C(3x)
REF-AUD

I2S-DPL-OUT

12

I2S

SCART-R

SCART-L

ASG140ASG2

43

3A47

47K

B6b,d

I2S-MSP-OUT

5

I2S-DA-O1

interface

AHVSS

33

37

+5DA

2AB4

1u

B6d

I2S-MSP-IN

6

I2S-DA-IN1

TP

VREF1

27

IA09

cA01

IA01

3A53

A

3A51

4K7

B6b,d

I2S-MSP-CLK

3

I2S-CL

D/A

D/A

D/A

D/A

D/A

D/A

VREF2

56

19

A

5

6

56K

2A92

*

B6b

+8V

I2S-MSP-WS

3A03

4

31

I2S-WS

AHVSUP

LOUDSPEAKER

HEADPHONE

DVSS10DVSUP

11

0V

5V2

1n

2AA7

+5DB

8

7A07-B

4

2AA5

100p
3A60

100K

1u0

3A40

47K

*

6R8

2A18

STANDBYQ

63

5V2

2AA6

MC33178D

IA43

SCART 1

SCART 2

5V2

+8VC

FA13

1n

100u

2A17

RESETQ

DACM-L 21

VREFTOP

AGNDC

CAPL-M

CAPL-A

DACA-R 17

DACA-L

SC1-OUT-R 28

SC1-OUT-L 29

SC2-OUT-L 26

XTAL-IN55XTAL-OUT

AVSUP

54

49

DSX840

1n

18M432

3

18M432

2

+5DA

2AA9

5p6

7

7A04

BC857B

IA42

3A61

330R

BC847BS

16

20DACM-R

46

34

32

30

18

25SC2-OUT-R

1A01

1A00

CX-5F

3A63

100K

3A62

7A08-2

6A00

IA08

IA03

100K

3

4

PDZ-10B

IA07

2V7

3V9

4

1

2AB0

RES

IA35

IA36

5p6

+5V

3A06

7A08-1

BC847BS

2A21

2A27

1n

2A35

1n

+11V_AUD

9A78

100K

6

1

5

IA22

100n

FA24

2A50

1n

2A54

1n

+5V

7A31-1

BC847BS

5

3A07

100K

IA46

B5a,B14b

RESET-AUDIO

3A00

3A09

2A42

10u

2AB5

10u

6

1

2

22K

22K

9A07

9A08

3

7A31-2
BC847BS

4

IA47

7A01

3A64

47K

BC847BW

HEADPHONE-R

2

9A79

SYS-RESET

1M0

3A65

FA14

A

100n

2A44

B6a,B14d(2x)

*

6A02

3A05

22K

IA41

6A01

BAS316

IA40

1u0

2A47

+5DB

2K2

3A01

3A28

4K7

2A43

BZX384-C3V3

POR

*

180R

3A24

2A51

34567891011

5

6

3A20

100K

3A23

68K

A

INPUT

SELECTOR

CREF

15

IA21

4V2

22u

2A90

+5V

+5VF

B6a

+11V_AUD

DACM-SUB

2A20

1u

7A03-B

8

LM833D

7

4

6V5

2A30

100p

1

RECL

VOLUME+

LOUDNESS

SERIAL BUS DECODER

+ LATCHES

VOLUME+

LOUDNESS

RECR

10

1u

2A89

2A88

A

19

LOUDL

LOUDR

12

5A06

2A95

220p

100n

3A21

2A64

100n

27K

47K

3A12

3

IA04

2

3A18

33K

2A25

100p

9A00

9A01

A

MUTE

SOFT
MUTE

MUTE

B14c,B15b,c

2AB8

1u

100K

3A15

2A15

8

1

7A00-A

4

LM833D

6V5

9A03

3V6

OUTL 2

DGND 6

SDA 4

SCL 5

ADDR 8

2A76

CSM 3

100n

B14c,B15c

VA50-PIP

A

3V6

OUTR 9

HA50-PIP

12 13

FA12

100u

9A02

3A11

2A16

13

9A18

5

7A00-B

1n

2A14

6

9A16

9A17

E_14620_095.eps

2A10

100n

8

LM833D

7

4

FA17

3A16

6V3

100R

AUDIO-SW

SNDR-SC1-OUT-DC

SNDL-SC1-OUT-DC

SNDR-MON-OUT

SNDL-MON-OUT

SDA-F-AUD

SCL-F-AUD

070704

REF-AUD

AUDIO-R

AUDIO-L

HPN-R

HPN-L

B2 , B3a

HA50

B2 , B3a

VA50

B6a(3x),

C(3x)

B6c,B21

B6c,B21

B6c,B21

B6a

B6a

B14b(2x)

B14b(2x)

B14b,d(2x)

B14b,d(2x)

B6a,b,c

B6a,b,c

B15b

100K

100n

A

A

B

C

D

E

F

G

H

I

1A00 G7

1A01 G7

2A00 A3

2A01 B2

2A02 B1

2A03 B2

2A04 B3

2A05 B1

2A06 B1

2A07 B2

2A08 B2

2A09 B3

2A10 B13

2A11 B10

2A14 B13

2A15 B12

2A16 B12

2A17 B7

2A18 B6

2A20 B11

2A21 B7

2A22 C10

2A23 C9

2A25 C11

2A26 C10

2A27 C7

2A29 C2

2A30 C11

2A31 D9

2A32 D1

2A33 D2

2A35 D7

2A36 C9

2A37 D2

2A39 D2

2A40 D9

2A41 D9

2A42 D8

2A43 D8

2A44 D8

2A46 D2

2A47 I8

2A49 E2

2A50 E8

2A51 I8

2A53 E2

2A54 E8

2A56 E2

2A59 F2

2A62 F2

2A64 G11

2A66 G9

2A69 G9

2A70 G9

2A72 G9

2A74 G9

2A75 H9

2A76 H12

2A79 H3

2A80 I9

2A81 I10

2A83 I10

2A88 I11

2A89 I10

2A90 I10

2A91 I3

2A92 I6

2A95 I11

2A99 I3

2AA5 I6

2AA6 G6

2AA7 G6

2AA9 H7

2AB0 H7

2AB2 G4

2AB3 H3

2AB4 H5

2AB5 D8

2AB6 G4

2AB7 G3

2AB8 B12

3A00 B8

3A01 B8

3A03 B6

3A04 H4

3A05 H8

3A06 I7

3A07 I8

3A09 B8

3A11 B12

3A12 B11

3A13 B9

3A14 B10

3A15 B12

3A16 B13

3A17 C2

3A18 C11

3A19 C2

3A20 C10

3A21 B11

3A22 I3

3A23 D10

3A24 I8

3A26 D9

3A27 D10

3A28 D9

3A40 I6

3A45 H3

3A46 I3

3A47 H5

3A48 I4

3A49 I3

3A51 I6

3A52 I3

3A53 I6

3A55 I4

3A60 I6

3A61 I7

3A62 I7

3A63 H7

3A64 I8

3A65 I8

3A66 C9

5A00 A1

5A01 B2

5A02 B1

5A03 B1

5A06 I11

5A19 D2

6A00 B7

6A01 I8

6A02 H8

7A00-A C12

7A00-B B13

7A01 B8

7A02 B3

7A03-A C10

7A03-B C11

7A04 I7

7A06 G10

7A07-A H3

7A07-B H6

7A08-1 I7

7A08-2 I7

7A09 I4

7A31-1 H8

7A31-2 H8

9A00 E11

9A01 E11

9A02 G12

9A03 G12

9A04 H1

9A05 H1

9A06 H1

9A07 G8

9A08 G8

9A10 G1

9A11 H1

9A12 H1

9A13 H1

9A14 I1

9A15 I1

9A16 I13

9A17 I13

9A18 B13

9A67 F2

9A71 G2

9A78 H7

9A79 H8

FA12 B12

FA13 B7

FA14 B8

FA17 B13

FA23 D9

FA24 D8

FA26 D2

FA27 E2

FA28 B3

IA00 H3

IA01 H6

IA02 H4

IA03 I7

IA04 B11

IA05 C10

IA06 C9

IA07 C7

IA08 D7

IA09 G6

IA10 A2

IA12 B2

IA13 E2

IA14 E2

IA15 F2

IA16 F2

IA17 F2

IA18 G2

IA21 I10

IA22 B8

IA23 D2

IA24 D2

IA25 C2

IA35 D7

IA36 E7

IA40 I8

IA41 I8

IA42 I7

IA43 I6

IA46 I8

IA47 I8

IA48 I4

IA49 I4

cA01 H6

Circuit Diagrams and PWB Layouts

Small Signal Board: Dolby Digital Decoder

12345

DOLBY DIGITAL DECODER

A

B

C

D

E

F

B6c

B6c

B6c

I2S-DD-CLK

I2S-DD-WS

I2S-DD-OUT

A2

A3

A4

+5M

2AC1

7A30

MAS3528E

18

PI4

24

PI8

28

PI12

29

PI13

30

SID_PI14

31

SII_PI15

32

SIC_PI16

33

PI17

34

PI18

35

PI19

41

_RTW

42

_RTR

_EOD

43

44

SYNC

17

SPDIFOUT

25

SOC

26

SOI

27

SOD

14

SOD1

15

SOD2

16

SOD3

13

CLKO

EN 60FTL2.1U, FTL2.2U 7.

220p

2AD3

1u

2AD5

1n

23

XVDD

DOLBY DIGITAL

AND

MPEG-1 LAYER-2

AUDIO DECODER

NC1

NC2

11

12

678

9

2AC1 B4

2AD0 B6

2AD1 B6

2AD3 B4

2AD4 B6

2AD5 B5

2AD6 B6

A

2AE2 D8

2AE3 D7

2AE5 D7

2AF0 E6

B

2AF3 C8

2AF4 C7

3A74 D7

3A77 E7

5A38 B8

7A30 B4

IA71 D7

IA72 D7

IA75 D7

+5M

2AD1

1u

2AD0

1n

+5M

2AD4

1u

+5M

2AF4

2AF3

100n

100u

5A38

30R

+5V

1n

2AD6

2

8

VDD

AVDD

C

A5

SID

SII

SIC

19

21

20

A6

I2S-MSP-OUT

A7

I2S-MSP-WS

I2S-MSP-CLK

B6a,d

B6a,d

B6a

+5M

IA71

_PCS

PR

SPREF

SPDI_1

SPDI_2

XTI

XTO

TE

_POR

SCL

SDA

10

37

39

38

40

9

36

6

5

4

2AE3

10n

10n

IA75

IA72

3A74

75R

3A77

75R

2AE5

3V1

2AF0

10n

A8

4V9

3

2AE2

1n

SPDIF-IN1

SPDIF-BO-OUT

SYS-CLK1

SYS-RESET

SCL-F-AUD

SDA-F-AUD

D

B14b

B14b

B6c

E

B6a,C

B6a(2x),C

B6a(2x),C

F

XVSS

22

VSS

AVSS

1

7

8204 000 8329.4

123456789

E_14620_096.eps

070704

Circuit Diagrams and PWB Layouts

Small Signal Board: Dolby Pro Logic Processor

1 234 567 89 10 11 12 13

DOLBY PRO LOGIC PROCESSOR

A

B

C

B6a(2x),b

SCL-F-AUD

B6a(2x),b

SDA-F-AUD

100n

0V2

IAA5

2AK6

D

10u

2AK7

E

F

G

H

7A63
DPL4519G

1 I2C_CL

2 I2C_DA

46 VREFTOP

51 ANA_IN-

52 ANA-IN2+

50 ANA_IN1+

MONO_IN

47

SCART 4

36

SC4-IN-R

35 SC4-IN-L

SCART 3

39 SC3-IN-R

38

SC3-IN-L

SCART 2

42 SC2_IN_R

41 SC2_IN_L

SCART 1

45 SC1_IN_R

44 SC1_IN_L

VREF2

19

A

VREF1

27

DEMODULATOR

DECODER

AHVSS

33

8

ADR-WS

NICAM

ASG2

ASG1

4037

EN 61FTL2.1U, FTL2.2U 7.

2AK0 G5

2AK1 G5

2AK2 B7

2AK3 B7

2AK4 B6

2AK5 B6

2AK6 D2

2AK7 D2

2AK8 B6

2AK9 B6

A

2AL0 B12

2AL1 B9

2AL2 B11

2AL3 B9

2AL4 B11

2AL8 C12

2AL9 C12

2ALA F11

2AM0 C10

B

2AM1 E13

2AM2 E11

2AM3 E7

2AM5 D9

2AM6 F12

2AM7 D8

2AM9 E12

2AN0 E9

2AN1 E10

C

2AN5 D7

2AN6 D8

2AN7 G5

3AA0 B9

3AA1 D9

3AA4 C10

3AA5 C12

3AA6 B9

3AA7 C12

3AA9 C11

D

3AB0 E11

3AB2 D9

3AB3 F12

3AB4 D9

3AB5 F12

3AB6 E10

3AB7 F11

3AB8 E10

3AB9 E9

E

3AC0 B12

3AC1 B11

7A61-A B12

7A61-B B10

7A62-A E12

7A62-B D10

7A63 C3

9A19 C13

9A20 D13

F

9A60 B8

9A61 F12

9A65 B10

IA50 D9

IA51 B11

IA52 B9

IA53 E12

IAA1 E12

IAA2 B8

IAA3 E9

G

IAA4 C9

IAA5 D2

IAA6 C11

IAA7 F11

IAA8 C6

IAA9 C7

IAB0 D7

IAB1 C9

IAB2 C12

H

1u

+5DB

1n

+5DB

2AK3

2AN5

1n

B6a,b

SYS-RESET

100n

2AN6

10u

B6b

B6a

I2S-DPL-WS

B6a

I2S-DPL-CLK

B6b

I2S-DD-WS

I2S-DD-CLK

B6a

B6b

I2S-DPL-OUT

I2S-DD-OUT

+8VC

1u

1n

2AK4

2AK5

A10

+5DB

A9

9

7

ADR-DA

ADR-CL

IDENT

A/D

A/D

62

ADR_SEL

FM1

FM2
NICAM A
NICAM B

IDENT

SCART-L

SCART-R

SCART

TP1

ASG0

43

AVSS

48

DVSS

56

11

A11

3

I2S-CL

I2S-WS

I2S INTERFACE

I2SL/R

DSP

Switching Facilities

TESTEN

AUD-CL-OUT

53

57

10n

A15

A12

15

I2S-WS3

2AN7

NC159NC2

58

A13

14

54

I2S-CL3

I2S-DA-OUT1

I2SL/R

LOUDSPEAKER R

LOUDSPEAKER L

HEADPHONE R

HEADPHONE L

D-CTR-IO1

60

+5DA

2AK0

6

I2S-DA-IN1

SCART-R

SCART-L

D-CTR-IO0

61

1u

12

I2S-DA-IN2|3

2AK1

NC3

64

A14

AVSUP

49

1n

10u

2AK8

IAA8

31

30

CAPL-A

AHVSUP

D/A

LOUDSPEAKER

D/A

D/A

HEADPHONE

D/A

D/A

D/A

AUDIO PLL

XTAL_IN55XTAL_OUT

54

A16

10u

2AK9

IAA9

32

STANDBYQ

CAPL-M

DVSUP

RESETQ

DACM-SUB

AGNDC

DACM_R

DACA-L

SC1_OUT_L

NC422NC524NC6

13

2AK2

63

10

16

23

3V8

34

IAB0

20

2AM3

21DACM_L

17DACA -R

18

25SC2-OUT-R

26SC2-OUT-L

28SC1_OUT_R

29

IAA2

B6a

MSP-SURR

9A60

IAA4

2AM7

2AL3

2AL1

1n

2AM5

470n

1n

B6a(4x),C(2x)

REF-AUD

+11V_AUD

6K8

47K

3AA6

3AA0

IA52

3AA1

18K

A

LM833D

IAB1

3AB2

3AB9

4K7

47K

5

6

3AB4

IAA3

1u

IA50

+11V_AUD

47K

5

6

2AN0

8

1u

7A61-B

4

3AA4

47K

2AM0

100p

8

4

3AB6

100K

3AB8

68K

2AN1

100p

B6a,B21

AUDIO-SW

9A65

7

7A62-B

LM833D

B14b

SUBW

IA51

2AL2

470n

1n

2AL4

6V5

IAA6

A

7

6V5

IAA7

2ALA

2AM2

100n

A

1n

3AC1

18K

3AA9

4K7

3AB7

6K8

3AB0

IA53

IAA1

IAB2

3AC0

2AL8

47K

3

2

2AM6

+11V_AUD

47K

3

2

1u

8

4

3AB3

100K

100n

3AB5

68K

100p

3AA5

100K

3AA7

68K

2AM9

100p

9A61

2AL0

100n

8

4

2AL9

7A62-A

LM833D

7A61-A

LM833D

1

9A19

6V5

9A20

+11V_AUD

100n

2AM1

1

6V5

MSP-CENTER

SURR-R

AUDIO-R

REF-AUD

AUDIO-L

SURR-L

B6a(4x),C(2x)

REF-AUD

AUDIO-C

B14b,e

B6a,B21

B6a(4x),C(2x)

B6a,B21

B14b,e

B21

B6a

8204 000 8329.4

1

SYS-CLK1

B6b

SYS-CLK0

B6a

234 567 8

E_14620_097.eps

9

10

11 12 13

070704

Circuit Diagrams and PWB Layouts

Small Signal Board: Audio Delay

EN 62FTL2.1U, FTL2.2U 7.

A

B

C

D

E

F

+5D

+5D

7A11

M74HC590T

14

13

12

11

10

M74HC590T

12

AUDIO DELAY

7A12

14

13

12

11

10

EN3

C2

G1

1+

CT=0

CTR8

(CT=255)Z4

EN3

C2

G1

(CT=255)Z4

1+

CT=0

16

8

CTR8

+5D

100n

2A12

9

4

15

2D 3

1

2

3

4

5

6

7

+5D

16

100n

2A13

9

4

15

2D 3

1

2

3

4

5

6

7

8

7A16

14

GND

A1

21A023

345678 9

A41A5

24A225A326

A9

2A63A74A85

A107A11

6

A12

8

A1310A14

9

I|O0

FA02

BC847BW

I|O215I|O316I|O417I|O518I|O619I|O7

I|O1

12

13

11

+5D

3A67

470R

7A13

3A02

FA0 1

47K

CY7C199B

27p

2A19

OE_

22

20

CE_

WE_

27

VCC

FA0 4

+5D

28

100n

2A45

7A14
74HCT573

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

11

E

OE_

1

VCC

20

GND

10

Q0

Q2

Q3

Q4

Q5

Q6

Q7

Q1

+5D

100n

2A24

19

18

17

16

15

14

13

12

+5M

2

3

4

5

6

7

8

9

11

7A15
74HCT573

VCC

D0

D1

D2

D3

D4

D5

D6

D7
E

OE_

1

5A07

20

GND

Q0

Q2

Q3

Q4

Q5

Q6

Q7

Q1

FA00

+5D

19

18

17

16

15

14

13

12

9A72

9A73

9A74

9A75

9A21

9A22

9A23

9A24

2A38

2A34

+5D

1u0

100n

FA0 3

10

A

B

C

D

E

F

2A12 B2
2A13 D2
2A19 F5
2A24 D8
2A34 D9
2A38 B9
2A45 B7
3A02 F5
3A67 E5
5A07 B9
7A11 A1
7A12 D1
7A13 E5
7A14 D7
7A15 D8
7A16 A3
9A21 D9
9A22 E9
9A23 E9
9A24 E9
9A25 F8
9A72 D9
9A73 D9
9A74 D9
9A75 D9
FA00 B9
FA01 E5
FA02 E5
FA03 D9
FA04 E6

8204 000 8329.4

B6a,b

I2S-MSP-CLK

12345

6

B6a,b

I2S-MSP-OUT

9A25

78 9

B6a

I2S-MSP-IN

E_14620_098.eps

070704

Circuit Diagrams and PWB Layouts

Small Signal Board: DC/DC Converter

1U01 A1
2U01 A8
2U02 B9
2U03 B4
2U04 B5
2U05 C2
2U06 C3
2U07 C4

2U08 C8
2U09 D6
2U10 A3
2U11 E10
2U12 E7
2U13 E14
2U14 B5
2U15 A1

2U16 C2
2U17 D5
2U18 B2
2U19 H2
2U20 H4
2U21 B4
2U22 H6
2U23 C13

1

2U24 G8
2U25 H5
2U26 H6
2U27 D2
2U28 E2
2U29 C9
2U30 C1
2U31 D13

2 3 4 5 6 7 8 9 10 11 12 13 14

2U32 C1
2U33 F10
2U34 G11
2U35 H8
2U36 B6
2U37 B6
2U38 A3
2U39 F6

DC/DC - CONVERTER

A

+11V

B

C

3U03

33K

IU02

D

BC817-25

7U09

E

47K

3U28

GND_SUPPLY

F

G

FU07

3U32

H

18K

8204 000 8331.4

1U01

1500mAT

420

GND GND

3U02

1K0

6U05

2U30

120p

2U32

3n3

IU03

3U14

6U10

BZX384-C15

12345

5U02

100u

2U15

IU01

21V4

2U18

BZX384-C12

IU31

2U05

3U44

1K

3U45

GND_SUPPLY

100n

2U19

10u

1n0

1M0

IU32

1M0

BAS316

21V6

120p

2U27

2U28

GND_SUPPLYGND_SUPPLY

IU28

6U01

7U01

3U31

3U30

3U04

6n8

6n8

IU26

6U11

BAS316

BC857B

120R

3U29

120R

IU30

120R

2U16

47K

3U21

220K

3U25

GND_SUPPLY

0V7

3U33

2U10

10R

4n7

10K

IU04

22u

2U06

GND

6U08

7U11

BC847BW

2U40 F3
2U41 F7
2U42 E6
3U01 C14
3U02 B1
3U03 C1
3U04 C2
3U05 C3

2U38

3U05

1K0

22u

IU05

BAT54 COL

2n2

7U12

BC847BW

res

220u 16V

GND

2U21

GND_SUPPLY

2U07

3U11

6U09

3U66

2U40

IU27

3U06 C12
3U07 C9
3U08 C11
3U09 C4
3U10 D14
3U11 D4
3U12 G10
3U13 D7

IU10

470n

IU08

82p

IU07

120R

BAT54 COL

10K

7U10

BC847BW

1u0

2U20

GND_SUPPLY

3U09

2U03

BC857B

5K6

IU06

1K0

7U13-2

3U34

3U14 D1
3U15 D14
3U16 D11
3U17 D7
3U18 E11
3U19 E8
3U20 E14
3U21 E2

6U03

BAS316

1u0

IU09

7U02

3U60

BC847BPN

IU25

330K

3U26

3U22 E12
3U23 E14
3U24 G6
3U25 F2
3U26 H4
3U27 H10
3U28 E1
3U29 C2

3U51

22R

6U04

567841

2U17

GND_SUPPLY

7U08

BC817-25

GND_SUPPLY

10K

3U61

IU46

3U65

1K0

7U13-1

BC847BPN

GND_SUPPLY

22K

100n

GND_SUPPLY

BAS316

470n

3U42

2U25

IU11

2U14

2U04

3U67

10K

3U35

10K

470n

470n

23

7U04

SI4410DY

100R

GND_SUPPLY

IU34

3U30 C2
3U31 B2
3U32 H1
3U33 H2
3U34 H4
3U35 H5
3U36 H10

3U56

4K7

47n

1K0

3U68

22K

3U43

EN 63FTL2.1U, FTL2.2U 7.

2U42

3U69

IU47

10K

2U22

1u0

IU42

IU14

3U63

2K2

3U38 G9
3U39 G9
3U40 G9
3U41 H6
3U42 H5
3U43 G6
3U44 D2
3U45 E2

3U57

2U36

100n

2U37

GND_SUPPLY

2U09

2U39

100n

GND_SUPPLY

3V3_FAULT

B3e,B14a,B19b,B13c

22K

3U24

FU06

100n

2U26

GND_SUPPLY

1K0

3U41

GND_SUPPLY

3U46 C10
3U51 B5
3U52 F10
3U53 F10
3U54 H7
3U55 E9
3U56 B6
3U57 A6

10K

GND-ILINK

2n2

1n0

3U13

2U12

GND_SUPPLY

3U64

6n8

2U41

GND_SUPPLY

IU35

3U54

5U03

30R

5U04

30R

SI4410DY

7U03

4

10K

10n

1K0

100R

3U58 G12
3U59 G12
3U60 F4
3U61 F5
3U62 F7
3U63 F6
3U64 F7
3U65 F5

res

51

6

5U01

5U07

10u

5678

123

GND_SUPPLY

3U17

4R7

1K0

3U62

6U16

BZX384-C5V1

2U35

6U14 BAV99 COL

3U66 F4
3U67 G5
3U68 G6
3U69 F6
3U70 C14
5U01 B8
5U02 A2
5U03 B7

IU15

10

FU05

3U19

GND_SUPPLY

7U07-2

4

3

1u0

2U01

2n2

6U02

STPS2L30A

2U08

GND_SUPPLY

4K7

IU37

5

BC847BPN

2U24

1n0

5U04 C7
5U05 C12
5U06 D12
5U07 B8
6U01 A2
6U02 A8
6U03 A4
6U04 B5

res

res

FU04

GND-ILINK

22u

BZG05C3V9

IU41

3U38

2K2

IU36

6 7 8 9 10 11 12 13 14

2U02

res

FU08

6U06

IU17

7U05

BC857BW

150K

3U40

6U05 B1
6U06 C9
6U07 D14
6U08 E3
6U09 E3
6U10 H1
6U11 H2
6U12 F93U37 G9

FU03

+3V3-ILINK

47u

3U07

3U55

BZX384-C5V1

22K

3U37

22K

3U39

2U29

330u 6.3V

22R

GND_SUPPLY

1K

IU45

6U12

2U33

GND_SUPPLY

IU38

7U07-1

IU39

3U36

GND_SUPPLY

res

6

1

6U13 E10
6U14 H8
6U16 F7
6U17 D14
7U01 B2
7U02 C4
7U03 C7
7U04 C5

6U13

PDZ-8.2B

IU43

18K

3U53

1u0

GND_SUPPLY

BC847BPN

2K2

3U46

IU20

2U11

GND_SUPPLY

1K

3U52

2

IU40

GND_SUPPLY

7U05 D9
7U06-A D12
7U06-B D12
7U07-1 G10
7U07-2 F8
7U08 D5
7U09 E1
7U10 G4

IU16

1%

47K

3U08

3U16

1n0

3U18

IU44

22K

22K

3U27 3U12

7U11 E3
7U12 H3
7U13-1 F5
7U13-2 F4
FU03 B9
FU04 B9
FU05 C8
FU06 H6

1%

1K5

IU18

120R

1V6

1%

1K0

2U34

GND_SUPPLY

7U06-A

BC847BS

2

GND_SUPPLY

22n

FU07 H1
FU08 C9
FU09 D13
IU01 B2
IU02 C1
IU03 D1
IU04 E3
IU05 D3

3U06

470R

6

BC847BS

1

3U22

270R

7U06-B

IU22

IU06 D4
IU07 D4
IU08 C4
IU09 B4
IU10 A4
IU11 A5
IU13 D8
IU14 D6

3V4

3

4

GND

5U06

10u

5U05

10u

3U58

1R0

3U59

1R0

cU01

IU15 A8
IU16 C11
IU17 D9
IU18 D11
IU19 C14
IU20 D10
IU21 D14
IU22 E12

3V4

2U23

GND_SUPPLY

100u

2U31

GND_SUPPLY

5

1V7

res

res

GND_SUPPLY

IU25 H4
IU26 E2
IU27 G3
IU28 H2
IU30 C3
IU31 C2
IU32 E2
IU34 H6

+3V3_SIM

100u

+3V3_DCDCFBX

FU09

IU35 G7
IU36 G9
IU37 G8
IU38 G9
IU39 G9
IU40 G10
IU41 H9
IU42 C6

3U01

IU19

6V9

3U10

1%

3U15

IU21IU13

220n

2U13

GND_SUPPLY

IU43 E10
IU44 F11
IU45 F9
IU46 F5
IU47 F6
cU01 H12

1K0

1K0

3U70

1R0

6U07

6U17

PDZ-6.8B

3K3

GND_SUPPLY

1%

1K0

3U20

1R0

3U23

E_14620_099.eps

070704

A

B

C

PDZ-6.8B

D

E

F

G

H

Circuit Diagrams and PWB Layouts

Small Signal Board: Main Tuner

1T01 B3

2T01 B2

2T04 C5

2T05 B1

2T06 E4

2T09 D5

2T12 C7

2T13 B2

2T15 D5

2T17 D2

2T21 B2

2T22 B2

1234567

MAIN TUNER

3T03 B1

3T05 C7

3T06 D7

B2

5T20 B1

5T22 C5

5T25 C6

6T01 A2

6T03 B2

6T05 D6

6T08 D5

7T50 C6

9T01 A2

9T04 D4

9T05 E4

9T07 E4

9T08 E4

9T12 E7

9T14 C5

EN 64FTL2.1U, FTL2.2U 7.

9T50 E7

AT00 E5

FT50 B1

FT51 C2

FT52 D4

FT53 C6

FT54 D5

IT50 A1

IT51 D4

IT52 D5

IT53 C7

IT54 D7

A

IT50

+5V

3T03

RES

B

5T20

FT50

220u

2T05

RES

C

D

2T01

AGC

6T01

220u

2T21

FT51

9T01

BAS216

6.3V220u

2T17

6T03

BAS216

10n

2T13

UV1318ST/AIH-MK3

2T22

1T01

RF

IN

RF

OUT

12

13

14

10n

6.3V47u

PRE-FIL

MT

BOOSTER

SPLITTER

1AGC

2TU

PRE-FIL

NC1

6

10

TRACK
FILTER

NC2

GAIN
CTRL

PRE-AMP

33V9

TRACK
FILTER

75V

9T04

INTMED

FILTER

FT52

9T05

3AS

10n

MIX-OSC

IF AMP

AGC

DET

PLL

SCL

4

5SDA

IT51

2T06

9T07

9T08

IT52

MT

8 ADC

+33V

7T50

P82B96TD

5T25

PDZ-33B

1u

10u

FT53

6T05

SML4752-33V

1SX

7

2T09

2T04

FT54

22n

5T22

47n

9T14

6T08

2T15

11IFOUT

15

16

17

SY

8

VCC

GND

4

RES

TY 5

9T50

9T12

RES

3TX

2RX

3T05

10K

IT53

2T12

100n

RES

10K

3T06

IT54

6RY

A

B

C

D

E

8204 000 8341.3

AT 00

IF-TER

B2

SDA-S

SCL-S

S-SDA-PIP

S-SCL-PIP

B13b

B13b

E_14620_100.eps

070704

1234567

E

Small Signal Board: Sub Tuner

12

SUB TUNER

A

B

C

Circuit Diagrams and PWB Layouts

B15A

AGC2

IT10

6T02

3T04

RES

2T03

EN 65FTL2.1U, FTL2.2U 7.

34567

BAS216

220u

2T20

9T02

220u 6.3V

2T14

6T04

10n

BAS216

2T11

1T02

UV1318S

FT04

12

13

6.3V47u

MT1

MT2

+5V

5T04

IT17

47n

+33V

5T02

6T06

33V5

PDZ-33B

RES

IT09

5T03

2T10

10u

22n

2T16

1u

220u

2T19

L

H

M

PLL

SCL4

TU2

AGC

1

AS3

SDA5

6

NC1

VS7

VST9

ADC8

L

H

M

14

MT3

15

MT4

IF111

IF2|NC210

2T02

A

B

C

1T02 C4

2T02 D6

2T03 B3

2T07 D4

2T10 D7

2T11 B4

2T14 B3

2T16 D7

2T18 D4

2T19 C6

2T20 B3

3T04 B3

5T02 C6

5T03 C7

5T04 B6

6T02 B3

6T04 B4

6T06 D6

6T07 D6

9T02 B3

9T03 D4

9T06 D4

9T09 E4

9T10 E5

FT04 C4

FT05 D6

IT07 D4

IT09 C7

IT10 A3

IT17 B6

IT18 D4

IT19 D5

D

E

8204 000 8338.4

123456

2T18

10n

IT07

2T07

RES

10n

9T06

9T03

IT18

9T09

9T10

S-SCL-PIP

B13a

B13a

IT19

S-SDA-PIP

5V1

IF-TER2

B15A

FT05

6T07

RES

PDZ-33B

D

E

E_14620_101.eps

070704

7

Circuit Diagrams and PWB Layouts

Small Signal Board: DC/DC Converter

1234 8567

DC - DC CONVERTER

A

B

C

D

E

F

8204 000 8338.4

5V-ENABLE

IT08

3T15

10K

FT10

IT00

3T10

2T30

GND-P

47K

3T14

IT44

GND5V

1u0

2T36

10K

3T17

GND5V GND5V

10K

22u

2T35

3T16

2T37

GND5V

GND-P

2T31

GND-P

2T34

100K

2T50

10n

10n

1n0

100n

2

9T11

1T03

IT01

22u

2T33

GND5V

2T32

100n

IT04

IT05

GND5V

2T54

100n

3T33

IT02

7T04

L6910

1

4

IT06

2

8

6

7T10-1
BC847BS

1

GND-P

100n

10R

IT45

VREF

SS

OSC

EAREF

1T04

EN 66FTL2.1U, FTL2.2U 7.

6T11

BZX384-C9V1

IT26

1K0

3T51

3T13

9

15

VCC

PGOOD

Monitor

Protection & Ref

OSC

IT30

10K

COMP

5

3T11

3T12

IT42

3

OCSET

10K1K0

2T49

2T47

470p

2T48

100n

9

1T03 E4
1T04 E5
2T30 B4
2T31 B4
2T32 B4
2T33 B4
2T34 B4
2T35 B4
2T36 C4
2T37 D4

3T31

1K0

3T32

1K0

5T12

5T13

5T10

10u

IT25

res

res

2T40

100n

2T42

3T25

IT20

IT33

6K8

22n

3V3_FAULT

2T41

1n0

5T11

10u

2T44

10n

IT23

2T43

GND-P

IT21

2T45

B12

22u

10n

2T46

1n0

+11V_DC

IT24

10R

3T28

FT15

IT16

3

5

7T11-2

12

11

10

14

13

GND-P

7

6

BC847BPN

4

6T10

IT34

IT11

IT12

BAS316

1n0

BOOT

HGATE

PHASE

LGATE

PGND

GND

VFB

NC

16

3T30

FT11

2T38

3T27

10R

3T26

2R2

GND5V

3T20

10K

100n

1K0

IT43

3T29

IT13

FT12

3T60

4R7

IT15

IT41

3T22

2

10K

IT63

4K7

2

2T53

4

6

7T11-1
BC847BPN

1

78

7T01-1
SI4936ADY

1

3n3

56

7T01-2
SI4936ADY

3

GND-P

3K9

3T24

A

B

C

D

10K

10K

5T15

FT13

5T14

1u0

7T12
BC847BW

FT14

2T51

VDISP

E

F

3T18

10K

3T59

2K7

IT32
BC847BS

7T10-2

GND5V

4

3

IT46

3T58

47K

IT22

3T19

IT47

3T23

1K0

330R

3T57

100R

7T13-1
BC847BPN

IT48 IT62

10K

3T56 3T55

1u0

2T52

3T53

470K

10K

+11V_DC

BC847BPN
7T13-2

IT61

3T54

IT60

3T52

5

2T38 B7
2T40 B8
2T41 B8
2T42 C8
2T43 C8
2T44 D8
2T45 D8
2T46 B9
2T47 D6
2T48 E6
2T49 B6
2T50 C4
2T51 E9
2T52 E7
2T53 C7
2T54 A5
3T10 A4
3T11 A6
3T12 B6
3T13 B5
3T14 C4
3T15 C3
3T16 C4
3T17 D4
3T18 D6
3T19 E7
3T20 D7
3T22 D7
3T23 E7
3T24 D7
3T25 C8
3T26 C7
3T27 B7
3T28 B9
3T29 B7
3T30 A7
3T31 A8
3T32 D8
3T33 B5
3T51 B5
3T52 F8
3T53 F8
3T54 F8
3T55 E8
3T56 E8
3T57 E7
3T58 F7
3T59 F6
3T60 C7
5T10 B8
5T11 C8
5T12 B8
5T13 B8
5T14 D9
5T15 D9
6T10 B6
6T11 A5
7T01-1 B7
7T01-2 C7
7T04 B5
7T10-1 C5
7T10-2 E6
7T11-1 A7

7T13-2 E8
9T11 D4
FT10 C4
FT11 B7
FT12 C7
FT13 D9
FT14 E9
FT15 A7
IT00 A4
IT01 A4
IT02 B5
IT04 B5
IT05 B5
IT06 C5
IT08 C3
IT11 B7
IT12 C6
IT13 B7
IT15 C7
IT16 A7
IT20 D8
IT21 C9
IT22 E7
IT23 B9
IT24 B9
IT25 A8
IT26 A5
IT30 D5
IT32 E6
IT33 C8
IT34 B7
IT41 C7
IT42 B6
IT43 A7
IT44 C4
IT45 B5
IT46 F7
IT47 E7
IT48 E7
IT60 F9
IT61 F9
IT62 E8
IT63 C7

7T11-2 A6

E_14620_102.eps

070704

7T12 F9
7T13-1 F7

12

345678

9

Small Signal Board: I/O 1

1

A

B

C

D

E

F

G

Circuit Diagrams and PWB Layouts

EN 67FTL2.1U, FTL2.2U 7.

23456789

I/O 1

+8VA

9I78

7I24
TEA6415CD-TR

10

IN1

2

SDA

20

IN2

4

SCL

1

IN4

5

IN6

7

SUB

11

IN5

9

VCC1

3

IN3

3I23

100K

2I08

100n

+8VA

9I02

9I03

9I00

9I01

IIE1

3I06

*

II08

220n

2IE0

1K0

OUT1

OUT2

OUT3

OUT4

OUT5

OUT6

3I10

8

IN7

19

13

14

17

18

15

16

12

6

IN8

II06

3I25

68K

75R

GND1

GND2

3I24

100K

3I11

560R

3I13

560R

3I15

560R

3I17

560R

3I19

100R

RES

*

3I21

100R

RES

IIE5

3I12

470R

res

II07

3I14

470R

res

II09

3I16

680R

res

II10

3I18

470R

res

II11

3I20

470R

res

C-PIPDW-OUT

Y-CVBS-PIPDW-OUT

C-FRONT-IN

Y-CVBS-FRONT-IN

B15a

B15a

B2

B2

+8V

4R7

3IK8

II12

3I22

470R

Res

2IA6

IIE4

2IJ3

100n

7I06

BC847BW

3IQ2

1K0

3I27

2IJ2

3IQ3

CVBS-Y-RECORD-IN

75R

C-RECORD-IN

75R

9I20

IIG6

100n

100u

3

1

7I60

BC847BW
2

IIG8

9I21

1K0

3I26

B14b

B5a,B14b,B15b

B2,B14g,B15a

From HIP MAIN

From Front B21

From Scart 4

(USA AV3)

B14b(2x) ,c,g

B15a

From PIP/DW

For US (AV3)
B14b(2x) ,c,g

AV3-CVBS-IN

B14b

Y-CVBS-MMC-OUT

B14b

C-MMC-OUT

SDA-S

B2

PIP-OUT

SCL-S

FRONT-Y-CVBS-IN

AV4-Y-G_AV2-Y-CVBS

PIP-OUT1

AV4-PR-R_AV2-C

B21

FRONT-C-IN

res

9I95

75R

res

IIE0

3I03

9I96

res

3IK4

res

75R

3IK5

2I02

220n

3I04

100R

II00

2I03

220n

3I05

100R

2I04

220n

2IJ1

100p

res

2I05

220n

2I06

220n

2I07

470p

+8VA

220n

9I15

res

75R

2IJ0

res

3I01

100K

res

II01

68K

3I02

II03

II04

II05

2I01

res

3I09

68K

100n

II02

res

10 11

12 13

A

B

C

D

G

2I01 F4
2I02 B3
2I03 C3
2I04 D3
2I05 D3
2I06 E3
2I07 F4
2I08 F5
2I55 I9
2I56 I11
2IA5 I4
2IA6 G7
2IE0 B5
2IJ0 F3
2IJ1 D3
2IJ2 G7
2IJ3 E8
3I01 B4
3I02 C4
3I03 B3
3I04 C3
3I05 C3
3I06 B5
3I09 E4
3I10 B5
3I11 B6
3I12 B7
3I13 C6
3I14 C7
3I15 C6
3I16 C7
3I17 D6
3I18 D7
3I19 D6
3I20 D6
3I21 F6
3I22 F6
3I23 E5
3I24 E5
3I25 E6
3I26 H7
3I27 F7
3IK4 D3
3IK5 F3
3IK7 I4
3IK8 E7
3IQ2 F8
3IQ3 G7
5I01 I10
7I06 F7
7I24 C5
7I60 G7
9I00 B5
9I01 B5
9I02 F5
9I03 F5

E

9I15 F4
9I20 F7
9I21 G7
9I78 B5
9I95 B3
9I96 B3
II00 C4
II01 B4
II02 E4
II03 D4
II04 D4

F

II05 E4
II06 E5
II07 C7
II08 B6
II09 C7
II10 D7
II11 D6
II12 F6
IIE0 B3
IIE1 B5
IIE4 E7
IIE5 B7
IIE8 I10
IIG6 F7
IIG7 I4
IIG8 G7

H

I

8204 000 8390.3

+8V

3IK7

4R7

123

H

IIG7

+8VA

2IA5

100u

4

56789101112

B3e,B15b,B12

3V3_FAULT 3V3_FAULT_PIP

*

10n

2I55

res

5I01

IIE8

*

6u8

*

10n

2I56

res

B15c

E_14620_123.eps

13

I

080706

Circuit Diagrams and PWB Layouts

Small Signal Board: I/O2: Connections

1I01-1 E11
1I01-2 C3
1I01-3 B3
1I02 E6
1I04-1 B11
1I04-2 C11
1I04-3 B13
1I06-1 H11
1I06-2 F11 3I87 C14
1I09 C10
1I10-A B6

1I10-B A11
1I10-C C6
1I10-D D6
1I11 D15
1I17 F5
1I18 F3
1I37 E10
1I38 E10
1I39 C10
1I40 D10
1I41 C12

1

1I42 B13
1I44 B14
1I46 C10
1I47 B10
1I48 F10
1I49 G10
1I54 H10
1I58 H9
1I70 C13
1I71 D3
1I72 B3

1I73 C3
1I75 B12
1I76 B12
1I77 A6
1I78 D6
1I97 A4
2I11 F1
2I12 H2
2I15 E3
2I18 E9
2I19 E9

2I21 D9
2I22 C9
2I23 B9
2I24 C9
2I26 F9
2I27 G9
2I30 H9
2I32 G8
2I36 H8
2I39 F1
2I46 F6

2I47 H4
2I51 A14
2I63 A4
2IA4 G2
2IC0 F8
2IC1 F8
2IC6 F4
2IC7 F4
2IC9 A5
2IH3 G4
3I07 G2

3I28 H7
3I32 F3
3I33 F3
3I34 H2
3I36 H2
3I37 E1
3I38 H2
3I40 E4
3I41 F4
3I54 D4
3I55 D4

3I56 B4
3I57 B3
3I58 C4
3I59 C4
3I61 D9
3I62 E9
3I69 C9
3I70 C9
3I71 D8
3I72 D9
3I73 C15

3I74 C12
3I76 B15
3I77 B13
3I78 A5
3I79 B9
3I80 C9
3I83 B15
3I84 B14

3I88 C13
3I89 F8

23456789

3I90 F9
3I91 F8
3I92 F9
3I98 H4
3I99 G8
3IA0 G9
3IA1 H4
3IA2 H8
3IA3 H8
3IA4 A2
3IA5 B2

3IA6 B2
3IA7 C2
3IA8 D2
3IB2 D9
3IB4 F6
3IB5 F6

3IC2 G4
3IC3 G4
3IC4 E9
3IC6 B8

3IC9 D2
3ID0 H6
3ID1 E3
3ID7 G3
3ID8 H3
3IH1 G5
3IK2 B9
3IK3 C9
3IN5 E9
3IN6 E9
3IS2 C8

3IT0 F8
3IT1 G8
3IT4 H8
3IW4 G5
3IW5 H5
6I08 F3
6I09 E5
6I10 E3
6I11 E1
6I12 G2
6I13 H2

EN 68FTL2.1U, FTL2.2U 7.

6I26 D4
6I27 B4
6I28 C4
6I30 E10
6I31 E10
6I32 E10
6I33 E10
6I37 C9
6I38 C9
6I39 D9
6I40 D9

6I41 B14
6I43 A4
6I44 A14
6I45 B10
6I46 B10
6I47 C10
6I48 C10
6I50 B14
6I52 C13

6I54 F9

6I55 G9
6I56 G9
6I61 G9
6I62 H9
6I69 H9
6I70 H9
6I71 B4
6I72 C4
6I73 D4
6I74 A15
6I75 B15

6I76 C15
6I77 C14
6IA7 G3
7I01-A A1
7I01-B B1
7I02-A B1
7I02-B C13IC1 H6

7I05-1 F1
7I05-2 G1
7I07 H6

7I09 G6
7I21-1 E2
7I21-2 E1
7I44-A H3
7I44-B G3
7I49 G5
7I50-1 H1
7I50-2 H2
9I04 H12
9I08 G136I53 F9
9I09 F13

9I10 H14
9I11 F13
9I12 H14
9I17 A6
9I22 H13
9I50 F2
9I51 E1
9I60 H13
9I69 A6
9I70 A6
9I82 E3

9I86 B13
9I92 F15
9I93 F13
9I94 E15
9I97 G13
9IA4 D1
9IA5 D1 IIB0 G2
9IA6 F5
9IA7 F6
9IB1 F11
9IB2 F11

9IB3 A10
9ID1 A7
9ID2 A7
9ID3 A8
9ID4 A8
9ID5 A9
9ID6 A9
9ID7 A107I04 D1
9ID8 A10
9ID9 A10
9IZY G4

9IZZ G4
FI10 H15
FI11 H14
FI12 G14
FI13 G14
FI14 G13
FI16 E13
FI17 B12
FI18 F13
FI19 F13
FI21 F11

10 11 12

FI35 D3
FI36 B3
FI38 C3
FI40 H5
FI41 D10
FI42 E10
FI46 C9
FI47 D10
FI49 C12
FI50 D14
FI52 B12

FI53 A4
FI55 B14
FI58 C10
FI59 B10
FI60 F10
FI61 G10
FI64 G10
FI68 H9
FI69 D14
FI83 F3
FI84 E4

FI93 G7
FI94 H14
FI96 E14
FI97 F14
FI98 G14
FI99 F15
FIA9 D14
FIC1 F13
II27 B4
II32 C9
II33 D9

II36 C9
II37 B9
II38 F8
II41 E1
II42 G8
II43 H8
II44 G1
II45 G3
II46 F6
II47 G6
II48 H6

II49 F5
IIA0 C4
IIA1 D9
IIA2 E9
IIA5 F8
IIA9 G2

IIF1 H2
IIF2 G2
IIF3 H3
IIF4 G4

13 14 15

IIF5 F1
IIF6 E1

B14b(4x)

A

A-PLOP

B14b

AP-SNDL-SC2-OUT

B14b(4x)

A-PLOP

B14b

AP-SNDR-SC2-OUT

B

B14b(4x)

A-PLOP

B14b

AP-FRONT-L

B14b(4x)

A-PLOP

B14b

AP-FRONT-R

C

B14b

A-PLOP_E

B14b

AP_SUBW

D

+5V2-STBY

+5V

E

1u0

F

+5V2-APLOP

G

B14b(4x)

A-PLOP

B14b

A-PLOP_E

H

8204 000 8390.3

I/O 2 CONNECTIONS

6

7I01-1

BC847BS

1

3

7I01-2

BC847BS

4

6

7I02-1

BC847BS

1

3

7I02-2

BC847BS

4

7I04

BC847BW

9IA5

9IA4

BAS316

2I11

6I11

II41

9I51

22K

IIF5

BC847BPN

7I05-2

7I50-1

BC847BPN

3I37

II44

4

7I21-2

3

BC847BPN

7I05-1

BC847BPN

7I50-2

IIF6

BC847BPN

2I39

47n

+5V2-APLOP

123

3IA4

2

1K0

AV4-H

CVBS-SC1_AV1-IN

AV4-V

IIA9

2IA4

IIF2

2I12

B5a,B21

AV1 IN

YKC21-4587N

98

7

1I01-3

VIDEO

MONITOR OUT

AV1 IN

YKC21-4587N

65

4

1I01-2

3ID1

2

150K

2I15

100R

3I33

1I18

100K

3ID7

BAS316

6IA7

1u

BAS316

6I12

BAS316

6I13

7I44-1

1u0

BC847BS

3ID8

100K

+5V2-APLOP

Y

Pb

3IA5

5

1K0

3IA6

2

1K0

3IA7

5

1K0

3IA8

1K0

3IC9

6

5

22K

7I21-1

BC847BPN

1

9I50

+5V2-APLOP

3I07

IIB0

10K

3I34

10K

IIF1

3I36

22K

22K

3I38

SOUND-ENABLE

FI36

Pr

1u0

FI83

6

1

6I10

BAS316

3

II45

FI38

+8VA

FI35

6I08

PLVA2656A

7I44-2

BC847BS

1I72

9I82

2

+8VA

3I57

+8VA

1I73

6I26

1I71

+5V

res

12

3I32

3

4

IIF3

75R

BAV99 COL

6I27

BAV99 COL

3I59

3I40

100R

1K0

5

3IC2

2I63

100n

6I28

BAV99 COL

75R

2IC7

IIF4

22K

2I47

3I56

100R

47p

+5V2-STBY

+5V

2IH3

1n0

3IA1

FI53

1I97

II27

3I58

100R

BZX384-C6V8

6I73

75R

3I55

47p

3IC3

22K

1n0

3I98

100K

100K

6I43

BZX384-C6V8

6I71

BZX384-C6V8

6I72

IIA0

3I54

100R

FI84

PLVA2656A

1K0

2IC6

9IZZ

9IZY

B4,B21(2X)

POR-LINEOUT

BZX384-C6V8

3I41

PDTC144EU

B14b

B14b

2IC9

220p

3I78

75R

AV5-Y_AV7-Y

AV5-PR_AV7-C

6I09

3

3IH1

47K

7I49

POR

POR-LINEOUT

AV5-PB

12

B14c,g

YKF51-5556

B14c,g

B14c,g

1I17

+5V

+5V

3IW4

3IW5

RES

RES

9IA6

6K8

2K7

FI40

+11V_S

9I17

9I69

9I70

CVBS-SC2_MON-OUT

AV1 IN

S-VIDEO

1I10-A

1I10-C

YKF51-5556

5

1I10-D

YKF51-5556

6

AV2 IN

H

12

V

3

YKC21-4225N

22K

II49

3IB4

+11V_S

9IA7

7I09

3

BC847BW

4K7

7I07

TER-CVBS-OUT-SUB

CVBS-TER-OUT

1

3

4

2

1I02

22K

3IB5

2I46

1n0

II46

1

2

II47

3ID0

II48

BC869

1R5

3IC1

+11V

1I77

B14d(2x)

B14d(2x)

1I78

B14d(2x)

B14d(2x)

B15a

B2

B2

B14d

B14d

B14d

B14b

B14b

B14b

B14b

B6c

B6c

B14g

AV6-R

9ID1

AR-SC2-IN

AL-SC2-IN

SNDR-SC2-OUT

AP-SNDR-SC2-OUT

SNDL-SC2-OUT

AP-SNDL-SC2-OUT

AR-SC1-IN

AL-SC1-IN

AP-FRONT-L

SNDL-MON-OUT

B6a,B14d(2x)

AP-FRONT-R

SNDR-MON-OUT

B6a,B14d(2x)

AP_SUBW

FI93

SUBW

SND-CENTER-IN

B14b

MMC-R

9ID2

res

B14a,b,c,g

AV4-PR-R_AV2-C

2IC0

16V

10u

2IC1

16V

10u

2I32

16V

3I28

100R

10u

II43

3IA3

45678

270R

270R

22K

B14b

B14b,g

B14g

B14b

B14c

3I69

270R

II33

3I90

100R

2I26

100p

3I92

100R

2I27

100p

3IA0

100R

2I30

100p

6I69

BZX384-C6V8

22K

22K

II32

2I22

2I21

100R

100R

3IC4

B14g

AV6-B

9ID5

3IK2

3IK3

3I70

100R

100p

3I72

100R

100p

3IB2

22K

22K

BZX384-C6V8

BZX384-C6V8

BZX384-C6V8

6I70

B14b

MMC-B

9ID6

res

II37

100p

2I23

II36

100p

2I24

FI46

BZX384-C6V8

BZX384-C6V8

IIA1

3IN5

IIA2

3IN6

6I53

6I55

6I61

FI68

B14a,b,c,g

AV4-PB-B

3I79

100R

3I80

100R

100p

2I18

100p

2I19

1I58

B14g

B14a,b,c,g

B14b

AV6-G

MMC-G

9ID4

res

AV4-Y-G_AV2-Y-CVBS

9ID3

100R

3IC6

100R

3IS2

3I71

270R

II38

3I89

47K

3IT0

IIA5

3I91

47K

3IT1

II42

3I99

270R

47K

3IT4

3IA2

100R

2I36

100p

9

6I37

6I38

6I39

6I40

3I61

100R

3I62

100R

6I54

6I56

6I62

B14b

AV4-V

AV6-V

VD-ANA

9ID7

res

9ID9

9ID8

FI59

6I45

BZX384-C6V8

FI58

BZX384-C6V8

FI47

BZX384-C6V8

BZX384-C6V8

FI61

FI64

1I47

6I46

6I47

1I46

6I48

1I39

1I40

FI41

6I30

1I38

6I31

FI42

6I32

1I37

6I33

FI60

1I48

1I49

1I54

10 11

AV4-H

AV6-H

HD-ANA

9IB3

res

AV2 IN

YKC21-4587N

R

32

L

1

MONITOR OUT

1I09

R

3

L

12

YKC21-3226

AV1 IN

YKC21-4587N

R

32

L

1

1I01-1

AUDIO OUT

L

4

R

5

1I06-2

YKC21-4588N

SUBW-OUT

1

3

YKC21-4588N

1I06-1

CENTRE-IN

1I04-1

6

FI21

2

YKF51-5556

B4

2FH-HD100

2FH-VD100

B4

AV2 IN

S-VIDEO

1I10-B

AV2 IN

YKC21-4587N

1I04-2

9IB1

9IB2

Pr/R

65

Pb/B

4

B14d

B14d

B5a,B14aB15b

B14a

B6b

B14d(2x)

B14d(2x)

HD-ANA

VD-ANA

B14a

B5a,B21

B14b

B14b

B14b

B2,B14g,B15a

B2,B14g,B15a

B2,B14g,B15a

+8VA

2I51

100n

6I44

6I50

BAV99 COL
FI55

75R

3I84

+8VA

BZX384-C6V8

100R

3I87

BAV99 COL

3I76

100R

3I83

100R

6I41

BAV99 COL

res

7

9

10

8

FI52

1I76

FI17

AV2 IN

YKC21-4587N

Y/G

98

CVBS

7

9I86

1I75

FI49

1I41

1I04-3

75R

3I74

1I70

3I88

1I42

res

75R

+8VA

75R

3I77

1I44

6I52

BZX384-C6V8

res

6I77

res

RES

SNDR-BO-IN

SNDL-BO-IN

CVBS-Y-RECORD-IN

C-RECORD-IN

SPDIF-BO-OUT

SNDR-BO-OUT

SNDL-BO-OUT
B14b

HD-ANA
B14b
VD-ANA

Y-CVBS-MMC-OUT

SDA-S

SCL-S

IRQ-DIGITAL

MMC-RRESET-AUDIO

C-MMC-OUT

MMC-G

MMC-B

SC2-B-IN_C-OUT

SC2-G-IN

SC2-R_C-IN_AV2

FI16

FI18

FI19

9I09

9I11

9I93

9I08

9I97

9I60

9I04

9I22

FIC1

FI14

FI13

FI50

FI69

FIA9

FI96

FI97

FI98

FI12

FI94

9I10

FI11

9I12

12 13 14 15

BZX384-C6V8

6I74

BZX384-C6V8

3I73

100R

1I11

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

FI10

B14a,b,c,g

AV4-Y-G_AV2-Y-CVBS

BZX384-C6V8

6I75

AV4-PR-R_AV2-C

B14a,b,c,g

6I76

B14b,c,g

AV4-PB-B

CVBS-SC1_AV1-IN

B2,B14b

9I94

FI99

9I92

E_14620_124.eps

080706

A

B

C

D

E

F

G

H

Small Signal Board: I/O3: Switch

12

I/O 3 SWITCH

2I44

3ID5

10R

3IE7

10R

3IN8

10R

YKC21-3226

3IY5 3IY2

3IE5

3IE6

3IN9

3IN7

FIB0

100n

100K39K

II18

100K

II20

39K

100K

II22

39K

B6a

II50

3IF7

6I90

1I07

A

B14g

V-2FH

B

C

B14g

Y-2FH

D

B14g

E

U-2FH

F

G

H

I

8204 000 8390.3

123

+8V_M1

2I41

1u0

+8V_M1

2I35

1u0

+8V_M1

2I43

1u0

Circuit Diagrams and PWB Layouts

34567891011121314

6I93

B14a,b(2x),g

R-SC1_V-IN

G-SC1-IN_Y-IN

B-SC1-IN_U-IN

B6a,B15b

B6a,B15b

B6a,B15b

B2

B2

B2

V-PIP+MAIN-OUT

Y-PIP+MAIN-OUT

U-PIP+MAIN-OUT

1K8

3IY1

res

9I54

1K0

3IC8

II17

BC847BPN

7I27-2

7I27-1

BC847BPN

3IY7

100R

3IY6

270R

1K2

3IE4

9I40

res

1K5

3ID9

II19

BC847BPN

7I29-2

7I29-1

BC847BPN

3IY3

680R

3IY4

560R

3IE8

1K5

9I83

res

1K2

3IH7

II21

BC847BPN

7I31-2

7I31-1

BC847BPN

3IH5

100R

3IH6

220R

B6a

SNDR-DVI-IN

3IE3

100R

3IE9

22K

2I57

100p

100R

IIB2

BZX384-C6V8

1I68

3

SNDL-DVI-IN

3IE2

II51

3IF6

6I92

6I91

FIB1

1

RL

2

HDMI IN

2FH

100R

3IF5

22K

2I58

100p

100R

IIB3

BZX384-C6V8

1I69

* References to B16 only for HDI-sets

45

AV4-PR-R_AV2-C

B14c,g

AV5-PR_AV7-C

B14b,g

AV5-Y_AV7-Y

B14a,b(2x),g

AV4-Y-G_AV2-Y-CVBS

B14a,b(2x),g

AV4-PB-B

2IS4

1u0

B14c,g

AV5-PB

9I87

9I89

9I90

2IS0

*

1u0

+8V

*

2IS1

1u0

*

2IS2

1u0

+8V

*

2IS3

1u0

+8V

*

*

2IS5

1u0

RESERVED

IIH5

3IFA

100K

res

IIH6

3IFB

100K

res

IIC3

3IFC

100K

res

3IFL

1K0

EN 69FTL2.1U, FTL2.2U 7.

2I45

*

100n

9IC3

*

RES

II90

9IC2

*

RES

II59

9IC1

*

res

II57

8

7

GND

VEE

3y1

3

3y0

5

4

2y1

1

10

2y0

2

15

1y1

11

1y0

MUXDX

14

G3

VCC

6
74HC4053
7I81

res

1K0

3IL2

*

*

1K2

3IL1

II91

7I26-1

BC847BPN

*

3IL5

270R

*

1K0

3IL83IM2

II60

7I28-1

BC847BPN

*

560R

*

1K5

3IM4

II58

7I30-1

BC847BPN

*

3IM8

220R

9

2IR1

100n

BC847BPN

7I26-2

*

*

3IL6

*

100R

1K0

3IL9

*

BC847BPN

7I28-2

*

*

3IM3

*

560R

3IM6

*

1K0

BC847BPN

7I30-2

*

*

3IM7

*

100R

SUB-V

SUB-Y

SUB-U

B15a

SC1-FBL-IN

FBL-SC1-IN

SC2-FBL-IN

+8V+8V

B15a

B15a

VS-2FH

HS-2FH

3IDA

*

*

3IDB

*

9IB5

5I20

RES

RES

2R2

9IB6

5I07

RES

RES

2R2

B14c,B19a

B14g(3x),B19a

*

9I73

9I74

9I75

16V100u

2IDA

RES

*

16V100u

2IDC

RES

3IO5

10K

10K

3IO6

+5VIO

+8V_M1

16V100u

2IDB

RES

+8V_M2

*

16V100u

2IDD

RES

3IML

3IMM

3IMT

3IMV

3IMD

3IME

100K

56K

100K

56K

100K

56K

+8V

+8V

+5VIO

6I94

BC857BS
7I82-1

3IMG

3IMH

7I93
BC847BW

1K0

3IMN

7I95
BC847BW

1K0

3IMW

9IF0

7

VEE

3

5

1

2

13

12

9IF1

9IF2

BAS316

7I82-2

4K7

3IFE

7I91

BC847BW

100K

56K

8

GND

3y1

3y0

2y1

2y0

1y1

1y0

MUXDX

VCC

16

+5VIO

res

res

+8V

3IMP

3IMR

res

G3

74HC4053
7I80

3IMA

3IMB

7I92
BC847BW

100K

56K

9

4

10

15

11

14

6

2IR0

100n

100K

56K

3INK

3IFH

1K0

1K0

3IMF

1K0

7I94
BC847BW

1K0

3IMS

7I90
BC847BW

1K0

3IMC

B6a,B15c

TRI-STATE-DVI

B14f,g,B15b

TRI-STATE-YPBPR

R-VGA

G-VGA

B-VGA

9I37

9I61

9I59

7

VEE

3y1

3

3y0

5

2y1

1

2y0

2

1y1

13

1y0

12

MUXDX

VCC

16

+5VIO

9I25

*

9I26

*

9I27

*

B14g(3x)

B14g(3x)

B14g(3x)

VA50-PIP

B6a,B15b,c

HA50-PIP

B14g,B5b

*

*

*

8

GND

G3

74HC4053
7I33

2I49

100n

+8V_M2

+8V

2ISA

100n

*

1K0

3IJ9

3IG8

*

10R

BC857BS
7I48-1

SC2-R_C-IN

B15a

*

+8V_M2

+8V

*

1K0

9

4

3IG5

10

15

11

14

6

*

*

3IG2

IN-Y-CVBS-SC2_AV2

*

BC857BS

10R

7I48-2

B15a

*

SWITCH-SUB

B15b

+8V_M2

3IN4

IIB1

+5V

2R2

+5VIO

2IA9

100u

9IF4

res

3IFF

res

100K

3IFD

res

100K

13

12

+5VIO

9IF3

RESERVED

E_14620_125.eps

67891011121314

080706

1I07 I2
1I68 I2
1I69 I3
2I35 C2
2I41 B2
2I43 E2
2I44 A2
2I45 A11
2I49 D8
2I57 G3

A

2I58 G3
2IA9 F9
2IDA F13
2IDB F13
2IDC G13
2IDD G13
2IR0 H7
2IR1 I11
2IS0 A5
2IS1 A5
2IS2 B5
2IS3 C5
2IS4 C5
2IS5 D5

B

2ISA A9
3IC8 A3
3ID5 B2
3ID9 C3
3IDA E13
3IDB G13
3IE2 G3
3IE3 G2
3IE4 B3
3IE5 C2
3IE6 D2
3IE7 C2

C

3IE8 D3
3IE9 G3
3IF5 G3
3IF6 H3
3IF7 H2
3IFA F5
3IFB F5
3IFC G5
3IFD H10
3IFE I6
3IFF G9

D

3IFH I7
3IFL I5
3IG2 B9
3IG5 C8
3IG8 B9
3IH5 E3
3IH6 E3
3IH7 E3
3IJ9 A9
3IL1 A11
3IL2 A11
3IL5 B11

E

3IL6 A11
3IL8 B11
3IL9 B11
3IM2 C11
3IM3 C11
3IM4 D11
3IM6 D11
3IM7 E11
3IM8 E11
3IMA A7
3IMB A7
3IMC A7

F

3IMD A6
3IME B6
3IMF B7
3IMG B6
3IMH B6
3IML B6
3IMM C6
3IMN C6
3IMP C6
3IMR D6
3IMS D7

G

3IMT D6
3IMV D6
3IMW D6
3IN4 F9
3IN7 E2
3IN8 E2
3IN9 E2
3INK B7
3IO5 D14
3IO6 D13
3IY1 A3
3IY2 A2

H

3IY3 D3
3IY4 D3
3IY5 B2
3IY6 B3
3IY7 B3
5I07 F13
5I20 E13
6I90 H2
6I91 H3
6I92 H3
6I93 H4
6I94 I6

I

7I26-1 A11
7I26-2 A12
7I27-1 B3
7I27-2 A3
7I28-1 C11
7I28-2 C11
7I29-1 C3
7I29-2 C3
7I30-1 E11
7I30-2 D11
7I31-1 E3
7I31-2 E3

7I33 D8
7I48-1 B9
7I48-2 C9
7I80 G6
7I81 I11
7I82-1 I6
7I82-2 I6
7I90 A7
7I91 A6
7I92 B7
7I93 C6
7I94 C7
7I95 D6
9I25 D8
9I26 D8
9I27 E8
9I37 A8
9I40 C3
9I54 A3
9I59 B8
9I61 A8
9I73 D13
9I74 D13
9I75 D13
9I83 D3
9I87 E5
9I89 F5
9I90 G5
9IB5 E13
9IB6 F13
9IC1 D10
9IC2 B10
9IC3 A10
9IF0 E6
9IF1 H6
9IF2 H6
9IF3 I10
9IF4 G10
FIB0 I2
FIB1 I3
II17 A3
II18 B2
II19 C3
II20 C2
II21 E3
II22 E2
II50 H2
II51 H3
II57 E11
II58 D11
II59 C11
II60 C11
II90 A11
II91 A11
IIB1 F9
IIB2 H3
IIB3 H3
IIC3 G5
IIH5 E5
IIH6 F5

Small Signal Board: I/O 4: Audio

123

I/O 4 AUDIO

A

G

B

+8V

C

1u0

2I77

2I78

D

3I39

E

4K7

PIP-FM

B15b

F

H

IIE6

2I13

7I17
TEA6422D

II72

22u

1u0

2I79

10n

Circuit Diagrams and PWB Layouts

4 5 6 7 8 9 10 11 12 13

B14b,d

B14b,d

B14b,d

AR-SC1-IN

AR-SC2-IN

1u0

2I71

2I73

2I72

25 24

R1

R2 R323R420R519R6

CAP2

SUPPLY BUS DECODER

GND1

7

8

NC

21

22

L14L25L36L4

2I81

1u0

2I80

2I82

AL-SC1-IN

AL-SC2-IN

B14b,d

B14b,d

B14b,d

B14d,B21

R-FRONT-IN

SNDR-BO-OUT

1u0

2I75

1u0

9IA1

910

1u0

9IA3

1u0

2I84

L-FRONT-IN

SNDL-BO-OUT

B14d,B21

B6a,B14b,d

SNDR-MON-OUT

1u0

1u0

2I76

18

L5 L6

11

1u0

2I85

1u0

SNDL-MON-OUT

B6a,B14b,d

ROUT2 15

ROUT3 17

SDA 28VS3

SCL 27

ADDR 26

LOUT1 12

LOUT3 16

B5a,B6a,B14b

IIE7

2I14

100n

13ROUT1

14LOUT2

RESET-AUDIO

B14f

SPDIF-HDMI

3I43

4K7

3IJ0

100R

B15a

PIP-AM

3IJ1

100R

9I30

L-FRONT-IN

B14d,B21

VDDD

VDDD

9I32

9I31

R-FRONT-IN

AL-SC1-IN

B14b,d

B14d,B21

2IQ6

10n

9I33

AR-SC1-IN

B14b,d

9I35

9I34

AL-SC2-IN

B14b,d

B14b,d

UDA1352TS

AR-SC2-IN

2IR2

1u0

2IR3

100n

7I25

4

SELIIC

5

RESET

8

L3DATA

9

L3CLOCK

10

L3MODE

11

MUTE

13

SPDIF

28

DA0

25

DA1

26

SELSTATIC

SNDR-MAIN-IN

SNDR-SEC-IN

SNDR-BO-IN

SNDL-MAIN-IN

SNDL-SEC-IN

SNDL-BO-IN

SNDL-SEC-IN

SNDR-SEC-IN
SNDL-MAIN-IN
SNDR-MAIN-IN

SNDL-SC2-IN

SNDR-SC2-IN

VDDD

1R5

3IE1

2IQ9

2IR4

100n

3

6

DAC

Φ

DAC

VSSD

DACCPLL

7

12

SDA-S

SCL-S

1u0

14

VDDAVDDD

VSSA

20

24

PLLC

PCMDET

TEST1

TEST2

VOUTL

VOUTR

LOCK

VREF

23

B6a,B14d

B6a(2x),B14d

B14b

B6a,B14d

B6a(2x),B14d

B14b

B6a(2x),B14d
B6a(2x),B14d
B6a,B14d

B6a,B14d
B6a
B6a

VDDA

NC

EN 70FTL2.1U, FTL2.2U 7.

2I13 E2
2I14 B4
2I71 B2
2I72 B3
2I73 B3
2I75 B3
2I76 B3
2I77 C1
2I78 C2
2I79 C2
2I80 E2
2I81 D3
2I82 E3

A

B

74HC4053

11

10

9

9I68

SEL_IN_2

SEL_IN_1_B

RES

9IB7

SEL_IN_1

+8V

7I20

16

6

VCC

G3

14

MUXDX

12

1y0

13

1y1

15

4

GND

9I57

9I58

2

2y0

1

2y1

5

3y0

3

3y1

VEE

7

8

SNDL-MON-OUT

SNDL-SC1-OUT-DC

SNDR-MON-OUT

SNDR-SC1-OUT-DC

B6a , B14b,d

B6a

B6a , B14b,d

B6a

C

D

E

B5a

G

H

B14b

SNDL-SC2-OUT

B6a

REG-SW

B14b

SNDR-SC2-OUT

+3V3_SIM

VDDA

2IR9

2IQ5

VDDD

100u

VDDA

100u

5I54

10u

2IQ7

2IQ8

100n

2IR7

1u0

2IR8

100n

SNDL-BO-OUT

SNDR-BO-OUT

5I55

B14b,d

B14b,d

2IR5

1u0

2IR6

100n

1

2

18

15

17

16

19

21

22

27

IIE2

2IA0

10u

16V

47K

3IH8

II67

3II1

22K

3II2

IIE3

3II3

22K

2IA1

10u

47K

7I23-1

BC847BS

7I23-2

BC847BS

+8V

3II0

10K

7I22

BC847B

16V

TRI-STATE-DVI

+5V

10K

3IJ2 RES

6

1

+5V

3II5

10K

3

4

RES

3IJ3

2

22K

22K

3IJ4

RES

5

3II7

22K

3II6

22K

2I84 E3
2I85 D3
2IA0 B10
2IA1 D10
2IQ5 G8
2IQ6 G5
2IQ7 H7
2IQ8 H7
2IQ9 F6
2IR2 F5
2IR3 F5
2IR4 F6
2IR5 F6
2IR6 F6
2IR7 F7
2IR8 F7
2IR9 F8
3I39 E2
3I43 A4
3IE1 F6
3IH8 C10
3II0 C10
3II1 C10
3II2 D10
3II3 D10
3II5 G10
3II6 H11
3II7 H11
3IJ0 C4
3IJ1 C5
3IJ2 F10
3IJ3 F11
3IJ4 F11
5I54 F8
5I55 F8
7I17 B2
7I20 B12
7I22 C10
7I23-1 F10
7I23-2 H10
7I25 F5
9I30 E5
9I31 E5
9I32 E5
9I33 E5
9I34 E5
9I35 E5
9I57 E12
9I58 E12
9I68 F11
9IA1 B3
9IA3 D3
9IB7 G11
II67 C10
II72 C2
IIE2 B10
IIE3 D10
IIE6 E2
IIE7 A4

F

8204 000 8390.3

1234567

89

10 11 12 13

E_14620_126.eps

080706

Small Signal Board: I/O5

1I43 G1
1I45 G2
1I79 H5
1I99 H1
1M15 F2

A

B

C

D

+3V3_SIM

B15

SDA-VCHIP

SCL-VCHIP

+5V

2I00 H3
2I10 A5
2I33 C9
2I34 D10
2I37 B10

2I38 G3
2I40 C10
2I48 E3
2I52 C5
2I53 A1

123

5I03

2I53

100n

1

2I59 E11
2I60 E2
2I62 G9
2I65 G2
2IB7 D4

I/O 5

VCC

SCL17

NC

GND

Circuit Diagrams and PWB Layouts

8

SDA0 3SDA16

SCL0 2

4

9I46

9I24

7I75
PCA9515DP

EN 5

RES

RES

2IJ5 D6
2IJ6 H9
2IJ7 I9
2IK5 G4
2IK6 G5

3IBC

100R

3IBD

100R

2IK7 G6
2IS6 H5
3I00 G8
3IB1 E10
3IB3 E11

SDA-S

SCL-S

SDA-S

SCL-S

3IB6 D8
3IB7 D9
3IB8 G9
3IB9 G9
3IBA E9

+8V

3IW3

100R

EN 71FTL2.1U, FTL2.2U 7.

3IBB F9
3IBC B2
3IBD B2
3IC0 C9
3IC5 C9

3IC7 C10
3ID2 C4
3ID3 A12
3ID4 B12
3ID6 D6

3IE0 A10 7I16-1 E3
3IF1 D1
3IF2 D2
3IF3 D2
3IF4 D3

3IF8 D4
3IF9 E3
3IGA A12
3IGB B12
3IGC B11

3IGD B10
3IGE C11
3IGF C10
3IGH H8
3IH0 A12

3IH2 B10
3IH4 B11
3IS3 H9
3IS6 I9
3IS8 F2

3IS9 F2
3IW3 B4
3IW9 B4
5I02 E9
5I03 A1

5I04 D10
5I10 D5
5I22 H3
5I45 G5
5I46 G5

5I47 G6
6I03 E12
6I04 F12
6I05 D5
7I08 B5

7I10 E10
7I11 G8
7I13 E5
7I14 B11
7I15 E4

7I16-2 E1
7I40 C11
7I45 C8
7I46 C9

7I75 B2
9I05 F10
9I06 G10
9I24 C2
9I46 C2

9I99 B12
9ID0 G8
FI43 H3
FIC4 F2
FIC5 F2

II34 G8
II35 G8
II40 B12
II75 D4
II76 E3

II77 C4
II78 E2
II79 A11
II80 E1
II81 B11

II82 B11
II83 E4
II84 E2
II85 D10
II86 C5

II87 C5
II89 F11
II95 E11
II96 D9

45678910111213

+5V2-STBY

3IW9

100R

3ID2

1R0

+5V

+5V

2I10

100n

8

7I08
LM75ADP

+VS

3

OS

1

SDA

2

SCL

II77

2IB7

100n

GND

7

A0

6

A1

5

A2

4

5I10

1m0

TEMPERATURE

+5V

II87II86

2I52

RES

220p

BAS316

6I05

SENSOR

3ID6

2K2

2IJ5

100n

+33V

STANDBY

STANDBY

TS2431

3

AK

+5V2-STBY

7I45

R

2

1K0

3IB6

3IC7

3IC5

220R

1K0

3IC0

1

1n0

2I33

3IB7

330R

220R

7I46
BC847B

2I34

10u 16V

5I04

2I40 2I37

3IE0

47K

3IH2

47K

3IH0

II79

II82

3IGC

10K

47K

1u01u0

3IGD

II81

3IGE

10K

47K

3IGF

7I14
BC847BW

+5V

3IH4

7I40
BC847BW

9I99

2K2

4K7

+5V2-STBY

3ID4

4K7

3ID3

+3V3_SIM

4K7

3IGA

+3V3_SIM

3IGB

4K7

4K7

II40

PDP-GO

CPU-GO

(CPUGO)

A

B

C

D

G

2K2

3IF8

3
7I15

BC847BW
2

II75

+11V

7I13
BC817-25

+5V_CON

+5V_VDP

5I45

5I46

2IK6

2IK5

100n

100n

+5V +8V

+5V

1I79

3000mAT

2IS6

16V100u

2IK7

+11V_DC

+8V_VDP

5I47

100n

+3V3_SIM

SDA-S

SCL-S

9ID0

7I11
BC847BW

II34

ON-OFF-LED

SURR-R SURR-RF

3I00

10K

3IGH

100K

3IBA

100R

3IBB

100R

II35

100R

3IS9

100R

3IS8

100R

3IF3

10K

II84

2I65

5I22

3IF4

II76 II83

2I48

1n0

6

2

7I16-1
BC847BS

1

2I38

100p

100p

FI43

2I00

100p

470R

SDA-S

SCL-S

3IF9

3K3

1

+11V_SF

1I45

3IF2

II78

1M15

1
2
3

S3B-EH

2K7

FIC4

FIC5

+11V_S

3IF1

470R

II80

2I60

E

7I16-2

BC847BS

1n0

3

5

4

F

SERVICE

CONNECTOR

1I43

H

1I99

EMC HOLE

3IB9

3IS3

100R

3IS6

100R

II96

+5V2-STBY

3IB8

100p

2IJ6

2IJ7

5I02

PCA9515DP

10K

2I62

100p

100p

I

II85

8

7I10

VCC

SDA0 6SDA1

3

2SCL0 7SCL1

5EN

GND

4

9I05

9I06

10K

10K

3IB1

3IB3

2I59

100n

1

1

NC

6I03

2

BAV99 COL

II95

6I04

BAV99 COL

12

II89

E

SCL-DISP

F

SDA-DISP

G

LED1

H

SURR-LFSURR-L

I

8204 000 8390.3

12345678910

11 12

13

E_14620_127.eps

080706

Circuit Diagrams and PWB Layouts

Small Signal Board: I/O 6: Digital Input

12345678910

I/O 6 :DIGITAL INPUT

SCL-S

SDA-S

B14f

A

B

C

D

E

F

G

H

I

RX-DDC-SCL

B14f

RX-DDC-SDA

IN-5V

B14f(2x)

1I63

1I66

1I62

0001-0015

0001-0015

V_NOM

V_NOM

M24C02-WDW6

B14f

B14f

B14f

B14f

B14f

B14f

B14f

B14f

B14f

B14f(2x)

RXC-

RXC+

RX0-

RX0+

RX1+

RX1-

RX2+

RX2-

RX-HOTPLUG

IN-5V

1I53

1

23

ACM

1I57

14

23

ACM

1I56

ACM

23

14

1I59

ACM

23

14

8204 000 8390.3

123456

5I39

2IB9

100n

V_NOM

0001-0015

7I19

8

Φ

(256x8)

EEPROM

1

0

2

ADR

1

3

2SDA

4

3IAA

V

4

3IAB

3IAC

V

3IAD

V

3IAE

VV

3IAF

V

3IAG

3IAH

V V

3I42

1K0

2IH1

2IC5

100n

100n

7

WC

6

SCL

5

CONNECTOR

2IB8

100n

10K

3I44

FI72

3I46

100R

HDMI

3I49

100R

EN 72FTL2.1U, FTL2.2U 7.

1D01 H4

11 12 13 14

A

B14c,g,B15b

2IG4

5I35

2I98

2IB3

100n

1n0

2I96

PVCC2-SI

2IA7

IIG4

23

PVCC2

PVCC1

HDMI

PANELLINK

RECEIVER

79

99

5I34

2IB5

100n

2IC4

2

+3V3-SI

1n0

22u

2IE3

100n

DACGND

5

2IC8

5I33

5I30

1u0

10u

2ID6

DACGNDG

DACGNDR

10

22u

2IE1

1n0

2IG3

5I32

DACVCC

6

11411

DACVCC

DACVCCR

DACGNDB

284557

13

2IE2

100n

+3V3-SI

2IE9

DACVCCG

1n0

2ID7

2IG7

100n

2IG5

100n

1n0

2ID8

214756

DACVCCB

100n

+3V3-SI

OVCC1

66

1n0

2IH2

100n

2IE4

1n0

Φ

22

+3V3-SI

47K

47K

3I45

3IQ5

BAS316

BAS316

6I65

6I66

1D01

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

2021
2223

500254-1901

BAS316

BAS316

6I63

AVCC

TRI-STATE-DVI

3IR5

3IR6

150R

OVCC

3II8

1K0

3II9

II61

7I64
BC847BW

7I18

SII9993CT100

FI74

72

IIH1

3IEJ

27

33R

26

IIH0

74

75

77

76

83

84

86

87

91

92

96

97

1K2

FI33

3IR1

9

IID5

8

IID6

24

25

47n

2IH0

II39

3IR7

81

390R

33

33R

34

33R

OVCC

6I64

FIC3

1

3IEP

100R

3IQ6

100R

RX-DDC-SCL
RX-DDC-SDA

RX-HOTPLUG

OVCC

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

IN-5V

3IEM

3IR2

2

3

4K7

IIC4

4K7

IID7

DACVCC

B14f

B14f
B14f

B14f
B14f

B14f
B14f

B14f

B14f
B14f

B14f(2x)

9I53

RES

7I52
BSH112

9I56

9I55

FI34

FI37

BSH112
7I59

3IEN

100R

7I51

BSH112

3IQ7

100R

FI70

FI71

FI09

FI08

1

BSH112
7I72

3IR3

PVCC2-SI

B14g

B14g

4K7

3IEL

IIC5

2

9I52

3

RES

4K7

IID8

H-DVI

V-DVI

2IG0

3IR0

FI32

3IH3

3K9

10u

AVCC

FI30

FI31

2I90

10u10V

2I91

10n

1K0

RESET

MCLKIN

MCLKOUT

CSCL

CSDA

DSCL

DSDA

RXC-

RXC+

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

RSET

COMP

PLLIN

PLLOUT

EXT-RES

HSYNC

VSYNC

2IE8

IID9

828993

85

889094

1u0

2IG9

AGND

2I94

2I93

2I92

100n

100n

IIG2

17

95

98

100n

100n

1u0

2I97

2IE7

100n

IIG3

64

100

40

80

VCCAVCC

GND PGND OGND

164165

7 8 9 10 11 13 14

2IG8

+3V3-SI

100n

78

100n

RSVDL

RSVDO

ANRPR

ANBPB

101

IIG5

67

NC

Q

ANGY

SPDIF

SDO

WS

SCK

DE

ODCK

INT

GND_HS

OVCC

B

C

FI76

120R

2ID9

100n

5I31

10u

5I40

1u0

2IH5

2IH4

47p

2I67

2I66

3IS5

120R

res

3IEF

2K2

+3V3-AD

3IW6

+3V3-SI

1n0

2IG6

II71

4K7

3IEI

4K7

3IEH

47p

2I68

3IS0

3IR9

120R

res

4K7

OVCC

9I48

II94

3
4

18
73

II29
19
20

70

0

69

1

68

2

63

3

62

4

61

5

60

6

59

7

58

8

55

9

54

10

53

11

52

12

51

13

50

14

49

15

48

16

44

17

43

18

42

19

39

20

38

21

37

22

36

23

7

12

15

29

30

31

32

35

46

71

2IG2

47p

res

220n

220n

220n

100n

5I38

5I37

5I36

16V22u

2IE5

3IEG

100n

1K2

+3V3-SI

DACVCC

2I95

2IE6

100n

100n

FI79

FI78

FI77

33p

2I70

2I86

3IT6

3IT5

120R

120R

II93

R-DVI

G-DVI

B-DVI

33p

33p

2I69

3IS1

120R

SPDIF-HDMI

B14d

B14g

B14g

B14g

D

E

F

G

H

NC

INT-HDMI

I

E_14620_128.eps

080706

12

1I53 D1
1I56 G1
1I57 E1
1I59 H1
1I62 A1
1I63 A1
1I66 A1
2I66 G12
2I67 G12
2I68 G12
2I69 G14
2I70 G13
2I86 G13
2I90 G6
2I91 G6
2I92 C8
2I93 C8
2I94 C8
2I95 E13
2I96 C9
2I97 C8
2I98 C9
2IA7 D9
2IB3 C9
2IB5 C9
2IB8 A3
2IB9 A2
2IC4 D9
2IC5 A3
2IC8 B9
2ID6 D9
2ID7 D10
2ID8 D10
2ID9 H12
2IE1 B10
2IE2 B10
2IE3 C9
2IE4 C9
2IE5 E13
2IE6 E13
2IE7 C8
2IE8 C8
2IE9 C10
2IG0 H6
2IG2 D13
2IG3 C10
2IG4 B9
2IG5 C10
2IG6 E12
2IG7 B10
2IG8 B10
2IG9 C8
2IH0 H7
2IH1 A2
2IH2 C9
2IH4 E12
2IH5 E12
3I42 I2
3I44 B3
3I45 B3
3I46 B3
3I49 B3
3IAA C2
3IAB D2
3IAC E2
3IAD F2
3IAE F2
3IAF G2
3IAG H2
3IAH I2
3IEF H12
3IEG H13
3IEH E11
3IEI E11
3IEJ E7
3IEL C6
3IEM C5
3IEN D5
3IEP D5
3IH3 H7
3II8 C7
3II9 C7
3IQ5 B4
3IQ6 F5
3IQ7 F5
3IR0 G7
3IR1 G7
3IR2 E5
3IR3 E6
3IR5 H7
3IR6 H7
3IR7 H7
3IR9 G12
3IS0 G11
3IS1 G14
3IS5 G12
3IT5 G13
3IT6 G13
3IW6 I11
5I30 C9
5I31 D12
5I32 D10
5I33 C9
5I34 B9
5I35 B9
5I36 F13
5I37 F13
5I38 F13
5I39 A2
5I40 E12
6I63 B4
6I64 C4
6I65 B4
6I66 C4
7I18 D7

7I19 B2
7I51 E5
7I52 E6
7I59 D5
7I64 C7
7I72 D6
9I48 I12
9I52 D6
9I53 D6
9I55 C5
9I56 C5
FI08 I5
FI09 I4
FI30 H7
FI31 I7
FI32 H6
FI33 G7
FI34 C5
FI37 C5
FI70 I4
FI71 I5
FI72 B3
FI74 E7
FI76 D13
FI77 F13
FI78 F13
FI79 F14
FIC3 I4
II29 E11
II39 H7
II61 C7
II71 E11
II93 H13
II94 I11
IIC4 C5
IIC5 C6
IID5 G7
IID6 H7
IID7 E5
IID8 E6
IID9 D8
IIG2 D8
IIG3 D9
IIG4 D9
IIG5 D11
IIH0 E7
IIH1 E7

Small Signal Board: I/O7

2ID3 C2

2ID5 C2

2IB6 G10
2ID0 D1

2ID1 D2
2ID2 C1

2ID4 C2

2IF1 F14

2IF2 E14
2IF3 C14

Circuit Diagrams and PWB Layouts

2IF4 I8

2IF7 C3

2IF9 D7

2IH7 C7

2IH9 C7

2IF5 I8

2IF8 D7

2IH6 D7

2IH8 C7

2IK1 C10

2IN8 E9
2IN9 E9

EN 73FTL2.1U, FTL2.2U 7.

3IG0 G14

3IG3 E14

2IP0 E3 9I36 B4

3IG1 G14

2IP8 E3

3IG4 E14

3IG6 C14
3IG7 C13

3IHA G14
3IHB E14

3IHC D14
3IHD D15

3IHE F15
3IK0 G9

3IK6 H10
3IS7 G10

3IT7 G8
3IT8 G8

3IU0 H7
3IU4 H10

3IV4 C12
3IV5 D11

3IV6 D11
5I11 E2

5I12 I8
5I13 H8

5I42 E7
7I42 H10

7I55 C9
7I56 C14

7I57 E14
7I58 G14

7I71 C4
9I29 B9

9I38 B4

9I44 B4
9I81 F10

9I88 F10
9I91 B9

9I98 B9
FI25 G7

FI26 E2
FIB5 I8

FIC2 E7
IIH2 D11

IIH3 C11
IIH4 C11

12345

6

7 8 9 1011121314

15

I/O 7

B14c

B2

B14c

B14c

A

B

C

D

E

B2

F

G

H

I

A

9I38

RES

9I36

B

RES

9I44

RES

+5VIO

RGB-OUTPUT SELECTION

2IF7

220n

B14b

C

D

B14b

B14b

B14b

B14b

B14b

B14b

B14b

AV6-R

AV5-PR_AV7-C

AV6-G

AV5-Y_AV7-Y

AV6-B

AV5-PB

AV6-V

AV6-H

E

SWITCH-MAIN

B14c,g,B15b

2ID4

6.3V 22u

2ID2

6.3V 22u

2ID0

6.3V

2ID5

22u

6.3V

2ID3

22u6.3V

2ID1

22u

6.3V

22u

5I11

FI26

2IP8

100n

2IP0

100n

1

7

3

9

5

11

12

13

24

23

2

18

16

R1-IN

R2-IN

G1-IN

G2-IN

B1-IN

B2-IN

VD1-IN

VD2-IN

HD1-IN

HD2-IN

HD-S-SIG-DET

C-V-IN

CTL

468

1

2

1

2

1

2

1

2

1

2

GROUND

20

VCC

DET

SYNC
SEPA

LOGIC

BA7657F

VD-OUT

HD-OUT

C-S-OUT

10

R-OUT

G-OUT

B-OUT

7I71

21

19

15

14

22

17

B14f

R-DVI

B14f

G-DVI

B14f

B-DVI

B14f

V-DVI

B14f

H-DVI

SEL_IN_1_B

2IH8

22u6.3V

2IH6

22u6.3V

2IF8

22u6.3V

FIC2

2IH9

6.3V

22u

2IH7

22u

6.3V

2IF9

22u6.3V

5I42

RGB-OUTPUT SELECTION

2IN8

100n

2IN9

100n

F

V-2FH-AD-OUT

G

H-2FH-DIV-2

B14c,g(2x),B19a

FI25

3IT7

1K0
3IT8

1K0

1K0

3IK0

H

5I13

+8V

3IU0

2R2

5I12

2IF4

47u 16V

+8V-VIDEO

FIB5

2IF5

100n

1

7

3

9

5

11

12

13

24

23

2

18

16

RES

9I29

RES

9I91

9I98

RES

7I55

BA7657F

R1-IN

R2-IN

G1-IN

G2-IN

B1-IN

B2-IN

VD1-IN

VD2-IN

HD1-IN

HD2-IN

HD-S-SIG-DET

C-V-IN

CTL

468

20

VCC

1

2

1

2

1

2

1

2

1

2

SYNC
SEPA

LOGIC

GROUND

9I88

9I81

2IB6

47p

3IU4

470R

DET

RES

RES

3IK6

C-S-OUT

10

R-OUT

G-OUT

B-OUT

VD-OUT

HD-OUT

2K2

21

19

15

14

22

17

+5VIO

2IK1

+3V3-AD

3IS7

220n

IIH4

IIH3

IIH2

470R

7I42
BC847BW

+8V-VIDEO

2IF3

100n

B14g

3IV4

1K0

3IV5

RES

1K0

3IV6

RES

1K0

R-VGA

RES

G-VGA

B14g

B-VGA

B14g

VS-2FH

HS-2FH

R-VGA

G-VGA

B14g

3IG7

10R

3IG4

7I56
BC847BW

3IG6

1K0

3IHC

100R

3IHD

100R

V-2FH

B2,B14b,B15a

SC2-R_C-IN_AV2

C-SC2_SVHS-IN

+8V-VIDEO

2IF2

100n

7I57

10R

BC847BW

3IG3

Y-2FH

1K0

3IHB

100R

3IHE

100R

B2,B14b,B15a

SC2-G-IN

Y-CVBS-SC2_AV2-IN

+8V-VIDEO

2IF1

100n

AV3-CVBS-IN

B14b(2x)

HS-DETHS-2FH

B19d

B-VGA

B14g

3IG1

10R

7I58
BC847BW

3IG0

U-2FH

1K0

3IHA

100R

SC2-B-IN_C-OUT

B2,B14b,B15a

I

8204 000 8390.3

E_14620_129.eps

080706

3

456789101112

13

14 1512

Small Signal Board: PIP HIP

12345678

PIP HIP

A

2R2

5P03

+5V

100n

2P00

B

B13b

IF-TER2

AP02

C

0u33

5P02

FP03

D

B2(4x),B15a(3x)

LMN

E

F

G

H

B2(4x),B15a(3x)

LMN

3P20

5K6

BC847BW

*

I

8204 000 8339.4

1

2P03

4n7

*

7P02

IP23

5P00

30R

IP25

3P00

+8V

+8VHIP

2K7

3P07

4n7

2P04

7P00

BC847BW

9P04

*

6P00

*

1SS356

*

6P01

3P12

*

2K7

+8VHIP

BC847BW
IP68

*

3P13

+8VHIP

*

2K7

3P17

3P18

47R
6P02

*

1SS356

3K9

3P19

*

6

5CCE

78

5P07

1234

COIL 40.4 SUPPRESSION

23

Circuit Diagrams and PWB Layouts

B13b

+5VHIP

IP30

IP24

+5VHIP

100u

2P01

3P01

IP31

8V0

2R2

3P02

IP32

1R

SAW-FILTER AUDIO

2

3

1P04-B

1184 5 6 9 1013 1415

IP26

+8VHIP

IP29

8V0

+8VPIP

7

8

NCMT

111216

2P02

6P03

BA591

3P08

4K7

100n

5P01

30R

5P04

0V5

IP27

IP28

6u8

1P04-A

OFWK9656L

*

9P01

OFWK9656L

+8VHIP

1P05-A

OFWK1967L

1P06-A

OFWK3953L

1415

*

7

8

NCMT

111216

7

8

NCMT

111216

4K7

3P09

*

*

9P10

SAW-FILTER VIDEO

2

3

1P05-B

OFWK1967L

11845691013

*

*

9P16

1SS356

9P11

7P01

*

5K6

SAW-FILTER VIDEO

2P06

AP09

220p

5

2P07

2P08

68p

1P06-B
OFWK3953L

2p7

2

3

1184 5 6 9 1013 1415

45678910

AGC2

2K2

3P03

IP02

3P04

3P05

AP04

AP05

AP06

AP07

17

IP01

1P08

TPWKA

1

I

2

GND

17

3P14

*

5K6

0V5

3P15

5K6

17

3P06

100R

4K7

IP00

5K6

9P02

IP22

3P11

470R

9P05

5P05

BC847BW

IP69

IP70

*

FP08

6R8

RES

3P10

FP27

MODULATOR COIL

47u

2P05

RES

IP03

*

3u9

*

3

13

O

2

7P03

*

7P04

BC857BW

4K7

3P16

5V0

IP33

+8VHIP

2P25

7

8

1

2

34

BC847BW

9P03

9P00

5P06

FP14

2u2

1P09

TPWKA

O

I

GND

3P40

120R

9P09

RES

9P14

*

9P23

RES

9P17

10u

5CCB
5P08

6

7P05

3P27

9P08

RES

3P38

1K0

IP34

5P09

30R

5P10

30R

3P21

100K

2P22

2P19

100n

5V4

2V4

180R

3P28

390R

FP13

*

9P07

1

*

IP35

*

RES

2P17

470n

+8VHIP

7V6

9P30

1P07

SFSCC

2P24

2P23

*

22n

2P20 1u0

4p72P49

FP15

7P06

2V7

47p2PG2

3P71

560R

+8VHIP

*

2

1u02PG0

1u02P21

1u02PG1

5p6

V1

9P06

BC847BW

3P32

560R

9P18

RES

*

3P39

3

*

3P37

100n

100n

+8VHIP

3

5

7P07-2
BC847BS

4

1K0

3P33

LMN

B2(4x),B15a(3x)

BG

B2(2x),B15a

9P19

TER-CVBS-OUT-SUB

B14b

RES

MONO-HIP-OUT

B15a

3P25

390R

3P26

470R

5P11

33u

4K7

4K7

EN 74FTL2.1U, FTL2.2U 7.

9 1011121314

B15c

100R

0V5

B15a

27

5V0

PIP-SYS2

B15a

IP36

58

HPLL

SYNC

SVBCOUT

30

PIP-FSC

B15a

B15c

VS-HIP-OUT

HS-HIP-OUT

61

60

VA

HA

FBL1IN

OUTP SWITCH

FBL2IN

YOUT

UOUT

VOUT

X3.579

X3.575

X3.582

X4.43

COL_PLL

SEC_DEC

SCOUT

59

RES

PIP-CVBS-COMB

PIP-SC

B15a

FP23

R1IN

G1IN

B1IN

R2IN

G2IN

B2IN

RES

B

2P29

3P24

15K

1u0

2P30

4n7

2P31

36

37

38

39

41

42

43

40

49

50

51

57

56

55

54

52

53

2P34

100n

100n

2P32

100n

2P45

100n

2P47

100n

9P13

3P29

2P35

9P26

9P27

2P33

100n

*
*

100K

2P36

100n

+5VHIP

RES

9P20

RES

9P21

7P11

100K

FP29

3P46

RES

TDA9181

INPSEL

2

12 Y|CVBS1

3 Y|CVBS2

1 CIN

7SC

100K

IP38

PIP-SC

B15a

9P22

2P91

100n

IP37

3P45

RES

2P46

100n

1P00

2P37

3n3

RES

FP40

4M433619

15p

2P38

CLAMP

CLAMP

SAND-

CASTLE

AGND

13

FP38

FP39

FP24

FP25

FP26

HC-49/U

1p2

DGND

4

7P11-P4

B15a

FP37

SC2-R_C-IN_AV2

SC2-B-IN_C-OUT

3P90

560R

*

*

15p

2P39

2P96

100n

TUNING

B14c

SUB-V

B14c

SUB-Y

B14c

SUB-U

B14c

SC1-FBL-IN

B2, B14b,g

B2, B14b,g

SC2-G-IN

B2, B14b,g

B2, B14c

SC2-FBL-IN

B15c

Y-HIP-OUT Y-HIP-OUT

B15c

U-HIP-OUT

B15c

V-HIP-OUT

I

2

1

I

GND

1P12

O

O

3

SFSRH

*

9P28

1p5

2P40

7P55-I

+5VHIP

B15b

RES

6

VCC VDD

2H/4H DELAY

ADAPTIVE

COMB FILTER

FILTER

IP39

2P92

RES

B15a

PIP-FSC

FSC8FSCSEL

9

100n

3P47

RES

CLOCK

100K

GEN

5M5

2P41

5

SYS110SYS2

11

PIP-SYS1

B15a

3P91

560R

15p

PIP-SYS2

B15a

+8VHIP

3K3

7P10

GND

RES

RES

RES

5M5

SFSRH

14

16COUT

3P42

3P43

1P03

2P43

1K8

IP73

1K5

HC-49/U

4M433619

12p

2P44

IP40

2P94

PIP-COMB-Y_CVBS-OUT

2P93

IP42

100n

SIF-OUT

3P92

560R

I

1

680R

I

GND

5M5

O

1P11

1p2

*

O

3

2P97

SFSRH

7P55-M

7P55-BG

B15b

B15b

7P11-P4

RES

IP41

100n

IP43

RES

PIP-COMB-C-OUT

E_14620_110.eps

070704

3P41

RES

BFR93AW

I

1

I

1P10

O

O

3

9P29

*

1p5

2P42

7P55-DK

B15b

RES

2P95

100n

Y|CVBSO

OUTSEL

15

B2(2x),B15a(3X)

48

ADSEL

7P09

TDA9321H

COMBOUT

26

+8VHIP

100R

7P08

9P24

47R

3P34

FP42

PIP-CVBS-MON

B15a

B2(2x),B15a

BG

LMN

5V0

19

17

AV115AV2

SW0

LUMA & CHROMA PROC.

7V6

2V8

3P35

470R

FP36

PIP-COMB-Y_CVBS-OUT

PIP-CVBS-COMB

B15a

SCL-S

3P23

3P22

100R

0V5

22

46

SCL

SW01

YCOMBIN

CCOMBIN

28

29

PIP-COMB-C-OUT

B15a

B15a

SDA-S

47

SDA

SYS125SYS2

PIP-SYS1

B15a

1u0

44

GND_1

2P15

100n

2P27

23

35

DEC

2P12

100n

2P28

IP21

24

1u0

33

100n

DIGDEC

PIPOUT

32

3P44

100n

GND_DEC

+8VHIP

31

DIGGND

CVBSOUT

34

3P30

100R

IP72

9P25

BC847BW

RES

cP00

cP01

MONO-HIP-OUT

8V0

3P48

100u

2P99

8V0

FP02

5

100u

2P98

QSS_AM

64

SIF2

63

SIF1

IP17

1

AGCSIF

2

VIF1

3

VIF2

FP16

4

AGCDEC

6

PLLRILT

7

VCO1

2P18

8

VCO2

62

TUNERAGC

10

VIFOUT

I6

GROUP

12

DELAY COR.

IN

13

OUT

9P15

IP71

*

14

CVBSINT

V2

100n

2P16

FP17

3P31

22n

2P09

2P26

100R

IP20

9

45

+8_111+8_2

GND_2

SUPPLY CTRL

HIP

IF DEM

I/O SWITCH

Y_CVBS320Y_CVBS4

C321C4

CVBS116CVBS2

18

100n

100n

2P14

2P13

100n

2P11

2P10

470R

9P12

+8VHIP

B14a

C-PIPDW-OUT

B14a

FP12

PIP-OUT1

B15b

2

B14a

3P36

FP11

PIP-AM

BC847BS

7P07-1

1

1K0

SIF-OUT

IN-CVBS-SC1_AV1-SUB

CVBS-PIP_TUN1-2-CVBS-IN

B2

B15a

B14b

IP10

AV3-CVBS-IN

B2,B14a,g

B14b

IN-Y-CVBS-SC2_AV2

SC2-R_C-IN

B14b

Y-CVBS-PIPDW-OUT

B14a

FP41

6

*

3P93

2n2

B15a

B15a

B15a

B15a

A

B

C

D

E

F

G

H

I

1P00 E11

1P03 E13

1P04-A C3

1P04-B D3

1P05-A E4

1P05-B F3

1P06-A G4

1P06-B G3

1P07 G7

1P08 E5

1P09 E6

1P10 E13

1P11 F14

1P12 E12

2P00 B1

2P01 B2

2P02 B2

2P03 C1

2P04 D2

2P05 D5

2P06 G3

2P07 G3

2P08 H3

2P09 B8

2P10 F8

2P11 F8

2P12 F8

2P13 F8

2P14 F8

2P15 F8

2P16 F7

2P17 E7

2P18 D7

2P19 D7

2P20 C7

2P21 C7

2P22 C7

2P23 B7

2P24 B7

2P25 B6

2P26 B8

2P27 B8

2P28 B9

2P29 B11

2P30 B11

2P31 C11

2P32 C11

2P33 C11

2P34 F11

2P35 F11

2P36 F11

2P37 F11

2P38 F12

2P39 F12

2P40 F12

2P41 F13

2P42 F13

2P43 F13

2P44 F14

2P45 C11

2P46 D11

2P47 D11

2P49 D7

2P91 G11

2P92 I12

2P93 G14

2P94 G14

2P95 G13

2P96 G12

2P97 F14

2P98 B7

2P99 B7

2PG0 C7

2PG1 C7

2PG2 F7

3P00 B2

3P01 B3

3P02 B3

3P03 B5

3P04 B5

3P05 B5

3P06 B5

3P07 D2

3P08 D2

3P09 E3

3P10 D5

3P11 E5

3P12 E2

3P13 F2

11 12 13 14

3P14 F5

3P15 G5

3P16 G5

3P17 G2

3P18 G2

3P19 G2

3P20 H1

3P21 B7

3P22 B10

3P23 B10

3P24 B11

3P25 D7

3P26 D7

3P27 E6

3P28 E6

3P29 E11

3P30 F9

3P31 F8

3P32 F7

3P33 I6

3P34 G9

3P35 G9

3P36 H7

3P37 H7

3P38 H6

3P39 G7

3P40 F6

3P41 D13

3P42 D13

3P43 D13

3P44 F9

3P45 H11

3P46 H11

3P47 I12

3P48 B8

3P71 F7

3P90 E12

3P91 E13

3P92 E14

3P93 E14

5P00 A2

5P01 B3

5P02 C1

5P03 A1

5P04 D3

5P05 E5

5P06 E6

5P07 H2

5P08 D6

5P09 B7

5P10 B7

5P11 F7

6P00 E2

6P01 E2

6P02 G2

6P03 D2

7P00 D2

7P01 F2

7P02 H1

7P03 F5

7P04 G5

7P05 D6

7P06 E7

7P07-1 H7

7P07-2 I6

7P08 F9

7P09 D9

7P10 D13

7P11 G11

9P00 E6

9P01 C3

9P02 D5

9P03 D6

9P04 E2

9P05 E5

9P06 E7

9P07 F7

9P08 G6

9P09 F6

9P10 F3

9P11 E3

9P12 G8

9P13 D11

9P14 G6

9P15 E7

9P16 E3

9P17 H6

9P18 G7

9P19 H5

9P20 F11

9P21 G11

9P22 G11

9P23 H6

9P24 G9

9P25 F9

9P26 E11

9P27 E11

9P28 F12

9P29 F13

9P30 F7

AP02 C1

AP04 C4

AP05 C4

AP06 C5

AP07 C5

AP09 G3

FP02 B8

FP03 C1

FP08 B5

FP11 I7

FP12 G9

FP13 F7

FP14 E6

FP15 D7

FP16 C7

FP17 F7

FP23 B11

FP24 D12

FP25 D12

FP26 D12

FP27 D5

FP29 H11

FP36 G9

FP37 C12

FP38 C12

FP39 C12

FP40 C12

FP41 H8

FP42 H9

IP00 B5

IP01 E5

IP02 B5

IP03 E5

IP10 H8

IP17 C7

IP20 B8

IP21 B9

IP22 D5

IP23 A2

IP24 A3

IP25 B2

IP26 B4

IP27 B3

IP28 B3

IP29 B4

IP30 A3

IP31 B3

IP32 C3

IP33 B6

IP34 B7

IP35 B7

IP36 B10

IP37 H11

IP38 H11

IP39 H12

IP40 G13

IP41 G14

IP42 G13

IP43 G14

IP68 F2

IP69 F5

IP70 G5

IP71 E7

IP72 F9

IP73 D14

cP00 A8

cP01 A8

Circuit Diagrams and PWB Layouts

Small Signal Board: PIP Switch

1P50 E2
2P50 E4
2P51 E1
2P52 F2
2P53 F2

2P54 F2
2P55 G2
2P56 G6
2P57 G6
2P58 F6

2P59 I5
2P60 H6
2P61 I6
2P62 F6
2P63 F7

2P65 F9
2P66 F9
2P70 E6
2P71 E15
2P72 E7

2P73 E8
2P74 D6
2P75 B8
2P76 E1
2P77 E4

2P78 E12
2P79 E7
2P80 F14
2P81 F14
2P87 D2

2P88 D1
2P90 E6
2PE7 H7
2PE8 G7
2PE9 A13

2PG6 F8
3P49 B13
3P50 D1
3P51 E1
3P52 E4

3P53 E2
3P54 F2
3P55 I6
3P56 H5
3P57 G6

3P60 F5
3P61 E8

3P62 H6
3P63 H6
3P64 H7

3P65 H15
3P66 G15
3P67 G14
3P68 F14
3P69 F14

3P70 F14
3P72 E14
3P74 E15
3P75 H6
3P76 F5

3P79 D4
3P80 C2
3P81 D4
3P82 D2
3P85 F14

EN 75FTL2.1U, FTL2.2U 7.

3P86 C10
3P87 C10
3P88 D6
3P94 D5
3P95 D4

3P96 G7
3P97 G7
3P98 G6
3P99 G6
3PG7 F7

3PG8 F7
3PJ0 B11
3PJ1 B12
3PJ2 B12 9PB7 B11
3PJ3 B12

3PJ4 B13
3PJ5 B14
3PJ6 B14
3PJ7 B14
3PJ8 C14

3PJ9 C15
5P50 D4
5P51 E15
6P10 F8
7P51 D3

7P52 G4
7P52-1 F5
7P53-1 G6
7P53-2 H6
7P54 G9

7P55 B7
7P56 G13
7P58-1 G7
7P58-2 H8
7P59-1 F7

7P59-2 G7
7P60 B15
7P61-1 B14
7P61-2 C14
7P62 B13

7P63 B12
9P31 H6
9P32 G6
9P52 F5
9P53 G5

9P54 I6
9P69 I13
9P70 I13
9P71 I13
9P72 F1

9P73 G9
9P74 G9
9P75 H9

FP50 E15

FP51 G10
FP52 G10
FP53 G10
FP55 E15
FP56 C10

FP57 I7
FP59 G15
FP60 H9
IP50 C2
IP51 E4

IP52 F5
IP53 E2
IP54 E3
IP55 G6
IP56 E14

IP57 D8
IP58 E7
IP59 B9
IP60 C7
IP61 D8

IP62 D14
IP63 F12
IP64 F12
IP74 G5
IP75 F5

A

B

C

D

E

B15a
PIP-CVBS-MON

9P72

CVBS-Y-RECORD-IN

B5a,B14a,b

F

SDA-VCHIP

G

SCL-VCHIP

H

I

8204 000 8339.4

1

234567

PIP SWITCH

7P55-M

B15a

7P55-BG

B15a

7P55-I

B15a

7P55-DK

2P50

+5VD

3P95

V35

100n

V34

+5VD

3P94

4K7

7P52-1BC847BS

+5VPIP

IP75

BC847BS7P52-2

3

5

IP74

3P56

4K7

+8VPIP

2P90

IP52

9P53

2P58

1u0

3P60

680R

RES

+5VPIP

3P98

10R

9P32

RES

IP55

RES

47p

3P57

3P62

10R

9P31

V33

2P60

1u0

2P59

RES

3P55

RES

1K

9P54

6

1

2

9P52

10R

3P76

4

10R

+5VD

IP50

3P80

*

6K8

2P88

22p

2P76

8p2

*

1u0

2P87

*

*

3P50

*

3P51

3P82

*

470K

10M

32K768

DMX-26S

*

1P50

10M

*

7P51

*

Z86130

1

I2C-SEL

2

HSEL

3

XOUT

4

SEN

5

HIN-XIN

6

SMS

VIDEO

IP53

8

CSYNC

IP54

9

LPF

VIN-INTRO

RREF

NC2

NC1

SDO

SCK

SDA

VDD

VSS

18

3P79

17

16

15

14

13

127

11

10

IP51

*

100R

3P81

*

100R

5P50

*

6u8

*

*

2P77

100n

3P52

*

10K

V-CHIP

2P51

3P53

100n

*

470R

*

56p

2P52

2P53

100n

2P54

*

68n

2P55

*

6n8

*

3P54

*

6K8

(US ONLY)

B6a,B15c

B15c

IN-U50

HA50-PIP

DU

+5VPIP

B6a,B15c

IN-V50

DV

B15c

IN-Y50

B15c

MUPPET_BLK
DY-IN

12345

AUDIO DEMODULATOR

7P55
TDA9820T/V1

M

3

B|G

1

IN1

I

16

D|K

2

7 STAGE

LIMITER

AMPLIFIER 1

3P88

100u

IP60

100n

2P74

3R9

7V9

100n

2P70

7 STAGE

IN215

LIMITER

AMPLIFIER 2

SUPPLY

VCOREF

VP

CSTAB

GND

13

IP58

2P72

NC1

1114

12

IP57

4V4

3P61

1u0

1u0

2P79

VIDEO SWITCH

3P75

100R

3P99

680R

2P57

680R

+5VPIP

RES

+5VPIP

2P56

BC857BS
7P53-2

FP57

3PG7

4K7

2P63

4K7

3P97

2PE8

1u0

4K7

3P96

47p

RES

0V

47p

2P62

RES

BC857BS
7P53-1

1u0

3P63

680R

47p

2P61

RES

4K7

3P64

2PE7

1u0

100n

3PG8

1K0

7P59-2
BC847BS

BZX384-C2V7

10u10V

2PG6

BC847BS
7P59-1

BC847BS
7P58-1

BC847BS
7P58-2

67

4

27K

6P10

8

VCO1

VCO2

2V5

BA7609F

1
16
2

14
11
12

8
9
7

2V5

1u

2P75

IP59

9

C1

CONTROL

UNIT

C2

10

IP61

1u

2P73

3-CHANNEL

VIDEO SWITCH

IN1A
IN1B
CTL1

IN2A
IN2B
CTL2

IN3A
IN3B
CTL3

4

91011121314

B15B

B15B

+5VPIP

3PJ1

680R

100n

1

BC857BW
7P63

0V1*0V1

SO

3PJ2

330R

0V1

0V1

D04D15D26D37D4

I/O PORT

DATA LATCHES

REG

SHIFT

GND

7P54

10

VAF1 8

VAF2 7

+5VPIP

VCC

OUT1

OUT2

OUT3

FP60

res

SEL_PIP_SOUND2

SEL_PIP_SOUND1

DY

9PB7

3PJ0

10R

SUB-ATTENUATION

+8VPIP

FP56

10K

3P86

10K

S1 5

0V1
0V1

6

S2

2P65

10V

10u

2P66

100n

13

15

V38

3

9P74

V39

5

9P73

V37

9P75

6

3P87

FP52

U-PIP+MAIN-OUT

FP51

V-PIP+MAIN-OUT

FP53

Y-PIP+MAIN-OUT

PIP-FM

B15b

B15b

B14d

SEL_PIP_SOUND1

SEL_PIP_SOUND2

SUB-SYNC-INSERT

SUB-ATTENUATION

B6a,B14c

B6a,B14c

B6a,B14c

2P78

IP63

IP64

8 9 10 11 12 13

2PE9

1u0

3PJ4

680R

120R

3PJ3

3P49

390R

1

4

0V1

0V1

9D510D611D712

888

OUTI/OIN

88

8

TRANSCEIVER

C BUS

CHIP SELECT

14

9P71

9P70

DY-IN

+5VPIP

+5VPIP

7P61-1

1

X1

0V1

BC847BS

2

1

7P62

35

74LVC1G66GW

0V1

7P56
M62320

GND 8

RES

PWR

VDD

13

SDA

3

I

2

SCL

2

CS016CS115CS2

I/O EXPANDER

9P69

+5VPIP

3PJ5

820R

6

2

1

3PJ6

680R

2K2

3PJ7

res

3

5

7P61-2

BC847BS

4

IP62

+5VD

5V2

3P72

4K7

3P70

4K7

3P69

4K7

3P68

4K7

3P67

4K7

2P80

+5VD

14 15

3PJ8

1K8

IP56

100u

3P85

4K7

7P60

1

4

3PJ9

4K7

2P81

3P66

3P65 100R

1

X1

3P74

2R2

5P51

30R

100n

FP59

15

+5VPIP

74LVC1G66GW

HA50-PIP

2

1

35

SUB-SYNC-INSERT

B14c(3x),f,g

SWITCH-MAIN

PIP_RESET

+5VPIP

FP50

+5V

10u

2P71

FP55

FBLK

B15c

SWITCH-SUB

B14c(2x)

100R

SDA-S

SCL-S

E_14620_111.eps

B15c

070704

A

B

C

D

E

F

G

H

I

Small Signal Board: PIP Muppet

2PA0 B5

2PA1 B5

2PA2 B5

2PA3 B5

2PA4 C5

2PA5 C5

2PA6 E6

2PA7 D5

2PA8 F2

2PA9 E5

2PB0 F4

2PB1 G4

2PB2 G4

2PB3 G5

123456789101112

2PB4 G5

2PB5 H2

2PB6 G5

2PB7 H5

2PB8 B7

2PB9 B7

2PC0 B7

2PC1 B7

2PC2 B7

2PC3 B7

2PC4 B8

2PC5 B8

2PC6 B8

2PC7 C8

2PC8 C8

2PC9 C8

2PD0 B9

2PD1 B9

2PD2 B10

2PD3 B10

2PD4 B10

PIP MUPPET

A

3PA0

3PC4

680R

220R

IPB2

3PB7

100R

IP80

3K3

3PB9

+5VPIP

7PA7

BC847BW

RES

9PA4

RES

9PA5

IP82

3PC7

220R

47p

B15a

B

C

B15a

U-HIP-OUT

V-HIP-OUT

D

B15a

HS-HIP-OUT

B15a

B15a

B15c(2x)

PIP_RESET

VS-HIP-OUT

SDA-S

HA

SCL-S

E

F

B6a,B15b

IN-Y50

G

B6a,B15b

IN-U50

H

B6a,B15b

IN-V50

B6a,B14c

VA50-PIP

I

B15c(2x)

HA

8204 000 8339.4

1234

6PA1

BAS316

RES

3PB2

1K5

2PA8

100n

2PB5

Circuit Diagrams and PWB Layouts

2PD5 B10

2PD6 B10

2PD7 C10

2PD8 C10

2PD9 C11

2PE1 E13

IP76

9PA0

BC847BW

7PA8

+5VPIP

+5VPIP

RES

3PA8

220R

9PA1

+5VPIP

RES

3PB1

7PA2

BC847BW

3PB4

7PA5

BC847BW

3PG5

680R
3PC8

100R

7PA0

BC847BW

3PG3

IP77

RES

470R

1K5

3PC2

100R

2PE2 E13

2PE3 F13

2PE4 G12

2PE5 F12

2PF1 D13

2PF2 D13

680R

9PB4

3PB8

1K8

9PA3

RES

RES

3PC9

3PD0

220R

+5VPIP

RES

3PB3

220R

BC847BW

RES

IPB5

3PC3

39K

9PA6

2PF3 F4

2PF5 D14

2PF6 D14

2PF7 D5

2PF8 G5

2PF9 G12

3PA0 B2

B15a(2x)

Y-HIP-OUT

9PB3

3PG2

7PA1

BC847BW

RES

7PA3

3PC0

2PB0

1u0

39K

IP81

3K3

RES

RES

680R

+5VPIP

3PB0

1K5

3PC1

100R

+5VPIP

7PB6

BC847BW

3PG4

2PF3

7PA9

BC847BW

3PA1 B4

3PA2 B4

3PA3 B4

3PA4 B4

3PA5 H12

3PA6 C4

3PA7 C4

3PA1

100R

3PA3

100R

3PA7

100R

680R

RES

6PA0

IPB3

BZX384-C3V9

9PA2

3PC5

4K7

150p

3PG6

680R

39K

IP78

3PD3

1K8

3PD5

3K3

3PA8 C3

3PA9 C5

3PB0 D4

3PB1 D3

3PB2 D2

3PB3 D3

3PB4 E3

RES

3PA2

3PA4

RES

39K

RES

IP79

2PB1

150p

2PB2

100n

IPB4

2PA2

100n

3PA6

3PF5

2PB4

150p

3PD1

3PD2

100R

39K

RES

RES

RES

39K

EN 76FTL2.1U, FTL2.2U 7.

47R

IPC4

6PB8

2PD8

96

VSSD_MA

TCBC

46

+3VD

3PH8

5PA8

BAS316

RES

10u

2PD9

DISPLAY

CONTROL

TM

9PA1 C3

9PA2 E4

9PA3 F3

9PA4 G2

9PA5 G2

9PA6 H3

9PA7 H5

12u

IPC5

100n

TC

38

44

2PA0

2PA4

100n

2PA7

3PB5

1K0

3PB5 E5

3PB6 D5

3PB7 E2

3PB8 E3

3PB9 F2

3PC0 E3

3PC1 F4

1u0

150p

100n

RES

7PA4

BC857BW

3PB6

1K

2PB7

9PA7

3PD6

10K

1K2

RES

150p

2PF7

3PC6

100n

IP83

2PA1

2PA3

2PA5

10u 10V
IPA7

FPA1

7PB5

BC847BW

39K

7PB0

BC847BW

3PA9

39K

FPB1

2PB6

RES

150p

3PD9

RES

3PC2 F3

3PC3 F3

3PC4 G2

3PC5 E4

3PC6 G5

3PC7 G22PE0 B12

3PC8 G3

3K3

FPA0

2PA9

10u

FPA2

FPA3

2PB3

100n

2PF8

100n

+3.3V

3PD4

1V0

2PA6

3V2

10V

IPA9

1610u

FPA5

4K7

9PA8

3PC9 G3

3PD0 H3

3PD1 H5

3PD2 H5

3PD3 H42PE6 H13

3PD4 H5

3PD5 I4

2V7

IPA8

100n

FPB2

2V7

IPB0

1V0

FPA4

RES

3PD6 I5

3PD7 I6

3PD8 I6

3PD9 E5

3PE0 B12

3PE1 B12

3PE2 C13

47R

3PI0

+3V

IPB7

0u82

5PA0

6PB1

7PA6
SAB9081H

83

79

81

84

82

80

87

72

75

74

73

98

2

100

97

99

1

94

70

2PB8

BAS316

10u

2PB9

100n

3

VDDA_MF

SY

SU

SV

Vbias_SA

Vref_T_SA

Vref_B_SA

SHSYNC

SVSYNC

POR

SDA

SCL

MY

MU

MV

Vbias_MA

Vref_T_MA

Vref_B_MA

DHSYNC

DVSYNC

NC254NC355NC456NC557NC658NC759NC860NC9

NC1

53

52

1K2

3K3

3PD7

3PD8

3PE3 A13

3PE4 B14

3PE5 B14

3PF0 F12

3PF1 G14

3PF2 F12

3PF3 G14

47R

+3V

12u

5PA1

6PB2

2PC0

10u

2PC1

100n

4

6

5

VDDA_DA

VSSA_MA

VDDA_MA

CLAMP

AND A/D

CONVERTER

PLL AND CLOCK

GENERATION

IIC BUS

CONTROL

CLAMP

AND A/D

CONVERTER

PLL AND CLOCK

GENERATION

3PF4 F12

3PF5 F4

3PF6 E12

3PF7 E13

3PF8 E12

3PF9 E13

3PG0 F12

3PH2

+3VD

IPB6

BAS316

7

14

VSSA_DA

VDDD_DA

5PA2

2PC2

15

VSSD_DA

3PG1 F13

3PG2 B4

3PG3 B3

3PG4 C4

3PG5 G3

3PG6 H4

3PH2 A7

47R

4u7

6PB3

100n

16

VSSD_P1

2PC3

3PH3

+3VD

5PA3

BAS316

10u

RES

17

VDDD_P1

4u7

2PC4

2PC7

39

20

VDDD_RL

VDDD_RP

3PH3 A7

3PH4 A8

3PH5 A9

3PH6 A9

3PH7 A10

3PH8 A11

3PH9 A11

100n

100n

H/V FILTER

MUPPET

H/V FILTER LINE MEMORY

NC1021NC1122NC12

31

NC1324NC1425NC1526NC16

47R

6PB4

100n

2PC5

2PC6

2PC8

40

41

42

VSSD_RL

VSSD_RM

VDDD_RM

LINE MEMORY

3PI0 A6

5PA0 B6

5PA2 B7

5PA3 B8

5PA4 B9

5PA5 B10

3PH4

BAS316

RES

10u

100n

2PC9

61

VSSD_RP

NC1728NC18

27

100n

64

VDDD_P2

5PA6 B10

5PA8 B11

5PA9 C14

5PB0 D14

6PA0 D4

6PA1 E2

47R

IPC2IPB8 IPB9

6PB5

66

65

VSSD_D

VSSD_P2

NC19

29

3PH5

BAS316

+3V

5PA4

67

VDDD_D

6PB7 B10

6PA2 B13

6PB8 B10

6PB1 B6

6PB9 B11

6PB2 B7

6PB3 B7

7PA0 B3

6PB4 B8

7PA1 C3

6PB5 B9

7PA2 D3

6PB6 B9

7PA3 D4

47R

3PH6

+3V

+3VD

IPC3

6PB6

RES

77

VSSA_SA

78

VDDA_SF

BAS316

2PD2

10u

2PD3

100n

5PA5

85

VSSD_SA

12u

5PA6

86

VDDD_SA

VDDA_SP

0u82

2PD0

10u

2PD1

100n

76

VDDA_SA

PROCESSING

T036T135T234T333T432T588T6

37

47R

6PB7

12u

90

89

VSSA_SP

CONTROL

7PA4 D5

7PA5 E3

7PA6 C65PA1 B7

7PA8 G3

7PA9 H4

7PB0 I5

3PH7

IPC1

BAS316

2PD4

100n
2PD5

10u

2PD6

10u

2PD7

100n

91

VSSA_DP

TEST

T7

9323

+3V

12u

5PA7

92

VDDA_DP

VDDD_MA

DAC

TCBD47TCBR

TCLK

43

7PB1 H13

7PB2 B125PA7 B10

7PB3 B13

7PB4 B14

7PB5 E5

7PB6 A4

9PA0 B3

95

45

567891011

B14a

47R

6PB9

DCLK

71

9PA8 I5

9PB1 C14

9PB2 C13

9PB3 B4

9PB4 D3

9PB5 B13

9PB8 E12

3V3_FAULT_PIP

3PH9

BAS316

VSSD_T1

VSSD_T2

VSSD_T3

VSSD_T4

VSSD_T5

VSSD_T6

VSSD_T7

VSSD_T8

VSSD_T9

Vbias_DA

Vref_T_DA

Vref_B_DA

PKOFF

FPA7 D15

FPA0 E5

FPA8 E15

FPA1 D5

FPA9 F15

FPA2 F5

FPB0 C147PA7 F2

FPA3 F5

FPA4 G6

FPB1 F5

FPA5 G6

FPB2 F6

FPA6 B15

IP76 B3

HA50-PIP

RES

3PE1

470R

IP85

3PE0

1K5

3n3

2PE0

RES

18

19

30

48

49

50

51

62

63

9PB8

3PF0

8

DY

12

DU

10

DV

9

IPA5

11

1V2

IPA6

13

0V2

2PE4

69

68

FBL

0V

3PF6

560R

3PF8

820R

120R

3PF2

100n

+3V3_SIM

3PG0

560R

270R

3PF4

22K

1610u

2PF9

7PB2

BC847BW

9PB2

2PE5

100n

74LVC1G32GW

3PA5

220R

RES

IP77 C3

IP78 D4

IP79 E4

IP80 E2

IP81 H4

IP82 G2

IP83 I5

9PB5

BC847BW

1K5

3PE2

10u

2PF1

3PF7

470R

3PF9

120R

3PG1

68R

+3.3V

7PB1

1

2

35

IP84 B14

IP85 B12

IPA1 C14

IPA3 D14

IPA5 F12

IPA6 G12

IPA7 D5

13

RES

7PB3

2PF2

RES

RES

RES

IPA8 D6

IPA9 G6

IPB0 G6

IPB1 B14

IPB2 D2

IPB3 D4

IPB4 B5

IPB5 F3

IPB6 A7

IPB7 A6

IPB8 A8

IPB9 A8

IPC1 A10

IPC2 A9

IPC3 A9

IPC4 B11

IPC5 B11

14 15

+5VPIP

RES

1K5

3PE3

RES

IP84

3PE4

IPB1

220R

RES

6PA2

BZX384-C3V9

9PB1

FPB0

IPA1

100n

2PE1

2PE2

2PE3

100n

4

5PA9

30R

IPA3

5PB0

30R

47p

47p

47p

3K3

3PF3

2PE6

3PF1

1K5

RES

RES

RES

BC857BW

7PB4

3PE5

2PF5

2PF6

FPA6

RES

1K

100n

100n

+3.3V

+3V

+3VD

FPA7

FPA8

FPA9

MUPPET_BLK

B15c(2x)

HA

B15b

DY

B15b

DU

B15b

DV

B15b

FBLK

B15b

A

B

C

D

E

F

G

H

I

E_14620_112.eps

070704

12 13 14 15

Circuit Diagrams and PWB Layouts

Small Signal Board: HDI A/D Converter

12345

HDI A/D CONVERTER

7L02

A

B

C

B14g

D

B14g(2x)B19a

E

F

B14g

B14c,g

B14c(2x)

G

B14g(2x),B19a

H

I

8204 000 8346.5

FL17

+5V

6.3V

2L19

22u

AL06

V-2 FH

AL07

Y-2 F H

AL08

U-2FH

HS-2FH

VS-2FH

Y-2 F H

12345

LD1117DT33C

32

OUTIN

COM

2L33

100n

1

3L04

100R

4p7

2L48

3L05

100R

4p7

2L49

RES

3L11

100R

4p7

2L50

PVD

RESRES

5L02

470n

5L04

470n

5L06

470n

2L31

47n

2L26

33n

2L27

4n7

2L32

3n3

+3V3-AD

2L34

FE02

2L28

2L30

IL07

100n

2L29

3L08

EN 77FTL2.1U, FTL2.2U 7.

678910

5L16

VD

5L13

2L07

2L06

2L58

5L17

5L14

2L00

5L18

5L15

2L51

FL09

22p

FL10

22p

FL12

22p

IL08

2K7

3L12

470R

22u 6.3V

6.3V22u

22u 6.3V

2L01

2L12

2L08

3L19

100n

100n

100n

680R

3L20

2L02

2L13

2L09

680R

FL11

100n

100n

100n

3L21

2L60

2L03

2L14

2L20

FL13

680R

47p

100n

100n

100n

2L04

2L15

2L21

100n

100n

100n

3L29

150R

3L30

150R

3L31

150R

3L32

470R

2L56

1n0

2L05

2L16

100n

100n

2L17

3L33

470R

COAST

RES

100n

100n

2L18

3L06

100R

IL10

100n

2L10

100n

VDD

IL11

A/D CONVERTER

VDD

IL12

PVD

7L01

AD9883AKST

1122236978

VDD

2L52

47n

2L57

47n

3L02

RES

470R

RES

2L59

3L03

100R

1n0

2L54

47n

2L11

100n

470R

3L28

VD

IL09

47p

RAIN54

GAIN48

BAIN43

IL06

MIDSCV37

HSYNC30

VSYNC31

SOGIN49

CLAMP38

COAST29 DATACK 67

FILT33

SDA57

SCL

56

A055

CLAMP

CLAMP

PVD

79

2662273942

45

465152

VD

A/D

A/DCLAMP

A/D

SYNC

PROCESSING

AND CLOCK

GENERATION

SERIAL REGISTER

AND

PWR MANAGMENT

59

8

8

8

REF

VD

34

PVD

SOGOUT 65

REF-BYPASS

PVD

35

ROUTA0

ROUTA1

ROUTA2

ROUTA3

ROUTA4

ROUTA5

ROUTA6

ROUTA7

GOUTA0

GOUTA1

GOUTA2

GOUTA3

GOUTA4

GOUTA5

GOUTA6

GOUTA7

BOUTA0

BOUTA1

BOUTA2

BOUTA3

BOUTA4

BOUTA5

BOUTA6

BOUTA7

HSOUT 66

VSOUT

to EPLD

77

76

75

74

73

72

71

70

9

8

7

6

5

4

3

2

19

18

17

16

15

14

13

12

FL15

FL03

64

FL04

AL02

FL05

58

2L25

100n

UV-AD-0

UV-AD-1

UV-AD-2

UV-AD-3

UV-AD-4

UV-AD-5

UV-AD-6

UV-AD-7

Y-AD-0

Y-AD-1

Y-AD-2

Y-AD-3

Y-AD-4

Y-AD-5

Y-AD-6

Y-AD-7

U-AD-0

U-AD-1

U-AD-2

U-AD-3

U-AD-4

U-AD-5

U-AD-6

U-AD-7

H-2FH-AD-OUT

V-2FH-AD-OUT

SYNCDET

CLK-2FH

GND

1

2021242528

36

32

40414447505360

6163681080

SDA-F3

SCL-F3

678910

11

B19d

B19d

B19d

B19d

B14g,B19d

B19d

B19b

B19b,d

B19b,d

11

E_14620_113.eps

070704

A

B

C

D

E

F

G

H

I

2L00 B3

2L01 A4

2L02 A4

2L03 A4

2L04 A4

2L05 A4

2L06 A5

2L07 A5

2L08 C4

2L09 C4

2L10 A5

2L11 F6

2L12 B4

2L13 B4

2L14 B4

2L15 B4

2L16 B4

2L17 B5

2L18 E5

2L19 A1

2L20 C4

2L21 C4

2L25 H10

2L26 H2

2L27 H2

2L28 D3

2L29 E3

2L30 F3

2L31 H2

2L32 H2

2L33 A2

2L34 A3

2L48 D2

2L49 E2

2L50 F2

2L51 C3

2L52 C6

2L54 F6

2L56 G4

2L57 E6

2L58 A3

2L59 E5

2L60 G4

3L02 E5

3L03 H5

3L04 C2

3L05 E2

3L06 H5

3L08 H3

3L11 F2

3L12 G3

3L19 D4

3L20 E4

3L21 F4

3L28 G6

3L29 C4

3L30 E4

3L31 F4

3L32 G4

3L33 G5

5L02 C2

5L04 E2

5L06 F2

5L13 A3

5L14 B3

5L15 C3

5L16 A3

5L17 B3

5L18 B3

7L01 C6

7L02 A2

AL02 G10

AL06 C1

AL07 E1

AL08 F1

FE02 A3

FL03 G10

FL04 G10

FL05 H10

FL09 C3

FL10 E3

FL11 G4

FL12 F3

FL13 G4

FL15 G10

FL17 A1

IL06 F6

IL07 H3

IL08 H3

IL09 H6

IL10 A5

IL11 B5

IL12 C5

Small Signal Board: EPLD Control

123456

EPLD CONTROL

A

+3V3-IO

B

100n

2E84

C

D

+3V3-EPLD

E

F

G

H

I

8204 000 8346.5

123456789

+3V3-IO

378

VCC

SCD

26

DATA

DCLK

GND

4

100n

2E86

3E57

100K

IE26

3E56

+3V3-IO

7E02

EPCS4SI8

CS_

ASDI

1u0

2E51

33K

FE67

+1V5-PLL

+1V5-INT

2E81

+3V3-IO

10K

3E00

3E59

IE22

1

IE21

5

BC857BW

IE25

7E05

LF15AB

1IN3

GND

10K

3E55

IE27

7E12-2
BC847BS

2D04

+3V3-SD

FE59

1u0

100n

100n

2E78

2E77

Circuit Diagrams and PWB Layouts

+3V3-IO

7E25

2

2E75

+3V3-IO

10K

3E64

OUT

1n0

2D09

2E67

100n

10K

7E26

BC857BW

7E27

BC857BW

2E49

7E12-1
BC847BS

100n

2D10

100n

2E66

2E74

100n

100n

FE60

1u0

100n

2E73

IE34

2E50

2D11

2E65

100n

+1V5

4V47u

2E82

10n

100n

2E72

FE61

2D12

2E62

IE36

IE35

100n

100n

2E83

10n

100n

2E71

2E59

2E96

100p
3E01

1K0

2E97

100p
3E02

1K0

2E98

100p
3E03

1K0

100n

10n

3E51

IE20

IE23

IE24

+3V3-EPLD

100n

2E54

2E01

10n

10n

2E58

10n

2E69

2E70

2E57

FE58

10K

100n

10n

2E03

10n

2E68

3E50

2E56

2E43

100n

FE57

10n

10K

3E52

IN OUT

100n

2E06

10n

2E55

BAS316

6E54

100n

10K

1K0

9E59

7E01

LF25C

GND

1u0

IE31

H2
K4
G4

J3
J2
K13
J13
H3
J4

3E62

+3V3_SIM

res

2E41

5E54

6E53

BAS316

5E52

6E52

BAS316

5E50

BAS316

6E55

5E51

3E74

47R

DATA 0
DCLK
CSO
ASDO
0

MSEL

1
CONF_DONE
STAT U S
CONFIG
CE

6E51

BAS316

FE05

100n

2E80

IE32

IE29

+1V5

IE30

+3V3-EPLD

7V01-1

EP1C12F256C8

CONTROL

5E53

10u

1n0

2D03

IE37

100n

2E79

+3V3-EPLD

3E58

47R

+1V5

3E54

47R

3E88

47R

47R

3E89

2D15

RES

100n

3E61

47R

2E42

10n

SCAN

TDI

TDO

TCK

TMS

CEO

CLK

2E87

10n

B19b

3V3_FAULT

H14
H15

J14
J15K3

H4
G1

0

H1

1

G16

2

H16

3

FE56

16V100u

PROT

+2V5-IO

2E99

47u 4V

PROT

PROT

B3a

PROT

PROT

EN 78FTL2.1U, FTL2.2U 7.

7

+3V3-IO

+3V3-IO

10K

3E73

9E62

9E63
9E64

9E65

3E53

res
res

10K

+3V3-EPLD

B19b

FOR FACTORY

B19b

USE ONLY

1E04

1
2
3

B3B-PH-SM3-TBT

B19b

SDA-EPLD

B3a

B19b(5x),B19d(2x)

B12

10K

3E60

+3V3-IO

10K

3E63

FE53

9E60

9E61

res

I2C BUFFER

7E10

PCA9515DP

3

2 SCL0 7SCL1

5EN

3E77

47R

2E88

3E78

47R

2E89

3E79

47R

3E80

47R

+3V3-EPLD

5E58

2E52

8

VCC

SDA0 6SDA1

GND

4

RES

9E58

RES

9E57

8 9 10 11 12 13

100p

RES

1E02
147279

100p

FE52

RES

1

FE55

34

56

FE51

78

9

100p

2E90

RES

FE54

FOR

FACTORY

USE

100p

2E91

ONLY

RES

2

FE66

10

CLK32P_EPLD

+3V3-IO

2E92

CLK-VID

CLK64

CLK-2FH

REFCLK

RES

100p

B

B19d
B3a,B19b
B3c
B19a

B19b

+2V5-IO

+3V3-IO

+1V5-INT

+1V5-PLL

C1
G6
P1
A14
F10
F7
A3
P16
K11
C16
T3
L7
L10
T14

A7
A10
G8
G10
H7
H9
J8
J10
K7
K9
T7
T10

H6
H11

BANK1

BANK2

BANK3

BANK4

VCCINT

PLL1
PLL2

7V01-6

EP1C12F256C8

POWER

VCCIO

VCCA

GNDA

GNDG

GND

PLL1
PLL2
PLL1
PLL2

A1

A16

A5

A12

F6
F8
F9

F11

G7
G9

G11

H8

H10

J7
J9
K6
K8

K10

L6
L8
L9

L11

T1

T5
T12
T16

J6
J11

J5
J12

+3V3-EPLD

5E55

IE33

6E56

BAS316

100n

2E94

7E03

5

2

1

EN

3

7E04

5

2

1

EN

3

3E82

4

2E93

10R

100n

3E85

4

+3V3-EPLD

res

5E56

7E06
FXO-34FL

4

1

3

2

res

14M31818

2E95

3E84

10R

74LVC1G126GW

3E83

10R

74LVC1G125GW

3E86

10R

3E87

47R res

CLK32P_EPLD

B3a,B19b

SWITCH-2FH

B19b,d

CLK32E

100n

4K7

3E69

B3A

B3A

3E70

1

NC

B19d

SWITCH-2FH

B19b,d

SDA-F3

B19a,d,c

4K7

SCL-F3SCL-EPLD

B19a,d,c

B19b

REFCLK

FE50

3E81

47R

10R

res

100n

PROT

CLK32I

I2C BUFFER

10 11 12 13

B19b

B3c

E_14620_114.eps

070704

A

B

C

D

E

F

G

H

I

1E02 B8

1E04 G6

2D03 E5

2D04 F3

2D09 G3

2D10 G3

2D11 G3

2D12 G3

2D15 I5

2E01 G4

2E03 G4

2E06 G4

2E41 F5

2E42 F6

2E43 F4

2E49 E3

2E50 E3

2E51 E2

2E52 G8

2E54 G4

2E55 H4

2E56 H4

2E57 H4

2E58 H4

2E59 H4

2E62 H3

2E65 H3

2E66 H3

2E67 H3

2E68 I4

2E69 I4

2E70 I4

2E71 I3

2E72 I3

2E73 I3

2E74 I3

2E75 I3

2E77 I2

2E78 I2

2E79 F5

2E80 F5

2E81 I2

2E82 G3

2E83 G3

2E84 B1

2E86 E1

2E87 E6

2E88 A8

2E89 B8

2E90 B8

2E91 C8

2E92 B9

2E93 G12

2E94 E12

2E95 I12

2E96 B4

2E97 C4

2E98 C4

2E99 F6

3E00 B2

3E01 B4

3E02 C4

3E03 D4

3E50 B4

3E51 B4

3E52 B4

3E53 B7

3E54 G5

3E55 E2

3E56 E2

3E57 E2

3E58 G5

3E59 B3

3E60 A7

3E61 E6

3E62 D5

3E63 B7

3E64 B3

3E69 H8

3E70 H9

3E73 B6

3E74 I5

3E77 A8

3E78 A8

3E79 B8

3E80 C8

3E81 E12

3E82 F12

3E83 F11

3E84 G10

3E85 G12

3E86 G11

3E87 I11

3E88 H5

3E89 I5

5E50 H5

5E51 I5

5E52 G5

5E53 D5

5E54 F5

5E55 E11

5E56 H11

5E58 G8

6E51 E5

6E52 G5

6E53 G5

6E54 I4

6E55 H5

6E56 E12

7E01 E5

7E02 B2

7E03 F11

7E04 G11

7E05 D3

7E06 I11

7E10 H8

7E12-1 F3

7E12-2 E2

7E25 C3

7E26 B3

7E27 C3

7V01-1 B5

7V01-6 A12

9E57 I8

9E58 I8

9E59 E5

9E60 C7

9E61 D7

9E62 C7

9E63 C7

9E64 C7

9E65 D7

FE05 F5

FE50 I10

FE51 B8

FE52 B8

FE53 C7

FE54 C8

FE55 B8

FE56 D6

FE57 H4

FE58 I4

FE59 G3

FE60 F3

FE61 E3

FE66 B9

FE67 E2

IE20 B4

IE21 C3

IE22 B3

IE23 C4

IE24 C4

IE25 C3

IE26 E2

IE27 E2

IE29 G5

IE30 H5

IE31 I5

IE32 G5

IE33 E12

IE34 C3

IE35 C3

IE36 B3

IE37 E5

Small Signal Board: EPLD OSD

12

EPLD OSD

A

B

100n

3E09

3E05

3E04

3E90

100R

IE04

1K5

1K0

68R

AD9283BRS-80

2E04

3E10

33R

IE05

B3a

BL-OSD

3E37

100R

2E39

10p

C

2E02

D

+3V3-AD

E

F

CLK-BL

IE03

3E15

100R

2E32

3E13

7E22
BC847BW

1K0

10p

G

H

I

Circuit Diagrams and PWB Layouts

3 4 5 6 7 8 9 10111213

VBL

7E24

5

8

15

VDD

VD

7

AIN+

9E74

AIN-

PWRDWN

ENCODE

VREFOUT

VREFIN

RES

8-BIT

ADC

4

GND

20

0
1
2
3

DATA

4
5
6
7

9

16

BL-OSD-0

19

BL-OSD-1

18

BL-OSD-2

17

BL-OSD-3

14

BL-OSD-4

13

BL-OSD-5

12

BL-OSD-6

11

BL-OSD-7

B3a

B3a

B3a

B3a,B19d

B3a

PVDO

6

1

10

2

3

100n

2E28

47n

2E29

33n

2E30

4n7

2E34

3n3

+3V3-AD

2E05

R-OSD

G-OSD

B-OSD

HD3-OTC

VD-OTC

IE00

FL01

100n

3E16

2K7

5E00

5E01

5E02

5E03

IE01

2E07

2E10

2E16

2E08

100n

100n

100n

100n

2E09

2E11

2E17

2E20

FE01

100n

100n

100n

100n

2E12

2E18

FE03

100n

100n

2E13

2E19

100n

100n

2E53

10p

3E11

470R

2E14

3E06

100R

3E07

100R

3E08

100R

100n

2E15

3E12

470R
2E48

10p

EN 79FTL2.1U, FTL2.2U 7.

100n

2E22

2E24

2E26

3E18

100R

2E02 D1

2E04 D2

2E05 B4

2E07 A5

2E08 C5

2E09 A6

2E10 B5

2E11 B6

VBL

VDO

IL01

VDDO

IL02

PVDO

IL03

VDDO

7E23

AD9883AKST

2E21

22p

22p

22p

3E19

100R

47n

2E23

47n

2E25

47n

2E27

100n

3E14

1K0

RAIN54

GAIN48

BAIN

43

IL05

MIDSCV

37

HSYNC30

VSYNC31

SOGIN49

CLAMP38

COAST29 DATACK 67

FILT33

SDA57

SCL56

A055

A/D CONVERTER

PVDO

2223697879

11

VDD

CLAMP

CLAMP

PROCESSING

AND CLOCK

GENERATION

SERIAL REGISTER

PWR MANAGMENT

266227394245465152

VD

A/D

A/DCLAMP

A/D

SYNC

AND

59

8

8

8

REF

VDO

34

PVD

REF-BYPASS

PVDO

35

ROUTA0

ROUTA1

ROUTA2

ROUTA3

ROUTA4

ROUTA5

ROUTA6

ROUTA7

GOUTA0

GOUTA1

GOUTA2

GOUTA3

GOUTA4

GOUTA5

GOUTA6

GOUTA7

BOUTA0

BOUTA1

BOUTA2

BOUTA3

BOUTA4

BOUTA5

BOUTA6

BOUTA7

HSOUT 66

VSOUT 64

SOGOUT 65

77

76

75

74

73

72

71

70

9

8

7

6

5

4

3

2

19

18

17

16

15

14

13

12

3E91

33R

FE04

58

100n

2E35

AL10

R-OSD-0

R-OSD-1

R-OSD-2

R-OSD-3

R-OSD-4

R-OSD-5

R-OSD-6

R-OSD-7

G-OSD-0

G-OSD-1

G-OSD-2

G-OSD-3

G-OSD-4

G-OSD-5

G-OSD-6

G-OSD-7

B-OSD-0

B-OSD-1

B-OSD-2

B-OSD-3

B-OSD-4

B-OSD-5

B-OSD-6

B-OSD-7

CLK-OSD

CLK-BL

B19d

B19c,d

GND

20212425283236

1

44475053606163

40

41

681080

A

B

C

D

E

F

G

H

I

2E12 B6

2E13 B6

2E14 B6

2E15 B6

2E16 B5

2E17 B6

2E18 B6

2E19 B6

2E20 C6

2E21 D7

2E22 D7

2E23 E7

2E24 E7

2E25 F7

2E26 G7

2E27 G7

2E28 H4

2E29 H4

2E30 H4

2E32 F1

2E34 H4

2E35 I12

2E39 B1

2E48 H6

2E53 G6

3E04 D1

3E05 C1

3E06 D6

3E07 E6

3E08 F6

3E09 E1

3E10 E2

3E11 G6

3E12 G6

3E13 E1

3E14 G7

3E15 F1

3E16 H5

3E18 H7

3E19 I7

3E37 B1

3E90 D1

3E91 H12

5E00 A5

5E01 B5

5E02 B5

5E03 C5

7E22 E1

7E23 C8

7E24 B2

9E74 E2

AL10 H12

FE01 G6

FE03 G6

FE04 H12

FL01 B4

IE00 H4

IE01 H5

IE03 E1

IE04 E2

IE05 F2

IL01 A7

IL02 B7

IL03 C7

IL05 G8

8204 000 8346.5

123456

B19a,b,d

SDA-F3

B19a,b,d

SCL-F3

7

8 9 10 11 12 13

E_14620_115.eps

070704

Small Signal Board: EPLD I/O

123456789101112

EPLD I/O

A

B19c

B

C

D

E

B19a

B19d

B19d
B19a

F

B3c

G

B19a,b,c
B19a,b,c

B3c

H

B19b

B21,B19b(2x)

B19d
B19a

I

8204 000 8346.5

B-OSD-3
BL-OSD-7
B-OSD-2
BL-OSD-5
R-OSD-4
G-OSD-6
B-OSD-4
B-OSD-7
G-OSD-5
G-OSD-2
B-OSD-5
G-OSD-3
B-OSD-6
G-OSD-7
R-OSD-5
R-OSD-2
G-OSD-4
R-OSD-6
R-OSD-3
R-OSD-7

UV-AD-2
UV-AD-4
UV-AD-3
Y-AD-7
UV-AD-5
UV-AD-6
UV-AD-7
UV-AD-0
U-AD-6
Y-AD-4
SD-DQM
Y-AD-3
SD-DQ1
SD-DQ2
SD-DQ16
SD-DQ15
SD-DQ13
SD-DQ14
SD-DQ3
SD-DQ12
SD-DQ11
SD-DQ6
SD-DQ5
SD-DQ4
SD-DQ7

U_VOUT(6)
U_VOUT(2)
U_VOUT(0)

U_VOUT(1)
YOUT(1)
YOUT(2)
SCL-F3

3V38

SDA-F3
YOUT(7)
YOUT(0)
YOUT(3)
YOUT(4)
YOUT(8)
YOUT(5)
YOUT(6)
YOUT(9)
O_VAL
CLK32E

3V40

FRAME
SWITCH-2FH
SD-CLK
SYNCDET

1 2 3 4 5 6 7 8 9 10 11 12 13 14

INIT_DONE
CLKUSR

D4

IO_1

C3

IO_2

C2

IO_3

B1

IO_4

G5

IO_5

F4

IO_6

D3

IO_7

E4

IO_8

F5

IO_9

E3

IO_10

D2

IO_11

E2

IO_12

D1

IO_13

F3

IO_14

G3

IO_15

F2

IO_16

E1

IO_17

G2

IO_18

F1

IO_19

H5

IO_20

7V01-3

EP1C12F256C8

B15

IO_132

A15

IO_133

BANK 2

B14

IO_134

C13

IO_135

B13

IO_136

A13

IO_137

B12

IO_138

C12

IO_139

E12

IO_140

E11

IO_141

E9

IO_142

D12

IO_143

D11

IO_144

C11

IO_145

B11

IO_146

A11

IO_147

B10

IO_148

C10

IO_149

D10

IO_150

A9

IO_151

B9

IO_152

D9

IO_153

C9

IO_154

E10

IO_155

C8

IO_156

3V37

100R

100R

100R

6V05

TLMG3100

3V18

390R

+3V3-IO

Circuit Diagrams and PWB Layouts

7V01-2

EP1C12F256C8

BANK 1

J1

IO_21

K2

IO_22

L3

IO_23

K1

IO_24

L1

IO_25

L2

IO_26

M1

IO_27

N1

IO_28

M2

IO_29

N2

IO_30

M3

IO_31

L5

IO_32

M4

IO_33

N3

IO_34

K5

IO_35

L4

IO_36

R1

IO_37

P2

IO_38

P3

IO_39

N4

IO_40

D8

IO_157

E8

IO_158

A8

IO_159

B8

IO_160

D7

IO_161

C7

IO_162

B7

IO_163

A6

IO_164

E7

IO_165

B6

IO_166

C6

IO_167

D6

IO_168

D5

IO_169

E6

IO_170

E5

IO_171

C5

IO_172

B5

IO_173

A4

IO_174

B4

IO_175

C4

IO_176

B3

IO_177

A2

IO_178

B2

IO_179

DEV_OE

DEV_CLR

N13

IO_89

P14

IO_90

P15

IO_91

R16

IO_92

N15

IO_93

N16

IO_94

K12

IO_95

K14

IO_96

L12

IO_97

N14

IO_98

M13

IO_99

M14

IO_100

L13

IO_101

M15

IO_102

M16

IO_103

L14

IO_104

L15

IO_105

L16

IO_106

K16

IO_107

K15

IO_108

J16

IO_109

H12

IO_110

IV01

7V01-4

EP1C12F256C8

BANK 3

9E76

RST-FBX

IO_111
IO_112
IO_113
IO_114
IO_115
IO_116
IO_117
IO_118
IO_119
IO_120
IO_121
IO_122
IO_123
IO_124
IO_125
IO_126
IO_127
IO_128
IO_129
IO_130
IO_131

CLK-OUT

HS-OUT

VS-OUT

LVDS-PWR-DOWN

PARITY

DE-OUT

SD-DQ8

SD-WE

SD-DQ10

SD-DQ9
SD-RAS
SD-CAS

SD-A9
SD-A8

SD-A11

SD-A7

SD-A10

SD-A0
SD-A3
SD-A1

CLK-OSD

SD-A2
SD-A6
SD-A5
SD-A4

BL-OSD-6

9E75

BL-OSD-2
BL-OSD-3
BL-OSD-4

G14
G13
G15

F16
F14
F13
F15
E16

E15
D16
D15

E14

F12

E13
D14
H13
G12

B16
C15
C14
D13

B1

B5
B6
B7
B0

G5

B3
G7
G6

B4

R5

R7
G2
G4

B19c(2x)

B19c(4x)

V-2FH-AD-OUT
H-2FH-AD-OUT

CLK-VID

COAST

AL-CL-IN

U-AD-0

AL-DA-IN

U-AD-2
U-AD-3
U-AD-7
Y-AD-0
U-AD-4
U-AD-1
U-AD-5
Y-AD-1

H-2FH-DIV-2

HS-DET

UV-AD-1

Y-AD-5
Y-AD-6
Y-AD-2

B19d

B19d

B19d

B14g,B19a
B19a
B19d

B19a

B19a

B14g
B14f,g

B19a

B19d

B3b,c
B19d
B3b,c
B3b,c
B20,B21
B3b,c

B13b,B20(2x)

B3b,c

7V06

21
22
23
24
27
28
29
30
31
32
20

19

35
34
18
17
16
15

10K

10K

7V03

2V12

2V11

0
1
2
3
4
5
6
7
8
9
10

A11

CKE
CS
RAS
CAS
WE

100R

470p470p

3V35

100R

CLK

+3V3-IO

3V51

1

BC847BS

+3V3-IO

3V54

4

BC847BS

+3V3-SD

1

VDD

A

512K-1

VSS

26

R2

IO_41

T2

IO_42

R3

IO_43

P4

IO_44

R4

IO_45

T4

IO_46

R5

IO_47

P5

IO_48

M5

IO_49

M6

IO_50

N5

IO_51

N6

IO_52

P6

IO_53

R6

IO_54

M7

IO_55

T6

IO_56

R7

IO_57

P7

IO_58

N7

IO_59

R8

IO_60

T8

IO_61

M8

IO_62

N8

IO_63

P8

IO_64

10K

2

6

7V04-1

10K

5

3

7V04-2

3V57

*

10K

*

*

25

71338

DRAM

512K X 16 X 2

0

4

50

R6
R0
R1
G1
R2
R3
R4
G0
B2
UVG(0)
G3
UVG(1)
UVG(2)

LAMP

UVG(3)
LCD-PWR-ON
UVG(6)
UVG(5)
UVG(4)
YG(2)
YG(3)
UVG(7)
YG(0)
YG(1)

R4 ODC

3V36

+3V3-IO

3V50

+3V3-IO

3V55

3V56

100R

BC847BW

LAMP LAMP-ON

MSM56V16160F-7TS

SD-A0
SD-A1
SD-A2
SD-A3
SD-A4
SD-A5
SD-A6
SD-A7
SD-A8
SD-A9
SD-A10

SD-A11

SD-CLK

3V39

+3V3-SD

SD-RAS
SD-CAS
SD-WE

4K7

7V01-5

EP1C12F256C8

BANK 4

+5V

47K

3V52

+5V

47K

3V53

+3V3-IO

VDDQ

D

DQM

VSSQ

104147

IO_65
IO_66
IO_67
IO_68
IO_69
IO_70
IO_71
IO_72
IO_73
IO_74
IO_75
IO_76
IO_77
IO_78
IO_79
IO_80
IO_81
IO_82
IO_83
IO_84
IO_85
IO_86
IO_87
IO_88

AL-CLAL-CL-IN

AL-DAAL-DA-IN

44

NC

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

U

L

EN 80FTL2.1U, FTL2.2U 7.

M10

R9

T9
P9
N9

R10
T11
N10
P10
R11
P11

SN-CL_EPLD

N11

SN-DA_EPLD

N12

M9
M11
M12

P12

IV05

R12
T13
R13
R14
P13
T15
R15

B19c,d

B19c

33
37

3V21-4

2
3
5

273V21-2 68R
6
8

45
9

27

11
12
39

3V23-1 68R1
40
42

3V23-3 68R36
43
45

18
46
48

36
49

36
14

HREF_EXT

B3a,c,d

YG(7)

B3b,c

VD-OTC

B3a

YG(6)

B3b,c

YG(5)

B3b,c

HD3-OTC

B3a,B19c

VREF

B3a

VA

RSTR_EPLD

B3a
B3c

HREF

B3c
B3c
B3c

FALREF

B3c

YG(4)

B3b,c

VD_E

B3a

REFIN

B3c

REF

B3c

HD_E

B3a,c

U_VOUT(9)

B3c

U_VOUT(8)

B3c

U_VOUT(5)

B3c

U_VOUT(7)

B3c

U_VOUT(4)

B3c

U_VOUT(3)

B3c

9E77

BL-OSD-2 G1

9E70

BL-OSD-1

9E66

BL-OSD-0 R3

9E67

G-OSD-1 B2

9E68

G-OSD-0 G0

9E69

B-OSD-1 R2

9E71

B-OSD-0

9E72

R-OSD-1

9E73

R-OSD-0 G3

3V21-3

3V21-1

3V22-3

3V22-1

8

3V23-2

3V23-4

3V24-2

3V24-4

68R45

68R3V22-4

68R3V22-2

68R3V24-1

68R3V24-3

68R36

68R18

3 6 68R

18

68R

68R27

68R45

2 7 68R

68R

45

SD-DQ1
SD-DQ2
SD-DQ3
SD-DQ4
SD-DQ5
SD-DQ6
SD-DQ7
SD-DQ8

SD-DQ9
SD-DQ10
SD-DQ11
SD-DQ12
SD-DQ13
SD-DQ14
SD-DQ15
SD-DQ16

SD-DQM

B19d

B19d

B19b

R0

R1

R6

PROT

R0

R1

R2

R3

R4

R7

R5

G0

G1

G2

G6

G7

G3

G4

G5

B0

B6

B7

B1

B2

B3

B4

B5

PARITY

HS-OUT

VS-OUT

DE-OUT

R6

AV01

CLK-OUT

LVDS-PWR-DOWN

3V07

13 14

5V07

12

100n

2V08

44

LVDSVCC

TXOUT0- 48

TXOUT0+ 47

TXOUT1- 46

TXOUT1+ 45

TXOUT2- 42

TXOUT2+ 41

TXOUT3- 38

TXOUT3+ 37

TXCLKOUT- 40

TXCLKOUT+ 39

LSVD

GND

364349

3V01

180R

3V02

180R

3V17

180R

3V19

180R

3V20

180R

R-FB

+3V3-EPLD

5V08

17

3V08

1K0

2V06

100n

BAS316

6V02

BAS316

6V03

2V16

2V18

2V20

IV03

IV02

10p

10p

10p

2V22

3V15

3V16

2V17

2V19

2V21

10p

47R

47R

10p

10p

10p

2V23

10p

2V24

B19d

PROT

TXLCD0-

TXLCD0+

TXLCD1-

TXLCD1+

TXLCD2-

TXLCD2+

TXLCD3-

TXLCD3+

TXCLKLCD-

TXCLKLCD+

10p

10p

2V25

E_14620_116.eps

070704

+3V3-EPLD

100n

PLL

2V07

2V10

TTL PARALLEL-TO-LVDS TTL PARALLEL-TO-LVDS

5V06

100n

3V14

47R

IV04

BAS316

6V01

DS90C385MTD

7V02

TXIN051

TXIN152

TXIN254

TXIN355

TXIN456

TXIN52

TXIN63

TXIN74

TXIN86

TXIN97

TXIN108

TXIN1110

TXIN1211

TXIN1312

TXIN1414

TXIN1515

TXIN1616

TXIN1718

TXIN1819

TXIN1920

TXIN2022

TXIN2123

TXIN2224

TXIN2325

TXIN2427

TXIN2528

TXIN2630

TXIN2750

TXCLKIN31

PWRDWN_32

GND

4K7

51321

LVDS TRANSMITTER

3V27

120R

3V29

120R

3V31

120R

3V33

120R

+3V3-EPLD

100n

2V09

9

1

34

26

VCC

PLLVCC

PLL

GND

29

53

35

33

3V25

120R

3V26

120R

3V28

120R

3V30

120R

3V32

120R

3V34

120R

B20

B20

B20

B20

B20

B20

B20

B20

B20

B20

A

B

C

D

E

F

G

H

I

2V06 B13

2V07 A11

2V08 A12

2V09 A12

2V10 A12

2V11 E6

2V12 D6

2V16 C13

2V17 C14

2V18 D13

2V19 D14

2V20 E13

2V21 E14

2V22 G14

2V23 G14

2V24 G14

2V25 G14

3V01 H12

3V02 H12

3V07 G10

3V08 B13

3V14 A11

3V15 A14

3V16 A14

3V17 H12

3V18 I2

3V19 I12

3V20 I12

3V21-1 H8

3V21-2 H7

3V21-3 H8

3V21-4 G7

3V22-1 H8

3V22-2 H7

3V22-3 H8

3V22-4 H7

3V23-1 H7

3V23-2 H8

3V23-3 H7

3V23-4 H8

3V24-1 H7

3V24-2 H8

3V24-3 H7

3V24-4 I8

3V25 G12

3V26 H12

3V27 H12

3V28 H12

3V29 H12

3V30 H12

3V31 I12

3V32 I12

3V33 I12

3V34 I12

3V35 F6

3V36 B6

3V37 G2

3V38 G1

3V39 H5

3V40 H1

3V50 D5

3V51 D6

3V52 D6

3V53 E6

3V54 E6

3V55 E5

3V56 F6

3V57 F6

5V06 A12

5V07 A12

5V08 A13

6V01 A11

6V02 A13

6V03 A13

6V05 I2

7V01-2 A2

7V01-3 D2

7V01-4 G3

7V01-5 A7

7V02 B11

7V03 G6

7V04-1 D6

7V04-2 F6

7V06 F6

9E66 D8

9E67 E8

9E68 E8

9E69 E8

9E70 D8

9E71 E8

9E72 F8

9E73 F8

9E75 E3

9E76 F3

9E77 D8

AV01 F9

IV01 E3

IV02 A14

IV03 A14

IV04 A11

IV05 B7

Circuit Diagrams and PWB Layouts

Small Signal Board: Screen Interface

1234567

SCREEN INTERFACE

3Z37

B19d

LCD-PWR-ON

A

B

C

B19d,B21

B14e

B14e

B19d

B19d

B19d

B19d

B19d

(IRQ)

LAMP-ON

(PDWN)

CPU-GO

BACKLIGHT-CNTRL

3Z39

res

100R

PDP-GO

TXLCD0-

TXLCD0+

TXLCD1-

TXLCD1+

TXLCD2-

D

B19d

TXLCD2+

B19d

TXCLKLCD-

B19d

TXCLKLCD+

B19d

E

F

B19d

B19e

B14e

TXLCD3-

TXLCD3+

SCL-DISP

SDA-DISP

8204 000 8395.3

resres

3Z22

3Z35 3Z34

3Z36

1

4K7

1K0

1K0

10K

3Z52

100R

3Z53

100R

5Z01 1
4

1

5Z02
4

1

5Z03
4

1

5Z04
4

1

5Z05
4

3Z50

100R

4K7

3Z54

100R

3Z55

100R

2Z62

res

2Z57

2Z60

2Z58

2

3

2

3

2

3

2

3

2

3

3Z51

100R

100p

100p

100p

DLW21S

DLW21S

DLW21S

DLW21S

DLW21S

100p

4K73Z38

100p

2Z59

2Z44

22p

2Z45

22p

2Z46

22p

2Z47

22p

2Z48

22p

2Z49

22p

2Z50

22p

2Z51

2Z52

22p

2Z53

EN 81FTL2.1U, FTL2.2U 7.

+3V3_SIM

res

22p

2Z61

22p

FZ45

FZ46

100p

FZ43

FZ44

FZ02

FZ04

FZ07

FZ10

FZ12

FZ14

FZ16

FZ17

FZ18

FZ08

3Z26

1K0

res

3Z24

100R

res

3Z25

100R

FZ40

+3V3_SIM

+3V3_SIM

+3V3_SIM

FZ41

+3V3_SIM

10K

3Z33

2Z55

IZ02

100n

10K

3Z32

IZ03

BC847BW
7Z00

3Z31

2Z56

47K

2Z65

IZ01

1
2
5
6

3Z56

1K0

100R

3Z23

1n0

IZ00

SI3441BDV
7Z01

10V10u

2Z64

BZX384-C5V6

6Z00

47K

3Z30

3Z29

3

4

FZ21

100n

47R

5V-ENABLE

LCD-PWR-ON

1u0

FZ66

2Z54

+11V

1.5AT
3Z28

VDISP

5Z06

5Z07

5Z08

2Z63

100n

FZ20

FZ42

FI-WE31P-HF-E1500

234567

B13b,B19d,B20

1G50

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

33

32

LVD S

CONNECTOR

E_14620_117.eps

TO

DISPLAY

070704

A

B

C

D

E

F

1G50 C7

2Z44 C2

2Z45 C2

2Z46 C2

2Z47 D2

2Z48 D2

2Z49 D2

2Z50 E2

2Z51 E2

2Z52 E2

2Z53 E2

2Z54 B6

2Z55 B4

2Z56 A5

2Z57 B1

2Z58 A1

2Z59 A2

2Z60 F1

2Z61 F2

2Z62 B1

2Z63 C6

2Z64 C5

2Z65 C5

3Z22 A1

3Z23 A5

3Z24 B2

3Z25 B2

3Z26 A2

3Z28 C6

3Z29 B6

3Z30 B6

3Z31 B5

3Z32 B4

3Z33 B4

3Z34 B1

3Z35 B1

3Z36 A1

3Z37 A1

3Z38 A2

3Z39 B1

3Z50 F1

3Z51 F2

3Z52 B1

3Z53 B1

3Z54 A1

3Z55 A1

3Z56 A5

5Z01 C1

5Z02 C1

5Z03 D1

5Z04 E1

5Z05 E1

5Z06 C6

5Z07 C6

5Z08 D6

6Z00 B6

7Z00 A4

7Z01 B5

FZ02 C2

FZ04 C2

FZ07 C2

FZ08 D2

FZ10 D2

FZ12 D2

FZ14 D2

FZ16 E2

FZ17 E2

FZ18 E2

FZ20 D7

FZ21 C6

FZ40 E3

FZ41 F3

FZ42 F7

FZ43 A2

FZ44 A2

FZ45 B2

FZ46 B2

FZ66 A6

IZ00 B5

IZ01 A5

IZ02 B4

IZ03 A4

Small Signal Board: Connection

0Y00 A1

0Y01 A1

0Y02 A1

0Y03 A1

0Y04 A1

0Y05 A1

0Y06 A1

0Y07 A1

0Y08 A1

0Y10 A2

0Y11 A2

0Y12 A3

0Y13 A2

0Y14 A2

0Y15 A3

0Y16 A2

0Y17 A2

0Y18 A3

0Y20 B1

0Y21 B1

0Y22 B1

0Y23 B1

0Y24 B1

0Y25 B1

0Y26 B1

0Y27 B1

0Y28 B1

0Y30 B2

0Y31 B2

0Y32 B3

0Y33 B3

0Y34 B3

0Y35 B4

1M01 D10

1M02 E7

1M03 E5

1M07 F10

1M09 G10

1M17 A4

1M20 F8

1M36 B15

1M46 E15

1M48 E12

1M49 D5

1M52 A10

123456

CONNECTION

A

B

0Y00

0Y03

0Y06

0Y20

0Y23 0Y24

0Y26

C

D

B4

BACKLIGHT-CNTRL

B21

PWR-OK-PDP

B4,B14b,B21

POR

E

B20,B19d

LAMP-ON

+5V

nc

FAN-SPEED

F

B12

PROT-AUDIOSUPPLY

IRQ-DIGITAL

G

B5a,B14e(2x)

STANDBY

+5V2-STBY

H

B21

9V_STBY

PWR-OK-PDP

8204 000 8347.5

123456789101112131415

0Y01

0Y04

0Y07

0Y27

0Y02

0Y05

0Y08

0Y22

0Y25

0Y28

9Y03

3Y03

100R

9Y01

9Y15

9Y09

1Y40

2Y09

3Y30

100p

0Y10

0Y13

0Y16 0Y17

0Y30

EMC HOLE

*

3Y00

100R

*

3Y01

100R

15K

*

3Y02

100R

*

+5V

4K7

3Y37

3Y39

3Y05

100R

5Y00

*

3Y08

100R

*

2Y06

2Y07

2Y08

10K

2Y10

2Y12

2Y13

0Y11

0Y14

0Y310Y21

1Y41

1Y45

100p

100p

100p

3Y14

4K7

100p

100p

100n

Circuit Diagrams and PWB Layouts

FY26

FY28

FY30

FY31

0Y12

0Y15

0Y18

0Y32

EMC HOLE

EMC HOLE

FY22

FY23

FY24

3Y38

BC857BW
7Y02

FY25

2K2

2Y52

1Y02 A10

1Y04 A10

1Y05 A10

1Y06 A10

1Y07 A10

1Y08 B10

1Y09 B10

1Y10 E3

1Y11 F4

0Y34

100n

FY79

1Y12 F4

1Y13 F3

1Y14 F3

1Y15 F3

1Y16 F3

1Y17 G3

1Y18 G3

1Y21 E8

1Y22 E8

1Y42

1Y10

1Y13

1Y14

1Y15

1Y16

1Y17

1Y18

STANDBY-IO4

0Y350Y33

EMC HOLE

1Y11

1Y12

1Y23 F8

1Y24 F8

1Y25 F8

1Y26 E8

1Y27 E8

1Y28 D10

1Y30 B15

1Y31 B15

1Y32 B15

BM07B-SRSS-TBT

AL-CL

AL-DA

3Y04

2K2

*

1M17

1
2
3
4
5
6
7

9

8

N.C.

3Y34

100R

3Y35

100R

1-440054-0

FY29

TO 1M03

AUDIO-STBY

SDI SUPPLY

1Y33 B15

1Y34 B15

1Y35 B15

1Y37 B15

1Y38 A10

1Y39 A10

1Y40 C2

1Y41 B2

1Y42 C3

FY74

FY75

+5V2-STBY

1M03

1
2
3
4
5
6
7
8
9
10

OR

2Y49

2Y50

EN 82FTL2.1U, FTL2.2U 7.

SCL-S

SDA-S

1M07

B5B-PH-K

1M09

B8P-PH-K

1
2
3
4
5

1
2
3
4
5
6
7
8

5Y21 C8

5Y22 C7

5Y23 F9

7Y01 B5

7Y02 G3

9Y00 D9

9Y01 H1

9Y03 F1

9Y05 G6

N.C.

1Y45 C2

2Y00 E14

2Y01 F14

2Y02 F14

2Y03 G14

2Y04 G14

2Y06 D2

2Y07 E2

2Y08 E2

3Y06

100R

*

100p

2Y22

*

9Y1210p

3Y13

100R

*

100p

2Y11

9Y16

9Y17

+5V

FY86

FY87

10p

B14e

B5a

B4,B5a

B2,B21(3x)

+5V2-STBY

*

FY85

*

100p

*

PDTC144EU

SCL-S

SDA-S

LED1

RC

LIGHT-SENSOR

LED2

2Y48

3Y24

100K

7Y01

1M49

B3B-PH-K

2Y09 F2

2Y10 H2

2Y11 A5

2Y12 H2

2Y13 H2

2Y14 G6

2Y15 H6

2Y16 H6

2Y17 G6

*

3Y33

100R

+3V3_SIM

2Y43

100p

1
2
3

+8V

GND-AUD

POR-CLASSD

9Y05

9Y06

2Y18 F6

2Y19 F6

2Y20 E6

2Y21 E6

2Y22 A5

2Y23 D9

2Y25 A13

2Y26 B13

2Y27 B13

FRAME

B5a,B14b

ODC

B6a,c

POR

B6a,c

B6a,c

B21

POR-CLASSD

B19d

SOUND-ENABLE

B21

PROT-AUDIOSUPPLY

AUDIO-SW

B21

B4,B14b,B21

B6b

AUDIO-C

B21

GND-AUD

AUDIO-R

B21

GND-AUD

AUDIO-L

B5a

KEYBOARD

100R

3Y40

2Y21

100R

3Y09

2Y20

5Y14

2Y19

3Y10

100R

2Y18

3Y11

100R

2Y17

30R

5Y11

2Y14

5Y01

2Y15

30R

5Y12

2Y16

2Y28 C13

2Y29 C13

2Y30 D13

2Y31 D13

2Y32 D13

2Y33 D13

2Y34 E14

2Y37 A8

2Y38 A7

10p

10p

FY39

100p

100p

100p

100p

100p

100p

FY43

FY37

FY38

FY40

FY41

FY42

FY44

FY45

2Y39 B7

2Y40 C7

2Y41 C9

2Y42 D7

2Y43 B6

2Y44 E11

2Y45 E11

2Y48 A5

2Y49 D5

7

100R

3Y25

5Y19

5Y20

5Y22

N.C.

1M02

1
2
3

S3B-PH-K

5Y18

FY61

FY82

2Y50 D5

2Y51 B8

2Y52 G3

2Y53 F9

3Y00 D2

3Y01 E2

3Y02 E2

3Y03 F1

3Y04 H4

100p

2Y37

100p

2Y38

3Y36

100R

2Y51

100p

2Y39

100p

2Y40

FY63

FY64

100p

2Y42

SDA-SF

SCL-SF

1Y26

1Y27

1Y21

1Y22

1Y23

1Y24

1Y25

FY78

FY77

100R

3Y12

FY76

TO 1M20

LED + SWITCH

3Y05 G2

3Y06 A5

3Y08 H2

3Y09 E6

3Y10 F6

3Y11 G6

3Y12 F8

3Y13 A5

3Y14 G2

3Y17 B13

3Y18 C13

3Y19 C13

3Y20 C12

3Y21 D12

3Y22 D12

3Y23 D12

3Y24 B5

3Y25 A7

3Y27 E11

3Y28 D11

3Y30 E2

3Y33 A6 9Y13 F13

3Y34 D4

3Y35 D4

3Y36 A8

3Y37 F2

3Y38 F3

8 9 10 11 12 13 14 15

FY56

FY57

FY58

100p

FY59

FY60

B14e

B14e

B14e

B14e

2Y41

9Y00

5Y23

100p

2Y53

STATUS-SC3-F

+11V_SF

SEL_IN_1_BF

SURR-RF

SURR-LF

+11V_SF

FY62

100p

100p

2Y23

CON-SND

KEYBOARD

FY71

FY73

FY67

FY68

FY69

B14e

B14e

B12P-PH-K

1M20

1
2
3
4
5
6
7
8
9
10
11
12

5Y21

3Y39 G2

3Y40 E6

5Y00 H2

5Y01 G6

5Y02 G13

5Y03 G13

5Y06 E13

5Y07 F13

5Y09 G13

1M52

9
8
7
6
5
4
3
2
1

B9B-PH-K

FY32

TO 1M01

LED + SWITCH

FY66

FY70

FY72

5Y11 G6

5Y12 H6

5Y14 F6

5Y15 E13

5Y16 A13

5Y17 B13

5Y18 A7 FY25 F3

5Y19 B7

5Y20 C7

1Y38

1Y02

1Y39

1Y04

1Y05

1Y06

1Y07

1Y08

1Y09

TO 1739

AUDIO-STBY

OR

PDP AUDIO

1M01

1

1Y28

2
3

B3B-PH-K

3Y28

res

100R

2Y45

3Y27

res

100R

2Y44

TO 1M07

SCART 3

9Y06 H6

9Y09 E2

9Y12 A5

9Y14 F15

9Y15 H1

9Y16 B5

9Y17 B5

FY00 E14

B14d(2x)

B14d(2x)

10p

res

10p

res

B14a

B14a

B5a

B6a

B6a

FY01 F14

FY03 F14

FY05 F15

FY22 E3

FY23 F3

FY24 F3

FY26 F2

FY28 G2

FRONT-Y-CVBS-IN

FRONT-C-IN

L-FRONT-IN

FRONT-DETECT

R-FRONT-IN

HEADPHONE-L

HEADPHONE-R

FY80

FY81

1M48

B3B-PH-K

1
2
3

TO

res

FY29 F4

FY30 H2

FY31 H2

FY32 D9

FY37 E7

FY38 E7

FY39 F7

FY40 F7

FY41 F7

3Y20

68R

3Y21

68R

3Y22

68R

3Y23

68R

+33V

+11V

FY42 F7

FY43 G7

FY44 F7

FY45 G7

FY46 F14

FY47 F14

FY48 E15

FY49 A13

FY50 B13

30R

5Y16

30R

5Y17

3Y17

100R

3Y18

100R

3Y19

100R

9V_STBY

2Y25

2Y26

2Y27

2Y28

2Y29

2Y32

2Y33

+8V

+5V2-STBY

9Y13

100p

100p

1n0

1n0

1n0

1n0

1n0

+5V

5Y02

5Y03

FY51 B13

FY52 B13

FY53 B14

FY54 B14

FY55 B14

FY56 A9

FY57 A9

FY58 A8

FY59 B8

FY49

FY50

FY51

FY52

FY53

100u16V

2Y30

16V 100u

2Y31

30R

5Y06

30R

5Y15

30R

5Y07

30R

5Y09

2Y00

2Y34

2Y01

2Y03

2Y04

FY60 B9

FY61 C7

FY62 C9

FY63 C8

FY64 C8

FY65 E14

FY66 F10

FY67 F9

FY68 G9

FY54

100p

100p

FY01

100p

res

2Y02

100p

100p

FY46

FY55

FY65

FY03

100p

FY47

FY00

FY69 G9

FY70 G9

FY71 G9

FY72 G9

FY73 G9

FY74 A5

FY75 A5

FY76 G8

FY77 F8

B11B-PH-K

TO 1M37

SCART 3

1M36

FY48

1
2
3
4
5
6
7
8
9
10
11

FY78 F8

FY79 F3

FY80 E12

FY81 E12

FY82 H7

FY85 A5

FY86 D5

FY87 D5

1Y30

1Y31

1Y32

1Y33

1Y34

1Y35

1Y37

1M46

FY05

B11B-PH-K

9Y14

TO 1M46

AUDIO-STBY

OR

SDI SUPPLY

E_14620_118.eps

1
2
3
4
5
6
7
8
9
10
11

070704

A

B

C

D

E

F

G

H

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Overview)

Part 1

E_14780_130a.eps

EN 83FTL2.1U, FTL2.2U 7.

Part 2

E_14780_130b.eps

3104 303 3913.3

Part 3

E_14780_130c.eps

Part 4

E_14780_130d.eps

E_14620_130.eps

020704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel Mapping (Top Side)

3869 D5

1000 A6
1001 B6
1304 A5
1305 B5
1306 B4
1307 B5
1308 B4
1401 A6
1402 A6
1408 A4
1702 D5
1703 D5
1710 D7
1D01 A8
1E02 B8
1E04 C8
1I11 A3
1I53 A8
1I56 A8
1I57 A8
1I59 A8
1I79 E1
1M01 D9
1M02 A9
1M03 E9
1M07 A9
1M09 A9
1M15 A8
1M17 F8
1M20 D9
1M36 C9
1M46 F8
1M48 F3
1M49 F7
1M52 F2
1P00 C2
1P03 C2
1P06 B2
1P10 C2
1P11 C2
1P12 C2
1T01 A2
1T02 E2
1U01 F6
2002 B6
2004 C6
2005 C6
2006 C6
2007 C6
2008 C6
2009 C5
2011 C5
2012 C5
2013 B6
2014 B6
2016 B6
2018 B6
2020 C6
2025 B5
2027 C5
2028 B6
2029 C6
2031 A6
2034 B5
2035 B5
2037 B6
2039 B5
2058 A6
2059 A6
2067 B5
2070 C6
2071 C6
2073 C6
2075 A6
2301 C4
2305 B4
2314 C4
2315 C4
2316 B4
2317 B4
2318 B4
2322 B4
2324 C4
2327 B5
2329 C5
2330 C5
2331 C5
2332 C4
2333 C4
2334 C4
2336 C4
2339 A5
2340 C4
2344 A5
2347 A5
2348 A5
2349 A5
2350 B4
2351 B4
2352 B4
2353 B4
2355 A5
2356 B4
2357 B4
2358 B4
2359 B5
2360 B5
2361 B5
2362 B5
2363 C5
2364 A5
2365 B4
2367 B4
2368 B4
2373 B4
2376 B4
2377 C4
2379 B5
2380 B5
2381 B5
2382 B5
2383 A5

2388 B4
2389 C4
2391 A4
2393 C4
2394 C4
2395 C5
2396 C5
2397 C4
2398 C4
2401 B4
2403 B4
2404 B4
2405 A4
2406 A4
2407 A4
2408 A4
2409 B4
2410 C4
2411 B4
2412 A4
2413 A4
2414 C4
2416 B4
2417 B4
2425 C4
2427 A5
2428 A5
2429 C4
2432 B4
2433 C4
2434 B4
2435 B4
2436 B4
2707 D6
2708 D6
2709 E6
2710 D7
2711 D7
2712 D7
2715 C7
2716 E7
2717 D7
2718 C5
2719 C5
2720 D5
2721 D5
2722 D5
2723 D7
2724 C8
2725 E7
2726 E6
2728 E7
2729 E7
2730 D7
2732 E5
2733 D6
2735 D5
2736 D6
2738 D7
2739 E6
2740 D5
2741 D5
2742 D5
2743 D6
2744 D6
2745 E5
2747 D5
2749 D5
2750 A7
2751 A7
2752 B7
2753 B7
2755 B8
2756 B7
2758 B7
2759 B7
2760 B7
2761 B7
2762 B7
2763 B7
2764 C7
2765 B8
2768 A7
2770 B7
2771 B7
2772 B7
2773 B7
2777 B7
2778 B7
2780 B7
2781 B7
2782 B7
2784 B7
2785 B7
2787 B7
2788 B7
2790 B7
2792 C5
2794 B7
2795 B7
2796 B7
2797 B7
2798 B7
2799 B7
2800 D5
2802 A6
2805 B7
2809 A7
2810 C7
2811 C7
2813 C7
2814 B8
2815 B7
2816 B7
2818 B7
2819 D6
2820 C7
2821 B7
2822 B6
2824 B7
2826 B7
2828 B7

2829 C7
2830 C7
2831 C7
2832 C7
2833 C7
2834 C7
2835 C7
2836 C5
2837 A7
2838 A7
2839 A7
2840 C5
2841 C6
2843 E5
2844 B7
2845 D6
2846 D6
2847 E6
2848 E5
2849 B7
2850 C6
2851 C6
2852 D6
2853 D6
2854 D6
2855 C6
2856 C6
2857 C6
2858 C6
2859 C6
2860 C6
2861 C6
2862 C5
2863 C5
2864 C5
2865 C6
2866 D5
2867 D6
2868 C5
2869 C6
2870 D5
2871 A7
2872 B7
2873 B7
2874 D6
2875 D7
2876 C7
2877 D7
2878 D7
2879 D7
2880 D7
2881 D5
2886 D7
2887 D7
2888 D7
2889 A7
2890 D5
2891 E6
2895 A7
2896 C6
2897 C7
2898 A8
2899 A8
2900 C5
2901 D5
2902 D5
2914 D6
2915 C5
2916 D5
2917 E6
2918 E6
2919 E7
2921 B7
2922 E5
2923 E5
2924 A6
2925 B7
2926 A7
2927 A7
2928 A7
2929 D5
2931 D5
2935 D5
2936 C7
2937 C7
2938 C5
2939 E6
2A00 E4
2A02 D5
2A03 E4
2A04 E4
2A05 D4
2A06 D4
2A08 C4
2A09 D5
2A10 D4
2A11 D4
2A12 D3
2A13 D3
2A14 D4
2A15 D4
2A16 D4
2A17 D4
2A18 D4
2A20 D4
2A21 D4
2A22 D4
2A23 D4
2A25 D4
2A26 D4
2A27 D4
2A29 D5
2A30 D4
2A31 D4
2A32 D5
2A33 D5
2A35 D4
2A36 D4
2A37 D5
2A39 D5
2A40 D5
2A41 D5

2A42 D4
2A43 D4
2A44 D4
2A45 D3
2A46 D5
2A49 D4
2A50 D4
2A53 D4
2A54 D4
2A56 D4
2A59 D4
2A62 D4
2A66 D4
2A76 D4
2A95 E3
2AA6 D5
2AA7 D4
2AB2 D4
2AB5 D4
2AB6 D4
2AB7 D4
2AD1 E3
2AF3 E3
2AF4 E3
2AK0 E5
2AK1 E5
2AK2 D4
2AK3 D4
2AK4 E4
2AK5 E4
2AK6 E5
2AK7 E5
2AK9 E4
2AL0 D4
2AL1 E4
2AL2 E4
2AL3 E4
2AL4 D4
2AL8 E4
2AL9 E4
2ALA E4
2AM0 D4
2AM1 D4
2AM2 E4
2AM3 E4
2AM5 D4
2AM6 E4
2AM7 E4
2AM9 E4
2AN0 D4
2AN1 E4
2AN7 E5
2C01 A5
2D03 E7
2D09 C8
2D10 C8
2D11 C8
2D12 C8
2E01 C9
2E03 D9
2E06 C9
2E17 E9
2E21 D8
2E22 D8
2E23 E8
2E24 E8
2E25 E8
2E26 E8
2E28 E8
2E29 E8
2E30 E8
2E32 E9
2E34 E8
2E39 E9
2E41 D9
2E42 C8
2E43 D9
2E50 D9
2E54 C9
2E56 C8
2E57 C8
2E58 C8
2E59 C8
2E62 C8
2E65 C8
2E66 C8
2E67 C8
2E68 C8
2E69 C8
2E70 C8
2E71 C8
2E72 C8
2E73 C8
2E74 C8
2E75 C8
2E77 C8
2E78 C8
2E79 C8
2E80 D8
2E81 D8
2E82 C9
2E83 C9
2E87 D8
2E89 B8
2E90 B8
2E91 B8
2E95 C8
2E96 D8
2E97 D9
2E98 D8
2E99 D9
2I03 B3
2I13 A3
2I14 A3
2I15 A5
2I21 A6
2I22 A6
2I26 A6
2I27 A7
2I30 A6
2I32 A6
2I33 E2

2I34 E2
2I35 A4
2I38 A8
2I41 A5
2I43 A4
2I44 A5
2I45 A7
2I46 B9
2I48 E4
2I49 A7
2I53 D2
2I55 B2
2I56 B2
2I58 A7
2I62 E3
2I65 A8
2I71 A3
2I72 A3
2I73 A3
2I75 A3
2I76 A3
2I77 A2
2I78 A3
2I79 A3
2I80 A2
2I81 A2
2I82 A2
2I84 A2
2I85 A2
2I95 A9
2I97 A9
2I98 A9
2IA0 A2
2IA1 A2
2IA5 A3
2IA6 A3
2IA7 A9
2IA9 A7
2IB6 B8
2IC0 A7
2IC1 A7
2IC4 A9
2IC7 A4
2IC9 A6
2ID0 A7
2ID1 A8
2ID2 A8
2ID3 A8
2ID4 A8
2ID5 A8
2ID6 A9
2ID7 A9
2ID8 A9
2ID9 A9
2IE1 A9
2IE2 A9
2IE5 A9
2IE6 A9
2IE7 A9
2IF1 A8
2IF2 A8
2IF3 A8
2IF4 A8
2IF7 A8
2IG0 A9
2IG2 B9
2IG6 A8
2IG7 A9
2IG8 A9
2IH0 A9
2IH4 A8
2IH5 A8
2IJ2 A3
2IJ3 A3
2IK5 B3
2IK7 C4
2IP0 A8
2IP8 A8
2IQ5 A2
2IQ7 A2
2IR9 A2
2IS0 A7
2IS3 A7
2IS4 A7
2IS5 A7
2IS6 E1
2ISA A7
2L00 C9
2L01 B9
2L02 B9
2L03 B9
2L04 B9
2L05 B9
2L06 B9
2L07 B9
2L08 C9
2L09 C9
2L10 B9
2L11 C9
2L12 C9
2L13 C9
2L14 C9
2L15 C9
2L16 C9
2L17 C9
2L19 F8
2L20 C9
2L21 C9
2L28 B9
2L29 B9
2L30 B9
2L33 F9
2L34 E9
2L48 B9
2L49 B9
2L50 B9
2L51 C9
2L52 B9
2L54 B9
2L57 B9
2L58 B9
2P00 B1

2P02 B1
2P03 B2
2P04 B2
2P05 B1
2P06 B2
2P07 B2
2P08 B2
2P09 C1
2P10 C1
2P13 C1
2P17 C1
2P19 C2
2P20 C2
2P21 C2
2P22 B2
2P26 D1
2P27 C1
2P28 C1
2P34 C2
2P35 C2
2P36 C2
2P37 C2
2P38 C2
2P39 C2
2P40 C2
2P41 C2
2P42 C2
2P43 C2
2P44 C2
2P50 B2
2P80 B3
2P81 B3
2P90 B3
2P98 C1
2P99 C2
2PA4 C3
2PA5 C3
2PA6 C2
2PA7 C2
2PA8 C2
2PB3 C3
2PB4 C3
2PB5 C3
2PB6 C3
2PB7 C2
2PB8 B3
2PB9 C3
2PC0 C3
2PC1 C3
2PC2 C3
2PC3 B3
2PC4 B3
2PC5 C3
2PC6 B3
2PC7 B2
2PC8 B2
2PC9 C2
2PD1 C2
2PD2 D2
2PD3 C3
2PD4 C3
2PD5 D3
2PD6 C3
2PD7 C3
2PD8 C3
2PD9 C3
2PE0 C2
2PE1 D3
2PE2 C3
2PE3 C3
2PE4 C3
2PE5 C3
2PE6 B2
2PF1 B3
2PF3 C3
2PF8 C3
2PF9 C3
2PG0 C2
2PG1 C2
2U03 E7
2U04 E7
2U05 E7
2U07 E7
2U09 E7
2U11 E6
2U12 E6
2U13 F7
2U14 E7
2U15 E6
2U16 E7
2U17 F7
2U18 E7
2U20 E6
2U21 E7
2U23 E8
2U30 E7
2U31 F8
2U32 E7
2U34 F6
2U36 E6
2V06 D8
2V07 D8
2V08 D8
2V09 D8
2V10 D8
2V11 E9
2V12 E9
2V16 D8
2V17 D8
2V18 D8
2V19 D8
2V20 D8
2V21 D8
2V22 D8
2V23 D8
2V24 D8
2V25 D8
2Y06 E9
2Y07 E9
2Y08 E9
2Y09 E9
2Y10 E9

2Y12 F9
2Y13 F9
2Y14 E9
2Y15 E9
2Y16 E9
2Y17 E9
2Y18 D9
2Y19 D9
2Y20 D9
2Y21 D9
2Y30 B9
2Y31 C9
2Y32 D9
2Y33 D9
2Y37 F2
2Y38 F2
2Y39 F2
2Y40 F2
2Y41 F2
2Y42 F2
2Y44 F3
2Y45 F3
2Y51 F2
2Z44 F5
2Z45 F5
2Z46 F5
2Z47 F5
2Z48 F5
2Z49 F5
2Z50 F5
2Z51 F5
2Z52 F5
2Z53 F5
2Z57 F5
2Z58 F5
2Z59 F5
2Z60 F5
2Z61 F5
2Z62 F5
2Z63 F4
2Z65 F4
3003 C6
3011 C5
3012 B5
3018 C5
3019 C5
3020 C5
3021 C5
3024 C6
3025 C6
3026 C6
3027 C6
3033 C6
3035 B5
3039 C6
3047 A6
3058 C6
3059 C6
3065 B5
3066 B5
3068 C6
3073 C6
3074 C5
3075 C6
3076 C5
3077 C6
3078 C5
3084 A6
3089 B5
3090 C6
3091 A6
3099 C6
3302 C4
3304 C4
3306 C4
3317 C4
3318 C4
3320 B4
3321 B4
3322 C4
3329 C4
3330 C5
3332 C5
3335 C5
3336 C4
3340 C4
3341 B4
3342 B4
3343 C4
3344 C4
3345 C4
3346 C4
3347 C4
3348 C4
3349 B5
3353 C4
3361 C4
3363 C5
3370 B4
3371 B4
3372 B4
3376 B4
3377 B4
3387 C5
3388 C4
3390 C4
3393 B4
3394 C4
3395 C5
3396 C5
3397 C5
3398 C4
3399 C4
3400 C4
3402 B4
3404 B4
3406 A4
3409 A4
3411 B4
3412 C4
3413 B4
3416 A4

3418 B4
3422 B4
3423 A4
3433 A4
3436 A4
3437 B4
3439 B4
3442 C4
3443 C4
3444 B4
3447 B4
3448 C4
3449 C4
3460 B5
3461 B5
3462 B5
3472 C4
3473 B4
3474 C4
3475 B4
3476 B4
3701 D6
3703 D6
3704 D6
3705 D6
3706 D5
3707 E7
3712 D5
3713 C5
3714 C5
3715 D5
3716 C5
3717 C5
3718 D5
3719 D5
3720 D5
3721 D5
3722 D6
3723 D5
3724 D7
3725 D5
3726 D5
3727 D5
3728 D5
3729 B8
3730 D5
3732 E6
3733 D6
3734 D6
3736 D6
3737 D6
3738 D6
3739 D6
3740 E6
3741 D6
3742 D6
3743 D6
3744 D5
3745 B6
3746 D6
3747 D6
3748 D6
3749 D6
3750 D6
3751 E6
3752 D6
3753 D5
3754 D6
3755 D6
3756 D6
3760 D7
3765 B7
3766 B7
3778 C7
3782 B7
3783 B7
3796 B7
3798 B7
3805 C7
3819 C7
3820 B7
3821 C8
3823 B7
3824 B6
3826 C5
3827 C5
3829 E6
3830 D6
3831 D6
3832 D6
3833 C6
3834 C6
3835 C6
3836 C6
3837 C6
3838 C6
3839 C6
3840 C6
3841 C6
3842 C6
3843 D6
3844 D6
3845 D6
3846 C6
3847 C6
3848 C6
3849 D5
3850 B7
3851 D5
3853 C6
3854 C6
3855 C6
3856 A7
3857 A7
3858 A7
3859 A7
3860 A7
3861 A7
3864 D6
3865 D6
3867 C7
3868 C7

3870 E6
3874 E5
3875 D6
3876 D7
3877 C8
3885 D7
3886 D7
3887 D7
3888 D7
3889 D7
3890 D7
3891 D7
3895 B8
3897 B8
3898 B8
3903 D6
3905 D6
3906 C7
3909 D5
3913 D5
3914 D5
3915 C5
3916 C5
3917 C5
3922 D5
3923 D5
3924 D5
3925 D5
3926 C5
3927 C5
3928 C5
3929 C5
3930 D5
3931 D5
3932 D5
3933 D5
3A00 D5
3A01 D5
3A03 D4
3A05 D5
3A07 D5
3A09 D5
3A11 D4
3A12 D4
3A13 D4
3A14 D4
3A15 D4
3A16 D4
3A18 D4
3A20 D4
3A21 D4
3A23 D4
3A26 D4
3A27 D4
3A28 D4
3A66 D4
3AA0 E4
3AA1 E4
3AA4 D4
3AA5 E4
3AA6 D4
3AA7 E4
3AA9 E4
3AB0 E4
3AB2 E4
3AB3 E4
3AB4 E4
3AB5 E4
3AB6 D4
3AB7 E4
3AB8 D4
3AB9 D4
3AC0 E4
3AC1 E4
3C01 A5
3C03 A5
3C06 A5
3C07 B5
3C08 A5
3C09 C5
3E00 D8
3E01 D8
3E02 D9
3E03 D8
3E06 D8
3E07 E8
3E08 E8
3E09 E9
3E10 E9
3E13 E9
3E15 E9
3E16 E8
3E37 E9
3E50 C8
3E52 C8
3E53 B8
3E54 C8
3E59 D9
3E60 C8
3E61 C9
3E62 C8
3E63 C8
3E64 D9
3E73 B8
3E74 D8
3E77 C8
3E78 C8
3E79 B8
3E80 B8
3E87 C8
3E91 D8
3I00 E3
3I19 A3
3I20 A3
3I21 A3
3I22 A3
3I26 A3
3I27 A3
3I32 A4
3I33 A4
3I39 A3

3I43 A3
3I58 A5
3I59 A5
3I69 A6
3I70 A6
3I71 A6
3I72 A6
3I78 A6
3I83 A3
3I84 A3
3I89 A6
3I90 A7
3I91 A7
3I92 A7
3I99 A6
3IA0 A6
3IAA A8
3IAB A8
3IAC A8
3IAD A8
3IAE A8
3IAF A8
3IAG A8
3IAH A8
3IB4 B9
3IB5 B9
3IB6 E2
3IB7 E2
3IB8 E3
3IB9 E3
3IBC D2
3IBD D2
3IC1 B9
3IC8 A5
3IC9 A6
3ID0 A9
3ID1 A6
3ID5 A5
3ID8 A5
3ID9 A4
3IDA A4
3IDB A7
3IE2 A7
3IE4 A4
3IE5 A4
3IE6 A4
3IE7 A4
3IE8 A4
3IEF A9
3IEG A9
3IEJ A9
3IEL A9
3IEM A9
3IEN B9
3IEP B9
3IF4 E4
3IF5 A7
3IF6 A7
3IF8 E5
3IF9 E4
3IFE A7
3IFH A7
3IFL A7
3IG0 A8
3IG1 A8
3IG3 A8
3IG4 A8
3IG6 A8
3IG7 A8
3IGH E3
3IH3 A9
3IH5 A4
3IH6 A4
3IH7 A4
3IHA A4
3IHB A8
3IHC A8
3IHD A5
3IHE A4
3IJ0 A3
3IJ1 A3
3IJ9 A7
3IK0 B8
3IK6 B8
3IK8 A3
3IL1 A7
3IL2 A7
3IL5 A7
3IL6 A7
3IM4 A7
3IM6 A7
3IM7 A7
3IM8 A6
3IMA A7
3IMB A7
3IMC A7
3IML A7
3IMM A7
3IMN A7
3IMP A7
3IMR A7
3IMS A7
3IMT A7
3IMV A7
3IMW A7
3IN4 A7
3IN7 A4
3IN8 A4
3IN9 A4
3IQ2 A3
3IQ3 A3
3IR5 A9
3IR6 A9
3IS7 B9
3IS8 A8
3IS9 A8
3IT0 A6
3IT1 A7
3IT4 A6
3IT7 B8
3IT8 B8
3IU4 B8

3IV6 A8
3IW6 A9
3IY1 A5
3IY2 A5
3IY3 A4
3IY4 A4
3IY5 A5
3IY6 A5
3IY7 A5
3L04 B9
3L05 B9
3L11 B9
3L19 B9
3L20 B9
3L21 B9
3L28 B9
3L29 B9
3L30 B9
3L31 B9
3L32 C8
3L33 C8
3P00 C1
3P01 C2
3P02 D2
3P07 B2
3P08 B2
3P10 B1
3P17 B2
3P18 B2
3P19 B1
3P20 B1
3P25 C2
3P26 C2
3P27 B1
3P28 C1
3P29 C2
3P30 C1
3P34 C1
3P35 C1
3P41 C2
3P42 C2
3P43 C2
3P44 C1
3P61 C3
3P90 C2
3P91 B2
3P93 B3
3PA0 C3
3PA1 D2
3PA2 D2
3PA3 C3
3PA4 C3
3PA5 C2
3PA6 C3
3PA7 C3
3PA8 C2
3PA9 C3
3PB0 C2
3PB1 C2
3PB2 C2
3PB3 C2
3PB4 C2
3PB5 C3
3PB6 C3
3PB7 C2
3PB8 C2
3PB9 C2
3PC1 C2
3PC2 D3
3PC3 D3
3PC4 D3
3PC6 C3
3PC7 C3
3PC8 C3
3PC9 C3
3PD0 C3
3PD1 C2
3PD2 C3
3PD3 C2
3PD4 C2
3PD5 C2
3PD6 C2
3PD8 C2
3PD9 C3
3PE0 C2
3PE1 C2
3PE2 C2
3PE3 C2
3PE4 C2
3PE5 C2
3PF0 C3
3PF1 C2
3PF2 C3
3PF3 C2
3PF4 C3
3PF6 C3
3PF7 D3
3PF8 C3
3PF9 C3
3PG0 C3
3PG2 D2
3PG3 C3
3PG4 C3
3PG5 C3
3PG6 C2
3PH2 C3
3PH3 B3
3PH4 B2
3PH6 C2
3PH7 D2
3PH8 C3
3U01 F6
3U02 E7
3U03 E7
3U04 E7
3U05 E7
3U06 E6
3U07 E6
3U08 E6
3U09 E7
3U10 F7
3U11 E7

3U13 E7
3U14 E7
3U15 F7
3U16 E6
3U17 E7
3U18 E6
3U19 E6
3U20 F6
3U21 E6
3U22 F6
3U23 F6
3U25 E6
3U26 E6
3U28 E7
3U29 E7
3U30 E7
3U31 E7
3U34 E6
3U46 E6
3U51 E7
3U52 F6
3U53 F6
3U56 E6
3U57 E6
3U70 F6
3V01 D8
3V02 D8
3V07 D8
3V08 D8
3V14 D8
3V15 D8
3V16 D8
3V17 D8
3V19 D8
3V20 D8
3V21 C9
3V22 C9
3V23 C9
3V24 C9
3V25 D8
3V26 D8
3V27 D8
3V28 D8
3V29 D8
3V30 D8
3V31 D8
3V32 D8
3V33 D8
3V34 D8
3V35 E8
3V36 C8
3V39 C9
3V50 E9
3V51 E9
3V52 E9
3V53 E9
3V54 E9
3V55 E9
3V56 D8
3V57 E8
3Y04 C9
3Y17 C9
3Y18 D9
3Y19 D9
3Y27 F3
3Y28 F3
3Y36 F2
3Y39 F2
3Z22 F5
3Z34 F5
3Z35 F5
3Z50 F5
3Z51 F5
3Z52 F5
3Z53 F5
3Z54 F5
3Z55 F5
5000 A6
5001 A6
5003 A6
5301 C4
5302 C4
5303 A5
5306 A5
5307 A5
5309 A5
5310 A5
5311 A5
5403 A4
5405 B4
5406 A4
5411 A5
5416 A4
5703 D6
5705 D5
5706 D5
5707 C5
5708 D5
5709 C7
5713 B7
5714 D5
5721 E5
5722 E5
5725 E5
5726 E5
5750 C7
5751 C7
5752 B7
5753 D6
5754 B7
5755 E5
5756 D6
5757 B7
5758 B7
5759 C7
5760 B8
5761 C7
5762 B7
5764 B7
5767 D5
5768 E6
5772 E7

5773 E5
5775 B7
5777 C7
5778 E5
5779 D6
5780 B7
5800 C5
5801 C7
5A00 D4
5A01 E4
5A02 C4
5A03 C4
5A06 E3
5A19 D5
5A38 E3
5E51 D8
5E52 C8
5E53 E7
5E56 C8
5I01 B2
5I03 D2
5I07 A7
5I11 A8
5I20 A4
5I31 B9
5I32 A9
5I40 A8
5I46 B3
5I47 C3
5I54 A2
5I55 A2
5L02 B9
5L04 B9
5L06 B9
5L13 C9
5L14 C9
5L15 C9
5L16 C9
5L17 C9
5L18 C9
5P00 B1
5P01 B1
5P02 B2
5P03 B1
5P04 B2
5P06 B1
5P07 B2
5P51 B2
5PA0 B3
5PA1 C3
5PA2 B3
5PA3 B3
5PA4 C3
5PA5 D2
5PA6 C3
5PA7 C3
5PA8 D3
5PB0 B3
5U01 F7
5U02 F6
5U03 E7
5U04 E7
5U05 E8
5U06 F8
5U07 E7
5V06 D8
5V07 D8
5V08 D8
5Y16 C9
5Y17 C9
5Z01 F5
5Z02 F5
5Z03 F5
5Z04 F5
5Z05 F5
5Z06 F4
6001 C6
6003 C6
6301 C4
6309 C4
6310 C4
6311 C4
6316 C4
6319 C4
6404 A4
6701 D5
6702 E6
6703 D5
6704 B7
6705 E7
6709 C8
6710 D5
6711 D5
6712 E6
6716 E5
6717 C7
6718 C7
6719 B7
6720 D6
6721 D6
6722 D6
6723 C7
6A00 D4
6E51 C9
6E52 C8
6E54 D8
6I08 A4
6I10 A5
6I28 A5
6I37 A6
6I38 A6
6I39 A6
6I40 A6
6I43 A6
6I50 A3
6I53 A7
6I54 A7
6I55 A7
6I56 A7
6I61 A6
6I62 A6
6I72 A5

6I75 A3
6I92 A7
6I93 A7
6I94 A7
6P02 B2
6P03 B2
6PA0 C2
6PA1 C2
6PA2 C2
6PB2 C3
6PB3 B3
6PB4 B2
6PB6 D2
6PB7 C2
6PB8 C3
6U01 F7
6U03 E7
6U04 E7
6U05 E7
6U06 F7
6U07 F6
6U08 E6
6U09 E6
6U13 F6
6U17 F6
6V01 D8
6V02 D8
6V03 D8
7001 B6
7005 A6
7006 B6
7008 C6
7009 C6
7010 C6
7013 B5
7014 B5
7017 A5
7018 A5
7019 B5
7304 B5
7320 B4
7323 B4
7340 C4
7361 C4
7362 C5
7402 B4
7405 A4
7408 B4
7409 C4
7411 B4
7413 B5
7414 B4
7415 B4
7701 C7
7702 D6
7703 E6
7705 E6
7706 D6
7707 D6
7708 D6
7709 D6
7710 D6
7711 D5
7715 D6
7717 B7
7718 B7
7721 B7
7725 B6
7770 C6
7772 B8
7773 E6
7774 B6
7775 D5
7776 C5
7777 D5
7A00 D4
7A01 D4
7A02 D4
7A03 D4
7A11 D3
7A12 D3
7A16 D3
7A31 D5
7A61 E4
7A62 E4
7A63 E4
7E01 D9
7E02 D8
7E06 B8
7E22 E9
7E25 D9
7E26 D9
7E27 D8
7I06 A3
7I07 B9
7I09 B9
7I11 E3
7I13 E5
7I15 E4
7I17 A3
7I18 A9
7I21 A6
7I24 B3
7I26 A7
7I27 A5
7I29 A4
7I30 A7
7I31 A4
7I33 A7
7I42 B8
7I45 E2
7I46 E2
7I56 A8
7I57 A8
7I58 A8
7I59 A9
7I60 A3
7I71 A8
7I72 A9
7I75 D2
7I82 A7
7I90 A7

7I93 A7
7I94 A7
7I95 A7
7L02 F9
7P00 B2
7P02 B1
7P05 B2
7P08 C1
7P09 C2
7P10 C2
7PA0 C3
7PA1 C3
7PA2 C2
7PA3 C2
7PA4 C3
7PA5 C2
7PA6 C2
7PA7 D3
7PA8 C3
7PA9 C3
7PB0 C2
7PB1 B2
7PB2 C2
7PB3 C2
7PB4 C2
7PB6 D2
7U01 E7
7U02 E7
7U03 E7
7U04 E7
7U05 E6
7U06 E6
7U08 E7
7U09 E7
7U10 E6
7U11 E6
7U12 E6
7V04 E9
7V06 E8
9016 C6
9017 A6
9018 A6
9022 C6
9023 C6
9302 C4
9303 C4
9304 C4
9305 C4
9314 B5
9315 C5
9316 C4
9322 B4
9408 B4
9409 B4
9412 A4
9414 B4
9416 A4
9417 A4
9419 B4
9423 A5
9424 A5
9425 A5
9426 B5
9428 A5
9700 D6
9703 D5
9704 C7
9705 C7
9707 D5
9708 C5
9709 D5
9711 B8
9713 C8
9717 B6
9718 B6
9719 B7
9720 B6
9721 C7
9722 D5
9727 D7
9728 D7
9729 E6
9730 B8
9731 B7
9732 B7
9750 B7
9751 B7
9752 C7
9761 C7
9762 C7
9767 D6
9768 D6
9769 D6
9770 D6
9771 D6
9772 D6
9800 C6
9801 C6
9802 C6
9803 C6
9804 C6
9805 C6
9806 C6
9807 D6
9808 D7
9809 D6
9810 D7
9812 C6
9815 D6
9816 D6
9817 D6
9818 D6
9821 B8
9822 B8
9825 D5
9826 C5
9827 D5
9A04 C5
9A05 D5
9A06 D5
9A19 E4
9A21 D2

EN 84FTL2.1U, FTL2.2U 7.

9A22 D3
9A23 D3
9A24 D3
9A25 D3
9A60 D4
9A61 E4
9A65 D4
9A67 D4
9A71 D4
9A72 D2
9A73 D2
9A74 D3
9A75 D3
9A78 D5
9A79 D5
9C00 A5
9C01 A6
9E59 C9
9E60 C8
9E61 C8
9E62 C8
9E63 C8
9E64 C8
9E65 C8
9E74 E9
9I04 A4
9I08 B3
9I10 B3
9I12 B3
9I20 A3
9I21 A3
9I22 A4
9I24 D2
9I25 A7
9I26 A7
9I27 A7
9I30 A3
9I35 A2
9I36 A8
9I37 A7
9I38 A7
9I40 A4
9I44 A8
9I46 D2
9I52 A9
9I53 A9
9I54 A5
9I55 B9
9I56 B9
9I59 A7
9I60 A3
9I61 A7
9I83 A4
9I86 A3
9I87 E1
9I89 E1
9I90 E1
9I95 B3
9I97 B3
9IA1 A3
9IA3 A2
9IA4 A5
9IA5 A5
9IB5 A4
9IB6 A7
9IC1 A7
9IC3 A7
9ID0 E3
9IF0 A7
9P00 B1
9P01 B2
9P02 B1
9P03 B1
9P06 C1
9P08 B1
9P13 C2
9P14 B1
9P15 C1
9P19 B1
9P26 C2
9P27 C2
9P29 B2
9P70 B3
9P72 B2
9PA0 C3
9PA1 C2
9PA2 C3
9PA3 C2
9PA4 D3
9PA5 C3
9PA6 C3
9PA7 C2
9PA8 C2
9PB1 C2
9PB2 B3
9PB3 C2
9PB4 C2
9PB5 C2
9PB8 D3
9Y01 F9

E_14620_130m.eps

070704

Personal Notes:

E_06532_012.eps

131004

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 1)

Part 1

EN 85FTL2.1U, FTL2.2U 7.

E_14620_130a.eps

070704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 2)

EN 86FTL2.1U, FTL2.2U 7.

Part 2

E_14620_130b.eps

070704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 3)

EN 87FTL2.1U, FTL2.2U 7.

Part 3

E_14620_130c.eps

070704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 4)

EN 88FTL2.1U, FTL2.2U 7.

Part 4

E_14620_130d.eps

070704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Overview)

Part 1

E_14620_131a.eps

EN 89FTL2.1U, FTL2.2U 7.

Part 2

E_14620_131b.eps

3104 303 3913.3

Part 3

E_14620_131c.eps

Part 4

E_14620_131d.eps

E_14620_131.eps

080704

Circuit Diagrams and PWB Layouts

EN 90FTL2.1U, FTL2.2U 7.

Layout Small Signal Panel Mapping (Bottom Side)

1301 B5
1404 A4
1406 A6
1407 A6
1409 A5
1410 B6
1411 B6
1A00 D5
1A01 D5
1G50 F5
1P04 B8
1P05 C8
1P07 C8
1P08 B9
1P09 C9
1P50 C8
2003 B4
2010 C5
2017 B5
2019 A5
2022 C4
2023 B4
2024 B4
2026 B5
2033 B5
2036 B4
2038 B4
2040 B4
2041 B5
2052 A4
2053 A4
2054 A4
2055 A4
2056 A4
2057 A4
2060 A4
2061 A4
2063 C4
2068 C5
2072 C5
2074 C5
2300 B6
2302 B6
2303 C6
2304 C6
2306 B6
2307 C6
2308 C6
2309 B6
2310 B6
2311 B6
2312 B6
2313 B6
2319 C6
2320 B5
2321 C5
2323 C5
2325 B6
2326 C6
2328 C5
2335 C6
2337 C6
2338 C6
2341 C6
2342 C6
2343 C6
2345 A5
2346 A5
2354 B6
2366 B6
2369 B6
2370 C6
2371 B6
2372 B6
2374 B6
2375 B6
2378 B6
2384 B6
2385 B6
2386 C6
2387 B6
2392 B6
2402 B6
2415 B6
2418 B6
2419 B6
2420 B6
2421 B6
2422 B6
2423 B6
2424 B6
2426 A5
2431 C5
2713 E5
2714 E5
2727 E4
2731 E5
2734 D4
2737 C2
2746 E5
2748 E5
2754 E5
2757 D5
2769 B3
2786 B4
2789 A3
2791 A3
2793 A3
2804 D5
2806 D5
2807 D5
2808 B4
2812 B3
2817 D3
2823 A3
2825 A3
2827 A3
2882 D3
2883 D3
2884 D3
2885 D3
2892 E3
2893 D3

2894 D3
2920 D5
2932 C5
2933 C5
2A01 D6
2A07 C6
2A19 D7
2A24 D7
2A34 D8
2A38 D7
2A47 D5
2A51 C5
2A64 D6
2A69 D6
2A70 D6
2A72 D6
2A74 D6
2A75 D6
2A79 D6
2A80 D6
2A81 D6
2A83 D6
2A88 D6
2A89 D6
2A90 D6
2A91 D5
2A92 D6
2A99 D5
2AA5 D6
2AA9 D5
2AB0 D5
2AB3 D6
2AB4 D6
2AB8 D6
2AC1 E7
2AD0 E7
2AD3 E7
2AD4 E8
2AD5 E7
2AD6 E8
2AE2 D7
2AE3 D8
2AE5 E8
2AF0 D7
2AK8 E6
2AN5 E6
2AN6 E6
2C00 A5
2C02 B5
2D04 D1
2D15 D1
2E02 E1
2E04 E1
2E05 E2
2E07 E1
2E08 E2
2E09 D1
2E10 E2
2E11 E2
2E12 D2
2E13 E2
2E14 E2
2E15 D2
2E16 E1
2E18 D2
2E19 D1
2E20 E2
2E27 E2
2E35 D2
2E48 E2
2E49 D1
2E51 D1
2E52 C2
2E53 E2
2E55 C2
2E84 D2
2E86 D1
2E88 C2
2E92 B2
2E93 B2
2E94 B2
2I00 A1
2I01 B7
2I02 B8
2I04 A7
2I05 B7
2I06 B7
2I07 A8
2I08 A8
2I10 A6
2I11 A4
2I12 A5
2I18 A6
2I19 A6
2I23 A7
2I24 A8
2I36 A4
2I37 F6
2I39 A5
2I40 F6
2I47 A5
2I51 A7
2I52 E5
2I57 A2
2I59 E8
2I60 F6
2I63 A4
2I66 A2
2I67 A1
2I68 A2
2I69 A2
2I70 A1
2I86 A2
2I90 A2
2I91 A2
2I92 A2
2I93 A2
2I94 A2
2I96 A2
2IA4 A4
2IB3 A2
2IB5 A2
2IB7 E6

2IB8 A1
2IB9 A1
2IC5 A1
2IC6 A6
2IC8 A1
2IDA A6
2IDB A6
2IDC A3
2IDD A3
2IE0 B8
2IE3 A2
2IE4 A2
2IE8 A2
2IE9 A2
2IF5 A2
2IF8 A2
2IF9 A2
2IG3 A2
2IG4 A1
2IG5 A2
2IG9 A2
2IH1 A1
2IH2 A2
2IH3 A5
2IH6 A2
2IH7 A2
2IH8 A2
2IH9 A2
2IJ0 A8
2IJ1 A7
2IJ5 E5
2IJ6 A1
2IJ7 A1
2IK1 A2
2IK6 C6
2IN8 A2
2IN9 A2
2IQ6 A8
2IQ8 A8
2IQ9 A8
2IR0 A3
2IR1 A3
2IR2 A8
2IR3 A8
2IR4 A8
2IR5 A8
2IR6 A8
2IR7 A8
2IR8 A8
2IS1 A3
2IS2 A3
2L18 B1
2L25 B1
2L26 C2
2L27 C2
2L31 C2
2L32 C2
2L56 B1
2L59 B1
2L60 B1
2P01 C8
2P11 C9
2P12 C9
2P14 C9
2P15 C9
2P16 C9
2P18 C8
2P23 C8
2P24 C8
2P25 C9
2P29 C8
2P30 C8
2P31 C9
2P32 D9
2P33 C9
2P45 C9
2P46 C9
2P47 C8
2P49 C8
2P51 C8
2P52 C7
2P53 C7
2P54 C7
2P55 C7
2P56 C7
2P57 C7
2P58 C7
2P59 D8
2P60 D7
2P61 D7
2P62 D7
2P63 C7
2P65 C7
2P66 C7
2P70 B7
2P71 C7
2P72 B7
2P73 B7
2P74 C7
2P75 B7
2P76 C7
2P77 C7
2P78 B8
2P79 B7
2P87 B8
2P88 B7
2P91 C9
2P92 C9
2P93 C9
2P94 C9
2P95 C8
2P96 C8
2P97 C7
2PA0 C7
2PA1 C7
2PA2 C7
2PA3 C7
2PA9 C8
2PB0 C7
2PB1 C7
2PB2 C7
2PD0 C8
2PE7 C7

2PE8 C7
2PE9 C7
2PF2 B7
2PF5 B7
2PF6 B7
2PF7 C8
2PG2 C9
2PG6 D7
2T01 A9
2T02 D9
2T03 D8
2T04 A9
2T05 A9
2T06 A9
2T07 D8
2T09 A9
2T10 D9
2T11 D8
2T12 A9
2T13 A9
2T14 D8
2T15 A9
2T16 D9
2T17 A9
2T18 D8
2T19 D8
2T20 D8
2T21 A9
2T22 A9
2T30 E9
2T31 E8
2T32 E9
2T33 E8
2T34 E8
2T35 E8
2T36 E9
2T37 E8
2T38 E9
2T40 D9
2T41 D8
2T42 E8
2T43 E8
2T44 E8
2T45 E8
2T46 D8
2T47 E9
2T48 E8
2T49 E9
2T50 E9
2T51 E8
2T52 E9
2T53 E8
2T54 E9
2U01 F3
2U02 E3
2U06 E4
2U08 F2
2U10 F3
2U19 E4
2U22 E4
2U24 E4
2U25 E4
2U26 F4
2U27 E3
2U28 E3
2U29 F2
2U33 F4
2U35 E4
2U37 E3
2U38 E4
2U39 E4
2U40 E4
2U41 E4
2U42 E4
2Y00 F2
2Y01 F2
2Y02 F2
2Y03 F2
2Y04 F2
2Y11 F2
2Y22 F2
2Y23 D1
2Y25 C1
2Y26 C1
2Y27 C1
2Y28 D1
2Y29 D1
2Y34 F2
2Y43 F8
2Y48 F2
2Y49 F3
2Y50 F3
2Y52 F8
2Y53 D1
2Z54 E5
2Z55 E5
2Z56 E5
2Z64 F6
3001 C5
3002 C5
3004 B5
3005 B5
3006 B4
3007 B4
3008 B5
3009 C4
3010 B5
3013 B5
3014 B5
3015 B5
3016 B5
3017 B5
3022 C4
3023 C4
3028 C4
3029 B5
3030 C4
3031 B5
3032 C4
3034 B4
3036 C4
3037 C4
3038 C4

3040 B5
3041 B5
3042 C5
3045 A4
3046 A4
3048 B5
3049 B5
3050 B5
3051 B5
3052 B4
3053 C5
3054 B4
3055 B4
3056 B4
3057 B4
3061 B4
3062 B4
3064 C5
3067 B5
3069 C5
3070 C4
3072 B4
3079 C5
3080 C4
3081 B4
3082 B4
3083 B4
3085 B5
3086 B5
3087 B4
3088 C5
3092 C5
3093 B5
3094 C5
3095 C5
3096 C5
3097 A4
3098 A4
3100 C5
3101 C5
3102 B4
3103 C4
3300 B6
3301 B6
3303 B6
3305 C6
3307 C6
3308 C6
3310 C6
3311 C6
3312 C6
3313 C6
3314 C6
3315 B6
3316 C6
3319 C6
3323 B6
3324 B6
3325 C6
3326 B6
3327 B6
3328 B6
3331 C5
3333 B5
3334 B6
3337 C6
3338 C6
3339 C6
3350 C6
3351 C6
3352 C6
3354 C6
3355 C6
3356 C6
3357 C6
3358 C6
3359 C6
3360 C6
3362 C6
3364 C6
3365 C6
3366 C6
3367 C6
3369 C6
3378 B6
3380 B6
3382 B6
3383 C6
3384 C6
3385 B6
3386 C6
3389 C6
3391 C6
3401 B6
3405 B6
3407 A6
3408 B6
3410 A6
3414 B6
3415 B6
3417 A6
3419 A6
3420 B6
3421 A6
3434 A6
3435 A6
3441 B6
3445 A6
3450 B6
3451 B6
3452 B6
3453 C6
3454 C6
3455 C6
3456 B6
3457 B6
3459 C6
3463 B6
3465 C6
3467 C6
3468 B6
3470 C6
3471 C6

3700 D4
3702 E4
3709 E5
3710 D5
3711 E4
3757 A3
3758 E5
3759 D5
3761 D4
3762 C3
3763 C3
3764 C3
3767 C3
3768 C3
3769 C3
3770 C3
3771 A3
3772 A3
3773 A3
3774 C3
3775 C3
3776 A3
3777 C3
3779 C3
3780 C3
3781 C3
3784 C3
3792 A3
3793 B4
3794 A3
3795 A3
3797 B4
3799 B4
3800 A3
3801 A3
3802 A3
3803 C3
3804 C3
3811 A3
3812 A3
3814 A3
3815 A3
3817 A3
3818 A3
3822 D4
3825 B4
3871 E3
3872 D3
3873 E3
3880 D3
3881 D3
3882 D3
3883 D3
3884 D3
3894 A3
3896 B2
3900 B3
3901 C3
3902 C3
3911 B3
3912 B3
3918 B3
3919 B3
3921 B3
3A02 D7
3A04 D5
3A06 D6
3A17 D6
3A19 D6
3A22 D5
3A24 C5
3A40 D6
3A45 D5
3A46 D5
3A47 D6
3A48 D5
3A49 D5
3A51 D6
3A52 D6
3A53 D6
3A55 D5
3A60 D6
3A61 D6
3A62 D6
3A63 D6
3A64 D5
3A65 C5
3A67 D7
3A74 E8
3A77 D7
3C00 A5
3C04 A5
3C05 A5
3C10 B5
3C11 C5
3C12 B5
3E04 E1
3E05 E1
3E11 E2
3E12 E2
3E14 E2
3E18 D2
3E19 D2
3E51 D1
3E55 D1
3E56 D1
3E57 D1
3E58 D1
3E69 C2
3E70 C2
3E81 C2
3E82 B2
3E83 C2
3E84 B2
3E85 B2
3E86 B2
3E88 D2
3E89 D1
3E90 E1
3I01 A8
3I02 B8
3I03 B8
3I04 A7

3I05 B7
3I06 B8
3I07 A5
3I09 A8
3I10 B7
3I11 B7
3I12 B7
3I13 B7
3I14 B7
3I15 B7
3I16 B7
3I17 A7
3I18 A7
3I23 A8
3I24 A8
3I25 B8
3I28 A4
3I34 A5
3I36 A5
3I37 A4
3I38 A5
3I40 A6
3I41 A6
3I42 A1
3I44 A1
3I45 A1
3I46 A1
3I49 A1
3I54 A5
3I55 A5
3I56 A4
3I57 A4
3I61 A6
3I62 A6
3I73 A7
3I74 A7
3I76 A6
3I77 A6
3I79 A7
3I80 A8
3I87 A7
3I88 A7
3I98 A5
3IA1 A5
3IA2 A4
3IA3 A4
3IA4 A4
3IA5 A4
3IA6 A3
3IA7 A4
3IA8 A4
3IB1 E8
3IB2 A6
3IB3 E8
3IBA E8
3IBB E8
3IC0 E8
3IC2 A5
3IC3 A5
3IC4 A6
3IC5 E8
3IC6 A7
3IC7 E8
3ID2 E6
3ID3 F6
3ID4 F6
3ID6 E5
3ID7 A5
3IE0 F6
3IE1 A8
3IE3 A3
3IE9 A2
3IEH A1
3IEI A1
3IF1 E6
3IF2 E5
3IF3 E6
3IF7 A3
3IFA A3
3IFB A3
3IFC A3
3IFD A3
3IFF A3
3IG2 A3
3IG5 A3
3IG8 A3
3IGA F6
3IGB F6
3IGC F6
3IGD F6
3IGE F6
3IGF F6
3IH0 F6
3IH1 A5
3IH2 F6
3IH4 F6
3IH8 A8
3II0 A8
3II1 A8
3II2 A8
3II3 A8
3II5 A2
3II6 A2
3II7 A2
3II8 A1
3II9 A1
3IJ2 A2
3IJ3 A2
3IJ4 A2
3IK2 A7
3IK3 A8
3IK4 A7
3IK5 A8
3IK7 A8
3IL8 A3
3IL9 A3
3IM2 A3
3IM3 A3
3IMD A3
3IME A3
3IMF A3
3IMG A3
3IMH A3

3IN5 A5
3IN6 A6
3INK A3
3IO5 A3
3IO6 A3
3IQ5 A1
3IQ6 A1
3IQ7 A1
3IR0 A1
3IR1 A1
3IR2 A1
3IR3 A1
3IR7 A2
3IR9 A1
3IS0 A2
3IS1 A2
3IS2 A8
3IS3 A1
3IS5 A2
3IS6 A1
3IT5 A1
3IT6 A2
3IU0 A2
3IV4 A2
3IV5 A2
3IW3 A6
3IW4 A5
3IW5 A5
3IW9 A6
3L02 B1
3L03 C2
3L06 C2
3L08 C2
3L12 B1
3P03 C8
3P04 C8
3P05 C8
3P06 C8
3P09 B8
3P11 B9
3P12 B8
3P13 B8
3P14 B8
3P15 B8
3P16 C9
3P21 C8
3P22 C8
3P23 C8
3P24 C8
3P31 C9
3P32 C9
3P33 C9
3P36 C9
3P37 C8
3P38 C9
3P39 C9
3P40 B9
3P45 C8
3P46 C8
3P47 C9
3P48 C8
3P49 C8
3P50 C7
3P51 C7
3P52 C7
3P53 C8
3P54 C7
3P55 D7
3P56 C7
3P57 C7
3P60 C7
3P62 C7
3P63 C7
3P64 C7
3P65 B8
3P66 B8
3P67 B7
3P68 B7
3P69 B7
3P70 B7
3P71 C8
3P72 B8
3P74 B7
3P75 D7
3P76 C7
3P79 C8
3P80 C8
3P81 C7
3P82 B7
3P85 B8
3P86 B7
3P87 B7
3P88 B7
3P92 C8
3P94 C8
3P95 C8
3P96 C7
3P97 D7
3P98 C7
3P99 C7
3PC0 C8
3PC5 B7
3PD7 C8
3PF5 B7
3PG1 C7
3PG7 D7
3PG8 C7
3PH5 D8
3PH9 D7
3PI0 B7
3PJ0 D8
3PJ1 D8
3PJ2 D8
3PJ3 D8
3PJ4 C7
3PJ5 C7
3PJ6 C7
3PJ7 C7
3PJ8 C7
3PJ9 C7
3T03 A9
3T04 D8
3T05 A9

3T06 A9
3T10 E9
3T11 E9
3T12 E9
3T13 E9
3T14 E9
3T15 E9
3T16 E8
3T17 E8
3T18 E8
3T19 E8
3T20 E9
3T22 E9
3T23 E8
3T24 E8
3T25 E8
3T26 E8
3T27 E9
3T28 D8
3T29 E9
3T30 E9
3T31 E9
3T32 E8
3T33 E9
3T51 E9
3T52 E9
3T53 E9
3T54 E9
3T55 E9
3T56 E9
3T57 E9
3T58 E9
3T59 E9
3T60 E9
3U12 F5
3U24 E4
3U27 E5
3U32 E3
3U33 E3
3U35 E4
3U36 F5
3U37 F4
3U38 F4
3U39 E4
3U40 E4
3U41 E4
3U42 E4
3U43 F4
3U44 E3
3U45 E3
3U54 E5
3U55 F4
3U58 E3
3U59 E3
3U60 E4
3U61 E4
3U62 E4
3U63 E4
3U64 E4
3U65 E4
3U66 E4
3U67 E4
3U68 E4
3U69 E4
3V18 C2
3V37 C2
3V38 C2
3V40 C2
3Y00 E1
3Y01 E1
3Y02 E1
3Y03 E1
3Y05 E1
3Y06 F2
3Y08 F1
3Y09 D1
3Y10 D1
3Y11 E1
3Y12 D1
3Y13 F2
3Y14 F8
3Y20 D1
3Y21 D1
3Y22 D1
3Y23 D1
3Y24 F8
3Y25 F8
3Y30 F1
3Y33 F2
3Y34 F3
3Y35 F3
3Y37 F8
3Y38 F8
3Y40 D1
3Z23 E5
3Z24 F5
3Z25 F5
3Z26 F5
3Z28 E5
3Z29 E5
3Z30 E5
3Z31 E5
3Z32 E5
3Z33 E5
3Z36 E5
3Z37 F5
3Z38 F6
3Z39 F5
3Z56 E5
5304 A5
5305 A5
5308 A5
5312 B6
5313 C6
5314 C6
5315 C6
5318 B6
5401 B6
5402 A6
5404 B6
5408 B6
5702 C5
5719 E4

5720 E4
5723 E5
5724 E5
5727 E5
5728 E5
5763 D3
5769 E3
5770 D3
5771 D3
5A07 D7
5E00 E1
5E01 E2
5E02 E2
5E03 E2
5E50 C2
5E54 D1
5E55 C2
5E58 C2
5I02 E8
5I04 E8
5I10 E6
5I12 A2
5I13 A2
5I22 A1
5I30 A2
5I33 A2
5I34 A1
5I35 A2
5I36 A1
5I37 A1
5I38 A2
5I39 A1
5I42 A2
5I45 C6
5P05 B9
5P08 C8
5P09 C8
5P10 C8
5P11 C9
5P50 C7
5PA9 B7
5T02 D9
5T03 D8
5T04 E8
5T10 D9
5T11 E8
5T12 D9
5T13 D9
5T14 E8
5T15 E8
5T20 A9
5T22 A9
5T25 A9
5Y00 F1
5Y01 E1
5Y02 F2
5Y03 F2
5Y06 F2
5Y07 F2
5Y09 F1
5Y11 E1
5Y12 E1
5Y14 D1
5Y15 F2
5Y18 F8
5Y19 F8
5Y20 F8
5Y21 F8
5Y22 F8
5Y23 D1
5Z07 F6
5Z08 F6
6002 A4
6004 C4
6005 A4
6006 C4
6303 B6
6304 B6
6306 B6
6307 B6
6308 C6
6312 B6
6313 B6
6314 C6
6317 C6
6334 B6
6402 A6
6403 B6
6405 A6
6713 E3
6714 D3
6715 E3
6A01 C5
6A02 C6
6E53 D1
6E55 D2
6E56 C2
6I03 E8
6I04 E8
6I05 E5
6I09 A6
6I11 A4
6I12 A5
6I13 A5
6I26 A5
6I27 A4
6I30 A6
6I31 A6
6I32 A6
6I33 A6
6I41 A7
6I44 A6
6I45 A7
6I46 A7
6I47 A8
6I48 A8
6I52 A7
6I63 A1
6I64 A1
6I65 A1
6I66 A1
6I69 A4
6I70 A4

6I71 A4
6I73 A5
6I74 A6
6I76 A7
6I77 A7
6I90 A3
6I91 A3
6IA7 A5
6P00 B8
6P01 B8
6P10 C7
6PB1 B7
6PB5 D8
6PB9 D7
6T01 A9
6T02 D8
6T03 A9
6T04 D8
6T05 A9
6T06 D9
6T07 D9
6T08 A9
6T10 E9
6T11 E9
6U02 E3
6U10 E3
6U11 E4
6U12 F4
6U14 E4
6U16 E4
6V05 C2
6Z00 E5
7002 B5
7003 B5
7004 B5
7007 A5
7011 C5
7012 B5
7015 C5
7016 C5
7020 C4
7021 C4
7022 C4
7301 C6
7302 C6
7303 B6
7305 C6
7306 C6
7307 B6
7309 C6
7310 C6
7312 B6
7313 C6
7314 C6
7315 C6
7316 C6
7317 C6
7318 C6
7319 C6
7322 B6
7375 C6
7401 A6
7403 B6
7406 A6
7407 A6
7410 B6
7412 B7
7712 E5
7713 D4
7714 D3
7719 C3
7720 B3
7752 C5
7753 C4
7760 D3
7A04 D6
7A06 D6
7A07 D6
7A08 D5
7A09 D5
7A13 D7
7A14 D7
7A15 D8
7A30 E7
7E03 B2
7E04 C2
7E05 D1
7E10 C2
7E12 D1
7E23 E2
7E24 E1
7I01 A4
7I02 A3
7I04 A4
7I05 A5
7I08 A6
7I10 E8
7I14 F6
7I16 E6
7I19 A1
7I20 A8
7I22 A8
7I23 A2
7I25 A8
7I28 A3
7I40 F6
7I44 A5
7I48 A3
7I49 A5
7I50 A5
7I51 A1
7I52 A1
7I55 A2
7I64 A1
7I80 A3
7I81 A3
7I91 A3
7I92 A3
7L01 B1
7P01 B8
7P03 B9
7P04 B9
7P06 C9

7P07 C9
7P11 C9
7P51 C7
7P52 C7
7P53 C7
7P54 C7
7P55 C7
7P56 B7
7P58 C7
7P59 C7
7P60 C8
7P61 C8
7P62 C8
7P63 D8
7PB5 B7
7T01 D9
7T04 E9
7T10 E8
7T11 E9
7T12 E9
7T13 E9
7T50 A9
7U07 F4
7U13 E4
7V01 C2
7V02 D2
7V03 C1
7Y01 F9
7Y02 F8
7Z00 E5
7Z01 E5
9001 C5
9002 C5
9003 C5
9004 B5
9005 A4
9006 A4
9007 A4
9008 C4
9009 C4
9010 C5
9011 C5
9012 C4
9013 C4
9014 B5
9015 C5
9019 C4
9021 C4
9024 C4
9025 C4
9308 C6
9309 C6
9310 C6
9311 C6
9312 C6
9313 C6
9318 B6
9319 B6
9401 A6
9402 A6
9403 A6
9404 B6
9405 A6
9406 B6
9407 B6
9410 B6
9413 B6
9415 B6
9418 A6
9420 A6
9421 C6
9422 B6
9427 B6
9701 E5
9702 E5
9706 D5
9710 D5
9712 B4
9714 C2
9715 B4
9716 B4
9723 B3
9726 D5
9740 B4
9753 B4
9754 B4
9755 B4
9756 B4
9757 B4
9758 B4
9759 B4
9760 B4
9763 B4
9764 B4
9765 B4
9766 B4
9773 B4
9774 B4
9775 B4
9811 D3
9820 D4
9823 B3
9A00 D6
9A01 D6
9A02 D6
9A03 D6
9A07 D6
9A08 D6
9A10 E6
9A11 E6
9A12 E6
9A13 E6
9A14 E6
9A15 E6
9A16 E6
9A17 E6
9A18 D6
9A20 E6
9C02 A4
9E57 C2
9E58 C2
9E66 D1
9E67 D1

9E68 D1
9E69 D1
9E70 D1
9E71 D1
9E72 D1
9E73 D2
9E75 D1
9E76 D1
9E77 D2
9I00 A7
9I01 A7
9I02 A7
9I03 B7
9I05 E8
9I06 E8
9I09 A7
9I11 A7
9I15 A8
9I17 A7
9I29 A2
9I31 A7
9I32 A7
9I33 A7
9I34 A8
9I48 A1
9I50 A4
9I51 A4
9I57 A8
9I58 A8
9I68 A2
9I69 A7
9I70 A7
9I73 A3
9I74 A3
9I75 A3
9I78 B8
9I81 A2
9I82 A6
9I88 A2
9I91 A2
9I92 A7
9I93 A7
9I94 A7
9I96 B8
9I98 A2
9I99 F6
9IA6 A5
9IA7 A5
9IB1 A7
9IB2 A7
9IB3 A2
9IB7 A2
9IC2 A3
9ID1 A2
9ID2 A2
9ID3 A2
9ID4 A2
9ID5 A2
9ID6 A2
9ID7 A3
9ID8 A3
9ID9 A2
9IF1 A3
9IF2 A3
9IF3 A3
9IF4 A3
9IZY A5
9IZZ A5
9P04 B8
9P05 B9
9P07 C9
9P09 B9
9P10 B8
9P11 B8
9P12 C9
9P16 B8
9P17 C8
9P18 B9
9P20 C8
9P21 C8
9P22 C9
9P23 C8
9P24 C9
9P25 C9
9P28 C8
9P30 C9
9P31 C7
9P32 C7
9P52 C7
9P53 C7
9P54 D7
9P69 B7
9P71 B7
9P73 D7
9P74 D7
9P75 D7
9PB7 D8
9T01 A9
9T02 D8
9T03 D8
9T04 A9
9T05 A9
9T06 D8
9T07 A9
9T08 A9
9T09 D8
9T10 D8
9T11 E8
9T12 A9
9T14 A9
9T50 A9
9Y00 D1
9Y03 F1
9Y05 E1
9Y06 E1
9Y09 F1
9Y12 F2
9Y13 F2
9Y14 F2
9Y15 F1
9Y16 F9
9Y17 F9

E_14620_131m.eps

090704

Personal Notes:

E_06532_012.eps

131004

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 1)

EN 91FTL2.1U, FTL2.2U 7.

Part 1

E_14620_131a.eps

080704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 2)

EN 92FTL2.1U, FTL2.2U 7.

Part 2

E_14620_131b.eps

080704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 3)

EN 93FTL2.1U, FTL2.2U 7.

Part 3

E_14620_131c.eps

080704

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 4)

EN 94FTL2.1U, FTL2.2U 7.

Part 4

E_14620_131d.eps

080704

Side I/O Panel

Circuit Diagrams and PWB Layouts

EN 95FTL2.1U, FTL2.2U 7.

SIDE I/O

A

B

C

D

E

F

3104 313 6008.3

1

2345678

JAGUAR ONLY

5000

F012 F013

F001

C

2010

2008

1101

1102

1106

GND_AUD

1108

GND_AUD

22n

GNDB

22n

GNDB

1109

1111

1110

2

1001

1002-1

YELLOW

1002-2
WHITE

1002-3

RED

1010

Y / CVBS

1

34

5

F003

1

2

F004

9004

645

I001

7

9005

8

9

I003

F007

5
4
2

F008

F009

3
7

F019

8
1

GNDB

F002

GND_AUD

F005

F006

GNDB

12345678

I009

I002

I010

GNDB

GNDB

GNDB

6000

6002

6003

6004

6005

6006

6007

PDZ6.8-B
I004

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

GND_AUD

PDZ6.8-B

PDZ6.8-B

GND_AUD

6010

PDZ6.8-B

I014

PDZ6.8-B

6008

I013

PDZ6.8-B

6009

6001

3004

2004

2006

I007

6011

GNDB

I005

PDZ6.8-B

GNDB

PDZ6.8-B

75R

680p

680p

75R

3000

F020

3010

GND_AUD

3013

GND_AUD

33K

33K

9011

9010

9009

9008

3009

1K0

3012

1K0

2005

2007

I008

I006

100p

100p

3020

3016

10K

GNDB

10K

GNDB

3011

2011

2009

3K9

10n

GNDB

10n

GNDB

TO 1H01

VIPER

2K2

2003

3008

RES

1u0

F025

9003

1H01

OR

1M60

1112

1
2
3
4

56

F014

F016

1050

DLW31S

F015

F017

1005

56

1
2
3
4

USB

CONNECTOR

1M36

1

TO 1M36

2

3

F022

F021

4

5

6

SSB EMGT

OR

TO 1M36

7

F023

GNDB

10

11

8

9

SCART 3

EMGT

OR

TO 1M36

SSB JAGUAR

F024

F010

3999

150R

F011

E_14620_065.eps

I011

GNDB

9006

F018

9007

I012

GND_AUD

190504

A

B

C

D

E

F

1001 B1
1002-1 B1
1002-2 C1
1002-3 D1
1005 A7
1010 E1
1050 A6
1101 A2
1102 B2
1106 C2
1108 D2
1109 E2
1110 F2
1111 E2
1112 A7
1H01 A6
1M36 B8
2003 C5
2004 C3
2005 C4
2006 D3
2007 D4
2008 F2
2009 F4
2010 E2
2011 E4
3000 A3
3004 B3
3008 C5
3009 C4
3010 C3
3011 C4
3012 D4
3013 D3
3016 F4
3020 E4
3999 F8
5000 A6
6000 A3
6001 A3
6002 B3
6003 B3
6004 C3
6005 C3
6006 D3
6007 D3
6008 F3
6009 F3
6010 E3
6011 F3
9003 C5
9004 C2
9005 D1
9006 F7
9007 F7
9008 F4
9009 F4
9010 E4
9011 E4
F001 A2
F002 A2

F003 B1
F004 C2
F005 C2
F006 D2
F007 E1
F008 E2
F009 E1
F010 F8
F011 F8
F012 A6
F013 A7
F014 A6
F015 A7
F016 A6
F017 A7
F018 F7
F019 F2
F020 B3
F021 C6
F022 C6
F023 C6
F024 E6
F025 E5
I001 C1
I002 C3
I003 D2
I004 A3
I005 F3
I006 F4
I007 E3
I008 E4
I009 B3
I010 D3
I011 F7
I012 F7
I013 F3
I014 E3

Circuit Diagrams and PWB Layouts

EN 96FTL2.1U, FTL2.2U 7.

Layout Side I/O Panel (Top Side)

1001 B1
1002 A1
1005 A1
1010 A1
1050 A1
1H01 A1
1M36 B1
5000 A1

Layout Side I/O Panel (Bottom Side)

2003 A1
2004 A1
2005 A1
2006 A1
2007 A1
2008 A1
2009 A1
2010 A1
2011 A1
3000 B1
3004 B1
3008 A1
3009 A1
3010 A1
3011 A1
3012 A1
3013 A1
3016 A1
3020 A1
3999 B1
6000 B1
6001 B1
6002 B1
6003 B1
6004 A1
6005 A1
6006 A1
6007 A1
6008 A1
6009 A1
6010 A1
6011 A1
9003 A1
9004 A1
9005 A1
9006 A1
9007 B1
9008 A1
9009 A1
9010 A1
9011 A1

3104 313 6008.3

E_14620_066.eps

190504

3104 313 6008.3

E_14620_067.eps

190504

Top Control Panel

Circuit Diagrams and PWB Layouts

EN 97FTL2.1U, FTL2.2U 7.

A

B

C

D

E

1234567

TOP CONTROL

33R

3017

6001

SML512BC2T

1701

SKQNAB

VOLUME -

I105

3014

3104 313 6020.3

390R

3018

6002

1702

VOLUME +

I109

3013

33R

I112I111

SKQNAB

MENU

200R

6003

SML512BC2T

33R

3019

SML512BC2T

1705

3011

I113

SKQNAB

CHANNEL -

2K0

3020

6004

1704

3010

33R

I114I110

SML512BC2T

6005

SKQNAB

CHANNEL +

I107I106I108

1K1

33R

3021

SML512BC2T

1703

3008

I115

SKQNAB

620R

3022

6006

33R

I116

SML512BC2T

6007

36

25

14

33R

3023

SML512BC2T

ON / OFF

I117

6008

9000

1710

33R

3024

I118

SML512BC2T

KEYBOARD

33R

3025

6009

SML512BC2T

BACKLIGHT-TC

I119

3026

6010

9002

33R

3027

I120

6011

SML512BC2T

F002
F005

9001

33R

3028

I121

6012

SML512BC2T

0345

F001

BACKLIGHT-TC

33R

SML512BC2T

1
2

TO

3
4
5

LED + SWITCH

6

F006

3999

2K2

E_14620_068.eps

F007

190504

A

B

C

D

E

0345 C5
1701 D1
1702 D1
1703 D2
1704 D2
1705 D2
1710 E4
3008 D3
3010 D2
3011 D2
3013 D1
3014 D1
3017 B1
3018 B1
3019 B2
3020 B2
3021 B2
3022 B3
3023 B3
3024 B4
3025 B4
3026 B4
3027 B5
3028 B5
3999 E7
6001 B1
6002 B1
6003 B2
6004 B2
6005 B2
6006 B3
6007 B3
6008 B4
6009 B4
6010 B4
6011 B5
6012 B5
9000 D4
9001 D5
9002 D5
F001 C5
F002 C5
F005 C5
F006 E7
F007 E7
I105 D1
I106 D2
I107 D2
I108 D2
I109 D1
I110 B1
I111 B1
I112 B2
I113 B2
I114 B2
I115 B3
I116 B3
I117 B4
I118 B4
I119 B4
I120 B5
I121 B5

1234567

Circuit Diagrams and PWB Layouts

Layout Top Control Panel (Top Side)

EN 98FTL2.1U, FTL2.2U 7.

0345
1701

1702
1703

1704
1705

1710
3008

3010
3011

3013
3014

3017
3018

3104 313 6020.3

Layout Top Control Panel (Bottom Side)

3104 313 6020.3

3019
3020

3021
3022

3023
3024

3025
3026

3027
3028

3999
6001

6002
6003

6004
6005

6006
6007

6008
6009

6010
6011

6012
9000

9001
9002

E_14620_069.eps

180604

E_14620_122.eps

180604

LED and Switch Panel

Circuit Diagrams and PWB Layouts

EN 99FTL2.1U, FTL2.2U 7.

A

B

C

D

E

F

G

H

I

3104 313 6016.4

12345

9014

F019

F018

3027

220R

F028

F010

F011

F012

F015

F017

F013

100R

3012

2014

+8V

+5V2-STBY

100n

F031

F014

F016

3010

100R

I023

I024

I025

F021

2021

F032

P87LPC760BDH

14
13
12
10

F029

5

4

7075

CIN1B
CIN1A
CMPREF
CMP1

CLKOUT
X2
X1

113

VDD

Φ

MICROCONTROLLER

P0<3:6>

P1<0:3>

P2<0:1>

VSS

100n

TXD
RXD
SCL

INT0
SDA

RST
P1.5
P1.7

9015

9016

9017

9012

LIGHT-SENSOR

9010

STATUS-POWER

9018

9019

KEYBOARD

COM-SND

LED1

LED2

SCL-S

SDA-S

LED1

SDA-S

SCL-S

KEYBOARD

RC

+5V2-STBY

3061

3062

330R

(RES)

(RES)

I062

3060

9060

100R

(RES)

RC

6060

I061

I064

3011

100R

"BLUE"

LED1

3026

3025

+5V2-STBY

10K

+5V2-STBY

10K

PWM-OUT

I021

5020

9
8
7

T0

F030

6

F033

2

1

RC

RC2

PULSE-OUT

c001

I019

3021

2K2

TO 1M20

SSB JAGUAR

OR

SSB EMG

TO 0244

SIDE I/O

TO 1M01

SSB JAGUAR

OR

SSB EMG

COM-SND

DSX840GA

1M20

1
2
3
4
5
6
7
8

9
10
11
12

14

13

B12B-PH-SM3-TBT

FOR ITV

0244

1

2

3

4

5

6

7

B7B-PH-SM3-TBT

1M01

1

2

3

B3B-PH-SM3-TBT

3020

20M

I028

15p

+5V2-STBY

10K

1020

2023

15p

F020

I020

I022

F027

I029

2020

"PROXIMITY"

PROX-DET

COM-SND

STATUS-POWER

PROX-DET

+5V2-STBY

10K

3092

I093

3094

10K

+8V

9093

3091

7092
BC847BW

3096

10K

10K

3095

10K

I034

I094

+5V2-STBY

10K

3093

3030

7032
BC847BW

4K7

I039

"LED DIMMING"

9031

3031

100K

3032

180K

I040

2030

6030

BAS316

6031

BAS316

I047

I033

I048

3033

1K0

16V

10u

+8V

560R

BAS316

SML512BC2T

I038

BC857BW
7030

6 7 8 9 10 11 12 13

STATUS-POWER

+8V

6061

2060

9061

+5V2-STBY

KEYBOARD

BLACKLIGHT-TC

3052

3051

560R

330R

(RES)

(RES)

9050

3053

100R

I052

12

OPT_LED

TLMH3100

6051

I063

16V

22u

(RES)

I051

RC2

PWM-OUT

PULSE-OUT

+5V2-STBY

F087

F084

F086

3080

100R
3081

100R
3082

100R

F083

F088

F089

+5V2-STBY

9081
9082

9083

0345

1
2
3
4
5
6

8

7

B6B-PH-SM3-TBT

0350

1
2
3
4
5

B5B-PH-SM3-TBT

TO 0345

TOP CONTROL

TO 0350

PROXIMITY SENSOR

"RED"

LED2

RC

I030

BC857CW

3034

1K0

+5V2-STBY

7020

I035

3035

I037

3022

75R

+5V2-STBY

4K7

I031

TSAL5300

3036

I049

BCP53
7031

6080

+5V2-STBY

2R2

3037

BLACKLIGHT-TC

PWM-OUT

I032

7021

2R2

BC857CW

3024

3023

2022

+5V2-STBY

3K3

I027

47K

I036

220n

I044

9043

1040

OUT

GND

TSOP34836YA1

VS

9041

9040

I043

I042

9042

I041

"IR RECEIVER"

9044

3040

3042

3041

+5V2-STBY

I046

330R

6K8

I045

10K

2040

9013

2070

I026

470n

100u 16V

I071

6070

TEMD5000

3071

4M7

2

I075

3070

4M7

3

LM358P

84

7070-1

I073

2071

10u 16V

+8V

5

1

6

I074

1K0

3K3

3072

3077

3074

+8V

10K

84

I076

7

7070-2
LM358P

3073

3K3

"LIGHT SENSOR"

3075

4K7

F038

123456789101112

I072

3076

LIGHT-SENSOR

3K3

3999

10K

F039

13

E_14650_036.eps

180604

0244 C1
0345 B11
0350 C11
1020 E2
1040 F8
1M01 C1
1M20 A1
2014 D3
2020 F2

A

2021 E3
2022 F7
2023 F1
2030 I4
2040 F9
2060 C6
2070 F11
2071 G11
3010 B2
3011 A3
3012 B2
3020 E1

B

3021 E5
3022 E6
3023 E7
3024 E7
3025 E4
3026 F4
3027 E2
3030 H3
3031 H4
3032 I4
3033 H5
3034 H6

C

3035 H6
3036 H6
3037 H7
3040 E9
3041 G9
3042 F9
3051 B8
3052 B8
3053 C7
3060 C5
3061 B5

D

3062 B5
3070 G10
3071 F11
3072 G11
3073 G12
3074 F12
3075 F12
3076 G13
3077 G11
3080 C10
3081 C10
3082 C10

E

3091 H1
3092 G2
3093 H3
3094 G1
3095 I2
3096 H2
3999 I13
5020 D4
6030 H4
6031 I4
6051 C8
6060 C5

F

6061 B6
6070 G10
6080 E7
7020 E6
7021 F7
7030 H5
7031 H6
7032 I3
7070-1 F11
7070-2 F12
7075 E3

G

7092 H2
9010 C4
9012 B4
9013 E9
9014 C2
9015 A4
9016 A4
9017 A4
9018 C4
9019 C4
9031 H4
9040 G9

H

9041 F9
9042 G9
9043 F9
9044 E9
9050 C7
9060 C5
9061 B6
9081 B11
9082 B11
9083 C11
9093 H1
F010 A2

I

F011 A3
F012 A2
F013 B3
F014 B2
F015 A3
F016 B2

F017 A2
F018 B2
F019 B2
F020 B2
F021 D2
F027 E2
F028 E2
F029 E2
F030 E4
F031 D3
F032 E2
F033 F4
F038 I12
F039 I13
F083 B10
F084 B10
F086 B10
F087 C10
F088 B10
F089 B10
I019 E5
I020 C2
I021 E4
I022 C2
I023 C2
I024 C2
I025 C2
I026 F11
I027 E7
I028 F1
I029 F2
I030 E6
I031 E6
I032 E7
I033 I4
I034 G3
I035 E6
I036 F7
I037 H6
I038 H6
I039 H3
I040 H4
I041 G9
I042 G9
I043 F9
I044 E9
I045 F9
I046 E9
I047 H4
I048 H5
I049 H7
I051 D7
I052 B7
I061 C5
I062 B5
I063 C6
I064 D5
I071 F10
I072 F12
I073 G11
I074 G11
I075 F10
I076 F12
I093 G2
I094 G2
c001 E5

Circuit Diagrams and PWB Layouts

EN 100FTL2.1U, FTL2.2U 7.

Layout LED and Switch Panel (Top Side)

3104 313 6016.4

E_14650_037.eps

180604

0244 C1
0345 B1
0350 A1
1040 A1
1M01 B1
1M20 A1
2014 C1
2020 C1
2021 B1
2022 C1
2023 C1
2030 B1
2040 A1
2060 A1
2070 B1
2071 B1
3010 B1
3011 B1
3012 B1
3020 B1
3021 C1
3022 C1
3023 C1
3024 C1
3025 C1
3026 B1
3027 C1
3030 B1
3031 B1
3032 B1
3033 B1
3034 B1
3035 B1
3036 B1
3037 B1
3040 A1
3041 A1
3042 A1
3051 A1
3052 A1
3053 A1
3060 A1
3061 A1
3062 A1
3070 B1
3071 B1
3072 A1
3073 A1
3074 A1
3075 A1
3076 A1
3077 B1
3080 A1
3081 A1
3082 A1
3091 B1
3092 B1
3093 B1
3094 B1
3095 B1
3096 B1
3999 B1
5020 B1
6030 B1
6031 B1
6061 A1
6080 C1
7020 C1
7021 C1
7030 B1
7031 B1
7032 B1
7070 A1
7075 C1
7092 B1
9010 B1

9012 B1
9013 A1
9014 A1
9015 B1
9016 A1
9017 A1
9018 C1
9019 C1
9031 B1
9040 A1
9041 A1
9042 A1
9043 A1
9044 A1
9050 A1
9060 A1
9061 A1
9081 B1
9082 B1
9083 B1
9093 A1

Layout LED and Switch Panel (Bottom Side)

3104 313 6016.4

E_14650_038.eps

1020 C1
1040 A1
6051 A1
6060 A1
6070 A1
6080 C1

180604
