150S
150S
3H
3H

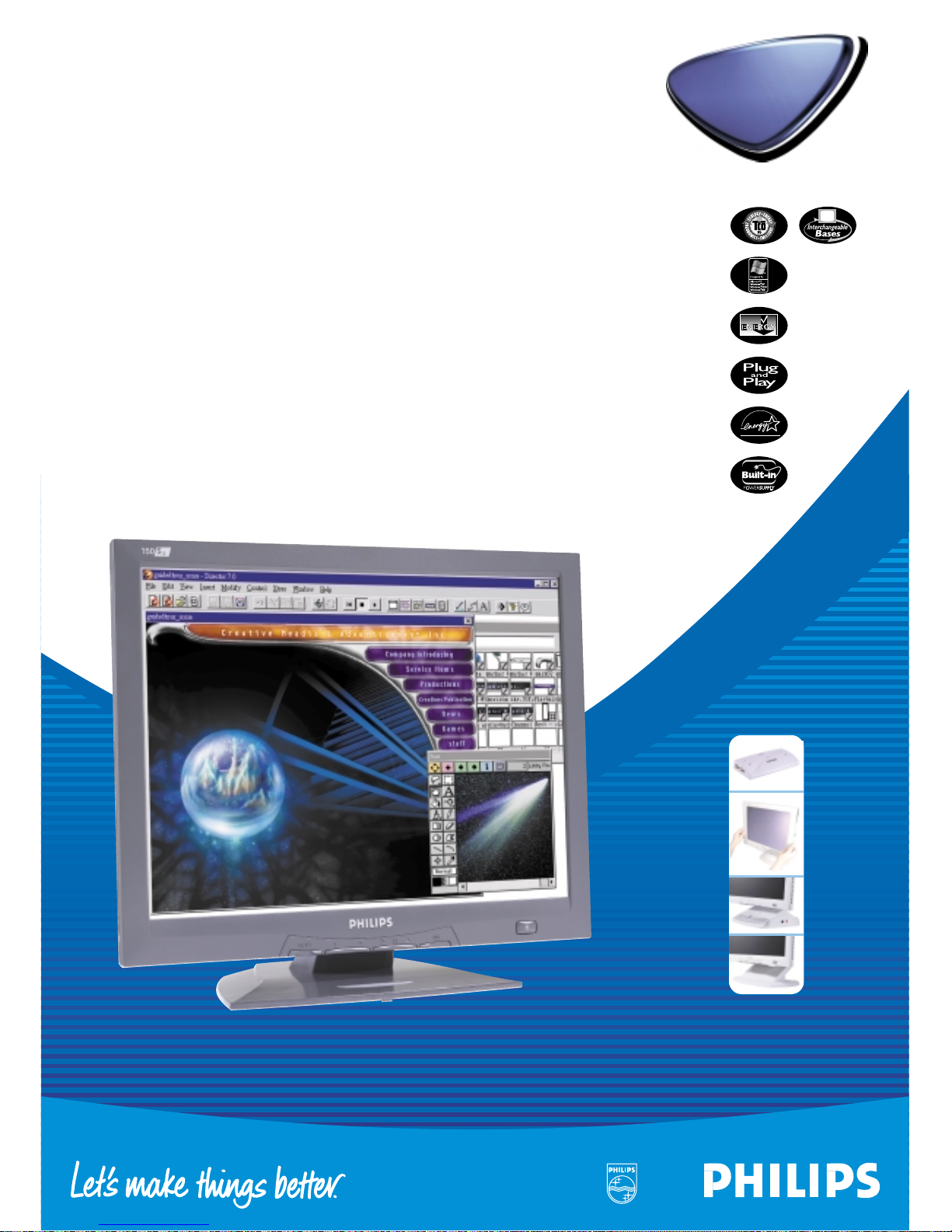

15" TFT LCD XGA color monitor
.
15-inch color LCD monitor with excellent display performance
.
Ultra slim frame design
.
Standard VGA analog input
.
Embedded universal AC power supply
.
AUTO adjustment optimizes picture quality
.
User installable bezel for optional protective cover choice
Embedded Power Supply
Optional
USB HUB
PCUH411
Optional
Protective Cover
XG3P40
Optional
Multimedia Base
VG3P40
Optional
Ergo Base
UG3P30
150S3H
Technical Specifications
Plug and play compatibility
• Display data channel DDC 2B (VESA)
• Microsoft® Windows®95/98/ Me & 2000/ XP compatible
Power management
Complies with EPA Energy Star and NUTEK specifications
• Typical operation 23W (typical)
• Sleep mode 2W
Low-emission characteristics
• Complies with MPR-II and TCO ‘95 specifications
Monitor controls and functions
• Front Power on/off - Tact Switch
OK - T act Switch
Auto - T act Switch
Up/Down (Brightness)
- T act Switch
Left / Right - Tact Switch
• LED indicator Green power on
Amber stand by/sleep mode
Flashing Green new mode
Connections and cables
• Connections on monitor body
- Video 15-pin D-sub (analog) connector
- DC output 12V, 6.5mm DC connector
- Power IEC/CEE-22 type male power inlet
• Cables D-Sub video cable, Power cable
Regulatory approvals
• TÜV/GS,TÜV-Ergo
• FCC-B,UL,CSA
• SEMKO
• MPR-II Low Emission
• CE Mark
• NUTEK,Energy Star
• TCO ’95
Physical specifications
• Dimension (WxHxD) 343 x 310 x 170 mm (incl.Pedestal)
• Tilt -5°~25°
• Weight 3.7 Kg
• Power supply 100 – 240 VAC, 50/60 Hz
• Power consumption 23 W* (typ.)
• Temperature (operating) +5°C to +40°C
• Temperature (storage) -20°C to +60°C
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 30K hrs)
* Resolution 1024x 768,standard size , contrast max., brightness 50%, 9300°K,
full white pattern,without Audio/USB.
All data subject to change without notice
Release date:February 2002
www.philips.com
We recommend using 1024 x 768 at 60Hz non-interlaced mode for the best picture quality
As an Energy Star partner,Philips has determined that this product meets the Energy Star
guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft Corporation
Macintosh is a registered trademark of Apple Computer,Inc.
15" TFT LCD XGA color monitor
LCD panel
• Type TFT LCD
• Screen size 15 inch / 38.1 cm
• Pixel pitch 0.297 x 0.297mm
• LCD panel type 1024 x 768 pixels,
R.G.B vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 304.1 x 228.1mm
• Display colors 16.7M colors
Scanning
• Ver tical refresh rate 56~76 Hz
• Horizontal frequency 30~61 KHz
Video
• Video dot rate 80 MHz
• Input impedance
- video 75 ohm
- Sync 5K ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• Video interface Analog (D-Sub) input
Optical characteristics
• Contrast ratio 350 (typ.)
• Brightness 220 cd/m2(typ.)
• Peak contrast angle 6 o'clock
• White chromaticity x: 0.281 y:0.311 (at 9300°K)
x:0.312 y:0.338 (at 6500°K)
• Viewing angle Upper ≥ 50°(typ.)
(C/R >5) Lower ≥ 60°(typ.)
Left ≥ 75°(typ.)
Right ≥ 75°(typ.)
• Response time ≤40 ms (typ.)
Resolution & preset modes
• Maximum 1024x768 at 75Hz
• Recommended 1024x768 at 60Hz
• 14 user definable modes
• 14 factory preset modes:
H.freq V.freq
(KHz) (Hz)
640 x 350 31.5 70
720 x 400 31.5 70
640 x 480 31.5 60
640 x 480 35.0 67
640 x 480 37.8 73
640 x 480 37.5 75
800 x 600 35.2 56
800 x 600 37.9 60
800 x 600 48.0 72
800 x 600 46.9 75
832 x 624 49.7 75
1024 x 768 48.4 60
1024 x 768 56.5 70
1024 x 768 60.0 75
(Interlace mode is not applicable)
150S3H
