Philips FL11.11 Schematic

32” LCD TV/DVD

chassis FL11.11

SERVICE MANUAL

Contents

TYPE A

LD320SS2 SYLVANIA (Serial No.: DS1)
32MD301B/F7 MAGNAVOX (Serial No.: DS1)
32MD311B/F7 MAGNAVOX (Serial No.: DS1)

This service manual contains information of different types of models.
Make sure to refer to the section describing your model.

© 2011 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.

110427

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

How to Initialize the LCD TV/DVD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-1

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1

SPECIFICATIONS

< LCD TV Section >

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1
TV.ch.4

2. Synchronizing Sens.

CA.ch.31
CA.ch.87

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

ch.4

2. ATSC Dynamic Range (min / max)

ch.10
ch.41

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

dBµ
dBµ
dBµ

dBm
dBm
dBm

pixels
pixels

°
°

18
18
18

---

---

---

1366

768

2

310 ---

-88 to 88

-88 to 88

20
20
23

-76/0

-76/0

-76/+4

---

---

---

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--­x
y

Horizontal

Vert ical

%
%

°K 12000

line
line

5
5

0.272

0.278
400

350

5±5
5±5

--­±3%
±3%

---

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output 10% Distortion
(ATSC 0 dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W 10.0/10.0 9.0/9.0

-

6dB: Lch

-

6dB: Rch

Hz
Hz

70 to 10 k
70 to 10 k

---

---

1-1 FL11.11SP

<DVD Section>

< DVD >

Description Condition Unit Nominal Limit

1. Horizontal Resolution (TDV-540 TIT.2 CHP.16) --- Line 350 330

2. Audio Distortion (LPCM 48 kHz, W/LPF)
(PTD 1-NOR TIT.1 CHP.1)

3. Audio freq. response (LPCM 48 kHz)
(PTD 1-NOR TIT.1 CHP.5 -- 10)

4. Audio S/N (LPCM 48 kHz, W/LPF, A-WTD)
(PTD 1-NOR TIT.1 CHP.1 -- 2)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

L

R

L, 20 Hz

R, 20 Hz

L, 20 kHz

R, 20 kHz

L

R

% 0.03 0.07

dB 0 +4/-5

dB 85 75

1-2 FL11.11SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 11.8 inches (30 cm) away from the pickup lens when the diode is turned on. Do not look directly
at the laser beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

Drive Mechanism
Assembly

Laser Beam Radiation

Laser Pickup

Turntable

Location: Top of LCD Module

2-1 TVDVDN_LBSP(1EM435619)(A1DA1UH).fm

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED
METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.

CURRENT

TESTER

+

EARTH
GROUND

_

3-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

4. Hot Chassis Warning ­a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

3-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

11~13 lb (5~6 kg) of force in any direction will not
loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

3-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

3-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

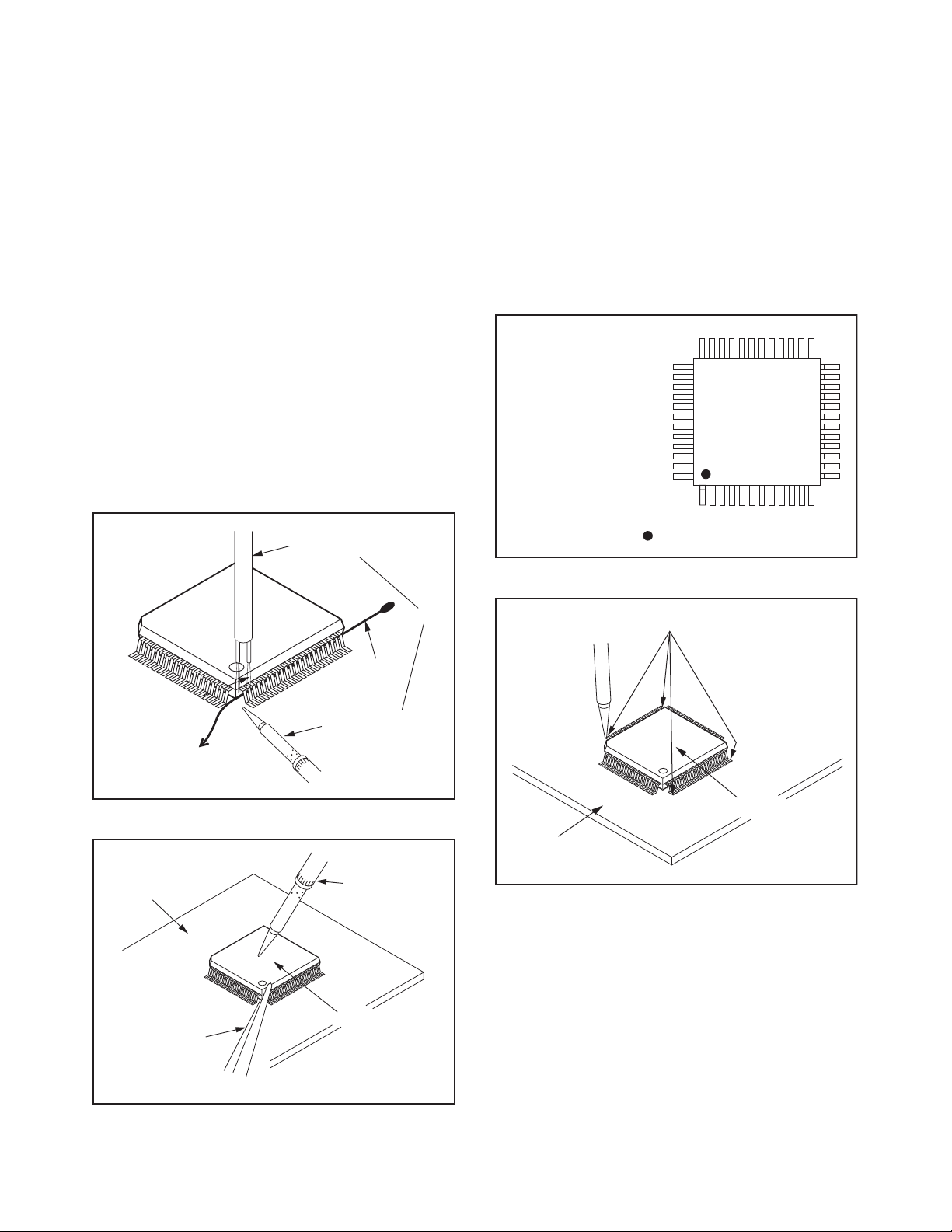

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Pin 1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape

4-1 TVDVDN_SN

around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

Hot-air
Flat Pack-IC
Desoldering

CBA

Machine

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Masking
Ta pe

Tweezers

Flat Pack-IC

Fig. S-1-2

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

4-2 TVDVDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the
pin 1 on the PCB when positioning for installation.
Then presolder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

4-3 TVDVDN_SN

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

4-4 TVDVDN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
items to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

[6] Inverter CBA

[7] Jack CBA

[9] Digital Main
CBA Unit

[4] DVD
Mechanism

[5] DVD Main
CBA Unit

[1] Stand

Assembly

[2] Rear Cabinet

[3] DVD Holder

[8] Power Supply
CBA

[13] LCD Module
Assembly

[14] Front
Cabinet

[10] Speaker

[11] IR Sensor
CBA

[12] Function
CBA

2. Disassembly Method

Step/

Loc.

Part

No.

Stand

[1]

Assembly
Rear

[2]

Cabinet

[3] DVD Holder

DVD

[4]

MechanismD2D5

DVD Main

[5]

CBA UnitD2D5

Inverter

[6]

CBA

Fig.

No.

Removal Note

D1 4(S-1) ---

D1 13(S-2), 2(S-3), 3(S-4) ---

D2D54(S-5), 4(S-6), CN901,

CN902

(S-7a), 2(S-7b)

*1

,
CN201, CN301,
CN801

--------------- ---

6(S-8), CN1001,

D3

CN1003, CN1050,

D5

CN1100, CN1150,
CN1200, CN1900

---

1
2
3
4
5
6

---

Step/

Loc.

Part

No.

Digital Main

[9]

CBA UnitD3D5

[10] Speaker D4

IR Sensor

[11]

CBA

Function

[12]

CBA

Fig.

No.

Removal Note

3(S-11), 8(S-12),
CN3005, Shield Box,
Jack Holder

8(S-13), Hook,
Speaker Holder(L, R)

D4

2(S-14), CL103C ---

D5

3(S-15),
LED Lens

D4

Function Knob

D5

Shield Plate

*2

,

*2

*2

---

---

,

---

LCD

[13]

Module

D4 (S-16) ---

Assembly
Front

[14]

↓

(1)

Cabinet

↓

(2)

D4 --------------- ---

↓

(3)

↓

(4)

↓

(5)

*1: Refer to the following "Reference Notes in the

Table . "

*2: 32MD311B/F7

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of

parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or

desoldered.

P = Spring, L = Locking Tab, S = Screw,

H = Hex Screw, CN = Connector

e.g. 2(S-2) = two Screws of (S-2),

2(L-2) = two Locking Tabs of (L-2)
(5) Refer to the following "Reference Notes in the

Table."

[7] Jack CBA

Power

[8]

Supply
CBA

D3

2(S-9), CL701B ---

D5

7(S-10), CN101,

D3

CN301, CN302,

D5

CN303, CN801,
CN802

---

5-1 FL11.11-A_DC

Reference Notes

1. CAUTION 1: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow next procedures.

1) Short-circuit the three short lands of FPC cable

with solder before removing the FFC cable
(CN201). If you disconnect the FFC cable
(CN201) before short-circuiting the three short
lands of FPC cable, the laser diode of pickup
will be destroyed. (Fig. D2)

2) Disconnect the connectors (CN301 and

CN801). Remove the screw (S-7a) and remove
the DVD Main CBA Unit. (Fig. D2)

2. Reassembly Notes of New DVD Mechanism:
a. To remove the Chassis Cover, remove the two

screws (S-7b) as shown in Fig. D2.

b. To avoid damaging the pickup unit (laser diode),

confirm that the three short lands (either of two
places) are short-circuited by soldering as
shown in Fig. D2.

c. Connect the FFC cables of the new DVD

Mechanism to the three connectors (CN201,
CN301, CN801) on the DVD Main CBA Unit.

d. After confirming that the FFC cables are

securely connected to the three connectors,
remove the solder from the three short lands. If
the solder is not removed, the laser diode will
not light and it will not be possible to read discs.

e. Insert the Pin on the Chassis Cover into the

Hole on the Main Chassis as shown in Fig. D2.
Then tighten the two screws (S-7b) to install the
Chassis Cover.

3. CAUTION 2: When reassembling, confirm the
FFC cable (CN201) is connected completely. Then
remove the solder from the three short lands of
FPC cable. (Fig. D2)

4. How to eject a disc in emergency
Press and hold [EJECT] on the unit for more than
5 seconds.

5. How to eject manually 1

1) Remove the Rear Cabinet.

2) Rotate the gear in the direction of the arrow as
shown below.

B

View from the "B" angle

The gear is turned to the direction
of the arrow.

6. How to eject manually 2

1) Remove the Rear Cabinet.

2) To remove the DVD Main CBA Unit, remove the
screw (S-7a) in Fig. D2. Do not disconnect
connectors.

3) To remove the Chassis Cover, remove the two
screws (S-7b) as shown in Fig. D2.

4) Remove a disc.

5-2 FL11.11-A_DC

[2] Rear Cabinet

(S-2)

(S-4)

(S-4)

(S-2)

(S-2)

[1] Stand Assembly

(S-1)

(S-2)

(S-3)

(S-4)

(S-2)

Fig. D1

5-3 FL11.11-A_DC

(S-5)

(S-7a)

[5] DVD Main CBA Unit

[4] DVD Mechanism

[3] DVD Holder

Remove the two screws (S-7b), then short-circuit the three short lands by soldering as shown in View from the "A" angle.

Chassis Cover

Pin

Either of two places

A

(S-6)

(S-7b)

A

FPC Cable

View from the "A" angle

Hole

Main Chassis

Fig. D2

5-4 FL11.11-A_DC

[6] Inverter CBA

(S-8)

(S-12)

[9] Digital Main
CBA Unit

(S-11)

Jack Holder

[7] Jack CBA

(S-9)

Shield Box

(S-12)

(S-11)

(S-12)

(S-10)

(S-10)

(S-10)

(S-8)

[8] Power Supply CBA

Fig. D3

5-5 FL11.11-A_DC

[LD320SS2, 32MD301B/F77]

[14] Front Cabinet

Hook

Speaker Holder (L)

[32MD311B/F7]

[14] Front Cabinet

(S-13)

[10] Speaker

Hook

[11] IR Sensor CBA

(S-14)

Speaker Holder (R)

[10] Speaker

Speaker Holder (R)

[12] Function CBA

(S-15)

[10] Speaker

(S-13)

(S-13)

[13] LCD
Module
Assembly

Shield Plate

LED Lens

Speaker Holder (L)

Hook

Function Knob

(S-14)

[12] Function CBA

(S-14)

[11] IR Sensor CBA

(S-13)

[10] Speaker

Hook

(S-15)

(S-16)

Fig. D4

5-6 FL11.11-A_DC

TV Cable Wiring Diagram

To DVD Mechanism

CN201
CN301

CN801

CN401

CN601

DVD Main
CBA Unit

To LCD Module
Assembly

Inverter CBA

Jack CBA

CL701B

CL701A

CN303

CN302

CN301

CN3003

CN902

CN901

CN101 CN802

To Speaker

Power Supply CBA

CN201

CN602

AC CORD

CN801

To Speaker

CN1001

CN1900

CN1003

To LCD Module
Assembly

CN1050

CN1100

CN1150

CN1200

CN3006

CN3002

CN3005

Digital Main
CBA Unit

To LCD Module
Assembly

IR Sensor CBA

CL103C

5-7 FL11.11-A_DC

Function CBA

CL103B

CL101B

Fig. D5

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

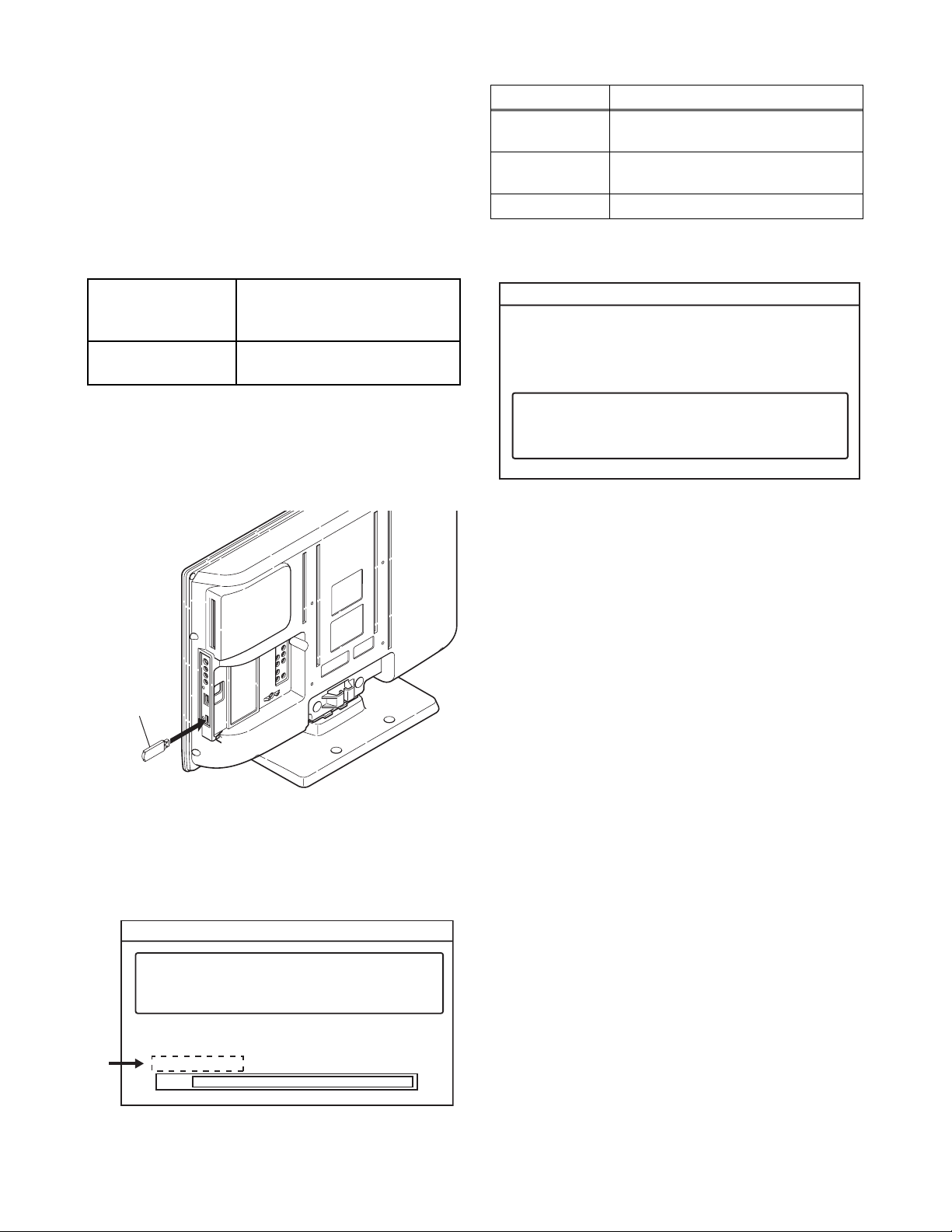

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Current Software Info”.

5. Press [0], [4], [2], [5], [7], [4] and [INFO] buttons on
the remote control unit in this order. The following
screen appears.

"*" differs depending on the models.

Code :

*******-***-*-*****-****

Pic code :

**-*******-*****-**

MIPS :

Push 0key

Press "POWER" key to exit.

Tuner :

****-*****-****
safety_Non

Safety :

6-1 FL11.11EA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time the [7] button on the remote control unit
is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[CHANNEL UP/DOWN ]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Perpendicularity

L = 1.18 inches

Color Analyzer

1. Operate the unit for more than 60 minutes.

2. Set the color analyzer at the zero point calibration
and bring the optical receptor pointing at the
center of the LCD-Panel at a distance of 1.18
inches(3cm) away from the LCD-Panel surface.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [3] button on the remote control unit.

5. Press [CHANNEL UP/DOWN] buttons on the
remote control unit so that the color analyzer value
becomes minimum.

6. To cancel or to exit from the VCOM Adjustment,
press [CH RETURN] or [PREV CH] button.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode,
press [CH RETURN] or [PREV CH] button.

6-2 FL11.11EA

The White Balance Adjustment should be
performed when replacing the LCD Panel
or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red and blue beams correctly for

pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point

Screen

Adj. Point Mode Input

[VOLUME

DOWN]

button

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

or

(APL 40%)

5. [CUTOFF]
Press [1] button to select “COR” for Red Cutoff
adjustment. Press [3] button to select “COB” for
Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive
adjustment. Press [6] button to select “DB” for Blue
Drive adjustment.

6. In each color mode, press [CHANNEL UP/DOWN]
buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color
temperature becomes 12000°K (x

=

0.272 / y

=

0.278 ±0.005).

8. To cancel or to exit from the White Balance
Adjustment, press [CH RETURN] or [PREV CH]
button.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005
y= 0.278 ± 0.005

Figure

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Perpendicularity

L = 1.18 inches

INPUT: WHITE 70%, 40%

Color Analyzer

1. Operate the unit for more than 60 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

INPUT SIGNAL

0IRE 0IRE

Low

Hight

Light

Light

100IRE

40%=40IRE

70%=70IRE

100IRE

3. Set the color analyzer at the CHROMA mode and
zero point calibration. Bring the optical receptor
pointing at the center of the LCD-Panel at a
distance of 1.18 inches(3cm) away from the LCD­Panel surface.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOLUME DOWN]
button on the remote control unit and select “C/D”
mode.

6-3 FL11.11EA

HOW TO INITIALIZE THE LCD TV/DVD

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to
select a language and program channels after the set has been initialized.
To put the program back at the factory-default, initialize the LCD TV/DVD using the following procedure.

< DVD Section >

1. Turn the power on.

2. To enter the service mode, press the service
button on the service remote control unit.

- To cancel the service mode, press [POWER]

button on the service remote control unit.

3. To put the LCD TV/DVD into the DVD mode, press
[CH RETURN] or [PREV CH] on the remote
control unit.

4. To put the LCD TV/DVD into the Flash clear mode,
press [INPUT SELECT] or [SOURCE] buttons on
the remote control unit within five seconds.
The following screen appears.

Flash Memory Clear : OK

CHUCKING ON

< LCD TV Section >

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [POWER]
button on the remote control unit.

3. Press [INFO] button on the remote control unit to
initialize the LCD television.

4. “INITIALIZED” will appear in the upper right of the
screen. “INITIALIZED” color will change to green
from red when initializing is completed.

When “OK” appears on the screen, the factory
default will be set.

5. To exit this mode, press[CHANNEL UP/DOWN]
button to go to TV mode, or press [POWER] button
to turn the power off.

Note: The name of buttons may vary with the brand

of unit.

7-1 FL11.11INT

FIRMWARE RENEWAL MODE

< DVD Section >

1. Turn the power on and press [EJECT] button on
the remote control unit to put the LCD TV/DVD into
DVD mode. Then remove the disc.

2. To put the LCD TV/DVD into F/W version up mode,
press [9], [8], [7], [6], and [MODE] buttons on the
remote control unit in this order.
Fig. a appears on the screen.

"

" differs depending on the models.

*******

F/W Version Up Mode Model No : ******

Please insert a DISC

for F/W Version Up.

Fig. a Version Up Mode Screen

3. Insert the disc for version up into the disc slot.

4. The LCD TV/DVD enters the F/W version up mode
automatically. Fig. b appears on the screen. Make
sure to insert the proper F/W for the state of this
model.

"

*******

F/W Version Up Mode Model No : ******

VERSION : ************.***

(*1)

Reading...

VERSION : *.**

EXIT: SELECT

" differ depending on the models.

VERSION : *.**

5. After programming is finished, the disc will be
ejected automatically. Fig. c appears on the
screen and the checksum will be shown in (*2).

"

" differ depending on the models.

*******

(*2)

F/W Version Up Mode

VERSION : ************.***
Completed
SUM : ****

Model No : ******
VERSION : *.**

Fig. c Completed Program Mode Screen

At this time, no button is available.

6. Remove the disc.

7. Unplug the AC cord from the AC outlet then plug in
again.

8. Press [EJECT] button on the remote control unit to
put the LCD TV/DVD into DVD mode again.

9. Press [1], [2], [3], [4], and [INFO] buttons on the
remote control unit in this order.
Fig. d appears on the screen.

"

" differs depending on the models.

*******

MODEL : ******

Version
Region

: *.**

: *

Fig. b Programing Mode Screen

The appearance shown in (*1) of Fig. b is
described as follows:

AppearanceNo. State

Reading... Sending files into the memory

1

Erasing... Erasing previous version data

2

Programming...

3 Writing new version data

EXIT: SELECTEEPROM CLEAR : CLEAR

Fig. d

10. Press [CLEAR] button on the remote control unit.
Fig. e appears on the screen.

"

" differs depending on the models.

*******

MODEL : ******

Version
Region

: *.**

: *

EXIT: SELECTEEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. e
When “OK” appears on the screen, the factory
default will be set. The firmware renewal mode is
now complete.

11. To exit this mode, press [CHANNEL UP/DOWN]
button to go to TV mode, or press [POWER] button
to turn the power off.

8-1 FL11.11FW

< LCD TV Section >

Equipment Required

a. USB storage device
b. Remote Control Unit

Firmware Update Procedure

Note: There are two states (the User Upgrade and

the Factory Upgrade) in firmware update.

User Upgrade Upgrade the firmware only.

The setting values are not
initialized.

Factory upgrade Upgrade the firmware and

initialize the setting values.

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from
the USB storage device.

Writing the downloaded firmware
in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the
following will appear on the screen.

Software Upgrade

The identification of User Upgrade and Factory
Upgrade are done by the filename.

1. Turn the power off and unplug the AC Cord.

2. Insert the USB storage device to the USB port as
shown below.

Rear Cabinet

USB storage
device

3. Plug the AC cord in the wall outlet and turn the
power on.

4. The update will start and the following will appear
on the screen.

"*" differs depending on the models.

Software Upgrade

The software upgrade is completed.
Remove USB storage device, turn TV off then on again.

Remove the USB storage device from the USB
port.
Turn the power off and turn the power on again.

Note:

When the Factory Upgrade is used, after
restarting TV, shift to initial screen menu in service
mode. "INITIALIZED" will appear on the upper
right of the screen. "INITIALIZED" color will
change to green from red when initializing is
completed.

Software upgrade in progress. Please wait.
Do not remove the USB storage device or
turn the TV off while upgrade is in progress.

*1

Current Version:

New Version:

Downloading...

0%

*******-***-*-***-****
*******-***-*-***-****

Note: If the above screen isn’t displayed, repeat from

step 1.

8-2 FL11.11FW

[ Power Supply Section ]

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged
power cord is plugged again several seconds?

Ye s

Is the AL+33V line voltage normal?

Ye s

Check each rectifying circuit of the secondary
circuit and service it if de

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component
is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

fective.

No

No

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the
primary circuit component, and service it if defective.
(C605, D601, D602, D603, D604, Q601, Q602,
T601)

Check the presence that the rectifying diode or circuit
is shorted in each rectifying circuit of secondary side,
and service it if defective.

Does the photocoupler circuit on
secondary side operate normally?

Check IC601, D
circuit and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit
and service it if def
D631, D632, D633, D634, D638, D641, D642, D646, D647)

FLOW CHART NO.5

AL+33V is not output.

Is approximately +34V voltage supplied to the
cathode of D638?

Check D657, R661 and their periphery circuit, and
service it if de

609, D611 and their periphery,

ective. (IC631, Q207, Q209, Q210, Q211, Q501, Q635, Q636, Q637, Q640, Q641, Q64

fective.

the

Ye s

Ye s

No

No

Check IC601, D652, Q631 and their periphery
circuit, and service it if defective.

in each rec

Check C638, D638, D639 and their periphery
circuit, and service it if defective.

tifying circuit of the secondary side,

2, Q643,

9-1 FL11.11TR

FLOW CHART NO.6

LCD+24.5V is not output.

Is approximately +30V voltage supplied to the collector
of Q210?

Ye s

Check Q207, Q208, D205, P-ON-H1 line and their
peripher

FLOW CHART NO.7

LCD+16V is not output.

Is approximately
collector of Q209?

Is approximately +16V voltage supp
base of Q209?

Replace Q209.

FLOW CHART NO.8

INV+16V is not output.

y circuit, and service it if defective.

+19V voltage supp

lied to the

Ye s

lied to the

Ye s

No

No

No

See FLOW CHART No.5 <AL+33V is not output.>

Check C631, D
and service it if de

Check Q207, Q208, D203, D204, D211 and their
periphery circuit, and ser

631, D635 and their periphery circuit,

fective.

vice it if defective.

Is approximately +
collector of Q501?

Is approximately +16V voltage supplied to the
base of Q501?

Replace Q501.

FLOW CHART NO.9

P-ON+7V is not output.

Is approximately +
collector o

Check if there is any leak or short-circuit on
the loaded circuit, and service it if defective.

f D646?

19V voltage supplied to the

Ye s

Ye s

7V voltage supplied to the

Ye s

No

No

No

Check C631, D631, D635
and service it if de

Check Q207, Q208, D203, D204, D211
periphery circuit, and ser

Check C644, D
and service it if def

fective.

646 and their periphery circuit,

ective.

and their periphery circuit,

vice it if defective.

and their

9-2 FL11.11TR

FLOW CHART NO.10

P-ON+5V is not output. (LCD+16V is outputted normally.)

Is approximately +6.8V voltage supplied to the
collector of Q643?

Ye s

Is approximately +6V voltage supplied to the
base of Q641 and the b

Replace Q641 and Q643.

FLOW CHART NO.11

P-ON+5V(TUNER+5V) is not output. (LCD+16V is outputted normally.)

Is approximately +6.7V voltage supplied to the
collector of Q640?

Is approximately +6V voltage supplied to the
base of Q641 and the base of Q643(Q640)?

Replace Q641 and Q643(Q640).

ase of Q643?

Ye s

Ye s

Ye s

No

No

No

No

See FLOW CHART No.9 <P-ON+7V is not output.>

Check D645 and their periphery circuit, and service
it if defective.

See FLOW CHAR

Check D645 and their periphery circuit, and service
it if defective.

T No.9 <P-ON+7V is not ou

tput.>

FLOW CHART NO.12

AL+13V(M+13V) is not output.

Is approximately +13V voltage supplied to the
cathode of D641 and D642?

Ye s

Check if there is
the loaded circuit, and ser

FLOW CHART NO.13

D+5.5V is not output.

Is approximately +5V voltage supplied to the
cathode of D634?

Check if there is
the loaded circuit, and ser

any leak or short-circuit on

vice it if defective.

Ye s

any leak or short-circuit on

vice it if defective.

No

No

Check C639, D
service it if defective.

Check C634, D634 and their periphery circuit, and
service it if de

642 and their periphery circuit, and

fective.

9-3 FL11.11TR

FLOW CHART NO.14

P-ON+3V is not output.

Is approximately +3V voltage supplied to the
cathode of D647?

Ye s

Check if there is any leak or short-circuit on
the loaded circuit, and ser

FLOW CHART NO.15

P-ON+3.3V is not output.

Is approximately
cathode of D633?

Is the "H" signal (approximately +3.5V) inputted to the
base of Q637?

Replace Q637.

FLOW CHART NO.16

EV+3.3V is not output.

Is approximately +
collector of Q903?

+5V voltage supplied to the

4.6V voltage supplied to the

vice it if defective.

Ye s

Ye s

Ye s

No

No

No

No

Check C645, D647 and their periphery circuit, and
service it if defective.

Check C633, D633 and their periphery circuit, and
service it if defective.

Check Q638, Q639, P-ON-H2 line and their periphery
circuit, and service it if defective.

See FLOW CHAR

T No.13 <D+5.5V is not output.>

Check Q903, D905 and their periphery
circuit, and service it if defective.

FLOW CHART NO.17

DVD-ON+3.3V is not output.

Is approximately +
collector of Q904?

Check Q904, D906, and their periphery
circuit, and service it if defective.

FLOW CHART NO.18

EV+9V is not output.

Is approximately +13V voltage supplied to the
anode of D909?

Check D901, D902, D903, D
circuit, and service it if defective.

5V voltage supplied to the

Ye s

Ye s

909 and their periphery

No

No

See FLOW CHAR

See FLOW CHART No.14 <P-ON+3V is not ou

T No.13 <D+5.5V is not output.>

tput.>

9-4 FL11.11TR

FLOW CHART NO.19

EV+1.2V is not output.

Is approximately +5V voltage supplied to the
emitter of Q901?

Ye s

Is approximately +4V voltage supplied to Pin(3) of
IC901?

Ye s

Replace IC901.

FLOW CHART NO.20

P-ON+9V is not output. (LCD+16V is outputted normally.)

Is approximately
collector of Q642?

Is approximately +
base of Q642?

Replace Q642.

+13V voltage supp

10V voltage supplied to the

lied to the

Ye s

Ye s

No

No

No

No

See FLOW CHART No.13 <D+5.5V is not output.>

Check Q901, Q902, DVD-MAIN PWR line and their
periphery circuit, and service it if defective.

See FLOW CHAR
output.>

Check D670 and their periphery circuit, and service
it if defective.

T No.12 <AL+13V(M+13V) is not

FLOW CHART NO.21

AL+3.3V is not output.

Is approximately +34V voltage supplied to the
collector of Q635?

Ye s

Is approximately +5V voltage supp
IC631?

Replace IC631.

FLOW CHART NO.22

LCD-6.8V is not output.

Is approximately -9V voltage supp
Anode of D632?

Is approximately -8V voltage supplied to the
base of Q211?

lied to Pin(1) of

Ye s

lied to the

Ye s

Ye s

No

No

No

No

See FLOW CHART No.5 <AL+33V is not output.>

Check Q635, D659 and their periphery circuit, and
service it if defective.

Check C632, D632 and their periphery
circuit, and service it if defective.

Check Q207, Q208, D205, P-ON-H1 line and their
periphery circuit, and ser

vice it if defective.

Replace Q211.

9-5 FL11.11TR

[ Video Signal Section ]

FLOW CHART NO.1

The key operation is not functioning.

Are the contact point and installation state of the key
switches (SW101A, SW103A~SW107A,
SW151~SW153) normal?

Ye s

When pressing each switches (SW101A, SW103A~
SW107A, SW151~SW153) do the voltage of Pin(29)
of CN302 and Pin(2) of CN303 decrease?

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit.

Operation is possible from the unit.

Is 3.3V voltage supplied to Pin(2) ter
remote control receiver (RS102)?

Ye s

Is the "L" pulse sent out Pin(1) terminal of remote
control receiver (RS102) when the infrared remote

control is activated?

Ye s

Is the "L" pulse supplied to Pin(25

Ye s

Replace Digital Main CBA Unit.

minal of the

) of CN301?

No

No

No

No

No

Re-install the switches (SW101A, SW103A~SW107A,
SW151~SW153) correctly or replace the poor switch.

Check the switches (SW101A, SW103A~SW107A,
SW151~SW153) and their periphery, and service it
if defective.

Check AL+3.3V line and service it if defective.

Replace the remote control receiver(RS102)
or the remote control unit.

Check the line between Pin(1) terminal of remote
control receiver(RS102) and Pin(25) of CN301,
and service it if defective.

FLOW CHART NO.3

Picture does not appear normally.(Video input)

Are the video signal inputted to Pin(

Replace Digital Main CBA Unit or LCD Module
Assembly.

4) of CN302?

Ye s

No

Check the line between Pin(4) of CN302 and
JK752, and service it if defective.

9-6 FL11.11TR

FLOW CHART NO.4

Picture does not appear normally.(Tuner input)

Are the DIF signal inputted to the Pin(26,28) of CN302?

Ye s

Replace Digital Main CBA Unit or LCD Module
Assembly.

FLOW CHART NO.5

Picture does not appear normally.(S-Video input)

Are the video signal o
CN302?

Pin(6): S-VIDEO-C
Pin(8): S-VIDEO-Y

Replace Digital Main
Assembly.

FLOW CHART NO.6

Picture does not appear normally.(Y/Pb/Pr input)

utputted to the Pin(6, 8) of

Ye s

CBA Unit or LCD Module

No

No

Check the line between Pin(26, 28) of CN302 and
Pin(10, 11) of TU301, and service it if defective.

Check the line between Pin(6, 8) of CN302 and
JK751, and service it if defective.

Are the video signal i
CN302?

Pin(15): VIDEO-Y
Pin(17): VIDEO-Pb
Pin(19): VIDEO-Pr

Replace Digital Main CBA Unit or LCD Module
Assembly.

FLOW CHART NO.7

Picture does not appear normally.(DVD PB)

Are the video signal inputted to the P
CN902?

Pin(5) : DVD-Y
Pin(3) : DVD-Pb
Pin(1) : DVD-Pr

Replace Digital Main CBA Unit or LCD Module
Assembly.

nputted to the Pin(15, 17, 19) of

Ye s

in(1, 3, 5) of

Ye s

No

No

Check the line between Pin(15, 17, 19) of CN302
and input terminals(JK731, JK732, JK733), and
service it if defective

Replace DVD

.

Main CBA Unit.

9-7 FL11.11TR

[ Audio Signal Section ]

FLOW CHART NO.1

Audio is not outputted normally.(Audio input)

Are the audio(L/R) signals inputted to Pin(2, 15)
of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of
CN301?

Pin(6) :
Pin(8) :
Pin(2) :
Pin(4) :

Are the audio(L/R) signals inputted to the Pin(1, 44)
of IC801?

Are the audio(L/R) signals inputted to the Pin(3, 5)
of IC871?

Are the audio(L/R) signals outputted to the Pin(1, 2)
of CN801 and CN802?

Are the audio(L/R) signals outputted to the audio
output terminal?

AMP(L)-OUT
AMP(R)-OUT
AUDIO(L)-OUT
AUDIO(R)-OUT

Ye s

Ye s

CN801: SP(L)
CN802: SP(R)

JK871: AUDIO(L)-OUT
JK872: AUDIO(R)-OUT

No

No

No

No

No

Ye s

No

Check the line between Pin(2, 15) of IC771 and
input terminal(JK753, JK754), and service it if
defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and
Pin(1, 44) of IC801, and service it if defective.

Check the line between Pin(2, 4) of CN301 and
Pin(3, 5) of IC871, and service it if defective.

Check IC801 and their periphery circuit, and
service it if defective.

Check SP801,SP802 and their periphery circuit,
and service it if defective.

Check the line between Pin(1, 7) of IC871 and audio
output terminal(JK871, JK872), and service it if
defective.

9-8 FL11.11TR

FLOW CHART NO.2

Audio is not outputted normally.(Component Audio input)

Are the audio(L/R) signals inputted to the Pin(4, 11)
of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of
CN301?

Pin(6) :
Pin(8) :
Pin(2) :
Pin(4) :

Are the audio(L/R) signals inputted to the Pin
of IC801?

Are the audio(L/R) signals inputted to the Pin
of IC871?

Are the audio(L/R) signals outputted to the Pin(1, 2)
of CN801 and CN802?

Are the audio(L/R) signals outputted to the audio
output terminal?

AMP(L)-OUT
AMP(R)-OUT
AUDIO(L)-OUT
AUDIO(R)-OUT

Ye s

(1, 44)

(3, 5)

Ye s

CN801: SP(L)
CN802: SP(R)

JK871: AUDIO(L)-OUT
JK872: AUDIO(R)-OUT

No

No

No

No

No

Ye s

No

Check the line between Pin(4, 11) of IC771 and
input terminal(JK741, JK742), and service it if
defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and
Pin(1, 44) of IC801, and service it if defective.

Check the line between Pin(2, 4) of CN301 and
Pin(3, 5) of IC871, and service it if def

Check IC801 and their periphery circuit, and
service it if defective.

Check SP801,SP802 and their periphery circuit,
and service it if defective.

Check the line between Pin(1, 7) of IC871 and audio
output terminal(JK871, JK872), and service it if
defective.

ective.

9-9 FL11.11TR

FLOW CHART NO.3

Audio is not outputted normally.(Tuner input)

Are the DIF signals outputted to the Pin(26, 28)
of CN302?

Ye s

Are the audio(L/R) signals inputted to each pin of
CN301?

Pin(6) :
Pin(8) :
Pin(2) :
Pin(4) :

Are the audio(L/R) signals inputted to the Pin
of IC801?

Are the audio(L/R) signals inputted to the Pin
of IC871?

Are the audio(L/R) signals outputted to the Pin(1, 2)
of CN801 and CN802?

Are the audio(L/R) signals outputted to the audio
output terminal?

AMP(L)-OUT
AMP(R)-OUT
AUDIO(L)-OUT
AUDIO(R)-OUT

Ye s

(1, 44)

(3, 5)

Ye s

CN801: SP(L)
CN802: SP(R)

JK871: AUDIO(L)-OUT
JK872: AUDIO(R)-OUT

No

No

No

No

No

Ye s

No

Check TU301 and their periphery circuit, and
service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and
Pin(1, 44) of IC801, and service it if defective.

Check the line between Pin(2, 4) of CN301 and
Pin(3, 5) of IC871, and service it if def

Check IC801 and their periphery circuit, and
service it if defective.

Check SP801,SP802 and their periphery circuit,
and service it if defective.

Check the line between Pin(1, 7) of IC871 and audio
output terminal(JK871, JK872), and service it if
defective.

ective.

9-10 FL11.11TR

BLOCK DIAGRAMS

1. System Control Block Diagram

KEY SWITCH

KEY SWITCH

CL103B

KEY-IN133

KEY-IN244

TO

DVD SYSTEM

CONTROL / SERVO

BLOCK DIAGRAM

TO DVD DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

AL+3.3V

RS102

D105

SENSOR

REMOTE

CN303

KEY-IN222

CN3003

D104

POWER

STANDBY

CL101B

LED144

REMOTE22

P-ON-H155

KEY-IN166

CN101

Q172

Q171

DVD-LED33

L20

DVD-LED

CL103C

DVD

D106

KEY-IN277

DVD-LED88

CN301

CN302

P-ON-H199

REMOTE25 25

LED127 27

KEY-IN129 29

CN3006

G21

G20

KEY-IN1

KEY-IN2

P-ON-H211

CN3002

K19

K20

K21

Y22

LED1

P-ON-H2

P-ON-H1

REMOTE

IR SENSOR CBA FUNCTION CBA

Q3006

AL+3.3V

TO

POWER SUPPLY

P-ON-H2

P-ON-H1

PROTECT1

DVD-MAIN-PWR

CN301

CN3002

Q3005

BLOCK DIAGRAM

PROTECT2

11

PROTECT1

11

H21

PROTECT1

TO

PROTECT35BACKLIGHT-SW4BACKLIGHT-ADJ14VCOM
6

CN201

5

15

29

PROTECT2

VCOM-PWM

PROTECT3
5

15

29

H22

G22

AB21

PROTECT3

PROTECT2

VCOM-PWM

INVERTER

BLOCK

26

BACKLIGHT-SW

26

W20

BACKLIGHT-SW

DIAGRAM

(CN1001)

DRIVE

IC201,Q203,

Q204,Q205

28

BACKLIGHT-ADJ

28

W17

BACKLIGHT-ADJ

TU301 (TUNER UNIT)

*

Either TU301 is used for Power Supply CBA.

SCL

9

SDA

TU301 (TUNER UNIT)

*

8

SCL

4

CN302

22

SCL

22

CN3006

K3

SCL

SDA

5

21

SDA

21

Q3033

K2

SDA

DVD-P-ON

LED-CONT

2

LED-CONT

2

CN303 CN401CN901

16

LED-CONT

16

CN3003

BUFFER

L21

W18

LED-CONT

DVD-REMOTE

DVD-SDATA

DVD-REMOTE

26

25

24

DVD-P-ON

DVD-REMOTE

DVD-SDATA

26

25

8

6

7

DVD-SDATA

DVD-P-ON

DVD-REMOTE

6

7

T19

V20

DVD-P-ON

DVD-SDATA

DVD-SCLK

21

DVD-SCLK

21

24

13

DVD-SCLK

8

13

U20

DVD-SCLK

DVD-CS

DVD-DISC-IN

22

DVD-CS

22

11

DVD-CS

11

U21

DVD -CS

DVD-DISC-OUT

3

23

DVD-DISC-OUT

DVD-DISC-IN

3

23

9

15

25

DVD-DISC-OUT

DVD-DISC-IN

DVD-AUDIO-MUTE

9

15

25

M3

N21

M19

DVD-DISC-IN

DVD-DISC-OUT

DVD-AUDIO-MUTE

DVD-AUDIO-MUTE

CN601CN902

13

DVD-AUDIO-MUTE

10

5

DVD-MAIN-PWR
5

U19

DVD-MAIN-PWR

DVD MAIN CBA UNIT

POWER SUPPLY CBA

IC3005

(MAIN MICRO CONTROLLER)

INPUT0

C7-SPD-EN

DVD-SPD-EN

K1

Y17

W22

C7-SPD-EN

DVD-SPD-EN

INPUT0

TO AUDIO

BLOCK

INPUT1

L4

AUDIO-MUTE

INPUT1

DIAGRAM

AUDIO-MUTE

L19

10-1

XOUT25

AA21

3

WP

X3101

XIN25

T22

T21

25MHz

OSC

DIGITAL MAIN CBA UNIT

SCK

SIN

SOUTCSWP

V19

Y21

Y20

AA22

652

1

SI

CS

SO

SCK

IC3006 (MEMORY)

FL11.11BLS

2. Video Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

TO DVD DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

VIDEO SIGNAL

DIGITAL MAIN CBA UNIT

VIDEO-IN

S-VIDEO-SW

S-VIDEO-Y-IN

CN3006

CN302

WF1WF2

WF3

S-VIDEO-C-IN

VIDEO-IN4 4

S-VIDEO-C-IN6 6

COM-VIDEO-Pr-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-Y-IN88

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

S-VIDEO-SW5 5

15 15

17 17

19 19

WF6

WF4 WF5

DVD -Y

CN3003

22

DVD -Y

22

CN303

DVD-Pr

DVD-Pb

20

DVD-Pb

20

18

DVD-Pr

18

DIF-OUT1

DIF-OUT2

CN3006

DIF-OUT126 26

CN302

IF-AGC

DVD-Pr

DVD-Pb

DVD -Y

DVD MAIN CBA UNIT

6

4

8

CN601

DVD-Pb

DVD-Pr

CN902

WF10

WF9

DVD-Y

3

1

5

WF8

IF-AGC24 24

DIF-OUT228 28

JK752

VIDEO-IN

CL701A

VIDEO-IN 5
531

CL701B

3

22

S-VIDEO-C-IN

S-VIDEO-Y-IN 1

S-VIDEO-SW-IN

CY

JK751

S-VIDEO

-IN

POWER SUPPLY CBA

9

11

10

IF-AGC

DIF-OUT1

DIF-OUT2

TU301

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

JK732

JK733

-Pr-IN

JACK CBA

JK731

(TUNER UNIT)

*

Either TU301 is used for Power Supply CBA.

13

DIF-OUT1

TU301

(TUNER UNIT)

*

12

14

IF-AGC

DIF-OUT2

10-2 FL11.11BLV

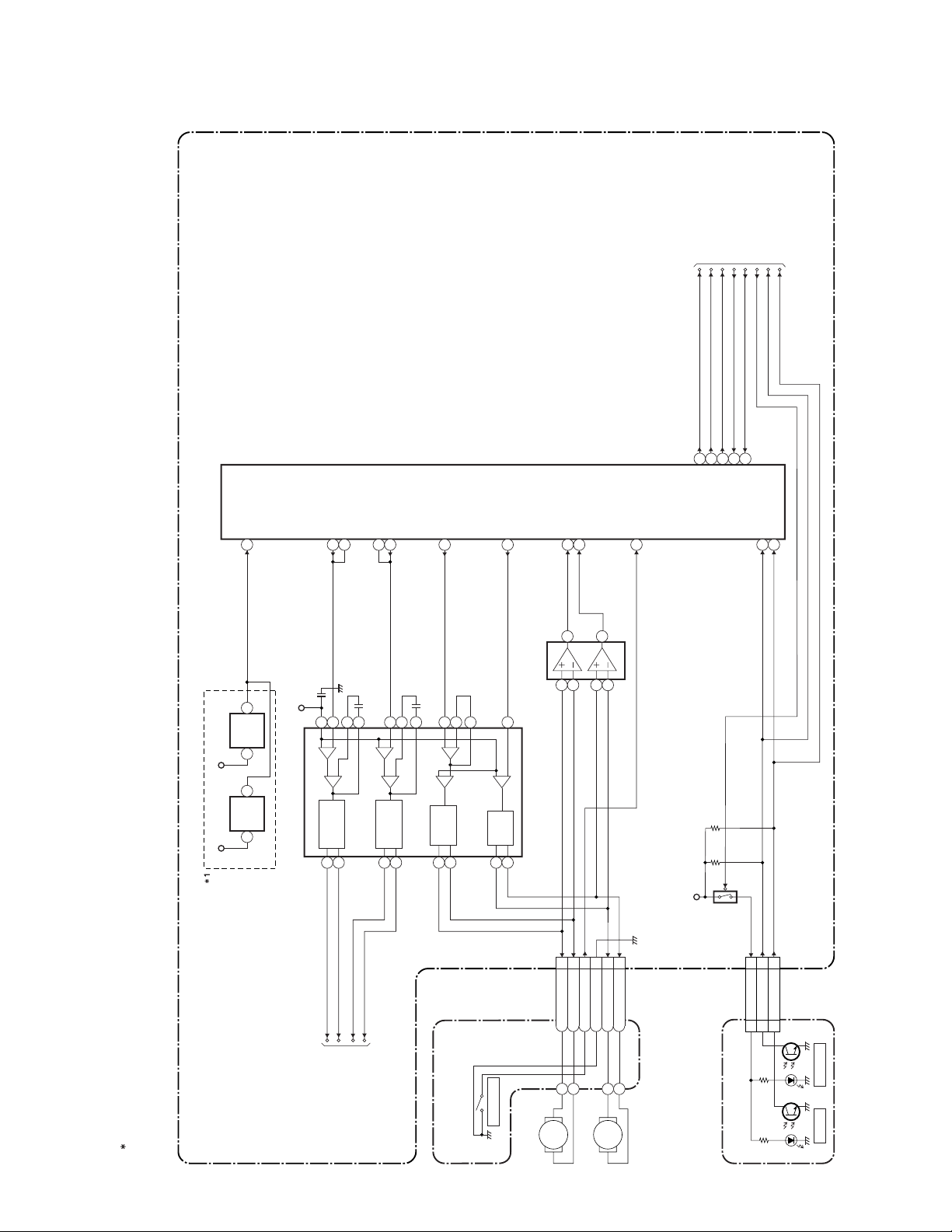

3. Audio Block Diagram

TO DVD

DIGITAL

SIGNAL

PROCESS

BLOCK

AUDIO SIGNAL

DVD-AUDIO(L)

DVD-AUDIO(R)

DIAGRAM

DVD-SPDIF

TO

DVD-AUDIO(L)

DVD-AUDIO(R)

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

AUDIO(L)

AUDIO(R)

TO

SYSTEM

INPUT0

INPUT1

CONTROL

BLOCK

DIAGRAM

AUDIO-MUTE

BCLK

LRCLK

876

TO

SYSTEM

CONTROL

BLOCK

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

ACLK

ADATA1

AMP(L)-OUT

AMP(R)-OUT

5

C7-SPDIF

DIAGRAM

C7-SPD-EN

DVD-SPD-EN

DVD MAIN CBA UNIT

WF11

IC951

(OP AMP)

CN601CN902

DVD-AUDIO(R)11 14

DVD-AUDIO(L)912

DVD-SPDIF13 16

5

7

1 3

(AUDIO SELECTOR)

IC771

WF13

241

WF12

3

2

D/A

CONVERTER

IC3015

(OP AMP)

167

IC3010

(D/A CONVERTER)

(L-CH)

(R-CH)

15

14

DVD-AUDIO(L)24 24

DVD-AUDIO(R)26 26

13

151112

CN3006

CN302

WF7

14

CN3003

CN303

5

CN3006

AUDIO(L)13 13

AUDIO(R)11 11

INPUT110 10

INPUT012 12

CN302

Q772

Q771

109

CONTROL

LOGIC

CN3002CN301

AUDIO(R)-OUT44

AMP(R)-OUT88

AUDIO(L)-OUT22

AMP(L)-OUT66

5

IC871

(OP AMP)

7

1 3

CN3006

CN302

DRIVE

Q873,Q874

22

2020

AUDIO-MUTE

SPDIF

IC801 (AUDIO AMP)

IC3016

1

PWM1

DRIVE1

13,14

9,10

(BUFFER GATE)

2

4

44

PWM2

DRIVE2

35,36

31,32

1

IC3017

(BUFFER GATE)

20

MUTE CONTROL

2

1

4

2828

DVD-SPDIF

CN303 CN3003

Q801

POWER SUPPLY CBA DIGITAL MAIN CBA UNIT

CL701A

AUDIO(L)-IN 77

CL701B

JK753

9

AUDIO(R)-IN
9

AUDIO(L)

-IN

JK754

AUDIO(R)

-IN

MUTE

Q872

MUTE

BUFFER

Q871

Q841

CN801CL801

1

2

SP(L)-

SP(L)+

2

CN802

SP(R)+

CL802

1

SP(R)-

JACK CBA

DIGITAL

AUDIO-OUT

(COAXIAL)

COMPONENT-

JK741

AUDIO(L)-IN

COMPONENT-

JK742

AUDIO(R)-IN

HDMI-

JK721

AUDIO(L)-IN

HDMI-

JK722

AUDIO(R)-IN

10-3

AUDIO(L)-OUT

JK871

JK872

AUDIO(R)-OUT

JK841

SP801

SPEAKER

L-CH

SP802

SPEAKER

R-CH

FL11.11BLA

4. Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3005

AUDIO SIGNAL

VIDEO SIGNAL

AA17

AB17

AA16

AB16

AA15

AB15

AA13

AB13

AA12

AB12

AA11

AB11

AA14

AB14

AB19

TP

Y19

POL

AA18

CPV

AB20

OE

AA19

STV

IC3002

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

N4,P2,P4,R1-R4,T2,

SD-DQ(0-15)

SD-A(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

T4,U4,V1,V4,W1-W3

W5,W7,AA4-AA8,

AB3-AB8

IC3005 (DIGITAL SIGNAL PROCESS)

A8

B7

A12

VIDEO-IN

S-VIDEO-Y-IN

S-VIDEO-C-IN

LVD S

TX

A/D

CONVERTER

SW

B12D8A11

C12

COM-VIDEO-Y-IN

DVD -Y

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

A7

DVD-Pb

B8

DVD-Pr

DEMODULATOR

/MPEG DECODER

IF-AGC

F2J1F1

S-VIDEO-SWB5AUDIO(R)

DIF-OUT1

DIF-OUT2

IF-AGC

S-VIDEO-SW

A2

C1

AB22

DVD-AUDIO(R)

DVD-AUDIO(L)

C4

AUDIO(L)

AUDIO I/F

L2

G1

G2

BCLK

AMP(L)-OUT

AMP(R)-OUT

C7-SPDIF

L1M1L3

ACLK

LRCLK

DIGITAL

SIGNAL

PROCESS

AUDI O

DECODER

VIDEO

DECODER

HDMI

I/F

M2

E19

E20

ADATA1

D21

D22

C21

C22

F19

F20

Q3015

D16

BUFFER

D15

BUFFER

Q3020

A19

B19

A18

B18

A17

B17

A20

B20

C17

BUFFER

Q3016

Q3018

D17

BUFFER

DIGITAL MAIN CBA UNIT

TO VIDEO

BLOCK DIAGRAM

TO AUDIO

BLOCK DIAGRAM

10-4

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

HDMI-IN1

JK3003

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

15

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

3

JK3004

HDMI-IN2

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

15

FL11.11BLD

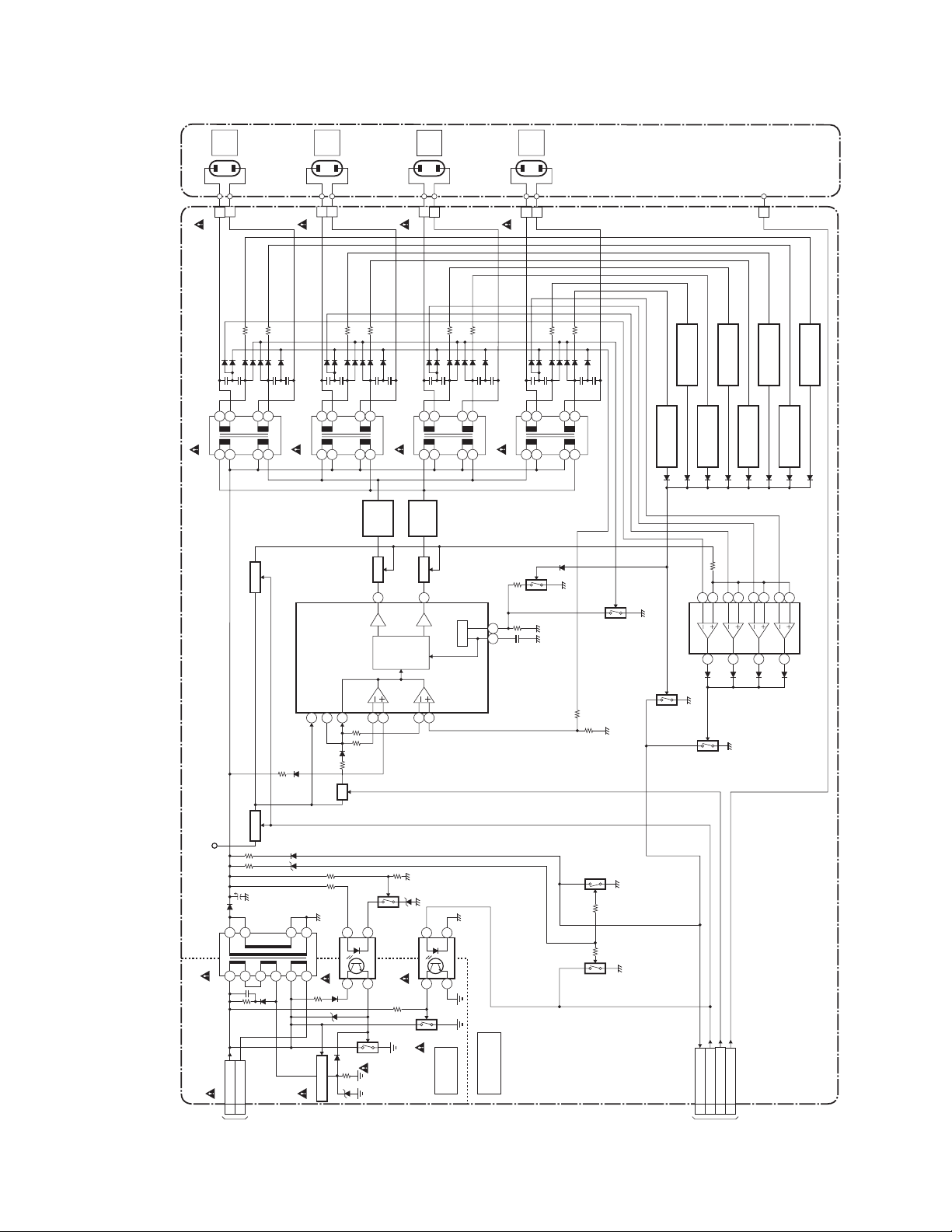

5. Inverter Block Diagram

BACK

1

CN1050

LIGHT

2

786

5

BACK

1

CN1100

LIGHT

2

786

BACK

LIGHT

1

2

CN1150

786

5

5

BACK

1

CN1200

LIGHT

2

786

LCD MODULE

Q1061

ASSEMBLY

OVER VOLTAGE

PROTECTOR

VCOM

10

CN1003

OVER VOLTAGE

OVER VOLTAGE

PROTECTOR

OVER VOLTAGE

Q1161

Q1211

5

PROTECTOR

PROTECTOR

Q1111

T1050

INV+16V

4

2

3

1

SW+16V

Q1801,Q1802,

Q1803,Q1804

SW+16V

Q1800,Q1815

T1100

2

VCC

IC1000

(PWM CONTROL)

12

Q1004,

4

DCT

4

Q1005

3

SW

1

Q1500

Q1501,

Q1502,

3

CURRENT

CONTROL

SWITCH

DRIVE

Q1503

11

15

16

Q1550

Q1551,

PWM

CONTROL

T1150

CURRENT

Q1552,

Q1553

LOGIC

2

2

CONTROL

SWITCH

DRIVE

8

1

4

1

OSC

T1200

3

4

3

1

2

Q1003

Q1001

5 6

Q1972

Q1210

OVER VOLTAGE

PROTECTOR

IC1700

(COMPARATOR)

Q1600

Q1160

OVER VOLTAGE

13

14

Q1621

PROTECTOR

OVER VOLTAGE

PROTECTOR

OVER VOLTAGE

Q1060

67523

PROTECTOR

1

Q1110

9

10

12

8

10

11

14

23457

T1950

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

HOT CIRCUIT. BE CAREFUL.

CN1900

ACL2

HOT-GND1

TO POWER

SUPPLY

BLOCK

DIAGRAM

(CN602)

15

8

Q1930

14

IC1930

SWITCHING

3 2

Q1932

Q1970

IC1931

14

Q1931

3 2

HOT

10-5

COLD

Q1971

CN1001

PROTECT3

10

TO SYSTEM

BACKLIGHT-ADJ

VCOM

BACKLIGHT-SW

2

12

11

CONTROL

BLOCK

DIAGRAM

(CN201)

INVERTER CBA

FL11.11BLINV

6. Power Supply Block Diagram

LCD+16V

LCD-8V

INV+16V

VGH

P-ON+3.3V

P-ON+3V

P-ON+7V

AL+3.3V

P-ON+3.3V

P-ON+5V

AL+3.5V

DVD-ON+3.3V

EV+3.3V

DVD-ON+5V

EV+9V

EV+1.2V

AL+33V

P-ON+9V

P-ON+5V

AL+13V

AL+3.3V

TUNER+5V

DVD-MAIN-PWR

TO SYSTEM

CONTROL

BLOCK

P-ON-H1

P-ON-H2

DIAGRAM

PROTECT2

PROTECT1

INVERTER CBA

2

13

12

10

8,9

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

LCD-8V13

INV+16V2

LCD+16V8,9

CN201 CN1001

SW-8V

Q211

Q201,Q202,

Q212

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

Q210

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

P-ON+3.3V12

VGH10

SW

SW+24.5V

CN3002

CN301

DIGITAL MAIN CBA UNIT

16

10

P-ON+7V16

P-ON+3V10

Q207,Q208

19,20

21,22

13,14

P-ON+3.3V19,20

P-ON+5V13,14

AL+3.3V21,22

SWITCHING

Q401

DVD MAIN CBA UNIT

CN401

CN901

SW+16V

Q501

9

1

AL+3.3V1

DVD-ON+3.3V9

Q209,D204

10

6~8

DVD-ON+5V10

EV+3.3V6~8

SW+16V

11,12

EV+9V11,12

4,5

EV+1.2V4,5

Q904,D906

SW+3.3V

Q642

SW+3.3V

Q903,D905

SW+9V

+1.2V REG.

IC901

SWITCHING

Q901,Q902

SW+3.3V

Q637,D666

SWITCHING

Q638,Q639

Q640

SW+5V

Q634

SW+5V

Q641,643

IC631

Q635

23

REG.

+3.3V

+5V REG.

4A/125V

11

14

12

17

18

4A/125V

4

CN602

ACL2

TO

INVERTER

HOT-GND1

BLOCK

DIAGRAM

(CN1900)

3

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L602

LINE

FILTER

L601

F601

AC601

4A/125V

AC CORD

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

5

13

10-6

FEED

16

15

19

14

7

9

8

IC601

BACK

Q631

3 2

HOT COLD

CONTROL

Q602

SWITCHING

POWER SUPPLY CBA

SWITCHING

Q601

FL11.11BLP

7. DVD System Control / Servo Block Diagram

DVD MAIN CBA UNIT

IC101

(MICRO CONTROLLER)

RESET70

FOCUS DRIVE

FD-OFST

127

124

TRACKING

TD-OFST

126

123

DRIVE

SPDL

66

SLD

67

SP-ROT

121

SL-ADS

122

LOAD-DISC

65

DVD-CS

DVD-SCLK

DVD-SDATA

53DVD-SCLK

54

DVD-CS

56

DVD-SDATA

TO

DVD-REMOTE

49

DVD-REMOTE

SYSTEM CONTROL

BLOCK DIAGRAM

DVD-P-ON

LED-CONT

77

DVD-P-ON

DVD-DISC-IN

DVD-DISC-OUT

DVD-DISC-IN

DVD-DISC-OUT

63

61

+3.3V

+3.3V

IC462

IC461

RESET

1 3

RESET

2 1

VREF

(SERVO DRIVE)

IC301

26

27

-

+

+

FOCUS

ACTUATOR

15

FS(+)

FS(-)

-

DRIVE

16

25

TS(+)

24

TS(-)

-

+

-

+

TRACKING

ACTUATOR

14

DRIVE

13

312

-

+

-

+

SPINDLE

MOTOR

DRIVE

12

11

1

7

IC202

(OP AMP)

645

23

-

+

SLED

MOTOR

DRIVE

17

18

CN301

3

1SP(+)

2

2SP(-)

5

6LOAD-DISC

3GND

6

4SL(-)

5SL(+)

+3.3V

Q804

CN801CN5001

1

LED-POWER

1

3

2

DVD-DISC-IN

DVD-DISC-OUT

3

2

DISC-OUT

TO DVD DIGITAL

1 NOTE:

Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

SIGNAL PROCESS

BLOCK DIAGRAM

DRIVE CBA

10-7

LOAD-DISC

SPINDLE

MOTOR

SLED

MOTOR

M

SENSOR CBA

M

DISC-IN

FL11.11BLSD

8. DVD Digital Signal Process Block Diagram

TO VIDEO

BLOCK

DVD-Y

131

Y

D/A

WATCH DOG

TIMER

DIAGRAM

DVD-Pb

130

Pb

D/A

NTSC/PAL

ENCODER

VIDEO

I/F

REMOTE

CONTROL

DVD-Pr

129

Pr

D/A

AUDIO SIGNAL

VIDEO SIGNAL

TO AUDI O

BLOCK

DIAGRAM

DVD-SPDIF

152

DATA

RAM

INST.

ROM

DATA

RAM

INST.

ROM

DSP

DECODER

I/O

PROCESSOR

DVD-AUDIO(R)

151

146

AUDIO D/A

AUDI O

DVD-AUDIO(L)

144

CONVERTER

I/F

SERIAL

TO

SYSTEM

CONTROL

DVD-

AUDIO-MUTE

GENERAL

I/O

BLOCK

DIAGRAM

INTERRUPT

CONTROLLER

TIMER

32BIT CPU

DATA

INST

CACHE

CACHE

FLASH

ROM

IC103 (FLASH ROM)

1

~

9

~

162548

FADR (0-19)

~

293638

FDQ (0-15)

~

45

SDRAM ADDRESS(0-10)

IC101 (MICRO CONTROLLER)

~

194

209

SDRAM ADDRESS(0-10)

~~

222629

IC503 (SDRAM)

EXTERNAL

MEMORY

34

SDRAM

STREAM

I/F

DECODER

I/F

ECC

I/F

159

~

2

134253

SDRAM DATA(0-15)

~

SDRAM DATA(0-15)

178

BCU

CPU

I/F

UMAC

READ

MEMORY

DEBUG

34~42 212

21~30

DVD MAIN CBA UNIT

IC201

4

(SW)

17~18 215 216

7~14

1~4

FS

TS

FS(+)

CN201

FS(+) 2

FS(-)

TO DVD SYSTEM

CONTROL / SERVO

BLOCK DIAGRAM

TS(-)

TS(+)

FS(-) 3

TS(-) 4

TS(+) 1

PICKUP

CPU

9

GND(LD)

I/F

WATCH DOG

TIMER

TIMER

INTERRUPT

CONTROLLER

CD/DVD

62

6

1 3

CD DVD

DMA

RF

999897

100

~

CN201

DVD/CD

FORMATTER

SIGNAL

PROCESS

115

116

C16

D18

CIRCUIT

113

114

A17

B15

DETECTOR

BCU

CD/DVD 19

32BIT

CPU

INST.

ROM

106

104

AMP

Q253,Q254

AMP

CN201

CD-LD 10

DVD-LD 8

DATA

RAM

105

103

Q251,Q252

5

6

PD-MONI 7

GND(CD-PD)

GND(DVD-PD)

10-8 FL11.11BLDD

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

6.

This schematic diagrams are masterized version
that should cover the entire FL11.11 chassis
models.
Thus some parts in detail illustrated on this
schematic diagrams may vary depend on the
model within the FL11.11 chassis.
Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service
manual is the latest version for this chassis at the
moment of making this service manual.
Depend on the mass production date of each
model, the actual layout of each Board may differ
slightly from this version.

3

, M = 106).

-6

µF).

11-1 FL11.11SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

r

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

Unit: Volts

Unit: Volts

5.0

The same voltage for
both TV & DVD modes

231

5.0
< 0 >

Indicates that the voltage
is not consistent here.

TV mode
DVD mode

5. How to read converged lines

1-D3

Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

The reference number of parts on Schematic Diagrams/CBA can be retrieved by
application search function.

3

AREA D3

2

1

AREA B1

1-D3

ABCD

1-B1

11-2 FL11.11SC

Power Supply 1 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

LINE FILTER

C602

0.47/300V

L602
LINE
FILTER

OPEN

JS602

JS601 OPEN

Q601
TK5A50D
(SWITCHING)

G

5.3

C610
OPEN

D606
27BSB-T26

F601
4A/125V

R601
560K/1/2W

R607
OPEN

SA601
SURGE
ABSORBER

C601

0.47/300V

L601

OPEN

JS603

R604
390K

R605
390K

R606
390K

R618
390K

C609

0.027
/100V

5.3

0.5

0

Q602
2SC2120-O

SWITCHING
CONTROL

D602
1N5406-BP

D601
1N5406-BP

OPEN

C603
OPEN

JS604

4A 125V

BC601
BEAD

R610

R611

150

150

R613

1.2K

D607
4V3BSB-T26

R617

1.8/5W

R603
OPEN

R602

1.8/5W

D603
1N5406-BP

D604
1N5406-BP

C604
OPEN

C605
680
/200V

R616
180

C613
1200P
/100V

D611

14.3

0.5

C691
1000P/250V

C692
OPEN

C693
1000P/250V

C694
OPEN

T601
POWER TRANS

3

4

5

7

8

IC601
LTV817MCF

ERROR
VOLTAGE DET

4

32

4

3

AC601
AC CORD

AC CORD

TO INVERTER
CBA CN1900

134.5

0.1

C611
470P
/2KV

CN601

2AC120V
1AC120V

CN602

2ACL
1HOT-GND

D

S

2

D609

R614

0.39
/2W

D612
39BSB-T26

D608
OPEN

D610
OPEN

R615

2.7K

C612

0.082
/100V

IC631
LD1117V
(+3.3V REG.)

1

HOT COLD

D631
FR154

11

14

12

17

18

13

16

15

199

33.6

1

32.5

32.5

5.7

(+3.3V REG.)

VOUT

GND

VIN

123

2.1 3.4 5.1

R667
WIRE

D637
SB160

R668
620

R669
1K

C631
1000/25V

D646
SB360BH

D643

R651

FR104-B

1

C637
2200P/1KV

D638
FR154

WITH DVD

D634
SB240-B/P

D633
FR151-B/P

C633
2200/6.3V

D632
FR104-B

C632
220/25V

D647
SB240-B/P

C645

2200/6.3V
D640
OPEN

D641
SB390

D642
SB390

R645
270

D649

R646
180

C646
2200P/100V

6.3
Q631

KTC3198-Y-AT/P
(FEED BACK)

D653

D652

OPEN

5V6BSB-T26

Q636
2SA950-O

5.1

R695
33

R636

2.7/1/2W

5.1

5.8

R666
1

D673
OPEN

C648
100/10V

4A/125V

R247

R501
10

D635
24BSB-T26

C644
3300
/16V

D644
10BSB-T26

C642
1/50V

C638
220/50V

C634
1000/10V

JS631

C639
1000/35V

R650

6.8K

R696

3.3/1W
R697

3.3/1W

D664
4V7BSB-T26

19.4 15.8

16.4

D639
1ZB43BB

D655
1N4005

R670
WIRE

R671
WIRE

C650
OPEN

C640
OPEN

C641
OPEN

R652
24K

R653
WIRE

R662
15

33.8

6.2

Q635
KTC3198-Y-AT/P

(+5V REG.)

D660

Q633
OPEN

Q501
2SC2120-Y

(SW+16V)

6.7

D407
10BSB-T26

3.3/2W

C501
100/25V

R410
15K

C402
OPEN

Q402
KTC3198-Y-AT/P

(RESET)

R409
OPEN

D648

R639

SB140

1.5K

R637

R644

1.2K

820

R648

R638

1K

1.5K

D650

D651
OPEN

0.2

0

D658
3V3BSB-T26

R665
WIRE

R698
OPEN

R684
OPEN

R223

3.3k

Q634
KTC3198-Y-AT/P

(SWITCHING)

0.7

Q644
OPEN

POWER SUPPLY CBA

CAUTION ! :

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

19.4 15.8

R227

2.7/1W

R228

2.7K

R229

2.7K

D203

-3.9

33.8

33.1

R224
27K

0.1

0

R661
390
/1/2W

R660
WIRE

R663

1.8K
R664

1.8K

D659
6V8BSA-T26

D662
FR154

D661
FR154

R407
22K

Q209
2SD400

16.4
(SW+16V)

D211

D402
OPEN

3.1

0

R240

D208

R242
12K

R673
22K

Q639
KTC3198

-Y-AT/P

(SWITCHING)

R658
10K

D657
33BSB-T26

C643
OPEN

47K

R647
OPEN

33.7
Q207

KTA1267-GR-AT/P
(SWITCHING)

0.7

Q208
KTC3198-Y-AT/P
(SWITCHING)

R659
100K

C647
1/50V

R406
OPEN

R649
OPEN

C222
470/25V

C221

R231

0.01

1.5K

D204
KIA431-AT/P

R411
33K

Q211
KTC3198

-Y-AT/P
(SW-8V)

-7.9

R225
22K

R226
22K

D209
39BSB-T26

R672
WIRE

6.9

6.8

Q638

6.1

KTA1267-GR-AT/P
(SWITCHING)

R674
1K

0.2
0

0

R232
11K

R233
910

R234

2.2K

R243
27

-8.6

-8.6

R241
22K

R677
270

C676

2.2/50V

R687
10

R689

1.2K

D670
10BSB-T26

D671
WIRE

R682

2.7

R683

2.7

D416

2.5

-0.7

Q401

0

KTC3198

-Y-AT/P

(SWITCHING)

C224
10/50V

R235
270

D207

R238
150

R239
OPEN

R237

8.2K

5.1

3.4

R676
100K

9.012.7

Q642
KTC3198-Y-AT/P

9.7
(SW+9V)

R688
10

C657
22/50V

6.7 5.3

6.0
(SW+5V)

D403
OPEN

R403
47K

R244

D210

OPEN

8V2BSB-T26

Q210
KTC3198-Y-AT/P

(SW+24.5V)

30.2 24.4

C223
22/50V

4.1
Q637

2SC4881F
(SW+3.3V)

R678

C651

10

OPEN

D666
KIA431-AT/P

R675
10K

R681
OPEN

Q640
2SC2120-Y

R405
47K

R404
22K

25.1

R236
33

D205
30BSD-T26

D206

R679

3.6K

R680

6.8K

D665
WIRE

D667
OPEN

C656
100/16V

C653
220/10V

R245

R412
10K

R692

2.7

R691

2.7

D4068.2K
15BSB-T26

C652
1000/6.3V

D674
OPEN

D419

R408

D412

D410

R694
WIRE

R693
WIRE

Q641
2SC2120-Y

(SW+5V)

R686
1K

D404

D405

D414

D411

D421

D40910K

6.8 5.3

C655
OPEN

C225
OPEN

R654
1K

C683

0.1

C682

0.1

C684

0.1

R401
22K

D413

C681

0.1

D420

6.8 5.3
Q643

2SC2120-Y

6.0

(SW+5V)

6.0

R641

1.1K

R642

R685

10K

22

D645
KIA431B-AT/P

R699
56

D417
3V9BSB-T26

D418
3V9BSB-T26

R402
22K

D401
OPEN

C654
220/10V

R643
10K

AUDIO SIGNAL

INV+16V
LCD+16V
P-ON+3.3V
LCD-8V
LCD+24.5V

AUDIO(R)-OUT
AUDIO(L)-OUT

AMP(R)-OUT
AMP(L)-OUT

TO DIGITAL MAIN

CN301

CBA UNIT CN3002

3.3

R690
OPEN

D676
WIRE

D415

UNLESS OTHERWISE SPECIFIED:
DIODES ARE 1SS133.

1 P-ON-H2

2.6
2 AUDIO(L)-OUT

0

3 GND

2.6
4 AUDIO(R)-OUT

3.3
5 PROTECT3

2.6
6 AMP(L)-OUT

0

7 GND

2.6
8 AMP(R)-OUT

3.2
9 P-ON-H1

3.1

10 P-ON+3V

2.5

11 PROTECT1

0

12 GND

5.3

13 P-ON+5V

5.3

14 P-ON+5V

0

15 PROTECT2

6.9

16 P-ON+7V

0

17 GND

0

18 GND

3.4

19 P-ON+3.3V

3.4

20 P-ON+3.3V

3.4

21 AL+3.3V

3.3

22 AL+3.3V

0

23 GND

0.6

24 OE2

3.3

25 REMOTE

3.2

26 BACKLIGHT-SW

0.6

27 LED1

0.9

28 BACKLIGHT-ADJ

0.8

29 VCOM-PWM

PROTECT3
BACKLIGHT-SW
BACKLIGHT-ADJ
VCOM-PWM
OE2
P-ON-H1
LCD-P-SAFETY

LED1
REMOTE
P-ON+9V
AL+3.3V
AL+6V

AL+3.3V
M+13V
D+5.5V
P-ON+5V
AL+13V
P-ON+9V
PROTECT2
LCD+16V
PROTECT1

P-ON+3.3V
P-ON+9V
P-ON+5V
RESET

AL+33V
TUNER+5V

CONTINUE
POWER 4

CONTINUE
POWER 4

CONTINUE
POWER 2

CONTINUE
POWER 4

CONTINUE
POWER 4

CONTINUE
POWER 2

CONTINUE
POWER 3

CONTINUE
POWER 2

ABCDEF

11-3

FL11.11SCP1

Power Supply 2 Schematic Diagram

*Either TU301 is used for Power Supply CBA.

TU301 TUNER UNIT

CONTINUE
POWER 1

4

3

TUNER+5V

CONTINUE
POWER 3

DIF-OUT2
DIF-OUT1

AUDIO-MUTE

CONTINUE
POWER 1

AL+3.3V

P-ON+5V

P-ON+9V

PROTECT2

LCD+16V

PROTECT1

CONTINUE
POWER 4

KEY-IN2
DVD-LED

SP802
SPEAKER
R-CH

AL+33V

SCL
SDA

IF-AGC

M+13V

D+5.5V

AL+13V

CL802

BC301
WIRE

L301
OPEN

JS304

WIRE

C310
47P

C311
47P

C836
1

CN802
1SP(R)-

2SP(R)+

R815
10K

L302

0.22uH
L303

0.22uH

1NU2NU3NU4

D301

C307

OPEN

OPEN

C845
470P

C823
1000/25V

C837
2700P

VCC5NU6+32V7GND8SDA

D302
OPEN

C846
470P

C821

0.1

R810

C815

0

1

R816

3.3K

R301
OPEN

C308
OPEN

D804
20BSB-T26

C817
1

10/50VC816

3.6
42 2738 34 3043 28 2439 35 3144 2940 2536 3241 2637 33

2

IC801
BD5426EFS-E2
(AUDIO AMP)

POWER LIMIT

CONTINUE

1

POWER 1

AMP(R)-OUT
AMP(L)-OUT

SPEAKER
L-CH

CL801

C834
1

C827
10/50V

CN801
1SP(L)-SP801

2SP(L)+

R813
10K

C835
2700P

C801
1

R814

3.3K

C838
470P

C839
470P

R802
27K

D801
20BSB-T26

IF-AGC

NU

SCL10NU

DIF-OUT2

DIF-OUT1

VCC16NU17NU18NU19NU

13

14

11

9

0R3060R303
0R3070R302

R305
OPEN

11K

R803

15

12

JS301

R311

OPEN

OPEN

BC805
BEAD

BC804
BEAD

C805
1000P

BC803
BEAD

BC802
BEAD

R309
82

R308
82

C828

0.1

C822
1000P

C820
1

C803
1

R304
OPEN

D803
20BSB-T26

BC801
BEAD

13.0 18.1 12.9 12.9 12.912.9 18.0

18.0 12.9 12.9 12.912.96.1 6.1 18.1

11K

R804

C802

0.1

C804

0.1

D802
20BSB-T26

C304
OPEN

C830

0.47

L803
33uH

006.1 5.40 6.1 5.14.1 6.1 8.83.6 6.10

GND GND

DRIVE2PWM2

DRIVE1PWM1

GND GND NU NU

121115481037926

03.6 5.0 3.62.1 06.13.6 7.16.1 0

L801
33uH

C811

0.47

C809

0.1

TU301 TUNER UNIT

**

NU2NU3NU4SCL5SDA6+32V7+5V

1

JS302

C305

C306

0.1

1/50V

C829

0.1

C826

C825

L804
33uH

L802
33uH

C810

0.1

C824
1

0.1

C806
1

C807

0.1

1000P

PROTECTIONS
& LOGIC

R805
OPEN

C808
1000P

IF-AGC10DIF-OUT2

8NU11

9

JS303

R310
0

RAMP
GENERATOR

1814 211915 2016 1713 22

CLOCK
CONTROL

MUTE
CONTROL

R806

4.7K

R820
22K

D806
1SS133

C814
OPEN

7.0

0

DIF-OUT1

C302

0.1

C309

0.47

OPENR811

3.3/50VC832

0.1C833

OPENR812

23

C813
OPEN

Q802
KTC3198

-Y-AT/P

0

(AUDIO-MUTE)

C847

0.1

C303
330
/10V

R809
OPEN

D904
FR104-B

C301
OPEN

C818

0.1

C819
10/50V

D807
OPEN

R817
100K

R808
OPEN

7.0

0.1

Q801

0

KTC3198

-Y-AT/P

(AUDIO-MUTE)

D303
OPEN

R819
22K

R818
10K

Q901
2SA950-O

(SWITCHING)

5.1

R918
10K

IC951
NJM4558M(TE1)
(OP AMP)

4.3

5.0

L951
WIRE

R915
10K

R916
10K

R925

3.9

4.6

R924

3.9

R923
220

R929

1.2

5.0

R928
180

C919
47/25V

D909
1N4005

C952

0.1

9.0 4.5 4.5 4.5

VCC

1234

04.6 4.5

12KR959

220PC959

R957
39K

C957

2.2

R917
390

0.1

0.8

Q902
KTC3198

-Y-AT/P

0

(SWITCHING)

3.4

Q903
2SC2120-Y

4.1
(SW+3.3V)

R922
22

D905
KIA431-AT/P

3.4

Q904
KTC3198-Y-AT/P

4.1
(SW+3.3V)

R927
10

D906
3V9BSB-T26

C951
100/10V

12KR960

220PC960

5678

GND

0

R951
100

IC901
KIA1117API00/T0-220
(+1.2V REG.)

R911

C916
1000/6.3V

D907
1SS133

C918
100/10V

Q905
OPEN

D908
OPEN

R901
91

C954
1

C956
OPEN

0.3

R910

0.3

C917
220/6.3V

C915
OPEN

D408
OPEN

R902
91

R903
91

C907
2200P

R907

C906

OPEN

2200P

GND

123

0 1.3 4.0

R913

R914

3.3

2.7
/1/2W

/1/2W

D903
1N4005

D902
1N4005

R953
100K

R954
100K

VOUT

R931
OPEN

R958
39K

C958

2.2

R952
100

R955
100K

C953
1

C955
OPEN

VIN

R920

3.3K

R921
10K

R912
1K

R919
150

R926
470

R930
OPEN

R956
100K

D901
1N4005

R908
OPEN

POWER SUPPLY CBA

C905
OPEN

C901
OPEN

C902
OPEN

C903
OPEN

R904

1.3K

R905

1.3K

C904
OPEN

C910
OPEN

L901
WIRE

C913
OPEN

C912
OPEN

C914
OPEN

C908
OPEN

C909
OPEN

R906
100

WF10

WF11

WF12

WF13

C911
OPEN

WF9

WF8

R909
WIRE

CN901

3.4

3.3

3.4

1.3

1.3

3.4

3.4

3.4

3.4

5.3

9.7

9.7
0
0
0
0
0
0
0

0.5

2.5

3.4

2.5

2.8

0.5

CN303

0

3.4

0.6

3.2
0

2.8

2.5

3.4
0

2.5
0

2.5
0

3.4

3.3
0

0.9
0

0.9
0

0.6
0

4.6

0.2

4.6
0

1.7
0

CN902

0.9
0

0.9
0

0.6
0

0

1.6

0.2

1.6
0

1.7

TO DVD MAIN
CBA UNIT CN401

1 AL+3.3V
2 LED-CONT
3 DVD-DISC-OUT
4 EV+1.2V
5 EV+1.2V
6 EV+3.3V
7 EV+3.3V
8 EV+3.3V

9 DVD-ON+3.3V
10 DVD-ON+5V
11 EV+9V
12 EV+9V
13 GND
14 GND
15 GND
16 GND
17 GND
18 GND
19 GND
20 PWRCON(NU)
21 DVD-SCLK
22 DVD-CS
23 DVD-DISC-IN
24 DVD-SDATA
25 DVD-REMOTE
26 DVD-P-ON

TO DIGITAL MAIN
CBA UNIT CN3003

1 GND

2 KEY-IN2

3 DVD-LED

4 P-ON-H3(NU)

5 DVD-MAIN-PWR

6 DVD-P-ON

7 DVD-REMOTE

8 DVD-SDATA

9 DVD-DISC-IN
10 GND
11 DVD-CS
12 GND
13 DVD-SCLK
14 GND
15 DVD-DISC-OUT
16 LED-CONT
17 GND
18 DVD-Pr
19 GND
20 DVD-Pb
21 GND
22 DVD-Y
23 GND
24 DVD-AUDIO(L)
25 DVD-AUDIO-MUTE
26 DVD-AUDIO(R)
27 GND
28 DVD-SPDIF
29 GND

TO DVD MAIN
CBA UNIT CN601

1 DVD-Pr

2 GND

3 DVD-Pb

4 GND

5 DVD-Y

6 GND

7 GND

8 GND

9 DVD-AUDIO(L)
10 DVD-AUDIO-MUTE
11 DVD-AUDIO(R)
12 GND
13 DVD-SPDIF

11-4

LKJIHG

FL11.11SCP2

Power Supply 3 & Jack Schematic Diagram

POWER SUPPLY CBA

C843

0.01

R847

4

3

2

1

DIGITAL
AUDIO-OUT
(COAXIAL)

PC-AUDIO-IN

HDMI­AUDIO(L)-IN

HDMI­AUDIO(R)-IN

COMPONENT­AUDIO(L)-IN

COMPONENT­AUDIO(R)-IN

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

SW

VIDEO-IN

AUDIO(L)-IN

AUDIO(R)-IN

JK841

JK711

JK721

JK722

JK741

JK742

JK731

JK732

JK733

JK751
S-VIDEO-IN

YC

JK752

JK753

JK754

C841
1

R841
OPEN

R721
OPEN

R722
OPEN

R741
OPEN

R742
OPEN

C751
100P

C752
100P

R754
OPEN

R755
OPEN

R711
OPEN

R712
OPEN

C731
39P

C732
39P

C733
39P

R759
15K

R760
15K

R843
110

R713
OPEN

R714
OPEN

R723

15K

R724
15K

R743
15K

R744
15K

R751
75

R752
75

R844
220

5.3

2.0

R731
75

R732
75

R733
75

R756
0

R757
0

C753
100P

R715
OPEN

R716
OPEN

R725
39K

R726
39K

R745
39K

R746
39K

R761
39K

R762
39K

R845
OPEN

R735
10

R736
10

2.6

Q841
KTC3198-Y-AT/P

(BUFFER)

C703
OPEN

C701
OPEN

C704
OPEN

C702
OPEN

C723

2.2

C721
OPEN

C724

2.2

C722
OPEN

C743

2.2

C741
OPEN

C744

2.2

C742
OPEN

R734
10

C754
0

C755
0

C756

R758

0

0

R753
75

C761
OPEN

C762
OPEN

C757

2.2

C758

2.2

4.7K

R848

4.7K

C842
1

JACK CBA

C844
10/50V

C776
100P

BC841
BEAD

R778

R788

100K

OPEN OPEN OPEN OPEN

R792

R779
100K

CL701B

1 S-VIDEO-Y-IN
2 S-VIDEO-SW 2

4 GND
5 VIDEO-IN 5
6 GND
7 AUDIO(L)-IN
8 GND
9 AUDIO(R)-IN

R789

R793

R794

CL701A
1

33 S-VIDEO-C-IN
4

6
7
8
9

R791R790

R795
OPENOPENOPENOPEN

IC771
TC4052BF(ELNF)

(AUDIO SELECTOR)

0

0.2

4.5 0.2
3

4.5
4

0.2
5

0

6

INH

0

VEE

7

0

89GND

SW
CTL

CONTINUE
POWER 1

P-ON+3.3V

C771

C772

C773

0.1

R780

R772

R773

10K

10K

9.0

VDD1

16

0.2

152

14

4.5

13

0

12

4.5

11

9.0

10

9.0

9.0
0

Q771

0

KTC3198-Y-AT/P
(INVERTER)

9.0

0

R775
10K

0

Q772
KTC3198-Y-AT/P

(INVERTER)

R781
10K

OPEN

OPEN

R784

R785

OPEN OPEN OPEN OPEN

R774
10K

R782
OPEN

R786

R783
OPEN

R787

OPEN

R776
100K

R777
100K

100/16V

C775
100P

R771
WIRE

R763
10K

WF1

WF3

WF2

WF4

WF7

WF5

WF6

P-ON+9V
P-ON+5V
RESET

CONTINUE
POWER 4

KEY-IN1
AUDIO-MUTE

TO DIGITAL MAIN

CN302

CBA UNIT CN3006

0

1 GND

1.7
2 SPDIF

0

3 GND

0

4 VIDEO-IN

3.4
5 S-VIDEO-SW

0

6 S-VIDEO-C-IN

0

7 GND

0

8 S-VIDEO-Y-IN

0

9 GND

0

10 INPUT1

4.5

11 AUDIO(R)

0

12 INPUT0

4.5

13 AUDIO(L)

0

14 GND

0

15 COM-VIDEO-Y-IN

0

16 GND

0

17 COM-VIDEO-Pb-IN

0

18 GND

0

19 COM-VIDEO-Pr-IN

0

20 AUDIO-MUTE

0

21 SDA

3.3

22 SCL

3.3

23 RESET

0

24 IF-AGC

0

25 GND

1.0

26 DIF-OUT1

0

27 GND

0.2

28 DIF-OUT2

3.3

29 KEY-IN1

CONTINUE
POWER 2

SCL
SDA
IF-AGC
DIF-OUT2
DIF-OUT1
AUDIO-MUTE

11-5

QPONM

R

FL11.11SCP3

Power Supply 4 Schematic Diagram

CONTINUE
POWER 1

INV+16V
LCD+16V

P-ON+3.3V

LCD-8V

LCD+24.5V

4

3

2

1

TO INVERTER
CBA CN1001

GND 1

INV+16V 2

GND 7
LCD+16V 8
LCD+16V 9

VGH 10

GND 11

P-ON+3.3V 12

LCD-8V 13

VCOM 14

GND 15

CONTINUE
POWER 1

LED1

REMOTE
P-ON+9V
AL+3.3V

AL+6V

TO IR SENSOR
CBA CL101B

CONTINUE
POWER 2

KEY-IN2
DVD-LED

CN201

3GND
4BACKLIGHT-ADJ
5BACKLIGHT-SW
6PROTECT3

CN101
1GND

2REMOTE
3AL+3.3V
4LED1
5P-ON-H1
6KEY-IN1
7KEY-IN2
8DVD-LED

D675
WIRE

C203

0.1

JS102
OPEN

JS101

C202

0.1

C675
OPEN

Q172
KTC3198-Y-AT/P

2.0

(SWITCHING)

0

0

C201

0.1

IC201
TL3472CDR

(COMPARATOR)

C208
OPEN

OPENR173

VCC

C209

R205

OPEN

OPEN

19.1

R172
22K

Q171
KTC3198-Y-AT/P

0

(SWITCHING)

0.7

0

15.8

1234

0.2

0

R174

OPEN

C216
1000P

Q203
KTC3198-Y-AT/P

(V-COM DRIVE)

R213
100K

Q204

R215

KTA1267-GR-AT/P

OPEN

(V-COM DRIVE)

6.8

6.87.1
5678

VEE

00

0.2

Q201
KTA11267-GR-AT/P

R204

(SWITCHING)

390

Q202
KTC3198-Y-AT/P

(SWITCHING)

0.4

R171
22K

R175
22K

R207
100K

C218
1

22.0

R206
1K

6.9

6.9

R203
OPEN

R210
10

15.8

6.8

6.8

0

R212
10

C219
47/25V

24.4

23.9

R202
1K

C207

0.1

R221
OPEN

R201
100K

C206
OPEN

C217

0.1

R208
1

JS201
OPEN

R217

1.5K

R216
10K

D202
1SS133

R218
10K

C210
22/25V

R219
15K

5.9

0.3

Q205

0

KTC3198-Y-AT/P
(V-COM DRIVE)

C204

2.2/50V

R249
OPEN

C212
OPEN

R222
OPEN

0.6

1.2

0.6

Q212
KTC3198-Y-AT/P

(SWITCHING)

R220
1K

C213
OPEN

C220
OPEN

R248
10K

C214
OPEN

JS202

C215
OPEN

L871
WIRE

IC871
NJM4558M(TE1)
(OP AMP)

20KR891

100PC875

Q206
OPEN

C879

C880

0.1

100/16V

20KR892

100PC876

9.0

VCC

1234

4.5

4.5

4.5

R879
16K

C884

2.2

4.5

4.5

4.5

5678

GND

0

0

R881
100

C873

2.2

C874

2.2

R885
100K

R883
100K

R880
16K

C885

2.2

R882
100

R886
100K

R873
100K

R874
100K

R884
100K

R871
560

R872
560

3.4

-1.5

C878
6800P

C877
6800P

POWER SUPPLY CBA

R887

22K
R888
1K

3.4

Q874
KTA1267

-GR-AT/P

(MUTE DRIVE)

R877
1K

-1.5

R878
1K

-1.6

C883

2.2

C882

2.2

Q873
KTC3198-Y-AT/P

3.4
(SWITCHING)

0.1

0

C871
3300P

0

Q871
KTC3198-Y-AT/P

(AUDIO-MUTE)

0

C872
3300P

0

Q872
KTC3198-Y-AT/P

(AUDIO-MUTE)

0

JK871

JK872

R821
OPEN

R893
22K

AUDIO(L)

-OUT

AUDIO(R)

-OUT

CONTINUE
POWER 1

PROTECT3
BACKLIGHT-SW
BACKLIGHT-ADJ
VCOM-PWM
OE2
P-ON-H1
LCD-P-SAFETY

CONTINUE
POWER 3

KEY-IN1
AUDIO-MUTE

CONTINUE
POWER 1

AUDIO(R)-OUT
AUDIO(L)-OUT

11-6

XWVUTS

FL11.11SCP4

Inverter Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

4

3

2

1

TO POWER SUPPLY
CBA CN602

TO POWER SUPPLY
CBA CN201

GND 15

INV+16V 14

13GND
12BACKLIGHT-ADJ
11BACKLIGHT-SW
10PROTECT3

GND 9
LCD+16V 8
LCD+16V 7

VGH 6

GND 5

P-ON+3.3V 4

LCD-6.8V 3

VCOM 2

GND 1

TO LCD MODULE
ASSEMBLY

GND 1
LCD+16V 2
LCD+16V 3

VGH 4

GND 5

P-ON+3.3V 6
P-ON+3.3V 7

LCD-6.8V 8

GND 9

VCOM 10

GND 11

HOT CIRCUIT. BE CAREFUL.

CN1900
2ACL
1HOT-GND

C1910

R1940

6.6

S

D

R1943

220K

330K

R1941

R1944

220K

330K

R1989

R1942

330K

120K

R1990
330K

R1991
330K

R1945
390K

Q1932
2SC2120-Y

(SWITCHING)

6.6

0

Q1930
TK8A50D

(SWITCHING)

G

0.2

C1931
1000P
/100V

6.6

0

R1937

0.33/2W

BC1930
BEAD

D1931
5V6BSB-T26

8.4

R1930
47

D1933

15.8

15.8

-6.2

C1930
820P
/2KV

D1934
39BSB-T26

CN1001

CN1003

0

15.8

15.8
0
0

3.4

3.4

-6.2
0
0
0

270
/200V

134.8

C1940

R1946

OPEN

OPEN OPEN OPEN

D1940
OPEN

BC1931
BEAD

R1935

1.5K

D1930
27BSB-T26

0.2

Q1931
KTC3198-Y-AT/P

(SWITCHING)

D1935
OPEN

HOT

COLD

TO LCD MODULE

CN1005

ASSEMBLY

0

GND1
LCD+16V2
LCD+16V3

0

VGH4

0

GND5

3.4
P-ON+3.3V6

3.4
P-ON+3.3V7

LCD-6.8V8

0

GND9

0

VCOM10

0

GND11

R1947

C1932

0.027
/100V

R1934
180

R1933
82

R1932
82

R1931
47K

C1933

0.1
/100V

R1936
180

D1932

C1934
OPEN

R1948

R1939

2.2K

10.4

0.4

0.2

R1035

3.3K

R1036
10K

2

3

4

5

7

8

3.4

T1950
POWER TRANS

IC1930
LTV817MCF
(FEEDBACK)

4

32

(ISOLATOR)

4

32

0

10

11

14

15

82.0

1

81.0

IC1931
LTV817MCF

1.1

1

00

C1905
2200P/250V

C1906
OPEN

Q1005 10K
KTC3198

-Y-AT/P

(SWITCHING)

0.2

3.4

0.1

Q1600

0

KTC3198

-Y-AT/P
(SWITCHING)

0

Q1621
KTC3198

-Y-AT/P

(SWITCHING)

B

D1960
OPEN

D1961
OPEN

C1981

0.01

0

C1991
OPEN

R1970
270

R1981
0

R1982

2.7K

(SWITCHING)

R1802
22K

R1034

R1621
10K 1000P

BC1301
WIRE

C1990
820P/1KV

D1990
31DF4-FC

R1971

3.9K

R1969

3.9K

R1968

3.9K

R1967

3.9K

R1800
10K

D1630

Q1803
KTC3198

-Y-AT/P

0.7

R1806
22K

C1014
6800P

4.8

R1033
10K

R1601

C1601

10K OPEN

R1620
100K

C1620

C1992

D1994

470

1ZB100BB

/100V

C1970

0.047

R1974
OPEN

/100V

Q1970
KTC3200-GR-AT/P

(SWITCHING)

81.0

6.3

5.8

D1970
5V6BSB-T26

D1972

Q1971
KTC3198-Y-AT/P

(SWITCHING) (SWITCHING)

1.1

0

R1630
10K

R1631

3.3K

0.1

0

5.13.6

R1600
18K

1.9

0.2

R1019
WIRE

Q1004

KTA1267

-GR-AT/P

(SWITCHING)

C1982

0.47/50V

R1804

1.2

R1805
1K

Q1800
KTC3198-Y-AT/P

SWITCHING
BACKLIGHT-ON

C1801

R1801

22/35V

22K

D1802
WIRE

R1812
12K

Q1804
KTC3198

-Y-AT/P

(SWITCHING)

C1000
OPEN

R1018

2.2K

D1002
OPEN

C1600

0.1

R1986
1K

C1800
100/25V

C1009
100/25V

R1975
30K

R1976
30K

R1977
27K

R1984
15K

R1979

6.8K
R1980

360

R1988
1K

R1987
820K

Q1815
2SA950-O

(SW+16V)

15.8 15.7

15.0
R1803

4.7K

0.1

0.7
0

C1802

0.1

D1801
10BSB-T26

R1807
1K

0.8

0.1
0

C1001

0.1

C1007

0.1

R1024
100K

D1006

R1025
OPEN

R1983
33K

D1971
HZZS33NB2TE-EQ

Q1972
KTC3198-Y-AT/P

D1005
WIRE

INVERTER CBA

C1061

R1060

C1056

C1053

R1973
22K

0.3

C1983
OPEN

Q1801
KTA1267-GR-AT/P

(SW+16V)

15.7

R1809

1.5K

R1810

4.7K

0.8

Q1802
KTC3198

R1808

-Y-AT/P

5.1K
SWITCHING

BACKLIGHT-ON

R1014

4.7K

R1015

7.5K

D1003

R1972
68K

D1973

R1008

2.2K

3.3

0

R1001
22K

C1003

0.1

R1004
0

C1006

0.1

C1010
OPEN

R1006
56K

15.7

15.0

0

0

R1031
15K

R1003
100K

R1016
120K

R1017
10K

R1005
220K

C1004

0.1

R1007
10K

R1009
82K

R1030
22K

C1052
100/100V

D1000
15BSB

-T26

R1043
12K

R1811
100K

C1552

0.01

R1555
1K

R1554

2.2K

R1504

2.2K
R1505
1K

C1502

0.01

R1506
1K

R1002

C1002

1K

0.01

IC1000
TL494CDR

PWM
CONTROL

R1022

2.2K

C1013

0.1

Q1003
KTC3198-Y-AT/P

(SWITCHING)

0

C1011

0.1

R1553

2.2K

Q1553
KTC3198

-Y-AT/P

(SWITCHING)

-0.3

R1556
1K

Q1503
KTC3198

-Y-AT/P

(SWITCHING)

R1028
36K

3.6

0

100/100V

100/100V

0 2.5 0

0.4

15.700.4

2.6

V+

V-

00

0.4

2.5

0.4

C1702

0.22

R1700

9.1K

C1703

0.22

R1042

C1040

OPEN

0.47

R1552
150

4.0

0

R1503

2.2K

4.0

0.3

0

16

15 10

PWM
CONTROL
LOGIC

18

21146

3

1.3 1.6 0 3.73.11.701.3 3.6

R1080
22K

3.6

0.5

Q1001

0

KTC3198-Y-AT/P

(SWITCHING)

R1041
33K

R1045
OPEN

Q1551
2SC2120-Y

3.9

4.0

Q1552
2SA950-O
(DRIVE)

R1502
150

Q1501
2SC2120-Y

4.0

4.0

Q1502
2SA950-O

(DRIVE)

5.1 0

15.75.10.30.2 3.7
1214513
VCCCTLV-REF

DRIVE

OSC

DTC

GND

C1012
3900P
/100V

R1701
1K

R1044

0.39
/2W

15.5(DRIVE)

3.9

3.9

0

DRIVE

7

R1081

5.6K

R1040

0.39
/2W

R1551
10

C1551
OPEN

15.5(DRIVE)

3.9

3.9

0

9

R1023

3.3K

R1026
220

R1032
24K

2745316

IC1700
BA10324AF-E2
(COMPARATOR)

141312111098

2.5

C1550
470P/2KV

D1040
36BSB-T26

82.5

G

0.2

R1550
12K

C1500
470P/2KV

82.5 3.9

G

0.2

R1501
10

C1501

R1500

OPEN

12K

R1027
OPEN

D1004
WIRE

D1701

D1700

D1703

D1702

C1050
OPEN

D1050
OPEN

3.9

SD

Q1550
2SK2417

CURRENT
CONTROL
SWITCH

D1550
20BSB-T26

C1051
OPEN

D1051
OPEN

SD

Q1500
2SK2417

CURRENT
CONTROL
SWITCH

D1500
20BSB-T26

R1020
OPEN

R1021
10K

C1008

0.1

R1050
OPEN

BC1551
BEAD

BC1550
BEAD

R1051
OPEN

BC1500
BEAD

BC1501
BEAD

C1054
OPEN

C1055
OPEN

C1204
OPEN

C1205
OPEN

T1050
INVERTER
TRANS

2

4

1

3

T1100
INVERTER
TRANS

2

4

1

3

T1150
INVERTER
TRANS

2

4

1

3

T1200
INVERTER
TRANS

2

4

1

3

CD

15P/6.3KV

C1062

D1062

1500P

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

C1066
1500P

C1065
15P/6.3KV

C1072

0.1

C1111
15P/6.3KV

C1112
1500P

C1116
1500P

C1115
15P/6.3KV

C1122

0.1

C1161
15P/6.3KV

C1162
1500P

C1166
1500P

C1165
15P/6.3KV

C1172

0.1

C1211
15P/6.3KV

C1212
1500P

C1216
1500P

C1215
15P/6.3KV

C1222

0.1

D1001
WIRE

D1060

D1112

D1110

D1162

D1160

D1212

D1210

R10110R1010
10K

R1012
12K

EA

100K

D1068

R1066
100K

D1072

R1072
1M

R1110
100K

D1118

R1116
100K

D1122

R1122
1M

R1160
100K

D1168

R1166
100K

D1172

R1172
1M

R1210
100K

D1218

R1216
100K

D1222

R1222
1M

R1061
20K

D1061

D1066

R1111
20K

D1111

D1116

R1161
20K

D1161

D1166

R1211
20K

D1211

D1216

D1064

D1067

D1117

D1167

D1214

D1217

D1070

R1067
20k

D1114

D1120

R1117
20k

D1164

D1170

R1167
20k

D1220

R1217
20k

C1005

0.1

D1073

D1063

R1062
390

D1123

D1113

R1112
390

D1173

D1163

R1162
390

D1223

D1213

R1212
390

R1068
390

R1118
390

R1168
390

R1218
390

R1063
18K

C1063
10/50V

D1069

D1074

C1067
10/50V

R1113
18K

C1113
10/50V

D1119

D1124

C1117
10/50V

R1163
18K

C1163
10/50V

D1169

D1174

C1167
10/50V

R1213
18K

C1213
10/50V

D1219

D1224

C1217
10/50V

R1069
18K

R1119
18K

R1169
18K

R1219
18K

F

Q1060
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

C1064

R1064

0.01

8.2K

Q1061
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

C1068

R1070

0.01

8.2K

Q1110
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

C1114

R1114

0.01

8.2K

Q1111
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

C1118

R1120

0.01

8.2K

Q1160
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

R1164

C1164

8.2K

0.01

Q1161
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

C1168

R1170

0.01

8.2K

Q1210
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

R1214

C1214

8.2K

0.01

Q1211
KTC3198-Y-AT/P

OVER VOLTAGE
PROTECTOR

0.7

R1220

C1218

8.2K

0.01

UNLESS OTHERWISE SPECIFIED:
DIODES ARE 1SS133.

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

R1065
27K

D1065

R1071
27K

D1071

R1115
27K

D1115

R1121
27K

D1121

R1165
27K

D1165

R1171
27K

D1171

R1215
27K

D1215

R1221
27K

D1221

CN1050

2
1

CN1100

2
1

CN1150

2
1

CN1200

2
1

LCD
MODULE
ASSEMBLY

G

BACK
LIGHT

BACK
LIGHT

BACK
LIGHT

BACK
LIGHT

11-7

FL11.11SCINV

Function Schematic Diagram

FUNCTION CBA

2

1

TO IR SENSOR
CBA CL103C

CL103B
1AL+3.3V

2GND
3KEY-IN1
4KEY-IN2

R109
10K

SW101A SW103A SW104A SW105A SW106A SW107A

POWER MENU

SW101B SW104B SW103B SW105B SW107B SW106B
OPEN OPEN OPEN OPEN OPEN OPEN

POWER

R111

4.7K

R108
220

C108

0.1

R112

2.7K

CH UP

CH UP

D107
OPEN

R113

4.7K

CH
DOWN

CH
DOWN

R114

8.2K

MENU

R115
18K

VOL
UP

VOL
UP

C151

0.1

D151
OPEN

VOL
DOWN

VOL
DOWN

R152
10K

R151
WIRE

R153

2.2K

SW151 SW152

R154

2.2K

STOP EJECTPLAY

R155
OPEN

SW153

R156
OPEN

SW154 SW155

OPENOPEN

UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKHHLMA0100.

ABC

11-8

FL11.11SCF

IR Sensor Schematic Diagram

IR SENSOR CBA

2

1

TO POWER SUPPLY
CBA CN101

CL101B
1GND
2REMOTE
3AL+3.3V
4LED1
5P-ON-H1
6KEY-IN1
7KEY-IN2
8DVD-LED

R126
1K

C110
OPEN

C111
OPEN

C112
OPEN

R123
220

R124
220

R125
220

D104
333GT/E

POWER

D105
L-53HT

STANDBY

D106
LTL-307Y

DVD

R127

3.3K

C115
330P

RS102
KSM-712TH2E

(REMOTE SENSOR)

Vcc

VOUT

231

R128
100

C113
47/16V

C114
OPEN

GND

CL103C

1 AL+3.3V
2 GND
3 KEY-IN1
4 KEY-IN2

TO FUNCTION
CBA CL103B

A

B

11-9

C

FL11.11SCIR

Digital Main 1 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

TO POWER SUPPLY
CBA CN303

CONTINUE
DIGITAL 4

CN3003

GND 29

DVD-SPDIF 28

27GND
26DVD-AUDIO(R)
25DVD-AUDIO-MUTE
24DVD-AUDIO(L)
23GND
22DVD-Y
21GND
20DVD-Pb
19GND
18DVD-Pr
17GND
16LED-CONT
15DVD-DISC-OUT
14GND
13DVD-SCLK
12GND
11DVD-CS
10GND

9DVD-DISC-IN
8DVD-SDATA
7DVD-REMOTE
6DVD-P-ON
5DVD-MAIN-PWR
4P-ON-H3(NU)
3DVD-LED
2KEY-IN2
1GND

DVD-LED

DVD-MAIN-PWR

DVD-P-ON

DVD-SDATA

DVD-CS
DVD-SCLK
LED-CONT

CONTINUE
DIGITAL 2

DVD-REMOTE

DVD-DISC-IN

DVD-DISC-OUT

DVD-Pr

DVD-Pb

DVD-Y

*1

DIGITAL MAIN CBA UNIT

C3295
33P

C3296
OPEN

C3266

C3294

OPEN

33P

C3267
33P

C3268
33P

C3269
33P

C3271

C3270

100P

100P

C3272
100P

C3273
100P

C3281

C3280
100P

AA17
AB17
Y16
W16
AB16
AA16
AB15
AA15
Y15
W15
AB14
AA14
AB13
AA13
Y13
W13
Y12
W12
AB12
AA12
Y11
W11
AB11
AA11

W14REFR

C3279
100P

1000P

IC3005(1/6)
R8J04013BG-RJ

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

LVDS
TX

TO DIGITAL
MAIN 2
IC3005(2/6)

R3088

5.6K

R3417
100

R3419
680

R3420
100

680R3473

C3278
100P

R3418
1000P

R3474
1000P

C3277
100P

C3276
100P

C3275
100P

R3432
100

C3274
100P

R3471
100

R3425
100

R3426
100

R3427
100

R3430
100

R3433
100

CONTINUE
DIGITAL 3

KEY-IN2
DVD-AUDIO(L)
DVD-SPDIF
DVD-AUDIO-MUTE
DVD-AUDIO(R)

CONTINUE
DIGITAL 5

LCD+12V

5678

R3007

Q3002

100R3472

R3428

R3429
100

100

0R3164
0R3163

0R3165
0R3166
0R3167
0R3168

OPENR3115
OPENR3113

0R3169
0R3170
0R3112
0R3114
OPENR3116
OPENR3117
OPENR3118
OPENR3119
0R3120
0R3122
OPENR3124
OPENR3125

OPENR3123
OPENR3121

OPENR3127
0R3126

OPENR3129
0R3128

OPEN

1234

OPEN

R3006
OPEN

Q3001
OPEN

C3002
OPEN

R3001
OPEN

R3002
OPEN

OPENR3157

OPENR3158

OPENR3159

OPENR3160

C3078
OPEN

OPENR3162

OPENR3161

1KR3152

OPENR3155

CN3004

31 LCD+12V
30 LCD+12V
29 LCD+12V
28 LCD+12V
27 LCD+12V
26 GND
25 GND
24 GND
23 RX0(+)
22 RX0(-)
21 RX1(+)
20 RX1(-)
19 RX2(+)
18 RX2(-)
17 GND
16 RXCLK(+)
15 RXCLK(-)
14 GND
13 RX3(+)
12 RX3(-)
11 NU
10 NU

9NU
8NU
7 GND
6 GND
5 GND
4 GND
3 GND
2 GND
1 GND

CN3005

24 GND
23 LLV0(+)
22 LLV0(-)
21 LLV1(+)
20 LLV1(-)
19 LLV2(+)
18 LLV2(-)
17 GND
16 LLVCLK(+)
15 LLVCLK(-)
14 GND
13 LLV3(+)
12 LLV3(-)
11 LLV4(+)
10 LLV4(-)

9 LLV5(+)
8 LLV5(-)
7 GND
6TP
5 POL
4 CPV
3 OE1
2 XA0
1 STV

P-ON+3.3V

STV
RESET-LCD
OE
CPV
POL
TP

RESET-LCD

TO LCD MODULE
ASSEMBLY

TO LCD MODULE
ASSEMBLY

CONTINUE
DIGITAL 5

CONTINUE
DIGITAL 4

CONTINUE
DIGITAL 2

B

11-10

DC

EFA

FL11.11SCD1

Digital Main 2 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

*1

IC3005(2/6)
R8J04013BG-RJ

DIGITAL SIGNAL PROCESS

4

/MAIN MICRO CONTROLLER

TO DIGITAL
MAIN 3
IC3005(3/6)

0.1C3219
A1 NU

10C3220

0.1C3221
E2 NU

0.1C3222
E1 NU

DEMODULATOR
/MPEG
DECODER

3

2

A/D
CONVERTER

DIGITAL
SIGNAL
PROCESS

SW

1

TO DIGITAL
MAIN 6
IC3005(6/6)

TO DIGITAL
MAIN 1
IC3005(1/6)

F1

F2

J1IF-AGC

Y18HDMA-SCL
W19HDMI-SDA

K1INPUT0
L4INPUT1

AB22S-VIDEO-SW

W18DVD-REMOTE

N21DVD-DISC-IN
M19DVD-DISC-OUT

B14HSIN
B15VSIN
C11

C8
D9

C14
A11
B12

D8
A8
B7

A10NU

C7NU

A12

A15NU
C12DVD-Y

A7DVD-Pb
B8DVD-Pr

B6NU
C9NU
E3NU

B9NU
A13NU
A14NU
B13NU
B11NU

A9NU

A6NU
B10NU

C3226
10P

C3225
10P

R3202

2.2K

R3190
10K

0.1C3204

0.1C3205

0.1C3206

0.1C3207

0.1C3208

0.1C3209

0.1C3210

R3219
22

22R3228

OPENR3467
OPENR3466

22R3229

OPENR3296
OPENR3298
OPENC3194
OPENC3195
OPENC3196

0.01C3197

0.1C3198

0.1C3199

0.1C3200

0.1C3201

0.1C3202

0.1C3203

0.01C3290

0.1C3284

0.1C3285

0.1C3286

R3338
0

R3337
0

R3194

2.2K

C3178

0.1

R3189
10K

R3345
0

L3022

0.27uH

R3344
0

C3177

0.33

22R3188
22R3187
22R3218

R3437 10K

Q3033
2SC4081UBTLQ

(BEFFER)

R3436
10K

OPENR3297

OPENR3295

C3293

C3292

OPEN

OPEN

OPENC3257

OPENC3258

OPENC3259

OPENC3254

OPENC3287

C3235
33P

OPENC3256

OPENC3255

OPENC3288

L3024
OPEN

R3354
0

R3353
0

L3023
OPEN

C3291
OPEN

R3402

OPENC3289

C3243
OPEN

C3242
OPEN

C3084
OPEN

0R3403

0
0R3401

0R3400
0R3399

R3398
0

0R3460
0R3459
0R3458

R3369
OPEN

R3361
0

R3360
0

OPENR3476

OPENR3477

R3368
OPEN

R3435 100

OPENR3478

R3193

4.7K

IC3012
(OPEN)
(MEMORY)

1

A0

VCC

2

A1

WP

3

A2

SCL

45

GND SDA

IC3013
(OPEN)
(BUFFER GATE)

1

2

34

GND

IC3014
(OPEN)
(BUFFER GATE)

1

2

34

GND

R3184
OPEN

8

7

6

100R3175

Q3010
OPEN

VCC

VCC

R3416
OPEN

Q3012
OPEN

(BUFFER)

5

5

C3211
OPEN

R3284
OPEN

R3285
OPEN

R3286
OPEN

R3183
OPEN

R3185
OPEN

R3192

4.7K

Q3011
OPEN

(BUFFER)

R3310
OPEN

C3214
OPEN

D3027
OPEN

R3186
OPEN

R3343
OPEN

R3339
OPEN

R3326
OPEN

D3040
OPEN

R3321
OPEN

R3333
OPEN

R3334
OPEN

R3180
OPEN

R3358
OPEN

D3050
OPEN

R3347
OPEN

D3054
OPEN

R3376
OPEN

R3356
OPEN

R3364
OPEN

R3377
OPEN

100R3156

100R3172

D3045
OPEN

D3041
OPEN

D3049
OPEN

D3053
OPEN

D3055
OPEN

C3089
33P

C3099
100P

D3056
OPEN

C3092
1000P

C3101
100P

C3104

C3105

33P

1000P

C31120R3181
100P

100R3154
100R3171
0R3179

JK3001(OPEN)
D-SUB CONNECTOR

11156

12

13

14

C3087
33P

C3074
1000P

C3100
33P

7

8

9

10

100R3142
100R3138

100R3404

C3086
1000P

C3093
33P

C3095
33P

C3098
33P

C3103
33P

C3107
33P

1

2

3

4

5

100R3144

100R3134

C3102
33P

C3111
100P

CONTINUE
DIGITAL 4

AUDIO-MUTE
SDA
SCL

CONTINUE
DIGITAL 3

KEY-IN1
LIGHT-SENS
RESET

TO POWER SUPPLY
CBA CN302

CN3006

KEY-IN129
DIF-OUT228
GND27
DIF-OUT126
GND25
IF-AGC24
RESET23
SCL22
SDA21
AUDIO-MUTE20
COM-VIDEO-Pr-IN19
GND18
COM-VIDEO-Pb-IN17
GND16
COM-VIDEO-Y-IN15
GND14
AUDIO(L)13
INPUT012
AUDIO(R)11
INPUT110
GND9
S-VIDEO-Y-IN8
GND7
S-VIDEO-C-IN6
S-VIDEO-SW5
VIDEO-IN4
GND3
SPDIF2
GND1

CONTINUE
DIGITAL 3

AUDIO(L)
AUDIO(R)
SPDIF

CONTINUE
DIGITAL 6

WP
HDMI-SDA
HDMI-SCL

CONTINUE

DIGITAL 5
P-ON+5V
AL+3.3V-2
P-ON+3.3V

CONTINUE
DIGITAL 1

RESET-LCD

CONTINUE
DIGITAL 1

DVD-REMOTE
DVD-DISC-IN
DVD-DISC-OUT
DVD-Pr
DVD-Pb
DVD-Y

GH K

JI

L

11-11

FL11.11SCD2

Digital Main 3 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

CONTINUE

4

3

2

1

DIGITAL 2

AUDIO(L)

AUDIO(R)

SPDIF

CONTINUE
DIGITAL 4

C7-SPD-EN

DVD-SPD-EN

*1

IC3005(3/6)
R8J04013BG-RJ

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

TO DIGITAL
MAIN 2
IC3005(2/6)

TO DIGITAL
MAIN 6
IC3005(6/6)

AUDIO
I/F

18KR3335
18KR3336

R3331
OPEN

IC3017
SN74LVC1G126DCKR
(BUFFER GATE)

VCC

GND

5

LRCLK

SPDIF

M1
L3ACLK
M2
M3DVD-AUDIO-MUTE

L1BCLK
AB10STXD0
AA10SRXD0
Y10SCLK0

L2
M21DTV-ON-H1
K20P-ON-H2
J19HDMI-HPD1
J20HDMI-HPD0
K21REMOTE
K22HDMI-CEC
T20RESET-N
P18NU
J22HDMI-HPD2
AB21VCOM-PWM

H19MADIN0
G21KEY-IN1
G20KEY-IN2
H21PROTECT1
G22PROTECT2
H22PROTECT3
H20DTV-ON-H2
J21LED-R

G1

G2

G3NU

C4

C3NU

C1

C2NU

B2NU

B1NU

B5

B4NU

A2

A3NU

A4NU

A5NU

B3NU

1

2

34

L3040

R3327

BLM21PG221SN1D

OPEN

IC3016
SN74LVC1G126DCKR
(BUFFER GATE)

VCC

GND

0.1C3215
10C3216

10C3282 22R3444

R3446
10K

10C3283

R3447
10K

5

R3439
100

R3440
100

R3438
OPEN

22R3195
22R3196
22R3197
100R3208
22R3198
22R3199
22R3200
22R3201
100R3209
100R3210

22R3211
22R3212
22R3213

22R3214
100R3205

22R3312
OPENR3313
22R3314
22R3315
22R3316
22R3317
22R3318
22R3465

R3475
100K

10C3217

10C3218

1KR3445

1

2

34

L3038
BLM21PG221SN1D

R3311
OPEN

C3250C3251

0.1

100/16V

C3223
10

R3320
OPEN

C3224
10

R3322

4.7K

R3393
12K

R3394
12K

R3330

4.7K

C3227
82P

IC3015
NJM4558M(TE1)
(OP AMP)

C3249

C3248

10

220P

R3332

R3325

4.7K

4.7K

C3229
82P

R3341

4.7K

C3230
82P

R3362
0

C3245
OPEN

C3244
OPEN

R3359
0

C3232
82P

C3241
82P

R3352

R3351

3.9K

68K

R3355

3.9K
C3237

82P

R3342

4.7K

GND

R3350
68K

5678

VCC

1234

IC3010
PCM1782DBQR

AUDIO D/A
CONVERTER

R3178
10K

C3106

0.1

R3174

L3013

C3108
10

GND VCC NUNU

DAC

SYSTEM
CLOCK
MANAGER

CDVDD

BLM21PG221SN1D

1112131516 14

ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR

AUDIO
SERIAL PORT

R3191
100

32

C3113

0.033

R3177
0

ZERO
DETECT

R3176
0

LPF DAC
LPF

4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER

SERIAL
CONTROL PORT

1234567

IC3009
PST8420UR
(RESET)

14

GND OUT

C3252

0.1

OPEN

C311010C3109

0.1

910

8

C3116
OPEN

R3182

4.7K

C3120

0.01

R3173
OPEN

CONTINUE
DIGITAL 5

P-ON+3.3V
P-ON+5V
AUDIO(L)-OUT
AUDIO(R)-OUT
AMP(L)-OUT
AMP(R)-OUT
AL+3.3V

CONTINUE
DIGITAL 4

CPU-RESET-N
MADIN0

CONTINUE
DIGITAL 6

HDMI-CEC
HDMI-HPD0
HDMI-HPD1
HDMI-HPD2

CONTINUE
DIGITAL 2

KEY-IN1
LIGHT-SENS
RESET

CONTINUE
DIGITAL 5

PROTECT1
PROTECT2
PROTECT3
DTV-ON-H2
DTV-ON-H1
LED-R
P-ON-H2
REMOTE
VCOM-PWM

CONTINUE
DIGITAL 1

KEY-IN2
DVD-AUDIO(L)
DVD-SPDIF
DVD-AUDIO-MUTE
DVD-AUDIO(R)

MN Q

PO

R

11-12

FL11.11SCD3

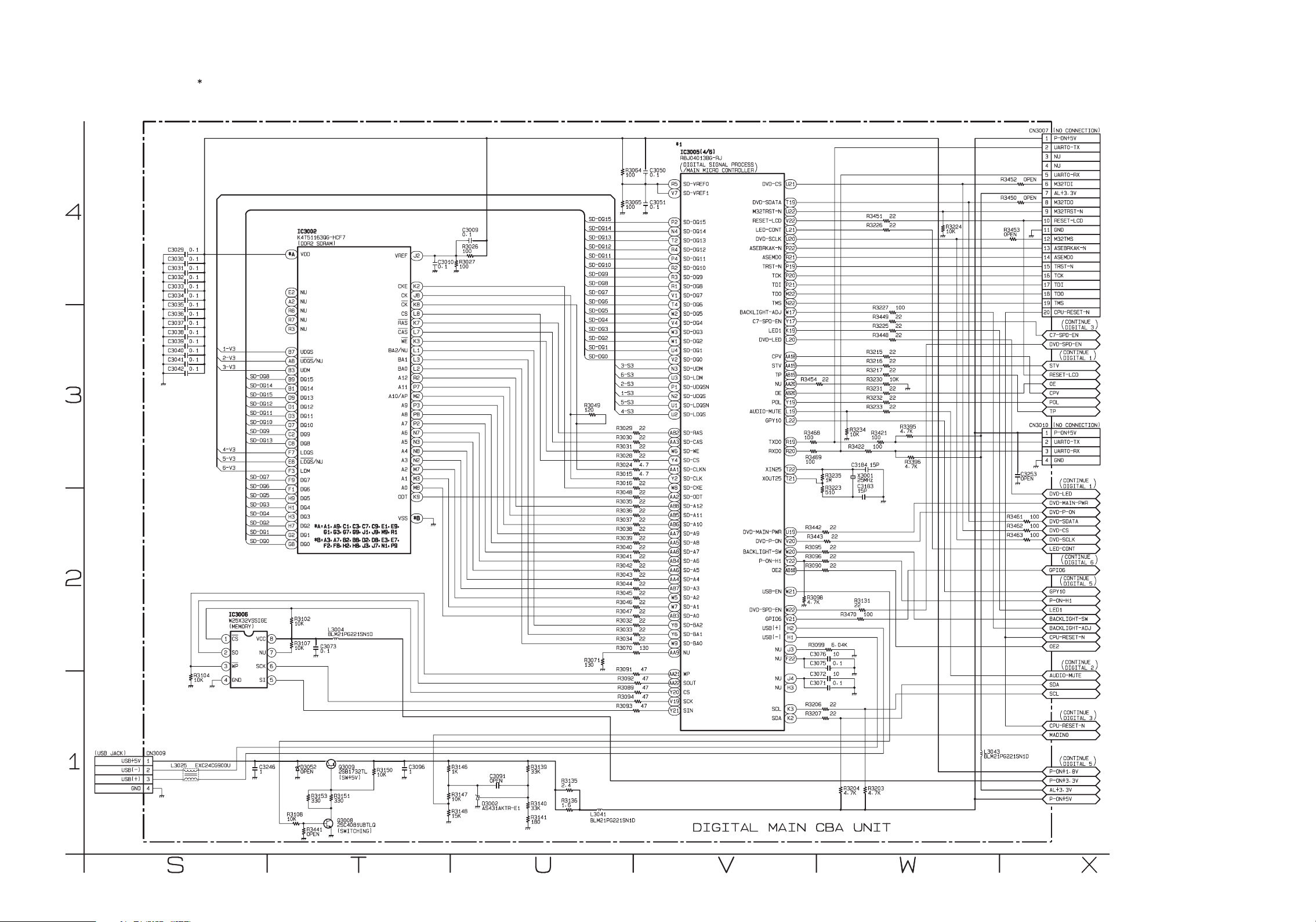

Digital Main 4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

IC3002
K4T51163QG-HCF7
(DDR2 SDRAM)

*A VDD

E2 NU
A2 NU
R8 NU
R7 NU
R3 NU

B7 UDQS
A8 UDQS/NU
B3 UDM
B9 DQ15
B1 DQ14
D9 DQ13
D1 DQ12
D3 DQ11
D7 DQ10
C2 DQ9
C8 DQ8
F7 LDQS
E8 LDQS/NU
F3 LDM
F9 DQ7
F1 DQ6
H9 DQ5
H1 DQ4
H3 DQ3
H7 DQ2

*A:A1,A9,C1,C3,C7,C9,E1,E9,
G1,G3,G7,G9,J1,J9,M9,R1

G2 DQ1

*B:A3,A7,B2,B8,D2,D8,E3,E7,

G8 DQ0

F2,F8,H2,H8,J3,J7,N1,P9

3

0.1C3029

0.1C3030

0.1C3031

0.1C3032

0.1C3033

0.1C3034

0.1C3035

0.1C3036

0.1C3037

0.1C3038

0.1C3039
1-V3

0.1C3040
2-V3

0.1C3041
3-V3

0.1C3042

4-V3
5-V3
6-V3

SD-DQ8
SD-DQ14
SD-DQ15
SD-DQ12
SD-DQ11
SD-DQ10
SD-DQ9
SD-DQ13

SD-DQ7
SD-DQ6
SD-DQ5
SD-DQ3
SD-DQ4
SD-DQ2
SD-DQ1
SD-DQ0

2

1

(USB JACK)

CN3009
1USB+5V

L3025 EXC24CG900U

2USB(-)
3USB(+)
4GND

IC3006
W25X32VSSIGE
(MEMORY)

1

CS

VCC

2

SO

3

WP

R3104
10K

SCK

45

GND SI

C3246 Q3009
1

R3102
10K

8

R3107
10K

7

NU

6

D3052
OPEN

R3153
330

R3108
10K

R3441
OPEN

L3004
BLM21PG221SN1D

C3073

0.1

2SB1732TL
(SW+5V)

R3151
330

Q3008
2SC4081UBTLQ

(SWITCHING)

R3150
10K

C3009

0.1

R3026

C3010

0.1

100

R3027
100

R3147
10K

R3148
15K

J2VREF

K2CKE
J8CK
K8CK
L8CS
K7RAS
L7CAS
K3WE
L1BA2/NU
L3BA1
L2BA0
R2A12
P7A11
M2A10/AP
P3A9
P8A8
P2A7
N7A6
N3A5
N8A4
N2A3
M7A2
M3A1
M8A0
K9ODT

*BVSS

C30961KR3146
1

R3139

C3091
OPEN

D3002
AS431AKTR-E1 33K

33K

R3140

R3141
180

R3135

2.4

R3136

1.6

R3064
100

R3065
100

SD-DQ15
SD-DQ14
SD-DQ13
SD-DQ12
SD-DQ11
SD-DQ10
SD-DQ9
SD-DQ8
SD-DQ7
SD-DQ6
SD-DQ5
SD-DQ4
SD-DQ3
SD-DQ2
SD-DQ1
SD-DQ0

3-S3
6-S3
2-S3
1-S3

R3049
120

R3071
130

5-S3
4-S3

L3041
BLM21PG221SN1D

22R3029
22R3030
22R3031
22R3028

4.7R3024

4.7R3015
22R3016
22R3048
22R3035
22R3036
22R3037
22R3038
22R3039
22R3040
22R3041
22R3042
22R3043
22R3044
22R3045
22R3046
22R3047
22R3032
22R3033
22R3034
130R3070

47R3091

47R3092
47R3089
47R3094

47R3093

*1

IC3005(4/6)
R8J04013BG-RJ

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

C3050

0.1
R5 SD-VREF0
V7 SD-VREF1

C3051

0.1

P2 SD-DQ15
N4 SD-DQ14
T2 SD-DQ13
R4 SD-DQ12
P4 SD-DQ11
R2 SD-DQ10
R3 SD-DQ9
R1 SD-DQ8
V1 SD-DQ7
T4 SD-DQ6
W2 SD-DQ5
V4 SD-DQ4
W3 SD-DQ3
W1 SD-DQ2
U4 SD-DQ1
V2 SD-DQ0
N3 SD-UDM
U3 SD-LDM
P1 SD-UDQSN
N2 SD-UDQS
U1 SD-LDQSN
U2 SD-LDQS

AB2 SD-RAS
AA3 SD-CAS

W6 SD-WE
Y4 SD-CS

AA1 SD-CLKN

Y2 SD-CLK
W8 SD-CKE

AA2 SD-ODT
AB8 SD-A12
AB5 SD-A11
AB6 SD-A10
AA7 SD-A9
AA5 SD-A8
AA8 SD-A7
AB4 SD-A6
AA6 SD-A5
AA4 SD-A4
AB7 SD-A3

W5 SD-A2
W7 SD-A1

AB3 SD-A0

Y8 SD-BA2
Y6 SD-BA1
W9 SD-BA0

AA9 NU

AA21 WP
AA22 SOUT
Y20 CS
V19 SCK
Y21 SIN

DIGITAL MAIN CBA UNIT

U21DVD-CS

T19DVD-SDATA
U22M32TRST-N
V22RESET-LCD
L21LED-CONT
U20DVD-SCLK
P22ASEBRKAK-N
R21ASEMD0
P19TRST-N
P20TCK
P21TDI
M22TDO
N22TMS
W17BACKLIGHT-ADJ
Y17C7-SPD-EN
K19LED1
L20DVD-LED

AA18CPV
AA19STV
AB19TP
AA20NU
AB20OE
Y19POL
L19AUDIO-MUTE
L22GPY10

R19TXD0
R20RXD0

T22XIN25
T21XOUT25

U19DVD-MAIN-PWR
V20DVD-P-ON

W20BACKLIGHT-SW
Y22P-ON-H1
AB18OE2

W21USB-EN

W22DVD-SPD-EN
V21GPIO6

F22NU

(NO CONNECTION)

CN3007

P-ON+5V1
2 UART0-TX
3NU
4NU
5 UART0-RX

OPENR3452

6 M32TDI
7 AL+3.3V

OPENR3450

8 M32TDO

22R3451
22R3226

100R3227
22R3449
22R3225
22R3448

22R3215
22R3216

X3001
25MHz

C3183
15P

R3131
22

100R3470

R3421
100

100R3422

15PC3184

R3203

4.7K

22R3217
10KR3230
22R3231
22R3232
22R3233

R3395

4.7K

R3396

4.7K

22R3454

R3235
1M

R3223
510

22R3442

22R3443

22R3095
22R3096
22R3090

6.04KR3099
10C3076

0.1C3075

10C3072

0.1C3071

22R3206
22R3207

R3234
10K

R3204

4.7K

R3468
100

R3469
100

R3098

4.7K

H2USB(+)
H1USB(-)

J3NU

J4NU
H3NU

K3SCL
K2SDA

R3224
10K

R3453
OPEN

L3043
BLM21PG221SN1D

9 M32TRST-N
10 RESET-LCD
11 GND
12 M32TMS
13 ASEBRKAK-N
14 ASEMD0
15 TRST-N
16 TCK
17 TDI
18 TDO
19 TMS
20 CPU-RESET-N

CN3010

1 P-ON+5V

2 UART0-TX

3 UART0-RX

4 GND

C3253
OPEN

100R3461
100R3462
100R3463

CONTINUE
DIGITAL 3

C7-SPD-EN
DVD-SPD-EN

CONTINUE
DIGITAL 1

STV
RESET-LCD
OE
CPV
POL
TP

(NO CONNECTION)

CONTINUE
DIGITAL 1

DVD-LED
DVD-MAIN-PWR
DVD-P-ON
DVD-SDATA
DVD-CS
DVD-SCLK
LED-CONT

CONTINUE
DIGITAL 6

GPIO6

CONTINUE
DIGITAL 5

GPY10
P-ON-H1
LED1
BACKLIGHT-SW
BACKLIGHT-ADJ
CPU-RESET-N
OE2

CONTINUE
DIGITAL 2

AUDIO-MUTE
SDA
SCL

CONTINUE
DIGITAL 3

CPU-RESET-N
MADIN0

CONTINUE
DIGITAL 5

P-ON+1.8V
P-ON+3.3V
AL+3.3V
P-ON+5V

SV

TU

11-13

WX

FL11.11SCD4

Digital Main 5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

DIGITAL MAIN CBA UNIT

*1

IC3005(5/6)
R8J04013BG-RJ

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

4

3

2

1

CONTINUE
DIGITAL 6

HDMI-VDD33

*B VSS
C5 NU
D4 NU

E9 AVSS18
E11 AVSS18
C10 AVSS

D3 AVSS

D7 AVSS
D12 AVSS

E7 AVSS
E13 VSSHDMI
E16 VSSHDMI
F18 VSSHDMI
G19 VSSHDMI
H18 VSSHDMI
J14 VSSHDMI
E14 VSSIO

J5 AVSS33PLL

G4 AVSS33AUD

G5 AVSS33AUD

D6 MIXVSS33

E6 MIXVSS33

F3 MIXVSS33

L5 VSSAUSB

*A:L9~L14,M13,M20,
N18~N20,P9,V6,
V8,V16

*B:K9~K14,K18,M5,
M9~M12,M18,N9,
N12,P3,P5,P12,
P14,R18,T3,U5,
U18,V5,V9,V12,
V14,V17,W4,Y3,
Y7,Y14,AB1,AB9

K5VDDA33RU
J2VDDA33USB

K4VDDA33USB
R22VCC33STB
L18VCC33STB
M14VDDSTB

*AVDD12
V10PLLDVDD
N11PLLDVDD
V11PLLDVDD
N13PLLDVDD
N14PLLDVDD

M4VCCQ33
V13VCCQ33
V15VCCQ33
V18VCCQ33
W10VCCQ33
P10PLLAVCC
N10PLLAVCC
P11PLLAVCC
P13PLLAVCC
T18PLLAVCC

N1VCCQ18

N5VCCQ18

T1VCCQ18

T5VCCQ18

V3VCCQ18

Y1VCCQ18

Y5VCCQ18

Y9VCCQ18

J9VDD18
J10VDD18
J11VDD18
J12VDD18
E10AVDD18
E12AVDD18
D13VDD18HDMI
J13VDD18HDMI
E15VPPOTP

C6AVDD33
C13AVDD33

D2AVDD33
D10AVDD33

E8AVDD33
E18VDD33HDMI
G18VDD33HDMI
E17VDD33HDMI
J18VDD33HDMI
D14VDD33IO

H5AVDD33PLL

F5AVDD33AUD

D1MIXVDD33

D5MIXVDD33

E4MIXVDD33

E5MIXVDD33

F4MIXVDD33

D11REXT

H4LPF

C3180

0.1

C3181

0.1

C3121

0.1

C3128

0.1

C3136

0.1

C3139
10

C3114
10

C3146

0.1

C3153
OPEN

C3154
10

C3159

0.1

C3163
10

C3170

0.1

C3173

0.1

1KR3319 0.1C3231

C3179

0.1
R3220

0

C3122

C3123

0.1

0.1

C3130

C3129

0.1

0.1

C3138

C3137

0.1

0.1

C3140

C3141

0.1

0.1

C3115

C3117

100

0.1

C3147

C3148

0.1

0.1

C3155

C3156

10

0.1

C3160

C3161

0.1

0.1

L3019
BLM21PG221SN1D

C3165

C3164

0.1

0.1

C3171

C3172

0.1

0.1

C3175

C3174

0.1

0.1

C3228

0.1

C3182

0.1

C3125

C3124

0.1

0.1

C3131

C3132

0.1

0.1

L3016
BLM21PG221SN1D

C3142

C3143

0.1

0.1

L3014
BLM21PG221SN1D

C3118

C3119

0.1

0.1

C3150

C3149

0.1

0.1

L3017
BLM21PG221SN1D

C3157

0.1

C3162

0.1

C3166

C3167

0.1

10

C3176
10

R3340

6.8K

R3221
100

DS

G

Q3013
SSM3K309T

(SW+3.3V)

L3015
BLM21PG221SN1D

C3127

C3126

0.1

0.1

C3133

C3134

10

OPEN

C3145

C3144

0.1

0.1

C3264

C3079

0.01

100/4V

C3152

C3151

0.1

0.1

C3169

C3168

0.1

0.1

L3020
BLM21PG221SN1D

R3222
10K

L3001
2uH

C3023

C3018

10

100/16V

Q3003
2SC4081UB-TLQ

(SWITCHING)

Q3004
2SC4081UB-TLQ

R3079

(SWITCHING)

10K

BC3001

2.2uH

220/16V

C3052
10

C308210C3081

0.1

R3423
47K

Q3101
2SC4081UB-TLQ

(SWITCHING)

C3265
10

R3097

2.2K

IC3008
BD9321EFJ-E2
(DC-DC CONVERTER)

1

BST

2

VIN

C3085

0.1
3

SW

45

GND FB

L3009
10uH

D3001
SK22A

C3068C3066
10

D3105
1SS400

SS

EN

COMP

C3094
47/4V

R3077
10K

8

7

6

C3097
10

IC3004
BD7820FP-E2
(+1.8V REG.)

CTL

VCC

GND

12345

C3024
10

Q3005
2SC4081UB-TLQ

(SWITCHING)

C3027

0.1

C3263
1

C3054
1

R3086

2.2K

R3084

2.2K

IC3007
BD7820FP-E2
(+1.8V REG.)

CTL

VCC

12345

C3070

C3069

0.1

10

C3053

0.1

C3080
10

D3106
1SS400

R3105
1K

R3100
22K

D3101

R3149
0

R3145

6.04K

R3143
15K

1SS400
D3102

1SS400

R3137

6.8K
C3088

0.015

C3083

0.1

OUT

C

R3061

R3060

1K

1K

R3059
390

C3049
100/4V

GND

OUT

C

R3110
1K

R3109
390

R3424 D3103
100

1SS400

L3003
BLM21PG221SN1D

C3077
100/16V

D3104 1SS400

R3106
22K

R3464
OPEN

C3090
1

R3133
10K

R3111
1K

L3044
BLM21PG221SN1D

Q3006
2SA1774

(SWITCHING)

R3062
OPEN

R3073
0

R3066
0

C3057
1000P

R3063
OPEN

C3046
1000P

C3061
1000P

C3004
1000P

100R3011

100R3014

R3050
0

R3054
0

C3045
10

C3063
1000P

C3003
100P

R3004
OPEN

100R3072

100R3101

C3005
1000P

C3011
100P

C3015
10

C3019
10

C3028
10

C3047

0.1

C3048
1000P

C3065
1000P

100R3068
100R3058
100R3083

100R3008

R3005
OPEN

100R3010

100R3009

100R3017

C3006
1000P

C3008
100P

C3016

0.1

C3022

0.1

C3043

0.1

C3055
1000P

C3062
1000P

C3067
1000P

R3003
OPEN

C3044
1000P

100R3087
100R3085
100R3078
100R3074

PROTECT1
PROTECT2
PROTECT3
DTV-ON-H2
DTV-ON-H1
LED-R
P-ON-H2
REMOTE
VCOM-PWM

GPY10
P-ON-H1
LED1
BACKLIGHT-SW
BACKLIGHT-ADJ
CPU-RESET-N
OE2

P-ON+1.8V
P-ON+3.3V
AL+3.3V
P-ON+5V

P-ON+3.3V

P-ON+5V
AL+3.3V-2
P-ON+3.3V

AL+3.3V-2
P-ON+3.3V

LCD+12V

TO POWER SUPPLY

CN3002

CBA CN301

VCOM-PWM29
BACKLIGHT-ADJ28
LED127
BACKLIGHT-SW26
REMOTE25
OE224

GND23
22 AL+3.3V
21 AL+3.3V

P-ON+3.3V20

P-ON+3.3V19

GND18

GND17

P-ON+7V16

PROTECT215

P-ON+5V14

P-ON+5V13

GND12

PROTECT111

P-ON+3V10

P-ON-H19

AMP(R)-OUT8

GND7

AMP(L)-OUT6

PROTECT35

AUDIO(R)-OUT4

GND3

AUDIO(L)-OUT2

P-ON-H21

P-ON+3.3V
P-ON+5V
AUDIO(L)-OUT
AUDIO(R)-OUT
AMP(L)-OUT
AMP(R)-OUT
AL+3.3V

CONTINUE
DIGITAL 3

CONTINUE
DIGITAL 4

CONTINUE
DIGITAL 4

CONTINUE
DIGITAL 1

CONTINUE
DIGITAL 2

CONTINUE
DIGITAL 6

CONTINUE
DIGITAL 1

CONTINUE
DIGITAL 3

11-14

CCYBBZ

DDAA

FL11.11SCD5

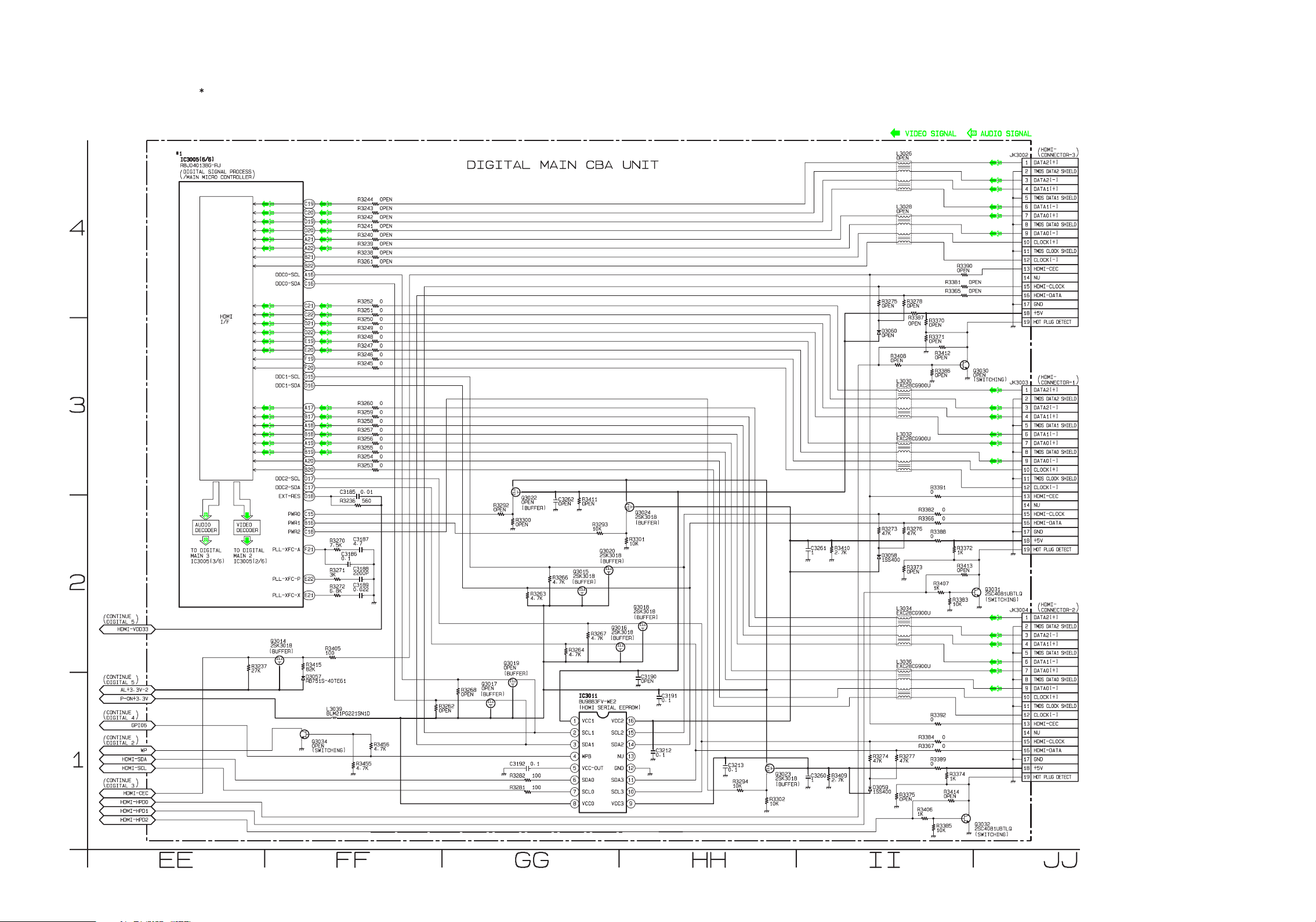

Digital Main 6 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005.
IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE
DIGITAL 5

HDMI-VDD33

CONTINUE
DIGITAL 5

AL+3.3V-2
P-ON+3.3V

CONTINUE
DIGITAL 4

GPI06

CONTINUE
DIGITAL 2

HDMI-SDA
HDMI-SCL

CONTINUE
DIGITAL 3

HDMI-CEC
HDMI-HPD0
HDMI-HPD1
HDMI-HPD2

*1

IC3005(6/6)
R8J04013BG-RJ

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

0.01C3185
560R3236

C3187

4.7

C3188
2200P

C3189

0.022

R3455

4.7K

OPENR3244
OPENR3243
OPENR3242
OPENR3241
OPENR3240
OPENR3239
OPENR3238
OPENR3261

0R3252
0R3251
0R3250
0R3249
0R3248
0R3247
0R3246
0R3245

0R3260
0R3259
0R3258
0R3257
0R3256
0R3255
0R3254
0R3253

R3456

4.7K

C19
C20
D19
D20
A21
A22
B21
B22
A16DDC0-SCL
C16DDC0-SDA

C21

Q3014
2SK3018

(BUFFER)

C22
D21
D22
E19
E20
F19
F20
D15DDC1-SCL
D16DDC1-SDA

A17
B17
A18
B18
A19
B19
A20
B20
D17DDC2-SCL
C17DDC2-SDA
D18EXT-RES

C15PWR0
B16PWR1
C18PWR2

R3270

7.5K

F21PLL-XFC-A

E22PLL-XFC-P

E21PLL-XFC-X

R3415
82K

D3057
RB751S-40TE61

C3186

0.1

R3271
3K

R3272

6.8K

R3405
100

L3039
BLM21PG221SN1D

Q3034
OPEN
(SWITCHING)

HDMI
I/F

AUDIO
DECODER

TO DIGITAL
MAIN 3
IC3005(3/6)

WP

VIDEO
DECODER

TO DIGITAL
MAIN 2
IC3005(2/6)

R3237
27K

DIGITAL MAIN CBA UNIT

R3262
OPEN

R3268
OPEN

R3292
OPEN

Q3017
OPEN

(BUFFER)

Q3022
OPEN

(BUFFER)

R3300
OPEN

Q3019
OPEN

(BUFFER)

R3263

4.7K

0.1C3192

100R3282

100R3281

R3411

C3262

OPEN

OPEN

Q3015
2SK3018

R3266

(BUFFER)

4.7K

R3264

4.7K

IC3011
BU9883FV-WE2
(HDMI SERIAL EEPROM)

1

VCC1

2

SCL1

3

SDA1

4

WPB

5

VCC-OUT

6

SDA0

7

SCL0

89

VCC0 VCC3

R3293
10K

Q3020
2SK3018

(BUFFER)

R3267

4.7K

R3301
10K

Q3018
2SK3018

(BUFFER)

Q3016
2SK3018

(BUFFER)

16

VCC2

15

SCL2

14

SDA2

13

NU

12

GND

11

SDA3

10

SCL3

Q3024
2SK3018

(BUFFER)

C3190
OPEN

C3212

0.1

C3191

0.1

C3213

0.1

R3294
10K

Q3023
2SK3018

(BUFFER)

R3302
10K

C3261
1

C3260
1

R3410

2.7K

R3409

2.7K

R3275
OPEN

D3060
OPEN

R3273
47K

D3058
1SS400

R3274
47K

D3059
1SS400

L3026
OPEN

L3028
OPEN

R3278
OPEN

R3387
OPEN

R3408
OPEN

L3030
EXC28CG900U

L3032
EXC28CG900U

R3276
47K

R3373
OPEN

L3034
EXC28CG900U

L3036
EXC28CG900U

R3277
47K

R3375
OPEN

R3406
1K

R3370
OPEN

R3371
OPEN

R3412
OPEN

R3386

R3391
0

R3388
0

R3407
1K

R3392
0

R3389
0

R3385
10K

0R3382
0R3366

0R3384
0R3367

R3374
1K

R3414
OPEN

R3390
OPEN

R3372
1K

R3413
OPEN

R3383
10K

OPENR3381
OPENR3365

Q3030
OPENOPEN
(SWITCHING)

Q3031
2SC4081UBTLQ

(SWITCHING)

Q3032
2SC4081UBTLQ

(SWITCHING)

HDMI­CONNECTOR-3

JK3002

1 DATA2(+)
2 TMDS DATA2 SHIELD
3 DATA2(-)
4 DATA1(+)
5 TMDS DATA1 SHIELD
6 DATA1(-)
7 DATA0(+)
8 TMDS DATA0 SHIELD

9 DATA0(-)
10 CLOCK(+)
11 TMDS CLOCK SHIELD
12 CLOCK(-)
13 HDMI-CEC
14 NU
15 HDMI-CLOCK
16 HDMI-DATA
17 GND
18 +5V
19 HOT PLUG DETECT

HDMI­CONNECTOR-1

JK3003

1 DATA2(+)

2 TMDS DATA2 SHIELD

3 DATA2(-)

4 DATA1(+)

5 TMDS DATA1 SHIELD

6 DATA1(-)

7 DATA0(+)

8 TMDS DATA0 SHIELD

9 DATA0(-)
10 CLOCK(+)
11 TMDS CLOCK SHIELD
12 CLOCK(-)
13 HDMI-CEC
14 NU
15 HDMI-CLOCK
16 HDMI-DATA
17 GND
18 +5V
19 HOT PLUG DETECT

HDMI­CONNECTOR-2

JK3004

1 DATA2(+)

2 TMDS DATA2 SHIELD

3 DATA2(-)

4 DATA1(+)

5 TMDS DATA1 SHIELD

6 DATA1(-)

7 DATA0(+)

8 TMDS DATA0 SHIELD

9 DATA0(-)
10 CLOCK(+)
11 TMDS CLOCK SHIELD
12 CLOCK(-)
13 HDMI-CEC
14 NU
15 HDMI-CLOCK
16 HDMI-DATA
17 GND
18 +5V
19 HOT PLUG DETECT

EE HHFF GG II JJ

11-15

FL11.11SCD6

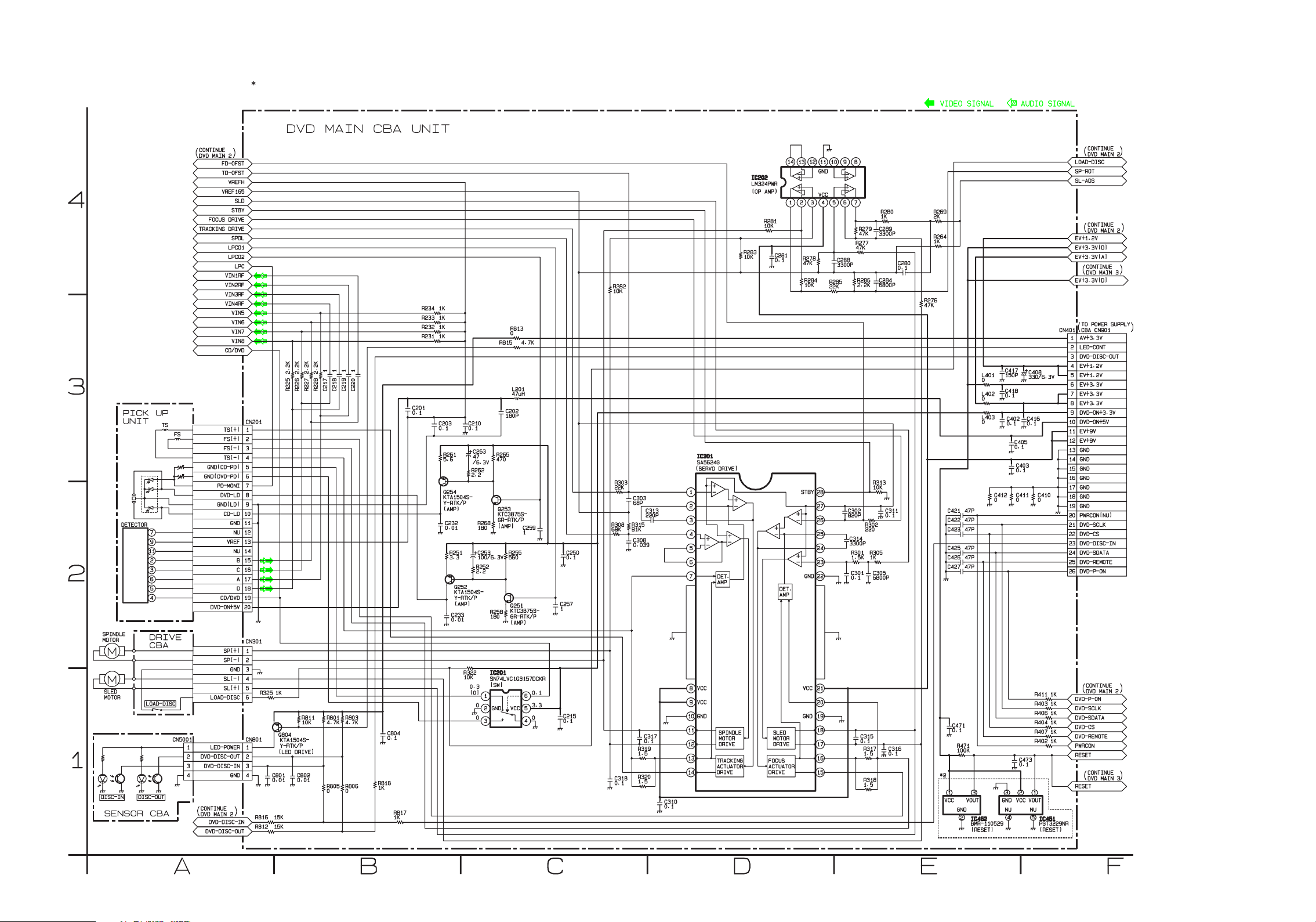

DVD Main 1 Schematic Diagram

2 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

DVD MAIN CBA UNIT

CONTINUE
DVD MAIN 2

FD-OFST
TD-OFST

VREFH

VREF165

4

3

2

1

PICK UP
UNIT

DETECTOR

SPINDLE
MOTOR

M

TS

7
9

11

2
3
6
5
4

DRIVE
CBA

M

SLED
MOTOR

DISC-IN DISC-OUT

SENSOR CBA

LOAD-DISC

FS

CN5001

1
2
3
4

TRACKING DRIVE

SLD

STBY

FOCUS DRIVE

SPDL
LPCO1
LPCO2

LPC
VIN1RF
VIN2RF
VIN3RF
VIN4RF

VIN5
VIN6
VIN7
VIN8

CD/DVD

CONTINUE
DVD MAIN 2

DVD-DISC-IN

DVD-DISC-OUT

CN201
1TS(+)

2FS(+)
3FS(-)
4TS(-)
5GND(CD-PD)
6GND(DVD-PD)
7PD-MONI
8DVD-LD

9GND(LD)
10CD-LD
11GND
12NU
13VREF
14NU
15B
16C
17A
18D
19CD/DVD
20DVD-ON+5V

CN301

1SP(+)

2SP(-)

3GND

4SL(-)

5SL(+)

6LOAD-DISC

CN801

1LED-POWER

2DVD-DISC-OUT

3DVD-DISC-IN

4GND

R816 15K
R812 15K

R325 1K

C801

0.01

R225 2.2K

R226 2.2K

R811
10K

Q804

KTA1504S­Y-RTK/P

(LED DRIVE)

C802

0.01

R227 2.2K

C218 1

C217 1

R228 2.2K

R801

4.7K

R8050R806

C219 1

R803

4.7K

0

CONTINUE

14

12

13

IC202
LM324PWR

(OP AMP)

R281
10K

R283

C281

10K

0.1

10K

R234 1K
R233 1K
R232 1K
R231 1K

C220 1

C201

R818
1K

C804

0.1

R817
1K

0.1

C203

0.1

R261

5.6

Q254
KTA1504S­Y-RTK/P
(AMP)

C232

0.01

R251

3.3

Q252
KTA1504S­Y-RTK/P
(AMP)

C233

0.01

C210

0.1

R262

2.2

R322
10K

0.3
(0)

C263
47
/6.3V

R813
0

R815 4.7K

L201
47uH

C202
180P

R265
470

Q253
KTC3875S­GR-RTK/P

R268

(AMP)

180

C253
100/6.3V

R252

2.2

1

0 3.3

2

0

34

C259
1

R255
560

Q251
KTC3875S-

R258

GR-RTK/P

180

(AMP)

IC201
SN74LVC1G3157DCKR
(SW)

VCCGND 5

0.1

6

0

C250

0.1

C257
1

C215

0.1

R303
22K

R308
68K

C318

0.1

C303
68P

R315
91K

C308

0.039

R319

1.5

R320

1.5

C313
220P

C317

0.1

C310

0.1

IC301
SA5624G

(SERVO DRIVE)

1

2

3

4

5

6

7

DET.
AMP

8

VCC

9

VCC

10

GND

11

SPINDLE
MOTOR

12

DRIVE

13

TRACKING
ACTUATOR

14

DRIVE

DET.
AMP

SLED
MOTOR
DRIVE

FOCUS
ACTUATOR
DRIVE

GND

VCC

1

R278
47K

R284
10K

28

STBY

27

26

25

24

23

22

GND

21

VCC

20

19

GND

18

17

16

15

5

C288
3300P

R285
22KR282

6

C302
820P

C314
3300P

829310411

7

R277
47K

R286

2.2K

R301

1.5K

C301

0.1

R279
47K

R302
220

C315

0.1
R317

1.5

R318

1.5

R313
10K

R305
1K

C305
6800P

R280
1K

C289
3300P

C284
6800P

C311

0.1

C316

0.1

C280

0.1

R276
47K

R269
2K

R264
1K

*2

C421 47P
C422 47P
C423 47P

C425 47P
C426 47P
C427 47P

C471

0.1

R471
100K

1

VOUTVCC

GND

2

C417

L401

150P

0

C418

L402

0.1

0

L403

C402

0

0.1

C412
0

31

3

GND VCC

NU

IC462
BMR-110529

(RESET)

4

C408
330/6.3V

C416

0.1

C405

0.1

C403

0.1

C4110C410

0

R411 1K
R403 1K
R406 1K
R404 1K
R407 1K
R402 1K

C473

0.1

2

VOUT

NU

5

IC461
PST3229NR

(RESET)

DVD MAIN 2

LOAD-DISC
SP-ROT
SL-ADS

CONTINUE
DVD MAIN 2

EV+1.2V
EV+3.3V(D)
EV+3.3V(A)

CONTINUE
DVD MAIN 3

EV+3.3V(D)

TO POWER SUPPLY
CBA CN901

CN401

1 AV+3.3V
2 LED-CONT
3 DVD-DISC-OUT
4 EV+1.2V
5 EV+1.2V
6 EV+3.3V
7 EV+3.3V
8 EV+3.3V

9 DVD-ON+3.3V
10 DVD-ON+5V
11 EV+9V
12 EV+9V
13 GND
14 GND
15 GND
16 GND
17 GND
18 GND
19 GND
20 PWRCON(NU)
21 DVD-SCLK
22 DVD-CS
23 DVD-DISC-IN
24 DVD-SDATA
25 DVD-REMOTE
26 DVD-P-ON

CONTINUE
DVD MAIN 2

DVD-P-ON
DVD-SCLK
DVD-SDATA
DVD-CS
DVD-REMOTE
PWRCON
RESET

CONTINUE
DVD MAIN 3

RESET

CDEFAB

11-16

FL11.11SCDV1

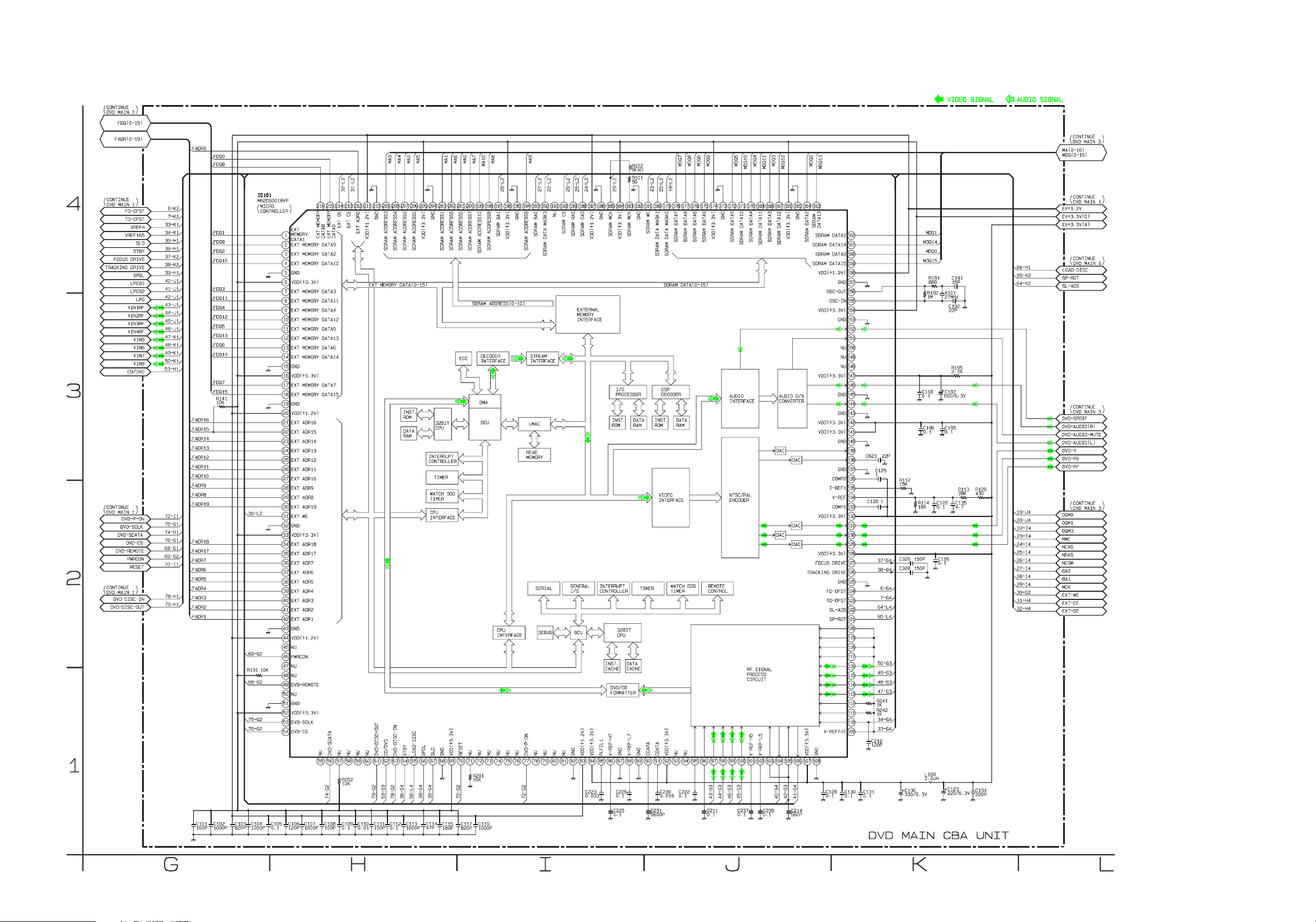

DVD Main 2 Schematic Diagram

CONTINUE
DVD MAIN 3

FDQ(0~15)

4

3

2

FADR(0~19)

CONTINUE
DVD MAIN 1

FD-OFST
TD-OFST

VREFH

VREF165

SLD

STBY

FOCUS DRIVE

TRACKING DRIVE

SPDL
LPCO1
LPCO2

LPC
VIN1RF
VIN2RF
VIN3RF
VIN4RF

VIN5
VIN6
VIN7
VIN8

CD/DVD

CONTINUE
DVD MAIN 1

DVD-P-ON

DVD-SCLK

DVD-SDATA

DVD-CS

DVD-REMOTE

PWRCON

RESET

CONTINUE
DVD MAIN 1

DVD-DISC-IN

DVD-DISC-OUT

6-K2

7-K2
33-K1
34-K1
35-H1
36-H1
37-K2
38-K2
39-H1
40-J1
41-J1
42-J1
43-J1
44-J1
45-J1
46-J1
47-K1
48-K1
49-K1
50-K1
53-H1

72-I1
75-G1
74-H1
76-G1
68-G1
69-G2
70-I1

78-H1
79-H1

FADR0

FADR16

FADR15

FADR14

FADR13

FADR12

FADR11

FADR10

FADR9

FADR8

FADR19

FADR18

FADR17

FADR7

FADR6

FADR5

FADR4

FADR3

FADR2

FADR1

FDQ0
FDQ8

FDQ1

FDQ9

FDQ2

FDQ10

FDQ3

FDQ11

FDQ4

FDQ12

FDQ5

FDQ13

FDQ6

FDQ14

FDQ7

FDQ15

R141
10K

IC101
MN2DS0018VP

MICRO
CONTROLLER

30-L2

69-G2

R131 10K

68-G2

75-G2

76-G2

EXT
MEMORY

1

DATA1

2

EXT MEMORY DATA9

3

EXT MEMORY DATA2

4

EXT MEMORY DATA10

5

GND

6

VDD(+3.3V)

7

EXT MEMORY DATA3

8

EXT MEMORY DATA11

9

EXT MEMORY DATA4

10

EXT MEMORY DATA12

11

EXT MEMORY DATA5

12

EXT MEMORY DATA13

13

EXT MEMORY DATA6

14

EXT MEMORY DATA14

15

GND

16

VDD(+3.3V)

17

EXT MEMORY DATA7

18

EXT MEMORY DATA15

19

GND

20

VDD(+1.2V)

21

EXT ADR16

22

EXT ADR15

23

EXT ADR14

24

EXT ADR13

25

EXT ADR12

26

EXT ADR11

27

EXT ADR10

28

EXT ADR9

29

EXT ADR8

30

EXT ADR19

31

EXT WE

32

GND

33

VDD(+3.3V)

34

EXT ADR18

35

EXT ADR17

36

EXT ADR7

37

EXT ADR6

38

EXT ADR5

39

EXT ADR4

40

EXT ADR3

41

EXT ADR2

42

EXT ADR1

43

GND

44

VDD(+1.2V)

45

NU

46

PWRCON

47

NU

48

NU

49

DVD-REMOTE

50

NU

51

GND

52

VDD(+3.3V)

53

DVD-SCLK

54

DVD-CS

1

C101
100P

C102
1000P

C103
820P

C104
1000P

C105

0.1

C106
120P

C107
1000P

MA3

MA2

MA4

MA5

MA1

MA6

MA0

MA7

MA8

MA10

32-L2

31-L2

EXT OE

EXT MEMORY

DATA0

EXT MEMORY

DATA8

NU

DVD-SDATANUNUNUNU

55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108

R202
10K

74-G2

C109

C108

0.1

100P

GND

EXT CE

EXT ADR0

VDD(+1.2V)

SDRAM ADDRESS4

SDRAM ADDRESS3

EXT MEMORY DATA(0-15)

DVD-DISC-OUT

CD/DVD

DVD-DISC-IN

53-G3

78-G2

79-G2

C112

C110

C111

0.1

0.01

150P

GND

VDD(+3.3V)

SDRAM ADDRESS1

SDRAM ADDRESS5

SDRAM ADDRESS2

INST.
ROM

32BIT
CPU

DATA
RAM

INTERRUPT
CONTROLLER

TIMER

WATCH DOG
TIMER

CPU
INTERFACE

STBY

LOAD-DISC

SPDL

SLD

GND

36-G4

66-L4

39-G4

35-G4

C114
47P

C115
180P

C113
1000P

SDRAM ADDRESS8

SDRAM ADDRESS7

SDRAM ADDRESS0

SDRAM ADDRESS6

SDRAM ADDRESS10

SDRAM ADDRESS(0-10)

DECODER

ECC

INTERFACE

DMA

BCU

VDD(+3.3V)

RESETNUNUNUNU

R291
10K

70-G2

C119

C117

1000P

820P

28-L2

GND

SDRAM BA1

VDD(+3.3V)

CPU
INTERFACE

NU

NU

MA9

22-L2

27-L2

NU

SDRAM CS

SDRAM BA0

SDRAM ADDRESS9

SDRAM DATA MASK3

STREAM
INTERFACE

UMAC

READ
MEMORY

SERIAL

NU

NUNUNU

DVD-P-ON

72-G2

26-L2

25-L2

24-L2

SDRAM CAS

SDRAM RAS

EXTERNAL
MEMORY
INTERFACE

GENERAL
I/O

BCUDEBUG

GND

VDD(+1.2V)

C223

0.033

29-L2

GND

SDRAM MCK

VDD(+3.3V)

VDD(+1.2V)

I/O
PROCESSOR

INST.
ROM

INTERRUPT
CONTROLLER

32BIT
CPU

INST.
CACHE

DVD/CD
FORMATTER

VDD(+3.3V)

PLFIL1

V-REF-H7

GND

C226

0.1

C225

0.1

R102
BEAD

R101
56

GND

SDRAM MCK

DATA
RAM

TIMER

DATA
CACHE

V-REF-L7

GND

MDQ7

23-L2

20-L2

19-L2

SDRAM WE

SDRAM DATA7

SDRAM DATA8

SDRAM DATA MASK0

SDRAM DATA MASK1

SDRAM DATA(0-15)

DSP
DECODER

DATA

INST.

RAM

ROM

VIDEO
INTERFACE

WATCH DOG
TIMER

CCAPA

CDATA

VDD(+3.3V)NUNU

C230

C222

0.018

0.1

C231
5600P

MDQ8

MDQ6

MDQ9

VDD(+3.3V)

SDRAM DATA6

SDRAM DATA9

REMOTE
CONTROL

43-G3

C211

0.1

MDQ5

GND

SDRAM DATA5

AUDIO
INTERFACE

NTSC/PAL
ENCODER

44-G3

46-G3

45-G3

C237

0.1

MDQ4

MDQ3

MDQ10

MDQ11

SDRAM DATA3

SDRAM DATA4

SDRAM DATA11

SDRAM DATA10

AUDIO D/A
CONVERTER

DAC

DAC

RF SIGNAL
PROCESS
CIRCUIT

V-REF-L5

V-REF-H5

40-G4

C239

0.1

MDQ2

MDQ12

163164165166167168169170171172173174175176177178179180181182183184185186187188189190191192193194195196197198199200201202203204205206207208209210211212213214215216

GND

VDD(+3.3V)

SDRAM DATA2

SDRAM DATA12

SDRAM DATA14

SDRAM DATA15

DAC

DAC

DAC

TRACKING DRIVE

VDD(+3.3V)

42-G3

41-G4

C214
560P

MDQ13

SDRAM

DATA13

SDRAM DATA1

162

161

SDRAM DATA0

160

159

VDD(+1.2V)

158

GND

157

OSC-OUT

156

OSC-IN

155

VDD(+3.3V)

154

GND

153

152

151

NU

150

NU

149

NU

148

VDD(+3.3V)

147

146

GND

145

144

GND

143

VDD(+3.3V)

142

VDD(+3.3V)

141

GND

140

139

138

GND

137

COMP2

136

I-REF1

135

V-REF

134

COMP1

133

VDD(+3.3V)

132

131

130

129

VDD(+3.3V)

128

FOCUS DRIVE

127

126

GND

125

FD-OFST

124

TD-OFST

123

SL-ADS

122

SP-ROT

121

120

119

118

117

116

115

114

113

112

111

110

V-REF(H)

109

GND

C130

C128

0.1

0.1

MDQ1

MDQ14

MDQ0

MDQ15

R191

C191

680

15P

X101

R192

27MHz

1M

C192
22P

R195

2.2K

C197

C118

100/6.3V

0.1

C195

C196

0.1

0.1

C623 22P

C125
1

R112

C120 1

C131

0.1

R241
1K

R242
1K

C212
120P

37-G4

38-G4

6-G4

7-G4

64-L4

65-L4

50-G3

49-G3

48-G3

47-G3

34-G4

33-G4

15K

R114
18K

C329 150P

C328 150P

C136
330/6.3V

L108

2.2uH

C122

0.1

C116

0.1

C123
220/6.3V

R113
39K

C135

4.7

R128
430

C134
220P

DVD MAIN CBA UNIT

66-H1
65-K2
64-K2

19-J4
20-J4
22-I4
23-I4
24-I4
25-I4
26-I4
27-I4
28-I4
29-I4
30-G2
31-H4
32-H4

CONTINUE
DVD MAIN 3

MA(0~10)
MDQ(0~15)

CONTINUE
DVD MAIN 1

EV+1.2V
EV+3.3V(D)
EV+3.3V(A)

CONTINUE
DVD MAIN 1

LOAD-DISC
SP-ROT
SL-ADS

CONTINUE
DVD MAIN 3

DVD-SPDIF
DVD-AUDIO(R)
DVD-AUDIO-MUTE
DVD-AUDIO(L)
DVD-Y
DVD-Pb
DVD-Pr

CONTINUE
DVD MAIN 3

DQM0
DQM1
DQM3
NWE
NCAS
NRAS
NCSM
BA0
BA1
MCK
EXT-WE
EXT-CE
EXT-OE

GHIJKL

11-17

FL11.11SCDV2

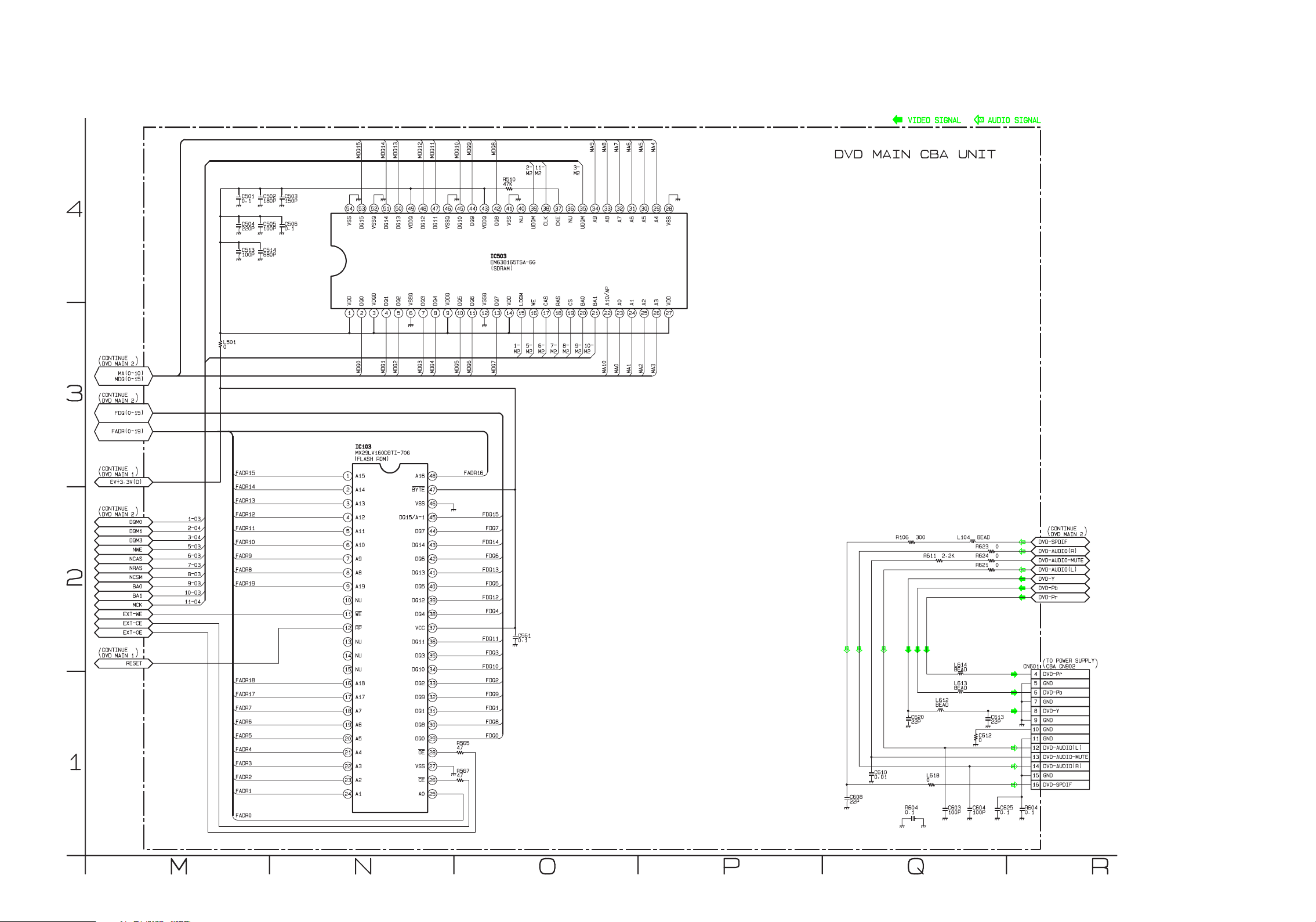

DVD Main 3 Schematic Diagram

C502
180P

C505
100P

C514
680P

C503
150P

C506

0.1

4

C501

0.1

C504
220P

C513
100P

VSS

MDQ15

DQ15

VSSQ

MDQ13

MDQ14

DQ14

DQ13

VDDQ

MDQ12

DQ12

MDQ11

DQ11

VSSQ

MDQ9

MDQ10

MDQ8

CLK

CKE

3­M2

NU

11-

2-

M2

M2

R510
47K

42 29

40 39

41 38 37 36 34 3335 32 31434445464748495051525354

NU

DQ8

DQ10

DQ9

VSS

VDDQ

IC503
EM638165TSA-6G
(SDRAM)

UDQM

UDQM

MA9

A9

MA8

A8

MA7

A7

MA5

MA6

30 28

A6

MA4

A4

A5

VSS

DVD MAIN CBA UNIT

3

2

1

CONTINUE
DVD MAIN 2

MA(0~10)
MDQ(0~15)

CONTINUE
DVD MAIN 2

FDQ(0~15)

FADR(0~19)

CONTINUE
DVD MAIN 1

EV+3.3V(D)

CONTINUE
DVD MAIN 2

DQM0
DQM1
DQM3

NWE
NCAS
NRAS
NCSM

BA0

BA1

MCK

EXT-WE
EXT-CE
EXT-OE

CONTINUE
DVD MAIN 1

RESET

1-O3
2-O4
3-O4
5-O3
6-O3
7-O3
8-O3

9-O3
10-O3
11-O4

L501
0

FADR15

FADR14

FADR13

FADR12

FADR11

FADR10

FADR9

FADR8

FADR19

FADR18

FADR17

FADR7

FADR6

FADR5

FADR4

FADR3

FADR2

FADR1

FADR0

VDQD

DQ1

MDQ1

DQ2

VSSQ

MDQ2

A16

BYTE

VSS

DQ15/A-1

DQ7

DQ14

DQ6

DQ13

DQ5

DQ12

DQ4

VCC

DQ11

DQ3

DQ10

DQ2

DQ9

DQ1

DQ8

OE

VSS

CE

A0

DQ3

MDQ3

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

DQ4

MDQ4

VDD

DQ0

1234567 9108 111213 151614 17 18 19 20 21

MDQ0

IC103
MX29LV160DBTI-70G

(FLASH ROM)

1

A15

2

A14

3

A13

A12

4

5

A11

6

A10

7

A9

8

A8

9

A19

10

NU

11

WE

12

RP

13

NU

14

NU

15

NU

16

A18

17

A17

18

A7

19

A6

20

A5 DQ0

21

A4

A3

22

23

A2

A1

24

VDDQ

DQ5

MDQ5

FADR16

R565
47

R567
47

DQ6

MDQ6

VSSQ

FDQ15

FDQ7

FDQ14

FDQ6

FDQ13

FDQ5

FDQ12

FDQ4

FDQ11

FDQ3

FDQ10

FDQ2

FDQ9

FDQ1

FDQ8

FDQ0

DQ7

MDQ7

VDD

1­M2

LDQM

5­M2

C561

0.1

RAS

CAS

CS

WE

6-

7-

M2

M2

BA0

9-

8-

10-

M2

M2

M2

BA1

A10/AP

MA10

MA0

A2

VDD

A3

A1

A0

242322

MA1

MA2

2625

MA3

27

CONTINUE
DVD MAIN 2

DVD-SPDIF
DVD-AUDIO(R)
DVD-AUDIO-MUTE
DVD-AUDIO(L)
DVD-Y
DVD-Pb
DVD-Pr

TO POWER SUPPLY
CBA CN902

CN601

4 DVD-Pr
5GND
6 DVD-Pb
7GND
8 DVD-Y

9GND
10 GND
11 GND
12 DVD-AUDIO(L)
13 DVD-AUDIO-MUTE
14 DVD-AUDIO(R)
15 GND
16 DVD-SPDIF

R604

0.1

C608
22P

C610

0.01

C620
22P

R604

0.1

300R106

L618
0

2.2KR611

L612
BEAD

L104 BEAD

L614
BEAD

L613
BEAD

C603
100P

R623 0
R624 0
R621 0

C612
0

C604
100P

C613
22P

C625

0.1

MNOPQR

11-18

FL11.11SCDV3

Power Supply CBA & Jack CBA Top View

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

Jack CBA

1

BA94F0F0102 6

JK751

1 2 3 4 5 6 7 8 9 10

TOOL NO.

4

4

4

A01F0MPW

E234498

J221

GND

3

3

3

1

2

CN303

J181

28

29

J179

1

2

J148

RESET

29

KEY-IN1

J146

1

2

1

GND

J141

CN301

28

29

/

B

YELLOW

J

1

R763

J222

S-Y

J217

A-MUTE

GND

J209

GND

J203

J185

J182

J178

GND

INPUT1

J175

INPUT0

J173

GND

2

J167

SPDIF

D301

GND

CN302

J342

J154

GND

J152

28

J129

GND

P-ON 5VJ124

3.5Vfor1.8V

J126

GND

J113

R700

R699

ABC

ABC

ABC

J260
DVD-SDATA
J258
REMOTE-OUT

R909

R915

J248
DVD-LED

J247
KEY-IN2

J228

J190

SEL-R

GND

SEL-L

D302

J334

GND

JK752

CL701A

WHITE

JK753

J224

J333

CL701B

/

Q902

J338

GND

J162

JS303

9

R917

L951

9

V-L

V-R

J225

J226

GND

J199

Q772

J177

BC301

GND

JS301

TUNER

A

1

C306

JS302

C951

J158

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using

Power Supply CBA

CN902

2

1

GND

D901

JK733

WHITE

JK741

JK742

J168

P-ON 9V

JK711

KEY-IN1

J117

Q872

GND

D908

/

R878

P-ON-H1

J118

Q636

D904

D408

J250

J166
TUNER 5V

J135

3.5Vfor1.8V

R695

Q905

Q871

R666

12

R667

13

L901

R930

Q841

J139

GND

J255

D671

PROTECT3

LCD 16V

J252

OPAMP 9V

J210

J183

OPAMP 9V

BC841

ALL3.3V

J130

J340

R696

D670

R931

J101

R697

J249

C656

GND

IC631

P-ON 5V

LCD 16V

J232

L871

R402

J137

ALL3.3V

Q171

R698

R684

Q633

D407

D660

D664

J261

D657

PROTECT2

R175

CN802

R662

R407

D637

ALL3.3V

PROTECT1

R689

R688

C657

C844

R819

Q172

Q635

J265

D413

D412

Q642

D658

D402

C648

C647

J218

GND

C880

D410

R687

P-ON 3.3V

J125

J109

KEY-IN2

R928

J285

DVD 3.3V

R914

J244

DVD-LED

R788

R780

J180

PC-R

D676

C919

R927

Q904

1

25

KEY-IN2

J241

JS304

D905

R921

2

CN901

26

R913

GND

J234

Q873

/

WHITE

SW 9V

J196

J169

HDMI-R

L301

J343

PROTECT1

J134

D906

R926

C918

C912

C911

P-ON 3.3V

J195

HDMI-L

J170

HDMI-L

D303

SPDIF

J151

P-ON-H2

J133

6.7V

J115

R922

R920

R929

J239

Q874

COMP-L

A-OUT-L

RED

JK721

JK722

J108

J326

GND

J237

COMP-Y

J235

COMP-Pb

J233

COMP-Pr

A-OUT-MUTE

J216

J213

JK872

/

RED

P-ON 3.3V

J102

R923

R919

C917

D907

R912

C916

MOTOR 10V

/

GREEN

BLUE

J229

/

ALL3.3V

IC901

RED

GNDJ131

J103

J257

JK871

/

D5.5V
J294

/

/

J200

GND

Q903

R924

R925

WHITE

ORANGE

GND

J132

OE2

J119

JS138

J327

J318

J287

J268

JK731

JK732

RED

JK841

/

GND

GND

J289

Q901

J270

P-ON 5V

/

BL-SW

BL-ADJ

J120

J121

ALL3.3V

J275
D5.5V

J189

A-OUT-R

VCOM-PWM

J122

J310

/

RED

JK754

J271

GND

J325

J339

C910

V-R

J205

Q771

J331

J332

J214

V-L

J187

R771

C771

SW 9V

J165

VT 31V

J335

R791

J192

C303

R790

PC-L

J243

J230

VT 31V

R781

J156

TUNER 5V

S

TU301

8

CN101

R664

J191

J186

J308

R636

J184

J110

R663

R665

D673

D674

D411

C650

D421

J211

AOUT-L

GND

DVD-LED

R660

JS102

J204

AOUT-R

D414

D418

D804

J157

J155

GND

R409

J316

D659

Q402

RESETJ311

J313

LCD 16V

J304

PROTECT2

ALL6V

J280

ALL6V

J272

J278

LOW-VOL PROTECT

J269

J267

J264

D5.5V

J259

JS101

J254

A-MUTE

J251

KEY-IN2

R661

R670

R671

J238

P-ON 3.3V

J236
PROTECT1

J341

P-ON-H2

J227

J223

J219

AMP 13V

J215

LCD 16V

PROTECT1

J160

P-ON 5V

TUNER 5V

J159

GND

GND

J153

ALL3.3V

J142

A-MUTE

VCCA

GND

BC804

J112

J111

BC805

D803

GND

J317

Q401

GND

GND

36V

DVD-LED

J246

GND

GND

MOTOR 10V

J212

6.7V

P-ON 3.3V

GND

J145

D417

D807

R405

D404

D405

D667

3.5Vfor1.8V

J242

R821

J202

J194

D665

6.7VJ174

J147

GND

C819

J116

C816

L803

D

D

D

D401

LCD -6V

J292

J298

LCD 24V

D406

D648

J245

LOW-VOL PROTECT

GND

J206

Q638

Q801

GND

J240

L801

C7A3 A3

J319

RESET

R240

D420

J336

RESET

J300

J302

D211

D204

D649

J329

C224

J263

LCD -6V

J256

J253

3.5Vfor1.8V

D5.5V

D655

ALL6V

6.7V

J231

D902

GND

J208

R674

J207

5.5Vfor3.3V

J188

GND

R673

R677

R691

R692

J171

Q643

C652

R693

R694

J161

D415

C654

BC801

J143

GND

J127

J104

J144

J105

R228

D208

D203

R672

R229

C634

D661

D662

Q641

hot GND as a common terminal.

Q501

C501

D903

D666

C653

R244

Q640

D644

D210

D207

D409
Q802

J290

C222

R243

Q637

L802

R223

LCD 16V

J293

C633

J172

R682

D806

L804

Q211

J330

J140

Q207

D416

R501

R686

R678

Q639

R683

GND

AMP 13V
J149

ERROR

J123

J114

Q209

BC802

J128

GND

D909

JS631

R685

BC803

C644

GND

C832

R227

D645

J324

C640

GND

J164

C827

Q208

C632

GND

R224

D403

C645

C655

J136
AMP-MUTE

J107

J106

AMP 13V

C676

C814

GND

C823

E

E

E

C642

J315

Q644

R242

J198

AMP 13V

AMP 13V

R247

J197

36VJ305

J276

J176
GND

R235

D802

J295

36V

C631

OE2

JS202

J337 GND

R237

GND

GND

C643

J296

D209

D635

D634

D643

D640

C639

J150

GND

COLD

J323

GND

D801

C223

Q210

D419

D632

Q634

R236

R239

C694

BA94F0F0102 6 A

C691

D651

D602

R638

D642

36V

J281

CN801

Q201

D202

R249

GND

Q212

D675

R645

D653

R650

D639

D638

C204

J320

R203

R204

Q202

Q631

C646

R646

J274

J273

D652

IC601

D620

C604

L602

C693

GND

J328

FG

F

F

C638

D631

C225

R238

J322

D641

GND

D647

D650

R639

D

R245

D205

C637

63

D646

D603

J314

D206

R637

3

C602

HOT

HOT

R653

J291

DNGDNG

J312

FG

J262

R602

J284

J301

GND

J163

C219

J307

C692

R605

R615

R613

R212

Q203

D606

C210

Q204

P-ON 3.3V

C612

D609

R614

J288

D610

R618

D621

PROTECT3

J303

BL-ADJ

C610

J309

CN201

15

14

LCD -6V

BL-SW

J299

1

2

GND

J286

D608

D612

Q205

JS201

VGH

C220

Q206

J306

J297

LCD 16V

T601

D611

C613

BC601

R603

R617

Q602

C675

R611

C611

R210

R604

R610

D607

C609

Q601

R606

GND

R616

/BLACK

C605

C601

CN602

/RED

01

SA6

RISK OF FIRE-

REPLACE FUSE AS MARKED

R607

FH602

R601

D604

C603

D601

L601

4A/125V

FH601

F601

TM601

/WHITE

AC

601

/

BLACK

TM602

CN601

11-19

BA94F0F01026

Power Supply CBA & Jack CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

WF13

PIN 13 OF
CN902

WF12

PIN 11 OF
CN902

WF11

PIN 9 OF
CN902

WF8

PIN 5 OF
CN902

WF9

PIN 3 OF
CN902

WF10

PIN 1 OF
CN902

Power Supply CBA

C206

Q202

J328

R646

D652

D202

L602

C839

R206

D675

Q631

D653

C693

J320

C207

R645

D639

R201

R249

R248

R202

Q212

GND

D651

R638

R648

36V

R650

J281

D638

D642

C691

D602

C602

HOT

HOT

CN801

J314

D646

D206

R637

D633

C838

D647

D641

J322

PROTECT3

R216

C218

J163

C202

LCD -6V

CN201

J309

BL-SW

15

14

J299

C201

J286

GND

1

2

C610

D608

D612

FH602

4A/125V

R601

C215

R209

R607

BL-ADJ

J303

D610

R618

D621

CN602

SA601

C214

R211

J307

C213

R208

GND

C212

J288

C612

D606

R614

C219

C210

P-ON 3.3V

Q204

C203

D609

C605

C601

Q203

R212

4

Q601

5

R615

R613

R610

D607

IC201

JS201

C692

R605

R604

D601

R221

C217

D604

C609

R606

L601

R210

R611

C611

R617

1

8

C220

C675

R220

LCD 16V

Q602

R603

C603

R222

R217

J306

R218

Q206

C613

BC601

D611

Q205

T601

J297

R219

VGH

GND

R616

R602

J301

C209

J284

R214

FG

J262

R215

Q201

C204

R203

R213

C216

R207

R204

R205

C208

J312

C646

J291

R652

GNDGND

R653

J274

J273

IC601

D620

C604

F601

FH601

01

AC6

GND

CN601

FG

F

F

C637

D603

GND

R245

R651

D205

R639

D631

D650

R644

C694

R659

R658

C225

R238

Q634

C638

D632

R236

R239

D419

Q210

C223

R647

D643

R237

C643

D635

D640

C639

D801

JS202

OE2

J337GND

GND

GND

J295

J296

R649

36V

C631

D209

D634

J198

AMP 13V

J197

AMP 13V

J176
GND

J150

GND

COLD

J323

GND

D802

R235

36V J305

J276

C642

C823

R247

C814

J315

Q644

R242

AMP-MUTE

GND

E

E

E

C645

Q208

D403

C676

J136

J106

R224

C640

R807

GND

AMP 13V

C827

R227

C655

J107

C644

C641

C832

J324

C632

R241

D909

R686

R678

R675

R676

GND

J164

D645

R820

AMP 13V

ERROR

J128

GND

GND

R501

J149

J123

J114

R226

JS631

R685

BC803

Q207

Q209

BC802

J140

GND

D806

D416

Q639

R683

R811

C633

L804

R642

C811

Q211

J330

C651

R806

Q637

R682

R679

J172

L802

C833

R223

LCD 16V

J293

R243

R643

D409
Q802

R812

R232

D644

J290

C222

R641

D903

R805

D207

R233

D210

C634

D661

D662

C824

R244

Q640

R408

22

D208

D203

R225

R229

Q501

C501

D666

Q641

C653

R817

C810

C821

R228

C221

R234

C224

3.5Vfor1.8V

R672

R680

J144

C808

C806

GND

C822

J105

J319

RESET

R240

D420

J300

J302

D211

D204

R231

J263

LCD -6V

J256

J253

D5.5V

D655

LOW-VOL PROTECT

ALL6V

J231

6.7V

D902

5.5Vfor3.3V

J208

R674

J188

GND

R677

R673

R691

J171

Q643

C652

R693

J161

D415

C654

C847

BC801

C813

R809

J143

C809

C804

C805

C807

J127

IC801

C829

C825

C826

C828

J104

RESET

D649

J329

L801

J240

4432

J336

J245

GND

J207

R692

R694

C803

1

C817

C820

C830

D401

LCD -6V

LCD 24V

J292

J298

D406

D648

R412

R410

3.5Vfor1.8V

GND

J206

J202

P-ON 3.3V

Q638

Q801

R818

R808

J147

GND

R804

R803

GND

C818

D

D

D

J317

GND

R404

R405

J313

LCD 16V

D404

D405

D667

LOW-VOL PROTECT

GND

GND

R681

36V

D5.5V

DVD-LED

A-MUTE

KEY-IN2

J246

J242

R821

PROTECT1

GND

GND

MOTOR 10V

AMP 13V

J212

6.7V

J194

D665

6.7V J174

P-ON 5V

TUNER 5V

R654

R690

GND

C802

R802

D417

C819

J116

D807

C816

BC804

BC805

L803

D803

D659

Q401

Q402

RESET J311

J304

PROTECT2

ALL6V

ALL6V

J272

J278

J269

J267

J264

J259

JS101

J254

J251

R661

R670

R671

J238

P-ON 3.3V

J236

J341

P-ON-H2

J227

J223

J219

LCD 16V

PROTECT1

GND

GND

J153

ALL3.3V

J145

R801

R810

VCCA

J112

GND

J316

J280

J215

J160

J159

A-MUTE

J142

C801

C815

R409

JS102

R403

AOUT-L

AOUT-R

J157

J155

D414

J111

GND

J204

R886

R814

R816

R401

D674

D421

J211

GND

D411

R882

R880

D418

D804

D673

C837

R660

C402

R406

C650

R892

C835

R813

R815

R663

R665

R636

J191

J186

J184

C874

C876

DVD-LED

J110

C846

C648

D410

R664

J308

R411

R872

D402

D413

D412

J218

GND

C880

R687

P-ON 3.3V

C834

C836

KEY-IN2

C845

J109

D658

J125

C647

R689

R688

Q635

D637

J265

Q642

C844

Q172

R662

D407
R407

D660

ALL3.3V

C877

C879

C657

R819

CN802

R698

R684

Q633

PROTECT1

D657

C882

R883

C878

C883

C843

PROTECT2

R172

R696

R697

D664

J261

P-ON 5V

R931

R885

R881

J137

R175

J101

GND

IC631

J249

LCD 16V

J232

R884

L871

C885

C656

R402

ALL3.3V

Q171

R906

LCD 16V

J252

OPAMP 9V

C884

J210

OPAMP 9V

J183

D670

BC841

ALL3.3V

J130

J340

R174

12

13

R905

L901

R667

R666

R695

R668

R669

GND

D408

J255

R930

Q871

R891

C875

R879

4

IC871

5

R876

D671

J166

TUNER 5V

R714

R712

Q841

PROTECT3

J139

C684

R171

11-20

CN902

R904

C904

C906

C905

GND

Q636

D904

Q905

C873

R873

1

8

R874

P-ON 9V

R716

C702

C703

C704

R846

R847

3.5Vfor1.8V

J135

R173

ALL3.3V

J250

D908

R877

R875

R878

JK742

J168

R795

R848

C842

P-ON-H1

J118

2

R907

J310

GND

J189

A-OUT-R

Q872

JK711

R845

R844

KEY-IN1

J117

1

J275

D5.5V

D901

JK733

R871

JK741

C907

R908

P-ON 5V

R843

R842

R903

C903

GND

J289

J287

Q901

J270

R918

J268

JK731

JK732

C733

R744

R742

JK841

VCOM-PWM

BL-ADJ

J121

J122

R902

C902

R901

GND

R732

C732

R733

R741

BL-SW

J120

C901

J318

R924

R925

J327

C741

R743

R711

C841

Q903

D5.5V

J294

IC901

J257

MOTOR 10V

R731

C731

C735

R735

R736

A-OUT-MUTE

J200

C744

R746

R725

C721

C722

R841

GND

J132

OE2

J119

JS138

GND

R734

C742

R726

C914

D907

C916

C734

C736

C743

R745

JK871

GND J131

J103

R923

R919

COMP-Pb

COMP-Pr

J229

C872

C723

R722

C917

R912

J237

COMP-Y

J235

J233

COMP-L

J213
A-OUT-L

C871

JK872

R721

C724

R724

ALL3.3V

R929

J326

Q874

J216

JK721

R786

JK722

J102

D906

R922

C915

C918

R911

J239

GND

R785

R713

C701

R723

P-ON 3.3V

J108

R920

R715

D905

R926

C912

R910

C911

C908

R913

R887

R793

HDMI-L

HDMI-L

D303

SPDIF

J151

6.7V

J115

R928

R921

2
CN901

26

P-ON 3.3V

J234

R888

C773

R792

J195

SW 9V

R784

J196

J170

HDMI-R

J169

J343

PROTECT1

P-ON-H2

J134

J133

L301

GND

Q873

C913

J241

Jack CBA

R762

C761

C757

C758

J271

C909

J243

VT 31V

R789

R781

CN101

J230

GND

C303

J325

R790

18

R782

J335

PC-L

C910

JK754

C954

R783

J192

R791

C304

C953

C771

R772

C302

8

R761

R953

C956

R778

R794

R787

SW 9V

R773

VT 31V

J165

C305

C301

TUNER

TU301

J339

C951

V-L

C919

R927

Q904

DVD 3.3V

1

J285

25

R914

KEY-IN2

DVD-LED

J244

R893

R788

IC771

916

R780

PC-R

J180

JS304

J156

TUNER 5V

D676

J187

J158

J331

J332

J214

R771

S

R956

C772

Q771

C306

JS302

R301

C762

C955

V-R

J205

R307

R917

R954

R955

C307

C776

R776

R755

R951

R952

L951

BC301

R306

9

R760

V-R

J226

C775

J199

J177

GND

JS301

A

CL701B

Q902

5

IC951

R779

GND

C308

1

R777

R759

R957

9

V-L

J225

J162

JS303

R305

Q772

R311

14

R309

J338

JK753

8

GND

R775

L302

C952

C960

J333

C959

R960

CL701A

J224

R774

C309

R304

C310

C682

R754

R758

R753

JK752

R916

DVD-SDATA

C957

REMOTE-OUT

R959

R958

J334

GND

SEL-L

R303

R310

R308

C756

DVD-LED

KEY-IN2

C958

J228

SEL-R

D302

L303

C753

C754

J260

J258

R909

R915

J248

J247

A-MUTE

J190

GND

C311

J217

J342

R302

J185

R763

GND

GND

SPDIF

J167

ABC

ABC

ABC

J182

R756

D301

R757

J209

J203

J178

INPUT1

J175

INPUT0

1

1

J222
S-Y

J173

C755

GND

C681

C683

R751

R752

C751

GND

J154

GND

J129

GND

GND

C752

GND

2

CN302

J152

28

3.5Vfor1.8V
P-ON 5V J124

J126

J113

R700

R699

JK751

4

4

4

GND

J221

3

3

3

1

2

CN303

J181

28

1

29

J179

WF1

WF1

PIN 4 OF

PIN 4 OF
CN302

CN302

WF3

WF3

PIN 6 OF

PIN 6 OF
CN302

CN302

WF2

PIN 8 OF
CN302

RESET

J148

KEY-IN1

29

J146

1

2

WF7

PIN 13 OF
CN302

WF4

PIN 15 OF
CN302

J141

GND

WF5

PIN 17 OF

CN301

28

29

CN302

WF6

PIN 19 OF
CN302

BA94F0F01026

Inverter CBA, Function CBA & IR Sensor CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

Function CBA

SW107B

VOL
UP

D

BA01F4F0103 2 B

SW107A

VOL

DOWN

VOL

C1061

VOL
DOWN

SW106A

UP

C

C1062

VREF

D1063

C1113

R1553

R1552

Q1110

R1032

J1050

Q1502

Q1060

D1113

R1021

Q1501

D1071

D1004

D1001

J1042

J1010

C1055

R1065

D1123

R1554

J1113

GND

D1061

D1062

D1060

C1063

D1064

R1115

D1115

Q1003

B

D1003

Q1001

C1012

J1047

J1031

GND

A

Q1552

Q1551

Inverter CBA

CL102B

R1947

D1930

CN1900

J1026

Not Used

CN101

CL102A

T1200

HOT

R1990

R1943

R1989

R1991

R1944

R1945

Q1930

C1931

J1054

R1937

R1940

1 2 3 4 5

TOOL NO.

C1216

C1204

C7A3 A3

C1910

C1166

C1905

Q1970

J1131

Not Used

RS101

CL101B

C1165C1115

J1122

J1123

COLD

C1906

IC1930

GND

J1008

C7A3 A3

D101

STB BY

CL103A

C101

R101

BA01F4F0103 2 D

C1211

C1212

C1205

J1109

J1102

J1100

J1101

BA01F4F0103 2 A

R1948

C1940

BC1931

D1940

BC1930

C1930

D1931

C1933

C1932

R1936

R1935

D1932

R1933

C1934

J1121

Q1932

FG

R1931

R1934

R1930

Q1931

J1045

FG

IC1931

R1946

D1933

R1939

R1932

R1942

CN1200

D1935

R1941

J103

D1934

J1052

IR Sensor CBA

/

GREEN/RED/ORANGE

J1105

J1016

R123

GND

C113

J1106

C1051

D104

J1021

J1107

GND

J1108

D1051

BC1301

C1161

R128

D1500

J1082

D1971

R124

STD BY

R127

D1040

D1973

J1095

Q1500

R1044

J1043

R1983

R1988

C1162

J1096

R1051

D1994

D1990

D105

J1097

C1990

R1984

DVDPOWER

D106

CN1150

R1971

R1969

R1968

Q1972

C1983

C7A3 A3

T1150

GND

J1084

GND

GND

J1080

T1950

C1970

D1972

GND

J1081

R1970

EER35

D1970

Q1971

C1982

J1083

R1967

R1987

CL103C

GND

J102

STOP

C1217

J1046

J1056

GND

SW103B

R152

R153

SW152

D1170

VREF

J1020

Q1621

Q1210

Q1211

D1174

VREF

R1811

C7A3/A3

D151

POWER

SW101B

R151

SW151

PLAY

C1111

C1112

J1126

J1124

J1125

J1104

J1103

D1211

D1210

D1216

D1219

D1222

GND

J1065

D1167

D1802

D1172

R1810

D1169

R1171

J1136

D1171

C1800

R1812

D1166

D1168

Q1804

J1135

Q1802

J1066

Q1800

D1220

Q1161

C1801

D1630

J1127

D1223

Q1803

D1801

R1803

R108

J101

CN1100

D1212

J1058

Q1801

D1224

GND

C1167

POWER

R1550

D1217

C1056

J1027

C151

SW101A

D1218

BL-SW

Q1815

D107

GND

J1088

J1041

C108

GND

J1089

J1132

R1805

T1100

J1085

GND

Q1004

J1005

R1804

J1076

J1028

R1019

GND

J1004

C1550

GND

J1077

GND

J1029

R1036

D1002

R1050

BC1550

Q1005

R1035

J1001

RS102

CL103B

BA01F4F0103 2 C

C1116

BC1500

BC1501

J1098

J1099

D1550

J1086

2

1

Q1550

J1087

BC1551

R1045

J1012
PROTECT3

J1007
BL-ADJ.

C1050

0

105
D

R1040

J1079

J1018

PANEL+13V

14

J1090

J1019

CN1001
15

J1002

J1091

C1500

C1992

BL-SW

AGING

D1068

D1116

Q1111

SW103A

J1094

D1117

D1119

D1163

J1032

C1066

J1110

GND

R1006

D1121

D1160

D1700

SW154

CH
UP

J1111

D1118

R1121

D1165

D1161

R1551

D1173

SW104BSW105BSW106B

R111

EJECT

C1065

J1093

R1041

C1117

J1037

D1702

D1703

R109

SW153

R1005

D1124

R1165

D1162

J1040

C1054

R1501

D1120

C1052

R1215

J1014

D1701

R1221

D1214

J1064

D1122

J1055

J1051

R154

J1128

J1129

D1215

J1053

J1003

J1015

CH
DOWN

R155

D1213

C1213

D1221

D1164

J1038

J1025

J1033

J1013

J1009

SW155

R156

PATTERN

R115

R114

SW105A

MENU

CN1050

GND

D1065

D1073

D1074

R1071

R1502

D1111

J1034

J1073

C1009

J1049

R1504

Q1553

R1503

J1078

C1067

Q1061

D1110

J1074

J1070

J1069

J1057

VREF

J1011

J1072

D1006

J1030

123 456

CH

J1120

D1005

R1018

C1000

J1035

GND

Q1503

DOWN

T1050

D1114

R1043

J1006

R112R113

SW104A

D1066

D1000

J1062

J1060

GND

J1048

J1134

D1072

D1070

J1044

J1017

GND

MENU

J1039

J1036

Q1600

D1069

C1163

J1023

CH

D1067

D1112

GND

UP

Q1160

Not Used

6 7 8 9 10

C1215

A01F0MIV

E234498

C1053

2

CN1005

1

J1071

J1075

J1112

1

11

J1067

J1068

J1059

J1063

J1061

GND

D1961

D1960

2

10

11

J

CN1003

10

J1022

GND

11-21

BA01F4F01032

Inverter CBA, Function CBA & IR Sensor CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Not Used

Not Used

Not Used

IR Sensor CBA

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

Function CBA

CL101B

GND

J102

CL103C

D106

D

CN1150

R125

D105

C112

C115

C111

STD BY

R126

R127

R124

SW103A

AGING

MENU

CH

UP

R156

B501WSB401WS

PATTERN

R112 R113

SW104A

DOWN

SW155

CH

SW105A

CN1050

R115

R114

B601W

S

MENU

VOL

DOWN

SW106A

SW107B

C1061

VOL

UP

D

SW107A

VOL

UP

DOWN

VOL

C108

SW101A

D107

C151

CN1100

R108

J101

POWER

SW101B

SW151

C110

R123

REW

OPDV

D104

R128

C1161C1211

C113

RS102

C114

C1115

CL103B

POWER

PLAY

R151

C1111

D151

SW103B

SW152

R152

R153

DOWN

STOP

CH

R154

R155

R109

SW153

C1065

R111

SW154

CH
UP

EJECT

C1215

CN101

CL102A

CL102B

CN1200

J103

R106

C105

C103

R102

R103

C104

D101

STB BY

R101

RS101

CL103A

C102

C101

C1165

H.V. CAUTION

C

R1005

C1052

R1215

R1165

D1162

J1040

C1054

R1501

R1041

D1124

D1120

R1122

C1122

J1037

7

IC1700

8

J1093

R1116

C1117

R1121

D1165

R1161

D1702

R1006

R1117

D1121

D1173

D1703

C1066

J1111

R1551

D1118

D1161

J1110

D1117

R1118

R1119

R1120

D1160

1

14

D1700

GND

C1118

R1164

J1094

D1119

Q1160

R1163

R1162

D1163

C1703

R1701

J1032

R1110

R1700

D1068

R1066

C1004

D1116

R1009

Q1111

GND

C1164

C1163

J1023

C1702

D1067

D1112

J1044

J1039

J1036

D1069

R1042

J1017

Q1600

D1066

D1000

R1007

J1062

J1060

GND

J1048

GND

D1072

D1070

R1043

R1601

T1050

R1008

C1040

D1005

C1000

C1601

J1035

GND

J1134

R1067

R1072

D1114

C1007

J1006

J1120

C1072

J1078

R1010

R1011

R1022

R1018

Q1503

R1600

GND

R1111

J1072

D1006

R1016

R1555

R1068

R1069

C1067

R1017

C1552

C1600

R1070

J1074

J1070

J1069

R1025

C1001

R1505

D1074

R1024

8

IC1000

9

R1506

J1030

D1073

D1110

C1502

J1011

R1556

R1015

C1010

VREF

R1062

Q1061

J1057

C1009

R1001

J1073

C1005

J1049

R1504

Q1553

R1503

C1055

C1068

4101R2101R

C1006

J1034

J1010

D1065

D1111

R1020

1

16

R1502

R1065

R1071

D1123

C1008

R1003

R1554

D1071

D1001

D1004

R1002

J1042

C1062

Q1060

C1114

C1113

D1113

R1021

R1004

R1553

R1552

Q1501

Q1110

R1112

R1032

C1003

Q1502

D1063

C1064

Q1003

J1050

R1026

C1013

D1061

D1060

R1063

R1064

R1114

R1028

R1023

R1027

C1012

VREF

C1002

R1081

R1080

J1047

C1501

J1113

GND

C1063

R1115

J1031

C1551

GND

Q1551

R1061

R1113

D1003

D1115

R1030

D1062

R1060

D1064

C1011

R1031

B

Q1001

A

Q1552

R1500

J1091

BL-SW

15

J1090

C1992

J1019

BC1501

D1550

J1079

J1018

PANEL+13V

14

C1116

BC1500

C1050

D1050

R1040

J1099

J1012

PROTECT3

J1007

BL-ADJ.

J1098

BC1551

Q1550

R1045

J1087

Q1005

J1086

2

1

J1001

BC1550

R1034

C1014

R1035

R1050

C1550

J1077

GND

R1036

D1002

T1100

J1029

GND

Q1004

J1005

GND

J1076

J1028

R1019

J1004

J1085

GND

R1029

R1804

GND

J1089

J1132

R1800

R1805

GND

J1088

C1056

J1041

R1033

Q1815

D1218

C1167

R1802

BL-SW

R1550

R1170

J1058

R1806

J1027

D1217

C1168

C1172

GND

R1630

R1803

D1224

R1216

R1172

Q1801

C1801

R1801

D1630

D1212

R1169

J1127

D1223

D1220

Q1161

Q1803

D1801

R1807

R1631

J1126

D1211

D1219

R1210

J1066

J1135

Q1800

C1802

R1211

D1210

D1216

D1222

D1166

D1168

Q1804

Q1802

C1800

C1112

J1125

C1222

D1169

R1812

R1808

J1124

R1212

R1217

R1218

R1222

R1168

D1171

R1809

J1104

Q1210

C1214

R1214

GND

J1065

D1167

R1171

R1810

J1136

J1103

Q1211

R1167

R1166

R1013
J1020

VREF

D1802

D1172

D1174

R1811

Q1621

C1217

D1170

J1046

J1056

VREF

R1213

C1213

D1164

J1038

J1025

J1033

J1013

J1009

GND

J1128

J1129

J1055

J1053

J1003

C1620

D1213

D1214

R1220

C1218

J1064

J1051

R1621

D1221

R1219

D1215

R1221

D1122

J1015

R1620

R1160

J1014

D1701

J1112

GND

D1961

D1960

C1053

C1204

C1216

T1200

R1947

R1946

C1212

R1948

C1205

J1102

J1100

J1101

COLD

C1940

J1109

J1122

J1123

C1906

C1166

GND

J1081

T1150

GND

J1080

C1162

J1105

J1106

J1107

J1108

J1095

D1500

J1096

J1097

J1084

GND

J1083

GND

R1051

J1082

C1051

HOT

1

2

CN1003

10

11

J1067

J1068

C1910

J1059

J1063

J1022

GND

J1061

10

2

11

CN1005

1

J1075

J1071

R1943

R1944

R1990

R1989

R1940

Q1930

C1931

R1991

R1945

J1054

R1937

J1026

CN1900

D1934

D1930

J1052

R1932

R1941

D1935

BC1931

BC1930

C1930

D1933

R1942

R1939

R1933

C1933

R1930

Q1931

R1935

R1934

D1931

Q1932

FG

R1931

C1932

D1940

R1936

C1934

J1121

D1932

IC1931

J1045

FG

IC1930

C1981

C1905

R1981

GND

J1008

R1982

Q1970

J1131

R1970

D1970

Q1971

EER35

R1974

C1982

R1979

C1970

R1986

T1950

R1980

D1972

R1967

R1987

R1971

R1969

C1983

R1977

C1990

R1975

R1968

Q1972

D1994

D1990

R1044

R1984

R1976

Q1500

R1983

R1988

D1973

J1043

D1971

D1040

R1972

R1973

D1051

BC1301

GND

J1021

GND

C1500

J1016

CN1001

J1002

123456

Inverter CBA

11-22

BA01F4F01032

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 4 of CN302

CVBS 0.2V 20µs

Pin 8 of CN302

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 17 of CN302

VIDEO-Pb 0.2V 20µs

Pin 19 of CN302

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 6 of CN302

S-VIDEO-C 0.2V

Pin 15 of CN302

VIDEO-Y 0.2V 20µs

20µs

Pin 13 of CN302

WF7

AUDIO 0.1V 0.5ms

FL11.11WF112-1

WF8 ~ WF13 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)
DVD Video (Play MODE)

WF8

WF9

Pin 5 of CN902

Pin 3 of CN902

DVD-Pb 0.5V 20

WF11

20µs0.5VDVD-Y

WF12

µ

s

Pin 9 of CN902

DVD-AUDIO(L) 0.5V 0.5ms

Pin 11 of CN902

DVD-AUDIO(R) 0.5V 0.5ms

WF10

Pin 1 of CN902

DVD-Pr 0.5V 20µs

12-2

WF13

Pin 13 of CN902

DVD-SPDIF 1V 0.1

µ

s

FL11.11WF2

Wiring 1/2 Diagram

WIRING DIAGRAM

HDMI-

USB JACK

CONNECTOR-1

HDMI-

CONNECTOR-2

DIGITAL MAIN CBA UNIT

BACK

1

CN1050

LIGHT

2

CN1900

CN602

CN3005

CL3902

22

HOT-GND11ACL

2

1

STV

XAO

BACK

1

CN1100

CN1001

151

GND

CN201

4

3

OE1

CPV

LIGHT

2

142

133

INV+16V

GND

SP801

6TP5

POL

CN1150

124

115

BACKLIGHT-ADJ

BACKLIGHT-SW

SPEAKER

L-CH

9

8

7

11

10

GND

LLV4(-)

LLV5(-)

LLV4(+)

LLV5(+)

BACK

LIGHT

2

1

CN1200

610

106

PROTECT397GND88LCD+16V79LCD+16V

VGH

SP802

SPEAKER

R-CH

13

12

LLV3(-)

LLV3(+)

BACK

LIGHT

2

1

511

412

GND

P-ON+3.3V

15

14

GND

LLVCLK(-)

313

LCD-8V

16

LLVCLK(+)

CN1003

214

115

VCOM

GND

17

GND

GND

1

19

18

LLV2(-)

LLN2(+)

LCD+16V

2

20

LLV1(-)

GND4VGH3LCD+16V

5

22

21

LLV0(-)

LLV1(+)

P-ON+3.3V

6

24

23

GND

LLV0(+)

GND8LCD-6.8V

P-ON+3.3V

9

7

LCD MODULE

ASSEMBLY

GND10VCOM

11

INVERTER CBA

VIDEO-IN

CL701B

1

S-VIDEO-Y-IN

1

CL701A CL701

TO

AUDIO(L)

-IN

JACK CBA

3

2

4

S-VIDEO-C-IN

S-VIDEO-SW

GND

3

2

4

WIRING

2/2

DIAGRAM

AUDIO(R)

-IN

S-VIDEO

5

6

8

VIDEO-IN77AUDIO(L)-IN

GND

GND

5

6

8

-IN

9

AUDIO(R)-IN

9

CL101B

1

CL101

GND

1

CN101

2

REMOTE

2

CL103BCL103C

CL103

3

4

AL+3.3V

LED1

3

4

2

1

GND

AL+3.3V

2

1

5

6

P-ON-H1

KEY-IN1

5

6

3

KEY-IN1

3

7

KEY-IN2

7

4

KEY-IN2

4

8

DVD-LED

8

IR SENSOR CBA FUNCTION CBA

CN3002CN301

P-ON-H2

1

POWER SUPPLY CBA

4

2

AUDIO(L)-OUT

GND

AUDIO(R)-OUT

3

2

4

COMPONENT

-Y-IN

TU301 TUNER UNIT

2

CN303CN3003

GND

KEY-IN2

1

2

6

8

7

513

PROTECT3

AMP(L)-OUT

GND

AMP(R)-OUT

7

6

5

8

COMPONENT

-Pb-IN

513

4

DVD-LED

P-ON-H3(NU)

DVD-MAIN-PWR

5

3

4

9

11

P-ON-H1

P-ON+3V

PROTECT1

9

10

11

COMPONENT

-Pr-IN
COMPONENT-

CL801

1

2

SP(L)-

CN801

SP(L)+

6

8

7

DVD-P-ON

DVD-REMOTE

DVD-SDATA

7

6

8

141012

13

GND

P-ON+5V

P-ON+5V

12

13

14

AUDIO(L)-IN

COMPONENT-

9

11

DVD-DISC-IN

GND

DVD-CS

9

10

11

15

172220

16

PROTECT2

P-ON+7V

GND

15

16

17

HDMI-

AUDIO(R)-IN

CL802

1

2

SP(R)-

CN802

SP(R)+

141012

13

GND

DVD-SCLK

GND

12

13

14

18

GND

P-ON+3.3V

P-ON+3.3V

192321

18

20

AUDIO(L)-IN

HDMI-

CN901

AL+3.3V 1

15

172220

16

DVD-DISC-OUT

LED-CONT

GND

15

16

17

231921

AL+3.3V

AL+3.3V

GND

22

DIGITAL

AUDIO-OUT

AUDIO(R)-IN

LED-CONT 2

18

DVD-Pr

GND

192321

18

24

25

OE2

REMOTE

24

25

(COAXIAL)

EV+1.2V 4

DVD-DISC-OUT 3

DVD-Pb

20

26

BACKLIGHT-SW

26

AUDIO(L)

GND

27

LED1

27

-OUT

EV+1.2V 5

DVD -Y

22

28

BACKLIGHT-ADJ

28

EV+3.3V 6

EV+3.3V 8

EV+3.3V 7

231921

24

25

GND

DVD-AUDIO(L)

DVD-AUDIO-MUTE

24

25

CN3006 CN302

29

VCOM-PWM

GND

1

29

AUDIO(R)

-OUT

DVD-ON+5V 10

DVD-ON+3.3V 9

26

27

DVD-AUDIO(R)

GND

26

27

2

SPDIF

2

EV+9V 11

28

DVD-SPDIF

28

GND

3

TO

DVD MAIN

CBA UNIT

GND 13

EV+9V 12

29

GND

29

6

513

4

VIDEO-IN

S-VIDEO-SW

S-VIDEO-C-IN

6

5

4

CN401

GND 14

7

GND

7

TO

DVD MAIN

CBA UNIT

CN601

10

GND 15

GND 16

GND 17

GND 19

GND 18

DVD-CS 22

DVD-SCLK 21

DVD-SDATA 24

DVD-DISC-IN 23

PWRCON(NU) 20

8

9

S-VIDEO-Y-IN

GND

INPUT1

9

8

10

11

AUDIO(R)

INPUT0

12

11

141012

13

AUDIO(L)

GND

13

14

AC601

AC CORD

15

172220

16

COM-VIDEO-Y-IN

GND

COM-VIDEO-Pb-IN

15

16

17

CN902

DVD-Pr 1

DVD-P-ON 26

DVD-REMOTE 25

18

GND

COM-VIDEO-Pr-IN

AUDIO-MUTE

192321

18

20

GND 2

SDA

SCL

22

DVD-Pb 3

231921

RESET

GND 7

GND 6

GND 8

DVD-AUDIO(L) 9

DVD-AUDIO-MUTE

28

29

DIF-OUT2

KEY-IN1

28

29

GND 12

DVD-SPDIF 13

DVD-AUDIO(R) 11

GND 4

DVD -Y 5

24

25

26

27

IF-AGC

GND

DIF-OUT1

GND

24

25

26

27

FL11.11WI113-1

Wiring 2/2 Diagram

DVD MECHANISM

DVD-Pr4
GND5
DVD-Pb6
GND7
DVD -Y8
GND9
GND10
GND11
DVD-AUDIO(L)12
DVD-AUDIO-MUTE

13

DVD-AUDIO(R)14

TO POWER SUPPLY CBA CN902

GND15
DVD-SPDIF16

TO WIRING 1/2 DIAGRAM

AL+3.3V1
LED-CONT2
DVD-DISC-OUT3
EV+1.2V4
EV+1.2V5
EV+3.3V6
EV+3.3V7
EV+3.3V8
DVD-ON+3.3V9
DVD-ON+5V10
EV+9V11
EV+9V12
GND13
GND14
GND15

(CL901) (CL902)

GND16
GND17

TO POWER SUPPLY CBA CN901

GND18
GND19
PWRCON(NU)20
DVD-SCLK21
DVD-CS22

23

DVD-DISC-IN
DVD-SDATA24
DVD-REMOTE25
DVD-P-ON26

CN601

CN401

CN201CN301

DVD MAIN CBA UNIT

DVD-ON+5V

CD/DVD

NU

VREF

NU

GND

CD-LD

GND(LD)

DVD-LD

PD-MONI
GND(DVD-PD)
GND(CD-PD)

TS(-)

FS(-)
FS(+)
TS(+)

SP(+)

SP(-)

GND

SL(-)
SL(+)

LOAD-DISC

CN801

20
19

D

18

A

17

C

16

B

15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

1
2
3
4
5
6

LED-POWER 11
DVD-DISC-OUT 22
DVD-DISC-IN 33
GND 44

FS

M

SPINDLE

MOTORMSLED

CN5001 is soldered

directly to the PCB.

CN5001

TS

MOTOR

4

7 9 11 2 3 6 5

DETECTOR

LOAD-DISC

DISC-OUT

PICKUP

DRIVE CBA

SENSOR CBA

13-2

DISC-IN

FL11.11WI2

SYSTEM CONTROL TIMING CHARTS

Disc In ~ Play/Play ~ Disc Out

Disc IN
(TL221)

Sled Drive
(TP303)

Disc Drive
(TP301)

Focus Drive
(TP304)

Tracking Drive
(TP302)

3.3V

0V

1.65V

0V

1.65V

0V

1.65V

0V

1.65V

0V

Disc
In

Disc
Rotation

Play

Disc
Stop

Disc
Out

14-1 TVDVDN_TI

LEAD IDENTIFICATIONS

ECB

LD1117V

123

KTA1267-GR-AT/P 2SA950-O(TE2 F T)

2SC2120-(O,Y)(TE2 F T)
2SD400(E)
KTC3198-Y-AT/P
KTC3200-GR-AT/P

ECB

LTV-817MCF NJM4558M(TE1)

1

2

1: GND
2: Vout

TL3472CDR

6

87

5

123

4

3: Vin

2SK2417(FT)

2SC4881F
TK5A50D
TK8A50D

GDS BCE

8

1: A

4

2: K

3

3: E

5

4: C

1

4

TC4052BF(ELNF)
TL494CDR

16

1

BA10324AF-E2

14

1

BD5426EFS-E2 KIA1117API00

9

44

23

1: ADJ

2: OUTPUT

8

1

22

3: INPUT

123

Note:

8

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
S: Source

7

G: Gate
D: Drain

15-1 FL11.11LE

Cabinet [LD320SS2, 32MD301B/F7]

EXPLODED VIEWS

A42

B8

A5

A12

CL802

B15

B19

CL101

SP802

A2

L2

B15

CL103

L2

A24

B15

A8

IR Sensor CBA

B15

A1

CL801

B9

Function CBA

L2

B10

B19

L8

L2

SP801

CL902

B30

LCD1

CL3902

1B1

L1

Jack CBA

CL201

CL1003

CL701

Inverter CBA

L8

L2

L8

L8

B13

B14

L3

B13

L3

L3

L2

L2

B11

B19

B4

A14

L1

B5

L2

L2

B31

S5

A6

L1

L7

L16

L1

L7

L16

L1

L16

L1

A10

S5

A11

DVD Main CBA Unit

See Electrical Parts List
for parts with this mark.

CL901

Digital Main CBA Unit

L10

L6

L8

A13

Stand Assembly

B44

B27

L8

CL4001
CL3702
CL3701

L8

L8

Power Supply CBA

B1

L8

L6

AC601

L9

16-1 FL11.11-A_CEX

Cabinet [32MD311B/F7]

A1

B15

A12

A3

A24

A8

B15

B15

CL801

B9

B19

L2

SP801

B30

CL201

Inverter CBA

L2

L8

B13

L2

L2

B4

B5

L2

A6

B31

L2

L1

A42

B8

B55

CL802

A4

B19

B15

CL103

CL101

L2

L2

DVD Main CBA Unit

See Electrical Parts List
for parts with this mark.

L2

IR Sensor CBA

CL901

Function CBA

B10

L8

CL902

Digital Main CBA Unit

LCD1

CL3902

1B1

L10

L8

L1

Jack CBA

L8

CL4001
CL3702
CL3701

B44

CL1003

CL701

L8

Power Supply CBA

B1

L8

L8

L8

L8

B14

L3

B13

L3

L3

B19

B11

A14

L1

AC601

S5

L9

L1

L7

L16

L16

L1

L7

L16

L1

Stand Assembly

A10

S5

A11

L6

L6

B27

A13

16-2 FL11.11-A_CEX

Packing

Some Ref. Numbers are
not in sequence.

S2

Stand Assembly

S9

L9

Ta pe

X1

X3

X4

Packing Tape

S6

X2X6

S3

S5

Fixlon Tape

X10

S2

Packing Tape

S4

S3

S5

FRONT

S1

FRONT

S1

16-3 FL11.11PEX

PARTS LIST [LD320SS2 (Serial No.: DS1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A9DF1UH 1ESA25567
A1 FRONT CABINET A94F1UH 1EM023485A
A2 CONTROL PLATE A94F0UH 1EM325777
A5 DECORATION PLATE A1DF2UH 1EM126153
A6 REAR CABINET A9DF0UH 1EM025345
A8 AC CORD HOLDER A94F0UH 1EM325557
A10# RATING LABEL A1DF2UH ---------­A11 JACK LABEL A9DF0UH 1EM431077
A12 POP LABEL A1DF2UH ---------­A13 JACK HOLDER A94F0UH 1EM123173
A14 CAUTION LABEL A1DF2UH ---------­A24 ENERGY STAR LABEL ---------­A42 ENERGY GUIDE LABEL ---------­1B1 DVD MECHA SLOT E7 N7XT3KVM N7XT3KVM
B1 SHIELD BOX A17F4UH 1EM225624
B4 STAND HOLDER 32W A94F0UH 1EM222763
B5 WALL MOUNT BRACKET A84N0UH 1EM323797
B8 SPEAKER HOLDER (L) A94F0UH 1EM123233
B9 SPEAKER HOLDER (R) A94F0UH 1EM123234
B10 DVD HOLDER 32W A94F0UH 1EM023408
B15 CLOTH(10X180XT0.5) L0336JG 0EM408827
B19 CLOTH(15X110XT 0.5) L0110UA 0EM408385
B27 GASKET A8AF0UH 1EM425861
B30 LASER CAUTION LABEL A94F0UH ---------­B31 FELT A94F0UH 1EM428797
B44 THERMAL SHEET TMS-14-20 12X12 XK10000X4011
CL201 WIRE ASSEMBLY 15PIN FFC 15PIN 140MM WX1A94F0-104
CL801 WIRE ASSEMBLY 2PIN 2PIN 310MM RED

CL802 WIRE ASSEMBLY 2PIN 2PIN 100MM RED

CL901 WIRE ASSEMBLY 26PIN FFC 26PIN 260MM WX1A94F0-112
CL902 WIRE ASSEMBLY 13PIN FFC 13PIN 155MM WX1A94F0-103
CL1003 WIRE ASSEMBLY 11PIN FFC 11PIN 129MM WX1A91F6-101
CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101
CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111
CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 117.5MM WX1A91F6-102
CL4001 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101
L1 SCREW P-TIGHT M4X14 BIND HEAD+BLK GBHP4140
L2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100
L6 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080
L7 DOUBLE SEMS SCREW M4X10 + BLK FPH34100
L8 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B
L9 STAND SCREW KIT A94F0UH 1ESA19508
L10 SCREW P-TIGHT 3X12 WASHER HEAD+ GCJP3120

BLACK

BLACK

WX1A94F0-202

WX1A94F0-203

Ref. No. Description Part No.

L16 SCREW TAP TIGHT M3X10 BIND HEAD+BLK NIGBHS3100

LCD1 LCD MODULE CMO 6BIT A GRADE UJ32MXF
SP801 SPEAKER MAGNETIC S0412F06A DSD0809XQ006
SP802 SPEAKER MAGNETIC S0412F06A DSD0809XQ006

PACKING

S1 CARTON A1DF2UH 1EM434688
S2 STYROFOAM TOP A94F0UH 1EM023410
S3 STYROFOAM BOTTOM A94F0UH 1EM023411
S4 SET BAG (900X850) A8AFFUH 1EM324904A
S5 SERIAL NO. LABEL A01PBUH ---------­S6 STAND BAG A94F0UH 1EM428757
S9 STAND HOLD PAD A94F1UH 1EM023746

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A
X2# OWNERS MANUAL A1DF2UH 1EMN27599
X3 REMOTE CONTROL NF033UD NF033UD
X4 DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002
X6 QUICK START GUIDE A1DF2UH 1EMN27600
X10 REGISTRATION CARD (SYLVANIA) A017DUH 1EMN27080

20110111 17-1 A1DF2CA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A1DF2MMA-001

DVD MAIN CBA UNIT

Ref. No. Description Part No.

DVD MAIN CBA UNIT N7ETFKUP

MPW CBA

Ref. No. Description Part No.

MPW CBA
Consists of the following:

POWER SUPPLY CBA
JACK CBA

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA
Consists of the following:

CAPACITORS

C201 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C202 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C203 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C204 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C207 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104
C210 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C216 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C217 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104
C218 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C219 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470
C221 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C222 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471
C223 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C224 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C303 ELECTROLYTIC CAP. 330µF/10V M CE1AMASDL331
C305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C306 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0

A1DF2MP1-001

----------

----------

----------

Ref. No. Description Part No.

C309 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C310 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C311 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C501 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101
C601# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004
C602# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004
C605 CAP ELECTROLYTIC 470µF/200V M CA2D471DYG07
C609 POLYESTER FILM CAP. (PB FREE) 0.047µF/

C611 CERAMIC CAP. 470pF/2KV CA3D471PAN04
C612 POLYESTER FILM CAP. (PB FREE) 0.068µF/

C613 POLYESTER FILM CAP. (PB FREE) 0.0015µF/

C631 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102
C632 ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221
C633 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C634 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102
C637 CERAMIC CAP. 2200pF/1KV CCD3AKA0R222
C638 ELECTROLYTIC CAP. 220µF/50V M CE1JMASDL221
C639 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102
C642 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C644 ELECTROLYTIC CAP 3300µF/16V M CE1CMZNDL332
C645 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C646 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C647 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C648 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C652 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C653 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221
C654 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221
C656 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C657 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C676 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C681 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C682 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C683 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C684 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C691# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C693# SAFTY CAP. 1000pF/250V KX CA2E102MR101
C723 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C724 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C731 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C732 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C743 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C744 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C771 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C772 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C775 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C776 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C801 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C802 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C803 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C804 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C805 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C806 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C807 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C808 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C809 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104

100V J

100V J

100V J

100V J

CA2A473DT018

CA2A683DT018

CA2A152DT018

CA2A222DT018

20110314 17-2 A1DF2EL

Ref. No. Description Part No.

C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C811 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474
C815 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C816 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C817 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C818 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C819 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C820 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C821 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C822 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C823 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102
C824 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C825 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C826 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C827 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C828 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C829 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C830 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474
C832 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C833 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C834 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C835 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272
C836 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C837 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272
C838 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471
C839 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471
C841 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C842 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C843 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C844 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C845 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471
C846 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471
C847 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C871 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C872 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C873 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C874 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C875 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C876 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C877 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682
C878 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682
C879 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C880 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C882 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C883 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C884 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C885 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C906 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C907 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C916 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C917 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221
C918 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C919 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470
C951 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C952 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C953 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C954 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C957 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C958 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C959 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C960 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221

CONNECTORS

Ref. No. Description Part No.

CN101 PH CONNECTOR TOP 8P B8B-PH-K-S

CN201 FFC CONNECTOR 15P IMSA-9615S-15A-PP-A JC96J15ER007
CN301 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007
CN302 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007
CN303 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007
CN602 WIRE ASSEMBLY 2PIN 2PIN 145MM RED

CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

CN901 FFC CONNECTOR IMSA-9615S-26A-PP-A JC96J26ER007
CN902 FFC CONNECTOR IMSA-9615S-13A-PP-A JC96J13ER007

(LF)(SN)

BLACK

(LF)(SN)

(LF)(SN)

J3PHC08JG029

WX1A94F0-201

J3PHC02JG029

J3PHC02JG029

DIODES

D202 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D204 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
D205 DIODE ZENER 24BSC-T26 NDTC024BST26
D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D207 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D208 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D209 DIODE ZENER 39BSB-T26 NDTB039BST26
D210 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26
D211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D404 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D405 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D406 DIODE ZENER 15BSB-T26 NDTB015BST26
D407 DIODE ZENER 10BSB-T26 NDTB010BST26
D409 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D410 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D411 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D412 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D413 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D414 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D415 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D416 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D417 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26
D418 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26
D419 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D420 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D421 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D601# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D602# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D603# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D604# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU
D606# DIODE ZENER 27BSB-T26 NDTB027BST26
D607 DIODE ZENER 4V3BSB-T26 NDTB4R3BST26
D609# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D611 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D612# DIODE ZENER 39BSB-T26 NDTB039BST26
D620 DIODE ZENER 1ZB220-YBB NDWZ01ZB220Y
D631 DIODE FR154 NDLZ000FR154
D632 DIODE FR104-B NDLZ000FR104
D633 DIODE FAST RECOVERY FR151-B/P NDWZ0FR151BP
D634 SCHOTTKY BARRIER DIODE SB240-B/P NDWZ000SB240
D635 DIODE ZENER 24BSB-T26 NDTB024BST26
D637 SCHOTTKY BARRIER DIODE SB160 NDWZ000SB160
D638 DIODE FR154 NDLZ000FR154
D639 DIODE ZENER 1ZB43BB NDWZ0001ZB43
D641 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390
D642 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390
D643 DIODE FR104-B NDLZ000FR104
D644 DIODE ZENER 10BSB-T26 NDTB010BST26

20110314 17-3 A1DF2EL

Ref. No. Description Part No.

D645 SHUNT REGULATOR KIA431B-AT/P NSZBA0TJY038
D646 DIODE SCHOTTKY SB360BH NDWZ000SB360
D647 SCHOTTKY BARRIER DIODE SB240-B/P NDWZ000SB240
D648 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140
D649 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D650 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D652 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26
D655 RECTIFIER DIODE 1N4005 NDQZ001N4005
D657 DIODE ZENER 33BSB-T26 NDTB033BST26
D658 DIODE ZENER 3V3BSB-T26 NDTB3R3BST26
D659 DIODE ZENER 6V8BSA-T26 NDTA6R8BST26
D660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D661 DIODE FR154 NDLZ000FR154
D662 DIODE FR154 NDLZ000FR154
D664 DIODE ZENER 4V7BSB-T26 NDTB4R7BST26
D665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D666 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
D670 DIODE ZENER 10BSB-T26 NDTB010BST26
D671 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D675 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D676 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D801 DIODE ZENER 20BSB-T26 NDTB020BST26
D802 DIODE ZENER 20BSB-T26 NDTB020BST26
D803 DIODE ZENER 20BSB-T26 NDTB020BST26
D804 DIODE ZENER 20BSB-T26 NDTB020BST26
D806 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D901 RECTIFIER DIODE 1N4005 NDQZ001N4005
D902 RECTIFIER DIODE 1N4005 NDQZ001N4005
D903 RECTIFIER DIODE 1N4005 NDQZ001N4005
D904 DIODE FR104-B NDLZ000FR104
D905 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
D906 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26
D907 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D909 RECTIFIER DIODE 1N4005 NDQZ001N4005

ICS

IC201 IC TL3472CDR NSZBA0TTY115
IC601# PHOTO COUPLER LTV817MCF NPECLTV817MF
IC631 IC LD1117V NSZBA0SSS046
IC771 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162
IC801 IC D-AMP BD5426EFS-E2 QSZBA0TRM137
IC871 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089
IC901 IC REGULATOR KIA1117API00/TO-220 NSCA0S0JY009
IC951 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089

COILS

L302 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22
L303 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22
L601# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029
L602# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029
L801 RADIAL LEAD INDUCTORS 33µF LLARKGQTU330
L802 RADIAL LEAD INDUCTORS 33µF LLARKGQTU330
L803 RADIAL LEAD INDUCTORS 33µF LLARKGQTU330
L804 RADIAL LEAD INDUCTORS 33µF LLARKGQTU330
L871 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
L901 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
L951 WIRE COPPER 6111-06003-0120 XZ40C0SHG002

TRANSISTORS

Q171 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q172 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q201 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q202 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q203 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q204 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

Ref. No. Description Part No.

Q205 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q207 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q208 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q209 TRANSISTOR 2SD400(E) QQUE002SD400
Q210 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q211 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q212 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q401 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q402 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q501 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q601# FET MOS TK5A50D(FUNAI QEWZTK5A50DQ
Q602# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q631 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q634 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q635 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q636 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q637 NPN TRANSISTOR POWER 2SC4881F HFE

Q638 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q639 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q640 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q641 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q642 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q643 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q771 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q772 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q801 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q802 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q841 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q871 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q872 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q873 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q874 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q901 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q902 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q903 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q904 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P

MAX320

QQWZ2SC4881F

RESISTORS

R171 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R172 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R175 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001
R201 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R202 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R204 RES CARBON FILM T 1/4W J 560 Ω RCX4561T1001
R206 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R207 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R208 RES CHIP 1608 1/10W J 1 Ω RRJ1R0RYL002
R210 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R212 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R213 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R216 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R217 RES CHIP 1608 1/10W J 1.5k Ω RRJ152RYL002
R218 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R219 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R220 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R223 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001
R224 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R225 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R226 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R227 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001
R228 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001
R229 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001
R231 RES CHIP 1608 1/10W J 1.5k Ω RRJ152RYL002

20110314 17-4 A1DF2EL

Ref. No. Description Part No.

R232 RES CHIP 1608 1/10W F 11.0k Ω RTW1102HH008
R233 RES CHIP 1608 1/10W F 750 Ω RTW7500HH008
R234 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R235 RES CARBON FILM T 1/4W J 330 Ω RCX4331T1001
R236 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R237 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001
R238 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001
R240 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001
R241 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R242 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001
R243 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R245 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001
R247 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001
R248 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R302 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R303 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R306 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R307 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R308 RES CHIP 1608 1/10W J 82 Ω RRJ820RYL002
R309 RES CHIP 1608 1/10W J 82 Ω RRJ820RYL002
R310 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R401 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R402 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001
R403 RES CHIP 1608 1/10W J 47k Ω RRJ473RYL002
R404 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R405 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001
R407 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001
R408 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R410 RES CHIP 1608 1/10W F 43.0k Ω RTW4302HH008
R411 RES CHIP 1608 1/10W F 56.0k Ω RTW5602HH008
R412 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R501 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R601# RES. CARBON FILM J 1/2W J 560k Ω RCX2564T1003
R602# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10
R604 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001
R605 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001
R606 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001
R610 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001
R611 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001
R613 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001
R614# METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001
R615 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R616 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001
R617# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10
R618 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001
R636 RES. CARBON FILM J 1/2W J 2.7 Ω RCX22R7T1003
R637 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001
R638 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001
R639 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001
R641 RES CHIP 1608 1/10W D 1.10k Ω RTW1101HH007
R642 RES CHIP 1608 1/10W D 10.0k Ω RTW1002HH007
R643 RES CHIP 1608 1/10W D 10.0k Ω RTW1002HH007
R644 RES CHIP 1608 1/10W F 820 Ω RTW8200HH008
R645 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001
R646 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001
R648 RES CHIP 1608 1/10W F 1.00k Ω RTW1001HH008
R650 RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001
R651 RES CHIP 1608 1/10W J 1 Ω RRJ1R0RYL002
R652 RES CHIP 1608 1/10W F 24.0k Ω RTW2402HH008
R653 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R654 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R658 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R659 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002

Ref. No. Description Part No.

R660 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R661 RES. CARBON FILM J 1/2W J 390 Ω RCX2391T1003
R662 RES CARBON FILM T 1/4W J 15 Ω RCX4150T1001
R663 RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001
R664 RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001
R665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R666 RES CARBON FILM T 1/4W J 1.0 Ω RCX41R0T1001
R667 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R668 RES CHIP 1608 1/10W F 620 Ω RTW6200HH008
R669 RES CHIP 1608 1/10W F 1.00k Ω RTW1001HH008
R670 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R671 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R672 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R673 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001
R674 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R675 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R676 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R677 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001
R678 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R679 RES CHIP 1608 1/10W F 3.60k Ω RTW3601HH008
R680 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R682 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001
R683 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001
R685 RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001
R686 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R687 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R688 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R689 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001
R691 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001
R692 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001
R693 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R694 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R695 RES CARBON FILM T 1/4W J 33 Ω RCX4330T1001
R696 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3ZU001
R697 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3ZU001
R699 RES CARBON FILM T 1/4W J 56 Ω RCX4560T1001
R723 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R724 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R725 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002
R726 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002
R731 RES CHIP 1608 1/10W J 75 Ω RRJ750RYL002
R732 RES CHIP 1608 1/10W J 75 Ω RRJ750RYL002
R733 RES CHIP 1608 1/10W J 75 Ω RRJ750RYL002
R734 RES CHIP 1608 1/10W J 10 Ω RRJ100RYL002
R735 RES CHIP 1608 1/10W J 10 Ω RRJ100RYL002
R736 RES CHIP 1608 1/10W J 10 Ω RRJ100RYL002
R743 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R744 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R745 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002
R746 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002
R763 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001
R771 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R772 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R773 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R774 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R775 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R776 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R777 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R778 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R779 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R802 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R803 RES CHIP 1608 1/10W F 11.0k Ω RTW1102HH008
R804 RES CHIP 1608 1/10W F 11.0k Ω RTW1102HH008

20110314 17-5 A1DF2EL

Ref. No. Description Part No.

R806 RES CHIP 1608 1/10W J 4.7k Ω RRJ472RYL002
R810 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R813 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R814 RES CHIP 1608 1/10W J 3.3k Ω RRJ332RYL002
R815 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R816 RES CHIP 1608 1/10W J 3.3k Ω RRJ332RYL002
R817 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R818 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R819 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001
R820 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R843 RES CHIP 1608 1/10W J 110 Ω RRJ111RYL002
R844 RES CHIP 1608 1/10W J 220 Ω RRJ221RYL002
R847 RES CHIP 1608 1/10W J 4.7k Ω RRJ472RYL002
R848 RES CHIP 1608 1/10W J 4.7k Ω RRJ472RYL002
R871 RES CHIP 1608 1/10W J 560 Ω RRJ561RYL002
R872 RES CHIP 1608 1/10W J 560 Ω RRJ561RYL002
R873 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R874 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R877 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R878 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R879 RES CHIP 1608 1/10W J 16k Ω RRJ163RYL002
R880 RES CHIP 1608 1/10W J 16k Ω RRJ163RYL002
R881 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R882 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R883 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R884 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R885 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R886 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R887 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R888 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R891 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R892 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R893 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R901 RES CHIP 1608 1/10W J 91 Ω RRJ910RYL002
R902 RES CHIP 1608 1/10W J 91 Ω RRJ910RYL002
R903 RES CHIP 1608 1/10W J 91 Ω RRJ910RYL002
R904 RES CHIP 1608 1/10W J 1.3k Ω RRJ132RYL002
R905 RES CHIP 1608 1/10W J 1.3k Ω RRJ132RYL002
R906 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R909 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R910 RES CHIP.(1608) 1/10W J 0.30 Ω RRXAR30HH007
R911 RES CHIP.(1608) 1/10W J 0.30 Ω RRXAR30HH007
R912 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R913 RES. CARBON FILM J 1/2W J 3.3 Ω RCX23R3T1003
R914 RES. CARBON FILM J 1/2W J 2.7 Ω RCX22R7T1003
R915 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001
R916 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R917 RES CARBON FILM T 1/4W J 390 Ω RCX4391T1001
R918 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R919 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001
R920 RES CARBON FILM T 1/4W G 3.3k Ω RCX4332T1002
R921 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002
R922 RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001
R923 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R924 RES CARBON FILM T 1/4W J 3.9 Ω RCX43R9T1001
R925 RES CARBON FILM T 1/4W J 3.9 Ω RCX43R9T1001
R926 RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001
R927 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R928 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001
R929 RES CARBON FILM T 1/4W J 1.2 Ω RCX41R2T1001
R951 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R952 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R953 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002

Ref. No. Description Part No.

R954 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R955 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R956 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R957 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002
R958 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002
R959 RES CHIP 1608 1/10W J 12k Ω RRJ123RYL002
R960 RES CHIP 1608 1/10W J 12k Ω RRJ123RYL002

MISCELLANEOUS

AC601# AC CORD W/O A GND WIRE UL/CSA 1770 NO

B11 POW HEAT SINK A7120UH 1EM423993
BC301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC801 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC802 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC803 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC804 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC805 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC841 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
CL701 WIRE ASSEMBLY 9P 9PIN/170MM WX1A94F0-002
F601# FUSE STC4A125V U/CT PAGE20CW3402
FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
JK721 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02
JK722 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01
JK731 JACK RCA PCB S GREEN 01/RCA-101H(GN) JXRJ010YUQ03
JK732 JACK RCA PCB S BLUE 01/RCA-101H(BL) JXRJ010YUQ04
JK733 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01
JK741 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02
JK742 JACK SW RCA PCB S RED RCA-102H(RD) JYRJ010YUQ03
JK841 JACK RCA PCB S ORANGE 01/RCA-101H(OR) JXRJ010YUQ06
JK871 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02
JK872 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01
JS101 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
JS202 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
JS302 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
JS303 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
JS304 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
JS631 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080
SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB
T601# TRANS POWER BCK-28-9932 LTT2PC0XB043
TM601 EYELET TYPE D-1 0VM406868
TM602 EYELET TYPE D-1 0VM406868
TU301 TUNER UNIT ATSC TDAU4-D05A UTNATS0AL002

BLACK

WAC0172LW022

JACK CBA

Ref. No. Description Part No.

JACK CBA
Consists of the following:

CAPACITORS

C751 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C752 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C753 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C754 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
C755 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
C756 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
C757 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C758 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

RESISTORS

R751 RES CHIP 1608 1/10W J 75 Ω RRJ750RYL002
R752 RES CHIP 1608 1/10W J 75 Ω RRJ750RYL002

----------

20110314 17-6 A1DF2EL

Ref. No. Description Part No.

R753 RES CHIP 1608 1/10W J 75 Ω RRJ750RYL002
R756 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R757 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R758 RES CHIP 1608 1/10W J 100 Ω RRJ101RYL002
R759 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R760 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R761 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002
R762 RES CHIP 1608 1/10W J 39k Ω RRJ393RYL002

MISCELLANEOUS

JK751 JACK SW DIN PCB L DIN-435C(777D) JYEL040YUQ03
JK752 JACK RCA PCB L RCA-101S(1)-03 JXRL010YUQ12
JK753 JACK RCA PCB L RCA-101S(1)-04 JXRL010YUQ13
JK754 JACK SW RCA PCB L RCA-102F(RD) JYRL010YUQ05

INVERTER ASSEMBLY

Ref. No. Description Part No.

INVERTER ASSEMBLY
Consists of the following:

INVERTER CBA

-----------------------------------------------------------------­FUNCTION CBA
IR SENSOR CBA

INVERTER CBA

Ref. No. Description Part No.

INVERTER CBA
Consists of the following:

CAPACITORS

C1001 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1002 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1003 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1004 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1005 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1006 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1007 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1008 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1009 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101
C1011 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1012 POLYESTER FILM CAP. (PB FREE) 0.0039µF/

C1013 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1014 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682
C1040 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C1052 ELECTROLYTIC CAP 100µF/100V CE2AMZNDL101
C1053 ELECTROLYTIC CAP 100µF/100V CE2AMZNDL101
C1056 ELECTROLYTIC CAP 100µF/100V CE2AMZNDL101
C1061 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1062 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1063 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1064 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1065 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1066 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1067 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1068 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1072 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1111 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1112 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1113 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1114 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1115 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1116 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1117 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

100V J

A1DF2M1V-001

A1DF2M1V-001-IV

-------------------------------­A1DF2M1V-001-FNIR

----------

CA2A392DT018

Ref. No. Description Part No.

C1118 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1122 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1161 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1162 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1163 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1164 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1165 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1166 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1167 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1168 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1172 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1211 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1212 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1213 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1214 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1215 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001
C1216 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061
C1217 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1218 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1222 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1500 CERAMIC CAP. 470pF/2KV CA3D471PAN04
C1502 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1550 CERAMIC CAP. 470pF/2KV CA3D471PAN04
C1552 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1600 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1620 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1702 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224
C1703 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224
C1800 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101
C1801 ELECTROLYTIC CAP. 22µF/35V M CE1GMASDL220
C1802 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1905# SAFTY CAP. 2200pF/250V KX CA2E222MR101
C1910 CAP ELECTROLYTIC 270µF/200V CEA271DYG005
C1930 CERAMIC CAP. 820pF/2KV CA3D821PAN04
C1931# POLYESTER FILM CAP. (PB FREE) 0.001µF/

C1932 POLYESTER FILM CAP. (PB FREE) 0.027µF/

C1933 POLYESTER FILM CAP. (PB FREE) 0.1µF/100V JCA2A104DT018

C1970 POLYESTER FILM CAP. (PB FREE) 0.047µF/

C1981 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103
C1982 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C1990 CAP CERAMIC HV 820pF/1KV B K CA3A821TE006
C1992# ELECTROLYTIC CAP 470µF/100V CE2AMZNDL471

100V J

100V J

100V J

CA2A102DT018

CA2A273DT018

CA2A473DT018

CONNECTORS

CN1001 FFC CONNECTOR 15P IMSA-9615S-15A-PP-A JC96J15ER007
CN1003 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007
CN1050# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1100# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1150# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1200# CONNECTOR/JACK 1747386-1 JB17J02AP002
CN1900# CONNECTOR B2P3-VH(LF)(SN) J3VH020JG001

DIODES

D1000 DIODE ZENER 15BSB-T26 NDTB015BST26
D1001 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D1003 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1004 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D1005 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D1006 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1040 DIODE ZENER 36BSB-T26 NDTB036BST26
D1060 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1061 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

20110314 17-7 A1DF2EL

Ref. No. Description Part No.

D1062 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1063 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1064 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1065 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1066 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1067 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1068 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1069 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1070 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1071 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1072 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1073 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1074 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1110 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1111 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1112 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1113 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1114 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1115 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1116 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1117 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1118 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1119 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1120 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1121 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1122 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1123 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1124 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1160 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1161 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1162 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1163 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1164 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1165 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1166 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1167 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1168 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1169 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1170 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1171 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1172 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1173 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1174 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1210 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1212 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1213 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1214 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1215 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1216 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1217 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1218 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1219 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1220 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1221 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1222 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1223 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1224 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1500 DIODE ZENER 20BSB-T26 NDTB020BST26
D1550 DIODE ZENER 20BSB-T26 NDTB020BST26
D1630 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1700 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1701 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

Ref. No. Description Part No.

D1702 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1703 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1801 DIODE ZENER 10BSB-T26 NDTB010BST26
D1802 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
D1930# DIODE ZENER 27BSB-T26 NDTB027BST26
D1931 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26
D1932 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1933 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1934# DIODE ZENER 39BSB-T26 NDTB039BST26
D1970 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26
D1971 DIODE ZENER HZS33NB2TE-EQ QDTBHZS33NB2
D1972 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1973 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1990 DIODE FAST RECOVERY 31DF4-FC QDWZ031DF4FC
D1994 DIODE ZENER 1ZB100BB NDWZ001ZB100

ICS

IC1000 IC PULSE-WIDTH-MODULATION CONT

IC1700 IC BA10324AF-E2 QSZBA0TRM032
IC1930# PHOTO COUPLER LTV817MCF NPECLTV817MF
IC1931# PHOTO COUPLER LTV817MCF NPECLTV817MF

TL494CDR

NSCA0T0TY006

TRANSISTORS

Q1001 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1003 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1004 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q1005 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1060 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1061 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1110 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1111 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1160 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1161 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1210 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1211 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1500 FET MOS 2SK2417(FT) QFWZSK2417FT
Q1501 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q1502 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q1503 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1550 FET MOS 2SK2417(FT) QFWZSK2417FT
Q1551 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q1552 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q1553 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1600 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1621 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1800 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1801 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q1802 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1803 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1804 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1815 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F
Q1930# MOS FET TK8A50D QFWZTK8A50DQ
Q1931# TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1932# TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q1970 NPN TRANSISTOR KTC3200-GR-AT/P NQSGKTC3200P
Q1971 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1972 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P

RESISTORS

R1001 RES CHIP 1608 1/10W F 22.0k Ω RTW2202HH008
R1002 RES CHIP 1608 1/10W F 1.00k Ω RTW1001HH008
R1003 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1004 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R1005 RES CARBON FILM T 1/4W J 220k Ω RCX4224T1001
R1006 RES CARBON FILM T 1/4W J 56k Ω RCX4563T1001

20110314 17-8 A1DF2EL

Ref. No. Description Part No.

R1007 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1008 RES CHIP 1608 1/10W J 2.2k Ω RRJ222RYL002
R1009 RES CHIP 1608 1/10W J 82k Ω RRJ823RYL002
R1010 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R1011 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008
R1012 RES CHIP 1608 1/10W F 12.0k Ω RTW1202HH008
R1013 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R1014 RES CHIP 1608 1/10W F 4.70k Ω RTW4701HH008
R1015 RES CHIP 1608 1/10W F 7.50k Ω RTW7501HH008
R1016 RES CHIP 1608 1/10W J 120k Ω RRJ124RYL002
R1017 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1018 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001
R1019 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R1021 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001
R1022 RES CHIP 1608 1/10W F 2.20k Ω RTW2201HH008
R1023 RES CHIP 1608 1/10W F 3.30k Ω RTW3301HH008
R1024 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008
R1026 RES CHIP 1608 1/10W F 220 Ω RTW2200HH008
R1028 RES CHIP 1608 1/10W F 36.0k Ω RTW3602HH008
R1030 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R1031 RES CHIP 1608 1/10W J 15k Ω RRJ153RYL002
R1032 RES CARBON FILM T 1/4W J 24k Ω RCX4243T1001
R1033 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1034 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1035 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001
R1036 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001
R1040 METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001
R1041 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001
R1043 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001
R1044 METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001
R1060 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1061 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1062 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1063 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1064 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1065 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1066 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1067 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1068 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1069 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1070 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1071 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1072 RES CHIP 1608 1/10W J 1M Ω RRJ105RYL002
R1080 RES CHIP 1608 1/10W F 22.0k Ω RTW2202HH008
R1081 RES CHIP 1608 1/10W J 5.6k Ω RRJ562RYL002
R1110 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1111 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1112 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1113 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1114 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1115 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1116 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1117 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1118 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1119 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1120 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1121 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1122 RES CHIP 1608 1/10W J 1M Ω RRJ105RYL002
R1160 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1161 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1162 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1163 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1164 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008

Ref. No. Description Part No.

R1165 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1166 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1167 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1168 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1169 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1170 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1171 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1172 RES CHIP 1608 1/10W J 1M Ω RRJ105RYL002
R1210 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1211 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1212 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1213 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1214 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1215 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1216 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1217 RES CHIP 1608 1/10W J 20k Ω RRJ203RYL002
R1218 RES CHIP 1608 1/10W J 390 Ω RRJ391RYL002
R1219 RES CHIP 1608 1/10W F 18.0k Ω RTW1802HH008
R1220 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008
R1221 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001
R1222 RES CHIP 1608 1/10W J 1M Ω RRJ105RYL002
R1500 RES CHIP 1608 1/10W J 12k Ω RRJ123RYL002
R1501 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R1502 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001
R1503 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001
R1504 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001
R1505 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R1506 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R1550 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001
R1551 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001
R1552 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001
R1553 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001
R1554 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001
R1555 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R1556 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R1600 RES CHIP 1608 1/10W J 18k Ω RRJ183RYL002
R1601 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1620 RES CHIP 1608 1/10W J 100k Ω RRJ104RYL002
R1621 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1630 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1631 RES CHIP 1608 1/10W J 3.3k Ω RRJ332RYL002
R1700 RES CHIP 1608 1/10W F 9.10k Ω RTW9101HH008
R1701 RES CHIP 1608 1/10W F 1.00k Ω RTW1001HH008
R1800 RES CHIP 1608 1/10W J 10k Ω RRJ103RYL002
R1801 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R1802 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R1803 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001
R1804 RES CARBON FILM T 1/4W J 1.2 Ω RCX41R2T1001
R1805 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R1806 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R1807 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R1808 RES CHIP 1608 1/10W J 5.1k Ω RRJ512RYL002
R1809 RES CHIP 1608 1/10W J 1.5k Ω RRJ152RYL002
R1810 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001
R1811 RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001
R1812 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001
R1930 RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001
R1931 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001
R1932 RES CARBON FILM T 1/4W J 82 Ω RCX4820T1001
R1933 RES CARBON FILM T 1/4W J 82 Ω RCX4820T1001
R1934 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001
R1935 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001
R1936 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001

20110314 17-9 A1DF2EL

Ref. No. Description Part No.

R1937# METAL OXIDE FILM RES. 2W J 0.33 Ω RN02R33ZU001
R1939 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001
R1940 RES CARBON FILM T 1/4W J 220k Ω RCX4224T1001
R1941 RES CARBON FILM T 1/4W J 220k Ω RCX4224T1001
R1942 RES CARBON FILM T 1/4W J 120k Ω RCX4124T1001
R1943 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002
R1944 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002
R1945 RES CARBON FILM 1/4W J 390k Ω RCX4394FS002
R1967 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R1968 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R1969 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R1970 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001
R1971 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001
R1972 RES CHIP 1608 1/10W J 68k Ω RRJ683RYL002
R1973 RES CHIP 1608 1/10W J 22k Ω RRJ223RYL002
R1975 RES CHIP 1608 1/10W F 30.0k Ω RTW3002HH008
R1976 RES CHIP 1608 1/10W F 30.0k Ω RTW3002HH008
R1977 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008
R1979 RES CHIP 1608 1/10W F 6.80k Ω RTW6801HH008
R1980 RES CHIP 1608 1/10W F 360 Ω RTW3600HH008
R1981 RES CHIP 1608 1/10W 0 Ω RRZ000RYL002
R1982 RES CHIP 1608 1/10W J 2.7k Ω RRJ272RYL002
R1983 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001
R1984 RES CARBON FILM T 1/4W J 15k Ω RCX4153T1001
R1986 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R1987 RES CARBON FILM T 1/4W J 820k Ω RCX4824T1001
R1988 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001
R1989 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002
R1990 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002
R1991 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002

MISCELLANEOUS

B13 HEAT SINK PNA A94F0UH 1EM428121
B14 HEAT SINK PNB ASSEMBLY A94F0UH 1EM428123
BC1301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
BC1500 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020
BC1501 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020
BC1550 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020
BC1551 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020
BC1930 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC1931 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080
T1050# TRANS INVERTER HVT-153 LTZ3PZ0XB009
T1100# TRANS INVERTER HVT-153 LTZ3PZ0XB009
T1150# TRANS INVERTER HVT-153 LTZ3PZ0XB009
T1200# TRANS INVERTER HVT-153 LTZ3PZ0XB009
T1950# TRANS POWER BCK-35-0607 LTT3PC0XB048

Ref. No. Description Part No.

R151 WIRE COPPER 6111-06003-0120 XZ40C0SHG002
R152 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002
R153 RES CARBON FILM T 1/4W G 2.2k Ω RCX4222T1002
R154 RES CARBON FILM T 1/4W G 2.2k Ω RCX4222T1002

SWITCHES

SW101A TACT SWITCH SKHHLMA010 SST0101AL049
SW103A TACT SWITCH SKHHLMA010 SST0101AL049
SW104A TACT SWITCH SKHHLMA010 SST0101AL049
SW105A TACT SWITCH SKHHLMA010 SST0101AL049
SW106A TACT SWITCH SKHHLMA010 SST0101AL049
SW107A TACT SWITCH SKHHLMA010 SST0101AL049
SW151 TACT SWITCH SKHHLMA010 SST0101AL049
SW152 TACT SWITCH SKHHLMA010 SST0101AL049
SW153 TACT SWITCH SKHHLMA010 SST0101AL049

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA
Consists of the following:

CAPACITORS

C113 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C115 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

DIODES

D104 LED GREEN 333GT/E(FNA) NPWZ33GTEFNA
D105 LED L-53HT NP4Z000L53HT
D106 LED (YELLOW) LTL-307Y NPWZ0LTL307Y

RESISTORS

R123 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R124 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R125 RES CHIP 1608 1/10W J 220 Ω RRJ221RYL002
R126 RES CHIP 1608 1/10W J 1k Ω RRJ102RYL002
R127 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001
R128 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001

MISCELLANEOUS

CL101 WIRE ASSEMBLY 8P 8PIN/170MM WX1A01F0-001
CL103 WIRE ASSEMBLY 4P 4PIN/250MM WX1A94F0-003
RS102 SENSOR REMOTE RECEIVER KSM-712TH2E USESJRSKK044

----------

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA
Consists of the following:

CAPACITORS

C108 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062
C151 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

RESISTORS

R108 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001
R109 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002
R111 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002
R112 RES CARBON FILM T 1/4W G 2.7k Ω RCX4272T1002
R113 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002
R114 RES CARBON FILM T 1/4W G 8.2k Ω RCX4822T1002
R115 RES CARBON FILM T 1/4W G 18k Ω RCX4183T1002

20110314 17-10 A1DF2EL

----------

PARTS LIST [32MD301B/F7 (Serial No.: DS1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Different parts from the original model
LD320SS2 (Serial No. : DS1)

Ref. No. Description Part No.

STAND ASSEMBLY A9DF0UH 1ESA26285
A1 FRONT CABINET A94F0UH 1EM023405
A5 DECORATION PLATE A1DF0UH 1EM126434
A10# RATING LABEL A1DF0UH ---------­L9 STAND SCREW KIT A1DA0UH 1ESA28845
S1 CARTON A1DF0UH 1EM435522
S9 STAND HOLD PAD A94F0UH 1EM023745
X2# OWNERS MANUAL A1DA0UH 1EMN28219
X3 REMOTE CONTROL NF801UD 192/

X4 DRY BATTERY R03/2S XB0M451T0006
X6 QUICK START GUIDE A1DF0UH 1EMN28221
X10 REGISTRATION CARD (MAGNAVOX)

ECNLC7D1/NF801UD

A17N0UH

NF801UD

1EMN27759

2011/04/22 17-11 A1DF0CA.fm

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model
LD320SS2 (Serial No. : DS1)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A1DF0MMA-001

DVD MAIN CBA UNIT N7EX1KUP

2011/04/22 17-12 A1DF0EL.fm

32MD311B/F7(A1DF4UH)(Serial No.: DS1)

(

)

p

20110407

32MD311B/F7

A1DF4UH)(Serial No.: DS1

Different parts from the original model LD320SS2(DS1)
Ref. No. Descri

tion

Parts No.

MECHANICAL PARTS

STAND ASSEMBLY A9DF0UH 1ESA26285
A1 FRONT CABINET A1DF4UH 1EM028285
A2 Not used
A3 FUNCTION KNOB A1DF1UH 1EM330937
A4 LED LENS A1DF1UH 1EM330657
A5 Not used
A10! RATING LABEL A1DF4UH ---------­A24 ENERGY STAR LABEL A91F2UH ---------­A42 ENERGY GUIDE LABEL A1DF4UH ---------­B30 LASER CAUTION LABEL A1DN2UH ---------­B55 SHIELD PLATE A1DF1UH 1EM330658
L9 STAND SCREW KIT A1DA0UH 1ESA28845
S1 CARTON A1DF4UH 1EM435925
S2 STYROFOAM TOP A1DF1UH 1EM027806
S3 STYROFOAM BOTTOM A1DF1UH 1EM027808
S4 SET BAG A17F6UH 1EM330877
S9 STAND HOLD PAD A94F0UH 1EM023745
X1 POLYETHYLENE BAG HDPE 180X340XT0.03 1EM435579
X2! OWNERS MANUAL A1DA0UH 1EMN28219A
X3 REMOTE CONTROL NF801UD 192/ECNLC7D1/NF801UD NF801UD
X4 DRY BATTERY R03/2S XB0M451T0006
X6 QUICK START GUIDE A1DF0UH 1EMN28221
X10 REGISTRATION CARD (MAGNAVOX) A17N0UH 1EMN27759

ELECTRICAL PARTS

DIGITAL MAIN CBA UNIT A1DF0MMA-001

DVD MAIN CBA UNIT N7EX1KUP

1 / 1 page

REVISION HISTORY

Chassis FL11.11

• 2011-01-21 LD320SS2 (Serial No. : DS1) added

• 2011-03-18 32MD301B/F7 (Serial No. : DS1) added

• TBD 32MD311B/F7 (Serial No. : DS1) added

18-1 FL11.11REV

COMPARISON LIST OF MODEL NAME

Chassis FL11.11

LD320SS2 (DS1) A1DF2UH

32MD301B/F7 (DS1) A1DF0UH

32MD311B/F7 (DS1) A1DF4UH

FL11.11COM
