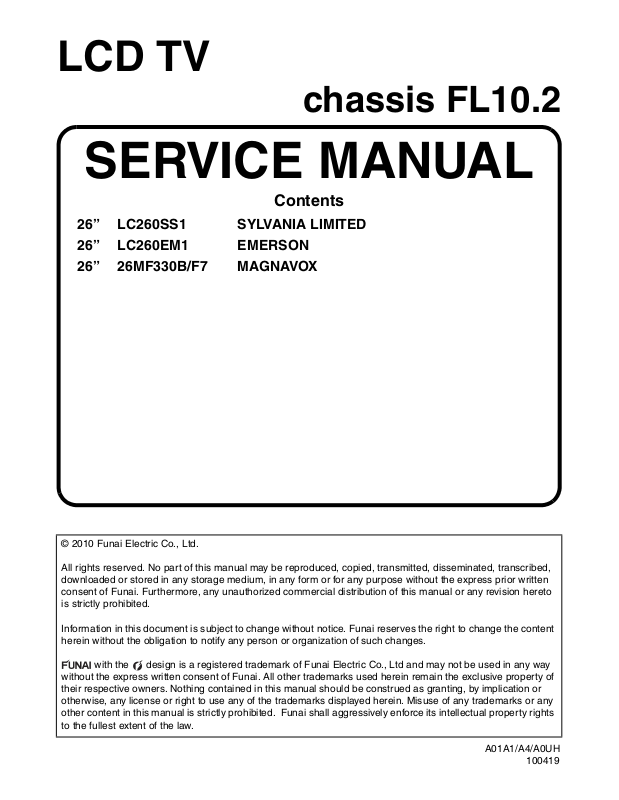

Page 1

LCD TV

chassis FL10.2

SERVICE MANUAL

Contents

26” LC260SS1 SYLVANIA LIMITED

26” LC260EM1 EMERSON

26” 26MF330B/F7 MAGNAVOX

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

A01A1/A4/A0UH

100419

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

Page 3

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

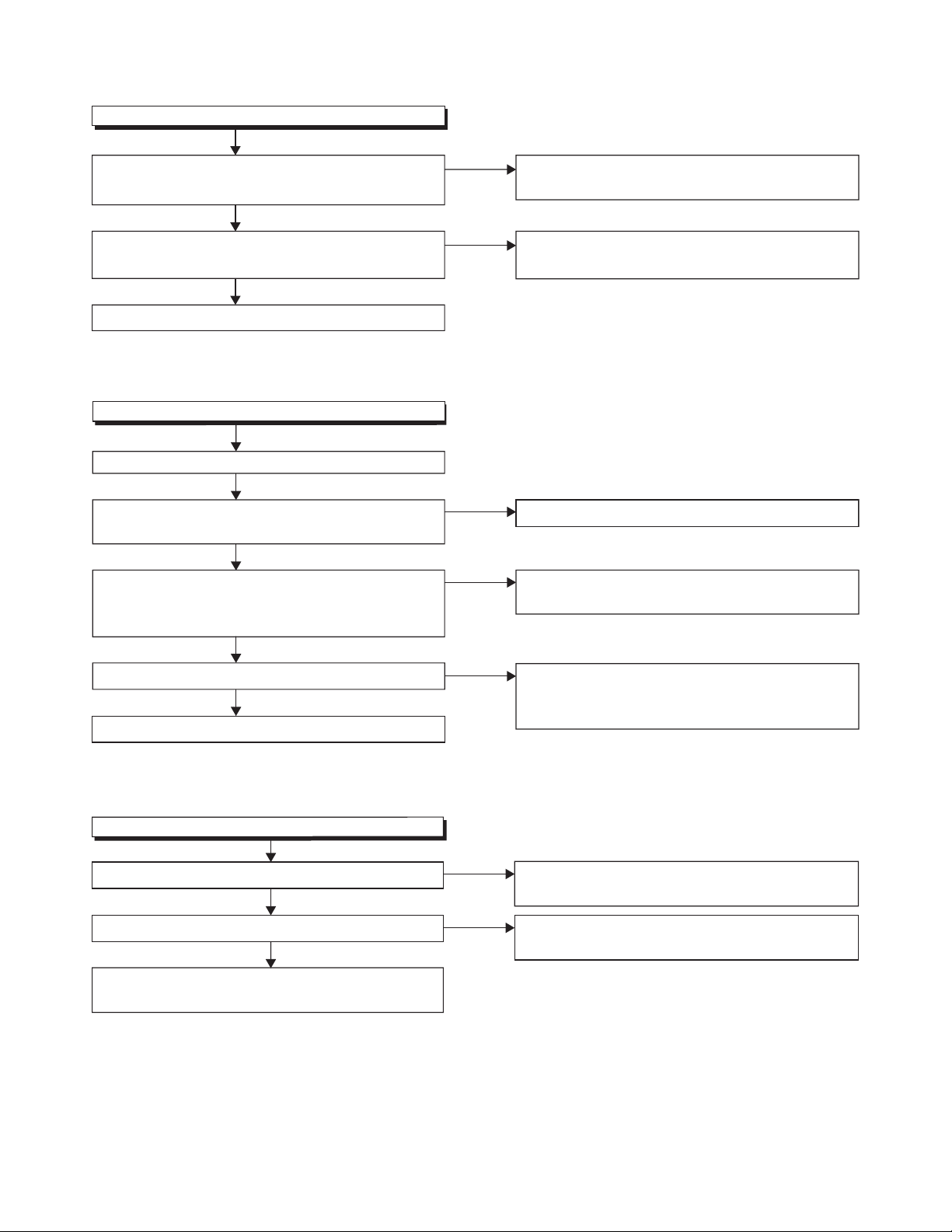

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

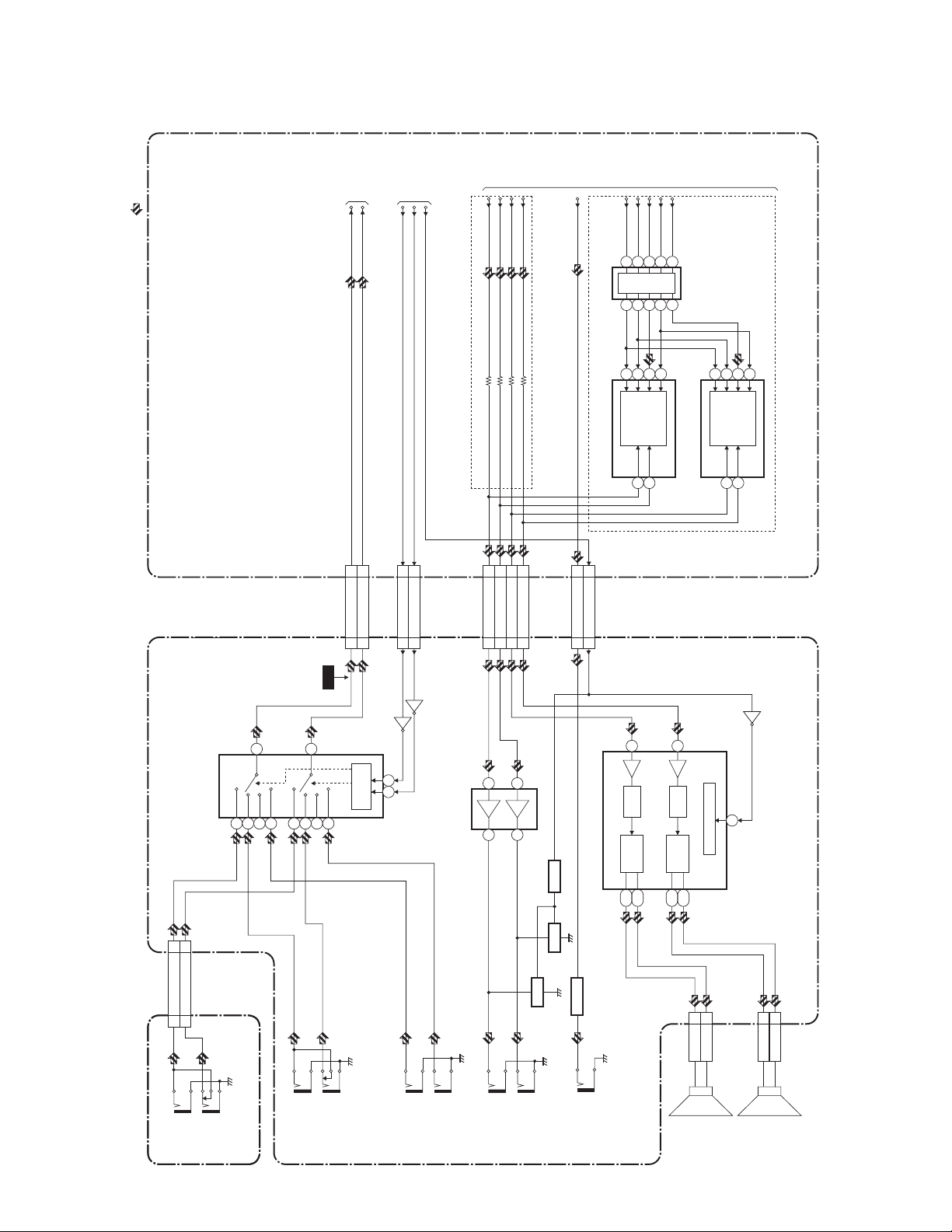

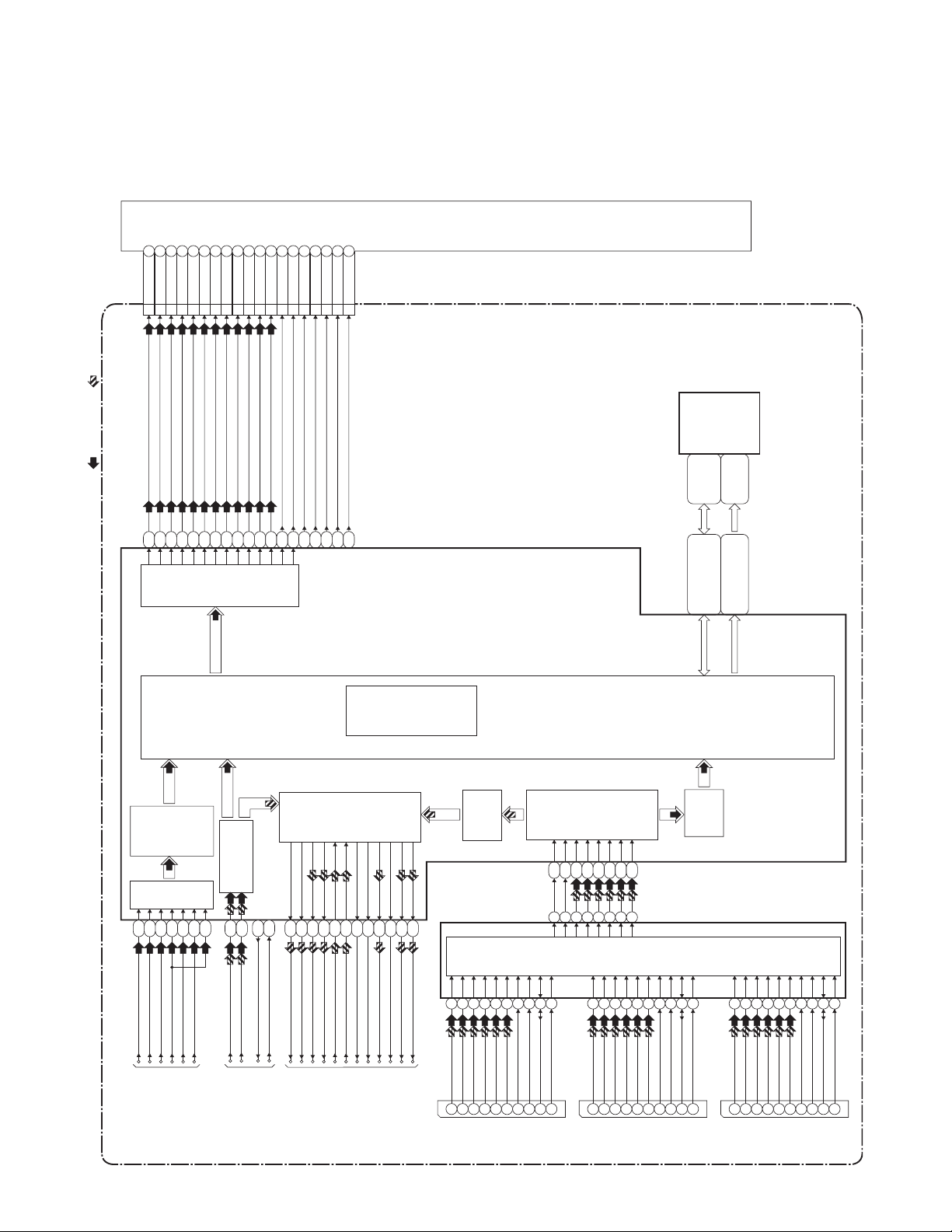

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

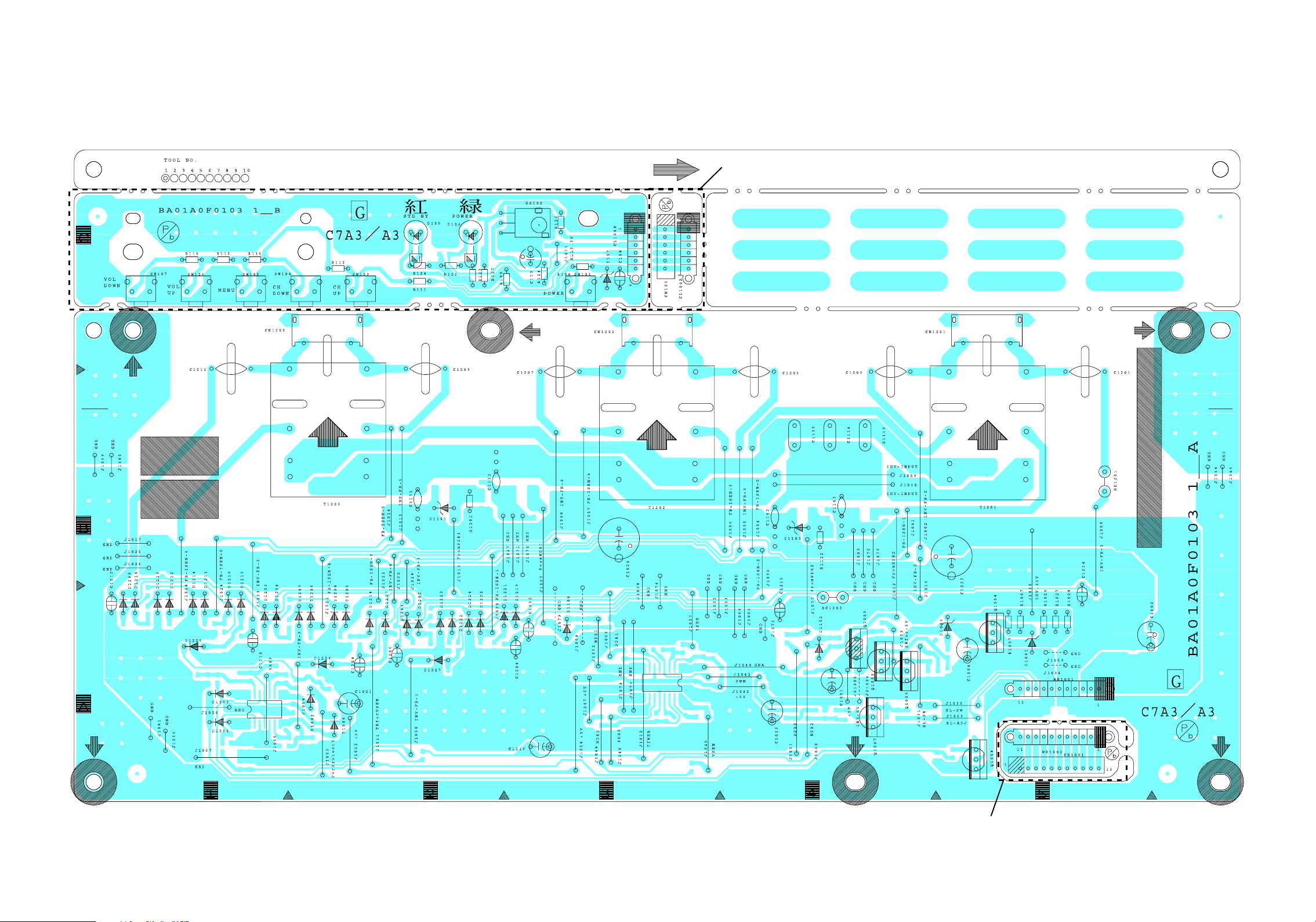

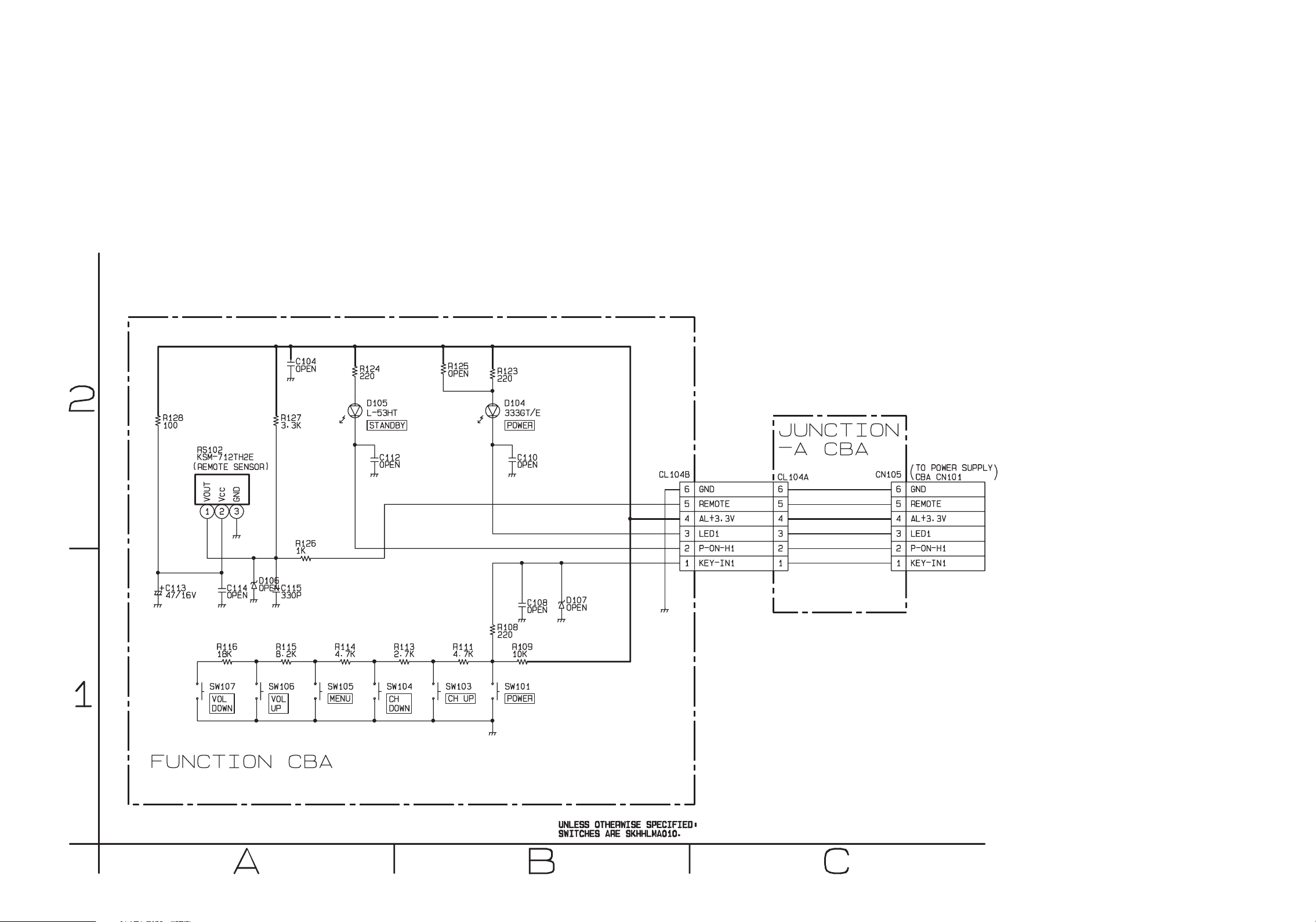

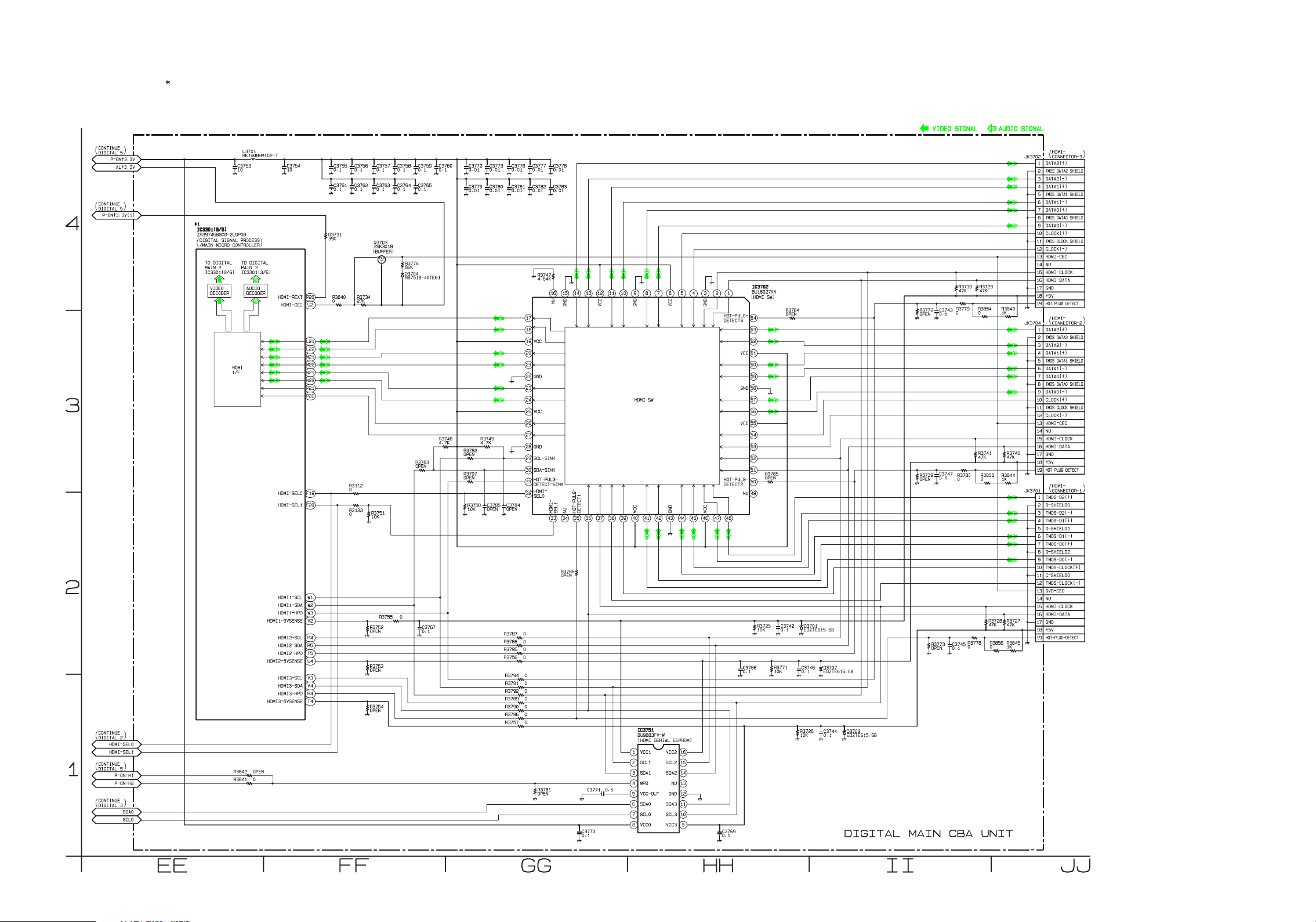

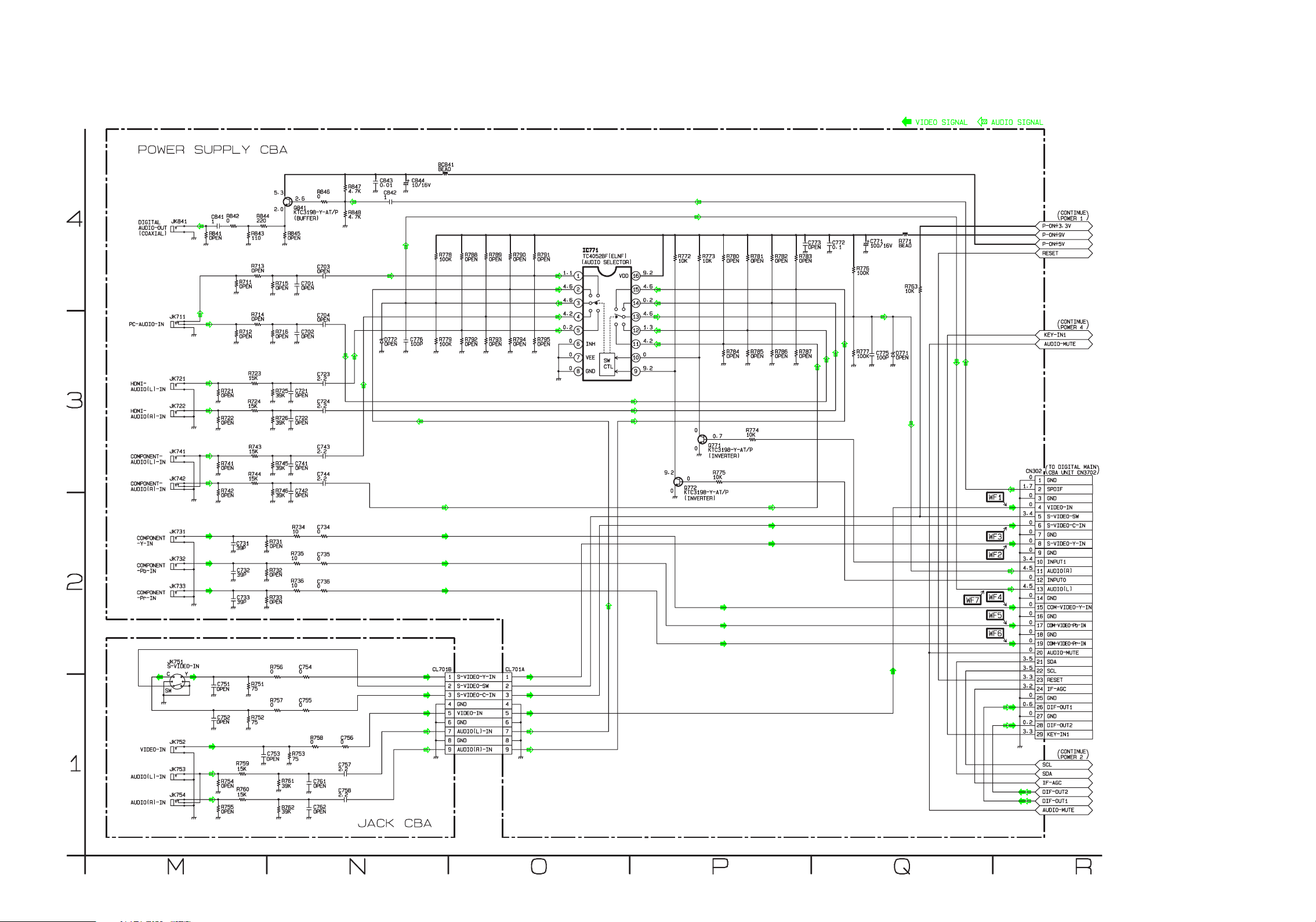

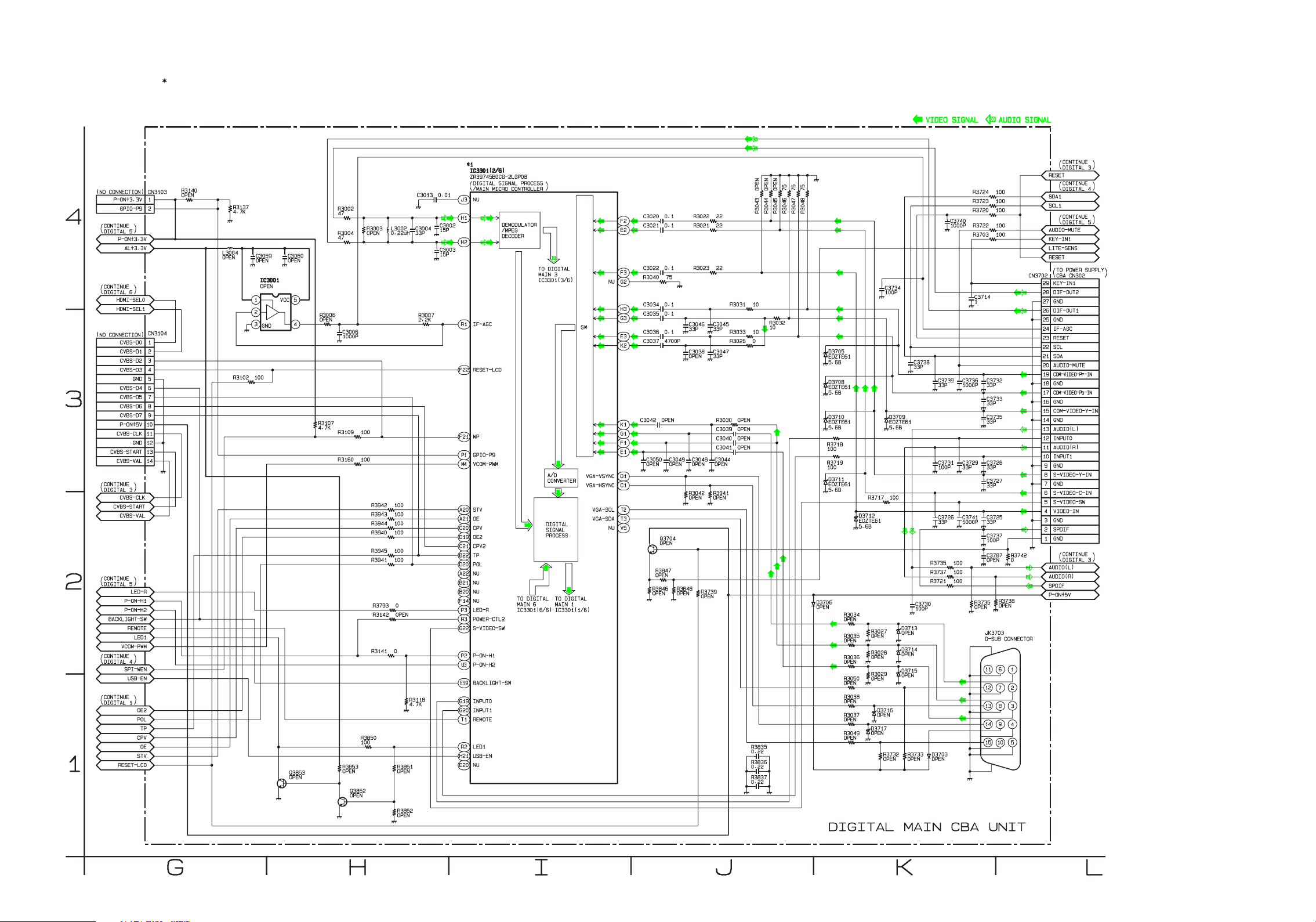

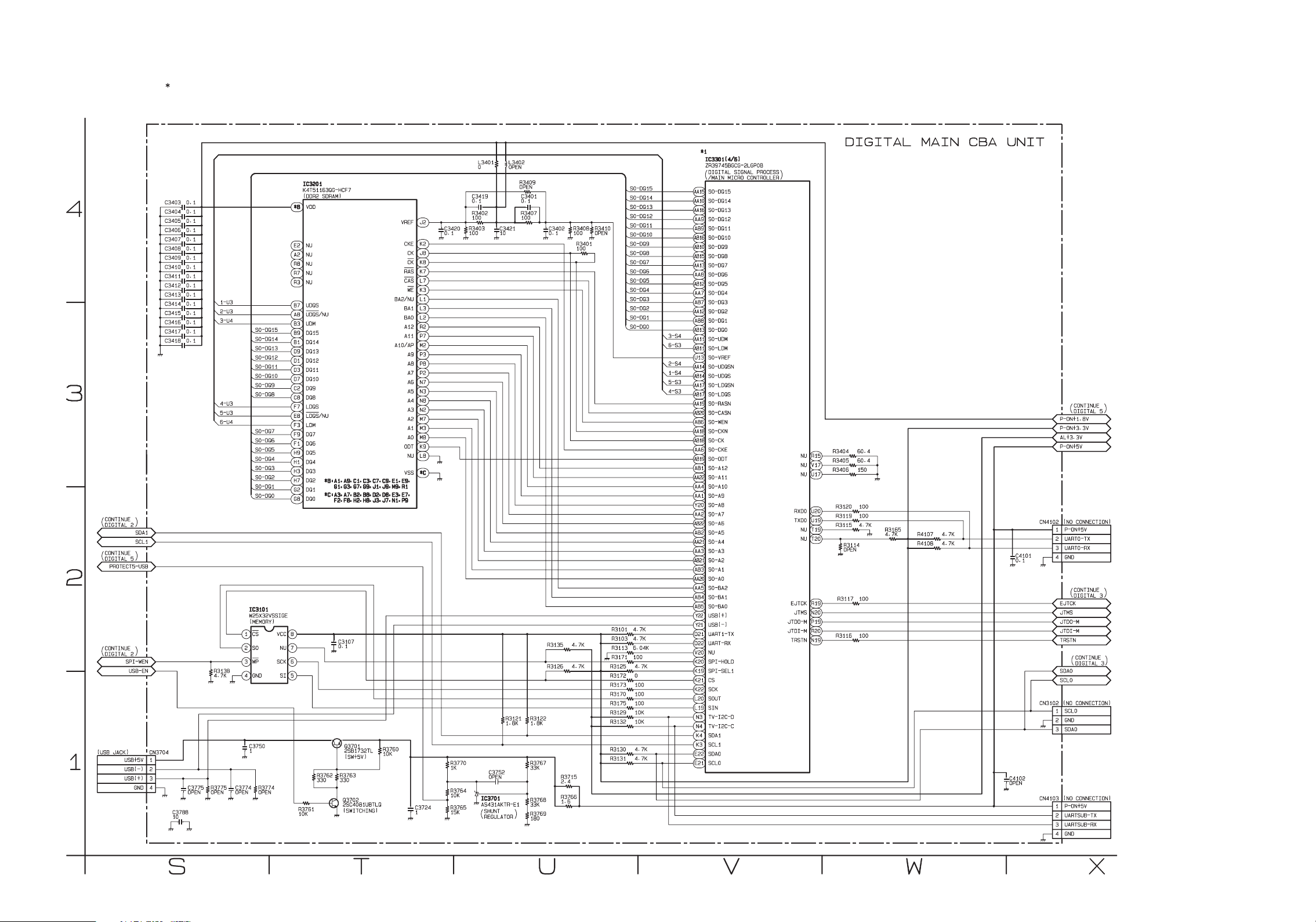

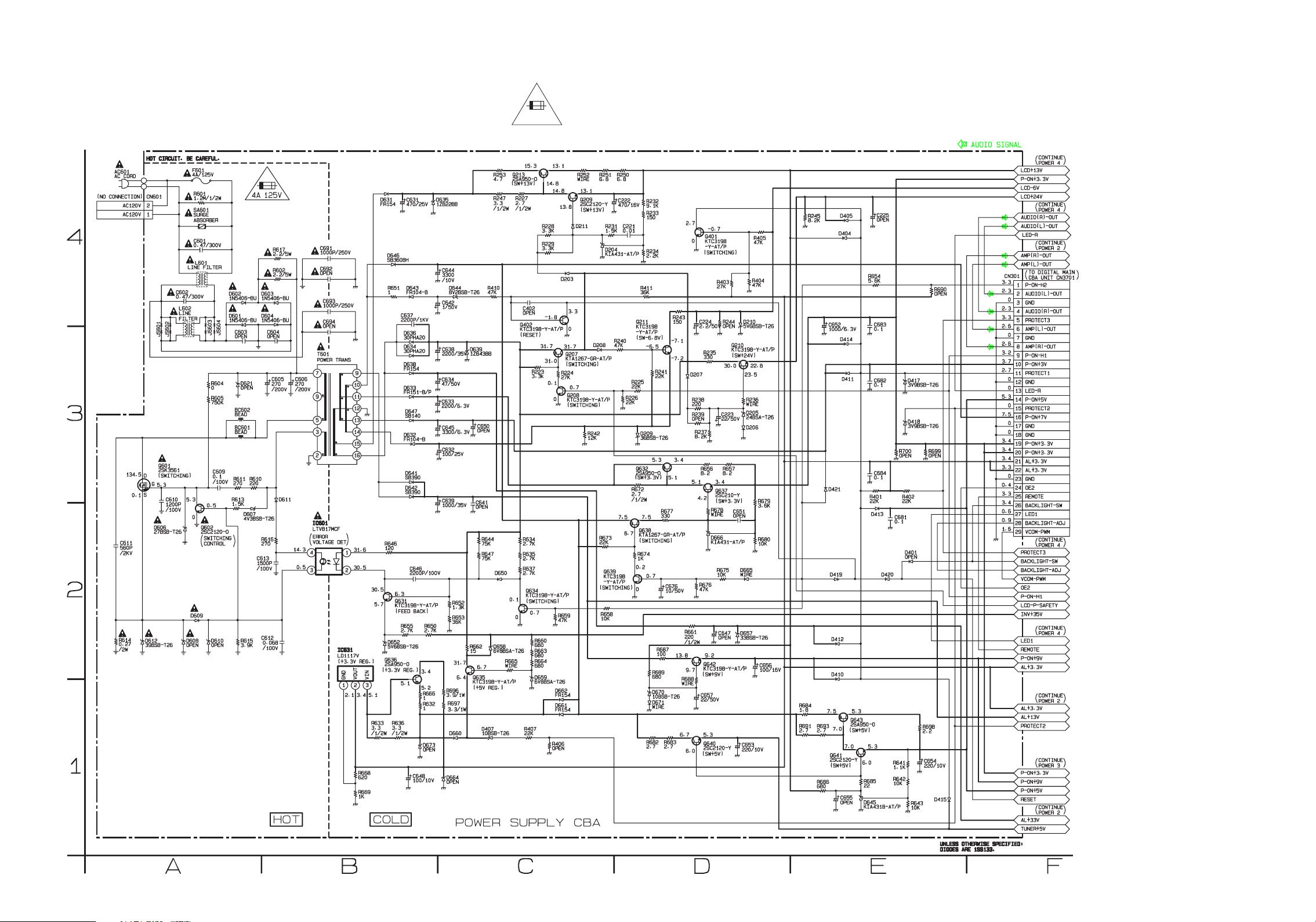

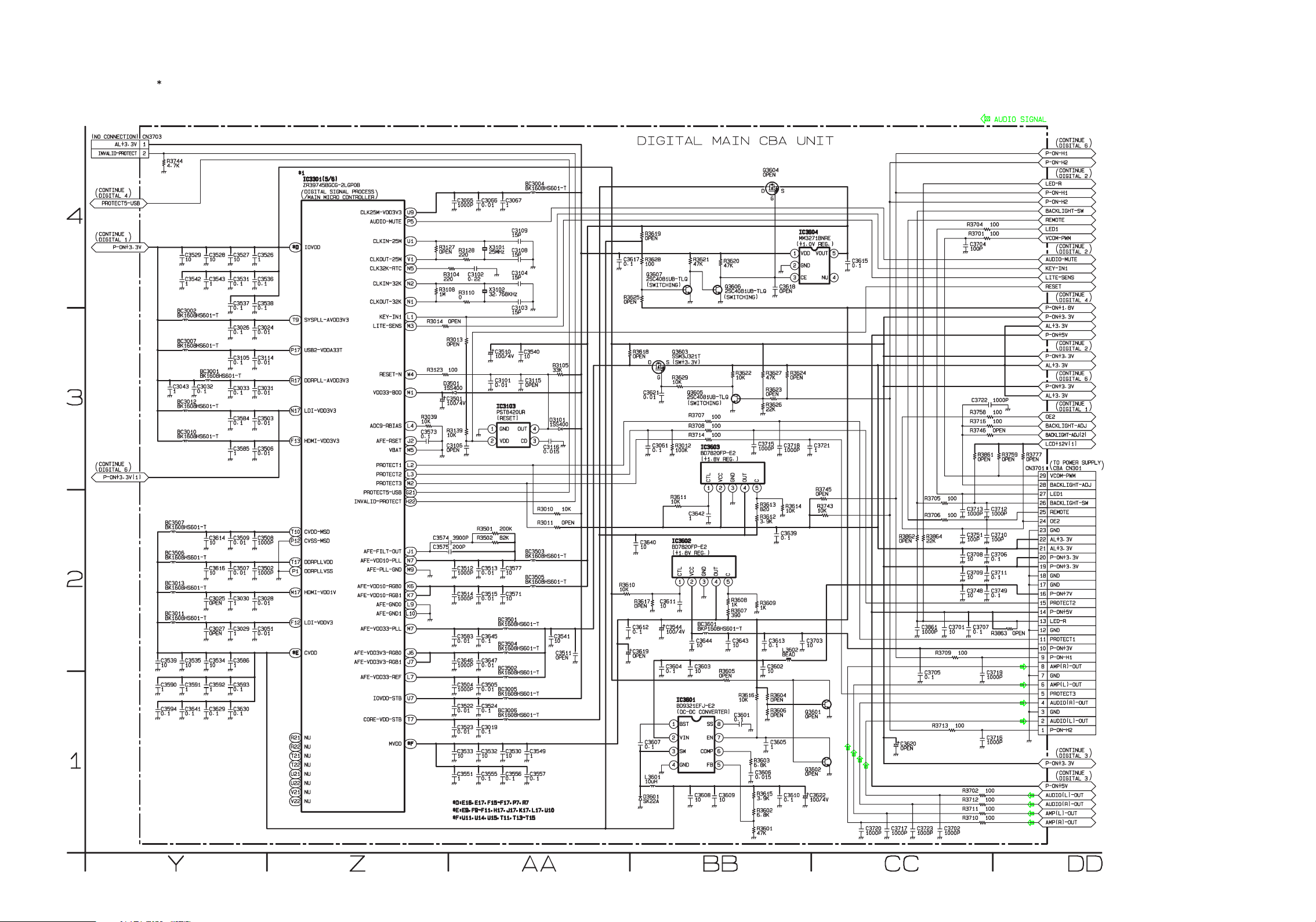

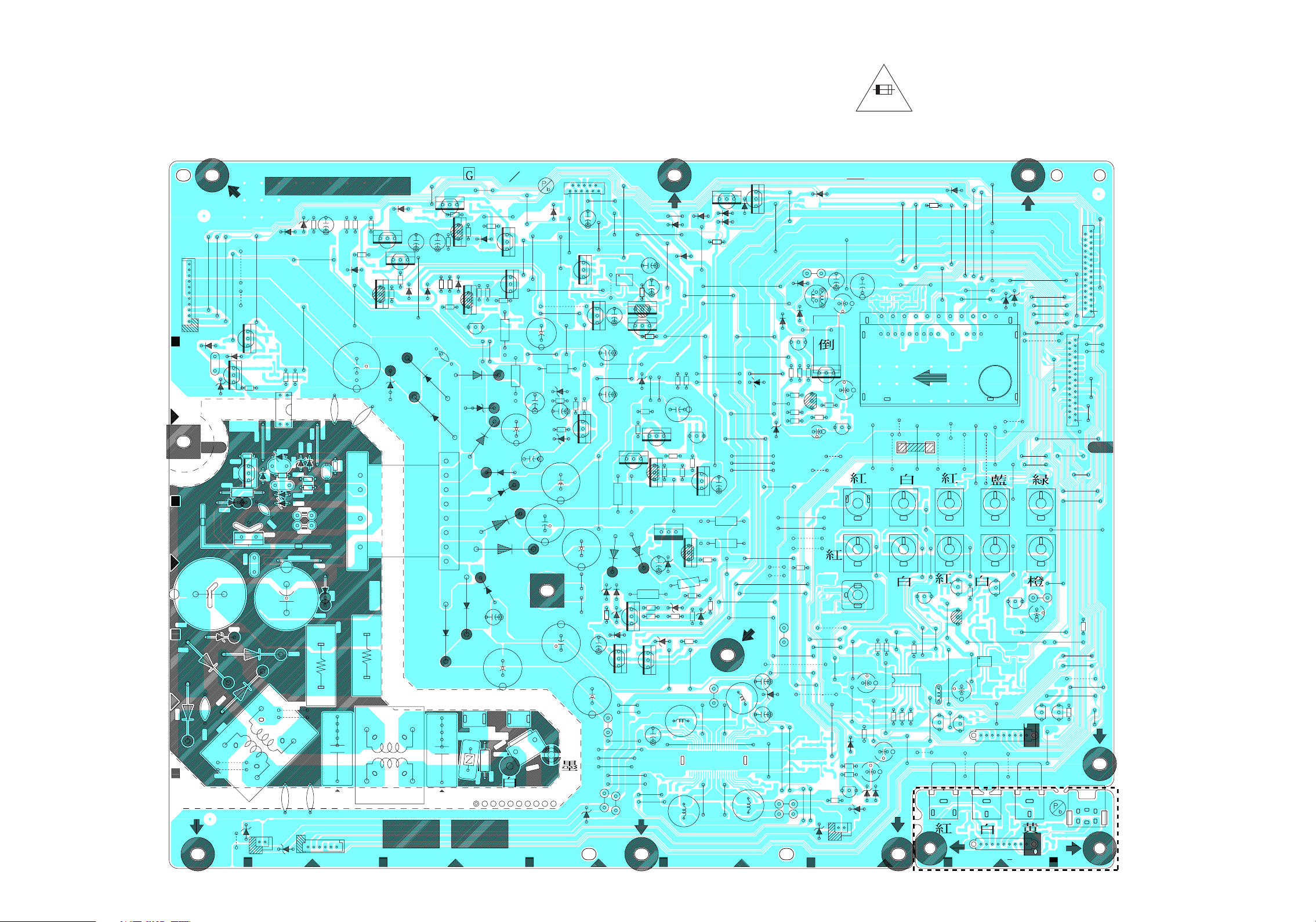

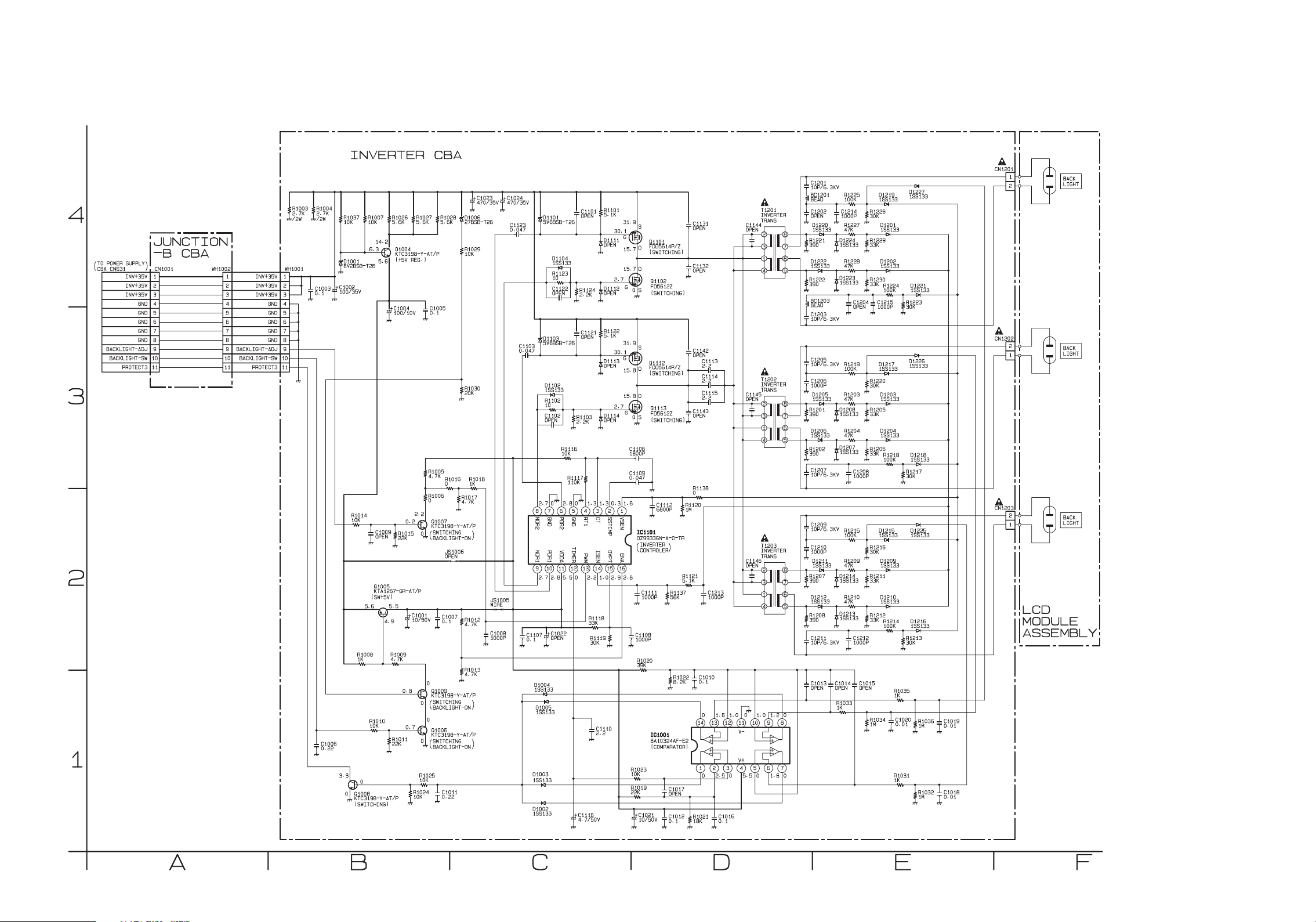

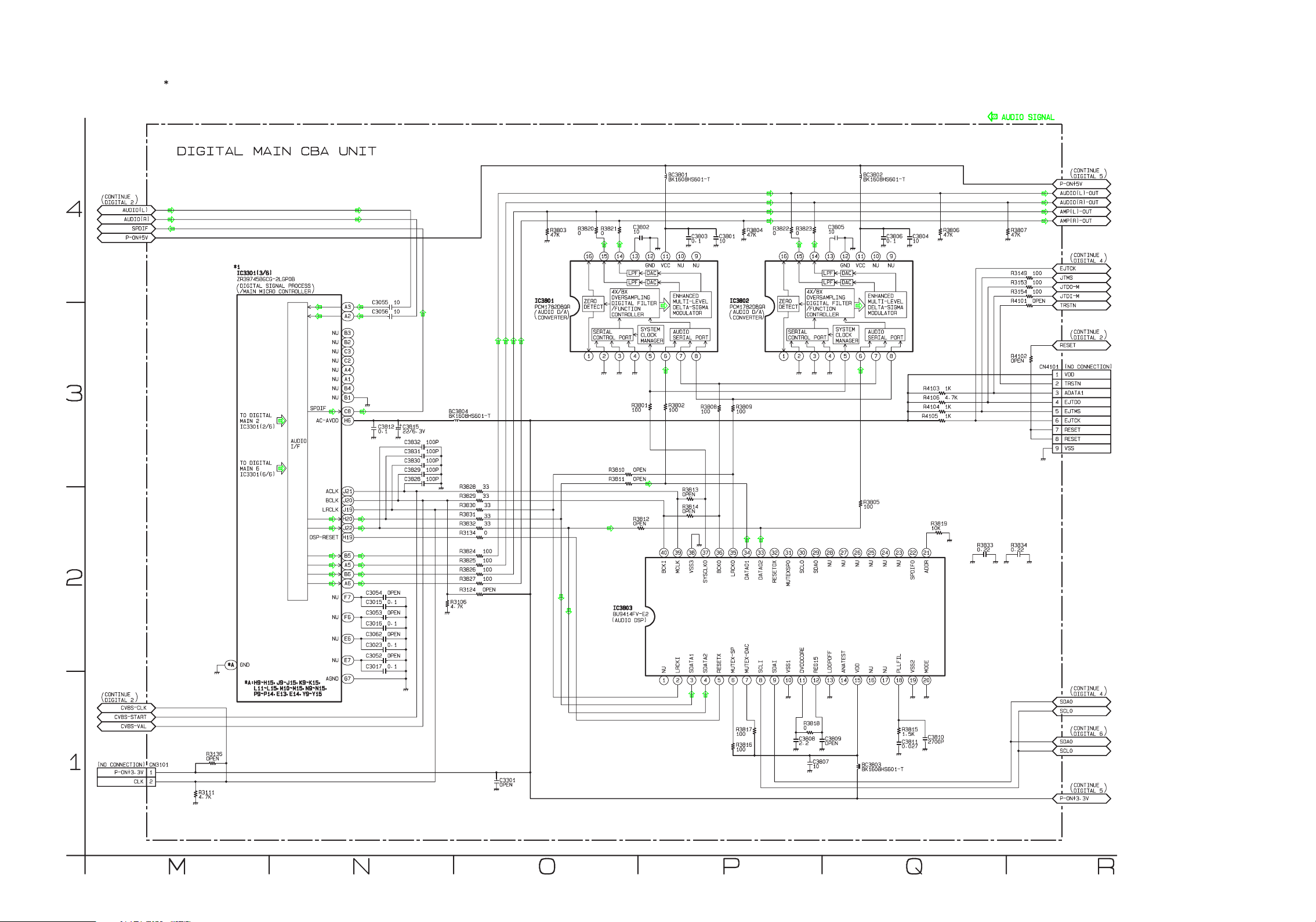

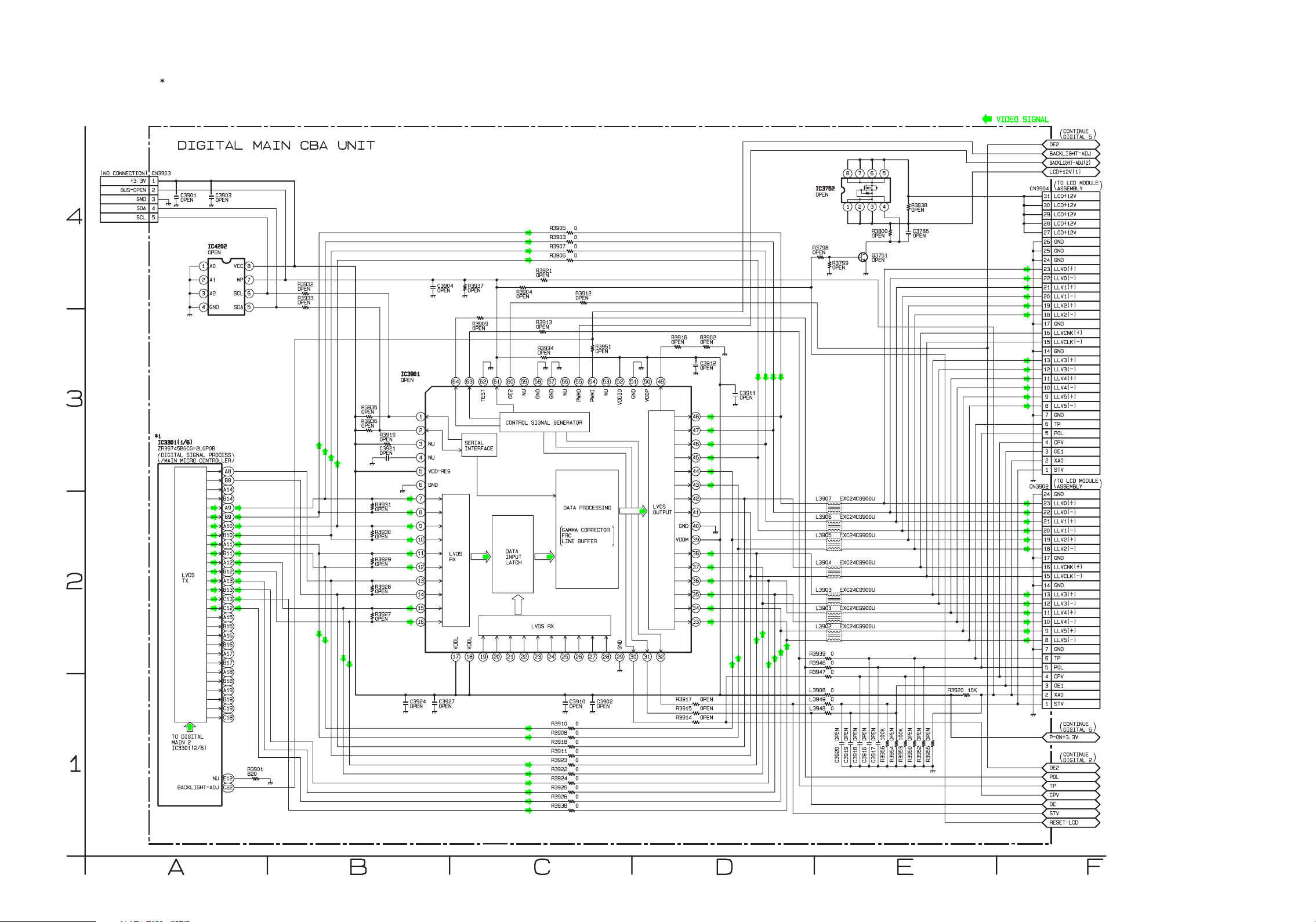

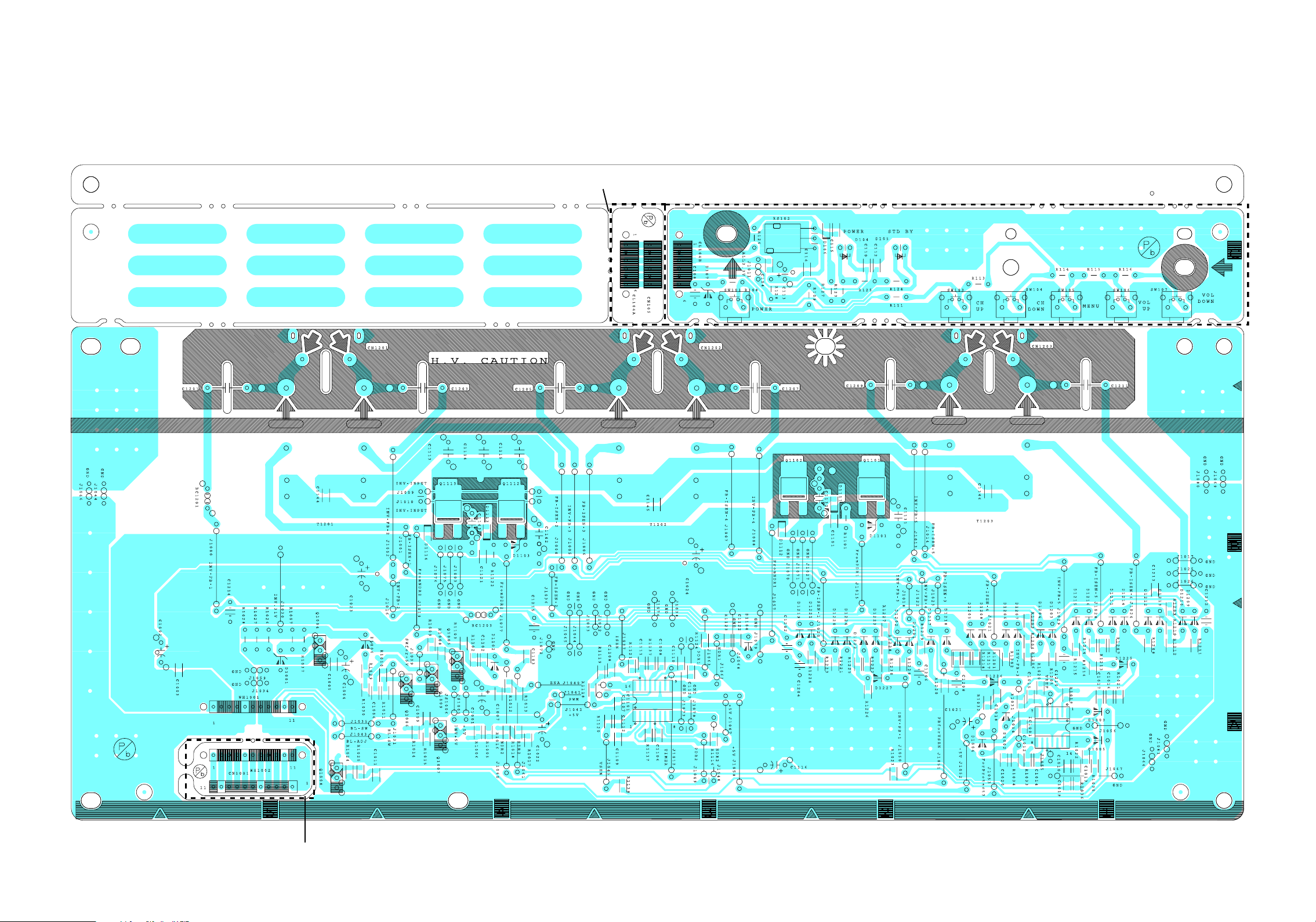

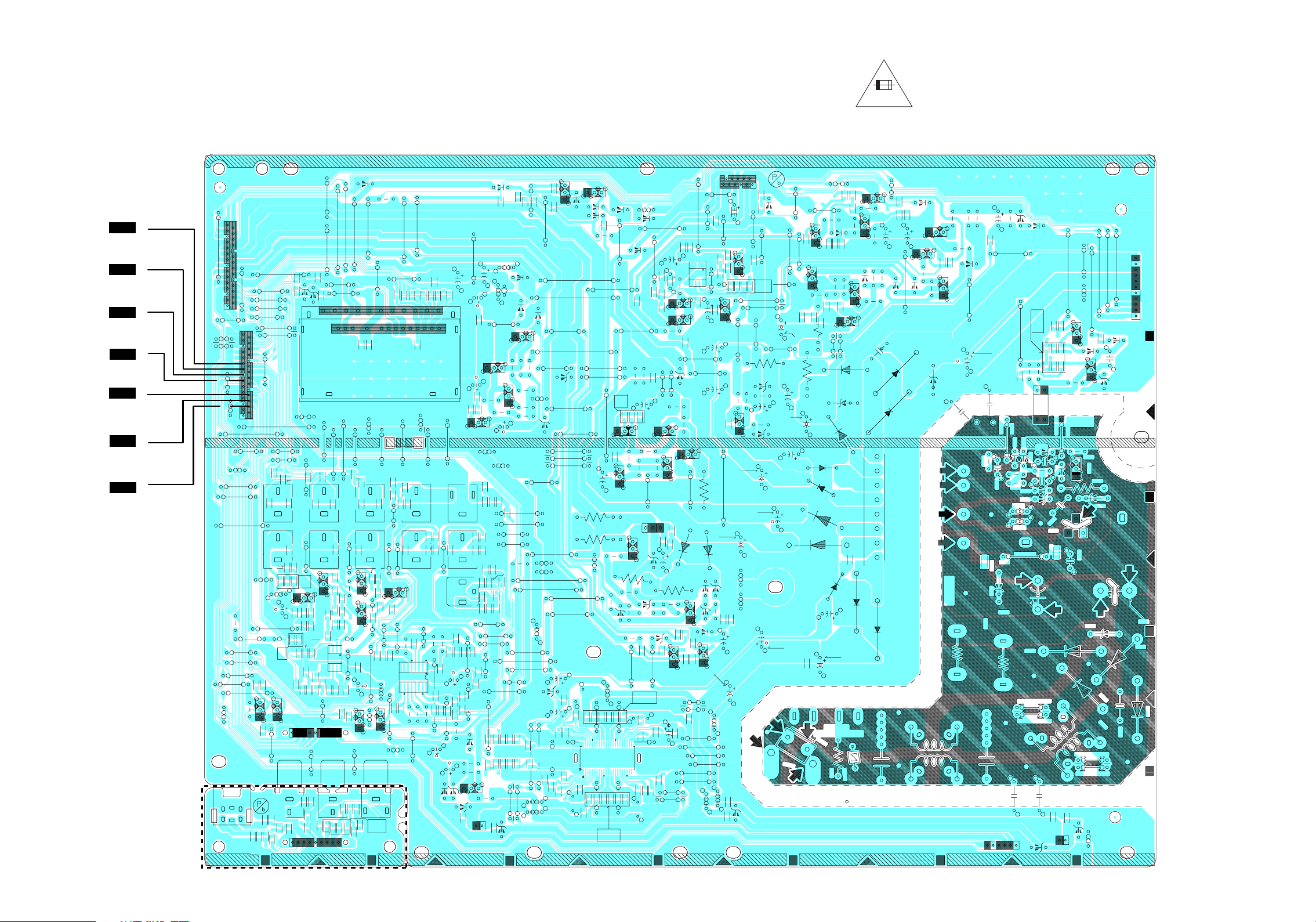

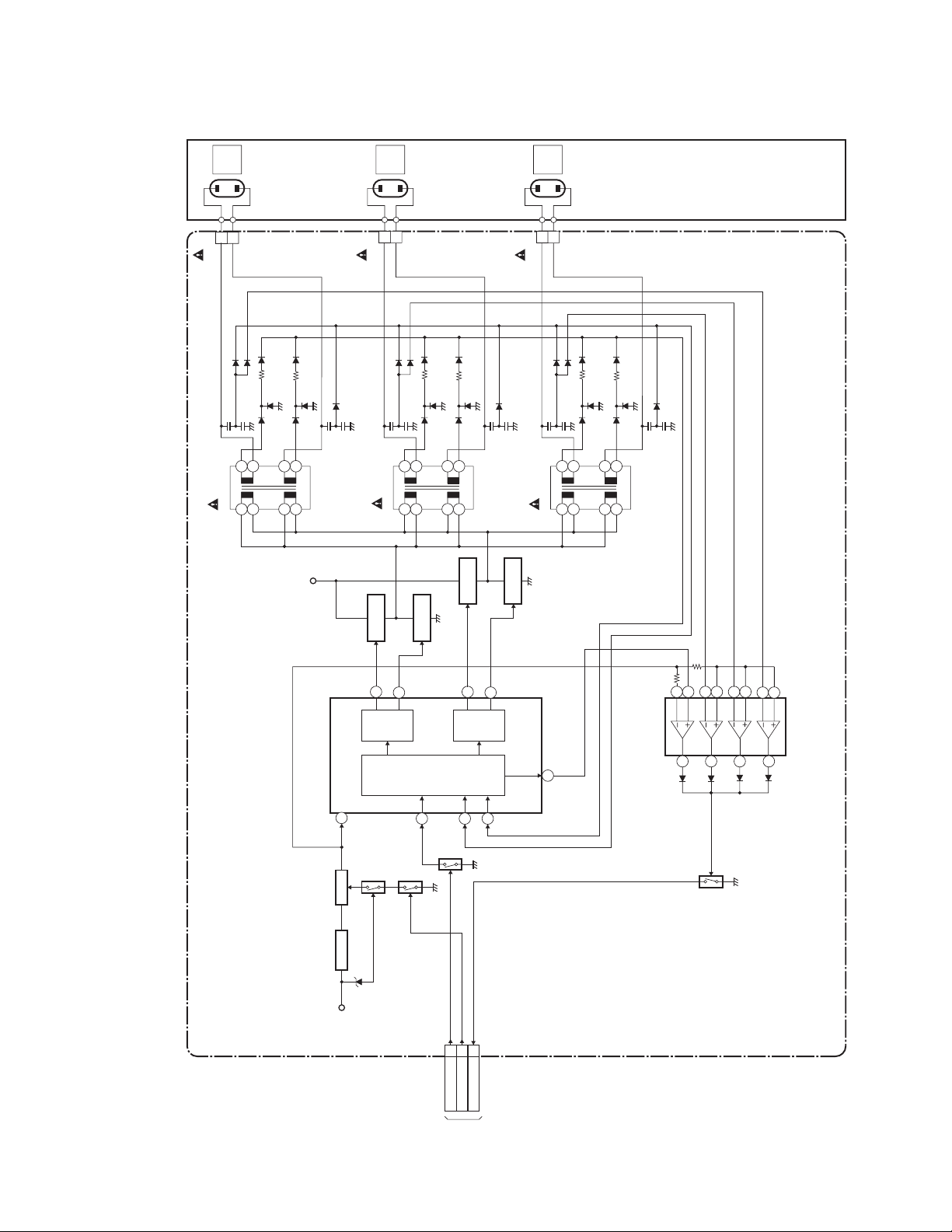

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

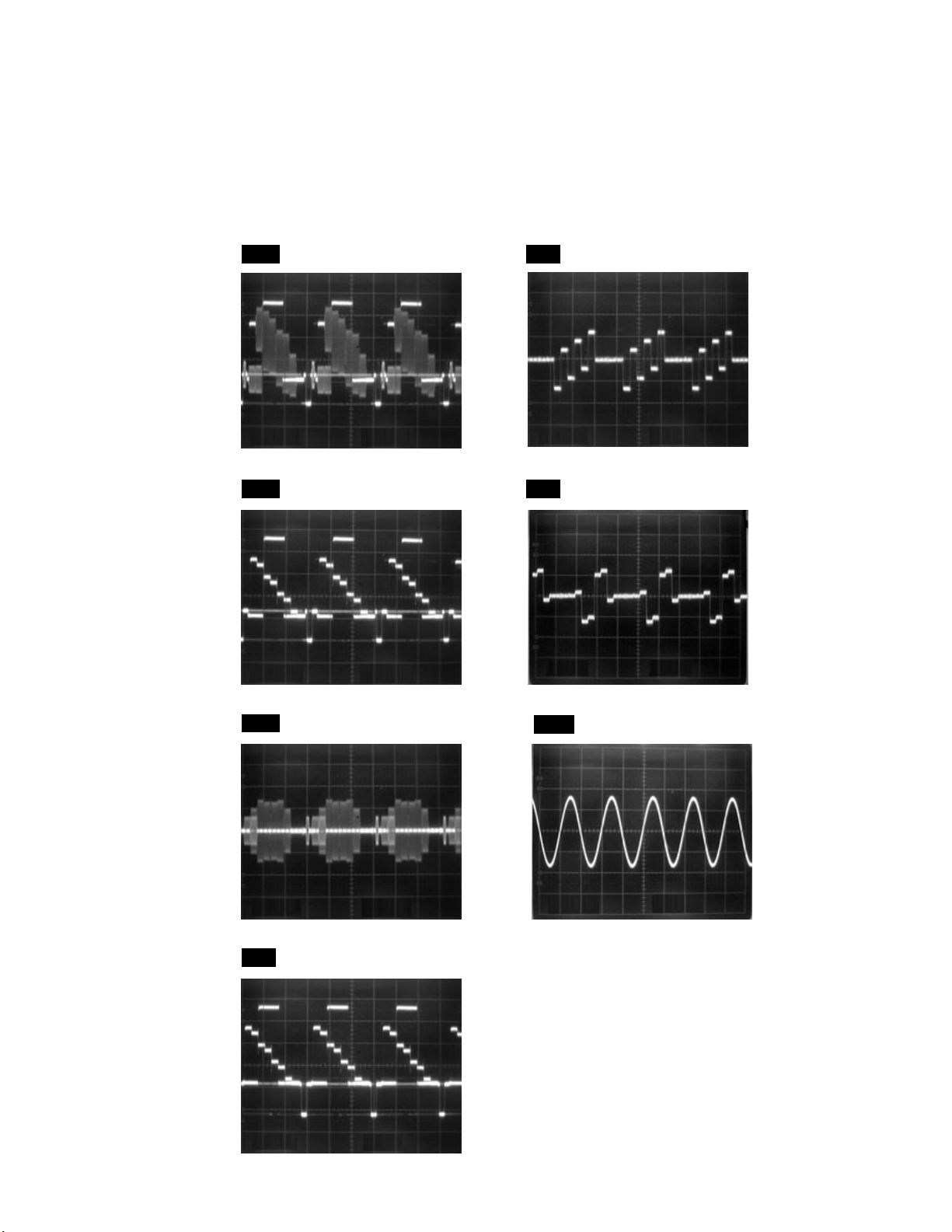

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

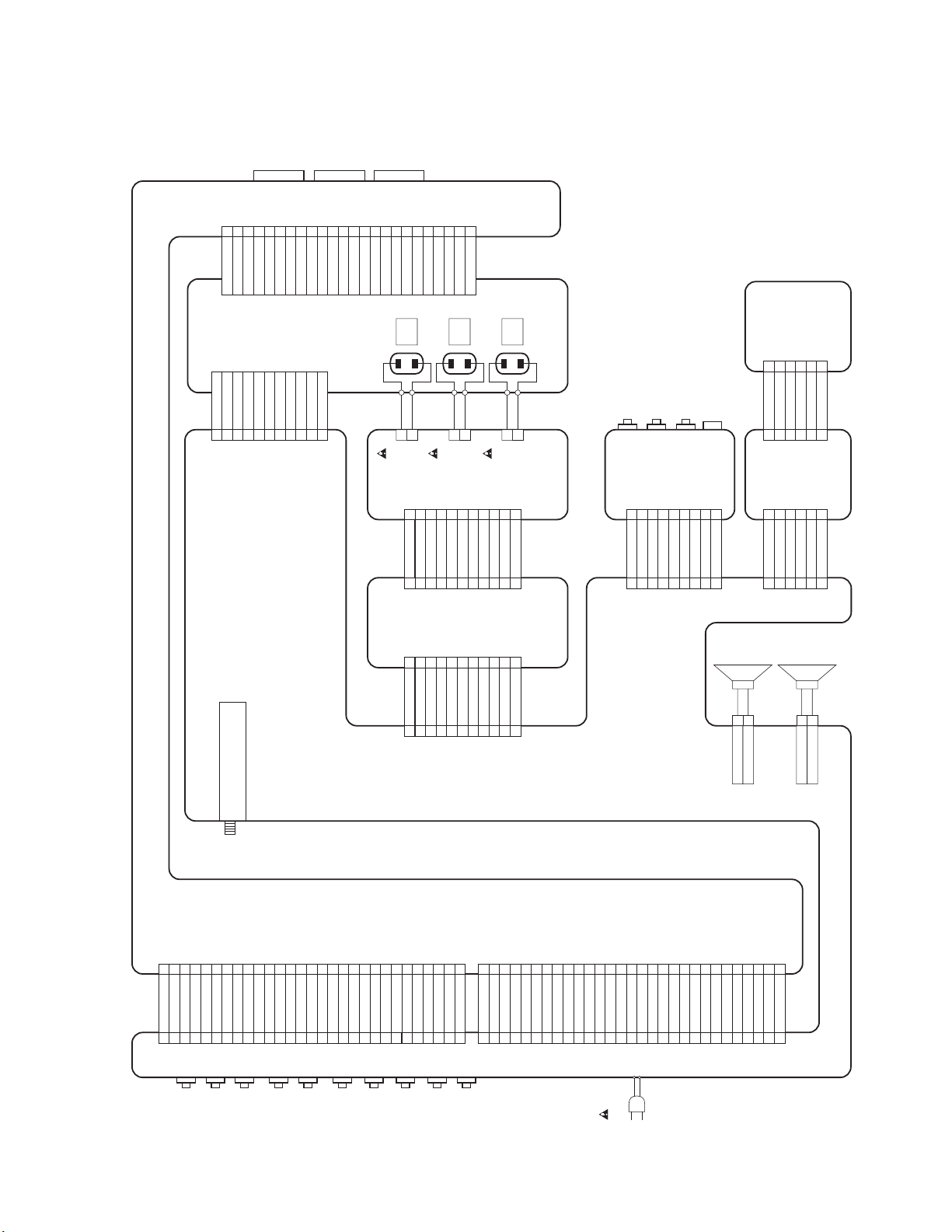

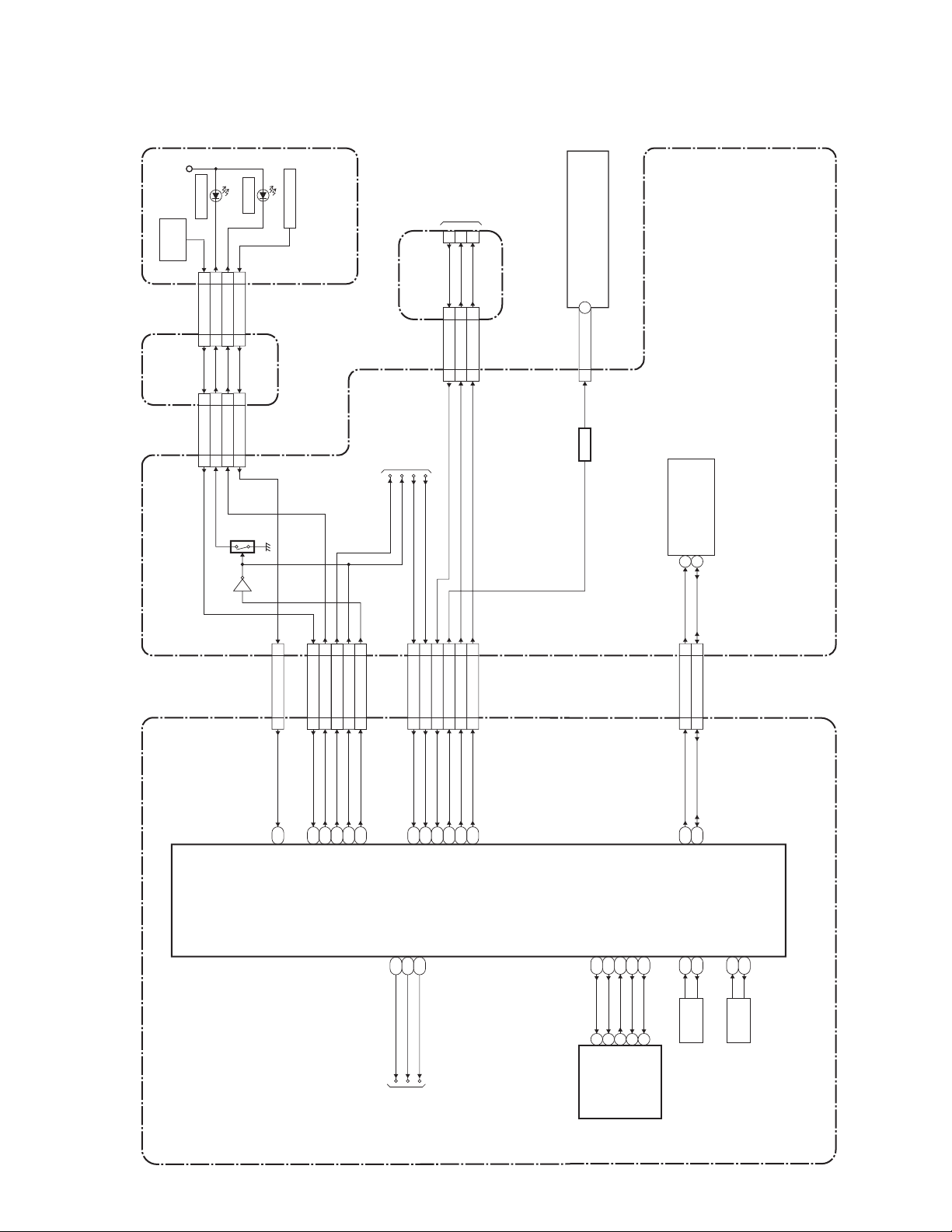

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

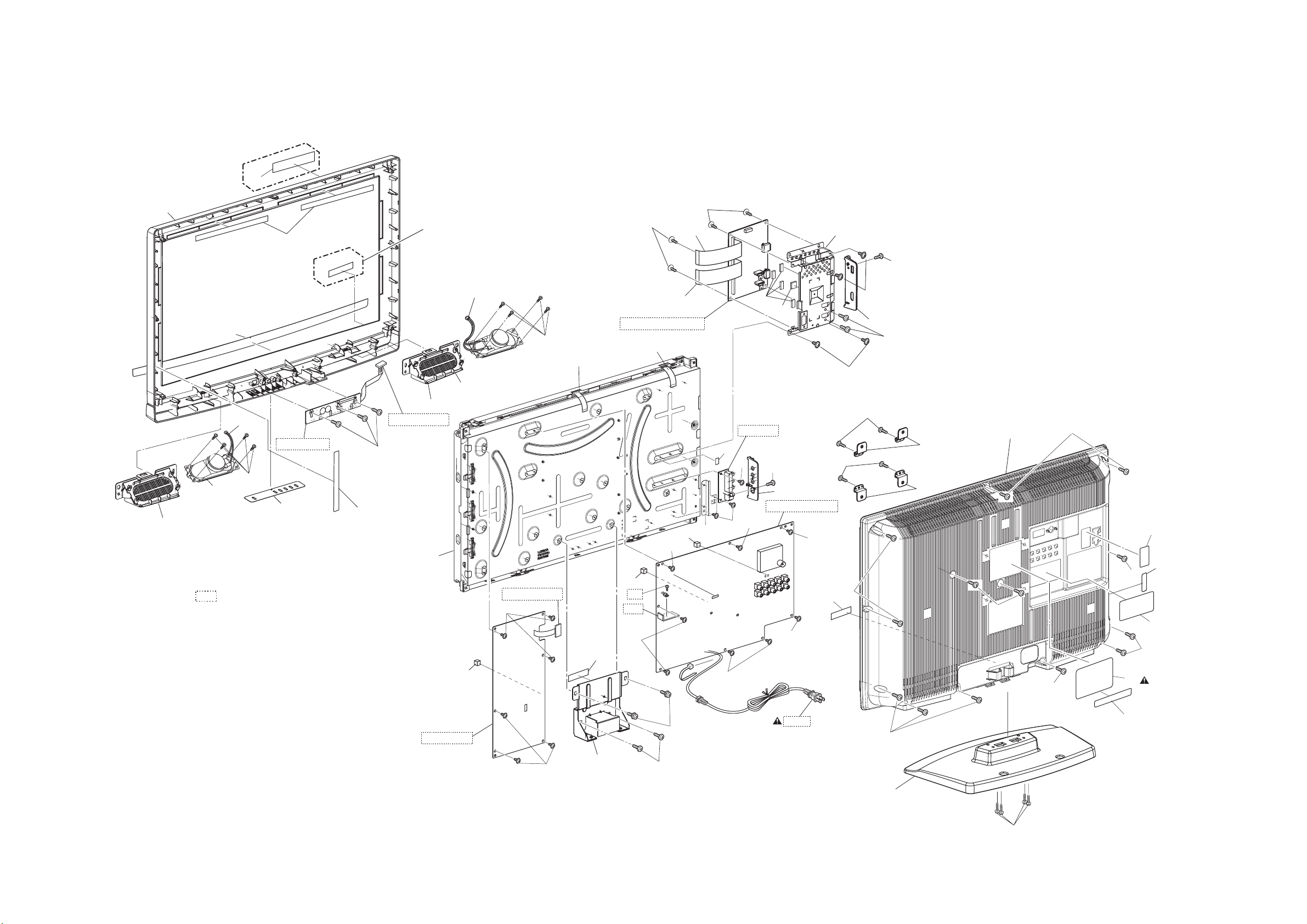

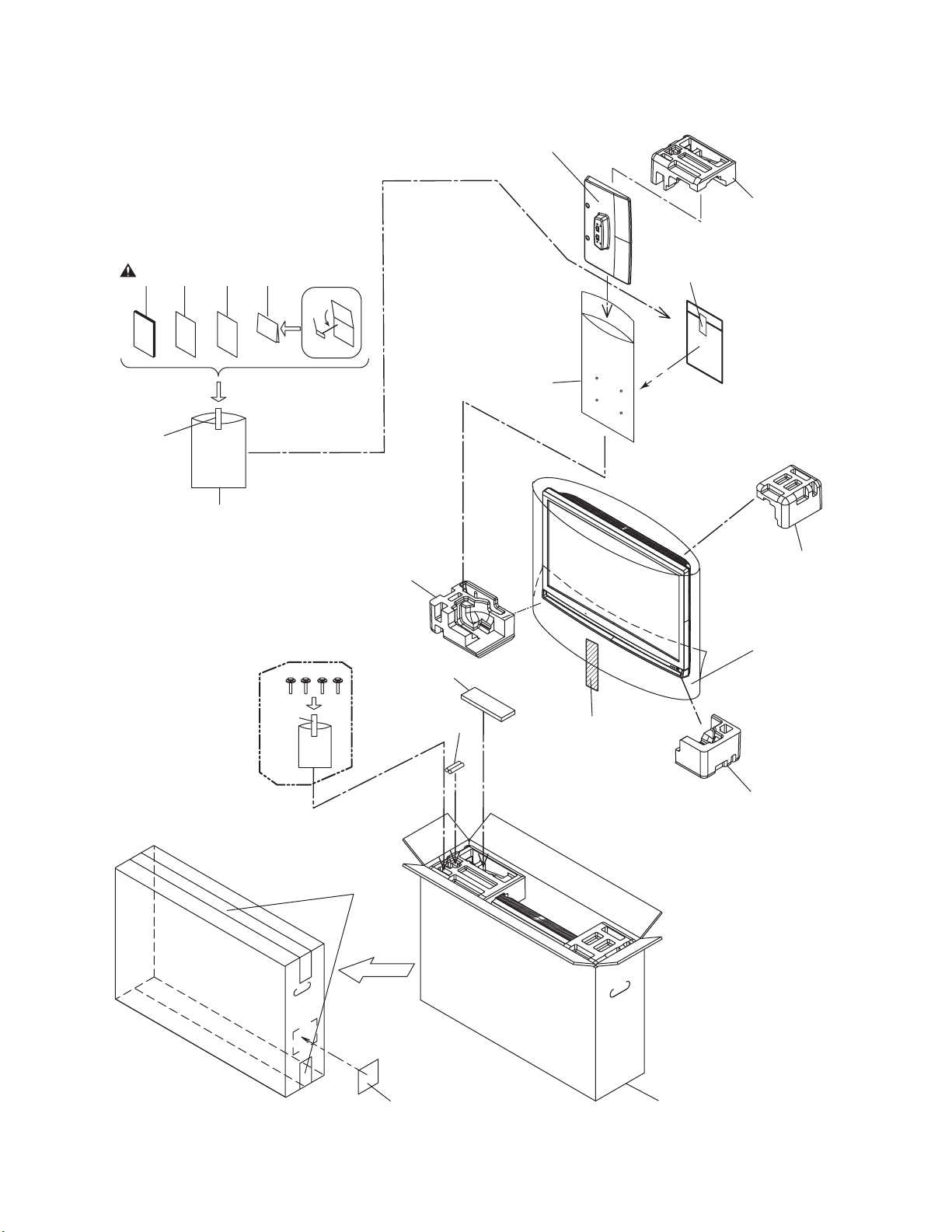

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Page 4

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1 18

18 18

2. Synchronizing Sens.

TV.ch.4 CA.ch.31 CA.ch.87

dBµ dBµ dBµ

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

2. ATSC Dynamic Range (min / max)

ch.4 ch.10 ch.41

dBm dBm dBm

---

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels pixels

° °

1366

768

310 ---

-85 to 85

20 20 23

-76/0

-76/+4

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K 12000

line line

5 5

0.272

0.278 400

350

5±5 5±5

--±3% ±3%

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output Vol. MAX (ATSC 0 dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W 10.0/10.0 9.0/9.0

6dB: Lch

6dB: Rch

Hz Hz

70 to 10 k 70 to 10 k

---

1-1 FL10.2SP

Page 5

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

EARTH GROUND

2-1 LTVN_ISP

Page 6

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Page 7

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Page 8

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

Page 9

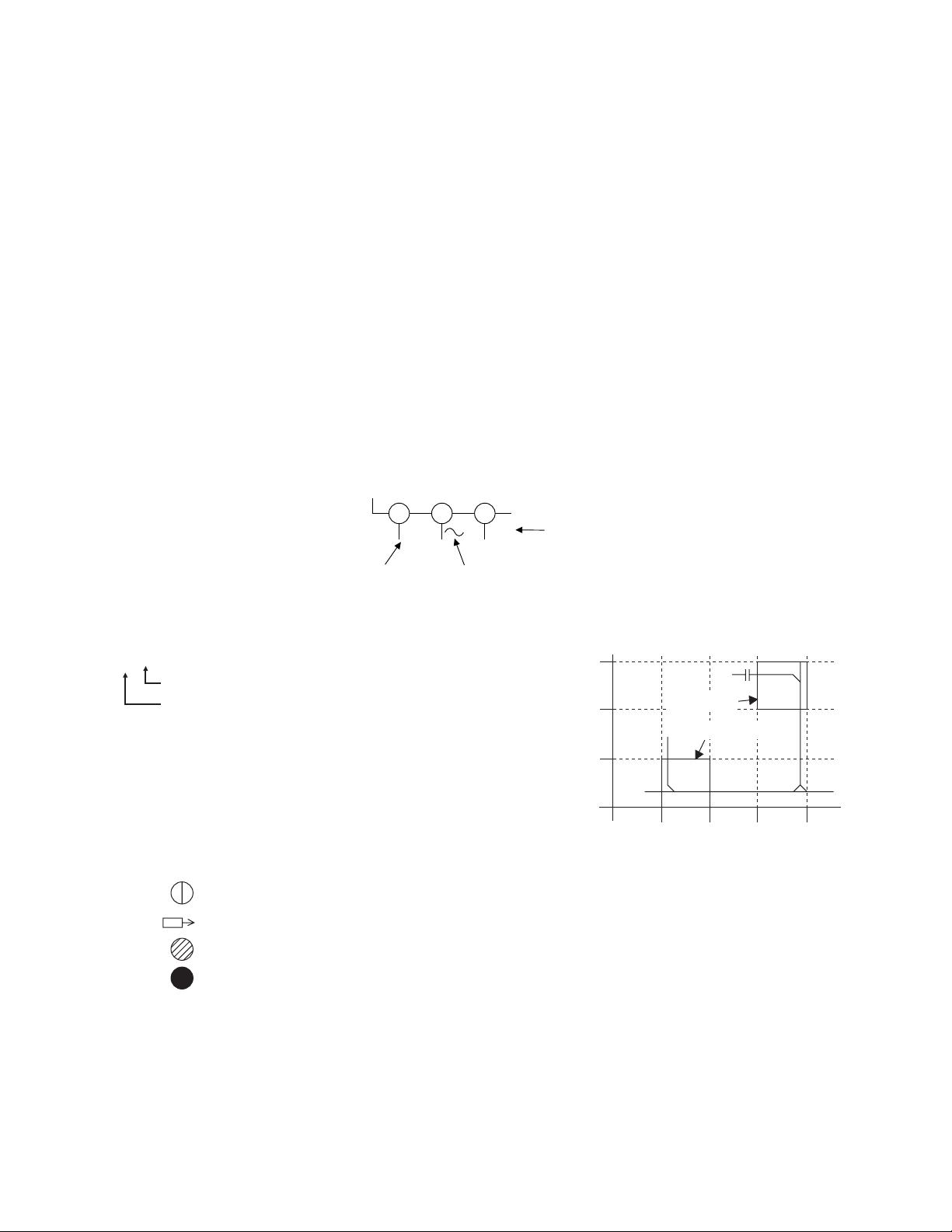

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

Page 10

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Ta pe

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

Page 11

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Page 12

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

Page 13

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[1] Stand

Assembly

[14] Junction-A CBA

[3] Jack Holder (D)

[4] Digital Main CBA Unit

[12] Speaker

[13] Speaker Holder

[2] Rear Cabinet

[7] Power Supply CBA

[8] Stand Holder

[11] LCD Module Assembly

[9] Junction-B CBA

[5] Jack Holder (A)

[6] Jack CBA

[10] Inverter CBA

[15] Function CBA

Removal

Step/

Loc.

No.

Part

Fig.

Remove/*Unhook/

Unlock/Release/

No.

Unplug/Unclamp/

Note

Desolder

Stand

[8]

[9]

[10]

Holder Junction-B

CBA Inverter

CBA

D2 2(S-12), 2(S-13) ---

Desolder ---

D3 D2D36(S-14), *CN1201,

*CN1202, *CN1203

LCD

[11]

Module

D2 --------------- ---

Assembly

[12] Speaker D2 8(S-15) ---

Speaker

[13]

[14]

[15]

Holder Junction-A

CBA Function

CBA

D2 --------------- ---

Desolder ---

D3 D2

3(S-16) ---

---

[16] Front Cabinet

2. Disassembly Method

Removal

Step/

Loc.

No.

Stand

[1]

Assembly Rear

[2]

Cabinet Jack

[3]

Holder(D)

Digital Main

[4]

CBA UnitD2D3

Jack

[5]

Holder(A)

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Desolder

D1 4(S-1) ---

D1 11(S-2), 2(S-3) ---

D2 (S-4) ---

4(S-5), 2(S-6), 4(S-7), *CN301, *CN302, *CN3902, Shield Box

D2 (S-8) ---

Note

---

Front

[16]

↓

(1)

Cabinet

↓

(2)

D2 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

[6] Jack CBA

Power

[7]

Supply CBA

D2D32(S-9), (S-10),

*CL701A, PCB Holder 8(S-11), *CN101,

*CN201, *CN801,

*CN802, *CN631

---

4-1 FL10.2DC

Page 14

(S-2)

(S-3)

(S-2)

[2] Rear Cabinet

[1] Stand Assembly

(S-2)

(S-1)

(S-2)

(S-3)

Fig. D1

4-2 FL10.2DC

Page 15

[16] Front Cabinet

[4] Digital Main CBA Unit

[15] Function CBA

[14] Junction-A CBA

(S-7)

[3] Jack Holder(D)

(S-5)

Shield Box

(S-5)

(S-6)

(S-5)

(S-4)

(S-15)

[12] Speaker

[13] Speaker Holder

[10] Inverter CBA

(S-16)

[13] Speaker Holder

[11] LCD Module Assembly

(S-14)

[9] Junction-B CBA

(S-14)

(S-15)

[12] Speaker

[8] Stand Holder

(S-11)

(S-12)

(S-13)

[6] Jack CBA

[5] Jack

(S-10)

PCB Holder

(S-11)

Holder(A)

(S-8)

(S-9)

(S-11)

[7] Power Supply CBA

Fig. D2

4-3 FL10.2DC

Page 16

TV Cable Wiring Diagram

To LCD Module Assembly

WH1002

Junction-B CBA

CN1201

CN1202

CN1203

Inverter CBA

CN1001

WH1001

Power Supply CBA

CN201

CN631

CN802

To Speaker To Speaker

Junction-A CBA

CN101

CN105 CL104A

CL104B

CN801

CN301

CN302

CL701A

CL701B

Jack CBA

To LCD Module Assembly

Digital Main CBA Unit

CN3902

CN3701

CN3702

Function CBA

Fig. D3

4-4 FL10.2DC

Page 17

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Current Software Info”.

5. Press [0], [4], [2], [5], [7], [4] and [INFO] buttons on the remote control unit in this order. The following screen appears.

"*" differs depending on the models.

Code :

******-***-*-***-****

Pic code :

**-*******-***-*-***

MIPS :

Push 0 key

Press "POWER" key to exit.

Tuner :

Safety : HDMI EDIT :

****-*****-**** safety_Non OK

5-1 FL10.2EA

Page 18

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the remote control unit, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[CH X/Y ]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambinent light, this adjustment should be performed in a dark room.

Perpendicularity

L = 3 cm

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Set the color analyzer and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [3] button on the remote control unit.

5. Press [CH X/Y] buttons on the remote control unit so that the color analyzer value becomes minimum.

6. To cancel or to exit from the VCOM Adjustment, press [PREV CH] button.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode, press [PREV CH] button.

5-2 FL10.2EA

Page 19

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point

Screen

Adj. Point Mode Input

[VOL Y]

button

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

(APL 40%)

5. [CUTOFF] Press [1] button to select “COR” for Red Cutoff adjustment. Press [3] button to select “COB” for Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive adjustment. Press [6] button to select “DB” for Blue Drive adjustment.

6. In each color mode, press [CH X/Y] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 12000°K (x

0.272 / y

0.278 ±0.005).

8. To cancel or to exit from the White Balance Adjustment, press [PREV CH] button.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005 y= 0.278 ± 0.005

Figure

To avoid interference from ambinent light, this adjustment should be performed in a dark room.

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 40%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

INPUT SIGNAL

0IRE 0IRE

Low

Hight

Light

100IRE

40%=40IRE

70%=70IRE

100IRE

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOL Y] button on the remote control unit and select “C/D” mode.

5-3 FL10.2EA

Page 20

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to select a language and program channels after the set has been initialized. To put the program back at the factory-default, initialize the LCD TV using the following procedure.

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [ ] button on

the remote control unit.

3. Press [INFO] button on the remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

6-1 FL10.2INT

Page 21

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device b. Remote Control Unit

Firmware Update Procedure

Note: There are two states (the User Upgrade and

the Factory Upgrade) in firmware update.

User Upgrade Upgrade the firmware only.

The setting values are not initialized.

Factory upgrade Upgrade the firmware and

initialize the setting values.

The identification of User Upgrade and Factory Upgrade are done by the filename.

1. Turn the power off and unplug the AC Cord.

2. Insert the USB storage device to the USB port as shown below.

USB port

USB storage device

Rear Cabinet

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from the USB storage device.

Writing the downloaded firmware in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the following will appear on the screen.

Software Upgrade

The software upgrade is completed. Remove USB storage device, turn TV off then on again.

Remove the USB storage device from the USB port. Turn the power off and turn the power on again.

Note:

When the Factory Upgrade is used, after restarting TV, shift to initial screen menu in service mode. "INITIALIZED" will appear on the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

3. Plug the AC cord in the wall outlet and turn the power on.

4. The update will start and the following will appear on the screen.

"*" differs depending on the models.

Software Upgrade

Software upgrade in progress. Please wait. Do not remove the USB storage device or turn the TV off while upgrade is in progress.

Current Version:

New Version:

Downloading...

*******-***-*-***-**** *******-***-*-***-****

Note: If the above screen isn’t displayed, repeat from

step 1.

7-1 FL10.2FW

Page 22

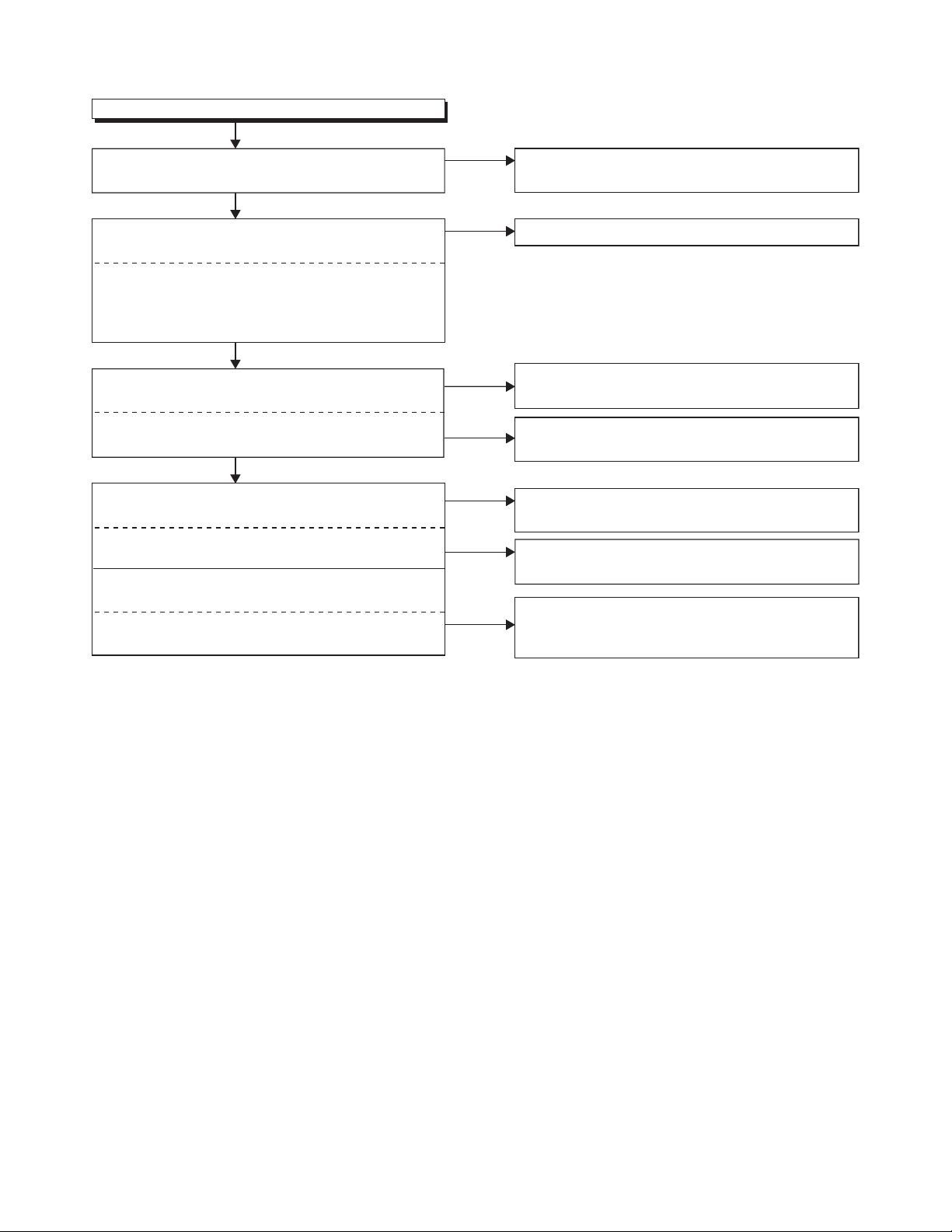

TROUBLESHOOTING

[ Power Supply Section ]

FLOW CHART NO.1

The power cannot be turned on.

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power cord is plugged again several seconds?

Ye s

Is the INV+35V line voltage normal?

Ye s

Check each rectifying circuit of the secondary circuit and service it if defective.

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if de

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

fective.

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (C605, C606, D601, D602, D603, D604, Q601, Q602, T601)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

Does the photocoupler circuit on operate normally?

Check IC601, D circuit and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit and service it if defec D631, D632, D633, D634, D636, D638, D641, D642, D646, D647)

FLOW CHART NO.5

INV+35V is not output.

Is approximately +32V voltage supplied to the cathode of D636?

Check if there is circuit, and service it if def

609, D611 and their periphery,

tive. (IC631, Q209, Q210, Q211, Q213, Q635, Q636, Q637, Q640, Q641, Q

any leak or short-circuit onthe loaded

the secondar

Ye s

ective.

y side

Check IC601, D652, Q631 and their periphery circuit, and service it if defective.

in each rec

Check C638, D634, D636, D639 and their periphery circuit, and service it if defective.

tifying circuit of the secondary side,

642, Q643,

8-1 FL10.2TR

Page 23

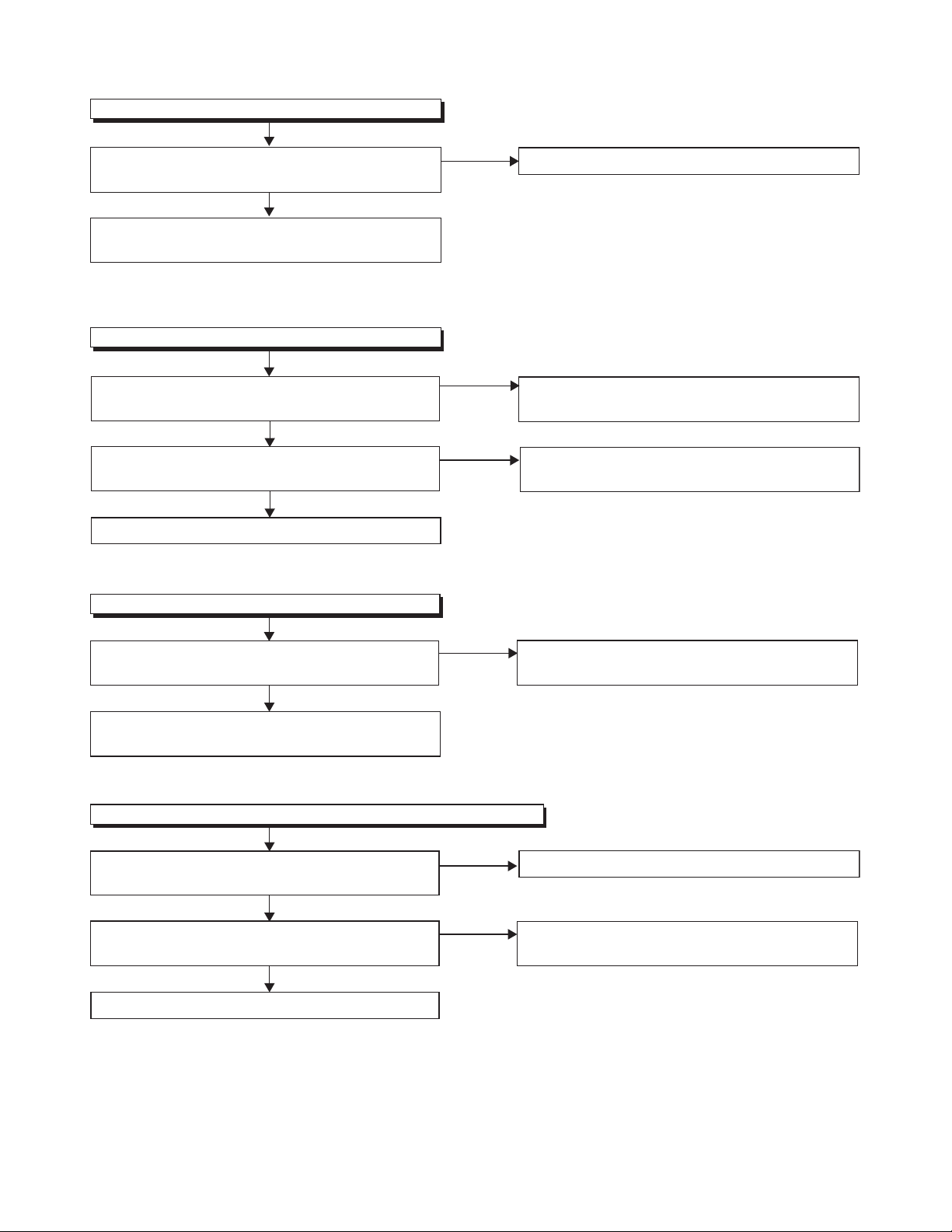

FLOW CHART NO.6

LCD+24V is not output.

Is approximately +30V voltage supplied to the collector of Q210?

Ye s

Check Q207, Q208, D205, P-ON-H1 line and their peripher

FLOW CHART NO.7

LCD+13V is not output.

Is approximately collector of Q209?

Is approximately +14V voltage supp base of Q209?

Replace Q209.

FLOW CHART NO.8

P-ON+7V is not output.

y circuit, and service it if defec

+15V voltage supp

Ye s

tive.

lied to the

See FLOW CHART No.5 <INV+35V is not output.>

Check C631, D and service it if de

Check Q207, Q208, D203, D204, D211 and their periphery circuit, and ser

631, D635 and their periphery circuit,

fective.

vice it if defective.

Is approximately +7V voltage supp collector of D646?

Check if there is the loaded circuit, and ser

FLOW CHART NO.9

P-ON+5V is not output. (LCD+13V is outputted normally.)

Is approximately + collector of Q641?

Is approximately + base of Q641?

Replace Q641.

any leak or short-circuit on

vice it if defective.

7V voltage supplied to the

6V voltage supplied to the

lied to the

Ye s

Check C644, D646 and their periphery circuit, and service it if defec

See FLOW CHAR

Check D645 and it if defective.

tive.

T No.8 <P-ON+7V is not output.>

their periphery circuit, and service

8-2 FL10.2TR

Page 24

FLOW CHART NO.10

TUNER+5V is not output. (LCD+13V is outputted normally.)

Is approximately +6.7V voltage supplied to the collector of Q640?

Ye s

Is approximately +6V voltage supplied to the base of Q640?

Ye s

Replace Q640.

FLOW CHART NO.11

AL+13V is not output.

Is approximately +13V voltage supplied to the cathode of D641 and D642?

Ye s

Check if there is the loaded circuit, and ser

FLOW CHART NO.12

P-ON+3V is not output.

any leak or short-circuit on

vice it if defective.

See FLOW CHART No.8 <P-ON+7V is not output.>

Check D645 and their periphery circuit, and service it if defective.

Check C639, D641, D642 and their per and service it if defec

tive.

iphery circuit,

Is approximately +3V voltage supplied to the cathode of D647?

Ye s

Check if there is the loaded circuit, and ser

FLOW CHART NO.13

P-ON+3.3V is not output.

Is approximately +5V voltage supp cathode of D633?

Is the "H" signal (approximately +4 V) inputted to the base of Q637?

Replace Q637.

any leak or short-circuit on

vice it if defective.

lied to the

Ye s

Check C645, D647 and their periphery circuit, and service it if defective.

Check C633, D633 and their periphery circuit, and service it if defective.

Check Q638, Q639, D666, P-ON-H2 line a periphery circuit, and ser

vice it if defective.

nd their

8-3 FL10.2TR

Page 25

FLOW CHART NO.14

P-ON+9V is not output. (LCD+13V is outputted normally.)

Is approximately +13V voltage supplied to the collector of Q642?

Ye s

Is approximately +10V voltage supplied to the base of Q642?

Ye s

Replace Q642.

FLOW CHART NO.15

AL+3.3V is not output.

Is approximately +32V voltage supp collector of Q635?

Is approximately +5V voltage supplied to Pin(3) of IC631?

Replace IC631.

lied to the

Ye s

See FLOW CHART No.11 <AL+13V is not output.>

Check D670 and their periphery circuit, and service it if defective.

See FLOW CHART No.5 <INV+35V is not output.>

Check Q635, D659 and their periphery circuit, and service it if defective.

FLOW CHART NO.16

LCD-6V is not output.

Is approximately -7V voltage supp Anode of D632?

Is approximately -6.5V voltage supplied to the base of Q211?

Replace Q211.

lied to the

Ye s

Check C632, D632 and their periphery circuit, and service it if defective.

Check Q207, Q208, D208, P-ON-H1 periphery circuit, and ser

vice it if def

line and their

ective.

8-4 FL10.2TR

Page 26

[ Video Signal Section ]

FLOW CHART NO.1

The key operation is not functioning.

Are the contact point and installation state of the key switches (SW101, SW103~SW107) nor

Ye s

When pressing each switches (

) do the voltage of

SW107

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit.

Operation is pos

Is 3.3V voltage supplied to Pin(2) terminal of the remote control receiver (RS102)?

Is the "L" pulse sent out Pin(1) ter control receiver (RS102) when the infrared remote

control is activated?

Is the "L" pulse supplied to Pin(25

Replace Digital Main CBA Unit.

sible from the unit.

Ye s

SW101, SW103~

Pin(29) of CN302 increase?

mal?

minal of remote

) of CN301?

Re-install the switches (SW101, SW103~SW107) correctly or replace the poor switch.

Check the switches (SW101, SW103~SW107) and their periphery circuit, and service it if defective.

Check AL+3.3V line and service it if defective.

Replace the remote control receiver(RS102) or the remote control unit.

Check the line between Pin(1) terminal of remote control receiver(RS102) and Pin(25) of CN301, and service it if defective.

FLOW CHART NO.3

Picture does not appear normally.(Video input)

Are the video signal inputted to Pin

Is the "H" level

Replace Digital Main CBA Unit or LCD Module Assembly.

signal inputted to the Pin(5) of CN302?

(4) of CN302?

Ye s

Check the line b JK752, and service it if defective.

Check JK751, R763 and their periphery circuit, and service it if defective.

etween Pin(4) of CN302 and

8-5 FL10.2TR

Page 27

FLOW CHART NO.4

Picture does not appear normally.(Tuner input)

Are the DIF signal inputted to the Pin(26,28) of CN302?

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.5

Picture does not appear normally.(S-Video input)

Are the video signal o CN302?

Pin(6): S-VIDEO-C Pin(8): S-VIDEO-Y

Is the "L" level signal inputted to the Pi

Replace Digital Main Assembly.

utputted to the Pin(6, 8) of

Ye s

n(5) of CN302?

Ye s

CBA Unit or LCD Module

Check the line between Pin(26, 28) of CN302 and Pin(10, 11) of TU301, and service it if defective.

Check the line between Pin(6, 8 JK751, and service it if defec

Is the "L" level signal inputted to the Pin(2) of CN701

Check CL701 and their periphery circuit, and service it if defective.

) of CN302 and

tive.

Replace JK751

FLOW CHART NO.6

Picture does not appear normally.(Y/Pb/Pr input)

Are the video signal i CN302?

Pin(15): VIDEO-Y Pin(17): VIDEO-Pb Pin(19): VIDEO-Pr

Replace Digital Main CBA Unit or LCD Module Assembly.

nputted to the Pin(15, 17, 19) of

Ye s

Check the line between Pin(15, 17, 19) of CN302 and input terminals(JK731, JK732, JK733), and service it if defective.

8-6 FL10.2TR

Page 28

[ Audio Signal Section ]

FLOW CHART NO.1

Audio is not outputted normally.(Audio input)

Are the audio(L/R) signals inputted to Pin(2, 15) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) signals inputted to the Pin of IC801?

Are the audio(L/R) signals inputted to the Pin of IC871?

Are the audio(L/R) signals outputte of CN801 and CN80

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

(1, 44)

(3, 5)

Ye s

d to the Pin(1, 2)

CN801: SP(L) CN802: SP(R)

d to the audio

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

Ye s

Check the line between Pin(2, 15) of IC771 and input terminal(JK753, JK754), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line between Pin(2, 4 Pin(3, 5) of IC871, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defec

) of CN301 and

, 7) of IC871 and audio

tive.

vice it if

8-7 FL10.2TR

Page 29

FLOW CHART NO.2

Audio is not outputted normally.(Component Audio input)

Are the audio(L/R) signals inputted to the Pin(4, 11) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) si of IC801?

Are the audio(L/R) si of IC871?

Are the audio(L/R) signals outputte of CN801 and CN802?

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

gnals inputted to the Pin(1, 44)

gnals inputted to the Pin(3, 5)

Ye s

CN801: SP(L) CN802: SP(R)

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

d to the Pin(1, 2)

d to the audio

Ye s

Check the line between Pin(4, 11) of IC771 and input terminal(JK741, JK742), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line b Pin(3, 5) of IC871, and service it if defective.

Check IC801 an service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1, 7) of IC871 and audio output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

d their periphery circuit, and

vice it if

8-8 FL10.2TR

Page 30

FLOW CHART NO.3

Audio is not outputted normally.(HDMI Audio input)

Are the audio(L/R) signals inputted to Pin(5, 14) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) si of IC801?

Are the audio(L/R) si of IC871?

Are the audio(L/R) signals outputte of CN801 and CN802?

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

gnals inputted to the Pin(1, 44)

gnals inputted to the Pin(3, 5)

Ye s

d to the Pin(1, 2)

CN801: SP(L) CN802: SP(R)

d to the audio

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

Ye s

Check the line between Pin(5, 14) of IC771 and input terminal(JK721, JK722), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line b Pin(3, 5) of IC871, and service it if defective.

Check IC801 an service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

d their periphery circuit, and

, 7) of IC871 and audio

vice it if

8-9 FL10.2TR

Page 31

FLOW CHART NO.4

Audio is not outputted normally.(Tuner input)

Are the DIF signals outputted to the Pin(26, 28) of CN302?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) si of IC801?

Are the audio(L/R) si of IC871?

Are the audio(L/R) signals outputte of CN801 and CN802?

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

gnals inputted to the Pin(1, 44)

gnals inputted to the Pin(3, 5)

Ye s

d to the Pin(1, 2)

CN801: SP(L) CN802: SP(R)

d to the audio

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

Ye s

Check TU301 and their periphery circuit, and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line b Pin(3, 5) of IC871, and service it if defective.

Check IC801 an service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

d their periphery circuit, and

, 7) of IC871 and audio

vice it if

8-10 FL10.2TR

Page 32

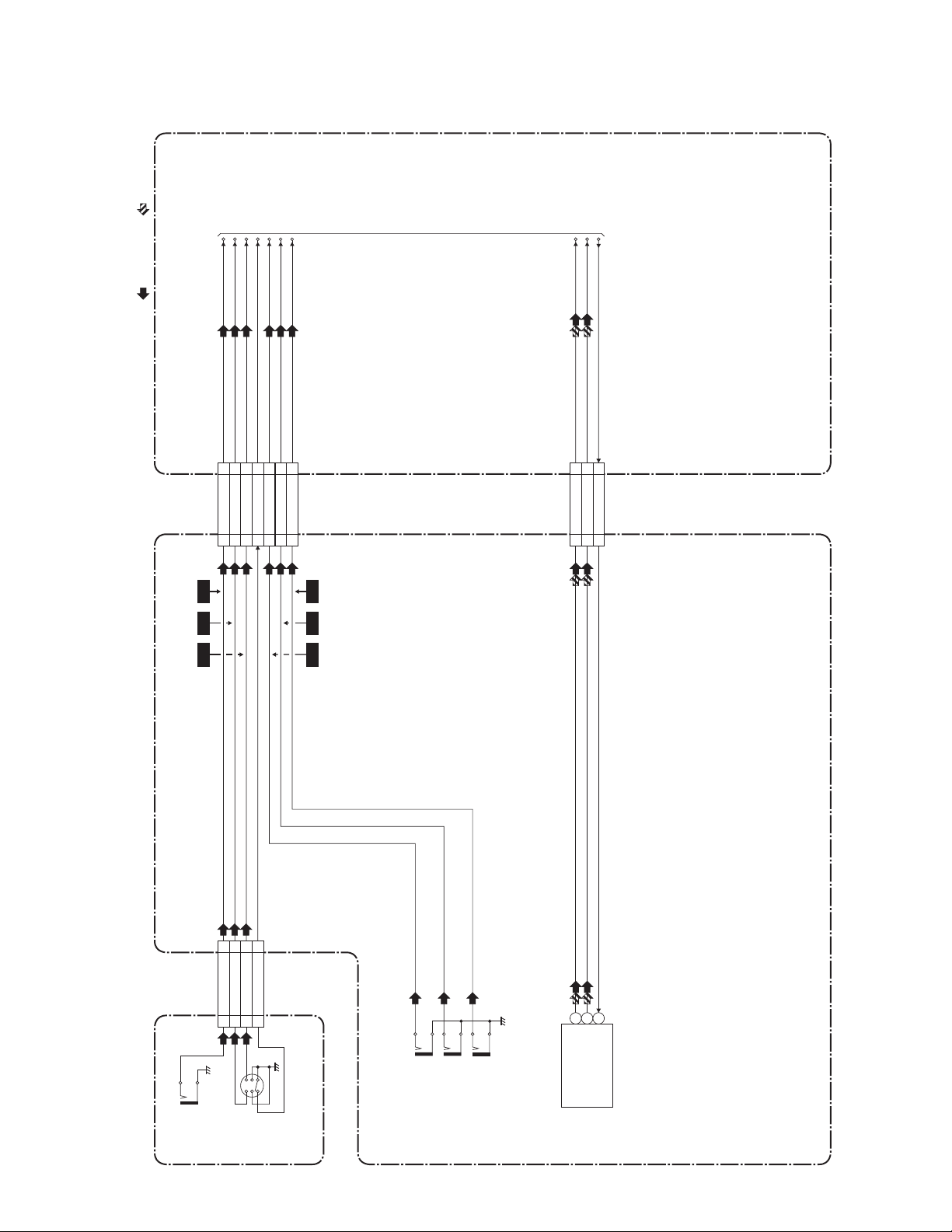

BLOCK DIAGRAMS

System Control Block Diagram

AL+3.3V

D104

POWER

KEY SWITCH

LED133

REMOTE55

P-ON-H122

KEY-IN111

FUNCTION CBA

RS102

SENSOR

REMOTE

STANDBY

D105

CL104B

TO INVERTER

BLOCK DIAGRAM

WH1002

JUNCTION-B

CBA

(CN1001)

LCD MODULE ASSEMBLY

CL104A

JUNCTION-A

CBA

CN105

REMOTE25

P-ON-H152

CN101

Q172

LED143

KEY-IN161

Q171

CN302CN3702

CN301

REMOTE25 25

LED127 27

KEY-IN129 29

P-ON-H211

CN3701

BACKLIGHT-SW

PROTECT3111

BACKLIGHT-ADJ

210

CN631 CN1001

POWER SUPPLY

BLOCK DIAGRAM

P-ON-H2

P-ON-H1

PROTECT2

PROTECT1

CN301CN3701

PROTECT1

PROTECT2

P-ON-H199

LED-R13 13

PROTECT3 5

VCOM-PWM

BACKLIGHT-SW

BACKLIGHT-ADJ

VCOM 10

CN201

DRIVE

IC201,Q203,

Q204,Q205

SCL

SDA

TU301 (TUNER UNIT)

SCL

SDA

CN3702 CN302

POWER SUPPLY CBA

IC3301

(MAIN MICRO CONTROLLER)

KEY-IN1

INPUT0

INPUT1

G19

G20

PROTECT3

PROTECT2

PROTECT1

AUDIO-MUTE

E19

C22

VCOM-PWM

BACKLIGHT-SW

BACKLIGHT-ADJ

SCK

K22

SIN

L19

SOUTCSWP

L20

F21

K21

SCL1

SDA1

CLKOUT-25M

CLKIN-25M

CLKOUT-32K

CLKIN-32K

LED1

LED-R

P-ON-H2

P-ON-H1

REMOTE

DIGITAL MAIN CBA UNIT

25MHz

OSC

INPUT0

INPUT1

TO AUDI O

BLOCK

AUDIO-MUTE

DIAGRAM

9-1

652

SCK

IC3101 (MEMORY)

X3101

32.768kHz

X3102

OSC

FL10.2BLS

Page 33

Video Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

VIDEO SIGNAL

VIDEO-IN

S-VIDEO-SW

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

VIDEO-IN4 4

S-VIDEO-C-IN6 6

S-VIDEO-Y-IN88

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-SW5 5

15 15

17 17

CN302 CN3702

WF1WF2

WF3

COM-VIDEO-Pr-IN 19 19

WF6

WF4 WF5

DIF-OUT1

DIF-OUT2

DIF-OUT126 26

CN302 CN3702

IF-AGC

DIGITAL MAIN CBA UNIT

IF-AGC24 24

DIF-OUT228 28

JK752

VIDEO-IN

CL701A

VIDEO-IN 5 531

CL701B

S-VIDEO-C-IN

S-VIDEO-Y-IN 1

S-VIDEO-SW 22

JK751

S-VIDEO

-IN

POWER SUPPLY CBA

IF-AGC

DIF-OUT1

DIF-OUT2

TU301

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

JK732

JK733

-Pr-IN

JACK CBA

JK731

(TUNER UNIT)

9-2 FL10.2BLV

Page 34

Audio Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL

AUDIO(L)

PROCESS

BLOCK

DIAGRAM

AUDIO(R)

TO SYSTEM

CONTROL

INPUT0

INPUT1

BLOCK

DIAGRAM

AUDIO-MUTE

AMP(L)-OUT

AUDIO(L)-OUT

AUDIO(R)-OUT

AMP(R)-OUT

LC260EM1

SPDIF

TO DIGITAL

SIGNAL

(AUDIO DSP)

IC3803

IC3802

(D/A CONVERTER)

PROCESS

BLOCK

DIAGRAM

LRCLK

876

BCLK

ADATA1

D/A

(L-CH)

(R-CH)

DSP

333437

CONVERTER

ACLK

ADATA0

876

D/A

(L-CH)

CONVERTER

(R-CH)

LC260SS1, 26MF330B/F7

IC3801

(D/A CONVERTER)

CL701A

AUDIO(L)-IN 77

CL701B

IC771

AUDIO(R)-IN 9

(AUDIO SELECTOR)

241

DRIVE

Q873,Q874

MUTE

Q872

MUTE

CN3702

SPDIF

CN302

BUFFER

2020

AUDIO-MUTE

IC801 (AUDIO AMP)

Q841

PWM1

DRIVE1

9,10

13,14

PWM2

DRIVE2

35,36

31,32

CN801CL801

MUTE CONTROL

SP(L)-

SP(L)+

Q801

CN802

SP(R)+

POWER SUPPLY CBA DIGITAL MAIN CBA UNIT

SP(R)-

CN3702CN302

WF7

151112

CN3702CN302

AUDIO(L)13 13

AUDIO(R)11 11

INPUT110 10

INPUT012 12

Q772

Q771

109

CONTROL

LOGIC

CN3701CN301

AUDIO(R)-OUT44

AMP(R)-OUT88

AUDIO(L)-OUT22

AMP(L)-OUT66

IC871

(OP AMP)

1 3

Q871

AUDIO(L)

JK753

CL802

JACK CBA

DIGITAL

AUDIO-OUT

(COAXIAL)

AUDIO(R)-IN

AUDIO(L)-OUT

JK871

JK872

HDMI-

AUDIO(L)-IN

HDMI-

JK721

COMPONENT-

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

JK741

-IN

AUDIO(R)

-IN

JK754

JK742

JK722

9-3

AUDIO(R)-OUT

JK841

SP801

SPEAKER

L-CH

SP802

SPEAKER

R-CH

FL10.2BLA

Page 35

Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3902

AUDIO SIGNAL

VIDEO SIGNAL

IC3201

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

DATA(0-15)

ADDESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

IC3301 (DIGITAL SIGNAL PROCESS)

A10

A11

B12

B10

B11

A12

LVD S T X

A/D

CONVERTER

DEMODULATOR

B13

A13

C12

C13

/MPEG DECODER

S-VIDEO-SW

IF-AGC

G22

B22

A21

A20

D20

C20

STV

POL

CPV

AA7,AA8-10,AA12,AA13,

AA15,AA16,AB7-10,AB12,

AB13,AB15,AB16

Y20,AA1-AA4,AA20-AA22,

AB1-AB3,AB21,AB22

DIGITAL

SIGNAL

PROCESS

HDMI

AUDIO I/F

J19

J20

J22

J21

H20

AUDI O

DECODER

I/F

P21

P22

N21

N22

M21

M22

26272324202117

L21

HDMI

L22

VIDEO

DECODER

VIDEO-IN

DIGITAL MAIN CBA UNIT

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

TO VIDEO

BLOCK DIAGRAM

DIF-OUT1

COM-VIDEO-Pr-IN

DIF-OUT2

(L)-OUT

S-VIDEO-SWA2AUDIO(R)

AMP

AUDIO(L)-OUT

AUDIO(R)-OUT

IF-AGC

TO VIDEO

BLOCK DIAGRAM

(R)-OUT

AUDIO(L)

AMP

TO AUDIO

LRCLK

BCLK

BLOCK DIAGRAM

IC3702 (HDMI SW)

414544484739383637

SPDIF

ADATA1

ACLK

ADATA0

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

SDA

SCL

TMDS-CLOCK(+)

JK3701

7 42

94613

TMDS-CLOCK(-)

101216

HDMI-IN1

9-4

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

JK3702

79461

111014

TMDS-D1(-)

TMDS-D2(+)

541

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

101216

HDMI-IN3

575660596362545351

SDA

SCL

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

JK3704

79461

TMDS-D2(-)

HDMI-IN2

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

FL10.2BLD

Page 36

Inverter Block Diagram

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

LCD MODULE

ASSEMBLY

CN1201

T1201

786

INV+35V

CN1202

SWITCHING

Q1101

T1202

786

Q1102

Q1112

SWITCHING

Q1113

CN1203

T1203

786

INVERTER CBA

DRIVE1

VDDA

IC1101

(INVERTER CONTROLLER)

Q1009

SW+5V

+5V REG.

Q1004 Q1005

INV+35V

Q1006

INVERTER

CONTROL

LOGIC

Q1007

WH1001

BACKLIGHT-ADJ

BACKLIGHT-SW

DRIVE2

PROTECT3

675

Q1008

IC1001

(COMPARATOR)

SYSTEM

CONTROL

BLOCK

DIAGRAM

9-5

(CN631)

FL10.2BLINV

Page 37

Power Supply Block Diagram

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

P-ON+3V

P-ON+7V

AL+3.3V

P-ON+3.3V

P-ON+5V

DIGITAL MAIN CBA UNIT

19,20

LCD MODULE ASSEMBLY

21,22

AL+33V

P-ON+9V

P-ON+5V

AL+13V

AL+3.3V

TUNER+5V

TO SYSTEM

CONTROL

P-ON-H1

P-ON-H2

BLOCK

DIAGRAM

PROTECT2

PROTECT1

CN201

Q211

LCD-6V8

SW-6.8V

P-ON+3.3V6,7

VGH4

LCD+13V2,3

Q201, Q202, Q212

SW+24.5V

Q210

CN301 CN3701

P-ON+7V16

P-ON+3V10

Q207,Q208

P-ON+3.3V19,20

P-ON+5V14

AL+3.3V21,22

SWITCHING

Q401

SW+16V

Q209, Q213,

D204

SW+9V

Q642

SW+3.3V

Q632, Q637,

D666

Q638,Q639

SWITCHING

FEED

Q631

SW+5V

Q641,643

SW+5V

Q640

+3.3V REG.

Q634

Q635 IC631

+5V REG.

BACK

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L602

LINE

FILTER

L601

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

AC601

AC CORD

4A/125V

IC601

3 2

HOT COLD

CONTROL

Q602

SWITCHING

POWER SUPPLY CBA

SWITCHING

Q601

9-6

FL10.2BLP

Page 38

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

This schematic diagrams are masterized version that should cover the entire FL10.2 chassis models. Thus some parts in detail illustrated on this schematic diagrams may vary depend on the model within the FL10.2 chassis. Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service manual is the latest version for this chassis at the moment of making this service manual. Depend on the mass production date of each model, the actual layout of each Board may differ slightly from this version.

, M = 106).

-6

µF).

10-1 FL10.2SC

Page 39

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0 5.0

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

10-2 FL10.2SC

Page 40

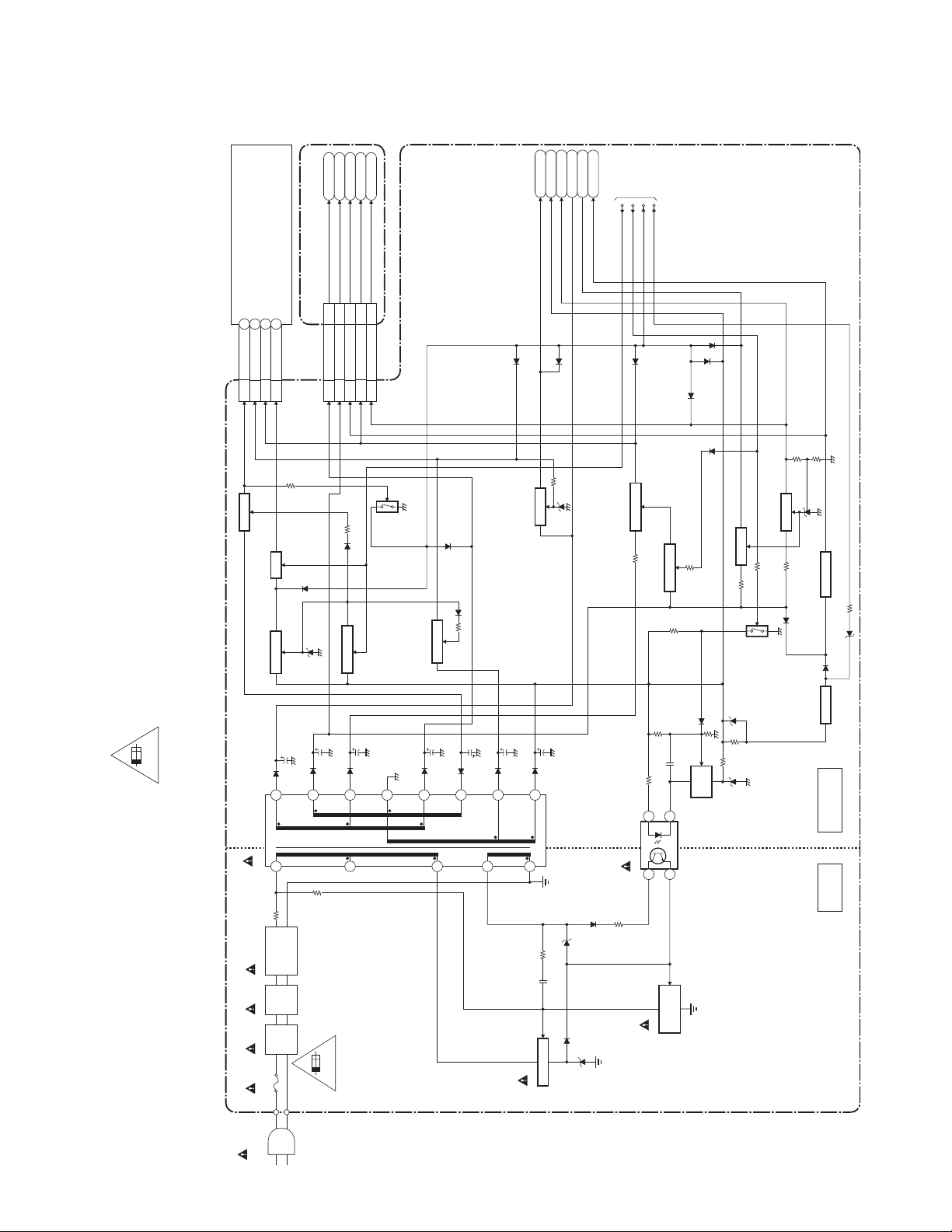

Power Supply 1 Schematic Diagram

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-3

FL10.2SCM1

Page 41

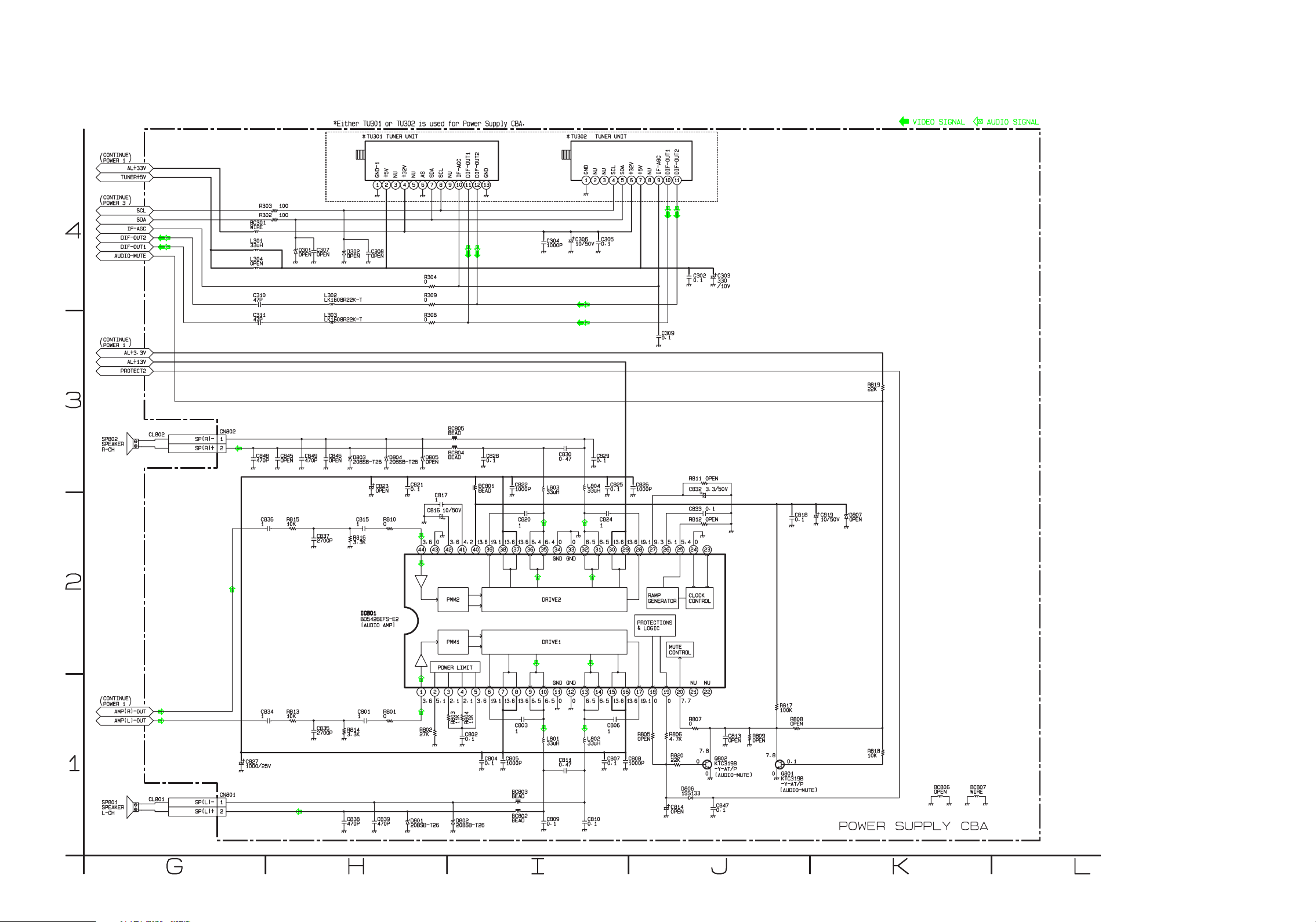

Power Supply 2 Schematic Diagram

10-4

FL10.2SCM2

Page 42

Power Supply 3 & Jack Schematic Diagram

10-5

FL10.2SCM3

Page 43

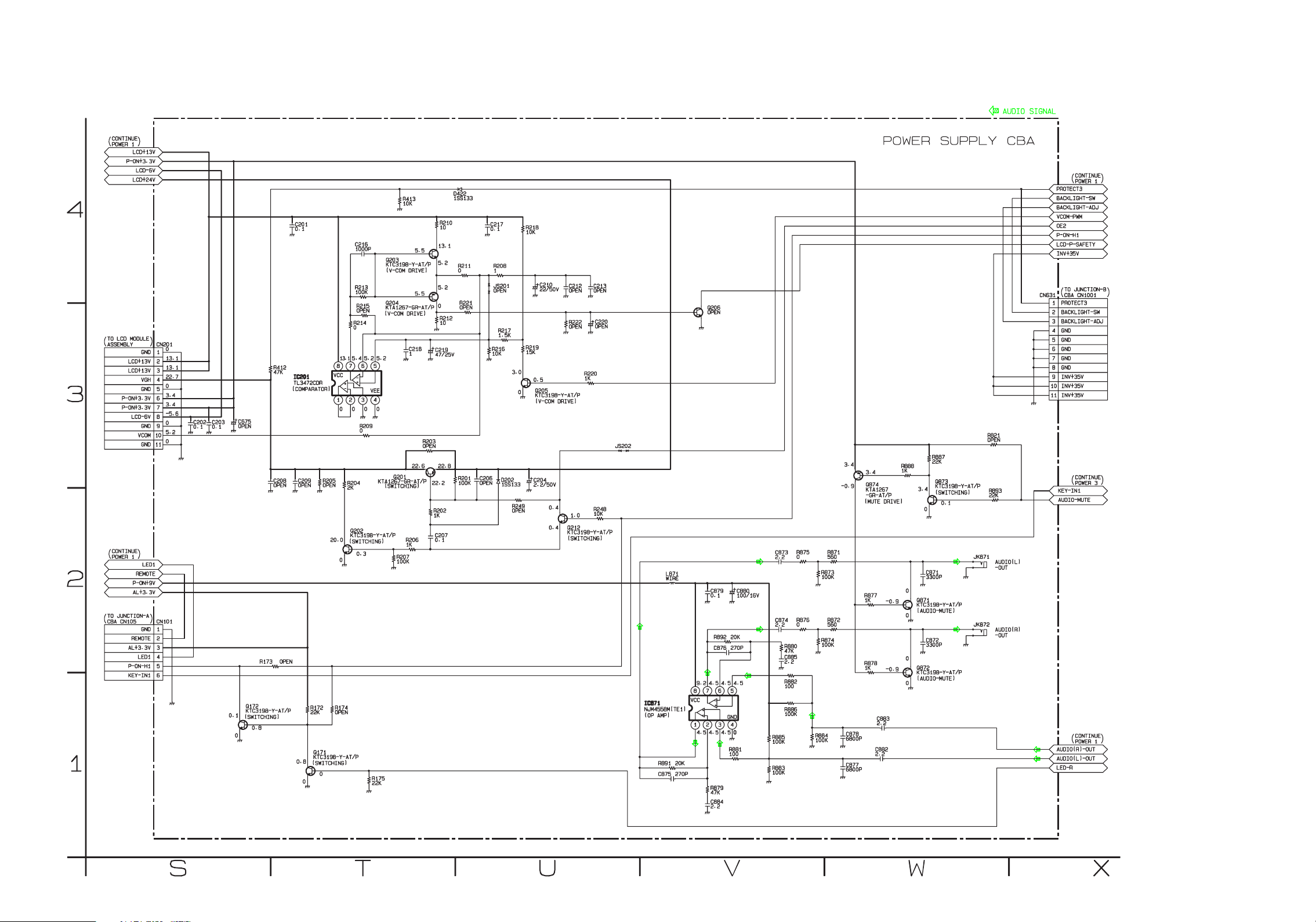

Power Supply 4 Schematic Diagram

10-6

FL10.2SCM4

Page 44

Inverter & Junction-B Schematic Diagram

10-7

FL10.2SCINV

Page 45

Function & Junction-A Schematic Diagram

10-8

FL10.2SCF

Page 46

Digital Main 1 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

10-9

FL10.2SCD1

Page 47

Digital Main 2 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

10-10

FL10.2SCD2

Page 48

Digital Main 3 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

10-11

FL10.2SCD3

Page 49

Digital Main 4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

10-12

FL10.2SCD4

Page 50

Digital Main 5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

10-13

FL10.2SCD5

Page 51

Digital Main 6 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

10-14

FL10.2SCD6

Page 52

Power Supply CBA & Jack CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

Power Supply CBA

D206

R237

D651

COLD

343

C605

D604

J103 B/L-ADJ

CN631

C604

D205

J231

J101 PROTECT3

J102 B/L-SW

J341 GND

+6.7V

POW-SAFTY

J214

J337 GND

J105

D650

C646

D652

HOT

R615

Q602

R614

D608

D620

D603

L602

LINE-FL-SHORT

JS602

JS601

LINE-FL-SHORT

J356 GND

D803

Q631

R655

C610

J601

Q634

Q601

CN802

POW-HOT-CIR

D610

D609

C609

C611

LINE-FL-SHORT

C693

D805

R650

IC601

C612

R613

D606

D612

BC602

Operation

D602

JS603

JS604

+36V

J202

R646

BC601

D607

C694

R610

R611

D611

AB C G

J602

+6.7V

J603

C606

CN101

C223

C638

POW-F/B

C613

C602

D621

R239

R238

R235

D207

J205 +36V

C691

C692

R616

R617

R236

Q207

HOT

Q210

D639

R602

R223

T601

D405

Q208

R224

D636

CAUTION !

BA01A0F0102 3 A

D411

R405

J255 +3.5Vfor1.8V

J241 +3.5Vfor1.8V

J242 +36V

+Vtune

J227

J223

R700

P-ON+3.3V

J234

J239 P-ON+3.3V

D666

P-ON-H2

R677

J235

Q639

C676

R697

R696

R666

R633

R632

R660

R662

D658

R821

MUTEX

J134

BC801

J209

VCCP2N

J210

J107

SP+13V

L802

J159

C225

D203

D208

J323 GND

C637

D634

COLD

L601

C7A3 A3

P-ON-H1

R249

C204

R228

D641

C601

JS202

Q212

OE2

J156

J204

LCD+24V

R204

D202

R203

Q201

R245

D211

Q213

R252

D204

+15V

J206

D638

D635

36D

D632

D646

D643

D642

C639

FH602

F601

4A/125V

SA601

R251

TM602

R601

J247 +6.7V

CN601

R229

R253

RISK OF FIRE-

REPLACE FUSE AS MARKED

C642

R250

R227

C632

R247

D647

FH601

Q202

J217 +36V

Q209

LCD+15.8V

C222

C601

PROTECT3

J232

J219

TOOL NO.

J203 LCD+15.8V

+6.7V

R661

C634

C224

C631

R242

D209

C823

D422

LCD-6.8V

J212

J230

J216

LCD-6.8V-SW

D210

R244

101 2 3 4 5 6 7 8 9

P-ON-H1

J201

TM601

CN201

LCD-6.8V

C633

J320 GND

R243

J211

GND GND

D804

J213

P-ON+3.3V

C675

J321

Q205

LCD-6.8V-SW

R240

Q211

C645

J215 +6.7V

J306

J305

BC804

J253

GND

VCOM SELECT

JS201

C220

Q206

C647

J208 +Vtune

J240

+3.5Vfor1.8V

C650

R672

C644

D662

D673

R407

D407

D806

Q802

C814

C827

BC807

J342 A-GND

J344

J345

J346

J264 SP+13V

J265 SP+13V

LCD-6.8V

VCOM-PWM

J144

Q204

Q203

Q632

D660

J161

J224

BC805

R212

R657

R656

J252

+5.5Vfor3.3V

6 6

SP+13V

GND

J152

ERR/WARNING

J250

LCD-6.8V

C210

R210

D657

R665

R664

Q635

SP+13V

GND

J151

C219

P-ON+3.3V

J207

C652

Q637

Q638

Q801

C832

MUTEX

J155 PROTECT1

D414

VCOM

J137

J226

LCD+15.8V

P-ON+3.3V

J233

R678

R673

J220

IC631

D664

C648

D659

R663

D644

-6.7V

J138

L804

J301

D404

R699

R674

+6.7V

Q636

Q401

D421

D419

D665

J119

PROTECT2

LCD+15.8V

J142

J237

J248

LCD+15.8V

J308 GND

J309 GND

J313 GND

J243

ALL+3.3V

J131

J218

J249 ERR/WARNING

P-ON+3.3V

J262

C819

L803

VCCP2P

A-GND

J108

SP+13V

L801

Q402

PROTECT1

D417

J229

+6.7V

J154

PROTECT1

J238 ALL+3.3V

J339

J340

GND

A-MUTE

LCD+15.8V

D807

C816

J302

RESET-SW

J162

J319 GND

D412

D415

D413

Q640

R686

R685

R682

R684

R691

D418

J333

GND

J332

GND

R819

BC806

J263 P-ON+3.3V

J331

J148

PROTECT1

ALL+3.3V

ERR/WARNING

J147

J149

MUTEX

A-GND

BC802

BC803

D420

BC301

L304

J225

P-ON+5.0V

R683

R693

C655

J322 GND

J330

A-GND J329 A-GND

J118

J136 A-MUTE

GND

J244

A-GND

J355

J150

ERR/WARNING

J153 MUTEX

D802

L301

Q643

R698

J338 GND

PC-A-IN

J246

P-ON+3.3V

J115

HDMI-A-R

GND

J357

R687

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

D401

C306

CN801

Q641

JK722

J348 GND

C653

C654

D645

JK742

JK711

P-ON+9V

J259

R689

R688

Q642

J260

P-ON+9V

D410

C303

R771

D670

GND

J310

V-R

J164

D801

HDMI-A-R

J112

R791

V-L

C771

J165

C657

D671

J349

J327

JK741

JK721

R790

R776

C656

J141 PROTECT1

J143 P-ON-H2

J222 TUNER+5V

GND

J311

A-GND

SEL-L

J166

R780

R781

J245

ALL+3.3V

GND

R788

J351

Q873

A-GND

J111

J261

P-ON+9V

R402

TU301

J326

JK733

COM-L

J113

HDMI-A-L

J116

COM-L

HDMI-A-L

COM-L

J157

L871

GND

JK754

J221

J117

Q771

J139 PROTECT3

TU+32V

J350

SEL-L

J167

J163

ANA-A-R

J168

P-ON+3.3V

INPUT0

LED1

J140 RESET

J173 RCV-IN

J175

J122

SCL

SDA

J121

GND

A-GND

J328

J324 GND

J312

ANA-A-R

J110

R878

Q872

Q874

J266

J169

ANA-A-R

C880

Q772

GND

J352

CL701B

BA01A0F0102 3

J336 GND

J315 GND

JK732 JK871JK872

J317

D301

J343 GND

J347 GND

GND

ANA-A-L

J114

Q871

Q841

GNDJ354

CL701A

J353 GND

JK753

GND

J307

D302

J128

J129

JK841

J318

J316 A-GND

Q172

J325

GND

AOUT-R

AOUT-L

J126 AMP-R

J125 AMP-L

J123 AOUT-R

J124 AOUT-L

GND

J178

J177 LED1

JK731

J256

P-ON+5.0V

BC841

C844

J120 SPDIF

J146

Q171

J228

ALL+3.3V

JK752

P-ON+5.0V

J133

RCV-IN

CN302

J158 SPDIF

J109

RCV-IN J267

P-ON+5.0V

GND

J314

J236

P-ON+3.3V

J130 SEL-R J132

SEL-L

P-ON-H1

FROM LED-R

R175

JK751

CN301

J127

S-SW

R763

J135

J254

J106

P-ON+5.0V

J304 GND

J303 GND

LED-R

J160

J145 P-ON-H1

GND

J334

GND

J335

RCV-IN

Jack CBA

10-15

BA01A0F01023

Page 53

Power Supply CBA & Jack CBA Bottom View

Power Supply CBA

CAUTION !

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF6

PIN 19 OF CN302

WF5

PIN 17 OF CN302

WF4

PIN 15 OF CN302

WF7

PIN 13 OF CN302

WF2

PIN 8 OF CN302

WF3

PIN 6 OF

PIN 6 OF CN302

CN302

WF1

PIN 4 OF

CN302

Jack CBA

J145P-ON-H1

P-ON+5.0V

J304GND

J303GND

J334

GND

LED-R

RCV-IN

J106

J335

J127

S-SW

J109

RCV-IN

J267

P-ON+5.0V

SEL-R

SEL-L

J135

P-ON-H1

J254

FROM LED-R

J160

CN301

P-ON+5.0V

J133

J158SPDIF

GND

J314

P-ON+5.0V

R763

J236

P-ON+3.3V

J130

J132

R175

JK751

BC841

C752

AMP-R

AOUT-R

CN302

J256

R174

J146

R172

C751

R752

RCV-IN

J177LED1

SPDIF

R173

ALL+3.3V

R757

J178

C734

JK731

R731

J120

Q171

J126

J125AMP-L

J123

J124AOUT-L

GND

A-GND

AOUT-R

AOUT-L

R843

C844

JK752

R751

J325

J228

C755

GND

J316

J318

JK841

C877

R756

R883

J129

Q172

J128

C843

R303

R302

Q213

C207

Q201

D211

Q212

R253

R229

R249

R245

R228

P-ON-H1

C204

D203

C637

D641

C601

J159

R248

C206

C225

J323GND

D634

COLD

L601

D208

R201

D636

D405

Q208

R224

T601

Q210

R226

R223

R236

Q207

D639

HOT

R602

R225

R235

C691

D207

R238

J205+36V

R239

C692

R616

C640

R617

R237

D205

C223

+6.7V

C638

C613

R604

D621

C602

CN101

POW-F/B

J603

C606

J231

+36V

J202

R646

R653

J602

D607

D611

R613

R610

R611

D606

D612

BC601

BC602

Operation

D602

LINE-FL-SHORT

JS603

JS604

LINE-FL-SHORT

C 6 9 4

IC601

C612

D206

R634

R644

R650

D805

R635

R647

D610

C609

R637

R652

R659

POW-HOT-CIR

D609

C611

Q601

R605

C693

C845

CN802

POW-SAFTY

J105

R658

Q634

R655

J601

HOT

C846

+6.7V

J341GND

J214

J337GND

D650

Q631

D652

R615

Q602

R614

D608

C610

D620

LINE-FL-SHORT

JS602

JS601

LINE-FL-SHORT

D803

J356GND

J101PROTECT3

J102B/L-SW

J103B/L-ADJ

R649

D651

C646

COLD

D603

L602

C604

CN631

343

C605

D 6 0 4

ABCG

C402

J330

A-GND

J329

A-GND

R714

C704

J244

ALL+3.3V

J355

C837

R816

C835

R814

J153MUTEX

D802

R654

D412

L304

R683

C655

C744

R819

GND

J331

C815

C801

ERR/WARNING

J150

R690

J162

D415

Q640

R685

R686

R682

R684

R691

PROTECT1

J333

GND

J332

GND

J148

PROTECT1

ERR/WARNING

J149

R810

R801

BC802

BC803

RESET-SW

R403

J319GND

D413

PROTECT1

J229

+6.7V

D418

J154

GND

J340

GND

LCD+15.8V

BC806

J263P-ON+3.3V

D807

C816

MUTEX

J147

C802

J339

A-GND

R803

A-MUTE

C818

C653

C654

R643

D645

JK742

JK722

JK711

R779

C772

D410

Q642

Q641

R641

R724

P-ON+9V

D772

J260

P-ON+9V

R785

J259

R689

R688

CN801

J348GND

R642

R742

C722

R716

R712

R711

PC-A-IN

A-MUTE

P-ON+3.3V

R786

R782

C836

R687

C306

C681

R698

J338GND

C724

R726

R713

D420

R401

L301

P-ON+5.0V

R693

GND

R744

R746

C702

C701

J118

J246

HDMI-A-R

J115

A-GND

GND

J357

R815

R813

C834

C839

BC301

J225

Q643

J322

C742

C703

R715

J136

D401

J336GND

LED1

J175

J315GND

C308

J122

SCL

SDA

J121

D301

C307

D302

J343GND

J347GND

J317

GND

R734

J307

C731

ANA-A-L

R841

J114

R845

C841

R847

C882

R886

C883

C878

C753

C754

C756

C735

R842

C842

R732

R844

R885

R882

R884

CL701A

J353GND

R758

R754

Q871

Q841

R846

R848

R881

C885

GND J354

R753

JK753

JK732

C884

R879

R880

R735

IC871

R873

C875

R892

CL701B

J324GND

C732

C876

C871

R877

R871

R759

ANA-A-R

R878

R891

ANA-A-R

R774

J312

J110

R875

C873

P-ON+3.3V

J173RCV-IN

A-GND

C736

J266

J169

C874

C880

R775

GND

J352

R760

Q872

Q874

J140RESET

C304

R733

C872

Q772

R755

R762

J328

C879

GND

R736

ANA-A-R

J168

INPUT0

C762

J139PROTECT3

TU+32V

C305

TU301

J350

JK733

278KJ178KJ

R872

R887

C773

SEL-L

J167

J163

C757

C761

R761

J221

J117

Q771

R402

J326

C733

COM-L

R874

R876

R888

R793 C758

L871

GND

TUNER+5V

R304

A-GND

C741

C743

COM-L

J113

HDMI-A-L

J111

J116

Q873

R893

HDMI-A-L

COM-L

J157

R792

R772

P-ON+9V

J351

JK754

R745

IC771

R773

J261

J143P-ON-H2

J222

C311

GND

J311

R743

R741

R721

R788

R780

ALL+3.3V

L303

GND

JK741

SEL-L

R789

R781

J245

C656

J141PROTECT1

R308

C309

J349

A-GND

JK721

R723

J166

R776

C310

R725

R790

C657

C775

J327

C302

C721

V-L

C771

L302

C723

J112

R791

R783

R777

J165

D671

R309

GND

HDMI-A-R

R722

R794

R795

V-R

D771

D801

J164

C303

J310

R778

C776

R787

R784

R771

D670

C838

R404

Q402

J119

PROTECT2

J142

D417

+6.7V

LCD+15.8V

GND

J238ALL+3.3V

J218

P-ON+3.3V

C819

R817

J302

C817

R804

D419

LCD+15.8V

J237

J308GND

J309

J313GND

J131

R802

L801

D421

L803

C820

C803

D665

+Vtune

P-ON+3.3V

ALL+3.3V

J249ERR/WARNING

J262

A-GND

C811

Q401

J243

J248

SP+13V

R675

R405

J241+3.5Vfor1.8V

J235

C676

VCCP2P

BC801

J210

IC801

J108

C809

J227

J223

P-ON-H2

R666

R633

R660

C807

C804

C810

J234

J239P-ON+3.3V

D666

R697

R696

D658

VCCP2N

SP+13V

C808

D411

R680

C805

PROTECT1

J255+3.5Vfor1.8V

J242+36V

C217

LCD+15.8V

C651

R679

R677

R676

R632

R821

MUTEX

J209

J107

Q639

R662

D404

R700

C828

J134

R812

C806

L802

C821

J301

D659

J226

C824

D414

Q636

R663

R808

C825

R699

R678

R674

+6.7V

R805

IC631

D664

C826

J155

VCOM

J137

R209

C683

R673

J220

-6.7V

C822

C833

R806

J250

LCD-6.8V

C219

C213

R208

R211

P-ON+3.3V

J233

J207

C652

Q637

Q638

R668

C648

R665

R664

D644

R818

J138

C829

SP+13V

L804

SP+13V

R807

MUTEX

J151

ERR/WARNING

R216

C210

C212

R210

P-ON+3.3V

D657

R657

R669

C684

R411

Q801

C832

R811

GND

J152

C218

IC201

R212

Q204

Q203

C682

+Vtune

+3.5Vfor1.8V

R656

Q632

+5.5Vfor3.3V

J252

D661

636R

Q635

R410

R820

C813

R809

J161

C830

J224

A-GND

GND

P-ON+3.3V

LCD-6.8V

VCOM-PWM

J144

R221

C647

J208

C650

D660

D806

J342

J344

J264SP+13V

J265SP+13V

BC805

C220

BC807

J345

J346

J240

J213

J253

C201

GND

VCOM SELECT

R217

R218

JS201

R222

Q206

R241

R672

C644

D662

D673

R407

D407

R406

Q802

C814

C827

BC804

C675

J321

R220

R219

LCD-6.8V-SW

R240

Q211

J215+6.7V

J306

J305

C847

C848

C849

CN201

C203

J320GND

Q205

P-ON-H1

LCD-6.8V-SW

J211

R243

C645

GNDGND

D804

R412

C202

R214

LCD-6.8V

J201

D210

R244

C633

R413

R215

R213

J230

J216

D422

LCD-6.8V

J212

C216

LCD+15.8V

+6.7V

C224

R242

D209

J232

J219

R661

PROTECT3

J203LCD+15.8V

C634

C631

C823

AC6

J217+36V

C222

FH601

J156

Q202

R207

Q209

R232

C632

D647

JS202

OE2

R206

J204

LCD+24V

R204

D202

C208

C209

R251

R252

R250

C221

R233

R234

R227

J247+6.7V

R247

D632

D633

D646

D643

C642

C641

FH602

F601

4A/125V

CN601

R 60

D638

R205

C639

R202

R231

D204

+15V

J206

D635

R651

D642

SA601

R203

10-16

BA01A0F01023

Page 54

Inverter CBA, Function CBA, Junction-A & Junction-B CBA Top View

Function CBA

Junction-A CBA

Inverter CBA

10-17

Junction-B CBA

BA01A0F01031

Page 55

Inverter CBA, Function CBA, Junction-A & Junction-B CBA Bottom View

Junction-A CBA

Function CBA

Inverter CBA

Junction-B CBA

10-18

BA01A0F01031

Page 56

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 4 of CN302

CVBS 0.2V 20µs

Pin 8 of CN302

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 17 of CN302

VIDEO-Pb 0.2V 20µs

Pin 19 of CN302

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 6 of CN302

S-VIDEO-C 0.2V

Pin 15 of CN302

VIDEO-Y 0.2V 20µs

20µs

Pin 13 of CN302

WF7

AUDIO 0.1V 0.5ms

LC8NWF11-1

Page 57

CN3902

CL3902

CL1003

GND

CN201

STV

XAO

LCD+13V

OE1

POL

CPV

P-ON+3.3V

GND4VGH3LCD+13V

HDMI-

CONNECTOR-1

6TP5

GND

LLV5(-)

GND8LCD-6V

P-ON+3.3V

WIRING DIAGRAM

HDMI-

LLV5(+)

LLV4(-)

GND10VCOM

LLV4(+)

CONNECTOR-2

LLV3(-)

LLV3(+)

GND

LLVCLK(-)

LLVCLK(+)

HDMI-

CONNECTOR-3

GND

LLV2(-)

LLN2(+)

BACK

LIGHT

CN1201

LLV1(-)

LLV1(+)

CN1202

LLV0(-)

BACK

LLV0(+)

LIGHT

GND

CN1203

BACK

LIGHT

LCD MODULE

ASSEMBLY

VIDEO-IN

AUDIO(L)

-IN

AUDIO(R)

-IN

S-VIDEO

-IN

CL104B

GND

CL104A

REMOTE

AL+3.3V

LED1

P-ON-H1

KEY-IN1

FUNCTION CBA

DIGITAL MAIN CBA UNIT

POWER SUPPLY CBA

TUNER UNIT

111

102

PROTECT3

BACKLIGHT-SW93BACKLIGHT-ADJ84GND75GND66GND57GND48GND39INV+35V

WH1002 WH1001

111

102

PROTECT3

BACKLIGHT-SW93BACKLIGHT-ADJ84GND75GND66GND57GND48GND39INV+35V

CN631 CN1001

210

111

INV+35V

210

111

INV+35V

INVERTER CBA

JUNCTION-B CBA

CL701B

S-VIDEO-Y-IN

CL701A CL701

S-VIDEO-C-IN

S-VIDEO-SW

GND

VIDEO-IN77AUDIO(L)-IN

GND

AUDIO(R)-IN

SP801

SP(L)-

CN801

CN105 CL104CN101

SPEAKER

L-CH

CL801

SP(L)+

GND

REMOTE

AL+3.3V

LED1

SP802

SPEAKER

SP(R)-

CN802

P-ON-H1

R-CH

CL802

SP(R)+

KEY-IN1

JUNCTION-A CBA

JACK CBA

CN3701CN301

CL3701

P-ON-H2

AUDIO(L)-OUT

GND

AUDIO(R)-OUT

COMPONENT

-Y-IN

513

PROTECT3

AMP(L)-OUT

GND

COMPONENT

-Pb-IN

AMP(R)-OUT

P-ON-H1

P-ON+3V

COMPONENT

-Pr-IN

141012

PROTECT1

GND

LED-R

P-ON+5V

COMPONENT-

AUDIO(L)-IN

172220

PROTECT2

P-ON+7V

GND

HDMI-

COMPONENT-

AUDIO(R)-IN

GND

P-ON+3.3V

192321

AUDIO(L)-IN

HDMI-

231921

AL+3.3V

GND

DIGITAL

AUDIO-OUT

AUDIO(R)-IN

OE2

REMOTE

(COAXIAL)

BACKLIGHT-SW

LED1

AUDIO(L)

-OUT

BACKLIGHT-ADJ

VCOM-PWM

AUDIO(R)

CN3702CN302

CL3702

-OUT

GND

SPDIF

GND

VIDEO-IN

513

S-VIDEO-SW

S-VIDEO-C-IN

GND

S-VIDEO-Y-IN

GND

INPUT1

AUDIO(R)

INPUT0

AUDIO(L)

141012

GND

AC601

AC CORD

172220

COM-VIDEO-Y-IN

GND

COM-VIDEO-Pb-IN

GND

COM-VIDEO-Pr-IN

AUDIO-MUTE

SDA

192321

SCL

231921

RESET

IF-AGC

GND

DIF-OUT1

GND

DIF-OUT2

KEY-IN1

FL10.2WI12-1

Page 58

Cabinet

EXPLODED VIEWS

*1: LC260SS1, 26MF330B/F7

A12

CL802

SP802

See Electrical Parts List for parts with this mark.

B11

Function CBA

A11

B11

Junction-A CBA

LC260EM1

SP801

LCD1

B40

CL801

Junction-B CBA

Digital Main CBA Unit

CL201

B13

CL3902

B40

B11

CL3701

CL3702

B40

B17

B10

Jack CBA

B27

B44

A13

Power Supply CBA

A14

B13

A16

A15

A10

Inverter CBA

AC601

Stand Assembly

13-1 FL10.2CEX

Page 59

Packing

Stand Assembly

Some Ref. Numbers are not in sequence.

X2S5X8 X6 X10

Ta pe

FRONT

Ta pe

Packing Tape

FRONT

13-2 FL10.2PEX

Page 60

PARTS LIST [ LC260SS1 ]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A01A1UH 1ESA23686 A1 FRONT CABINET A01A1UH 1EM025325 A2 CONTROL PLATE A91F0UH 1EM325799 A5 DECORATION PLATE A01A1UH 1EM124514 A6 REAR CABINET A01A1UH 1EM024945 A10# RATING LABEL A01A1UH ---------A12 POP LABEL A01A1UH ---------A13 JACK HOLDER(A) A01A1UH 1EM223864 A14 JACK HOLDER(D) A94N0UH 1EM222784 A15 JACK LABEL(A) A01A1UH 1EM431777 A16 JACK LABEL(B) A01A1UH 1EM431778 B1 SHIELD BOX A01F2UH 1EM224323 B4 STAND HOLDER 26W A01A1UH 1EM223865 B5 WALL MOUNT BRACKET A84N0UH 1EM323797 B8 SPEAKER HOLDER (L) A94F0UH 1EM123233 B9 SPEAKER HOLDER (R) A94F0UH 1EM123234 B10 CLOTH(B) L5201U0 15X10X1.0T 0EM400076 B11 CLOTH(10X180XT0.5) L0336JG 0EM408827 B13 CLOTH(20X65XT0.5) L0100JA 0EM407914 B17 PCB HOLDER A01A1UH 1EM328117 B27 GASKET A8AF0UH 1EM425861 B40 RUBBER CUSHION A72N0JH 1EM425197 B44 THERMOSTAR TMS-L-2(12*12HC) XK10000X4003 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 90MM WX1A9170-107 CL801 WIRE ASSEMBLY 2PIN 2PIN 155MM RED

CL802 WIRE ASSEMBLY 2PIN 2PIN 155MM RED

CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 80MM WX1A94F0-106 L1 SCREW P-TIGHT M4X14 BIND HEAD+BLK GBHP4140 L2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L5 SCREW TAP TIGHT M3X10 BIND HEAD+BLK NIGBHS3100

BLACK

WX1A01A0-201

Ref. No. Description Part No.

S4 SET BAG L3207UH 1EM320295 S5 SERIAL NO. LABEL A01PBUH ---------S6 STAND BAG A94F0UH 1EM428757

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A01F1UH 1EMN25841 X3 REMOTE CONTROL NH200UD NH200UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A01A1UH 1EMN26283 X8 CHILD SAFETY SHEET A94F0UH 1EMN24439 X10 REGISTRATION CARD (SYLVANIA) A94F1UH 1EMN24700

L6 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L7 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L8 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L9 STAND SCREW KIT A01A1UH 1ESA23705 LCD1 LCD MODULE CMO 6BIT NORMALGRADE UJ26MXA SP801 SPEAKER MAGNETIC S0412F06A DSD0809XQ006 SP802 SPEAKER MAGNETIC S0412F06A DSD0809XQ006

PACKING

S1 CARTON A01A1UH 1EM431079 S2 STYROFOAM TOP A01A1UH 1EM025307 S3 STYROFOAM BOTTOM A01A1UH 1EM025308

20100312 14-1 A01A1CA

Page 61

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01A1MMA-001

MPW CBA

Ref. No. Description Part No.

MPW CBA Consists of the following:

POWER SUPPLY CBA(MPW-1) JACK CBA(MPW-2)

POWER SUPPLY CBA(MPW-1)

Ref. No. Description Part No.

POWER SUPPLY CBA(MPW-1) Consists of the following:

CAPACITORS

C201 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C202 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C203 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C204 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C207 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104 C210 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C216 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C217 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104 C218 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C219 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C221 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C222 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471 C223 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C224 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C303 ELECTROLYTIC CAP. 330µF/10V M CE1AMASDL331 C304 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C306 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C309 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C310 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C311 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C601# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004

A01A1MPW-001

----------

Ref. No. Description Part No.

C602# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004 C605 CAP ELECTROLYTIC 270µF/200V CEA271DYG005 C606 CAP ELECTROLYTIC 270µF/200V CEA271DYG005 C609 POLYESTER FILM CAP. (PB FREE) 0.1µF/100V JCA2A104DT018

C610 POLYESTER FILM CAP. (PB FREE) 0.0012µF/

C611 CERAMIC CAP. 560pF/2KV CA3D561PAN04 C612 POLYESTER FILM CAP. (PB FREE) 0.068µF/

C613 POLYESTER FILM CAP. (PB FREE) 0.0015µF/

C631 ELECTROLYTIC CAP. 470µF/25V M CE1EMZNDL471 C632 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C633 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C634 ELECTROLYTIC CAP. 47µF/50V M CE1JMASDL470 C637 CERAMIC CAP. 2200pF/1KV CCD3AKA0R222 C638 ELECTROLYTIC CAP. 2200µF/35V M CE1GMZNDL222 C639 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C642 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C644 ELECTROLYTIC CAP 3300µF/10V CE1AMZNDL332 C645 ELECTROLYTIC CAP 3300µF/6.3V M CE0KMZNDL332 C646 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C648 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C652 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C653 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C654 ELECTROLYTIC CAP. 220µF/10V M H7 CE1AMAVSL221 C656 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C657 ELECTROLYTIC CAP. 22µF/50V M H7 CE1JMAVSL220 C676 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C681 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C682 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C683 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C684 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C691# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C693# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C723 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C724 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C731 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C732 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C734 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C735 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C736 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C743 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C744 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C771 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C772 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C775 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C776 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C801 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C802 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C803 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C804 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C805 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C806 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C807 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C808 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C809 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104

100V J

CA2A122DT018

CA2A683DT018

CA2A152DT018

CA2A222DT018

20100312 14-2 A01A1EL

Page 62

Ref. No. Description Part No.

C811 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C815 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C816 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C817 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C818 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C819 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C820 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C821 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C822 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C824 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C825 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C826 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C827 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C828 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C829 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C830 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C832 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C833 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C834 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C835 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C836 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C837 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C838 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C839 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C841 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C842 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C843 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C844 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100 C847 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C848 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C849 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C871 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C872 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C873 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C874 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C875 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 C876 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 C877 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C878 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C879 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C880 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C882 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C883 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C884 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C885 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

CONNECTORS

CN101 242 SERIES CONNECTOR 224202106W1 J322C06TG001 CN201 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007 CN301 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN302 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN631 242 SERIES CONNECTOR 224202111W1 J322C11TG001 CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN)

J3PHC02JG029

DIODES

D202 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D204 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D205 DIODE ZENER 24BSA-T26 NDTA024BST26 D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D207 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D208 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

Ref. No. Description Part No.

D209 DIODE ZENER 36BSB-T26 NDTB036BST26 D210 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D404 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D405 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D407 DIODE ZENER 10BSB-T26 NDTB010BST26 D410 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D411 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D412 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D413 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D414 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D415 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D417 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26 D418 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26 D419 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D420 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D421 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D422 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D601# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D602# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D603# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D604# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D606# DIODE ZENER 27BSB-T26 NDTB027BST26 D607 DIODE ZENER 4V3BSB-T26 NDTB4R3BST26 D609# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D611 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D612# DIODE ZENER 39BSB-T26 NDTB039BST26 D631 DIODE FR154 NDLZ000FR154 D632 DIODE FR104-B NDLZ000FR104 D633 DIODE FAST RECOVERY FR151-B/P NDWZ0FR151BP D634 DIODE SCHOTTKY 30PHA20 QDLZ030PHA20 D635 DIODE ZENER 1ZB22BB NDWZ0001ZB22 D636 DIODE SCHOTTKY 30PHA20 QDLZ030PHA20 D638 DIODE FR154 NDLZ000FR154 D639 DIODE ZENER 1ZB43BB NDWZ0001ZB43 D641 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390 D642 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390 D643 DIODE FR104-B NDLZ000FR104 D644 DIODE ZENER 8V2BSB-T26 NDTB8R2BST26 D645 SHUNT REGULATOR KIA431B-AT/P NSZBA0TJY038 D646 DIODE SCHOTTKY SB360BH NDWZ000SB360 D647 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140 D650 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D652 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D657 DIODE ZENER 33BSB-T26 NDTB033BST26 D658 DIODE ZENER 6V8BSA-T26 NDTA6R8BST26 D659 DIODE ZENER 6V8BSA-T26 NDTA6R8BST26 D660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D661 DIODE FR154 NDLZ000FR154 D662 DIODE FR154 NDLZ000FR154 D665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D666 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D670 DIODE ZENER 10BSB-T26 NDTB010BST26 D671 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D801 DIODE ZENER 20BSB-T26 NDTB020BST26 D802 DIODE ZENER 20BSB-T26 NDTB020BST26 D804 DIODE ZENER 20BSB-T26 NDTB020BST26 D805 DIODE ZENER 20BSB-T26 NDTB020BST26 D806 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC201 IC TL3472CDR NSZBA0TTY115 IC601# PHOTO COUPLER LTV817MCF NPECLTV817MF

20100312 14-3 A01A1EL

Page 63

Ref. No. Description Part No.

IC631 IC LD1117V NSZBA0SSS046 IC771 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162 IC801 IC D-AMP BD5426EFS-E2 QSZBA0TRM137 IC871 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089

COILS

L301 INDUCTOR 33µH-K-5FT LLARKBSTU330 L302 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L303 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L601# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029 L602# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029 L801 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L802 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L803 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L804 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L871 WIRE COPPER 6111-06003-0120 XZ40C0SHG002

TRANSISTORS

Q171 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q172 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q201 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q202 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q203 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q204 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q205 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q207 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q208 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q209 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q210 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q211 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q212 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q213 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q401 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q402 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q601# FET MOS 2SK3561(Q) IDSS100UA QFWZ2SK3561Q Q602# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q631 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q632 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q634 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q635 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q636 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q637 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q638 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q639 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q640 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q641 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q642 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q643 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q771 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q772 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q801 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q802 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q841 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q871 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q872 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q873 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q874 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

RESISTORS

R172 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R175 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R201 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R202 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R204 RES CARBON FILM T 1/4W J 2.0k Ω RCX4202T1001 R206 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102

Ref. No. Description Part No.

R207 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R208 CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R209 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R210 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R211 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R212 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R213 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R214 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R216 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R217 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R218 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R219 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R220 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R223 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R224 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R225 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R226 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R227 RES. CARBON FILM J 1/2W J 2.7 Ω RCX22R7T1003 R228 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R229 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R231 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R232 CHIP RES. 1/10W F 9.1k Ω RRXAFR5H9101 R233 CHIP RES. 1/10W F 150 Ω RRXAFR5H1500 R234 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201 R235 RES CARBON FILM T 1/4W J 330 Ω RCX4331T1001 R236 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R237 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001 R238 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R240 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R241 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R242 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R243 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R245 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001 R247 RES. CARBON FILM J 1/2W J 3.3 Ω RCX23R3T1003 R248 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R250 RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001 R251 RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001 R252 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R253 RES CARBON FILM T 1/4W J 4.7 Ω RCX44R7T1001 R302 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R303 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R304 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R308 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R309 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R401 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R402 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R403 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R404 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R405 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R407 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R410 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R411 CHIP RES. 1/10W F 36k Ω RRXAFR5H3602 R412 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R413 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R601# RES. CARBON FILM J 1/2W J 1.2M Ω RCX2125T1003 R602# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10 R604 CHIP RES.(3216) 1/4W J 0 Ω RRX4JR7Z0000 R605 CHIP RES. 1/4W J 750k Ω RRX4JR7Z0754 R610 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R611 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R613 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R614# METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27ZU001 R615 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001

20100312 14-4 A01A1EL

Page 64

Ref. No. Description Part No.

R616 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R617# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10 R632 RES CARBON FILM T 1/4W J 1.0 Ω RCX41R0T1001 R633 RES. CARBON FILM J 1/2W J 3.3 Ω RCX23R3T1003 R634 CHIP RES. 1/10W F 2.7k Ω RRXAFR5H2701 R635 CHIP RES. 1/10W F 2.7k Ω RRXAFR5H2701 R636 RES. CARBON FILM J 1/2W J 3.3 Ω RCX23R3T1003 R637 CHIP RES. 1/10W F 2.7k Ω RRXAFR5H2701 R641 RES CHIP.(1608) 1/10W D 1.1k Ω RRXADR5H1101 R642 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R643 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R644 CHIP RES. 1/10W F 75k Ω RRXAFR5H7502 R646 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R647 CHIP RES. 1/10W F 75k Ω RRXAFR5H7502 R650 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R651 CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R652 CHIP RES. 1/10W F 1.3k Ω RRXAFR5H1301 R653 CHIP RES. 1/10W F 36k Ω RRXAFR5H3602 R654 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R655 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R656 RES CARBON FILM T 1/4W J 8.2 Ω RCX48R2T1001 R657 RES CARBON FILM T 1/4W J 8.2 Ω RCX48R2T1001 R658 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R659 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R660 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R661 RES. CARBON FILM J 1/2W J 220 Ω RCX2221T1003 R662 RES CARBON FILM T 1/4W J 15 Ω RCX4150T1001 R663 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R664 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R666 RES CARBON FILM T 1/4W J 1.0 Ω RCX41R0T1001 R668 CHIP RES. 1/10W F 620 Ω RRXAFR5H6200 R669 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R672 RES. CARBON FILM J 1/2W J 2.7 Ω RCX22R7T1003 R673 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R674 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R675 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R676 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R677 RES CARBON FILM T 1/4W J 330 Ω RCX4331T1001 R678 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R679 CHIP RES. 1/10W F 3.6k Ω RRXAFR5H3601 R680 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R682 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R683 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R684 RES CARBON FILM T 1/4W J 1.8 Ω RCX41R8T1001 R685 RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001 R686 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R687 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001 R688 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R689 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R691 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R693 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R696 METAL RESISTOR 1W J 3.9 Ω RN013R9ZU001 R697 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3ZU001 R698 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R723 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R724 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R725 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R726 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R734 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R735 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R736 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R743 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153

Ref. No. Description Part No.

R744 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R745 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R746 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R763 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R771 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 R772 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R773 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R774 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R775 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R776 RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001 R777 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R778 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R779 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R801 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R802 CHIP RES. 1/10W F 27k Ω RRXAFR5H2702 R803 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102 R804 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102 R806 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R807 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R810 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R813 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R814 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R815 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R816 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R817 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R818 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R819 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R820 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R842 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R843 CHIP RES. 1/10W J 110 Ω RRXAJR5Z0111 R844 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R846 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R847 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R848 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R871 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561 R872 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561 R873 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R874 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R875 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R876 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R877 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R878 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R879 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R880 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R881 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R882 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R883 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R884 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R885 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R886 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R887 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R888 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R891 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R892 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R893 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

MISCELLANEOUS

AC601# AC CORD UL 1855MM BLACK WAC0182LW007 B11 POW HEAT SINK A7120UH 1EM423993 BC301 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC801 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

20100312 14-5 A01A1EL

Page 65

Ref. No. Description Part No.

BC802 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC803 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC804 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC805 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC807 WIRE COPPER 6111-06003-0120 XZ40C0SHG002

BC841 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

CL701 WIRE ASSEMBLY 9P 9PIN/170MM WX1A94F0-002

F601# FUSE STC4A125V U/CT PAGE20CW3402

FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

JK721 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02

JK722 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01

JK731 JACK RCA PCB S GREEN 01/RCA-101H(GN) JXRJ010YUQ03

JK732 JACK RCA PCB S BLUE 01/RCA-101H(BL) JXRJ010YUQ04

JK733 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01

JK741 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02

JK742 JACK SW RCA PCB S RED RCA-102H(RD) JYRJ010YUQ03

JK841 JACK RCA PCB S ORANGE 01/RCA-101H(OR) JXRJ010YUQ06

JK871 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02

JK872 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01

JS202 WIRE COPPER 6111-06003-0120 XZ40C0SHG002

L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB

T601# TRANS POWER BCK-28-9904 LTT2PC0XB062

TM601 EYELET TYPE D-1 0VM406868

TM602 EYELET TYPE D-1 0VM406868

TU301 TUNER UNIT ATSC/NTSC/QAM TDYU4-D02A UTNATS0AL001

JACK CBA(MPW-2)

Ref. No. Description Part No.

JACK CBA(MPW-2) Consists of the following:

CAPACITORS

C754 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C755 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C756 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C757 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C758 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

RESISTORS

R751 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R752 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R753 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R756 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R757 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R758 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R759 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R760 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R761 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R762 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

MISCELLANEOUS

JK751 JACK SW DIN PCB L DIN-435C(777D) JYEL040YUQ03

JK752 JACK RCA PCB L RCA-101S(1)-03 JXRL010YUQ12

JK753 JACK RCA PCB L RCA-101S(1)-04 JXRL010YUQ13

JK754 JACK SW RCA PCB L RCA-102F(RD) JYRL010YUQ05

----------

INVERTER ASSEMBLY

Ref. No. Description Part No.

INVERTER ASSEMBLY Consists of the following:

INVERTER CBA

--------------------------------------------------------------------FUNCTION CBA JUNCTION-A CBA JUNCTION-B CBA

INVERTER CBA

Ref. No. Description Part No.

INVERTER CBA Consists of the following:

CAPACITORS

C1001 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1002 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101 C1003 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1004 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C1005 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1006 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1007 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C1008 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1010 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1011 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1012 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1016 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1018 CHIP CERAMIC CAP. B K 0.01µF/25V CHD1EK30B103 C1019 CHIP CERAMIC CAP. B K 0.01µF/25V CHD1EK30B103 C1020 CHIP CERAMIC CAP. B K 0.01µF/25V CHD1EK30B103 C1021 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1023 ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471 C1024 ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471 C1103 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473

C1106 CHIP CERAMIC CAP.(1608) CH J 1800pF/50V CHD1JJ3CH182 C1107 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

C1108 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1109 CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473 C1110 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

C1111 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C1112 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C1113 METALIZED POLYESTER FILM CAP. 2.2µF/50V JCT1J225DT040

C1114 METALIZED POLYESTER FILM CAP. 2.2µF/50V JCT1J225DT040

C1115 METALIZED POLYESTER FILM CAP. 2.2µF/50V JCT1J225DT040

C1116 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7 C1123 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473

C1201 CAP CERAMIC HV 10pF/6.3KV/SL/J CCA1000MR001

C1203 CAP CERAMIC HV 10pF/6.3KV/SL/J CCA1000MR001

C1205 CAP CERAMIC HV 10pF/6.3KV/SL/J CCA1000MR001

C1206 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061

C1207 CAP CERAMIC HV 10pF/6.3KV/SL/J CCA1000MR001

C1208 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061

C1209 CAP CERAMIC HV 10pF/6.3KV/SL/J CCA1000MR001

C1210 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061

C1211 CAP CERAMIC HV 10pF/6.3KV/SL/J CCA1000MR001

C1212 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061

C1213 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C1214 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061

C1215 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061

CONNECTORS

CN1201# CONNECTOR/JACK 1747386-1 JB17J02AP002

A01A1M1V-001

A01A1M1V-001-IV

---------------------------A01A1M1V-001-FNIRJN

----------

20100312 14-6 A01A1EL

Page 66

Ref. No. Description Part No.

CN1202# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1203# CONNECTOR/JACK 1747386-1 JB17J02AP002

DIODES

D1001 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26 D1002 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1003 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1004 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1005 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1006 DIODE ZENER 27BSB-T26 NDTB027BST26 D1101 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1102 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1103 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1104 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1202 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1204 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1205 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1207 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1208 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1209 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1210 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1212 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1213 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1214 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1215 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1216 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1217 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1218 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1219 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1220 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1221 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1222 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1223 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1224 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1225 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1226 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1227 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC1001 IC BA10324AF-E2 QSZBA0TRM032 IC1101 IC INVERTER CONTROLLER OZ9933GN-A-0-TRNSCA0TTMC001

TRANSISTORS

Q1004 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1005 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q1006 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1007 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1008 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1009 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1101 FET MOS FDD5614P/Z NF2ZFDD5614P Q1102 FET MOS FDD5612/Z NF2ZFDD56120 Q1112 FET MOS FDD5614P/Z NF2ZFDD5614P Q1113 FET MOS FDD5612/Z NF2ZFDD56120

RESISTORS

R1003 METAL OXIDE RES. 2W J 2.7k Ω RN02272ZU001 R1004 METAL OXIDE RES. 2W J 2.7k Ω RN02272ZU001 R1005 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R1006 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1007 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1008 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1009 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472

Ref. No. Description Part No.

R1010 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1011 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1012 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R1013 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R1014 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1015 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1016 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1017 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R1018 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1019 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R1020 CHIP RES. 1/10W F 39k Ω RRXAFR5H3902 R1021 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1022 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1023 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1024 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1025 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1026 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R1027 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R1028 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R1029 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1030 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1031 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1032 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1033 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1034 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1035 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1036 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1037 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1101 RES CARBON FILM T 1/4W J 5.1k Ω RCX4512T1001 R1102 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1103 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1116 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R1117 CHIP RES. 1/10W F 110 k Ω RRXAFR5H1103 R1118 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333 R1119 CHIP RES. 1/10W J 30k Ω RRXAJR5Z0303 R1120 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1121 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512 R1122 RES CARBON FILM T 1/4W J 5.1k Ω RCX4512T1001 R1123 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1124 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1137 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R1138 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1201 CHIP RES. 1/10W F 390 Ω RRXAFR5H3900 R1202 CHIP RES. 1/10W F 390 Ω RRXAFR5H3900 R1203 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R1204 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R1205 CHIP RES. 1/10W F 33.0k Ω RRXAFR5H3302 R1206 CHIP RES. 1/10W F 33.0k Ω RRXAFR5H3302 R1207 CHIP RES. 1/10W F 390 Ω RRXAFR5H3900 R1208 CHIP RES. 1/10W F 390 Ω RRXAFR5H3900 R1209 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R1210 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R1211 CHIP RES. 1/10W F 33.0k Ω RRXAFR5H3302 R1212 CHIP RES. 1/10W F 33.0k Ω RRXAFR5H3302 R1213 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1214 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1215 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1216 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1217 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1218 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1219 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1220 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1221 CHIP RES. 1/10W F 390 Ω RRXAFR5H3900

20100312 14-7 A01A1EL

Page 67

Ref. No. Description Part No.

R1222 CHIP RES. 1/10W F 390 Ω RRXAFR5H3900 R1223 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1224 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1225 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1226 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1227 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R1228 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702 R1229 CHIP RES. 1/10W F 33.0k Ω RRXAFR5H3302 R1230 CHIP RES. 1/10W F 33.0k Ω RRXAFR5H3302

MISCELLANEOUS

BC1201 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC1203 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 CL1001 WIRE ASSEMBLY 11PIN 11PIN 100MM WX1A01A0-003 JS1005 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 T1201# TRANS INVERTER HVT-266 LTZ3PZ0XB015 T1202# TRANS INVERTER HVT-266 LTZ3PZ0XB015 T1203# TRANS INVERTER HVT-266 LTZ3PZ0XB015

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA Consists of the following:

CAPACITORS

C113 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 C115 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

DIODES

D104 LED GREEN 333GT/E(FNA) NPWZ33GTEFNA D105 LED L-53HT NP4Z000L53HT

RESISTORS

R108 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R109 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002 R111 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R113 RES CARBON FILM T 1/4W G 2.7k Ω RCX4272T1002 R114 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R115 RES CARBON FILM T 1/4W G 8.2k Ω RCX4822T1002 R116 RES CARBON FILM T 1/4W G 18k Ω RCX4183T1002 R123 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R124 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R126 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R127 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R128 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001

SWITCHES

SW101 TACT SWITCH SKHHLMA010 SST0101AL049 SW103 TACT SWITCH SKHHLMA010 SST0101AL049 SW104 TACT SWITCH SKHHLMA010 SST0101AL049 SW105 TACT SWITCH SKHHLMA010 SST0101AL049 SW106 TACT SWITCH SKHHLMA010 SST0101AL049 SW107 TACT SWITCH SKHHLMA010 SST0101AL049

MISCELLANEOUS

RS102 SENSOR REMOTE RECEIVER KSM-712TH2E USESJRSKK044

----------

JUNCTION-B CBA

Ref. No. Description Part No.

JUNCTION-B CBA Consists of the following:

CONNECTOR

CN1001 242 SERIES CONNECTOR TUC-P11X-B1 WHT STJCTUB11TG002

----------

JUNCTION-A CBA

Ref. No. Description Part No.

JUNCTION-A CBA Consists of the following:

CONNECTOR

CN105 242 SERIES CONNECTOR TUC-P06X-B1 WHT STJCTUB06TG002

MISCELLANEOUS

CL104 WIRE ASSEMBLY 6PIN 6PIN 170MM WX1A01A0-001

20100312 14-8 A01A1EL

----------

Page 68

PARTS LIST [LC260EM1]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model LC260SS1

Ref. No. Description Part No.

A1 FRONT CABINET A01A4UH 1EM025326 A5 DECORATION PLATE A01A4UH 1EM124773 A10# RATING LABEL A01A4UH ---------A11 LOGO LABEL A8A71UH ---------A12 Not used S1 CARTON A01A4UH 1EM431080 X2# OWNERS MANUAL A01F4UH 1EMN25720A X3 REMOTE CONTROL NH001UD NH001UD X6 QUICK START GUIDE A01A4UH 1EMN26459 X8 CHILD SAFETY SHEET A94F1UH 1EMN24522 X10 REGISTRATION CARD (EMERSON) A91F4UH 1EMN24701

20100329 14-9 A01A4CA

Page 69

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model LC260SS1

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01A4MMA-001

MPW CBA A01A4MPW-001

POWER SUPPLY CBA(MPW-1) ---------C835 CHIP CERAMIC CAP. B K 560PF/50V CHD1JK30B561 C837 CHIP CERAMIC CAP. B K 560PF/50V CHD1JK30B561 C875 CHIP CERAMIC CAP. CH J 180PF/50V CHD1JJ3CH181 C876 CHIP CERAMIC CAP. CH J 180PF/50V CHD1JJ3CH181 R814 CHIP RES. 1/10W J 6.8K OHM RRXAJR5Z0682 R816 CHIP RES. 1/10W J 6.8K OHM RRXAJR5Z0682 R879 CHIP RES. 1/10W J 18K OHM RRXAJR5Z0183 R880 CHIP RES. 1/10W J 18K OHM RRXAJR5Z0183

INVERTER CBA ---------R1003 METAL OXIDE RES. 2W J 2.7K OHM RN02272ZU001

20100329 14-10 A01A4EL

Page 70

PARTS LIST [26MF330B/F7]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model LC260SS1

Ref. No. Description Part No.

STAND ASSEMBLY A01A0UH 1ESA24451 A1 FRONT CABINET A01A0UH 1EM025327 A5 DECORATION PLATE A01A0UH 1EM124613 A10# RATING LABEL A01A0UH ---------S1 CARTON A01A0UH 1EM431078 X2# OWNERS MANUAL A01F0UH 1EMN25839 X3 REMOTE CONTROL NF804UD NF804UD X6 QUICK START GUIDE A01A0UH 1EMN26281 X10 REGISTRATION CARD (MAGNAVOX)

A94F0UH

1EMN24699

20100329 14-11 A01A0CA

Page 71

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model LC260SS1

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01A0MMA-002

INVERTER CBA ----------

R1003 METAL OXIDE RES. 2W J 2.7K OHM RN02272ZU001

20100329 14-12 A01A0EL

Page 72

Chassis FL10.2

• 2010-03-29 LC260SS1 added

• 2010-04-19 LC260EM1 added

• 2010-04-19 26MF330B/F7 added

REVISION HISTORY

15-1 FL10.2REV
