BU TUNERS
DATA SHEET
FI1256 MK2
Desktop video tuner system CCIR D/K
Preliminary specification |
|
1996 Jul 26 |
|||||
File under BU Tuners, DC03 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Philips Components |
Preliminary specification |
|
|
Desktop video tuner
FI1256 MK2
system CCIR D/K
FEATURES
∙System CCIR D/K
∙True 5 V device (low power dissipation)
∙Full frequency range from channel 1 (49.75 MHz) to channel 57 (863.25 MHz)
∙PLL controlled tuning
∙True-synchronous vision IF demodulator (PLL)
∙Demodulated video output, AF sound output, second sound IF output
∙I2C-bus control of tuning, address selection, AFC status information
∙Complies with European regulations on radiation, signal handling and immunity (“CENELEC 55020, 55013’’ and
‘‘CISPR 13”)
∙Small horizontally mounted metal housing.
DESCRIPTION
The FI1200 MK2 family of front ends are designed to meet a wide range of RF applications in the PC Multi-Media environment.
The FI1256 MK2 types are available with a single 75 Ω input for TV reception. The input connector is available in either standard phono (female socket) or IEC (female socket).
The tuning and bandswitching are performed through the built-in digitally controlled I2C-bus. All front ends meet the input immunity and radiation of CISPR 13.

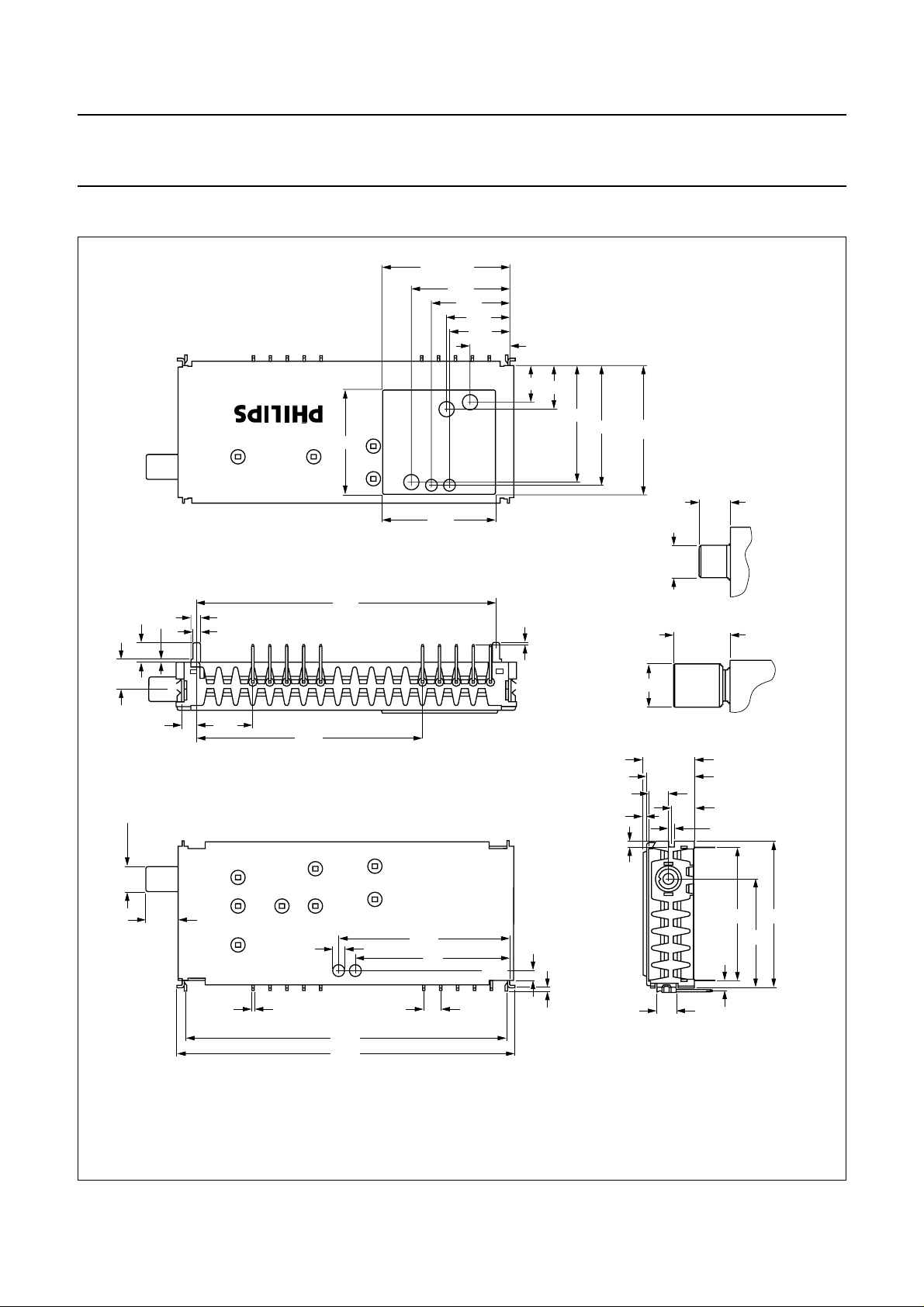

The FI1256 MK2 consists of a tuner section and an IF section, which are all designed on a single PCB. The front end is assembled in a metal housing made of a rectangular tin plated steel frame with front and rear covers which have soldered contacts to the frame. A single phono or IEC aerial socket is mounted on one side of the frame. All other connections are made via pins at the bottom.
The tuner section is equipped with 3 tuned RF MOSFET input stages, with a 3-band mixer-oscillator IC, containing the oscillators, mixers and IF amplifier. Tuning and band switching in the tuner section are done with a digital programmable PLL tuning system. This enables tuning with step-size programmable between 31.25, 50.0 or 62.5 kHz. A DC-DC converter is built around the PLL synthesizer IC to provide the tuning voltage, thus making the FI1256 MK2 front end a true 5 V device.
The IF section uses a true-synchronous vision IF demodulator (PLL) with an intercarrier SAW filter in front of it. The analog AFC voltage is fed to the 5-level A/D
converter in the PLL tuning IC, so that the AFC status can be read via the I2C-bus.
ORDERING INFORMATION
TYPE |
DESCRIPTION |
CATALOGUE |
|
NUMBERS |
|||
|
|
||
|
|
|
|
FI1256MK2/HM/PH |
standard phono |
3139 147 13741 |
|
|
|
|
|
FI1256MK2/HM/IEC |
IEC |
3139 147 13751 |
|
|
|
|
MARKING
The following items of information are printed on a sticker that is on the top cover of the tuner:
∙Type number
∙Code number
∙Origin letter of factory
∙Change code
∙Year and week code.
INTERMEDIATE FREQUENCIES
SYSTEM D/K |
FREQUENCY(1) |
|
(MHz) |
||
|
||
|
|
|
Picture carrier |
38.90 |
|
|
|
|
Colour |
34.47 |
|
|
|
|
Sound 1 |
32.40 |
|
|
|
|
Sound 2 (if applicable) |
32.16 |
|
|
|
Note
1.The oscillator frequency is above the input signal frequency.
CHANNEL COVERAGE
BAND |
CHANNELS |
|
|
Low band |
49.75 to 170.00 MHz |
|
|
Mid band |
170.00 to 450.00 MHz |
|
|
High band |
450.00 to 863.25 MHz |
|
|
1996 Jul 26 |
2 |
1996Jul26 |
|
HIGH BAND |
MIXER - OSCILLATOR IC |
|
|
|
DIAGRAMBLOCK |
D/KsystemCCIR |
tunerDesktopvideo |
ComponentsPhilips |
||||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
VCO |
|
|||||
|
|
|
|
|
|
HIGH |
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OSC. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BAND |
|
|
|
|
|
|
|
|
|
MID BAND |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MID |
IF |
|
|
|
|
|
|
|
|
|
|
|
|
|
OSC. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BAND |
VIF PLL DEMODULATOR |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
LOW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OSC. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BAND |
|
|
|
|
|
|
|
3 |
|
LOW BAND |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FILTER |
|
TRAP |
|
|
|
|
|
|
AGC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DC - DC |
|
PLL |
|
+ADC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
12 |
11 |
13 |
|
14 |
15 |
24 |
22 |
23 |
25 |
|
|
|
|
handbook, full pagewidth |
VS |
|
|
|
|
|
VIF |
|
|
MLC279 - 1 |
|
|
specification Preliminary |
|
|
|
|
|
|
|
|
|
MK2 FI1256 |
|||||
|
(+5 V) |
VT |
SCL |
SDA |
AS |
(+5 V) |
2nd IF |
CVBS |
AF |
|||||
|
|
|
|
|
|
|
|
sound |
|
sound |
||||
|
|
|
|
|
|
|
|
output |
|
output |
||||
|
|
|
Fig.1 |
Electrical block diagram. |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
Philips Components Preliminary specification
Desktop video tuner |
FI1256 MK2 |
||
system CCIR D/K |
|||
|
|||
|
|
|
|

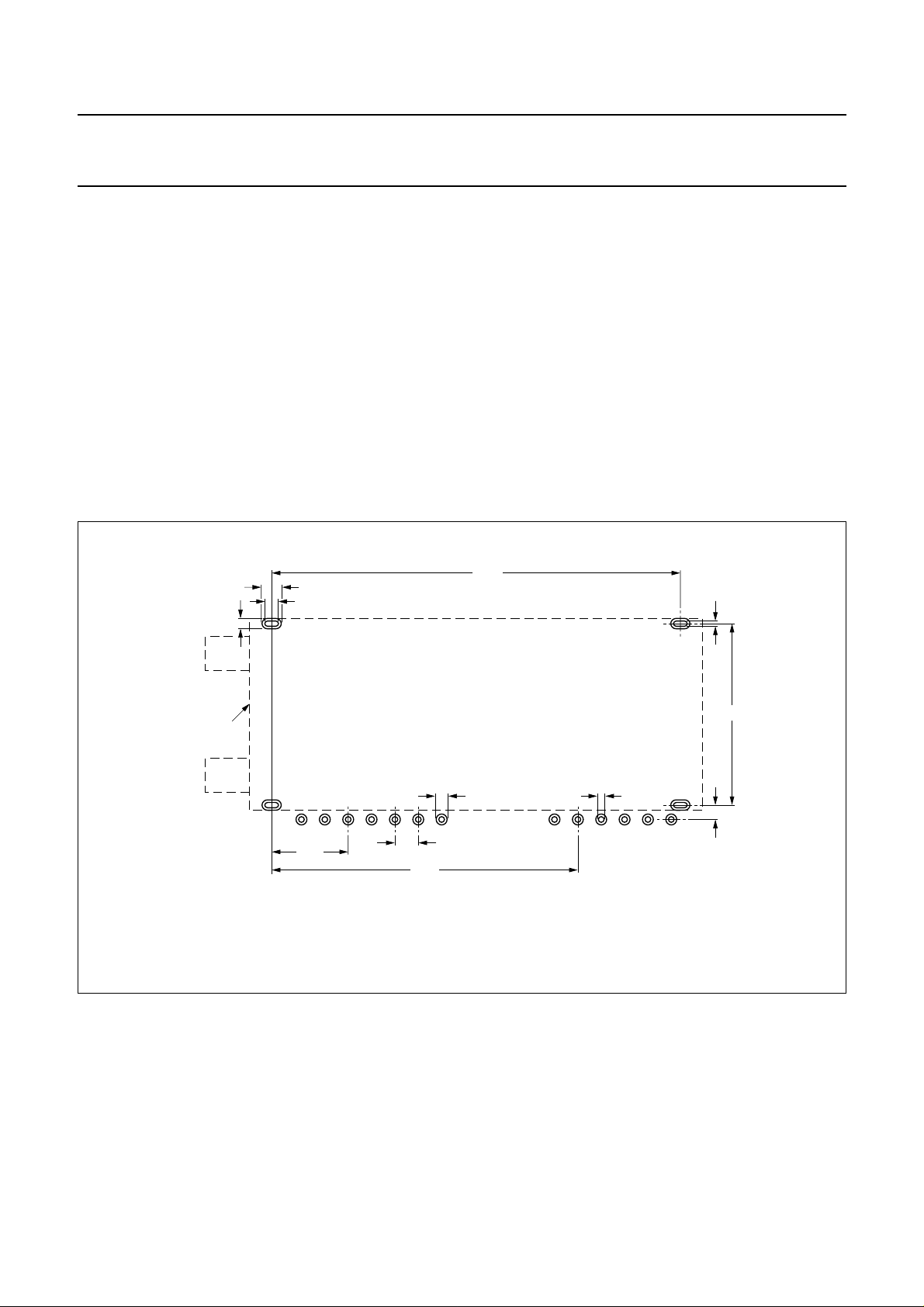

PINNING |
|
|
|
|
|
|
|
SYMBOL |
PIN |
DESCRIPTION |
|
|
|
|
|
VT |
11 |
tuning voltage (monitor) |
|
VS |
12 |
supply voltage tuner section +5 V |
|
SCL |
13 |
I2C-bus serial clock |
|
SDA |
14 |
I2C-bus serial data |
|
AS |
15 |
I2C-bus address select |
|
n.c. |
21 |
not connected |
|
|
|
|
|
2nd IF sound output |
22 |
second IF sound output |
|
CVBS |
23 |
Composite Video Baseband Signal output |
|
|
|
|
|
VIF |
24 |
supply voltage IF section +5 V |
|
AF sound output |
25 |
AF sound output |
|
|
|
|
|
− |
TH1, TH2, TH3 and TH4 |
mounting tags (ground) |
|
|
|
|
1996 Jul 26 |
4 |
Philips Components |
Preliminary specification |
|
|
Desktop video tuner
FI1256 MK2
system CCIR D/K
LIMITING VALUES
Limiting values under operational conditions
The tuner can be guaranteed to function properly under the following conditions.
SYMBOL |
PARAMETER |
PIN |
MIN. |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
|
|
VS |
supply voltage |
|
4.75 |
5.00 |
5.25 |
V |
|
VS(ripple) |
peak-to-peak ripple voltage susceptibility |
|
|
|
|
|
|
|
(at 5 V ±5%); note 1 |
12 |
|
|
|
|
|
|
20 Hz to 100 kHz |
− |
− |
20 |
mV |
||
|
|
||||||
|
>100 kHz to 500 kHz |
|
− |
− |
10 |
mV |
|
|
|
|
|
|
|
|
|
IS |
supply current |
|
− |
− |
120 |
mA |
|
VSCL |
SCL bus input voltage |
13 |
−0.3 |
− |
+5.25 |
V |
|
VSDA |
SDA bus input voltage |
14 |
−0.3 |
− |
+5.25 |
V |
|
ISDA |
SDA bus current (open collector) |
−1 |
− |
+5 |
mA |
||
|
|||||||
VAS |
address select voltage; note 2 |
15 |
− |
− |
+5.25 |
V |
|
Z |
2nd IF sound output load impedance: |
|
|
|
|
|
|
IF |
|
|
|
|
|
|
|
|
DC |
22 |
0.5 |
− |
− |
kΩ |
|
|
AC |
|
0.5 |
− |
− |
kΩ |
|
|
|
|
|
|
|
|
|
ZCVBS |
Composite Video Baseband Signal load |
|
|
|
|
|
|
|
impedance: |
|
|
|
|
|
|
|
DC |
23 |
− |
75 |
− |
Ω |
|
|
AC |
|
− |
75 |
− |
Ω |
|
|
|
|
|
|
|
|
|
tL |
load time constant |
|
− |
− |
100 |
ns |
|
VIF |
IF supply voltage |
|
4.75 |
5.0 |
5.25 |
V |
|
VIF(ripple) |
peak-to-peak ripple voltage susceptibility |
|
|
|
|
|
|
|
(at 5 V ±5%); note 1 |
24 |
|
|
|
|
|
|
20 Hz to 100 kHz |
− |
− |
20 |
mV |
||
|
|
||||||
|
>100 kHz to 500 kHz |
|
− |
− |
10 |
mV |
|
|
|
|
|
|
|
|
|
IIF |
IF supply current |
|
− |
− |
100 |
mA |
|
ZAF |
AF sound output load impedance: |
|
|
|
|
|
|
|
DC |
25 |
1.0 |
− |
− |
kΩ |
|
|
AC |
|
0.6 |
− |
− |
kΩ |
|
|
|
|
|
|
|
|
Notes
1.Sinusoidal ripple voltage superimposed on the 5 V supply voltage in the frequency range of 20 Hz to 500 kHz. Criteria for TV interference >57 dB.
2.For detailed information about the address decoding, refer to Chapter “Application information”.
1996 Jul 26 |
5 |
Philips Components |
Preliminary specification |
|
|
Desktop video tuner
FI1256 MK2
system CCIR D/K
Environmental conditions
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
Non-operational conditions |
|
|
|
|
|
|
|
|
|
|
|
|
|
Tamb |
ambient temperature |
|
−25 |
− |
+85 |
°C |
RH |
relative humidity |
|
− |
− |
100 |
% |
|
|
|
|
|
|
|
gB |
bump acceleration |
25 g |
− |
− |
245 |
m/s2 |
gS |
shock acceleration |
50 g |
− |
− |
490 |
m/s2 |
|
vibration amplitude |
10 to 55 Hz |
− |
0.35 |
− |
mm |
|
|
|
|
|
|
|
Operational conditions |
|
|
|
|
|
|
|
|
|
|
|
|
|
Tamb |
ambient temperature |
|
−10 |
− |
+60 |
°C |
RH |
relative humidity |
|
− |
− |
95 |
% |
|
|
|
|
|
|
|
OVERALL PERFORMANCE
Conditional data
Unless otherwise specified, all electrical values for Chapter “Overall performance” apply at the following conditions.
SYMBOL |
PARAMETER |
|
VALUE |
UNIT |
|
|
|
|
|
Tamb |
ambient temperature |
25 |
±5 |
°C |
RH |
relative humidity |
60 |
±15 |
% |
|
|
|
|
|
VS |
supply voltage (tuner and IF section) |
5 ±0.125 |
V |
|
ZCVBS |
video output load impedance (DC) |
>75 |
Ω |
|
ZIF |
IF sound output load impedance (DC) |
>500 |
Ω |
|
tpr |
pre-heating time (+5 V at pin 24) |
10 |
|
minute |
ZS(AE) |
aerial source impedance (unbalanced) |
75 |
|
Ω |
1996 Jul 26 |
6 |
