Philips FI1236MK2 DATA SHEET

BU TUNERS

DATA SH EET

FI1236MK2

Desktop video tuner
system RTMA M/N

Preliminary specification
File under BU Tuners, DC03

1996 Mar 19

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

FEATURES

• System RTMA M and N

• True 5 V device (low power dissipation)

• Full frequency range from channel 2 (55.25 MHz) to

channel 69 (801.25 MHz)

• PLL controlled tuning

• True-synchronous vision IF demodulator (PLL)

• Demodulated video output, AF sound output, second

sound IF output

• I2C-bus control of tuning, address selection, AFC status
information

• Complies with FCC and DOC regulations on radiation

• Small horizontally mounted metal housing.

DESCRIPTION

The FI1236MK2 is designed to meet a wide range of RF
applications in the PC Multi-Media environment.

The FI1236MK2 types are available with a single 75 Ω
input for TV reception. The input connector is available in
either standard phono (female socket) or F (female
socket).

The tuning and bandswitching are performed through the
built-in digitally controlled I
FCC and DOC radiation requirements.

The FI1236MK2 consists of a tuner section and an IF
section, which are all designed on a single PCB. The
front-end is assembled in a metal housing made of a
rectangular tin plated steel frame with front and rear covers
which have soldered contacts to the frame. A single phono
or F aerial socket is mounted on one side of the frame. All
other connections are made via pins at the bottom.

The tuner section is equipped with 3 tuned RF MOSFET
input stages, with a 3-band mixer-oscillator IC, containing
the oscillators, mixers and IF amplifier. Tuning and band
switching in the tuner section are done with a digital
programmable PLL tuning system. This enables tuning
with step-size programmable between

31.25, 50.0 or 62.5 kHz. A DC-DC converter is built

around the PLL synthesizer IC to provide the tuning
voltage, thus making the FI1236MK2 front-end a true 5 V
device.

The IF section uses a true-synchronous vision IF
demodulator (PLL) with an intercarrier SAW filter in front of
it. The analog AFC voltage is fed to the 5-level A/D
converter in the PLL tuning IC, so that the AFC status can
be read via the I

2

C-bus.

2

C-bus. All front-ends meet the

FI1236MK2

ORDERING INFORMATION

TYPE CONNECTOR

FI1236MK2/HM/PH standard phono 3139 147 13251
FI1236MK2/HM/F F 3139 147 13261

MARKING

The following items of information are printed on a sticker
that is on the top cover of the tuner:

• Type number

• Code number

• Origin letter of factory

• Change code

• Year and week code.

INTERMEDIATE FREQUENCIES

FREQUENCY

SYSTEM

NTSC M/N

Picture carrier 45.75
Colour 42.17
Sound 41.25

Note

1. The oscillator frequency is above the input signal
frequency.

CHANNEL COVERAGE

BAND CHANNELS

Low band 55.25 to 160.00 MHz
Mid band 160.00 to 454.00 MHz
High band 454.00 to 801.25 MHz

CATALOGUE

NUMBERS

(1)

(MHz)

1996 Mar 19 2

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

BLOCK DIAGRAM

VCO

PLL DEMODULATOR

IF

V

IF

FILTER TRAP

FI1236MK2

CCA020

25

AF

24
23

22

sound

IF

V

(+5 V)

CVBS

sound

2nd IF

output

output

n − 1 TRAP

HIGH

MIXER - OSCILLATOR IC

HIGH BAND

OSC.

BAND

MID

OSC.

MID BAND

BAND

LOW

OSC.

BAND

LOW BAND

AGC

+ADC

PLLDC - DC

AS

SDASCLV

1211 13 14 15

S

V

(+5 V)

T

Fig.1 Electrical block diagram.

1996 Mar 19 3

handbook, full pagewidth

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

PINNING

SYMBOL PIN DESCRIPTION

V

T

V

S

SCL 13 I
SDA 14 I
AS 15 I
n.c. 21 not connected

nd

IF sound output 22 second IF sound output

2
CVBS 23 Composite Video Baseband Signal output
V

IF

AF sound output 25 AF sound output

− TH1, TH2, TH3 and TH4 mounting tags (ground)

11 tuning voltage (monitor)
12 supply voltage tuner section +5 V

2

C-bus serial clock

2

C-bus serial data

2

C-bus address select

24 supply voltage IF section +5 V

FI1236MK2

1996 Mar 19 4

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

LIMITING VALUES
Limiting values under operational conditions

The tuner can be guaranteed to function properly under the following conditions.

SYMBOL PARAMETER PIN MIN. TYP. MAX. UNIT

V

S

V

S(ripple)

I

S

V

SCL

V

SDA

I

SDA

V

AS

Z

IF

Z

CVBS

t

L

V

IF

V

IF(ripple)

I

IF

Z

AF

supply voltage
peak-to-peak ripple voltage susceptibility

(at5V±5%); note 1

20 Hz to 100 kHz −−20 mV

12

>100 kHz to 500 kHz −−10 mV
supply current −−120 mA
SCL bus input voltage 13 −0.3 − +5.25 V
SDA bus input voltage
SDA bus current (open collector) −1 − +5 mA

14

address select voltage; note 2 15 −−+5.25 V
2nd IF sound output load impedance:

22DC 0.5 −−kΩ

AC 0.5 −−kΩ
Composite Video Baseband Signal load

impedance:

DC − 75 −Ω

23

AC − 75 −Ω
load time constant −−100 ns
IF supply voltage
peak-to-peak ripple voltage susceptibility

(at5V±5%); note 1

20 Hz to 100 kHz −−20 mV

24

>100 kHz to 500 kHz −−10 mV
IF supply current −−100 mA
AF sound output load impedance:

25DC 1.0 −−kΩ

AC 0.6 −−kΩ

4.75 5.00 5.25 V

−0.3 − +5.25 V

4.75 5.0 5.25 V

Notes

1. Sinusoidal ripple voltage superimposed on the 5 V supply voltage in the frequency range of 20 Hz to 500 kHz.
Criteria for TV interference >57 dB.

2. For detailed information about the address decoding, refer to Chapter “Application information”.

1996 Mar 19 5

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

Environmental conditions

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Non-operational conditions

T

amb

RH relative humidity −−100 %
g

B

g

S

Operational conditions

T

amb

RH relative humidity −−95 %

OVERALL PERFORMANCE
Conditional data

Unless otherwise specified, all electrical values for Chapter “Overall performance” apply at the following conditions.

ambient temperature −25 − +85 °C

bump acceleration 25 g −−245 m/s
shock acceleration 50 g −−490 m/s
vibration amplitude 10 to 55 Hz − 0.35 − mm

ambient temperature −10 − +60 °C

2
2

SYMBOL PARAMETER VALUE UNIT

T

amb

ambient temperature 25 ±5 °C
RH relative humidity 60 ±15 %
V
Z
Z
t

pr

Z

S
CVBS
IF

S(AE)

supply voltage (tuner and IF section) 5 ±0.125 V

video output load impedance (DC) >75 Ω

IF sound output load impedance (DC) >500 Ω

pre-heating time (+5 V at pin 24) 10 minute

aerial source impedance (unbalanced) 75 Ω

1996 Mar 19 6

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

TUNER SECTION
Tuner characteristics

For detailed information about the PLL programming, refer to Chapter “Application information”.
The desktop video tuner is guaranteed to function properly within the specified operational conditions, but a certain

deterioration of performance parameters may occur at the limits of the operational conditions.

Test equipment

EQUIPMENT PARAMETER VALUE UNIT

DC voltmeter input impedance >1 MΩ
Oscilloscope input impedance:

resistance >1 MΩ

capacitance <15 pF
Spectrum analyzer input impedance 50 Ω
FET probe input impedance:

resistance 1 MΩ

capacitance 3.5 pF

output impedance 50 Ω
voltage gain 0 dB

1996 Mar 19 7

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

handbook, full pagewidth

IF

output

BU2

aerial

connector

V

T

V

S

SCL

SDA

IF

PROBE

OUT

11

12 13 14 15

TP2 TP3

10 nF

nF

kΩ

FI1236MK2

22 23 24 25

1

3

33
µF

TEST JIG

video

P

(1) BU4 loaded with 75 Ω.
(2) 75 µs de-emphasis.
SA =spectrum analyzer.
P = FET probe.
DA = distortion analyzer.
The minimum load impedance required at the CVBS output (pin 23) is 75 Ω (both AC and DC).

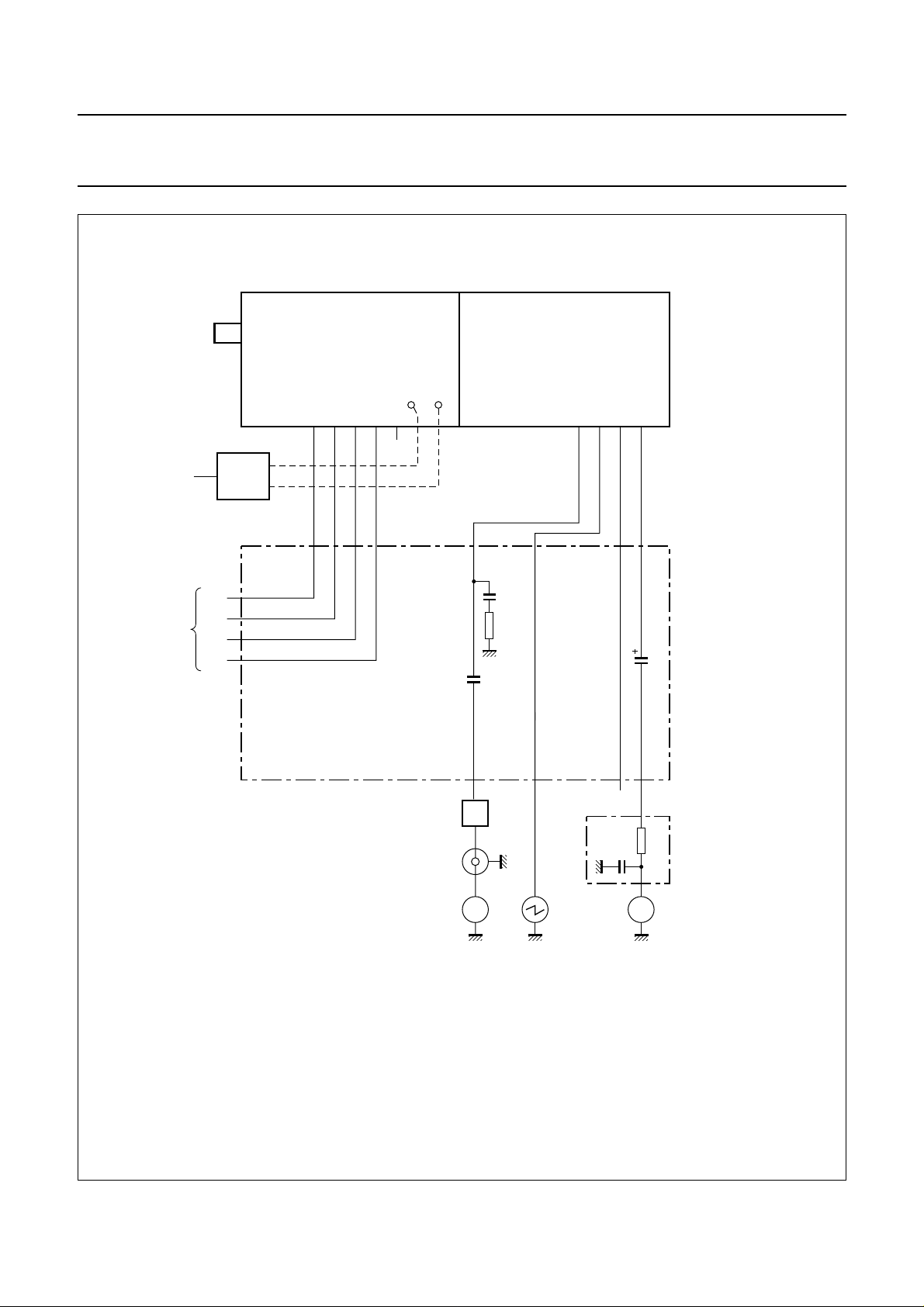

Fig.2 Typical test set up.

out

(1)

+5 V

75
nF

BU6BU2BU4BU5

1

kΩ

(2)

DASA

CCA021

1996 Mar 19 8

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

Definitions of test signals (see Fig.2)

TEST SIGNAL

A0: unmodulated vision
carrier

A1: RTMA M/N standard
signal with video modulation

B1: unmodulated sound
carrier M system

B2: FM modulated sound
carrier M system

B3: unmodulated sound
carrier M system

Aerial input characteristics

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

VSWR reflection coefficient referred to 75 Ω impedance (worst case on

V
V

PSM
ant

surge protection voltage 5 − kV
antenna connection

disturbance voltage

FREQ.

(MHz)

477.25 60 dBµV

477.25 60 dBµV

481.25 −7 dB w.r.t.

481.25 −7 dB w.r.t.

483.25 −12 dB w.r.t.

AMPLITUDE

(top sync)

A0 to A1

A0 to A1

A0 to A1

or between picture and sound carrier at
maximum gain)

54 MHz to <300 MHz − 34 dBµV
300 MHz to <1000 MHz − 50 dBµV

VIDEO AUDIO

100% (rest carrier 12.5%)
2T pulse and bar

MODULATION

1 kHz; modulation frequency
deviation ±25 kHz;
75 µs pre-emphasis

− 5

1996 Mar 19 9

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

General characteristics

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

f

∆f

α

α

Z

m

V
t

α

V

b

b

i

IF
IF

x

osc

li

vs

ESD

frequency range:

low band 55.25 − 157.25 MHz
mid band 163.25 − 451.25 MHz
high band 457.25 − 801.25 MHz

margin:

for low band 1.5 −− MHz
for mid/high band 3 −− MHz

image rejection (nominal gain to
10 dB gain reduction):

low band (channel 2 to 6) 60 −− dB
mid band (channel 7 to 13) 60 −− dB
high band (channel 14 to 69) 50 −− dB

IF rejection (picture) 60 −− dB

1

⁄2 IF susceptibility:

channel 2 to 13 75 −− dBµV
channel 14 to 69 60 −− dBµV

cross modulation:

in-channel 65 −− dBµV
in-band
low band (n ±2) 78 −− dBµV
mid band (n ±3) 78 −− dBµV
high band (n ±5) 84 −− dBµV
out of band − 100 − dBµV

breakthrough susceptibility:

channel 2 to 69 60 −− dBµV
oscillator voltage at all pins −−70 dBµV
oscillators lock-in time charge pump set logic

−−150 ms

HIGH

the video signal-to-sound interference

40 −− dB
ratio with the tuner exposed to sound
signals in the audio frequency range
100 Hz to 10 kHz and sound pressure
levels up to 105 dB (20 µPa)

electrostatic discharge (ESD)

note 1 2 −− kV

on all pins

Note

1. All the pins of the desktop video tuner are protected against electrostatic discharge (ESD) up to 2 kV . The product is
classified in category B

(‘‘MIL-STD-883C”)

.

1996 Mar 19 10

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

Video and audio characteristics (see Fig.2)

PARAMETER TEST SIGNAL

CVBS characteristics:

video amplitude signal at pin 23 A1 (peak-to-peak value) BU4 0.7 − 1.1 V
DC level sync pulse at pin 23 A1 BU4 − 0.35 − V

Video amplitude drop with respect to modulation

0.1 MHz at T

amb

=45°C:
at 1 MHz A1 BU4 −1.0 − +1.0 dB
at 2 MHz A1 BU4 −1.5 − +1.5 dB
at 3 MHz A1 BU4 −2.5 − +1.5 dB
at 3.58 MHz A1 BU4 −4.0 − +2.0 dB

Sound carrier rejection A1 (1 MHz) + B1 BU4 40 −− dB
Residual 47.25 MHz signal in video channel:

A1 + B3 BU4 −−68 dBµV

level of 1.5 MHz
Residual 91.5 MHz signal in video channel A1 BU4 −−80 dBµV
Second IF sound output level at level of 4.5 MHz A1 + B1 BU5 84 −− dBµV
Test on 2T pulse at T

amb

=45°C:
2T pulse/bar response A1 BU4 −2.5 − +2.5 %
2T pulse response A1 BU4 −−+3.0 %

CVBS S/N (unweighted) A1 + B1 BU4 41 −− dB
Gain limited sensitivity at 1 dB reduction

A1 BU4 −−30 dBµV

of video output
Audio characteristics:

AF output level measured via LP 20 kHz filter,

A1 + B2 BU6 0.25 0.35 0.50 V

RMS detector, 75 µs de-emphasis
THD (Total Harmonic Distortion) measured

A1 + B2 BU6 −−0.5 %
via LP 20 kHz filter, RMS detector,
75 µs de-emphasis

S/N measured via CCIR filter, peak
CCIR detector, 75 µs de-emphasis

AF 3 dB response measured via LP 20 kHz filter,

A1 (full field colour bar)

+B1

A1 (black) + B1 BU6 90 −− kHz

RMS detector, de-emphasis off
AM suppression ratio A1 + B2 BU6 40 −− dB

TEST

POINT

MIN. TYP. MAX. UNIT

BU6 41 −− dB

Digital AFC status

PARAMETER CONDITIONS

ADC word at I

2

C-bus during read operation input voltage at pin 10:

0.0 to 0.15V

0.15 to 0.30V

0.30 to 0.45V

0.45 to 0.60V

0.60 to 1.00V

1996 Mar 19 11

FREQUENCY

(kHz)

S

S
S
S
S

−125 00

−62.5 01

002
+62.5 03
+125 04

DIGITAL

READ-OUT

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

APPLICATION INFORMATION

A detailed description of the I2C-bus specification, with applications, is given in brochure

use it”.

This brochure may be ordered using the code number 9398 393 40011.

WRITE mode

BITS

BYTE

7

MSB

654321

Address byte 1 1 0 0 0 MA1 MA0 0 A
Program divider byte 1 0 n14 n13 n12 n11 n10 n9 n8 A
Program divider byte 2 n7 n6 n5 n4 n3 n2 n1 n0 A
Control information byte 1 1 CP T2 T1 T0 RSA RSB OS A
Control information byte 2 P7 P6 P5 P4 P3 P2 P1 P0 A

Note

1. A = Acknowledge.

A

DDRESS SELECTION

VS= +5 V (PLL supply voltage)

“The I2C-bus and how to

0

LSB

(1)

A

MA1 MA0 ADDRESS VOLTAGE AT PIN 15

0 0 C0 0 to 0.1V
0 1 C2 0.2 to 0.3V
1 0 C4 0.4 to 0.6V
1 1 C6 0.9VSto V

P

ROGRAMMABLE DIVIDER SETTINGS (BYTES 1 AND 2)

S
S
S

S

Divider ratio:

N=16×{f
f

=N⁄16(MHz).

osc

RF(pc)

+ f

}, where (pc) is picture carrier and fRF and fIF are expressed in MHz.

IF(pc)

N = (8192 × n13) + (4096 × n12) + (2048 × n11) + (1024 × n10) + (512 × n9) + (256 × n8) + (128 × n7) + (64 × n6) +
(32 × n5) + (16 × n4) + (8 × n3) + (4 × n2)+(2×n1) + n0

C

ONTROL BYTE

Charge pump settings:

CP = 1, for fast tuning
CP = 0, for moderate speed tuning with slightly better residual oscillator FM.

Test mode settings:

T2 = T1 = 0; T0 = 1, for normal operation.

PLL disabling:

OS = 0, for normal operation
OS = 1, for switching the charge pump to the high impedance state.

1996 Mar 19 12

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

Ratio select bits

RSA RSB STEP SIZE

X 0 50 kHz
0 1 31.25 kHz (for slow picture search)
1 1 62.5 kHz (for normal picture search)

PORTS BYTE

Band switching

(1)

BAND

P0 P1 P2 P3

Low band 0 0 0 X 0 1 0 1
Mid band 0 0 0 X 1 0 0 1
High band 0 0 0 X 1 1 0 0

Notes

1. X = don’t care; P0 to P7 are output ports on the PLL device.

2. P3 is a system switch output for customer applications.

(2)

BIT

P4 P5 P6 P7

TELEGRAM EXAMPLES (WRITE MODE)
Start - Adb - Ack - Db1 - Ack - Db2 - Ack - Cb - Ack - Pb - Ack - Stop.
Start - Adb - Ack - Cb - Ack - Pb - Ack - Db1 - Ack - Db2 - Ack - Stop.
Start - Adb - Ack - Db1 - Ack - Db2 - Ack - Cb - Ack - Stop.
Start - Adb - Ack - Db1 - Ack - Db2 - Ack - Stop.
Where:

Start = start condition
Adb = address byte
Ack = acknowledge
Db1 = divider byte 1
Db2 = divider byte 2
Cb = control byte
Pb = ports byte
Stop = stop condition.

Remark: for channel selection involving band switching, and to ensure smooth tuning to the desired channel without
causing unnecessary charge pump action, it is recommended to consider the difference between wanted channel
frequency (fw) and the current channel frequency (fc):

• If fw >fc, use telegram as:
Start - Adb - Ack - Db1 - Ack - Db2 - Ack - Cb - Ack - Pb - Ack - Stop

• If fw > fc, use telegram as:
Start - Adb - Ack - Cb - Ack - Pb - Ack - Db1 - Ack - Db2 - Ack - Stop.

Unnecessary charge pump action will result in very low tuning voltage (VT≈ 0 V) which may drive the oscillator to extreme
conditions.

1996 Mar 19 13

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

READ mode

The in-lock can be read by setting the R/W bit to 1.

BITS

BYTE

Address byte 1 1 0 0 0 MA1 MA0 1 A
Status byte POR

Notes

1. POR = Power On Reset. POR is internally set to 1 in case V

data is detected by the PLL IC.

2. FL = In-lock flag; FL = 1: loop is phase-locked. The loop must be phase-locked during at least 8 periods of the internal

7.8125 kHz reference frequency before the FL flag is internally set to 1.

3. I2, I1 and I0 = digital information for I/O ports P2, P1 and P0 respectively.

4. A2, A1 and A0 = built-in 5-level A/D converter on I/O port P6. AFC information to the controller of the IF section is

available on pin 10 (see Table “Digital AFC status”).

5. A = Acknowledge.

7

MSB

(1)

654321

FL

(2)

(3)

I2

(3)

I1

(3)

I0

drops below 3 V. The POR bit is reset when an end of

S

A2

(4)

A1

(4)

0

LSB

(4)

A0

(5)

A

A

T

ELEGRAM EXAMPLES (READ MODE)

Start - Adb - Ack - STB - Ack - STB - - Stop (no Ack from processor = End-of-data).
Start - Adb - Ack - STB - - Stop (no Ack from processor = End-of-data).
Where:

STB = Status byte.

Video buffer

A video buffer is built into the video module to enable the
unit to drive a 75 Ω load directly. In case it is required to

handbook, halfpage

V

CC

use the FI1236MK2 as a replacement for the FI1236 in the
same videocard, it is necessary to replace the 75 Ω series

R1

resistor in the video card by a 0 Ω series resistor. At the
same time the 22 kΩ series resistor in the tuning supply
must be removed.

2

C-bus load

I

R2

The FI1236MK2 contains a series resistor (R = 100 Ω) in
the SCL and SDA lines. Both lines also have a capacitive
load of typical 56 pF (see Fig.3).

PLL IC

R3

100 Ω

R4

100 Ω

R5

100 Ω

C1
56 pF

C2
56 pF

C3
56 pF

15

AS

14

SDA

13

SCL

MBH031

1996 Mar 19 14

Fig.3 I

2

C-bus load.

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

MECHANICAL DATA

handbook, full pagewidth

(1)

27.6

33.7

26.9

+0.2

0

25.9

20.6

16.6

15.8

10.4

9.7

11.5

30.8

31.6

STANDARD PHONO CONNECTOR

34.2

+0.2

0

∅ 8.35

FI1236MK2

8.1

± 0.3

(1)

7.9

∅ 6.35

5.1

0.8

+0.10

−0.04

8.5

± 0.2

1

TH4

2.5
2

14.74

11 12 13 14 15

0.64 × 0.64

59.2

∅ 3 (2×)

78.4

84.5

89.2

45.4

21 22

4.445

17.5

12.3

3/8 × 32

UNEF 2A

1.5

(2×)

(2)

F CONNECTOR

13.5 max

12.9 max

5.2
6

(2×)

5

1.5 (2×)

34.7

2.6

38.5

28.55

CCA022

0.5

∅ 12.3

(0.6)

TH2

41

23 24

TH3

25

2.6

1.1

Dimensions in mm.
(1) Standard phono socket female 75 Ω.
(2) Alternative F connection.

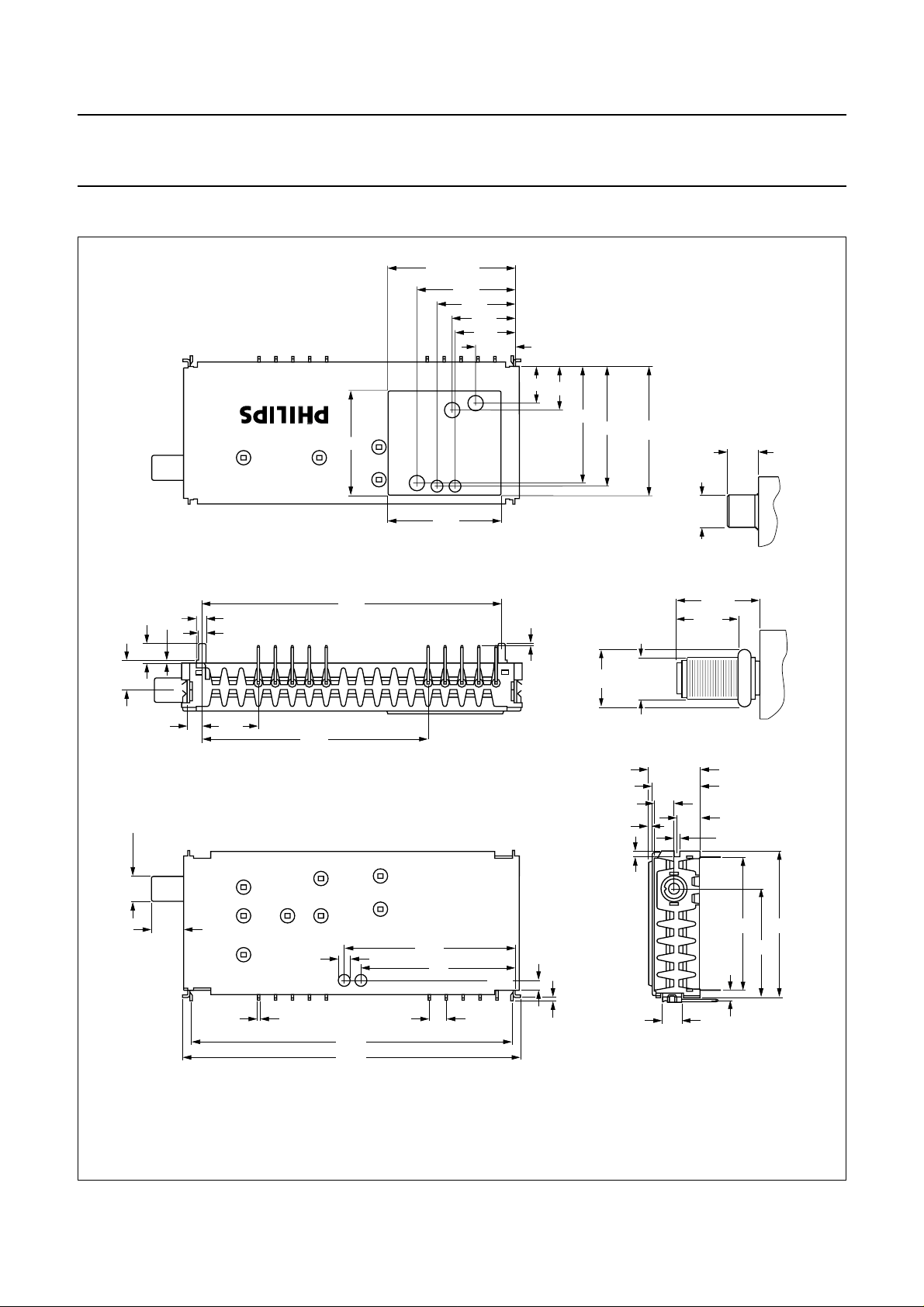

Fig.4 Mechanical outline.

1996 Mar 19 15

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

Aerial connections

Standard-phono socket female 75 Ω or F (female).

Solderability

The solderability of pins and mounting tags when tested
initially and after 16 hours steam ageing in accordance
with

“IEC 68-2-20”

for 2 s), results in a wetted area of 95%. No de-wetting will
occur when soldered at 260 °Cfor5s.

Resistance to soldering heat

The product will not be damaged when tested in
accordance with
(solder bath 260 °C for 10 ±1 s).

handbook, full pagewidth

, test Ta, method 1 (solder bath 235 °C

“IEC 68-2-20”

, test Tb, method 1A

3.4

2.3

2

FI1236MK2

Mass

Approximately 50 g.

Robustness of pins

The pins will not be damaged when tested in accordance
with

“IEC 68-2-21”

• Test Ua1, tensile of 10 N in axial direction

• Test Ua2, thrust of 4 N in axial direction.

Punching pattern of chassis PCB

Field rejects are often related to broken tag joints.
Therefore, the following punching pattern is recommended
(see Fig.5).

78.4

:

0.9

Dimensions in mm.

unit

contour

∅ 2.1 ∅ 1.1

14.7

4.445

59.2

Fig.5 Punching pattern seen from solder side.

34.7

2.6

MGB514 - 1

1996 Mar 19 16

Philips Components Preliminary specification

Desktop video tuner

FI1236MK2

system RTMA M/N

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

2

PURCHASE OF PHILIPS I

C COMPONENTS

2

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

C components conveys a license under the Philips’ I2C patent to use the

1996 Mar 19 17

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

FI1236MK2

NOTES

1996 Mar 19 18

Philips Components Preliminary specification

Desktop video tuner
system RTMA M/N

FI1236MK2

NOTES

1996 Mar 19 19

Philips Components – a worldwide company

Argentina: IEROD, Av. Juramento, 1991-14.B, (1428) BUENOS AIRES,

Tel. [phone], Fax. [phone].

Australia: PHILIPS COMPONENTS PTY Ltd, 34 Waterloo Road,

NORTH RYDE NSW 2113, Tel. [phone], Fax. [phone].

Austria: PHILIPS COMPONENTS, Vertriebsgesellschaft m.b.H.,

Triester Strasse 64, A-1101 WIEN, P.O. Box 213,
Tel. [phone], Fax. [phone].

Belgium: PHILIPS NEDERLAND B.V., Philips Components &

Semiconductors, Postbus 90050, 5600 PB EINDHOVEN,
Netherlands, Tel. [phone], Fax. [phone].

Brazil: PHILIPS COMPONENTS, Rua do Rocio 220 - 5

04552-903 - SÃO PAULO - SP,
Tel. [phone], Fax. [phone].

Canada: PHILIPS ELECTRONICS Ltd., Philips Components,

601 Milner Ave., SCARBOROUGH, Ontario, M1B 1M8,
Tel. [phone], Fax. [phone].

Chile: PHILIPS CHILENA S.A., Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone].

China: PHILIPS COMPANY, Philips Components MSO PRC,

6F Building 2, No. 889 Yi Shan Road,
SHANGHAI 200233,
Tel. [phone], Fax. [phone].

Colombia: IPRELENSO LTDA, Diagonal 59, No. 20-27,

P.O. Box 77621, SANTAFE DE BOGOTA,
Tel. [phone], Fax. [phone].

Denmark: PHILIPS COMPONENTS A/S, Prags Boulevard 80,

P.O Box 1919, 2300 COPENHAGEN S,
Tel. [phone], Fax. [phone].

Finland: PHILIPS COMPONENTS, Sinikalliontie 3,

FIN-02630 ESPOO, Tel. [phone], Fax. [phone].

France: PHILIPS COMPOSANTS, 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES, Cedex, Tel. [phone], Fax. [phone].

Germany: PHILIPS COMPONENTS UB der Philips G.m.b.H.,

P.O. Box 10 63 23, 20043 HAMBURG,
Tel. [phone], Fax. [phone].

Greece: PHILIPS HELLENIQUE S.A., Components Division,

No. 15, 25th March Street, GR 17778 TAVROS,
Tel. [phone], Fax. [phone].

Hong Kong: PHILIPS HONG KONG, Components Division,

Unit 003-005, G/F, Hong Kong Ind. Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, KOWLOON,
Tel. [phone], Fax. [phone].

India: Philips INDIA Ltd., Components Dept.,

Shivsagar Estate, A Block,
Dr. Annie Besant Rd. Worli, Bombay 400 018,
Tel. [phone], Fax. [phone].

Indonesia: P.T. PHILIPS DEVELOPMENT CORPORATION,

Philips House, Jalan H.R. Rasuna Said Kav. 3-4,
P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone].

Ireland: PHILIPS ELECTRONICS (IRELAND) Ltd.,

Components Division, Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone].

Israel: Rapac Electronics Ltd., 7 Kehilat Saloniki St. P.O. Box 18053,

TEL AVIV 61180, Tel. [phone], Fax. [phone].

Italy: PHILIPS COMPONENTS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone].

Japan: PHILIPS JAPAN Ltd., Components Division,

Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,
Tel. [phone], Fax. [phone].

Korea: (Republic of): PHILIPS ELECTRONICS (KOREA) Ltd.,

Components Division, Philips House, 260-199 Itaewon-dong,
Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone].

Malaysia: PHILIPS MALAYSIA SDN BERHAD, Components Division,

No. 76 Jalan Universiti, 46200 Petaling Jaya, KUALA LUMPUR,
Tel. [phone], Fax. [phone].
PHILIPS MALAYSIA SDN BERHAD, Components Division,
345 Jalan Gelugor, PULAU PINANG,
Tel. [phone], Fax. [phone].

Mexico: PHILIPS COMPONENTS, 5900 Gateway East,

Suite 200, EL PASO, TX 79905, U.S.A.,
Tel. [phone], Fax. [phone].

th

floor,

Netherlands: PHILIPS NEDERLAND B.V., Philips Components &

Semiconductors, Bldg. VB Postbus 90050, 5600 PB EINDHOVEN,
Tel. [phone], Fax. [phone].

New Zealand: PHILIPS NEW ZEALAND Ltd.,

Components Division, 2 Wagener Place, C.P.O. Box 1041,
AUCKLAND, Tel. [phone], Fax. [phone].

Norway: NORSK A/S PHILIPS, Philips Components, Box 1,

Manglerud 0612, OSLO, Tel. [phone], Fax. [phone].

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone], Fax. [phone].

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone].

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone].

Singapore: PHILIPS SINGAPORE, Pte Ltd., Components Division,

Lorong 1, Toa Payoh, SINGAPORE 1231,
Tel. [phone], Fax. [phone].

South Africa: S.A. PHILIPS Pty Ltd., Components Division,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone].

Spain: PHILIPS COMPONENTS, Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone].

Sweden: PHILIPS COMPONENTS AB, Kottbygatan 7, Akalla.

Postal address: S-164 85 STOCKHOLM,
Tel. [phone], Fax. [phone].

Switzerland: PHILIPS COMPONENTS AG, Allmendstrasse 140,

CH-8027 ZÜRICH, Tel. [phone], Fax. [phone].

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West Road,

Sec. 1. Taipei, Taiwan ROC, P.O. Box 22978, TAIPEI 100,
Tel. [phone], Fax. [phone].

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone].

Turkey: Türk Philips Ticaret A.S., Components Department,

Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone].

United Kingdom: PHILIPS COMPONENTS Ltd., The Mullard Building,

Dorking Business Park, DORKING, Surrey, RH4 1HJ,
Tel: [phone], Fax: [phone].

United States: PHILIPS COMPONENTS, Division Headquarters,

1440 Indiantown road Jupiter, FL 33458,
Tel. [phone], Fax. [phone].
For literature: [phone].
PHILIPS DISPLAY COMPONENTS COMPANY,
1600 Huron Parkway, ANN ARBOR, Michigan 48105-2590,
Tel. [phone], Fax. [phone].

Uruguay: PHILIPS COMPONENTS, Coronel Mora 433,

MONTEVIDEO, Tel. [phone], Fax. [phone].

For all other countries apply to: Philips Components,
Marketing Communications, P.O. Box 218, 5600 MD EINDHOVEN,
The Netherlands, Telex 35000 phtcnl, Fax. [phone].

COD04 © Philips Electronics N.V. 1996

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands
