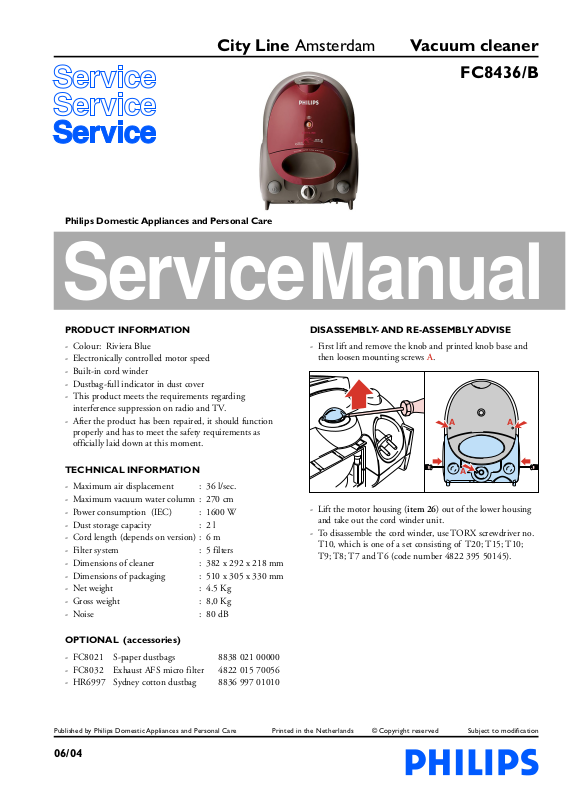

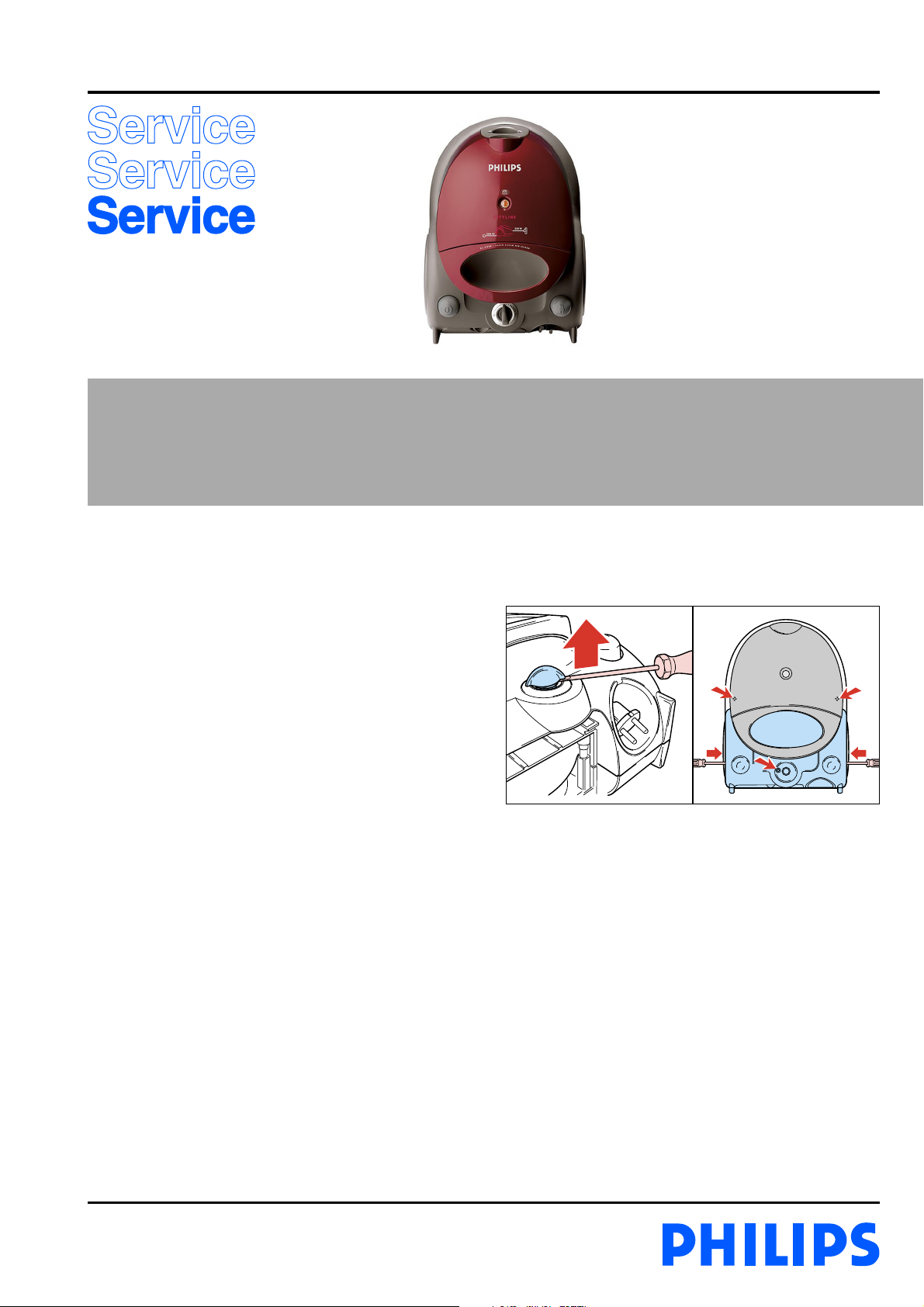

Philips FC8436B Datasheet

City Line Amsterdam Vacuum cleaner

FC8436/B

Philips Domestic Appliances and Personal Care

Service Manual

PRODUCT INFORMATION

- Colour: Riviera Blue

- Electronically controlled motor speed

- Built-in cord winder

- Dustbag-full indicator in dust cover

- This product meets the requirements regarding
interference suppression on radio and TV.

- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.

TECHNICAL INFORMATION

- Maximum air displacement : 36 l/sec.

- Maximum vacuum water column : 270 cm

- Power consumption (IEC) : 1600 W

- Dust storage capacity : 2 l

- Cord length (depends on version) : 6 m

- Filter system : 5 filters

- Dimensions of cleaner : 382 x 292 x 218 mm

- Dimensions of packaging : 510 x 305 x 330 mm

- Net weight : 4.5 Kg

- Gross weight : 8,0 Kg

- Noise : 80 dB

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- First lift and remove the knob and printed knob base and

then loosen mounting screws A.

AA

A

- Lift the motor housing (item 26) out of the lower housing

and take out the cord winder unit.

- To disassemble the cord winder, use TORX screwdriver no.
T10, which is one of a set consisting of T20; T15; T10;
T9; T8; T7 and T6 (code number 4822 395 50145).

OPTIONAL (accessories)

- FC8021 S-paper dustbags 8838 021 00000

- FC8032 Exhaust AFS micro filter 4822 015 70056

- HR6997 Sydney cotton dustbag 8836 997 01010

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

06/04

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Cotton dustbags are used in countries where paper dustbags
are unobtainable.

- If the reel half spring unit is replaced, shaft F must be
lubricated with silicone grease. Do not apply any silicone
grease to or spill any grease on terminals (36) or conductors
(35).

- Item 34 is provided with a long cord-winder spring, but
both long and short cords can be used in combination with
this spring. (L = 9.3 m)

- Depending on the length of the original cord, the spare
cord may have to be shortened.

- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn

- The RPM can be adjusted by means of the potentiometer
mounted on the PCB (item 25). The RPM is correctly
adjusted if the motor starts automatically and continues to
run smoothly with the ON/OFF position and the
adjustable potentiometer in minimum position.

- If the function of the electronic control unit (item 25) is
not required, the Triac must be short-circuited in the
manner shown in the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust, the
pores of the dustbag may become clogged, causing the
passage of air through the dustbag to become obstructed.
As a result, the dustbag-full indicator will indicate that the
dustbag needs to be replaced, even though the dustbag is
not full at all.

FC8436/B

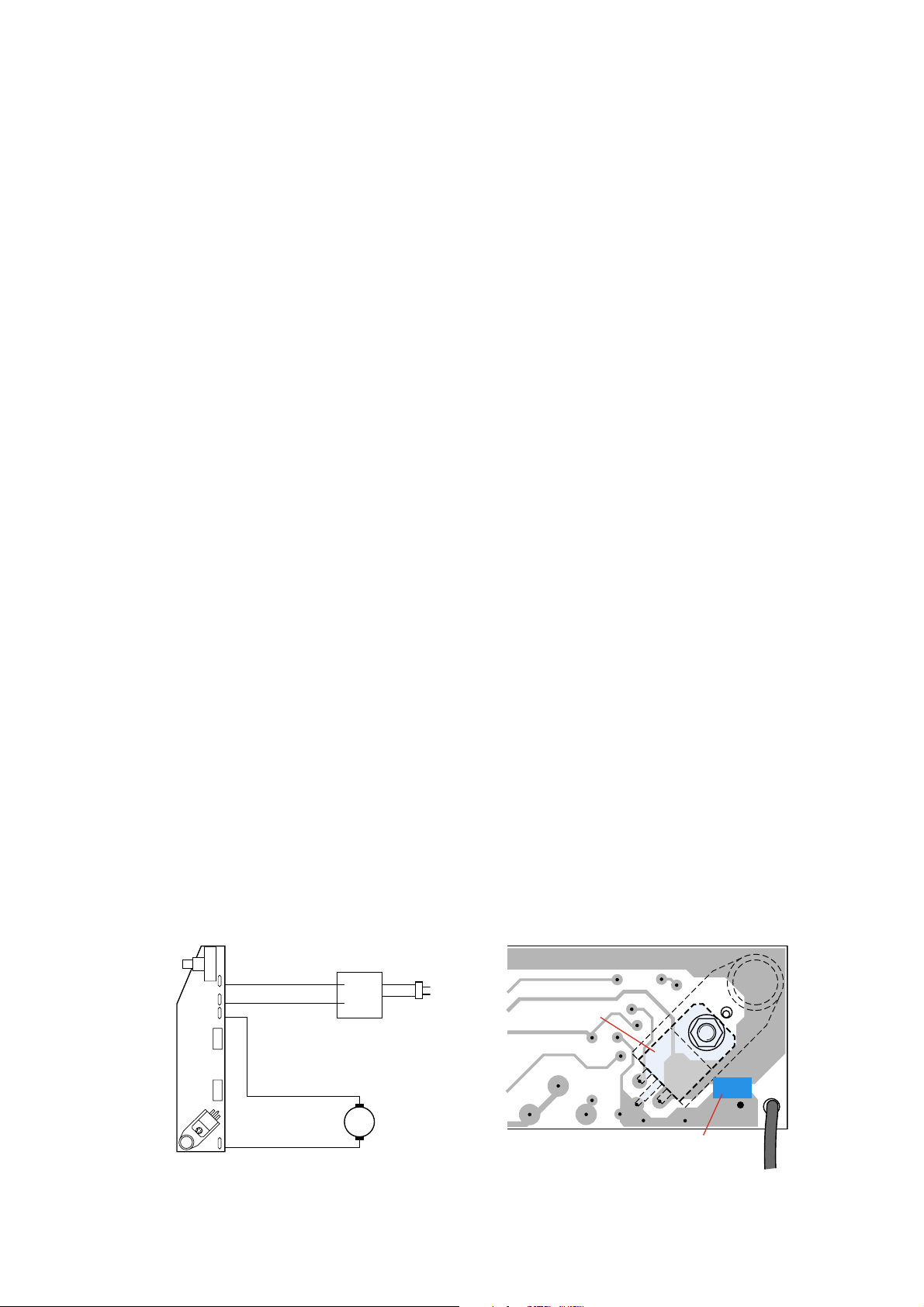

ELECTRICAL DIAGRAM

MOTOR
POWER

MODULE

Brown

Blue

Black

Black

CORD WINDER

Triac

M

Short-circuit

2-6

PARTS LIST

FC8436/B

Pos Service code Description

1

4322 005 18400

2

4341 009 01000

3

8838 021 00000
4822 480 10115

4

4341 009 00760

5

4341 001 70180

6

4322 005 18240

7

4341 001 70190

8

4322 003 26370

9

4322 005 18260

10

4322 003 12220

11

4822 480 40234

12

4322 005 18250

13

4341 009 00780

14

4341 005 00780

15

4322 005 18680

16

4322 003 26390

17

4322 003 26380

18

4322 003 26430

19

4322 003 26410

20

4322 004 93240

21

Not available*

21a

4322 003 26810

22

4341 003 02330

23

4341 003 02390

24

4322 006 50600

25

4322 006 23170
4322 006 23180

26

4322 003 26420

27

4341 001 70210

Handle Cherry Red
Dustcover Cherry Red
S-bag set
Cotton dustbag (opt.)
Dustbag frame

Dust cover sealing
Lower housing sel. grey
Inlet rubber
Nose piece sel. grey
Rear Wheel soft blue/sel. grey

Wheel bush
Safety fi lter
Caster assy sel. grey
Cover and fi lter
Turn knob grip stand (opt.)

Knob base pr.
Cord outlet sel. grey
Upper housing sel. grey
Pedal grey/blue
Back grille Hepa sel. grey

Filter S-class
Wheel peg
Wheel bush lim. space
Cooling tube
Switch lever

Switch soldered
PCB 220 - 240 V
PCB 120 V
Motor cap sel. grey
Buffer back

Pos Service code Description

28

4322 009 06430
4322 009 06770

29

4822 466 62655

30

4341 003 02360

31

4322 003 06620

32

4322 001 72360

33

4322 009 07640

34

4322 009 07610
4322 009 09060

35

4341 005 01330

36

4341 005 00790

37

4322 006 01770
4341 006 01890

38

4322 006 02100

39

4322 006 02060

40

4322 006 02080

41

4341 003 01960

42

4341 004 20520

43

4322 007 31640

45

4322 001 99120

46

4322 007 45550

47

4322 004 23280

48

4341 003 02470

49

4341 003 01900

50

4322 004 22560

51

4322 004 23290

52

4322 004 22490

Motor ANS 1451 230 V
Motor ANS 1241 EL 120 V
Buffer ring front
ANS motor disc
Push rod

Brake tyre
Base plate assy
Reel half spring unit
Reel half spring unit PRC
Reel half contact side

Contact plate assy
Flat cord set Japan/Taiwan 5.3 m
Cordset 1.0 / 5.3 m PRC / R
Flat cord set U.K./H.K. 6.3 m
Flat cord set Euro/Korea 6.3 m

Flat cord set Swiss
Bend stand.
Bend and hose assy
Leaf Spring
Tube bush

Tube spring
Telescopic tube stand.
Accessory clip
Crevice nozzle stand.
Small nozzle stand.

HF Nozzle stand.
Reach & Clean Nozzle stand.

* The wheel peg has been changed to a wheel bush (21a)

WK542 onwards.

3-6

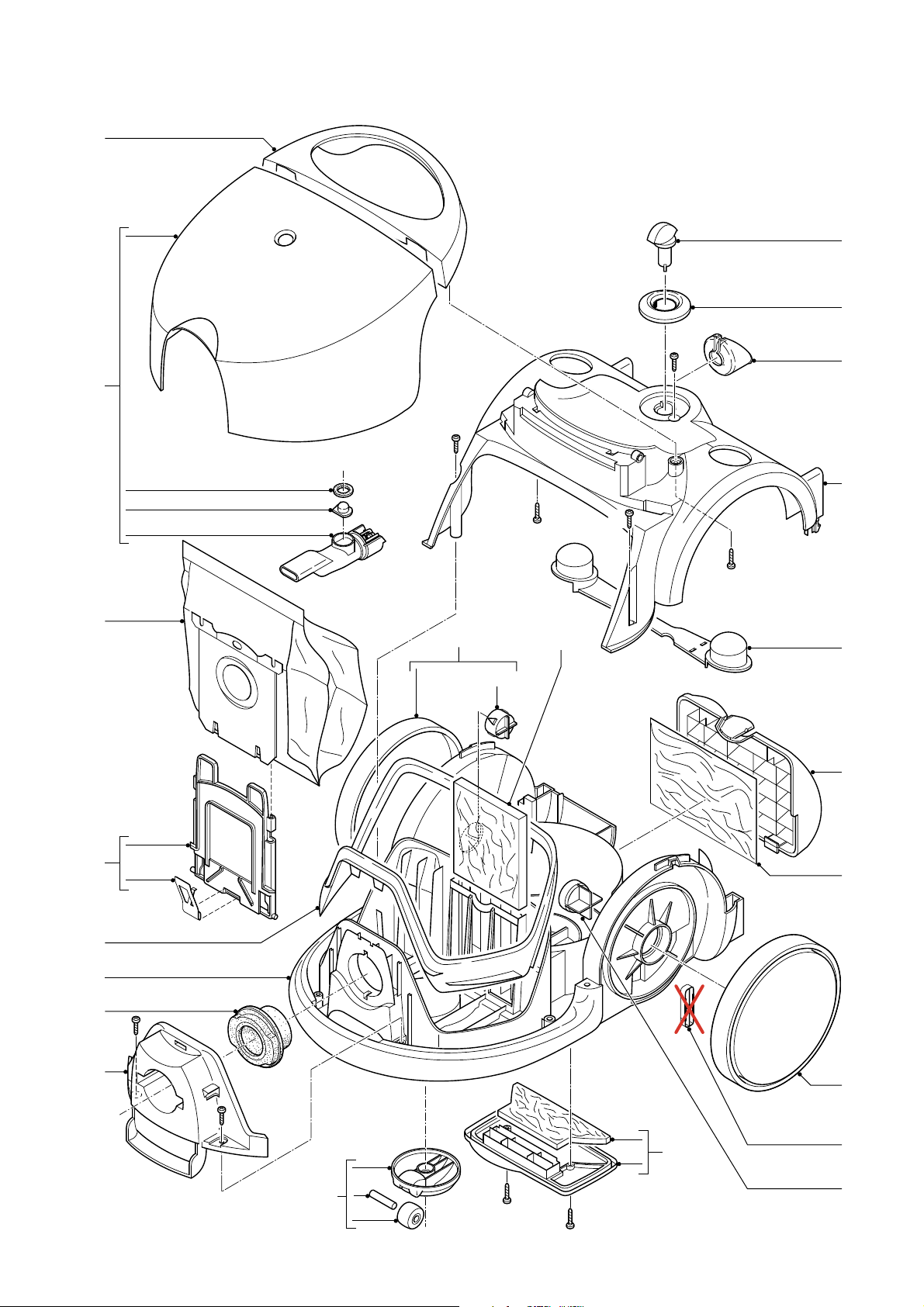

EXPLODED VIEW

1

FC8436/B

14

15

A

2

A

B

3

9

10

11

A

B

16

17

18

19

4

5

6

7

C

8

C

13

12

D

D

20

9

21

21a

4-6

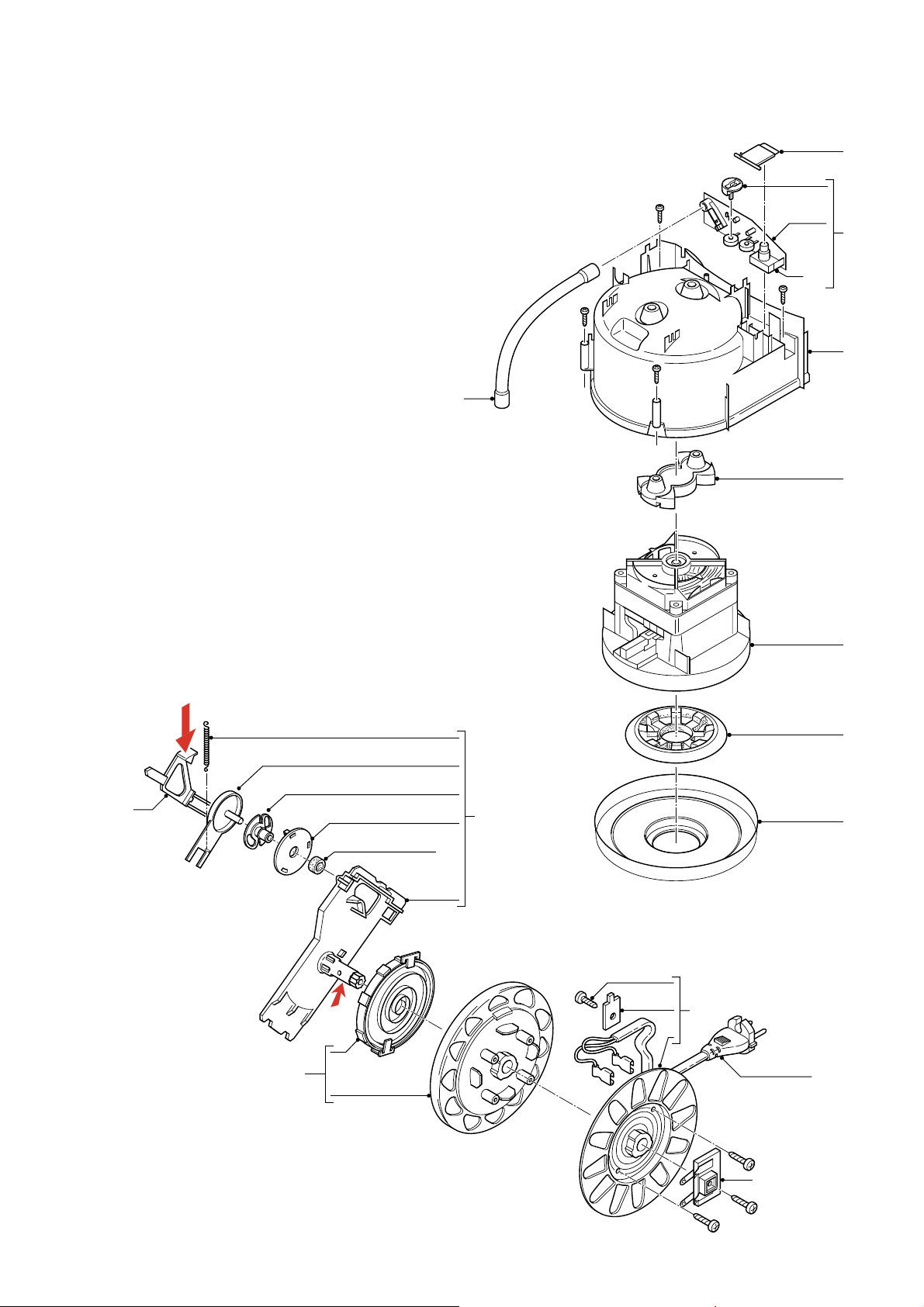

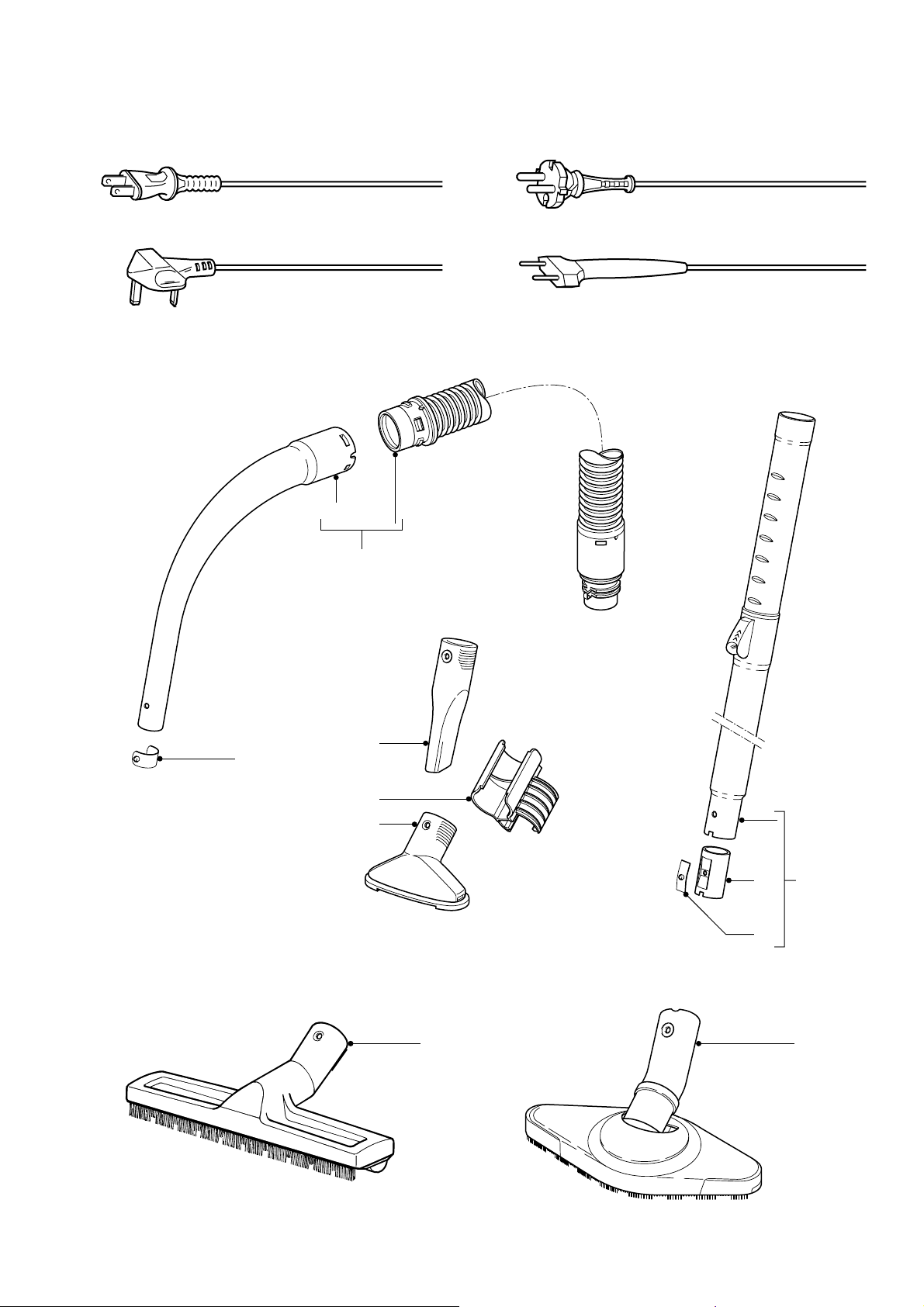

EXPLODED VIEW

FC8436/B

23

E

25

24

E

E

26

E

22

27

31

34

28

29

33

32

F

G

35

30

37÷40

G

36

5-6

EXPLODED VIEW

FC8436/B

Taiwan / P.R.C. 37 Korea / Europe 39

Swiss 4038 H.K. / U.K.

41

43

42

49

48

50

45

46

47

51

52

6-6
