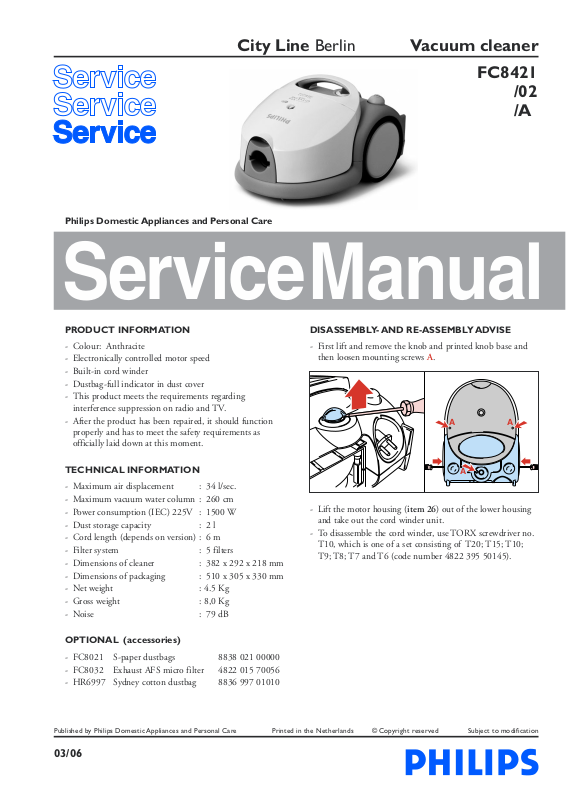

Philips FC8421 Service Manual

City Line Berlin Vacuum cleaner

FC8421
/02
/A

Philips Domestic Appliances and Personal Care

Service Manual

PRODUCT INFORMATION

- Colour: Anthracite

- Electronically controlled motor speed

- Built-in cord winder

- Dustbag-full indicator in dust cover

- This product meets the requirements regarding
interference suppression on radio and TV.

- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.

TECHNICAL INFORMATION

- Maximum air displacement : 34 l/sec.

- Maximum vacuum water column : 260 cm

- Power consumption (IEC) 225V : 1500 W

- Dust storage capacity : 2 l

- Cord length (depends on version) : 6 m

- Filter system : 5 filters

- Dimensions of cleaner : 382 x 292 x 218 mm

- Dimensions of packaging : 510 x 305 x 330 mm

- Net weight : 4.5 Kg

- Gross weight : 8,0 Kg

- Noise : 79 dB

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- First lift and remove the knob and printed knob base and

then loosen mounting screws A.

AA

A

- Lift the motor housing (item 26) out of the lower housing

and take out the cord winder unit.

- To disassemble the cord winder, use TORX screwdriver no.
T10, which is one of a set consisting of T20; T15; T10;
T9; T8; T7 and T6 (code number 4822 395 50145).

OPTIONAL (accessories)

- FC8021 S-paper dustbags 8838 021 00000

- FC8032 Exhaust AFS micro filter 4822 015 70056

- HR6997 Sydney cotton dustbag 8836 997 01010

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

03/06

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Cotton dustbags are used in countries where paper dustbags
are unobtainable.

- If the reel half spring unit is replaced, shaft F must be
lubricated with silicone grease. Do not apply any silicone
grease to or spill any grease on terminals (36) or conductors
(35).

- Item 34 is provided with a long cord-winder spring, but
both long and short cords can be used in combination with
this spring. (L = 9.3 m)

- Depending on the length of the original cord, the spare
cord may have to be shortened.

- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn.

- The RPM can be adjusted by means of the potentiometer
mounted on the PCB (item 25). The RPM is correctly
adjusted if the motor starts automatically and continues to
run smoothly with the ON/OFF position and the
adjustable potentiometer in minimum position.

- If the function of the electronic control unit (item 25) is
not required, the Triac must be short-circuited in the
manner shown in the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust, the
pores of the dustbag may become clogged, causing the
passage of air through the dustbag to become obstructed.
As a result, the dustbag-full indicator will indicate that the
dustbag needs to be replaced, even though the dustbag is
not full at all.

FC8421/02/A

ELECTRICAL DIAGRAM

MOTOR
POWER

MODULE

Brown

Blue

Black

Black

CORD WINDER

Triac

M

Short-circuit

2-6

PARTS LIST

FC8421/02/A

Pos Service code Description

1

4341 009 00680

2

4341 009 00730

3

8838 021 00000
4822 480 10115

4

4341 009 00760

5

4341 001 70180

6

4341 009 00800

7

4341 001 70190

8

4341 003 02180

9

4341 009 00790

10

4322 003 12220

11

4822 480 40234

12

4341 009 00770

13

4341 009 00780

14

4341 005 00780

15

4341 005 01360

16

4341 003 02280

17

4341 009 00810

18

4341 003 02310

19

4341 003 02250

20

4822 015 70056

21

4341 003 02240

22

4341 003 02330

23

4341 003 02390

24

4322 006 50600

25

4341 006 20560
4341 006 20570

26

4341 003 02320

27

4341 001 70210

handle Anthracite
dust cover Anthracite
S-bag set
cotton dustbag (opt.)
dustbag frame

dust cover sealing
lowerhousing assy
inlet rubber
nose piece
rear wheel standard

wheel bush
safety fi lter
caster assy
cover and fi lter
turn knob grip stand

knob base
cord outlet
upper housing
pedal
AFS back grille

AFS fi lter
wheel peg
cooling tube
switch lever
switch soldered

PCB ANS EL 220 - 240 V
PCB ANS EL 120 V
motor cap
buffer back

Pos Service code Description

28

4322 009 06430
4322 009 06770

29

4822 466 62655

30

4341 003 02360

31

4322 003 06620

32

4322 001 72360

33

4322 009 07640

34

4322 009 07610
4322 009 09060

35

4341 005 01330

36

4341 005 00790

37

4322 006 01770
4341 006 01890

38

4322 006 02100

39

4322 006 02060

40

4322 006 02080

41

4322 003 17380

42

4341 004 20450

46

4322 002 22610

47

4322 004 22990

48

4341 003 02470

49

4341 004 20170

50

4341 004 20100

51

4341 004 20190

52

4322 004 22940

53

4322 004 22330

54

4322 005 11040

55

8838 041 01010

motor ANS 1451 230 V
motor ANS 1241 EL 120 V
buffer ring front
ANS motor disc
push rod

brake tyre
base plate assy
reel half spring unit
reel half spring unit PRC
reel half contact side

contact plate assy
fl at cord set Japan/Taiwan 5.3 m
cordset 1.0 / 5.3 m PRC / R
fl at cord set U.K./H.K. 6.3 m
fl at cord set Euro/Korea 6.3 m

fl at cord set Swiss
bend con.
bend and hose assy
metal tube con. (opt.)
telesc.tube con.

accessory clip
crevice nozzle con.
small nozzle con.
dusting brush con. (opt.)
big nozzle con.

twist & clean nozzle con. (opt.)
polishing disc (opt.)
pads for twist & clean nozzle (opt.)

3-6

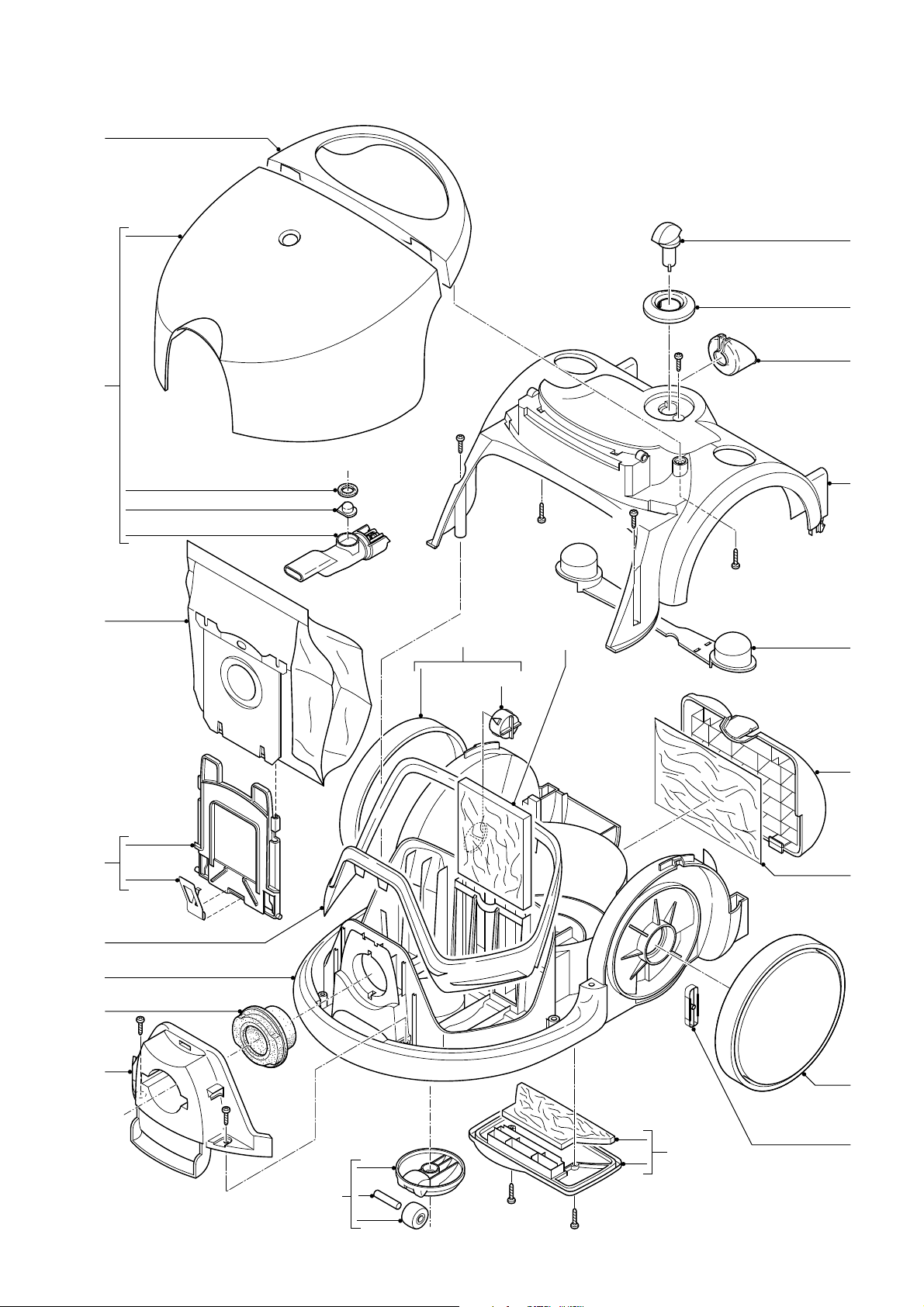

EXPLODED VIEW

1

FC8421/02/A

14

15

A

2

A

B

3

9

10

11

A

B

16

17

18

19

4

5

6

7

C

8

C

13

12

D

D

20

9

21

4-6

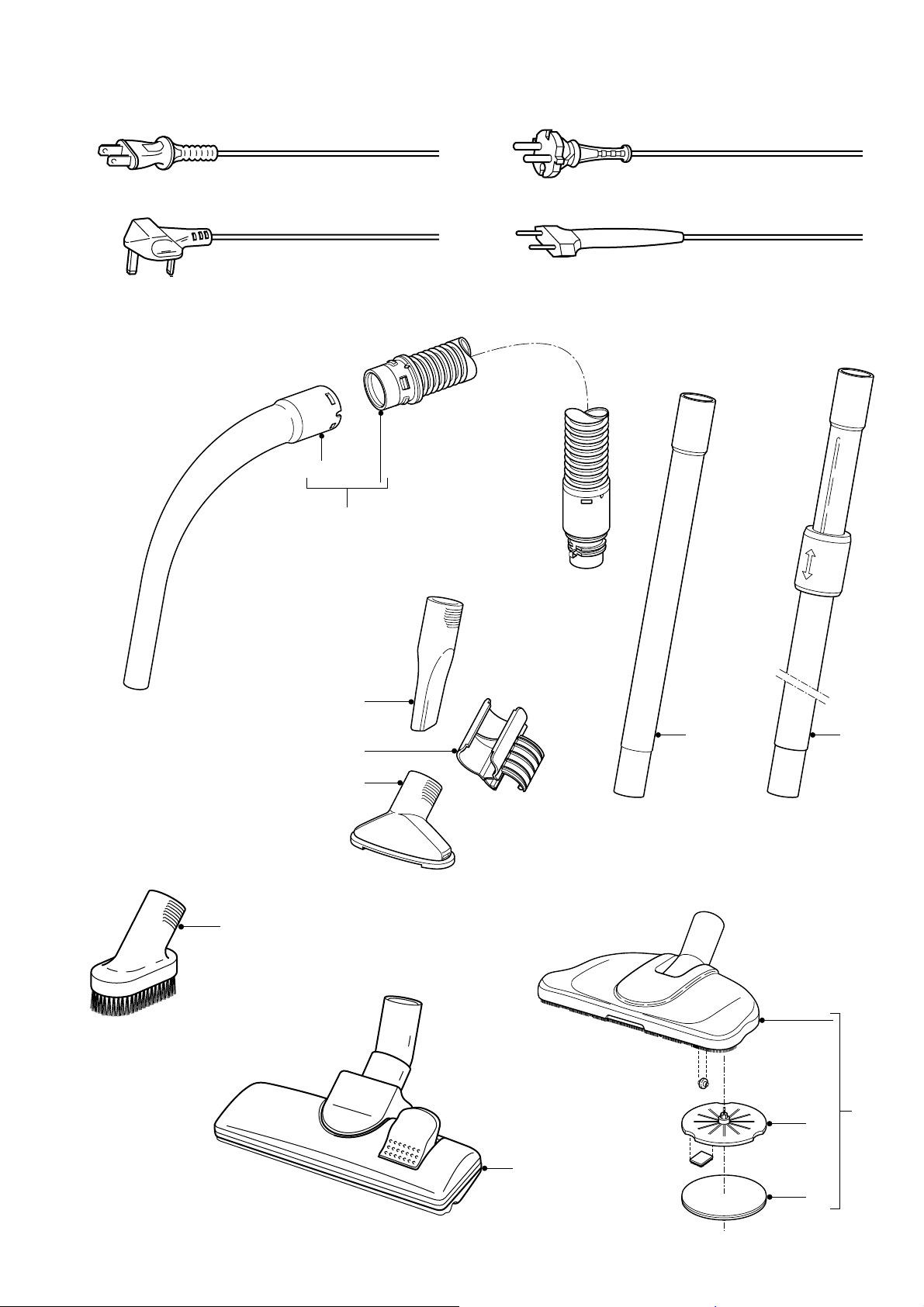

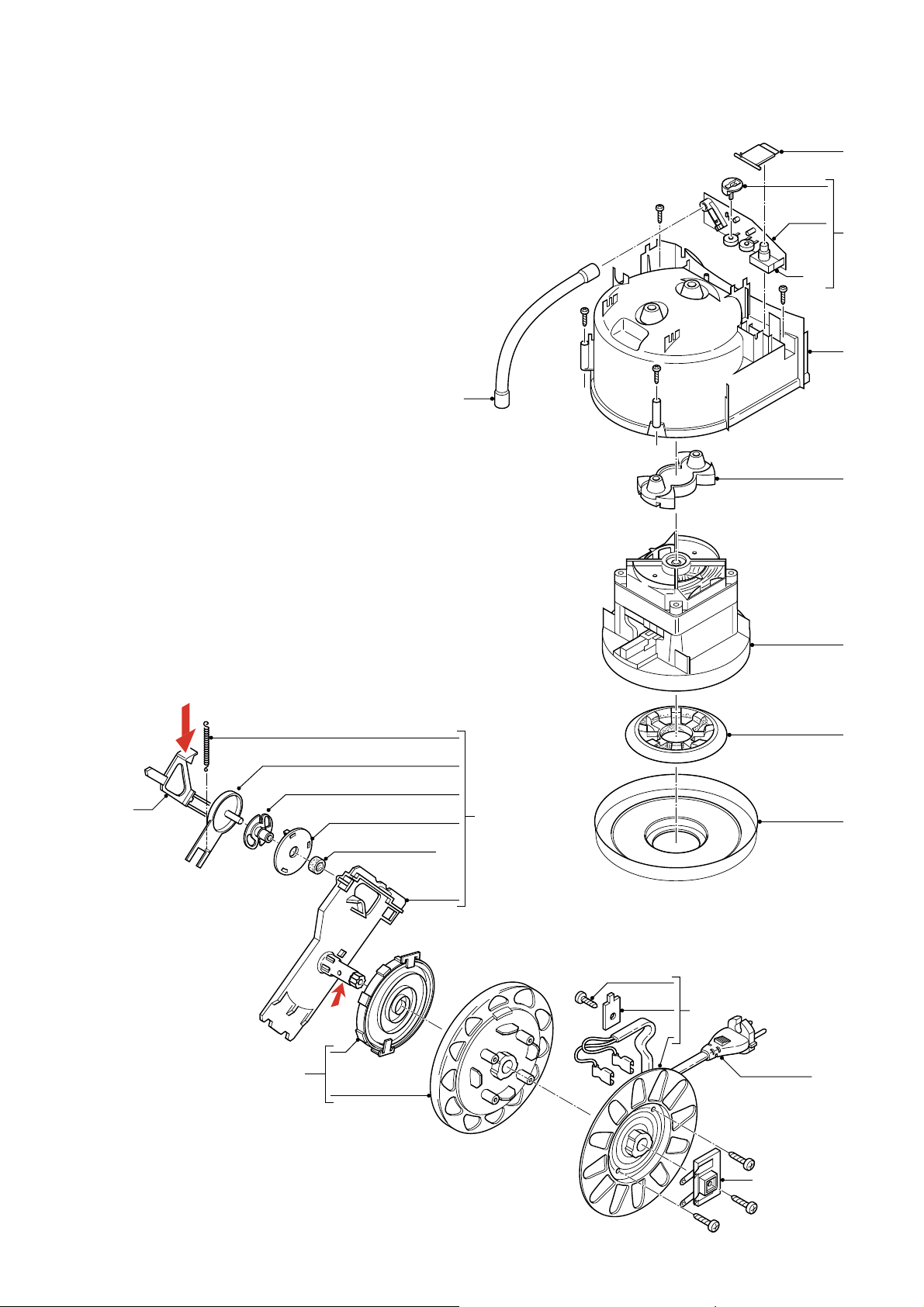

EXPLODED VIEW

FC8421/02/A

23

E

25

24

E

E

26

E

22

27

31

34

28

29

33

32

F

G

35

30

37÷40

G

36

5-6

EXPLODED VIEW

FC8421/02/A

Taiwan / P.R.C. 37 Korea / Europe 39

Swiss 4038 H.K. / U.K.

41

42

51

49

48

50

46

54

47

53

52

55

6-6
