Philips FC8398LFL Datasheet

Vacuum cleaner

FC8398

L.F.L.

Philips Domestic Appliances and Personal Care

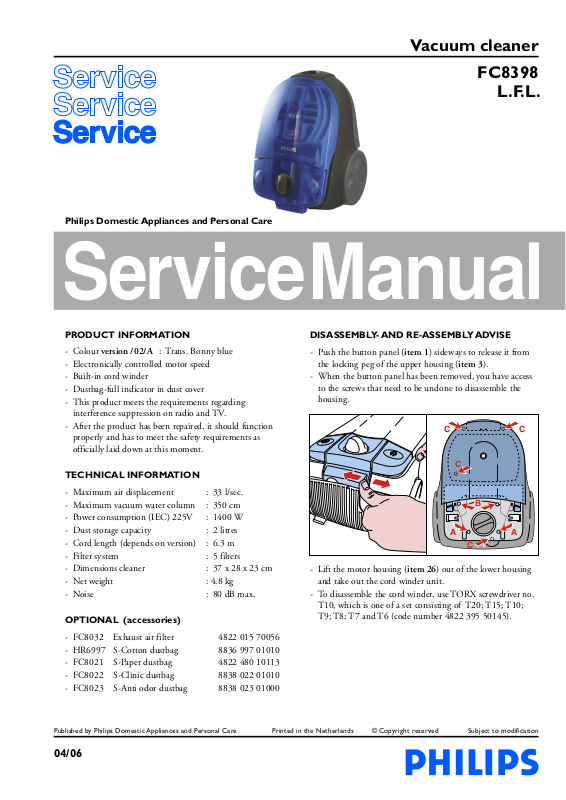

Service Manual

PRODUCT INFORMATION

- Colour version /02/A : Trans. Bonny blue

- Electronically controlled motor speed

- Built-in cord winder

- Dustbag-full indicator in dust cover

- This product meets the requirements regarding interference suppression on radio and TV.

- After the product has been repaired, it should function properly and has to meet the safety requirements as officially laid down at this moment.

TECHNICAL INFORMATION

- Maximum air displacement : 33 l/sec.

- Maximum vacuum water column : 350 cm

- Power consumption (IEC) 225V : 1400 W

- Dust storage capacity : 2 litres

- Cord length (depends on version) : 6.3 m

- Filter system : 5 filters

- Dimensions cleaner : 37 x 28 x 23 cm

- Net weight : 4.8 kg

- Noise : 80 dB max.

OPTIONAL (accessories)

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- Push the button panel (item 1) sideways to release it from the locking peg of the upper housing (item 3).

- When the button panel has been removed, you have access to the screws that need to be undone to disassemble the housing.

CC

C

B

AA

C

- Lift the motor housing (item 26) out of the lower housing and take out the cord winder unit.

- To disassemble the cord winder, use TORX screwdriver no. T10, which is one of a set consisting of T20; T15; T10; T9; T8; T7 and T6 (code number 4822 395 50145).

- FC8032 Exhaust air filter 4822 015 70056

- HR6997 S-Cotton dustbag 8836 997 01010

- FC8021 S-Paper dustbag 4822 480 10113

- FC8022 S-Clinic dustbag 8838 022 01010

- FC8023 S-Anti odor dustbag 8838 023 01000

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

04/06

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Cotton dustbags are used in countries where paper dustbags are unobtainable.

- If the reel half spring unit is replaced, shaft F must be lubricated with silicone grease. Do not apply any silicone grease to or spill any grease on terminals (item 35) or conductors (item 34).

- Item 33 is provided with a long cord-winder spring, but both long and short cords can be used in combination with this spring. (L = 9.3 m)

- Depending on the length of the original cord, the spare cord may have to be shortened.

- The cord winder spring must be tensioned to the maximum level and then be rewound approx. 1.5 turn.

- The RPM can be adjusted by means of the potentiometer mounted on the PCB (item 23). The RPM is correctly adjusted if the motor starts automatically and continues to run smoothly with the ON/OFF position and the adjustable potentiometer in minimum position.

- If the function of the electronic control unit (item 23) is not required, the Triac must be short-circuited in the manner shown in the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust, the pores of the dustbag may become clogged, causing the passage of air through the dustbag to become obstructed. As a result, the dustbag-full indicator will indicate that the dustbag needs to be replaced, even though the dustbag is not full at all.

FC8398 L.F.L.

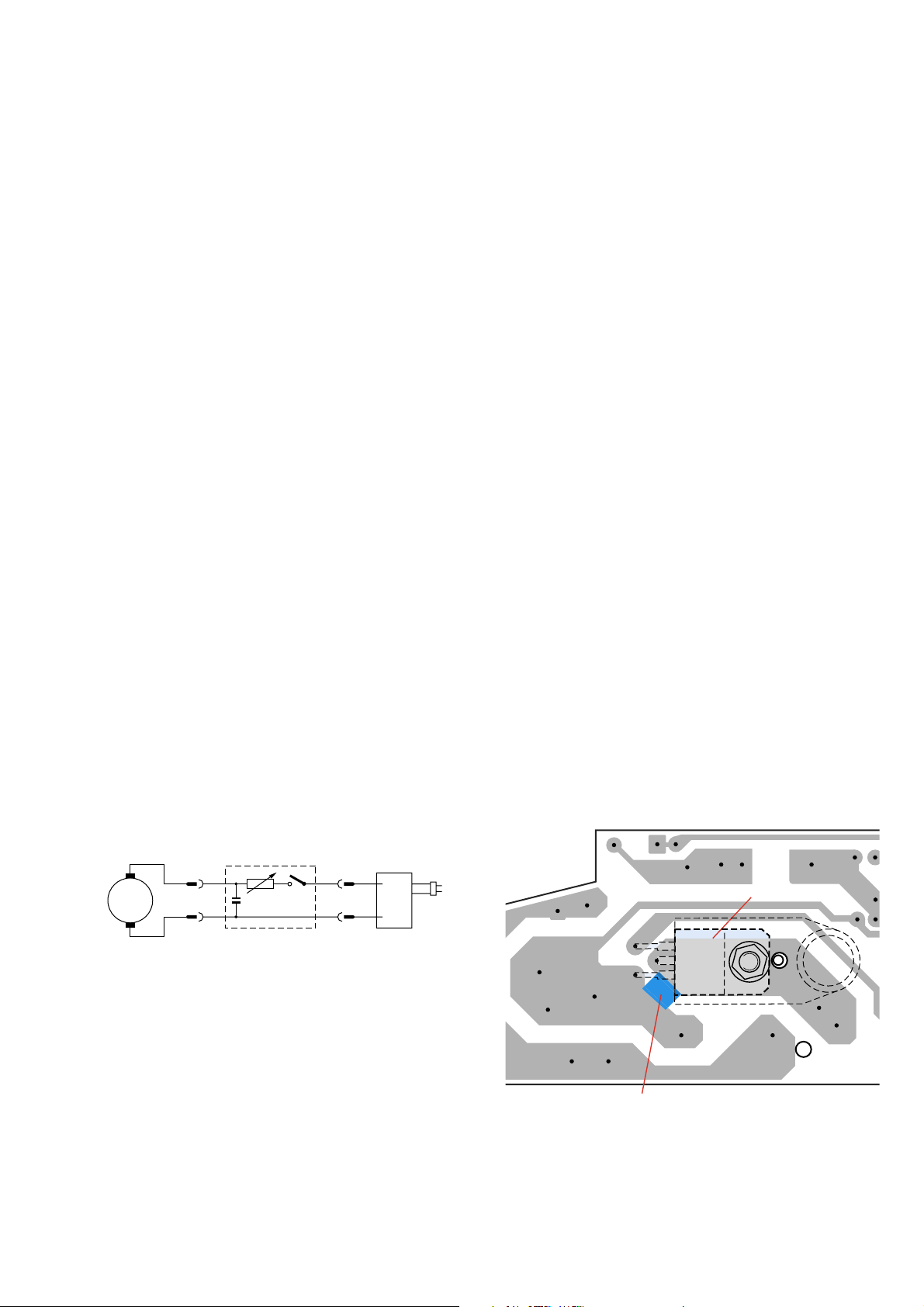

ELECTRICAL DIAGRAM

SPEED

CONTROL UNIT

M

C

Triac

CORD WINDER

Short-circuit

2-6

PARTS LIST

FC8398 L.F.L.

Pos Service code Description

1

4322 003 23520

2

4322 005 16930

3

4322 009 09210

4

4322 001 73150

5

4322 003 17250

6

4322 001 72900

7

4322 009 09190

8

4322 005 17100

9

4322 003 17230

10

4322 005 16880

11

4341 000 65180

12

4322 003 23550

13

4322 009 07730

14

4322 003 17320

15

4822 015 70056

16

4322 009 09250

17

4341 004 92090 8838 022 01010 8838 021 00000

18

4341 005 01720

19

4322 000 35360

20

4341 005 01740

21

4322 001 73160

22

4322 005 17130

23

4341 006 20320

4322 006 20080

24

4322 006 50600

25

4322 001 73230

26

4322 003 24160

27

4322 001 72780

Button panel Transp. blue Dustcover Transp. blue Upper housing (el) Inlet rubber Nose piece

Motor buffer Lower housing assy Caster disc assy Fixing pin Vario knob assy

Button leaf spring Hinge frame Cord outlet (grey) Back grille (grey) AFS ﬁ lter

Wheel Non woven dustbag Clinic S-bags Paper dustbags Dustbag holder

Duo ﬁ lter Safety ﬁ lter assy Motor cover sealing Switch lever assy PCB - 1241 220V - 50Hz

PCB L.V. Switch AP cooling connection Motor cap Buffer ring front

Pos Service code Description

28

4322 006 96940

29

4322 009 07520

30

4322 003 06620

31

4322 001 72360

32

4322 009 07640

33

4322 009 07610

34

4322 009 07620

35

4341 005 00740

36

4322 006 01770

37

4322 006 02100

38

4322 006 01400

39

4322 006 01480

40

4322 003 20730

41

4322 001 99120

42

4322 007 45550

43

4341 004 20710

44

4341 003 00240

45

4322 004 41140

46

4341 003 01960

47

4341 004 20520

48

4322 007 31640

49

4322 004 22570

50

4341 003 02470

51

4341 003 01900

52

4341 004 20490

53

4322 004 23080

54

4322 003 21950

55

4322 009 08950

Motor 1241 230 V Motor foam / disc Pushrop AP eco Brake tyre Base plate assy

Rear half spring side Rear half contact side Contact plate assy Cordset Taiwan/Japan 5.3 m Cordset UK/HK 6.3 m

Cordset Europe 4.8 mm 6.3 m Cordset Swiss 6.3 m Tube clip 35 mm Tube bush Tube spring

Telesc. tube Tube clip 32 mm (opt.) Metal tube (standard) (opt.) Bend (standard) Bend and hose assy

Leaf spring Plumeau brush Accessoire clip Crevice nozzle Small nozzle

Tri - active nozzle Brush switch knob Brush replacement set

3-6

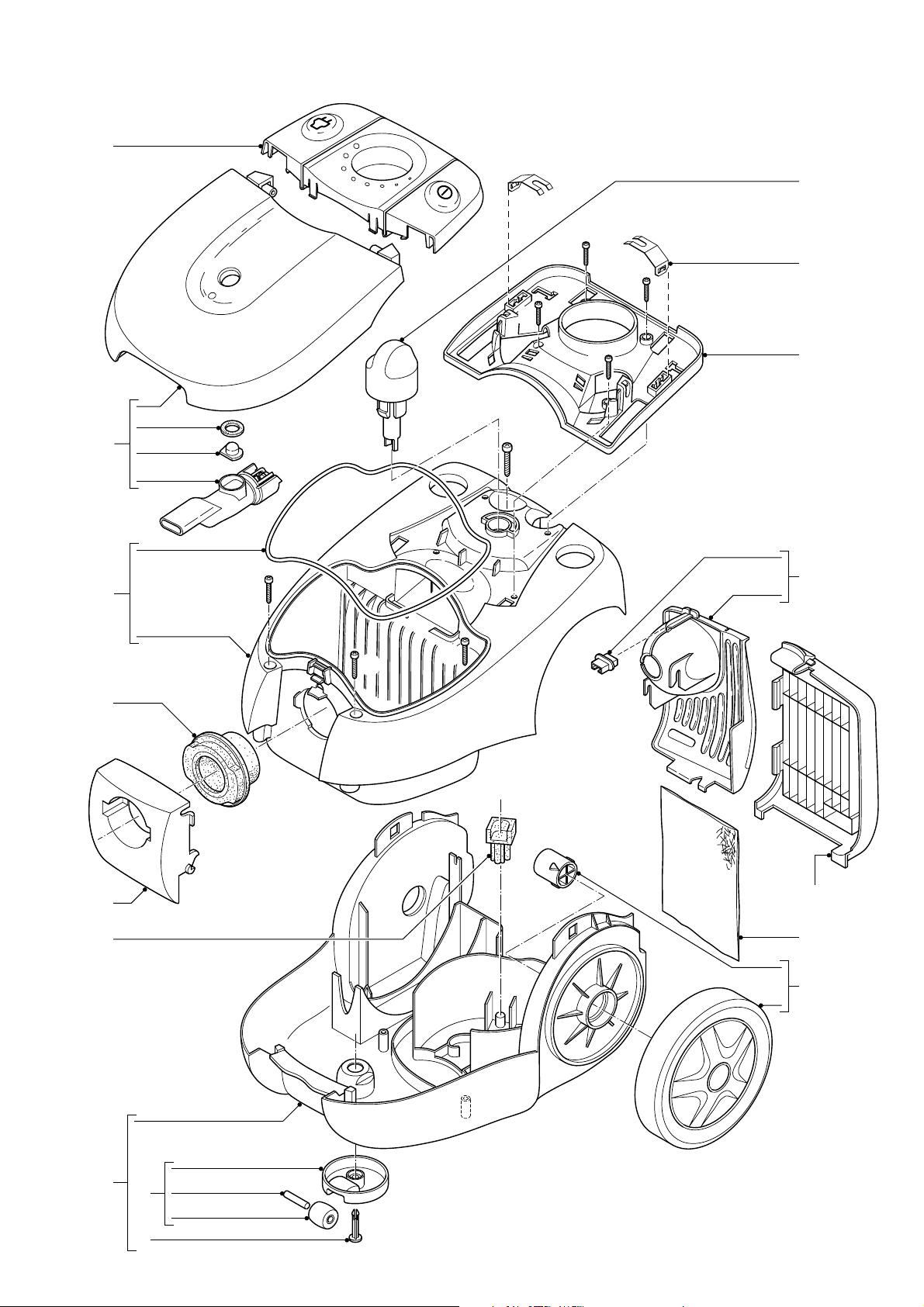

EXPLODED VIEW

1

FC8398 L.F.L.

10

A

11

A

B

2

C

3

4

C

12

13

5

6

7

8

9

14

15

16

4-6

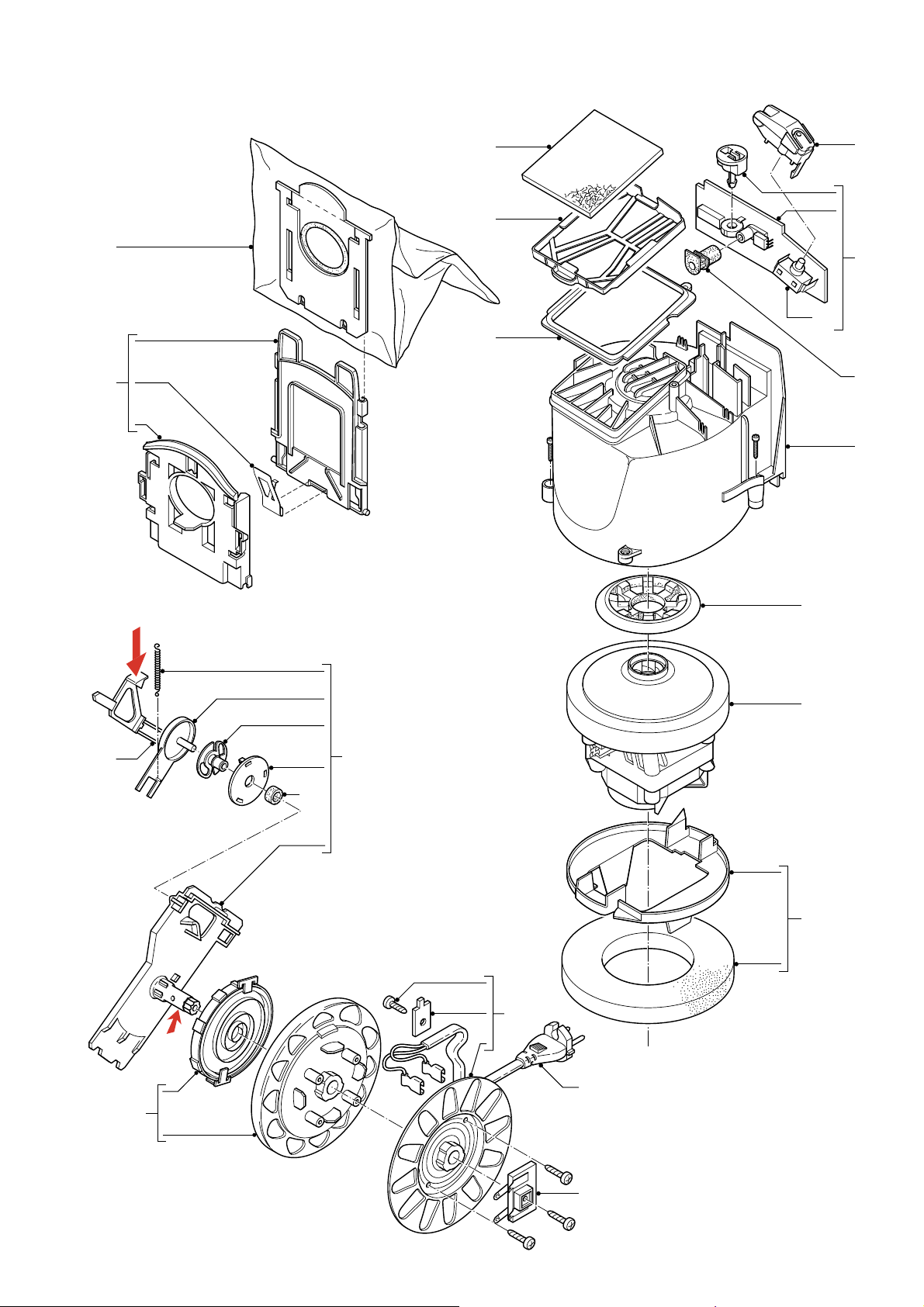

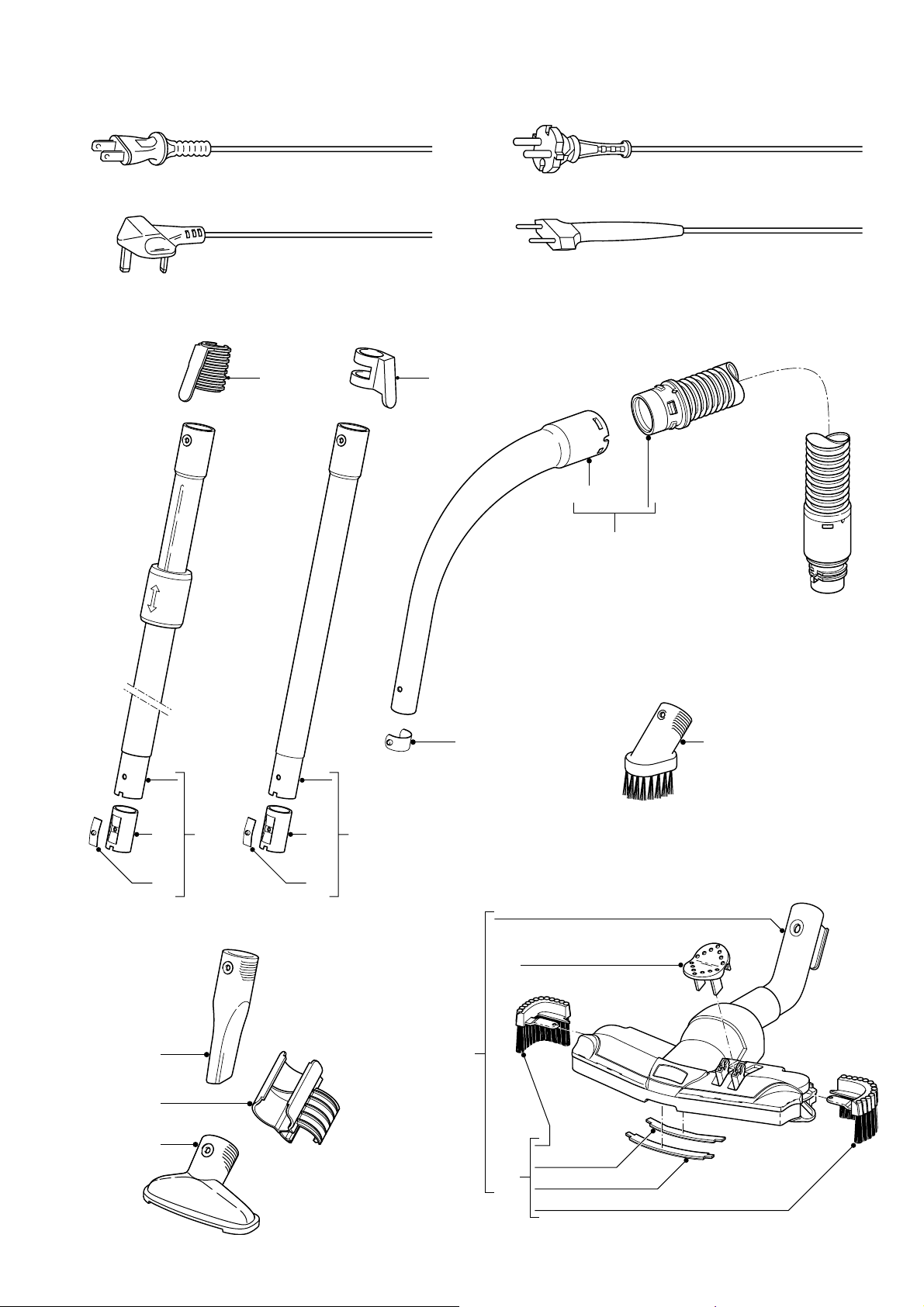

EXPLODED VIEW

FC8398 L.F.L.

17

18

19

20

21

D

22

23

24

25

D

26

30

27

28

32

31

29

E

F

34

33

36÷39

E

35

5-6

EXPLODED VIEW

FC8398 L.F.L.

Taiwan / Japan 36 Europe Ø 4.8mm 38

37UK / HK

4440

46

47

Swiss 39

51

50

52

41

42

43

41

42

45

53

48

49

54

55

6-6
