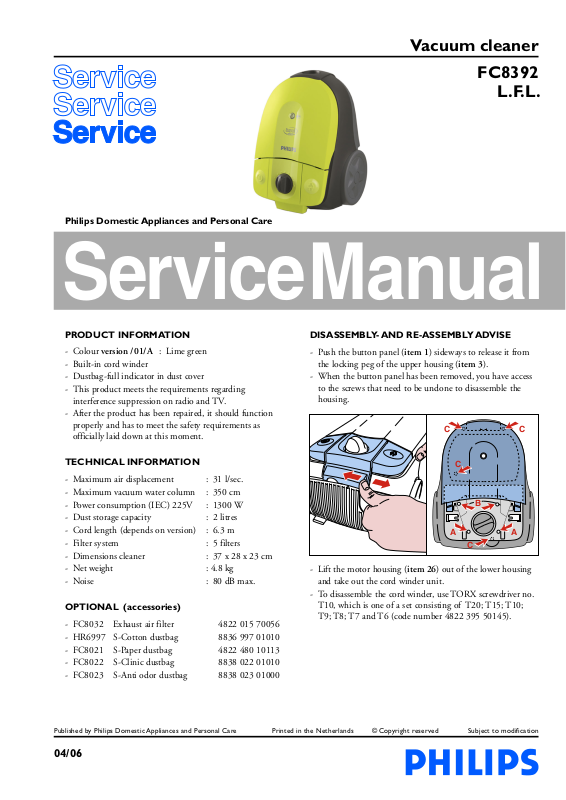

Philips FC8392LFL Datasheet

Vacuum cleaner

FC8392

L.F.L.

Philips Domestic Appliances and Personal Care

Service Manual

PRODUCT INFORMATION

- Colour version /01/A : Lime green

- Built-in cord winder

- Dustbag-full indicator in dust cover

- This product meets the requirements regarding interference suppression on radio and TV.

- After the product has been repaired, it should function properly and has to meet the safety requirements as officially laid down at this moment.

TECHNICAL INFORMATION

- Maximum air displacement : 31 l/sec.

- Maximum vacuum water column : 350 cm

- Power consumption (IEC) 225V : 1300 W

- Dust storage capacity : 2 litres

- Cord length (depends on version) : 6.3 m

- Filter system : 5 filters

- Dimensions cleaner : 37 x 28 x 23 cm

- Net weight : 4.8 kg

- Noise : 80 dB max.

OPTIONAL (accessories)

- FC8032 Exhaust air filter 4822 015 70056

- HR6997 S-Cotton dustbag 8836 997 01010

- FC8021 S-Paper dustbag 4822 480 10113

- FC8022 S-Clinic dustbag 8838 022 01010

- FC8023 S-Anti odor dustbag 8838 023 01000

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

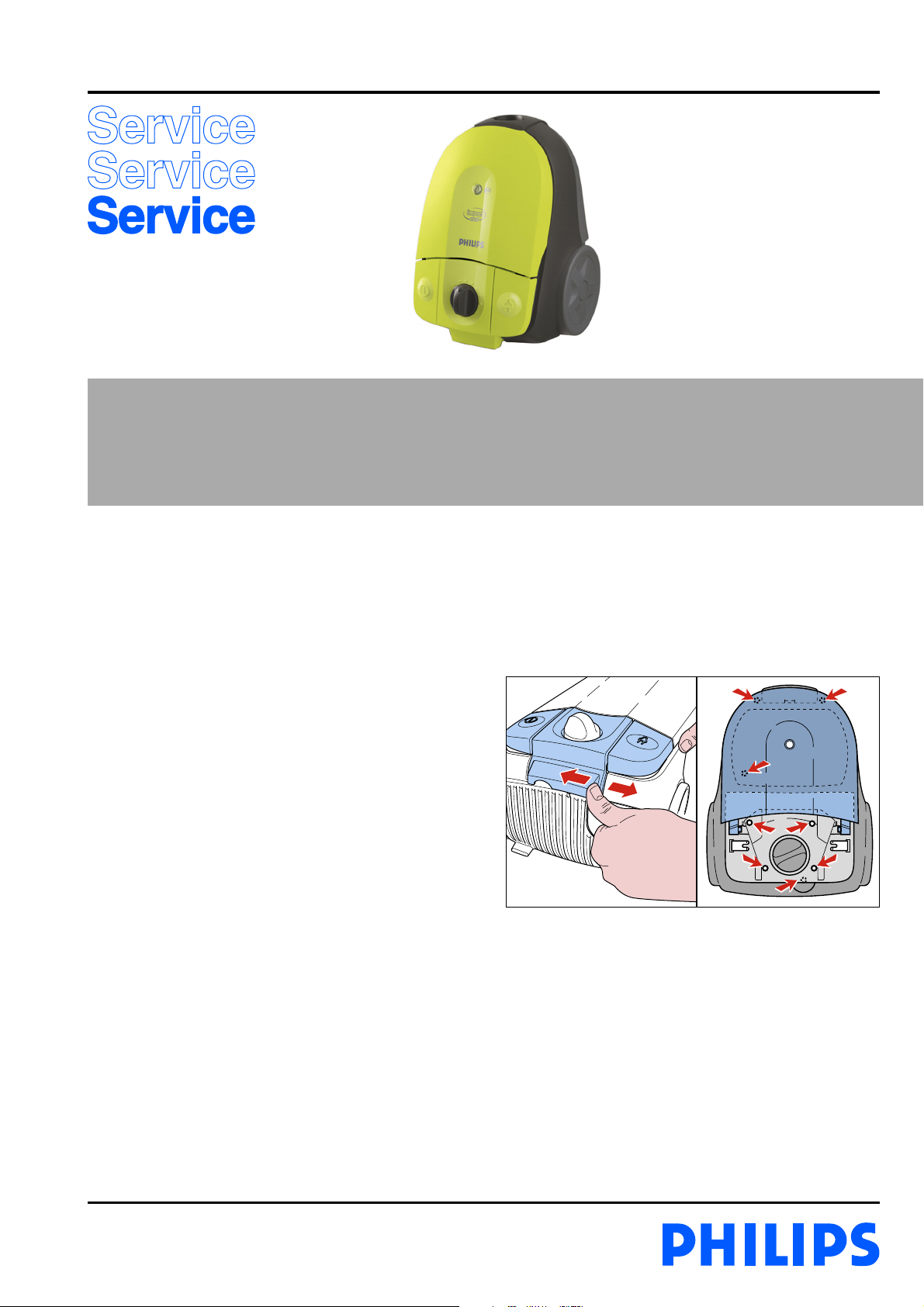

- Push the button panel (item 1) sideways to release it from the locking peg of the upper housing (item 3).

- When the button panel has been removed, you have access to the screws that need to be undone to disassemble the housing.

CC

C

B

AA

C

- Lift the motor housing (item 26) out of the lower housing and take out the cord winder unit.

- To disassemble the cord winder, use TORX screwdriver no. T10, which is one of a set consisting of T20; T15; T10; T9; T8; T7 and T6 (code number 4822 395 50145).

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

04/06

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Cotton dustbags are used in countries where paper dustbags are unobtainable.

- If the reel half spring unit is replaced, shaft F must be lubricated with silicone grease. Do not apply any silicone grease to or spill any grease on terminals (item 35) or conductors (item 34).

- Item 33 is provided with a long cord-winder spring, but both long and short cords can be used in combination with this spring. (L = 9.3 m)

- Depending on the length of the original cord, the spare cord may have to be shortened.

- The cord winder spring must be tensioned to the maximum level and then be rewound approx. 1.5 turn.

- When the vacuum cleaner is used to suck up fine dust, the pores of the dustbag may become clogged, causing the passage of air through the dustbag to become obstructed. As a result, the dustbag-full indicator will indicate that the dustbag needs to be replaced, even though the dustbag is not full at all.

FC8392 L.F.L.

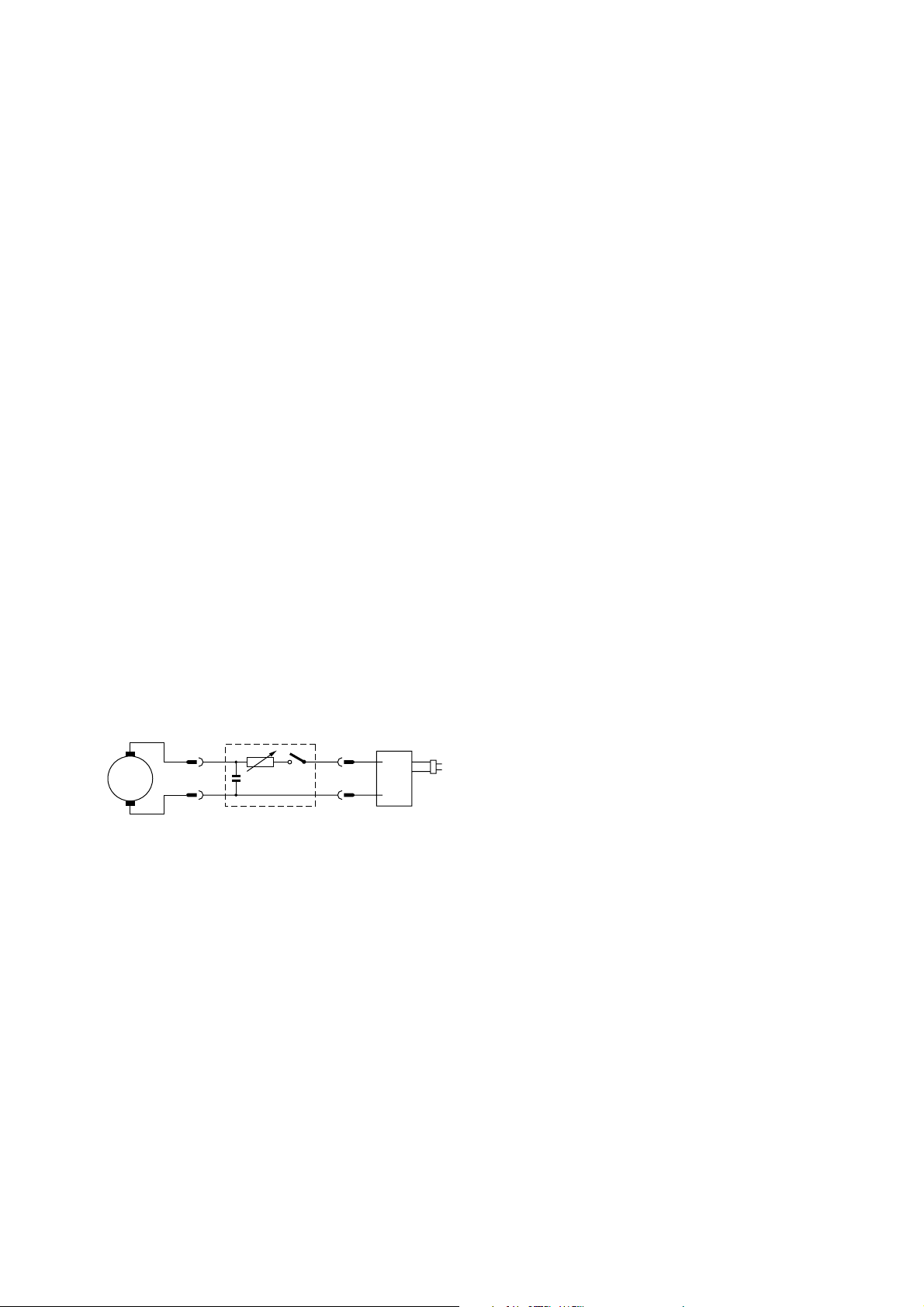

ELECTRICAL DIAGRAM

SPEED

CONTROL UNIT

M

C

CORD WINDER

2-6

PARTS LIST

FC8392 L.F.L.

Pos Service code Description

1

4322 003 24820

2

4322 009 09220

3

4322 009 09210

4

4322 001 73150

5

4322 003 17250

6

4322 001 72900

7

4322 009 09190

8

4322 005 17100

9

4322 003 17230

10

4322 005 16880

11

4341 000 65180

12

4322 003 23550

13

4322 009 07730

14

4322 003 17320

15

4822 015 70056

16

4322 009 09250

17

4341 004 92090 8838 022 01010 8838 021 00000

18

4341 005 01720

19

4322 000 35360

20

4341 005 01740

21

4322 001 73160

22

4322 005 17130

23

4341 006 20320

24

4322 006 50600

25

4322 001 73230

Button panel Lime green Dustcover Lime green Upper housing (electr.) Inlet rubber Nose piece

Motor buffer Lower housing assy Caster disc assy Fixing pin Vario knob assy

Button leaf spring Hinge frame Cord outlet (grey) Back grille (grey) AFS ﬁ lter

Wheel Non woven dustbag Clinic S-bags Paper dustbags Dustbag holder

Duo ﬁ lter Safety ﬁ lter assy Motor cover sealing Switch lever assy PCB - 1241 220V - 50Hz

Switch AP cooling connection

Pos Service code Description

26

4322 003 24160

27

4322 001 72780

28

4322 006 96940

29

4322 009 07520

30

4322 003 06620

31

4322 001 72360

32

4322 009 07640

33

4322 009 07610

34

4322 009 07620

35

4341 005 00740

36

4322 006 01770

37

4322 006 02100

38

4322 006 01400

39

4322 006 01480

40

4322 003 20730

41

4322 004 22990

42

4341 003 00240

43

4322 009 09040

44

4341 004 20420

45

4341 005 01240

46

4341 004 20170

47

4341 003 02470

48

4341 004 20100

49

4341 004 20440

50

4822 479 20039

51

4822 479 20038

Motor cap Buffer ring front Motor 1241 230 V Motor foam / disc Pushrop AP eco

Brake tyre Base plate assy Rear half spring side Rear half contact side Contact plate assy

Cordset Taiwan/Japan 5.3 m Cordset UK/HK 6.3 m Cordset Europe 4.8 mm 6.3 m Cordset Swiss 6.3 m tube clip 35 mm (opt.)

telesc. tube (opt.) tube clip 32 mm steel tube (painted) hose (standard) bend handle

crevice nozzle accessoire clip small nozzle big nozzle D272 (standard) nozzle brush nozzle strip

3-6

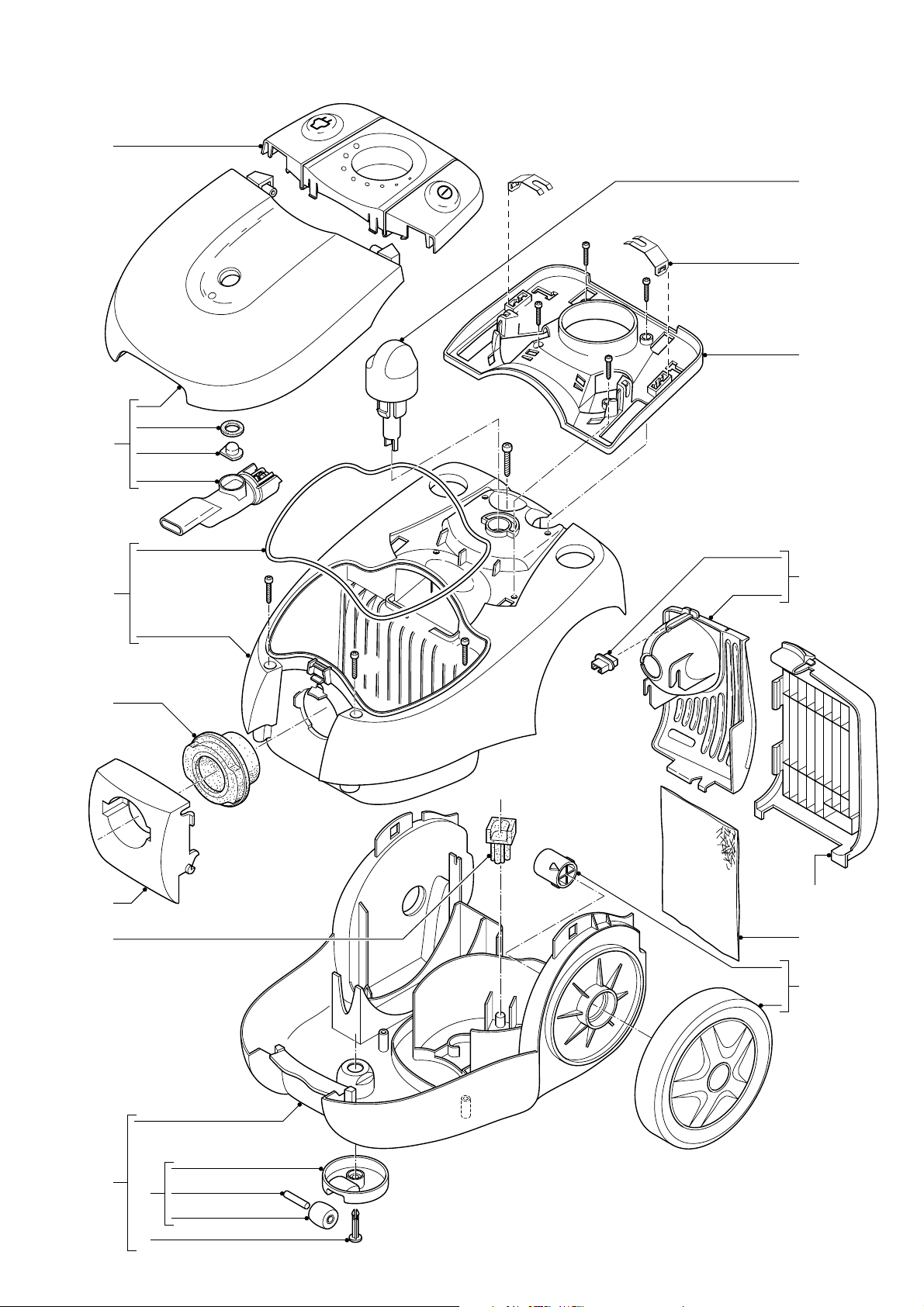

EXPLODED VIEW

1

FC8392 L.F.L.

10

A

11

A

B

2

C

3

4

C

12

13

5

6

7

8

9

14

15

16

4-6

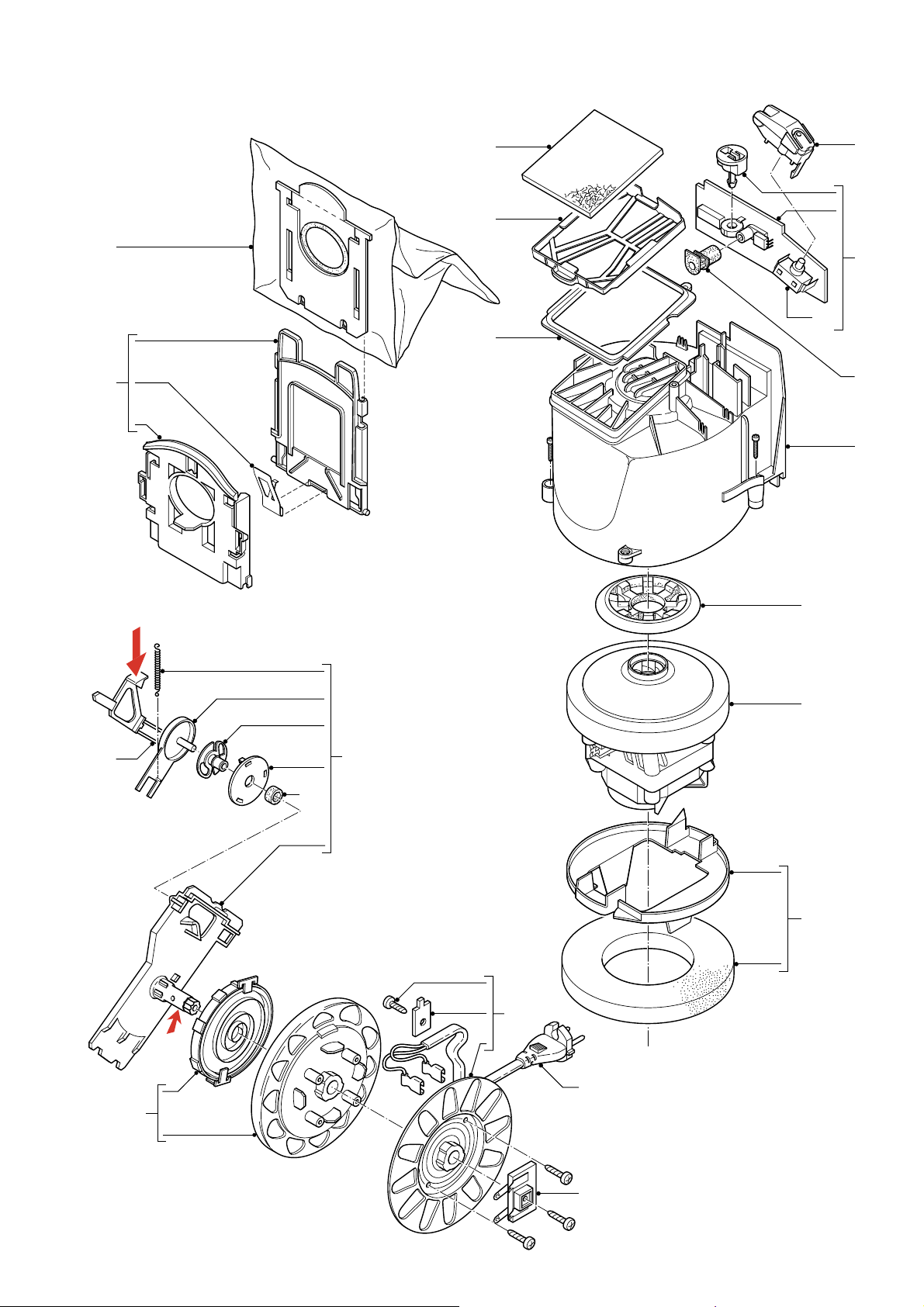

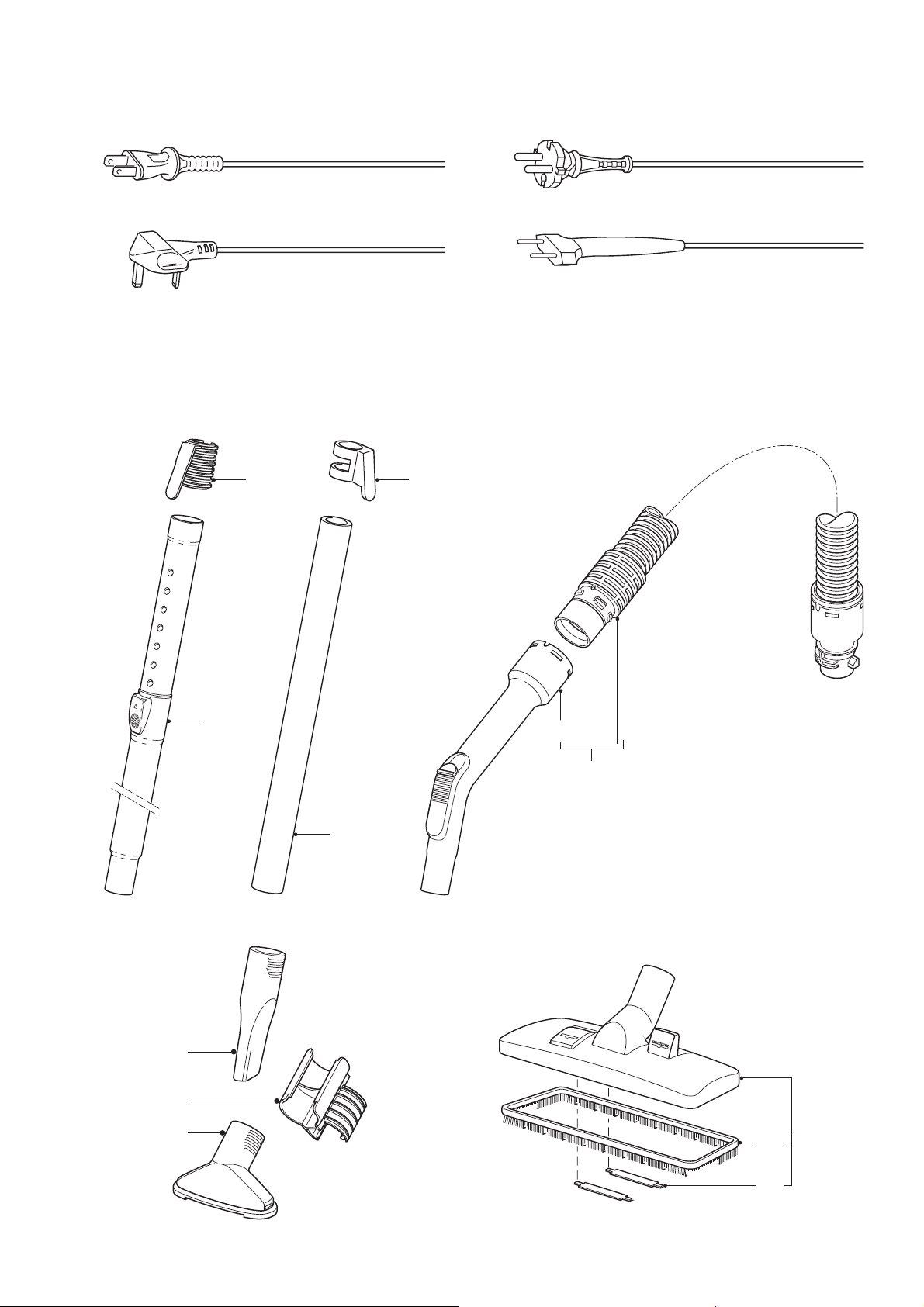

EXPLODED VIEW

FC8392 L.F.L.

17

18

19

20

21

D

22

23

24

25

D

26

30

27

28

32

31

29

E

F

34

33

36÷39

E

35

5-6

EXPLODED VIEW

FC8392 L.F.L.

Taiwan / Japan 36 Europe Ø 4.8mm 38

37UK / HK

4240

Swiss 39

46

47

48

41

43

45

44

50

49

51

6-6
