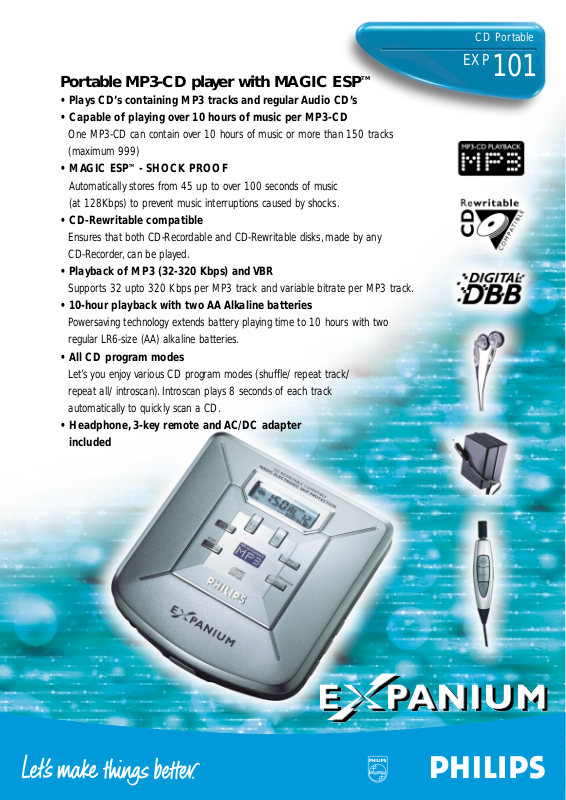

CD Portable
Portable MP3-CD player with MAGIC ESP
TM
• Plays CD’s containing MP3 tracks and regular Audio CD’s
• Capable of playing over 10 hours of music per MP3-CD
One MP3-CD can contain over 10 hours of music or more than 150 tracks
(maximum 999)
• MAGIC ESP
TM
- SHOCK PROOF
Automatically stores from 45 up to over 100 seconds of music
(at 128Kbps) to prevent music interruptions caused by shocks.
• CD-Rewritable compatible
Ensures that both CD-Recordable and CD-Rewritable disks, made by any
CD-Recorder, can be played.
• Playback of MP3 (32-320 Kbps) and VBR
Supports 32 upto 320 Kbps per MP3 track and var iable bitrate per MP3 track.
• 10-hour playback with two AA Alkaline batteries
Powersaving technology extends battery playing time to 10 hours with two
regular LR6-size (AA) alkaline batteries.
• All CD program modes
Let’s you enjoy various CD program modes (shuffle/ repeat track/
repeat all/ introscan).Introscan plays 8 seconds of eac h track
automatically to quickly scan a CD.
• Headphone, 3-key remote and AC/DC adapter
included
101
EXP
CD Portable
Standard product information
http://www.philips.com
2000-03-24
Printed in Hong Kong
Subject to modification without notice
© 2000 Royal Philips Electronics
All Rights Reserved.
Product highlights
• Digital dynamic bass boost
Enhances bass at low,mid and high volume, to give deep, rich sounds.
• Compact disc audio player
Compact Disc technology that provides uncompressed superb digital sound
quality.
• Heat resistant body
Unique composite material enables the CD player to withstand very high
temperatures for in-car use.
• 1-Bit D/A converter
Advanced digital conversion technology ensures crystal-clear sound.
• Hold
Locks all buttons electronically to prevent interruption of play or change of
program settings.
• Resume
Ensures the CD starts precisely from the point it was stopped.
• Automatic power off
Automatically switches off the CD player at the end of a compact disc.
• CD next/ previous
Plays the next or previous track at the touch of a button
• Repeat one/ all
Repeat the current track or the total CD
• Shuffle
Plays disc selection randomly,giving you each time a new sequence of
tracks
• 30-track programmable
Stores up to 30 of your favourite tracks for playing back in your order of
preference
• Acoustic feedback
Confirms any key-push with friendly beep to acknowledges that a command
has been given.
Amplifier/ system
• Output power (in-ear headphone) 2 x 3mW RMS
• 1-Bit D/A convertor for pure sound reproduction
• Digital dynamic bass boost
• Rotary volume control
• S/N ratio (A weighted) : >100 dB
• Frequency response : 20 Hz - 20 kHz
• Acoustic feedback
CD player
• Supports the CD-ROM,CD-Recordable and CD-Rewritable in ISO-9660
and Joliet format.
• Playback possibility of 32,40, 48,56,64, 80, 96,112,128, 160,192,224, 256
and 320 Kbps per MP3 track
• Supports Variable Bit Rate per track
• Supports CD’s that contains music tracks with mixed bit rates
• 30-Track programmable, shuffle,repeat 1/all and introscan
• Search forward/backward
• Resume and hold
MAGIC ESPTM(Electronic skip protection)
• SHOCK PROOF Automatically stores from 45 up to over 100 seconds
of music (at 128Kbps) to prevent music interruptions caused by shocks.
LCD display
• Indications for track, album number,time, DBB, CD functions,ESP and
battery status
Connections
• Headphone/ line out : stereo,3.5 mm
• DC in : 4.0 mm,4.5V,centre ‘+’
Power supply
• Batteries : 2 x 1.5V, type AA/LR6/UM3 cell
• Battery playing time : 10 hours (Alkaline)
• Automatic power switch-off
General
• Material : High temperature resistant plastic
• Weight : g (excluding batteries)
• Product dimensions : 130 mm W x 32 mm H x 138 mm D
• D-box dimensions : 145 mm W x 60 mm H x 255 mm D
• Master carton dimensions : 153 mm W x 128 mm H x 271 mm D
• Master carton quantity : 2
Accessories
• AC/DC adapter
• Stereo in-ear headphone
• In-cord 3-key remote control
Optional accessories (contact your dealer or
service center)
• AY3501 Car cassette adapter
• AY3545 4.5V Car cigarette lighter DC/DC adapter
