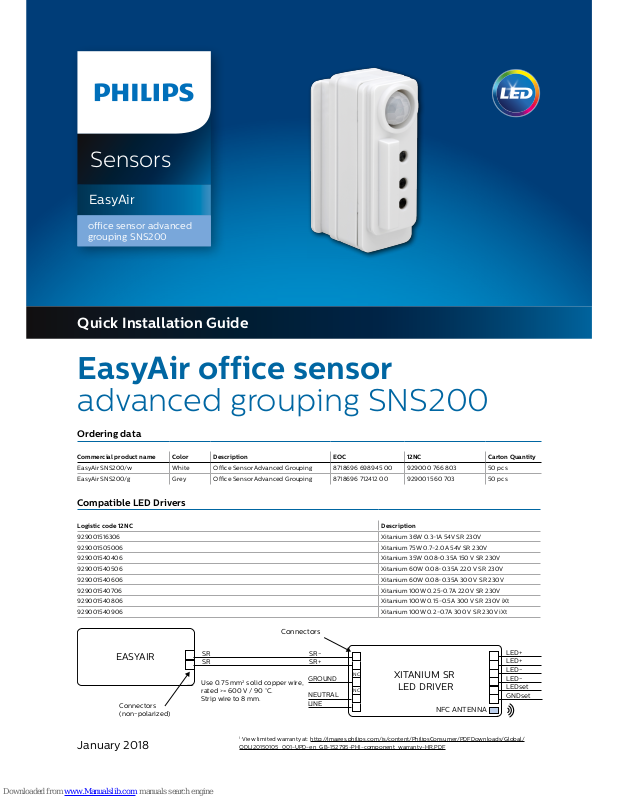

Philips EasyAir SNS200 Quick Installation Manual
Sensors
EasyAir
office sensor advanced
grouping SNS200
January 2018
Quick Installation Guide
XITANIUM SR
LED DRIVER
EASYAIR
LED+
LED+
LED-
LED-
LEDset
GNDset
NFC ANTENNA
SR-
Connectors
SR+
SR
SR
LINE
NEUTRAL
GROUND
NC
NC
Connectors
(non-polarized)
Use 0.75 mm
2
solid copper wire,
rated >= 600 V / 90 °C.
Strip wire to 8 mm.
EasyAir office sensor
advanced grouping SNS200
Ordering data
Commercial product name Color Description EOC 12NC Carton Quantity
EasyAir SNS200/w White Office Sensor Advanced Grouping 8718696 698945 00 929000 766 803 50 pcs
EasyAir SNS200/g Grey Office Sensor Advanced Grouping 8718696 712412 00 929001 560 703 50 pcs
Compatible LED Drivers
Logistic code 12NC Description
929001516306 Xitanium 36W 0.3-1A 54V SR 230V
929001505006 Xitanium 75W 0.7-2.0A 54V SR 230V
929001540406 Xitanium 35W 0.08-0.35A 150 V SR 230V
929001540506 Xitanium 60W 0.08-0.35A 220 V SR 230V
929001540606 Xitanium 60W 0.08-0.35A 300 V SR 230V
929001540706 Xitanium 100W 0.25-0.7A 220 V SR 230V
929001540806 Xitanium 100W 0.15-0.5A 300 V SR 230V iXt
929001540906 Xitanium 100W 0.2-0.7A 300 V SR 230V iXt
1.
View limited warranty at: http://images.philips.com/is/content/PhilipsConsumer/PDFDownloads/Global/
ODLI20150105_001-UPD-en_GB-152795-PHI-component_warranty-HR.PDF
2 - 5
Quick Installation Guide - EasyAir oce sensor advanced grouping SNS200 January 2018
Mounting Dimensions (mm)
Mounting in U-shaped slot in sheet metal (max thickness 1 mm)
EasyAir office sensor
Sensor Dimensions (mm)
43.8 MAX
16.8 MAX
7.5 MAX
24.3 MA
X
50.0 MAX
44.0
17.0
2.3
Mounting hole dimension (+/- 0.2mm)
43.5 43.5
16.0
16.0
Mounting in cut-out in sheet metal (thickness 0.7 mm to 1.2 mm)
44.0
17.0
2.3
Mounting hole dimension (+/- 0.2mm)
