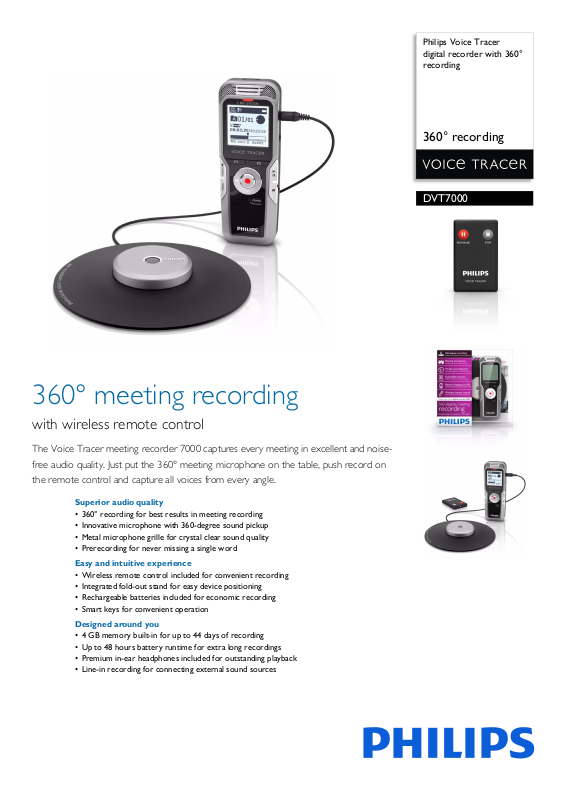

Page 1
Philips Voice Tracer
digital recorder with 360°
recording
360° recording
DVT7000
360° meeting recording
with wireless remote control
The Voice Tracer meeting recorder 7000 captures every meeting in excellent and noisefree audio quality. Just put the 360° meeting microphone on the table, push record on
the remote control and capture all voices from every angle.
Superior audio quality
• 360° recording for best results in meeting recording
• Innovative microphone with 360-degree sound pickup
• Metal microphone grille for crystal clear sound quality
• Prerecording for never missing a single word
Easy and intuitive experience
• Wireless remote control included for convenient recording
• Integrated fold-out stand for easy device positioning
• Rechargeable batteries included for economic recording
• Smart keys for convenient operation
Designed around you
• 4 GB memory built-in for up to 44 days of recording
• Up to 48 hours battery runtime for extra long recordings
• Premium in-ear headphones included for outstanding playback
• Line-in recording for connecting external sound sources
Page 2
Digital recorder with 360° recording
360° recording
Highlights
DVT7000/00
4 GB memory built-in
With the 4 GB of built-in memory, your Voice
Tracer is able to capture up to 44 days of
continuous recording.
Integrated fold-out stand
With the integrated fold-out stand on the back
of the Voice Tracer, you can conveniently
position your voice recorder towards the
sound source.
360-degree sound pickup
The revolutionary boundary layer microphone
is, as o
pposed to other prevalent devices, nondirectional. The design allows sound pick-up
from a 360 degree radius, so that no important
details are lost.
sound sources. Simply connect to the line-in
plug and start recording.
Metal microphone grille
A well-engineered microphone grille is able to
make a good microphone stand out even
more. The grille built into the new Voice
Tracers guarantees crystal clear recordings.
Extra long battery runtime
The batteries of the new Voice Tracers last for
up to 48 hours for extra long recording
sessions.
Premium headphones included
Prerecording
The prerecording function allows you to
record sound sources from approximately
three seconds prior to pressing the record
button.
Rechargeable batteries
The new Voice Tracers come with
rechargeable batteries for more than 50 hours
of continuous recording. Additionally, you can
help protect the environment by simply
recharging the batteries of your device using
USB instead of buying new batteries.
Smart keys
Line-in recording
With the built-in line-in connection you are
able to connect and record from external
The included Premium headphones are the
perfect companion for your Voice Tracer. The
in-ear design delivers a superior bass response,
crisp highs and a great balance.
The two ergonomically placed smart keys
allow for convenient, quick and direct access
to the most important features of your Voice
Tracer.
Page 3
Digital recorder with 360° recording
360° recording
Specifications
DVT7000/00
Audio recording
• Built-in microphone: 3 MIC System, high-
sensitivity, HQ Stereo, low-noise microphone
• Recording formats: MPEG1 layer 3 (MP3), PCM
(WAV)
• Recording modes: PCM 1411 kbps, SHQ 192 kbps,
kbps, SP 64 kbps, LP 8 kbps
HQ 96
• Sample rate: 44.1 kHz (PCM/SHQ), 22 kHz (HQ),
kHz (SP/LP)
16
• Bit rate: 8, 64, 96, 192, 1411 kbps
• File overwrite and append mode
• Record monitor function
• Recording time: 1140 h (LP), 142 h (SP), 95 h (HQ),
h (SHQ), 6 h (PCM)
47
• Silent recording mode
• Prerecording mode
Sound
• Sound enhancement: ClearVoice
• Frequency response: 50–20,000 Hz
• Signal-to-noise ratio: > 60 dB
• Speaker output power: 300 mW
• Speaker diameter: 28 mm
Tuner
• Frequency range: 87.5 - 108 MHz
• Station presets: 20
• Auto digital tuning
• Tuner bands: FM stereo
Accessories
•USB cable
• Quick start guide
• 2 x AAA rechargeable batteries
• 360° meeting microphone
• Carry case
• Stereo headphones premium
• Wireless remote control
Design and finishing
• Colour(s): silver shadow/black
Display
•Backlight
• Diagonal screen size: 38 mm/1.5 in
• Resolution: 112 x 112 pixels
• Type: Dot matrix LCD
Green specifications
• Lead-free soldered product
Power
•Batteries included
• Battery lifetime: up to 48
mode
• Battery type: Philips AAA Ni-MH LFH9154
• Number of batteries: 2
• Rechargeable: yes, via USB
hours in LP recording
Storage media
• Built-in memory capacity: 4 GB
• Built-in memory type: NAND Flash
• Mass storage class compliant
System requirements
• Free USB port
• Operating system: Linux, Windows 7 (32/64-bit),
Windows Vis
SP2+), Mac OS X
ta (32/64-bit), Windows XP (32-bit,
Music playback
•Compression format: MP3, WMA
• Equalizer settings: Jazz, Pop, Rock
• ID3 tag support
• MP3 bit rates: 8–320 kbps
• WMA bit rates: 48–320 kbps (44 kHz), 64–192 (48
kHz), ste
reo
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm, Built-in microphone,
crophone socket
Mi
• Micro-SD card socket
•USB: High-speed USB 2.0
Convenience
• Firmware upgradeable
•Keypad lock
• Multi language: English, Frenc
Italian, Russian, Polish, Simplified Chinese
• Variable playback speed
• Voice volume indicator
• Voice-activated recording
•Auto adjust recording
• Auto zoom recording: 15 m zoom
•Calendar search
• Instant one-touch recording
• Optimised for conversations
• Optimised for notes
• Optimised for lectures
• Optimised for meetings
h, German, Spanish,
Issue date 2014-02-26
Version: 3.3.1
12 NC: 8403 700 00003
UPC: 6 09585 22795 8
Meeting microphone
• Cable length: 2 m/6.5 ft.
• Connector: 3.5 mm
• Design: boundary layer microphone
• Frequency response: 30–18,000 Hz
• Impedance: approx. 2.2 kOhm @ 1 kHz
• Net weight: 0.108 kg/0.238 lb
• Phantom supply voltage: 1.5 to 5 V/0.5 mA
• Product dimensions (W x D x H): 13 × 13 × 1.8
/5.1 × 5.1 × 0.7 in.
cm
• Sensitivity: -38 dBV
• Type: electret condenser microphone
Product dimensions
• Product dimensions (W x H x D):
1.6 x 4.6 x 0.8 inch
• Product dimensions (W x H x D):
4.1 x 11.7 x 2 cm
• Weight: 0.06 kg
• Weight: 0.132 lb
•
