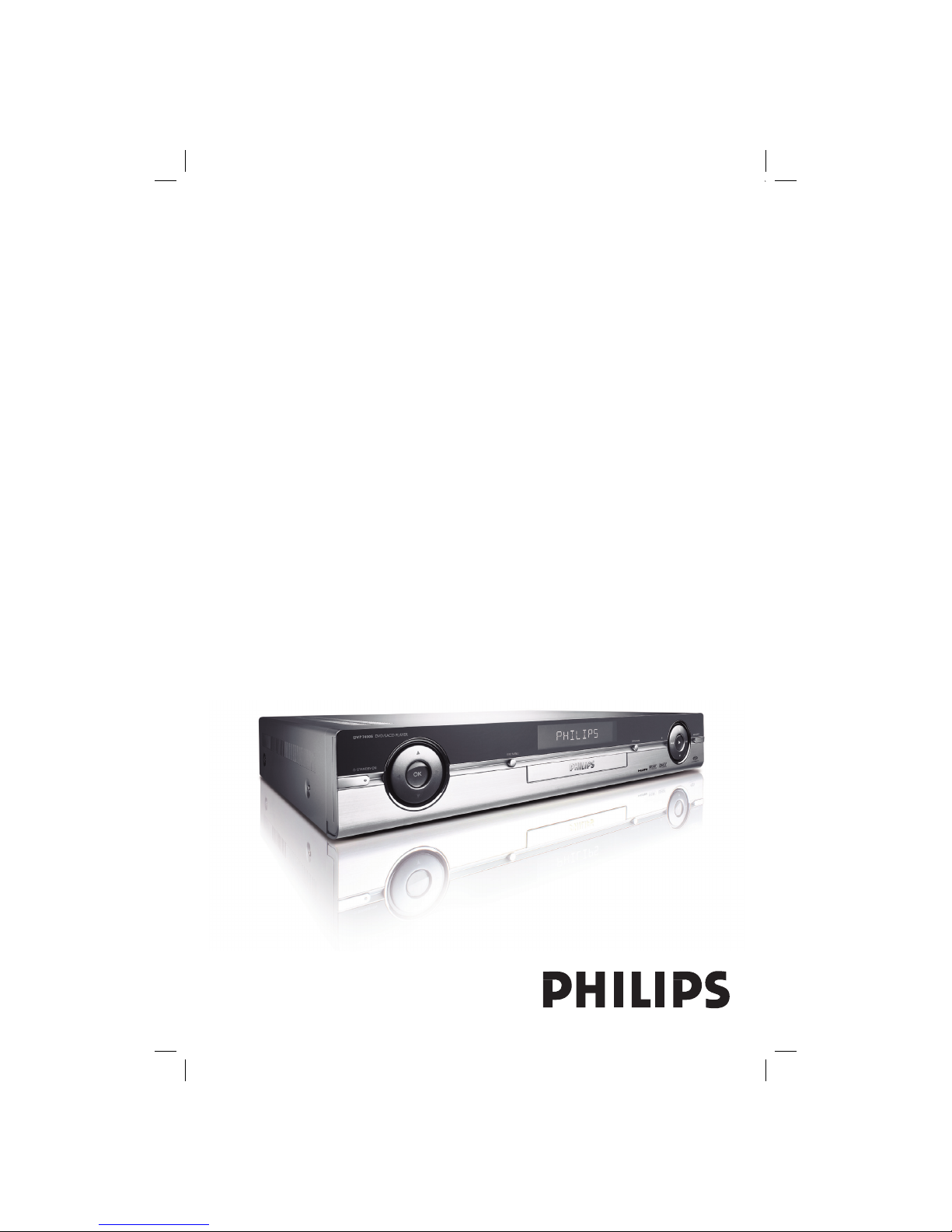

DVD/SACD PLAYER
Thank you for choosing Philips.
Need help fast?
Read your User’s Manual rst for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support
DVP 7400S
01-49 dvp7400_93_eng2.indd 101-49 dvp7400_93_eng2.indd 1 2006-10-12 2:16:39 PM2006-10-12 2:16:39 PM
Page 2
2
Manufactured under license from Dolby Laboratories, “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
LASER
Type Semiconductor laser InGaAlP (DVD) AIGaAs (CD) Wave length 658 nm (DVD) 790 nm (CD) Output Power 7.0 mW (DVD)
10.0 mW (VCD/CD) Beam divergence 60 degrees
For Customer Use: Read carefully the information located at the bottom or rear of your DVD Video player and enter below the Serial No. Retain this information for future reference.
Model No. DVP 7400S Serial No. ___________________
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
01-49 dvp7400_93_eng2.indd 201-49 dvp7400_93_eng2.indd 2 2006-10-12 2:16:44 PM2006-10-12 2:16:44 PM
Page 3
English
Index
English ------------------------------------------6
-------------------------------- 50
01-49 dvp7400_93_eng2.indd 301-49 dvp7400_93_eng2.indd 3 2006-10-12 2:16:45 PM2006-10-12 2:16:45 PM
Page 4
English
4
Speci cations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
General Information
Environmental Information
All unnecessary packaging has been
omitted. The packaging has been made easy to separate into two materials; cardboard (box) and polyethylene (bags, protective foam sheet).
Your DVD player consists of materials
which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Laser Safety
This unit employs a laser. Due to possible
eye injury, only a quali ed service person should remove the cover or attempt to service this device.
NOTE: Pictures shown maybe different between countries.
CAUTION: WARNING LOCATION: ON THE BACKPLATE OF THE SET
NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.
Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
DivX Ultra Certi ed products: “DivX ”, DivX Ultra Certi ed, and associated logos are trademarks of DivX , Inc. and are used under license.
“DTS”, and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.
HDMI (High De nition Multimedia Interface) is a digital interface that allows pure HD digital video transmission without the loss of image quality. The integrated control bus allows system control between the TV set and connected devices like a digital set top box.
“DCDi” is a trademark of Faroudja, a division of Genesis Microchip, Inc.
01-49 dvp7400_93_eng2.indd 401-49 dvp7400_93_eng2.indd 4 2006-10-12 2:16:46 PM2006-10-12 2:16:46 PM
Page 5
English
5

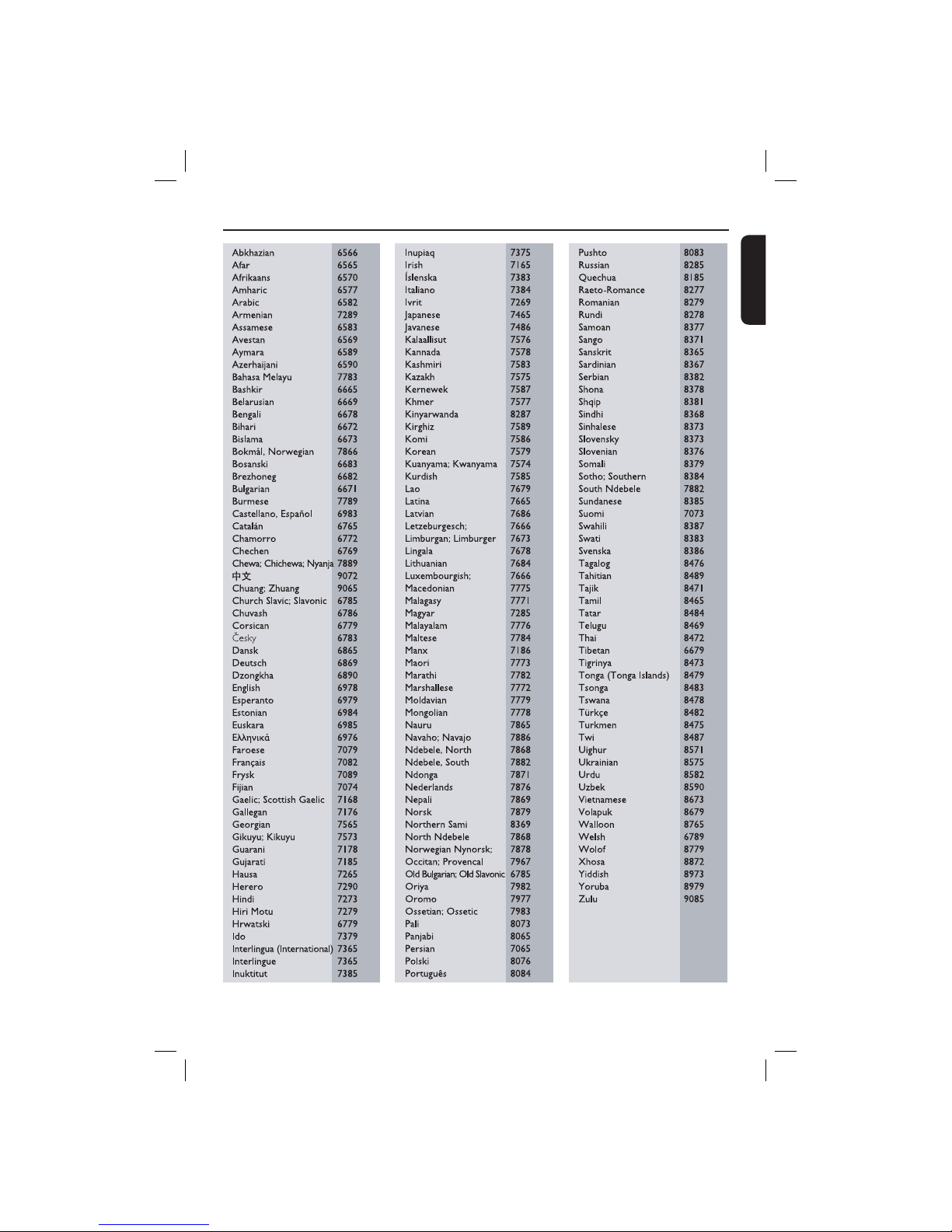

Language Code
01-49 dvp7400_93_eng2.indd 501-49 dvp7400_93_eng2.indd 5 2006-10-12 2:16:46 PM2006-10-12 2:16:46 PM
Page 6
English
6
Contents
Care and Safety Information
Setup ....................................................................................................................................................................... 8
Cleaning discs ....................................................................................................................................................... 8
General Information
Accessories supplied .......................................................................................................................................... 9
Region codes ......................................................................................................................................................... 9
Connections
Connecting to television ................................................................................................. 10~12
Using Composite Video sockets (CVBS) ....................................................................................................10
Using S -Video sockets ...................................................................................................................................... 10
Using Component Video sockets (YPbPr) ................................................................................................. 11
Scan Mode (Interlace/Progressive) ............................................................................................................... 11
Using an accessory RF modulator ................................................................................................................12
Connecting the power cord ...................................................................................................12
Optional connections
Connecting to HDMI/DVI devices ........................................................................................13
Using HDMI (High De nition Multimedia Interface) sockets............................................................... 13
Connecting to an stereo system .......................................................................................... 14
Stereo system has Dolby Pro Logic or Right/Left Audio In sockets ..................................................14
Connecting to a digital AV receiver .....................................................................................14
Receiver has a PCM, Dolby Digital or MPEG decoder ........................................................................... 14
Connecting to a Multi-channel receiver ..............................................................................15
Receiver has multi-channel audio In sockets ...........................................................................................15
Product Overview
Front panel ...............................................................................................................................16
Rear panel ................................................................................................................................. 17
Remote Control .......................................................................................................................18
Getting Started
Step 1: Inserting Baterries .....................................................................................................19
Using the remote control to operate the system ....................................................................................19
Step 2: Finding your viewing channel ................................................................................... 19
Step 3: Selecting the matching color system ......................................................................20
Step 4: Setting the language ..................................................................................................21
On-screen display (OSD) language ..............................................................................................................21
Audio, Subtitle and Disc menu languages ................................................................................................... 21
Step 5: Setting the speakers’ channel ..................................................................................22
Playback from Disc
Playable discs ...........................................................................................................................23
Supported formats ............................................................................................................................................23
Playback Features
Starting disc playback .............................................................................................................24
Basic playback control ............................................................................................................24
Pausing playback................................................................................................................................................. 24
Selecting title/chapter/track ........................................................................................................................... 24
Stopping playback ..............................................................................................................................................24
Operations for video playback (DVD/VCD/SVCD) ............................................................25
Using the Disc Menu ........................................................................................................................................25
Zooming in ..........................................................................................................................................................25
Resuming playback from the last stopped point .......................................................................................25
Slow Motion ........................................................................................................................................................25
Forward / Reverse Searching .........................................................................................................................25
Selecting various repeat/shuf e functions ..........................................................................26
Repeat play mode ..............................................................................................................................................26
01-49 dvp7400_93_eng2.indd 601-49 dvp7400_93_eng2.indd 6 2006-10-12 2:16:46 PM2006-10-12 2:16:46 PM
Page 7
English
7
Contents
Repeating a section within a chapter/track ................................................................................................26
Shuf e ...................................................................................................................................................................26
Viewing the disc playback information ........................................................................ 27~28
Title/Chapter/Track selection .......................................................................................................................27
Time Search ........................................................................................................................................................27
Preview Function ...............................................................................................................................................28
Special DVD Features ............................................................................................................28
Playing a Title ......................................................................................................................................................28
Changing the Audio Language ........................................................................................................................28
Subti tle .................................................................................................................................................................28
Special VCD and SVCD Feature ...........................................................................................29
Playback Control (PBC) ..................................................................................................................................29
Playing a Super Audio CD (SACD) .......................................................................................29
Playing a DivX
®
disc .................................................................................................................30
Playing MP3/WMA /JPEG/Kodak Picture CD ................................................................31~32
General Operation ...........................................................................................................................................31
Playback selection .............................................................................................................................................31
Preview ( JPEG) ................................................................................................................................................... 31
Zoom picture (JPEG) .......................................................................................................................................32
Playback with multi-angles ( JPEG) ................................................................................................................32
Scan Effect ...........................................................................................................................................................32
Playing MP3/WMA music and JPEG picture simultaneously .................................................................32
DVD Menu Options
Using the General setup menu ....................................................................................... 33~35
Locking/Unlocking disc for viewing ..............................................................................................................33
Program play (not for Picture CD/MP3/WMA/DivX®/SACD) .............................................................3 4
OSD Language ....................................................................................................................................................34
Screen Saver - turning on/off .........................................................................................................................34
Sleep ...................................................................................................................................................................... 35
DivX® Registration Code ................................................................................................................................35
Using the Audio setup menu ..........................................................................................36 ~38
Analog Output ...................................................................................................................................................36
Digital Audio Setup ........................................................................................................................................... 37
HDMI Audio .......................................................................................................................................................37
Speaker Setup .....................................................................................................................................................38
CD Upsampling ..................................................................................................................................................38
Night Mode .........................................................................................................................................................38
Lip Sync ................................................................................................................................................................38
Using the Video setup menu ...........................................................................................39~42
TV Type ................................................................................................................................................................39
Setting the TV Display .....................................................................................................................................39
Picture Setting ....................................................................................................................................................40
Advance Picture ........................................................................................................................................ 41~42
Using the Preference setup menu ................................................................................. 42~45
Audio, Subtitle, Disc Menu settings .............................................................................................................43
Paren tal ................................................................................................................................................................43
PBC (Playback Control) ..................................................................................................................................44
MP3/JPEG Menu – turning on/off ..................................................................................................................44
Changing the Password ....................................................................................................................................44
Restoring the original settings .......................................................................................................................45
Setting the DivX® Subtitle ...............................................................................................................................45
Others
Troubleshooting ...............................................................................................................46~47
Speci cations ...........................................................................................................................48
Gloss ary ....................................................................................................................................49
01-49 dvp7400_93_eng2.indd 701-49 dvp7400_93_eng2.indd 7 2006-10-12 2:16:47 PM2006-10-12 2:16:47 PM

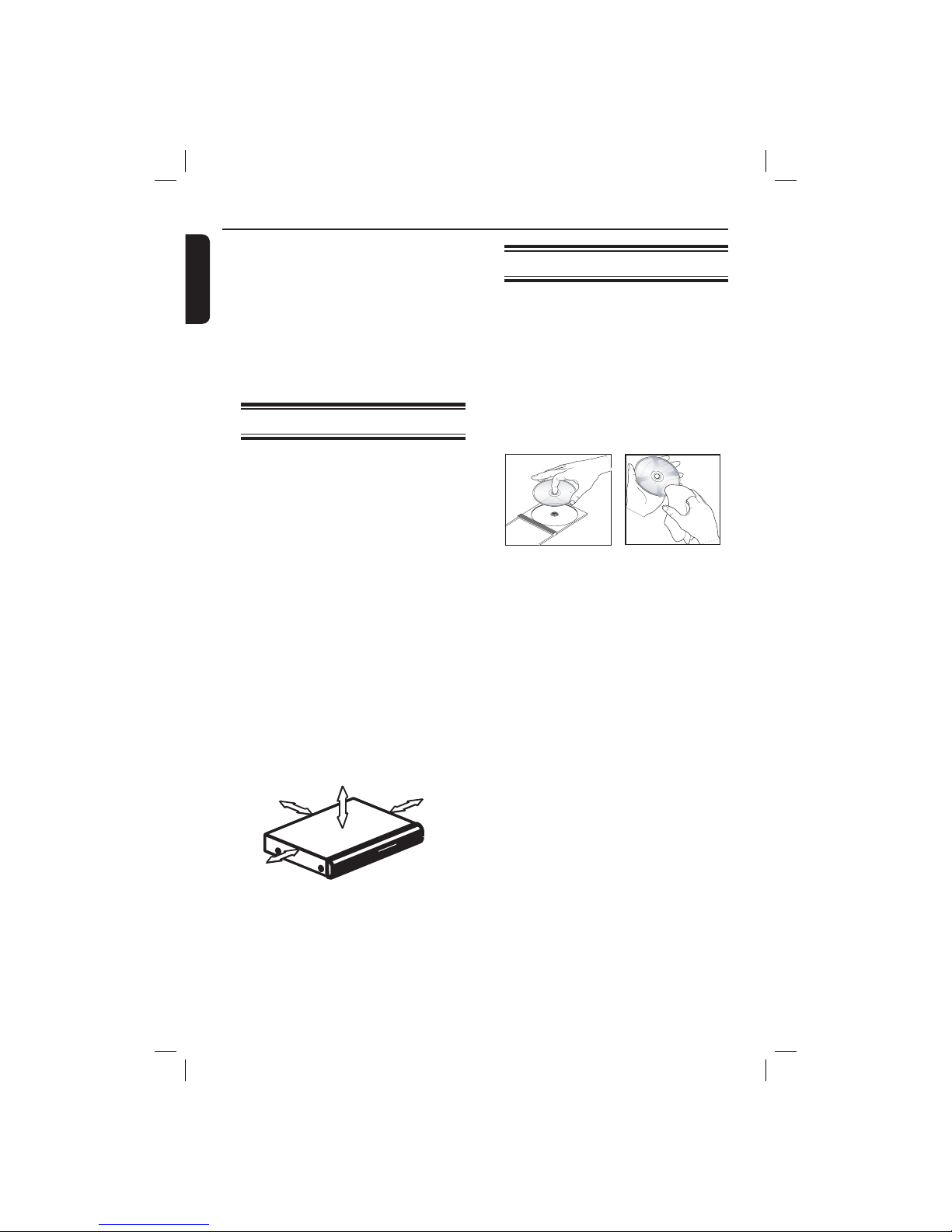

Page 8
English
8
Care and Safety Information
DANGER! High voltage! Do not open the device. You run the risk of getting an electric shock.
The machine does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.
Setup
Finding a suitable location
– Place the set on a  at, hard and stable
surface. Do not place the set on a carpet.
– Do not position the set on top of
other equipment that might heat it up (e.g., receiver or ampli er).
– Do not put anything under the set
(e.g., CDs, magazines).
– Install this unit near the AC outlet and
where the AC power plug can be reached easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4.0”) clearance from the rear and the top of the set and 5cm (2.0”) from the left and right to prevent overheating.
10cm (4.0")
10cm (4.0")
5cm (2.0")
5cm (2.0")
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger
on the apparatus (e.g., liquid  lled objects, lighted candles).
Cleaning discs
Some problems occur because the disc inside the recorder is dirty (frozen picture, sound disruptions, picture distortions). To avoid these problems, discs should be cleaned on a regular basis.
To clean a disc, use a micro  bre cleaning cloth and wipe the disc from the center to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for analog discs. Since the optical unit (laser) of the DVD player operates at a higher power than regular DVD or CD players, cleaning CDs intended for DVD or CD players may damage the optical unit (laser). Therefore, refrain from using a cleaning CD.
01-49 dvp7400_93_eng2.indd 801-49 dvp7400_93_eng2.indd 8 2006-10-12 2:16:48 PM2006-10-12 2:16:48 PM
Page 9
English
9
General Information

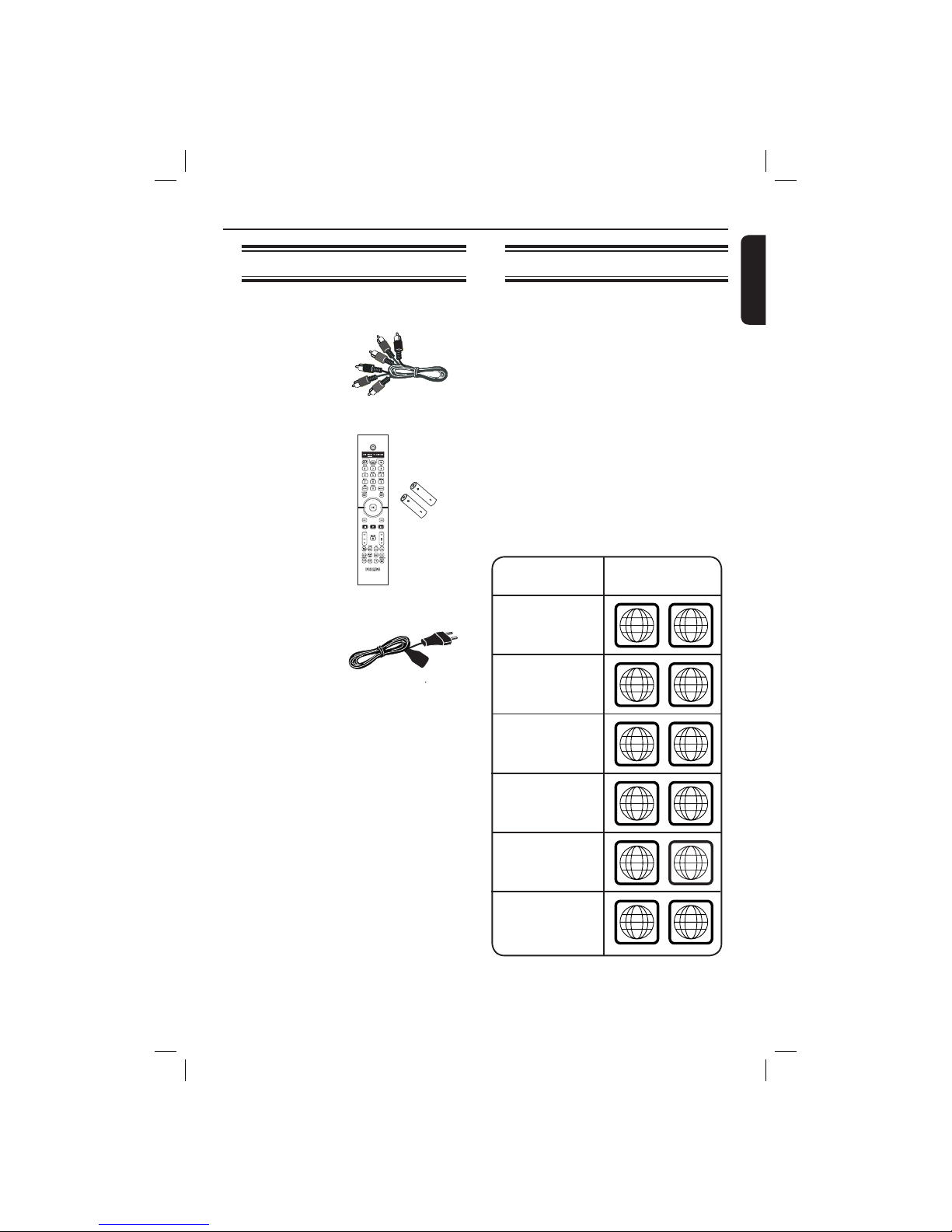

Accessories supplied
ALL
4
Region
U.S.A. and Canada regions
U.K and Europe regions
Asia Paci c, Taiwan, Korea
Australia, New Zealand, Latin America
Russia and India regions
China, Calcos Islands, Walls and Futuna
Islands
ALL
ALL
5
6
Discs that can
be played
ALL
1
ALL
ALL
2
3
Remote
control and
two AA
batteries
Region codes
This DVD player is designed to support the Region Management System. Check the regional code number on the disc package. If the number does not match the player’s region number (see table below), the player may be unable to playback the disc.
Tips: – It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. – If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not played on the DVD player.
Composite video cable
(yellow)
and
Audio cables
(white, red)
AC power
cord
01-49 dvp7400_93_eng2.indd 901-49 dvp7400_93_eng2.indd 9 2006-10-12 2:16:48 PM2006-10-12 2:16:48 PM
Page 10
English
10
Connections
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.

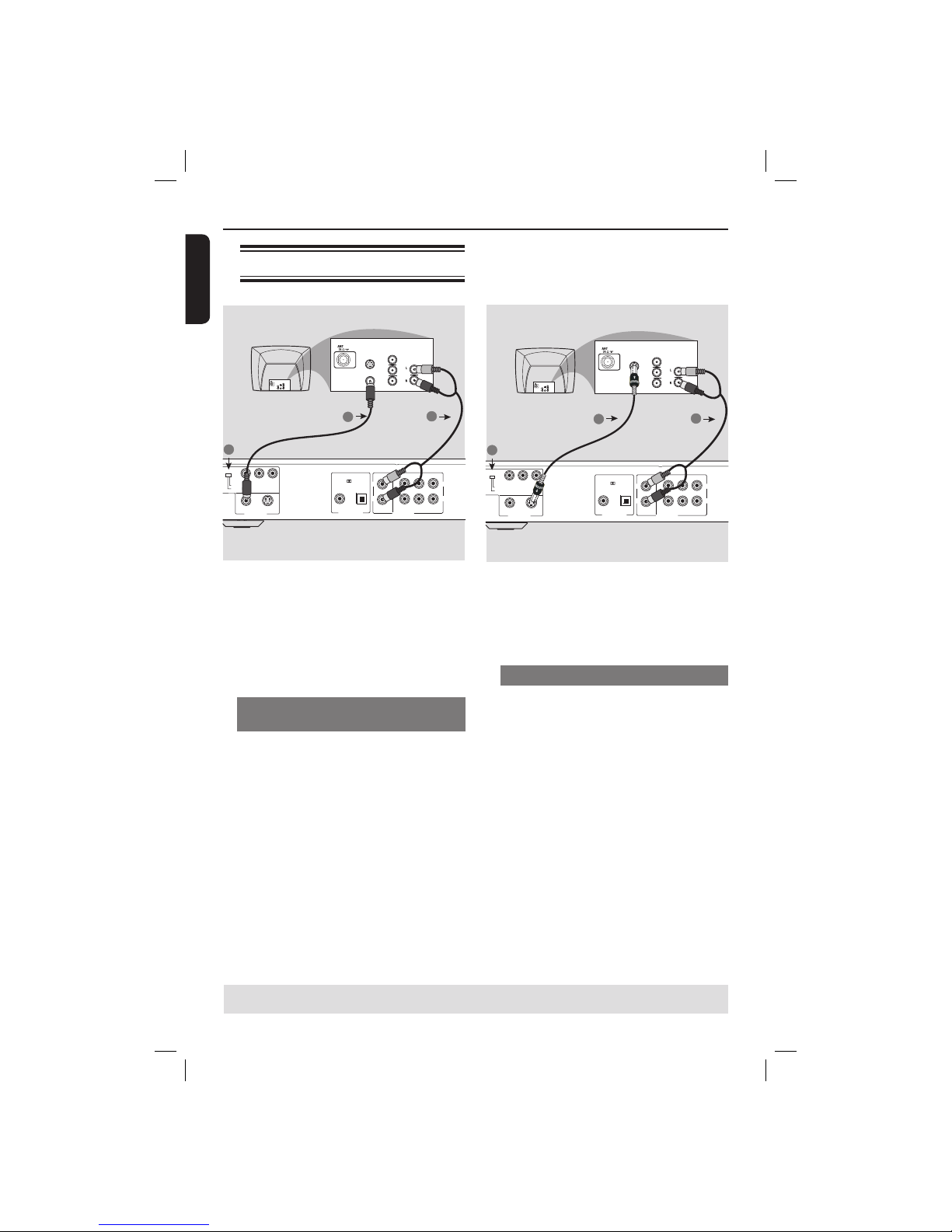

Connecting to television
IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your television. – Connect the DVD player directly to the television.
Using Composite Video sockets (CVBS)
A
Use the composite video cable (yellow)
to connect the DVD player’s CVBS (VIDEO) socket to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the television (cable supplied).
B Set the SCAN MODE switch to
INTERLACE.
C To hear sound of this DVD player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) sockets of the DVD player to the corresponding AUDIO IN sockets on the television (cable supplied).

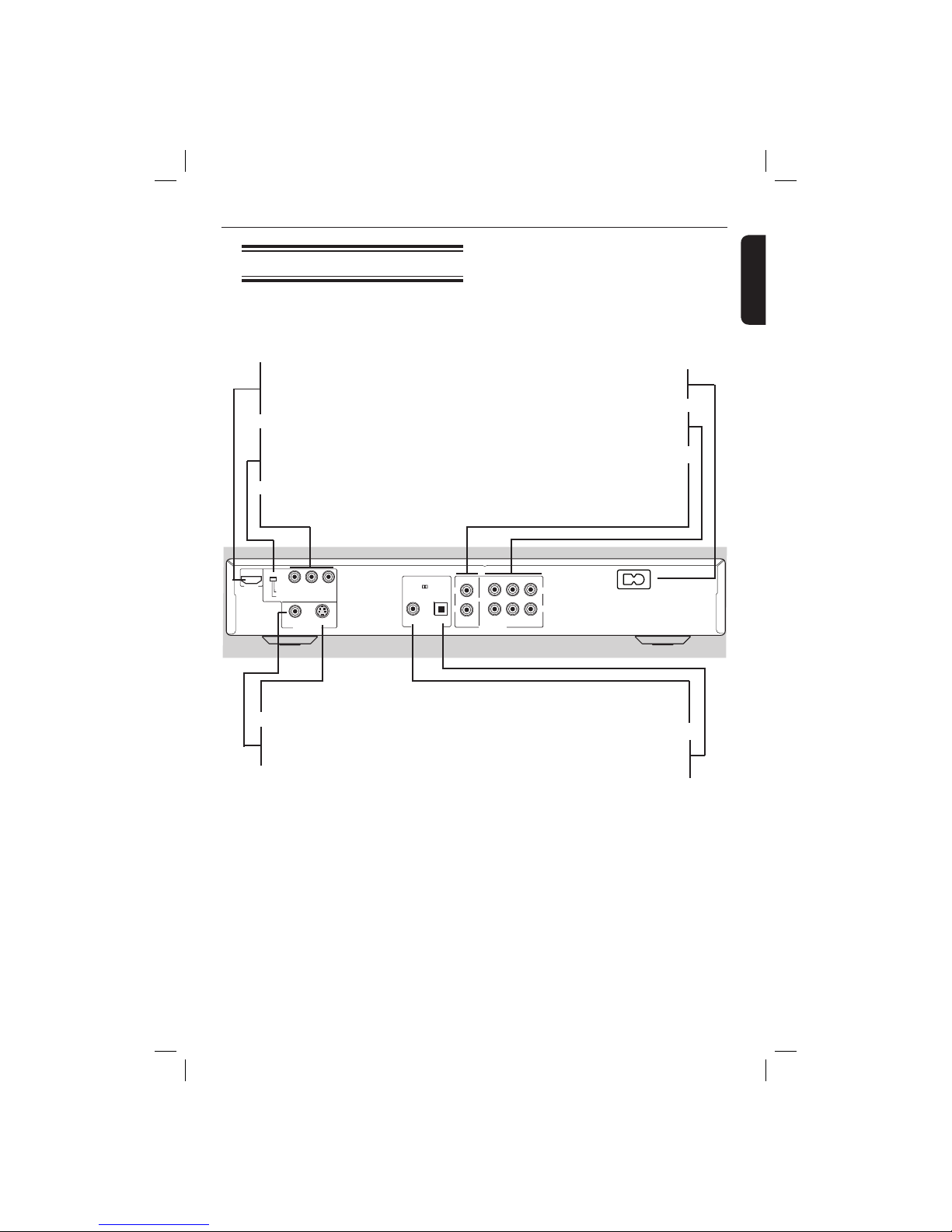

S-VIDEO
YPbPr
MIXED 2CH
MAIN
CENTER
SUB WOOFER 6CH DISCRETE
SURROUND
LLRL
R
COMPONENT
SCAN MODE
INTERLACE PROGRESSIVE
VIDEO
VIDEO OUT
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
AUDIO
IN
Pr
Pb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO IN
Pr/Cr
Pb/Cb
Y
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
IN
IN
3
1
2
Back of TV
IMPORTANT! – S-Video connections provides better picture quality than composite video. This option must be available on your TV.
Using S- Video sockets
A
Use the S-Video cable to connect the
DVD player’s S-Video sockets to the S-VIDEO input sockets (or labeled as Y/C or S-VHS) on the television (cable not supplied).
B Set the SCAN MODE switch to
INTERLACE.
C To hear sound of this DVD player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) sockets of the DVD player to the corresponding AUDIO IN sockets on the television (cable supplied).
S-VIDEO
YPbPr
MIXED 2CH
MAIN
CENTER
SUB WOOFER 6CH DISCRETE
SURROUND
LLRL
R
COMPONENT
SCAN MODE
INTERLACE PROGRESSIVE
VIDEO
VIDEO OUT
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
AUDIO
IN
Pr
Pb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO IN
Pr/Cr
Pb/Cb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT VIDEO IN
IN
IN
3
1
2
Back of TV
01-49 dvp7400_93_eng2.indd 1001-49 dvp7400_93_eng2.indd 10 2006-10-12 2:16:53 PM2006-10-12 2:16:53 PM
Page 11
English
11
S-VIDEO
YPbPr
MIXED 2CH
MAIN
CENTER
SUB WOOFER 6CH DISCRETE
SURROUND
LLRL
R
COMPONENT
SCAN MODE
INTERLACE PROGRESSIVE
VIDEO
VIDEO OUT
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
AUDIO
IN
Pr
Pb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO IN
Pr/Cr
Pb/Cb
Y
S-VIDEO IN
VIDEO IN
COMPONENT
VIDEO IN
IN
IN
3
1
2
Back of TV
IMPORTANT! – The progressive scan video quality is only possible when using YPbPr and a progressive scan television is required.

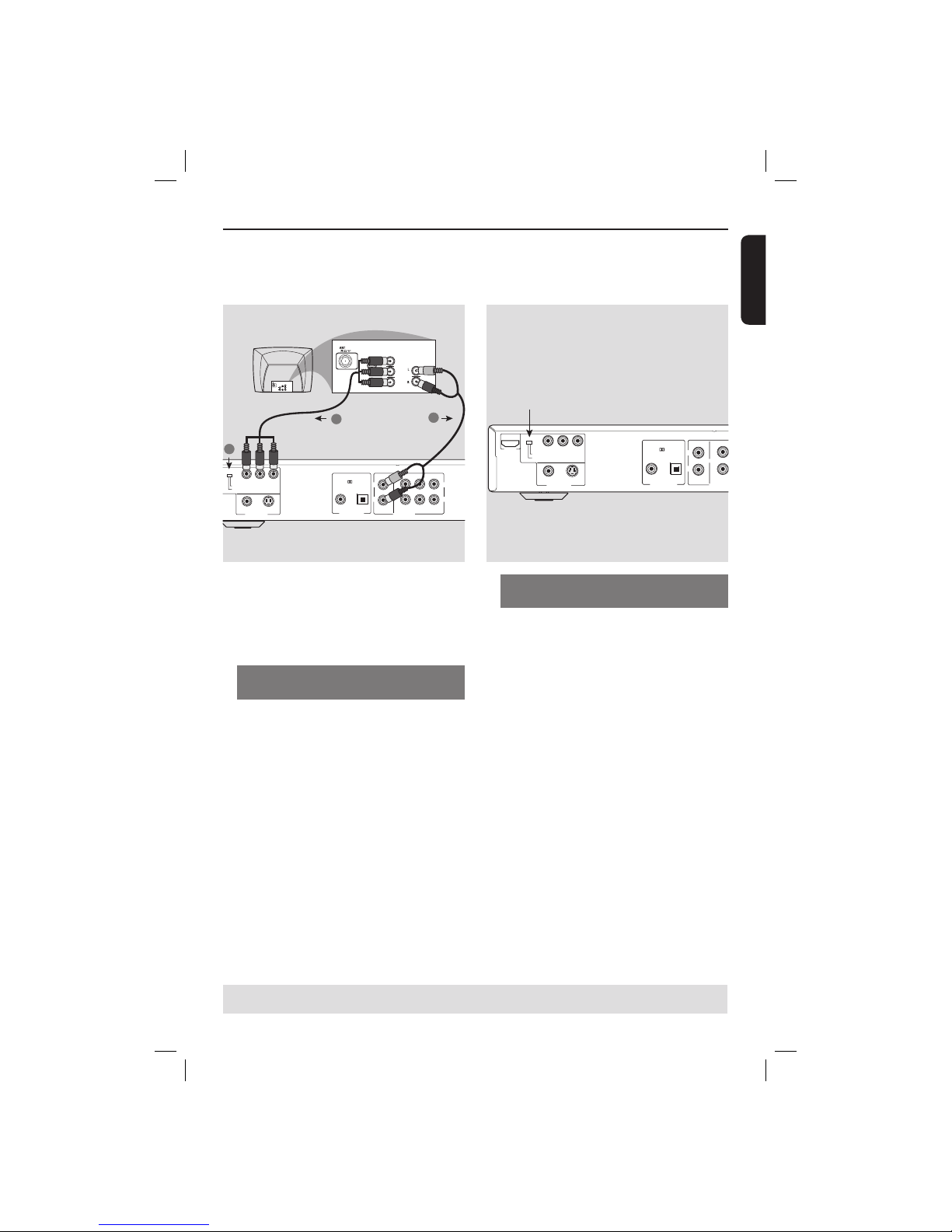

Using Component Video sockets (YPbPr)
A
Use the component video cables (red/
blue/green) to connect the DVD player’s YPbPr sockets to the component video input sockets (or labeled as YPbPr) on the television (cable not supplied).
B Set the SCAN MODE switch to
PROGRESSIVE.
C To hear sound of this DVD player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) sockets of the DVD player to the corresponding AUDIO IN sockets on the television (cable supplied).
Connections (cont inued)
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Scan Mode (Progressive or Interlace selector)
This switch will change the type of signal
output from the Component Video Out on the DVD player.
Interlace:
Select { Interlace } when connected to a
standard (interlace format) TV.
Progressive:
Select { Progressive } when you have a
TV that can accept progressive signals (480/576p) to enjoy accurate color reproduction and high quality images.
Tips: – In Progressive mode, 4:3 aspect images are stretched horizontally on the wide screen TV. Change the TV screen’s aspect ratio settings in {PSCAN FORMAT} according to your own preference. – Some TVs and projectors are not compatible with this DVD player. If picture distorted during progressive signals, switch the SCAN MODE to {Interlace}.
S-VIDEO
YPbPr
MIXED 2CH
MAIN
LL
R
COMPONENT
SCAN MODE
INTERLACE
PROGRESSIVE
VIDEO
VIDEO OUT
HDMI
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO O
U
01-49 dvp7400_93_eng2.indd 1101-49 dvp7400_93_eng2.indd 11 2006-10-12 2:16:54 PM2006-10-12 2:16:54 PM
Page 12
English
12
MAIN
CENTER
SUB WOOFER 6CH DISCRETE
SURROUND
L
R
UDIO OUT
~ AC
MAINS
Connecting the power cord
After everything is connected properly, plug in the AC power cord to the power outlet.
Never make or change any connections with the power switched on.
When no disc is loaded, press
STANDBY ON on the DVD player front panel.
Connections (cont inued)
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
S-VIDEO
YPbPr
MIXED 2CH
MAIN
CENTER
SUB WOOFER 6CH DISCRETE
SURROUND
LLRL
R
COMPONENT
ODE
INTERLACE
PROGRESSIVE
VIDEO
VIDEO OUT
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
AUDIO IN
R L
VIDEO
IN
TO TVINT IN
CH3 CH4
RF coaxial cable to TV
Back of RF Modulator
(example only)
IMPORTANT! – If your television only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the television. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

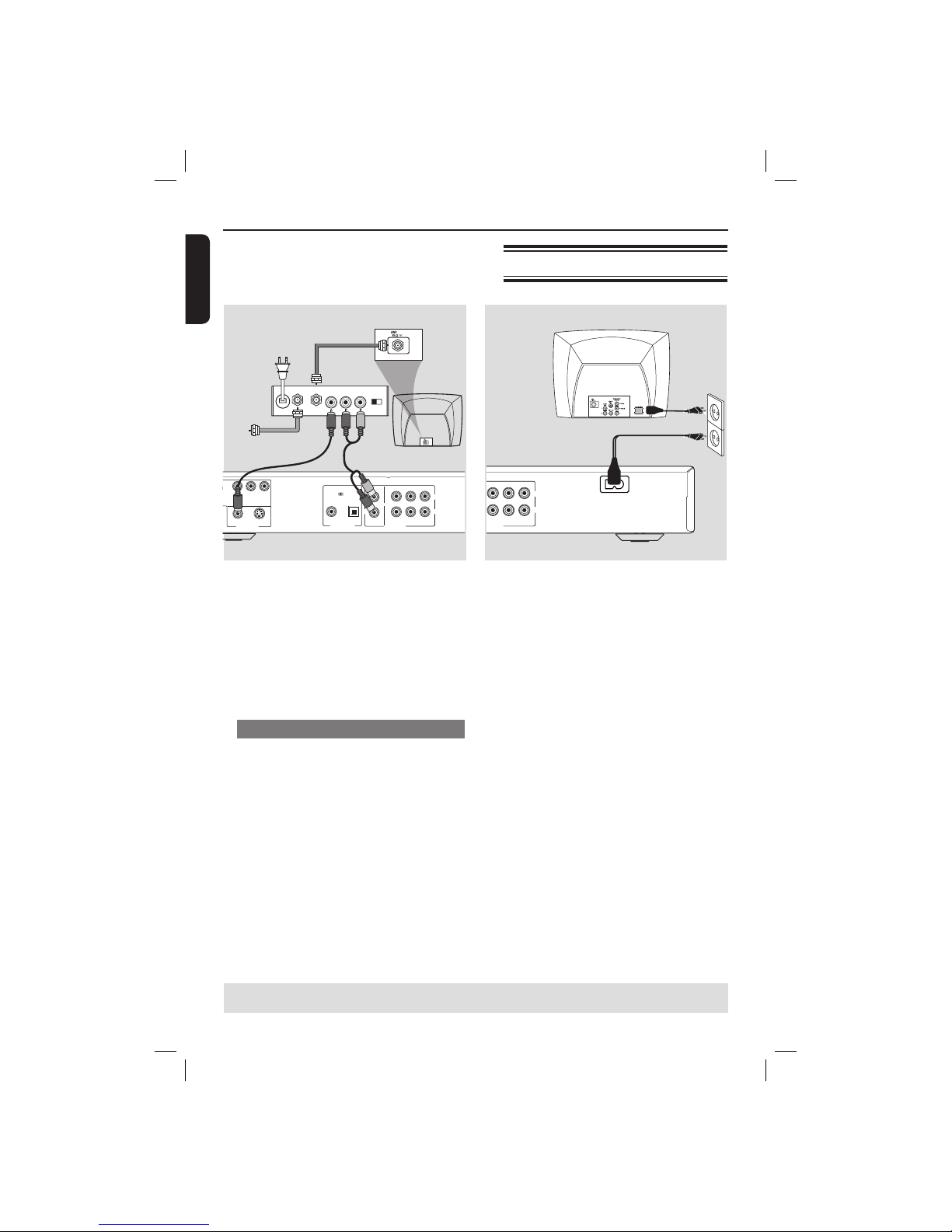

Using an accessory RF modulator
A
Use the composite video cable (yellow)
to connect the DVD player’s CVBS jack to the video input jack on the RF modulator.
B Use the RF coaxial cable (not supplied) to
connect the RF modulator to your television’s RF jack.
C To hear sound of this DVD player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) sockets of the DVD player to the corresponding AUDIO IN sockets on the RF modulator (cable supplied).
01-49 dvp7400_93_eng2.indd 1201-49 dvp7400_93_eng2.indd 12 2006-10-12 2:16:55 PM2006-10-12 2:16:55 PM
Page 13
English
13
Optional connections
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
S-VIDEO
YPbPr
MIXED 2CH
MAIN
C
E
SUB 6CH
D
LL
R
COMPONENT
SCAN MODE
INTERLACE PROGRESSIVE
VIDEO
VIDEO OUT
HDMI
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
AUDIO
IN
COAXIAL
OPTICAL
TV/Display
HDMI

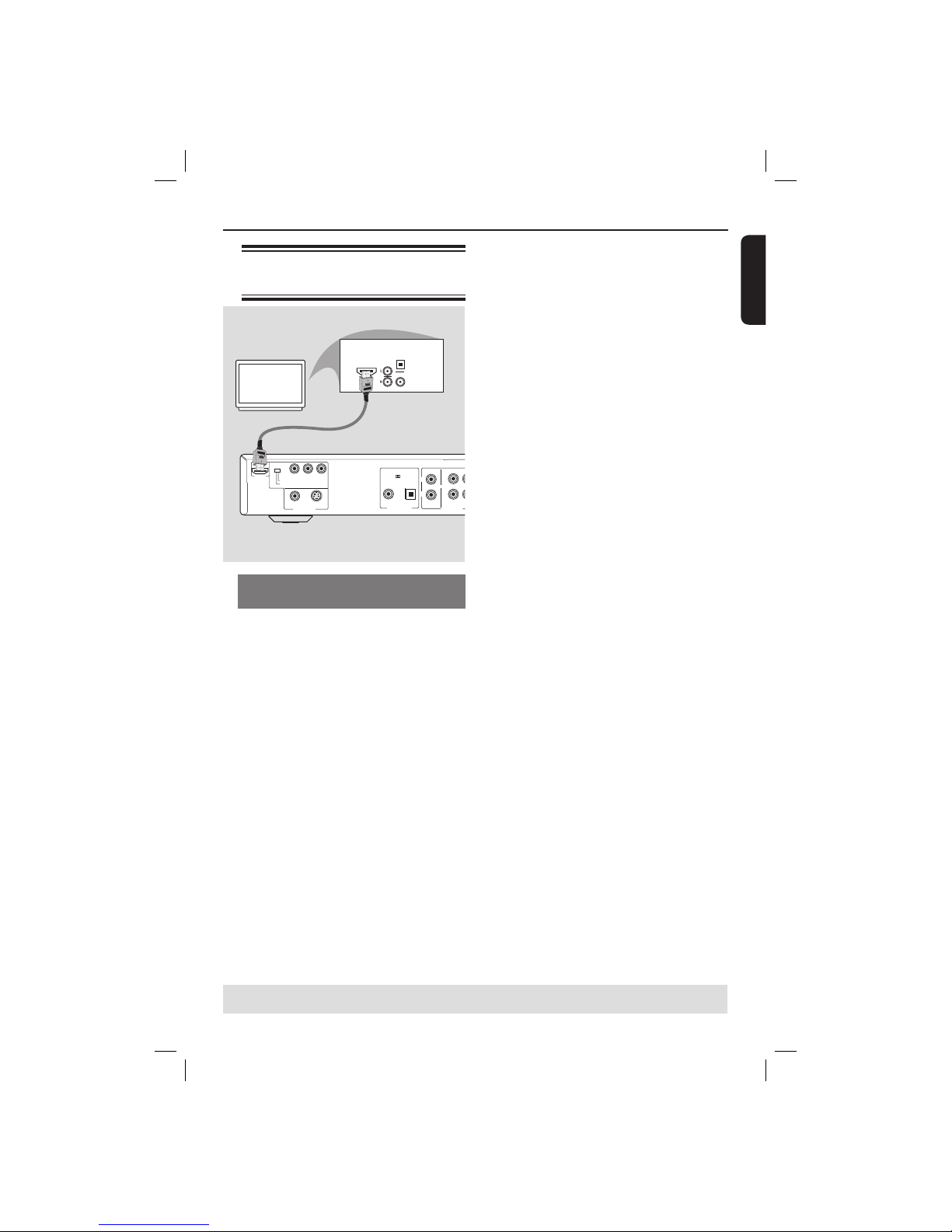

Connecting to a HDMI/DVI device
Using HDMI (High De nition Multimedia Interface) sockets
HDMI connects untouched and
uncompressed digital transmissions for the highest and cripest sound/image quality.
It has plug and play capability using only
one cable for both audio/video output.
Use a HDMI cable (not supplied) to
connect the HDMI OUT on the DVD player to HDMI IN on a HDMI compatible device (e.g.; PC, DVD player, Set Top Box).
It may take a while for the DVD
player and input device to communicate and initialise.
Playback starts automatically.
Proceed to page 37 for detailed HDMI
setup.
Tip: – If you are using the HDMI as audio source, make sure that {Digital Output} is set to {PCM Only} (see page 37).
01-49 dvp7400_93_eng2.indd 1301-49 dvp7400_93_eng2.indd 13 2006-10-12 2:16:56 PM2006-10-12 2:16:56 PM
Page 14
English
14
S-VIDEO
YPbPr
MIXED 2CH
MAIN
CENTER
SUB WOOFE
R
6CH DISCRET
E
LL
R
COMPONENT
SCAN MODE
INTERLACE PROGRESSIVE
VIDEO
VIDEO OUT
HDMI
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
AUDIO
IN
STEREO
9><>I6A
DEI>86A

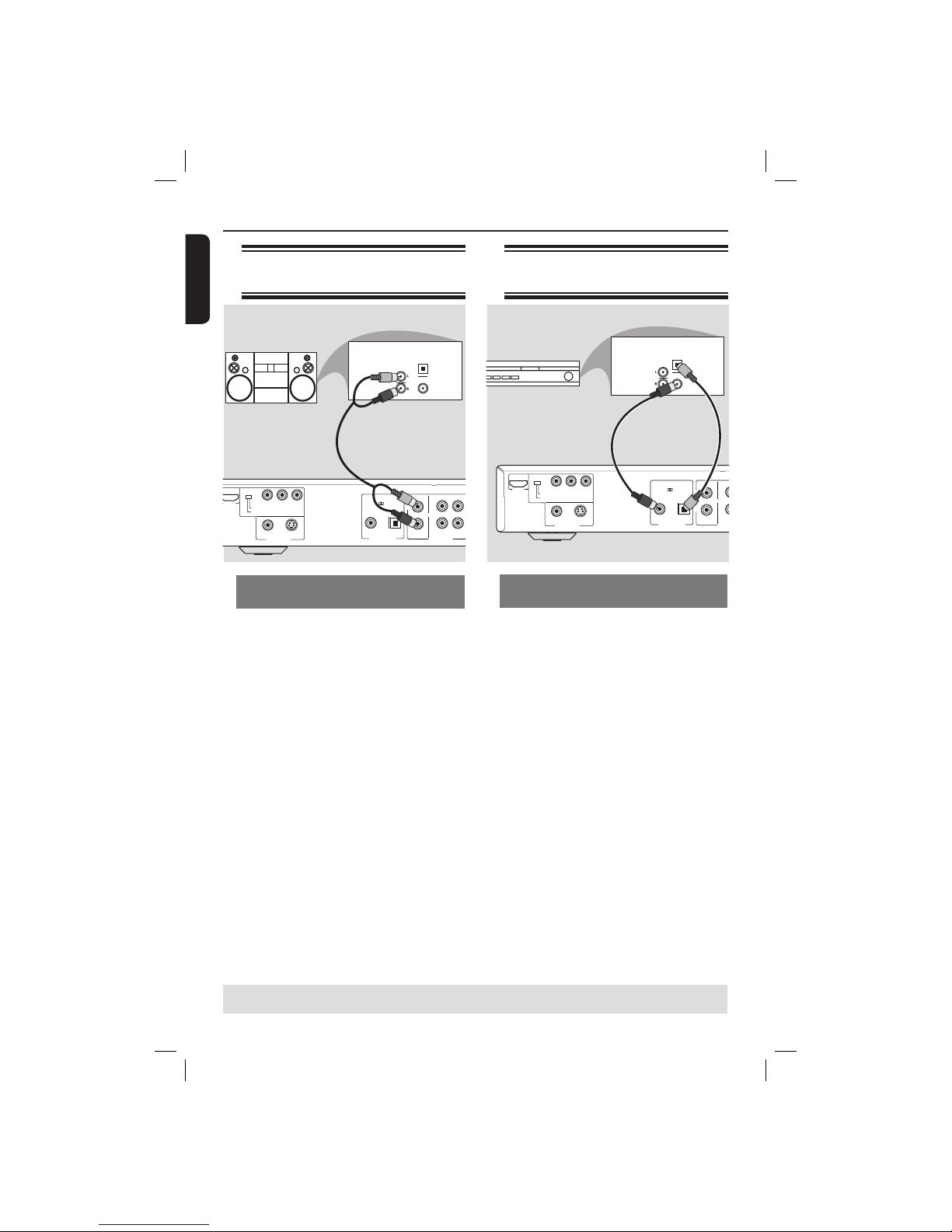

Connecting to an stereo system
S-VIDEO
YPbPr
MIXED 2CH
M
LL
R
COMPONENT
SCAN MODE
INTERLACE PROGRESSIVE
VIDEO
VIDEO OUT
HDMI
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AU
D
AUDIO
IN
COAXIAL
OPTICAL
Receiver
OR
Receiver has a PCM, Dolby Digital or MPEG decoder
A
Select one of the video connections
(CVBS VIDEO IN, S-VIDEO or COMPONENT VIDEO IN) depending on the options available on your TV.
B Connect the COAXIAL or OPTICAL
jack of the DVD player to the corresponding Digital Audio In socket on your receiver (cable not supplied).
C Set the DVD player’s {Digital Output} to
{PCM-Only} or {All} depending on the capabilities of your receiver (see page 37 {Digital Output}).
Tip: – If the audio format of the Digital Output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
Stereo system has Dolby Pro Logic or right/ left Audio In sockets
A
Select one of the video connections
(CVBS VIDEO IN, S-VIDEO or COMPONENT VIDEO IN) depending on the options available on your TV.
B Switch the SCAN MODE selector to
INTERLACE for CVBS or S-VIDEO connection.
C Switch the SCAN MODE selector to
PROGRESSIVE for COMPONENT VIDEO connection with a Progressive Scan TV.
D Use the audio cables (white/red) to
connect AUDIO OUT (L/R) sockets of the DVD Player to the corresponding AUDIO IN sockets on the stereo system (cable supplied).
Tip: – For optimum stereo sound quality, connect Left and Right channel from the Multi­channel output and set {Analog Output} to {Stereo}, see page 36.
Connecting to a digital AV receiver
Optional connections (cont inued)
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
01-49 dvp7400_93_eng2.indd 1401-49 dvp7400_93_eng2.indd 14 2006-10-12 2:16:57 PM2006-10-12 2:16:57 PM
Page 15
English
15
Optional connections (cont inued)
-VIDEO
Y
MIXED 2CH
MAIN
CENTER
SUB WOOFER 6CH DISCRETE
SURROUND
LLRL
R
NT
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
MULTICHANNEL AUDIO IN
SUBW.
AV Receiver
REARFRONT
CENTER REARFRONT
LL
RR

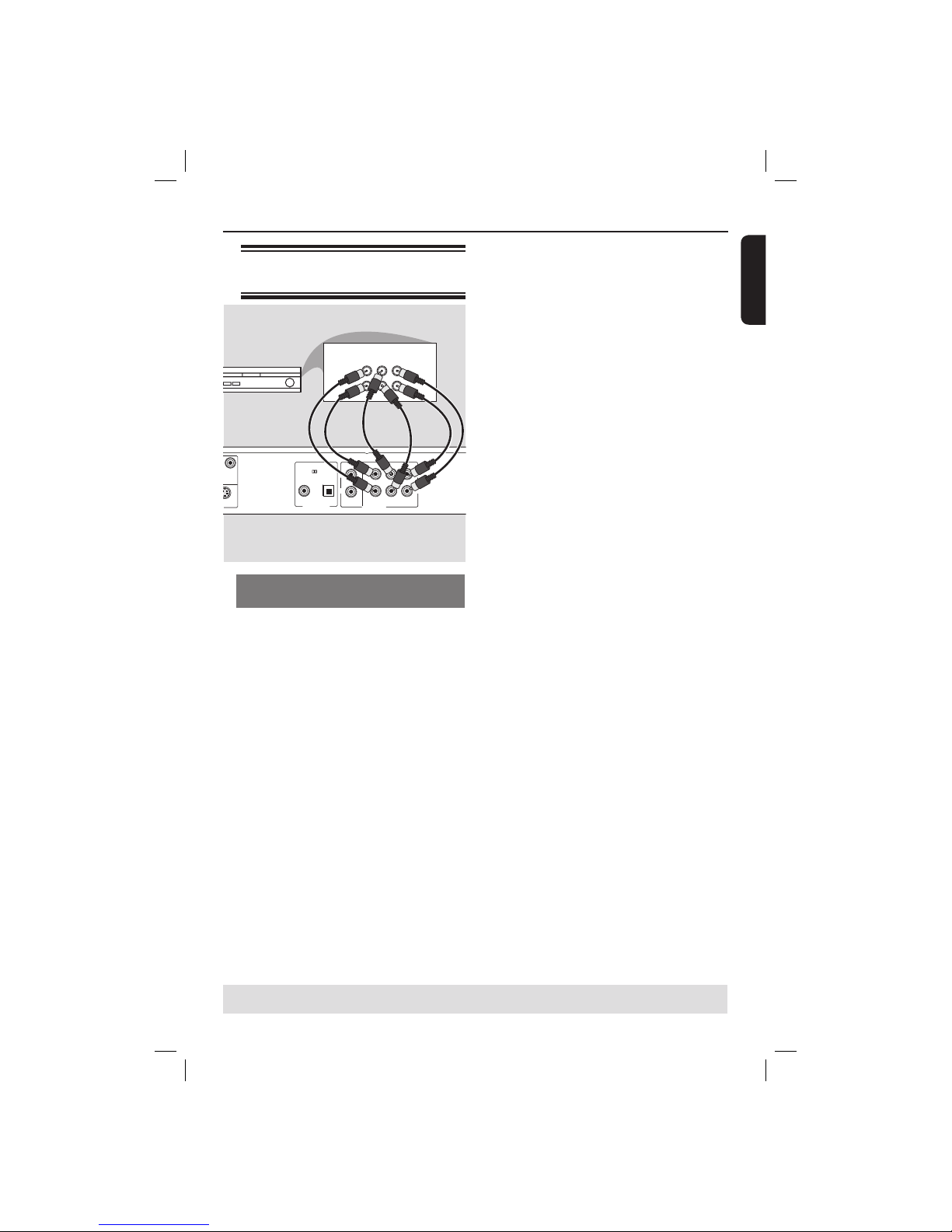

Receiver has multi-channel audio In sockets
A
Select one of the video connections
(CVBS VIDEO IN, S-VIDEO or COMPONENT VIDEO IN) depending on the options available on your TV.
B Connect the Audio Out Left and Right
sockets for Main and Rear speakers to the corresponding input sockets on your receiver (cable not supplied).
C Connect the Audio Out for Center
speaker and Subwoofer to the corresponding input sockets on your receiver (cable not supplied).
D Set the DVD player’s {Analog Output} to
{Multi-channel} to enable playback of discs recorded in multi-channel (see page 36 {Analog Output}).
Connecting to a Multi­channel receiver
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Tip: – If the subwoofer is equipped with its own ampli er, the subwoofer connection should be connected directly to the subwoofer.
01-49 dvp7400_93_eng2.indd 1501-49 dvp7400_93_eng2.indd 15 2006-10-12 2:16:58 PM2006-10-12 2:16:58 PM
Page 16
English
16

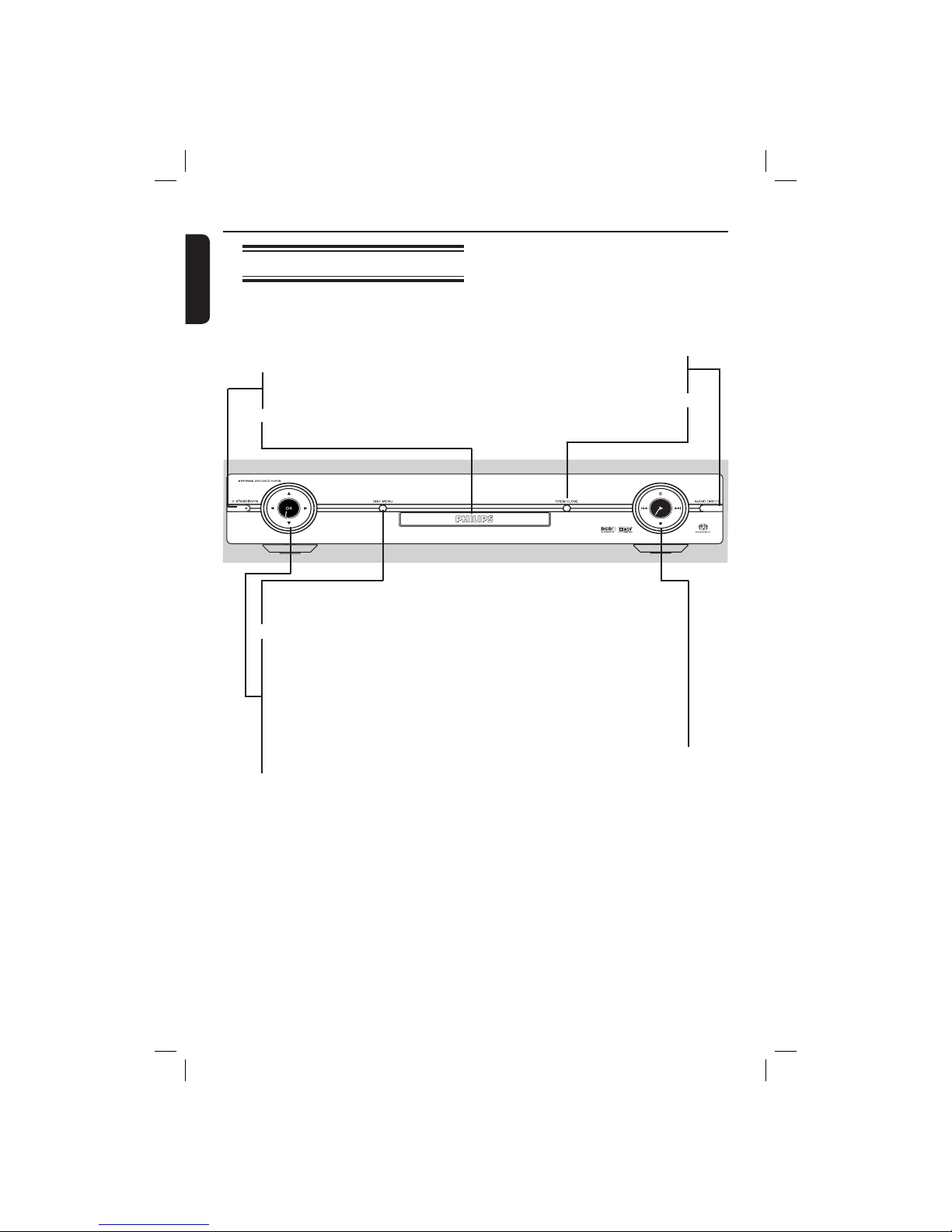

Product Overview
Front Panel
STANDBY ON 2
– Turns on the player or switches to
standby mode
Disc Tray
AUDIO DIRECT
– Switches video output on and off
during audio disc playback
OPEN/CLOSE
– Opens or closes the disc tray.
DISC MENU
– Enters or exits the disc contents
menu
W X
– Cursor buttons for moving to the
left or right, do a forward/reverse search.
ST
– Cursor buttons for moving up/
down, do a slow forward/backward
OK
– Con rms an entry or selection
– Stops playback
.
– Skips to the previous title/chapter/
track
>
– Skips to the next title/chapter/track
Å
– Pauses playback.
X
– Starts playback.
01-49 dvp7400_93_eng2.indd 1601-49 dvp7400_93_eng2.indd 16 2006-10-12 2:16:59 PM2006-10-12 2:16:59 PM
Page 17
English
17
S-VIDEO
YPbPr
MIXED 2CH
MAIN
CENTER
SUB WOOFER 6CH DISCRETE
SURROUND
LLRL
R
COMPONENT
SCAN MODE
INTERLACE PROGRESSIVE
VIDEO
VIDEO OUT
HDMI
PCM / DIGITAL/
DTS / MPEG
COAXIAL OPTICAL
DIGITAL OUT
R
AUDIO OUT
~ AC
MAINS
HDMI (High De nition
Multimedia Interface)
– Connect to the HDMI socket on a
HDMI-compatible AV component.
SCAN MODE
(Interface/Progressive)
– Switches between progressive or
interlace mode
YPbPr (Component Video Out)
– Connect to YPbPr input of a TV
Mains (AC Power Cord)
– Connect to a standard AC outlet
6CH Discrete Audio Out
– Connect to the multi-channel inputs
on your AV receiver
Mixed 2Ch Audio Out
(Left/Right)
– Connect to AUDIO inputs of an
ampli er, receiver or stereo system
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatis discharge may cause permanent damage to the system.
Product Overview (continued )
Rear Panel
S-Video (Video Out)
– Connect to S-Video input of a TV
Video (Video Out)
– Connect to Video (CVBS) input of a
TV
COAXIAL (Digital out)
– Connect to coaxial audio input of a
digital audio equipment
OPTICAL (Digital out)
– Connect to optical audio input of a
digital audio equipment
01-49 dvp7400_93_eng2.indd 1701-49 dvp7400_93_eng2.indd 17 2006-10-12 2:17:00 PM2006-10-12 2:17:00 PM
Page 18
English
18
Product Overview (continued )

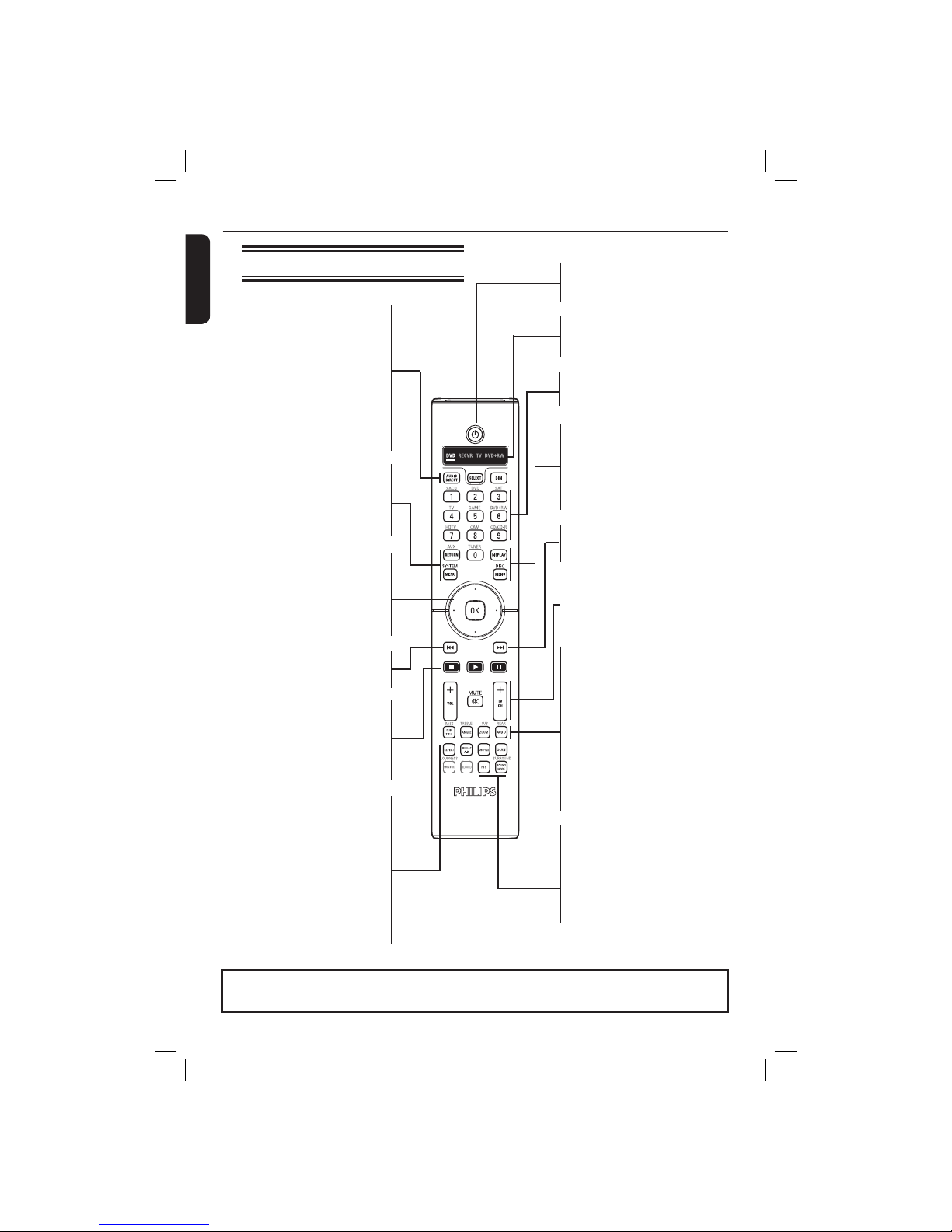

Remote Control
AUDIO DIRECT
– Switches video output on and
off during audio disc playback
SELECT
– Selects the relevant device to
control: DVD, RECVR, TV,
DVD+RW
DIM
– Selects 3 different brightness
for the display
RETURN
– To go back to previous menu
SYSTEM MENU
– Enters or exits the system
setup menu
Cursor W XST
– Cursor buttons for moving to
the left (
W), right (X), up (S)
or down (
T).
OK
– Con rms an entry or selection
.
– Skips or searches to the
previous title/chapter/track
– Stops playback
X
– Starts playback
Å
– Pauses playback
REPEAT
– Selects various repeat mode
REPEAT A-B
– Repeats playback a speci c
section on a disc
SHUFFLE
– Playback in random order
SCAN
– Plays the  rst 6 seconds of each
track/chapter within a disc
2
– Turns on the player or to
standby mode
LCD screen
– Indicates active source mode.
(see important notes below)
Alphanumeric keypad
– Selects numbered items in a
menu
DISPLAY
– Displays information on TV
screen during playback
DISC MENU
– Enters or exits the disc
contents menu
>
– Skips or searches to the next
title/chapter/track
VOL ( ± ), MUTE and
TV CH ( ± )
– Refer to “Important” note
below.
SUBTITLE
– Selects a DVD subtitle
language
ANGLE
– Selects a DVD camera angle
ZOOM
– Enlarge a picture on the TV
screen
AUDIO
– To select different audio
tracks available on disc
FTS
– Activate or deactivate
Favorite Track Selection (see page 34)
SOUND MODE
– Selects a different sound
mode
Important! – This remote is a Philips system remote which is capable of controlling other Philips equipment (e.g.,
Recorder, TV or DVD-RW player).
– Refer to user manuals for other equipment as necessary.
01-49 dvp7400_93_eng2.indd 1801-49 dvp7400_93_eng2.indd 18 2006-10-12 2:17:00 PM2006-10-12 2:17:00 PM
Page 19
English
19

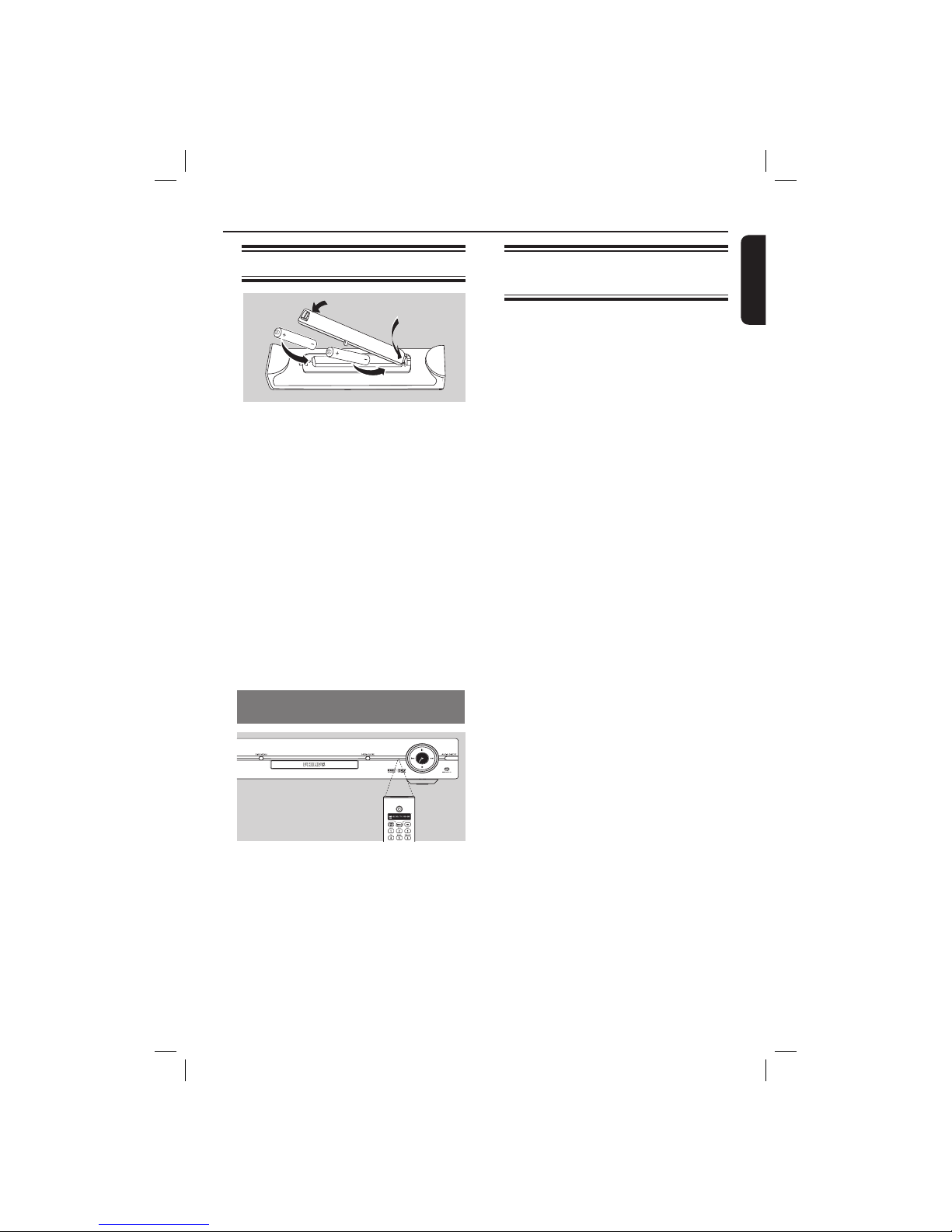

Step 1 : Inserting Batteries
A Open the battery compartment.
B Insert two batteries type R06 or AA,
following the indications (+ –) inside the compartment.
C Close the cover.
CAUTION! – Remove batteries if they are exhausted or if the remote is not to be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.
Using the remote control to operate the system
A Aim the remote control directly at the
remote sensor (IR) on the front panel.
B Do not put any objects between the
remote control and the DVD player while operating the DVD player.
Step 2 : Finding your viewing channel
A Press STANDBY-ON 2 on the DVD
player to turn it on.
B Turn on the TV and set it to the correct
video-in channel. You should see the blue DVD background screen.
Usually these channel are between the
lowest and highest channels and may be called FRONT, A/V IN, VIDEO. See your TV’s manual for more details.
Or, you may go to channel 1 on your
TV, then press the Channel down button repeatedly until you see the Video In channel.
Or, the TV remote control may have
a button or switch that chooses different video modes.
Or, set the TV to channel 3 or 4 if
you are using an RF modulator.
C If you are using external equipment, (e.g.
audio system or receiver), turn it on and select the appropriate input source for the DVD player output. Refer to the equipment user’s manual for detail.
Getting Started
01-49 dvp7400_93_eng2.indd 1901-49 dvp7400_93_eng2.indd 19 2006-10-12 2:17:01 PM2006-10-12 2:17:01 PM
Page 20
English
20
Getting Started (continued)
Step 3 : Selecting the matching color system
The color system of the DVD player, disc and TV should match in order for the disc to play. Before changing the TV system, determine the color system of your TV.
VIDEO SETUP PAGE
TV TYPE
TV DISPLAY PICTURE SETTING ADV PICTURE
PAL
NTSC MULTI
A Press SYSTEM MENU.
B Press X repeatedly to select { Video
Setup Page }.
C Press S T to select { TV Type }, then
press X.
D Use S T to select one of the options
below:
{ PAL }
Select this if the connected TV has the PAL color system. It will change the video signal of an NTSC disc and output it to PAL format.
{ NTSC }
Select this if the connected TV has the NTSC color system. It will change the video signal of a PAL disc and output it to NTSC format.
{ Multi }
Select this if the connected TV is compatible with both NTSC and PAL (multi-system). The output format will be in accordance with the video signal of the disc.
E Select a setting and press OK.
Follow the instructions show on the
TV to con rm the selection (if any).
CHANGING PALTO NTSC
1. ENSURETHATYOUR TV SYSTEM SUPPORTS NTSC STANDARD.
2. IFTHERE IS A DISTORTED PICTURE DISPLAYED ONTHE TV, WAIT 15 SECONDS FOR AUTO RECOVER.
CANCELOK
F Press W to highlight { OK } and press
OK to con rm.
Tips: – Before changing the current TV color setting, ensure that your TV supports the ‘selected TV System’. – If there is no proper picture on your TV, wait for 15 seconds for auto recovery.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
01-49 dvp7400_93_eng2.indd 2001-49 dvp7400_93_eng2.indd 20 2006-10-12 2:17:02 PM2006-10-12 2:17:02 PM
Page 21
English
21
Getting Started (continued)
Step 4 : Setting the language
The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual.
On-screen display (OSD) language
Select this to change the language of this
DVD player screen display menu. The menu language (on-screen display) for the system will remain as you set it.
GENERAL SETUP PAGE
DISC LOCK PROGRAM
OSD LANGUAGE ENGLISH
SCREEN SAVER SLEEP DIVX(R) VOD CODE
A Press SYSTEM MENU.
B Press X repeatedly to select { General
Setup Page }.
C Press S T to select { OSD Language },
then press X.
D Use S T to select a language and press
OK to con rm.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
Audio, Subtitle and Disc menu languages
You can choose your preferred language
or sound track from audio, subtitles and DVD menu languages. If the selected language is not available on the disc, the disc’s default language will be used instead.
PREFERENCE PAGE
AUDIO
SUBTITLE DISC MENU PARENTAL
CBP MP3/JPEG NAV PASSWORD DIVX SUBTITLE
TURKISH
ITALIAN
POLISH
PORTUGUESE
SPANISH
FRENCH
CHINESE(SIMP)
ENGLISH
A Press SYSTEM MENU.
B Press X repeatedly to select
{ Preference Page }.
C Press S T to highlight one of the
options below, then press X.
{ Audio }
Select this to change disc sound track language.
{ Subtitle }
Select this to change the subtitle language.
{ Disc Menu }
Select this to change the language of the disc menu.
D Use S T to select a language and press
OK to con rm.
If the language you want is not in
the list, then select {OTHERS}.
Use the alpha-numeric keypads (0-9) on
the remote to enter the 4-digit language code ‘XXXX’ (see page 5 ‘Language Code’) and press OK.
E Repeat steps C - D for other language
settings.
01-49 dvp7400_93_eng2.indd 2101-49 dvp7400_93_eng2.indd 21 2006-10-12 2:17:03 PM2006-10-12 2:17:03 PM
Page 22
English
22
Getting Started (continued)

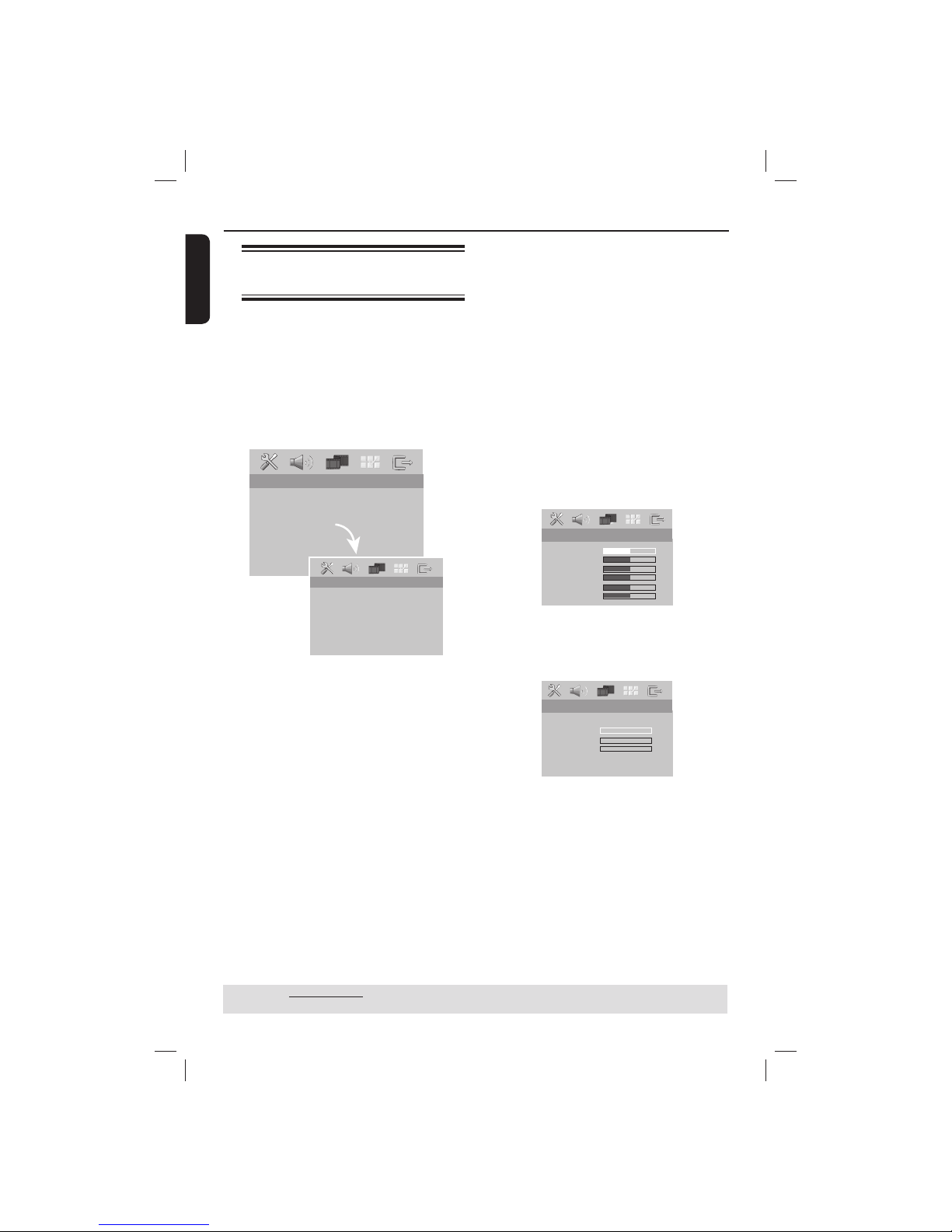

Step 5 : Setting the speakers’ channels
You can adjust the delay time (for center and rear only) and volume level for individual speakers. These adjustments let you optimize the sound according to your surroundings and setup.
Important! Speaker settings are available for multi-channel outpus.
AUDIO SETUP PAGE
ANALOG OUTPUT
DIGITAL AUDIO
HDMI AUDIO
SPEAKER SETUP
CD UPSAMPLING
NIGHT MODE
FRONT SPEAKER LARGE
CENTER SPEAKER SMALL REAR SPEAKER SUBWOOFER SPEAKERS VOLUME SPEAKERS DELAY
SPEAKER SETUP
LIP SYNC
A Press SYSTEM MENU.
B Press X repeatedly to select { Audio
Setup Page }.
C Press S T to select { Speaker Setup },
then press X.
D Enter a submenu by pressing X.
E Use S T to select one of the options
below:
{ FRONT SPEAKER, CENTER
SPEAKER, REAR SPEAKER } [OFF] (only for Center and Rear speakers) Select when no speakers are connected.
[LARGE] Select when the connected speakers can produce low frequency signals below 120Hz. [SMALL] Select when connected speakers cannot product low frequency signals below 120Hz.
{ SUBWOOFER }
[ON] Select when a subwoofer is connected. [OFF] Select when no subwoofer is connected.
{ SPEAKERS VOLUME }
Volume level setting for individual
speakers (-6dB ~ +6dB).
0dB
0dB
0dB 0dB
0dB 0dB
FRONT LEFT
FRONT RIGHT
CENTER SUBWOOFER
REAR LEFT REAR RIGHT
SPEAKERS VOLUME SETUP
{ SPEAKERS DELAY }
Delay time settings in relation to the
listening position or distance for center and rear speakers (0MS ~ 15MS).
0MS
0MS 0MS
CENTER
REAR LEFT
REAR RIGHT
SPEAKERS DELAY SETUP
F Press W X to adjust the setting that best
suits your surround sound needs.
G Press OK to con rm.
Tips: – Use a longer delay time setting when the rear speakers are closer to the listener than the front speakers. – A test tone will be automatically generated to help you judge the sound level of each speaker.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
01-49 dvp7400_93_eng2.indd 2201-49 dvp7400_93_eng2.indd 22 2006-10-12 2:17:06 PM2006-10-12 2:17:06 PM
Page 23
English
23
Super Video CD
MP3-Disc
DivX
®
Disc
(DivX® 3.11, 4.x, 5.x, 6.x and DivX® Ultra)
Supported formats
MP3 tracks
– The  le extensions has be to be
‘.mp3.’ – JPEG/ISO format – Maximum 30 characters display. – Supported sampling frequencies; (MPEG-1) 32kHz, 44.1kHz, 48kHz (MPEG-2) 16kHz, 22.05kHz, 24kHz – Supported bit-rates; (MPEG-1) 32 ~ 256 kbps (MPEG-2) 16 ~ 160 kbps
JPEG pictures
– The  le extensions has be to be ‘.JPG’
and not ‘.JPEG.’ – JPEG/ISO format – It can only display DCF-standard still
pictures or JPEG pictures e.g. TIFF.
DivX
®
movies
– The  le extensions has be to be ‘.AVI,’
‘.MPG,’ ‘.MPEG,’ or ‘.DIVX.’ – DivX
®
3.11, 4.x, 5.x, 6.x and DivX®
Ultra – Q-pel accurate motion compensation – Global Motion Compensation (GMC)
playback.
IMPORTANT! – If the inhibit icon ‘X’ or appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same zone as your player.

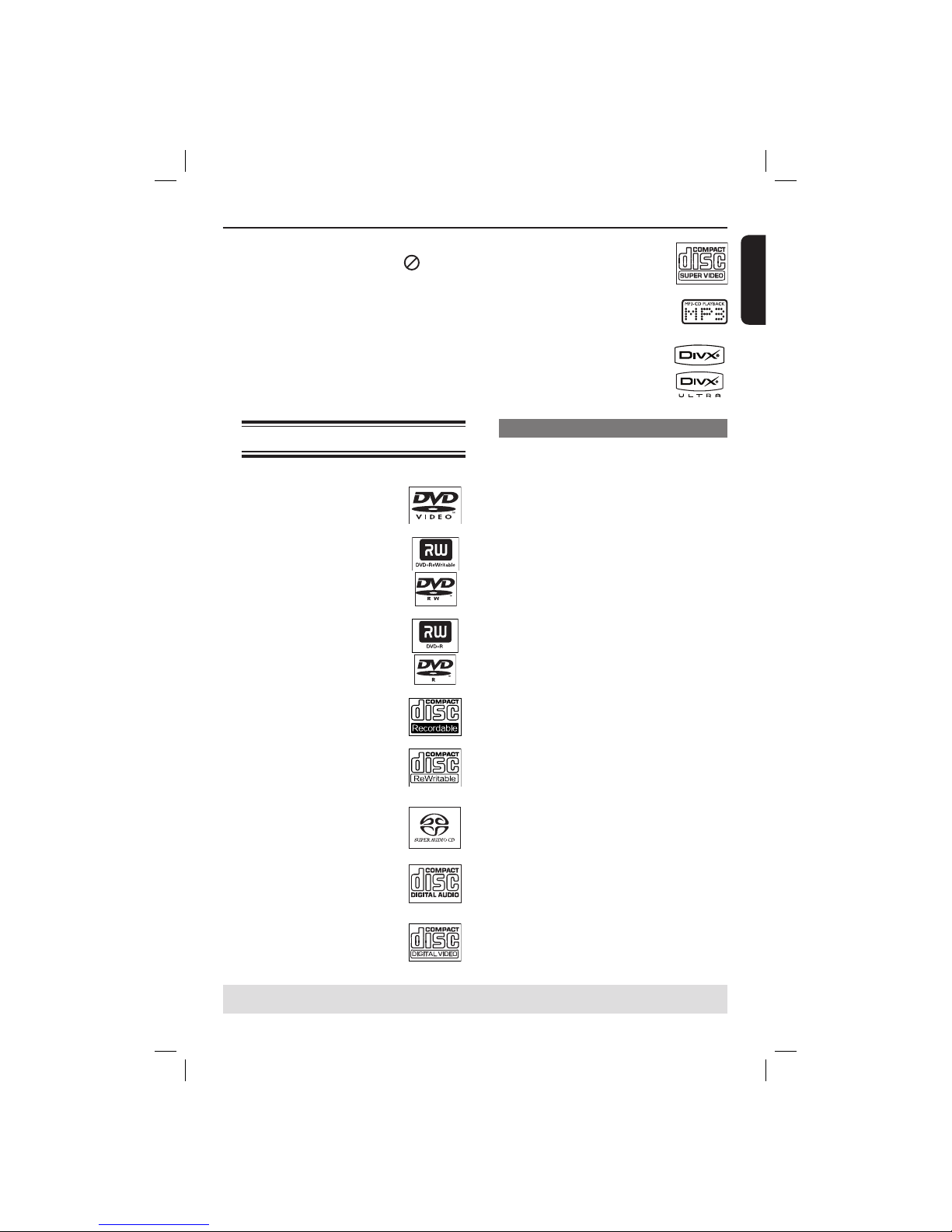

Playable discs
Using this DVD player, you can playback on the following discs:
DVD Video (Digital Versatile
Disc)
DVD±RW (DVD Rewritable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
DVD±R (DVD Recordable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
CD-R (CD-Recordable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
CD-RW (CD-Rewritable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
SACD (Super Audio
Compact Disc)
Audio CD (Compact Disc
Digital Audio)
Video CD
(Formats 1.0, 1.1, 2.0)
Playback from Disc
TIPS: Some discs cannot be played on this DVD player due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software that was used.
01-49 dvp7400_93_eng2.indd 2301-49 dvp7400_93_eng2.indd 23 2006-10-12 2:17:10 PM2006-10-12 2:17:10 PM
Page 24
English
24
Starting disc playback
A Press SELECT on the remote control
until ‘DVD’ is lighted on the remote control display (see remote control, page
18).
B Turn on the TV to the correct
programme number for the DVD player (e.g. ‘EXT’, ‘0’, ‘AV’).
C Press STANDBY-ON 2 to turn on
the DVD player.
D Press OPEN CLOSE on the front of
the DVD player.
E Place a disc into the disc tray with the
label facing up, then press OPEN CLOSE.
For double-sided discs, load the side
which you want to play facing up.
F Playback may start automatically.
If not, press PLAY X.
If a disc menu appears on the TV, see
page 25 'Using the Disc Menu'.
If the child lock was activated for the
inserted disc, you have to enter your six­digit password (see page 44).
For more playback features, see pages
24~32.
Playback Features
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Basic playback controls
Unless otherwise stated, all operations described are based on Remote Control use.
Pausing playback
A
During playback, press PAUSE Å to
pause playback and display a still picture.
Sound will be muted.
B Press PAUSE Åagain to select the next
picture frame.
C To resume normal playback, press
PLAY X again.
Selecting title/chapter/track
Press . / > or use alphanumeric
keypad (0-9) go to the previous or next title/chapter/track.
The playback skips to the selected
title/chapter/track.
During repeat playback of a title/chapter/
track, pressing . / > will replay the same title/chapter/track.
Stopping playback
Press STOP
.
Tips: – Screen saver will start automatically if the disc playback is stopped for 15 minutes. – The player will automatically switch to Power Standby mode if you do not press any buttons for 30 minutes after the disc has stopped playing.
01-49 dvp7400_93_eng2.indd 2401-49 dvp7400_93_eng2.indd 24 2006-10-12 2:17:11 PM2006-10-12 2:17:11 PM
Page 25
English
25
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Playback Features (cont inued)
Operations for video playback (DVD/VCD/SVCD)
Using the Disc Menu
Depending on the disc, a menu may appear on the TV screen once you load in the disc.
To select a playback feature or item
Use S T W X keys or alphanumeric
keypad (0-9) on the remote, then press
OK to start playback.
To access or remove the menu
Press DISC MENU on the remote.
Zooming in
This function allows you to enlarge the picture on the TV screen and to pan through the enlarged picture.
A During playback, press ZOOM
repeatedly to display the picture with different scales.
Use S T W X keys to pan through
the enlarged picture.
Playback will continue.
B Press ZOOM repeatedly to return to
the original size.
Resuming playback from the last stopped point
Resume playback of the last 10 discs is possible, even if the disc was ejected or the power switched off.
Load one of the last 10 discs.
‘LOADING’ appears.
During loading mode press PLAY X and
the disc will be played back from the last point.
To cancel resume mode
In stop mode, press STOP Ç again.
Slow Motion
A
Press S T during playback to select the
required speed: 1/2, 1/4, 1/8 or 1/16 (forward or backward).
Sound will be muted.
B To return to normal speed, press
PLAY X.
Tip: – Slow motion backward is not applicable in VCDs.
Forward / Reverse Searching
You can fast forward or fast reverse a disc during playback and select a desired search speed.
A Press and hold ./ > to enter
reverse / forward searching mode.
B Press ./ > during playback to
select the required speed: 2X, 4X, 8X, 16X or 32X (backward or forward).
Sound will be muted (DVD/VCD) or
intermittent (CD).
C To return to normal speed, press
PLAY X.
01-49 dvp7400_93_eng2.indd 2501-49 dvp7400_93_eng2.indd 25 2006-10-12 2:17:11 PM2006-10-12 2:17:11 PM
Page 26
English
26
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Repeating a section within a chapter/track
You can repeat the playback of a speci c segment within a title/chapter track. To do this, you must mark the start and end of the segment you want.
A While playing a disc, press REPEAT A-
B at your chosen starting point.
B Press REPEAT A-B again at your
chosen end point.
The section A and B can be set only
within the same chapter/track.
The section will now repeat
continuously.
C To exit the sequence, press REPEAT A-
B.
Shuf e
For DVD disc, this shuf es the playing order of chapters within a title, if the title has more than one chapter. For Audio CD, VCD, SACD, this shuf es all the tracks in random order within a disc.
A Press SHUFFLE during playback.
The following shuf e modes appears
on the display. – Shuf e (currently playing chapter/
tracks) – Shuf e Repeat (entire disc) – Shuf e Off (cancel)
B To exit the shuf e mode, press STOP
Ç.
Selecting various repeat/ shuf e functions
Repeat play mode
The repeat play options vary depending on the disc type.
A While playing a disc, press REPEAT
continuously to choose a repeat options.
For DVD
– Chapter (currently playing chapter) – Title (currently playing title) – Disc (entire disc) – Repeat Off (cancel)
For Video CD, Audio CD
– Track (currently playing track) – Disc (entire disc) – Off (cancel)
For MP3,WMA, SACD
– Track (currently playing track) – Disc (entire disc) – Off (cancel)
For JPEG, DivX
®
– Track (currently playing track) – Disc (entire disc) – Off (cancel)
Tip: – For VCD, repeat playback is not possible if the PBC mode is switched on.
Playback Features (cont inued)
01-49 dvp7400_93_eng2.indd 2601-49 dvp7400_93_eng2.indd 26 2006-10-12 2:17:11 PM2006-10-12 2:17:11 PM
Page 27
English
27
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Playback Features (cont inued)

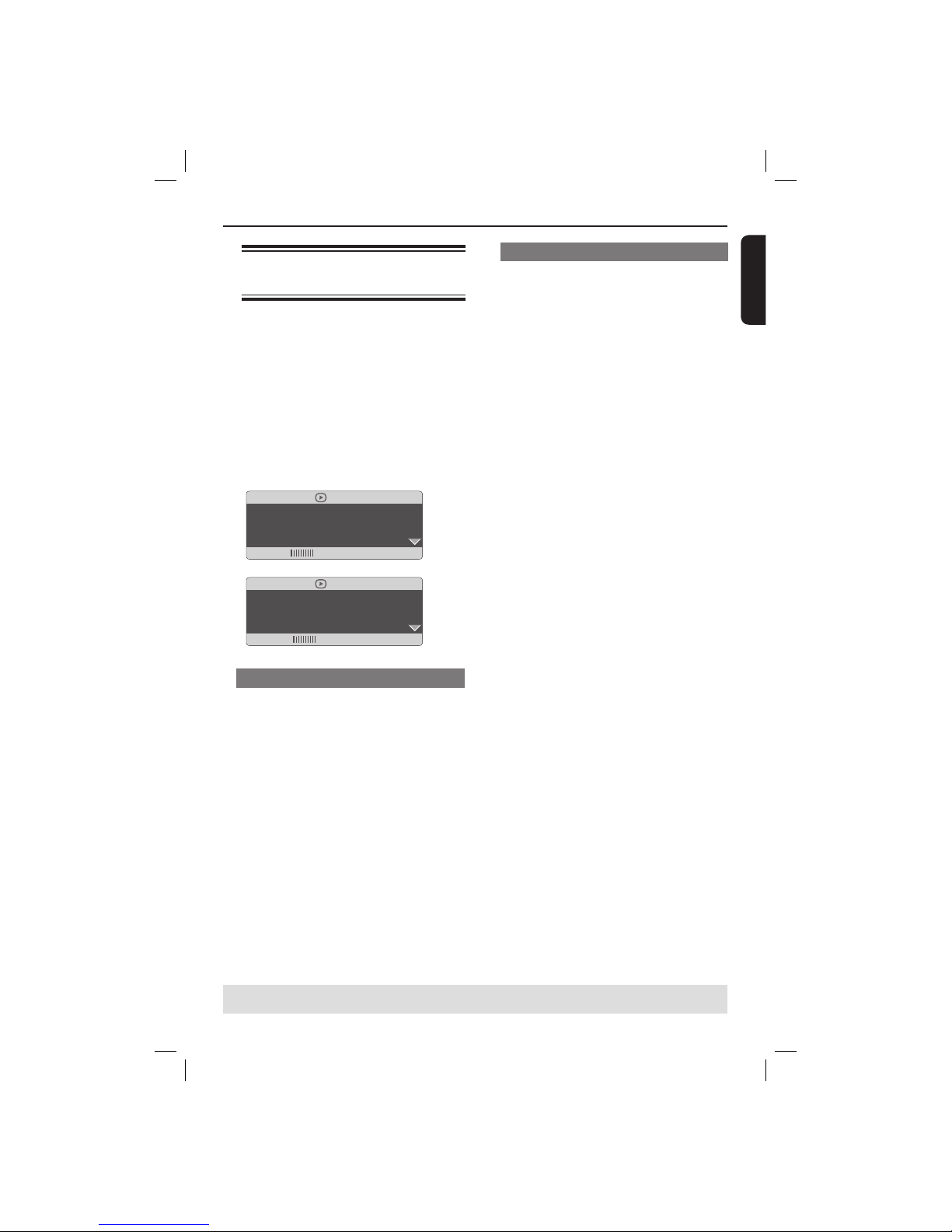

Viewing the disc playback information
You can view the disc information (e.g., current title/chapter/track number, total playing time or remaining time on the disc) without interrupting the disc playback.
A During playback, press DISPLAY
repeatedly on the remote control.
The available disc information appears
on the TV screen with the following sequence.
Menu
Bitrate 61 Title Remain 0:48:59
Title 02/14 Chapter 09/12 Audio 5.1CH Subtitle Off
(DVD)
Menu
Bitrate 71 Total Elapsed 0:01:32
Track 02/14 Disc Time 0:48:53 Track Time 0:48:53 Repeat Repeat Off
(VCD)
Title/Chapter/Track selection
A
Press S T to select {Title} / {Chapter}
or {Track}, then press OK to access.
B Use the alphanumeric keypad 0-9 to
input a valid number.
C Press OK to con rm.
The playback skips to the chosen title/
chapter/track.
Time Search
A
Press S T to highlight {Time Disp.},
then press OK to access.
The following display types appears on
the TV, depending on the disc in the
player.
For DVD discs;
TT Elapsed – elapsed playing time of current Title. TT Remain – remaining playing time of current Title. CH Elapsed – elapsed playing time of current Chapter. CH Remain – remaining playing time of current Chapter.
For VCD/SVCD disc;
Total Elapsed – elapsed playing time of current disc. Total Remain –remaining playing time of current disc. Single Elapsed – elapsed playing time of current track. Single Remain – remaining playing time of current track.
B Press S T to highlight {TT Time} / {CH
Time} / {Disc Time} or {Track Time}, then press X to access.
C Use the alphanumeric keypad 0-9 to
input the valid time (e.g. 0:34:27).
D Press OK to con rm.
The playback skips to the chosen
time.
P
01-49 dvp7400_93_eng2.indd 2701-49 dvp7400_93_eng2.indd 27 2006-10-12 2:17:11 PM2006-10-12 2:17:11 PM
Page 28
English
28
Playback Features (cont inued)
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

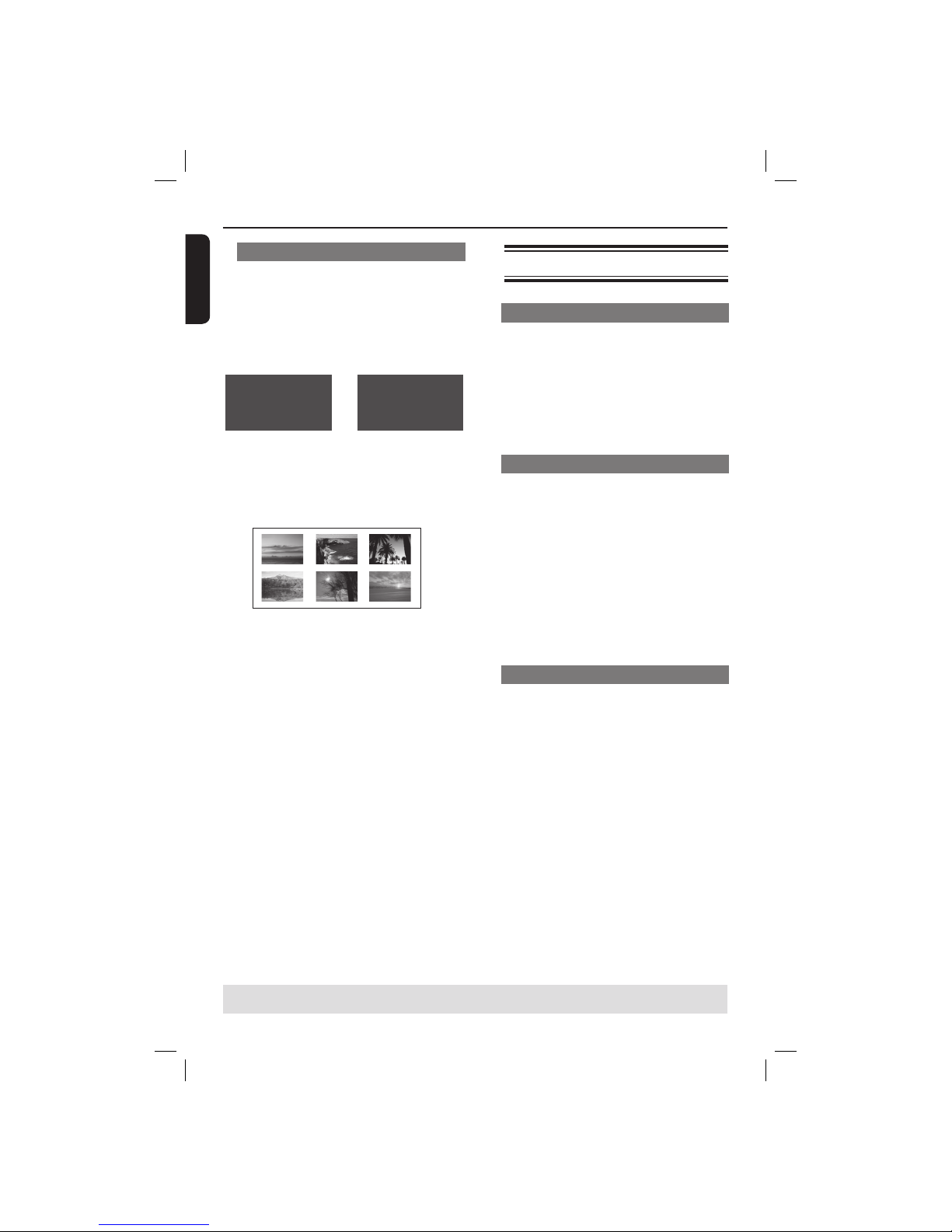

Preview function
The preview function allows you to reduce the picture of 6 tracks enough to display in a full screen.
A Press SCAN.
The preview menu appears on the TV
screen.
SELECT DIGEST TYPE: TITLE DIGEST CHAPTER DIGEST TITLE INTERVAL CHAPTER INTERVAL
SELECT DIGEST TYPE: TRACK DIGEST DISC INTERVAL TRACK INTERVAL
(DVD) (VCD)
B Press S T to select preview type, then
press OK.
The picture of each segment will
appear on the TV screen.
C Press S T W X to select a track and
input the selected track number using the alphanumeric keypad (0-9), then press OK.
Playback starts automatically on the
selected track.
For CDDA (Musical CD).
Press SCAN to listen to the  rst few
seconds of each sound track in the disc.
P
Special DVD Features
Playing a Title
A
Press DISC MENU.
The disc title menu appears on the TV
screen.
B Use S T W X keys or alphanumeric
keypad 0-9 to select a play option.
C Press OK key to con rm.
Changing the Audio Language
For DVD
Press AUDIO repeatedly to select
different audio languages.
Changing the Audio Channel For VCD
Press AUDIO to select the available
audio channels provided by the disc (MONO LEFT, MONO RIGHT, MIX­MONO, STEREO).
Subtitles
Press SUBTITLE repeatedly to select
different subtitle languages.
01-49 dvp7400_93_eng2.indd 2801-49 dvp7400_93_eng2.indd 28 2006-10-12 2:17:12 PM2006-10-12 2:17:12 PM
Page 29
English
29
Playback Features (cont inued)
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Special VCD and SVCD Feature
Playback Control (PBC)
For VCD with Playback Control
(PBC) feature (version 2.0 only)
Press DISC MENU to toggle between
‘PBC ON’ and ‘PBC OFF’.
If you select ‘PBC ON’, the disc menu
(if available) will appear on the TV.
Use the . / > or the
alphanumeric keypad 0-9 to select a
play option.
During playback, pressing RETURN will
return to the menu screen (if PBC is on).
If you want to skip the index menu
and playback directly from the beginning,
Press DISC MENU key on the remote
control to switch to PBC off.
Playing a Super Audio CD (SACD)
There are three types of SACD discs; single layer, double layer or hybrid disc. The hybrid disc contains both Super Audio CD and standard audio CD layers.
A Load a SACD.
The disc menu appears on the TV
screen.
B Playback will starts automatically.
If the SACD consists of both multi-
channel and stereo tracks, the multi­channel tracks will have the priority for playback.
To playback stereo tracks, use ST to
make your selection from the disc menu, then press PLAY X.
Tips: – Press SOUND MODE on the remote control to switch between; Jazz, Rock, Digital, Classic (for CDDA, MP3, SACD) and Action, Concert, Drama (for DVD, VCD, SVCD) – Program SACD tracks is not possible.
01-49 dvp7400_93_eng2.indd 2901-49 dvp7400_93_eng2.indd 29 2006-10-12 2:17:14 PM2006-10-12 2:17:14 PM
Page 30
English
30
Playback Features (cont inued)
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Playing a DivX® disc
This DVD player supports the DivX® movie playback that you download from your computer onto a CD-R/RW or DVD±R/RW (see page 35 for more information).
A Load a DivX® disc.
Playback will start automatically. If not
press PLAY X.
B Press SUBTITLE on the remote
control will turn on or off the subtitle.
If multilingual subtitles are embedded on
the DivX® disc, pressing SUBTITLE will change the subtitle language during playback.
Tips: – Subtitle  les with the following  lename extensions (.srt, .smi, .sub, .ssa, .ass) are supported but do not appear on the  le navigation menu. – The subtitle  lename have to be the same as the  lename of the movie.
Advance features of the DivX
®
Ultra
XSUB™ subtitles lets you author movies
with multiples language subtitle sets.
Interactive video menus offer
unprecedented convenience and control so you can quickly navigate between various scenes or bonus features and select from audio track and subtitle options.
Alternate audio tracks enable audio
tracks in multiple language versions or separate audio tracks for speci c speaker con gurations.
Chapter points provide  exibility,
allowing you to jump straight to the scene you want to watch from anywhere within the video.
01-49 dvp7400_93_eng2.indd 3001-49 dvp7400_93_eng2.indd 30 2006-10-12 2:17:14 PM2006-10-12 2:17:14 PM
Page 31
English
31

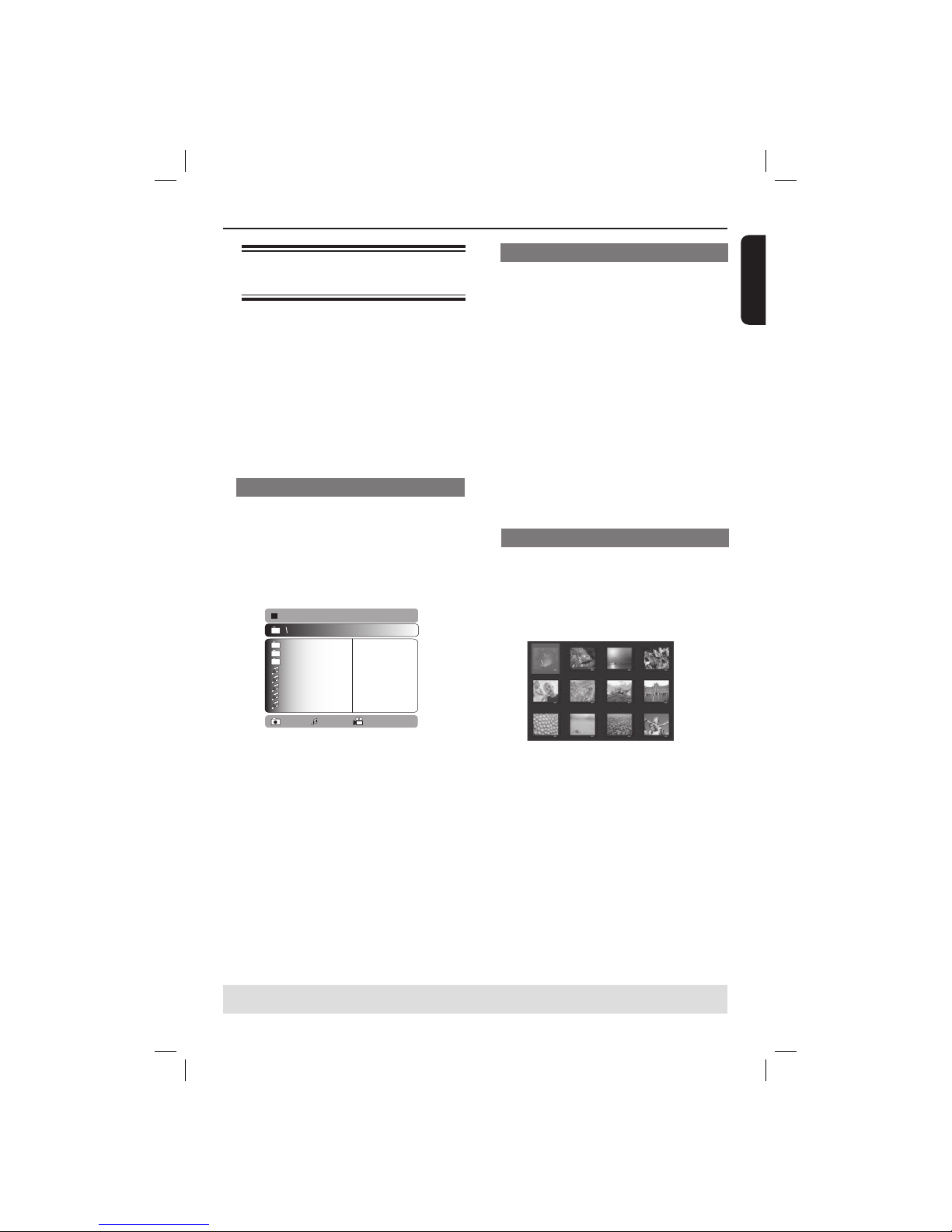

Playing MP3/WMA/JPEG/ Kodak Picture CD
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page 19 ‘Finding your viewing channel’).
For Kodak disc, the slide show will begin. For JPEG disc, the picture menu appears
on the TV screen. Press PLAY X to start the slide show playback.
General Operation
A
Load a disc.
The disc reading time may exceed 30
seconds due to the complexity of the directory/ le con guration.
The data disc menu appears on the
TV screen.
00:00
POP
00:00 001/007
000 567 117
B Press S T to select the folder and press
OK to open the folder.
C Press S T to select a track/ le.
D Press OK to con rm.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Playback Features (cont inued)
Playback selection
During playback, you can;
Press . / > to select the previous
or next track/ le in the current folder.
Press S T W X on the remote to
rotate or  ip the picture  les.
Press PAUSE Å or PLAY X
repeatedly to pause or resume playback.
For MP3,
During playback, press and hold . /
> for about few seconds to access fast
forward or fast reverse.
Press and hold . / > to select the
required speed: 2X, 4X, 8X,16X or 32X.
Preview (JPEG)
This function shows the content of the current folder or the whole disc.
A Press STOP during playback.
12 thumbnail pictures appears on the
TV screen.
B Press . / > to display the other
pictures on the previous or next page.
C Use S T W X to highlight one of the
picture and press OK to start playback.
D Press DISC MENU to return to picture
CD menu.
01-49 dvp7400_93_eng2.indd 3101-49 dvp7400_93_eng2.indd 31 2006-10-12 2:17:14 PM2006-10-12 2:17:14 PM
Page 32
English
32
Playback Features (cont inued)
Scan effect
Press ANGLE repeatedly to choose
different scan effect.
Various scan effect appears on the top
left hand corner on the TV screen.
Playing MP3/WMA music and JPEG picture simultaneously
A
Load a disc that contains music and
picture.
The disc menu appears on the TV
screen.
B Select an MP3/WMA track.
C During MP3/WMA music playback, select
a picture and press PLAY X.
The picture  les will be played back
one after another until end of the
folder.
D To quit simultaneous playback, press
STOP Ç.
Tip: – Some  les on Kodak or JPEG disc may be distorted during playback due to the con guration and characteristics of the disc.
Zoom picture (JPEG)
During playback, press ZOOM
repeatedly to display the picture with different scales.
Use S T W X to view the zoomed
picture.
Playback with multi-angles (JPEG)
During playback, press S T W X to
rotate the picture on the TV screen.
S:  ip the picture vertically by 180º T:  ip the picture horizontally by 180º W: rotate the picture anti-clockwise by
90º
X: rotate the picture clockwise by 90º
Tips: – It may not be possible to play certain MP3/JPEG disc due to the con guration and characteristics of the disc or condition of the recording. – It is normal to experience an occasional “skip” while listening to your MP3 disc. – For multi-session discs with different formats, only the  rst session will be available.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
01-49 dvp7400_93_eng2.indd 3201-49 dvp7400_93_eng2.indd 32 2006-10-12 2:17:17 PM2006-10-12 2:17:17 PM
Page 33
English
33
DVD Menu Options
You can make various adjustments to items such as picture and sound using the DVD setup menu.
Using the General setup menu
A Press SYSTEM MENU on the remote
control.
The system setup menu appears.
GENERAL SETUP PAGE
DISC LOCK PROGRAM OSD LANGUAGE SCREEN SAVER SLEEP DIVX(R) VOD CODE
B Press W X to select { General Setup
Page }, then press OK.
C Press S T to select an item, then press
X to access.
Example: { OSD Language }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not available or not possible to change at the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { English }
The setting is selected and setup is
complete.
E To exit, press SYSTEM MENU.
Locking/Unlocking the disc for viewing
You can set the playback restrictions so that the system will not play inappropriate disc. Up to 40 discs can be locked.
A In ‘General Setup Page’, use S T keys to
highlight { Disc Lock }, then press X.
{ Lock }
Select this to block the playback of the currect disc. A six-digit pin code must be entered in order to play the locked disc. The default password is ‘000 000’ (see page 44 'Changing the password').
{ Unlock }
All discs can be played.
B Use S T keys to select a setting and
press OK to con rm.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
01-49 dvp7400_93_eng2.indd 3301-49 dvp7400_93_eng2.indd 33 2006-10-12 2:17:17 PM2006-10-12 2:17:17 PM
Page 34
English
34

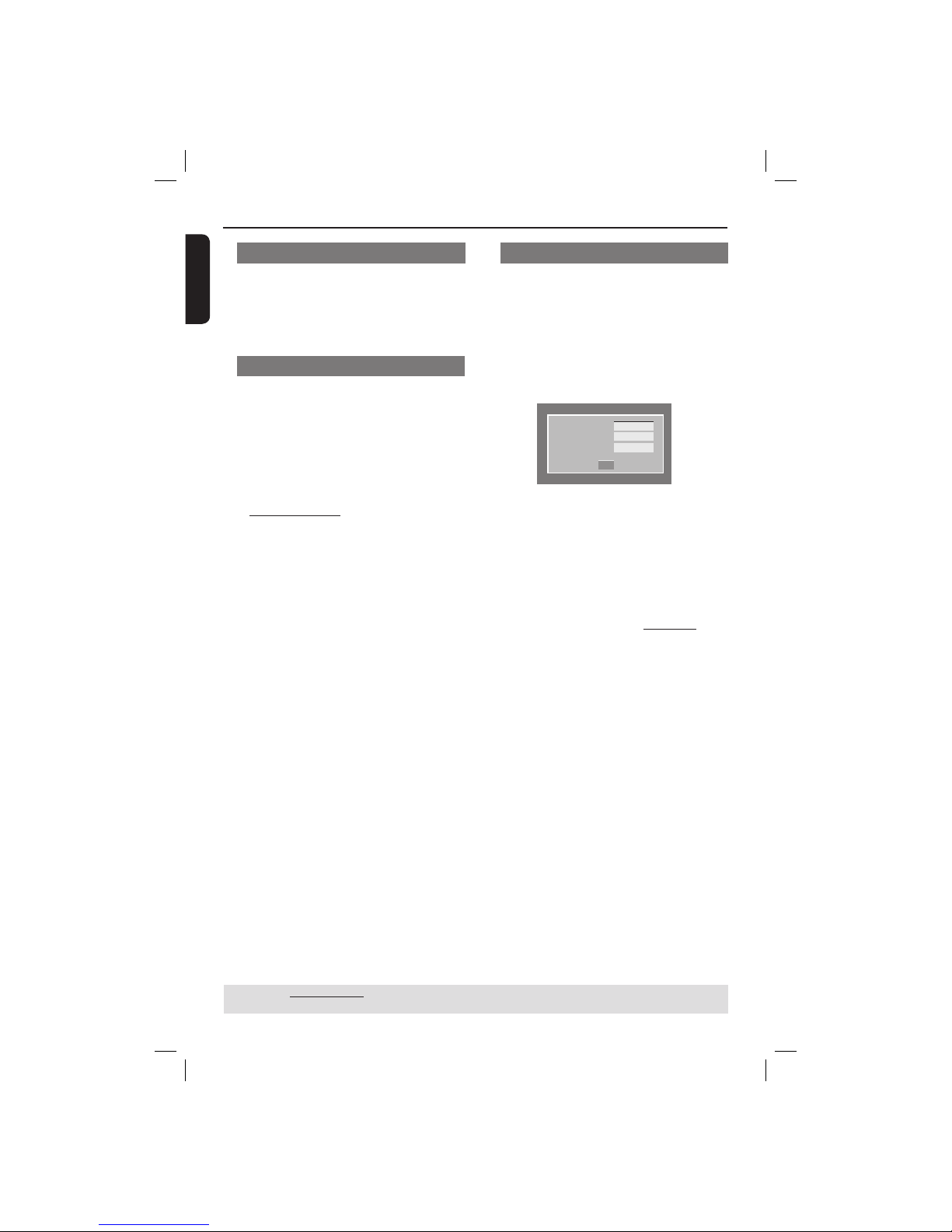

Program play (not for Picture CD/ MP3/WMA/DivX®/SACD)
Program allows you to play the contents of a disc in the order you want by arranging the order of the tracks. You can stored up to 20 tracks.
A In ‘General Setup Page’, use S T keys to
highlight { Program }, then press X to select { Input Menu }.
B Press OK to con rm.
1 04
2 10
4 __
5 __
3 11
6 __
7 __
9 __
10 __
8 __
PROGRAM: TR (01-17)
EXIT NEXT
To program your favorite track/ chapter
C Use the alphanumeric keypad 0-9 to
enter the valid track/chapter number.
D Use W X S T keys to move the cursor
next position.
If the tracks/chapters are more than ten,
press > to display next page or use W X S T keys to select { NEXT } on the
program menu, then press OK.
E Repeat steps C - D to enter other
tracks/chapters.
F Use S T W X to select { START } on
the program menu and playback starts.
Playback will start from the selected
track/chapter according to the programmed sequence.
To remove track/chapter  Use S T W X to select a track/chapter
and press OK.
To exit program playback  Use S T W X to select { EXIT } on
the program menu and press OK.
OSD Language
This menu contains various language options for the language displayed on the screen. For details, see page 21.
Screen Saver – turning on/off
A screen saver prevents damage to the TV screen by avoiding exposure to a static image for long period of time.
A In ‘General Setup Page’, use S T keys to
highlight { Screen Saver }, then press X.
{ On }
Select this if you wish to turn off the TV screen when disc playback is stopped or paused for more than 15 minutes.
{ Off }
Select this to disable the screen saver function.
B Use S T keys to select a setting and
press OK to con rm.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
DVD Menu Options (continued)
01-49 dvp7400_93_eng2.indd 3401-49 dvp7400_93_eng2.indd 34 2006-10-12 2:17:19 PM2006-10-12 2:17:19 PM
Page 35
English
35
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
DVD Menu Options (continued)
Sleep
Sleep function allows you to turn off the DVD player automatically if no actions are performed after a preset time.
A In ‘General Setup Page’, use S T keys to
highlight { Sleep }, then press X.
{ 15 mins }
Select this if you wish to turn off the DVD player after 15 minutes.
{ 30 mins }
Select this if you wish to turn off the DVD player after 30 minutes.
{ 45 mins }
Select this if you wish to turn off the DVD player after 45 minutes.
{ 60 mins }
Select this if you wish to turn off the DVD player after 60 minutes.
{ Off }
Select this to disable the sleep function.
B Use S T keys to select a setting and
press OK to con rm.
DivX® Registration Code
DivX® VOD (Video On Demand) registration code allows you to rent and purchase movies using the DivX® VOD service from the internet. For more information, visit website; http://vod.divx.com
A In ‘General Setup Page’, use S T keys to
highlight { DivX(R) VOD Code }, then press X.
The registration code will appear.
B Press OK to exit.
C Use the registration code to rent or
purchase the movies from DivX® VOD service at http://vod.divx.com.
Follow the instructions and download
the movie from your computer onto a
CD-R/RW for playback on this DVD
player.
Tip: – All the downloaded movies from DivX
®
VOD can only be played back on this DVD player.
01-49 dvp7400_93_eng2.indd 3501-49 dvp7400_93_eng2.indd 35 2006-10-12 2:17:20 PM2006-10-12 2:17:20 PM
Page 36
English
36
DVD Menu Options (continued)
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.

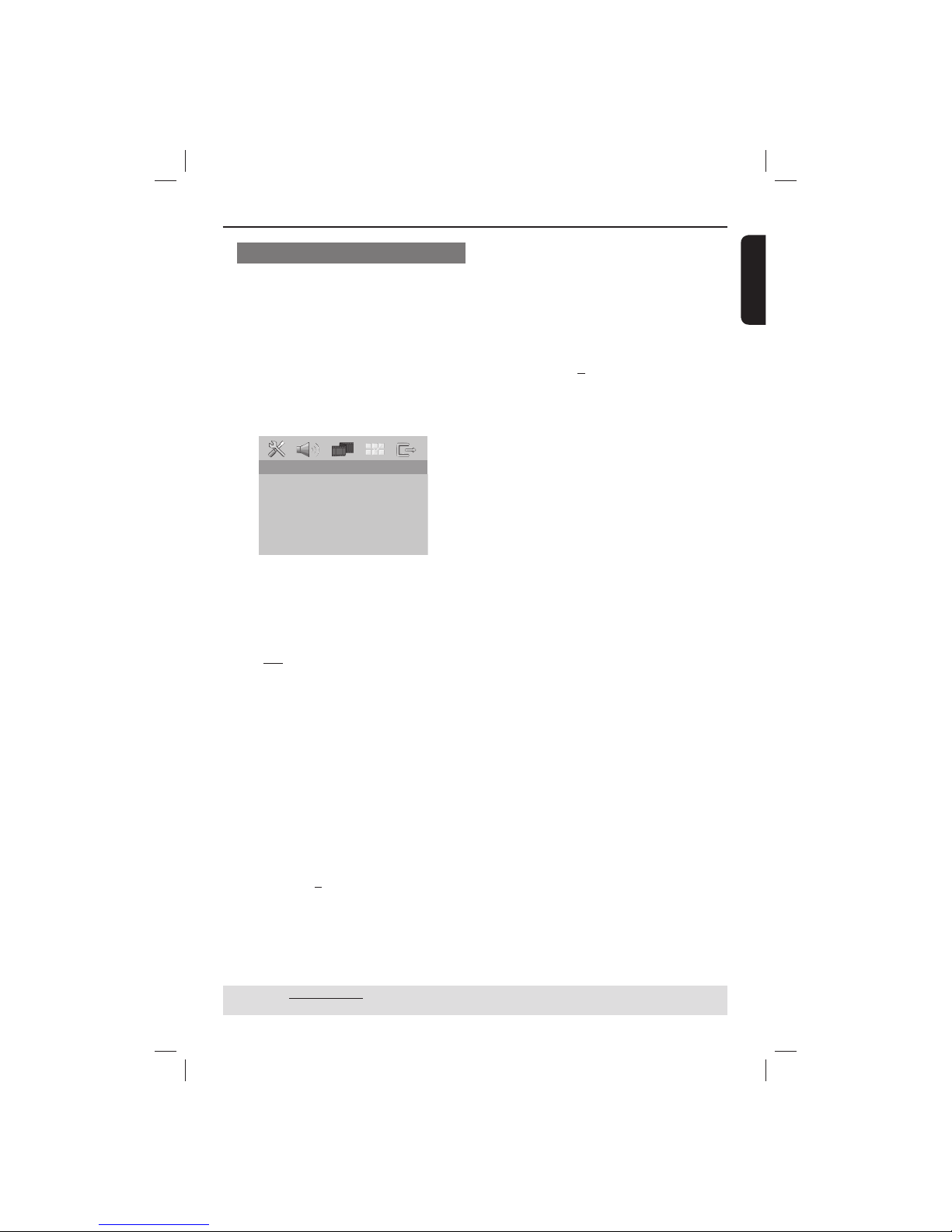

Using the Audio setup menu
A Press SYSTEM MENU on the remote
control.
The system setup menu appears.
AUDIO SETUP PAGE
ANALOG OUTPUT DIGITAL AUDIO HDMI AUDIO SPEAKER SETUP CD UPSAMPLING NIGHT MODE LIP SYNC
B Press W X to select { Audio Setup
Page }, then press OK.
C Press S T to select an item, then press
X to access.
Example: { Night Mode }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not available or not possible to change at the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { On }
The setting is selected and setup is
complete.
E To exit, press SYSTEM MENU.
Analog Output
This audio mode outputs the sound from the front left and right speakers and subwoofer. It downmixed all sound surround format to standard two channel (stereo).
A In ‘Audio Setup Page’, use S T keys to
highlight { Analog Output }, then press X.
{ Stereo }
Select this when output delivers sound from only the two front speakers.
{ Multi-channel }
Select this to enable multi-channel output. Dolby Pro Logic II will be activated if a 2 channel recorded disc is being played back.
B Use S T keys to select a setting and
press OK to con rm.
Tip: – Multi-channel and downmixed stereo output are not available simultaneously.
01-49 dvp7400_93_eng2.indd 3601-49 dvp7400_93_eng2.indd 36 2006-10-12 2:17:20 PM2006-10-12 2:17:20 PM
Page 37
English
37
DVD Menu Options (continued)
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
Digital Audio Setup
This setting is only required when connecting DVD player’s COAXIAL/ OPTICAL OUT socket to other audio/ video device. The options included in Digital Audio Setup are: { Digital Output } and { LPCM Output }.
A In ‘Audio Setup Page’, use S T keys to
highlight { Digital Audio Setup }, then press X.
B Press S T keys to highlight an option.
C Enter its submenu by pressing X.
D Press S T keys to select a setting and
press OK to con rm.
{ Digital Output }
Select this if you connect to a multichannel decoder/receiver.
– { All }
Select this if the connected device has a built-in multichannel decoder that supports one of the multichannel audio format (Dolby Digital, MPEG-2).
– { PCM }
Select this if the connected device is not capable of decoding multichannel audio. The DVD player will convert the Dolby Digital and MPEG-2 multichannel signals to PCM (Pulse Code Modulation).
– { Off }
To deactivate the digital audio output. For example, if you use the AUDIO OUT sockets to connect to a TV or stereo system.
{ LPCM Output }
Select this if you connect to a PCM compatible receiver. Discs are recorded at a certain sampling rate with the higher sampling rate, the better sound quality.
– { 48kHz }
Select this if the playback disc is recorded at a sampling rate of 48kHz.
– { 96kHz }
Select this if the playback disc is recorded at a sampling rate of 96kHz that can only be achieved in Stereo-Classic (Flat) mode.
HDMI Audio
This feature is available for automatic audio selection only when HDMI devices is connected and recognized.
A In ‘Audio Setup Page’, use S T keys to
highlight { HDMI Audio }, then press X.
{ Off }
Select this to turn off HDMI output.
{ On }
Select this to turn on HDMI output.
B Use S T keys to select a setting and
press OK to con rm.
01-49 dvp7400_93_eng2.indd 3701-49 dvp7400_93_eng2.indd 37 2006-10-12 2:17:21 PM2006-10-12 2:17:21 PM
Page 38
English
38
Speaker Setup
This menu contains setup options for your audio output which makes the speaker setup system reproduce high quality surround sound. For details, see page 22.
CD Upsampling
You can convert your music CD to a higher sampling rate using complicated digital signal for better sound quality. If CD upsampling is activated, the DVD player will automatically switch to stereo mode.
A In ‘Audio Setup Page’, use S T keys to
highlight { CD Upsampling }, then press X.
{ Off }
Select this to disable the CD Upsampling function.
{ 88.2 kHz (x2) }
Select this to convert the CD sampling rate twice higher than the original.
{ 176.4 kHz (x4) }
Select this to convert the CD sampling rate four times higher than the original.
B Use S T keys to select a setting and
press OK to con rm.
Tip: – CD Upsampling feature is only applicable in stereo output setting.
Night Mode
This mode optimises playback of sound at low volume. High volume outputs will be softened and low volume outputs are brought upward to an audible level.
A In ‘Audio Setup Page’, use S T keys to
highlight { Night Mode }, then press X.
{ On }
Select this to set low volume output. This feature is only available for movie discs with Dolby Digital mode.
{ Off }
Turns off night mode feature. Select this to enjoy the surround sound with its full dynamic range.
B Use S T to select a setting and press
OK to con rm.
Lip Sync
This allows you to adjust the audio delay (ms) with respect to the video output for the lip synchronization.
A In ‘Audio Setup Page’, use S T keys to
highlight { Lip Sync }, then press X.
Use W X to adjust the following
options; { 0ms } { 200ms }
B Press OK to con rm.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
DVD Menu Options (continued)
01-49 dvp7400_93_eng2.indd 3801-49 dvp7400_93_eng2.indd 38 2006-10-12 2:17:21 PM2006-10-12 2:17:21 PM
Page 39
English
39
DVD Menu Options (continued)
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.

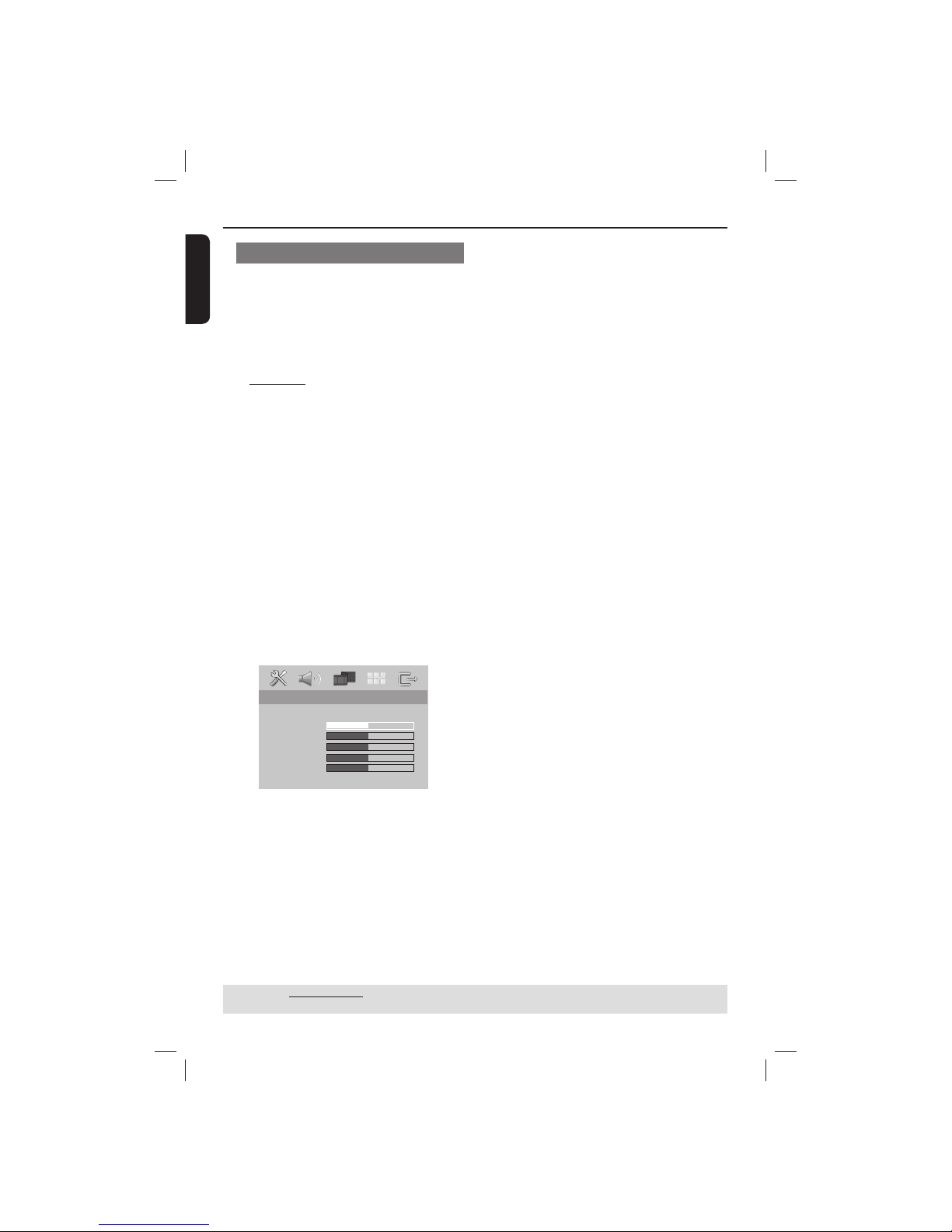

Using the Video setup menu
A Press SYSTEM MENU on the remote
control.
The system setup menu appears.
VIDEO SETUP PAGE
TV TYPE TV DISPLAY PICTURE SETTING ADV PICTURE
B Press S T to select { Video Setup
Page }, then press OK.
C Press S T to select an item, then press
X to access.
Example: { TV Type }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not available or not possible to change at the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { Multi }
The setting is selected and setup is
complete.
E To exit, press SYSTEM MENU.
TV Type
This menu contains the options for selecting the color system that matches the connected TV. For details, see page
20.
Setting the TV Display
The picture shape can be adjusted to  t your TV and the format must be available on the playback disc. Otherwise, the TV display will not affect the picture during playback.
A In ‘Video Setup Page’, use S T keys to
highlight { TV Display }, then press X.
{ 4:3 Panscan }
Select this for a full-height picture with the sides trimmed.
{ 4:3 Letterbox }
Select this for a ‘wide-screen’ display with black bars on the top and bottom.
{ 16:9 }
Select this for wide-screen TV (frame ratio 16:9).
B Use S T keys to select a setting and
press OK to con rm.
01-49 dvp7400_93_eng2.indd 3901-49 dvp7400_93_eng2.indd 39 2006-10-12 2:17:22 PM2006-10-12 2:17:22 PM
Page 40
English
40
Picture Setting
You can de ne one personal setting or select from three sets of prede ned TV picture color setting in this DVD player.
A In ‘Video Setup Page’, use S T keys to
highlight { Picture Setting }, then press X.
{ Standard }
Select this for a preset standard picture setting.
{ Vivid }
Select this to make the picture brighter.
{ Cool }
Select this to make the picture softer.
{ Personal }
Select this to personalise your picture color by adjusting the brightness, contrast, tint and color (saturation).
B Use S T to select a setting and press
OK to con rm.
C If you select {PERSONAL}, then proceed
to steps
D~G.
The setup menu appears.
0
0
0
0
0
PERSONAL PICTURE SETUP
BRIGHTNESS
SHARPNESS CONTRAST TINT COLOR
DVD Menu Options (continued)
D Press S T to highlight one of the
following options.
BRIGHTNESS
Increase the value to brighten the picture or vice versa. Choose zero (0) for average setting.
SHARPNESS
Increase the value to sharpen the picture or vice versa. Choose zero (0) for average setting.
CONTRAST
Increase the value to sharpen the picture or vice versa. Choose zero (0) to balance the contrast.
TINT
Increase the value to darken the picture or vice versa. Choose zero (0) for average setting.
COLOR
Increase the value to enhance the color in your picture or vice versa. Choose zero (0) to balance the color.
E Press W X to adjust the setting that best
suits your personal preference.
F Repeat steps D~E for adjusting other
color features.
G Press OK to con rm.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
01-49 dvp7400_93_eng2.indd 4001-49 dvp7400_93_eng2.indd 40 2006-10-12 2:17:23 PM2006-10-12 2:17:23 PM
Page 41
English
41
DVD Menu Options (continued)
Advance Picture
This setting allows you to  ne-tune the following video parameters.
A In ‘Video Setup Page’, use S T keys to
highlight { Advance Picture }, then press X.
B Press S T keys to highlight an option.
C Enter its submenu by pressing X.
D Press S T keys to select a setting and
press OK to con rm.
ADV PICTURE SETUP
DCDI GAMMA CHROMA DELAY P-SCAN FORMAT HDMI VIDEO TRUE LIFE
{ DCDi } (for Progressive Scan output only)
DCDi (Directional Correction Deinterlacing) computes and tracks the angle of edge to  ll in the missing pixels on the TV screen.
– { On }
Optimize the picture quality signi cantly, especially during the slow motion playback.
– { Off }
Select this to disable DCDi function.
{ Gamma } (for Component video output
only)
Enables you to adjust the intensity of the picture non-linearly. A positive value enables you to bring out low level detail in dark scenes, while a negative value emphasizes contrast.
– { -7 }
{ 0 } { +7 }
{ Chroma Delay } (for Component video
output only)
The chroma (color) and lume (brightness) signals are not synchronized. This setting allows you to adjust the advance delay of the chroma signal to yield a perfectly clear picture.
– { -3 }
{ 0 } { +3 }
{ PSCAN Format } (for Progressive Scan
output only)
Select this to adjust the ratio of the pictures on the TV screen.
– { Superwide }
Select this for display of 4:3 image on 16:9 TV with non-linear stretching (center portion of screen is stretch less than the side).
– { 4:3 Pillar Box }
Select this for display of 4:3 image on 16:9 TV without streching (a black pillar will be applied to both left and right side)
– { Off }
No aspect ratio adjustment is made when this option is selected.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
01-49 dvp7400_93_eng2.indd 4101-49 dvp7400_93_eng2.indd 41 2006-10-12 2:17:24 PM2006-10-12 2:17:24 PM
Page 42
English
42
{ HDMI Video } (for HDMI/DVI output
only)
Select this to adjust the resolution for  ner color selection when picture appears on the TV screen.
Use W X to select the following
options; { 480p, 576p, 720p, 1080i, Auto }
Tips: – If no display appears on the TV screen due to unsupported resolution, reconnect any available interlace video output to your monitor to re-adjust the resolution setting. – Only 480p and 576p are available for progressive scan analog output.
{ True Life } (for Progressive Scan output
only)
Produces a more dynamic picture by increasing the contrast and color intensity.
Use W X to select the following
options; { 00 } { 05 }
Using the Preference setup menu
A Press SYSTEM MENU on the remote
control.
The system setup menu appears.
PREFERENCE PAGE AUDIO SUBTITLE DISC MENU PARENTAL PBC MP3/JPEG NAV PASSWORD DIVX SUBTITLE
B Press S T to select { Preference Page },
then press OK.
C Press S T to select an item, then press
X to access.
Example: { Parental }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not
available or not possible to change at
the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { 8 Adult }
The setting is selected and setup is
complete.
E To exit, press SYSTEM MENU.
DVD Menu Options (continued)
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
01-49 dvp7400_93_eng2.indd 4201-49 dvp7400_93_eng2.indd 42 2006-10-12 2:17:25 PM2006-10-12 2:17:25 PM
Page 43
English
43
Audio, Subtitle, Disc Menu settings
These menus contains various language options for audio, subtitle and disc menu which may be recorded on the DVD. For details, see page 21.
Parental
Depending on the DVD, you may be asked to change the parental level while playing the disc. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or have certain discs played with alternative scenes.
A In ‘Preference Page’, use S T keys to
highlight { Parental }, then press X.
PREFERENCE PAGE
AUDIO SUBTITLE DISC MENU
PARENTAL 4 PG 13
CBP MP3/JPEG NAV PASSWORD DIVX SUBTITLE
1 KID SAFE 2 G 3 PG
5 PGR 6 R 7 NC 17
8 ADULT
B Use S T keys to select a rating level for
the disc inserted and press OK to con rm.
Select { 8 Adult } to disable parental
level and allow all discs to play.
C Use the alphanumeric keypad 0-9 to
enter the six-digit password. (see page 44 {Changing the Password})
DVDs that are rated higher than the level
you selected will not play unless you enter your six-digit password.
{ 1.Kid Safe }
Childsafe; acceptable for viewers of all ages.
{ 2. G }
General Audience; recommended as acceptable for viewers of all ages.
{ 3. PG }
Parental Guidance suggested.
{ 4. PG13 }
Unsuitable for children under age 13.
{ 5. PG R }
Parental Guidance; recommended that parents restrict children under 17 from viewing.
{ 6. R }
Restricted; recommended only when supervised by a parent or adult guardian.
{ 7. NC 17 }
No Children under age 17; not recommended viewing for children under age 17.
{ 8. Adult }
Mature Material; should be viewed only by adults due to graphic sexual material, violence or language.
Tips: – This feature will not limit viewing if the disc manufacturer did not code the disc. – VCD, SVCD, CD have no level indication, so parental control has no effect on these type of discs. This also applies to most illegal DVDs. – Some DVDs are not coded with a rating though the movie rating may be printed on the disc cover. The rating level feature does not prohibit play of such discs.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
DVD Menu Options (continued)
01-49 dvp7400_93_eng2.indd 4301-49 dvp7400_93_eng2.indd 43 2006-10-12 2:17:27 PM2006-10-12 2:17:27 PM
Page 44
English
44
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
DVD Menu Options (continued)
PBC (Playback Control)
You can set the PBC (Playback Control) to { On } or { Off }. This feature is available only when a Video CD 2.0 recorded with playback control feature. For details, see page 29.
MP3/JPEG Menu – turning on/off
MP3/JPEG Menu can be set only if the disc is recorded with menu. It allows you to select different display menus for easy navigation.
A In ‘Preference Page’, use S T keys to
highlight { MP3/JPEG Nav }, then press X.
{ Without Menu }
Select this to display all the  les contained in the MP3 or Picture CD.
{ With Menu }
Select this to display only the folder menu of the MP3 or Picture CD.
B Use S T keys to select a setting and
press OK to con rm.
Changing the Password
You need to enter your six-digit password to play a prohibited disc or if prompted for a password.
A In ‘Preference Page’, use S T keys to
highlight { Password }, then press X to select { Change }.
You will be prompted to enter your
six-digit password.
OLD PASSWORD NEW PASSWORD CONFIRM PWD
OK
B Use the alphanumeric keypad 0-9 to
enter the old six-digit password.
When doing this for the  rst time,
enter the default password ‘000 000’.
If you forget your old six-digit password,
enter the default password ‘000 000’.
C Enter the new six-digit password, then
enter the same password a second time in the next entry  eld.
The new six-digit password will now
take effect.
D Press OK to con rm.
01-49 dvp7400_93_eng2.indd 4401-49 dvp7400_93_eng2.indd 44 2006-10-12 2:17:28 PM2006-10-12 2:17:28 PM
Page 45
English
45
Restoring to original settings
Setting the { Default } function will reset all options and your personal settings to the factory defaults, except your password for {Parental} and {Disc Lock}.
A In ‘Preference Page’, use S T keys to
highlight { Default }, then press X to select { Reset }.
B Press OK to con rm.
All settings will now reset to factory
defaults.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.
DVD Menu Options (continued)
Setting the DivX® subtitle font
You can set the font type that supports the recorded DivX® subtitle.
A In ‘Preference Page’, use S T keys to
highlight { DivX
®
Subtitle }, then press
X.
{ Standard }
Albanian, Danish, Dutch, English, Finnish, French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish.
{ Chinese (Simp) }
Chinese Simpli ed
B Use S T keys to select a setting and
press OK to con rm.
01-49 dvp7400_93_eng2.indd 4501-49 dvp7400_93_eng2.indd 45 2006-10-12 2:17:29 PM2006-10-12 2:17:29 PM
Page 46
English
46
Trouble s hooting
Problem Solution
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs,  rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
No power.
Remote control does not work.
No picture.
The picture is distorted or black & white during playback.
No sound.
Disc does not play.
The aspect ratio of the screen cannot be changed.
– Press STANDBY-ON button on the front of the DVD
player to switch on the system.
– Make sure the AC outlet has power.
– Aim the remote control directly at the sensor on the front
of the DVD player (not towards TV).
– Remove any obstacles between DVD player and the remote
control. – Batteries are weak, replace the batteries. – Check the polarities of the batteries are as indicated on the
remote control (± signs). – Make sure the remote control is select at the relevant
device [DVD] in order to control the DVD player.
– Switch on your TV and set to the correct Video In channel
for the DVD player. You may go to Channel 1 on your TV,
then press the channel down button on your TV’s remote
control until you see the TV programme. – Check the video connection between the DVD player and
the TV.
– The disc does not match with the TV colour system
standard (PAL/NTSC). – The disc is dirty, clean the disc. – Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
– Check the audio connections, the red and white jacks are
connected correctly. – Set the Digital output correctly, based on the equipment you connected to the DVD player.
– Insert the disc with the label facing up. – Wrong region code. – Wrong disc type. Read chapter “Playback - Playable discs”
for details. – Make sure the disc is not scratched or warped. Clean the
disc or replace a new one. – Check if the disc is defective by trying another disc.
– The aspect ratio is  xed on the DVD disc. – Depending on the TV, it may not be possible to change the
aspect ratio.
Need Help? Visit us at www.philips.com/support
01-49 dvp7400_93_eng2.indd 4601-49 dvp7400_93_eng2.indd 46 2006-10-12 2:17:29 PM2006-10-12 2:17:29 PM
Page 47
English
47
Problem Solution
Trouble s hooting (co ntinued)
Not able to select some items in the setup/system menu.
The DVD player does not start playback.
Picture freezes momentarily during playback.
Unable to select Progressive Scan on/ off.
Unable to play DivX
®
movies.
No sound during DivX
®
movies
playback.
An DivX® movies does not repeat.
No sound is output from the HDMI out
– Press STOP button twice before selecting the setup/system
menu.
– Depending on the disc availability, some menu items cannot
be selected.
– Insert a readable disc with the playback side facing down. – Check the disc type, colour system (PAL/NTSC) and region
code. – Check for any scratches or smudges on the disc. – Press SYSTEM MENU to turn off the setup menu screen. – You may need to enter the password in order to change the
parental rating level or to unlock the disc for playback. – Moisture may have condensed inside the system. Remove the
disc and leave the system turned on for about an hour. – Disconnect the power cord from the power outlet for a few
minutes. Reconnect the power cord and try to operate again
as usual.
– Check the disc for  ngerprint/scratches and clean with a soft
cloth wiping from centre to edge.
– Check that the output of the video signal is switch to
{ YPbPr }.
– Check that the DivX
®
 le is encoded in ‘Home Theatre’
mode with DivX
®
5.x encoder.
– Check that the DivX
®
movie downloaded is a complete  le.
– The audio codec may not be supported by this DVD player.
– Check that  le size of the movie does not exceed the  le size
of the disc during downloading.
– Check the connection between the TV and the HDMI jack of
DVD player. – See if the TV supports this 480p/576p/720p/1080i DVD
player. – Check your TV system setup correctly. – Make sure HDMI audio setting is set to {ON} in the System
Menu.
Need Help? Visit us at www.philips.com/support
01-49 dvp7400_93_eng2.indd 4701-49 dvp7400_93_eng2.indd 47 2006-10-12 2:17:29 PM2006-10-12 2:17:29 PM
Page 48
English
48
Speci cations
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525 Playback Multistandard (PAL/NTSC)
VIDEO PERFORMANCE
Video DAC 12 bit, 216 MHz YPbPr 0.7 Vpp ~ 75 ohm Video Output 1Vpp ~ 75 ohm HDMI Output 480p, 576p, 720p, 1080i, Auto
VIDEO FORMAT
Digital MPEG 2 for DVD,SVCD Compression MPEG 1 for VCD DivX
®
DVD 50Hz 60Hz
Horiz. resolution 720 pixels 720 pixels Vertical resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. resolution 352 pixels 352 pixels Vertical resolution 288 lines 240 lines
AUDIO FORMAT
Digital MPEG/ AC-3/ compressed PCM Digital 16, 20, 24 bits fs, 44.1, 48, 96 kHz MP3(ISO 9660) 96, 112, 128, 256 kbps & variable bit rate fs, 32, 44.1, 48 kHz Analog Sound Stereo Dolby Surround compatible downmix from Dolby Digital multi-channel sound
AUDIO PERFORMANCE
DA Converter 24 bit, 192 kHz DVD fs 96 kHz 4Hz- 44kHz fs 48 kHz 4Hz- 22kHz SVCD fs 48 kHz 4Hz- 22kHz fs 44.1kHz 4Hz- 20kHz CD/VCD fs 44.1kHz 4Hz- 20kHz Signal-Noise (1kHz) > 122 dB (CD) > 124 dB (DVD) Dynamic range(1kHz) 96 dB (CD) 103 dB (DVD) Crosstalk (1kHz) 122 dB Distortion/noise (1kHz) > 91 dB MPEG MP3 MPEG Audio L3
CONNECTIONS
YPbPr Output Cinch 3x Video Output Cinch (yellow) S-Video Output Mini DIN, 4 pins Audio Output(L+R) Cinch (white/red) Digital Output 1 coaxial, 1 optical IEC60958 for CDDA / LPCM IEC61937 for MPEG 1/2, Dolby Digital and DTS HDMI Output Type A x 1
6 channel analog output
Audio Front L/R Cinch (white/red) Audio Surround Cinch (white/red) Audio Center Cinch (blue) Audio Subwoofer Cinch (black)
CABINET
Dimensions (w x h x d) 435 x 79 x 315 mm Weight Approximately 5.5 kg
POWER CONSUMPTION
Power Supply Rating U.S.A and Canada 120V, 60Hz Australia/New Zealand 240V; 50Hz U.K and Europe 230V; 50Hz General models 110 - 240V; 50/60Hz Power consumption 20 W Power consumption in < 1 W Standby mode
01-49 dvp7400_93_eng2.indd 4801-49 dvp7400_93_eng2.indd 48 2006-10-12 2:17:29 PM2006-10-12 2:17:29 PM
Page 49
English
49
Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has speci c numerical values. These jacks send audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9.
AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV, Stereo, etc.).
Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per seconds, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc.
Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.
Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.).
Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD.
Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.
DivX
®
3.11/4.x/5.x/6.x: The DivX® codec is a
patent-pending, MPEG-4 based video compression technology, developed by DivX® Networks, Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.
Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer).
JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.
MP3: A  le format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. By using MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.
Multichannel: DVD is speci ed to have each sound track constitute one sound  eld. Multichannel refers to a structure of sound tracks having three or more channels.
Parental Control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.
PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion.
Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function.
Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.
Region code: A system for allowing discs to be played back only in the region designated beforehand. This unit will only play discs that have compatible region codes. You can  nd the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions).
Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want.
VIDEO OUT jack: Jack on the back of the DVD System that sends video to a TV.
Glossary
01-49 dvp7400_93_eng2.indd 4901-49 dvp7400_93_eng2.indd 49 2006-10-12 2:17:29 PM2006-10-12 2:17:29 PM
