DVD VIDEO PLAYER /

Owner’s Manual Manuel de l’utilisateur

VIDEO CASSETTE RECORDER

DVP 721VR

Page 2

Safety Precautions

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: This Digital Video Disc Player employs a Laser System. To ensure proper use of this product, please read this owner’s

manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service location-see service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

Notes on copyrights:

It is forbidden by law to copy,broadcast, show, broadcast via cable, play in public, or rent copyright material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER:The serial number is found on the back of this unit.This number is unique to this unit and not available to others.You should record requested information here and retain this guide as a permanent record of your purchase. Model No. ___________________________________ Serial No. ___________________________________

Features:

• Complete versatility to play DVD,DivX,VCDs, audio CDs or VHS Tapes.

• Watch a DVD while recording a TV show to the VCR.

• Remote controls DVD and VCR decks.

• Records from DVD to VHS (unless DVD is copy protected with Macrovision).

• Hi-Fi Stereo VCR.

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH

DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Page 3

EnglishFrançais

Index

English ...................................................... 4

Français ....................................................41

Page 4

English

Contents

Introduction

Safety Precautions ............................................................2

Index ..................................................................................3

Contents ............................................................................4

Before Use ......................................................................5-6

Playable Discs ..................................................................................5

Remote Control Operation Range ............................................5

Precautions ......................................................................................6

Notes on Discs ..............................................................................6

About Symbols ................................................................................6

Selecting the Viewing Source........................................................6

Front Panel and Display Window ....................................7

Remote Control ................................................................8

Rear Panel ..........................................................................9

Preparation

Connections................................................................10-11

Connecting to a TV & Decoder................................................10

Connecting to Optional Equipment ........................................11

Before Operation - VCR part....................................12-16

Using your DVD+VCR for the very first time ......................12

Setting the clock Manually..........................................................13

To set the colour system............................................................13

How to using the main menu....................................................14

Tuning in TV stations Automatically ........................................14

Tuning in TV stations Manually..................................................15

Changing the other of TV stations ..........................................16

Deleting TV stations ....................................................................16

Before Operation - DVD part ..................................17-20

General Explanation ....................................................................17

On-Screen Display........................................................................17

Initial Settings ..........................................................................18-20

● General Operation ............................................................18

● Language ..............................................................................18

● Display ..................................................................................18

● Audio ....................................................................................19

● Others ..................................................................................19

● LOCK (Parental Control) ................................................20

Operation

Operation with Tape ..................................................21-24

Playing a tape ................................................................................21

● OPR (Optimum Picture Response) ..............................21

Instant Timer Recording (ITR) ..................................................22

ShowView Programming ............................................................23

Timer recording using On Screen Display ............................24

Operation with DVD and Video CD ........................25-27

Playing a DVD and Video CD ....................................................25

General Features ..........................................................................25

● Moving to another TITLE ................................................25

● Moving to another CHAPTER/TRACK........................25

● Search....................................................................................25

● Still Picture and Frame-by-Frame Playback..................25

● Slow Motion ........................................................................26

● Shuffle....................................................................................26

● Repeat ..................................................................................26

● Repeat A-B ..........................................................................26

● Time Search ........................................................................26

● 3D Surround........................................................................26

● Screen Saver........................................................................26

● Zoom ....................................................................................27

● Marker Search ....................................................................27

Special DVD Features..................................................................27

● Title Menu ............................................................................27

● Disc Menu............................................................................27

● Camera Angle......................................................................27

● Changing the Audio Language ........................................27

● Changing the Audio Channel ..........................................27

● Subtitles ................................................................................27

Operation with Audio and MP3Disc ........................28-29

Playing an Audio CD and MP3 Disc ..................................28-29

● Notes on MP3 Recordings ..............................................28

● Pause ....................................................................................29

● Moving to another Track ..................................................29

● Repeat Track/All/Off ..........................................................29

● Search....................................................................................29

● Shuffle....................................................................................29

● Repeat A-B ..........................................................................29

● 3D Surround........................................................................29

Operation with JPEG Disc..............................................30

Viewing a JPEG disc ....................................................................30

● Moving to another File......................................................30

● Still Picture ..........................................................................30

● Zoom ....................................................................................30

● To r otate Picture ................................................................30

● To listen to MP3 music watching picture......................30

● Notes on JPEG Recordings..............................................30

Programmed Playback....................................................31

Programmed Playback with Audio CD and

MP3 Disc ........................................................................................31

Programmed Playback with Video CD ....................................31

● Repeat Programmed Tracks ............................................31

● Erasing a Track from Program list ..................................31

● Erasing the Complete Program list................................31

Operation with DVD VR Disc ........................................32

Playing a DVD VR Disc................................................................32

Maintenance and Service ............................................................32

● Handling the unit................................................................32

Operation with DivX Disc..............................................33

Playing a DivX Movie Disc ........................................................33

Video mode setting......................................................................33

Additional Operation ................................................34-35

On Screen Display........................................................................34

Ta pe Counter Memory Stop ....................................................34

Child Lock......................................................................................34

Video Doctor (Self-Diagnosis) ..................................................34

Hi-Fi Stereo Sound System ........................................................35

Wide Screen Compatibility 16:9 ..............................................35

To set the decoder ......................................................................35

Last Condition Memory..............................................................35

Special Recording............................................................36

Copying from DVD to VCR ......................................................36

Recording from another video recorder................................36

Reference

Tr oubleshooting ..............................................................37

Language Code List ........................................................38

Country/Area Code list ..................................................39

Specification ....................................................................40

Page 5

English

Before Use

Playable Discs

DVD (8 cm / 12 cm disc)

Video CD (VCD) (8 cm / 12 cm disc)

Audio CD (8 cm / 12 cm disc)

In addition, this unit can play a DivX file, DVD±R, DVD±RW, Kodak PICTURE CD, SVCD, and CD-R or CD-RW that contains audio titles,MP3 and/or JPEG files.

This indicates a product feature that is capable of playing DVD-RW discs recorded with Video Recording format.

Notes

– Depending on the conditions of the recording

equipment or the CD-R/RW (or DVD±R/±RW) disc itself, some CD-R/RW (or DVD±R/±RW) discs cannot be played on the unit.

– Do not attach any seal or label to either side (the labeled

side or the recorded side) of a disc.

– Do not use irregular shaped CDs (e.g., heart-shaped or

octagonal). It may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers.As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available, or other functions may be added. Refer also to the instructions applied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.

Regional code of the DVD player and DVDs

This DVD player is designed and manufactured for playback of region “2” encoded DVD software. The region code on the labels of some DVD discs indicates which type of player can play those discs.This unit can play only DVD discs labeled “2” or “ALL”. If you try to play any other discs, the message “Check Regional Code” will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.

Disc-related terms Title (DVD only)

The main film content or accompanying feature content or additional feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enable you to locate the chapter you want. Depending on the disc, no chapters may be recorded.

Track

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called “Scenes”. Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.A scene is composed of one or several tracks.

DivX

DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression.

Types of video CDs

There are two types of video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

● Distance:About 23 ft (7 m) from the front of the

remote sensor

● Angle: About 30° in each direction of the front of the

remote sensor

Remote control battery installation

Detach the battery cover on the rear of the remote control, and insert two (size AA) batteries with and aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Page 6

English

Before Use (Cont’d)

Precautions

Handling the unit When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.

When setting the unit

The picture and sound of a nearby TV or radio may be distorted during playback. In this case, position the unit away from the TV or radio, or turn off the unit after removing the disc.

To k eep the surface clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber of plastic products in contact with the unit for a long period of time.They will leave marks on the surface.

Cleaning the unit To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents, such as alcohol, benzine, or thinner,as these might damage the surface of the unit.

To obtain a clear picture

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality will be poor. Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth.Wipe the disc from the center out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

About Symbols

About the symbol display

“ ” may appear on the TV screen during operation. This icon means the function explained in this owner’s manual is not permitted by the DVD+VCR or is not available on that specific DVD video disc.

About the disc symbols for instructions

A section whose title has one of the following symbol is applicable only to the disc represented by the symbol.

DVD Video CDs with the PBC (playback control)

function. Video CDs without the PBC (playback control)

function. Audio CDs. MP3 disc. JPEG disc. DivX disc.

DivX

JPEG

MP3

VCD1.1

VCD2.0

DVD

Selecting the Viewing Source

You must select one of your output sources (DVD or VCR) to view on the TV screen.

● If you want to view DVD deck output source:

Press DVD on the remote or SOURCE on the front panel and output source of DVD deck is viewed on the TV screen.

● If you want to view VCR deck output source:

Press VCR on the remote or SOURCE on the front panel and output source of VCR deck is viewed on the TV screen.

Notes

● If you insert a disc while the DVD+VCR is in the VCR mode, the DVD+VCR will switch to DVD mode automatically.

● If you insert a cassette tape without prevention tab while the DVD+VCR is in the DVD mode, the DVD+VCR will switch to VCR mode automatically.

Page 7

English

Front Panel and Display Window

Forward Skip/Scan/Fast-Forward

Go to NEXT chapter/track.Press and hold for two seconds for a fast forward search. Winds the tape forwards.

Reverse Skip/Scan, Rewind

Go to beginning of current chapter/track or to PREVIOUS chapter/track. Press and hold for two seconds for a fast reverse search. Rewinds the tape.

Ta pe Compartment

PLAY ( NN) Starts playback.

STOP ( xx) Stops playback.

DVD OPEN/CLOSE ( )

Opens or closes the disc tray.

EJECT ( )

Ta pe Eject.

VCR Record

CHANNEL

3 4

Channel selection

Display window

Shows the current status of the unit.

DVD Indicator

PA USE(

\\ \\

)

Pause palyback

temporarily/ frame-

by-frame playback.

Video IN Jack

Audio IN (L/R) Jacks

Disc Tray

Insert a disc here.

POWER

Switches the unit to ON or OFF.

Remote Sensor

Point the remote control here.

SOURCE

DVD/VCR Selector

VCR Indicator

VCR deck is selected.

DVD tray is selected.

Indicates repeat mode.

Indicates TV mode. (See Notes on page 22.)

Indicates total playing time, elapsed time, or current deck status

A disc is loaded in the DVD deck.

(Lights when a disc is loaded in the DVD tray and

flashes when no disc is loaded.)

DVD+VCR is in timer recording or a timer recording is programmed

Indicates the Progressive Scan

is set to On mode.

A cassette is in the VCR deck.

VCR recording is engaged. DVD to VCR copy is in progress.

Child Lock is engaged.

DVD to VCR copy

DVD

VCR REC

Page 8

English

Remote Control

DVD/VCR select button

Select the output source (DVD or VCR) to

view on the TV screen.

TV/VCR

To view channels selected by the VCR tuner

or by the TV tuner.

0-9 numerical buttons

Selects numbered options in a menu.

DISC MENU

Accesses menu on a DVD disc.

SYSTEM MENU

Accesses or removes DVD setup menu and

VCR menu.

SKIP ./REW

Skip to beginning of current chapter or

track, press twice in quick successions to go

to previous chapter or track.

Press and hold button for about two

seconds to search backward. (For DVD only)

Rewinds the tape during the STOP mode or

for fast reverse picture search.

SKIP > /FWD

Skip to next chapter or track.

Press and hold button for about two

seconds to search forward.(For DVD only)

Advances the tape during the STOP mode or

for fast forward picture search.

MARKER

Marks any point during playback.

Displays MARKER SEARCH menu.

INPUT

To select the VCR deck’s source

(Tuner,AV1,AV2 or AV3).

REC/ITR

Records normally or activates Instant Timer

Recording with repeated presses.

REPEAT

Repeat chapter, track,title, all.

REPEAT A-B

Repeats sequence.

PROGRAM

Accesses or removes Program menu.

CLEAR

- Resets tape counter to M 0:00:00

- Removes a track number on the program menu or a mark on the

MARKER SEARCH menu.

Note

This remote control use the same buttons for VCR and DVD functions (ex. PLAY). When using a VCR, first press the VCR button. When using a DVD, first press the DVD button.

POWER

Switches DVD+VCR ON and OFF.

EJECT, OPEN/CLOSE

- Opens and closes the disc tray.

- Ejects the tape in the VCR deck.

RETURN

Displays the menu of a Video CD with PBC.

DISPLAY

Accesses On-Screen display. Switches among the clock, tape counter and tape remaining modes.

b/B/v/V (left/right/up/down)

- Selects an option in the menu

- v/V: Selects channel of VCR.Adjusts manually the tape’s picture onscreen.

- Acknowledges menu selection.

- Displays functions on the TV screen.

STOP

Stops playback.

PLAY

Starts playback.

PA USE/STEP

Pause playback or recording Press repeatedly for frame-by-frame playback during pause.

SUBTITLE

Selects a subtitle language.

AUDIO

Selects an audio language (DVD).

ANGLE

Selects a DVD camera angle if available.

ZOOM

Enlarges DVD/VCD video image.

TITLE/LP

- Displays the disc’s Title menu, if available.

- Selects recording speed

SHUFFLE

- Plays tracks in random order.

C.LOCK

Switch the Child Lock on and off.

SHOWVIEW

To display the programme menu for ShowView programming.

POWER

TV/VCR

DVD VCR

OPEN/CLOSE

EJECT

123

456

789

PLAY

PROGRAM

DISPLAY

PAUSE/STEP

CLEAR

SHOW VIEW

VIDEO PLUS

RETURN

DISC SYSTEM

STOP

MARKER SEARCH INPUT REC/ITR

SUBTITLE AUDIO ANGLE ZOOM

REPEAT

A-B

TITLE

SHUFFLE C.LOCK

Page 9

English

Rear Panel

Caution Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

AUDIO OUT (Left/Right) (DVD EXCLUSIVE OUT)

Connect to an amplifier, receiver or stereo system.

VIDEO/AUDIO OUT(Left/Right) (DVD/VCR OUT)

Connect to a TV with video and audio inputs.

AERIAL

Connect the aerial using this jack.

COAXIAL (Digital audio out jack) (DVD EXCLUSIVE OUT)

Connect to digital (coaxial) audio equipment.

RF OUT

Connect to your TV using this jack.

S-VIDEO OUT (DVD EXCLUSIVE OUT)

Connect to a TV with S-Video input.

EURO AV1 AUDIO/VIDEO (VCR IN+OUT/DVD OUT)

Connect to your TV set or another video recorder.

AC Power Cord

Connect to a power source.

COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr) (DVD EXCLUSIVE OUT)

Connect to a TV with Y Pb Pr inputs.

EURO AV2 DECODER

Connect to pay-TV decoder or another video recorder.

OPTICAL (Digital audio out jack) (DVD EXCLUSIVE OUT)

Connect to digital (optical) audio equipment.

Page 10

English

Connections

Tips

● Depending on your TV and other equipment you wish to connect, there are various ways you could connect the unit.

● Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.

● For better sound reproduction, connect this unit’s AUDIO OUT jacks to the audio in jacks of your amplifier, receiver, stereo or audio/video equipment. See “Connecting to optional equipment” on page 11.

Caution

– Make sure this unit is connected directly to the TV. Set the

TV to the correct video input channel.

– Do not connect this unit’s AUDIO OUT jack to the

phono in jack (record deck) of your audio system.

Connecting to a TV & Decoder

● Make one of the following connections, depending on the capabilities of your existing equipment.

Basic connection (AV)

Connect the EURO AV1 AUDIO/VIDEO on the rear panel of this unit to the SCART input socket on the TV using a SCART lead.

Some TV broadcasters transmit encoded television signals which you can only see with a purchased or rented decoder.You can connect such a decoder (descrambler) to the DVD+VCR.

Basic connection (RF)

Connect the RF antenna cable from your indoor/ outdoor antenna to AERIAL jack on the rear panel of this unit.

Connect the supplied RF antenna cable from the RF OUT (DVD/VCR OUT) jack on the rear panel of this unit to

your television’s Antenna Input.

DVD exclusive out connection

● Component Video (Color Stream®) connection

Connect the COMPONENT/PROGRESSIVE SCAN VIDEO OUT jacks on the DVD Player to the

corresponding in jacks on the TV using the Y Pb Pr cable.

Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV using the audio cables.

● S-Video connection

Connect the S-VIDEO OUT jack on this unit to the SVideo input jack on the TV using the S-Video cable.

Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV using the audio cables.

Progressive Scan (ColorStream®Pro) connection

● If your television is a high-definition or “digital ready” television, you may take advantage of the DVD Player’s progressive scan output for the highest video resolution possible.

● If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the DVD Player.

Connect the COMPONENT/ PROGRESSIVE SCAN VIDEO OUT jacks on the DVD Player to the

corresponding in jacks on the TV using the Y Pb Pr cable.

Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV using the audio cables.

Notes

– Set the Progressive to “On” on the setup menu for

progressive signal,see page 18.

–Progressive scan does not work with the analog video

connections (yellow VIDEO OUT jack) or S-VIDEO connection.

Note

– If the TV has an S-video input, connect the DVD player

with the S-video cable.When using an S-video cable, do not connect the yellow video cable.

Rear of this unit (DVD exclusive out connection)

Rear of TV

VIDEO

INPUT

COMPONENT VIDEO INPUT/

PROGRESSIVE SCAN

Pb Y

AUDIO INPUT

SCART INPUT

AERIAL

Rear of this unit (Basic connection)

Decoder

S-

VIDEO INPUT

Page 11

English

Connections (Cont’d)

Connecting to Optional Equipment

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic II/ Pro Logic

Connect the Left and Right DVD/VCR AUDIO OUT or AUDIO OUT (DVD EXCLUSIVE OUT) jacks on this

unit to the audio left and right in jacks on your amplifier, receiver or stereo system, using the audio cables.

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/ Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2 or DTS)

Connect one of this unit’s DIGITAL AUDIO OUT jack (OPTICAL or COAXIAL) to the corresponding in jack on your amplifier. Use an optional digital (optical or coaxial) audio cable.

You will need to activate this unit’s digital output. (See “Audio” on page 19).

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your unit (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.

Warning:

Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

Notes

– If the audio format of the digital output does not match

the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

–To see the audio format of the current DVD in the

On-Screen Display, press AUDIO.

AUDIO INPUT

DIGITAL INPUT

COAXIAL

DIGITAL INPUT

OPTICAL

Amplifier (Receiver)

2 channel analog stereo or Dolby Pro Logic II/Pro Logic connection.

Rear of this unit

Digital multi-channel connection (DVD exclusive out connecttion)

DVD exclusive out

DVD/VCR OUT

Page 12

English

Before Operation - VCR part

Using your DVD+VCR for the very first time

For the following steps we assume that you have just connected your DVD+VCR for the very first time. To make tuning TV stations an easy task your DVD+VCR incorporates the Automatic Channel Memory System (ACMS).This system will automatically tune, store TV channels and set the clock (date & time) in your DVD+VCR.

Make sure that you have correctly installed your DVD+VCR.

Press11to turn on your DVD+VCR.

If the initial Menu Screen doesn’t appear on screen, make sure that you have tuned your TV to a video channel. Or if this is correct it may mean that your DVD+VCR is already tuned.

Press b or B to select the desired country.

(A:Austria, B: Belgium,CH:Switzerland, D: Germany, DK: Denmark, E:Spain, F: France, I: Italy, N: Norway,NL: Netherlands, P:Portugal, S:Sweden, SF: Finland, OTHERS)

Press OK to start the automatic tuning process.

Programme number TV Station

PR01 TF1 PR02 FR2 PR03 FR3 PR04 ARTE PR05 TV1 PR06 TV2

The TV station shown above may vary according to the area you live in.

Press SYSTEM MENU to remove the menus from the TV screen.

01 C02 00 TF1 02 C03 00 FR2 03 C04 00 FR3

Pr-12

ACMS

Page 13

English

Before Operation - VCR part

Setting the clock Manually

The clock in your DVD+VCR controls time and date settings for your DVD+VCR. The clock is set automatically during ACMS (Automatic Channel Memory System) when you DVD+VCR detects a channel that broadcasts a Teletext signal. If the broadcast signal is weak the clock will not be set and will require setting manually.

Press SYSTEM MENU. Press b or B to select TIME DATE. Press OK. The auto adjust mode can be set to ‘OFF’ by pressing 3 or 4 if you want to set the time manually. Press OK.

Use the numbered buttons on the remote control to alter the HOURS, MINUTES,DAY, MONTH and YEAR. Please note your DVD+VCR uses a 24 hour clock.e.g. 1pm will be displayed as 13:00. The day of the week will appear automatically when you enter the year.

If you make a mistake press bbor BBand enter the correct details.

Press SYSTEM MENU.

To set the colour system

Press SYSTEM MENU.

The main menu will appear on the TV screen.

Press 1 or 2 to select the SYSTEM and press OK.

Press 3 or 4 to select according to the COLOUR system used.

Press SYSTEM MENU to remove the menus from the TV screen.

AUTO ADJUST

- -

TIME DATE

ON:

HH MN DD MM YY

:..- -

- - - -

- -

TIME

DATE

- - - - -

VCR

AUTO

Pr-12

SYS-

TIME

SET

REC

ACMS

PAL

SECAM

OSD

16:9

MESECAM

AUDIO

OFF

Dr.

DATE

TEM

DECO-

OPR

DER

4:3

SYS-

NIC

TEM

HH MN DD MM YY 8

:..00 1 01 04 THU

TIME DATE

Page 14

English

Before Operation - VCR part

How to using the main menu

This VCR can easily be programmed by using the menus displayed on screen. The menus are controlled from the Remote Control Handset.

Switch on your TV set and video recorder by pressing the

button.

Press SYSTEM MENU button. The main menu will appear on the TV screen.

● REC - Timer recording setting (see p. 24).

● PR SET - Manual tuning setting (see p. 15).

● ACMS - ACMS (Automatic Channel Memory System)

(see p. 14).

● TIME DATE - Date & clock setting (see p. 13).

● SYSTEM - To set the Colour TV System (see p.13).

● Dr.- To check a problem with your VCR (see p. 34).

● AUDIO - To select the channel for audio output

(see p. 35).

● F.OSD ON/OFF - To display the operational

mode of your VCR (see p. 34).

● 16:9/4:3 - To select the aspect ratio of your TV

(see p. 35).

● DECODER - To use a pay-TV decoder (or Satellite)

with your VCR (see p. 35).

● OPR - To improve the playback picture (see p. 21).

● NIC - To activate or deactivate the NICAM digital

sound (see p. 35).

Tip

You can change the menu language on the DVD setup menu. (See the Menu Language on page 18.)

Press 1 and 2 to select the desired menu. Press OK and use 3 or 4 to select.

Press SYSTEM MENU to return to a TV picture.

Tuning in TV Stations Automatically

If the TV broadcast signal is weak your VCR may not detect the necessary information and will be and to store them correctly.To overcome this problem please turn to the MANUAL TUNING section on page 15.

Press 11to turn on your VCR.

Press SYSTEM MENU button. The main menu will appear on the TV screen. Press 1 or 2 to select the ACMS. Press OK.

Press 1 or 2 to select COUNTRY. (A:Austria, B:Belgium,CH:Switzerland, D:Germany,

DK:Denmark, E:Spain,F:France, I:Italy, N:Norway, NL:Nertherlands, P:Portugal, S:Sweden, SF:Finland, OTHERS)

Press OK again to start the automatic tuning process. The VCR’s clock will be set automatically when automatic tuning has finished. If the clock is wrong, see “Setting the clock manually” on page 13).

The TV STATION TABLE will appear when tuning is complete. Press SYSTEM MENU to save your settings.

VCR

Pr-12

REC

AUDIO

P R

ON OFF

SYS-

TIME

SET

ACMS

OSD

16:9

4:3

DATE

DECO-

Dr.

TEM

OPR

DER

REC

NIC

VCR

Pr-12

REC

AUDIO

OFF

ABCHDDKEFI

NNL PS SFOTHERS

Pr-12

ACMS

01 C02 00 TF1 02 C03 00 FR2 03 C04 00 FR3

Pr-12

ACMS

SYS-

TIME

SET

ACMS

OSD

16:9

4:3

DATE

DECO-

DER

Dr.

TEM

OPR

Pr-12

NIC

ACMS

01 C02 00 TF1

02 C03 00 FR2 03 C04 00 FR3 04 C05 00 ARTE 05 C06 00 TV1 06 C07 00 TV2 07 C08 00 SVT 08 C09 00 SVT1

SET

MOVE :

,DELETE :

Page 15

English

Before Operation - VCR part

Tuning in TV Stations Manually

In certain areas of the country broadcast signals may be too weak for your VCR’s automatic tuning process to find or assign TV stations correctly. You must tune in these weaker broadcast stations manually in order for your VCR to store them.

Press SYSTEM MENU. The main menu will appear on the TV screen. Press 1 or 2 to select the PR SET. Press OK.

Press SYSTEM MENU. The station table will appear. Press 3 or 4 to select the programme number that you want to tune (for example, PR 09).

Press OK. Press INPUT to select C (Standard stations) or S (Cable stations): C02 - C69, S01 - S41. Enter the channel number of station that you want to tune with the numbered buttons or use 3 or 4 to find the required station. Press OK and select the colour system of its channel by pressing 3 or 4.

Press OK. Press 2 to select MFT. Control the fine tuning of the station by using 3 or 4.

Press 2 to select STATION so that you may name your TV station. Press OK. The TV station name list will appear.

Use D or E to select a station name from the list. Press OK to select it.

You can change a TV station name manually rather than using the “standard” names. Press G. Use 3 or 4 to select letters and numbers for the new station name. Use 1 or 2 to move back and forth between characters. Press OK.

Press SYSTEM MENU,confirm the station placement. Press SYSTEM MENU again. Your new TV station has now been tuned into your VCR. If you wish to manually tune other stations repeat stages

1 - 8.

If your station name isn’t on the list do not press OK, but go to stage 7.

PR CH MFT STATION 01 00

C 02

VCR

Pr-12

SYS-

TIME

SET

REC

ACMS

AUDIO

OSD

16:9

OFF

4:3

DATE

DECO-

DER

Dr.

TEM

OPR

SET

NIC

SET

01 C02 00 PR-01

02 C03 00 PR-02 03 C04 00 PR-03 04 C05 00 PR-04 05 C06 00 PR-05 06 C07 00 PR-06 07 C08 00 PR-07 08 C09 00 PR-08

SET

MOVE :

,DELETE :

PR CH STATION 09 - - - - - -

SET

MFT

C - -

CHANNEL/CABLE : AV

PR-01

CHANNEL/CABLE : AV

PR CH MFT 09 00

C10

SET

TF1 FR2 FR3 ARTE RTP1 RTP2 RTPAF RTPAZ

TF1

PR CH MFT 09 00

C10

SET

FR2 FR3 ARTE RTP1 RTP2 RTPAF RTPAZ

PR CH MFT C09 00

C10

SET

STATION

FR3

09 C10 00 FR3

- - - - - - - - -

14 15

- - - - - - - - -

SET

MOVE :

,DELETE :

PR CH STATION 09 00

SET

C10

MFT

CHANNEL/CABLE : AV

Page 16

English

Before Operation - VCR part

Changing the order of TV Stations

After tuning TV stations into your VCR you may wish to change the order in which they are stored without having to retune them again.The instructions given on this page will show you how you can simply move them into your desired order.

Press SYSTEM MENU. The main menu will appear on the TV screen. Press 1 or 2 to select the PR SET. Press OK.

Press SYSTEM MENU. Use 3 or 4 to select the programme number you want to move (for example, PR 03). Press 2.

Use 3 or 4 to select the programme number you want to move to (for example, PR 05).

Press OK. The selected programme will be moved to the new programme number. If you wish to move other TV stations repeat stages 1 - 4. Press SYSTEM MENU to remove the menus from the TV screen.

Deleting TV Stations

After tuning TV stations into your VCR you may wish to delete a station. The instructions given on this page will show you how you can easily delete any unwanted TV stations.

Press SYSTEM MENU. The main menu will appear on the TV screen. Use 1 or 2 to select the PR SET. Press OK.

Press SYSTEM MENU. Press 3 or 4 to select the programme number you want to delete. (for example, PR 03)

Press 1. After a short while, the selected station will be deleted.

Press SYSTEM MENU to remove the menus from the TV screen. If you wish to delete other TV stations repeat stages

1 - 3.

How to select Stored TV stations:

Stored TV stations can be selected in either of two ways. Use 3 or 4 to select different stations that are tuned into your DVD+VCR. You may also directly select stations using the numbered buttons on the remote control.

VCR

Pr-12

REC

AUDIO

P R

ON OFF

SYS-

TIME

SET

ACMS

OSD

16:9

Dr.

DATE

TEM

DECO-

DER

OPR

4:3

SET

NIC

VCR

Pr-12

REC

AUDIO

OFF

SYS-

TIME

SET

ACMS

OSD

16:9

Dr.

DATE

TEM

DECO-

DER

OPR

4:3

SET

NIC

PR CH MFT STATION 01 00

C 02

SET

PR-01

CHANNEL/CABLE : AV

01 C02 00 PR-01

02 C03 00 PR-02 03 C04 00 PR-03 04 C05 00 PR-04 05 C06 00 PR-05 06 C07 00 PR-06 07 C08 00 PR-07 08 C09 00 PR-08

SET

01 02 03 04 05 06 C07 00 PR-06 07 C08 00 PR-07 08 C09 00 PR-08

SET

MOVE

DELETE

C02 00 PR-01 C03 00

C04 00 PR-03

C05 00 C06

PR-02

PR-04

PR-05

C02 00 PR-01

C03 00 PR-02

C05 00

C06

C04 00 PR-03

05 06 C07 00 PR-06 07 C08 00 PR-07 08 C09 00

SET

PR-04

00 PR-05

PR-08

C02 00 PR-01

C03 00 PR-02

C05 00 C06

C04 00 PR-05

06 C07 00 PR-06 07 C08 00 PR-07 08 C09 00

SET

MOVE :

DELETE :

PR-03 PR-04

PR-08

PR CH MFT STATION 01 00

C 02

SET

PR-01

CHANNEL/CABLE : AV

01 C02 00 PR-01

02 C03 00 PR-02 03 C04 00 PR-03 04 C05 00 PR-04 05 C06 00 PR-05 06 C07 00 PR-06 07 C08 00 PR-07 08 C09 00 PR-08

SET

MOVE :

,DELETE :

C02 00 PR-01

C03 00 PR-02

C05 00

C06

C04 00 PR-05

05 06 C07 00 PR-06 07 C08 00 PR-07 08 C09 00

SET

MOVE : DELETE :

PR-03

PR-04

PR-08

Page 17

English

Before Operation - DVD part

General Explanation

This manual gives the basic instructions for operating the DVD+VCR. Some DVDs require specific operation or allow only limited operation during playback.When this occurs, the symbol appears on the TV screen, indicating that the operation is not permitted by the DVD+VCR or is not available on the disc.

On-Screen Display

The general playback status can be displayed on the TV screen. Some options can be changed on the menu.

On-screen display operation

Press DISPLAY during playback.

Use v/V to select an item.

The selected option will be highlighted.

Use b/B to change the setting of an item.

The number buttons can also be used for setting numbers (e.g., title number). For some functions, press

OK to execute the setting.

Temporary Feedback Field Icons

Repeat Title

Repeat Chapter

Repeat Track (non-PBC Video CDs and Audio CD only) Repeat Disc (non-PBC Video CDs and Audio CD only) Repeat A-B

Repeat Off

Resume play from this point

Action prohibited or not available

Notes

● Some discs may not provide all of the features on the onscreen display example shown below.

● If no button is pressed for 10 seconds, the on-screen display disappears.

Off

A B

All

TRACK

CHAPTER

TITLE

Options

Title Number

Chapter Number

Time search Audio language

and Digital Audio Output mode

Subtitle language

Angle

Sound

Function (Use

v/V

to select desired option)

Shows the current title number and total number of titles, and

skips to the desired title number.

Shows the current chapter number and total number of chapters, and skips to the desired chapter number.

Shows the elapsed playing time, and

searches the point by the elapsed time directly.

Shows the current audio soundtrack language,encoding method, and channel number, and changes the setting.

Shows the current subtitles language, and

changes the setting.

Shows the current angle number and total number of angles, and changes the angle number.

Shows the current sound mode, and changes the setting.

Selection Method

b/B,or

Numeric, OK

b/B,or

Numeric, OK

b/B, or AUDIO

b/B, SUBTITLE

b/B,ANGLE

b/B

1 /3

1 /12

0:20:09

1 ENG

3/2.1 CH

OFF

1 /1

Normal

ABC

DVD

Items

Track Number

Time search

Audio Channel

Sound

Function (Use

v/V

to select desired option)

Shows the current track number,total number of tracks and PBC On mode, and skips to the desired track number. Shows the elapsed playing time, and

searches the point by the elapsed time directly

Shows the audio channel, and

changes the audio channel.

Shows the current sound mode, and

any changes to the setting.

Selection Method

b/ B,or

Numbers, OK

Numeric, OK

B, or AUDIO

b / B

1 /4

0:20:09

STEREO

Normal

VCD2.0

VCD1.1

Items

Track Number

Time search

Audio language and Digital Audio Output mode

Subtitle language

Sound

Function (Use v

V to select desired option)

Shows the current track number, total number of tracks, and skips to the desired track number. Shows the elapsed playing time, and

searches the point by the elapsed time directly.

Shows the current audio soundtrack language, encoding method, and channel number, and changes the setting.

Shows the current subtitles language, and

changes the setting.

Shows the current sound mode, and

any changes to the setting.

Selection Method

b/B

,or

Numeric, OK Numeric, OK

b/B

, or AUDIO

b/B

, SUBTITLE

b/B

1 /3

0:20:09

MP3

2/0 CH

OFF

Normal

ABC

DivX

Page 18

English

Before Operation (Continued) - DVD part

Initial Settings

You can set your own Personal Preferences on the player.

To display and exit the Menu: Press SYSTEM MENU to display the menu. Press SYSTEM MENU again to return to the initial screen. To go to the next level:

Press 2 on the remote control.

To go back to the previous level:

Press 1 on the remote control.

General Operation

Press SYSTEM MENU.

The setup menu appears.

Use 3/4 to select the desired option then press 2 to move to the second level. The screen will show the current setting for the selected option, as well as alternate setting(s).

Use 3/4 to select the second desired option then press 2 to move to the third level.

Use 3/4 to select the desired setting then press OK to confirm your selection. Some items require additional steps.

Press SYSTEM MENU or PLAY B to exit the setup menu.

LANGUAGE

Menu Language

Select a language for the setup menu and on-screen display.

Disc Audio / Subtitle / Menu

Select a language you prefer for the audio track (disc audio), subtitles, and the disc menu. Original :The original language set for the disc is selected. Other :To select another language, press number buttons to enter the corresponding 4-digit number according to the language code list on page 38. If you enter the wrong language code, press CLEAR.

DISPLAY

TV Aspect

4:3 : Select when a standard 4:3 TV is connected. 16:9 Wide: Select when a 16:9 wide TV is connected.

Display Mode

Display Mode settings is only available when the TV Aspect mode is set to “4:3”. Letterbox: Displays a wide picture with bands on the upper and lower portions of the screen. Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

Progressive Scan

Progressive Scan Video provides the highest quality pictures with less flickering. If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.

To turn on progressive scan:

Connect component out of this unit to the input of your monitor/television, set your television or monitor to component Input.

Select “Progressive Scan” on the “DISPLAY” menu then press 2.

Select “On” using the 3 / 4 buttons.

Press OK to confirm your selection.The confirm menu will appear.

When the confirm menu appears on your screen “Cancel” is highlighted as default. Use the 1 button to highlight “Enter”.

Press OK to set to progressive scan mode.

Caution

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible TV or monitor. If you set Progressive Scan to On in error, you must reset the unit.

1 Remove any disc from the unit and close the disc tray.

“dISC” is displayed on the display window.

2 Press and hold STOP for five seconds.

The video output will be restored to the standard setting and a picture appear again on TV screen.

TV Output Select

Set this unit’s TV Output Select options according to the TV connection type. YPbPr:When your TV is connected with the COMPONENT/PROGRESSIVE SCAN VIDEO OUT jacks on this unit.

RGB:When your TV is connected with the SCART (RGB signal) jack.

DVD



LANGUAGE

Menu Language

Disc Audio

Disc Subtitle

Disc Menu

DISPLAY

TV Aspect

Display Mode

TV Output Select RGB

English

Original

Off

Original

Move

16 : 9 Wide

Widescreen

OffProgressive Scan

Select

Move

Select

DISPLAY

TV Aspect

Display Mode

TV Output Select

OnProgressive Scan

Off

Move

EnterPrev.

Page 19

English

Before Operation (Continued) - DVD part

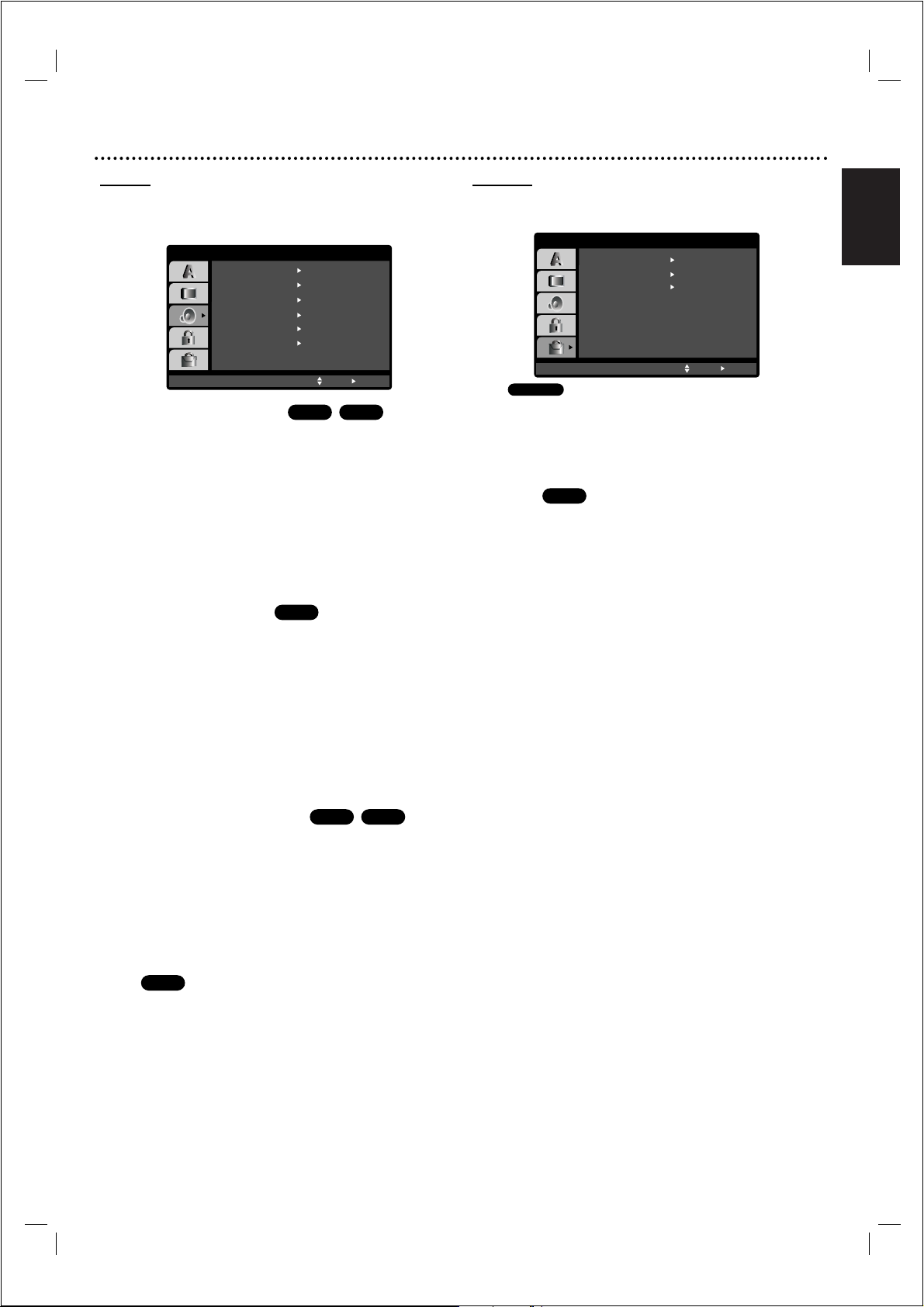

AUDIO

Each DVD disc has a variety of audio output options. Set the DVD+VCR’s AUDIO according to the type of audio system you use.

Dolby Digital / DTS / MPEG

Bitstream: Select “Bitstream” if you connected the

DVD+VCR’s DIGITAL AUDIO OUT jack to an amplifier or other equipment with a DTS decoder, Dolby Digital decoder or MPEG decoder. PCM (for Dolby Digital / MPEG): Select when connected to a 2 channel digital stereo amplifier. DVD discs encoded in Dolby Digital or MPEG will automatically downmixed to two-channel PCM audio. Off (for DTS): Select “Off” to deactivate the DTS signal from the DIGITAL OUT jack.

Sample Freq. (Frequency)

To change the Sample Frequency setting, first select the desired Digital Audio Output as indicated as above. If your receiver or amplifier is NOT capable of handling 96KHz signals, select 48KHz.When this choice is made, this unit will automatically convert any 96KHz signals to 48KHz so your system can decode them. If your receiver or amplifier is capable of handling 96KHz signals, select 96KHz.When this choice is made, this unit will pass each type of signal through without any further processing.

Dynamic Range Control (DRC)

With the DVD format, you can hear a program’s soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones).Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

Vocal

Set Vocal to On only when a multi-channel karaoke DVD is playing.The karaoke channels on the disc will mix into normal stereo sound.

OTHERS

The PBC,Auto Play and DivX® VOD. settings can be changed.

PBC

Set Playback Control (PBC) to On or Off. On:Video CDs with PBC are played according to the PBC. Off:Video CDs with PBC are played the same way as Audio CDs.

Auto Play

You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted. If Auto Play mode is set to On, this DVD player will search a title that playback time is long most and then play back the title automatically.

On:Auto Play function is activated. Off:Auto Play function is not activated.

Note

The Auto Play function may not work for some DVDs.

DivX(R) VOD registration code

Philips provide you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit www.divx.com/vod.

Select “DivX(R) VOD” on the “OTHERS” menu then press 2.

Press OK and the registration code will appear.

Use the registration code to purchase or rent the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a CD-R for playback on this DVD player.

Note

All the downloaded videos from DivX® VOD can only be played back on this DVD player.

DVD

VCD 2.0

DVD

DivX

DVD

DivX

DVD

AUDIO

Bitstream

PCM

48KHz

OnVocal

Move

Select

Dolby Digital

DTS

MPEG

Sample Freq.

DRC

OTHERS

Off

SelectDivX(R) VOD

Select

Move

PBC

Auto Play

Page 20

English

Before Operation (Continued) - DVD part

LOCK (Parental Control)

Rating

Movies on DVDs may contain scenes not suitable for children.Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc.These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country dependent.The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

Select “Rating” on the “LOCK” menu then press

To access the Rating, Password and Country Code features, you must input the 4-digit security code you created. If you have not yet entered a security code you are prompted to do so. Input a 4-digit code and press OK. Enter it again and press OK to verify.If you make a mistake before pressing OK,press CLEAR and enter 4-digit security password again.

Select a rating from 1 to 8 using 3/4 buttons. Rating 1-8: Rating one (1) has the most restrictions

and rating eight (8) is the least restrictive. Unlock: If you select Unlock, Parental Control is not active.The disc will play in full.

Note: If you set a rating for the DVD+VCR, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc.The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop.You must enter the 4-digit password or change the rating level in order to play the disc.

Press OK to confirm your rating selection, then press SYSTEM MENU to exit the menu.

Password (Security Code)

You can enter or change password.

Select “Password” on the “LOCK” menu then press 2.

Follow step 2 of “Rating” on left.“Change” or “New” is highlighted.

Enter the new 4-digit code, then press OK. Input it again to verify.

Press SYSTEM MENU to exit the menu.

If you forget your Security Code

If you forget your security code you can clear it using the following steps:

Press SYSTEM MENU to display the Setup menu.

Input the 6-digit number “210499” and the security code is cleared.

Enter a new code as described above.

Country Code

Enter the code of a country/area whose standards were used to rate the DVD video disc, referring to the list (See “Country/Area Code List”, page 39).

Select “Country Code” on the “LOCK” menu then press 2.

Follow step 2 of “Rating” on left.

Select the first character using the 3/4 buttons.

Shift the cursor using 2 button and select the second character using 3/4 buttons.

Press OK to confirm your country code selection.

DVD

LOCK

Rating

Password

Country Code

Unlock

New

Move

Select

Page 21

English

Operation with tape

Playing a tape

You will only be able to load and eject video cassettes when your VCR is plugged into the mains. Your VCR may also playback recordings from NTSC tapes (on PAL TV).

Getting a better picture

When a cassette is inserted and playback started, the automatic tracking function works to get the best possible picture automatically. If the quality of the recording is poor, repeatedly press 3 or 4 on the remote control to manually adjust the tracking until any distortions have been removed. Press numbered 0 on the remote control to switch automatic tracking back on again.

Make sure that you have correctly connected your VCR as described earlier in this book. Turn on your TV. Press

to turn on your DVD+VCR. Insert the video cassette into your DVD+VCR. The video cassette should have the window side facing up and the arrow facing away from you.

Press PLAY B to start playing your tape. If you load a video cassette which has had its record protection tab removed, playback of the cassette will start automatically.

AUTO TRACKING

Your DVD+VCR will automatically adjust the tracking to give the best picture quality.

Press PA USE/STEP ; to still a picture. Press PA USE/STEP ; repeatedly to advance the tape frame by frame. If you press T, the picture will be slowed down at about 1/19 times the normal playback. Ta pes can be paused for up to 5 minutes.After 5 minutes your DVD+VCR will stop the tape to prevent damaging the tape or your DVD+VCR .

Still picture quality can be improved slightly by using 3 or 4.

Press PLAY B to continue playing your tape.

Picture search:

During playing back press either S or T to this will enable you to rapidly wind the tape (7 times normal playback) see where you are on the tape.

Logic search:

During fast forwarding or rewinding press and hold S or T the picture will be played back at 7 times normal playback speed.

Slow motion playback, Shuttle :

During playing back or still picture press 1 or 2. You can reach the following playback speeds. (-7xplay,

-3xplay, -play, still, 1/19 slow, play,2xplay, 7xplay) To s witch off the slow motion and shuttle, press the desired function. During slow motion and shuttle, the noise bars may appear on the picture according to the status of tape. If distortions can be seen in the picture, reduce them with 3 or 4.

Press STOP to end playback. Press EJECT. If the end of the tape is reached, your DVD+VCR will stop playback automatically, rewind, stop, eject the tape.

OPR (Optimum Picture Response)

This feature automatically improves playback picture quality by adjusting your DVD+VCR to the condition of the tape.

Press SYSTEM MENU.

Press 3 or 4 to select OPR.

Press OK.

Press 3 or 4 repeatedly to select: OFF,SOFT or SHARP. Please note you may only set OPR when playing a tape.

Press SYSTEM MENU return to screen.

REC

Dr.

VCR

Pr-12

ACMS

SET

TIME

DATE

SYS-

TEM

OPR

OSD ON OFF

OSD

16:9

4:3

NIC

DECO-

DER

AUDIO

OFF SOFT SHARP

Page 22

English

Operation with tape (Continued)

Instant Timer Recording (ITR)

Your VCR allows you to make recordings using a variety of simple methods: Instant Timer Recording (ITR) start recording immediately for a set period of time or until the video cassette runs out.

Your DVD+VCR incorporates Long Play (LP) which enables you to record up to twice the amount of time on a video cassette. For example an E-180 will record up to 180 minutes using Standard Play (SP);using LP you will be able to record up to 360 minutes. Please note there will be a slight loss in picture and sound quality when using LP.

Make sure that you have correctly connected your VCR as described earlier in this book. Press 11to turn on your VCR.

Insert a video cassette with protection tab into your VCR. The video cassette should have the window side facing up and the arrow facing away from you.

Press 3 or 4 to select the programme number you wish to record. You may also directly select programme number using the numbered buttons on the remote control.

If you wish to record directly from the SCART or RCA sockets repeatedly press INPUT until the socket you wish to record from is displayed.

AV 1 for recording from EURO AV1 SCART socket on the rear of your unit. AV 2 for recording from EURO AV2 SCART socket on the rear of your unit. AV 3 for recording from VIDEO IN and AUDIO IN (Left & Right) sockets on the front of your unit.

Press LP if you wish to record in Long Play or Standard Play. SP will produce improved picture and sound quality, however LP will provide twice as much recording time as SP.

Press REC/ITR on the remote to start recording. RECORD will appear on the TV screen. Press RECORD on your unit or press REC/ITR on the remote several times. Each successive press will increase the record time by 30 minutes until you reach a maximum of 9 hours.

Press PA USE/STEP ; to avoid recording unwanted scenes. Press PA USE/STEP ; to continue recording. If you press PAUSE/STEP ; during ITR, the DVD/VCR will enter the record pause mode and ITR is cancelled. Ta pes can be paused for up to 5 minutes; RECP will be displayed when a tape is paused.After 5 minutes your DVD+VCR will stop recording to prevent damaging the tape or your DVD+VCR.

Press STOPto end recording. EJECT will appear on the TV screen for a few seconds.

Notes

● If you do not wish to record on a tape (this can happen quite easily by accident!) remove the protection tab on the back edge of the video cassette.

● It is possible to record on a video cassette with the record protection tab removed by covering the hole with self adhesive tape.

● Remember you can record one programme while watching another by starting your instant recording, press TV/VCR to appear TV indicator in the display window and then selecting a different channel on your TV.

Page 23

English

Operation with tape (Continued)

ShowView Programming

ShowView greatly simplifies entering the date, channel, start and end times of a Timer Recording by simply entering a ShowView Code. ShowView Codes are published in most TV guide magazines; they can vary one to nine numbers in length. S

HOW

VIEW is a registered trademark of Gemstar Development Corporation. The S

HOW

VIEW system is manufactured under licence

from Gemstar Development Corporation.

Make sure that TV channels have been tuned. Insert a video cassette with protection tab into your VCR.

Press SHOWVIEW.

Press 3 or 4 to select the recording type.

ONCE:To record once. WEEKLY:To record at the same time every week. DAILY:To record every day (except Saturday and

Sunday) at the same time.

Press the numbered buttons to enter the ShowView Code of the TV programme that you wish

to record. If you make a mistake press 1 then enter the revised number.

Press OK. If PLEASE CHECK is displayed it means that you have entered the wrong ShowView number,entered the ShowView number incorrectly. If “- -” is displayed, you have to enter the programme number of the station, you want to record from.

Press 1 or 2 to select the settings that you wish to revise. (PR, DATE,TIME and SP). Press 3 or 4 to enter the correct information.

Press 3 or 4 to switch VPS/PDC on or off. Press 2 to select the recording speed. Press 3 or 4 to select the desired tape speed (SP, IP, or LP). IP mode determines how much tape is left and switches speed from SP to LP, if necessary, to complete recording the program. IP mode cannot be selected when VPS/PDC is ON. Check that the timer event details are correct. If you wish to record from AUDIO IN and VIDEO IN on the front or from either of the EURO SCART sockets on the back of VCR, press INPUT to select for correct display (AV1,AV2 or AV3).

If you want to make another ShowView recording repeat stages 2 - 7. Press SYSTEM MENU twice. If PLEASE CHECK is displayed, you have entered incorrect information and will need to re-enter the data. Press 11to switch your VCR power off mode. TIMER will appear in the video recorder’s display while your VCR waits to make the recording. To watch a DVD during timer recording standby mode, press POWER and DVD to switch to DVD mode.

Press STOP to end recording.

Notes

Video Programme System (VPS)

The Video Programme System (VPS) ensures that the TV programmes that you have programmed for timer recording will be recorded exactly from their beginning to end, even if the actual broadcasting time differs from the scheduled time due to delayed start, or if the programme is extended beyond its scheduled time.Also, if a programme is interrupted, for example, if a news flash is inserted, the recording will also be interrupted automatically and resumed when the programme continues.

The VPS signal is broadcast by the TV station and this controls the timer in the video recorder.

VPS should be set ON for all timer recordings from TV stations broadcasting these signals. It should be set OFF for all timer recordings from TV stations that are not broadcasting these signals. *** The similar system PDC, which is used in the time being in the Netherlands, can also be used with your new video recorder.

SHOWVIEW NO.

- - - - - - - - -

ONCE

REC

ONCE

REC

SHOWVIEW NO.

246876543



0~9,



Page 24

English

Operation with tape (Continued)

Timer recording using On Screen Display

You may set up to seven timer record events within one month of the current date.

Note

Before setting the timer make sure that you have set the DVD+VCR clock correctly and you know which stations you have tuned TV stations on your DVD+VCR.

Timer Recording function will only active if the DVD+VCR is in Standby mode.

Insert a video cassette with protection tab into your DVD+VCR. The video cassette should have the window side facing up and the arrow facing away from you.

Press SYSTEM MENU. Press 1 or 2 to select REC. Press OK.

Press OK to start setting the timer record event. If all timer record events are full press 3 or 4 to select the event that you wish to remove and replace.

Press 1 to delete the event.

Press the numbered buttons to enter the station that you wish to record. When selecting stations 1 - 9, press 0 first, then the channel number; for example Stations 3 - 03.You may also select Channels by pressing 3 or 4. Once selected press 2. If you wish to record from AUDIO IN (L/R) and VIDEO IN on the front or from the EURO SCART sockets on the back of your unit, press INPUT to select for correct display (AV1,AV2 or AV3).

Press the numbered buttons to enter the date of the programme. If you press OK before entering the date you may select one of the following automated recording features. Use

1 or 2 to select, then press OK to confirm. DLY To r ecord every day (except Saturday and Sunday)

at the same time. SU ~ SA To r ecord at the same time every week.

Press the numbered buttons to enter the recording start and end times of the programme that you wish to record.

Please note your DVD+VCR uses a 24 hour clock.e.g. 1pm will be displayed as 13:00. You may also select the start and end times by using 3 or

Press SYSTEM MENU to set another timer record event and follow steps 3 to 7.

Check that the timer event details are correct. Press SYSTEM MENU twice. If PLEASE CHECK is displayed, you have entered incorrect and will need to re-enter the data.

Press 11to switch your DVD+VCR Standby.

TIMER will appear in the display window while your DVD+VCR waits to make the recording. To watch a DVD during timer recording standby mode, press POWER and DVD to switch to DVD mode.

Press STOP to end recording.

Notes

● If at a later date you wish to delete or change any of

the settings in timer event memory you may do so without having to enter all the timer event information again. Simply display the timer event screen. Use 3 or 4 to select the event that you wish to delete or change. Press 1 to delete the event...or Press OK to change; then press 1 or 2 to select; Station, Date, Start and End times and LP. Press 3 or 4 to enter the correct information.

● If Timer record events Overlap...

Make sure that the preset times of the timer recording events do not overlap. If they do, the earlier programme will always be given priority.

Example:

Programme 1 is programmed to start at 16:00 and end at 17:00. Programme 2 is programmed to start at 16:30 and end at 17:30. (In this case, Programme 1 will be recorded in its entirety, but only the last 30 minutes of Programme 2 will be recorded.)

PR DATE

- -

- - - -

- - - - SP

- -

T I M E

- - - - - - - -~::



SP SP



Page 25

English

Operation with DVD and Video CD

Playing a DVD and Video CD

Playback Setup

● Turn on the TV and select the video input source connected to the DVD player.

● Audio system:Turn on the audio system and select the input source connected to the DVD player.

Press OPEN/CLOSE to open the disc tray.

Load your chosen disc in the tray, with the playback side down.

When a double-sided DVD is inserted, make sure the side you want to play is facing down.

Press OPEN/CLOSE to close the tray.

Playback starts automatically. If playback does not start, press PLAY B. In some cases, the disc menu might appear instead.

If a menu screen is displayed

The menu screen may be displayed first after loading a DVD or Video CD which offer a menu.

Use the 1234buttons to select the title/chapter you want to view, then press OK to start playback. Press TITLE or DISC MENU to return to the menu screen.

● Use the number buttons to select the track you want to view. Press RETURN to return to the menu screen.

● Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You also may set PBC to Off under setup. See page 19.

Notes

– If Parental Control is set and the disc is not within the

Rating settings (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see “LOCK (Parental Control)”, on page 20).

–DVDs may have a region code.

Your player will not play discs that have a region code different from your player.The region code for this player is 2 (two).

–To watch a DVD during timer recording standby mode,

press POWER and DVD to switch to DVD mode.

General Features

Note

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

Moving to another TITLE

When a disc has more than one title, you can move to another title as follows:

● Press DISPLAY,then press the appropriate numbered

button (0-9) to select a title number.

Moving to another CHAPTER/TRACK

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

● Press S or T briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.

● Press S twice briefly to step back to the previous chapter/track.

● To go directly to any chapter during DVD playback, press DISPLAY.Then, press 3/4 to select chapter/track icon. Then, enter the chapter/track number using the numbered buttons (0-9).

Note

For two-digit numbers, press the numbered buttons (0-9) in rapid succession.

1 Press S or T for about two seconds during

playback. The player will now go into SEARCH mode.

2 Press S or T repeatedly to select the required

speed:

QX2, QX4,QX16, QX100 (backward) or RX2, RX4,RX16, RX100 (forward).

With a Video CD, the Search speed changes:

QX2, QX4,QX8 (backward) or RX2, RX4,RX8 (forward).

3 To r eturn to playback, press PLAY B.

Still Picture and Frame-by-frame playback

1 Press PA USE/STEP during playback.

The player will now go into PAUSE mode.

2 You can advance the picture frame-by-frame by pressing

PAUSE/STEP repeatedly on the remote control.

DivX

VCD1.1VCD2.0

DVD

DivX

VCD1.1VCD2.0

DVD

DivX

VCD1.1

DVD

VCD2.0

DVD

VCD1.1VCD2.0

DVD

1 /12

1 /3

Page 26

English

Operation with DVD and Video CD

General Features (continued)

Slow Motion

1 Press S or T during still mode.

The player will enter SLOW mode.

2 Press S or T repeatedly to select the required

speed : t 1/16, t 1/8, t 1/4 or t 1/2 (backward) or T 1/16, T 1/8, T 1/4 or T 1/2 (forward).

3 To exit slow motion mode, press PLAY B.

Note

● Slow motion playback in reverse is not applicable for Video CD and DivX disc.

Shuffle

1 Press SHUFFLE during playback or in stop mode.

The unit automatically begins Random Playback and “RANDOM” appears on the TV screen.

2 To r eturn to normal playback, press SHUFFLE again until

“NORMAL” appears on the TV screen.

Tips

By pressing T during Random playback, the unit selects another title (track) and resumes Random playback.

Notes

● This function only works with DVD karaoke discs and video CD without PBC.

● On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Random function. See page 19.

Repeat

DVD Video Discs - Repeat Chapter/Title/Off

1 To r epeat the currently playing chapter, press REPEAT.

The Repeat Chapter icon appears on the TV screen.

2 To r epeat the title currently playing, press REPEAT a

second time.

The Repeat Title icon appears on the TV screen.

3 To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Video CDs, DivX Discs - Repeat Track/All/Off

1 To r epeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the TV screen.

2 To r epeat the disc currently playing, press REPEAT a

second time.

The Repeat All icon appears on the TV screen.

3 To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 19.

Repeat A-B

To r epeat a sequence in a title:

1 Press REPEAT A-B at your chosen starting point.

A *appears briefly on the TV screen.

2 Press REPEAT A-B again at your chosen end point.

A B appears briefly on the TV screen, and the repeat sequence begins.

3 To cancel the sequence, press REPEAT A-B.

Time Search

The Time Search function allows you to start playing at any chosen time on the disc.

1 Press DISPLAY during playback.The on-screen display

appears on the screen.

The Time Search box shows the elapsed playing time of the current disc.

2 Within 10 seconds, press 3/4 to select the Time Search

icon in the on-screen display.

The “-:--:--” appears in the Time Search box.

3 Within 10 seconds, use the number buttons to enter the

required start time. Enter hours, minutes, and seconds from left to right in the box.

If you enter the wrong numbers, press CLEAR to remove the numbers you entered.Then enter the correct numbers.

4 Within 10 seconds, press OK to confirm the start time.

Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.

3D Surround

This unit can produce a 3D Surround effect,which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.

1 Press DISPLAY during playback. 2 Use 3/4 to select the sound icon.

The sound option will be highlighted.

3 Use 1/2 to select “Normal”, or “3D SUR”.

Screen Saver

A screen saver image appears when you leave the DVD Player in stop mode for about fifteen minutes.

DivX

VCD1.1VCD2.0

DVD

DivX

VCD1.1VCD2.0

DVD

DivX

VCD1.1VCD2.0

DVD

DivX

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

Karaoke DVD

DivX

VCD1.1VCD2.0

DVD

TRACK

All

Off

CHAPTER

TITLE

A *

A B

Off

0:20:09

-:--:--

Normal

3D SUR

Page 27

English

Operation with DVD and Video CD

General Features (continued)

Zoom

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

1 Press ZOOM during playback or still playback to activate

the Zoom function.

The square frame appears briefly in the right bottom of the picture.

2 Pressing ZOOM each time will change the TV screen in

the sequence: 100% size → 400% size → 1600% size → screen fit mode → 100% size

Screen fit mode : You can change the way the image appears on the screen when you’re playing a DVD movie. Press 3/4 to select between Normal, Enhanced, and Maximum.

3 Use the 1234buttons to move through the zoomed

picture.

4 To r esume normal playback, press ZOOM repeatedly or

CLEAR button.

Note

● The zoom function may not work for some DVDs.

● Screen fit mode is available for playing the DVD disc,VR

disc and movie file.

Marker Search

You can start playback from a memorized point.Up to nine points can be memorized. To enter a mark, follow these steps.

1 During disc playback, press MARKER when playback

reaches the spot that you want to memorize.

The Marker icon will appear on the TV screen briefly.

2 Repeat step 1 to enter up to nine Marker points on a disc.

To Recall a Marked Scene

1 During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2 Within 10 seconds, press 1/2 to select a Marker number

that you want to recall.

3 Press OK.

Playback will start from the Marked scene.

4 To r emove the MARKER SEARCH menu, press SEARCH.

To clear a Marked Scene

1 During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2 Within 10 seconds, press 1/2 to select a Marker number

that you want to erase.

3 Press CLEAR.

The Marker number will be erased from the list.

4 Repeat steps 2 and 3 to erase additional Marker numbers. 5 To r emove the MARKER SEARCH menu, press SEARCH.

Special DVD Features

Checking the contents of DVD Video discs: Menus

DVDs may offer menus that allow you to access special features.To use the disc menu, press DISC MENU. Then, press the appropriate number button to select an option. Or, use the 1/2/3/4 buttons to highlight your selection, then press OK.

Title Menu

1 Press TITLE.

If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.

2 The menu can list camera angles, spoken language and

subtitle options, and chapters for the title.

3 To r emove the title menu, press TITLE again.

Disc Menu

1 Press DISC MENU.

The disc menu is displayed.

2 To r emove the disc menu, press DISC MENU again.

Camera Angle

If the disc contains sequences recorded from different camera angles, the angle icon blinks on the TV screen.You can then change the camera angle if you wish.

● Press ANGLE repeatedly during playback to select a

desired angle.

The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear a different audio language or audio track. With DVD-RW discs recorded in VR mode that have both a main and a Bilingual audio channel, you can switch between Main (L), Bilingual (R), or a mix of both (Main + Bilingual) by pressing AUDIO.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a different audio channel (STEREO, LEFT or RIGHT).

Subtitles

Press SUBTITLE repeatedly during playback to see the different subtitle languages.

Notes

● The subtitle file of the DivX file is displayed only smi, srt and sub.

● If there is no information or there is a code that can not read in the DivX file,“1” or etc. are displayed.

DivX

DVD

VCD1.1VCD2.0

DivX

DVD

DivX

VCD1.1VCD2.0

DVD

DivX

VCD1.1VCD2.0

DVD

1/9

MARKER SEARCH

1 /1

1 ENG

2/2.1 CH

Page 28

English

Operation with Audio and MP3 Disc

Playing an Audio CD and MP3 Disc

The DVD Player can play MP3 formatted recordings on CD-ROM, CD-R or CD-RW discs. Before playing MP3 recordings, read the notes on MP3 Recordings on right.

Audio CD

Once you insert an audio CD a menu appears on the TV screen. Press 3/4 to select a track then press PLAY or

OK and playback starts.

MP3

1 Press 3/4 to select a folder, and press OK to see the

folder contents.

2 Press 3/4 to select a track then press PLAY or OK.

Playback starts.

Tips

– If you are in a file list on the “MUSIC” menu and want to

return to the Folder list, use the 3/4 to highlight and press OK.

–Press DISC MENU to go to the next page. – On a CD with MP3 and JPEG you can switch MP3 and

JPEG. Press TITLE and “MUSIC” or “PHOTO” word on top of the menu is highlighted.

– When playing a file containing information such as track

titles, you can see the information by pressing DISPLAY.

Notes on MP3 Recordings

MP3 Disc compatibility with this player is limited as follows:

1 Sampling Frequency / within 8 - 48 kHz (MP3) 2 Bit rate / within 8 - 320 kbps (MP3), 3 The player cannot read an MP3 file that has a file

extension other than “.mp3”.

4 CD-R physical format should be “ISO 9660” 5 If you record MP3 files using the software which cannot

create a file system, for example “Direct-CD” etc., it is impossible to playback MP3 files.We recommend that you use “Easy-CD Creator”, which creates an ISO9660 file system.

6 File names should be named using 8 letters or less and

must incorporate “.mp3” extension.

7 Do not use special letters such as “/ : * ? “ < > ” etc. 8 Total number of files on the disc should be less than 650.

This DVD player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards.There are many different types of recordable disc formats (including CD-R containing MP3 files).That require certain pre-existing conditions (see above) to insure compatible playback.

Customers should also note that permission is required in order to download MP3 files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

MP3

Page 29

English

Operation with Audio and MP3 Disc (Continued)

Pause

1 Press PA USE/STEP during playback. 2 To r eturn to playback, press PLAY B, OK or press

PAUSE/STEP again.

Moving to another Track

● Press S or T briefly during playback to go to the

next track or to return to the beginning of the current track.

● Press S twice briefly to step back to the previous

track.

● In case of audio CD, to go directly to any track, enter the

track number using the numbered buttons (0-9).

Repeat Track/All/Off

1 To r epeat the track currently playing, press REPEAT.

The Repeat icon and “TRACK” appears on the menu screen.

2 To r epeat all tracks on a disc, press REPEAT a second

time.

The Repeat icon and “ALL” appears on the menu screen.

3 To cancel Repeat mode, press REPEAT a third time.

1 Press S or T for about two seconds during

playback.

The player will now go into SEARCH mode.

2 Press S or T repeatedly to select the required

speed: QX2,QX4, QX8 (backward) or RX2, RX4, RX8 (forward).

Search speed and direction are indicated on the menu screen.

3 To exit SEARCH mode, press PLAY B.

Shuffle

1 Press SHUFFLE during playback or when playback is

stopped. The unit automatically begins Random Playback and “RANDOM” appears on the menu screen.

2 To r eturn to normal playback, press SHUFFLE.

“RANDOM” disappears on the menu screen.

Note

By pressing T during shuffle playback, the unit selects another track and resumes shuffle playback.

Repeat A-B

To r epeat a sequence.

1 During disc playback, press REPEAT A-B at your chosen

starting point.

The Repeat icon and “A” appears on the menu screen.

2 Press REPEAT A-B again at your chosen end point.

The Repeat icon and “A-B” appears on the menu screen, and the sequence begins to play repeatedly.

3 To exit the sequence and return to normal play, press

REPEAT A-B again.

3D Surround

1 Press AUDIO during playback.

"3D SUR." appears on the menu screen.

2 To r eturn to normal playback, press AUDIO repeatedly

until "3D SUR." disappears from the menu screen.

MP3

Page 30

English

Operation with JPEG Disc

Viewing a JPEG disc

This DVD+VCR can play discs with JPEG files and Kodak picture CD. Before playing JPEG recordings,read the notes on JPEG Recordings on right.

Insert a disc and close the tray.

The PHOTO menu appears on the TV screen.

Press 3/4 to select a folder then press OK. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the 3/4 buttons on the remote to highlight “

”

and press OK

If you want to view a particular file, press 3/4 to highlight a file and press OK or PLAY B. Viewing the file proceeding starts. While viewing a file, you can press STOP to move to the previous menu (PHOTO menu).

Press DISC MENU to move to the next page.

Slide Show

Use 1234to highlight the (Slide Show) then press

OK.

Tips

● There are three Slide Speed options : >>> (Fast), >>

(Normal) and > (Slow).

● On a disc with MP3 and JPEG you can switch MP3 and

JPEG. Press TITLE and MUSIC or PHOTO word on top of the menu is highlighted.

● Press RETURN, information of file is hidden.

Moving to another File

Press S or T once during viewing a picture to advance to the next file or to the previous file.

Still Picture

1 Press PA USE/STEP during slide show.

The player will now go into PAUSE mode.

2 To r eturn to the slide show, press PLAY B or press

PAUSE/STEP again.

Zoom

Use zoom to enlarge the photo image. (see 27 page)

To r otate picture

Press 3/4 during showing a picture to rotate the picture clockwise or counter clockwise.

To listen to MP3 music watching picture

You can display files while listening to MP3 music files recorded on the same disc.

1 Insert the disc containing the two types of file in the

player.

2 Press TITLE to display PHOTO menu. 3 Press 3/4 to select a photo file.

4 Use 2/4 to select icon then press OK.

Playback starts.The playback will continue until STOP is pressed.

Tip

To listen to only desired music watching picture, programme the desired tracks from the “MUSIC” menu and then proceed as above.

Notes on JPEG Recordings

● Depending upon the size and number of the JPEG files, it

could take a long time for the DVD+VCR to read the disc’s contents. If you don’t see an on-screen display after several minutes, some of the files are too big — reduce the resolution of the JPEG files to less than 2M pixels as 2760x2048 pixels and burn another disc.

● Total number of files and folders on the disc should be less

than 650.

● Some disc may be incompatible due to different recording

format or condition of disc.

● Ensure that all the selected files have the “.jpg” extensions

when copying into the CD layout.

● If the files have “.jpe” or “.jpeg” extensions, please rename

them as “.jpg” files.

● File names without “.jpg” extension will not be able to be

read by this DVD+VCR. Even though the files are shown as JPEG image files in windows explorer.

JPEG

Page 31

English

Programmed Playback

MP3

VCD1.1VCD2.0

Programmed Playback with Audio CD and MP3 Disc

The Program function enables you to store your favorite tracks from any disc in the player memory. Program can contain 30 tracks.

Press PROGRAM during playback or in the stop mode to enter the Program Edit mode.

The mark will appear to the right of the word “Program” on the right side of the menu screen.

Note

Press PROGRAM to exit the Program Edit mode; the mark will disappear.

Select a track, then press OK to place the selected track on the Program list.

Repeat step 2 to place additional tracks on the Program list.

Audio CD menu MP3 menu

Press 2.

The programmed track you selected last is highlighted on the program list.

Use 3/4 to select the track you want to start playing.

Press PLAY B to start.

Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the Program list have played once.

To r esume normal playback from programmed playback, then select a track of Audio CD (or MUSIC) list and then press PLAY.

Programmed Playback with Video CD

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 19.

Insert Video CD and close the tray.

Press PROGRAM while playback is stopped.

The VCD Program menu will appear.

Note Press RETURN or PROGRAM to exit the Program menu.

Follow steps 2-6 of “Programmed Playback with Audio CD and MP3 disc” on left.

To r esume normal playback from programmed playback, press PROGRAM.

“NORMAL” appears on the TV screen.

Repeat Programmed Tracks

● To r epeat the track currently playing, press REPEAT.

The Repeat icon and “TRACK” appears on the menu screen.

● To r epeat all tracks on the program list, press REPEAT a

second time.

The Repeat icon and “ALL” appears on the menu screen.

● To cancel Repeat mode, press REPEAT a third time.

Note

If you press T once during Repeat Track playback, the repeat playback cancels.

Erasing a Track from Program List

1 Press PROGRAM in the stop mode to enter the

Program Edit mode (Video CD).

2 Press 2 to move to the Program list. 3 Use 3/4 to select the track that you wish to erase from

the Program list.

4 Press CLEAR.

The track will be erased from the Program list.

Erasing the Complete Program List

1 Follow steps 1-2 of “Erasing a Track from Program List” as

above.

2 Use 3/4 to select “Clear All”, then press OK.

The complete Program for the disc will be erased. The programs are also cleared when the disc is removed.

Page 32

English

Operation with DVD VR Disc

DVD

Playing a DVD VR format Disc

This DVD+VCR can play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using the DVD-recorder. This unit will play DVD-RW discs recorded using the Video Recording (VR) format.

Insert a disc and close the tray.

The DVD-VR menu appears on the TV screen.

Press 3/4 to select a track then press OK or PLAY B and playback starts.

Press TITLE to move to the list menu.

Notes

● Unfinalized DVD-R/RW discs cannot be played in this

player.

● Some DVD-VR disc are made with CPRM data by DVD

RECORDER. Player doesn not support these kind of discs.

What is ‘CPRM’?

CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast programs. CPRM stands for Content Protection for Recordable Media. This player is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode, and CPRM recordings can only be played on players that are specifically compatible with CPRM.

Maintenance and Service

Refer to the information in this chapter before contacting a service technician.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.

• Do not leave rubber or plastic products in contact with the unit for a long period of time since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft,dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use. For details, please contact your nearest authorized service center.

Page 33

English

Operation with DivX Disc

DivX

Playing a DivX Movie Disc

This DVD+VCR can play DivX movie disc.

Insert a disc and close the tray.

The MOVIE menu appears on the TV screen.

Press 3/4 to select a folder then press OK. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the 3/4 buttons on the remote to highlight “

”

and press OK

If you want to view a particular file, press 3/4 to highlight a file and press OK or PLAY B.

Press STOP to exit.

Tips

● Press DISC MENU to move to the next page.

● On a CD with MP3, JPEG and MOVIE file, you can switch

MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

DivX disc compatibility with this player is limited as follows:

● Available resolution size of the DivX file is under 720x576

(W x H) pixel.

● The file name of the DivX subtitle is available by 56

characters.

● If there is impossible code to express in the DivX file, it

may be displayed as " _ " mark on the display.

● If the number of the screen frame is over 30 per 1

second, this unit may not operate normally.

● If the video and audio structure of recorded file is

not interleaved, either video or audio is outputted.

● If the file is recorded with GMC, the unit supports

only 1-point of the record level.

* GMC? GMC is the acronym for Global Motion Compensation. It is an encoding tool specified in MPEG4 standard. Some MPEG4 encoders, like DivX or Xvid, have this option. There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

Playable DivX file

● ".avi ", ".mpg ", ".mpeg "

Playable Codec format

● "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "XVID ",

"MP43 ", "3IVX ".

Playable Audio format

● "AC3 ", "DTS ", "PCM ", "MP3 ".

• Sampling frequency: within 8 - 48 kHz (MP3),

• Bit rate: within 8 - 320kbps (MP3)

Video Mode Setting

● With certain discs, the playback picture may be flickering

or Dot Crawl is shown on straight lines.That means Ver tical interpolation or De-interlace is not perfectly matched with the disc. In this case, the picture quality may be improved by changing the video mode.

● To change the video mode, press and hold DISPLAY about

3 seconds during disc playback.The new video mode number selected is displayed on the TV screen. Check whether the video quality has improved. If not, repeat the above procedure until picture quality is improved.

● Video mode sequence:

MODE1 ➔ MODE2 ➔ MODE3 ➔ MODE1

● If you turn off the power, the video mode will return to

initial default state (MODE1).

Detailed Description of each Video Mode

MODE1 :The source material of the DVD video (film

material or video material) is determined from disc information. MODE2 : Suitable for playing film based content or video based material recorded by the progressive scan method. MODE3 : Suitable for playing video based content with comparatively little motion.

Note

The video mode setting only works when the Progressive

Scan mode is set to “On” on the setup menu.

VCD1.1VCD2.0

DVD

Page 34

English

Additional Operation

On Screen Display

You may easily display the current time or tape counter, amount of tape left, day, month, year, day of week, programme channel, tape speed and operational mode of your VCR on the TV screen. If a recording is taking place these On Screen Displays will not be recorded onto the tape.

Press DISPLAY to display. Press DISPLAY repeatedly to cycle through the display options.The tape counter and amount of tape left will appear if there is a tape loaded.

After 3 seconds the majority of the On Screen Displays will clear leaving only the clock or tape counter and the amount of tape left on the screen. Press DISPLAY again to remove all displays from the TV screen.

Ta pe Counter Memory Stop

The Digital Tape Counter can be displayed on the display window instead of the time by pressing DISPLAY on the remote control.The Digital Tape Counter indicates the relative positions of recordings on the tape.

Press DISPLAY. Press CLEAR to set the counter to 0:00:00. Press PLAY B or start recording. The tape counter will display the actual play time in hours, minutes and seconds.

Press STOP 9 when playback or recording is complete. Press S. The tape will rewind and automatically stop when the counter returns to 0:00:00.

Child Lock

The control buttons on the front of the unit can be switched off so that your unit can only be operated using the remote control.

Press C.LOCK.

and SAFE will appear in the display window.

None of the buttons on the front of your unit will work.

If any buttons on the front of your unit are pressed SAFE will flicker in the display window for a few seconds.

Press C.LOCK again to switch off the child lock. OFF will appear in the display window.

Note

–C.LOCK is not available on the DVD mode.

Video Doctor (Self-Diagnosis)

This feature informs you that there is a problem with your VCR.These error messages will appear on the TV screen.

Press SYSTEM MENU. Press 11or 22to select Dr. Press OK.

Press 33or 44to check a problem.

HEAD STATUS

O PLEASE CLEAN:

Clean your video heads.

TAPE STATUS

O NOT RECORDABLE:

Insert a tape with its protection tab in place

NO. OF TIMER PROGRAMME

O 2

Shows the number of timer recording.

NEXT TIMER PROGRAMME

O PR-01 26 10:00~11:00 SP

Shows the current status of timer recording.

Press SYSTEM MENU.

VCR

Pr-12

TIME

SET

REC

ACMS

DATE

OSD

16:9

DECO-

AUDIO

OFF

4:3

DER

VCR

VIDEO DOCTOR

Dr.

HEAD STATUS TAPE STATUS NO. OF TIMER PROGRAMME NEXT TIMER PROGRAMME

SYS-

TEM

OPR

VCR

Dr.

NIC

Page 35

English

Additional Operation (Continued)

Hi-Fi Stereo Sound System

Your VCR will record and playback Hi-Fi stereo sound. In addition it has a stereo NICAM digital stereo sound decoder.This allows you to record and playback the sound in several different ways.Video cassettes recorded on your VCR will have a normal mono audio track and two VHS Hi-Fi stereo audio tracks.These stereo tracks allow you to make audio recordings in Hi-Fi stereo or bilingual mode from a TV broadcast, stereo audio system, video disc or another Hi-Fi VCR.

Your VCR’s NICAM digital sound decoder allows you to enjoy broadcasts with NICAM sound, as well as standard stereo, bilingual and mono sound.The particular type of sound received or that recorded will be briefly displayed on the TV screen for a couple of seconds:

STEREO NICAM

Sound is automatically recorded on the Hi-Fi stereo and mono tracks of the video tape.

BIL NICAM

Both audio channels will be recorded on the Hi-Fi stereo tracks.The primary language channel (left) will be recorded on the mono track of the video tape.

MONO

The sound is recorded on the Hi-Fi tracks and the mono track of the video tape without any separation.

Press SYSTEM MENU.Press F or G to select AUDIO.

Press D or E to select STEREO, LEFT, RIGHT and MONO.

In BIL NICAM playback the primary language is output

on the left channel and the secondary channel is output simultaneously from the right channel when audio output is set to STEREO.The primary language will be output from both channels when the audio setting is MONO. Please note that when adjusting the tracking control HiFi stereo sound may revert to MONO.

Wide Screen Compatibility 16:9

Your VCR can record and play back wide screen aspect ratio programmes (16:9).To record a wide screen format programme successfully the correct type of wide screen signal must be broadcast by the TV station.

Switch on your VCR. Press SYSTEM MENU. Press 11or 22to select 16:9/4:3. Press OK.

Press 33or 44repeatedly to select: AUTO, 4:3 or 16:9. AUTO:

Automatically plays back Wide-Screen programmes as Wide-Screen and Normal programmes as normal.

4:3

Only for playing back and recording Normal format recordings (4:3).

16:9:

Only for playing back and recording Wide-Screen format recordings (16:9).

Press SYSTEM MENU to remove the menus from the TV screen. To enjoy Wide-Screen playback you must connect your VCR to the TV using a SCART cable.

To set the decoder

We have already described, how to connect a decoder for pay-TV station as CANAL+ or PREMIERE on page 10.For the recording of an encoded station you do not have to control anything.You just select the station and wait shortly until the decoding will start.

Press SYSTEM MENU. The main menu will appear on the TV screen. Press 11or 22to select the DECODER. Press OK.

Press 33or 44to select.

ON: When the decoder is connected to the AV2 socket. OFF:When another VCR is connected to the AV2

socket. Press SYSTEM MENU to return to a TV picture.

Last Condition Memory

This player memorizes the last condition for the last disc you have watched. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, the latest stop position is automatically recalled.

Notes

– Settings are stored in memory for use any time. – This player does not memorize settings of a disc if you

switch off the player before commencing to play it.

VCD1.1

DVD

REC

Pr-12

ACMS

SET

TIME

DATE

SYS-

TEM

OSD ON OFF

OSD

16:9 4:3

16:9

4:3

Dr.

VCR

OPR

NIC

DECO-

DER

AUTO 4:3 16:9

AUDIO

REC

Pr-12

ACMS

SET

TIME DATE

OSD ON OFF

OSD

16:9

4:3

16:9

4:3

OPR

SYS-

TEM

Dr.

VCR

NIC

DECO-

DER

AUTO 4:3 16:9

AUDIO

REC

Pr-12

ACMS

SET

TIME DATE

SYS-

TEM

OSD ON OFF

OSD

16:9

4:3

16:9

4:3

Dr.

VCR

OPR

NIC

DECO-

DER

AUDIO

Page 36

English

Special Recording

Copying from DVD To VCR

This unit allows you to copy the contents of a DVD to a VHS tape with a press of the D.DUBBING button.

Notes

● Be sure to set ‘Progressive Scan’ to “Off” on the setup menu.

● If the DVD you are attempting to copy is copy protected, you may not be able to copy the disc.

Insert Disc

Insert the disc you wish to copy in the DVD deck and close the disc tray.

Insert VHS Tape

Insert a blank VHS videotape into the VCR deck.

Copy the DVD to VHS Tape

Press the D.DUBBING button or RECORD on the unit front panel or press the REC/ITR on the remote control.

● The DVD will go into Play mode and the VCR will go

into Record mode.

● If the DVD disc menu appears, you may need to press

the Play button manually to begin copying.

Note

If you press RECORD or REC/ITR button, make sure the player is in DVD mode.

Stop the Copy Process.

When the DVD is finished playing, press the STOP button to end the copy.

● You must stop the Copy process manually when the

DVD movie ends, or the unit may replay and record over and over again.

Recording from another video recorder

With this video recorder you can make recordings from an external source, such as copying from another video recorder or a camcorder.

Note

In the following description, this video recorder will be one used for recording and will be referred to as VCR B. The other appliance will be used for playback and will be referred to as VCR A.

VCR A should be connected to the SCART socket on the rear panel of your unit or the AV sockets on the front panel of your unit.

Insert the recorded tape into VCR A and a blank tape into VCR B.

Press INPUT until the socket you wish to record from is displayed. (VCR B).

To start recording, press the RECORD on VCR B and PLAY B on VCR A.

When you want to finish copying, press the STOP 9 on both video recorders.

Page 37

English

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

DVD or VCR do not work properly.

No power.

The power is on, but the DVD player does not work.

No picture.

No sound.

The picture is poor.

The DVD player does not start playback.

The remote control does not work properly.

Video tape cannot be inserted.

No Hi-Fi sound

No NICAM sound recording

Cause

● DVD or VCR button is not switched properly.

● The power cord is disconnected.

● No disc is inserted.

● The TV is not set to receive DVD signal

output.

● The video cable is not connected securely.

● The equipment connected with the audio

cable is not set to receive DVD signal output.

● The audio cables are not connected securely.

● The power of the equipment connected with the audio cable is turned off.

● The Digital Audio Output is set to the wrong position.

● The disc is dirty.

● The TV channels are not tuned in properly.

● An unplayable disc is inserted.

● The disc is placed upside down.

● The disc is not placed within the guide.

● The disc is dirty.

● The Rating level is set.

● There is an obstacle in the path of the

remote control and this unit.

● The batteries in the remote control are exhausted.

● Is the cassette compartment empty?

● Audio mode is not set properly.

● NICAM mode is not set properly.

Correction

● Refer to page 6.

● Plug the power cord into the wall outlet

securely.

● Insert a disc.

● Select the appropriate video input mode on

the TV so the picture from the DVD player appears on the TV screen.

● Connect the video cable into the jacks securely.

● Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.

● Connect the audio cable into the jacks securely.

● Turn on the equipment connected with the audio cable.

● Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing POWER.

● Clean the disc.

● Check tuning, carry out tuning again.

● Insert a playable disc. (Check the disc type

and Regional code.)

● Place the disc with the playback side down.

● Place the disc on the disc tray correctly inside

the guide.

● Clean the disc.

● Cancel the Rating function or change the

rating level.

● Remove the obstacle.

● Replace the batteries with new ones.

● Eject the tape in.

● Switch ‘AUDIO’ in the main menu to

‘STEREO’.

● Make sure NICAM in the menu is set to AUTO for the station to be recorded.

Video Head Cleaning

Whenever a video cassette is inserted into or ejected from your VCR the video head is automatically cleaned.This should mean that additional head cleaning should not be necessary. However dirt accumulating on the head after a long period of time can cause the playback picture to become blurred or broken up. High quality video cassette tapes will not normally deposit dirt onto the video head, but old or damaged tapes might.

Page 38

English

Language Code List

Enter the appropriate code number for the initial settings “LANGUAGE” (See page 18).

Code Language

6566 Abkhazian

6565 Afar

6570 Afrikaans

8381 Albanian

6577 Ameharic

6582 Arabic

7289 Armenian

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6985 Basque

6678 Bengali; Bangla

6890 Bhutani

6672 Bihari

6682 Breton

6671 Bulgarian

7789 Burmese

6669 Byelorussian

7577 Cambodian

6765 Catalan

9072 Chinese

6779 Corsican

7282 Croatian

6783 Czech

6865 Danish

7876 Dutch

6978 English

6979 Esperanto

6984 Estonian

7079 Faroese

Code Language

7074 Fiji

7073 Finnish

7082 French

7089 Frisian

7176 Galician

7565 Georgian

6869 German

6976 Greek

7576 Greenlandic

7178 Guarani

7185 Gujarati

7265 Hausa

7387 Hebrew

7273 Hindi

7285 Hungarian

7383 Icelandic

7378 Indonesian

7365 Interlingua

7165 Irish

7384 Italian

7465 Japanese

7487 Javanese

7578 Kannada

7583 Kashmiri

7575 Kazakh

7589 Kirghiz

7579 Korean

7585 Kurdish

7679 Laothian

7665 Latin

7686 Latvian, Lettish

Code Language

7678 Lingala

7684 Lithuanian

7775 Macedonian

7771 Malagasy

7783 Malay

7776 Malayalam

7784 Maltese

7773 Maori

7782 Marathi

7779 Moldavian

7778 Mongolian

7865 Nauru

7869 Nepali

7879 Norwegian

7982 Oriya

8065 Panjabi

8083 Pashto, Pushto

7065 Persian

8076 Polish

8084 Portuguese

8185 Quechua

8277 Rhaeto-Romance

8279 Rumanian

8285 Russian

8377 Samoan

8365 Sanskrit

7168 Scots Gaelic

8382 Serbian

8372 Serbo-Croatian

8378 Shona

8368 Sindhi

Code Language

8373 Singhalese

8375 Slovak

8376 Slovenian

8379 Somali

6983 Spanish

8385 Sudanese

8387 Swahili

8386 Swedish

8476 Tagalog

8471 Tajik

8465 Tamil

8484 Tatar

8469 Telugu

8472 Thai

6679 Tibetan

8473 Tigrinya

8479 Tonga

8482 Turkish

8475 Turkmen

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

6789 Welsh

8779 Wolof

8872 Xhosa

7473 Yiddish

8979 Yoruba

9085 Zulu

Page 39

English

Country/Area Code List

Code Country/Area

AD Andorra AE United Arab Emirates AF Afghanistan AG Antigua and Barbuda AI Anguilla AL Albania AM Armenia AN Netherlands Antilles AO Angola AQ Antarctica AR Argentina AS American Samoa AT Austria AU Australia AW Aruba AZ Azerbaidjan BA Bosnia-Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain BI Burundi BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island BW Botswana BY Belarus BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic CG Congo CH Switzerland CI Ivory Coast CK Cook Islands CL Chile CM Cameroon CN China CO Colombia CR Costa Rica CS Former Czechoslovakia CU Cuba CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti DK Denmark DM Dominica DO Dominican Republic DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara

Code Country/Area

ER Eritrea ES Spain ET Ethiopia FI Finland FJ Fiji FK Falkland Islands FM Micronesia FO Faroe Islands FR France FX France (European

Te r ritory) GA Gabon GB Great Britain GD Grenada GE Georgia GF French Guyana GH Ghana GI Gibraltar GL Greenland GM Gambia GN Guinea GP Guadeloupe (French) GQ Equatorial Guinea GR Greece GS S. Georgia & S. Sandwich Isls. GT Guatemala GU Guam (USA) GW Guinea Bissau GY Guyana HK Hong Kong HM Heard and McDonald Islands HN Honduras HR Croatia HT Haiti HU Hungary ID Indonesia IE Ireland IL Israel IN India IO British Indian Ocean

Te r ritory IQ Iraq IR Iran IS Iceland IT Italy JM Jamaica JO Jordan JP Japan KE Kenya KG Kyrgyzstan KH Cambodia6 KI Kiribati KM Comoros KN Saint Kitts & Nevis Anguilla KP North Korea KR South Korea KW Kuwait KY Cayman Islands KZ Kazakhstan LA Laos LB Lebanon

Code Country/Area

LC Saint Lucia LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libya MA Morocco MC Monaco MD Moldavia MG Madagascar MH Marshall Islands MK Macedonia ML Mali MM Myanmar MN Mongolia MO Macau MP Northern Mariana Islands MQ Martinique (French) MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives MW Malawi MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia (French) NE Niger NF Norfolk Island NG Nigeria NI Nicaragua NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand OM Oman PA Panama PE Peru PF Polynesia (French) PG Papua New Guinea PH Philippines PK Pakistan PL Poland PM Saint Pierre and Miquelon PN Pitcairn Island PR Puerto Rico PT Portugal PW Palau PY Paraguay QA Qatar RE Reunion (French) RO Romania RU Russian Federation RW Rwanda SA Saudi Arabia SB Solomon Islands

Code Country/Area

SC Seychelles SD Sudan SE Sweden SG Singapore SH Saint Helena SI Slovenia SJ Svalbard and Jan Mayen

Islands SK Slovak Republic SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname ST Saint Tome and Principe SU Former USSR SV El Salvador SY Syria SZ Swaziland TC Turks and Caicos Islands TD Chad TF French Southern Territories TG Togo TH Thailand TJ Tadjikistan TK Tokelau TM Turkmenistan TN Tunisia TO Tonga TP East Timor TR Turkey TT Trinidad and Tobago TV Tuvalu TW Taiwan TZ Tanzania UA Ukraine UG Uganda UK United Kingdom UM USA Minor Outlying Islands US United States UY Uruguay UZ Uzbekistan VA Vatican City State VC Saint Vincent & Grenadines VE Venezuela VG Virgin Islands (British) VI Virgin Islands (USA) VN Vietnam VU Vanuatu WF Wallis and Futuna Islands WS Samoa YE Yemen YT Mayotte YU Yugoslavia ZA South Africa ZM Zambia ZR Zaire ZW Zimbabwe

Enter the appropriate code number for the initial setting “Country Code” (See page 20).

Page 40

English

Specification

P/NO: 3834RV0020D

General

Power requirements AC 220-230V, 50Hz Power consumption 19W Dimensions (approx.) 430 X 78.5 X 265 mm (w/h/d) Mass (approx.) 4.06 kg Operating temperature 5˚C to 35˚C (41˚F to 95˚F) Operating humidity 5 % to 90 % Timer 24 hours display type

System

Laser Semiconductor laser, wavelength 650 nm Video Head system Double azimuth 6 heads, helical scanning. Signal system PAL Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz

DVD (PCM 48 kHz): 8 Hz to 22 kHz

CD: 8 Hz to 20 kHz Signal-to-noise ratio More than 100dB (ANALOG OUT connectors only) Harmonic distortion Less than 0.008% Dynamic range More than 100 dB (DVD)

More than 95 dB (CD)

Inputs (VCR)

Audio -6.0dBm, more than 10 kohms (SCART)

-6.0dBm, more than 47 kohms (RCA)

Video 1.0 Vp-p,75 ohms, unbalanced (SCART/RCA)

Outputs (DVD)

VIDEO OUT 1 Vp-p 75 ohms, sync. negative S-VIDEO OUT (Y) 1 Vp-p 75 ohms, negative sync., Mini Din 4-pin x 1

(C) 0.3 Vp-p 75 ohms COMPONENT VIDEO OUT (Y) 1 Vp-p 75 ohms, negative sync., RCA jack x 1 (Progressive Scan) (Pb)/(Pr) 0.7 Vp-p 75 ohms, RCA jack x 2 RGB output 0.7 Vp-p 75 ohms Audio output (digital audio) 0.5 V (p-p), 75 ohms, RCA jack x 1 Audio output (optical audio) 3 V (p-p), 75 ohms,Optical connector x 1 Audio output (analog audio) 2.0 Vrms (1 kHz, 0 dB), 600 ohms, RCA jack (L, R) x 2/SCART (TO TV)

Outputs (VCR)

Audio -6.0dBm, less than 1 kohms (SCART) Video 1.0Vp-p, 75 ohms, unbalanced (SCART) RGB output 0.7 Vp-p 75 ohms

Design and specifications are subject to change without notice.

Manufactured under license from Dolby Laboratories.“Dolby”,“Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
