Philips DVP720SA/93, DVP720SA/02, DVP720SA/00, DVP720SA User Manual

Download
Page 1

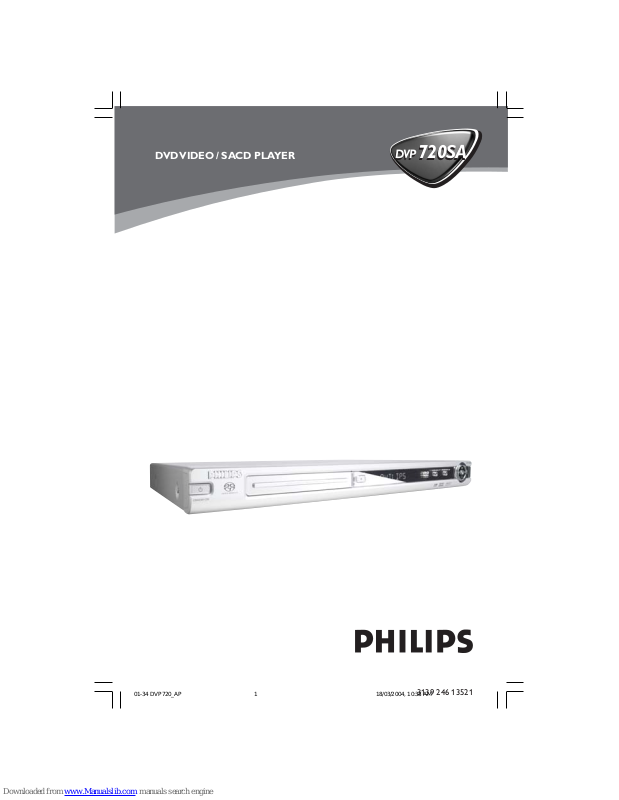

3139 246 13521
DVD VIDEO / SACD PLAYER
DVP
720SA
DVP
720SA
01-34 DVP720_AP 18/03/2004, 10:38 AM1
Page 2
General Information
CAUTION (WARNING LOCATION: ON THE BACKPLATE OF THE SET)
NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.
Laser safety
This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.
NOTE: PICTURES SHOWN MAYBE DIFFERENT BETWEEN COUNTRIES.
LASER
Type Semiconductor laser
GaAlAs
Wave length 650 nm (DVD)
780 nm (VCD/CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degree
For Customer Use:
Read carefully the information located at the bottom of your DVD VIDEO player and enter below the Serial No. Retain this information for future reference.
Model No. DVD VIDEO 720SA Serial No. _______________
Environmental Information
All unnecessary packaging has been omitted. The packaging has been made easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your DVD player consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Important Note: Due to the numerous versions of new CD-Audio copy protection or enhanced CD-Audio protection recently available on certain discs, Philips is unable to guarantee that this DVD Player is fully compatible with such new discs. Should you have difficulty playing any such CD-Audio discs, kindly refer them to your CD­Audio disc retailer.
DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
01-34 DVP720_AP 18/03/2004, 10:38 AM2
Page 3
3139 246 13521
English
Français
Deutsch
Nederlands
3
Index
English --------------------------------------- 6
-------------------------------- 35
-------------------------------- 65
Bahasa Melayu --------------------------- 95
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro-Logic” and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license from Digital Theater Systems, inc. US Pat. No. 5,451,942 and other worldwide patents issued and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. 1996 Digital Theater Systems, Inc. All rights reserved.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Due to the inconsistency of disc formats provided by various disc manufacturers, your DVD system may require a playability enhancement or upgrade. As DVD technology advances, these enhancements will become common and will be easy to complete.
Go to www.p4c.philips.com for software upgrade.
“DTS”, and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.
01-34 DVP720_AP 18/03/2004, 10:38 AM3
Page 4
English
4
Introduction
Supplied accessories ....................................... 5
Care and safety information.......................... 5
Connections
Connecting TV .............................................. 6-7
Using Composite Video jacks (CVBS) ........ 6
Using S-Video jack .......................................... 6
Using Component Video jacks (Pr Pb Y) ... 7
Using an accessory RF modulator .............. 7
Connecting the power cord.......................... 8
Optional: Connecting to a Multi-channel
Receiver ............................................................. 8
Receiver has a Dolby Digital or DTS
decoder ............................................................. 8
Optional : Connecting to an Audio System ... 9
Stereo system has Dolby Pro Logic or Right
/ Left Audio In jack ......................................... 9
Optional: Connecting Digital AV Receiver ..... 9
Receiver has a PCM, Dolby Digital, or
MPEG2 decoder .............................................. 9
Functional Overview
Front and Rear Panels .................................. 10
Remote Control ............................................ 11
Getting Started
Step 1: Inserting batteries into the
Remote Control ............................................ 12
Using the Remote Control to operate the
Player ............................................................... 12
Step 2: Setting up the TV ........................12-13
To deactivate Progressive manually ... 12-13 Selecting the colour system that
corresponds to your TV .............................. 13
Step 3: Setting language preference ...........14
Setting the OSD Language .......................... 14
Setting the Audio, Subtitle and Disc menu
language .......................................................... 14
Step 4: Setting the speakers’ channels....... 15
Disc Operations
Playable Discs ................................................. 16
Region Codes ................................................. 16
Playing discs..................................................... 16
Basic playback controls................................. 17
Selecting various repeat/shuffle functions ..17
Repeat play mode ......................................... 17
Repeating a section within a chapter/track .... 17
Operations for video playback ................... 18
Using the Disc Menu .................................... 18
Zooming in ..................................................... 18
Resuming playback from the last stopped
point ................................................................ 18
Using the OSD menu .................................. 18
Special DVD features .................................... 19
Playing a Title ................................................. 19
Camera Angle ................................................ 19
Changing the Audio Language .................... 19
Subtitles .......................................................... 19
Special VCD & SVCD Features ............. 19-20
Playback Control (PBC) .............................. 19
Preview Function .......................................... 20
Playing MP3/DivX/MPEG-4/JPEG/Kodak
Picture CD ................................................20-21
General Operation ....................................... 20
Selecting a folder and track/file ................. 21
Playing Super Audio CD (SACD) ............... 21
Special picture disc features ........................ 22
Preview Function .......................................... 22
Zoom picture ................................................ 22
Playback with multi-angles .......................... 22
Scan Effect ...................................................... 22
Playing MP3 music and JPEG picture
simultaneously ............................................... 22
DVD Menu Options
General Setup menu ............................... 23-24
Locking/Unlocking the disc for viewing ... 23
Dimming system’s display screen .............. 23
Programming disc tracks .......................23-24
Screen Saver - turning on/off ..................... 24
DivX(R) VOD registration code ............... 24
Audio Setup Menu ................................... 24-25
Digital Audio Setup....................................... 25
Setting the analogue output ....................... 25
Speaker Setup ................................................ 25
CD Upsampling ............................................. 25
Night Mode - turning on/off ....................... 26
Video Setup Menu ................................... 26-27
TV Type ........................................................... 26
Setting the TV Display ................................. 26
Progressive - turning on/off........................ 27
Picture Setting ........................................ 27-28
Preference Page........................................ 28-29
Audio, Subtitle, Disc Menu .......................... 28
Restricting playback by Parental Control ... 29
PBC .................................................................. 29
MP3/JPEG Menu - turning on/off ............... 29
Changing the Password ............................... 30
Restoring to original settings ..................... 30
Specifications ......................................31
Tr oubleshooting ......................... 32–33
Glossary ......................................................................34
Contents
01-34 DVP720_AP 18/03/2004, 10:38 AM4
Page 5
3139 246 13521
English
5
Supplied accessories
Remote Control and two AA batteries
General Information
Care and safety information
● Power consumption
– Check that the operating voltage indicated on the typeplate (or beside the voltage selector) is identical to the voltage of your local power supply. If not, please consult your dealer. – When the system is switched to Standby mode, it is still consuming power. To disconnect the system from the power supply completely, remove the AC power plug from the wall jack.
PREVIEW
PREVIEW
MUTE
MUTE
SOUND
SOUND
SURROUND
SURROUND
SLEEP
SLEEP
DIM
DIM
● Avoid high temperatures, moisture,
water and dust
– Do not expose the player, batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight.)
● Avoid condensation problem
– The lens may cloud over when the player is suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.
● Do not block the vents
– Do not operate the DVD Player in an enclosed cabinet, allow about 10 cm (4 inches) of free space all around the player for adequate ventilation.
10 cm
(4 inches)
10 cm
(4 inches)
10 cm
(4 inches)
DVD Home Cinema System
PHILIPS
● Care of the cabinet
– Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.
● Finding a suitable location
– Place the player on a flat, hard, and stable surface.
● Disc handling
–To clean a CD, wipe it in a straight line from the center towards the edge using a soft, lint-free cloth. A cleaning agent may damage the disc! – Write only on the printed side of a CDR(W) and only with a soft felt­tipped pen. – Handle the disc by its edge, do not touch the surface.
Audio cable (white, red)
Video cable (yellow)
01-34 DVP720_AP 18/03/2004, 10:38 AM5
Page 6
English
6
Connections
Connecting TV
IMPORTANT! –You only need to make
one video connection from the following options, depending on the capabilities of your TV system. – Connect the DVD system directly to the TV.
Using Composite Video jacks (CVBS)
1 Use the composite video cable (yellow) to
connect the DVD Player’s CVBS (VIDEO) jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV (cable supplied).
2 To hear the sound of this DVD Player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable supplied).
COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/MPEG2/Dolby Digital
CVBS
S-VIDEO
Y
Pb
Pr
STEREO
FRONT
W
LRL
R
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO OUT
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
2
1
COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/MPEG2/Dolby Digital
CVBS
S-VIDEO
Y
Pb
Pr
STEREO
FRONT
W
LRL
R
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO
OUT
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
2
1
IMPORTANT! – S-Video connection provides better picture quality. This option must be available on your TV.
Using S-Video jack
1 Use the S-video cable to connect the
DVD system’s S-VIDEO OUT jack to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV (cable not supplied).
2 To hear the sound of this DVD Player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable supplied).
01-34 DVP720_AP 18/03/2004, 10:38 AM6
Page 7
3139 246 13521
English
7
Connections
COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/MPEG2/Dolby Digital
CVBS
S-VIDEO
Y
Pb
Pr
STEREO
FRONT
W
LRL
R
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO OUT
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
2
1
IMPORTANT! – Component Video connection provides higher picture quality. This option must be available on your TV. – The progressive scan video quality is only possible through Component Video (Y Pb Pr) output.
Using Component Video jacks (Y Pb Pr)
1 Use the component video cables (red/
blue/green) to connect the DVD system’s Y Pb Pr jacks to the corresponding Component video input jacks (or labeled as Y Pb Pr) on the TV (cable not supplied).
2 To hear the sound of this DVD Player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable supplied).
IMPORTANT! – If your TV only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.
Using an accessory RF modulator
1 Use the composite video cable (yellow) to
connect the DVD Player’s CVBS jack to the video input jack on the RF modulator.
2 Use the RF coaxial cable (not supplied) to
connect the RF modulator to your TV’s RF jack.
COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/MPEG2/Dolby Digital
CVBS
S-VIDEO
Y
Pb
Pr
STER
L
R
AUDIO IN R L
VIDEO
IN
TO TVINT IN
CH3 CH4
2
1
RF coaxial cable to TV
Back of RF Modulator
(example only)
Antenna or
Cable TV signal
01-34 DVP720_AP 18/03/2004, 10:38 AM7
Page 8
English
8
Connections
COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/MPEG2/Dolby Digital
CVBS
S-VIDEO
Y
PbPr
~ AC MAINS
AUDIO
OUT
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
After everything is connected properly, plug in the AC power cord to the power outlet.
Never make or change any connections with the power switched on.
When no disc is loaded, press
STANDBY ON on the DVD Player front panel, “NO DISC” may appear on the display panel.
OPEN/CLOSE
STOP PLAY/PAUSE
Connecting the power cord
NO DISC
Optional: Connecting to a Multi­channel Receiver
Y
Pb
Pr
STEREO
FRONT
CENTRE
SUB-
WOOFER
REAR
LRL
R
L
R
MULTICHANNEL AUDIO IN
SUBW.
AV Receiver
REARFRONT
CENTER REARFRONT
LL
RR
Receiver has a Dolby Digital or DTS decoder
1 Select one of the video connections
(CVBS VIDEO IN, S-VIDEO IN, SCART, COMPONENT VIDEO IN) depending on the options available on your TV.
2 Connect the Audio Out Left and Right
jack for Front and Rear speakers to the corresponding input sockets on your Receiver (cable supplied).
3 Connect the Audio Out for Center
speaker and Subwoofer to the corresponding inputs on your Receiver (cable not supplied).
4 Set the DVD Player’s Analog Output to
‘Multichannel’ to enable playback of DVDs recorded in Multi-channel. (see page 25
“Setting the analogue output”).
Helpful Hint: – If the subwoofer is equipped with its own amplifier, the Subwoofer connection should be connected directly to the subwoofer.
01-34 DVP720_AP 18/03/2004, 10:38 AM8
Page 9
3139 246 13521
English
9
Connections
Stereo system has Dolby Pro Logic or Right / Left Audio In jack
1 Select one of the video connections
(CVBS VIDEO IN, S-VIDEO IN, SCART, COMPONENT VIDEO IN) depending on the options available on your TV.
2 Use the audio cables (white/red) to
connect AUDIO OUT (L/R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the stereo system (cable supplied).
Y
Pb
STEREO
FRONT
CENTRE
SUB-
WOOFER
REAR
LRL
R
L
R
AUDIO
IN
STEREO
DIGITAL
OPTICAL
Optional: Connecting to an Audio System
Optional: Connecting Digital AV Receiver
COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/MPEG2/Dolby Digital
CVBS
S-VIDEO
Y
PbPr
AUDIO
IN
DIGITAL
OPTICAL
AV Receiver
OR
Receiver has a PCM, Dolby Digital, or MPEG2 decoder
1 Select one of the video connections
(CVBS VIDEO IN, S-VIDEO IN, SCART, COMPONENT VIDEO IN) depending on the options available on your TV.
2 Connect the COAXIAL or OPTICAL jack
of the DVD Player to the corresponding Digital Audio In jack on your Receiver (cable not supplied).
3 Set the DVD Player’s Analog Output to
‘Stereo’ which delivers sound from only the two front speakers and subwoofer.
(see page 25 “Setting the analogue output”).
Helpful Hints: – Some DVDs are copy protected. You connot record the disc through a VCR or digital recording device. –You cannot hear or record the SACD or MP3-CD playback if you use the digital connection. – If the audio format of the Digital Output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
01-34 DVP720_AP 18/03/2004, 10:38 AM9
Page 10
English
10
Functional Overview
Front and Rear Panels
Multichannel Audio Out
– Center speaker, subwoofer, front
and rear speakers multichannel
connection
Audio Out (Left/Right)
– Connect to AUDIO inputs of an amplifier,
receiver or stereo system
YPbPr
– Connect to YPbPr input of a TV
IR
COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/MPEG2/Dolby Digital
CVBS
S-VIDEO
Y
Pb
Pr
STEREO
FRONT
CENTRE
SUB-
WOOFER
REAR
LRL
R
L
R
Mains (AC Power Cord)
– Connect to a standard AC outlet
COAXIAL (Digital audio out)
– Connect to coaxial AUDIO input of a
digital audio equipment
OPTICAL (Digital audio out)
– Connect to optical AUDIO input of a
digital audio equipment
S-Video Out
– Connect to S-Video input of a TV
CVBS (VIDEO Out)
– Connect to CVBS Video input of a TV
Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
9 STOP
– To stop playback
T NEXT
– To search or select next chapter or track
2; PLAY/PAUSE
– To start or interrupt playback
PREV S
– To search or select previous chapter or
track
Multichannel and Progressive Scan LED
– Led ON in Multichannel or Progressive
Scan mode
STANDBY-ON B
–To switch the DVD Player to Standby
mode or ON
Disc tray
OPEN/CLOSE /
– Open/Close the disc tray
Display
– Shows the current status of the DVD
Player
IR Sensor
–Point the remote control towards this
sensor
01-34 DVP720_AP 18/03/2004, 10:38 AM10
Page 11
3139 246 13521
English
11
Functional Overview
Remote Control
PREVIEW MUTE
MUTE
SOUND SURROUND
SURROUND
SLEEPDIM
DIM
RETURN
– To go back to previous menu
DISC MENU
– Enters or exits the disc contents
menu
– Switches on or off the playback
control mode (for VCD version
2.0 only)
1 2 3 4
– Selects an item in the menu/
fast forward/backward, slow forward/
backward
OK
– Acknowledge menu selection
S
– To search or select previous
chapter or track
STOP ( 9 )
– To stop playback
PLAY ( B )
– To start playback
PAUSE ( ; )
– To pause playback temporarily /
frame-by-frame playback
REPEAT
– Selects various repeat modes
REPEAT (A-B)
– Repeats playback a specific section
on a disc
PREVIEW
– To preview the content of a track
or whole disc
MUTE
– Disables or enables sound output
POWER B
–To switch the DVD player to
standby mode or ON
0-9 numerical key pad
– Selects numbered items in a
menu
DISPLAY
– Displays information on TV
screen during playback
SYSTEM MENU
– Access or exit DVD Player’s
system menu
T
–To search or select next chapter
or track
SUBTITLE
–To access subtitle language
system menu
ANGLE
– Selects a DVD camera angle
ZOOM
– Enlarge a picture on the TV
screen
AUDIO
–To access audio language system
menu
DIM
– Selects different levels of
brightness for display panel
SLEEP
– Sets the sleep timer function.
SOUND
– Selects a sound effect.
SURROUND
– Selects multichannel surround or
stereo mode.
Helpful Hint: Press “STOP” for about 2 seconds to OPEN or CLOSE disc tray.
01-34 DVP720_AP 18/03/2004, 10:38 AM11
Page 12
English
12
IR
Getting Started

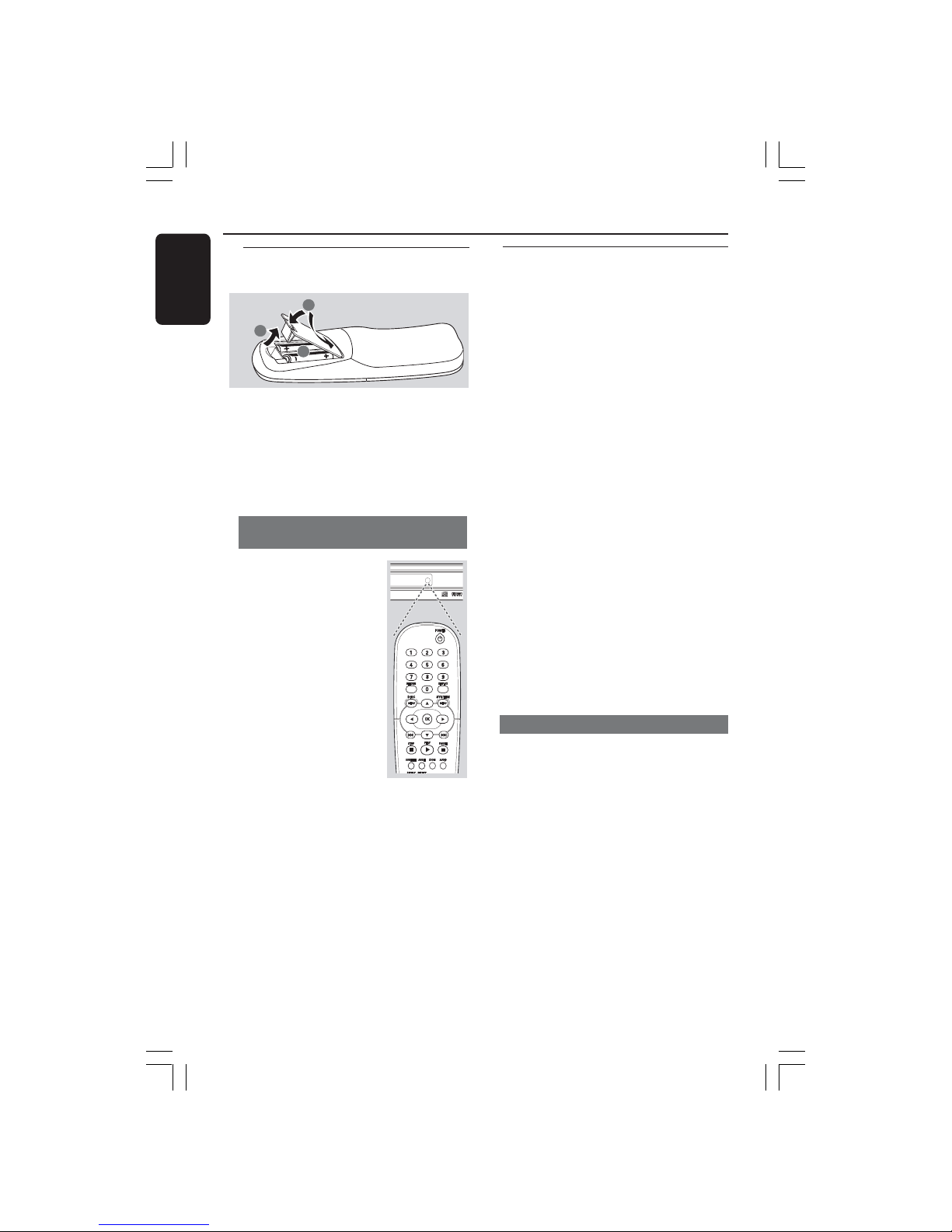

Step 1: Inserting batteries into the Remote Control
1
3
2
1 Open the battery compartment. 2 Insert two batteries type R06 or AA,
following the indications (+-) inside the compartment.
3 Close the cover.
Using the Remote Control to operate the Player
1 Aim the Remote Control
directly at the remote sensor (iR) on the front panel.
2 Do not put any objects
between the Remote Control and the DVD Player while operating the DVD Player.
CAUTION! – Remove batteries if they are exhausted or if the Remote Control is not being used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed properly.
Step 2: Setting up the TV
IMPORTANT!
Make sure you have completed all the necessary connections. (See pages 6-7 “Connecting TV”).
1 Turn on the TV and set to the correct
video-in channel. You should see the titanium Philips DVD background screen on the TV.
➜Usually these channels are between the
lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your TV manual for more details.
➜Or, you may go to channel 1 on your
TV, then press the Channel down button repeatedly until you see the Video In channel.
➜Or, the TV Remote Control may have a
button or switch that chooses different video modes.
➜Or, set the TV to channel 3 or 4 if you
are using an RF modulator.
2 If you are using external equipment, (eg.
audio system or receiver), turn it on and select the appropriate input source for the DVD Player output. Refer to the equipment owner’s manual for detail.
To deactivate Progressive manually
The progressive scan display present 60 complete frames per seconds, rather than 30 frames per second of interlaced scanning (ordinary normal TV system). With nearly double the number of line, progressive scan offers higher picture resolution and eliminates bothersome motion artifacts those jagged edge on moving objects.
To enjoy the full quality potential offered by progressive scan feature, a progressive scan TV is required. To activate progressive function, refer to ‘Progressive
- turning on/off’ on page 27.
01-34 DVP720_AP 18/03/2004, 10:38 AM12
Page 13
3139 246 13521
English
13
Selecting the colour system that corresponds to your TV
This DVD Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match.
1 Press SYSTEM MENU. 2 Press 2 repeatedly to select {VIDEO
SETUP PAGE}.
3 Press 34 to highlight {TV TYPE}, then
press 2.
Getting Started
4 Press 34 to highlight one of the options
below:
PAL – Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.
NTSC – Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.
Multi – Select this if the connected TV is compatible with both NTSC and PAL (multi-system). The output format will be in accordance with the video signal of the disc.
5 Select an item and press OK.
Helpful Hint: – Before changing the current TV Standard setting, ensure that your TV supports the ‘selected TV Type’ system. – If there is no proper picture on your TV, wait for 15 seconds for auto recovery.

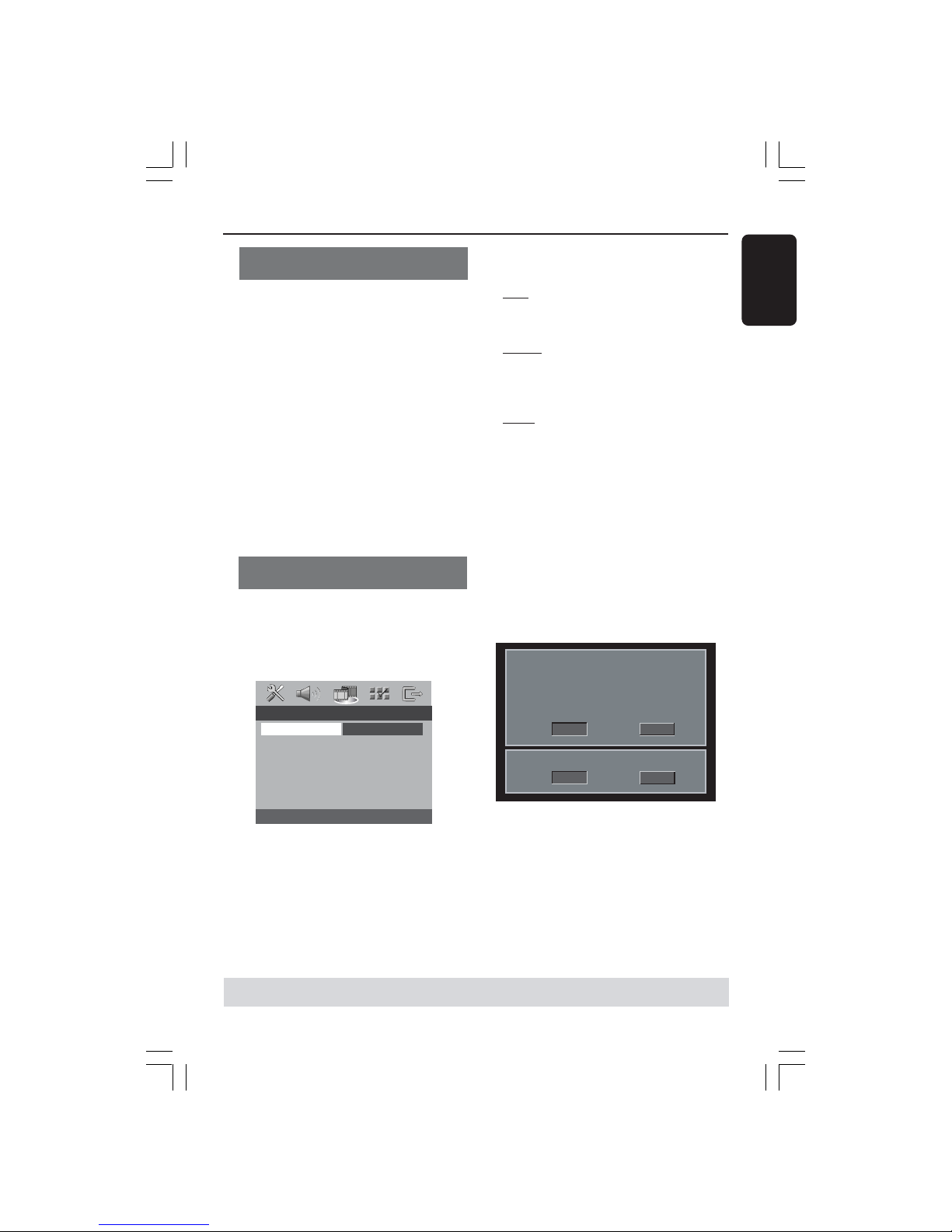

CHANGING PAL TO NTSC
1. ENSURE THAT YOUR TV SYSTEM SUPPORTS NTSC STANDARD.
2. IF THERE IS A DISTORTED PICTURE DISPLAYED ON THE TV, WAIT 15 SECONDS FOR AUTO RECOVER.
CancelOK
CONFIRM AGAIN TO USE NEW TV TYPE SETTING.
CancelOK
To deactivate Progressive manually ­cont’d
If the progressive function is activated, but your TV does not support progressive function or YPbPr cable is not connected accordingly, there will be a blank screen. You can deactivated progressive function as below:
1 Press STANDBY ON on the front panel
to switch on the DVD player.
2 Press OPEN/CLOSE on the front panel
to open the disc tray.
3 Press 1 then, press MUTE on the
remote control.
➜The blue Philips DVD background
appears on the TV screen.
- - VIDEO SETUP PAGE - -
TV TYPE PAL
TV DISPLAY NTSC
PROGRESSIVE MULTI
PICTURE SETTING
BLACK LEVEL
COMPONENT
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
01-34 DVP720_AP 18/03/2004, 10:39 AM13
Page 14
English
14

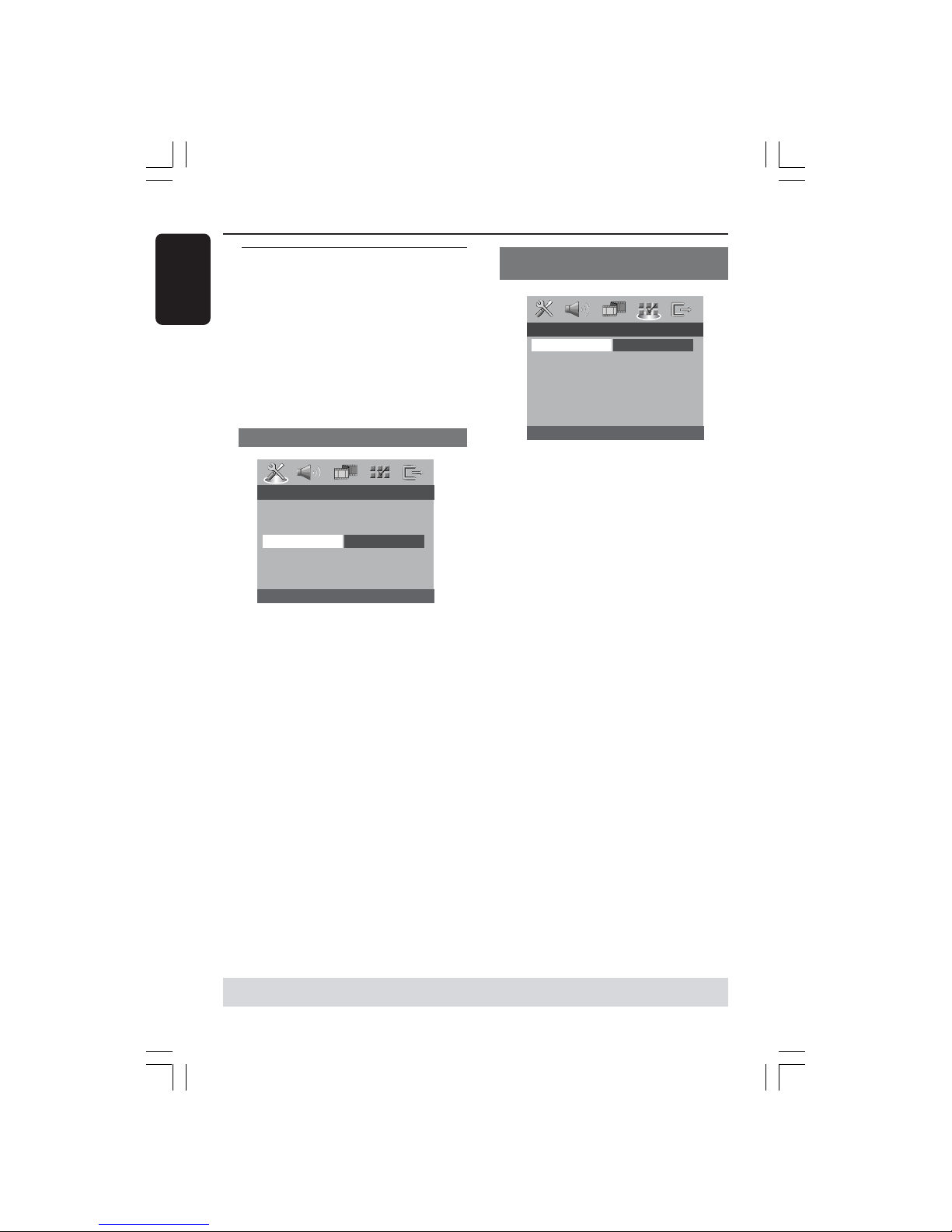

Step 3: Setting language preference
You can select your own preferred language settings.This DVD Player will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead. The OSD language in the system menu, will remain once selected.
Setting the OSD Language
- - GENERAL SETUP PAGE - -
DISC LOCK DISPLAY DIM PROGRAM OSD LANGUAGE ENGLISH SCREEN SAVER CHINESE DivX(R) VOD CODE FRENCH
SPANISH PORTUGUESE
1 Press SYSTEM MENU. 2 Press 2 to select {GENERAL SETUP
PAGE}.
3 Press 34 to highlight {OSD
LANGUAGE}, then press 2.
4 Press 34 to select a language and press
OK.
Getting Started
Setting the Audio, Subtitle and Disc menu language
- - PREFERENCE PAGE - -
AUDIO ENGLISH SUBTITLE CHINESE DISC MENU FRENCH PAR ENTAL SPANISH PBC PORTUGUESE MP3/JPEG NAV POLISH PASSWORD ITALIAN DEFAULT
1 Press STOP twice then, press SYSTEM
MENU.
2 Press 2 repeatedly to select
{PREFERENCE PAGE}.
3 Press 34 to highlight one of the options
below at a time, then press 2. –‘Audio’ (disc’s soundtrack) – ‘Subtitle’ (disc’s subtitles) – ‘Disc Menu’ (disc’s menu)
4 Press 34 to select a language and press
OK.
If the language you want is not in the list, then select {OTHERS},
then use the numeric keypad (0-9) on the remote to enter the 4-digit language code ‘XXXX’ (see page 125 {Language Code}) and press OK.
5 Repeat steps 4~5 for other language
settings.
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
01-34 DVP720_AP 18/03/2004, 10:39 AM14
Page 15
3139 246 13521
English
15
Getting Started
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
Step 4: Setting the speakers’
channels
You can adjust the delay times (centre and surround only) and volume level for individual speakers. These adjustments let you optimise the sound according to your surroundings and setup.
IMPORTANT!
The speaker settings only available on Multi-channel audio outputs. You can also press SURROUND button on the remote to select Multi-channel.
1 Press STOP then, press SYSTEM
MENU.
2 Press 2 repeatedly to select {AUDIO
SETUP PAGE}.
3 Press 34 to highlight {SPEAKER SETUP},
then press 2.
- - AUDIO SETUP PAGE - -
ANALOG OUTPUT
DIGITAL AUDIO SETUP
SPEAKER SETUP
CD UPSAMPLING
NIGHT MODE
- - SPEAKER SETUP PAGE - -
FRONT SPEAKERS
CENTER SPEAKER
REAR SPEAKERS
SUBWOOFER
SPEAKERS VOLUME
SPEAKERS DELAY
4 Enter its submenu by pressing 2. 5 Press 34 to highlight one of the options
below at a time, then press 2.
{FRONT SPEAKERS, CENTER SPEAKER, REAR SPEAKERS} OFF – when no speaker is connected. LARGE – when connected speakers can produce low frequency signals below 120Hz. SMALL – when connected speakers cannot produce low frequency signals below 120Hz.
{SUBWOOFER} ON – when a subwoofer is connected. OFF – when no subwoofer is connected.
{SPEAKER VOLUME} – Volume level setting for individual speakers (-6dB ~ +6dB).
SPEAKERS VOLUME SETUP
FRONT LEFT
FRONT RIGHT
CENTER
SUBWOOFER
REAR RIGHT
REAR LEFT
0dB
0dB
0dB
0dB
0dB
0dB
{SPEAKER DELAY} – Delay times setting in relation to the listening position/ distance for centre and surround speakers (1m ~ 10m).
SPEAKERS DISTANCE SETUP
CENTER
REAR LEFT
REAR RIGHT
0 M
0 M
0 M
6 Press 1 2 to adjust the setting that best
suit your surround sound needs.
7 Press OK to confirm.
Helpful Hints: – Use the longer delay time settings when the rear speakers are closer to the listener than the front speakers. – The test tone will be automatically generated to help you judge the sound level of each speaker.
01-34 DVP720_AP 18/03/2004, 10:39 AM15
Page 16
English
16
Disc Operations

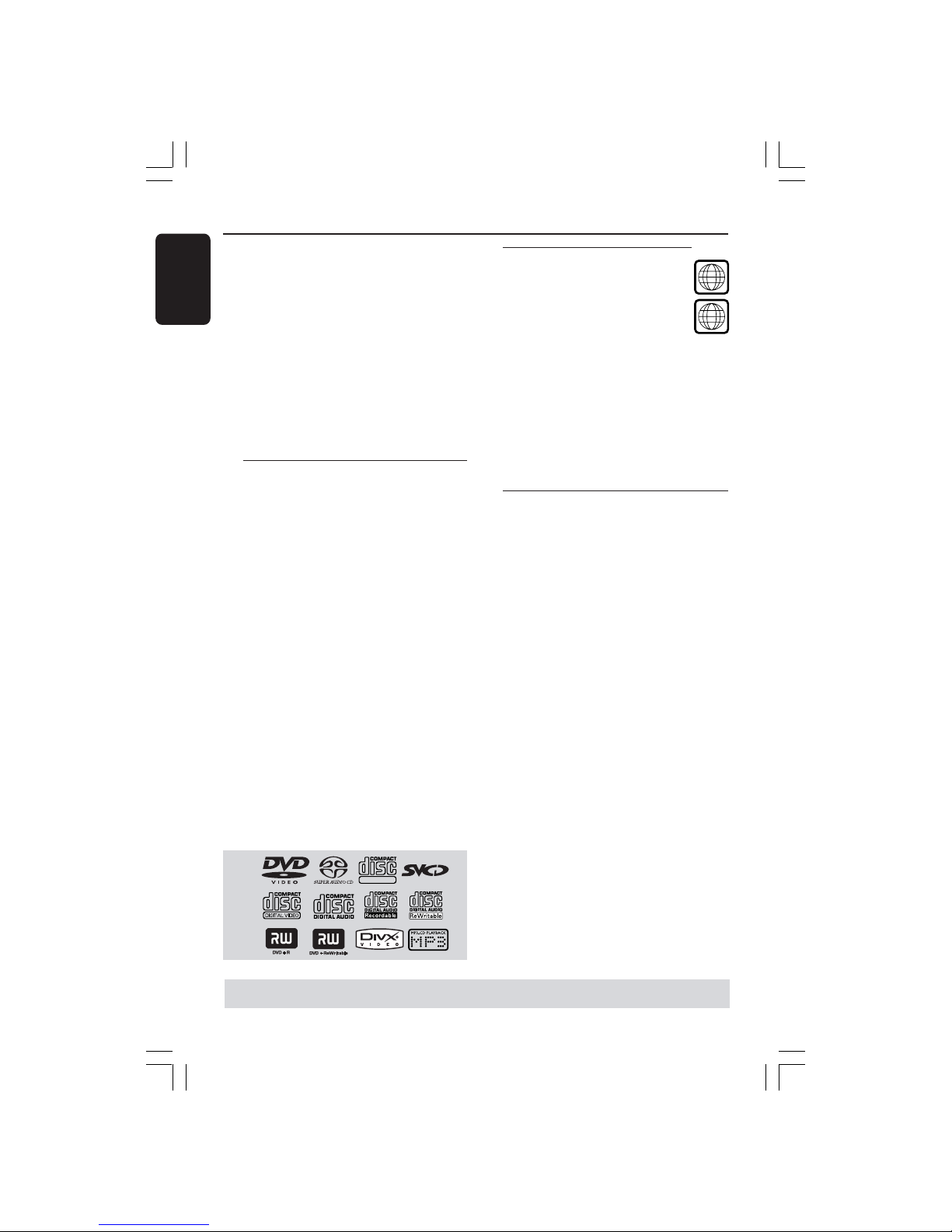

IMPORTANT! – If the inhibit icon (ø or X) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – Depending on the DVD or VIDEO CD, some operations may be different or restricted. – Do not push on the disc tray or put any objects other than disc on the disc tray. Doing so may cause the disc player malfunction.
Playable Discs
Your DVD Player will play:
– Digital Versitale Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Super Audio CDs (SACDs) – Digital Versitale Discs +
Recordable [Rewritable] (DVD+R[W]) – Compact Discs (CDs) – MP3 discs, picture (Kodak, JPEG) files
on CD-R(W).
– JPEG/ISO 9660 format
– Maximum 30 characters display.
– Supported sampling frequencies :
32 kHz, 44.1 kHz, 48 kHz (MPEG-1) 16 kHz, 22.05 kHz, 24 kHz (MPEG-2)
– Supported Bit-rates : 32~256 kbps
(MPEG-1), 8~160 kbps (MPEG-2) variable bitrates
– MPEG-4 disc on CD-R(W):
– Simple profile
– Advanced simple profile (640-480)
– DivX disc on CD-R[W]/DVD+R[W]:
– DivX 3.11, 4.x and 5.x
– GMC (Global Motion Compensation)
and QP (Quarter Pixel) not supported.
SUPER VIDEO
Region Codes
DVD discs must be labeled for ALL regions or Region 3 in order to play on this Player. You cannot play Discs that are labeled for other regions.
Helpful Hints: – It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. – If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not play on this DVD Player.
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Playing discs
1 Connect the power cords of the DVD
Player and TV (and any optional stereo or AV receiver) to a power outlet.
2 Tu rn on the TV power and set to the
correct Video In channel. (See page 12 “Setting up the TV”).
3 Press STANDBY-ON on the DVD Player
front panel.
➜You should see the blue Philips DVD
background screen on the TV.
4 Press OPEN•CLOSE 0 button to open
the disc tray and load in a disc, then press the same button again to close the disc tray.
➜Make sure the label side is facing up.
For double-sided discs, load the side you want to play facing up.
5 Playback will start automatically. If not
press PLAY B.
➜If a disc menu appears on the TV, see
page 18 “Using the Disc Menu”.
➜If the disc is locked by parental control,
you must enter your six-digit password. (See page 30).
ALL
3
01-34 DVP720_AP 18/03/2004, 10:39 AM16
Page 17
3139 246 13521
English
17
Disc Operations
Basic playback controls
Unless otherwise stated, all operations described are based on Remote Control use.
Pausing playback
1 During playback, press Å.
➜Playback will pause and sound will be
muted.
2 Press Å again to select the next picture
frame.
3 To resume normal playback, press
PLAY B.
Selecting track/chapter
● Press S / T or use the numeric
keypad (0-9) to key in a track/chapter number.
➜If repeat mode is active, pressing S /
T will replay the same track/chapter.
Searching backward/forward
● Press and hold S / T, then press
PLAY B to resume normal playback.
➜While searching, pressing S / T
again will decrease/increase the search speed.
Stopping playback
● Press Ç.
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Selecting various repeat/shuffle functions
Repeat play mode
● While playing a disc, press REPEAT
continuously to choose a ‘Play Mode’.
DVD
™ RPT ONE (repeat chapter) ™ RPT TT (repeat title) ™ SHUFFLE (random play) ™ RPT SHF (repeat shuffle) ™ RPT OFF (repeat off)
VCD/SVCD/CD
™ RPT ONE (repeat track) ™ RPT ALL (repeat disc) ™ SHUFFLE (random play) ™ RPT SHF (repeat shuffling) ™ RPT OFF (repeat off)
MP3/SACD/DivX
™ RPT FLD (repeat folder) ™ RPT ONE (repeat track) ™ SHUFFLE (random play) ™ RPT OFF (repeat off)
Helpful Hint: –For VCD, repeat playback is not possible if the PBC mode is switched on.
Repeating a section within a chapter/track
1 While playing a disc, press REPEAT A-B
at your chosen starting point.
2 Press REPEAT A-B again at your chosen
end point.
➜The section A and B can be set only
within the same chapter/track.
➜The section will now repeat
continuously.
3 To exit the sequence, press REPEAT
A-B.
01-34 DVP720_AP 18/03/2004, 10:39 AM17
Page 18
English
18
Operations for video playback (DVD/VCD/SVCD)
Using the Disc Menu
Depending on the disc, a menu may appear on the TV screen once you load in the disc.
To select a playback feature or item
● Use 1 2 3 4 keys or numeric keypad
(0-9) on the remote, then press OK to
start playback.
To access or remove the menu
● Press DISC MENU on the remote.
Zooming in
This function allows you to enlarge the picture on the TV screen and to pan through the enlarged picture.
1 During playback, press ZOOM
repeatedly to display the picture with different scales.
➜Use 1 2 3 4 keys to pan through the
enlarged picture.
➜Playback will continue.
2 Press ZOOM repeatedly to return to
the original size.

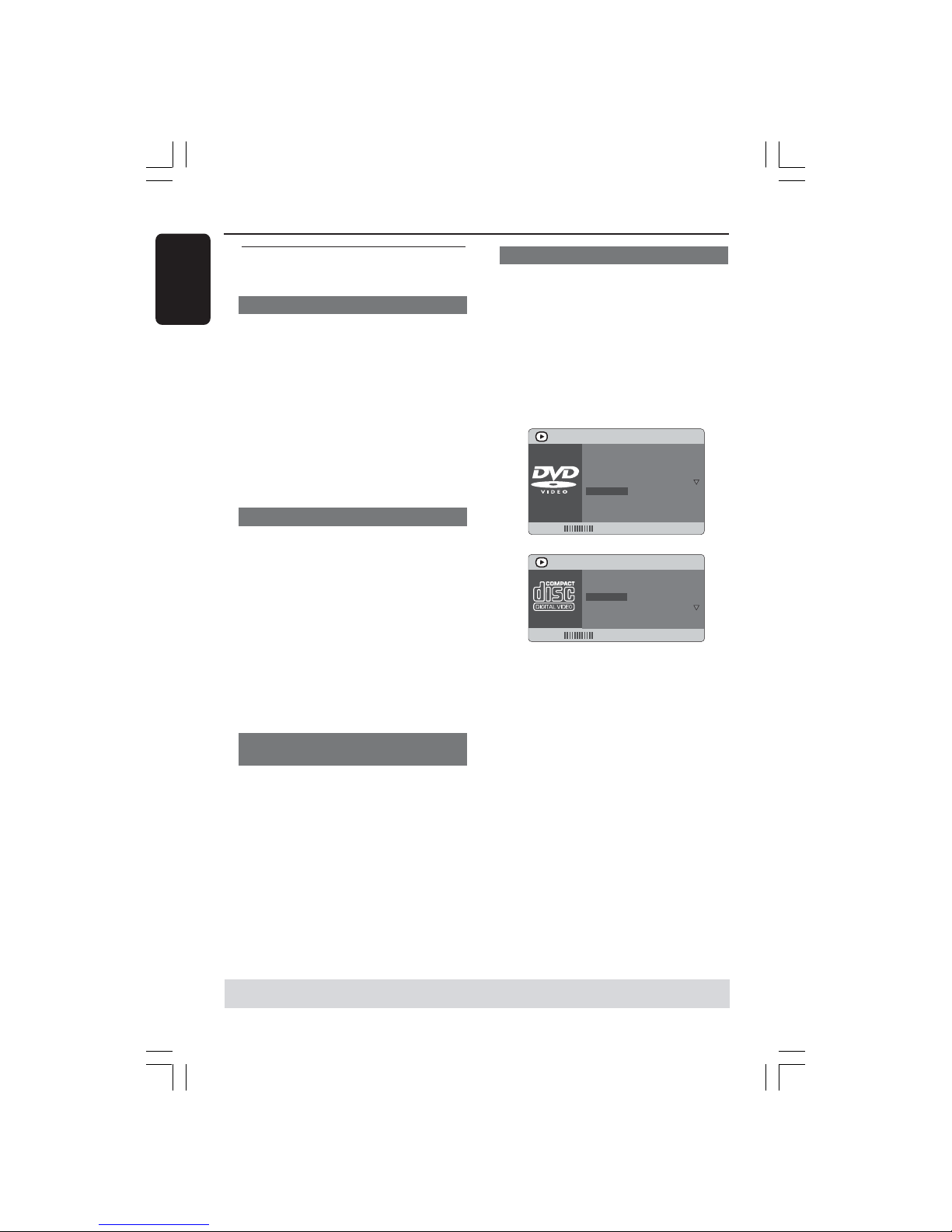

Using the OSD menu
OSD menu shows the disc playback information (for example, title or chapter number, elapsed playing time, audio/ subtitle language), a number of operations can be done without interrupting disc playback.
1 During playback, press DISPLAY.
➜A list of available disc information
appears on the TV screen.
MENU
Bitrate
Title 02/14 Chapter 02/14 AUDIO 5.1CH SUBTITLE 02/14 ANGLE 1/1 TT Time 0:56:14 CH Time 0:07:02 REPEAT OFF Time Disp. TITLE ELAPSED
MENU
Bitrate
Track 02/14 Disc Time 0:49:17 Track Time 0:03:43 REPEAT OFF Tune Disp. TOTAL ELAPSED
2 Press 34 to view the information and
press OK to access.
3 Use the numeric keypad (0-9) to input
the number/time or press 34 to make the selection, then press OK to confirm.
➜Playback will change to the chosen
time or to the selected title/chapter/ track.
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Disc Operations
Resuming playback from the last stopped point
Resume playback of the last 10 discs is possible, even if the disc was ejected or the power switched off.
● Load one of the last 10 discs. ➜ “ LOADING” appears.
● Press PLAY B and the disc will be played
back from the last point.
To cancel resume mode
● In stop mode, press STOP 9 again.
01-34 DVP720_AP 18/03/2004, 10:39 AM18
Page 19
3139 246 13521
English
19
Disc Operations
Special DVD Features
Playing a Title
1 Press DISC MENU.
➜The disc title menu appears on the TV
screen.
2 Use 341 2 keys or numeric keypad
(0-9) to select a play option.
3 Press OK key to confirm.
Camera Angle
● Press ANGLE repeatedly to select
different desired angle.
Changing the Audio Language
For DVD
● Press AUDIO repeatedly to select
different audio languages.
Changing the Audio Channel
For VCD
● Press AUDIO to select the available
audio channels provided by the disc (LEFT VOCAL, RIGHT VOCAL, MONO LEFT, MONO RIGHT, STEREO).
Subtitles
● Press SUBTITLE repeatedly to select
different subtitle languages.
Special VCD & SVCD Features
Playback Control (PBC)
For VCD with Playback Control (PBC) feature (version 2.0 only)
● Press DISC MENU to toggle between
‘PBC ON’ and ‘PBC OFF’.
➜If you select ‘PBC ON’, the disc menu
(if available) will appear on the TV.
➜Use the
S / T or the numeric
keypad (0-9) to select a play option.
● During playback, pressing RETURN will
return to the menu screen (if PBC is on).
If you want to skip the index menu and playback directly from the beginning,
● Press DISC MENU key on the remote
control to switch to PBC off.
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
01-34 DVP720_AP 18/03/2004, 10:39 AM19
Page 20
English
20

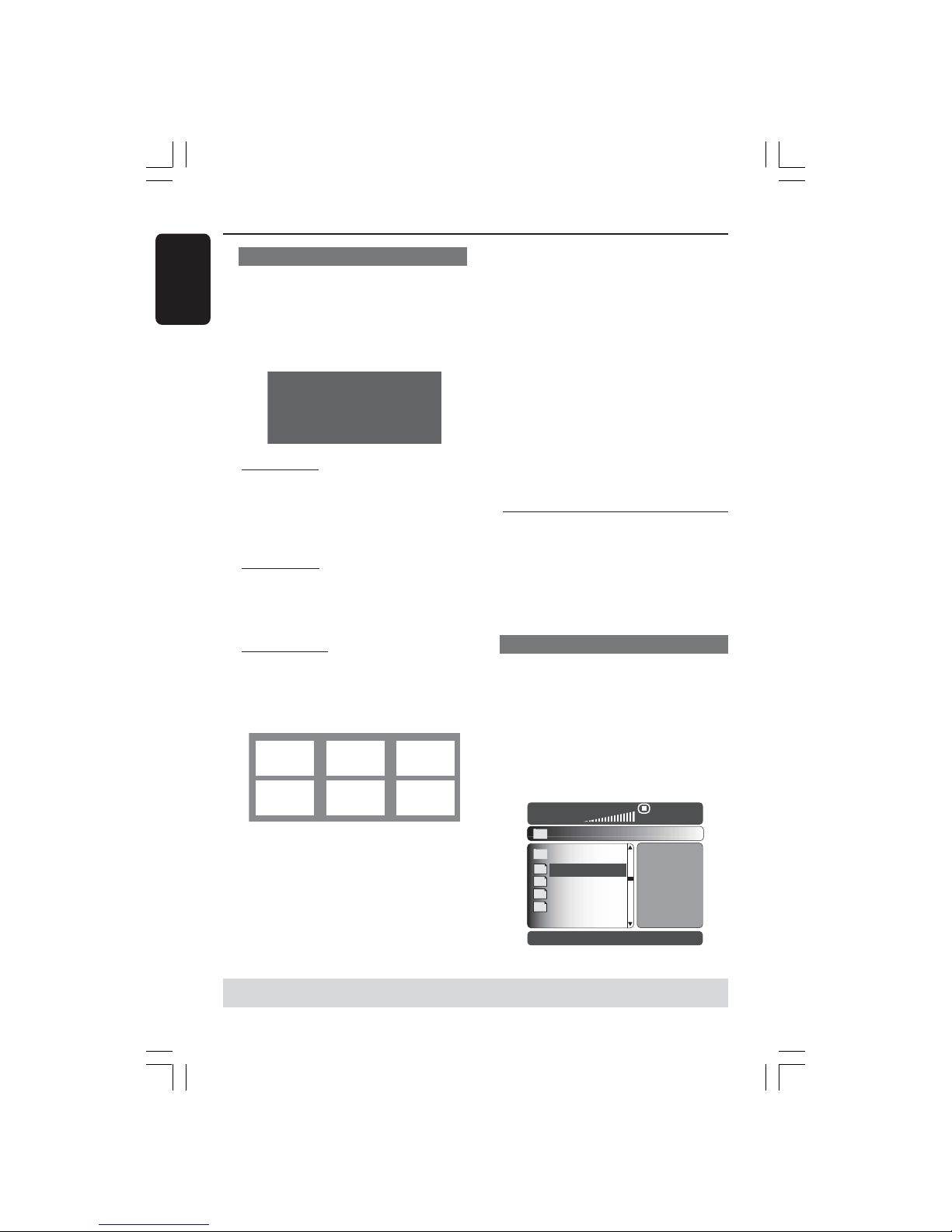

Preview Function
1 Press PREVIEW. 2 Press 34 to highlight {TRACK DIGEST},
{DISC INTERVAL} or {TRACK INTERVAL}.
3 Press OK to open one option.
SELECT DIGEST TYPE:
TRACK DIGEST
DISC INTERVAL
TRACK INTERVAL
Track Digest
This function will minimise the picture of every track in order to display every six of these tracks on the screen to help you know the content of every track on the disc.
Disc Interval
This function is used to divide a disc into six parts by regular intervals and display them on one page to preview the whole disc.
Track Interval
This function is used to divide a single track into six parts by regular intervals and display them on one page to help you preview the selected track.
ABC
DE F
(example for 6 thumbnail pictures display)
4 Use 1 2 3 4 keys to select a track or
use numeric keypad (0-9) to input the selected track number next to {SELECT}.
5 Press S / T to open the previous
or next page.
6 Press OK to confirm.
Disc Operations
To quit preview function
● Use 1 2 3 4 keys to highlight {EXIT} and
press OK to confirm.
To return to preview menu
● Use 1 2 3 4 keys to highlight {MENU}
and press OK to confirm.
For CD
● At stop mode, press PREVIEW on the
remote control.
➜Each track will be played for a few
seconds.
➜For JPEG CD, press PREVIEW to
view 12 thumbnail pictures on the TV screen (see page 22).
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Playing MP3/DivX/MPEG-4/ JPEG/Kodak Picture CD
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page 12 “Setting up the TV”).
General Operation
1 Load a disc.
➜The disc reading time may exceed 30
seconds due to the complexity of the directory/file configuration.
➜The data disc menu appears on the TV
screen.
2 Playback will start automatically. If not
press PLAY B.
00:00 00:00 001/020
Coco - Before
Coco - I love
Coco - Jazz
Coco - Hot spring
Coco Lee
MP3
MP3
MP3
MP3
01-34 DVP720_AP 18/03/2004, 10:39 AM20
Page 21
3139 246 13521
English
21
Disc Operations
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
Selecting a folder and track/file
1 Press 34 to select the folder and press
OK to open the folder.
2 Press 34 to select a track/file. 3 Press OK to confirm.
➜Playback will start from the selected
file to the end of the folder.
During playback, you can;
● Press S / T to select another track/
file in the current folder.
● To select another folder from the current
disc, press 1 to return to the root menu, then press 34 to make your selection and press OK to confirm.
● Press REPEAT continuously to access
different ‘Play Mode’.
➜FOLDER: files will be played back once. ➜REPEAT ONE: one file being played
repeatedly.
➜REPEAT FOLDER: all files in one folder
being played repeatedly.
➜SHUFFLE: all files in the current folder
being played at random order.
● Press Å to pause playback.
Helpful Hints: – It may not be possible to play certain MP3/JPEG/DixV/MPEG-4 disc due to the configuration and characteristics of the disc or condition of the recording. – It is normal to experience an occasional “skip” while listening to your MP3 disc. – It is normal to experience an occasional pixelation during MPEG-4/DivX playback due to poor clarity of digital contents during internet downloading. –For multi-session discs with different formats, only the first session will be available.
Playing Super Audio CD (SACD)
There are three types of SACD discs: single layer, double layer or hybrid disc. The hybrid disc contains both Super Audio CD and standard audio CD layers, only the SACD layer is possible to playback on this DVD player.
1 Load a SACD.
➜The disc menu appears on the TV
screen.
2 Playback will start automatically.
➜If the SACD consists of multi-channel
and stereo tracks, multi-channel tracks will have the priority for playback.
➜To playback stereo tracks, use
3 4 keys
to make your selection from the disc menu, then press PLAY B.
Helpful Hints: – SURROUND button is not functional for SACD playback. You have to access to the disc menu in order to select between multi­channel and stereo tracks. –Programme SACD tracks is not possible.
01-34 DVP720_AP 18/03/2004, 10:39 AM21
Page 22
English
22
Special picture disc features
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page 12 “Setting the TV”).
● Load a Picture disc (Kodak Picture CD,
JPEG).
➜For Kodak disc, the slide show will
begin.
➜For JPEG disc, the picture menu
appears on the TV screen. Press B to start the slide-show playback.

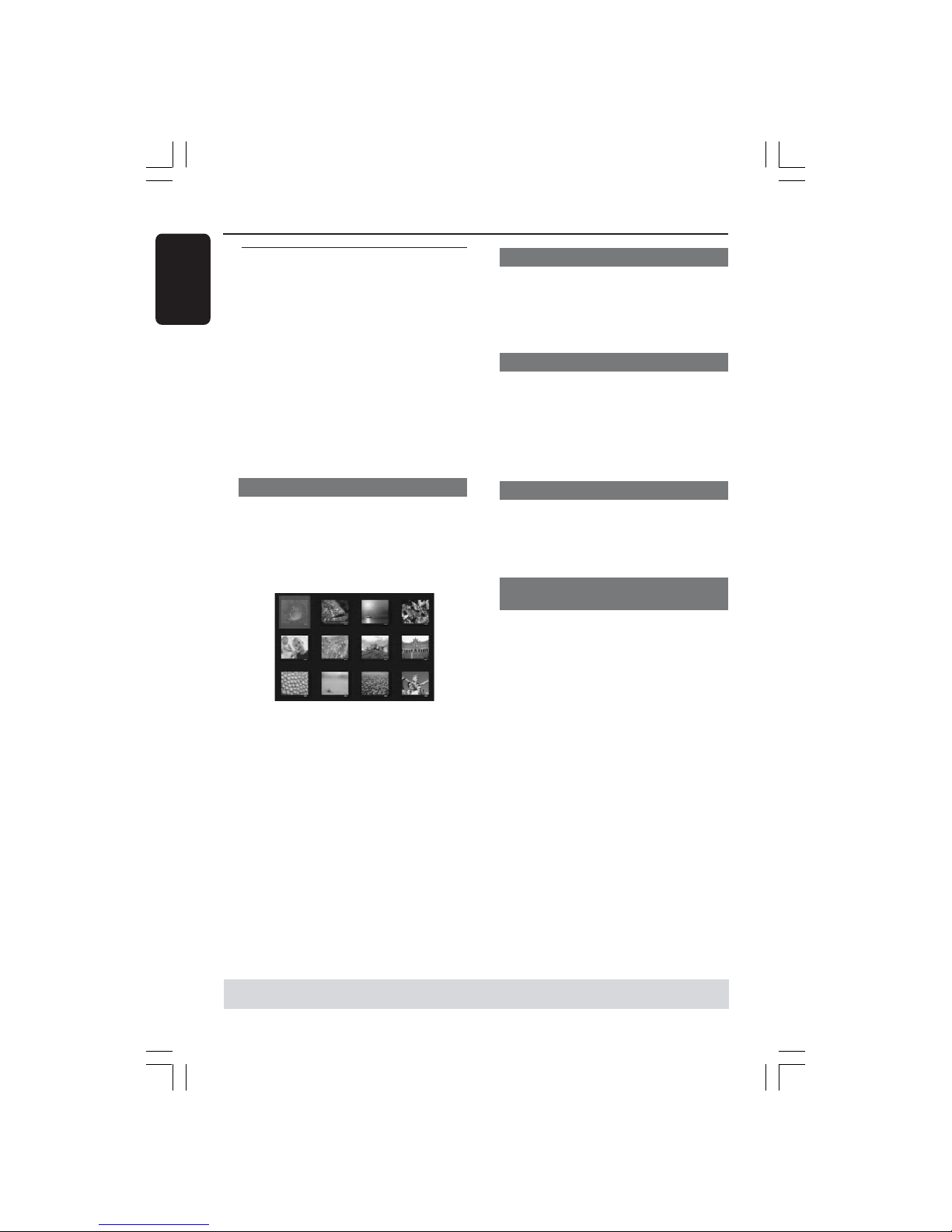

Preview Function (JPEG)
This function shows the content of the current folder or the whole disc.
1 Press STOP during playback.
➜12 thumbnail pictures will appear on
the TV screen.
2 Press S / T to display the other
pictures on the previous/next page.
3 Use 1 2 3 4 to highlight one of the
picture and press OK to start playback
4 Press DISC MENU to return to Picture
CD menu.
Zoom picture
1 During playback, press ZOOM repeatedly
to display the picture with different scales.
2 Use 1 2 3 4 keys to view the zoomed
picture.
Playback with multi-angles
● During playback, press
3 4 1 2 to rotate
the picture on the TV screen.
3: flip the picture vertically 4: flip the picture horizontally 1: rotate the picture anti-clockwise 2: rotate the picture clockwise
Scan Effect
● Press ANGLE repeatedly to choose
different scan effect.
➜Various scan effect appears on the top
left hand corner on the TV screen.
Playing MP3 music and JPEG picture simultaneously
1 Load a disc that contains music and
picture.
➜The disc menu appears on the TV
screen.
2 Select an MP3 track. 3 During MP3 music playback, select a
picture from the TV screen and press PLAY B.
➜The picture files will be played back
one after another until end of the folder.
4 To quit simultaneous playback, press
DISC MENU followed by Ç.
Helpful Hint: – Some files on Kodak or JPEG disc may be distorted during playback due to the configuration and characteristics of the disc.
Disc Operations
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
01-34 DVP720_AP 18/03/2004, 10:39 AM22
Page 23
3139 246 13521
English
23

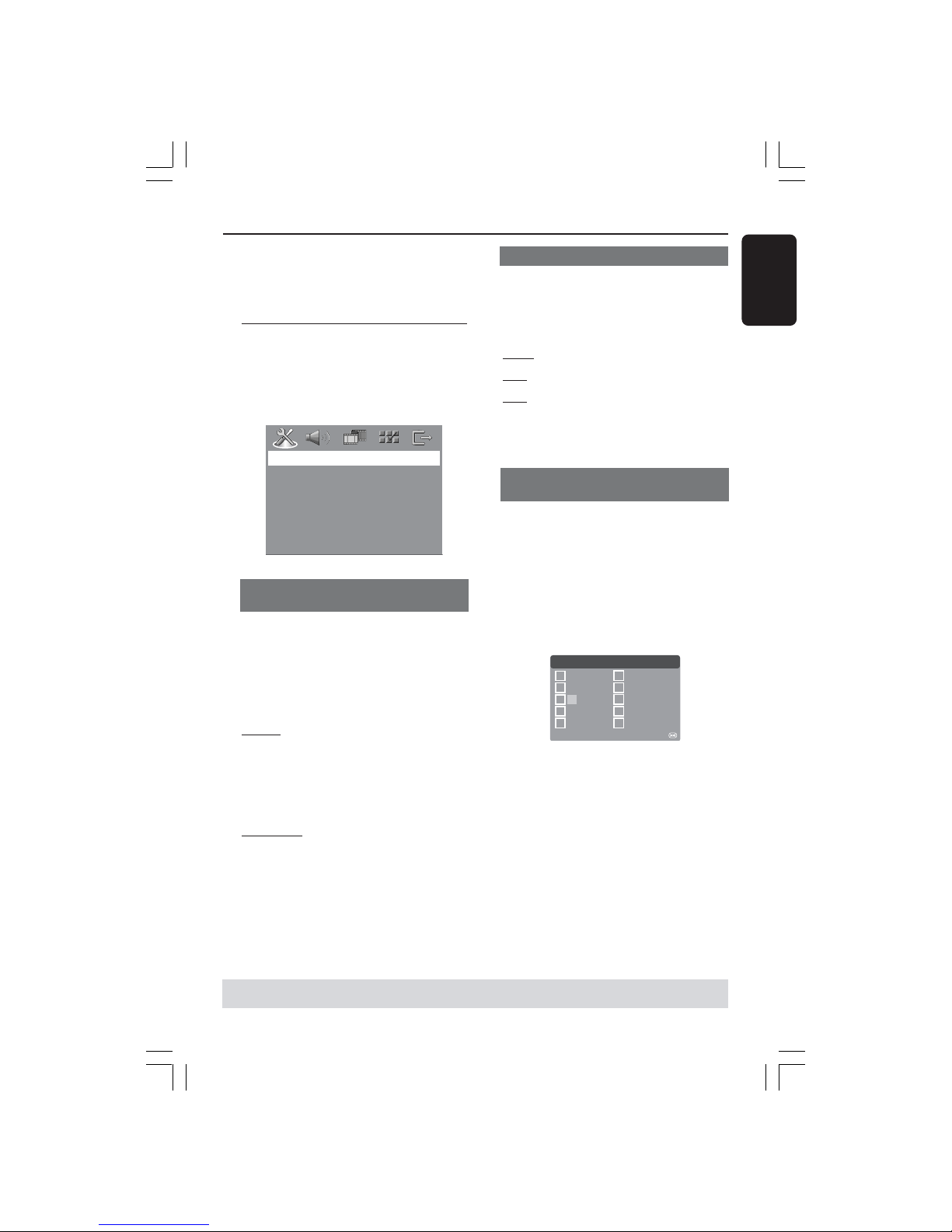

This DVD Player setup is carried out via the TV, enabling you to customise the DVD Player to suit your particular requirements.
General Setup menu
1 In disc mode, press SYSTEM MENU. 2 Press 1 2 to select ‘General Setup’ icon. 3 Press OK to confirm.
- - GENERAL SETUP PAGE - -
DISC LOCK DISPLAY DIM PROGRAM OSD LANGUAGE SCREEN SAVER DivX(R) VOD CODE
Locking/Unlocking the disc for viewing
Not all discs are rated or coded by the disc maker. You can prevent a specific disc from playing by locking the disc. Up to 40 discs can be locked.
1 In ‘GENERAL SETUP PAGE’, press 34 to
highlight {DISC LOCK}, then press 2.
LOCK
Select this to block the playback of the current disc. Subsequent access to a locked disc requires six-digit password. The default password is ‘136 900’ (see page 30 “Changing the password”).
UNLOCK
Select this to unlock the disc and allow future playback.
2 Press 34 to select a setting, then press
OK to confirm your selection.
DVD Setup Menu Options
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
Dimming player’s display panel
You can select different levels of brightness for the display screen.
1 In ‘GENERAL SETUP PAGE’, press 34 to
highlight {DISPLAY DIM}, then press 2.
100% – Select this for full brightness.
70% – Select this for medium brightness.
40% – Select this for dimming the display.
2 Press 34 to select a setting, then press
OK to confirm your selection.
Programming disc tracks (not for Picture CD/MP3/SACD)
You can play the contents of the disc in the order you want by programming the tracks to be played. Up to 20 tracks can be stored.
1 In ‘GENERAL SETUP PAGE’, press 34 to
highlight {PROGRAM}, then press 2 to select {INPUT MENU}.
2 Press OK to confirm.
Program : Track (01 - 17)
01 04
01 10
04 __
05 __
03 11
01 __
01 __
04 __
05 __
03 __
EXIT START NEXT
To input your favourite tracks/chapter
3 Use the numeric keypad (0-9) to enter
a valid track/chapter number.
4 Use 1 2 3 4 keys to move the cursor to
the next position.
➜If the track number is more than ten,
press T to open the next page and proceed with programming or,
➜Use 1 2 3 4 keys to highlight {NEXT}
on the programme menu, then press OK.
5 Repeat steps 3~4 to input another
track/chapter number.
01-34 DVP720_AP 18/03/2004, 10:39 AM23
Page 24
English
24

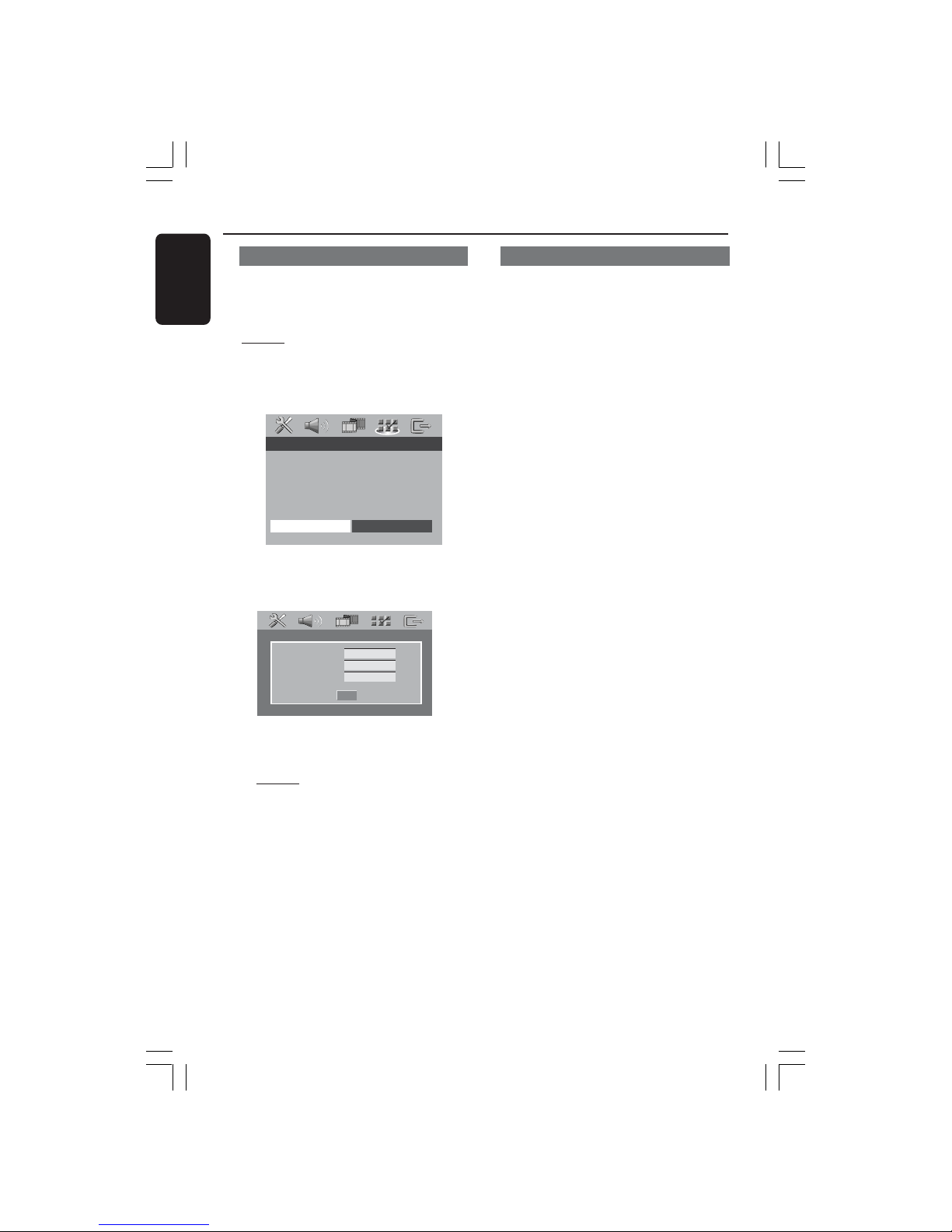

DVD Setup Menu Options
If you want to remove a track
6 Use 1 2 3 4 keys to move the cursor to
the track you want to remove.
7 Press OK to remove this track from the
programme menu.
To start programme playback
8 Use 1 2 3 4 keys to highlight {START}
on the programme menu, then press OK.
➜Playback will start with the selected
tracks under the programmed sequence.
To exit programme playback
9 Use 1 2 3 4 keys to highlight {EXIT} on
the programme menu, then press OK.
OSD Language
This menu contains various language options for display language on the screen. For details, see page 14.
Screen Saver - turning on/off
The screen saver will help to prevent your TV display device from becoming damaged.
1 In ‘GENERAL SETUP PAGE’, press 34 to
highlight {SCREEN SAVER}, then press 2.
ON
Select this if you wish to turn off the TV screen when disc playback is stopped or paused for more than 15 minutes.
OFF
Select this to disable the screen saver function.
2 Press 34 to select a setting, then press
OK to confirm your selection.
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
DivX(R) VOD registration code
Philips provide you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX
®
VOD service. For more information, visit us at www.divx.com/vod.
1 In ‘GENERAL SETUP PAGE’, press 34 to
highlight {DIVX(R) VOD CODE}, then press 2.
➜The registration code will appear.
2 Press OK to exit. 3 Use the registration code to purchase or
rent the videos from DivX
®
VOD service at www.divx.com/vod. Follow the instructions and download the video onto a CD-R for playback on this DVD player.
Helpful Hints: – All the downloaded videos from DivX
®
VOD can only be played back on this DVD player. – Time search feature is not available during DivX movie playback.
Audio Setup Menu
1 In disc mode, press SYSTEM MENU. 2 Press 1 2 to select ‘Audio Setup’ icon. 3 Press OK to confirm.
- - AUDIO SETUP PAGE - -
ANALOG OUTPUT
DIGITAL AUDIO SETUP
SPEAKER SETUP
CD UPSAMPLING
NIGHT MODE
01-34 DVP720_AP 18/03/2004, 10:39 AM24
Page 25
3139 246 13521
English
25
DVD Setup Menu Options
Digital Audio Setup
The options included in Digital Audio Setup are: ‘Digital Output’ and ‘LPCM Output’.
1 In ‘AUDIO SETUP PAGE’, press 34 to
highlight {DIGITAL AUDIO SETUP}, then press 2.
2 Press the 34 keys to highlight an option. 3 Enter its submenu by pressing 2. 4 Move the cursor by pressing the 34 keys
to highlight the selected item.
Digital Output
Set the Digital output according to your optional audio equipment connection.
➜
Off: Turn off the digital output.
➜
All: If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver.
➜
PCM Only: Only if your receiver is not capable of decoding multi-channel audio.
Helpful Hint: – If DIGITAL OUTPUT is set to ‘All’, all audio settings except MUTE are invalid.
LPCM Output
If you connect the DVD Player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc, you may need to adjust ‘LPCM Output’. Discs are recorded at a certain sampling rate. The higher the sampling rate, the better the sound quality.
➜
48kHz: Playback a disc recorded at the sampling rate of 48kHz.
➜
96kHz: Playback a disc recorded at the sampling rate of 96kHz.
Helpful Hint: – LPCM Output can be selected only when PCM Only is activated.
Setting the analogue output
Set Analogue Output to match your DVD Player’s playback capability. This function can also be accessed via the SURROUND button on the remote.
1 In ‘AUDIO SETUP PAGE’, press 34 to
highlight {ANALOG OUTPUT}, then press 2.
STEREO
Select this to change channel output to stereo which delivers sound from only the two front speakers and subwoofer.
MULTI-CHANNEL
Select this to enable Multi-channel output.
2 Press 34 to select a setting, then press
OK to confirm your selection.
Speaker Setup
This menu contains setup options for your audio output which makes the speaker setup system reproduce high quality surround sound. For details, see page 15.
CD Upsampling
This feature allows you to convert your music CD to a higher sampling rate using sophisticated digital signal processing for better sound quality.
1 In ‘AUDIO SETUP PAGE’, press 34 to
highlight {CD UPSAMPLING}, then press 2.
OFF
Select this to disable CD-upsampling.
88.2 kHz (X2)
Select this to convert the sampling rate of the CDs twice higher than the original.
176.4 kHz (X4)
Select this to convert the sampling rate of the CDs four times higher than the original.
2 Press 34 to select a setting, then press
OK to confirm your selection.
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
01-34 DVP720_AP 18/03/2004, 10:39 AM25
Page 26
English
26
Night Mode - turning on/off
In this mode, the high volume outputs are softened and low volume outputs are brought upward to an audible level. It is useful for watching your favourite action movie without disturbing others at night.
1 In ‘AUDIO SETUP PAGE’, press 34 to
highlight {NIGHT MODE}, then press 2.
ON
Select this to level out the volume. This feature is only available for movies with Dolby Digital mode.
OFF
Select this when you want to enjoy the surround sound with its full dynamic range.
2 Press 34 to select a setting, then press
OK to confirm your selection.

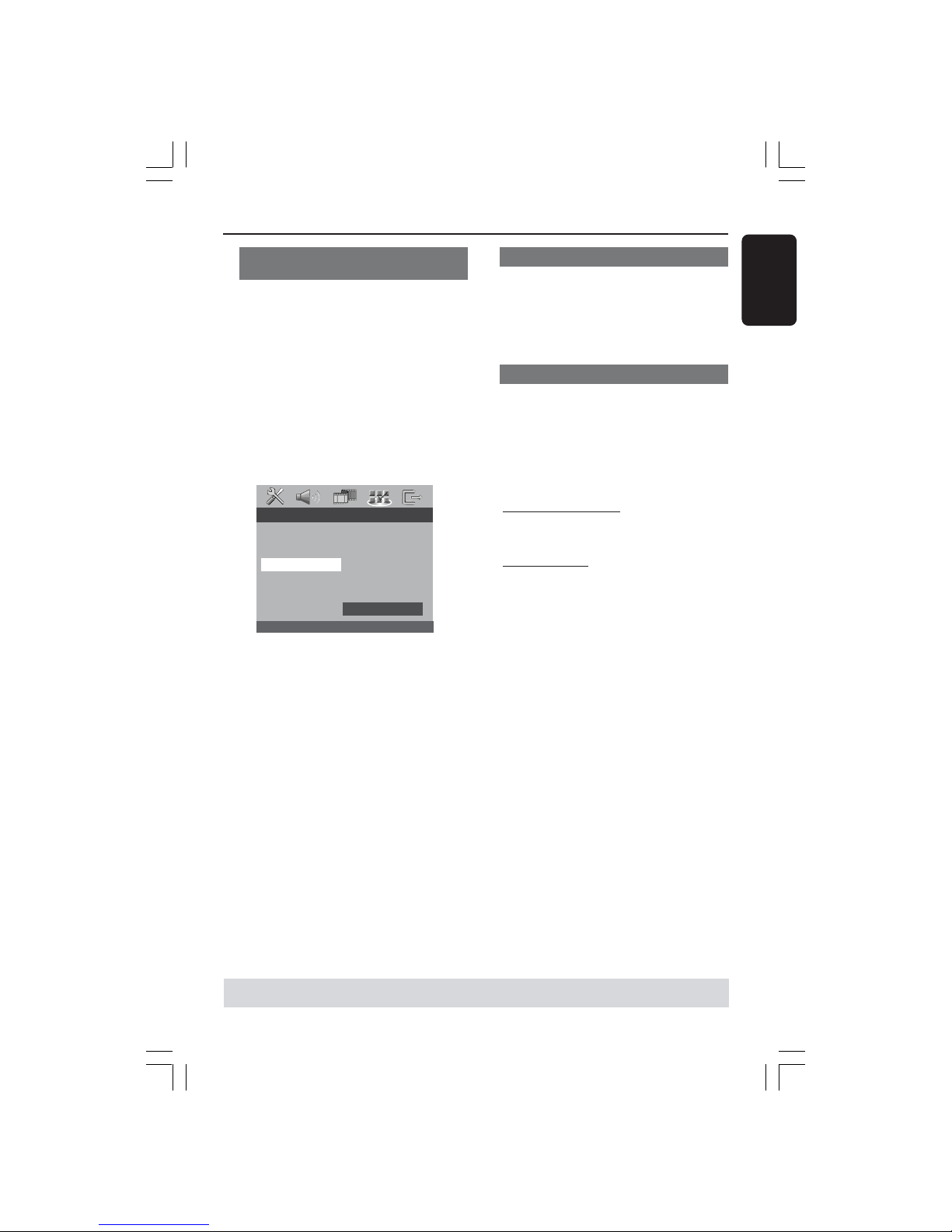

Video Setup Menu
1 In disc mode, press SYSTEM MENU. 2 Press 1 2 to select ‘Video Setup’ icon. 3 Press OK to confirm.
- - VIDEO SETUP PAGE - -
TV TYPE
TV DISPLAY
PROGRESSIVE
PICTURE SETTING
BLACK LEVEL
COMPONENT
TV Type
This menu contains the options for selecting the colour system that matches the connected TV. For details, see page
13.

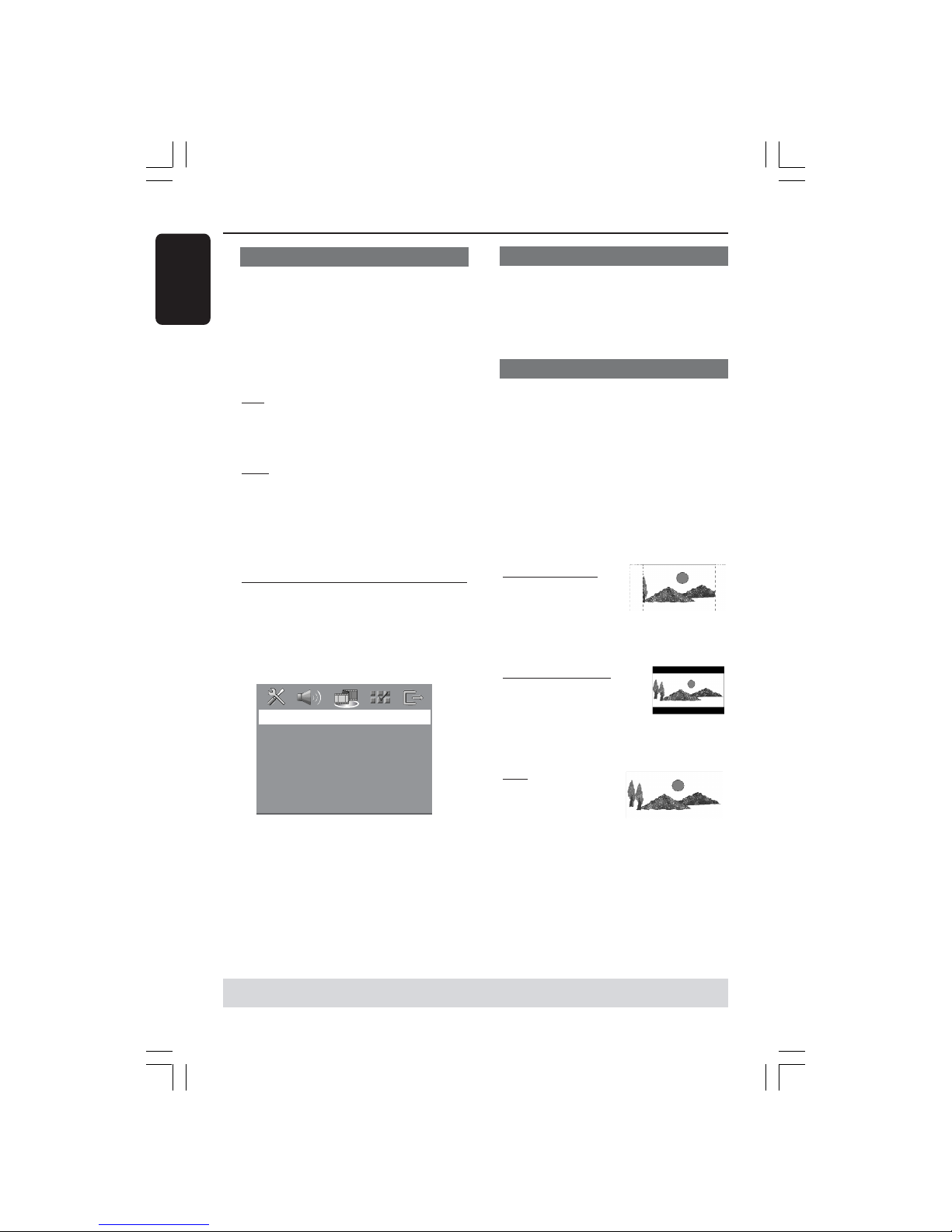

Setting the TV Display
Set the aspect ratio of the DVD Player according to the TV you have connected. The format you select must be available on the disc. If it is not, the setting for TV display will not affect the picture during playback.
1 In ‘VIDEO SETUP PAGE’, press 34 to
highlight {TV DISPLAY}, then press 2.
2 Press 34 to highlight one of the options
below:
4:3 PAN SCAN –
Select this if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.
4:3 LETTER BOX – Select this if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.
16:9 – Select this if you have a wide­screen TV.
3 Select an item and press OK.
DVD Setup Menu Options
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
01-34 DVP720_AP 18/03/2004, 10:39 AM26
Page 27
3139 246 13521
English
27
DVD Setup Menu Options
Progressive - turning on/off
This feature is only applicable if you have connected this DVD Player to a Progressive Scan TV through the Y Pb Pr jacks (see page 7).
1 In ‘VIDEO SETUP PAGE’, press 34 to
highlight {PROGRESSIVE}, then press 2.
OFF
To disable Progressive Scan function.
ON
To enable Progressive Scan function.
2 Press 34 to select a setting, then press
OK to confirm your selection.
Helpful Hint: –To deactivate the progressive function manually, see page 12.

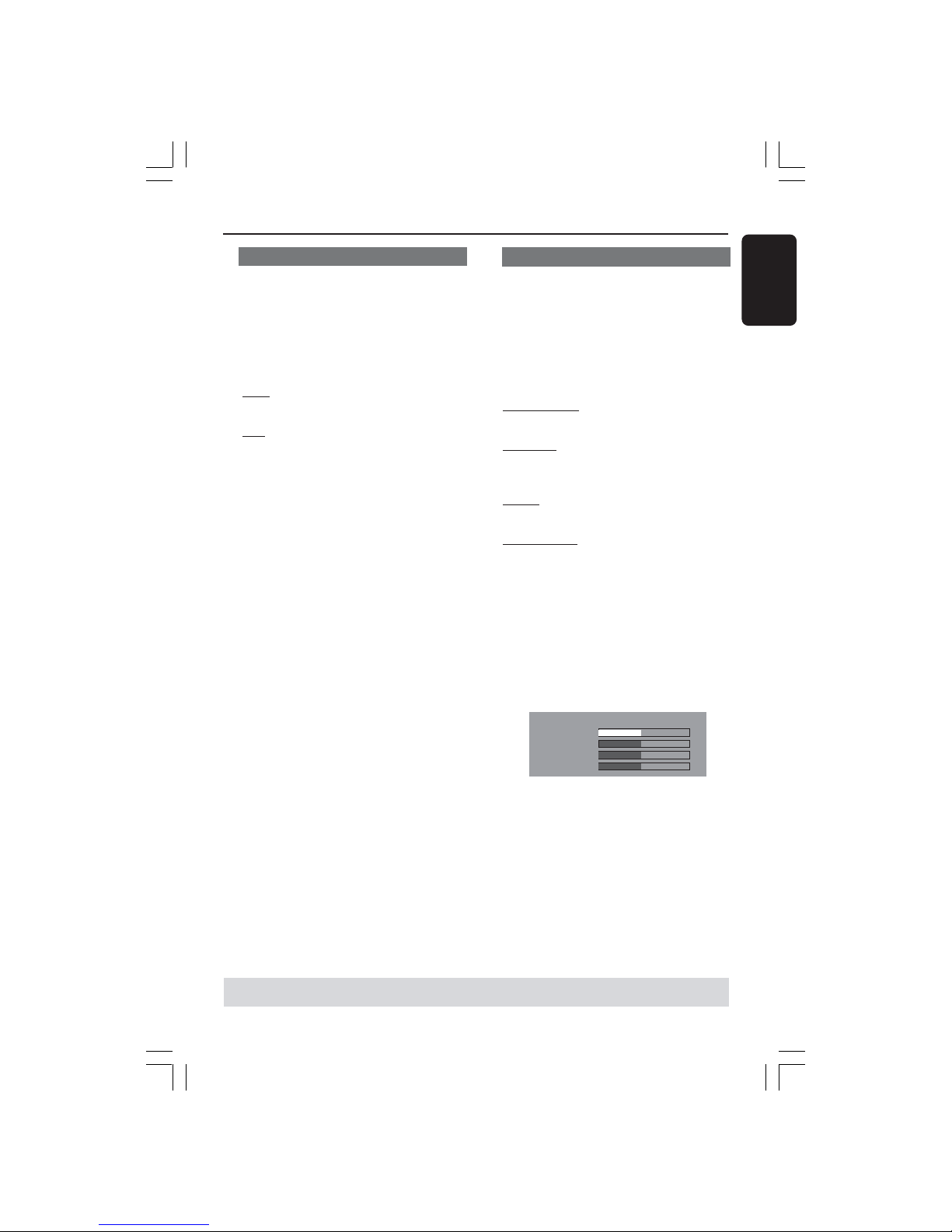

Picture Setting
This DVD Player provides three predefined sets of picture colour settings and one personal setting which you can define yourself.
1 In ‘VIDEO SETUP PAGE’, press 34 to
highlight {PICTURE SETTING}, then press
2.
STANDARD
Select this for standard picture setting.
BRIGHT
Select this will make the TV picture brighter.
SOFT
Select this will make the TV picture softer.
PERSONAL
Select this to personalise your picture colour by adjusting the brightness, contrast, tint and colour (saturation).
2 Press 34 to select a setting, then press
OK to confirm your selection.
3 If you select {PERSONAL}, then proceed
to steps
4~7.
➜The ‘PERSONAL PICTURE SETUP’
menu appears.
PERSONAL PICTURE SETUP
BRIGHTNESS
CONTRAST
TINT
COLOR
0
0
0
0
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
01-34 DVP720_AP 18/03/2004, 10:39 AM27
Page 28
English
28
DVD Setup Menu Options
4 Press 34 to highlight one of the following
options.
BRIGHTNESS
Increase the value will brighten the picture or vice versa. Choose zero (0) for average setting.
CONTRAST
Increase the value will sharpen the picture or vice versa. Choose zero (0) to balance the contrast.
TINT
Increase the value will darken the picture or vice versa. Choose zero (0) for average setting.
COLOUR
Increase the value will enhance the colour in your picture or vice versa. Choose zero (0) to balance the colour.
5 Press 1 2 to adjust the setting that best
suit your personal preference.
6 Repeat steps 4~5 for adjusting other
colour features.
7 Press OK to confirm.
Preference Page
1 Press Ç twice to stop playback (if any),
then press SYSTEM MENU.
2 Press 1 2 to select the ‘Preference Setup’
icon.
3 Press OK to confirm.
- - PREFERENCE PAGE - -
AUDIO SUBTITLE DISC MENU PAR ENTAL PBC MP3/JPEG NAV PASSWORD DEFAULT
Audio, Subtitle, Disc Menu
These menus contain various language options for audio, subtitle and disc menu which may be recorded on the DVD. For details, see page 14.
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
01-34 DVP720_AP 18/03/2004, 10:39 AM28
Page 29
3139 246 13521
English
29
DVD Setup Menu Options
Restricting playback by Parental Control
Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.
1 In ‘PREFERENCE PAGE’, press 34 to
highlight {PARENTAL}, then press 2.
- - PREFERENCE PAGE - -
AUDIO 1 KID SAFE
SUBTITLE 2 G
DISC MENU 3 PG
PAR ENTAL 4 PG 13
PBC 5 PGR
MP3/JPEG NAV 6 R
PASSWORD 7 NC 17
DEFAULT 8 ADULT
2 Press 34 to highlight a rating level for the
disc inserted and press OK.
➜To disable Parental controls and have
all Discs play, select {8 ADULT}.
3 Use the numeric keypad (0-9) to enter
the six-digit password (see page 30 “Changing the password”).
➜DVDs that are rated above the level
you selected will not play unless you enter your six-digit password.
Helpful Hints: – VCD, SVCD, CD have no level indication, so parental control function has no effect on these type of discs. This applies to most illegal DVD discs. – Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs.
TIPS:
To return to the previous menu, press 1. To remove the menu, press SYSTEM MENU.
PBC
You can set the PBC to ON or OFF. This feature is available only on Video CD 2.0 with playback control (PBC) feature. For details, see page 19.
MP3/JPEG Menu - turning on/off
MP3/JPEG Navigator can be set only if the disc is recorded with menu. It allows you to select different display menus for easy navigation.
1 In ‘PREFERENCE PAGE’, press 34 to
highlight {MP3/JPEG NAV}, then press 2.
WITHOUT MENU
Select this to display all the files contained in the MP3/Picture CD.
WITH MENU
Select this to display only the folder menu of the MP3/Picture CD.
2 Press 34 to select a setting, then press
OK to confirm your selection.
01-34 DVP720_AP 18/03/2004, 10:39 AM29
Page 30
English
30
Changing the Password
The same password is used for both Parental Control and Disc Lock. Enter your six-digit password when prompted on the screen. The default password is 136 900.
1 In ‘PREFERENCE PAGE’, press 34 to
highlight {PASSWORD}, then press 2 to select {CHANGE}.
- - PREFERENCE PAGE - -
AUDIO
SUBTITLE
DISC MENU
PAR ENTAL
PBC
MP3/JPEG NAV
PASSWORD CHANGE DEFAULT
2 Press OK to enter the ‘Password Change
Page’.
OLD PASSWORD
NEW PASSWORD
CONFIRM PWD
OK
3 Use the numeric keypad (0-9) to enter
your old six-digit password.
➜When doing this for the first time, key
in ‘
136 900’.
4 Enter the new six-digit password. 5 Enter the new six-digit password a second
time to confirm.
➜The new six-digit password will now
take effect.
6 Press OK to confirm.
Restoring to original settings
Setting the DEFAULT function will reset all options and your personal settings to the factory defaults, except your password for Parental Control and Disc Lock.
1 In ‘PREFERENCE PAGE’, press 34 to
highlight {DEFAULT}, then press 2 to select {RESET}.
2 Press OK to confirm.
➜All settings will now reset to factory
defaults.
DVD Setup Menu Options
01-34 DVP720_AP 18/03/2004, 10:39 AM30
Page 31
3139 246 13521
English
31
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525 Playback Multistandard (PAL/NTSC)
VIDEO PERFORMANCE
CVBS 1Vpp — 75 ohm YPbPr 0.7 Vpp — 75 ohm RGB (SCART) 0.7 Vpp — 75 ohm
VIDEO FORMAT
Digital Compression MPEG 2 for DVD,SVCD
MPEG 1 for VCD MPEG-4
DVD 50Hz 60Hz
Horiz. resolution 720 pixels 720 pixels Ver tical resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. resolution 352 pixels 352 pixels Ver tical resolution 288 lines 240 lines
AUDIO FORMAT
Digital Mpeg/ AC-3/ compressed Digital
PCM 16, 20, 24 bits
fs, 44.1, 48, 96 kHz
MP3(ISO 9660) 96, 112, 128, 256
kbps & variable bit rate fs, 32, 44.1,
48 kHz Full decoding of Dolby Digital and DTS multi-channel sound Analog Sound Stereo Dolby Surround compatible downmix from Dolby Digital multi-channel sound Dolby Pro Logic II 3D sound for virtual 5.1 channel sound on 2 speakers
Specifications
AUDIO PERFORMANCE
DA Converter 24 bit DVD fs 96 kHz 4Hz- 44kHz
fs 48 kHz 4Hz- 22kHz
SVCD fs 48 kHz 4Hz- 22kHz
fs 44.1kHz 4Hz- 20kHz CD/VCD fs 44.1kHz 4Hz- 20kHz Signal-Noise (1kHz) 105 dB Dynamic range(1kHz) 90 dB Crosstalk (1kHz) 105 dB Distortion/noise (1kHz) 90 dB MPEG MP3 MPEG Audio L3
CONNECTIONS
Scart Output Euroconnector YPbPr Output Cinch 3x Video Output Cinch (yellow) Audio Output(L+R) Cinch (white/red) Digital Output 1 coaxial, 1 optical
IEC60958 for CDDA / LPCM
IEC61937 for MPEG 1/2,
Dolby Digital
CABINET
Dimensions (w x h x d) 435 x 50 x 310 mm Weight Approximately 1.9 kg
POWER CONSUMPTION
Power Supply Rating 110 – 127 / 220 – 240 V;
50/60 Hz Power consumption < 14 W Power consumption in Standby mode < 1 W
Specifications subject to change without prior notice
01-34 DVP720_AP 18/03/2004, 10:39 AM31
Page 32
English
32
WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
Problem Solution
No power – Check if the AC power cord is properly connected.
– Press the STANDBY ON on the front of the DVD
system to turn on the power.
No picture – Refer to your TV’s manual for correct Video In
channel selection. Change the TV channel until you see the DVD screen.
– Check if the TV is switched on.
Distorted picture – Sometimes a small amount of picture distortion may
appear depending on the disc being played back. This is not a malfunction.
Completely distorted picture or – Connect DVD Player directly to the TV. black/white picture with DVD – Make sure the disc is compatible with the DVD/
Player.
– Ensure that the DVD Player’s TV Type is set to match
that of the Disc and your TV.
No sound or distorted sound – Adjust the volume.
– Check that the speakers are connected correctly.
No audio at digital output – Check the digital connections.
– Check if your receiver can decode MPEG-2 or DTS
and if not, please make sure the digital output is set to PCM.
– Check if the audio format of the selected audio
language matches your receiver capabilities.
No sound and picture – Check that the RGB/SCART cable is connected to
the correct device (See Connecting TV).
No output from subwoofer during stereo – Check that all speaker settings in the setup menu
have been change to small instead of large.
Disc can’t be played – The DVD+R/CD-R must be finalised.
– Ensure the disc label is facing up. – Check if the disc is defective by trying another disc. – If you have recorded a Picture CD or MP3 CD
yourself, ensure that your disc contains at least 10 pictures or 5 MP3 tracks.
– Region code incorrect.
Troubleshooting
Visit us at www.p4c.philips.com for service support
01-34 DVP720_AP 18/03/2004, 10:39 AM32
Page 33
3139 246 13521
English
33
Picture freezes momentarily – Check the disc for fingerprints/scratches and during playback clean with a soft cloth wiping from centre to edge.
No return to start-up screen when – Reset the unit by switching the player off, then on disc is removed again.
The player does not respond to –Aim the Remote Control directly at the sensor the Remote Control on the front of the player.
– Reduce the distance to the player. – Replace the batteries in the Remote Control. – Re-insert the batteries with their polarities (+/–
signs) as indicated.
Buttons do not work –To completely reset the player, unplug the AC
cord from the AC outlet for 5-10 seconds.
Player does not respond to some – Operations may not be permitted by the disc. operating commands during playback. Refer to the instructions of the disc jacket.
DVD Player cannot read – Use a commonly available cleaning CD/DVD to CDs/DVDs clean the lens before sending the DVD Player for
repair.
Menu items cannot be selected – Press STOP twice before selecting System Menu.
– Depending on the disc availability, some menu items
cannot be selected.
Unable to play DivX movies – Check that the DivX file is encoded in ‘Home
Theater’ mode with DivX 5.x encoder.
Unable to select Progressive Scan on/off – Check that the output of the video signal is switch to
‘YUV’.
No sound during DivX movies playback – The audio codec may not be supported by the DVD
player.
Troubleshooting
Problem Solution
Visit us at www.p4c.philips.com for service support
01-34 DVP720_AP 18/03/2004, 10:39 AM33
Page 34
English
34
Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide­screens is 16:9. AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV, Stereo, etc.). Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per seconds, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc. Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want. Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.). Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD. Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does. DivX 3.11/4.x/5.x: The DivX codec is a patent­pending, MPEG-4 based video compression technology, developed by DivXNetworks, Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high
visual quality. Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer). DTS: Digital Theatre Systems. This is a surround sound system, but it is different from Dolby Digital. The formats were developed by different companies. JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. MP3: A file format with a sound data compression system. “MP3” is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. By using MP3 format. one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.
Multichannel: DVD is specified to have each sound track constitute one sound field. Multichannel refers to a structure of sound tracks having three or more channels. Parental Control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level. PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion. Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function. Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution. Region code: A system for allowing discs to be played back only in the region designated beforehand. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions). S-Video: Produces a clear picture by sending separate signals for the luminance and the color. You can use S-Video only if your TV has S- video In jack. Super Audio CD (SACD): This audio format is based upon the current CD standards but includes a greater amount of information that provides higher quality sound. There are three types of discs: single layer, double layer and hybrid discs. The hybrid disc contains both standard audio CD and Super Audio CD information. Surround: A system for creating realistic three­dimensional sound fields full of realism by arranging multiple speakers around the listener. Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want. VIDEO OUT jack: Jack on the back of the DVD System that sends video to a TV.
Glossary
01-34 DVP720_AP 18/03/2004, 10:39 AM34
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
