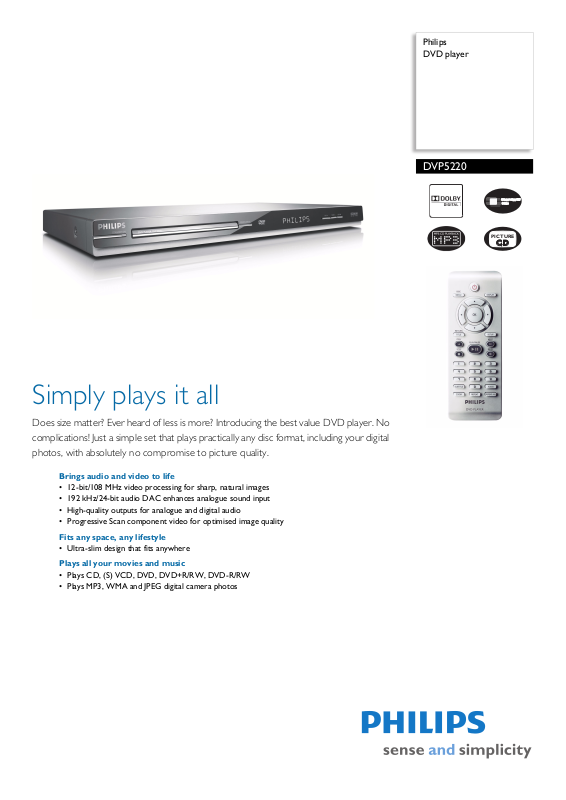

Philips DVP5220 BROCHURE

Philips DVD player

DVP5220


Simply plays it all

Does size matter? Ever heard of less is more? Introducing the best value DVD player. No complications! Just a simple set that plays practically any disc format, including your digital photos, with absolutely no compromise to picture quality.

Brings audio and video to life

• 12-bit/108 MHz video processing for sharp, natural images

• 192 kHz/24-bit audio DAC enhances analogue sound input

• High-quality outputs for analogue and digital audio

• Progressive Scan component video for optimised image quality

Fits any space, any lifestyle

• Ultra-slim design that fits anywhere

Plays all your movies and music

• Plays CD, (S) VCD, DVD, DVD+R/RW, DVD-R/RW

• Plays MP3, WMA and JPEG digital camera photos

DVD player

DVP5220/74

Specifications Product highlights

Picture/Display

• D/A converter: 12-bit, 108 MHz

• Picture enhancement: Progressive Scan, Video upsampling

Sound

• D/A converter: 24-bit, 192 kHz

• Frequency response: 30-20,000 Hz

• Signal to noise ratio: 90

• Distortion and Noise (1 kHz): 80 dB

• Crosstalk (1 kHz): 80 dB

• Dynamic Range (1 kHz): 80 dB

• Sound System: Dolby Digital

Video Playback

• Playback Media: CD, CD-R/CD-RW, Video CD/ SVCD, DVD, DVD-R/-RW, DVD+R/+RW

• Compression formats: MPEG1, MPEG2

• Video disc playback system: PAL, NTSC

Audio Playback

• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW

• MP3 bit rates: 32 - 320 kbps

• Compression format: Dolby Digital, MP3, WMA, PCM

Still Picture Playback

• Playback Media: DVD-R/-RW, DVD+R/+RW,

CD-R/RW, Picture CD, Kodak Picture CD

• Picture compression format: JPEG

• Picture enhancement: Flip photos, Rotate, Slideshow, Zoom

Connectivity

• Rear Connections: Analogue audio Left/Right out, Composite video (CVBS) output, Digital coaxial out, ComponentVideo out Progressive

Convenience

• Child Protection: Parental Control, Child Lock

• On-Screen Display languages: English

Electricity

• Power consumption: < 10 W

• Standby power consumption: < 1 W

• Power supply: 230-240 V, 50 Hz

Accessories

• Included Accessories: 2 x AAA Batteries, Remote Control, User manual, Audio/Video cable, Power cord, World Wide Warranty leaflet

Dimensions

• Set dimensions (W x H x D): 435 x 38 x 210 mm

• Packaging dimensions (W x H x D): 490

x 82 x 296 mm

•

192 kHz/24-bit audio DAC

192 kHz sampling enables you to have an accurate representation of the original sound curves. Together with a 24-bit resolution, more information is captured from the original analogue sound wave form, giving a much richer audio reproduction.

Plays it all

Play MP3s, WMA and JPEGs, and experience the convenience of sharing media files on your TV or home theatre system - in the comfort of your living room.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of se nd ing a fi eld c om pris in g the od d lin es to th e s cree n f irst , followed by the field with the even lines, it writes both fields at the same time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Issue date 2009-02-16

Version: 1.0.5

12 NC: 8670 000 38412 EAN: 87 12581 40698 1
