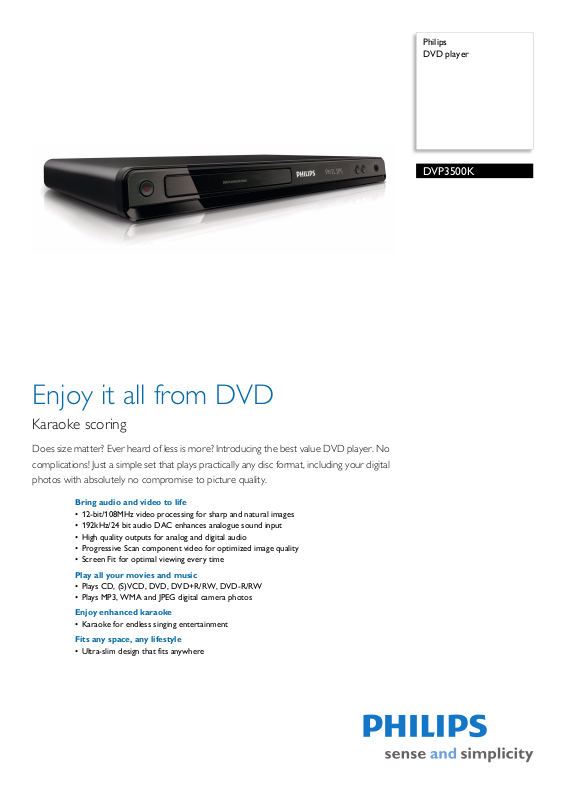

Philips DVP3500K, DVP3500K/98 Quick Manual

Philips
DVD player

DVP3500K

Enjoy it all from DVD

Karaoke scoring

Does size matter? Ever heard of less is more? Introducing the best value DVD player. No
complications! Just a simple set that plays practically any disc format, including your digital
photos with absolutely no compromise to picture quality.

Bring audio and video to life

• 12-bit/108MHz video processing for sharp and natural images

• 192kHz/24 bit audio DAC enhances analogue sound input

• High quality outputs for analog and digital audio

• Progressive Scan component video for optimized image quality

• Screen Fit for optimal viewing every time

Play all your movies and music

• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW

• Plays MP3, WMA and JPEG digital camera photos

Enjoy enhanced karaoke

• Karaoke for endless singing entertainment

Fits any space, any lifestyle

• Ultra-slim design that fits anywhere

DVD player

DVP3500K/98

Highlights

192kHz/24 bit audio DAC

192KHz sampling enables you to have an accurate
representation of the original sound curves.
Together with a 24-bit resolution, more information
is captured from the original analogue sound wave
form, giving a much richer audio reproduction.

Karaoke

The Karaoke feature on your DVD player provides
endless entertainment and maximum audio and
singing enjoyment.You can enhance your
performance by adding an ‘echo’ effect to your voice.
The key controls allows you to choose the optimal
key for your personal vocal range.

Progressive Scan

Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.

Plays it all

Play MP3s, WMA and JPEGs, and experience the
convenience of sharing media files on your TV or
home theater system - in the comfort of your living
room.

Screen Fit

Whatever you’re watching, and on any TV, Screen
Fit ensures that the picture fills the whole screen.
Annoying black bars on the top and bottom are
eliminated, without any tedious manual adjustments
to make. Simply press the Screen Fit button, choose
the format and enjoy your movie in full-screen

Specifications

Picture/Display

• D/A converter: 12 bit, 108 MHz

• Picture enhancement: Progressi
upsampling

Sound

• D/A converter: 24 bit, 192 kHz

• Frequency response: 30-20000 Hz

• Signal to noise ratio: 90

• Distortion and Noise (1kHz): 65 dB

• Crosstalk (1kHz): 70 dB

• Dynamic Range (1kHz): 80 dB

• Sound System: Dolby Digital

Video Playback

• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DVD-R/-RW, DVD+R/+RW, DVD­Video

• Compression formats: MPEG1, MPEG2

• Video disc playback system: NTSC, PAL

Audio Playback

• Playback Media: CD, MP3-CD, MP3-DVD, WMA­CD, CD-R/RW, Audio CD

• MP3 bit rates: 32 - 320 kbps

• Compression format: Dolby Di
PCM

Still Picture Playback

• Playback Media: DVD-R/-RW, DVD+R/+RW, CD­R/RW, Picture CD, Kodak Picture CD

• Picture Compression Format: JPEG

• Picture Enhancement: Fl
Slideshow, Zoom, Slideshow with MP3 playback

Connectivity

• Front / Side connections: Microphone

• Rear Connections: Analog audio Le
Composite video (CVBS) output, Digital coaxial
out, ComponentVideo out Progressive

Convenience

• Child Protection: Parental Control, Child Lock

• On-Screen Display languages: English, Korean,

, Thai, Traditional Chinese

Malay

• Karaoke: MIC volume

Power

• Power consumption: < 10 W

• Standby power consumption: < 1W

• Power supply: 50/60 Hz, 110-240V

ve scan, Video

gital, MP3, WMA,

ip photos, Rotate,

ft/Right out,

Issue date 2013-02-12

Version: 1.2.3

12 NC: 8670 000 76089
EAN: 87 12581 60290 1

© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

Accessories

• Included accessories: 2 x AAA Batteries, Audio/
Video cable, Remote Control, World Wide
Warranty leaflet, Power cord, Quick start guide

Dimensions

• Set dimensions (W x H x D): 360 x 39 x 209 mm

• Packaging dimensions (W x H x D):

0 x 80 x 282 mm

40

• Set weight: 1.3 kg

• Weight incl. Packaging: 2.4 kg

Multimedia Applications

• Playback Formats: JPEG Still pictures, MP3

•
