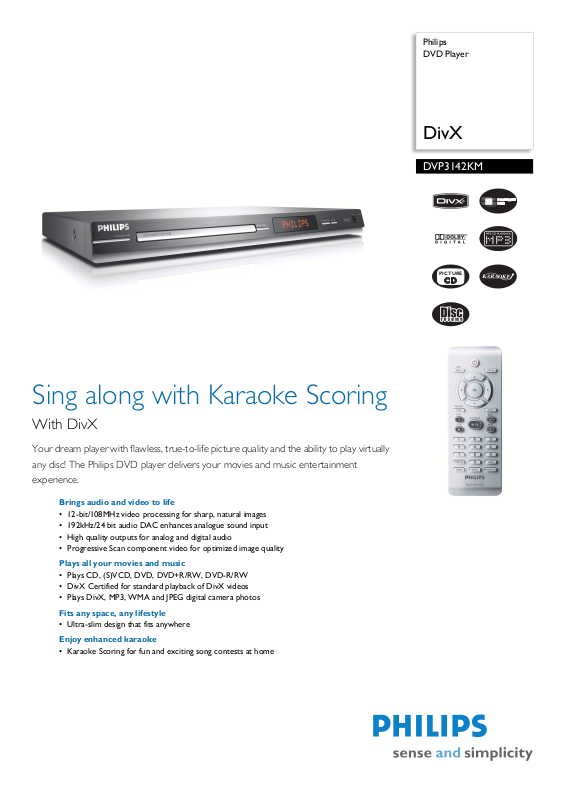

Philips DVP3142KM User Manual

Philips DVD Player

DivX

DVP3142KM


Sing along with Karaoke Scoring

With DivX

Your dream player with flawless, true-to-life picture quality and the ability to play virtually any disc! The Philips DVD player delivers your movies and music entertainment experience.

Brings audio and video to life

• 12-bit/108MHz video processing for sharp, natural images

• 192kHz/24 bit audio DAC enhances analogue sound input

• High quality outputs for analog and digital audio

• Progressive Scan component video for optimized image quality

Plays all your movies and music

• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW

• DivX Certified for standard playback of DivX videos

• Plays DivX, MP3, WMA and JPEG digital camera photos

Fits any space, any lifestyle

• Ultra-slim design that fits anywhere

Enjoy enhanced karaoke

• Karaoke Scoring for fun and exciting song contests at home

DVD Player

DivX

DVP3142KM/78

Specifications Product highlights

Picture/Display

• D/A converter: 12 bit, 108 MHz

• Picture enhancement: Progressive Scan, Video upsampling

Sound

• D/A converter: 24 bit, 192 kHz

• Frequency response: 30-20000 Hz

• Signal to noise ratio: 90

• Distortion and Noise (1kHz): 65 dB

• Crosstalk (1kHz): 70 dB

• Dynamic Range (1kHz): 80 dB

• Sound System: Dolby Digital

Video Playback

• Playback Media: CD, CD-R/CD-RW, Video CD/ SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW, DVD-Video

• Compression formats: MPEG1, MPEG2, DivX

3.11, DivX 4.x, DivX 5.x, DivX 6.0

• Video disc playback system: NTSC, PAL

Audio Playback

• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD

• MP3 bit rates: 32 - 320 kbps

• Compression format: MP3, Dolby Digital, PCM, WMA

Still Picture Playback

• Playback Media: DVD+R/+RW, DVD-R/-RW, CD-R/RW, Picture CD, Kodak Picture CD

• Picture compression format: JPEG

• Picture enhancement: Flip photos, Rotate, Zoom,

Slideshow

Connectivity

• Front / Side connections: Microphone

• Rear Connections: Analog audio Left/Right out, ComponentVideo out Progressive, Composite video (CVBS) output, Digital coaxial out

Convenience

• Child Protection: Child Lock, Parental Control

• On-Screen Display languages: English, Spanish, Brazilian Portuguese

• Karaoke: MIC volume

Power

• Power consumption: < 10 W

• Standby power consumption: < 0.8 W

• Power supply: 110-240V, 50/60 Hz

Accessories

• Included Accessories: 2 x AAA Batteries, Audio/ Video cable, Remote Control, World Wide Warranty leaflet, User Manual, VDE to 2-pin Flat Adaptor, Microphone

Dimensions

• Packaging dimensions (W x H x D): 415

x 82 x 282 mm

• Set dimensions (W x H x D): 360 x 37 x 209 mm

Multimedia Applications

• Playback Formats: DivX, JPEG Still pictures, MP3

•

192kHz/24 bit audio DAC

192KHz sampling enables you to have an accurate representation of the original sound curves. Together with a 24-bit resolution, more information is captured from the original analogue sound wave form, giving a much richer audio reproduction.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of se nd ing a fi eld co mp ris in g t he od d l ine s t o t he sc re en fi rs t, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Karaoke Scoring

Karaoke Scoring is an advanced feature that automatically rates your singing and gives you a humorous picture that is tied to your scores.

Plays it all

Play virtually any media format you want - whether they be DivX, MP3s, WMA or JPEGs. Experience the unbeatable convenience of great playability, and the luxury of sharing media files on your TV or home theater system - in the comfort of your living room.

Issue date 2008-03-05

Version: 1.0.7

12 NC: 8670 000 34249 EAN: 87 12581 36644 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
