Philips DVP3120-55 User Manual

DVD VIDEO PLAYER
Thank you for choosing Philips.
Need help fast?
Read your User’s Manual rst for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support
DVP3120DVD VIDEO PLAYER
México
Es necesario que lea cuidadosamente su instructivo de manejo.
PRECAUCIÓN - ADVERTENCIA
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
ATENCIÓN
sea el requerido para su aparato
Descripción: Modelo: Alimentación: 110–127/220–240 V; ~50–60 Hz Consumo:
DVP3120/55 DVD Player 110 - 240V; 50/60Hz < 10W
Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No.6,
Col. San Fernando, La Herradura Huixquilucan, Edo de Mexico C.P. 52784, Mexico
Localidad y Tel.: Tel. 52 69 90 00
Exportador: País de Origen:
Nº de Serie: ________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por::
- Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Cuando el aparato no haya sido operarado de acuerdo con el instructivo del uso, fuera de los valores nominales y tolerancias de las tensiones (voltaje), frecuencia (ciclaje) de alimentación eléctrica y las características que deben reunir las instalaciones auxiliares.
- Por fenómenos naturales tales como: temblores, inundaciones, incendios, descargas eléctricas, rayos etc. o delitos causados por terceros (choques asaltos, riñas, etc.).
2
Index
English ------------------------------------------6
Español --------------------------------------- 40
Português --------------------------------- 74
English
EspañolPortuguês
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
General Information
English
Environmental Information
All unnecessary packaging has been
omitted. The packaging has been made easy to separate into two materials; cardboard (box) and polyethylene (bags, protective foam sheet).
Your DVD player consists of materials
which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Manufactured under license from Dolby Laboratories, “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Laser Safety
This unit employs a laser. Due to possible
eye injury, only a quali ed service person should remove the cover or attempt to service this device.
NOTE: Pictures shown maybe different between countries.
CAUTION: WARNING LOCATION: ON THE BACKPLATE OF THE SET
NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.
Speci cations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
For Customer Use: Read carefully the information located at the bottom or rear of your DVD Video player and enter below the Serial No. Retain this information for future reference.
Model No. DVP 3120 Serial No. ___________________
LASER
Type Semiconductor laser InGaAlP (DVD) AIGaAs (CD) Wave length 658 nm (DVD) 790 nm (CD) Output Power 7.0 mW (DVD)
10.0 mW (VCD/CD) Beam divergence 60 degrees
4
Language Code
English
5
Contents
English
Care and Safety Information
Setup .............................................................................................................................................................8
Cleaning discs .............................................................................................................................................8
General Information
Accessories supplied ................................................................................................................................9
Region codes ...............................................................................................................................................9
Connections
Connecting to television .......................................................................................... 10-11
Using Composite Video jacks (CVBS) .............................................................................................. 10
Using Component Video jacks (YPbPr) ........................................................................................... 10
Using an accessory RF modulator ......................................................................................................11
Connecting the power cord ...........................................................................................12

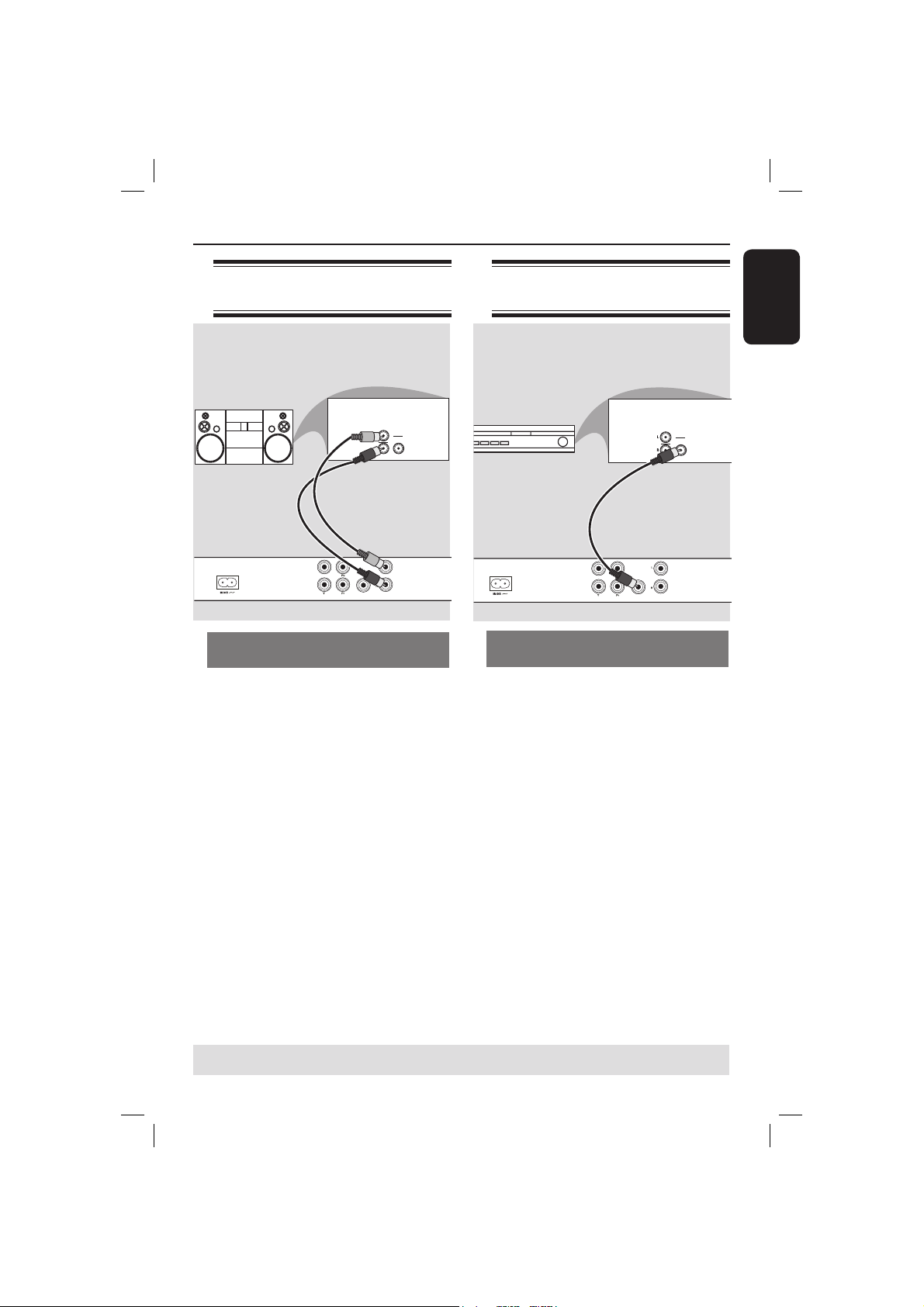

Optional connections
Connecting to a stereo system .....................................................................................13
Stereo system has right /lef t Audio In jacks ....................................................................................13
Connecting to a digital AV receiver .............................................................................13
Receiver has a PCM, Dolby Digital or MPEG decoder ................................................................ 13
Product Overview

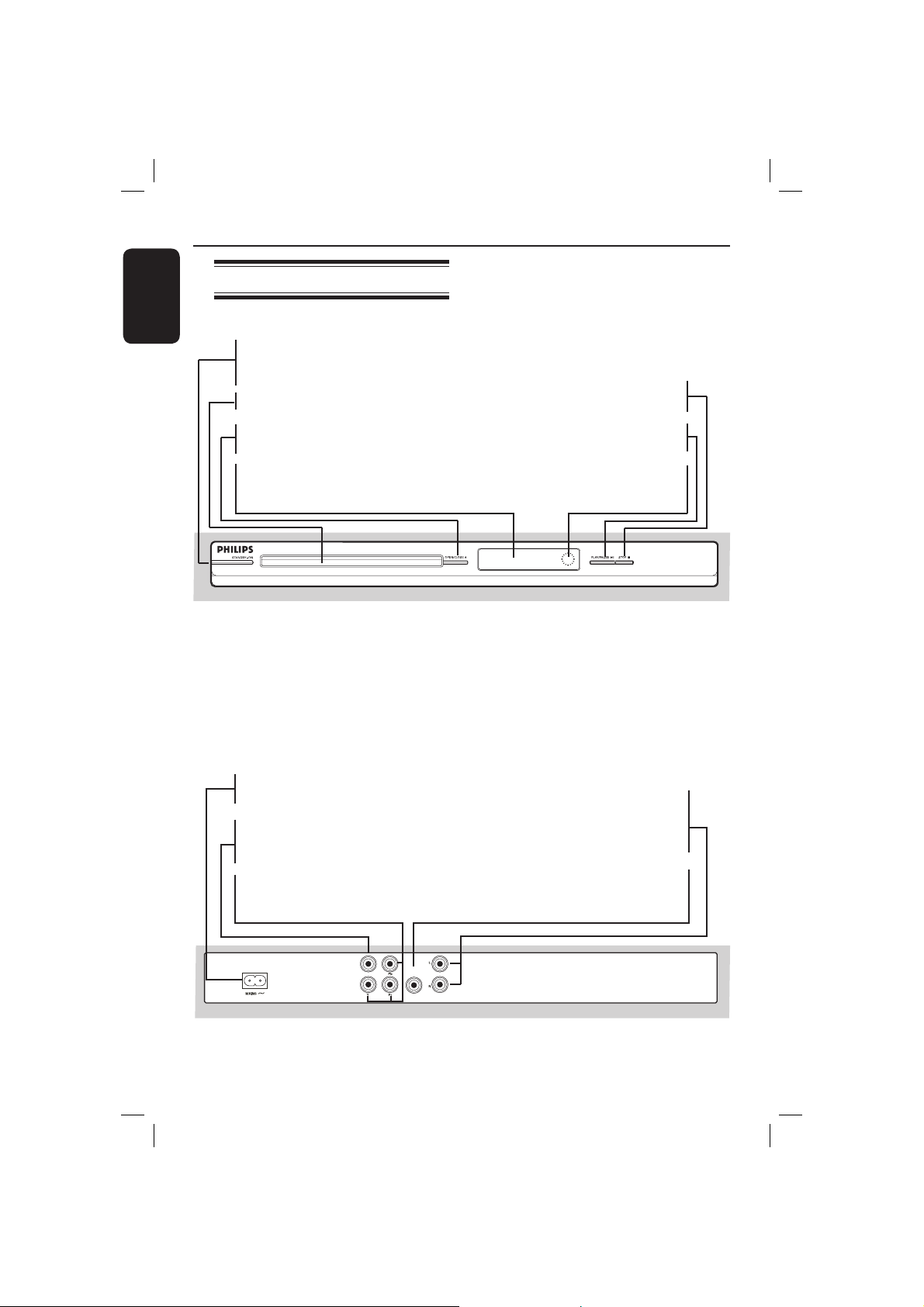

Front and Rear panels ....................................................................................................14

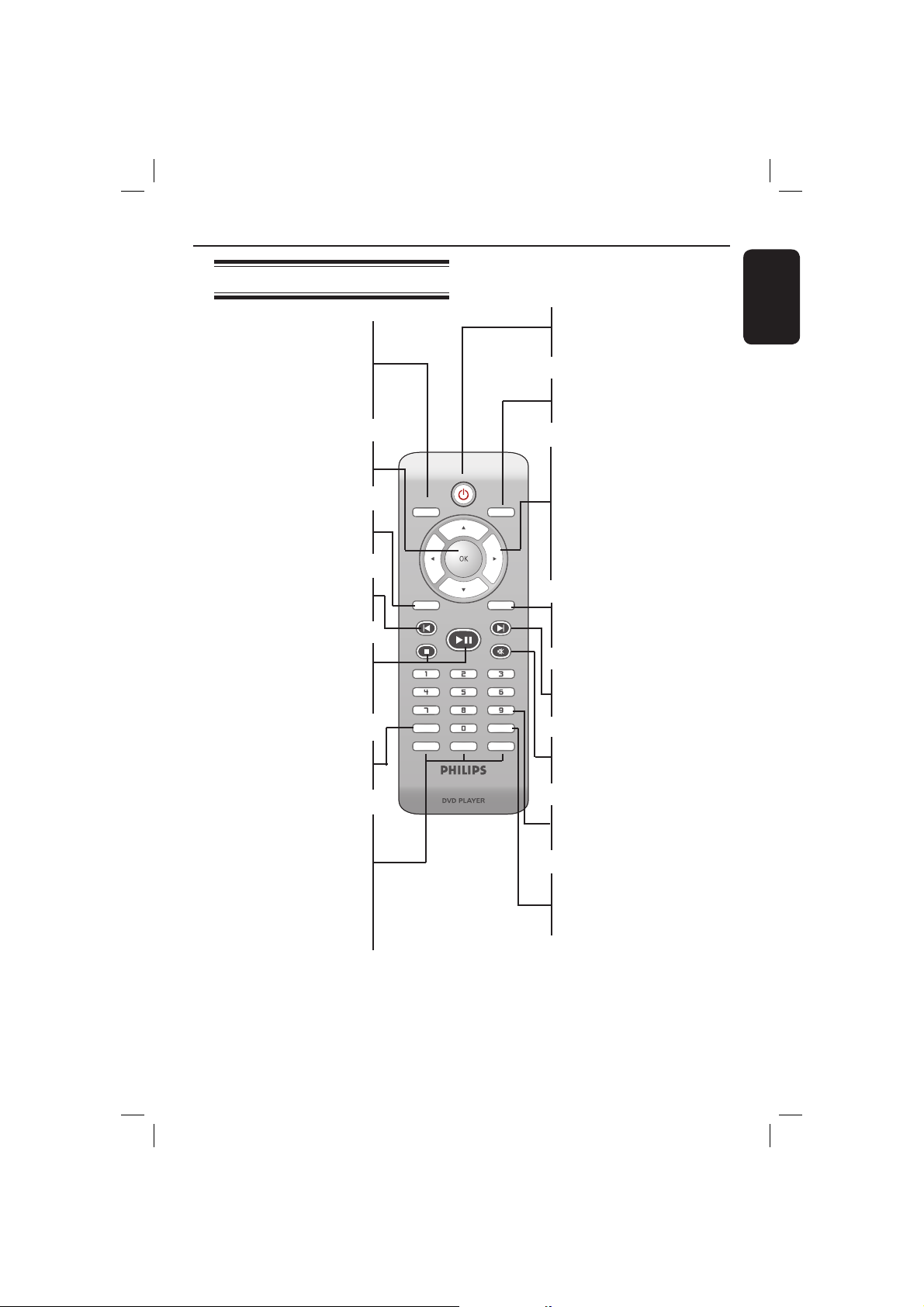

Remote Control ............................................................................................................. 15
Getting Started

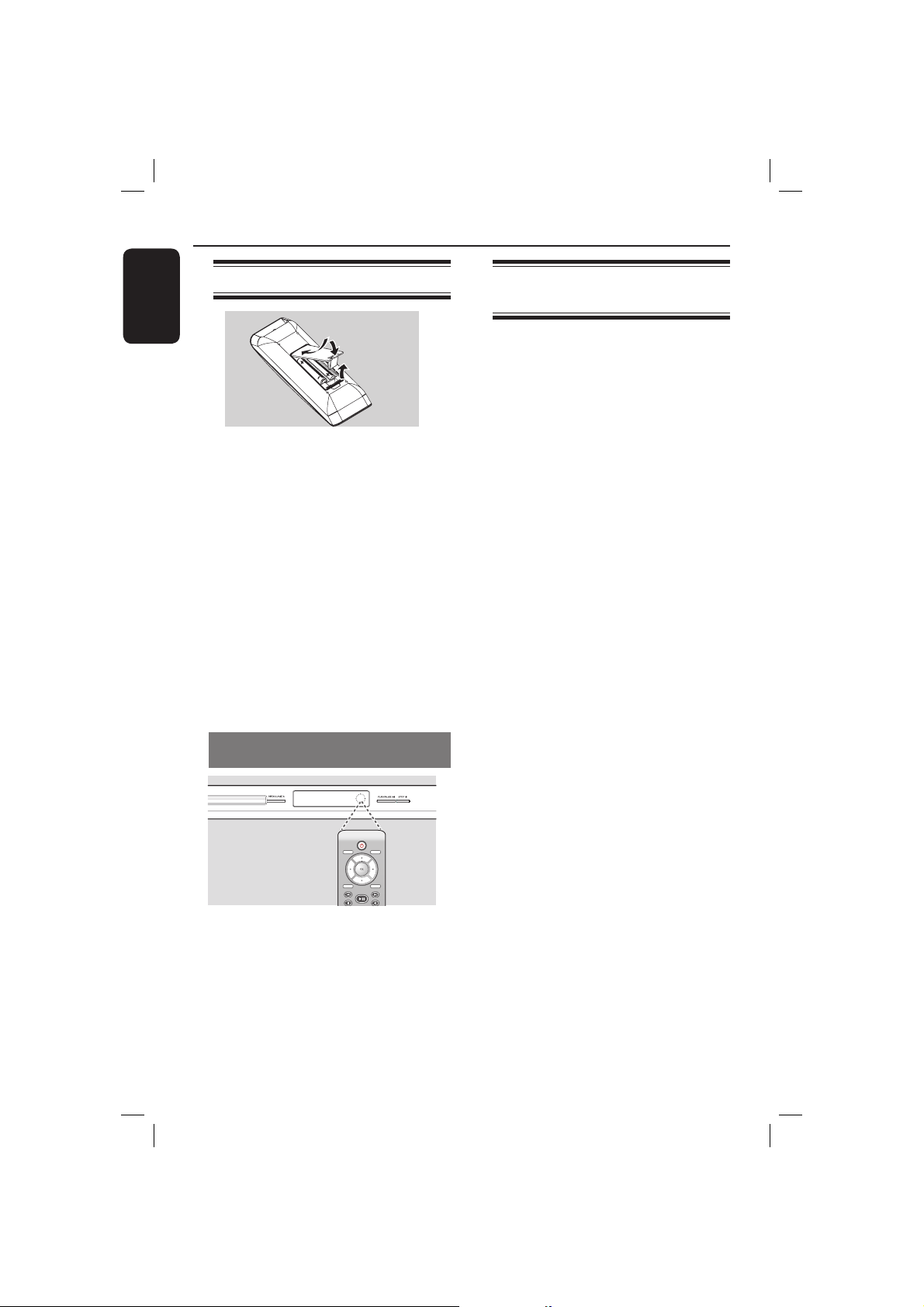

Step 1: Inserting Batteries.............................................................................................16
Using the remote control to operate the system ......................................................................... 16
Step 2: Finding your viewing channel ...........................................................................16

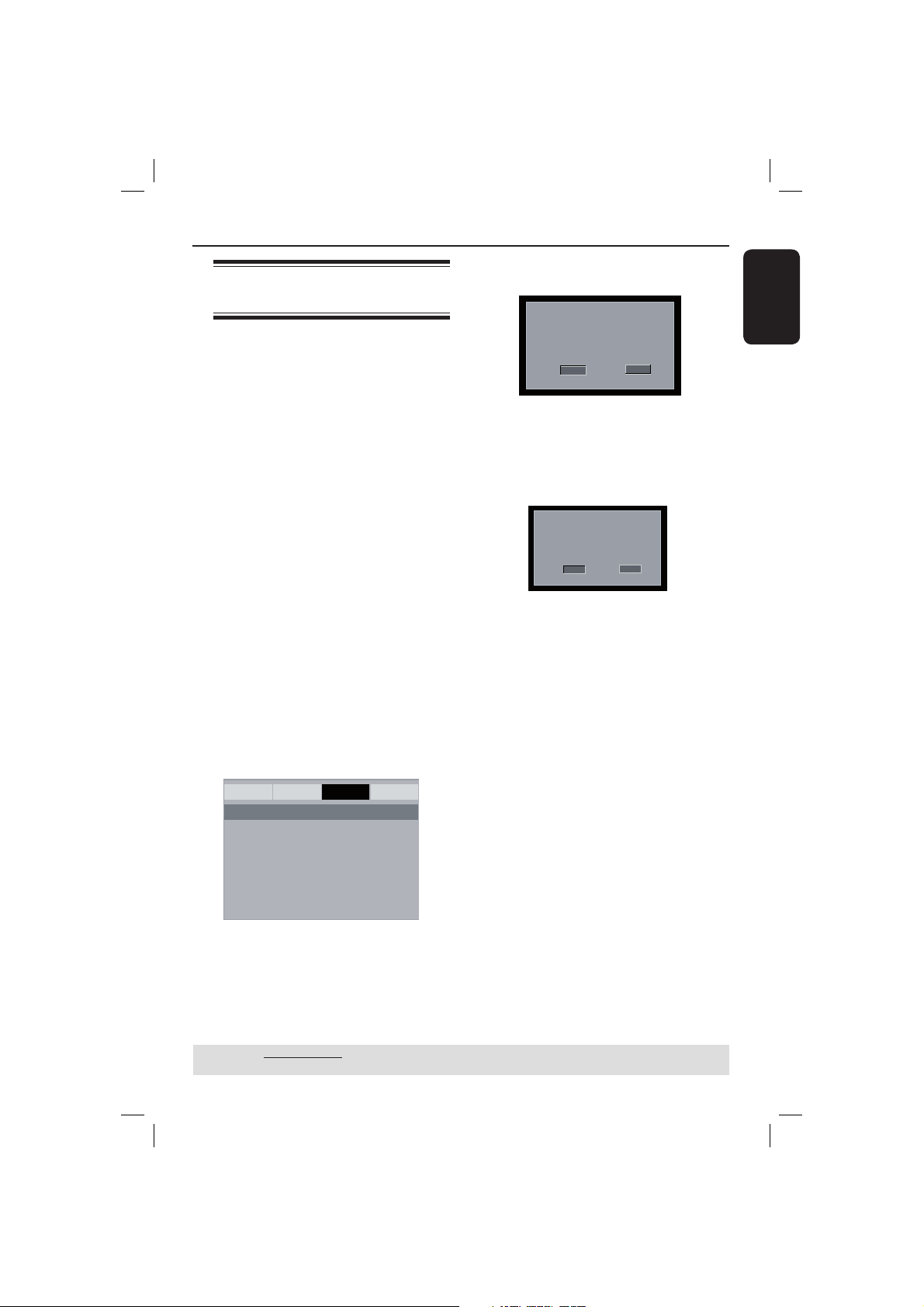

Step 3: Setting up Progressive Scan feature ...............................................................17
Step 4: Selecting the matching color system ............................................................ 18
Step 5: Setting the language .........................................................................................19
On-screen display (OSD) language .................................................................................................... 19
Audio, Subtitle and Disc menu languages ........................................................................................19
Playback from Disc

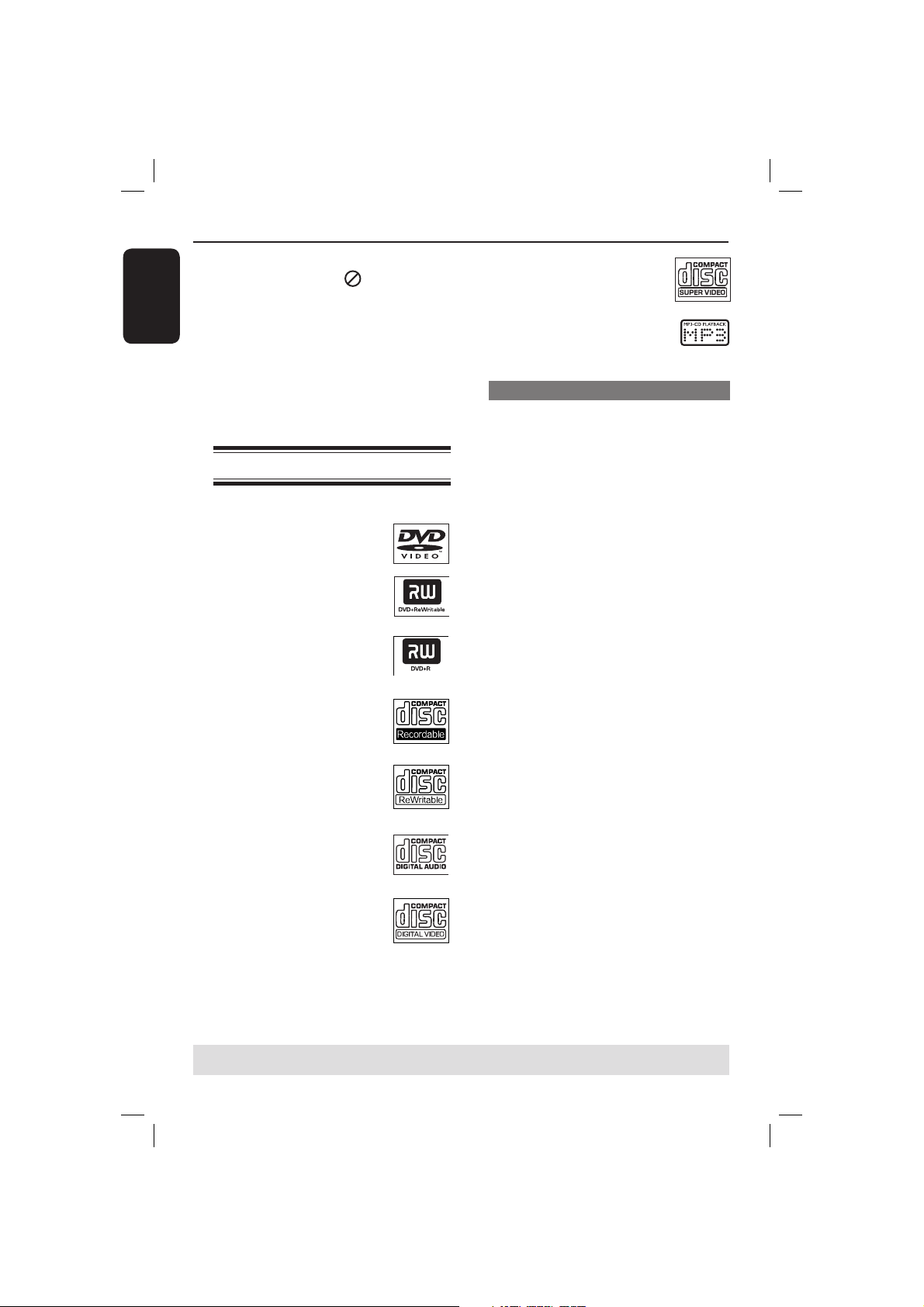

Playable discs .................................................................................................................. 20
Supported formats .................................................................................................................................20
Playback Features
Starting disc playback ................................................................................................... 21
Basic playback controls ................................................................................................. 21
Pausing playback...................................................................................................................................... 21
Selecting title/chapter/track ................................................................................................................ 21
Stopping playback ................................................................................................................................... 21
Operations for video playback ..................................................................................... 22
Using the Disc Menu ............................................................................................................................. 22
Zooming in ...............................................................................................................................................22
Slow Motion ............................................................................................................................................. 22
Forward / Reverse Searching ..............................................................................................................22
Selecting various repeat functions .............................................................................. 23
Repeat play mode ...................................................................................................................................23
Repeating a section within a chapter/track .....................................................................................23
Viewing the disc playback information ....................................................................... 24
Using the OSD menu ...............................................................................................................................24
6
Contents
Special DVD Features ................................................................................................... 25
Playing a Title ........................................................................................................................................... 25
Changing the Audio Language ............................................................................................................. 25
Subtitles..................................................................................................................................................... 25
Special VCD and SVCD Feature .................................................................................. 25
Playback Control (PBC)........................................................................................................................25

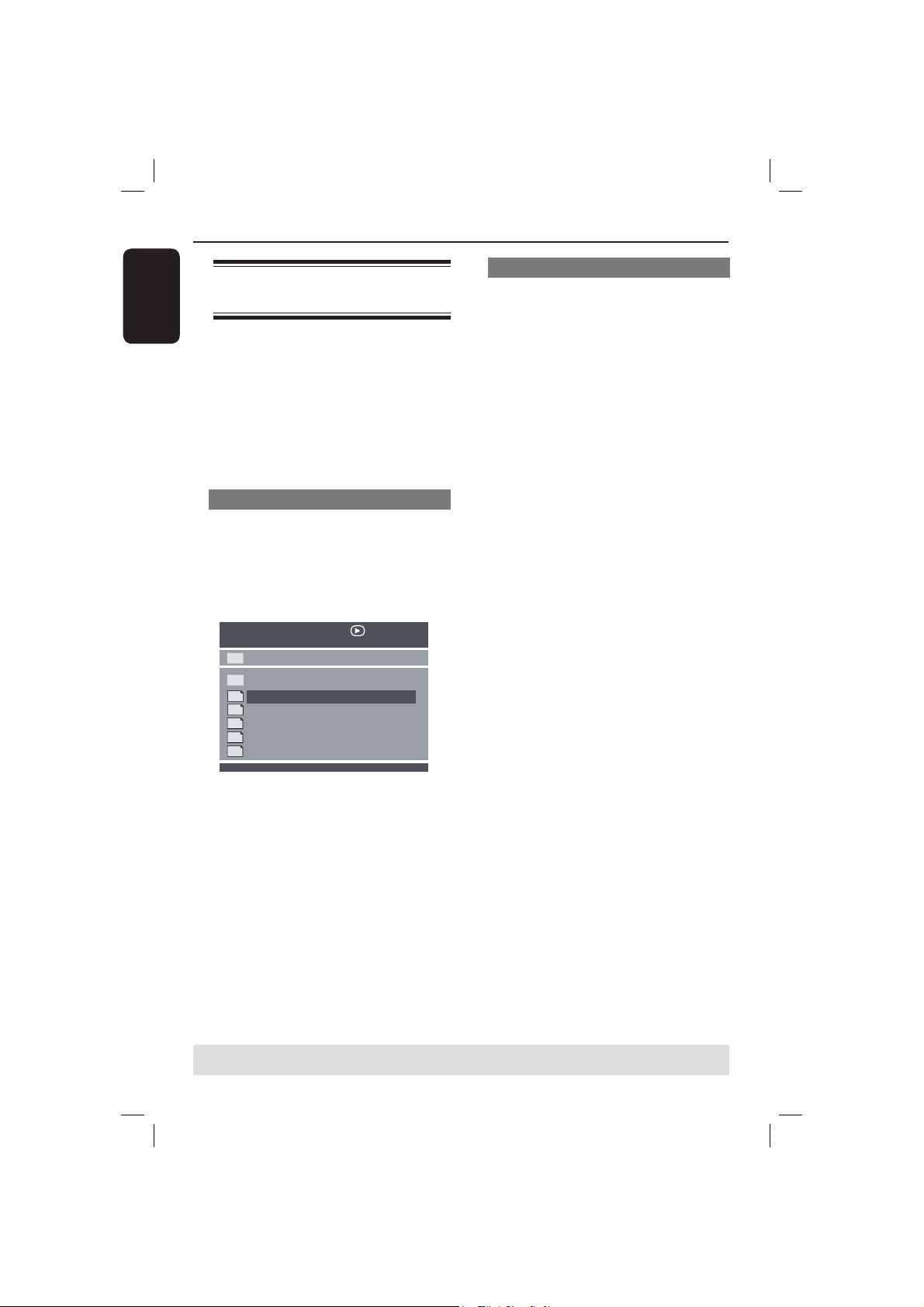

Playing MP3/WMA/JPEG/Kodak Picture CD ............................................................. 26
General Operation ................................................................................................................................26
Playback selection ..................................................................................................................................26
DVD Menu Options
Using the General setup menu .............................................................................. 27~28
OSD Language ......................................................................................................................................... 27
Sleep ......................................................................................................................... .................................. 27
Volume ...................................................................................................................................................... 28
Using the Audio setup menu ..................................................................................28~29
Downmi x ..................................................................................................................................................29
Digital Audio ........................................................................................................................................... 29
Using the Video setup menu ..................................................................................30~32

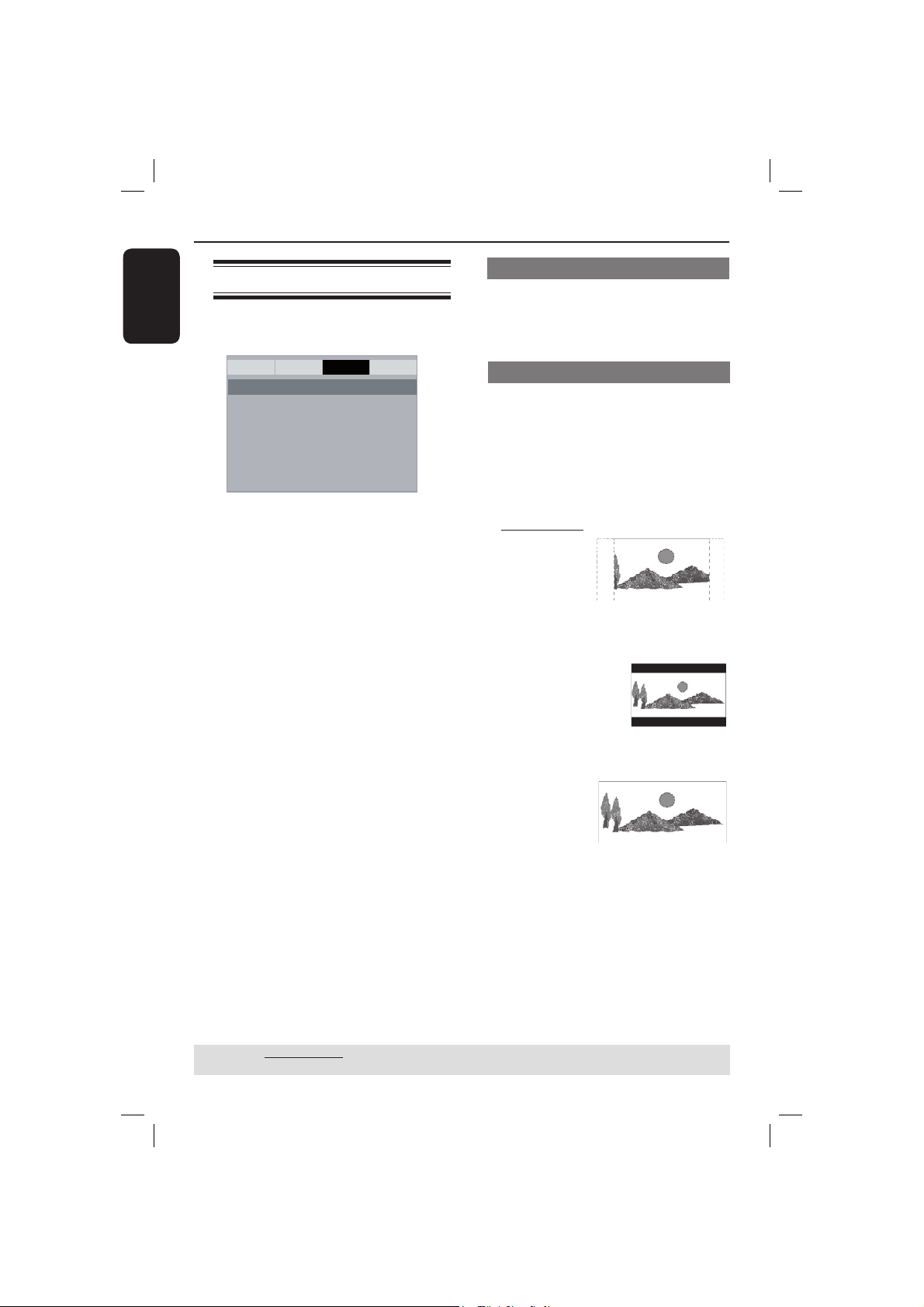

TV Type ..................................................................................................................................................... 30
Setting the TV Display ..........................................................................................................................30
Progres sive ............................................................................................................................................... 31
Shar pnes s .................................................................................................................................................. 31
Brightness/Contrast/Color .................................................................................................................. 32
Using the Preference setup menu .........................................................................32~34
Subtitle / Audio / Disc Menu ............................................................................................................... 33
Parent al ..................................................................................................................................................... 33
Changing the Password ...............................................................................................................34
Restoring to the original settings ....................................................................................................... 34
Others
Software Upgrade ......................................................................................................... 35
Troublesho oting ....................................................................................................... 36 ~37
Speci cations ................................................................................................................. 38
Glossary........................................................................................................................... 39
English
7
Care and Safety Information
English
DANGER! High voltage! Do not open the device. You run the risk of getting an electric shock.
The machine does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.
Setup
Finding a suitable location
– Place the set on a  at, hard and stable
surface. Do not place the set on a carpet.
– Do not put any equipment or heavy
objects on top of the set.
– Do not position the set on top of
other equipment that might heat it up (such as receiver or ampli er). Do not put anything under the set
–
(such as CDs, magazines).
– Install this unit near the AC outlet and
where the AC power plug can be reached easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4.0”) clearance from the rear and the top of the set and 5cm (2.0”) from the left and right to prevent overheating.
5cm (2.0")
10cm (4.0")
10cm (4.0")
Cleaning discs
Some problems occur because the disc inside the player is dirty (frozen picture, sound disruptions, picture distortions). To avoid these problems, discs should be cleaned on a regular basis.
To clean a disc, use a micro  bre cleaning cloth and wipe the disc from the center to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for analog discs. Since the optical unit (laser) of the DVD player operates at a higher power than regular DVD or CD players, cleaning CDs intended for DVD or CD players may damage the optical unit (laser). Therefore, refrain from using a cleaning CD.
5cm (2.0")
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger
on the apparatus (such as liquid  lled objects, lighted candles).
8
General Information
ALL
4
ALL
ALL
5
6
ALL
1
ALL
ALL
2
3
Accessories supplied
Composite video cable
(yellow) and
Audio cables
(white, red)
DISC
MENU
Remote
control and
two AAA
batteries
RETURN
TITLE
PREV
PLAY/PAUSE
STOP
SUBTITLE
ZOOM
REPEAT
REPEAT A-B
Region codes
This DVD player is designed to support the Region Management System. Check the regional code number on the disc package. If the number does not match the player’s region number (see table below), the player may be unable to playback the disc.
Tips: – It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. – If you are having trouble playing a certain disc, remove the disc and try a different one.
DISPLAY
Improper formatted disc will not played on this DVD player.
SETUP
NEXT
MUTE
Region
Discs that can
be played
U.S.A. and
AUDIO
Canada regions
U.K and Europe regions
English
AC Power
Cable
Asia Paci c, Taiwan, Korea
Australia, New Zealand, Latin America
Russia and India regions
China, Calcos Islands, Walls and Futuna
Islands
9
Connections
English
Connecting to television
COMPONENT
S-VIDEO
IN
COMPONENT
VIDEO IN S-VIDEO IN
V (Pr/Cr)
AUDIO OUT
U (Pb/Cb)
VIDEO IN
Y
IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your television. – Connect the DVD player directly to the television.
Using Composite Video jacks (CVBS)
A
Use the composite video cable (yellow)
to connect the DVD player’s TV OUT (CVBS) jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the television (cable supplied).
B To hear sound of this DVD player
through your television, use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).
VIDEO IN
1
TV OUT
COMPONENT VIDEO OUT
TV OUT
COMPONENT VIDEO OUT
S-VIDEO
VIDEO IN
COMPONENT
VIDEO IN
IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
Y
2
DIGITAL
OUT
AUDIO OUT
COAXIAL
VIDEO IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
Y
2
DIGITAL
OUT
AUDIO OUT
COAXIAL
COMPONENT
VIDEO IN S-VIDEO IN
V (Pr/Cr)
AUDIO OUT
U (Pb/Cb)
VIDEO IN
Y
1
IMPORTANT! – The progressive scan video quality is only possible when using YPbPr and a progressive scan television is required.
Using Component Video jacks (YPbPr)
A
Use the component video cables (red/
blue/green) to connect the DVD player’s YPbPr jacks to the component video input jacks (or labeled as YPbPr) on the television (cable not supplied).
B To hear sound of this DVD player
through your television, use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).
C Proceed to page 17 for detailed
progressive scan setup.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
10
Connections (continued )
English
RF coaxial cable to TV
2
ANT IN
Back of RF Modulator
(example only)
AUDIO IN
TO TVANT IN
VIDEO
IN
R L
CH3 CH4
ANT IN
4
TV OUT
COMPONENT VIDEO OUT
DIGITAL
COAXIAL
1
OUT
AUDIO OUT
3
IMPORTANT! – If your television only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the television. See your electronics retailer or contact Philips for details on RF modulator availability and operations.
Using an accessory RF modulator
Use the composite video cable (yellow)
A
to connect the DVD player’s TV OUT (CVBS) jack to the video input jack on the RF modulator.
B Use the RF coaxial cable (not supplied) to
connect ANTENNA OUT or TO TV jack on the RF modulator to the ANTENNA IN jack on the television.
C To hear sound of this DVD player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD player to the corresponding AUDIO IN jacks on the RF modulator (cable supplied).
D Connect the Antenna or Cable TV
service signal to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV).
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
11
Connections (continued )
English
Connecting the power cord
DIGITAL
TV OUT
COMPONENT VIDEO OUT
After everything is connected properly, plug in the AC power cord to the power outlet.
Never make or change any connections with the power switched on.
OUT
COAXIAL
When no disc is loaded, press STANDBY ON on the DVD player front panel. “– – –” may appear on the display panel.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
12
Loading...
+ 27 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
