Philips DVP3110 User Manual

Download

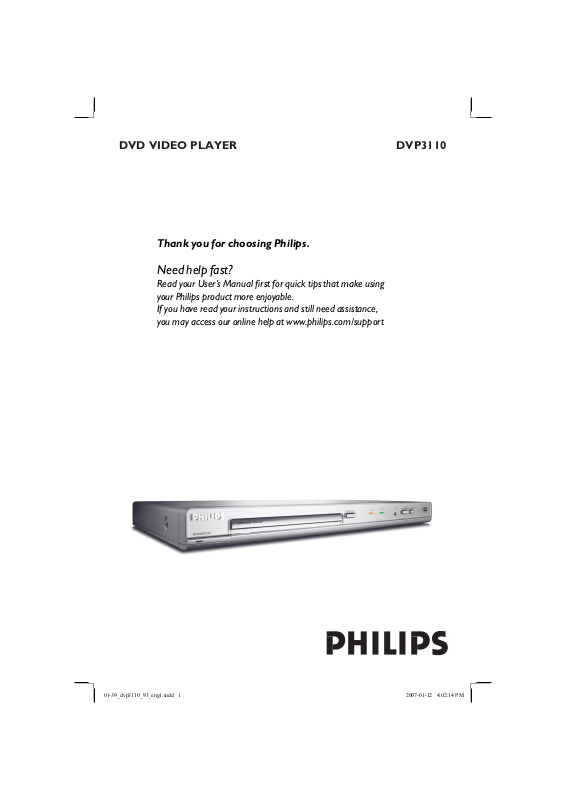

Page 1
DVD VIDEO PLAYER
Thank you for choosing Philips.
Need help fast?
Read your User’s Manual rst for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support
DVP3110DVD VIDEO PLAYER
Page 2
䚼ӊৡ⿄
1DPHRIWKH3DUWV䪙3E/HDG
∲+J 0HUFXU\
᳝↦᳝ᆇ⠽䋼៪ܗ㋴
+D]DUGRXV7R[LF6XEVWDQFH
䬝&G &DGPLXP
݁Ӌ䫀 &KURPLXP
໮⒈㘨㣃 3%%
໮⒈Ѡ㣃䝮 3%'(˅
+RXVLQJ ໪໇
'9'ORDGHU '9'ܝⲦ
3:%V ⬉䏃ᵓ㒘ӊ
$FFHVVRULHV 5HPRWHFRQWURO FDEOHV 䰘ӊ˄䘹᥻఼ˈ ⬉⑤㒓ˈ䖲᥹㒓˅
%DWWHULHVLQ 5HPRWH&RQWURO =Q& 䘹᥻఼⬉∴
ƻ˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼6-7󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 – 2006.
h˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ6-7󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖DŽ
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.
OOO O O O
XOO O O O
XOOO OO
XOO O O O
XOOO OO
⦃ֱՓ⫼ᳳ䰤Environmental Protection Use Period
ℸ󰵼䆚ᣛᳳ䰤˄ᑈ˅ˈ⬉ᄤֵᙃѻકЁ৿᳝ⱘ᳝↦᳝ᆇ⠽䋼៪ܗ㋴೼ℷᐌՓ⫼ⱘᴵӊϟϡӮথ ⫳໪⊘៪さবˈ⫼᠋Փ⫼䆹⬉ᄤֵᙃѻકϡӮᇍ⦃๗䗴៤Ϲ䞡∵ᶧ៪ᇍ݊Ҏ䑿ǃ䋶ѻ䗴៤Ϲ䞡ᤳᆇ ⱘᳳ䰤DŽ
This logo refers to the period ( 10 years ) during which the toxic or hazardous substances or elements contained in electronic information products will not leak or mutate so that the use of these [substances or elements] will not result in any severe environmental pollution, any bodily injury or damage to any assets.
⬉∴󰵼䆚Battery labeling logo
ℸ󰵼䆚ᣛᳳ䰤˄Ѩᑈ˅ˈ⬉∴Ё৿᳝ⱘ᳝↦᳝ᆇ⠽䋼៪ܗ㋴೼ℷᐌՓ⫼ⱘᴵӊϟϡӮথ⫳໪⊘៪さ বˈ⫼᠋Փ⫼䆹⬉∴ѻકϡӮᇍ⦃๗䗴៤Ϲ䞡∵ᶧ៪ᇍ݊Ҏ䑿ǃ䋶ѻ䗴៤Ϲ䞡ᤳᆇⱘᳳ䰤DŽ
This logo refers to the period ( 5 years ) during which the toxic or hazardous substances or elements contained in the battery will not leak or mutate so that the use of these [substances or elements] will not result in any severe environmental pollution, any bodily injury or damage to any assets.
⦃ֱՓ⫼ᳳ䰤Environmental Protection Use Period
2
Page 3
Index
English ------------------------------------------6
-------------------------------- 40
English
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Page 4
General Information
English
Environmental Information
All unnecessary packaging has been
omitted. The packaging has been made easy to separate into two materials; cardboard (box) and polyethylene (bags, protective foam sheet).
Your DVD player consists of materials
which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Manufactured under license from Dolby Laboratories, “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Laser Safety
This unit employs a laser. Due to possible
eye injury, only a quali ed service person should remove the cover or attempt to service this device.
NOTE: Pictures shown maybe different between countries.
CAUTION: WARNING LOCATION: ON THE BACKPLATE OF THE SET
NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.
“DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc.
Speci cations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
For Customer Use: Read carefully the information located at the bottom or rear of your DVD Video player and enter below the Serial No. Retain this information for future reference.
Model No. DVP 3110 Serial No. ___________________
LASER
Type Semiconductor laser InGaAlP (DVD) AIGaAs (CD) Wave length 658 nm (DVD) 790 nm (CD) Output Power 7.0 mW (DVD)
10.0 mW (VCD/CD) Beam divergence 60 degrees
4
Page 5
Language Code
English
5
Page 6
Contents
English
Care and Safety Information
Setup .............................................................................................................................................................8
Cleaning discs .............................................................................................................................................8
General Information
Accessories supplied ................................................................................................................................9
Region codes ...............................................................................................................................................9
Connections
Connecting to television .......................................................................................... 10-11
Using Composite Video jacks (CVBS) ..............................................................................................10
Using Component Video jacks (YPbPr) ........................................................................................... 10
Using an accessory RF modulator ......................................................................................................11
Connecting the power cord ...........................................................................................12
Optional connections
Connecting to a stereo system .....................................................................................13
Stereo system has right/left Audio In jacks ....................................................................................13
Connecting to a digital AV receiver .............................................................................13
Receiver has a PCM, Dolby Digital or MPEG decoder ................................................................ 13
Product Overview
Front and Rear panels ....................................................................................................14
Remote Control ............................................................................................................. 15
Getting Started
Step 1: Inserting Batteries.............................................................................................16
Using the remote control to operate the system ......................................................................... 16
Step 2: Finding your viewing channel ...........................................................................16
Step 3: Setting up Progressive Scan feature ...............................................................17
Step 4: Selecting the matching color system ............................................................ 18
Step 5: Setting the language .........................................................................................19
On-screen display (OSD) language .................................................................................................... 19
Audio, Subtitle and Disc menu languages ........................................................................................19
Playback from Disc
Playable discs .................................................................................................................. 20
Supported formats ................................................................................................................................. 20
Playback Features
Starting disc playback ................................................................................................... 21
Basic playback controls ................................................................................................. 21
Pausing playback...................................................................................................................................... 21
Selecting title/chapter/track ................................................................................................................ 21
Stopping playback ................................................................................................................................... 21
Operations for video playback ..................................................................................... 22
Using the Disc Menu .............................................................................................................................22
Zooming in ............................................................................................................................................... 22
Slow Motion ............................................................................................................................................. 22
Forward / Reverse Searching .............................................................................................................. 22
Selecting various repeat functions .............................................................................. 23
Repeat play mode ...................................................................................................................................23
Repeating a section within a chapter/track .....................................................................................23
Viewing the disc playback information ....................................................................... 24
Using the OSD menu ...............................................................................................................................24
6
Page 7
Contents
Special DVD Features ................................................................................................... 25
Playing a Title ........................................................................................................................................... 25
Changing the Audio Language ............................................................................................................. 25
Subtitles..................................................................................................................................................... 25
Special VCD and SVCD Feature .................................................................................. 25
Playback Control (PBC)........................................................................................................................25
Playing MP3/WMA/JPEG/Kodak Picture CD ............................................................. 26
General Operation ................................................................................................................................ 26
Playback selection .................................................................................................................................. 26
DVD Menu Options
Using the General setup menu .............................................................................. 27~28
OSD Language ......................................................................................................................................... 27
Sleep ......................................................................................................................... .................................. 27
Volume ...................................................................................................................................................... 28
Using the Audio setup menu .................................................................................. 28 ~29
Downmi x ..................................................................................................................................................29
Digital Audio ........................................................................................................................................... 29
Using the Video setup menu ..................................................................................30~32
TV Type ..................................................................................................................................................... 30
Setting the TV Display ..........................................................................................................................30
Progres sive ............................................................................................................................................... 31
Shar pnes s .................................................................................................................................................. 31
Brightness/Contrast/Color .................................................................................................................. 32
Using the Preference setup menu ......................................................................... 32~34
Subtitle / Audio / Disc Menu ............................................................................................................... 33
Parent al ..................................................................................................................................................... 33
Changing the Password ...............................................................................................................34
Restoring to the original settings ....................................................................................................... 34
Others
Software upgrade .......................................................................................................... 35
Troublesho oting ....................................................................................................... 36 ~37
Speci cations ................................................................................................................. 38
Glossary........................................................................................................................... 39
English
7
Page 8
Care and Safety Information
English
DANGER! High voltage! Do not open the device. You run the risk of getting an electric shock.
The machine does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.
Setup
Finding a suitable location
– Place the set on a  at, hard and stable
surface. Do not place the set on a carpet.
– Do not put any equipment or heavy
objects on top of the set.
– Do not position the set on top of
other equipment that might heat it up (such as receiver or ampli er). Do not put anything under the set
–
(such as CDs, magazines).
– Install this unit near the AC outlet and
where the AC power plug can be reached easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4.0”) clearance from the rear and the top of the set and 5cm (2.0”) from the left and right to prevent overheating.
5cm (2.0")
10cm (4.0")
10cm (4.0")
Cleaning discs
Some problems occur because the disc inside the player is dirty (frozen picture, sound disruptions, picture distortions). To avoid these problems, discs should be cleaned on a regular basis.
To clean a disc, use a micro  bre cleaning cloth and wipe the disc from the center to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for analog discs. Since the optical unit (laser) of the DVD player operates at a higher power than regular DVD or CD players, cleaning CDs intended for DVD or CD players may damage the optical unit (laser). Therefore, refrain from using a cleaning CD.
5cm (2.0")
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger
on the apparatus (such as liquid  lled objects, lighted candles).
8
Page 9
General Information
ALL
4
ALL
ALL
5
6
ALL
1
ALL
ALL
2
3
Accessories supplied
Composite video cable
(yellow) and
Audio cables
(white, red)
Remote
control and
two AAA
batteries
Region codes
This DVD player is designed to support the Region Management System. Check the regional code number on the disc package. If the number does not match the player’s region number (see table below), the player may be unable to playback the disc.
Tips: – It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. – If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not played on this DVD player.
Region
U.S.A. and Canada regions
U.K and Europe regions
Discs that can
be played
English
Asia Paci c, Taiwan, Korea
Australia, New Zealand, Latin America
Russia and India regions
China, Calcos Islands, Walls and Futuna
Islands
9
01-39_dvp3110_93_eng1.indd 901-39_dvp3110_93_eng1.indd 9 2007-01-29 10:15:01 AM2007-01-29 10:15:01 AM
Page 10
Connections
English
Connecting to television
COMPONENT
S-VIDEO
IN
COMPONENT
VIDEO IN S-VIDEO IN
V (Pr/Cr)
AUDIO OUT
U (Pb/Cb)
VIDEO IN
Y
1
IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your television. – Connect the DVD player directly to the television.
Using Composite Video jacks (CVBS)
A
Use the composite video cable (yellow)
to connect the DVD player’s TV OUT (CVBS) jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the television (cable supplied).
B To hear sound of this DVD player
through your television, use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).
VIDEO IN
VIDEO IN
V (Pr/Cr)
U (Pb/Cb)
Y
COMPONENT
VIDEO IN
S-VIDEO
VIDEO IN
IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
Y
2
AUDIO
IN
COMPONENT VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO OUT
U (Pb/Cb)
VIDEO IN
Y
2
1
IMPORTANT! – The progressive scan video quality is only possible when using YPbPr and a progressive scan television is required.
Using Component Video jacks (YPbPr)
A
Use the component video cables (red/
blue/green) to connect the DVD player’s YPbPr jacks to the component video input jacks (or labeled as YPbPr) on the television (cable not supplied).
B To hear sound of this DVD player
through your television, use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).
C Proceed to page 17 for detailed
progressive scan setup.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
10
Page 11
RF coaxial cable to TV
2
Back of RF Modulator
(example only)
AUDIO IN
TO TVINT IN
VIDEO
IN
R L
1
Connections (continued)
English
CH3 CH4
IMPORTANT! – If your television only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the television. See your electronics retailer or contact Philips for details on RF modulator availability and operations.
Using an accessory RF modulator
Use the composite video cable (yellow)
A
C To hear sound of this DVD player
through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD player to the corresponding AUDIO IN jacks on the RF modulator (cable supplied).
D Connect the Antenna or Cable TV
service signal to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV).
to connect the DVD player’s TV OUT (CVBS) jack to the video input jack on the RF modulator.
B Use the RF coaxial cable (not supplied) to
connect ANTENNA OUT or TO TV jack on the RF modulator to the ANTENNA IN jack on the television.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
11
Page 12
Connections (continued)
English
Connecting the power cord
COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr) AUDIO OUT
~ AC MAINS
U (Pb/Cb)
VIDEO IN
Y
After everything is connected properly, plug in the AC power cord to the power outlet.
Never make or change any connections with the power switched on.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
12
Page 13
Optional connections

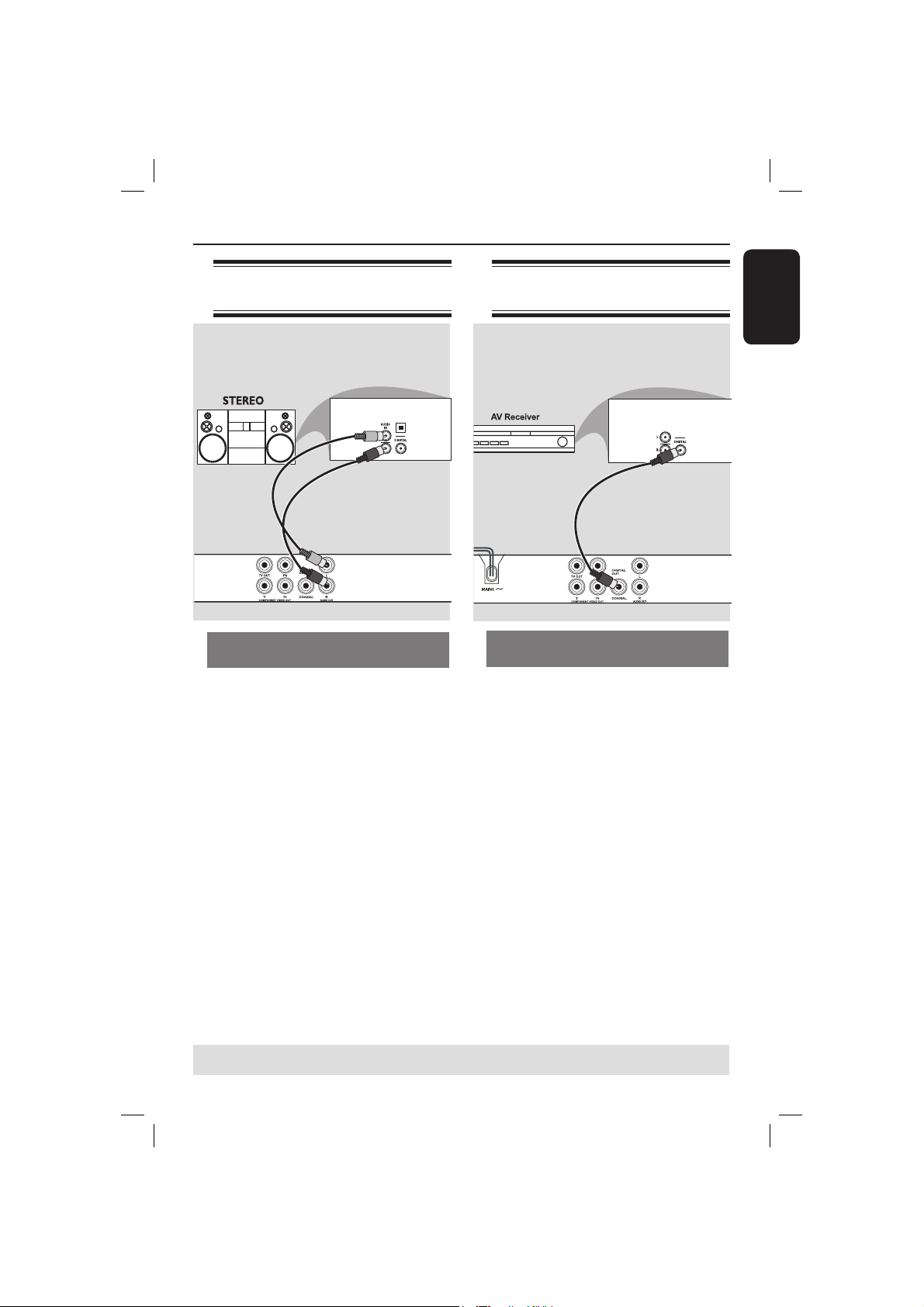

Connecting to a stereo system
OPTICAL
Stereo system has right/ left Audio In jacks
A
Select one of the video connections
(CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television.
B Use the audio cables (white/red) to
connect AUDIO OUT (L/R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the stereo system (cable supplied).
Connecting to a digital AV receiver
AUDIO
IN
Receiver has a PCM, Dolby Digital or MPEG decoder
A
Select one of the video connections
(CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television.
B Connect the COAXIAL jack of the DVD
player to the corresponding Digital Audio In jack on your receiver (cable not supplied).
C Set the DVD player’s digital output to
PCM-Only or ALL depending on the capabilities of your receiver (see page 29 {Digital Output}).
English
Tip: – If the audio format of the Digital Output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
13
Page 14
Product Overview
English

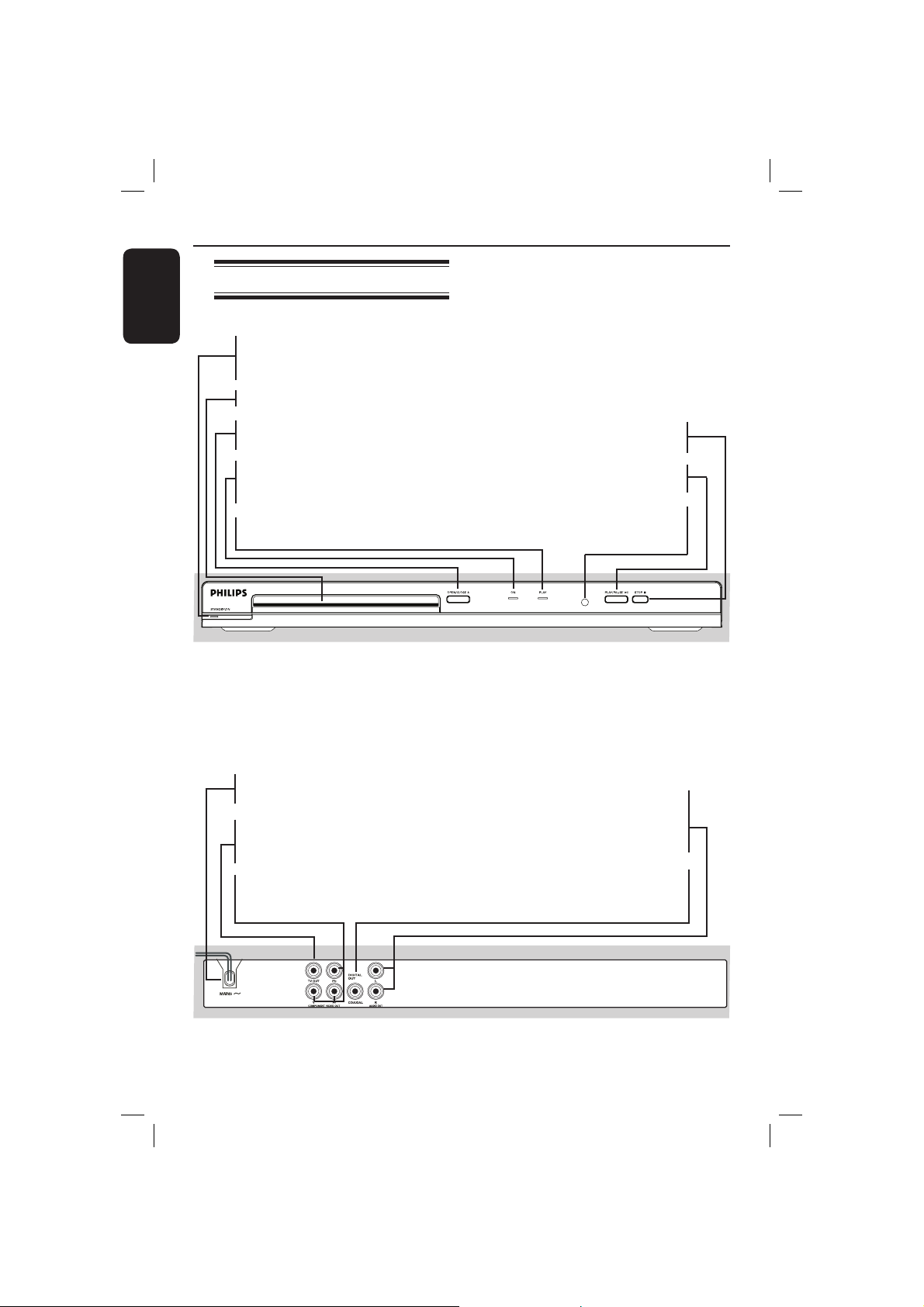

Front and Rear Panels
STANDBY ON 2
– Turns on the player or switches
to standby mode
Disc Tray
OPEN/CLOSE
– Opens or closes the disc tray.
ON LED
– LED lights up when the power is
on.
PLAY LED
– LED lights up during playback.
ç
STOP
– Stops playback
PLAY/PAUSE u
– Starts or pauses playback.
IR Sensor
– Point the remote control towards
this sensor
Mains ~ (AC Power Cord) – Connect to a standard AC outlet
TV OUT (CVBS)
– Connect to CVBS Video input of
a television
YPbPr (Component Video Out)
– Connect to YPbPr input of a
television
– Connect to coaxial AUDIO input
Audio Out (Left/Right)
– Connect to AUDIO inputs of an
ampli er, receiver or stereo
system
COAXIAL (Digital audio out)
of a digital audio equipment
14
Page 15
Remote Control
Product Overview (cont inued)
DISC MENU
– Enters or exits the disc
contents menu
– Switches on or off the
playback control mode (for
VCD 2.0 only)
OK
– Con rms an entry or
selection
RETURN/TITLE
– To go back to previous
menu/ show title menu
PREV í
– Skips to the previous title/
chapter/track
STOP
– Stops playback
u PLAY/PAUSE
– Starts or pauses playback
SUBTITLE
– To access subtitle language
system menu (DVD)
2
– To switch the DVD player
to standby mode or ON
DISPLAY
– Displays information on TV
screen during playback
W X
– Cursor buttons for moving
to the left or right, do a fast forward/reverse search.
ST
– Cursor buttons for moving
up/down, do a slow forward
SETUP
– Enters or exits the system
setup menu
NEXT ë
– Skips to the next title/
chapter/track
MUTE
– Disables or enables sound
output
English
ZOOM
– Enlarge a picture on the TV
screen
REPEAT
– Selects various repeat mode
REPEAT A-B
– Repeats playback a speci c
section on a disc
Alphanumeric keypad
– Selects numbered items in
a menu
AUDIO
– Selects an audio language
(DVD/VCD) or an audio channel
15
01-39_dvp3110_93_eng1.indd 1501-39_dvp3110_93_eng1.indd 15 2007-01-29 10:15:04 AM2007-01-29 10:15:04 AM
Page 16
Getting Started
English

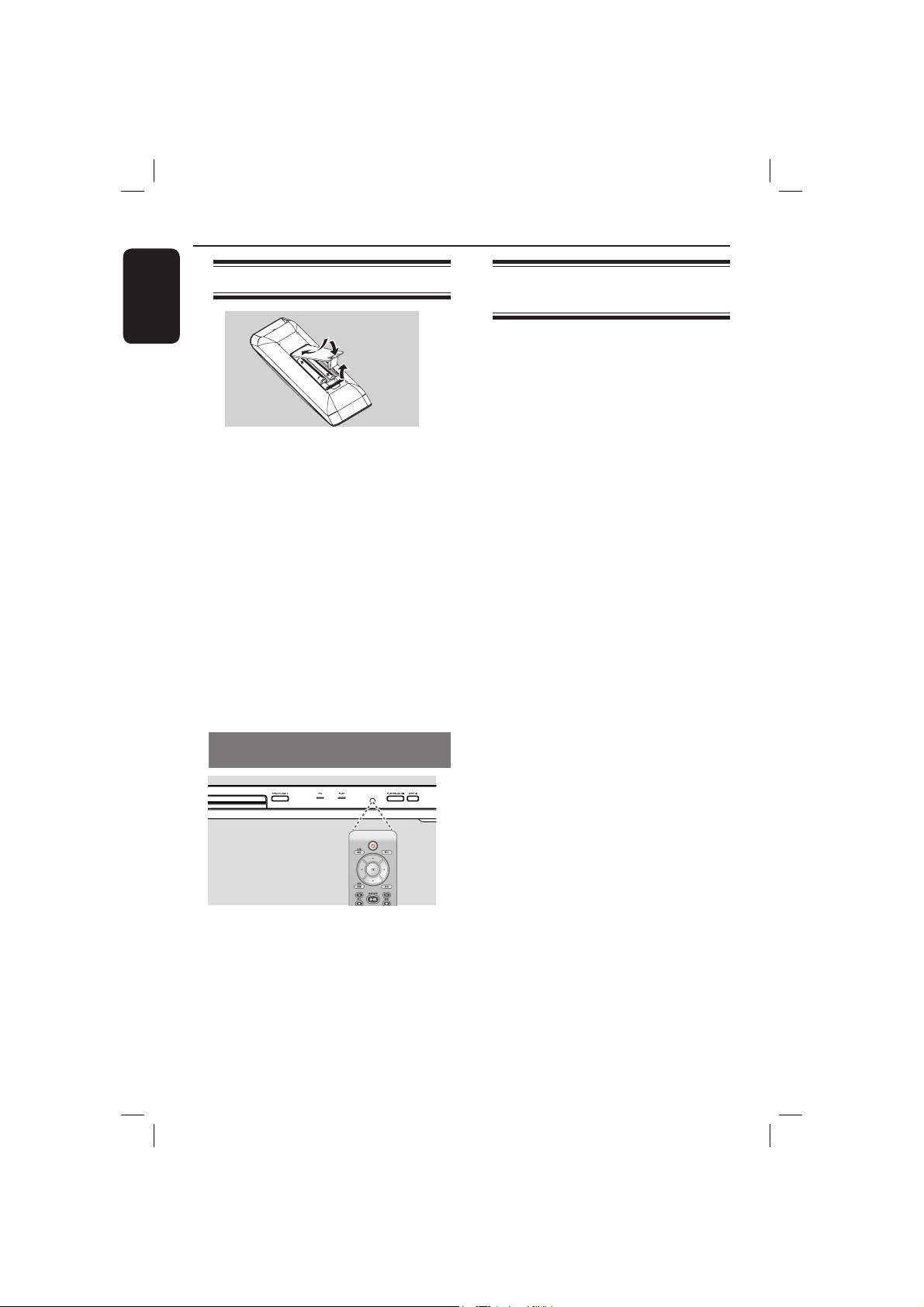

Step 1 : Inserting Batteries
A Open the battery compartment.
B Insert two batteries type R03 or AAA,
following the indications (+ –) inside the compartment.
C Close the cover.
CAUTION! – Remove batteries if they are exhausted or if the remote is not to be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.
Using the remote control to operate the system
Step 2 : Finding your viewing channel
A Press STANDBY-ON 2 on the DVD
player to turn it on.
B Turn on the TV and set it to the correct
video-in channel. You should see the blue DVD background screen.
Î Usually these channel are between the
lowest and highest channels and may be called FRONT, A/V IN, VIDEO. See your TV’s manual for more details.
Î Or, you may go to channel 1 on your
TV, then press the Channel down button repeatedly until you see the Video In channel.
Î Or, the TV remote control may have
a button or turn that chooses different video modes.
Î Or, set the TV to channel 3 or 4 if
you are using an RF modulator.
C If you are using external equipment, (such
as audio system or receiver), turn it on and select the appropriate input source for the DVD player output. Refer to the equipment user’s manual for detail.
A Aim the remote control directly at the
remote sensor (IR) on the front panel.
B Do not put any objects between the
remote control and the DVD player while operating the DVD player.
16
01-39_dvp3110_93_eng1.indd 1601-39_dvp3110_93_eng1.indd 16 2007-01-29 10:15:04 AM2007-01-29 10:15:04 AM
Page 17
Step 3 : Setting up Progressive Scan feature
(for Progressive Scan TV only)
The progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.
Before you start...
– Ensure that you have connected this DVD player to a progressive scan TV using the YPbPr connection (see page
10). – Ensure that you have completed the basic installation and setup.
Getting Started (cont inued)
G Select { On }, then press OK to con rm.
The menu will appear on the TV.
ACTIVATING PROGRESSIVE SCAN:
1. ENSURE YOUR TV HAS PROGRESSIVE SCAN.
2. CONNECT USING YPBPR (GBR) VIDEO CABLE.
3. IF THERE IS A DISTORTED PICTURE, WAIT
15 SECONDS FOR AUTO RECOVERY.
OK
H Press W to highlight { OK } and press
OK to con rm.
I Turn on your TV progressive scan mode
(refer to your TV user manual).
The menu will appear on the TV.
CONFIRM AGAIN TO USE PROGRESSIVE
SCAN. IF PICTURE IS GOOD,
PRESS OK BUTTON ON REMOTE.
OK
CANCEL
CANCEL
English
A Turn on your TV and set to interlace
mode (refer to your TV user manual).
B Press STANDBY-ON 2 on the
remote control to turn on the DVD player.
C Select the correct video-in channel.
The DVD background menu appears.
D Press SETUP.
E Press X to select { Video Setup Page }.
General Audio Video Preference
- - Video Setup Page - -
TY Type
TV Display
Progressive On
Sharpness Off
Brightness
Contrast
Color
F Press S T repeatedly to select
{ Progressive }, then press X.
J Press W to highlight { OK } and press
OK to con rm.
The setup is now completed and you
can start enjoy the high quality picture.
To deactivate Progressive Scan manually:
Wait for 15 seconds for the auto
recovery.
OR
A Press OPEN/CLOSE ç on the DVD
player to open the disc tray.
B Press numeric keypad ‘1’ on the
remote control for few seconds.
The DVD background screen appears.
Tip: – There are some progressive scan TVs and High-De nition TVs that are not fully compatible with this unit, resulting in the unnatural picture when playing back a DVD VIDEO disc in the progressive scan mode. In such a case, turn off the progressive scan feature on both the DVD player and your TV.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
17
Page 18
Getting Started (cont inued)
English
Step 4 : Selecting the matching color system
The color system of the DVD player, disc and TV should match in order for the disc to play. Before changing the TV system, determine the color system of your TV.
General Audio Video Preference
- - Video Setup Page - -
TY Type PAL
TV Display Multi
Progressive NTSC
Sharpness
Brightness
Contrast
Color
A Press SETUP.
B Press X to select { Video Setup Page }.
C Press S T repeatedly to select { TV
Type }, then press X.
D Use S T to select one of the options
below:
{ PAL }
Select this if the connected TV has the PAL colour system. It will change the video signal of an NTSC disc and output it to PAL format.
{ NTSC }
Select this if the connected TV has the NTSC colour system. It will change the video signal of a PAL disc and output it to NTSC format.
{ Multi }
Select this if the connected TV is compatible with both NTSC and PAL (multi-system). The output format will be in accordance with the video signal of the disc.
E Select a setting and press OK.
Follow the instructions show on the
TV to con rm the selection.
CHANGING NTSC TO PAL:
1. ENSURE THAT YOUR TV SUPPORTS PAL STANDARD.
2. IF THERE IS A DISTORTED PICTURE DISPLAYED ON THE TV, WAIT 15 SECONDS FOR AUTO RECOVER.
CONFIRM AGAIN TO USE NEW TV TYPE SETTING.
CANCELOK
CANCELOK
F Press W to highlight { OK } and press
OK to con rm.
To reset to default TV colour system:
Wait for 15 seconds for the auto
recovery.
OR
A Press OPEN/CLOSE ç on the DVD
player to open the disc tray.
B Press numeric keypad ‘3’ on the
remote control for few seconds.
The DVD background menu appears.
Tips: – Before changing the current TV colour setting, ensure that your TV supports the ‘selected TV Type’ system. – If there is no proper picture on your TV, wait for 15 seconds for auto recovery.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
18
Page 19
Getting Started (cont inued)
Step 5 : Setting the language
The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual.
On-screen display (OSD) language
Select this to change the language of this
DVD player screen display menu. The menu language (on-screen display) for the system will remain as you set it.
General Audio Video
- - General Setup Page - -
OSD Language ENGLISH
Sleep Volume
Preference
A Press SETUP.
B Press S T to select { OSD Language },
then press X.
C Use S T to select a language and press
OK to con rm.
Audio, Subtitle and Disc menu languages
You can choose your preferred language
or sound track from audio, subtitles and disc menu languages. If the selected language is not available on the disc, the disc’s default language will be used instead.
General Audio Video Preference
- - Preference Page - -
Audio
Subtitle
Disc Menu
Parental
Password
Default
A Press STOP Ç twice to stop playback,
(if any), then press SETUP.
B Press X to select { Preference Page }.
C Press S T to highlight one of the
options below, then press X.
{ Audio }
Select this to change disc sound track language.
{ Subtitle }
Select this to change the subtitle language.
{ Disc Menu }
Select this to change the language of the disc menu.
D Use S T to select a language and press
OK to con rm.
If the language you want is not in
the list, then select { Others }, then use the numeric keypad (0-9) on the remote to enter the 4-digit language code ‘XXXX’ (see page 5 ‘Language Code’) and press OK.
E Repeat steps C - D for other language
settings.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
19
Page 20

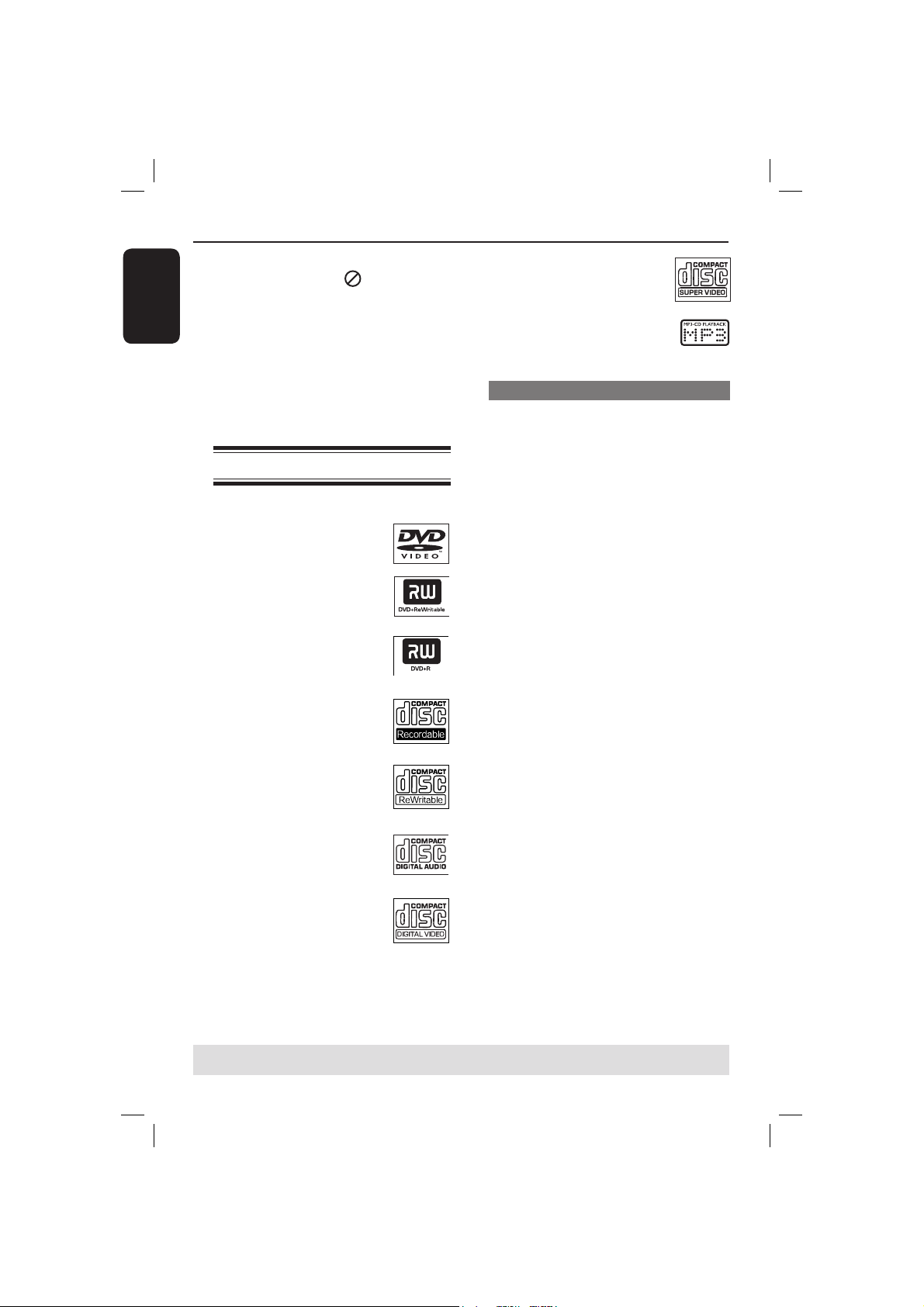

Playback from Disc
English
IMPORTANT! – If the inhibit icon appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same zone as your player.
Playable discs
Using this DVD player, you can playback on the following discs:
DVD Video (Digital Versatile
Disc)
DVD±RW (DVD Rewritable)
Audio/Video format or MP3/WMA/JPEG  les.
DVD±R (DVD Recordable)
Audio/Video format or MP3/WMA/JPEG  les.
CD-R (CD-Recordable)
Audio/Video format or MP3/WMA/JPEG  les.
Super Video CD
MP3-Disc
Supported formats
MP3/WMA tracks
– The  le extensions has to be ‘.mp3’,
‘.wma’ – JPEG/ISO format – Maximum 14 characters display. – Supported bit-rate; 32 – 320 kbps (MP3) 32 – 192 kbps (WMA)
JPEG pictures
– The  le extensions has to be ‘.JPG’
and not ‘.JPEG.’ – JPEG/ISO format – It can only display DCF-standard still
pictures or JPEG pictures such as
TIFF.
CD-RW (CD-Rewritable)
Audio/Video format or MP3/WMA/JPEG  les.
Audio CD (Compact Disc
Digital Audio)
Video CD
(Formats 1.0, 1.1, 2.0)
TIPS: Some discs cannot be played on this DVD player due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software that was used.
20
Page 21
Playback Features
Starting disc playback
A Turn on the TV to the correct program
number for the DVD player (e.g. ‘EXT’, ‘0’, ‘AV’).
B Press STANDBY-ON 2 to turn on
the DVD player.
C Press OPEN/CLOSE ç on the front of
the DVD player.
You can also hold down the STOP
button on the remote control to open and close the disc tray.
D Place a disc into the disc tray with the
label facing up, then press OPEN/ CLOSE ç.
For double-sided discs, load the side
which you want to play facing up.
E Playback may start automatically.
If not, press PLAY/PAUSE u.
If a disc menu appears on the TV, see
page 22 'Using the Disc Menu'.
If the child lock was activated for the
inserted disc, you have to enter your six­digit password (see page 34).
For more playback features, see pages
21~26.
Tips: – Do not overturn the DVD player while disc loading, playing or ejecting. – Do not close the disc tray manually even if the power switched off.
Basic playback controls
Unless otherwise stated, all operations described are based on Remote Control use.
Pausing playback
During playback, press PLAY/PAUSE
A
u to pause playback and display a still picture.
Sound will be muted.
B To resume normal playback, press
PLAY/PAUSE u again.
Selecting title/chapter/track
During playback, press PREV í to go
to the beginning of the currect chapter/ track, press PREV í again to go to the previous title/chapter/track.
Press NEXT ë to go to the next
chapter/track.
Press DISPLAY to display the disc
information text line for title/chapter/ track (example - 00/08).
Use alphanumeric keypad (0-9) to
enter valid title/chapter/track number.
The playback skips to the selected
title/chapter/track.
Stopping playback
Press STOP
Tips: – Screen saver will start automatically if the disc playback is stopped/paused for about 5 minutes. – The player will automatically switch to Power Standby mode if you do not press any buttons for about 15 minutes after the disc has stopped playing.
.
English
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
21
Page 22
Playback Features (continued)
English
Operations for video playback
Using the Disc Menu
Depending on the disc, a menu may appear on the TV screen once you load in the disc.
To select a playback feature or item
Use S T W X keys or numeric
keypad (0-9) on the remote, then press OK to start playback.
To access or remove the menu
Press DISC MENU on the remote.
Zooming in
This function allows you to enlarge the picture on the TV screen and to pan through the enlarged picture.
A During playback, press ZOOM
repeatedly to display the picture with different scales.
Use S T W X keys to pan through
the enlarged picture.
Playback will continue.
B Press ZOOM repeatedly to return to
the original size.
Slow Motion
You can slow forward a disc during playback and select a different speed.
For DVD,VCD,SVCD
A Press S during playback to select the
required speed: 1/2, 1/4, 1/8 or 1/16.
Sound will be muted.
B To return to normal speed, press PLAY/
PAUSE u.
Forward / Reverse Searching
You can fast forward or fast reverse a disc during playback and select a desired search speed.
For DVD,VCD,SVCD,CD,MP3,
WMA
A Press W X directly or press í ë for 2
seconds during playback to select the required speed: 2X, 4X, 8X, 16X or 32X (backward or forward).
Sound will be muted (DVD/VCD/
SVCD) or intermittent (MP3/WMA/
CD).
B To return to normal speed, press PLAY/
PAUSE u.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
22
Page 23
Selecting various repeat functions
Repeat play mode
The repeat play options vary depending on the disc type.
A While playing a disc, press REPEAT
continuously to choose a repeat options.
For DVD
– Chapter (currently playing chapter) – Title (currently playing title) – All (entire disc) – Off (cancel)
For Video CD
– Track (currently playing track) – All (entire disc) – Off (cancel)
For MP3/WMA/Audio CD
– Repeat One (currently playing  le) – Repeat Folder (current folder) – Folder (playing all  les in one folder
once)
– Single (currently playing  le once).
Playback Features (continued)
For JPEG
In STOP mode, – Repeat One (currently playing  le) – Repeat Folder (current folder) – Folder (playing all  les in one folder
once) – Single (currently playing  le once). In PLAY mode, – Repeat One (currently playing  le) – Repeat All (all  les in the selected
folder) – Repeat Off (playing all  les in one
folder once) – Single (currently playing  le once).
B To cancel repeat playback, press STOP
Ç.
Tip: – For VCD, repeat playback is not possible if the PBC mode is switched on.
Repeating a section within a chapter/track
You can repeat the playback of a speci c segment within a title/chapter track. To do this, you must mark the start and end of the segment you want.
A While playing a disc, press REPEAT A-
B at your chosen starting point.
B Press REPEAT A-B again at your
chosen end point.
The section A and B can be set only
within the same chapter/track.
The section will now repeat
continuously.
C To exit the sequence, press REPEAT A-
B.
English
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
23
Page 24
Playback Features (continued)
English
Viewing the disc playback information
Using the OSD menu
This function displays disc information on the TV screen during playback.
A During playback, press DISPLAY
repeatedly on the remote control.
The available disc information appears
on the TV screen.
B Press W X to select an option.
C Enter a valid number in the edit box using
the alphanumeric keypad 0-9.
The playback will change to the
selected angle/title/chapter/track or choosen time.
For DVD
– {_/X Angle}: selecting the playing angle
for a multi-angle disc.
– {Title XX/XX Chapter--/XX}: enable
to select the available title and chapter for viewing.
– {Title XX/XX Time--:--:--}: enable to
select the available title and title playing time for viewing.
– {Chapter XX/XX Time--:--:--}: enable
to select the available chapter and chapter playing time for viewing.
For VCD
– {Disc Go To: --:--}: enable to select
any part within the disc – {Track Go To: --:--}: enable to select
any part within the current track – {Select Track: --:--}: enable to select
any track within the disc
Tip: – Wait for 5 seconds for the display information to disppear.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
24
Page 25
Playback Features (continued)
Special DVD Features
Playing a Title
Press DISC MENU.
A
The disc title menu appears on the TV
screen.
B Use S T W X keys or alphanumeric
keypad 0-9 to select a play option.
C Press OK key to con rm.
Changing the Audio Language
For DVD
Press AUDIO repeatedly to select
different audio languages.
Changing the Audio Channel For VCD
Press AUDIO to select the available
audio channels provided by the disc (MONO LEFT, MONO RIGHT, MIX­MONO, STEREO).
Subtitles
Special VCD and SVCD Feature
English
Playback Control (PBC)
For VCD with Playback Control
(PBC) feature (version 2.0 only)
Press DISC MENU to toggle between
‘PBC ON’ and ‘PBC OFF’.
If you select ‘PBC ON’, the disc menu
(if available) will appear on the TV.
Use the PREV í / NEXT ë to go
to previous/next page or use the
alphanumeric keypad 0-9 to select a
play option.
During playback, pressing RETURN/
TITLE will return to the menu screen (if
PBC is on).
If you want to skip the index menu
and playback directly from the beginning,
Press DISC MENU key on the remote
control to turn to PBC off.
Press SUBTITLE repeatedly to select
different subtitle languages.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
25
Page 26
Playback Features (continued)
English
A
Playing MP3/WMA/JPEG/ Kodak Picture CD
This DVD player can playback MP3, WMA, JPEG and picture CD  les on a personally recorded CD-R/RW disc and commercial CD.
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page 16 ‘Finding your viewing channel’).
General Operation
Load a disc.
The disc reading time may exceed 30
seconds due to the complexity of the directory/ le con guration.
The data disc menu appears on the
TV screen.
00:00 04:52 128Kbps 001/020
Coco Lee
--
MP3
Coco - Before
Coco - I love
MP3
MP3
Coco - Jazz
MP3
Coco - Hot spring
MP3
Coco - I believe
Playback selection
During playback, you can;
Press PREV í / NEXT ë to select
the previous/next track/ le in the current folder.
Press PLAY/PAUSE u repeatedly to
pause/resume playback.
B Press PREV í / NEXT ë to go to
previous / next page of the menu.
C Press S T to select the folder and press
OK to open the folder.
D Press S T to select a track/ le.
E Press OK to con rm.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
26
Page 27
DVD Menu Options
This DVD Player setup is carried out via the TV, enabling you to customize the DVD player to suit your particular requirement.
Using the General setup menu
A Press SETUP on the remote control.
The system setup menu appears.
General Audio Video Preference
- - General Setup Page - -
OSD Language
Sleep Volume
B Press S T to select an item, then press
X to access.
Example: { OSD Language }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not available or not possible to change at the current state.
C Use S T to select a setting and press
OK to con rm.
Example: { English }
The setting is selected and setup is
complete.
D To exit, press SETUP.
OSD Language
This menu contains various language options for the language displayed on the screen. For details, see page 19.
Sleep
Sleep function allows you to turn off the DVD player automatically after a preset time.
A In ‘General Setup Page’, press S T to
select { Sleep }, then press X.
{ 15 Mins }
Turn off the DVD player after 15 minutes.
{ 30 Mins }
Turn off the DVD player after 30 minutes.
{ 45 Mins }
Turn off the DVD player after 45 minutes.
{ 60 Mins }
Turn off the DVD player after 60 minutes.
{ Off }
Turn off the sleep function.
B Use S T to select a setting and press
OK to con rm.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
27
Page 28
DVD Menu Options (cont inued)
English
Volume
This function allows you to adjust the volume level between 0 to 20.
A In ‘General Setup Page’, press S T to
select { Volume }, then press X.
'Volume Control Page' appears on the
TV screen.
B Press W X to adjust the volume level
between 0 to 20, the default setting is 20.
Using the Audio setup menu
A Press SETUP on the remote control.
The system setup menu appears.
General Audio Video Preference
- - Audio Setup Page - -
Downmix
Digital Audio
B Press W X to select { Audio Setup
Page }.
C Press S T to select an item, then press
X to access.
Example: { Downmix }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not
available or not possible to change at
the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { Stereo }
The setting is selected and setup is
complete.
E To exit, press SETUP.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
28
Page 29
DVD Menu Options (cont inued)
Downmix
This option allows you to set the stereo analog output of your DVD player.
A In ‘Audio Setup Page’, press S T to
select { Downmix }, then press X.
{ Stereo }
Select this option when output delivers sound from only the two front speakers.
{ LT/RT }
Select this option if your DVD player is connected to a Dolby Pro Logic decoder.
B Use S T to select a setting and press
OK to con rm.
Digital Audio
The options included in Digital Audio are: {Digital Output} and {LPCM Output}.
A In ‘Audio Setup Page’, press S T to
select { Digital Audio }, then press X.
B Press S T to select an item, then press
X to access.
C Use S T to select a setting and press
OK to con rm.
Digital Output
Set the Digital Output according to your optional audio equipment connection.
{ All }
Select this if the connected device has a built-in multichannel decoder that supports one of the multichannel audio format (Dolby Digital, MPEG-2).
{ PCM Only }
Select this if the connected device is not capable of decoding multichannel audio. The DVD player will convert the Dolby Digital and MPEG-2 multichannel signals to PCM (Pulse Code Modulation).
{ SPDIF Off }
To deactivate the digital audio output. For example, if you use the AUDIO OUT sockets to connect to a TV or stereo system.
LPCM Output
If you connect the DVD player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc, you may need to adjust ‘LPCM Output’.
{ 48K }
Playback a disc recorded at the sampling rate of 48kHz.
{ 96K }
Playback a disc recorded at the sampling rate of 96kHz. This rate can only be achieved in Stereo-Classic (Flat) mode.
English
Tip: – Discs are recorded at a certain sampling rate. The higher the sampling rate, the better sound quality. LPCM Output can be selected only when PCM Only is activated.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
29
Page 30
DVD Menu Options (cont inued)
English
Using the Video setup menu
A Press SETUP on the remote control.
The system setup menu appears.
General Audio Video Preference
- - Video Setup Page - -
TY Type
TV Display
Progressive
Sharpness
Brightness
Contrast
Color
B Press W X to select { Video Setup
Page }.
C Press S T to select an item, then press
X to access.
Example: { TV Type }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not available or not possible to change at the current state.
D Use S T to select a setting and press
OK to con rm. Example: { PAL }
The setting is selected and setup is
complete.
E To exit, press SETUP.
TV Type
This menu contains the options for selecting the color system that matches the connected TV. For details, see page
18.
Setting the TV Display
The picture shape can be adjusted to  t your TV and the format must be available on the playback disc. Otherwise, the TV display will not affect the picture during playback.
A In ‘Video Setup Page’, press S T to
select { TV Display }, then press X.
{ 4:3 Pan Scan }
Select this if you have a normal TV and want both sides of the picture to be trimmed or formatted on the TV screen.
{ 4:3 Letter Box }
Select this if you have a normal TV. A ‘wide­screen’ display with black bars on the top and bottom will be displayed on the TV screen.
{ 16:9 }
Select this for wide-screen TV (frame ratio 16:9).
B Use S T to select a setting and press
OK to con rm.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
30
Page 31
DVD Menu Options (cont inued)
Progressive
In the progressive scan mode, you can enjoy the high quality picture with less  ickers. It only works when you have connected the DVD player’s YPbPr jacks to your TV that supports the progressive video input. Otherwise, a distorted picture will appear on the TV. For proper progressive scan set up, see page 17.
A In ‘Video Setup Page’, press S T to
select { Progressive }, then press X.
{ Off }
To disable Progressive Scan function.
{ On }
To enable Progressive Scan function.
B Use S T to select a setting and press
OK to con rm.
Follow the instructions shown on the
TV screen to con rm the selection (if any).
If a distorted picture appears on the
TV screen, wait for 15 seconds for auto recovery.
Sharpness
You can personalize your picture colour by adjusting sharpness.
A In ‘Video Setup Page’, press S T to
select { Sharpness }, then press X.
{ High }
Choose high to make the picture’s edge sharper.
{ Medium }
Choose medium to get a standard picture.
{ Low }
Choose low to make the picture's edge softer.
B Use S T to select a setting and press
OK to con rm.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
31
Page 32
DVD Menu Options (cont inued)
English
Brightness/Contrast/Color
Increasing the value will brighten the picture or vice versa. Choose zero (0) for average setting.
A In ‘Video Setup Page’, press S T to
select { Brightness }, {
Contrast },
{ Color }, then press X.
The menu will appear on the TV
screen.
Brightness 0
Contrast 0
Color 0
B Press S T W X to adjust the setting
that best suits your personal preference.
C Press OK to con rm.
Using the Preference setup menu
A Press STOP Ç twice to stop playback,
(if any), then press SETUP on the remote control.
The system setup menu appears.
General Audio Video Preference
- - Preference Page - -
Audio
Subtitle
Disc Menu
Parental
Password
Default
B Press X to select { Preference Page }.
C Press S T to select an item, then press
X to access.
Example: { Parental }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not
available or not possible to change at
the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { 8 Adult }
The setting is selected and setup is
complete.
E To exit, press SETUP.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
32
Page 33
DVD Menu Options (cont inued)
Subtitle/Audio/Disc Menu
These menus contains various language options for audio, subtitle and disc menu which may be recorded on the DVD. For details, see page 19.
Parental
Depending on the DVD, you may be asked to change the parental level while playing the disc. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or have certain discs played with alternative scenes.
A In ‘Preference Page’, press S T to select
{ Parental }, then press X.
General Audio Video Preference
- - Preference Page - -
Audio 1 KID SAFE Subtitle 2 G Disc Menu 3 PG
Parental 4 PG 13
Password 5 PGR Default 6 R
7 NC17 8ADULT
B Use S T to select a rating level and
press OK to con rm.
Select { 8 Adult } to disable parental
level and allow all discs to play.
C Use the alphanumeric keypad 0-9 to
enter the six-digit password (see page 34 ‘Changing the Password’), then press OK to con rm.
DVDs that are rated higher than the level
you selected will not play unless you enter your six-digit password.
Rating Explanations
{ 1.Kid Safe }
Childsafe; acceptable for viewers of all ages.
{ 2. G }
General Audience; recommended as acceptable for viewers of all ages.
{ 3. PG }
Parental Guidance suggested.
{ 4. PG – 13 }
Unsuitable for children under age 13.
{ 5. PG – R }
Parental Guidance; recommended that parents restrict children under 17 from viewing.
{ 6. R }
Restricted; recommended only when supervised by a parent or adult guardian.
{ 7. NC – 17 }
No Children under age 17; not recommended viewing for children under age 17.
{ 8. Adult }
Mature Material; should be viewed only by adults due to graphic sexual material, violence or language.
Tips: – This feature will not limit viewing if the disc manufacturer did not code the disc. – VCD, SVCD, CD have no level indication, so parental control has no effect on these type of discs. This also applies to most illegal DVDs. – Some DVDs are not coded with a rating though the movie rating may be printed on the disc cover. The rating level feature does not prohibit play of such discs.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
33
Page 34
DVD Menu Options (cont inued)
English
Changing the Password
You need to enter your six-digit password to play a prohibited disc or if prompted for a password. The same default password is used for Parental.
A In ‘Preference Page’, press S T to select
{ Password }, then press X to select { Change }.
B Press OK and the menu appears on the
TV screen.
General Audio Video Preference
Old Password
New Password
Confirm PWD
OK
C Use the alphanumeric keypad 0-9 to
enter the six-digit password.
When doing this for the  rst time,
enter the default password ‘136900’.
If you forget your old six-digit password,
enter the default password ‘136900’.
D Enter the new six-digit password.
E Enter the new six-digit password a
second time to con rm.
The new six-digit password will now
take effect.
F Press OK to con rm.
Restoring to the original settings
Setting the { Default } function will reset all options and your personal settings to the factory defaults, except your Parental.
A In ‘Preference Page’, press S T to select
{ Default }, then press X to select { Reset }.
B Press OK to con rm.
All settings will now reset to factory
defaults.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
34
Page 35
Software upgrade
Others
Periodically Philips will issue software upgrade to enhance your user experience.
IMPORTANT!
– Power supply must not be interrupted during upgrade!
To check the current software version of
this DVD player;
A Press OPEN/CLOSE ç on the DVD
player to open the disc tray.
The disc tray will open.
B Press numeric keypad ‘55’ on the
remote control.
The  le name of the software installed
in the DVD player appears on the TV screen.
To download and install the latest
software to the DVD player;
A Visit the Philips website ‘www.philips.
com/support’ to check the availability of the latest software upgrade.
B Download the software to a CD-R.
C Insert the CD-R to the disc slot.
The menu appears on the TV screen.
English
Upgrade File Detected
Upgrade?
Press Play to start
D Press PLAY/PAUSE u to download
the latest software in the DVD player.
The DVD player will re-start
automatically once the download complete.
35
Page 36
Troubl es hoo ti ng
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs,  rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
Problem Solution
No power.
Remote control does not work.
No picture.
The picture is distorted or black & white during playback.
– Press STANDBY-ON button on the front of the DVD
player to turn on the system.
– Make sure the AC outlet has power.
– Aim the remote control directly at the sensor on the
front of the DVD player (not towards TV).
– Remove any obstacles between DVD player and the
remote control. – Batteries are weak, replace the batteries. – Check the polarities of the batteries are as indicated on
the remote control (± signs).
– Turn on your TV and set to the correct Video In
channel for the DVD player. You may go to Channel 1
on your TV, then press the channel down button on
your TV’s remote control until you see the TV
program. – Check the video connection between the DVD player
and the TV.
– The disc does not match with the TV color system
standard (PAL/NTSC). – The disc is dirty, clean the disc. – Sometimes a small amount of picture distortion may
appear. This is not a malfunction. – To deactivate progressive scan function manually;
1) Turn off your TV progressive scan mode (or set to
interlaced mode)
2) Press OPEN/CLOSE to open the DVD player disc tray.
3) Press the alphanumeric keypad ‘1’ for few seconds.
No sound.
Disc does not play.
Need Help? Visit us at www.philips.com/support
– Check the audio connections, the red and white jacks
are connected correctly. – Set the Digital output correctly, based on the equipment
you connected to the DVD player.
– Insert the disc with the label facing up. – Wrong region code. – Wrong disc type. Read chapter “Playback from Disc -
Playable discs” for details. – Make sure the disc is not scratched or warped. Clean
the disc or replace a new one. – Check if the disc is defective by trying another disc.
36
Page 37
Troubl es hoo ti ng (continued)
Problem Solution
The aspect ratio of the screen cannot be changed.
Not able to select some items in the setup/system menu.
The DVD player does not start playback.
Picture freezes momentarily during playback.
Unable to select Progressive Scan on/off.
– The aspect ratio is  xed on the DVD disc. – Depending on the TV, it may not be possible to change
the aspect ratio.
– Press STOP button twice before selecting the setup/
system menu.
– Depending on the disc availability, some menu items
cannot be selected.
– Insert a readable disc with the playback side facing down. – Check the disc type, colour system (PAL/NTSC) and
region code. – Check for any scratches or smudges on the disc. – Press SETUP to turn off the setup menu screen. – You may need to enter the password in order to change
the parental rating level or to unlock the disc for
playback. – Moisture may have condensed inside the system. Remove
the disc and leave the system turned on for about an
hour. – Disconnect the power cord from the power outlet for a
few minutes. Reconnect the power cord and try to
operate again as usual.
– Check the disc for  ngerprint/scratches and clean with a
soft cloth wiping from center to edge.
– Check that the output of the video signal is turn to
{ YPbPr }.
English
Need Help? Visit us at www.philips.com/support
37
Page 38
Speci cations
English
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525 Playback Multistandard (PAL/NTSC)
VIDEO PERFORMANCE
Video DAC 12 bit, 108 MHz YPbPr 0.7 Vpp ~ 75 ohm Video Output 1Vpp ~ 75 ohm
VIDEO FORMAT
Digital MPEG 2 for DVD,SVCD Compression MPEG 1 for VCD
DVD 50Hz 60Hz
Horiz. resolution 720 pixels 720 pixels Vertical resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. resolution 352 pixels 352 pixels Vertical resolution 288 lines 240 lines
AUDIO FORMAT
Digital MPEG/ AC-3/ compressed PCM Digital 16, 20, 24 bits fs, 44.1, 48, 96 kHz MP3(ISO 9660) 96, 112, 128, 256 kbps & variable bit rate fs, 32, 44.1, 48 kHz Analog Sound Stereo Dolby Surround compatible downmix from Dolby Digital multi-channel sound
AUDIO PERFORMANCE
DA Converter 24 bit, 192 kHz DVD fs 96 kHz 4Hz- 44kHz fs 48 kHz 4Hz- 22kHz SVCD fs 48 kHz 4Hz- 22kHz fs 44.1kHz 4Hz- 20kHz CD/VCD fs 44.1kHz 4Hz- 20kHz Signal-Noise (1kHz) > 90 dB Dynamic range(1kHz) > 80 dB Crosstalk (1kHz) > 80 dB Distortion/noise (1kHz) > 80 dB MPEG MP3 MPEG Audio L3
CONNECTIONS
YPbPr Output Cinch 3x Video Output Cinch (yellow) Audio Output(L+R) Cinch (white/red) Digital Output 1 coaxial IEC60958 for CDDA / LPCM IEC61937 for MPEG 1/2, Dolby Digital
CABINET
Dimensions (w x h x d) 360 x 37 x 235 mm Weight Approximately 2 kg
POWER CONSUMPTION
Power Supply Rating 110V – 240V; 50/60Hz Power consumption < 10 W Power consumption in < 1 W Standby mode
38
Page 39
Glossary
Analog: Sound that has not been turned into
numbers. Analog sound varies, while digital sound has speci c numerical values. These jacks send audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide­screens is 16:9.
AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV, Stereo, etc.).
Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per seconds, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc.
Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.
Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/ Pr, etc.).
Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD.
Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.
®
DivX
3.11/4.x/5.x/6.0: The DivX® codec is a
patent-pending, MPEG-4 based video compression technology, developed by DivX can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.
Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer).
DTS: Digital Theatre Systems. This is a surround sound system, but it is different from Dolby Digital. The formats were developed by different companies.
JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.
®
Networks, Inc., that
MP3: A  le format with a sound data compression system. ‘MP3’ is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. By using MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.
Multichannel: DVD is speci ed to have each sound track constitute one sound  eld. Multichannel refers to a structure of sound tracks having three or more channels.
Parental Control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.
PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion.
Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function.
Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.
Region code: A system for allowing discs to be played back only in the region designated beforehand. This unit will only play discs that have compatible region codes. You can  nd the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions).
Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want.
TV OUT jack: Jack on the back of the DVD System that sends video to a TV.
WMA: Windows Media Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 9 or Windows Media Player for Windows XP. Files are recognized by their  le extension “WMA.”
English
39
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
