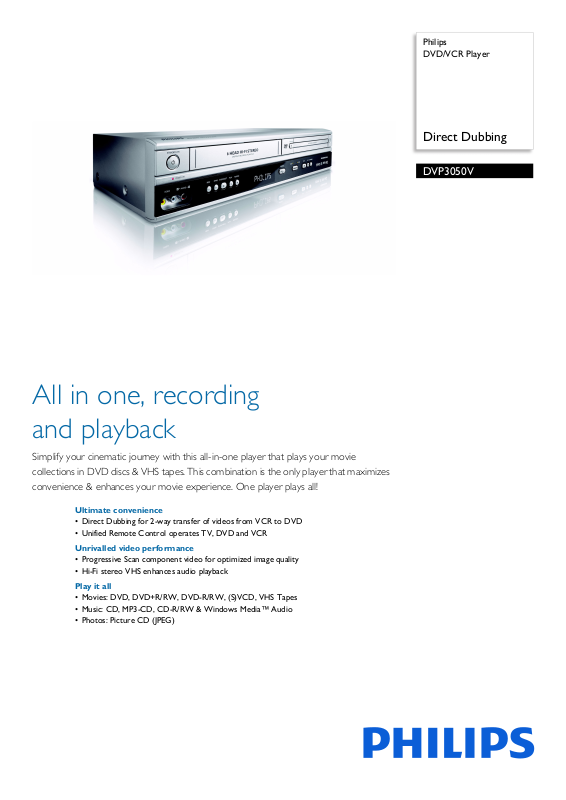

Page 1
Philips
DVD/VCR Player
Direct Dubbing
DVP3050V
All in one, recording
and playback
Simplify your cinematic journey with this all-in-one player that plays your movie
collections in DVD discs & VHS tapes. This combination is the only player that maximizes
convenience & enhances your movie experience. One player plays all!
Ultimate convenience
• Direct Dubbing for 2-way transfer of videos from VCR to DVD
• Unified Remote Control operates TV, DVD and VCR
Unrivalled video performance
• Progressive Scan component video for optimized image quality
• Hi-Fi stereo VHS enhances audio playback
Play it all
• Movies: DVD, DVD+R/RW, DVD-R/RW, (S)VCD, VHS Tapes
• Music: CD, MP3-CD, CD-R/RW & Windows Media™ Audio
• Photos: Picture CD (JPEG)
Page 2
DVD/VCR Player
Direct Dubbing
DVP3050V/75
Specifications
Picture/Display
• D/A converter: 10 bit, 54 MHz
• Picture enhancement: Progressi
down
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 20 - 20 000 Hz
• Signal to noise ratio: 100
• THD: 0.01-0.1%
• Crosstalk (1kHz): 90 dB
• Dynamic Range (1kHz): 90 dB
• Sound System: Dolby Digita
• Sound Enhancement: 3D Virtual Surround
Video Recording
• Recording system: PAL
• Tape speeds: SP, LP
• Recording enhancements: One Touch Record
(OTR), C
hapter Marker Insertion, Fit To Space
Video Playback
• Playback Media: DVD-Video, DVD+R/+RW, DVDR/-RW, Video CD, SVCD, CD-R/CD-RW
• Compression formats: MPEG1, MPEG2
• Video disc playback system: PAL, NTSC
• Video tape playback system: PAL, NTSC
• Number of Video Heads: 4
Audio Playback
• Playback Media: CD, CD-R/RW, MP3-CD
• Compression format: Dolby Digital, PCM, MP3,
Windows Me
• MP3 bit rates: 32 - 320 kbps
• Number of Audio Heads: 2 Hi-Fi
dia™ Audio
Still Picture Playback
• Playback Media: CD-R/RW, Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Fl
ve scan, 3:2 pull-
l, Nicam Stereo, Stereo
ip photos, Rotate,
Slideshow, Zoom
Tuner/Reception/Transmission
• TV system: PAL B/G
• Number of TV tuners: 1
• Aerial Input: 75 ohm coaxial (IEC75)
Connectivity
• Front: Audio L/R in, CVBS in
• Other connections: Analog audio Left/Right in,
og audio Left/Right out, Composite video
Anal
(CVBS) input, Composite video (CVBS) out, SVideo out, ComponentVideo out Progressive,
Digital coaxial out, RF antenna in / TV out
Convenience
• Programmable Events: 8
• Programming Period: 1 month
• On-Screen Display languages: English
Power
• Power supply: 220-240V, 50Hz
• Power consumption: 25 W
• Standby power consumption: 6 W
Accessories
• Cables: RF Cable, AV Cable
• Remote control: OEM Type
•Batteries: 2 x AA
• User Manual: English
• Warranty Card: World Wide Warranty leaflet
Dimensions
•Set dimensions (W x H x D): 435 x 94 x 233 mm
• Set weight: 3.2 kg
• Packaging dimensions (W x H x D):
9 x 182 x 362 mm
53
• Weight incl. Packaging: 4.2 kg
•
Highlights
Direct Dubbing
The Direct Dubbing button delivers unbeatable
convenience - allowing you to transfer your favorite
scenes from DVD to VHS tape, and vice versa.
Pressing the button while you play your DVD or
VHS tape initiates a simple one-step menu that
allows you to reconfirm your intention to copy without complicated steps or multiple selections.
Convenient, quick and easy - that's Direct Dubbing.
Unified Remote Control
The remote control has DVD and VCR functions,
thereby providing you with the convenience of a
two-in-one system in a combi set.
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Multi-format Movies and VHS
Multi-format playability allows you to play most disc
formats and VHS tapes for maximum compatibility
and viewing pleasure.
Music: Windows Media™ Audio
Multi-format playability allows you to play most disc
formats for maximum disc compatibility and listening
pleasure.
Issue date 2014-02-10
Version: 4.0.12
12 NC: 8622 810 12466
EAN: 87 10895 88785 4
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
