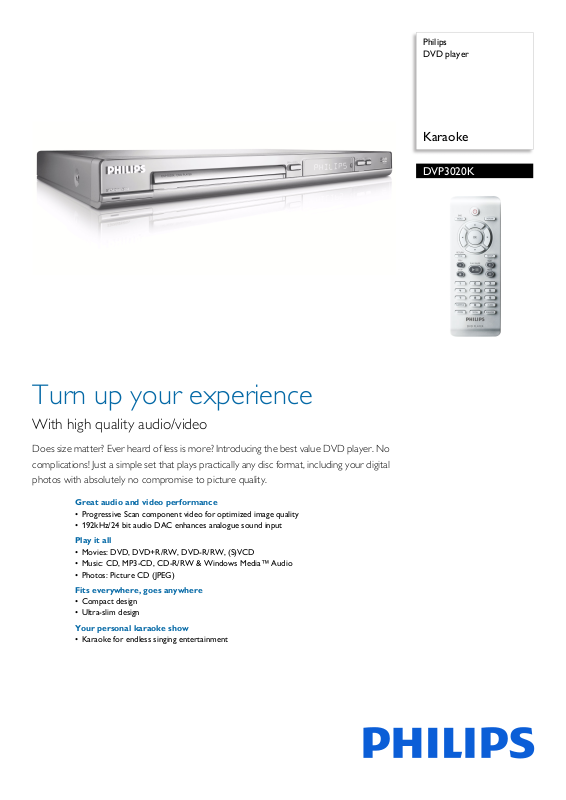

Page 1
Philips
DVD player
Karaoke
DVP3020K
Turn up your experience
With high quality audio/video
Does size matter? Ever heard of less is more? Introducing the best value DVD player. No
complications! Just a simple set that plays practically any disc format, including your digital
photos with absolutely no compromise to picture quality.
Great audio and video performance
• Progressive Scan component video for optimized image quality
• 192kHz/24 bit audio DAC enhances analogue sound input
Play it all
• Movies: DVD, DVD+R/RW, DVD-R/RW, (S)VCD
• Music: CD, MP3-CD, CD-R/RW & Windows Media™ Audio
• Photos: Picture CD (JPEG)
Fits everywhere, goes anywhere
•Compact design
• Ultra-slim design
Your personal karaoke show
• Karaoke for endless singing entertainment
Page 2
DVD player
Karaoke
Highlights
DVP3020K/96
Progressive Scan
Progressive Scan doubles the vertical
res
olution of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
192kHz/24 bit audio DAC
192KHz sampling enables you to have an
accurate re
curves. Together with a 24-bit resolution,
more information is captured from the original
presentation of the original sound
analogue sound wave form, giving a much
richer audio reproduction.
Multi-format Movies
Multi-format playability al
most disc formats for maximum disc
compatibility and viewing pleasure.
Music: Windows Media™ Audio
Multi-format playability al
most disc formats for maximum disc
compatibility and listening pleasure.
Picture CD (JPEG)
Multi-format playability allows you to view
i
mages in the comfort of your living room and
lows you to play
lows you to play
play most disc formats for maximum disc
compatibility and viewing pleasure.
Ultra-slim design
The attractive enclosure has a very low profile.
Karaoke
The Karaoke feature on your DVD player
p
rovides endless entertainment and maximum
audio and singing enjoyment.You can enhance
your performance by adding an ‘echo’ effect to
your voice. The key controls allows you to
choose the optimal key for your personal vocal
range.
Page 3
DVD player
Karaoke
Specifications
DVP3020K/96
Picture/Display
• Aspect ratio: 16:9, 4:3
• D/A converter: 12 bit, 108 MHz
• Picture enhancement: Progressi
upsampling
ve scan, Video
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 70 dB
• Dynamic Range (1kHz): 80 dB
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DVD-R/-RW, DVD+R/+RW
• Compression formats: MPEG1, MPEG2
• Video disc playback system: NTSC, PAL
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW
• Compression format: Dolby Di
PCM
• MP3 bit rates: 32 - 256 kbps
gital, MP3, WMA,
Still Picture Playback
• Playback Media: DVD-R/-RW, DVD+R/+RW, CDR/RW, Picture CD, Kodak Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate,
Sli
deshow, Zoom
Connectivity
• Front / Side connections: Microphone
• Rear Connections: Analog audio Left/Right out,
mposite video (CVBS) output, Digital coaxial
Co
out, ComponentVideo out Progressive
Convenience
• Child Protection: Parental Control, Child Lock
• On-Screen Display languages
Chinese
• Karaoke: MIC volume
: English, Traditional
Power
• Power supply: 50/60 Hz, 110-240V
• Power consumption: < 10 W
• Standby power consumption: < 0.8 W
Accessories
• Included accessories: 2 x AAA Batteries, Audio/
Video cable, Quick start guide, Remote Control,
World Wide Warranty leaflet, User Manual
Dimensions
•Set dimensions (W x H x D): 360 x 37 x 235 mm
• Packaging dimensions (W x H x D):
5 x 82 x 320 mm
41
•
Issue date 2014-02-10
Version: 3.0.6
12 NC: 8622 810 13144
EAN: 87 10895 93959 1
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
