Need help?
User Manual
See the user manual that came with your Philips recorder.
Online
Go to www.philips.com/welcome.
Hotline
Call 1-866-771-4018 for our operators.
Bi-Directional Dubbing
You can copy contents in a DVD to a cassette tape,
or do vice versa. This function is available only when
the contents are not copy-protected (refer to pages
53-54 in the User Manual).
Types of Media Used on This
Recorder
* DVD-RW/-R recorded in VR mode or non
compatible recording format are not playable.
* DVD-RW recorded in the mode other than +VR is not
recordable on this unit unless you erase all contents in
the disc (refer to page 87 in the User Manual).
* DVD-R recorded in the mode other than +VR is
not recordable on this unit.
Type Playback Record
DVD+RW
DVD+R
DVD-RW
DVD-R
VHS
DVD+R
Double
Layer
DVD-video
CD-DA
(audio CD)
Start Playback
For DVD playback, press DVD rst.
For VCR playback, press VCR rst.
❶ Insert a playable disc or a prerecorded
cassette tape.
❷ Press PLAY to start playback.
❸ Press STOP to stop playback.
To pause playback:
Press PAUSE
.
To resume playback:
Press PLAY
.
Start Recording
For DVD recording, press DVD rst.
For VCR recording, press VCR rst.
❶ Insert a recordable disc (make sure the disc is
compatible with this unit) or a cassette tape.
❷ Press REC MODE to select a recording
mode.
❸ Press SOURCE repeatedly to select the
appropriate external input channel to record
from. (e.g. TUNER, E1, E2 or E3(DV-IN))
To record a TV programme:
Press DTV/TV to select analog TV or digital
TV, then use CH / or the Number
buttons to select a desired channel to record.
❹ Press REC to start recording.
Press REC again to make recording for 30
minutes. Press REC repeatedly to extend the
recording time by 30 minutes for each press.
❺ Press STOP to stop the recording.
You will need to finalize DVD+R, DVD-RW or
DVD-R to play them back on other DVD
players (refer to page 56 in the User Manual).
Digital Video Disc Recorder &
Video Cassette Recorder with Digital Tuner
DVDR3545V

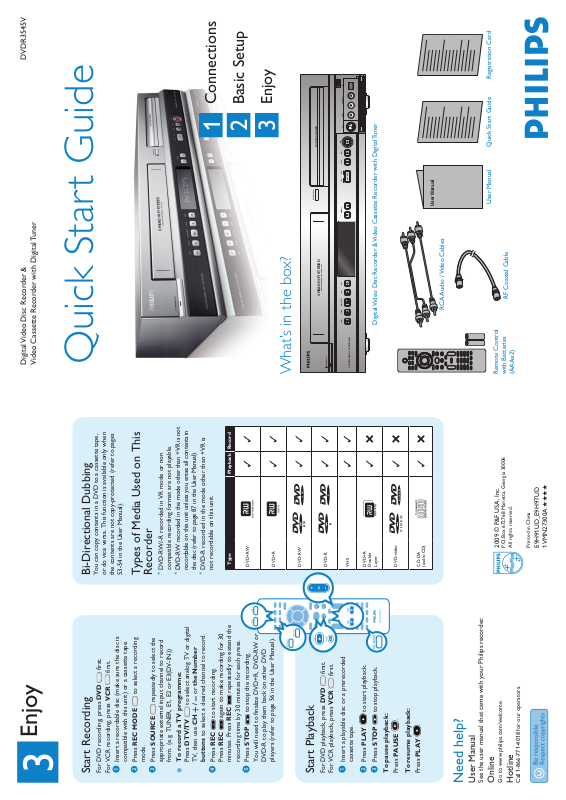

Quick Start Guide
1
Connections
Basic Setup
Enjoy
What’s in the box?
Digital Video Disc Recorder & Video Cassette Recorder with Digital Tuner
Remote Control
with Batteries
(AAAx2)
Enjoy
RCA Audio / Video Cables
RF Coaxial Cable
User Manual
Quick Start Guide
2
3
2009 © P&F USA, Inc.
P.O.Box 672768 Marietta, Georgia 30006
All rights reserved.
Printed in China
E9H91UD_E9H9TUD
1VMN27300A ★★★★
3
Registration Card
DVD RECORDER
OPEN/CLOSE
ONE TOUCH RECORDNG • LONG PLAY
4 HEAD HI-FI STEREO
SV VDEO L-AUDO-R DV
REC
SOURCE
VCR DVD
User Manual
CHANNEL
REW F.FWD PLAY PLAYRECSTOP/EJECT STOP
STANDBYON
DVD RECORDER / VCR DVDR 3545V
1
Connections
Start with the “Basic Connection”.
Your Philips recorder is now ready for use!
Basic Connection
A
Before Connecting
❶ Disconnect the power cords of the devices from
the AC outlet.
❷ Disconnect RF coaxial cable from antenna input
jack of your TV.
B
Connecting
Make the connections as illustrated below.
I
Y
P
B
/CB
P
L
R
OUT
IN
S-VIDEO
IN -- AUDI O -- OUT
IN --- VIDEO --- OUT
NENT
OUT
DVD/VCR
ANTENNA
AUDIO IN
RL
VIDEO IN
ANT. IN
❶ Connect the RF coaxial cable from the TV
antenna or cable TV to the ANTENNA IN jack of
this unit.
❷ Use RF coaxial cable to connect ANTENNA
OUT jack of this unit to the antenna input jack of
your TV.
AND
❸ Use RCA audio / video cables to connect the
AUDIO / VIDEO OUT jacks of this unit to the
audio / video input jacks of your TV.
❹ Plug in the power cords of the devices to the AC
outlet.
RF Modulator Connection
If your TV has antenna in jack only, it is still
possible to connect this unit to your TV by using a
commercially available stereo audio / video RF
modulator. In this case, follow the instructions below.
A
Before Connecting
❶ Disconnect the power cords of the devices from
the AC outlet.
❷ Disconnect RF coaxial cable from antenna input
jack of your TV.
B
Connecting
Make the connections as illustrated below.
AUDO N VDEO N
LR
ANT NANT OUT
43
HDM OUT
DVD
DG AL
AUDO OUT
AUDO
OUT
SV DEO
OUT
COAXAL
L
Y
P
C
L
R
OUT
N
S
VD O N AUDO O T
N VDE O OUT
COMPO EN
V O UT
DVDVCR
AN ENNA
ANT. IN
L
Y
P
B
/CB
L
R
OUT
IN
S
-VI DE O IN -- A UD I O --- OU T
IN --- V I DE O --- OU T
NENT
OUT
DVD/VCR
ANTENNA
AUDIO IN
VIDEO IN
LR
ANT. INANT. OUT
43
rear
of your
TV
From
antenna
or cable
TV
rear of your RF
modulator
rear of this unit
RF coaxial cable
RF
coaxial
cable
RCA audio
cable
RCA video
cable
1
2
3
4
5
❶ Connect the RF coaxial cable from the TV
antenna or cable TV to the ANTENNA IN jack of
this unit.
❷ Use RF coaxial cable to connect ANTENNA
OUT jack of this unit to the antenna input jack of
your RF modulator.
❸ Use RF coaxial cable to connect antenna output
jack of your RF modulator to the antenna input
jack of your TV.
❹ Use RCA audio / video cables to connect the
AUDIO / VIDEO OUT jacks of this unit to the
audio / video input jacks of your RF modulator.
❺ Plug in the power cords of the devices to the AC
outlet.
* RF modulator is not supplied with this unit. You
need to purchase it at your local store.
Basic Setup
2
A
Finding the Viewing Channel
❶ Press STANDBY-ON to turn on the unit.
❷ Turn on your TV.
If connected to your VCR, make sure it is
switched off or in standby mode before
proceeding.
❸ Press “2” on the TV’s remote control, then press
channel down button repeatedly until you see the
“Initial Setup” menu. This is the correct viewing
channel (external input channel) for the recorder.
For some TVs, there may be a button on the TV’s
remote control that accesses the external input
channel. It may be labeled “SOURCE”, “AV”,
or “SELECT”. In such case, press it repeatedly.
*
Refer to your TV’s user manual for
details.
B
Initial Setting
❶ Use K / L to select your desired language, then
press OK .
❷ Use K / L to select the type of broadcasting
signal, then press OK .
The unit will start getting channels available in
your area.
Antenna:
(When using antenna)
The channels broadcasted in analog TV and digital
TV are automatically scanned and memorized.
Only the receivable channels in the area will be
memorized.
Cable (Analog):
(When using basic cable)
The channels broadcasted in analog CATV are
automatically scanned and memorized.
Cable (Analog / Digital):
(When using basic cable)
The channels broadcasted in analog CATV and
digital CATV are automatically scanned and
memorized.
❸ Press OK to activate “Clock Setting”.
❹ Use { / B to select an item to set, and use
K / L to select the contents to suit your
preference, then press OK when you finish
setting all the contents.
Connection to a Cable /
Satellite Box
If you have a Cable / Satellite Box, follow the
instructions below.
A
Before Connecting
❶ Disconnect the power cords of the devices from
the AC outlet.
❷ Disconnect RF coaxial cable from antenna input
jack of your TV.
B
Connecting
Make the connections as illustrated below.
RF OUTANT. IN
ANT. IN
AUDIO IN
RL
VIDEO IN
AUDIO OUT
LR
VIDEO
OUT
L
Y
R
L
R
OUT
IN
S-VIDEO
N - - O --- OUT
IN -- VIDEO -- OUT
NT
D CR
ANTENNA
❶ Connect the RF coaxial cable from the cable TV /
satellite to the antenna input jack of your cable /
satellite box.
❷ Use RF coaxial cable to connect the RF output
jack of your cable / satellite box to ANTENNA
IN jack of this unit.
❸ Use RF coaxial cable to connect ANTENNA
OUT jack of this unit to the antenna input jack of
your TV.
❹ Use RCA audio / video cables to connect the
audio / video output jacks of your cable / satellite
box to the AUDIO / VIDEO IN jacks of this unit.
❺ Use RCA audio / video cables to connect the
AUDIO / VIDEO OUT jacks of this unit to the
audio / video input jacks of your TV.
❻ Plug in the power cords of the devices to the AC
outlet.
*
Refer to the user manual for other
connection methods.
- - : - - - -
English
Español
Français
OSD Language
Antenna
Cable (Analog)
Channel Preset
Cable (Analog / Digital)
Make sure the antenna is
connected to “ANTENNA IN” jack.
- - - / - - / - - - - ( - - - )
Clock Setting
RCA video cable
N
OU
ANTENNA
L
R
R
N VDEO OUT
D R
SV DEO N OUT
B
CB
P
OMPON NT
VDEO OUT
SV DEO
DVD
R
OUT
AUDO
DG TAL
UDO OUT
RCA audio cable
5
rear of your TV
RF coaxial
cable
3
2
4
RCA video
cable
RF coaxial cable
OUT
cable
SV DEO
OUT
VD O
UDO OUT
R
RF OUTANT N
cable / satellite
box
RCA audio
rear of this unit
6
1
from cable TV / satellite
rear of your TV
1
from
RF coaxial
cable
2
RCA audio
cable
cable
RCA video
rear of this unit
antenna
HDM OUT
or cable TV
RF coaxial
cable
N
OUT
AN ENNA
L
R
N VDEO OUT
N AUDO OUT
DVDVCR
SV DEO
B
CB
Y
P
VDEO O T
COMPO ENT
OUT
SV DEO
DVD
L
OUT
AUDO
COAXAL
DG TAL
AUDO OUT
3
4
to the
AC outlet
