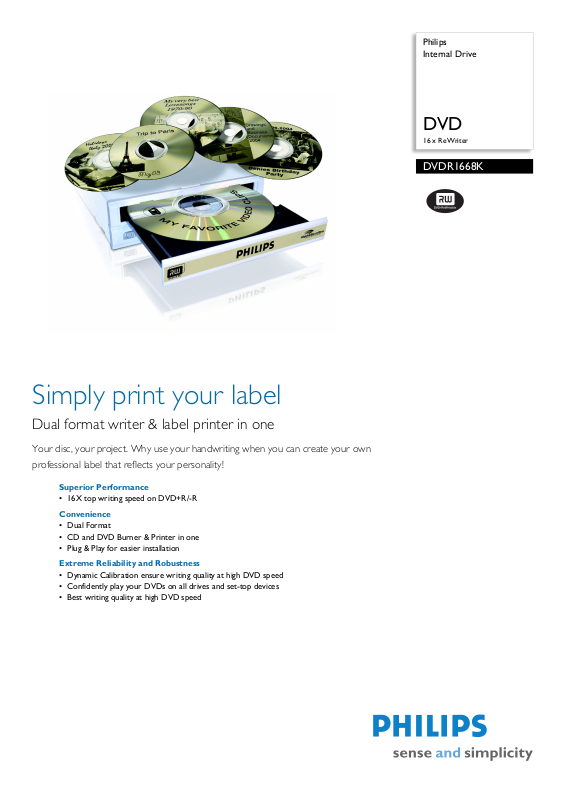

Philips
Internal Drive
DVD
16 x ReWriter
DVDR1668K
Simply print your label
Dual format writer & label printer in one
Your disc, your project. Why use your handwriting when you can create your own
professional label that reflects your personality!
Superior Performance
• 16X top writing speed on DVD+R/-R
Convenience
•Dual Format
• CD and DVD Burner & Printer in one
• Plug & Play for easier installation
Extreme Reliability and Robustness
• Dynamic Calibration ensure writing quality at high DVD speed
• Confidently play your DVDs on all drives and set-top devices
• Best writing quality at high DVD speed
Internal Drive
DVD 16 x ReWriter
DVDR1668K/00
Specifications Product highlights
Writing Speed
• DVD+R: 16X(21600KB/sec) maximum by CAV
• DVD-R: 16X(21600KB/sec) maximum by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R DL: 4X (5400KB/sec) by CLV
• CD-R: 48x (7200KB/sec) by P-CAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• CD-RW: 32X (4800KB/sec) by Z-CLV in
UltraSpeed disc
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• DVD ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• Access time: 120 ms
• Buffer size: 2MB
Storage Media
• Access time (typical): 120 ms
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC in, Analogue audio
le ft / ri ght out 2x, ID E inte rface connec tor, Ma ster
/ slave select jumper
Convenience
• Ease of installation: Plug & Play
• Ease of Use: How to manual, step by step
Software
• Ahead Nero Suite 6: Nero Burning Rom 6, InCD
4, Nero Vision express 2, Nero media Player 1,
EasyWrite Reader 4, Nero Burning Rights 1
Accessories
• Included accessories: 4 mounting screws, CDROM with software & manual, User manual
System Requirements
• Hard disc space: 100MB
• PC OS: Windows® XP, 2000, ME, 98SE
• Processor: Pentium 3 550 MHz or higher CPU
• RAM memory: 128 MB
Dimensions
• Product dimension (WxDxH) inch: 146X178X42
mm
• Product weight: <0.9Kg kg
Power
• Adaptor type: DC 5V/12V
• Power consumption: 12 W W
Technical specifications
• Humidity: 5 - 90 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Access time: CD: <120msec (typical), DVD:
<140msec (typical)
Packaging Data
• 12NC: 908210004171
• EAN/UPC/GTIN: 8710895876155
• Gross weight: 1 kg
• Height: 108 mm
• Length: 264 mm
• Width: 213 mm
Inner Carton
• EAN/UPC/GTIN: 8710895876155
• Gross weight: 1 kg
• Height: 108 mm
• Length: 264 mm
• Width: 213 mm
• Quantity: 1
Outer Carton
• EAN/UPC/GTIN: 8710895876193
• Gross weight: 2 kg
• Length: 275 mm
• Width: 222 mm
• Height: 230 mm
• Quantity: 2
Outer Carton 2
• Quantity: 128
•
Best writing quality
By using Seamless link and dynamic calibration technoloy
Philips asures a stable and secure writing process. This at
maximum 16x on DVD+R/-R.
Issue date 2007-08-09
Version: 2.0
12 NC: 9082 100 04171
EAN: 87 10895 87615 5
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
