8239 300 15401

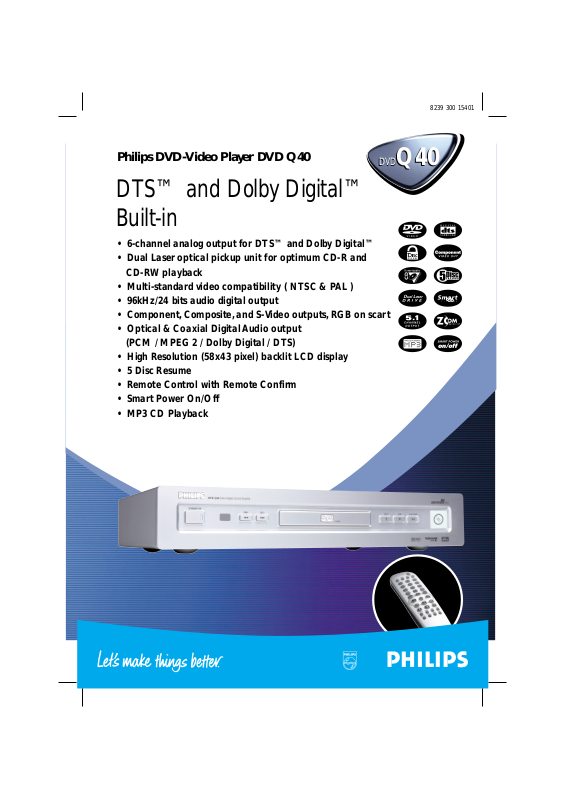

Philips DVD-Video Pla y er DVD Q40
DVD Q40
DVD
DTS™ and Dolby Digital™
Built-in
• 6-channel analog output for DTS™ and Dolby Digital™
• Dual Laser optical pickup unit for optimum CD-R and
CD-RW playback
• Multi-standard video compatibility ( NTSC & PAL )
• 96kHz/24 bits audio digital output
• Component, Composite, and S-Video outputs, RGB on scart
• Optical & Coaxial Digital Audio output
(PCM / MPEG 2 / Dolby Digital / DTS)
Q40
• High Resolution (58x43 pixel) backlit LCD display
• 5 Disc Resume
• Remote Control with Remote Confirm
• Smart Power On/Off
• MP3 CD Playback
![](/html/51/5106/51069b91ce47c8c4e6b54bc3e0355f757640d4e5280ecd46127e072af069a7ac/bg2.png)
8239 300 15401
DVD-Video player
Technical specifications DVD Q40
Playback system
• DVD-Video
• Video CD / SVCD
• CD (CDR and CD-RW)
• DVD+RW and DVD-R
• MP3 CD
Optical read-out system
• Laser type Semicondoctor AlGaAs
• Numerical Aperture 0.60 (DVD)
• Wavelength 650 nm (DVD)
DVD disc format
• Medium Optical disc
• Diameter 12 cm (8 cm
• Playing time One layer 2.15 h
Dual layer 4 h
(12cm) Two side, 4.30 h
TV standard PAL NTSC
• Number of lines 625 525
• Playback Multi standard (PAL/ NTSC)
Video format
• D/ A converter 27Mhz / 10 bits
• Signal handling Components
• Digital compression MPEG 2 for DVD
DVD 50Hz 60Hz
Horiz. resolution 720 pixels 720 pixels
Vertical resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. resolution 352 pixels 352 pixels
Vertical resolution 288 lines 240 lines
Video performance
• Video output 1 Vpp into 75 ohm
• S-Video Output Y: 1 Vpp into 75 ohm
• YUV output Y: 1 Vpp into 75 ohm
• Black Level Shift On/off
• Video Shift Left/right
Audio format
• Digital Mpeg/ AC-3/ DTS Compressed Digital,
PCM 16, 20, 24 bits
• Analog sound stereo
• Dolby Pro Logic downmix from Dolby Digital
and DTS multi-channel sound
• Full decoding of Dolby Digital and DTS multi channel surround sound
• 3D sound for virtual 5.1 channel sound on 2
speakers
• MPEG MP3 MPEG Audio L3
0.45 (VCD/CD)
780 nm (VCD/CD)
)
1
1
1
single layer
Two side, 8 h
dual layer
50 Hz 60Hz
MPEG 1 for VCD
C: 0.3 Vpp into 75 ohm
CrCb: 0.7 Vpp into 75 ohm
fs, 44.1, 48, 96 kHz
1
Audio performance (typical)
• D/A converter 24 bits
DVD: Fs 96 kHz 4 Hz- 44 kHz
Fs 48 kHz 4 Hz- 22 kHz
Video CD: Fs 44.1 kHz 4 Hz- 20 kHz
CD: Fs 44.1 kHz 4 Hz- 20 kHz
SVCD: Fs 44.1 kHz 4 Hz- 20 kHz
Fs 48.1 kHz 4 Hz- 22 kHz
• Signal-noise (1kHz) 100 dB
• Dynamic Range (1kHz) 97 dB
• Crosstalk (1kHz) 110 dB
• Distortion/noise (1kHz) 88 dB
Connection
• SCART Euroconnector 1x
• Y Output Cinch (green)
• Pb Output (Cb) Cinch (blue)
• Pr Output (Cr) Cinch (red)
• S-Video output Mini DIN, 4-pins
• Video output Cinch (yellow), 2x
• Audio L+R Output Cinch (white/ red)
6 Channel Analog Output
• Audio Front Left/Right Cinch (white/red)
• Audio Surr. Left/Right Cinch (white/red)
• Audio Centre Cinch (blue)
• Audio Subwoofer Cinch (black)
• Digital Output 1 coaxial, 1 optical
IEC958 for CDDA/LPCM
IEC1937 for MPEG 1/2,
AC-3, DTS
Power supply
• Power inlet 100 V-240V, 50/60 Hz
• Power usage Approx. 23 watt
• Power usage standby less than 3 watt
• Energy Star compliant
Cabinet
• Dimension 435 x 72.5 x 291 mm
(w x h x d)
• Weight Approx. 2.7 kg
Package contents
• DVD-video player
• Remote control with batteries
• AC power cord
• User manual
• Audio cable
• Video cable
• SCART cable (Euro. version only)
General functionality
• Stop/ play/ pause
• Fast forward/ backward
• Time search
• Step forward/ backward
• Slow motion
• Title/ chapter/ track select
• Skip next/ skip previous
• Repeat (Chapter/ title/ all) or (Track/ all)
• A-B repeat
• Shuffle
• Scan
• Enhanced ease of use graphical interface
• Perfect still with digital multi-tap filter
• Zoom (x1.33, x2, x4) with picture enhancement
• 3D sound
• Smart picture
• Screen saver (dim 75% after 15 min.)
• 5.1 Channels user defined speaker settings
• Virtual Jog Shuttle
• Audio and video bit rate indicator
• Beeper
DVD functionality
• Multi-angle selection
• Audio selection (1 out of max. 8 languages)
• Subtitles selection (1 out of max. 32 languages)
• Aspect ratio conversion
(16:9, 4:3 letterbox, 4:3 Pan Scan)
• Parental control and disc lock
• Disc Menu support (title menu and root menu)
• Resume (5 discs) after stop/ standby
• Programming titles/ chapters with favorite
selection
Video CD functionality
• Playback control for VCD 2.0 discs
• Parental Control and Disc lock
• Resume (5 discs) after stop/ standby
• Programming tracks with favorite selection
Audio CD functionality
• Time display (total/ track/ remaining track time)
• Full audio functionality with remote control
• Programming with favorite track selection
1 Typical playing time for movie with 2 spoken
languages and 3 subtitle languages.
DVD Q40
DVD Q40
Dolby Pro logic is trademark of Dolby Laboratories Licensing Inc. , and the symbol are trademarks of SRS Labs, Inc.
Remote Control ref : 3139 228 87711 (RC 19237002/01)
DRAFT - specifications subject to change without prior notice. Q40-EUR
