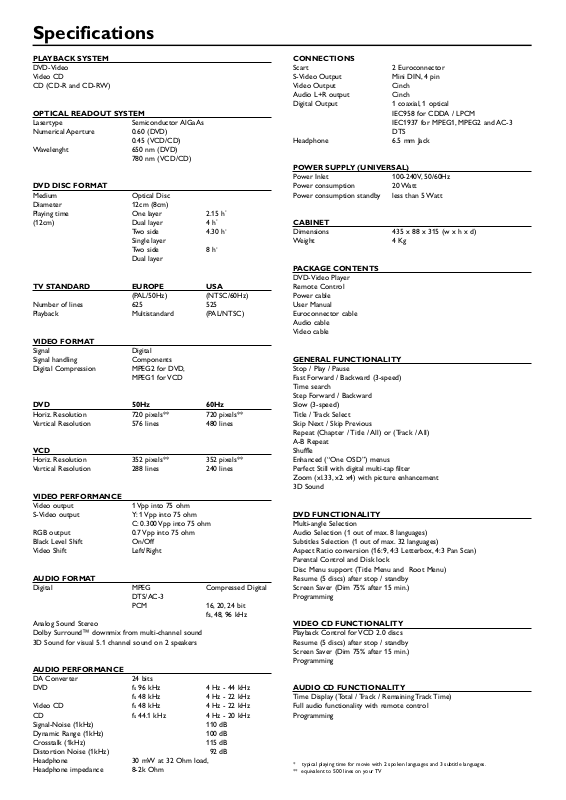

Philips DVD750 Specifications

PLAYBACK SYSTEM

DVD-Video Video CD CD (CD-R and CD-RW)

OPTICAL READOUT SYSTEM

Lasertype Semiconductor AlGaAs Numerical Aperture 0.60 (DVD)

0.45 (VCD/CD)

Wavelenght 650 nm (DVD)

780 nm (VCD/CD)

DVD DISC FORMAT

Medium Optical Disc Diameter 12cm (8cm) Playing time One layer 2.15 h

(12cm) Dual layer 4 h

Two side 4.30 h

Single layer Two side 8 h

Dual layer

TV STANDARD EUROPE USA

(PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC)

VIDEO FORMAT

Signal Digital Signal handling Components Digital Compression MPEG2 for DVD,

MPEG1 for VCD

DVD 50Hz 60Hz

Horiz. Resolution 720 pixels** 720 pixels** Vertical Resolution 576 lines 480 lines

VCD

Horiz. Resolution 352 pixels** 352 pixels** Vertical Resolution 288 lines 240 lines

VIDEO PERFORMANCE

Video output 1 Vpp into 75 ohm S-Video output Y: 1 Vpp into 75 ohm

C: 0.300 Vpp into 75 ohm RGB output 0.7 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right

AUDIO FORMAT

Digital MPEG Compressed Digital

DTS/AC-3

PCM 16, 20, 24 bit

fs, 48, 96 kHz Analog Sound Stereo Dolby Surround™ downmix from multi-channel sound 3D Sound for visual 5.1 channel sound on 2 speakers

AUDIO PERFORMANCE

DA Converter 24 bits DVD fs 96 kHz 4 Hz - 44 kHz

fs 48 kHz 4 Hz - 22 kHz Video CD fs 48 kHz 4 Hz - 22 kHz CD fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) 110 dB Dynamic Range (1kHz) 100 dB Crosstalk (1kHz) 115 dB Distortion Noise (1kHz) 192 dB Headphone 30 mW at 32 Ohm load, Headphone impedance 8-2k Ohm

CONNECTIONS

Scart 2 Euroconnector S-Video Output Mini DIN, 4 pin Video Output Cinch Audio L+R output Cinch Digital Output 1 coaxial, 1 optical

IEC958 for CDDA / LPCM IEC1937 for MPEG1, MPEG2 and AC-3 DTS

Headphone 6.5 mm Jack

POWER SUPPLY (UNIVERSAL)

Power Inlet 100-240V, 50/60Hz Power consumption 20 Watt Power consumption standby less than 5 Watt

CABINET

Dimensions 435 x 88 x 315 (w x h x d) Weight 4 Kg

PACKAGE CONTENTS

DVD-Video Player Remote Control Power cable User Manual Euroconnector cable Audio cable Video cable

GENERAL FUNCTIONALITY

Stop / Play / Pause Fast Forward / Backward (3-speed) Time search Step Forward / Backward Slow (3-speed) Title / Track Select Skip Next / Skip Previous Repeat (Chapter / Title / All) or (Track / All) A-B Repeat Shuffle Enhanced (“One OSD”) menus Perfect Still with digital multi-tap filter Zoom (xl.33, x2. x4) with picture enhancement 3D Sound

DVD FUNCTIONALITY

Multi-angle Selection Audio Selection (1 out of max. 8 languages) Subtitles Selection (1 out of max. 32 languages) Aspect Ratio conversion (16:9, 4:3 Letterbox, 4:3 Pan Scan) Parental Control and Disk lock Disc Menu support (Title Menu and Root Menu) Resume (5 discs) after stop / standby Screen Saver (Dim 75% after 15 min.) Programming

VIDEO CD FUNCTIONALITY

Playback Control for VCD 2.0 discs Resume (5 discs) after stop / standby Screen Saver (Dim 75% after 15 min.) Programming

AUDIO CD FUNCTIONALITY

Time Display (Total / Track / Remaining Track Time) Full audio functionality with remote control Programming

* typical playing time for movie with 2 spoken languages and 3 subtitle languages. ** equivalent to 500 lines on your TV
