Philips DVD743HC-021, DVD743 User Manual
DVD
DVD

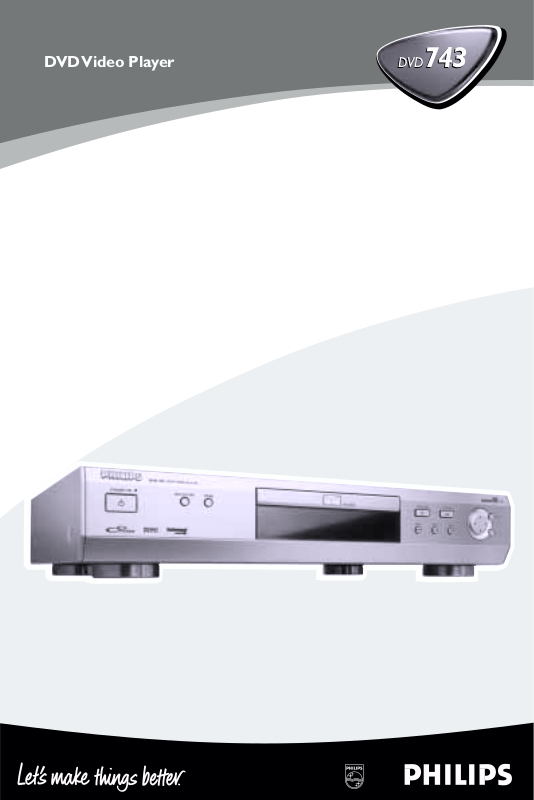

743DVD Video Player
743
Important Note
DK
Advarsel:
Laserrudstråling ved åbning når sikkerhesafbrydere er ude af
funktion. Undgå u tsættelse for stråling.
Bemærk:
Netafbryderen POWER er sekundært indkoblet og afbryder ikke
strømmen fra nette. Den indbyggede netdel er derfor tilsluttet til
lysnettet så længe netstikket sidder i stikkontakten.
N
Observer:
Nettbryteren POWER er sekundert innkoplet. Den
innebygdenetdelen er derfor ikke frakoplet nettet så lenge apparatet
er tilsluttet nettkontakten.
S
Klass 1 laserapparat
Varning!
Om apparaten används på annat sätt än i denna bruksanvisning
specificerats, kann användaren utsättas för laserstrålning, som
översjruder gränsen för läserklass 1.
Observera!
Strömbrytaren POWER är sekundärt kopplad och inte bryter
strömmen fråan nätet Den inbyggda nätdelen är därför ansluten till
elnätet så länge stickproppen sitter i v ägguttaget.
SF
Luokan 1 laserlaite + Klass 1 laserapparat
Varoitus!
Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle
lasersäleilille.
Huom.
Toiminnanvalitsin POWER on kytketty toisiopuolelle, eikä se kytke
laitetta irti sähköverkosta. Sisäänrakennettu verkko-osa on
kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.
Important Note for Users in the UK
Mains plug
This apparatus is f
change a fuse in this type of plug proceed as follo
1 Remo
2 Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5
Amp. If a plug without a fuse is used,the fuse at the
distribution board should not be greater than 5 Amp.
Note:The severed plug must be disposed of to avoid a possible
shock hazard should it be inserted into a 13 Amp socket
elsewhere.
itted with an approved 13 Amp plug.To
ve fuse cover and fuse.
ws:
How to connect a plug
The wires in the mains lead are coloured with the follo
lue = neutral (N), brown = live (L).
code: b
As these colours ma
markings identifying the terminals in your plug, proceed as
follows:
• Connect the blue wire to the terminal marked N or
coloured black.
• Connect the brown wire to the terminal marked L
or coloured red.
• Do not connect either wire to the earth terminal in
the plug, marked E (or e) or coloured green
(or green and yellow).
Before replacing the plug cover, make certain that the cord grip
is clamped over the sheath of the lead - not simply over the
two wires.
Copyright in the U.K.
Recording and playback of material may require
consent. See Copyright Act 1956 and The Performer’s
Protection
Acts 1958 to 1972.
wing
y not correspond with the colour
Index
English ------------------------------------------------- 5
Français ---------------------------------------------- 29
Deutsch --------------------------------------------- 53
Nederlands ----------------------------------------- 77
English
Français
Deutsch
Nederlands
CAUTION
VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL
SYNLIG OG USYNLIG LASERSTRÅLING VED
ÅBNING UNDGÅ UDSÆTTELSE FOR
STRÅLING
VARNING
SYNLIG OCH OSYNLIG LASERSTRÅLNING
NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA
EJ STRÅLEN
VARO!
AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA
NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ
KATSO SÄTEESEEN
VORSICHT
SICHTBARE UND UNSICHTBARE
LASERSTRAHLUNG WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHL
AUSSETSEN
ATTENTION
RAYONNEMENT LASER VISIBLE ET INVISIBLE
EN CAS D’OUVERTURE EXPOSITION
DANGEREUSE AU FAISCEAU
3
General Information
The region code for this set is 2.
Since it is usual for DVD movies to be released
at different times in different regions of the
world, all players have region codes and discs can
have an optional region code. If you load a disc
of a different region code to your player, you will
see the region code notice on the screen. The
disc will not playback, and should be unloaded.
2
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic” and the
double-D symbol are trademarks of Dolby
Laboratories.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorised by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorised by
Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
TruSurround and the symbol are
trademarks of SRS Labs, Inc. TruSurround
technology is incorporated under license from
SRS Labs, Inc.
The DVD VIDEO player is in
conformity with the EMC directive and
low-voltage directive.
Laser safety
This unit employs a laser. Due to possible eye
injury, only a qualified service person should
remove the cover or attempt to service this
device.
USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
NOTE:
PICTURES SHOWN MAYBE
DIFFERENT BETWEEN COUNTRIES.
LASER
Type Semiconductor laser GaAlAs
Wave length 650 nm (DVD)
780 nm (VCD/CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degree
CAUTION
(WARNING LOCATION: ON THE
BACKPLATE OF SET)
NEVER MAKE OR CHANGE
CONNECTIONS WITH THE POWER
SWITCHED ON.
For Customer Use:
Read carefully the information located at the
bottom of your DVD VIDEO player and enter
below the Serial No.Retain this information for
future reference.
Model No. DVD VIDEO
Serial No. __________________________
Contents
Introduction
Environmental Information ------------------------ 6
Supplied accessories -------------------------------- 6
Safety Information ----------------------------------- 6
Symbols Used in this Manual ---------------------- 6
Functional Overview
Front Panels ------------------------------------------ 7
Rear Panels ------------------------------------------- 8
Remote Control ------------------------------------- 9
Preparation
Basic Connections --------------------------------- 10
Connecting to a TV---------------------------- 10-11
Connecting to an Audio System ---------------- 11
Connecting to Optional Equipment -------- 11-12
Inserting batteries into the Remote Control - 12
NTSC/PAL Conversion --------------------------- 13
Switching On --------------------------------------- 13
Menu Bars on TV Screen ------------------------- 13
Personal Preferences-------------------------- 14-17
Operation
Basic Playback -------------------------------------- 18
Playing a DVD-Video ------------------------------ 18
Playing a Video CD -------------------------------- 19
Playing an Audio CD ------------------------------ 19
Special DVD features ------------------------- 19-20
Special VCD & SVCD Features ------------------ 20
Special CD & MP3 Features --------------------- 20
General Features ------------------------------ 20-23
MP3 Disc Features -------------------------------- 24
Access Control
Access Control: Child Lock ---------------------- 25
Access Control: Parental Control ---------- 25-26
English
Specifications
Specifications --------------------------------------- 27
Maintenance
Maintenance ---------------------------------------- 27
Troubleshooting
Troubleshooting------------------------------------ 28
5
DVD
VCD
CD
– Description refers to playback of DVD-video discs
– Description refers to playback of Video CDs
– Description refers to playback of Audio CDs
Introduction
English
Thank you for purchasing this Philips DVD player.
This Owner’s Manual explains the basic
operation of this DVD player.
Environmental Information
All unnecessary packaging has been omitted.
Packaging has been made easy to separate into
three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, protective
foam sheet).
Your DVD player consists of materials which can
be recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied accessories
– Remote control
– Batteries (two AA size) for remote control
– Audio cable
– SCART cable (not available for all versions)
– CVBS cable
– Owner’s Manual
Safety Information
● Before operating the DVD player, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) is identical with the voltage of your
local power supply. If not, please consult your
dealer.
● Place the DVD player on a flat, hard and stable
surface.
● There must be sufficient room in front of the
player for the disc tray to be opened.
● In cabinet, allow about 2.5cm (1 inch) of free
space all around the player for adequate
ventilation.
● Do not expose your player to extreme of
temperature or humidity.
● If the DVD player is brought directly from a cold
to a warm location, or is placed in a very damp
room, moisture may condense on the lens of the
disc unit inside the DVD player. Should this occur,
the DVD player would not operate normally.
Leave the power on for about one hour with no
disc in the DVD player until normal playback is
possible.
● The mechanical par ts of the set contain selflubricating bearings and must not be oiled or
lubricated.
● When the DVD player is switched to
Standby mode, it is still consuming some
power. To disconnect the system from
the power supply completely, remove the
AC power plug from the wall socket.
Symbols Used in this Manual
The below symbols appear in some headings
and notes with the following meanings:
Helpful Hints!
● Some DVD video discs require specific
functions or allow only limited functions
during playback.
● “ Ä“ may appears on the TV screen
which means that the function is not
available on that specific DVD video disc.
6
Front Panel
STANDBY-ON
– to switch the player to standby mode
or ON
STANDBY INDICATOR
– lights red when the player is in
Standby mode
SMART PICTURE
– to access the colour settings menu bar
SOUND
– to select Stereo, Dolby Surr-compt or
3D-Sound (TruSurround)
DVD743
STANDBY-ON
DVD VIDEO PLAYER
SMART PICTURE
SOUND
Functional Overview
DISC MENU
– to access menu of a DVD disc
1 2 3 4 (left/right/up/down)
– to select an item in the menu
– to start or interrupt playback
– to open/close the disc tray
2; PLAY/PAUSE
/ OPEN/CLOSE
OPEN/CLOSE PLAY/PAUSE
PREV NEXT
STOP
DISC
MENU
OK
English
DISPLAY
– shows the current status of the player
Disc Tray
– goes to previous chapter or track
S PREV
T NEXT
– goes to next chapter or track
9 STOP
– to stop playback
OK
– to acknowledge menu selection
7
Functional Overview
English
Rear Panel
COAXIAL (Digital audio out)
– connect to AUDIO inputs of a digital
(coaxial) audio equipment
OPTICAL (Digital audio out)
– connect to digital (optical) audio
equipment
CVBS (VIDEO OUT)
– connect to CVBS Video inputs of a TV
DIGITAL AUDIO OUT
PCM/ MPEG2/ Dolby Digital
COAXIAL
OPTICAL
AUDIO OUT
1
2
R
VIDEO OUT
(CVBS)
L
SUB WF
S-VIDEO
OUT
MAINS (AC Power Cord)
– connect to a standard AC outlet
AUX/VCR IN (VIDEO OUT)
– connect to a VCR with SCART
TV OUT (VIDEO OUT)
– connect to a TV with SCART
TV OUT
AUX/VCR IN
SUBWOOFER
– connect to an active subwoofer
– connect to a TV with S-Video inputs
S-VIDEO OUT
AUDIO OUT (Left/Right)
– connect to AUDIO inputs of an
amplifier, receiver or stereo system
Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
8
Remote Control
RETURN / RESUME
– go back to previous menu /
continue playback after play
was stopped
DISC MENU
– access menu of a DVD disc
Functional Overview
English
POWER B
– switch DVD ON or go to
standby-on mode
0-9 numerical key pad
– select numbered items in a
menu
– (left/right/up/down) select an
1 2 3 4
item in the menu
OK
– acknowledge menu selection
S
– search backward* / go to a
previous chapter or track
STOP ( 9 )
– stop playback
PLAY ( B )
– start playback
PAUSE ( ; )
– pause playback temporarily /
frame-by-frame playback
REPEAT
– repeat chapter, track, title, disc
REPEAT (A-B)
– repeat a specific segment
SHUFFLE
– play tracks in random order
SCAN
– play the first 10 seconds of each
track/chapter within a disc
CD TEXT / DISPLAY
– activate/deactivate CD text if
available on the disc (audio
CDs)
– to display bit rate indicator
during playback (DVD, SVCD)
SYSTEM MENU
– access or remove player’s
system menu
T
– search forward* / next chapter
or track
SUBTITLE
– subtitle language selector
ANGLE
– select DVD camera angle
ZOOM
– enlarge video image
AUDIO
– audio language selector
* Press and hold key for about two seconds
9
Loading...
