Philips DVD710 User Manual

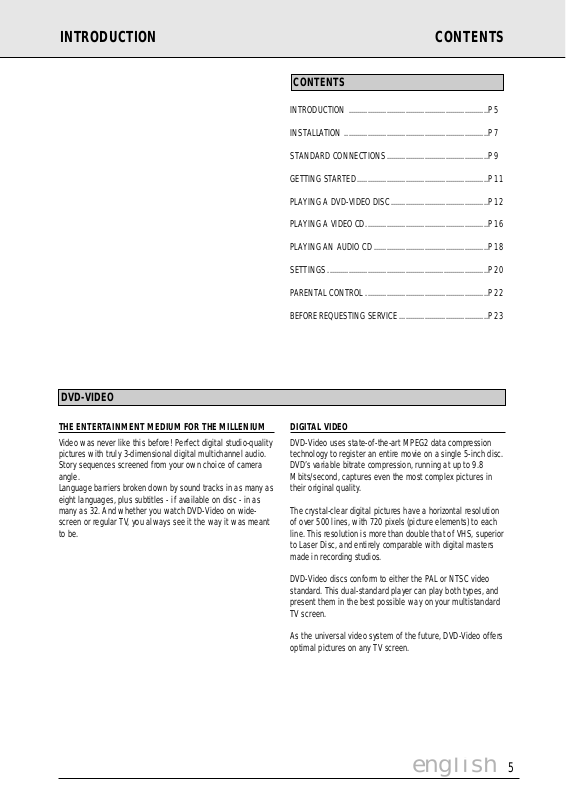

INTRODUCTION ..................................................................P 5

INSTALLATION ....................................................................P 7

STANDARD CONNECTIONS................................................P 9

GETTING STARTED ..............................................................P 11

PLAYING A DVD-VIDEO DISC ..............................................P 12

PLAYING A VIDEO CD..........................................................P 16

PLAYING AN AUDIO CD......................................................P 18

SETTINGS............................................................................P 20

PARENTAL CONTROL ..........................................................P 22

BEFORE REQUESTING SERVICE..........................................P 23

CONTENTS

english

INTRODUCTION CONTENTS

THE ENTERTAINMENT MEDIUM FOR THE MILLENIUM

Video was never like this before! Perfect digital studio-quality pictures with truly 3-dimensional digital multichannel audio. Story sequences screened from your own choice of camera angle. Language barriers broken down by sound tracks in as many as eight languages, plus subtitles - if available on disc - in as many as 32. And whether you watch DVD-Video on widescreen or regular TV, you always see it the way it was meant to be.

DIGITAL VIDEO

DVD-Video uses state-of-the-art MPEG2 data compression technology to register an entire movie on a single 5-inch disc. DVD’s variable bitrate compression, running at up to 9.8 Mbits/second, captures even the most complex pictures in their original quality.

The crystal-clear digital pictures have a horizontal resolution of over 500 lines, with 720 pixels (picture elements) to each line. This resolution is more than double that of VHS, superior to Laser Disc, and entirely comparable with digital masters made in recording studios.

DVD-Video discs conform to either the PAL or NTSC video standard. This dual-standard player can play both types, and present them in the best possible way on your multistandard TV screen.

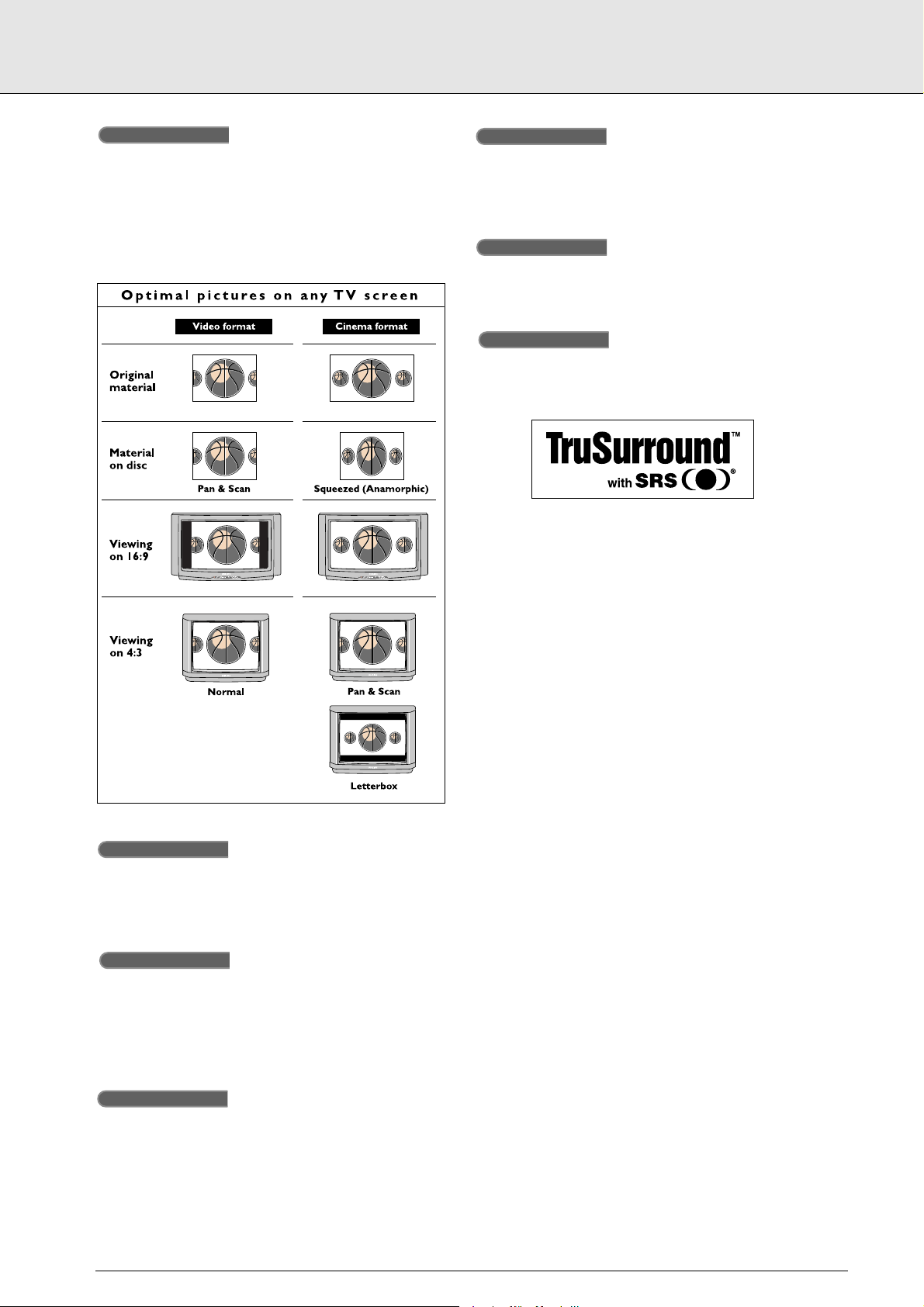

As the universal video system of the future, DVD-Video offers optimal pictures on any TV screen.

DVD-VIDEO

english

Your Philips DVD-Video player plays digital video discs conforming to the universal DVD-Video standard. With it, you will be able to enjoy full-length movies with true cinema picture quality, and stereo or multichannel sound (depending on the disc, and on your playback set-up). The unique features of DVD-Video, such as selection of sound track and subtitle languages, and of different camera angles (again depending on the disc), are all included. What’s more, Philips Parental Control lets you decide which discs your children will be able to see.

You will find your player remarkably easy to use, by way of the On-Screen Display and player display, in combination with the remote control.

In addition to DVD-Video discs, you will also be able to play all Video CDs and audio CDs. The disc types which run on the player feature one or more of these logos on the disc packaging:

First check and identify the contents of your DVD-Video player package, as listed below:

- DVD-Video player

- Remote Control Handset with separately-packed batteries

- 2-core power cord

- Euroconnector cable

- User Manual

If any item should be damaged or missing, please inform your supplier without delay.

Keep the packaging materials; you may need them to transport your player in the future.

• Place the player on a firm, flat surface.

• Keep away from domestic heating equipment and direct sunlight.

• In a cabinet, allow about 2.5 cm (1 inch) of free space all around the player for adequate ventilation.

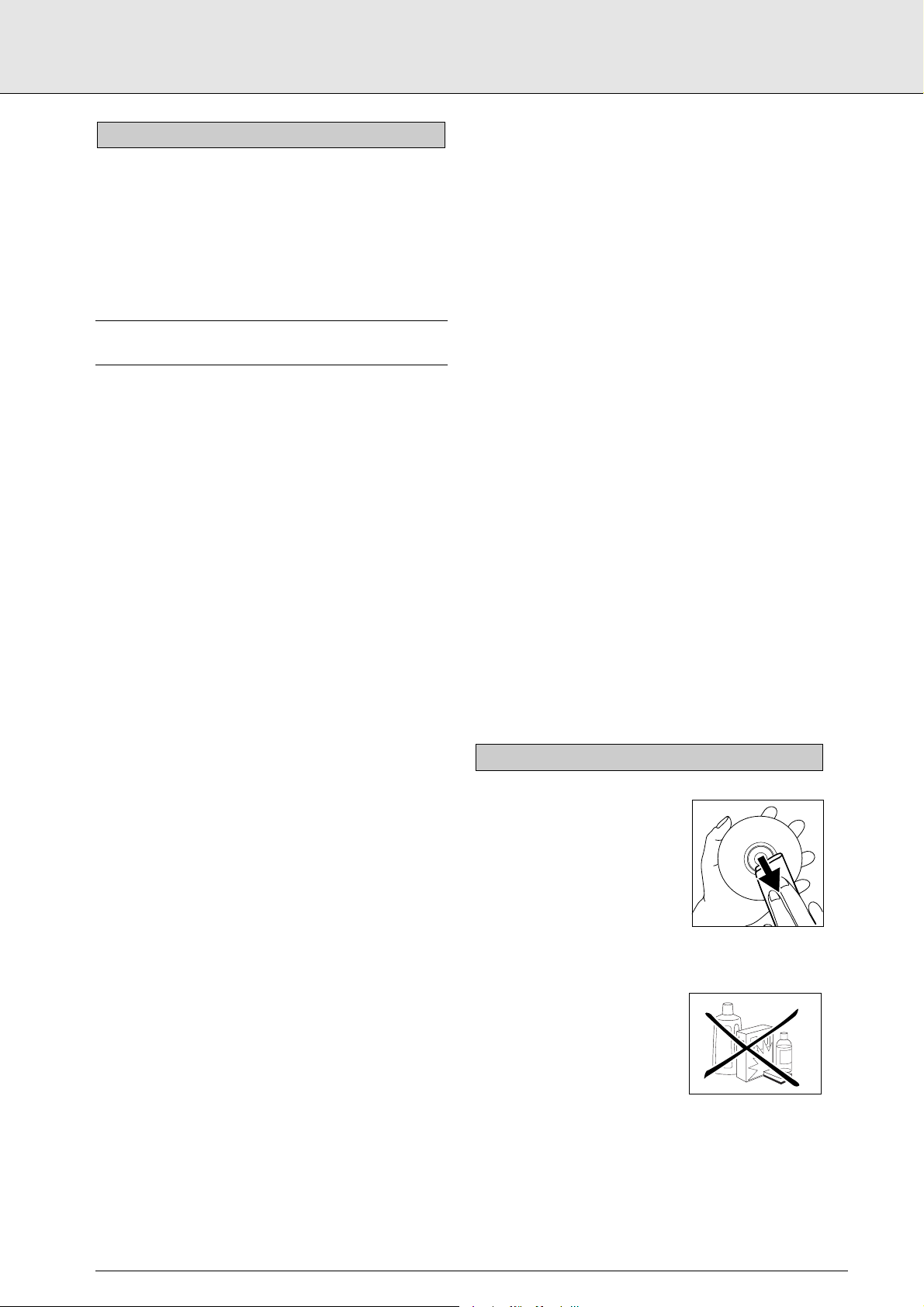

• If the DVD-Video player fails to read discs correctly use a commonly available cleaning CD/DVD to clean the lens before taking the DVD-Video player for repair. Avoid other cleaning methods, which may destroy the lens. Always keep the tray closed to avoid dust on the lens.

• The lens may cloud over when the DVD-Video player is suddenly moved from cold to warm surroundings. Playing a CD/DVD is not possible in such a situation. Leave the DVDVideo player in the warm environment until the moisture evaporates.

PLACEMENT

UNPACKING

Recordable

ReWritable

INTRODUCTION

M P E

V D 710 DV

M u ltic

/VIDE

n n e

O C D /CD

PLA

Y ER

S H U F

REPEAT PREV NEXT

P A U S E

A R E P E A T

T IT

STOP

TITLE

TIMETOTALREM

..............

1 2 3 4

5 6 7 8 9 10 11 12 13 14 15

ON/OFF

PAUSE

OPEN/CLOSE

1 ON/OFF 2 Disc tray 3 Tray OPEN/CLOSE 4 Display 5 REPEAT/chapter/track/title/disc

O PREVious title/chapter/track

P NEXT title/chapter/track

8 9 STOP 9 ; PAUSE/Still/Step

2 PLAY

FRONT OF PLAYER

english

INSTALLATION

1 Power supply 2 Digital audio output 3 Audio R; Audio output R

Audio L; Audio output L

4 Video (CVBS); Video output 5 DC Power output (for optional external RF modulator) 6 A/V Euroconnector 7 NTSC/PAL switch (for player menus)

CAUTION

Do not touch the inner pins of rear-panel connectors. Electrostatic discharge may cause permanent damage to the unit.

REAR OF PLAYER

ON/OFF

1 2 3 4 5 6 7 8 9 10

DVD710 DVD/VIDEO CD/CD PLAYER

SHUFFLE

TITLE

.......... . .. .

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

OPEN/CLOSE

PLAY

TITLEPAUSE

REPEAT

TIMETOTAL REM

REPEAT PREV NEXT

STOP

PAUSE

MPEG Multichannel

1 2 3 4 5 6 7

20 18 16 14 12 108642

19 17 15 13 11 9 7 5 3 1

1 Remote control active (flashing) 2 FTS (Favourite Track Selection) active 3 SHUFFLE active 4 PAUSE active 5 SCAN active 6 A-B REPEAT/CHAPTER/TITLE/TRACK mode active 7 Chapter or track calendar 8 TOTAL/REMaining/TRACK TIME in hours, minutes and

seconds

9 (V)CD disc inserted 0 DVD disc inserted ! DVD CHAPTER or VCD/CD TRACK number @ DVD TITLE number

OSD ........(On-Screen Display) on/off

2 ANGLE....select DVD camera angle

SUBTITLE language selector or subtitle on/off

AUDIO ............spoken language selector

3 0-9....................numerical key pad

4 T-C ..................title/chapter mode selector

5 MENU ............select DVD-defined menu

OK....................acknowledge menu selection.

bolrup/down/left/right cursor movement

6 5 J ............previous chapter or track / search back

6 K ............next chapter or track/ search forward

2 ......................play

; ......................pause or still frame /step frame

..................slow motion (1/2, 1/4, 1/8 speed)

9 ......................stop

7 SETUP ............select player settings menu (in stop mode

only)

REPEAT*/A-B REPEAT chapter, track, title, disc SHUFFLE/SCAN* shuffle or scan on/off

8 RETURN..........go back to previous menu step

..................standby

* Press key for about 1 second

REMOTE CONTROL

DISPLAY

english

INSTALLATION

+ j

....

1 2 4 53

-BA

OSD

SCAN

-BA

1112

SHUFFLE

CHAPTERTITLE TRACK

......... . . . . .

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

REPEAT

CHAPTER

ANGLE SUBTITLE AUDIO

TRACKTITLEPAUSE

TIMETRACKTOTAL REM

123

456

789

T-C RETURN

MENU OK

SETUP

A-B REPEAT

SHUFFLE

SCAN

- Depending on your TV and other equipment, there are various ways you could connect the DVD-Video player. These are shown below.

- Please refer to your TV, VCR, Stereo System and any other User Manual(s) as necessary to make the optimal connections.

Connection to a TV with an A/V Euroconnector socket. 1 Connect the A/V Euroconnector on the rear of the player to

the

corresponding connector on the TV using the cable sup-

plied.

2 Optionally you can also connect the audio Left and Right

channel sockets on the rear of the player to the corresponding sockets on your stereo system.

NOTE

- Do not connect your DVD-player via your VCR, because the video quality could be distorted by the copy protected system.

Connection to a TV with a video (CVBS) socket. 1 Connect the Video socket on the rear of the player to the

corresponding socket on the TV using the cable supplied.

2 Connect the audio Left and Right channel sockets on the

rear of the player to the corresponding sockets on the TV using the cable supplied. Alternatively, you can use the same cable to connect the audio Left and Right sockets on the rear of the player to the corresponding sockets on your stereo system.

CAUTION

Do not connect the player’s audio output to the phono input of your stereo system.

EXCELLENT A/V CONNECTION

HIGHEST QUALITY A/V CONNECTION

GENERAL NOTE

english

STANDARD CONNECTIONS

20 18 16 14 12 108642

19 17 15 13 11 9 7 5 3 1

A/V EUROCONNECTOR CABLE

VIDEO

AUDIO

20 18 16 14 12 108642

19 17 15 13 11 9 7 5 3 1

VIDEO CABLE

AUDIO CABLE

For multichannel sound, your player provides both digital and analog audio outputs.

DIGITAL (MPEG 2 MULTICHANNEL OR DOLBY DIGITAL™) MULTICHANNEL SOUND

1 For this, which provides the highest multichannel sound

quality, you need a digital multichannel A/V receiver.

2 Connect the digital audio output on the rear of the player to

a suitable input on the receiver using a digital audio cable (available as option). In this case, do not use the player’s audio Left and Right outputs.

3 You will need to activate the digital output of the player

(See Settings p. 20).

4 The audio format of the digital output is dependent on the

audio format of the selected audio stream. Make sure that the selected audio stream matches the capabilities of the receiver connected to the digital output.

ANALOG (DOLBY PRO LOGIC™) MULTICHANNEL SOUND

1 If your TV set has a Dolby Pro Logic™ decoder, simply hook

up the player to the TV using the A/V Euroconnector, or Video (CVBS) and audio connections as on p. 9.

2 If not, make the A/V Euroconnector, or Video (CVBS) con-

nection to the TV p. 9, and connect the player’s audio Left and Right outputs to suitable inputs on a Dolby Pro Logic™ Audio/Video receiver, using the cable supplied.

3 For speaker connections, follow the instructions given in

the TV set or A/V receiver user manual.

NOTE

You cannot use the RF Modulator option for home theatre.

- If the audio format of the digital output does not match the

capabilities of your receiver, the sound will be muted.

For this connection, which produces the highest possible stereo sound quality, you need an audio amplifier with digital input, and the digital output of the player must be activated (see Settings p. 20). Connect the player’s digital audio output to the corresponding input on the amplifier. In this case, do not use the player’s audio Left and Right outputs.

Use the NTSC/PAL switch on the rear of the player to set the Video CD and player menu according to the standard used by your TV-set.

NOTE

- The video output standard for video CD and DVD-Video discs most corresponds to the disc being played.

1 Plug the female end of the power cord supplied into the

Power connector on the rear of the player.

2 Plug the male end of the cord into an AC outlet.

NOTE

- The player automatically adjust to the local AC voltage.

- When the player is in the “OFF” position, it still consumes some power. If you wish to disconnect your player completely from the power supply, withdraw the plug from the AC Outlet.

CAUTION

Only qualified service personnel should remove the cover or attempt to service this device.

CONNECTING THE POWER SUPPLY

NTSC/PAL SETTING

DIGITAL AUDIO (STEREO) SOUND CONNECTION

MULTICHANNEL SOUND FOR HOME THEATRE

english

STANDARD CONNECTIONS

DIGITAL AUDIO

RECEIVER

20 18 16 14 12 108642

19 17 15 13 11 9 7 5 3 1

DIGITAL AUDIO

CABLE
