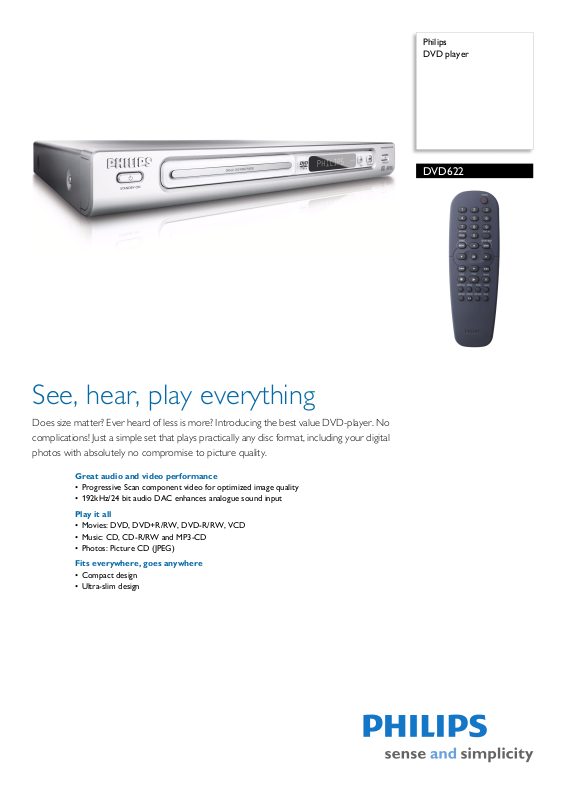

Philips
DVD player
DVD622
See, hear, play everything
Does size matter? Ever heard of less is more? Introducing the best value DVD-player. No
complications! Just a simple set that plays practically any disc format, including your digital
photos with absolutely no compromise to picture quality.
Great audio and video performance
• Progressive Scan component video for optimized image quality
• 192kHz/24 bit audio DAC enhances analogue sound input
Play it all
• Movies: DVD, DVD+R/RW, DVD-R/RW, VCD
• Music: CD, CD-R/RW and MP3-CD
• Photos: Picture CD (JPEG)
Fits everywhere, goes anywhere
•Compact design
• Ultra-slim design
DVD player
DVD622/IK
Specifications
Picture/Display
• Aspect ratio: 4:3, 16:9
• D/A converter: 10 bit, 54 MHz
• Picture enhancement
Sound
• D/A converter: 192KHz/24 bit
• Signal to noise ratio: 90dB
• Distortion and Noise (1kHz): 80 dB
• Crosstalk (1kHz): 100 dB
• Dynamic Range (1kHz): 90 dB
• Sound Enhancement: Night Mode
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD,
DVD, DVD-Video, DVD+R, DVD+RW, DVD-R,
DVD-RW (Video mode)
• Compression formats: MPEG1, MPEG2
• Video disc playback system: NTSC, PAL
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD
• Compression format: MP3, PCM
• MP3 bit rates: 32 - 256 kbps
Still Picture Playback
• Playback Media: Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Rotate, Slideshow, Zoom
: Progressive scan
Connectivity
• Other connections: Analog audio Left/Right out,
Digital coaxial out, ComponentVideo out
Progressive, Composite video (CVBS) out, S-Video
out
Convenience
• Child Protection: Parental Control
• On-Screen Display languages: English
Power
• Power supply: 110-240V, 50/60 Hz
• Power consumption: 12 W
• Standby power consumption: 2.2 W
Accessories
•Batteries: 2 x AA
• Cables: 1 x AV Cables
• Remote control: 3141 017 90201
• User Manual: English. Hindi
•Warranty Card
Dimensions
•Set dimensions (W x H x D): 360 x 50 x 285 mm
• Set weight: 2.2 kg
• Packaging dimensions (W x H x D):
5 x 88 x 365 mm
41
• Weight incl. Packaging: 2.8 kg
•
Highlights
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
192kHz/24 bit audio DAC
192KHz sampling enables you to have an accurate
representation of the original sound curves.
Together with a 24-bit resolution, more information
is captured from the original analogue sound wave
form, giving a much richer audio reproduction.
Multi format Movies
Multi-format playability allows you to play most disc
formats for maximum disc compatibility and viewing
pleasure.
Multi-format Music
Multi-format playability allows you to play most disc
formats for maximum disc compatibility and listening
pleasure.
Picture CD (JPEG)
Multi-format playability allows you to view images in
the comfort of your living room and play most disc
formats for maximum disc compatibility and viewing
pleasure.
Ultra-slim design
The attractive enclosure has a very low profile.
Issue date 2011-10-18
Version: 2.0.4
12 NC: 8622 810 12494
EAN: 87 10895 88847 9
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
