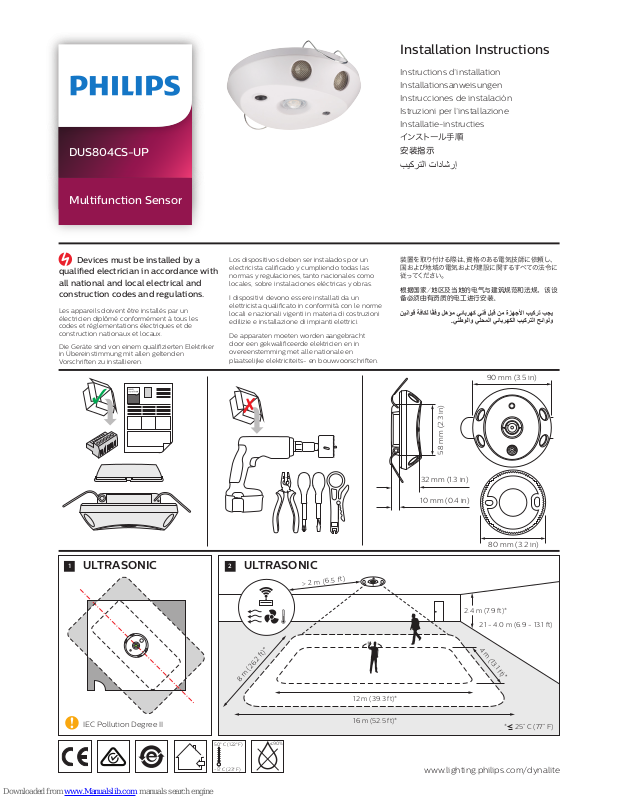

Philips DUS804CS-UP Installation Instructions Manual

ULTRASONIC

www.lighting.philips.com/dynalite

Multifunction Sensor

Installation Instructions

Instructions d’installation
Installationsanweisungen
Instrucciones de instalación
Istruzioni per l’installazione
Installatie-instructies

インストール手 順

安装指示

58 mm (2.3 in)

10 mm (0.4 in)

32 mm (1.3 in)

90 mm (3.5 in)

80 mm (3.2 in)

Devices must be installed by a

qualied electrician in accordance with
all national and local electrical and
construction codes and regulations.

Les appareils doivent être installés par un
électricien diplômé conformément à tous les
codes et réglementations électriques et de
construction nationaux et locaux.

Die Geräte sind von einem qualizierten Elektriker
in Übereinstimmung mit allen geltenden
Vorschriften zu installieren.

Los dispositivos deben ser instalados por un
electricista calicado y cumpliendo todas las
normas y regulaciones, tanto nacionales como
locales, sobre instalaciones eléctricas y obras.

I dispositivi devono essere installati da un
elettricista qualicato in conformità con le norme
locali e nazionali vigenti in materia di costruzioni
edilizie e installazione di impianti elettrici.

De apparaten moeten worden aangebracht
door een gekwaliceerde elektricien en in
overeenstemming met alle nationale en
plaatselijke elektriciteits- en bouwvoorschriften.

装置を取り付ける際は、資格のある電気技師に依頼し、
国および地域の電気および建設に関するすべての法令に
従 ってくだ さい 。

根据国家/地区及当地的电气与建筑规范和法规，该设
备必须由有资质的电工进行安装。

.

50° C (122° F)

-5° C (23° F)

≤

90%

1

IEC Pollution Degree II

ULTRASONIC

2.1 - 4.0 m (6.9 - 13.1 ft)

16 m (52.5 ft)*

8 m (26.2 ft)*

4 m (13.1 ft)*

12 m (39.3 ft)*

> 2 m (6.5 ft)

25˚ C (77˚ F)*

2.4 m (7.9 ft)*

DUS804CS-UP

2

Philips Dynalite
www.lighting.philips.com/dynalite

© 2017 Philips Lighting. All rights reserved.

60°

5

9 10

6

PE IR

DyNet RS-485

30 mm (1.2 in)

51 mm
(2.0 in)

3 - 25 mm
(0.12 - 0.98 in)

64 mm (2.5 in)

DyNet RS-485

SHLD

GND

≤ 20 mm (0.8 in)

D+

D-

+12 V

≤ 2 A

12 V 80 mA

30 mm (1.2 in)

51 mm
(2.0 in)

3 - 25 mm
(0.12 - 0.98 in)

64 mm (2.5 in)

30 mm (1.2 in)

51 mm
(2.0 in)

7 8A 8B

Installation of a home and building automation and control system shall comply with HD 60364-4-41. The temperature limits and current-carrying capacities for

the communication wires specied in HD 384.5.523 shall not be exceeded.

Do not connect inputs to mains.

IEC Overvoltage Category III

2.1 - 4.0 m (6.9 - 13.1 ft)

7.6 m (24.9 ft)*

2.4 m (7.9 ft)*

5.4 m (17.7 ft)*

> 2 m (6.5 ft)

25˚ C (77˚ F)*

120°

IEC Pollution Degree II

PIRPIR

3A 3B 4
