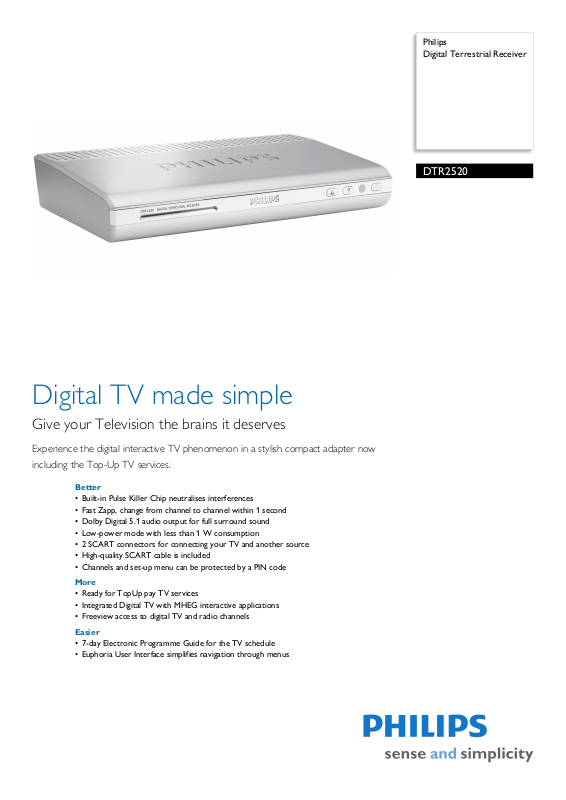

Page 1
Philips
Digital Terrestrial Receiver
DTR2520
Digital TV made simple
Give your Television the brains it deserves
Experience the digital interactive TV phenomenon in a stylish compact adapter now
including the Top-Up TV services.
Better
• Built-in Pulse Killer Chip neutralises interferences
• Fast Zapp, change from channel to channel within 1 second
• Dolby Digital 5.1 audio output for full surround sound
• Low-power mode with less than 1 W consumption
• 2 SCART connectors for connecting your TV and another source
• High-quality SCART cable is included
• Channels and set-up menu can be protected by a PIN code
More
• Ready for TopUp pay TV services
• Integrated Digital TV with MHEG interactive applications
• Freeview access to digital TV and radio channels
Easier
• 7-day Electronic Programme Guide for the TV schedule
• Euphoria User Interface simplifies navigation through menus
Page 2
Digital Terrestrial Receiver
Highlights
DTR2520/05
Ready for TopUp TV services
TopUp is a UK pay TV operator offering
subscrip
tion and pay-per-view services
opening up additional TV content and channels.
MHEG iDTV
The MHEG integrated Digital TV allows digital
TV subscri
objects, the MHEG, using specialised links.
Applications include Internet Digital TV, VOD,
Home-shopping, interactive advertising,
programme retailing and merchandising,
electronic newspaper, home banking, Ecommerce application, online games, and so
on.
Pulse Killer Chip
Electrical interferences are neutralised by a
bu
Fast Zapp
Time it takes to go one channel up/down
Dolby Digital 5.1 surround
Because Dolby Digital standards, the world's
le
ading digital multi-channel audio standards,
make use of the way the human ear naturally
processes sound, you experience superb
quality surround sound audio with realistic
spatial cues.
Low power mode
Low-power mode with less than 1 W
consu
bers to navigate through a screen of
ilt in chip called PKC
mption
2 SCART connectors
2 SCART sockets allow you to connect to 2
dev
ices simultaneously. One connection for
the TV and the other, either to a DVD
recorder or VCR for recording TV content, or
to a video playback device, such as a DVD or
Blu-ray player. Simply connect the SCART
sockets on the product to the desired device
by a SCART cable, to enable transmission of
the video signals.
Free SCART cable
high quality SCART cable
Freeview access
You want to continue watching the publicly
broadca
st channels as well as the additional
digital channels available on Freeview. Your
digital TV receiver also gives you access to
MHEG services, such as on-screen EPG, games
and videotext. No subscription required to
receive the most popular TV channels in the
UK brought to you in digital quality.
7-Day Electronic Programme Guide
Would you like to know what the TV schedule
i
s for today and even for the whole week? This
way, you can be sure you won't miss any of
your favourite shows by planning your
evenings or making pre-scheduled recordings.
The EPG information is part of the broadcast
data and, when avai lable, this rec eiver c ompiles
the programming details for the upcoming 7
days and lists it in an easy-to-read format for
your reference. The EPG can be accessed via
the menu, or by simply pressing the EPG
button on the remote control.
Euphoria User Interface
Easy navigation through the menu structure.
Automatic install and update
With the launch of digital terrestrial TV,
addition
al broadcast channels are made
available. Also, the channel numbering can
often be temporarily reshuffled during digital
switchover. To ensure that you always have
the access to all available channels, it is
important that the product is able to scan and
install new channels automatically. A very
sensitive tuner in this product scans through
the broadcasting network for new channels
whenever the product is switched off.
Whenever a new service is detected, it will be
automatically updated and saved onto the
channel list.
Parental lock
Do you want to limit access to certain
p
rogrammes or channels to protect your
children from objectionable content? This
receiver allows you to automatically block
access to specified channels or programmes
either according to maturity ratings or your
own preferences. This content can only be
viewed after entering the PIN code.
7
DAYS
EPG
Page 3
Digital Terrestrial Receiver
Specifications
DTR2520/05
Connectivity
• Terrestrial antenna interface: RF in, IEC 169-2, RF
out, (bypass) IEC 169-2
• Audio Output — Analogue: Audio L/R (cinch)
• Audio Output - Digital: AC3 over S/PDIF (Optical),
o
axial (cinch)
C
• Plug and Play
• TV scart out: Controlled audio L/R, CVBS, RGB
• VCR scart in: Audio L/R, CVBS, RGB
Convenience
• Ease of Installation: Autoinstall
• Favourites list TV programmes: 8
• Parental control: Lock with PIN code, Child timer
• Programmable Events: 1
• Recording: Record failure alarm, Record header
message
• User Interface: Automatic programme list update,
le subtitles supp or ted, On Scr ee n Display on
p
Multi
TV, Software upgrade over the air, TV and Radio
mode, Now and Next ESG
System Specifications
• CPU speed: 166 MHz
• Flash memory size: 4 MB
• Video graphics: 16 MB SDRAM
• Video decoding: MPEG-2 DVB up to MP@ML,
bit
rate up to 15 Mbit/s, Video format 4:3
Video
and 16:9, resolution up to 720 x 576 pix
Video Decoding
• Reception-Demodulation: COFDM 2K/8K,
Network: MFN/SFN
• Frequency range: VHF III & UHF IV/V
•CA: MediaGuard
Audio Decoding
• Compression format: MPEG layer I/II
Green Specifications
• Lead-free soldered product
Power
• Mains power: 230V (+/-10/-15%)/50 Hz
• Power consumption: 10 W
• Standby power consumption: 5 W
• Low power mode (ECO): <1 W
Dimensions
• Product dimensions (W x H x D):
240 x 44 x 145 mm
• Carton dimensions (WxDxH): 305 x 245 x 65 mm
• Weight: 0.98 kg
• Weight incl. Packaging: 1.78 kg
• Temperature (storage): -20ºC to +60ºC
• Temperature (operation): +5 ºC to +35 ºC
Accessories
• Included accessories: High quality SCART cable,
Mains cord, Remote Control, Quick install guide,
Safety and warranty booklet, User Manual
•Batteries: 2 size AA
•
Issue date 2011-09-29
Version: 11.0.16
12 NC: 8622 512 00604
EAN: 87 10895 90710 1
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
