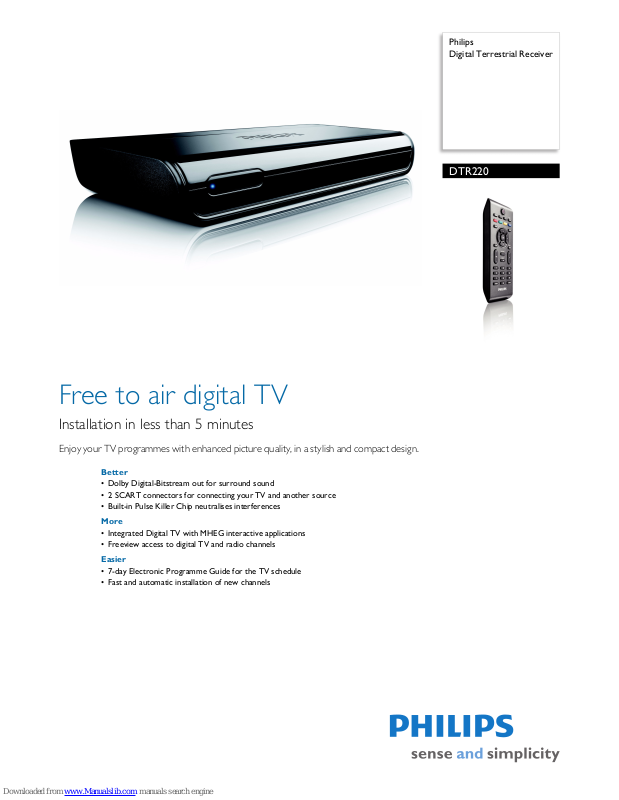

Page 1
Philips
Digital Terrestrial Receiver
DTR220
Free to air digital TV
Installation in less than 5 minutes
Enjoy your TV programmes with enhanced picture quality, in a stylish and compact design.
Better
• Dolby Digital-Bitstream out for surround sound
• 2 SCART connectors for connecting your TV and another source
• Built-in Pulse Killer Chip neutralises interferences
More
• Integrated Digital TV with MHEG interactive applications
• Freeview access to digital TV and radio channels
Easier
• 7-day Electronic Programme Guide for the TV schedule
• Fast and automatic installation of new channels
Page 2
Issue date 2010-09-03
Version: 3.3.26
12 NC: 8622 512 00695
EAN: 87 10895 93631 6
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Specifications
DTR220/05
Digital Terrestrial Receiver
Highlights
Dolby Digital-Bitstream out
Because Dolby Digital standards, the world's leading
digital multi-channel audio standards, make use of
the way the human ear naturally processes sound,
you experience superb quality surround sound audio
with realistic spatial cues.
7-Day Electronic Programme Guide
Would y ou like t o k now w hat the T V schedu le is for
today and even for the whole week? This way, you
can be sure you won't miss any of your favourite
shows by planning your evenings or making prescheduled recordings. The EPG information is part of
the broadcast data and, when available, this receiver
compiles the programming details for the upcoming
7 days and lists it in an easy-to-read format for your
reference. The EPG can be accessed via the menu, or
by simply pressing the EPG button on the remote
control.
2 SCART connectors
2 SCART sockets allow you to connect to 2 devices
simultaneously. One connection for the TV and the
other, either to a DVD recorder or VCR for
recording TV content, or to a video playback device,
such as a DVD or Blu-ray player. Simply connect the
SCART sockets on the product to the desired device
by a SCART cable, to enable transmission of the
video signals.
Pulse Killer Chip
Electrical interferences are neutralised by a built in
chip called PKC
Automatic install and update
With the launch of digital terrestrial TV, additional
broadcast channels are made available. Also, the
channel numbering can often be temporarily
reshuffled during digital switchover. To ensure that
you always have the access to all available channels,
it is important that the product is able to scan and
install new channels automatically. A very sensitive
tuner in this product scans through the broadcasting
network for new channels whenever the product is
switched off. Whenever a new service is detected, it
will be automatically updated and saved onto the
channel list.
Freeview access
You want to continue watching the publicly
broadcast channels as well as the additional digital
channels available on Freeview. Your digital TV
receiver also gives you access to MHEG services,
such as on-screen EPG, games and videotext. No
subscription required to receive the most popular
TV channels in the UK brought to you in digital
quality.
Tuner/Reception/Transmission
• Digital TV: Terrestrial
• Demodulation type: COFDM 2K/8K, MPEG-2
DVB
compliant, Network: MFN/SFN, QAM, QPSK
• Input frequency range: 474 to 862 MHz
Connectivity
• Terrestrial antenna interface: RF in, IEC 169-2, RF
out, (bypass) IEC 169-2
• TV scart out: CVBS, RGB, Audio L/R
• VCR scart out: Audio L/R, CVBS
• Audio Output - Digital: Coaxial (cinch)
• Plug and Play
Convenience
• Ease of Installation: Autoinstall
• Parental control: Lock with PIN code
• Programmable Events: 8
• User Interface: Automatic programme list update,
Now an
d Next ESG, Software upgrade over the
air, TV and Radio mode
• Child Protection: Child Lock+Parental Control
Video Decoding
• Compression Format: MPEG-2 MP@ML (std
definition)
• Resolution: up to 720 x 576 interlaced
• Aspect Ratio: 16:9, 4:3 Letterbox, 4:3 Pan Scan
Audio Decoding
• Compression format: MPEG layer I/II
• Sound system: Dolby Digital Bitstream out, Stereo,
Mono
System Specifications
• Flash memory size: 2 MB
• Ram size: 16 MB SDRAM
Power
• Mains power: 230 V AC/50 Hz to 12 V DC
• Power consumption: 7 W
• Standby power consumption: 5 W
Dimensions
• Product dimensions (W x H x D):
199.4 x 33.4 x 95.1 mm
• Carton dimensions (WxDxH): 285 x 195 x 58
•Weight: 0.4 kg
• Weight incl. Packaging: 1.0 kg
Accessories
• Included accessories: Mains cord, Remote Control,
User Manual
• Batteries: 2 x AAA
•
