DTM9030

User manual

Page 2

Page 3

Contents

1 Safety and Notice 2

Safety 2 Notice 4

2 Your Docking Entertainment System 5

Introduction 5 What’s in the box 5 Overview of the main speaker 6 Overview of the remote control 8

3 Get started 10

Connect speaker cables 10 Connect FM antenna 11 Connect power 11 Prepare the remote control 11 Set clock 12 Turn on 12

4 Play 13

Play from a disc 13 Play from USB 13

5 Play options 14

Pause/resume play 14 Stop play 14 Skip to a track 14 Search within a track 14

Repeat and shufe play 14

Program tracks 14 Display ID3 information 14

8 Listen to the radio 18

English

Tune to a radio station 18 Select stereo/mono broadcast 18 Program radio stations 18 Select a preset radio station 18 Display play information 19

9 Adjust sound 20

Adjust volume 20 Adjust bass/treble level 20 Mute sound 20

10 Other features 21

Set the sleep timer 21 Set the alarm timer 21 Play from an external device 21

11 Product information 23

Specications 23

USB playability information 24 Supported MP3 disc formats 24

12 Troubleshooting 25

6 Play from a Bluetooth device 15

7 Play iPod/iPhone 16

Compatible iPod/iPhone 16 Load the iPod/iPhone 16 Listen to the iPod/iPhone 16 Charge the iPod/iPhone 17 Remove the iPod/iPhone 17

Page 4

1 Safety and

Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.

• Never lubricate any part of this apparatus.

• Never place this apparatus on other electrical

equipment.

• Keep this apparatus away from direct sunlight, naked

ames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect this apparatus from the power.

a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

h Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including ampliers) that

produce heat.

i Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

j Only use attachments/accessories

specied by the manufacturer.

k Use only with the cart, stand, tripod,

bracket, or table specied by the

manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

l Unplug this apparatus during lightning

storms or when unused for long periods of time.

m Refer all servicing to qualied service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

n Apparatus shall not be exposed to

dripping or splashing.

o Do not place any sources of danger on

the apparatus (e.g. liquid lled objects, lighted candles).

p Where the MAINS plug or an appliance

coupler is used as the disconnect device, the disconnect device shall remain readily operable.

q Make sure there is enough free space

around the product for ventilation.

r Batteries (battery pack or batteries

installed) shall not be exposed to excessive heat such as sunshine, re or

the like.

2 EN

Page 5

Important notes for users in the U.K.

Mains fuse

This information applies only to products with a UK mains plug.

This product is tted with an approved molded

plug. If you replace the fuse, use one with:

• the ratings shown on the plug,

• a BS 1362 approval, and

• the ASTA approval mark.

Contact your dealer if you are not sure about what type of fuse to use.

Caution: To conform with the EMC directive (2004/108/EC), do not detach the plug from the power cord.

How to connect a plug

The wires in the power cord are colored as follows: blue = neutral (N), brown = live (L).

If the colors do not correspond with the colors on your plug, identify the terminals in your plug as follows:

1 Connect the blue wire to the terminal

marked N or colored black.

2 Connect the brown wire to the terminal

marked L or colored red.

3 Do not connect either wire to the earth

terminal in the plug, marked E (or e) or colored green (or green and yellow).

Before you replace the plug cover, make sure that the cord grip is clamped over the sheath of the cable and not just over the two wires in the cable.

Care for your product

• Do not insert any objects other than discs into the disc compartment.

• Do not insert warped or cracked discs into the disc compartment.

• Remove the discs from the disc compartment if you are not using the product for an extended period of time.

• Only use microber cloth to clean the

product.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Note

• The type plate is located on the back of the apparatus.

English

Page 6

Notice

copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

Hereby, WOOX Innovations declares that this product is in compliance with the essential requirements and other relevant provisions

of Directive 1999/5/EC. You can nd the

Declaration of Conformity on www.philips.com/ support.

Any changes or modications made to this

device that are not expressly approved by WOOX Innovations may void the user’s authority to operate the equipment.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.”

Specications are subject to change without

notice. WOOX reser ves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been

designed to connect specically to iPod or iPhone respectively, and has been certied by

the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WOOX Innovations is under license.

The making of unauthorized copies of copyprotected material, including computer

programs, les, broadcasts and sound

recordings, may be an infringement of

4 EN

trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.

Page 7

2 Your Docking

What’s in the box

Entertainment System

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this unit, you can:

• enjoy audio from discs, USB devices, iPod/ iPhone, Bluetooth devices, and other external devices

• listen to radio stations

The unit supports the following media formats:

Check and identify the contents of your package:

• Main unit

• Remote control with two AAA batteries

• Power cord

• Speaker connection cable

• FM antenna

• Printed materials

English

Page 8

Overview of the main speaker

o n m l

b c d

e f g h i j k

v u

a Bluetooth indicator b

• USB socket.

• Eject the disc.

d Disc compartment e Dock cover

• Lift up to expose the dock connectors.

f Dock for iPod/iPhone with 30-pin

connection

g Dock for iPod/iPhone with lightning

connection

h Display panel

• Show the current status.

p q

i +/-

• Adjust volume.

j /

• In Disc/USB/Dock source, tap to skip to the previous/next track.

• In Disc/USB/Dock source, tap and hold to search within a track.

• In tuner source, tap to tune to a radio station.

• Tap to set clock and timer.

• Turn the unit on.

• Switch to standby mode or Eco power

standby mode.

6 EN

Page 9

• Start or pause play.

• Stop play or erase a program.

n SOURCE

• Select a source: DISC, USB, FM TUNER, dock (IPOD_IPHONE), BLUETOOTH, AUX, AUDIO_IN, OPTICAL, or COAXIAL.

o BT SETUP

• (Press and hold) remove the existing pairing information.

p AUX IN (L/R)

• Sockets for RCA (red/white) audi input.

q FM AERIAL

• Socket for FM antenna connection.

r Speaker connectors

• Sockets for speaker connection.

s AC~MAINS

• Power supply socket.

t AUDIO IN

• 3.5mm audio input socket.

u OPTICAL IN

• Optical input socket.

v COAXIAL IN

• Coaxial input socket.

English

Page 10

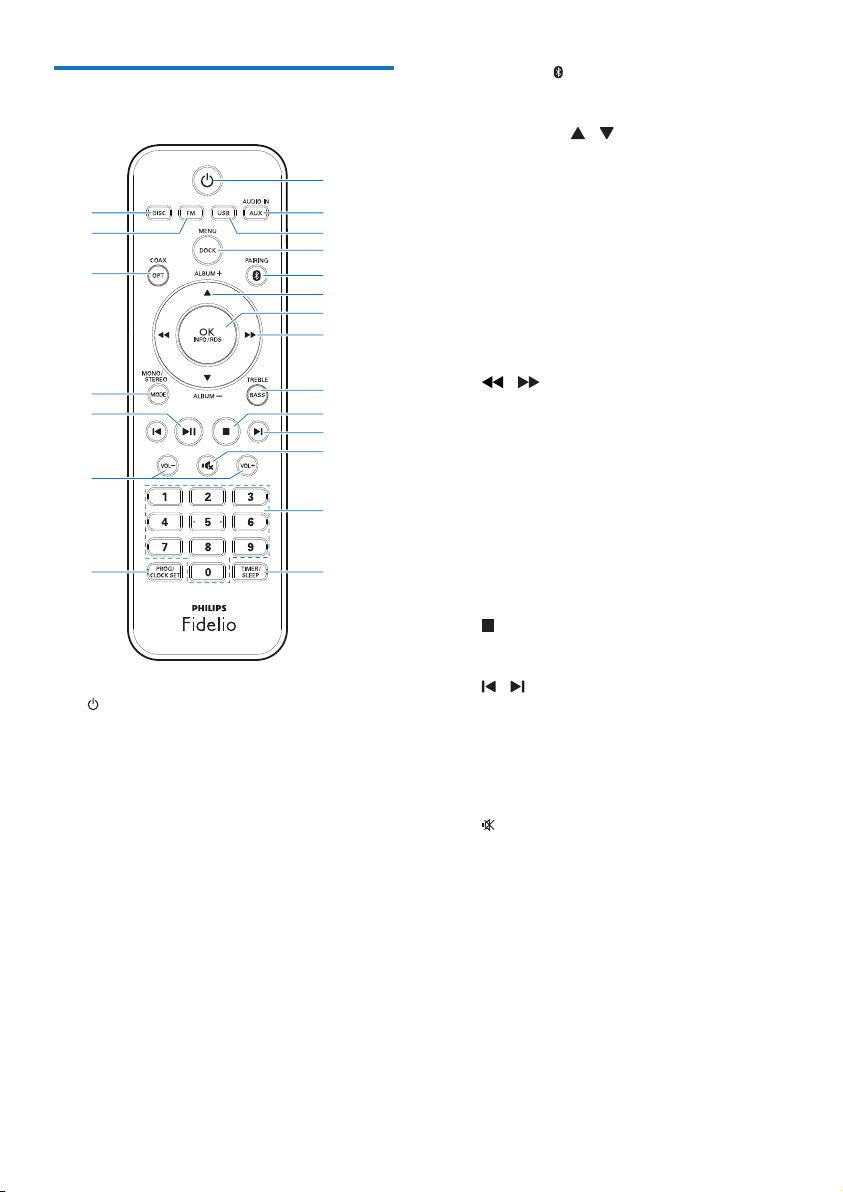

Overview of the remote control

u t

r q

• Turn the unit on.

• Switch to standby mode or Eco power

standby mode.

b AUDIO IN/AUX

• Select the 3.5mm or RCA (red/white) audio input source.

c USB

• Select the USB source.

d DOCK/MENU

• Select the dock (IPOD_IPHONE) source.

• Access the iPod/iPhone menu.

b c d e f g h

i j

k l

e PAIRING

• Select the Bluetooth source.

f ALBUM +/- /

• Skip to previous/next album.

• Navigate through the iPod/iPhone

menu.

g OK/INFO/RDS

• Conrm a selection.

• Select display information during play.

• Display Radio Data System (RDS)

information.

h /

• In Disc/USB/Dock source, press to search within a track.

• In tuner source, press to tune to a radio station.

• Navigate through the iPod/iPhone menu.

i BASS/TREBLE

• Adjust the bass/treble level.

• Stop play or erase a program.

k /

• In Disc/USB/Dock source, press to skip to the previous/next track.

• Set clock and timer.

• Select a preset radio station.

• Mute or restore sound.

m Numeric keypad

• Select a track.

• Select a preset radio station.

n TIMER/SLEEP

• Set the sleep timer.

• Set the alarm timer.

8 EN

Page 11

o PROG/CLOCK SET

• In Disc/USB source, press and hold to program tracks.

• In tuner source, press and hold to program radio stations.

• In standby mode, press and hold to set the clock.

p VOL +/-

• Adjust volume.

• Start or pause play.

r MODE/MONO/STEREO

• Select the repeat/shufe play mode.

• Switch between STEREO and MONO

in tuner mode.

s OPT/COAX

• Select the coaxial or optical input source.

t FM

• Select the FM tuner source.

u DISC

• Select the disc source.

English

Page 12

3 Get started

Caution

• Use of controls, or adjustments or performance of

procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this device. The model number and serial number are on the back of the device. Write the numbers here:

Model No. __________________________ Serial No. ___________________________

Connect speaker cables

Note

• Insert the stripped portion of each speaker wire into

the socket completely.

• For optimal sound, use the supplied speakers only.

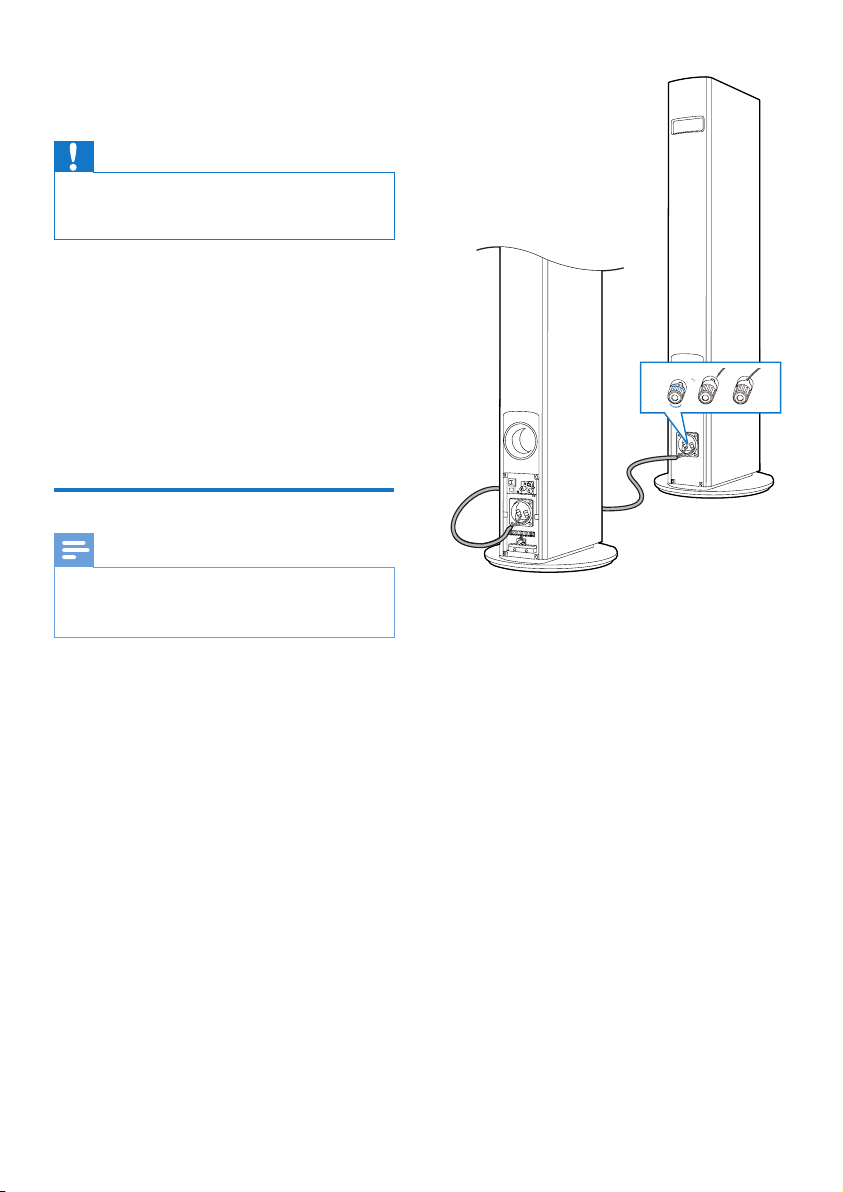

1 Unscrew the speaker connectors. 2 Insert fully the end of a speaker cable with

red mark into the left red (+) connector.

3 Screw the left red (+) connector to secure

the cable.

4 Insert fully the end of a speaker cable

without red mark into the left black (-) connector.

5 Screw the left black (-) connector to

secure the cable.

6 Repeat steps 2-5 to insert the other

speaker cable into the right connectors.

10 EN

Page 13

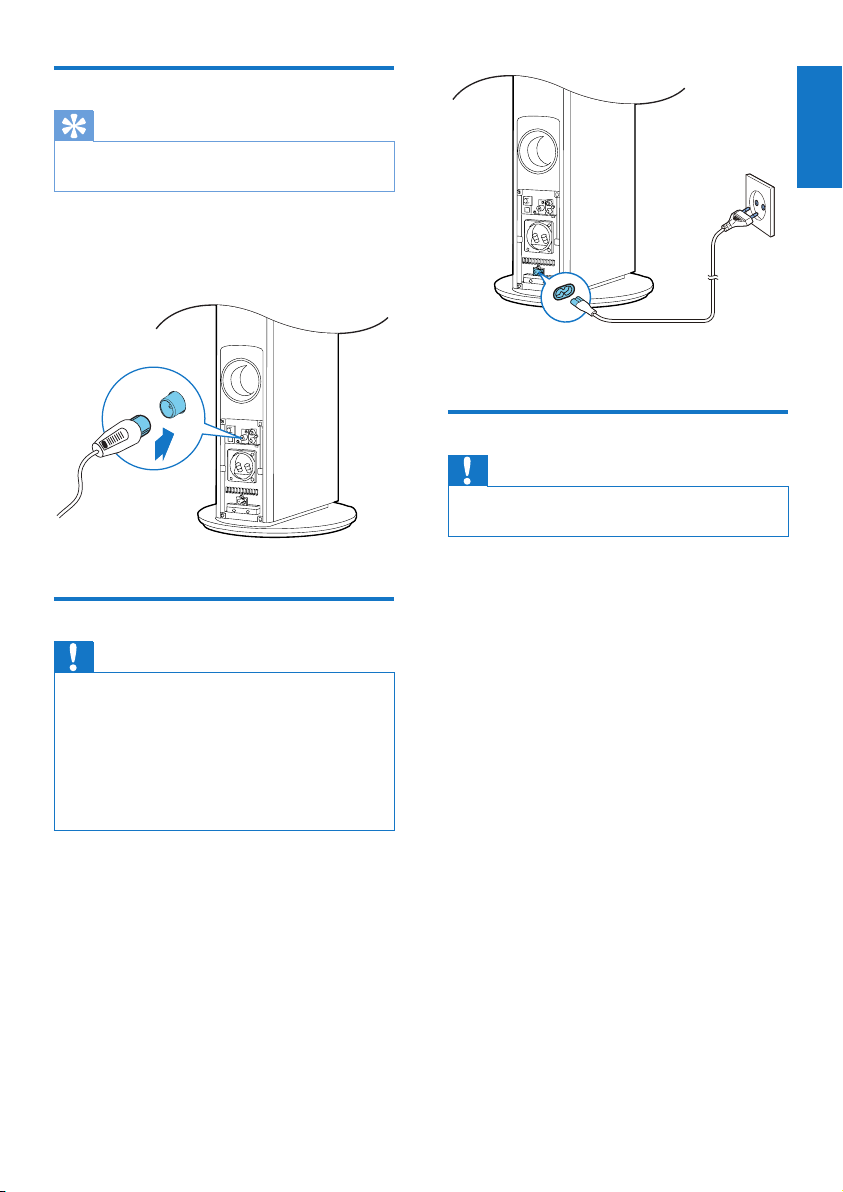

Connect FM antenna

Tip

• For optimal reception, fully extend and adjust the

position of the antenna.

• Connect the supplied FM antenna to the FM AERIAL socket on the back of the main speaker.

Connect power

Caution

• Risk of product damage! Ensure that the power supply

voltage corresponds to the voltage printed on the back or the underside of the unit.

• Risk of electric shock! When you unplug the AC power

cord, always pull the plug from the socket. Never pull the cord.

• Before connecting the AC power cord, ensure you have

completed all other connections.

English

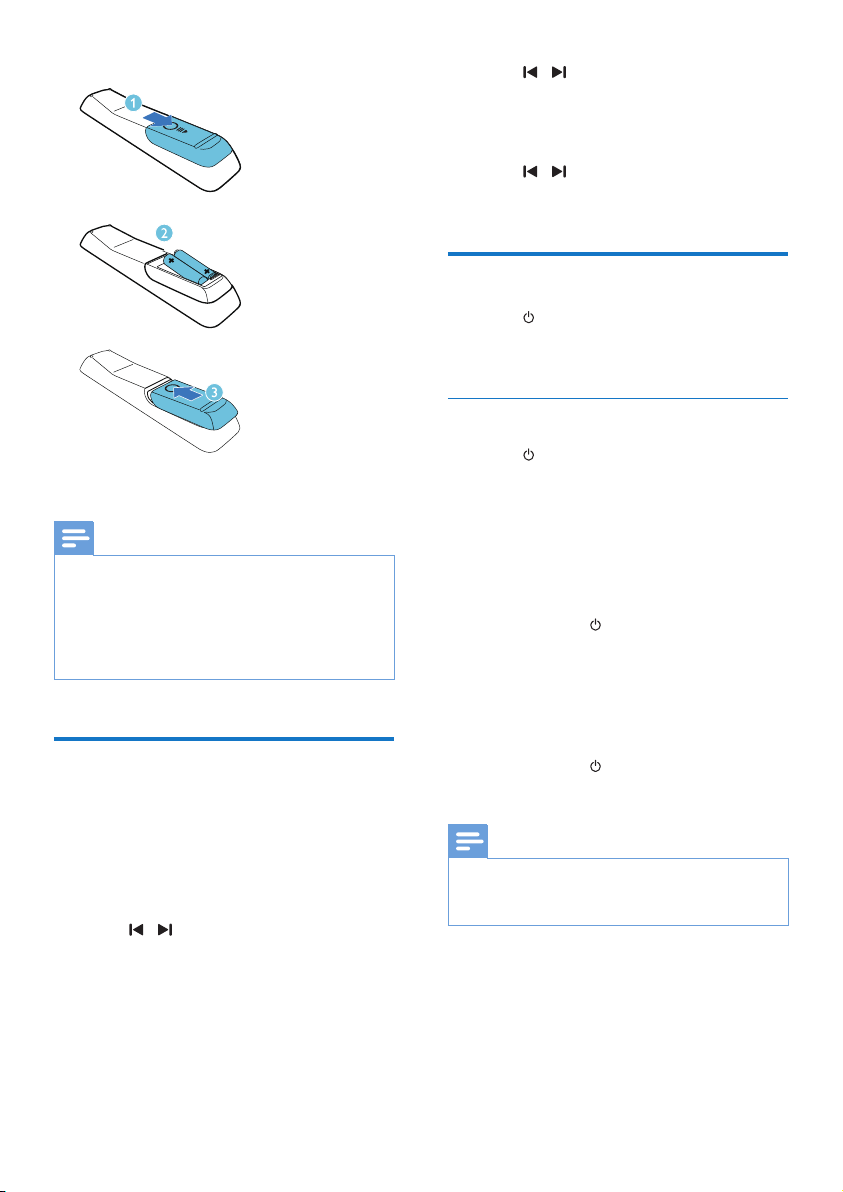

Prepare the remote control

Caution

• Risk of explosion! Keep batteries away from heat,

sunshine, or re. Never discard batteries in re.

To insert the remote control battery:

1 Open the battery compar tment. 2 Insert 2 AAA batteries with correct

polarity (+/-) as indicated.

3 Close the battery compar tment.

• Connect the power cord to:

• the AC~MAINS socket on the back of

the main speaker.

• the wall outlet.

Page 14

3 Press / to set the hour, and then press

PROG/CLOCK SET.

» The minute digits are displayed and

begin to blink.

4 Press / to set the minute. 5 Press PROG/CLOCK SET to conrm.

Turn on

• Press .

» The unit switches to the last selected

source.

Switch to standby

Note

• If you are not going to use the remote control for a

long time, remove the batteries.

• Do not use old and new or different types of batteries

in combination.

• Batteries contain chemical substances, so they should

be disposed of properly.

Set clock

1 In standby mode, press and hold PROG/

CLOCK SET for more than two seconds

to activate clock setting mode.

» The 12 hour or 24 hour format is

displayed.

2 Press / to select 12 hour or 24 hour

format, and then press PROG/CLOCK SET.

» The hour digits are displayed and begin

to blink.

• Press again to switch the unit to standby mode.

» The backlight on the display panel is

reduced.

» The clock (if set) appears on the

display panel.

To switch to Eco power standby mode:

• Press and hold for more than two seconds.

» The backlight on the display panel

turns off.

To switch between normal standby mode and Eco power standby mode:

• Press and hold for more than two seconds.

Note

• If no button is pressed over 15 minutes in standby

mode, this unit goes to Eco power standby mode automatically.

12 EN

Page 15

4 Play

Play from USB

Play from a disc

Note

• This unit is incompatible with a 8 cm disc.

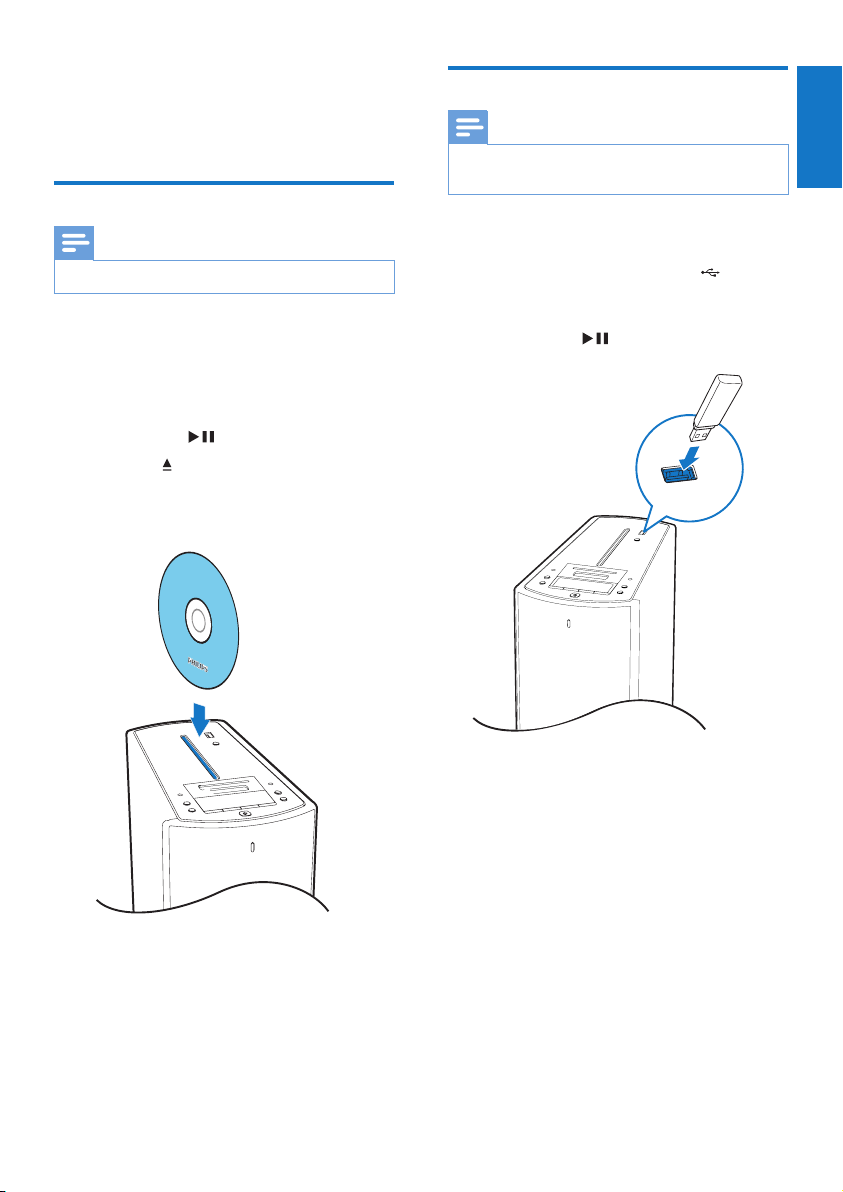

1 Press DISC to select the disc source. 2 Insert a disc into the disc compartment

with the printed side facing left.

» The le star ts playing automatically. If

not, press .

• Press on the top of the main speaker to eject the disc out of the disc compartment.

Note

• Make sure that the USB device contains playable audio

content.

1 Press USB to select the USB source. 2 Insert the USB device into the (USB)

socket on the top of the main speaker.

» The le star ts playing automatically. If

not, press .

English

Page 16

5 Play options

Pause/resume play

• During play, press to pause/resume play.

Stop play

• During play, press to stop play.

Skip to a track

For CD:

• Press / to select another track.

• To select a track directly, press a key on

the numerical keypad.

For MP3 disc and USB:

1 Press ALBUM +/- / to select an

album or folder.

2 Press / to select a track or le.

Search within a track

1 During play, press and hold / to

search within a track.

2 Release to resume normal play.

2 To return to normal play, press

MODE/MONO/STEREO repeatedly until

repeat/shufe mode is no longer displayed.

Note

• The repeat and shufe play cannot be activated at the

same time.

• Shufe play cannot be selected when you play

programmed tracks.

Program tracks

You can program a maximum of 20 tracks.

1 In CD/USB mode, at the stop position,

press PROG/CLOCK SET to activate the program mode.

» [PROG] (program) blinks on the

display.

2 For MP3/WMA tracks, press ALBUM +/-

/ to select an album.

3 Press / to select a track number, and

then press PROG/CLOCK SET to conrm.

4 Repeat steps 2 to 3 to program more

tracks.

5 Press to play the programmed tracks.

» During play, [PROG] (program) is

displayed.

• To erase the program, in the stop position, press .

Repeat and shufe play

1 During play, press MODE/MONO/

STEREO repeatedly to select:

• (repeat one): The current track is played repeatedly.

• (repeat all): All tracks are played repeatedly.

• (shufe): All tracks are played in a

random sequence.

14 EN

Display ID3 information

• In disc mode, during play, press OK/INFO/ RDS to display the following information:

• Track number

• Play time

• Title name

• Artist name

• Album name

Page 17

6 Play from a

Bluetooth device

Note

• Before you connect a Bluetooth-enabled device to the

unit, familiarize yourself with the Bluetooth capabilities of the device.

• Keep the unit away from other electronic devices that

may cause interference.

• The effective operation range between the unit and the

paired device is approximately 10 meters (30 feet).

• Any obstacle between the unit and the device can

reduce the operational range.

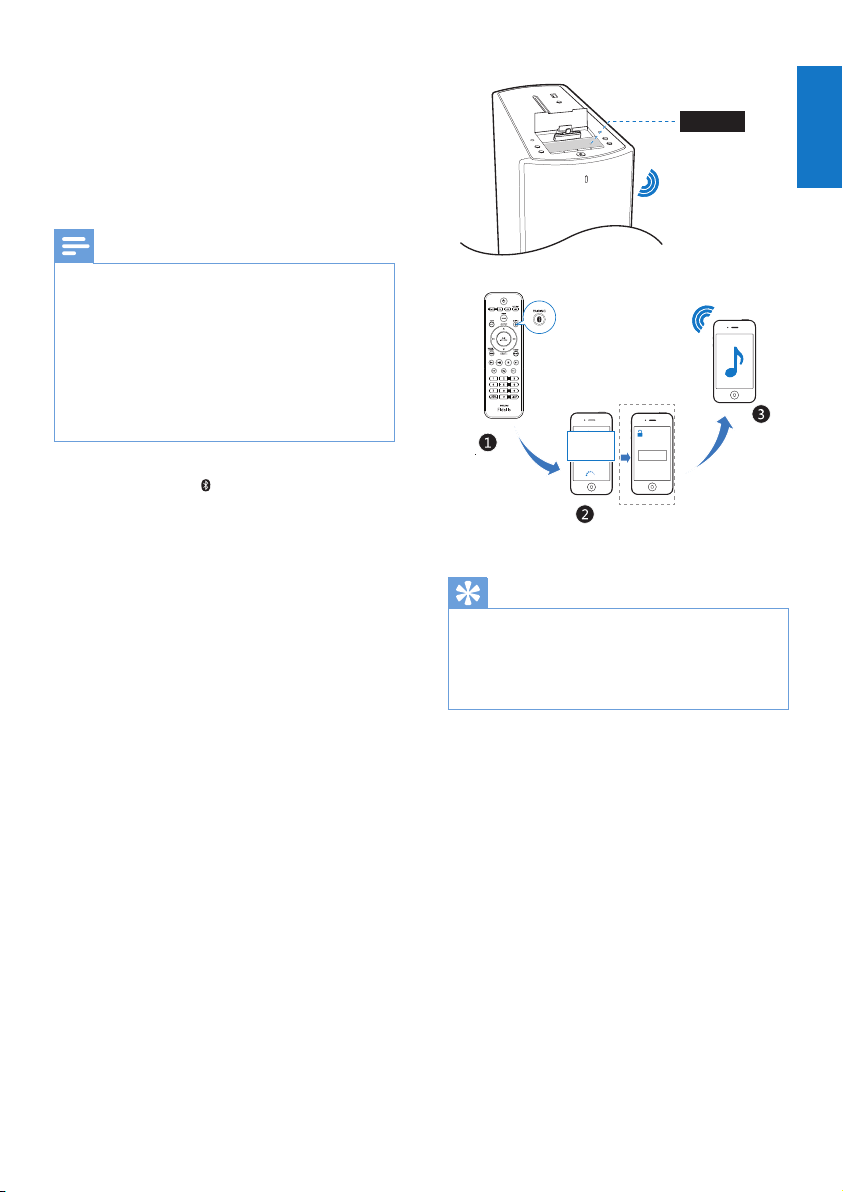

1 Press PAIRING to select the Bluetooth

source.

» The Bluetooth indicator ashes blue.

2 Activate the Bluetooth function on your

Bluetooth device (see the device user manual).

3 Select ‘PHILIPS DTM9030’ on your device

for pairing.

» The Bluetooth indicator turns solid

blue.

» The unit beeps.

• For some devices, you may need to input “0000” as the pairing password.

4 Start music play on your Bluetooth

enabled device.

PHILIPS DTM9030

0000

Tip

• If the unit switches from Bluetooth source to other

sources, the connected Bluetooth device disconnects automatically.

• The unit can memorize up to 8 previously connected

Bluetooth devices.

To disconnect the Bluetooth-enabled device:

• Deactivate Bluetooth on your device; or

• Move the device beyond the

communication range.

To clear Bluetooth pairing history:

• Press and holdBT SETUP on the main speaker for 3 seconds.

» The current Bluetooth connection is

disconnected.

» After successful clearing, the Bluetooth

indicator ashes blue.

English

Page 18

7 Play iPod/iPhone

You can enjoy audio from iPod/iPhone through this unit.

Compatible iPod/iPhone

With the integrated dual docks, the unit supports the following iPod, and iPhone models:

Made for (lightning connection):

• iPhone 5

• iPod nano (7th generation)

• iPod touch (5th generation)

Also made for (30-pin connection):

• iPhone 4S

• iPhone 4

• iPhone 3GS

• iPhone 3G

• iPhone

• iPod nano (2nd/3rd/4th/5th/6th

generation)

• iPod classic

• iPod touch (1st/2nd/3rd/4th generation)

Load the iPod/iPhone

Note

• You can only use one dock each time.

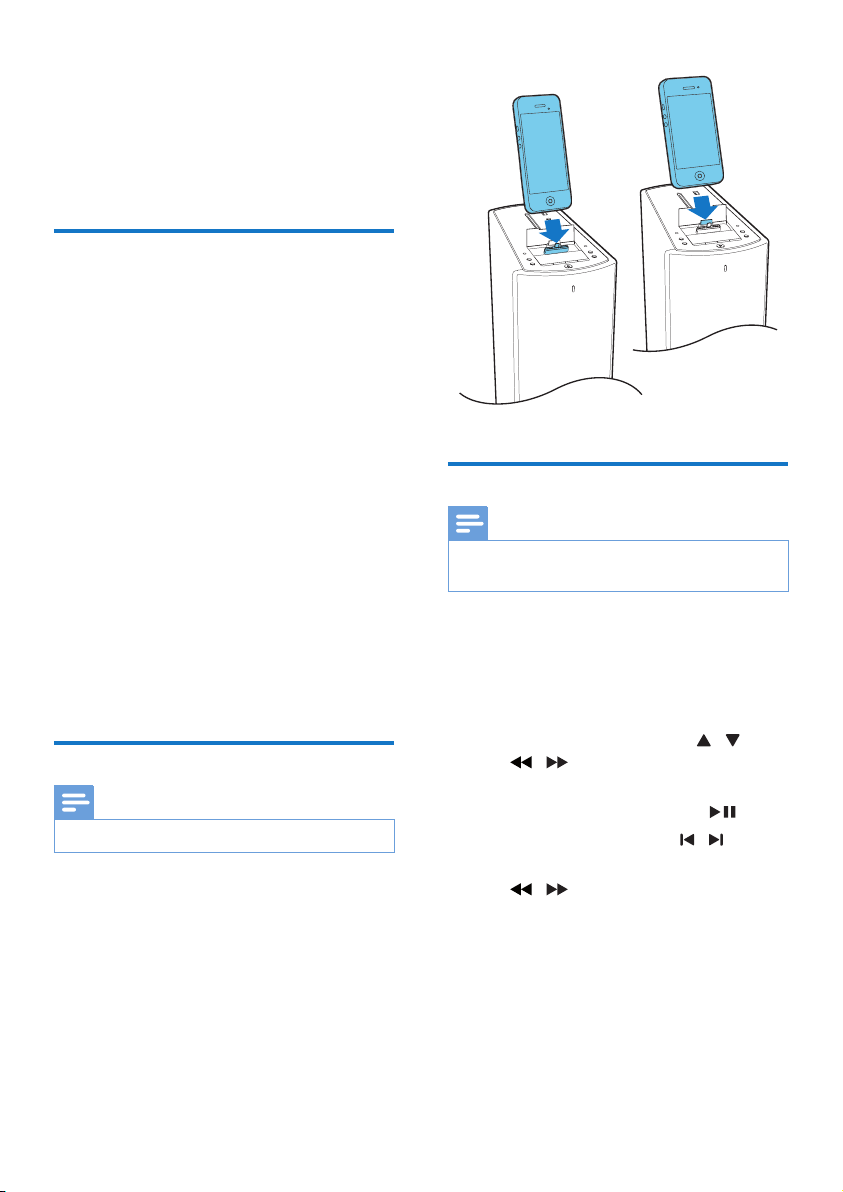

1 Lift up the dock cover. 2 Connect your iPod/iPhone to the lightning

or 30-pin dock connector.

Listen to the iPod/iPhone

Note

• Make sure that your iPod/iPhone has been loaded

securely.

1 Press DOCK/MENU to select the dock

source.

2 Play audio on your iPod/iPhone.

• To navigate in the menu: press

DOCK/MENU, and press / /

/ to select, and then press

OK/INFO/RDS to conrm.

• To pause/resume play, press .

• To skip to a track, press / .

• To search during play, press and hold

/ , then release to resume

normal play.

16 EN

Page 19

Charge the iPod/iPhone

• When the unit is connected to power, the docked iPod/iPhone begins to charge automatically.

Remove the iPod/iPhone

• Pull the iPod/iPhone out of the dock.

English

Page 20

8 Listen to the

radio

Tune to a radio station

Tip

• For optimal FM reception, fully extend and adjust the

position of the FM antenna.

Program radio stations automatically

• In FM tuner mode, press and hold PROG/ CLOCK SET for more than two seconds

to activate automatic programming.

» [AUTO SRCH](auto search) is

displayed.

» All available stations are programmed

in the order of waveband reception strength.

» The rst programmed radio station is

broadcast automatically.

1 Press FM to select the FM tuner source. 2 Press and hold / for more than two

seconds.

» [SEARCH] (search) is displayed. » The radio tunes to a station with

strong reception automatically.

3 Repeat step 2 to tune to more stations.

• To tune to a weak station, press / repeatedly until you nd optimal

reception.

Select stereo/mono broadcast

For stations with weak signals: to improve the reception, change to monaural sound.

• In FM tuner source, press MODE/MONO/ STEREO to select a setting:

• [STEREO]: stereo broadcast.

• [MONO]: monaural broadcast.

Program radio stations

Tip

• You can program a maximum of 20 preset radio

stations.

Program radio stations manually

1 Tune to a radio station. 2 Press PROG/CLOCK SET to activate

program mode.

» [PROG] (program) blinks on the

display.

3 Press / to allocate a number (1 to 20)

to this radio station, and then press PROG/ CLOCK SET to conrm.

» The preset number and the frequency

of the preset station are displayed.

4 Repeat the above steps to program other

stations.

Note

• To overwrite a programmed station, store another

station in its place.

Select a preset radio station

• In FM tuner mode, press / to select a preset number.

• You can also press the numeric key to

select a preset number directly.

18 EN

Page 21

Display play information

Radio Data System (RDS) is a service that allows FM stations to show additional information.

• In FM tuner mode, press OK/INFO/RDS repeatedly to show RDS information.

English

Page 22

9 Adjust sound

Adjust volume

• During play, press VOL +/- to increase/ decrease the volume.

Adjust bass/treble level

• During play, press BASS/TREBLE repeatedly to adjust the bass/treble level.

Mute sound

• During play, press to mute or restore sound.

20 EN

Page 23

10 Other features

Set the sleep timer

This unit switches to standby mode automatically after a set period of time.

• When the unit is turned on, press TIMER/ SLEEP repeatedly to select a set period of

time (in minutes).

When the sleep timer is activated, SLEEP (sleep) is displayed.

To deactivate sleep timer

• Press TIMER/SLEEP repeatedly SLEEP (sleep) disappears.

5 Press / to set the minute. 6 Press TIMER/SLEEP to conrm.

» The alarm timer is set and activated.

Note

• To exit the alarm timer setting without storing, press .

Activate and deactivate the alarm timer

• In standby mode, press TIMER/SLEEP repeatedly to activate or deactivate the alarm timer.

» If the alarm timer is activated, TIMER

(timer) is displayed

» If the alarm timer is deactivated,

TIMER (timer) disappears.

English

Set the alarm timer

This docking system can be used as an alarm clock. You can select CD, FM TUNER, iPod/ iPhone, or USB as the alarm source.

Note

• Make sure that you have set the clock correctly.

1 In standby mode, press and hold TIMER/

SLEEP until [SET TIMER](set timer) scrolls

on the display.

2 Press DISC, USB, DOCK/MENU, or FM to

select a source.

3 Press TIMER/SLEEP to conrm.

» The hour digits are displayed and begin

to blink.

4 Press / to set the hour, and then press

TIMER/SLEEP again.

» The minute digits are displayed and

begin to blink.

Note

• If the CD/USB/DOCK source is selected, but no disc

is placed or no USB/iPod/iPhone is connected, the FM TUNER is selected automatically.

Play from an external device

You can also listen to an external audio device through the unit.

Connect through the AUDIO INsocket:

1 Connect a 3.5mm audio cable (not

supplied) to:

• the AUDIO IN socket on the back of

the main speaker.

• the headphone socket on an external

audio player.

2 Press AUDIO IN/AUX repeatedly to

select the 3.5mm audio input (AUDIO_IN) source.

Page 24

3 Start play on the external audio player and

adjust volume.

» You can hear music from the unit.

4 Use the controls on your audio player to

control music play.

Connect through the OPTICAL INorCOAXIAL INsocket:

1 Connect an optical or coaxial cable (not

supplied) to:

• the OPTICAL IN or COAXIAL IN socket on the back of the main

speaker.

• the corresponding digital output socket on an external audio device.

2 Press OPT/COAX repeatedly to select the

optical or coaxial audio input source.

3 Start play on the external audio player and

adjust volume.

» You can hear music from the unit.

4 Use the controls on your audio player to

control music play.

Tip

• In the optical or coaxial audio input mode, you can

adjust the audio delay time: 1) press MODE/MONO/

STEREO to enter audio delay adjustment; 2) press VOL +/- to adjust the delay time between 00 ms and

200 ms.

3 Start play on the external audio player and

adjust volume.

» You can hear music from the unit.

4 Use the controls on your audio player to

control music play.

Connect through the AUX IN (L/R)sockets:

1 Connect a pair of RCA audio cables (red/

white; not supplied) to:

• the AUX IN (L/R) sockets on the back of the main speaker.

• the audio output sockets on an external audio device.

2 Press AUDIO IN/AUX repeatedly to

select the RCA (red/white) audio input (AUX) source.

22 EN

Page 25

11 Product

information

Note

• Product information is subject to change without prior

notice.

Specications

Sensitivity

- Mono, 26dB S/N Ratio

- Stereo, 46dB S/N Ratio Search Selectivity < 28dBf Total Harmonic Distortion < 2%

< 22dBf < 43dBf

Speakers

Speaker Impedance

Speaker Driver 104mm woofer + 104mm

Sensitivity 88dB/1m/1W

6ohm + 2 x 3ohm

woofer + 33mm tweeter

English

Amplier

Rated Output Power 2 x 80W RMS Frequency Response 30Hz - 20KHz

±3dB Signal to Noise Ratio > 80 dB AUDIO IN 600mV RMS 22

kohm

Disc

Laser Type Semiconductor Disc Diameter 12cm Support Disc CD-DA, CD-R,

CD-RW, MP3-CD,

WMA-CD Audio DAC 24Bits / 44.1kHz Total Harmonic

Distortion Frequency Response 30Hz - 20kHz

S/N Ratio > 80 dB

< 0.8% (1kHz)

(44.1kHz)

Tuner

Tuning Range FM: 87.5 -

108MHz

Tuning grid 50KHz

Bluetooth

Bluetooth® version V2.1 + EDR Frequency band 2.402-2.480 GHzISM

Range 10m (free space)

Band

General information

AC power 220-240V ~

50/60Hz Eco Power Consumption < 0.5W Operation Power

Consumption USB Direct version 2.0HS Load of USB ≤500mA Dimensions

- Main Unit (W x H x D) 300 x 985 x

Weight

- With Packing

- Main Unit

40W

300mm

30.7kg

14.11kg

Page 26

USB playability information

Supported MP3 disc formats

Compatible USB devices:

• USB ash memory (USB 2.0 or

USB1.1)

• USB ash players (USB 2.0 or USB1.1)

• memory cards (requires an additional

card reader to work with this unit)

Supported formats:

• USB or memory le format FAT12,

FAT16, FAT32 (sector size: 512 bytes)

• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate

• WMA v9 or earlier

• Directory nesting up to a maximum of

8 levels

• Number of albums/ folders: maximum 99

• Number of tracks/titles: maximum 999

• ID3 tag v2.0 or later

• File name in Unicode UTF8 (maximum

length: 128 bytes)

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/

WMA les, and will not be shown in

the display.

• Unsupported le formats are skipped.

For example, Word documents (.doc)

or MP3 les with extension .dlf are

ignored and not played.

• AAC, WAV, PCM audio les

• DRM protected WMA les (.wav, .m4a,

.m4p, .mp4, .aac)

• WMA les in Lossless format

• ISO9660, Joliet

• Maximum title number: 512 (depending on le name length)

• Maximum album number: 255

• Supported sampling frequencies: 32 kHz,

44.1kHz, 48 kHz

• Supported Bit-rates: 32~256 (kbps), variable bit rates

24 EN

Page 27

12 Troubleshooting

Warning

• Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this unit, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/support). When you contact Philips, ensure that the unit is nearby and the model number and serial number are available.

No power

• Ensure that the AC power cord of the unit is connected properly.

• Ensure that there is power at the AC outlet.

• As a power-saving feature, the system switches off automatically 15 minutes after track play reaches the end and no control is operated.

No sound or poor sound

• Adjust the volume.

• Check that the speakers are connected correctly.

• Check if the stripped speaker wires are clamped.

No response from the unit

• Disconnect and reconnect the AC power plug, then turn on the unit again.

• As a power-saving feature, the system switches off automatically 15 minutes after track play reaches the end and no control is operated.

Remote control does not work

• Before you press any function button, rst select the correct source with the remote control instead of the main unit.

• Reduce the distance between the remote control and the unit.

• Insert the batteries with its polarities (+/– signs) aligned as indicated.

• Replace the batteries.

• Aim the remote control directly at the sensor on the front of the unit.

No disc detected

• Insert a disc.

• Check if the disc is inserted upside down.

• Wait until the moisture condensation at the lens has cleared.

• Replace or clean the disc.

• Use a nalized CD or correct format disc.

Cannot display some les in USB device

• The number of folders or les in the USB device has exceeded a certain limit. This phenomenon is not a malfunction.

• The formats of these les are not supported.

USB device not supported

• The USB device is incompatible with the unit. Tr y another one.

Poor radio reception

• Increase the distance between the unit and your TV or VCR.

• Fully extend the FM antenna.

• Connect an outdoor FM antenna instead.

Timer does not work

• Set the clock correctly.

• Switch on the timer.

Clock/timer setting erased

• Power has been interrupted or the power cord has been disconnected.

• Reset the clock/timer.

Music playback is unavailable on this unit even after successful Bluetooth connection.

• The device cannot be used to play music through this unit wirelessly.

English

Page 28

The audio quality is poor after connection with a Bluetooth-enabled device.

• The Bluetooth reception is poor. Move the device closer to this unit or remove any obstacle between them.

Cannot connect with this unit.

• The device does not support the proles required for this unit.

• The Bluetooth function of the device is not enabled. Refer to the user manual of

the device to nd out how to enable the

function.

• This unit is not in pairing mode.

• This unit is already connected with another Bluetooth-enabled device. Disconnect that device and then try again.

The paired mobile device connects and disconnects constantly.

• The Bluetooth reception is poor. Move the device closer to this unit or remove any obstacle between them.

• Some mobile phones may connect and disconnect constantly when you make or end calls. This does not indicate any malfunction of this unit.

• For some devices, the Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of this unit.

26 EN

Page 29

Page 30

Specications are subject to change without notice.

Innovations Limited or one of its afliates, further referred

to in this document as WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are

registered trademarks of Koninklijke Philips N.V.

DTM9030_UM_10_V2.0
