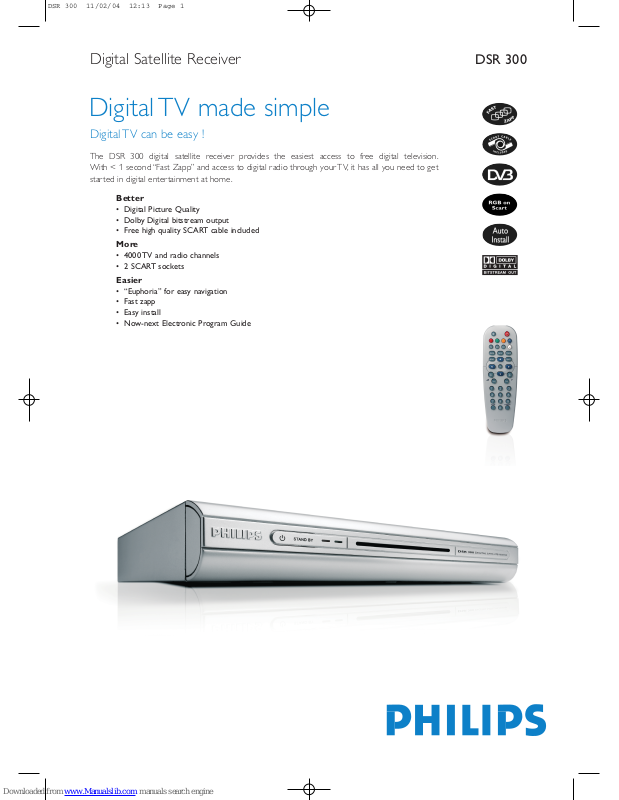

Page 1
DSR 300
Digital Satellite Receiver
Digital TV made simple
Better
• Digital Picture Quality
• Dolby Digital bitstream output
• Free high quality SCART cable included
More
• 4000 TV and radio channels
• 2 SCART sockets
Easier
• “Euphoria” for easy navigation
• Fast zapp
• Easy install
• Now-next Electronic Program Guide
Digital TV can be easy !
The DSR 300 digital satellite receiver provides the easiest access to free digital television.
With < 1 second “Fast Zapp” and access to digital radio through your TV, it has all you need to get
started in digital entertainment at home.
DSR 300 11/02/04 12:13 Page 1
Page 2
Video decoding
• MPEG -2 DVB compliant up to MP@ ML
• Video bit rate :up to 15 Mbit / sec
• Video format : 4:3
(letter box if source is in 16:9) and 16 :9
• Resolution :up to 720 x 576 pixels
Audio decoding
• MPEG layer I / II
Ease of installation
• Plug and Play for Astra 19.2 E Satellite reception
• Menu controlled installation and operation
using On Screen Display & sound support
• Automatic program installation based on
pre- defined scan list
• Up to 4,000 presets.
Ease of Use
• Program editing for personalised installation
(delete, add,move)
• 3 favourite TV program lists
• 3 favourite Radio program lists
• Full remote controlled
• Now & Next ESG /program monitoring
• Automatic recording via Timer programming
in ESG
Operation/ Features
• Free to air reception
• Variable LNB frequency
• DiSEqC 1.0 antenna control
• RF input short circuit protection
• TV & Radio modes
• Automatic program list update
• Subtitles
• Parental lock with PIN code
• Child timer
• 10 events VCR timers
• 10 reminders
• Record Failure alarm
• Record header message
• TV to VCR loop- through
• Highlight program coming soon in ESG
• Software upgrade over the air download
• Low power mode
• Audio mode :Mono / Stereo
• Dolby Digital bit -stream out
(exclusive analogue audio outputs)
Application system resources
• Processor clock speed :81 MHz
• SDRAM -CPU /Video- Graphics: 8 MB
• Flash memory : 2 MB
Satellite antenna interface
• RF input :F type connector
• LNC supply (V) :0 / 14/ 18
• LNB current (mA) : 350 max
• Tone switching: 22 kHz (on/ off)
• DiSEqC 1.0 :for 4 orbital positions
• RF output :type IEC 169-21 male
(RF loop-through)
Reception-Demodulation
• Demodulation type : QPSK
• Configuration : MCPC /SCPC
• Input frequency range (MHz) : 950-2150
• Input level range (dBm) : -65 to -25
• Symbol rate controlled by application (Mbaud) :
2 to 45
• Satellite band coverage :
Ku band: 10.7 to 12.75 GHz
Connections
• TV SCART
• Output :CVBS, Controlled audio L/R, RGB,
Slow blanking, Fast blanking,S -Video
(for LCD projector)
• VCR SCART
Output : CVBS, Controlled audio L / R,Y/ C
• Audio CINCH :
Analog audio output : L/ R
Digital audio output : AC3 over SPDIF
• Serial interface :RS 232
Accessories
• Remote control
Type RC19336002/ 01 (‘Zappa’)
• Scart cable
• User manual
• Worldwide Guarantee booklet
• Batteries :2 x 1.5V type AA/ R06
• Mains cord
Miscellaneous
• Temperature range (°C)
- Operating : +5 to 45
- Storage : -10 to +70
• Mains :230 V ~ +/-10% - 50 Hz
• Power consumption : 20 W max
• Standby/low power: 5 W max
• Weight: 0,98 kg
• Including packaging :1,78 kg
• Dimensions : 258 /42 /155
• Including packaging :365 x 230 x 62 mm
Informations produit
DSR 300
Date of issue 2004 - 02
Specifications are subject to change without notice
Trademark owned by Royal Philips Electronic
www.philips.com/ce
Digital Satellite Receiver
