Philips body analysis scale with Bluetooth® Smart
DL8781, DL8780
EN-US
Page 2
Page 3
1
2
3 4
6 7 8 9
5
10
11
12
1
Page 4
Page 5
English 6
Page 6
6
English
Contents
Introduction 7
General 7
Explanation of symbols 7
General description (Fig. 1) 8
Intended use 9
IMPORTANT SAFEGUARDS 9
Contraindications 9
Warnings 9
Caution 9
SAVE THESE INSTRUCTIONS 10
Compliance with standards 10
Using the body analysis scale 10
Preparing for use 11
Inserting/removing the batteries 11
Placing the carpet feet 12
Setting the measurement unit 12
Pairing the body analysis scale to your mobile device and create a user profile 13
Measuring weight and body fat 14
Tips for proper measurement 14
Performing a measurement 14
Performing a measurement with app 14
Performing a measurement without app 15
Factory reset 17
Cleaning and storage 17
Accessories 17
Disposal 17
Assistance 18
Full Two-Year Warranty 18
Troubleshooting 18
Specifications 20
Electromagnetic emissions and immunity 21
EMC Guidance 21
Table 1 Guidance and manufacturer's declaration – electromagnetic emissions - for all
ME equipment and ME systems
Table 2 Guidance and manufacturer's declaration – electromagnetic immunity – for all
ME equipment and ME systems
Table 4 Guidance and manufacturer's declaration – electromagnetic immunity –for ME
equipment and ME systems that are not life supporting
Table 6 Recommended separation distances between portable and mobile RF
communications equipment and the ME equipment or ME system – for ME equipment
and ME systems that are not life supporting
FCC Compliance information 24
22
22
23
21
English
Page 7
English
Radio interference 24
RF Radiation exposure statement 25
BlueTooth wordmark 25
App Store and iPhone 25
Google Play and Android 25
Introduction
Congratulations on your purchase and welcome to Philips! To fully benefit
from the support that Philips offers, register your product at
www.philips.com/welcome.
General
This Philips body analysis scale offers you a convenient tool to measure
your weight.
The scale enables you to perform a body weight and fat measurement. It
also transmits data via Bluetooth® Smart to your mobile device and to
calculate and display weight, BMI and body fat percentage in the Philips
HealthSuite health app. The scale has a maximum weighing capacity of 28 st
5 lb (397 lb) / 180 kg.
Note: Only weight measurement is displayed on the scale. BMI and body fat
percentage are only shown in the app.
This user manual contains important safety information and provides stepby-step instructions for using the device.
Read this information carefully before you use the device and save it for
future reference.
Features:
-
Memory for up to 40 measurements per user for 8 separate users.
-
Measures body fat with BIA (bioelectrical impedance analysis)
technology.
-
User recognition based on weight.
-
Automatic activation of the scale when you step on it thanks to the
Sense-On technology.
-
LCD display.
7
Explanation of symbols
The warning signs and symbols are essential to ensure that you use this
product safely and correctly and to protect you and others from injury.
Following is the meaning of the warning signs and symbols on the label and
in the user manual.
Symbol indicates the need for
the user to consult the
instructions for us
Type BF applied part
Page 8
–4ºF
140ºF
8
English
Indicates the need for the user
to consult the instructions for
use for important cautionary
information such as warnings
and precautions that cannot,
for a variety of reasons, be
presented on the medical
device itself.
Indicates the manufacturer's
serial number so that a specific
device can be identified.
Indicates manufacturer's
catalog number of the
appliance
Indicates manufacturing date
This symbol on the device
means: protected against
access to hazardous parts with
a finger and against vertically
falling water drops when tilted
up to 15 degrees.
Symbol for the 'Bluetooth
Combination mark'. The device
uses Bluetooth for
communication.
This appliance contains a
rechargeable battery which
must be disposed of properly.
See chapter ' Disposal' for
more information.
This symbol means that this device emits
nonionizing radiation. All devices with RF
transmitters or that use RF electromagnetic
energy must have a label with this symbol.
Symbol for the 2 year Philips warranty.
For indoor use only.
Indicates the temperature limits to which the
device can be safely exposed: -4°F to 140°F /
-20°C to 60°C.
Indicates the relative humidity limits to which
the device can be safely exposed: 10% to
93%.
Compliant with the Waste Electrical and
Electronic Equipment/Restriction of the Use
of Certain Hazardous Substances in Electrical
and Electronic Equipment (WEEE) recycling
directives.
General description (Fig. 1)
1 Display
2 Measurement platform
3 Bluetooth® symbol
4 Measurement results
5 Battery low symbol
6 Bioelectrical impedance analysis (BIA)
7 Stone (st)
8 Pound (lb)
9 Kilogram (kg)
10 Feet of the scale
11 Measurement unit button
12 Battery compartment
Page 9
Intended use
The Philips body analysis scale measures body weight and
uses bioelectrical impedance analysis (BIA) technology to estimate body fat
percentage of healthy adults.
The device is intended for use in the home/domestic environment only.
IMPORTANT SAFEGUARDS
Waning: READ ALL INSTRUCTIONS BEFORE USING
When using battery-operated products, basic safety precautions should
always be followed, including the following:
Contraindications
-
This device is contraindicated for women who are pregnant or think they
are pregnant. The effects of this device on the fetus are unknown.
-
This device is contraindicated for any person who is connected to a
wearable or implanted electronic medical device or instrument such as a
pacemaker or defibrillator. This device can cause the electronic medical
device to malfunction.
English
9
Warnings
Caution
-
Keep the device out of reach of infants, children or pets, since inhalation
or swallowing of small parts (e.g. carpet feet, batteries) can be dangerous
or even fatal.
-
Do not step on the device when your body or feet are wet, especially
after bathing or showering to prevent slipping.
-
Always check the device before you use it. Do not use the device if it is
damaged, as this may cause injury.
-
Only use this device for its intended use as described in this user manual.
-
If the device will not be used on a regular basis, remove the batteries to
prevent possible damage due to chemical leakage. If battery does leak,
remove it carefully. Do not allow bare skin to touch leaking fluid.
-
The device requires no calibration.
-
The manufacturer does not require such preventive inspections by other
persons.
-
The device contains no user serviceable parts
-
Any information provided by this device is in no way meant to treat, cure
or prevent any disease or illness. If in doubt, contact your physician.
Page 10
10
English
-
This device should not be used by anyone who is acutely or chronically
ill, suffering from a disease or taking medications that affect the amount
of water in your body. The accuracy of readings for these patients has
not been verified. Specific medical advice should be obtained from a
physician.
-
This device is equipped with a data transmission function. It may emit
electromagnetic energy so as to perform its intended function. Nearby
portable and mobile Radio Frequency (examples include cell phones,
Bluetooth® equipped music players, speakers and headsets as well as
Wifi access points) communication equipment can affect the
performance of the device. The device can also interfere with electrical
equipment in the vicinity. Therefore do not keep it in close proximity of
portable and mobile Radio Frequency communication equipment.
-
Use and store the device as described in the user manual.
-
Do not expose the device to extreme temperatures, direct sunlight, moist
or a corrosive environment (see 'Specifications').
-
Do not expose the batteries to flames or fires, otherwise batteries may
explode.
-
No modifications of this device are allowed.
-
Do not use the device on a slippery floor.
-
Treat the scale with care. Do not drop it or jump on it.
-
This device is not washable. Never immerse the device in water and do
not rinse it under the tap.
SAVE THESE INSTRUCTIONS
Compliance with standards
-
The device meets the relevant standards for this type of Class II electrical
medical equipment for home use.
-
This Philips device complies with all applicable standards and regulations
regarding exposure to electromagnetic fields and complies with IEC
60601-1-2.
-
This Philips device complies with applicable standards and regulations of
the FCC Rules.
Using the body analysis scale
This Philips body analysis scale automatically switches on as soon as you
step on the measurement platform. The device applies BIA (bioelectrical
impedance analysis) technology. Weak current flows through the human
body to measure the bioelectrical impedance and estimate body fat
percentage. The electrical current is small and may not be felt. This BIA
technology is non-invasive. The electrical current mentioned above is less
than 1mA.
Page 11
Preparing for use
Inserting/removing the batteries
Insert new batteries (4x 1.5V AAA alkaline) before the first use.
Replace weak batteries before they discharge completely.
Note: Data will be lost when the battery is completely empty.
If you do not intend to use the device for a long period of time, it is advised
to remove the batteries before storing.
Caution: Replace all four batteries at the same time. Do not mix the old
batteries with the new ones.

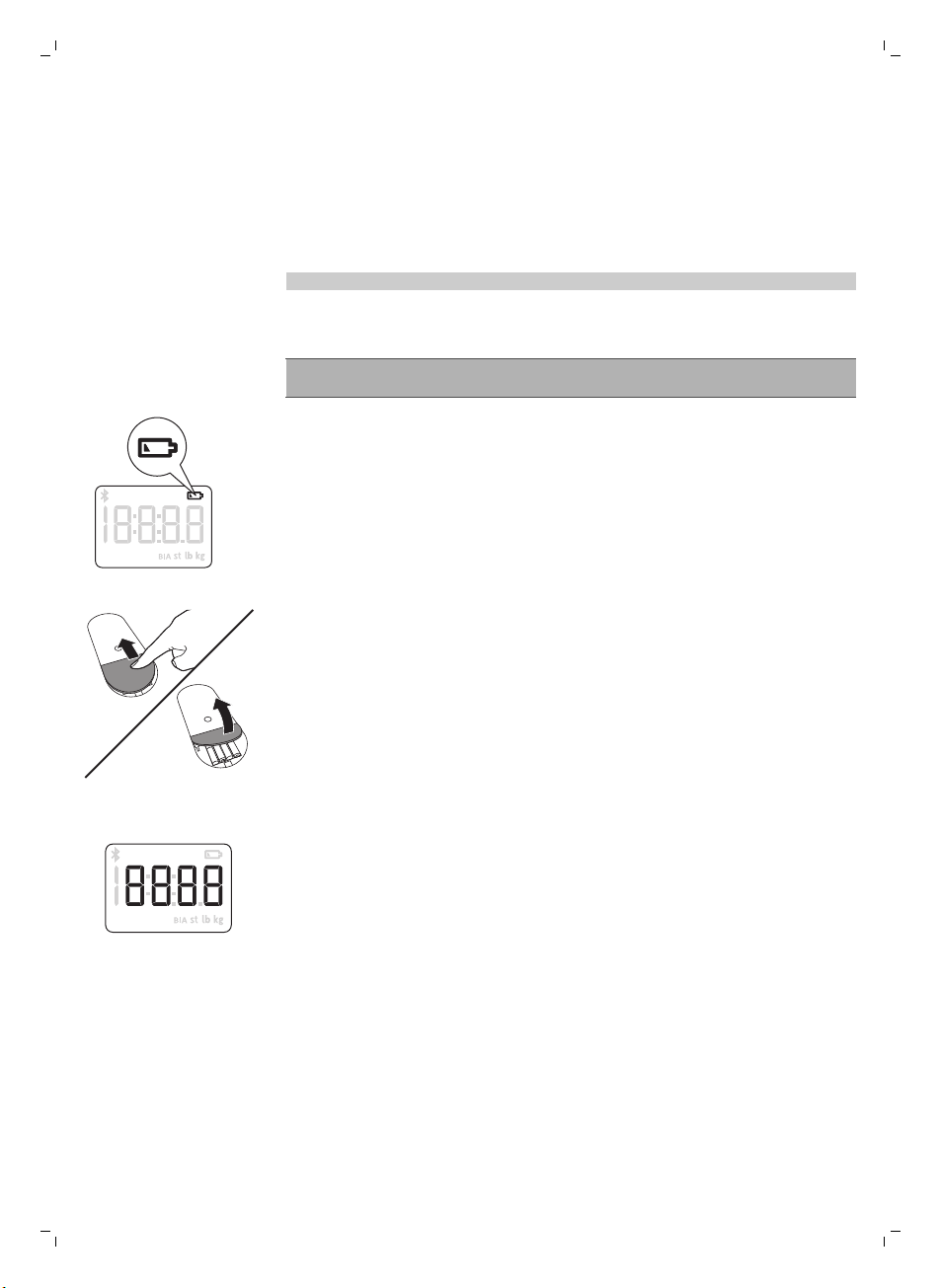

This device has a battery low indication. When the battery level is below
operating value, this will be indicated by the low battery icon after which the
device shall switch off within 4 sec.
1 Open the battery compartment at the back of the device.
2 Insert the batteries (4x 1.5V AAA alkaline) into the battery compartment
according to the polarity indications marked inside the compartment.
English
11
-
The digits “8888” will show on the display.
Page 12
12
English

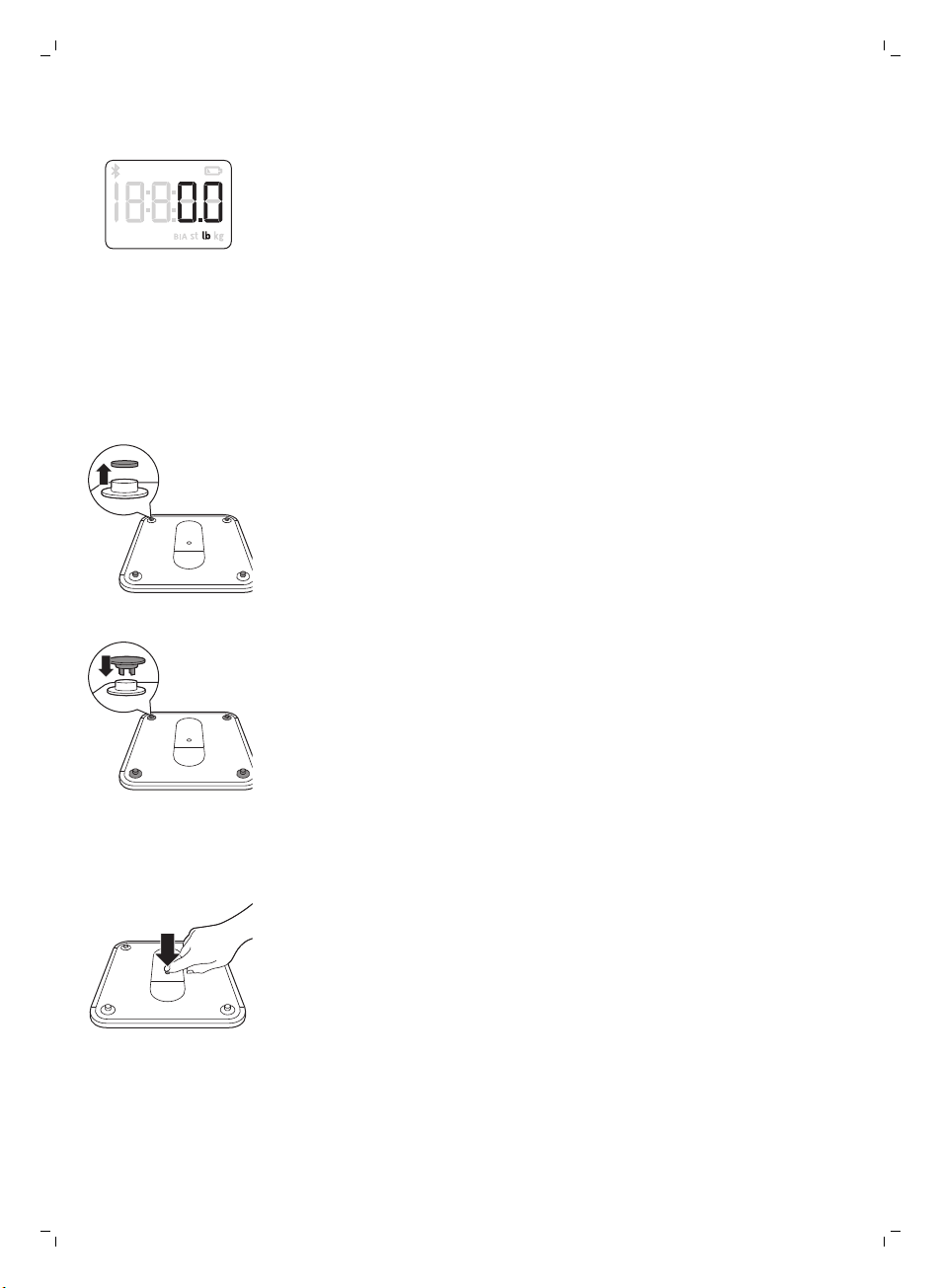

3 Close the battery compartment and wait until the digits “0.0lb” are shown
on the display. You can change measurement 'Setting the measurement
unit' section.
Placing the carpet feet
Soft surfaces such as carpet will affect the performance of the device.
Always install the supplied carpet feet in case you place the device on a soft
surface to prevent the soft surface from affecting the performance.
1 Remove the non-slip pads from the feet of the device.
2 Fit the carpet feet firmly onto the feet of the device.
Setting the measurement unit

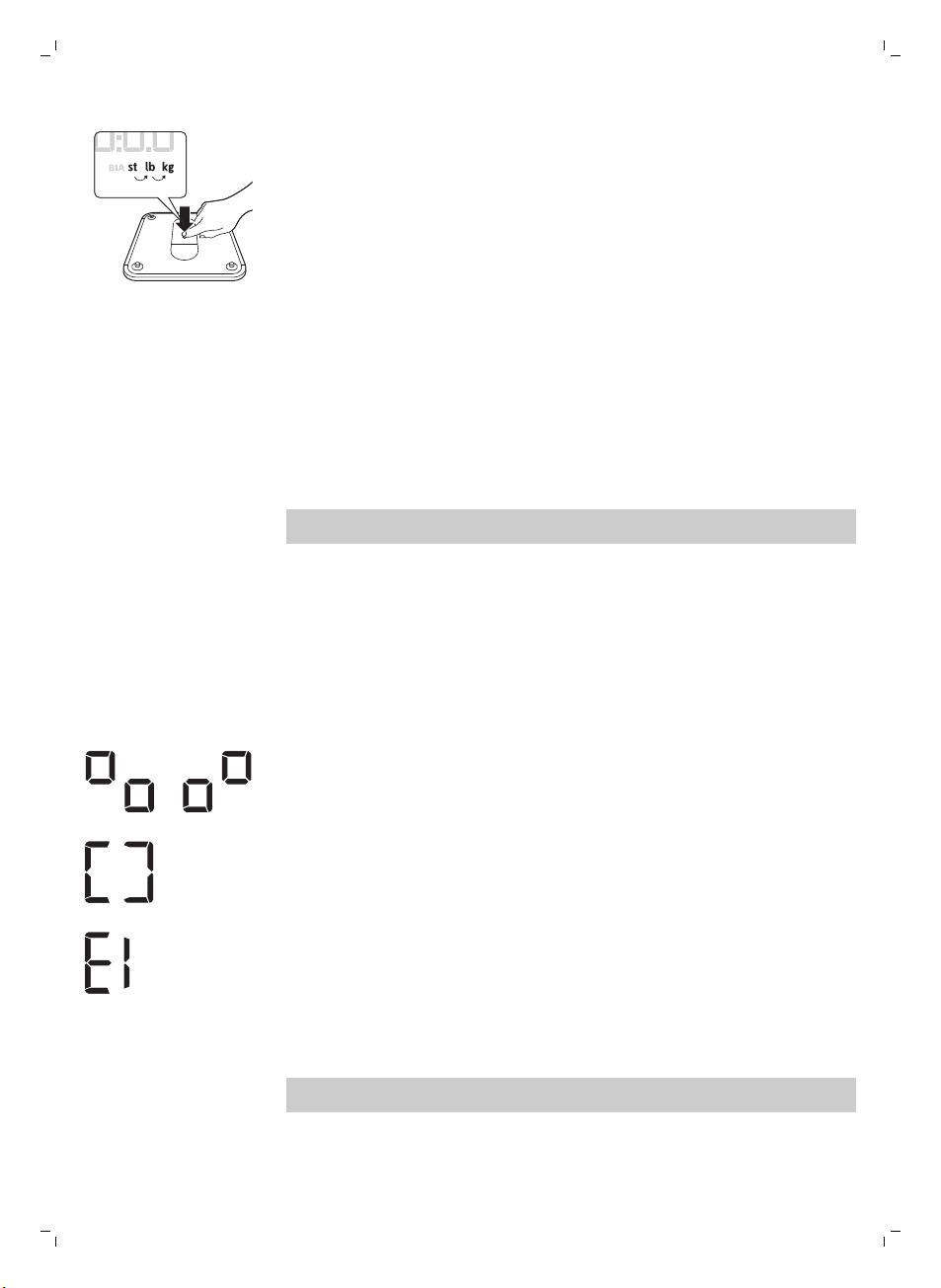

1 Press the measurement unit button in the bottom of the device to select
the measurement unit.
Page 13
1x 1x
English
2 Press the measurement unit button again to switch between the
available measurement units: kilograms, pounds and stones.
Pairing the body analysis scale to your mobile device and create a user profile
Your Philips body analysis scale is equipped with Bluetooth® Smart.
Download the Philips HealthSuite health app from the App store or Google
Play. Use the search term 'Philips HealthSuite health app'. The app is
available for iOS® 8.0+ and Android
Note: You can only use the Philips HealthSuite health app to communicate
with the scale. It is not possible to use third party applications.
1 Download the Philips HealthSuite health app on your mobile device, start
the Setup wizard and follow the steps to create a user profile and add
the scale.
2 Make sure the app is open and Bluetooth® is on when pairing is in
progress.
-
Keep the mobile device and the scale at transmission distance (no
more than 16 feet / 5 meters from each other, in the same room).
3 To start the pairing process press the measurement unit button for 3
seconds.
-
These symbols are shown on the display alternately, indicating that
the connection is being established.
TM
4.4+.
13
-
If the connection has been established successfully, the display
shows this symbol.
-
If the connection has failed, the display shows this symbol.
4 In the app, create the profile you want to use for the connection.
-
The scale can create 8 user profiles.
-
If all profiles are in use, choose an existing profile to overwrite.
5 Step on the scale barefoot to do an initial weighing. That weight is
assigned to your user profile. The scale switches off automatically.
Note: If you want to edit your user profile later on, make sure the scale is
turned on and connected to the health app.
Page 14
14
English
Measuring weight and body fat
Tips for proper measurement
To ensure accurate measurements, please follow these instructions when
you start measuring.
-
Place the device on a flat, hard surface. Soft surfaces such as carpet
affect the performance of the device. If you use the device on a soft
surface, make sure you attach the carpet feet supplied to the feet of the
device (see 'Placing the carpet feet'). This helps to prevent soft surfaces
from affecting the performance of the device.
-
A bioelectrical impedance analysis (BIA) measurement can only be
performed if you are barefoot.
-
Step onto the device barefoot, make sure your feet are slightly damp and
clean. Stand still and keep full contact with the measurement platform
until the measurement is complete. Be careful not to slip. The condition
of the skin of the soles of your feet can affect the measurement. The
natural effects of aging or activity can make this skin hard.
-
Do not stand on the edge of the scale as you may fall or receive
inaccurate measurements.
-
Do not use the device on an uneven floor as it may result in unreliable
data.
-
Replace batteries before they are completely empty.
-
For a meaningful comparison, try to measure under similar conditions.
For example, take measurements at approximately the same time, on the
same surface. Body fat percentage estimates will vary as a result of the
amount of water in the body, and can be affected by dehydration or
over-hydration due to such factors as alcohol consumption,
menstruation, illness, intense exercise, etc.
We advise you not to use the scale in the following circumstances, as this
may cause inaccurate measurements:
-
Immediately after strenuous exercise.
-
Immediately after a sauna or bath.
-
Immediately after eating or drinking.
Performing a measurement
Performing a measurement with app
Note: Your personal measurement data can only be stored and displayed
via the Philips body analysis scale and Philips HealthSuite health app and
not by use of third party apps.
Note: When the scale is connected via Bluetooth® to the app of a user, the
scale will automatically select that user and measurements can only be
done for that user.
1
Switch on Bluetooth® on your mobile device and open the health app.
Page 15
< 16ft
English
-
Keep the mobile device and the scale at transmission distance (no
more than 16 feet / 5 meters from each other, in the same room).
-
The Bluetooth® symbol lights up when the scale is connected to the
mobile device. The Bluetooth® symbol flashes when data
transmission has succeeded.

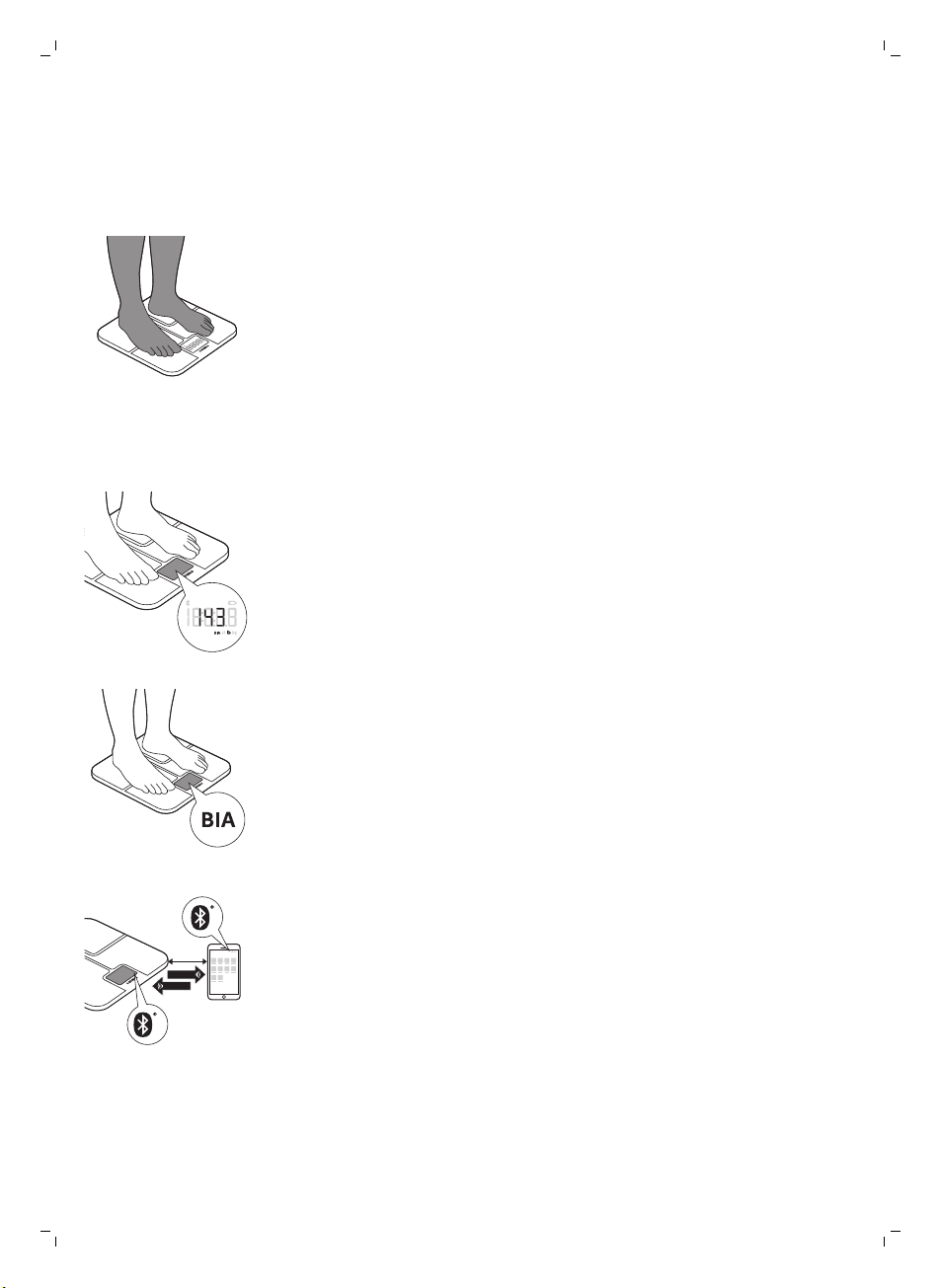

2 Step onto the scale to switch it on. The scale beeps to indicate that it is
ready for weighing. The scale is equipped with user profile recognition
and automatically selects the user when the health app is connected.
-
You can take a measurement barefoot. The scale is able to perform the
weight measurement and the BIA measurement and store this
measurement data in the health app. Make sure your feet are clean and
slightly damp.
-
You can also take a measurement wearing footwear. The scale is only
able to perform the weight measurement and not the body fat estimation
and BMI calculation. Your measurement results will not be stored or sent
to the health app.
3 Weight measurement starts.
-
Weight is shown on the display of the scale after weight measurement
ends.
15
4 BIA measurement starts (when measuring barefoot).
-
The symbol 'BIA' flashes on the display to indicate the scale is
analyzing your data.
5 Stand still and keep full contact with the measurement platform until the
symbol ‘BIA’ stops flashing. The device beeps to indicate that the
measurement is completed. The results of the BIA are shown in the app.
6 With the scale successfully connected to your mobile device, the
measurement data is automatically transmitted to your mobile device via
Bluetooth® Smart.
-
The Bluetooth® symbol on the scale flashes while the measurement
data is transmitted to the app.
-
The measurement results are shown and stored in the health app.
7 After measuring, step off the scale. The scale switches off automatically.
Performing a measurement without app
The scale can be used without the app. This allows you to measure your
weight. When you have created a user profile in the scale, you can measure
Page 16
16
English
your weight and perform BIA. You can also upload your measurement data
to the health app later on, when the scale and your mobile device are
connected. Results of the body analysis measurement can only be accessed
using the Philips HealthSuite health app. The scale cannot directly
communicate BIA results to the user.

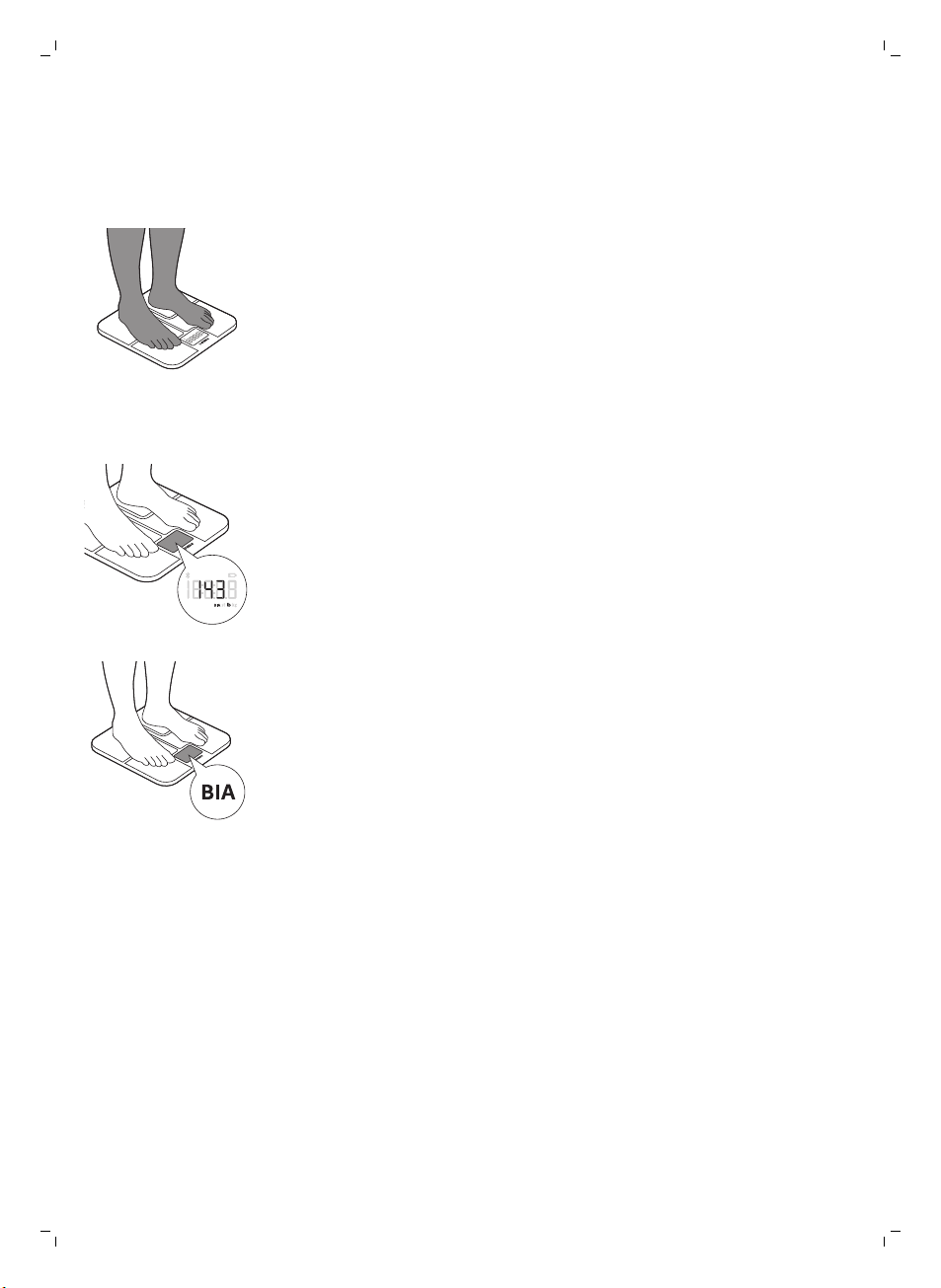

1 Step onto the scale barefoot to switch it on. The device beeps to indicate
it is ready for weighing.
-
You can take a measurement barefoot. The device is able to perform the
weight measurement and the BIA measurement and later on store the
measurement data in the health app. Make sure your feet are clean and
slightly damp.
-
You can also take a measurement wearing footwear. The scale is only
able to perform the weight measurement and not the body fat estimation
and BMI calculation. Your measurement results will not be stored or sent
to the health app.
2 Weight measurement starts.
-
Weight is shown on the display of the device after weight
measurement ends.
3 BIA measurement starts (when measuring barefoot).
-
The symbol 'BIA' flashes on the display to indicate the device is
analyzing your data.
4 Stand still and keep full contact with the measurement platform until the
symbol ‘BIA’ stops flashing. The device beeps to indicate that the
measurement is completed. The results of the BIA will not be shown on
the display.
5 The device is equipped with user profile recognition and automatically
selects the user based on their weight.
-
When the device immediately displays the weight: no user is
recognized and results are not stored. See below for instructions.
-
When the device shows multiple users: more users are recognized
based on your weight. See below for instructions.
6 The measurement results are stored in the device in case of a successful
BIA.
-
The device can store up to 40 measurement results for each user
profile. The oldest results will be replaced by new measurement
results.
7 After measuring, step off the device. It switches off automatically.
When the device does not automatically recognize the correct
user profile:
Page 17
-

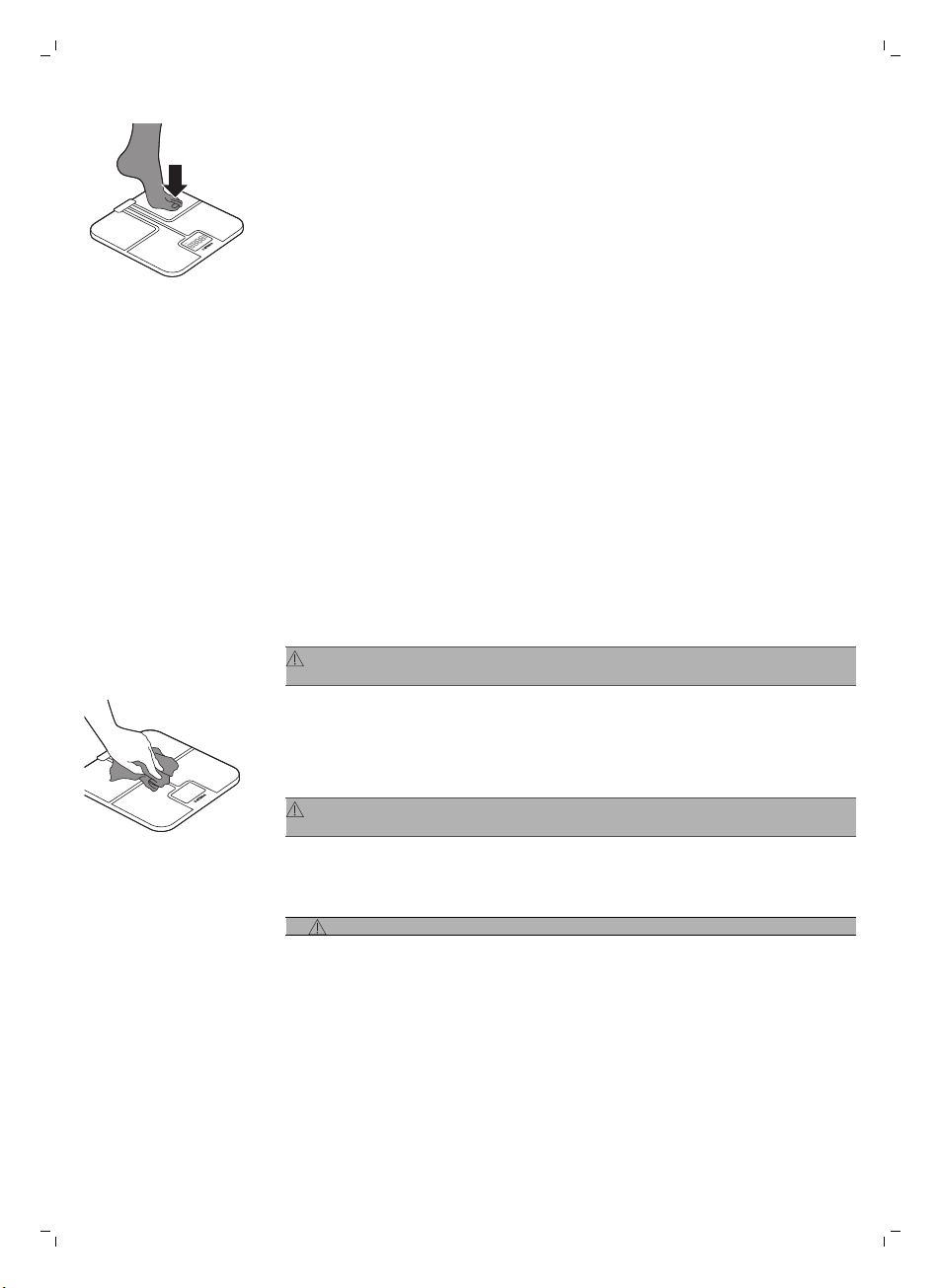

To select the correct user profile, step off the device and tap on the
measurement platform to confirm the correct user profile.
-
All profiles will be shown alternately on the display. Tap on the scale
to confirm your user profile.
-
Make sure that you select the correct user.
Factory reset
To add up to 8 new user profiles or delete all measurement results from the
device, you can perform a factory reset. With the factory reset the device is
cleared from all existing user profiles and measurement results.
1 With the device turned on, press and hold the measurement unit button
located on the bottom of the device for 20 seconds, until "FACt" is shown
on the display. Now all data is deleted.
-
After resetting the scale will automatically turn off.
-
You can now create new users profiles (see 'Pairing the body analysis
scale to your mobile device and create a user profile').
Cleaning and storage
Caution: Never immerse the device in water and do not rinse it under
the tap.
1 Wipe the surface of the device with a cloth.
-
Use a dry cloth to wipe dust off the surface of the device.
-
Use a slightly damp cloth to wipe dirt off the surface of the device. Dry
the surface with a dry cloth after cleaning.
Caution: Do not use propellant, abrasive or other chemicals to clean
the device in order to avoid discoloration or malfunction of the scale.
2 Store the device in a dry, dust-free place away from direct sunlight or
other heat sources. Avoid surroundings with fluctuating temperatures
(see Specifications').
Caution: Do not drop the device.
This device has no other user-serviceable parts. For assistance call
1-844-531-6861.
English
17
Accessories
Disposal
Philips accessories may be purchased at a store near you, or on our website
www.philips.com/store.
This product contains batteries:
Page 18
18
English
-
Dispose of batteries properly. Do not incinerate. Batteries may explode if
overheated.
-
Do not wrap in metal or aluminum foil. Tape the waste battery terminals
before discarding.
-
It is suggested that you contact your local town or city to determine
proper battery recycling site(s) in your area.
-
Battery must be removed from the device before discarding.
Assistance
For assistance, visit our website:
www.philips.com/support or call toll free 1-844-531-6861
Full Two-Year Warranty
Philips Electronics North America Corporation warrants each new Philips
product, models DL8781, DL8780, against defects in materials or
workmanship for a period of two years from the date of purchase and
agrees to repair or replace any defective product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident,
misuse or abuse, lack of reasonable care, the affixing of any attachment not
provided with the product or loss of parts or subjecting the product to any
but the specified voltage.*
NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply go to www.philips.com/support
or call toll-free 1-844-531-6861. It is suggested that for your protection you
return shipments of product by insured mail, insurance prepaid. Damage
occurring during shipment is not covered by this warranty. NOTE: No other
warranty, written or oral, is authorized by Philips Electronics North America
Corporation. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the
above exclusion and limitations may not apply to you.
* Read enclosed instructions carefully.
In U.S. only manufactured for: Philips Consumer Lifestyle, A Division of
Philips Electronics North America Corporation, P.O. Box 10313, Stamford, CT
06904.
PHILIPS and Philips Shield are Registered Trademarks of Koninklijke Philips
N.V.
Troubleshooting
This chapter summarizes the most common problems you could encounter
with the device. If you are unable to solve the problem with the information
below, visit www.philips.com/support for a list of frequently asked
questions or call 1-844-531-6861 for assistance.
Page 19
Problem Possible cause Solution
The display shows ---and shuts down.
Maximum weight limit is
reached. The scale has a
weight limit of 28st 5 lb (397
lb) / 180 kg.
The scale can accommodate a maximum
of 28 st 5 lb (397 lb) / 180 kg. Stop using
this device.
English
19
The display shows the
battery low symbol and
switches off after a few
seconds.
The display shows E1. Pairing has failed. Check if Bluetooth® on your mobile
Unexpected measurement
results .
The device is placed on a soft
Your feet are too dry. Wipe your feet with a damp cloth to
The display remains blank
when the device is
switched on.
The batteries are empty. Replace all four batteries at the same
The device does not
perform
measurement/analysis of
body fat.
The batteries are
almost empty.
Incorrect posture. Please step on the measurement
surface such as a carpet or on
an uneven surface.
There are no batteries in the
device.
You are standing on the
measurement platform
wearing socks or shoes.
Replace all four batteries at the same
time. We advise you to replace batteries
before they are completely empty. Use
4x 1.5V AAA akaline batteries.
device is on, the Philips HealthSuite
health app is open and if the scale and
your mobile device are no more than 16
feet / 5 meters away from each other.
platform and stand still. When measuring
barefoot, make sure your feet are clean
and slightly damp.
Place the device on a flat, hard surface
or attach the carpet feet supplied to the
feet of the scale.
make sure that they are slightly damp
when you take the measurement.
Insert 4x 1.5V R6 AAA alkaline batteries
(see 'Inserting/removing the batteries').
time with new ones. Use 4x 1.5V R6 AAA
alkaline batteries.
Make sure you are barefoot during the
BIA measurement and keep full contact
with the measurement platform. Make
sure your feet are clean and slightly
damp.
The device switches off
automatically.
Data transmission failed. Bluetooth® is off. Turn on Bluetooth® on your mobile
The Philips HealthSuite
The scale and your mobile
The batteries are empty. Replace all four batteries at the same
health app is off.
device are more than 16 feet /
5 meters away from each
other.
time. We advise you to replace batteries
before they are completely empty. Use
4x 1.5V AAA alkaline batteries.
device.
Press the icon on your mobile device to
activate the health app.
Place your mobile device closer to the
scale.
Page 20
20
English
Problem Possible cause Solution
When the profiles were
shown alternately on the
display, you selected the
wrong profile.
Repeat the measurement and confirm
the correct user profile by tapping on the
scale.
You are standing on the
measurement platform
wearing socks or shoes.
Make sure you are barefoot during the
BIA measurement and keep full contact
with the measurement platform. Make
sure your feet are clean and slightly
damp.
Specifications
Product name.
Dimensions scale. 12 41/64 x 12 41/64 x 63/64 in / 321 x 321 x 25mm.
Net weight. Approximately 4.4 lb / 1.98 kg (excluding the batteries).
Display. LCD with white LED backlight.
Measurement units. Kilogram / stone / pound.
Measurement range. 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb .
Graduations. 0.1kg / 0.1lb.
Accuracy. 5-50 kg: ±0.3 kg / 11-110 lb: ±0.7 lb.
Measuring method Bioelectrical Impedance Analysis (BIA) for body fat analysis.
Accuracy BIA ±15 ohms in the range of 200 – 1000 ohms.
Operating
environment.
Philips body analysis scale with Bluetooth®.
50-100 kg: ±0.4 kg / 110-220 lb: ±0.9 lb.
100-150 kg: ±0.5 kg / 220-330 lb: ±1.1lb.
Temperature: 41°F to 104°F / 4,5°C to 40°C.
Humidity: 15% RH to 93%RH, atmospheric pressure: 70kPa to 106kPa.
Storage and shipping
environment.
Power source. 6V (4x 1.5V AAA alkaline batteries).
Switch-on method. Sense-On technology.
Auto-off. The device turns off after about 10 seconds in case of inactivity.
Accessories. 1. 4x 1.5V AAA alkaline batteries.
Mode of operation Continuous operation
Temperature: -4°F to 140°F / -20°C to 60°C.
Humidity: ³93% RH, atmospheric pressure: 50kPa to 106kPa.
2. User manual.
3. Carpet feet.
Page 21
English
21
Degree of protection
against harmful ingress
of water of particular
matter
Applied part
(measurement
platform)
Protection against
electric shock
IP22
Type BF
Internally powered
The device is not suitable for use in the presence of flammable anesthetic
mixtures with air or with oxygen or nitrous oxide.
Electromagnetic emissions and immunity
The device is approved according to EMC safety standard EN 60601-1-2. It
is designed to be used in typical domestic environments.
EMC Guidance
-
The scale needs special precautions regarding EMC and needs to be
installed and put into service according to the EMC information provided
in the accompanying documents.
-
Wireless communications equipment such as wireless home network
devices, mobile phones, cordless telephones and their base stations,
walkie-talkies can affect this equipment and should be kept at least a
distance d = 3.3 m (11ft) away from the equipment.
Note: As indicated in IEC 60601-1-2:2007 for ME equipment, a typical cell
phone with a maximum output power of 2 W yields d = 3.3 m (11ft) at an
immunity level of 3V/m.
Table 1 Guidance and manufacturer's declaration – electromagnetic emissions - for all ME equipment and ME systems
Guidance and manufacturer’s declaration – electromagnetic emissions
The device is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that it is used in
such an environment.
Emissions test
RF emissions CISPR 11 Group 1 The device must emit electromagnetic energy
Compliance Electromagnetic environment -
guidance
in order to perform its intended function.
Nearby electronic equipment may be
affected.
Page 22
22
English
Emissions test Compliance Electromagnetic environment -
guidance
RF emissions CISPR 11 Class B
Harmonic emissions IEC
61000-3-2
Voltage fluctuations/flicker
emissions IEC 61000-3-3
Not applicable
Not applicable
Table 2 Guidance and manufacturer's declaration – electromagnetic immunity – for all ME equipment and ME systems
Guidance and manufacturer’s declaration – electromagnetic immunity
The device is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that it is used in
such an environment.
Immunity test
Electrostatic
discharge (ESD)
IEC 61000-4-2
Power frequency
(50/60Hz)
magnetic field IEC
61000-4-8
IEC 60601 test
level
±6 kV contact
±8 kV air
3A/m 3A/m Power frequency magnetic fields
Compliance
level
±6 kV contact
±8 kV air
Electromagnetic environment guidance
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30%.
should be at levels characteristic of a
typical location in a typical commercial
or hospital environment.
Table 4 Guidance and manufacturer's declaration – electromagnetic immunity –for ME equipment and ME systems that are not life supporting
Guidance and manufacturer’s declaration – electromagnetic immunity .The
device is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that it is used in
such an environment.
IMMUNITY test
Radiated RF
IEC 61000-4-3
IEC 60601 TEST LEVEL Compliance level
3 V/m
80 MHz to 2.5 GHz
3 V/m
Electromagnetic environment - guidance
Portable and mobile RF communications equipment should be used no
closer to any part of the device, including cables, than the recommended
separation distance calculated from the equation applicable to the
frequency of the transmitter.
Recommended separation distance:
d = 1.167 ÖP
Page 23
English
d = 1.167 ÖP 80 MHz to 800MHz
d = 2.333 ÖP 800 MHz to 2.5 GHz
where P is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer and d is the recommended
separation distance in metres (m).
Field strengths from fixed RF transmitters, as determined by an
electromagnetic site survey (a), should be less than the compliance level in
each frequency range (b).
Interference may occur in the vicinity of equipment marked with the
following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects
and people.
(a) Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM
and FM radio broadcast and TV broadcast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the
measured field strength in the location in which the device is used exceeds
the applicable RF compliance level above, the device should be observed
to verify normal operation. If abnormal performance is observed, additional
measures may be necessary, such as re-orienting or relocating the device.
(b) Over the frequency range 150 kHz to 80 MHz, field strengths should be
less than 3V/m.
23
Table 6 Recommended separation distances between portable and mobile RF communications equipment and the ME equipment or ME system – for ME equipment and ME systems that are not life supporting
Recommended separation distances between portable and mobile RF
communications equipment and the device.
The device is intended for use in an electromagnetic environment in which
radiated RF disturbances are controlled. The customer or the user of the
device can help prevent electromagnetic interference by maintaining a
minimum distance between portable and mobile RF communications
equipment (transmitters) and the device as recommended below, according
to the maximum output power of the communications equipment.
Rated maximum output
power of transmitter (W)
0.01 0.117 0.117 0.233
Separation distance according to frequency of transmitter (m)
150 kHz to 80 MHz
d = 1.167 Ö P
80 MHz to 800 MHz
d = 1.167 Ö P
800 MHz to 2.5 GHz
d = 2.333
Page 24
24
English
0.1 0.369 0.369 0.738
1 1.167 1.167 2.333
10 3.690 3.690 7.378
100 11.67 11.67 23.33
Separation distance according to frequency of transmitter (m)
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in metres (m) can be estimated using
the equation applicable to the frequency of the transmitter, where P is the
maximum output power rating of the transmitter in watts (W) according to
the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, the separation distance for the higher
frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects
and people.
FCC Compliance information
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC ID (2AEFK-DL8780 and 2AEFK-DL8781)
Radio interference
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
-
-
-
-
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Page 25
RF Radiation exposure statement
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. For handheld/body-worn operation, this
equipment has been tested and meets the FCC RF exposure guidelines. This
transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. Use of other accessories may not ensure
compliance with FCC RF guidelines.
Do not attempt to repair or modify this equipment. Any repairs or alterations
made by the user to the equipment may void the warranty and compliance
of the equipment. Changes or modifications made to this equipment not
expressly approved by Philips may void the FCC authorization to operate
this equipment. For assistance visit our website www.philips.com/support
or call toll-free 1-844-531-6861.
BlueTooth wordmark
The BlueTooth® Smart wordmark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under
license.
App Store and iPhone
App Store and iPhone are trademarks of Apple Inc., registered in the U.S.
and other countries. App Store is a service mark of Apple Inc.
English
25
Google Play and Android
Google Play and Android are trademarks of Google Inc.
Page 26
Page 27
empty page before backcover
Page 28
Specifications are subject to change without notice.
© 2016 Koninklijke Philips N.V.
All rights reserved
Manufactured for:
Philips Consumer Lifestyle
A division of Philips Electronics North America Corporation
P.O. Box 10313, Stamford, CT 06904
4222.100.xxxx.x (1/2016)
Loading...
